Item Specifications
Category
Condition
Used
Item Number
#992
Make
genie
Model
gs_4069dc
Year
2016
Industry
aerial
Equipment Type
scissor lifts rough terrain
Location
Choteau, OK
Also Available In
OK
Item Description
This 2016 Genie GS-4069DC rough terrain scissor lift provides elevated access for construction, installation, and maintenance work. Its electric drive and rough terrain tires support work across varied job site surfaces. The slide-out deck gives workers more room to position themselves at the work area. Mileage and/or engine hours are approximate and subject to change. Please contact your sales representative for the most current readings.
Specifications
General
| Year | 2016 |
| Make | genie |
| Model | gs_4069dc |
| Condition | Used |
| Tilt sensor activation (front to back/side to side) | 3°/2° |
| Power | 48V DC (8 x 6V 315Ah) |
| Vibrations | <8ft 2in/s² (<2.5m/s²) |
Working Range
| Slide-out platform extension deck - length | 5ft (1.52m) |
| Max. platform occupancy (in/out) | 3/2 |
| Lift capacity | 800lb (363kg) |
| Lift capacity - extension deck extended | 300lb (136kg) |
| Drive speed - stowed | 4.5mph (7.2km/h) |
| Drive speed - raised | 0.3mph (0.5km/h) |
| Gradeability - stowed | 35% |
| Lifting speed - raise/lower | 61/43 sec |
| Hydraulic tank capacity | 18gal (68.1L) |
| Occupied floor pressure | 220psf (10.56kPa) |
| Sound pressure level (ground workstation) | <70dBA |
| Sound pressure level (platform workstation) | <70dBA |
Undercarriage & Attachments
| Max. outrigger leveling (front to back/side to side) | 5.3°/11.7° |
| Tires - Non-marking, rough terrain | 12x26 in (30x66 cm) |
| Tire load max. | 3,735lb (1,694kg) |
| Tire contact pressure | 92.9psi (641kPa) |
Dimensions
| Working height max. | 46ft 3in (14.30m) |
| A Platform height max. | 40ft 3in (12.30m) |
| B Platform height - stowed | 5ft 5in (1.65m) |
| C Platform length - outside | 9ft 2in (2.79m) |
| Platform length - outside, extended | 14ft 2in (4.32m) |
| D Platform width - outside | 5ft 3in (1.60m) |
| Toeboard height | 6in (15cm) |
| E Height - stowed (folding rails) | 9ft (2.74m) |
| Height - stowed (rails lowered) | 6ft 10in (2.08m) |
| F Length machine - stowed | 10ft 3in (3.12m) |
| Length machine - stowed, extended | 14ft 9.5in (4.50m) |
| Length machine - with outriggers | 12ft 4in (3.76m) |
| G Width | 5ft 9in (1.75m) |
| H Wheelbase | 7ft 6in (2.29m) |
| I Ground clearance (center) | 9.5in (24cm) |
| Max. platform drive height | 40ft 3in (12.3m) |
| Weight | 10,948lb (4,966kg) |
| Weight with outriggers | 11,741lb (5,325kg) |

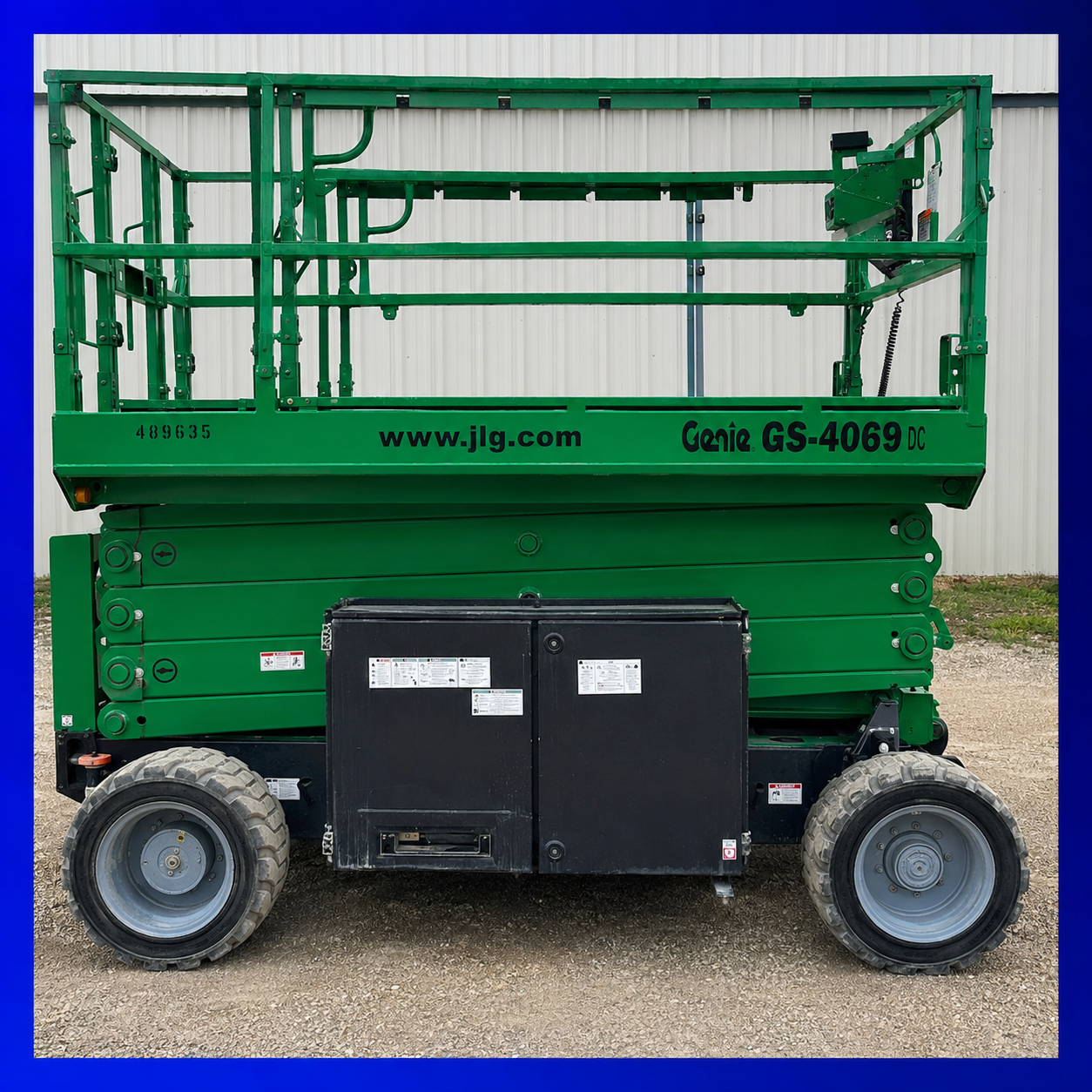

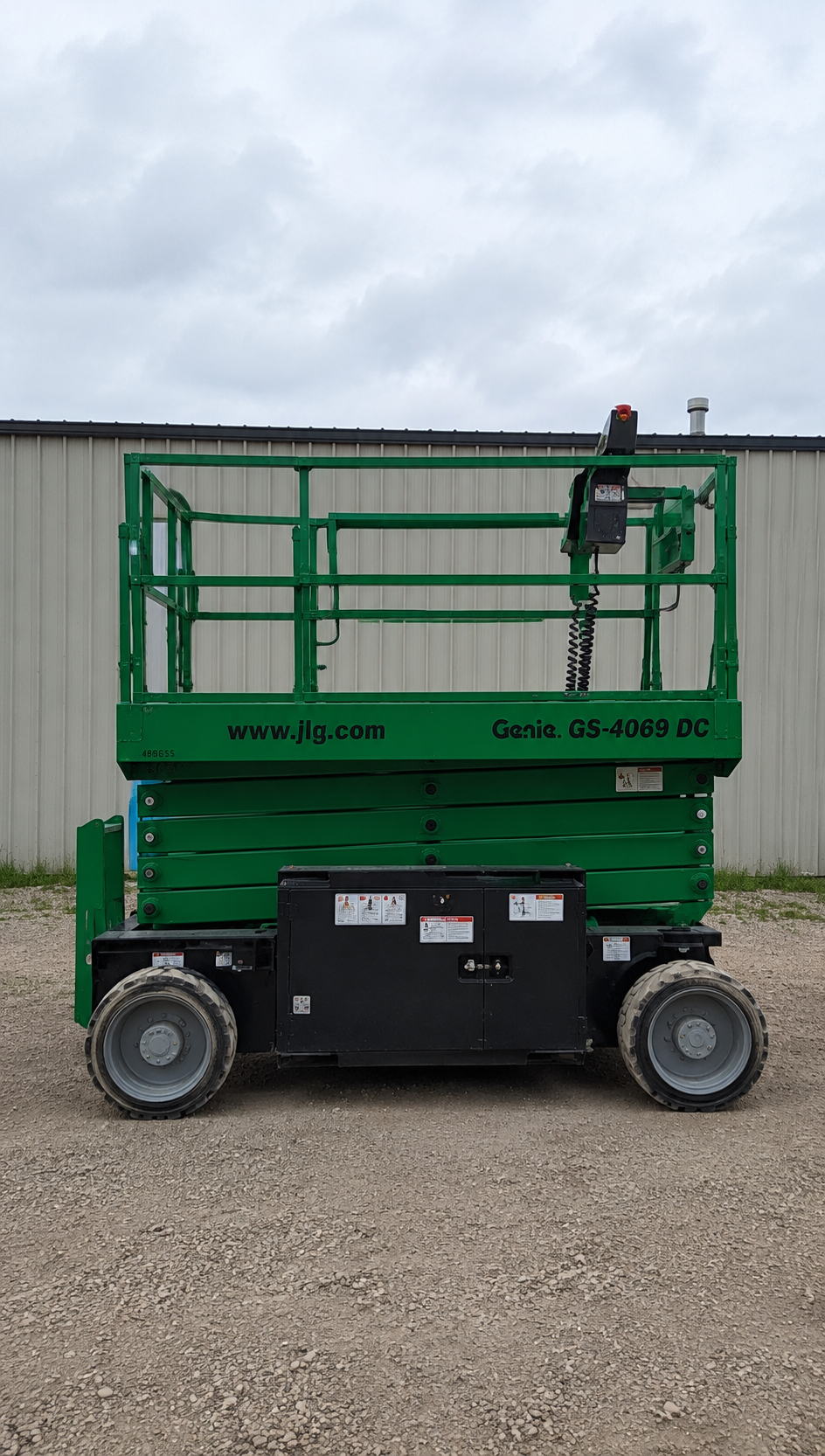

2016 Genie GS-4069DC Rough-Terrain Scissor Lift
