Item Specifications
Category
Condition
Used
Item Number
#882
Brand
Hitachi
Make
hitachi
Model
zw80_5b
Year
2021
Industry
construction
Equipment Type
wheel loaders
Location
Orlando, FL
Serial
RYUNHCGH0000*****
Hours
808
Item Description

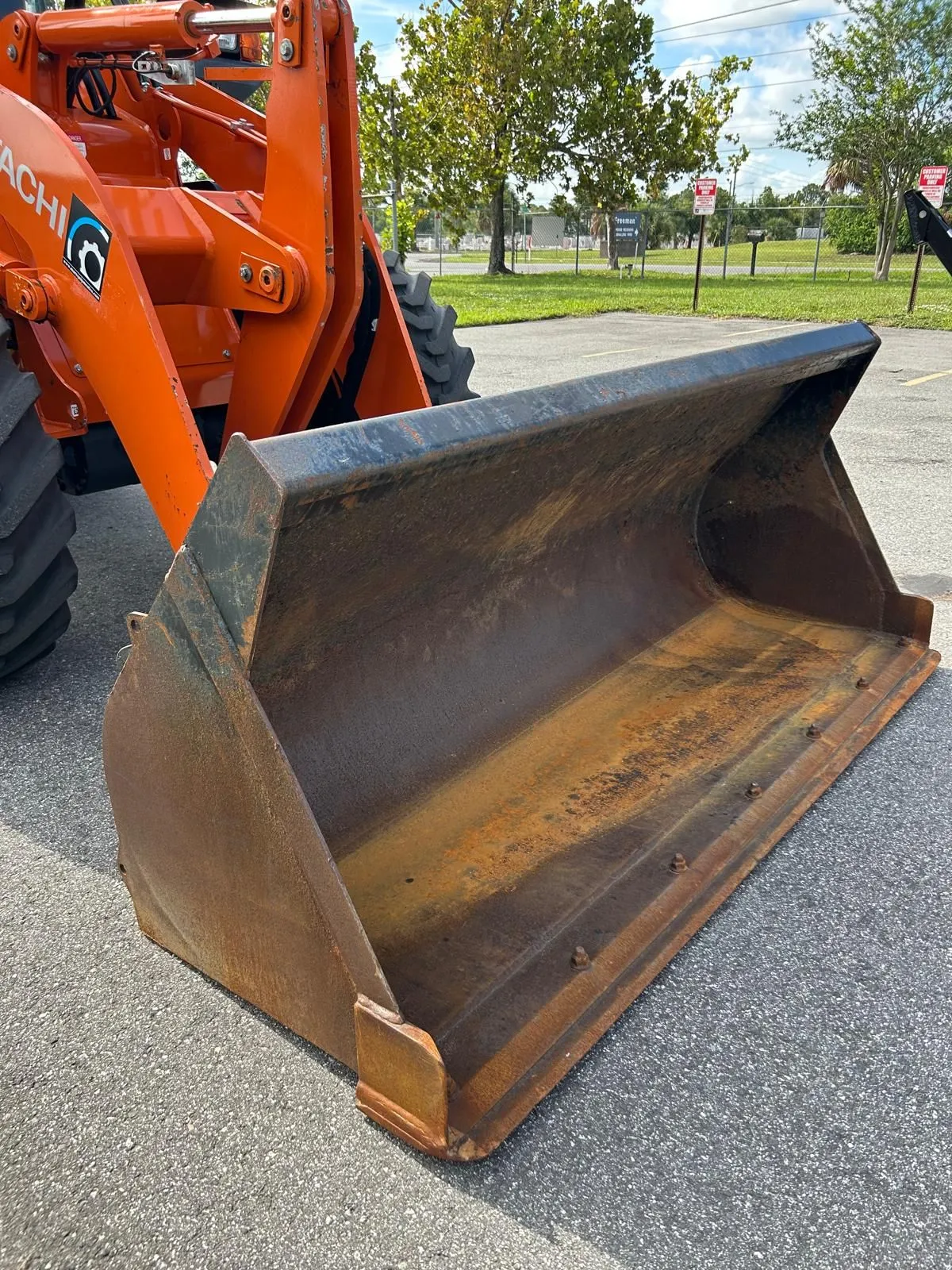

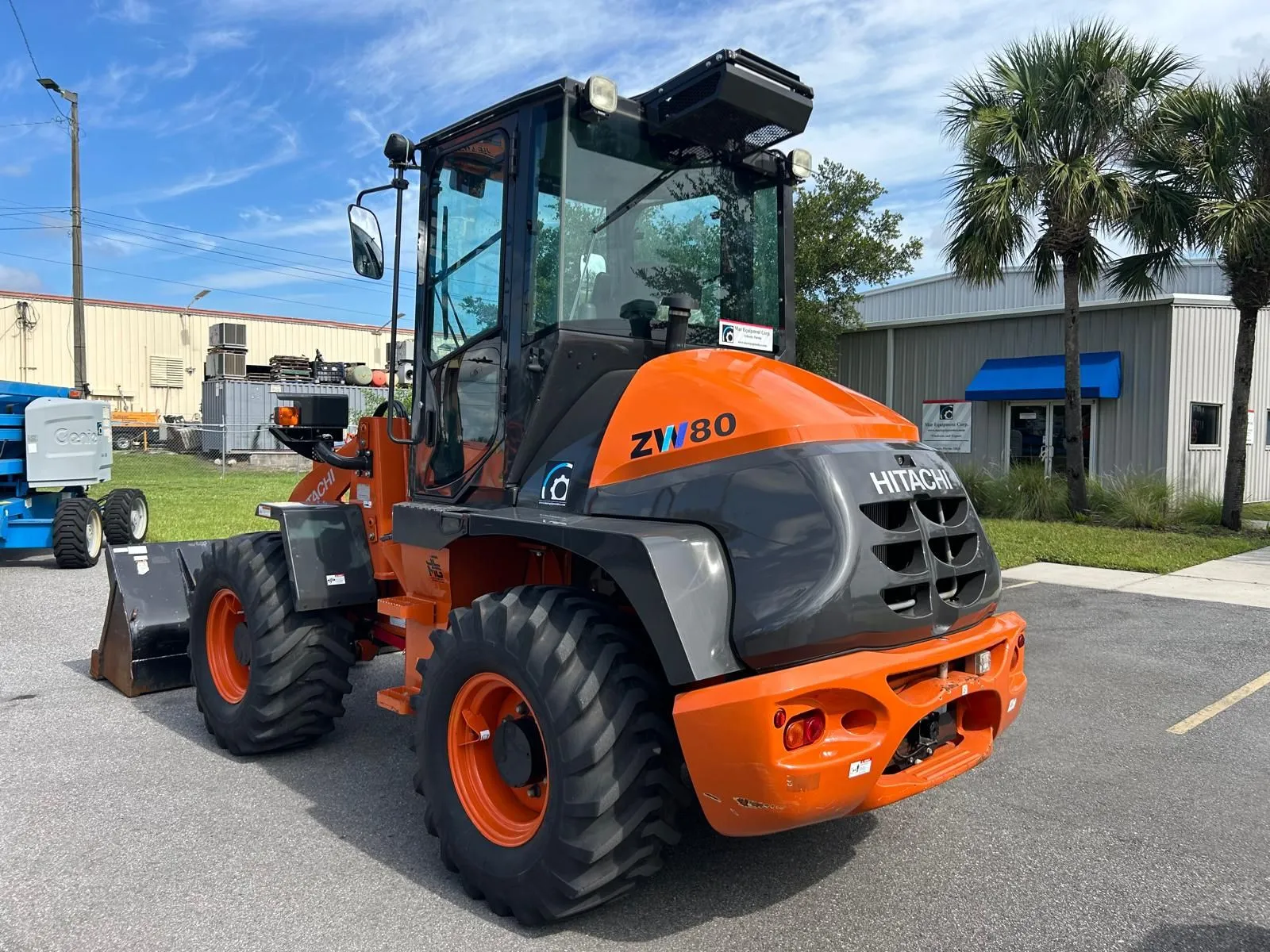

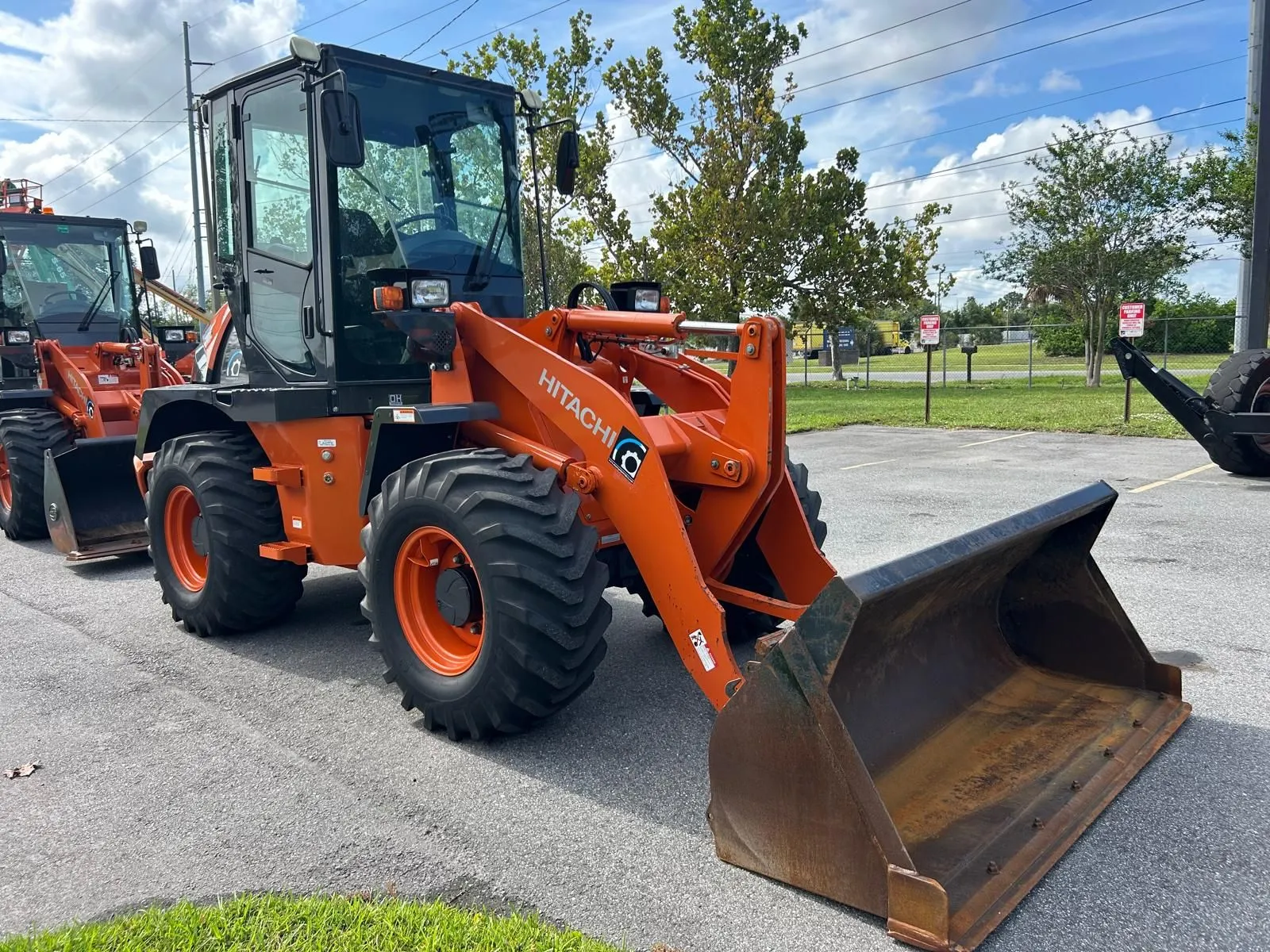

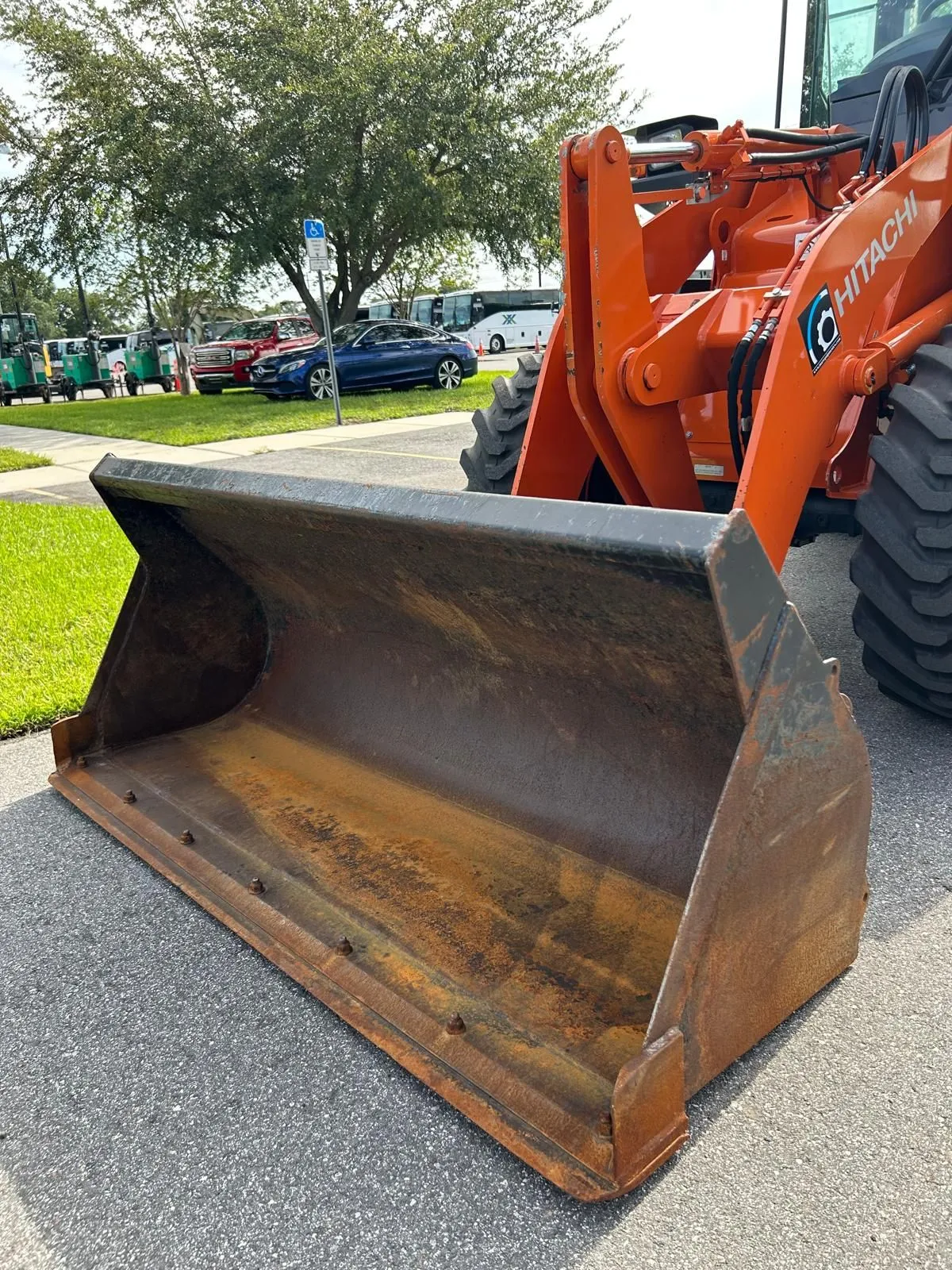

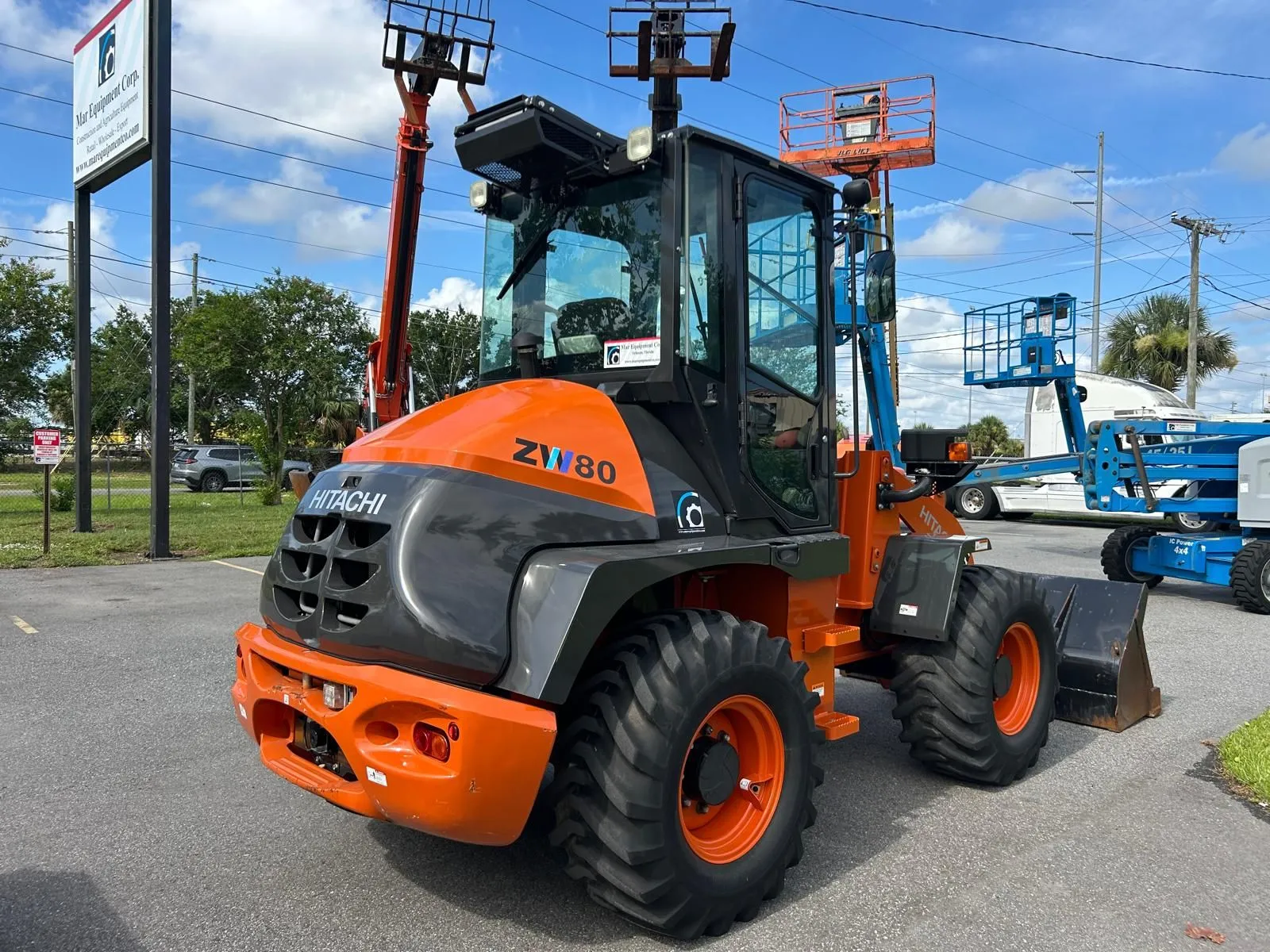

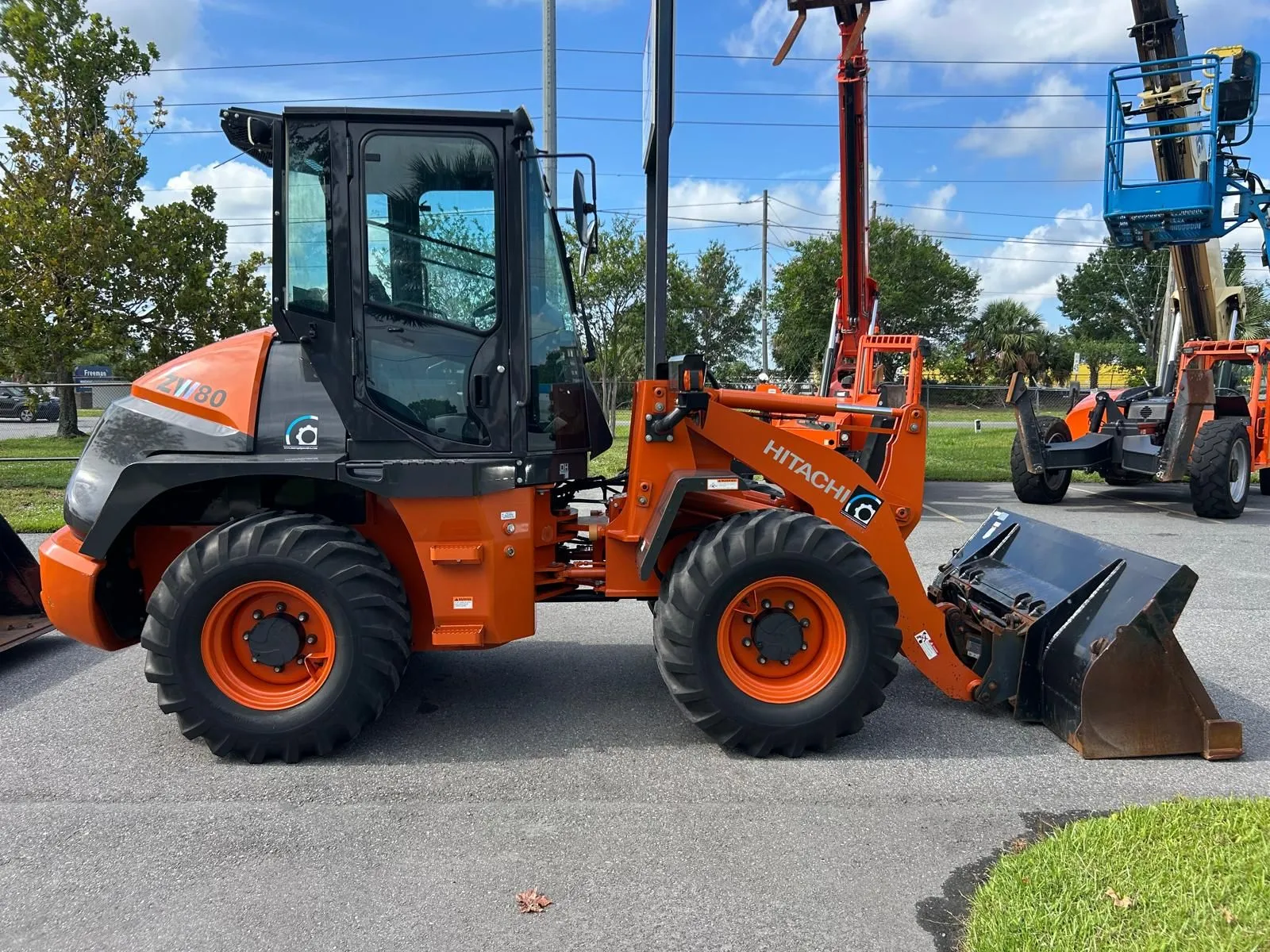

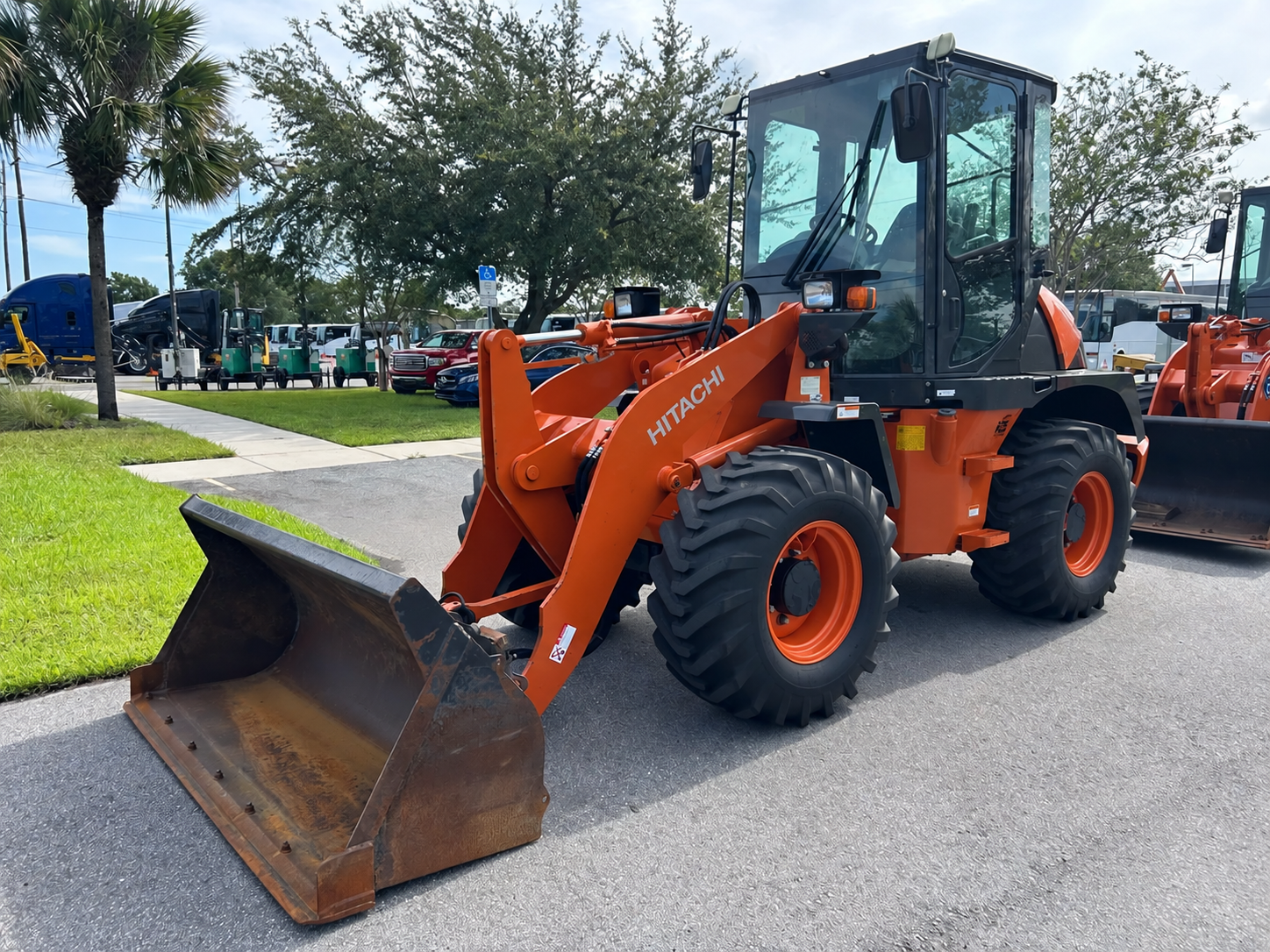

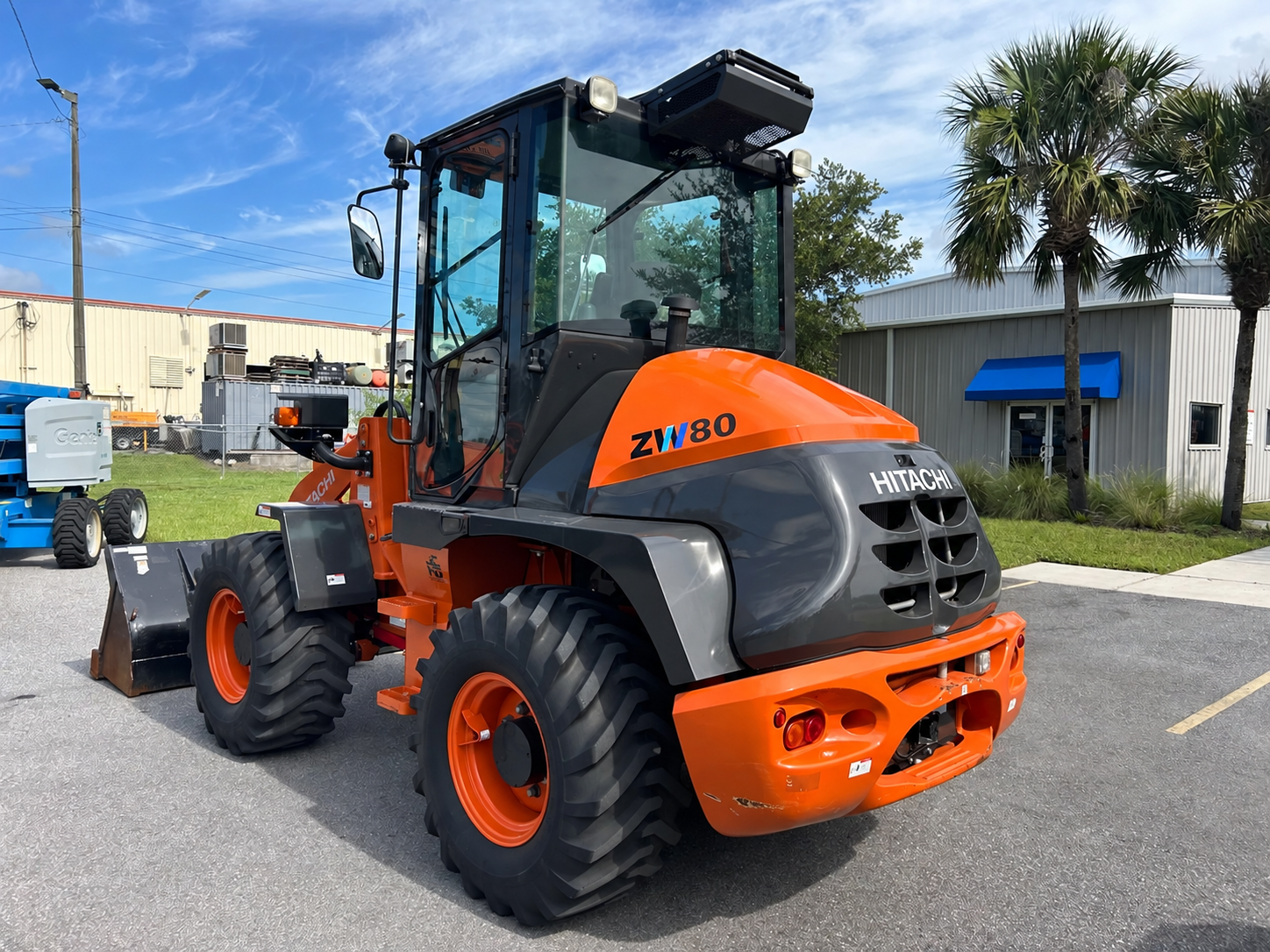

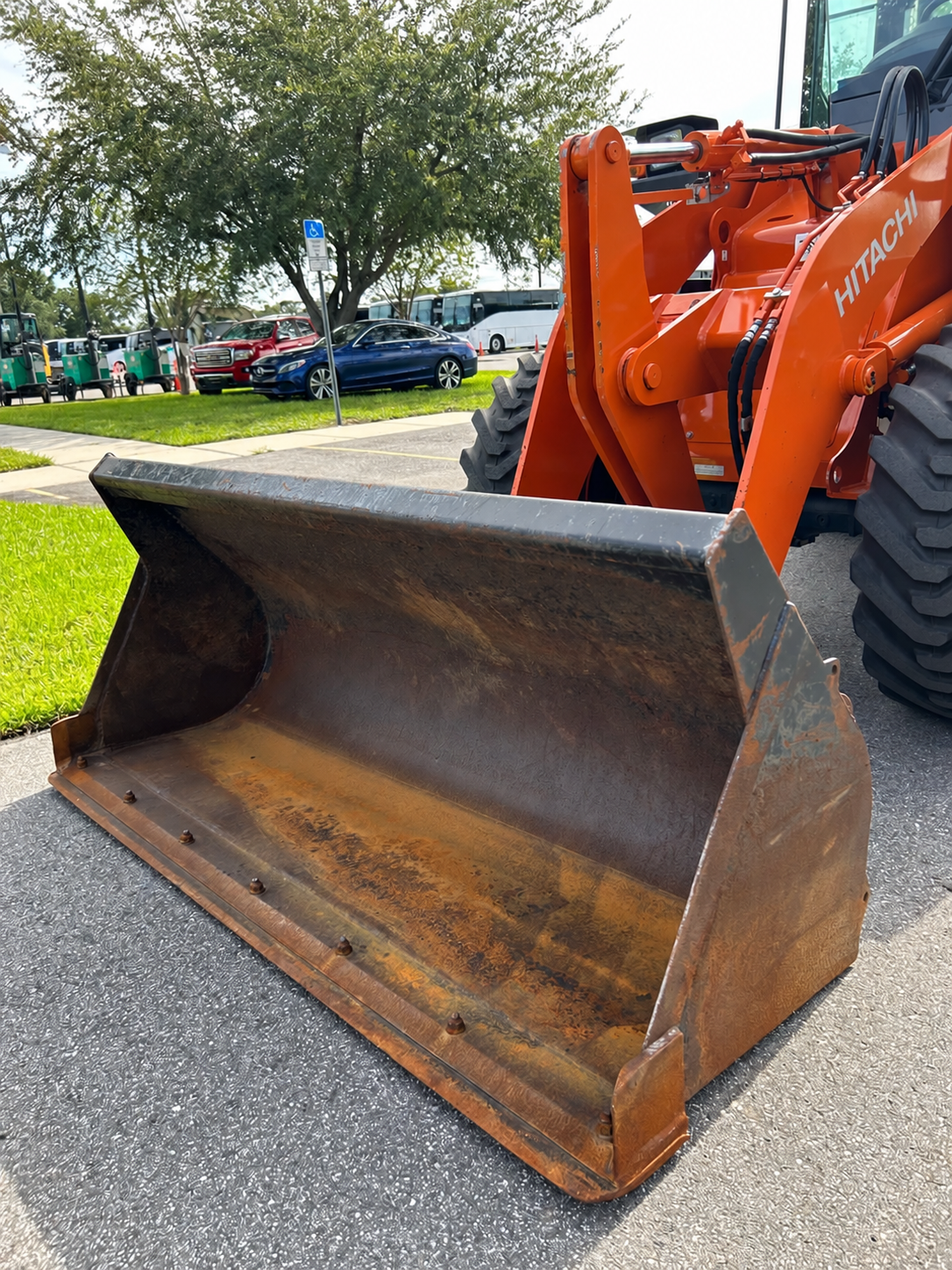

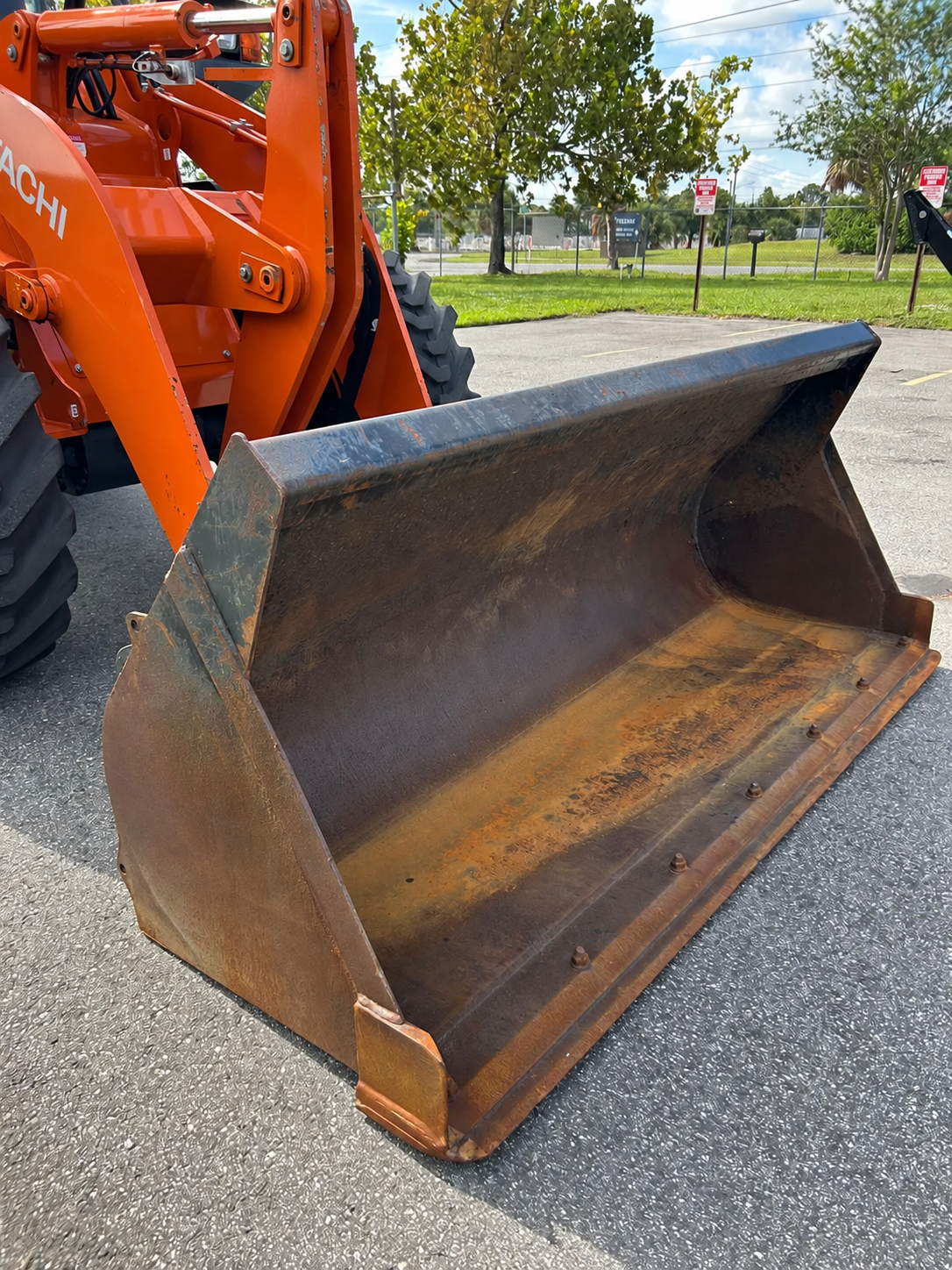

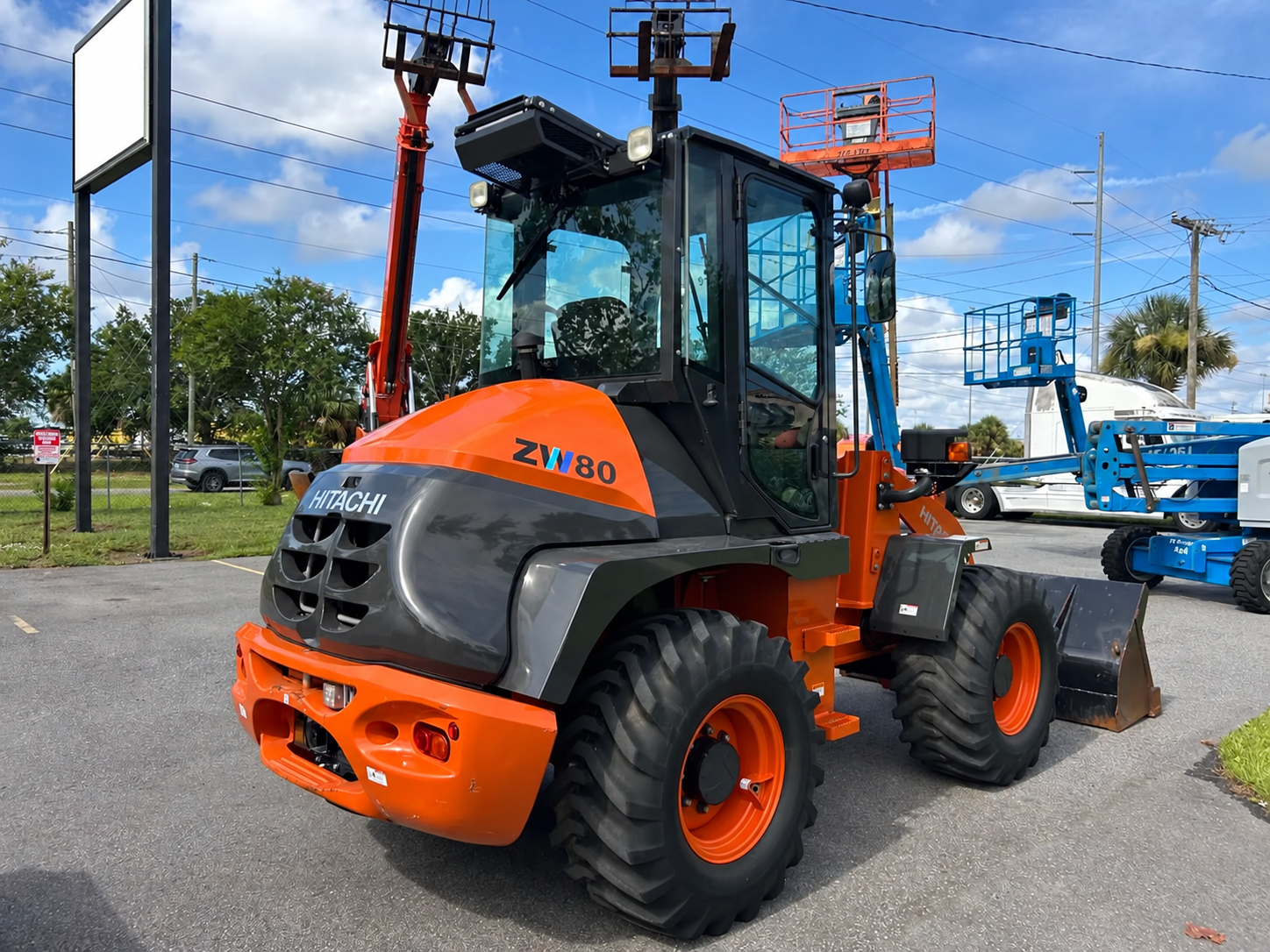

This 2021 Hitachi ZW80-5B wheel loader is suited to loading, moving, and stockpiling material. Its articulated steering helps it maneuver around a work site, and its bucket handles routine material-moving tasks. The machine is located in Orlando, Florida. Mileage and/or engine hours are approximate and subject to change. Please contact your sales representative for the most current readings.
Specifications
General
| Year | 2021 |
| Make | hitachi |
| Model | zw80_5b |
| Hours | 808 |
| Serial Number | RYUNHCGH0000***** |
| Condition | Used |
| Gross power (ISO 14396), metric equivalent | (49 kW/2,200 RPM) |
| Net power (ISO 9249) | 63 HP/2,200 RPM (47 kW/2,200 RPM) |

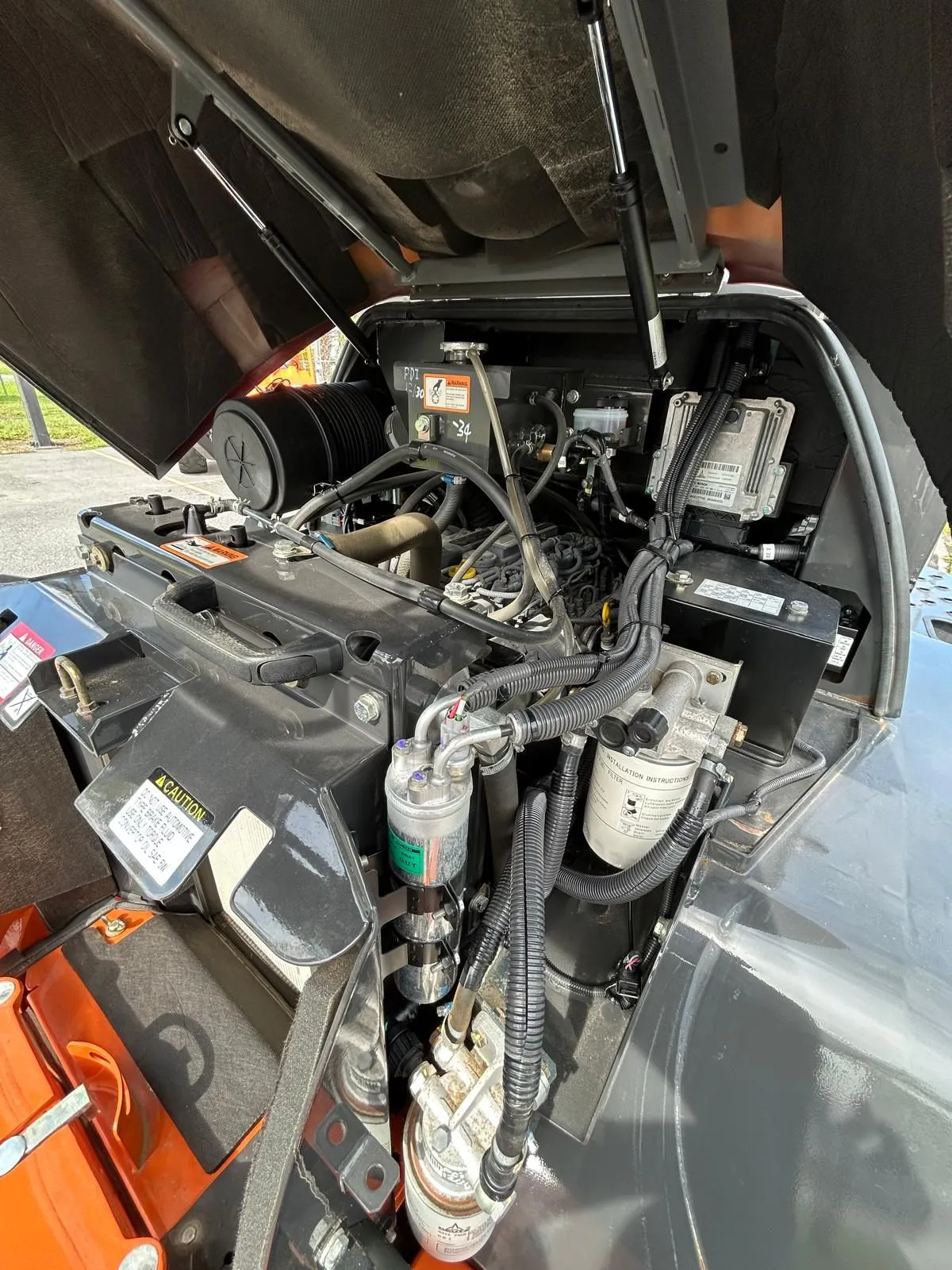

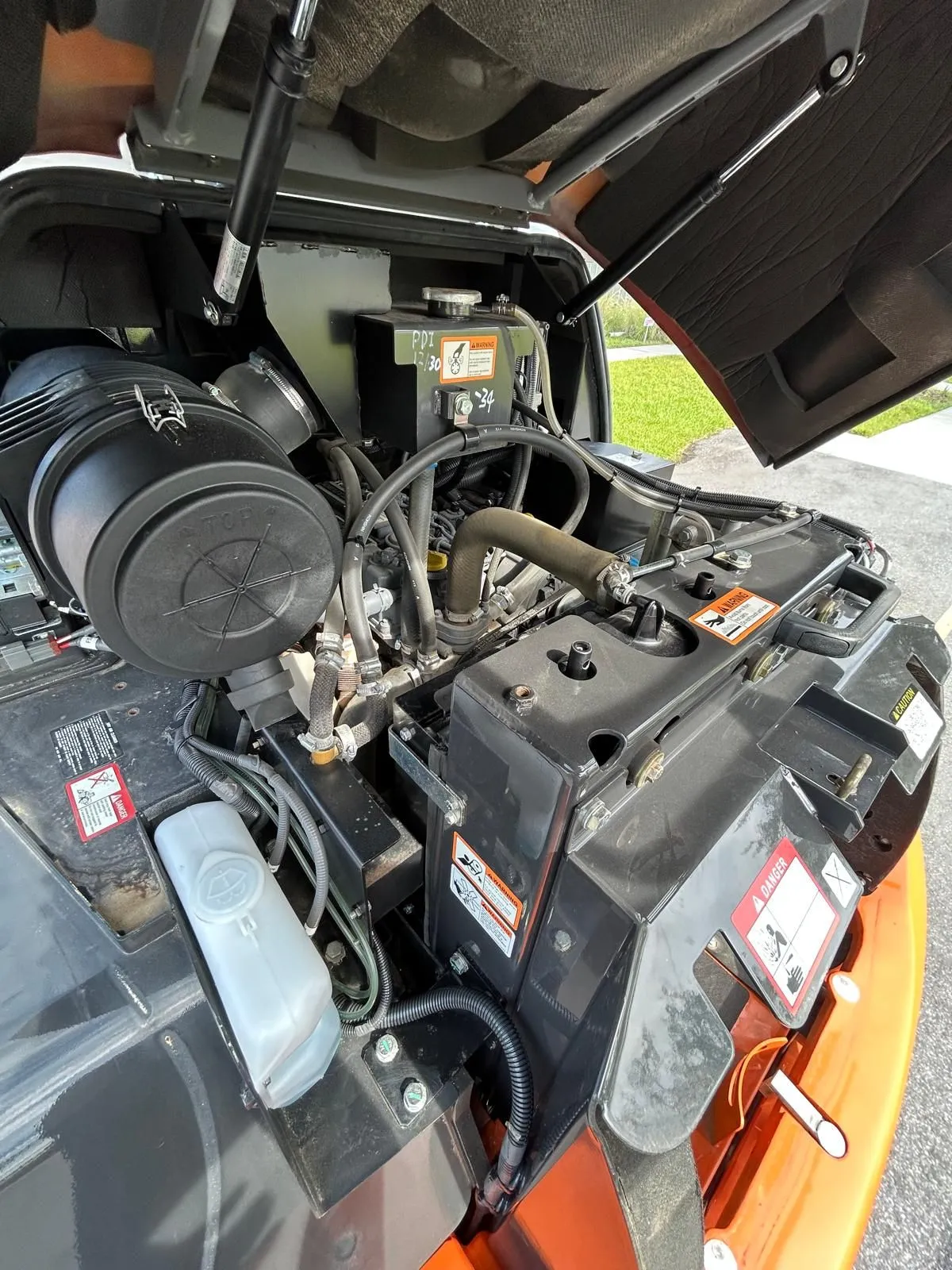

| Make/Model | Deutz TD2.9L4 diesel engine |
| Governor | All speed electrical type |
| Bore and stroke | 3.6" x 4.3" (92mm x 110mm) |
| Starter motor | DC 12V×4.4 HP (3.2 kW) |
| Steering type | Articulated frame steering |
| Steering mechanism | Double-acting piston type |
| Drive system | 4-wheel drive |
| Service brakes | Inboard mounted fully hydraulic wet disc brakes |
| Parking/Emergency brake | Spring-applied, hydraulically-released wet disc |
| T/M, gallons | 0.2 |
Engine & Powertrain
| Model Name / Emissions | ZW80-5B, EPA Tier 4 Final/EU Stage IV Certified |
| Gross power (ISO 14396), HP/RPM | 66 HP/2,200 RPM |
| Fuel type | 4-cycle, water-cooled, direct injection with turbocharger and air cooled intercooler |
| Fuel injection pump | Electronically controlled, common rail type |
| Number of cylinders | 4 |
| Total displacement | 179 in3 (2.93 liters) |
| Alternator | AC 14V×95A (13.3 kW) |
| Battery | 12V×800 CCA (92 Ah), 2 units |
| Transmission | Hydrostatic transmission (HST) automatically controls power and 2-speed |
| Lift (boom) cylinder | Two (2) double-acting piston type: 3.2" x 21.7" (85mm x 552mm) |
| Steering cylinder | Two (2) double-acting piston type: 1.8" x 13.4" (45mm x 340mm) |
| Fuel tank (diesel fuel), gallons | 21.7 |
| Engine lubricant (including oil pan), gallons | 2.4 |
| Engine coolant, gallons | 4 |
| Axle (front/rear), gallons | 1.6/1.7 |
Working Range
| Speeds Forward 1st | 7.5 MPH (12.0 km/hr) |
| Speeds Forward 2nd | 21.1 MPH (34.0 km/hr) |
| Main oil pump | 20.1 GPM/1,000 PSI @ 2,200 RPM |
| Main oil pump, metric equivalent | (76 LPM/20.6 MPa @ 2,200 RPM) |
| HST charging pump | 10.8 GPM/3,260 PSI @ 2,200 RPM |
| HST charging pump, metric equivalent | (41 LPM/2.5 MPa @ 2,200 RPM) |
| Relief valve set pressure Loading | 2,987 psi, 20.6 MPa (210 kgf/cm2) |
| Hydraulic cycle time – Lifting time (at full load) | 5.0 sec. |
| Hydraulic cycle time – Lowering time (empty) | 3.5 sec. |
| Hydraulic cycle time – Bucket dumping time | 1.0 sec. |
| Hydraulic cycle time – TOTAL | 9.5 sec. |
| Hydraulic oil tank, gallons | 19 |
Undercarriage & Attachments
| Tires | 17.5-65-20 10PR (L-2) |
2021 Hitachi ZW80-5B
