Item Specifications
Category
Condition
Used
Item Number
#858
Brand
Case
Make
case
Model
650m
Year
2022
Industry
construction
Equipment Type
dozers
Location
Houston, TX
Item Description

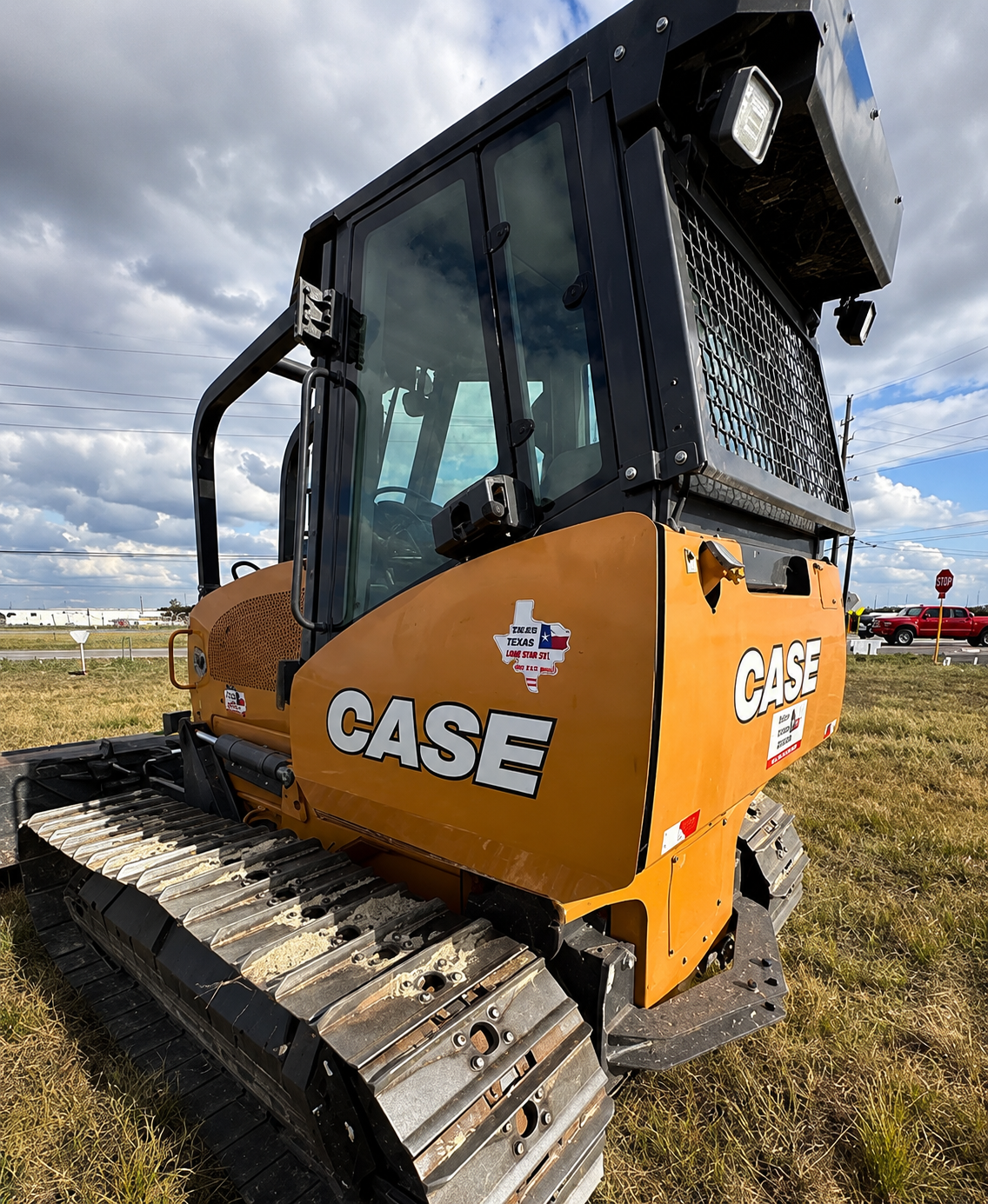

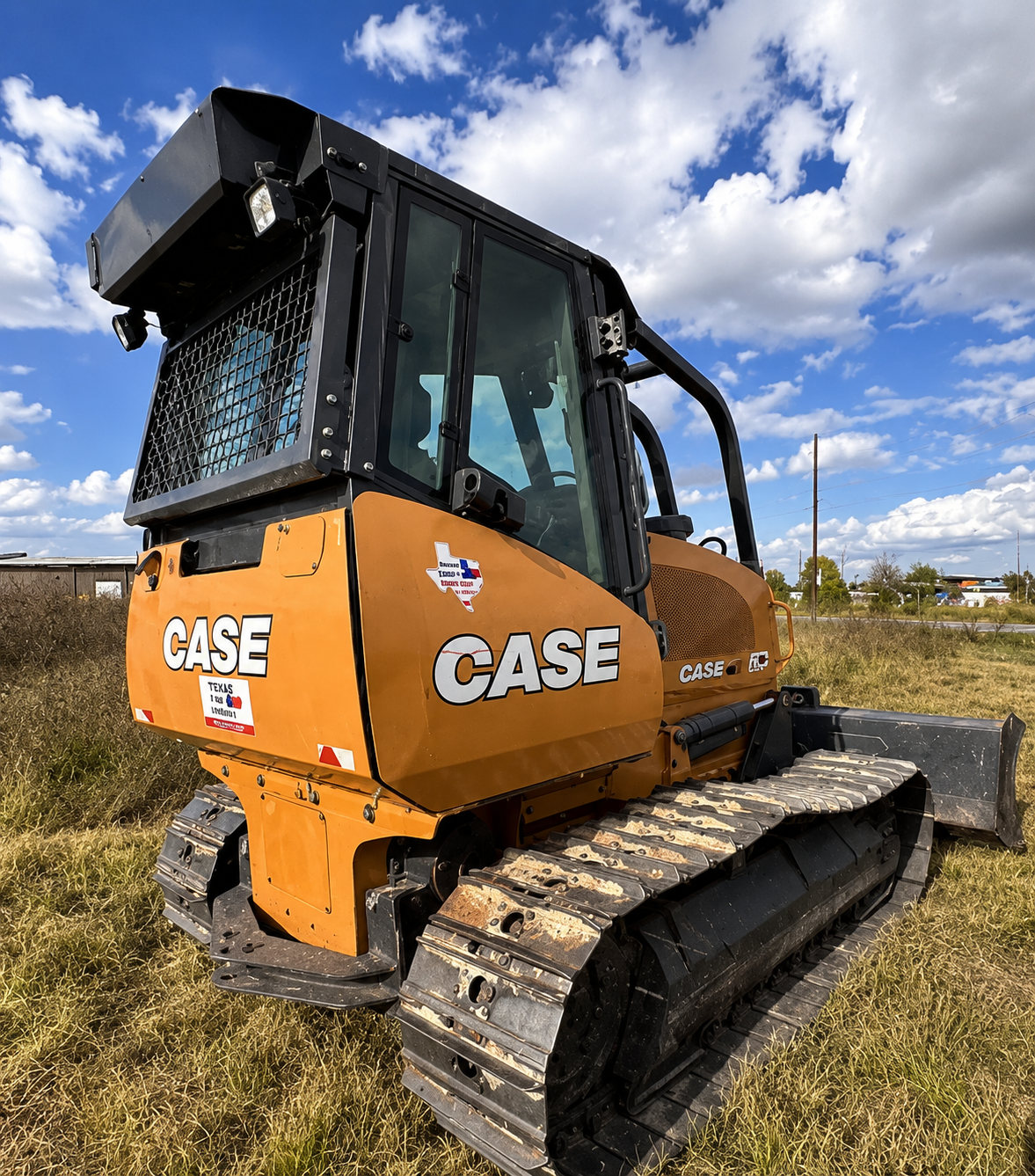

This 2022 Case 650M dozer is built for clearing, grading, and moving material on construction sites. Its tracked undercarriage provides traction, while the blade can be angled and tilted to shape the ground. The machine is located in Houston, Texas. Mileage and/or engine hours are approximate and subject to change. Please contact your sales representative for the most current readings.
Specifications
General
| Year | 2022 |
| Make | case |
| Model | 650m |
| Condition | Used |
| Fan - Diameter | 20 in (500 mm) |
| Fan - Ratio | 1.1:1 |
Engine & Powertrain
| Engine - Model | FPT F5C F5HFL463D*G003 |
| Emissions Certification | Tier 4 Final Certified |
| Engine - Cylinders | 4 |
| Engine - Displacement | 207.5 in3 (3.4 L) |
| Engine - Fuel injection | Common rail |
| Engine - Fuel | #2 Diesel |
| Engine - Air intake | Cross-flow |
| Engine - Cooling | Liquid |
| Engine speeds - High idle, no load | 2340 +/- 50 RPM |
| Engine speeds - Rated, full load | 2200 RPM |
| Engine speeds - Low idle | 1100 +/- 25 RPM |
| Horsepower @ 2200 RPM (SAE J1349) - Net | 68 hp (50.6 kW) |
| Horsepower @ 2200 RPM (SAE J1349) - Gross | 73.8 hp (55 kW) |
| Drivetrain - Pump | Variable axial piston |
| Drivetrain - Motor | Variable bent axis piston |
| Drivetrain - Max. drawbar pull | 39,086 lb (173.9 kN) |
| Drivetrain - Transmission oil filter | 4 micron, spin-on replaceable |
| Drivetrain - Travel speed | 5.0 mph (8 kph) |
| Drivetrain - Steering brakes | Hydrostatic |
| Drivetrain - Final drive | 2 helical gear reduction to planetary output, Ratio 62.4:1 |
| Electrical - Alternator | 120 amp |
| Electrical - Battery | (2) 12-volt low-maintenance, 925 cold-cranking amps @ 0 F (-18 C) |
| Electrical - System | 12 Volts |
Working Range
| Pump operating angle ratings - Side-to-side | 35° |
| Pump operating angle ratings - Fore and aft | 45° |
| Hydraulics - Pump flow @ 2000 RPM @ 3,000 psi (20,880 kPa) | 20.3 gpm (78.8 L/min) |
| Hydraulics - Lift cylinder - Quantity | Two (2) |
| Hydraulics - Lift cylinder - Bore diameter | 3.50 in (88.9 mm) |
| Hydraulics - Lift cylinder - Rod diameter | 1.75 in (44.4 mm) |
| Hydraulics - Lift cylinder - Stroke | 15.53 in (394.5 mm) |
| Hydraulics - Angle cylinder - Quantity | Two (2) |
| Hydraulics - Angle cylinder - Bore diameter | 3.50 in (88.9 mm) |
| Hydraulics - Angle cylinder - Rod diameter | 1.75 in (44.5 mm) |
| Hydraulics - Angle cylinder - Stroke | 13.46 in (342.0 mm) |
| Hydraulics - Tilt cylinder - Quantity | One (1) |
| Hydraulics - Tilt cylinder - Bore diameter | 3.50 in (88.9 mm) |
| Hydraulics - Tilt cylinder - Rod diameter | 1.75 in (44.4 mm) |
| Hydraulics - Tilt cylinder - Stroke | 5.39 in (137 mm) |
| Service Capacities - Fuel tank | 40.8 gal (154.4 L) |
| Service Capacities - Engine oil w/ filter | 13 qt (12.3 L) |
| Service Capacities - Engine oil w/o filter | 12.2 qt (11.5 L) |
| Service Capacities - Engine cooling system | 23.9 qt (22.6 L) |
| Service Capacities - Hydraulic reservoir | 16.5 gal (72.7 L) |
Undercarriage & Attachments
| Undercarriage - Track adjustment | Hydraulic |
| Undercarriage - Frame | Rigid suspension |
| Undercarriage - Track link pitch | 6.125 in (155.575 mm) |
| Undercarriage - Track shoe height | 2.06 in (52 mm) |
| Undercarriage - Pin diameter | 1.125 in (28.575 mm) |
| Undercarriage - Bushing diameter, SALT track | 2.13 in (54 mm) |
| Undercarriage - Bushing diameter, Max-Life track | 2.68 in (68 mm) |
| Undercarriage - Bolt diameter | 0.625 in (16 mm) |
| Undercarriage - Track shoes per side | 40 |
| Undercarriage - Track rollers per side | 6 |
| Undercarriage - Carrier rollers per side | 1 |
| Undercarriage - Track roller rail diameter | 5.98 in (152 mm) |
Dimensions
| Dimensions (LT) - SAE blade capacity | 1.69 yd3 (1.29 m3) |
| Dimensions (LT) - A. Blade height | 33.1 in (841 mm) |
| Dimensions (LT) - B. Blade lift above ground | 35.1 in (892 mm) |
| Dimensions (LT) - C. Blade depth below ground | 21.0 in (533 mm) |
| Dimensions (LT) - Blade angle both directions | 22.7° |
| Dimensions (LT) - D. Cast reach | 14.1 in (358.7 mm) |
| Dimensions (LT) - E. Cut reach | 2.4 in (60.8 mm) |
| Dimensions (LT) - Blade tilt, each end (+/- 9 deg) | 7.64 in (194 mm) |
| Dimensions (LT) - Track gauge | 56.47 in (1.43 m) |
| Dimensions (LT) - Maximum shoe width | 15.6 in (395 mm) |
| Dimensions (LT) - F. Length of track on ground, SALT HD | 85 in (2.16 m) |
| Dimensions (LT) - Area of track on ground | 2,644 in2 (1.71 m2) |
| Dimensions (LT) - Ground pressure | 5.98 psi (0.412 bar) |
| Dimensions (LT) - H. Ground clearance | 13.07 in (332 mm) |
