Financing 1 / 6
Item Specifications
Category
Condition
Used
Item Number
#857
Brand
Case
Make
case
Model
cx60c
Year
2024
Industry
construction
Equipment Type
mini excavators
Location
Tyler, TX
Serial
HHKHMC15TE00*****
Item Description
This 2024 Case CX60C mini excavator is suited to trenching, digging, and site preparation where space is limited. Its tracked undercarriage and compact size allow it to work in tighter areas than a full-size excavator. The machine is located in Tyler, Texas. Mileage and/or engine hours are approximate and subject to change. Please contact your sales representative for the most current readings.
Specifications
General
| Year | 2024 |
| Make | case |
| Model | cx60c |
| Serial Number | HHKHMC15TE00***** |
| Condition | Used |
| Shipping Length Of Unit | 18.38 ft in |
| Max Cutting Height | 19.2 ft in |
| Shipping Height Of Unit | 8.37 ft in |
| Max Loading Height | 13.46 ft in |
| Max Reach Along Ground | 20.84 ft in |
| Max Vertical Wall Digging Depth | 11.03 ft in |
| Max Digging Depth | 13.1 ft in |
| Boom/Stick Option (Hex) 1 | 4 ft 10 in (1.48 m) Arm |
| Max.Dumping Height | 12.9 ft in |
| Boom/Stick Option (Hex) 2 | 6 ft 3 in (1.9 m) Arm |
| Max Drawbar Pull | 11667.6 lb |
| Maximum Traction Force | 11680 lb |
| Gradeability | 35 degrees |
| Ground Pressure | 5.2 psi |
| Bucket Breakout Force | 9194.7 lb |
| Lift Over Side Max. Reach | 1080.3 lb |
| Lift Over End Max. Reach - Lbs | 2711.7 lb |
| Operating Weight | 12941.2 lb |
| Alternator | 80 amp |
| Voltage | 12 V |
| Battery | 1 x 12 V x 100 Ah |
| Swing Speed | 8.8 rpm |
| Main Pump - Maximum Flow | 29.1 gal/min |
| Relief Pressure | 3191 psi, 220 bar |
| Arm Length | 9.6 ft in |
| Boom Length | 4.1 ft in |
Engine & Powertrain
| Fuel | Diesel |
| Fuel Injection | Electronic common rail |
| Emissions Level | Tier 4 Final |
| Number Of Cylinders | 4 |
| Max Speed | 2.5 mph |
| Engine Model | Yanmar 4TNV98C |
| Gross Power | 64.7 hp |
| Cooling System | Water-cooled |
| Net Power | 63 hp |
| Power Measured @ | 2400 rpm |
| Displacement | 203 cu in |
| Max Torque | 173.7 lb ft |
| Torque Measured @ | 1560 rpm |
Working Range
| Engine Oil W/ Filter Change | 3.1 gal |
| Fuel Tank | 21.7 gal |
| Hydraulic Tank | 29.1 gal |
| Radiator | 3 gal |
Undercarriage & Attachments
| Number Of Track Rollers Per Side | 5 |
Dimensions
| Width To Outside Of Tracks | 6.53 ft in |
| Length Of Track On Ground | 6.53 ft in |
| Ground Clearance | 1.25 ft in |
| Height To Top Of Cab | 8.37 ft in |
| Tail Swing Radius | 3.55 ft in |

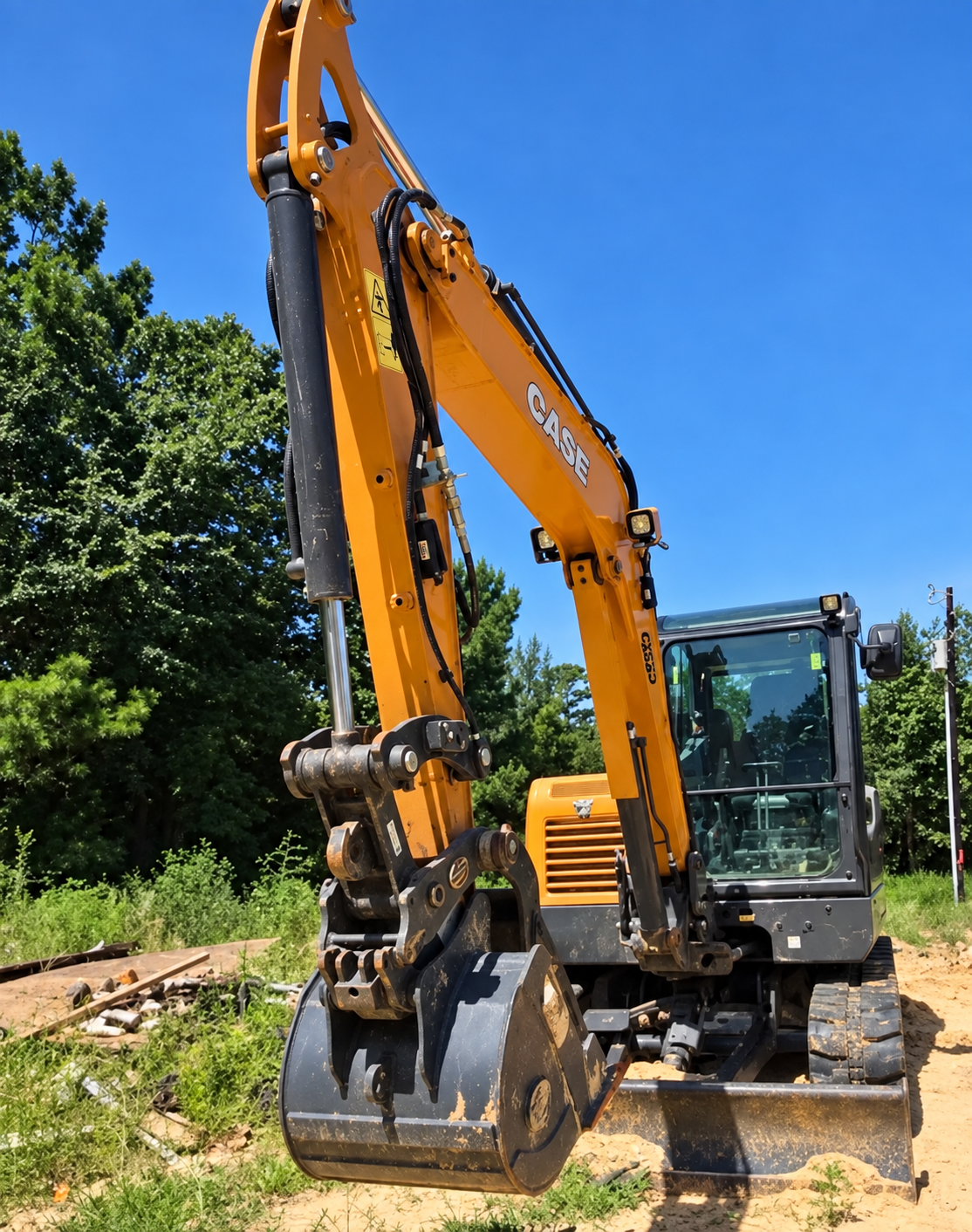

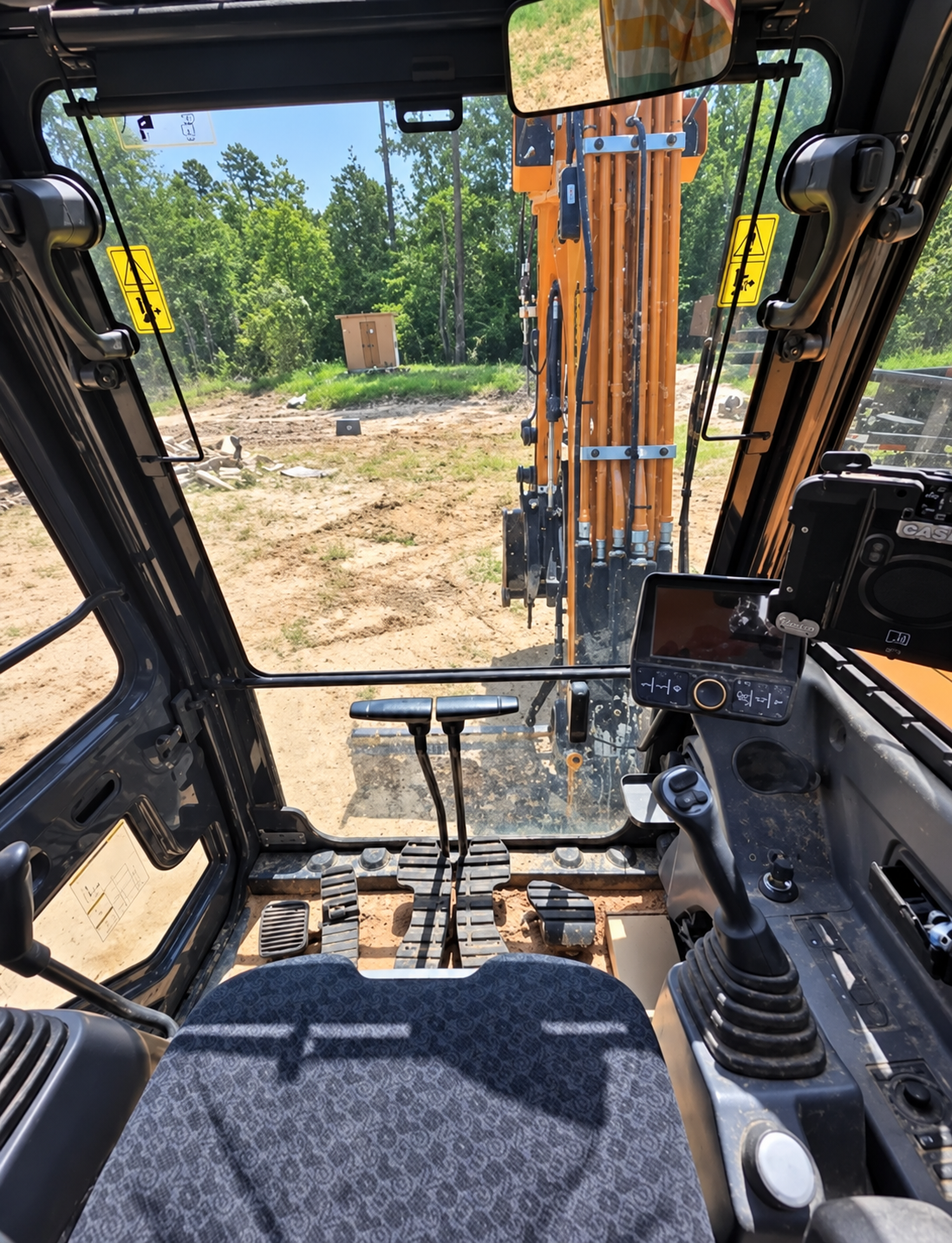

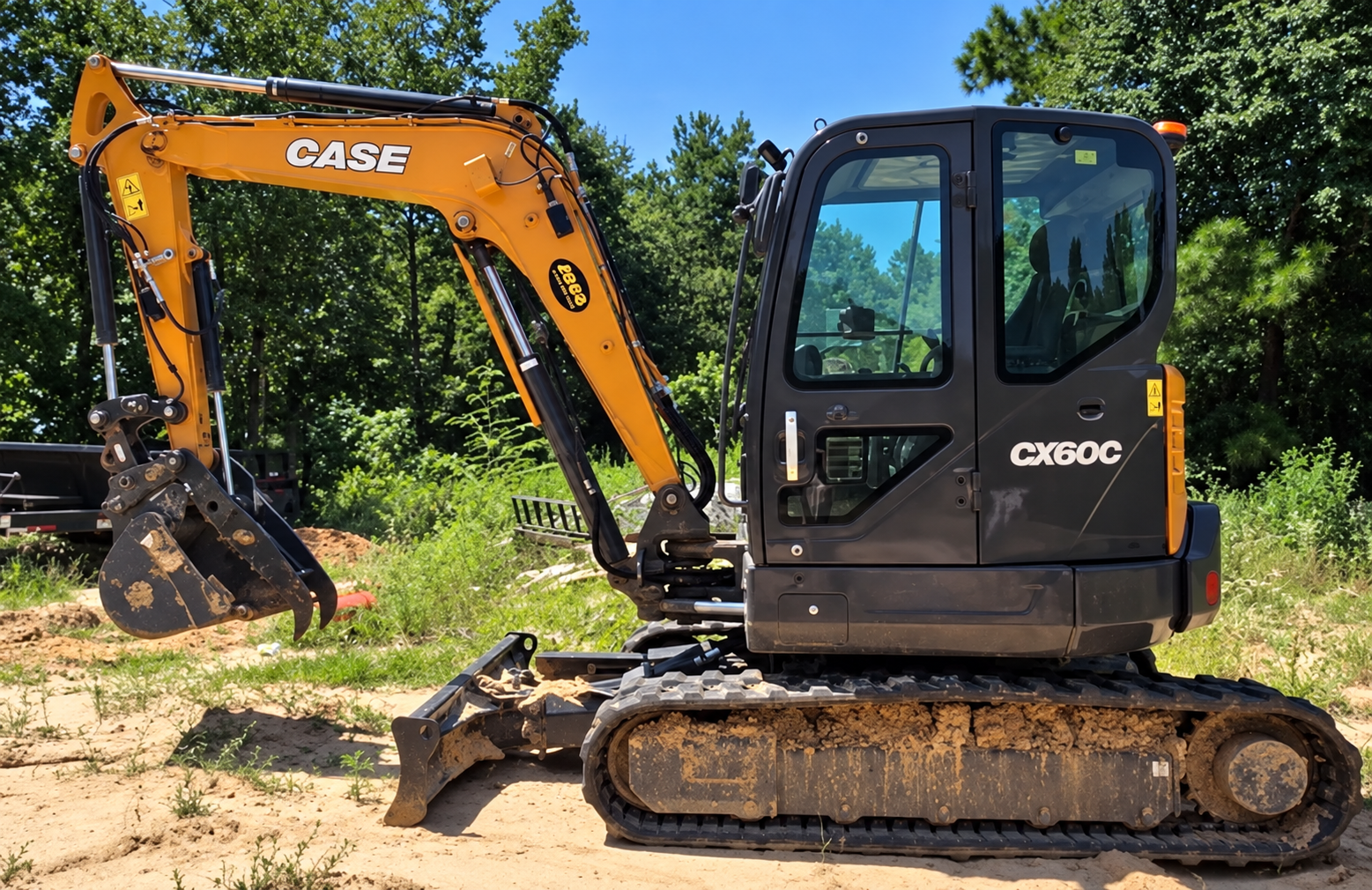

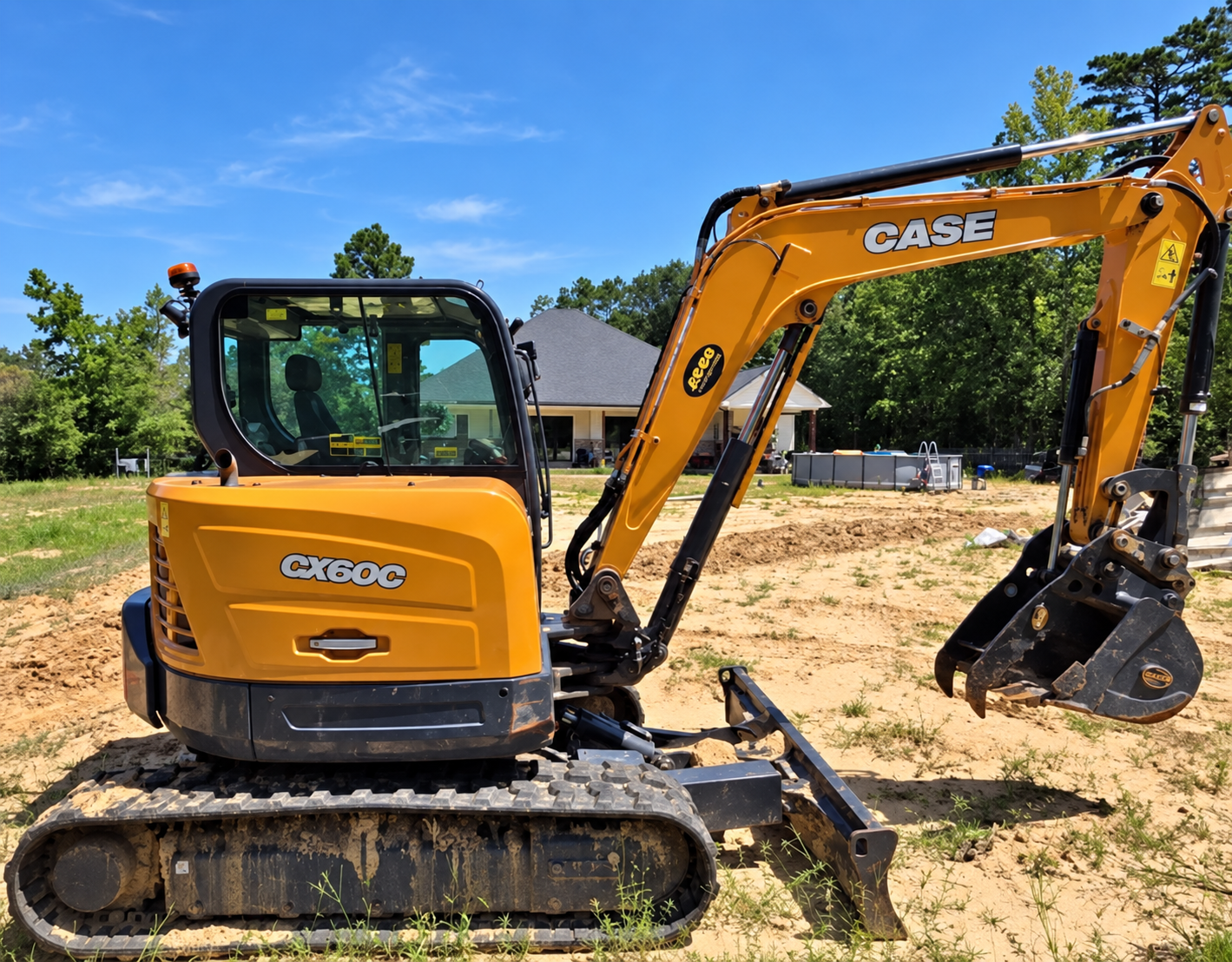

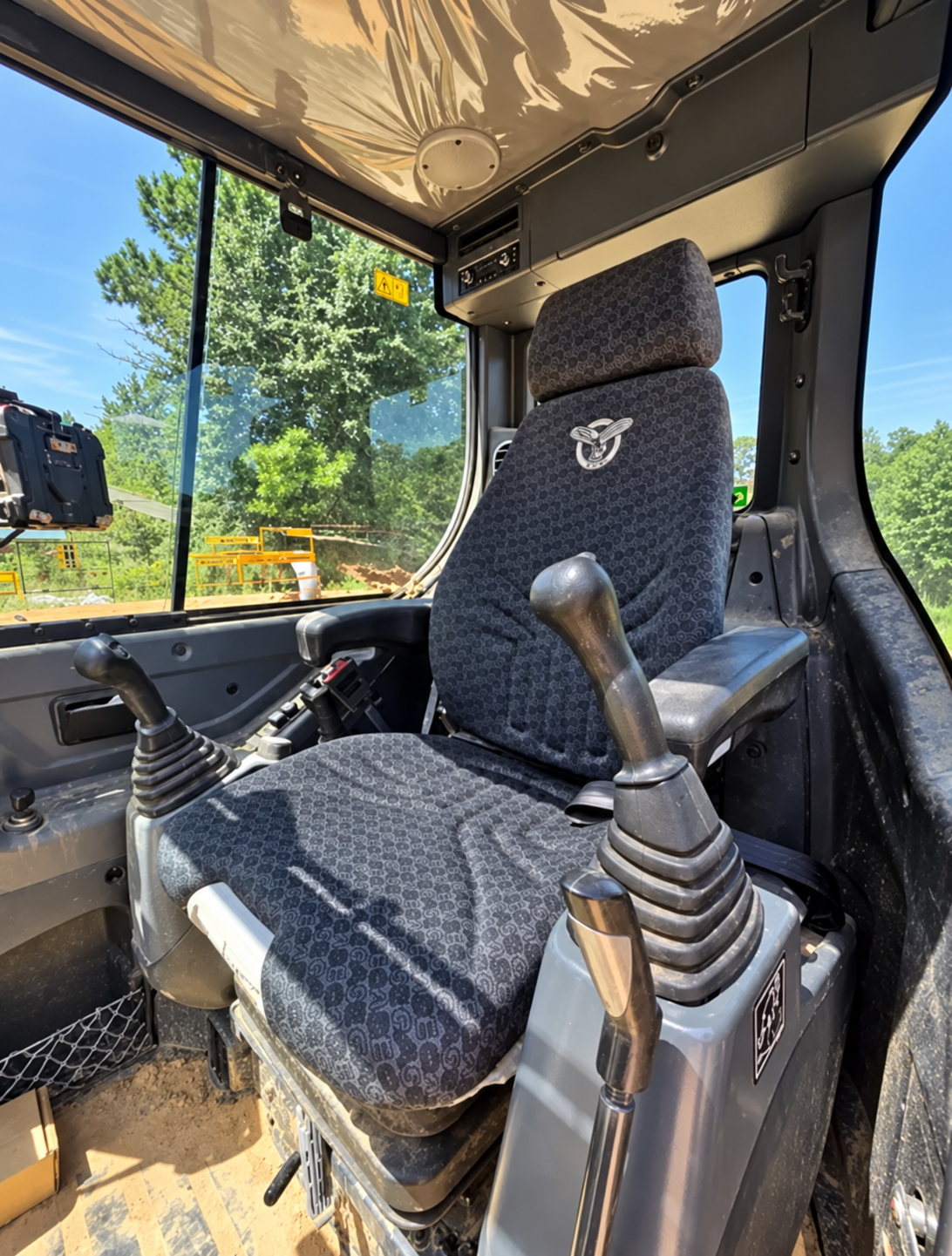

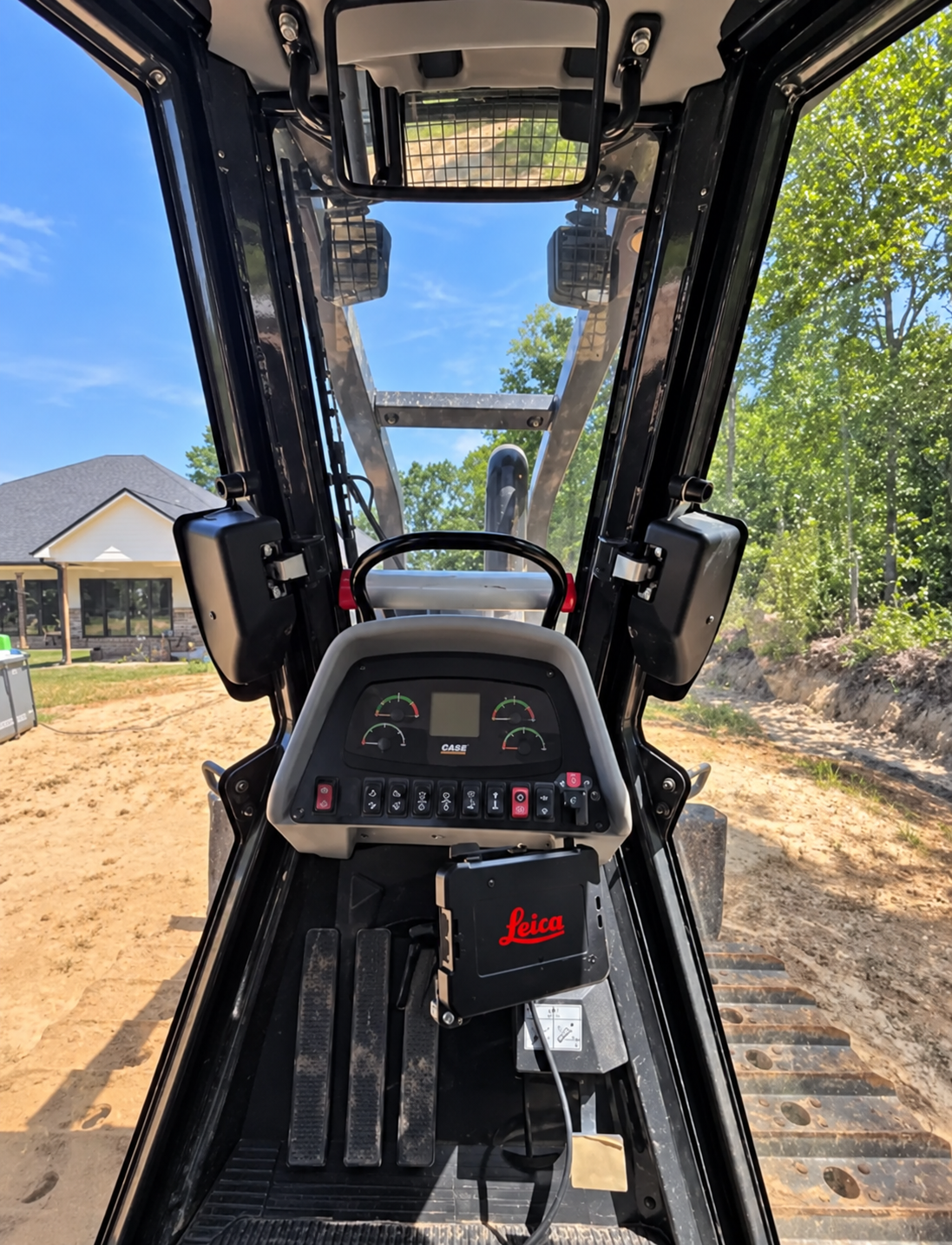

2024 Case CX60C Mini Excavator
BUY NOW OR MAKE OFFERAvailable
