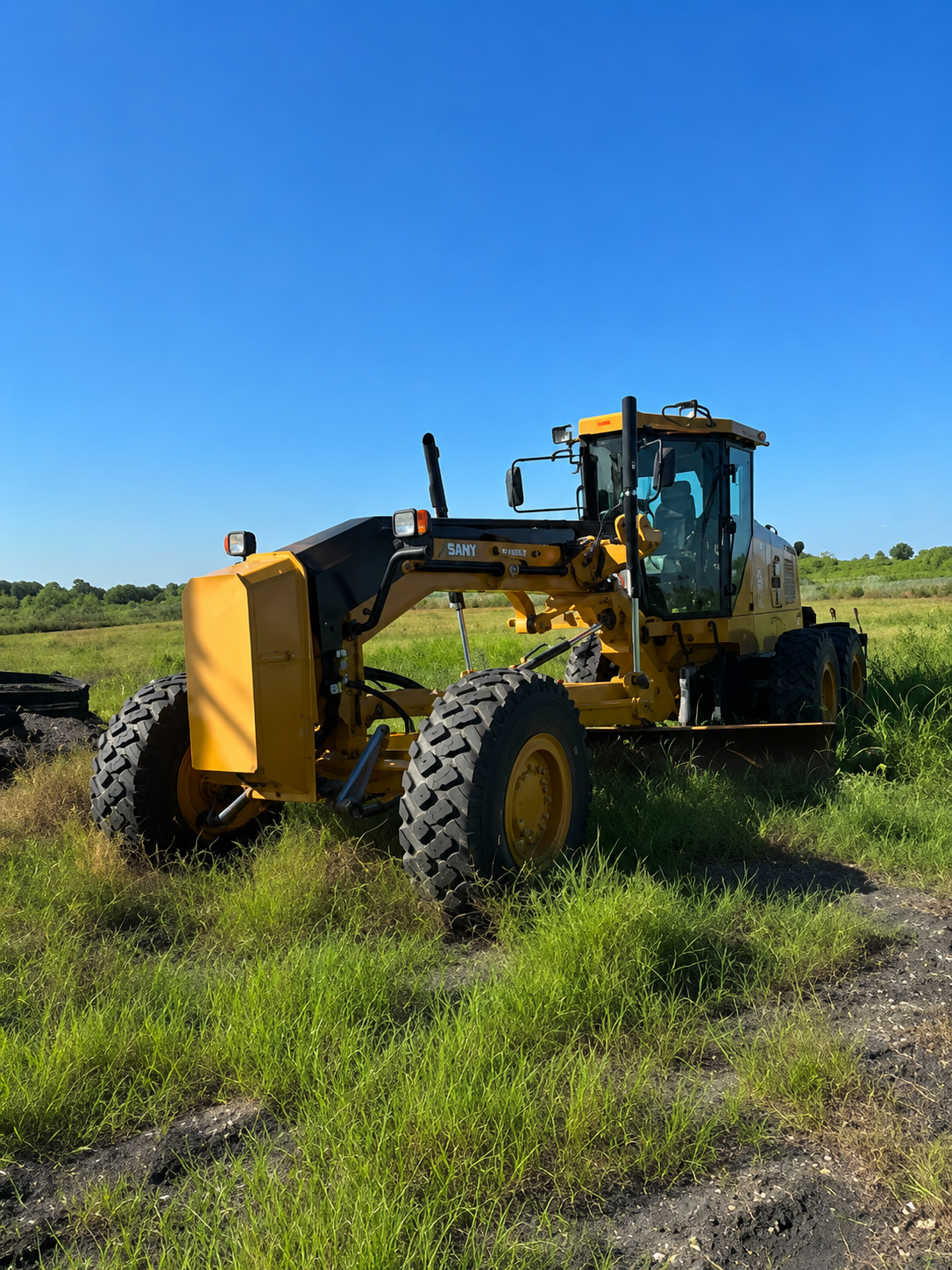

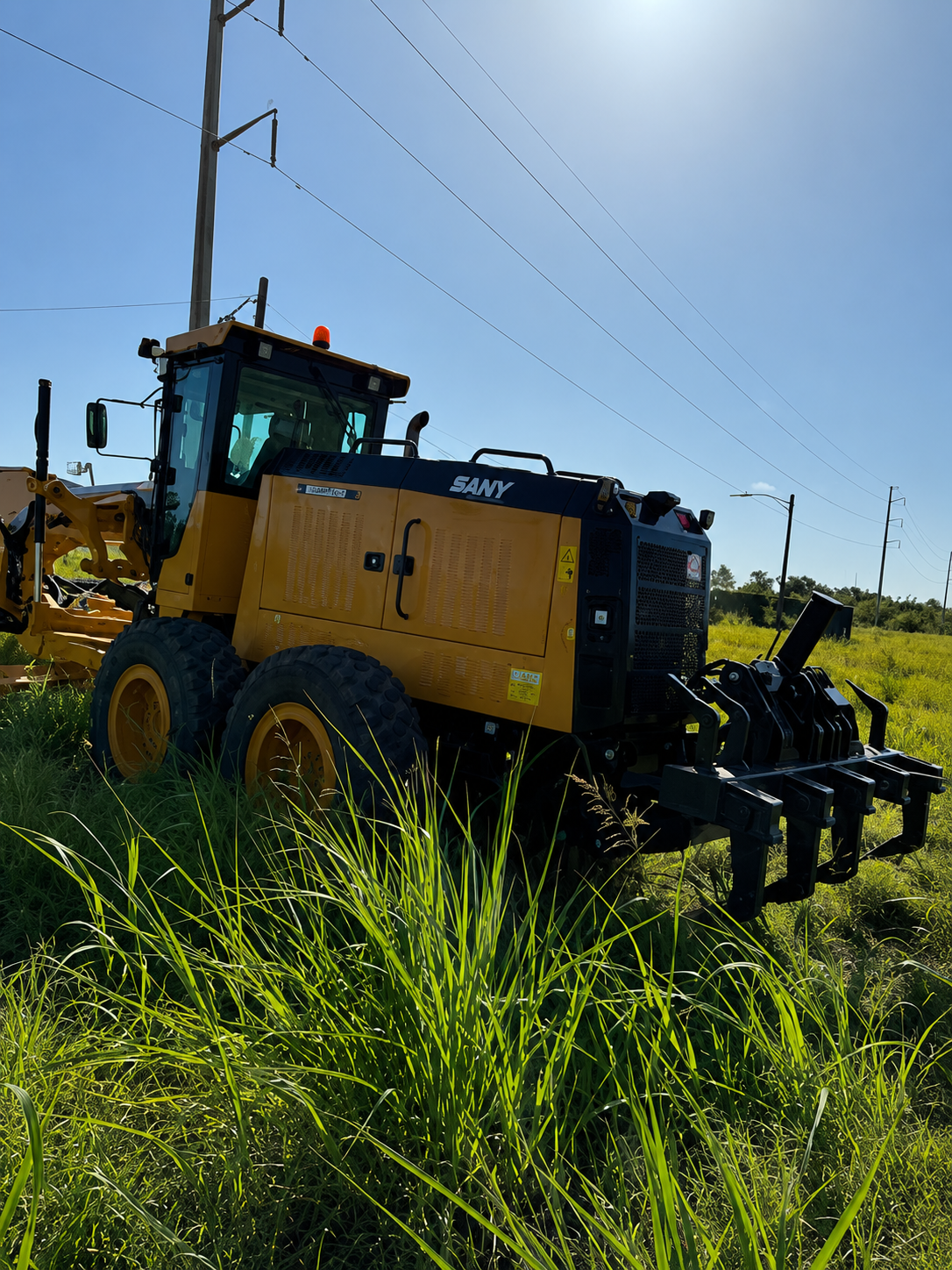

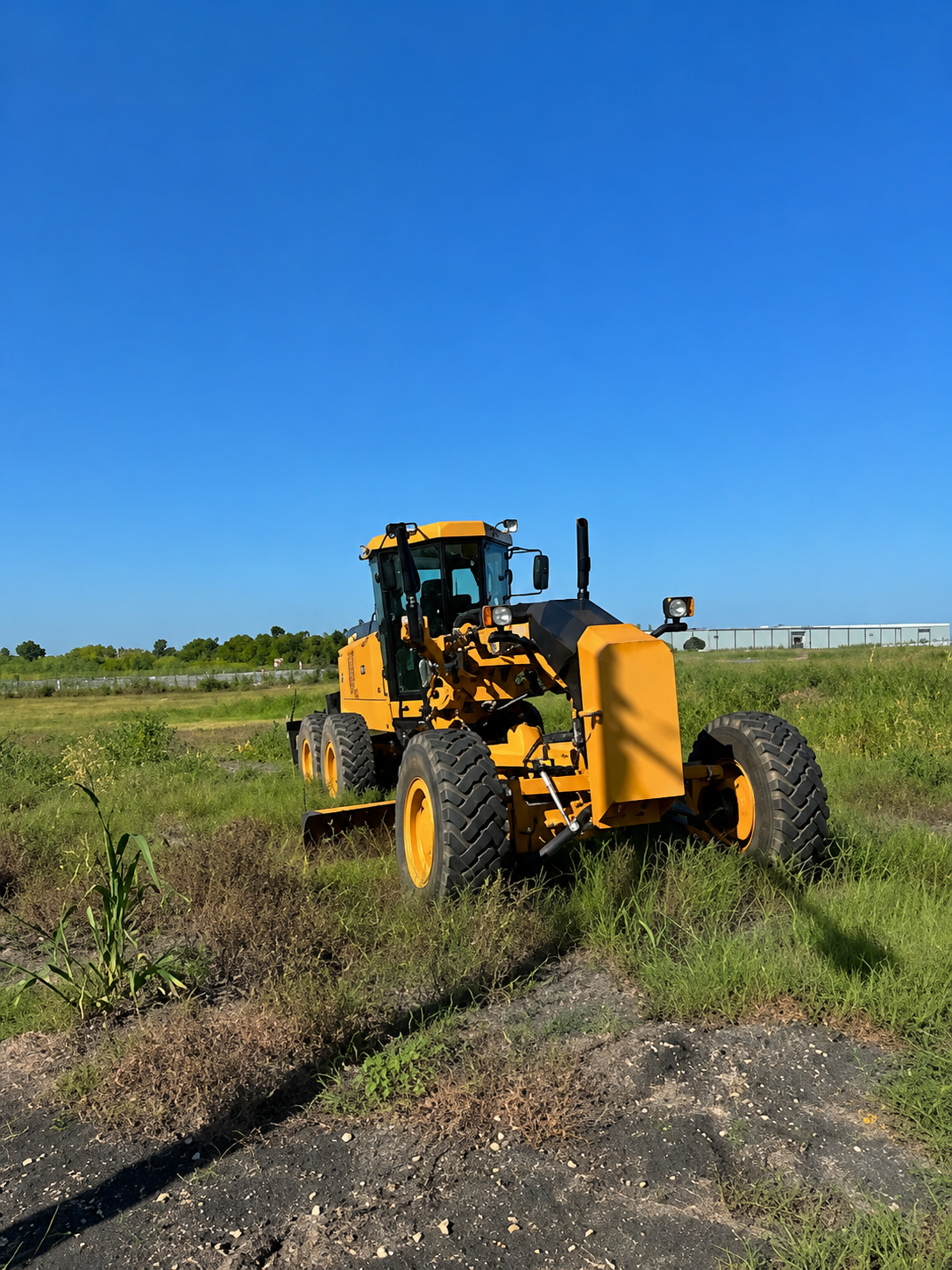

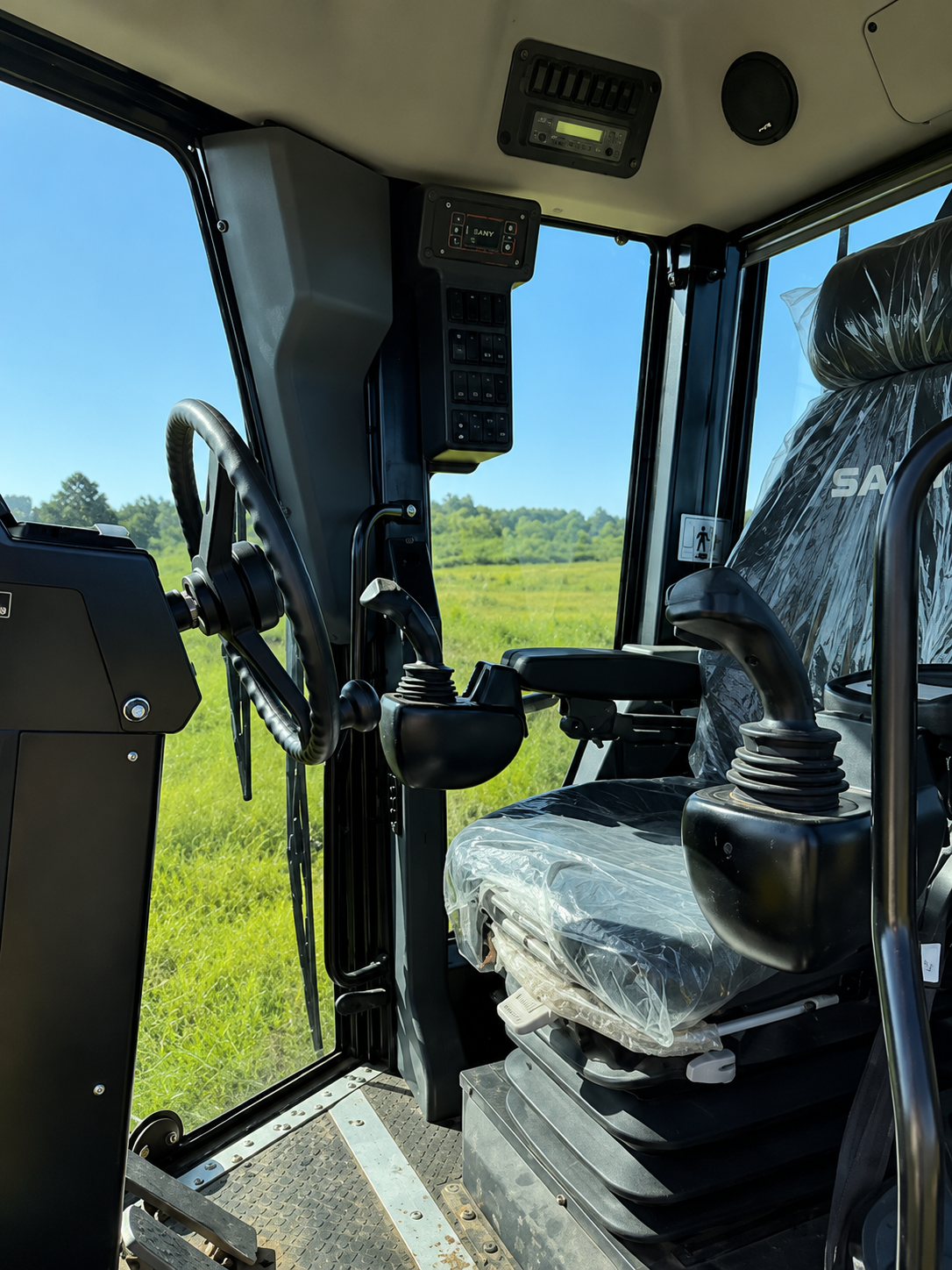

2024 SANY SMG200 AWD Motor Grader 2024 SANY SMG200 AWD Motor Grader, Cummins QSL9 Tier 4 Final 253 HP Turbo Diesel, 120 Hours, 6x6 All-Wheel Drive, 14' Moldboard, 17.5R25 Tires, Direct-Drive Power Shift Transmission, Manual Differential Lock, Enclosed ROPS/FOPS Cab w/ A/C & Heat, Electric-Over-Hydraulic Joystick Controls, Hydraulic Joystick Steering, Steering Wheel for Roading, Rearview Camera, Heated Air Suspension Cloth Seat, 5-Shank Ripper, 9-Tooth Scarifier, Front Counterweight, LED Work Lights, Telematics Available. Hours 120 Engine Hours Attachments Moldboard Width: 14 ft (168 in) Moldboard Height: 24.41 in Maximum Cutting Depth: 28.15 in Maximum Lift Above Ground: 18.9 in Moldboard Pitch: 40° Forward / 5° Rear Side Shift Left: 86 in Side Shift Right: 90 in Ripper: Yes – 5-Shank Scarifier: Yes – 9-Tooth Front Counterweight: Yes Moldboard Breakaway Protection: Yes Capacities Fuel Capacity: 89.82 gal (340 L) DEF Capacity: 5 gal Hydraulic Oil Tank: 29 gal Transmission Capacity: 14.5 gal Category Specific (Motor Grader) Operating Weight: 47,230 lb Maximum Operating Weight: 47,715 lb Blade Down Pressure: 19,925 lbf Drive Configuration: 6x6 AWD Differential Lock: Yes – Manual Frame Type: Articulated Frame Articulation: 22° Front Wheel Lean: 17° Axle Oscillation: 16° Minimum Turning Radius: 295.28 in (24 ft 7 in) Telematics: Available Rear Ripper: Yes Scarifier: Yes Chassis Drive: 6x6 All-Wheel Drive Axles: 2 Tire Size: 17.5R25 Service Brakes: Wet Multiple-Disc Parking Brake: Spring-Applied, Hydraulically Released Differential Lock: Manual Secondary Steering: Yes Rear Axle: Modular Tandem Chain: Sealed & Lubricated Exterior ROPS: Enclosed ROPS/FOPS Cab Rearview Camera: Yes Work Lights: LED Front Windshield Wiper: Yes Side Door Wipers: Yes Rear Window Wiper: Yes Left & Right Exterior Mirrors: Yes Interior Operator Controls: Electric-Over-Hydraulic Joystick Controls Steering: Hydraulic Left-Joystick Steering / Steering Wheel for Roading A/C: Yes – Automatic Climate Control Heater: Yes Seat Material: Cloth Seat Type: Air Suspension Heated Seat: Yes AM/FM Radio: Yes Bluetooth: Yes USB Charging: Yes 12V / 24V Outlets: Yes Onboard Diagnostics: Yes – Multifunction Color LCD Monitor Hour Meter: Electric Powertrain Horsepower: 253 HP Net Drive Configuration: 6x6 AWD Transmission Type: Direct-Drive Power Shift 4WD Mode: 8 Forward / 6 Reverse AWD Mode: 7 Forward / 6 Reverse Differential Lock: Manual Engine Engine Manufacturer: Cummins Engine Model: QSL9 Engine Displacement: 8.9 L (543.1 cu in) Engine Tier: Tier 4 Final Engine Turbo: Yes Intercooled: Yes Net Horsepower: 253 HP (186 kW) Torque Rated Speed: 1,500 RPM DEF System: Yes Shipping / Overall Dimensions Overall Length: 416 in (34 ft 8 in) Transport Width Over Standard Tires: 107.28 in (8 ft 11 in) Height Over ROPS: 138 in (11 ft 6 in) Wheelbase: 248 in (20 ft 8 in) Rear Wheelbase: 60 in (5 ft) Ground Clearance: 15 in Moldboard Width: 168 in (14 ft) Operating Weight: 47,230 lb Maximum Operating Weight: 47,715 lb Mileage and/or engine hours are approximate and subject to change. Please contact your sales representative for the most current readings.
