Financing Item Specifications
Category
Condition
Used
Item Number
#2049
Make
miller
Model
big_blue_500_pro
Year
2020
Industry
construction
Equipment Type
welders
Location
La Porte, TX
Serial
NA12*****
Hours
7417
Also Available In
TX
Item Description
This BIG BLUE 500PRO is a versatile 500-amp arc welder delivers powerful performance for stick, TIG, MIG, and flux-cored applications, making it ideal for everything from light repairs to demanding jobsite projects. It also features a built-in generator capable of running tools, lights, and motors for an all-in-one mobile power and welding solution.
Specifications
General
| Year | 2020 |
| Make | miller |
| Model | big_blue_500_pro |
| Hours | 7417 |
| Serial Number | NA12***** |
| Condition | Used |
| CV/DC (MIG/FCAW) Weld Output Range | 14-50 V |
| Kubota USA CV/DC Rated Output | 400 A at 36 V, 100% duty cycle; 450 A at 38 V, 100% duty cycle; 500 A at 40 V, 100% duty cycle |
| Max. Open-Circuit Voltage (MIG/FCAW) | 30 VDC |
| Sound Levels at 23 ft. (7 m) | Idle: 65.9 dB (90.7 Lwa); Weld: 74.3 dB (99.1 Lwa) |
Engine & Powertrain
| Generator Power Output, Kubota USA models, 3-phase | 27,000 watts peak, 20,000 watts continuous |
| Generator Power Output, Kubota USA models, 1-phase | 15,000 watts peak, 12,000 watts continuous |
| Engine Brand/Model (USA) | Kubota V2403 |
| Engine Features (USA) | EPA Tier 4 Final compliant, 48.9 HP, Turbo-charged four-cylinder liquid-cooled industrial diesel, includes 120 V block heater and automatic glow plugs |
| Engine Speeds | Idle: 1,350 rpm; Weld: 1,800 rpm |
Working Range
| Capacities | Fuel: 25 gal. (95 L); Oil: 10 qt. (9.5 L); Coolant: 9 qt. (8.5 L) |
Undercarriage & Attachments
| Output Range DC stick/TIG | 20-500 A |
| Max. Open-Circuit Voltage (Stick/TIG) | 92 VDC |

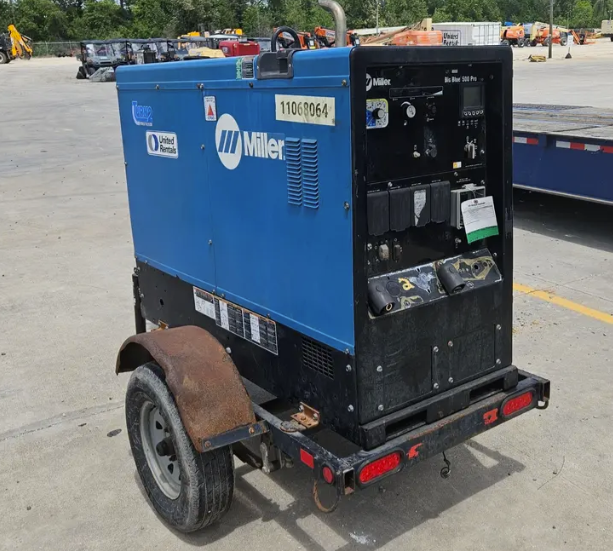

2020 Miller Big Blue 500 Pro Welder
