Item Specifications
Category
Condition
Used
Item Number
#2043
Make
takeuchi
Model
tb290c
Year
2022
Industry
construction
Equipment Type
excavators
Location
Corpus Christi, TX
Serial
1851*****
Hours
3146
Also Available In
TX
Item Description
This 2022 Takeuchi TB290C excavator is suited to trenching, digging, and site preparation. Its boom and arm provide reach for excavation and loading material. Auxiliary hydraulics can operate compatible attachments for additional tasks. Mileage and/or engine hours are approximate and subject to change. Please contact your sales representative for the most current readings.
Specifications
General
| Year | 2022 |
| Make | takeuchi |
| Model | tb290c |
| Hours | 3146 |
| Serial Number | 1851***** |
| Condition | Used |
| Traction Force | 19,780 lb (8,972 kg) |
Engine & Powertrain
| Engine Make/Model | Yanmar / 4TNV98CT |
| Engine Displacement | 202 cu in (3.3 L) |
| Horsepower @ 2,000 rpm | 69.2 hp (51.6 kW) |
| Maximum Torque @ 1,300 rpm | 227.2 ft-lb (308 Nm) |
| Engine Lubrication Capacity | 10.8 qt (10.2 L) |
| Cooling System Capacity | 14.8 qt (14.0 L) |
| Fuel Tank Capacity | 33.8 gal (128.0 L) |
Working Range
| Slew Speed | 10.3 rpm |
| Max Travel Speed - Low Range | 1.6 mph (2.6 km/hr) |
| Max Travel Speed - High Range | 3.1 mph (5.0 km/hr) |
| Total Hydraulic Flow | 62.5 gpm (236.6 Lpm) |
| Auxiliary Flow - Primary Circuit | 31.7 gpm (120.0 Lpm) |
| Auxiliary Flow - Secondary Circuit | 14.5 gpm (55.0 Lpm) |
| Hydraulic System Pressure | 3,990 psi (27.5 MPa) |
| Hydraulic Reservoir Capacity | 37.0 gal (140.0 L) |
| Maximum Reach (A) | 24 ft 5.0 in (7,435 mm) |
| Maximum Reach at Ground Level (B) | 23 ft 11.0 in (7,290 mm) |
| Maximum Digging Depth (C) | 15 ft 0.0 in (4,580 mm) |
| Maximum Vertical Digging Depth (D) | 12 ft 6.4 in (3,820 mm) |
Undercarriage & Attachments
| Maximum Bucket Breakout Force | 16,565 lb (7,514 kg) |
| Maximum Arm Digging Force | 8,161 lb (3,702 kg) |
Dimensions
| Operating Weight - Cab (Rubber) | 18,630 lb (8,450 kg) |
| Operating Weight - Cab (Steel) | 19,145 lb (8,685 kg) |
| Arm Length | 7 ft 0.0 in (2,130 mm) |
| Ground Pressure - Cab (Rubber) | 5.5 psi (37.9 kPa) |
| Ground Pressure - Cab (Steel) | 4.8 psi (33.1 kPa) |
| Maximum Dig Height (E) | 23 ft 11.1 in (7,290 mm) |
| Maximum Dumping Height (F) | 17 ft 3.0 in (5,258 mm) |

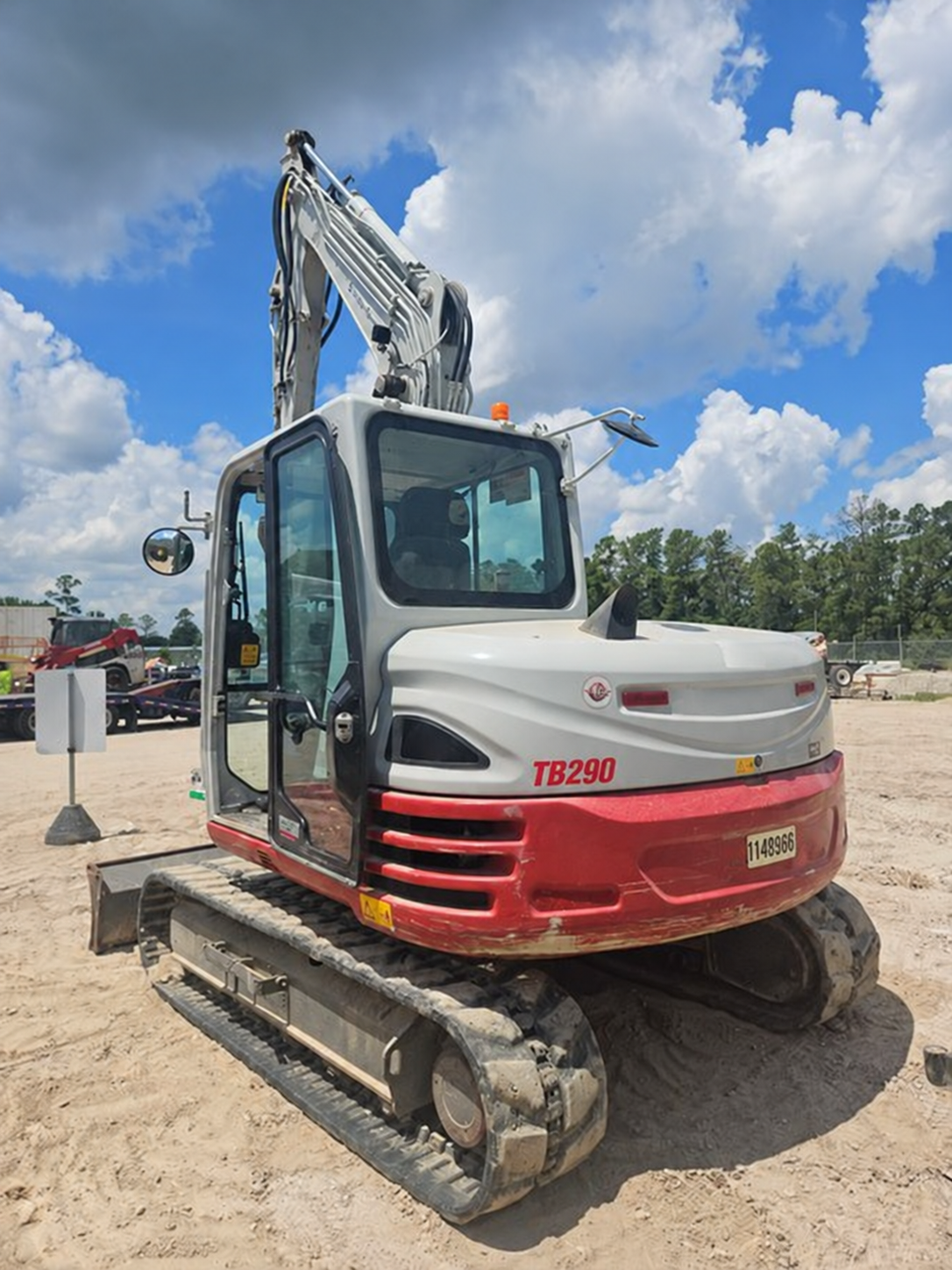

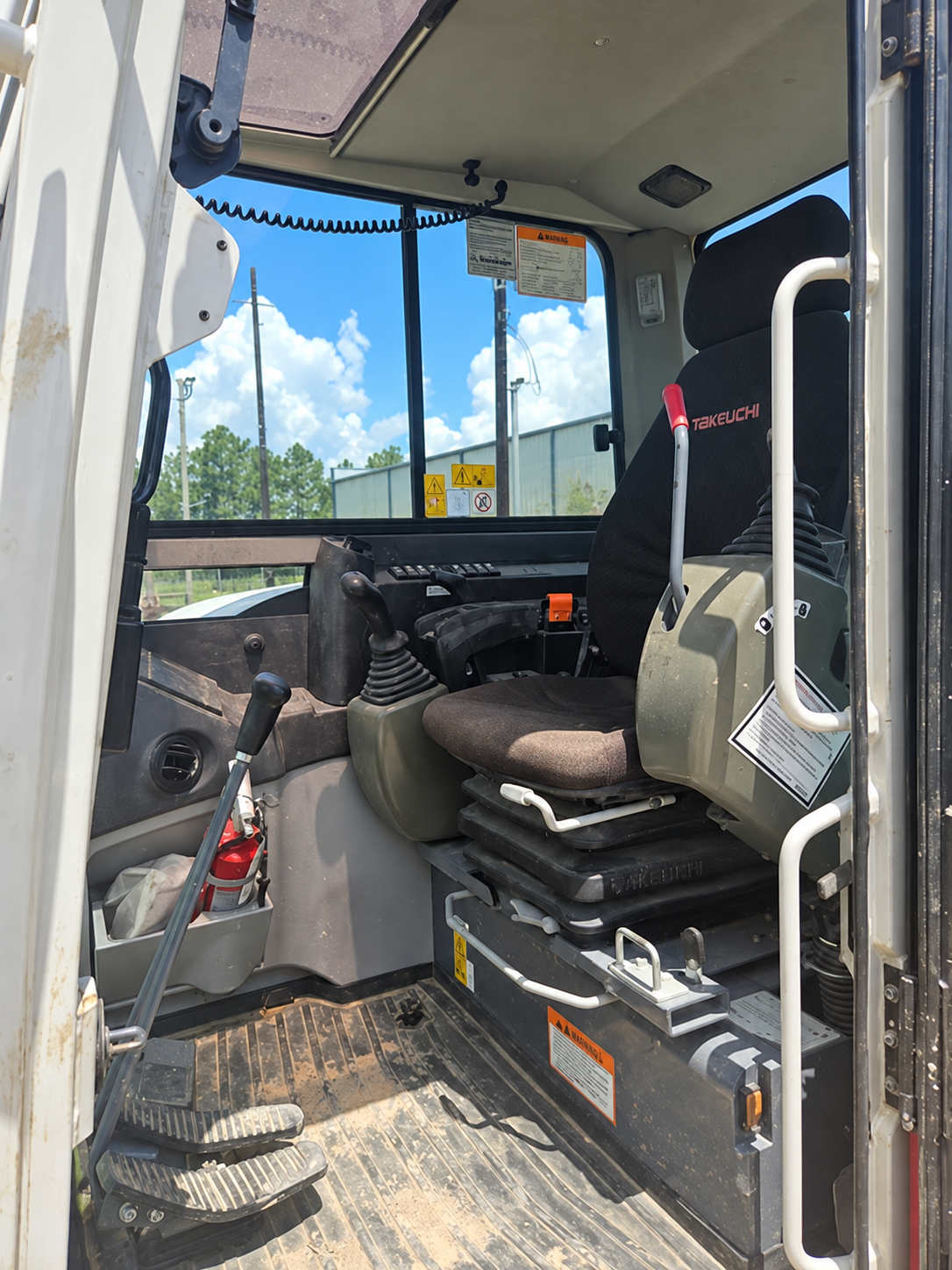

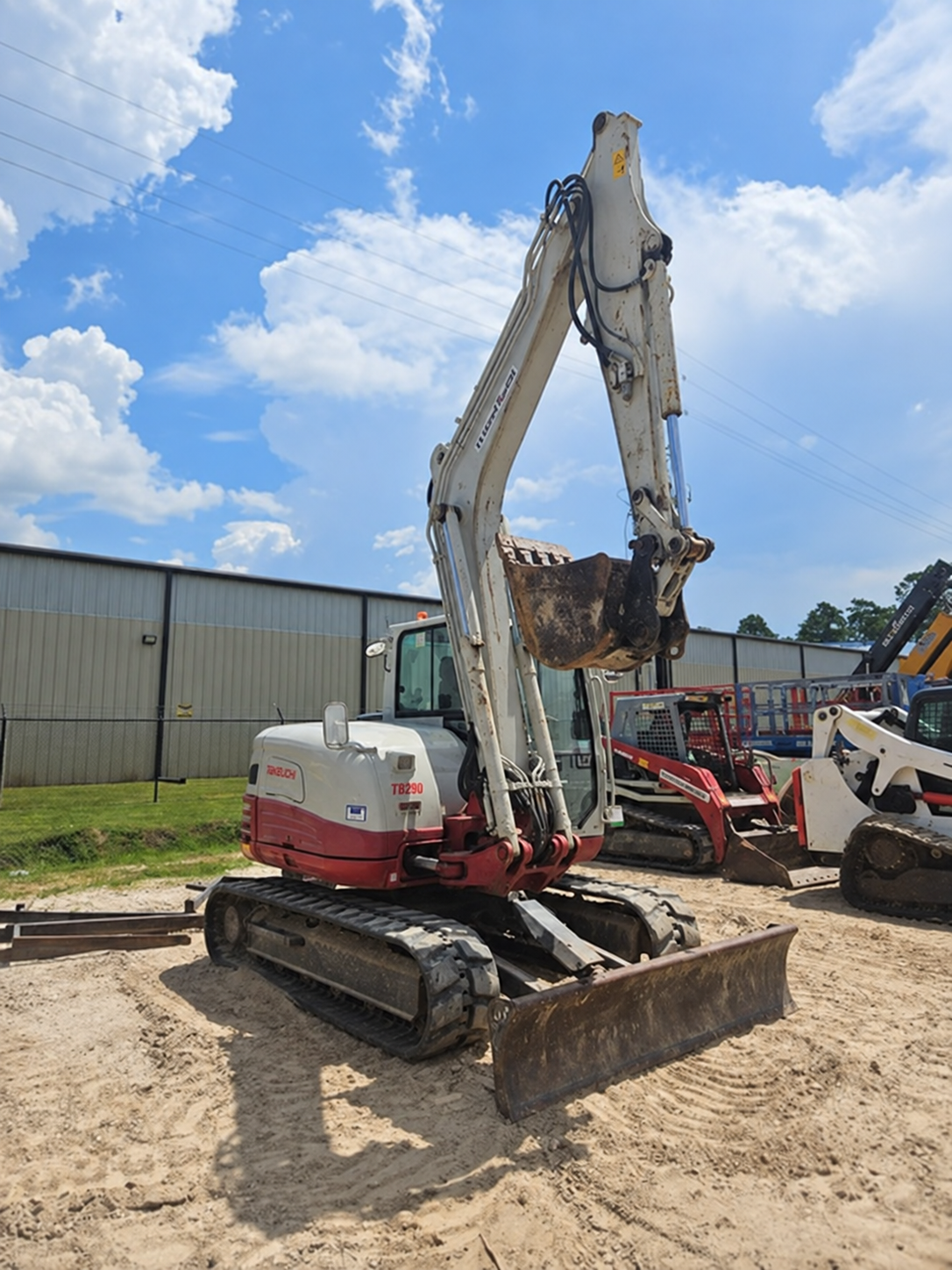

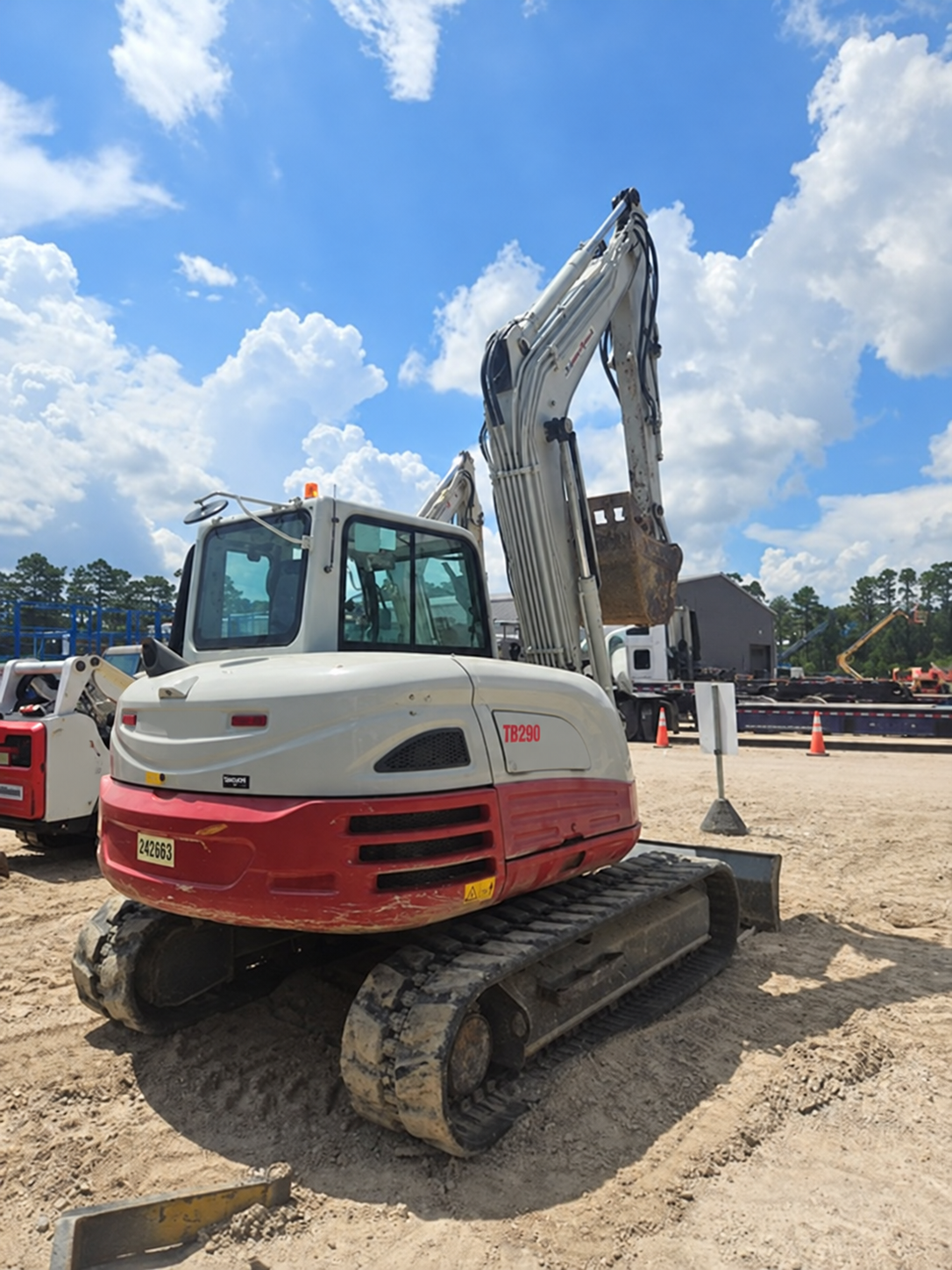

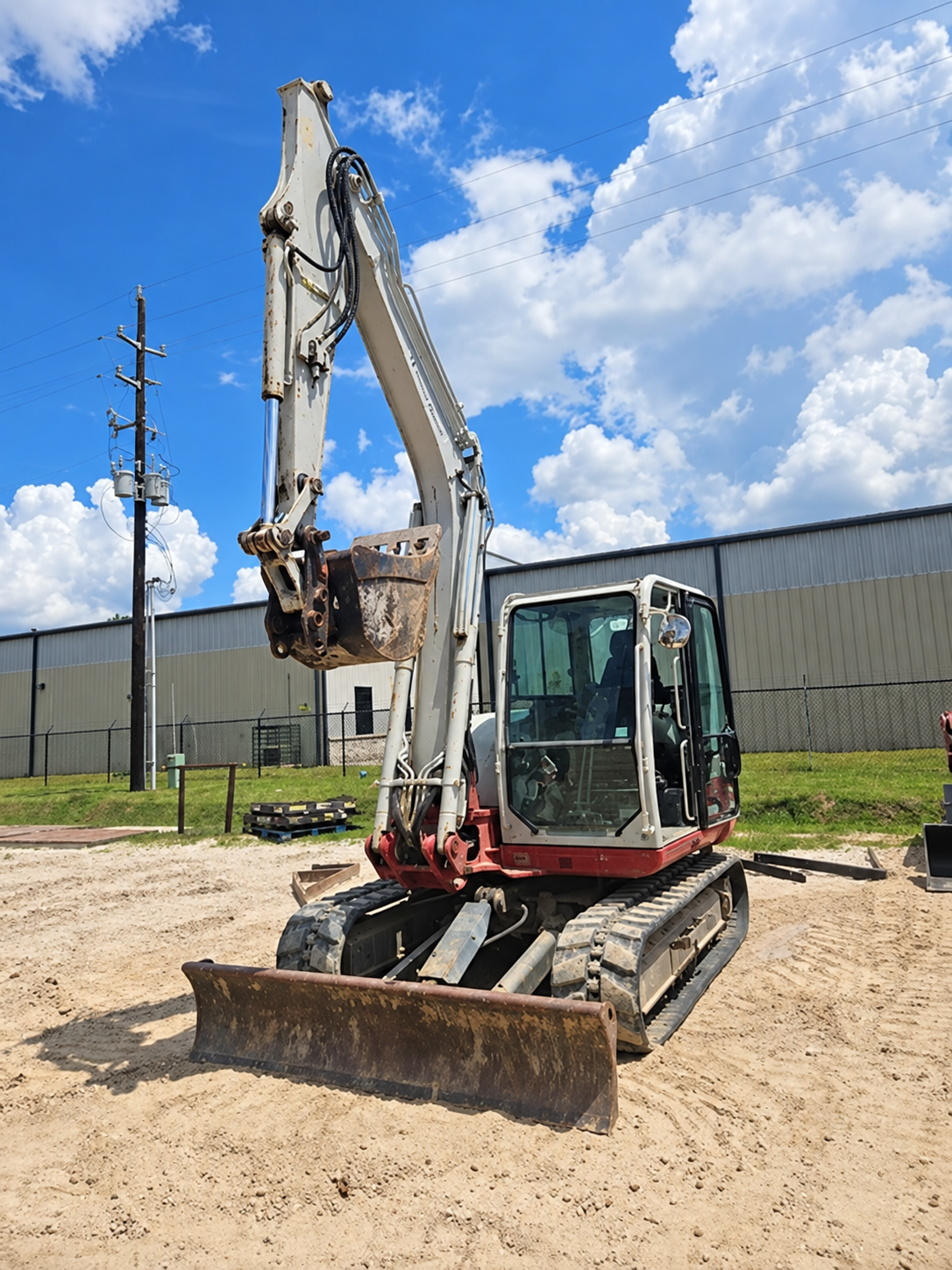

2022 Takeuchi TB290C Excavator
