Item Specifications
Category
Condition
Used
Item Number
#2041
Make
takeuchi
Model
tl12r2_cr
Year
2021
Industry
construction
Equipment Type
compact track loaders
Location
Ingleside, TX
Serial
4121*****
Hours
3463
Also Available In
TX
Item Description

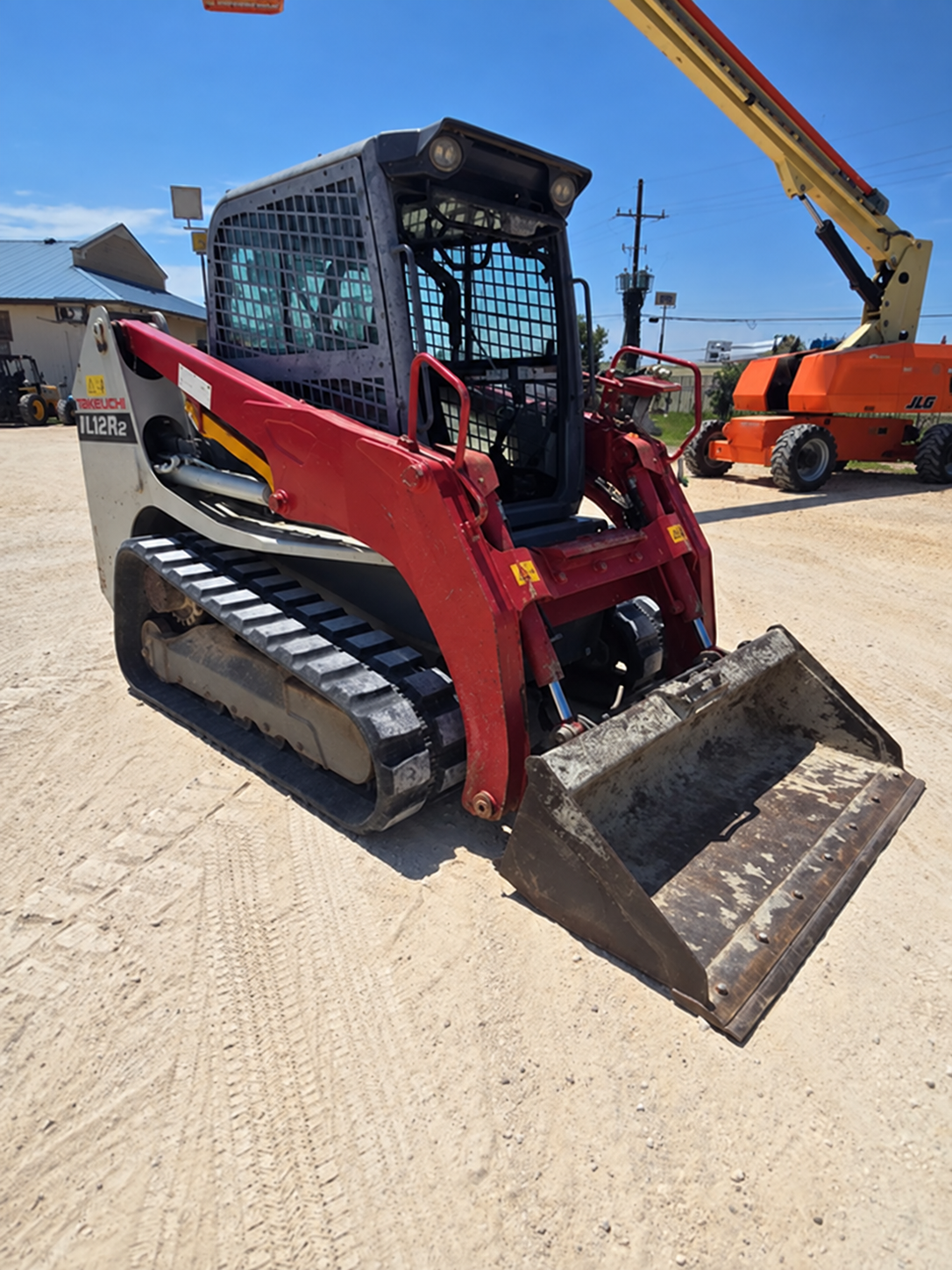

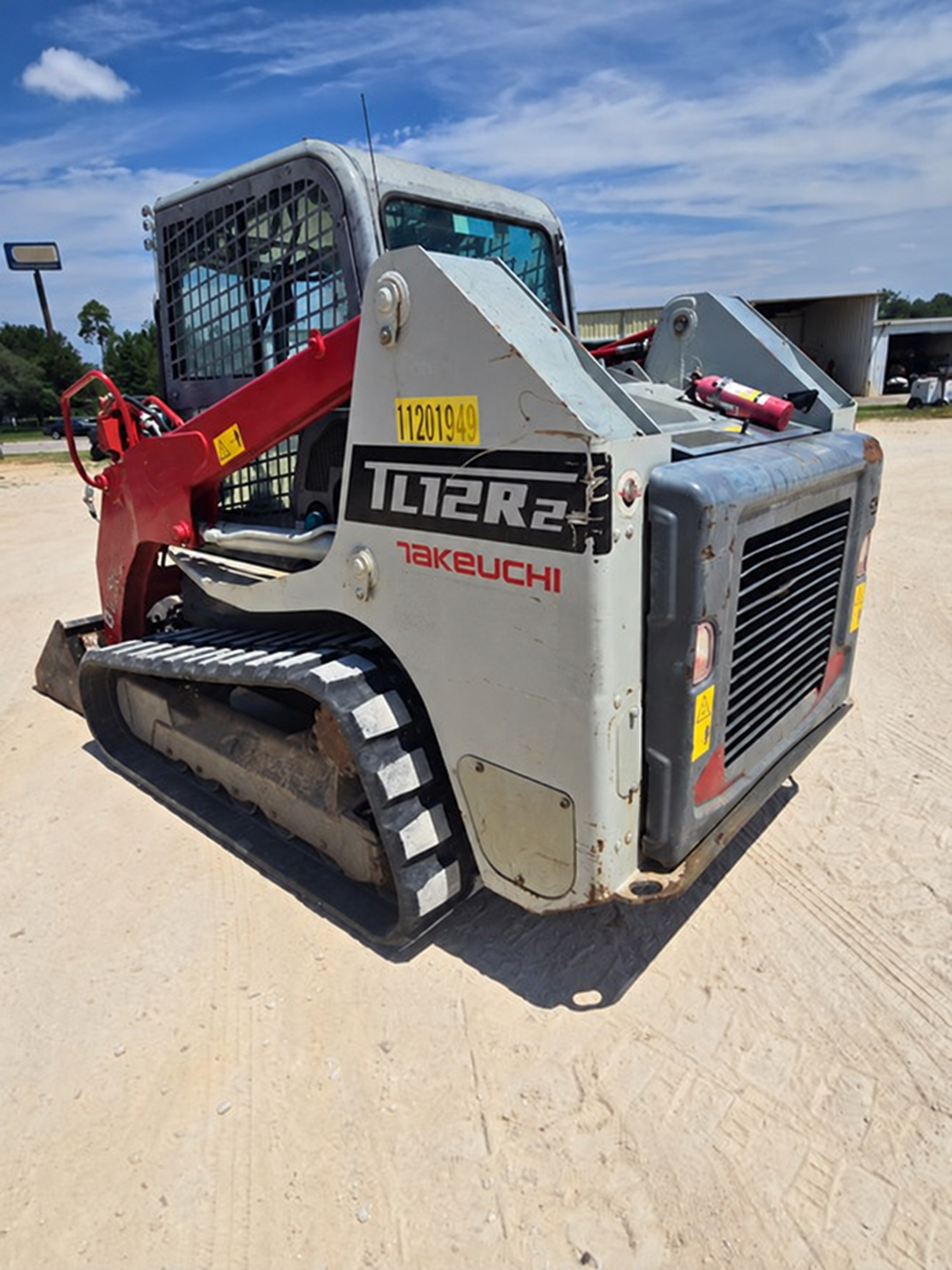

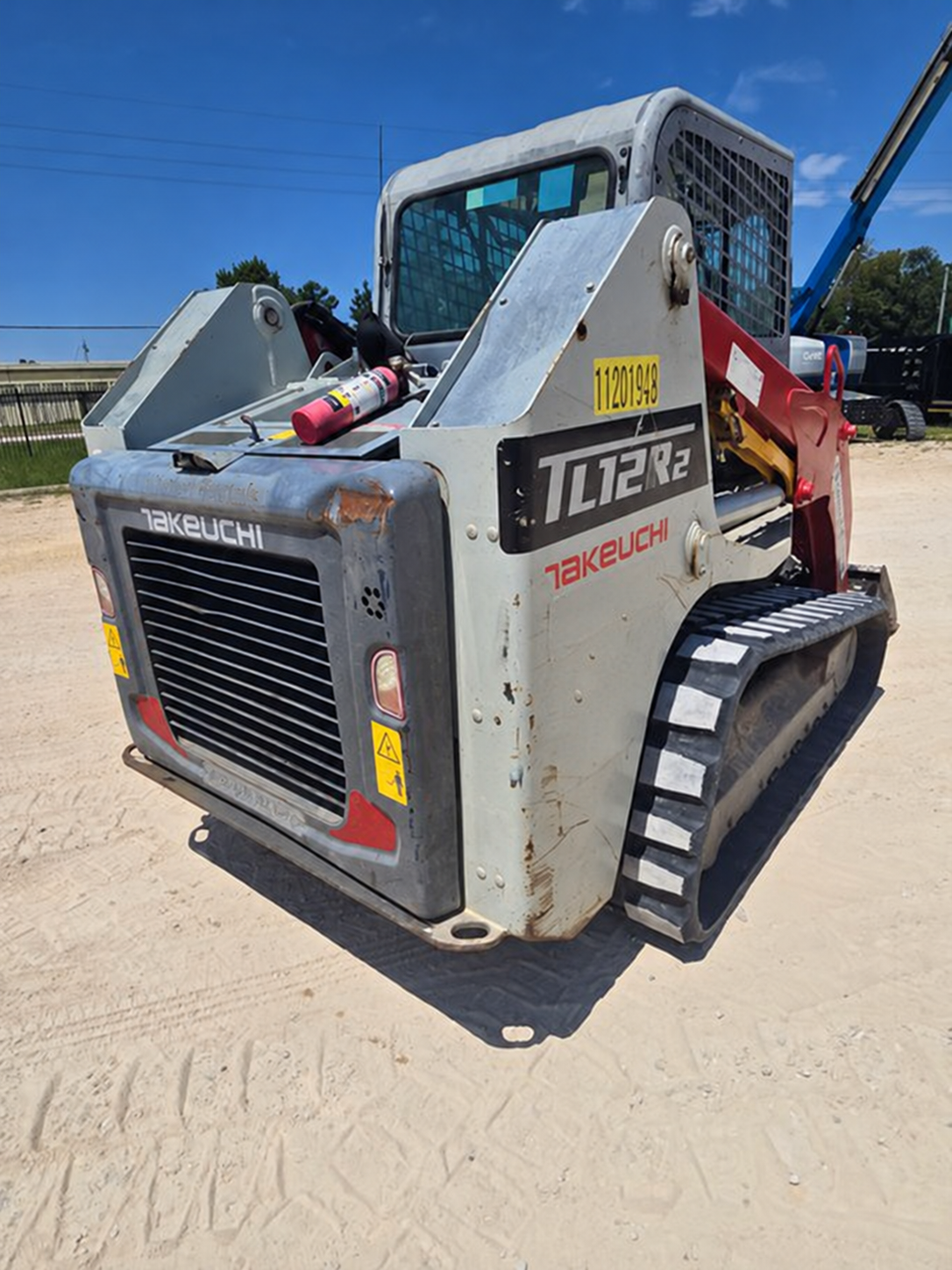

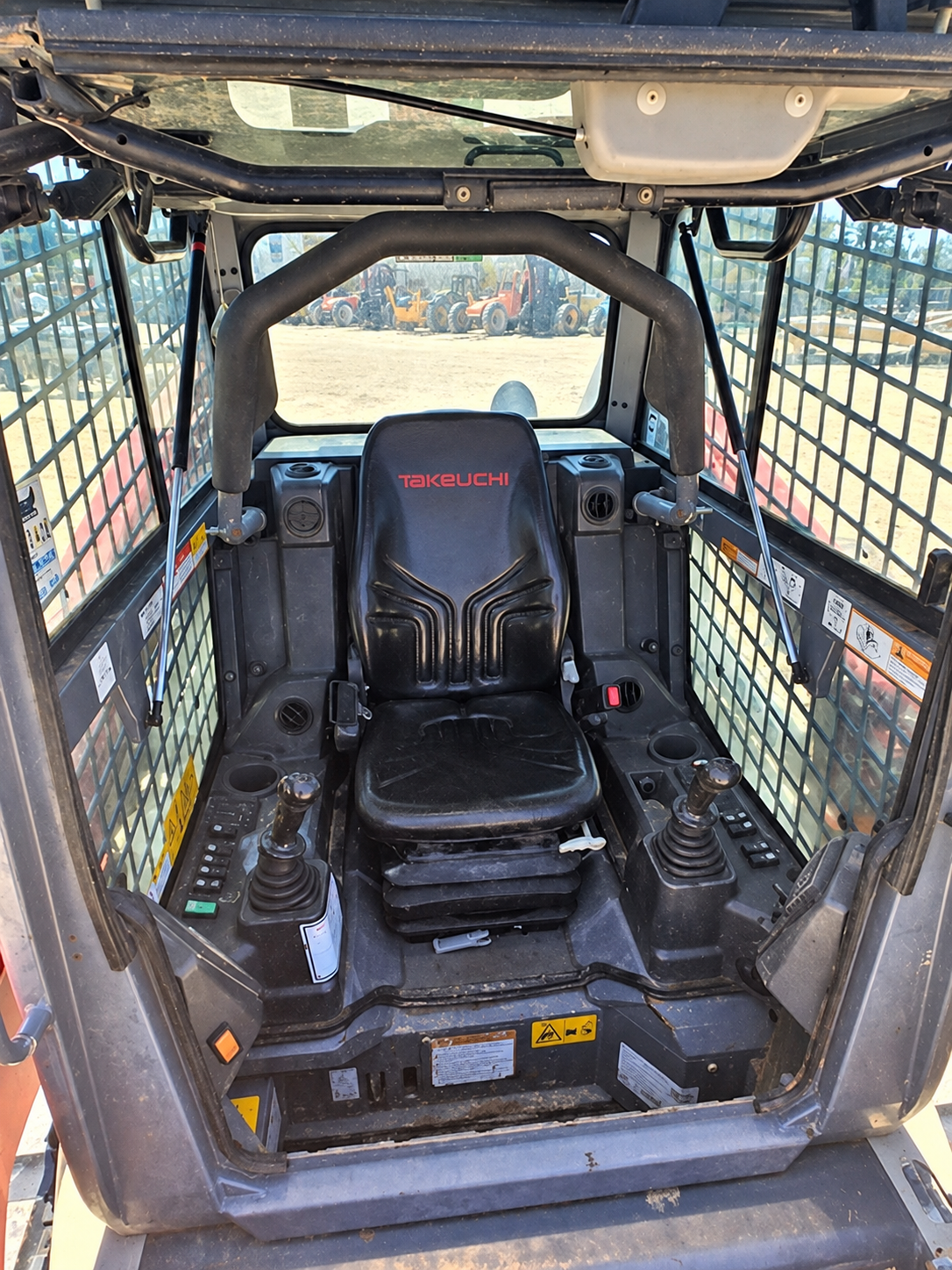

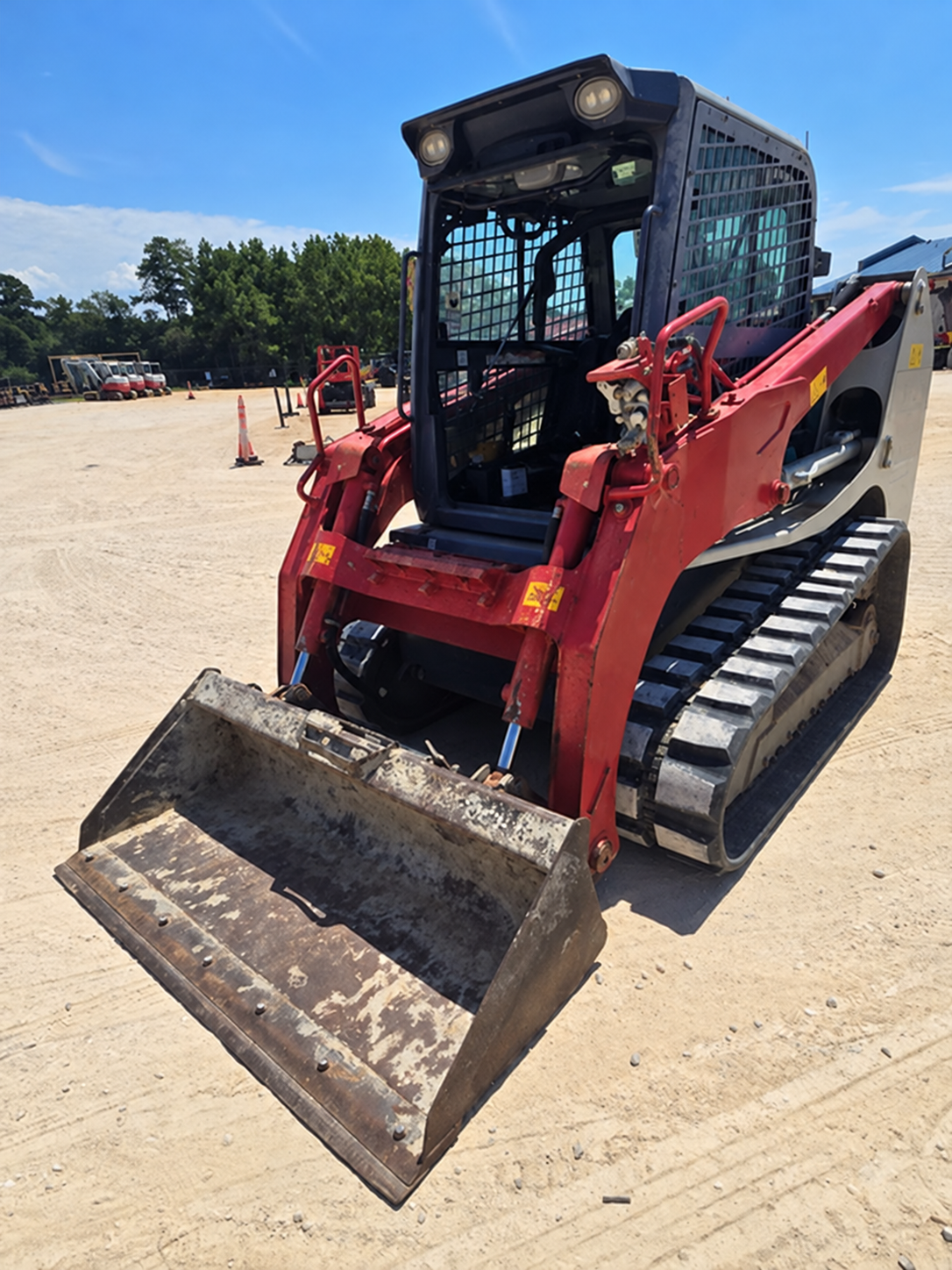

This 2021 Takeuchi TL12R2-CR compact track loader is suited to loading, moving material, and site preparation. Its tracked undercarriage helps it travel over uneven ground. Auxiliary hydraulics can operate compatible attachments for additional tasks. Mileage and/or engine hours are approximate and subject to change. Please contact your sales representative for the most current readings.
Specifications
General
| Year | 2021 |
| Make | takeuchi |
| Model | tl12r2_cr |
| Hours | 3463 |
| Serial Number | 4121***** |
| Condition | Used |
| Traction Force | 14,010 lb (6,353 kg) |
| D Dump Angle | 42° |
| E Rollback Angle | 30° |
| J Departure Angle | 30° |
Engine & Powertrain
| Engine Make / Model | Kubota / V3800TIF4B - Turbo Intercooled |
| Engine Displacement | 230 cu in (3.8 L) |
| Horsepower @ 2,400 rpm | 111.3 hp (83.0 kW) |
| Maximum Torque @ 1,500 rpm | 276 ft-lb (374 Nm) |
Working Range
| Tipping Load | 8,629 lb (3,915 kg) |
| Rated Operating Capacity, SAE J818* | 2,975 lb (1,349 kg) |
| Operating Load at 50% of Tipping Load | 4,315 lb (1,957 kg) |
| Travel speed - Low | 5.0 mph (8.1 km/hr) |
| Travel speed - High | 7.3 mph (11.8 km/hr) |
| Fluid Capacities - Engine Lubrication | 13.9 qt (13.2 L) |
| Fluid Capacities - Cooling System | 19.0 qt (18.0 L) |
| Fluid Capacities - Fuel Tank Capacity | 31.6 gal (119.5 L) |
| Fluid Capacities - DEF Fluid Tank Capacity | 4.8 gal (18.0 L) |
| Fluid Capacities - Fuel Consumption (65% of Full Load) | 3.8 gal/hr (14.4 L/hr) |
| Fluid Capacities - Hydraulic Reservoir Capacity | 13.2 gal (50.0 L) |
| Fluid Capacities - Hydraulic System Capacity | 20.9 gal (79.0 L) |
| Hydraulic System - Auxiliary Flow - Primary Circuit | 23.2 gpm (88.0 Lpm) |
| Hydraulic System - Auxiliary Flow - High Flow (optional) | 40.4 gpm (153.0 Lpm) |
| Hydraulic System - Auxiliary Flow - Secondary Circuit (optional) | 23.2 gpm (88.0 Lpm) |
| Hydraulic System - Hydraulic System Pressure | 3,481 psi (24.0 MPa) |
| C Dump Reach Fully Raised | 3 ft 1.8 in (960 mm) |
Undercarriage & Attachments
| Bucket Breakout Force | 8,210 lb (3,722 kg) |
| Lift Arm Breakout Force | 8,075 lb (3,663 kg) |
Dimensions
| Operating Weight - Canopy | 12,300 lb (5,580 kg) |
| Operating Weight - Cab | 12,590 lb (5,710 kg) |
| Ground Pressure - Canopy | 4.58 psi (31.6 kPa) |
| Ground Pressure - Cab | 4.68 psi (32.3 kPa) |
| A Max. Lift Height to Bucket Pin | 10 ft 6.0 in (3,200 mm) |
| B Dump Height Fully Raised | 7 ft 10.5 in (2,400 mm) |
| F Track Ground Contact Length | 5 ft 7.5 in (1,716 mm) |
| G Machine Length | 10 ft 6.2 in (3,205 mm) |
| H Transport Length | 13 ft 3.3 in (4,045 mm) |
| I Transport Height | 7 ft 7.0 in (2,311 mm) |
| K Clearance Circle with Bucket | 8 ft 4.6 in |
| L Clearance Circle without Bucket | 5 ft 4.4 in |
| M Clearance Circle Rear | 6 ft 0.0 in |
| N Track Width | 17.7 in (450 mm) |
| O Ground Clearance | 12.5 in (320 mm) |
| P Overall Width without Bucket | 6 ft 5.2 in (1,960 mm) |
2021 Takeuchi TL12R2-CR Compact Track Loader
