Item Specifications
Category
Condition
Used
Item Number
#2025
Make
caterpillar
Model
303E CR
Year
2023
Industry
construction
Equipment Type
mini excavators
Location
Ft. Worth, TX
Hours
753
Also Available In
TX
Item Description

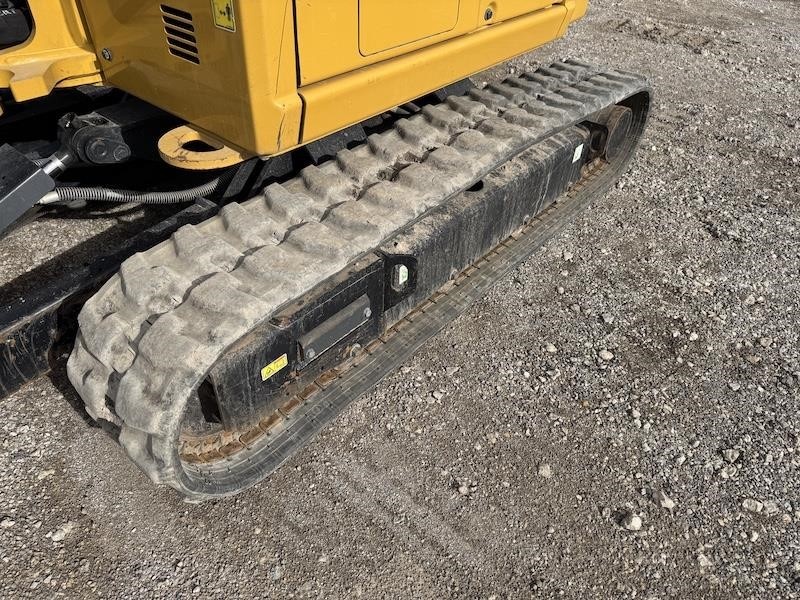

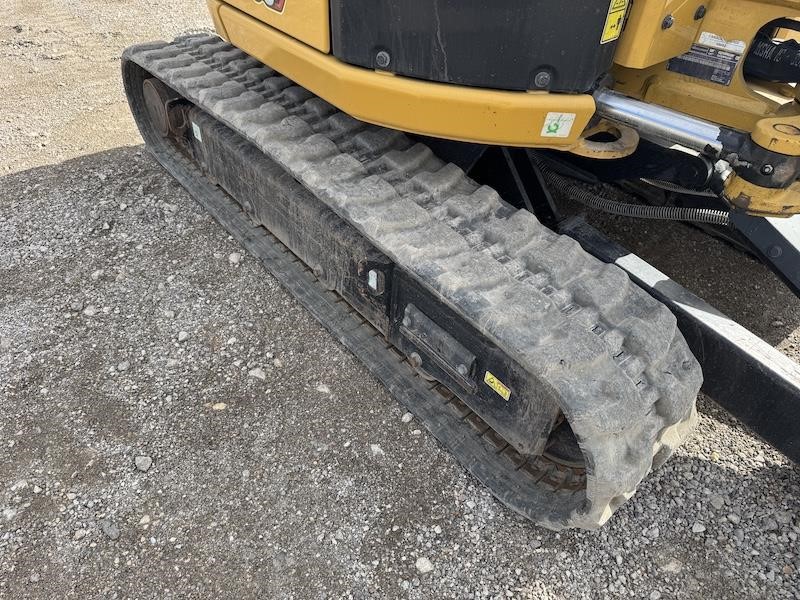

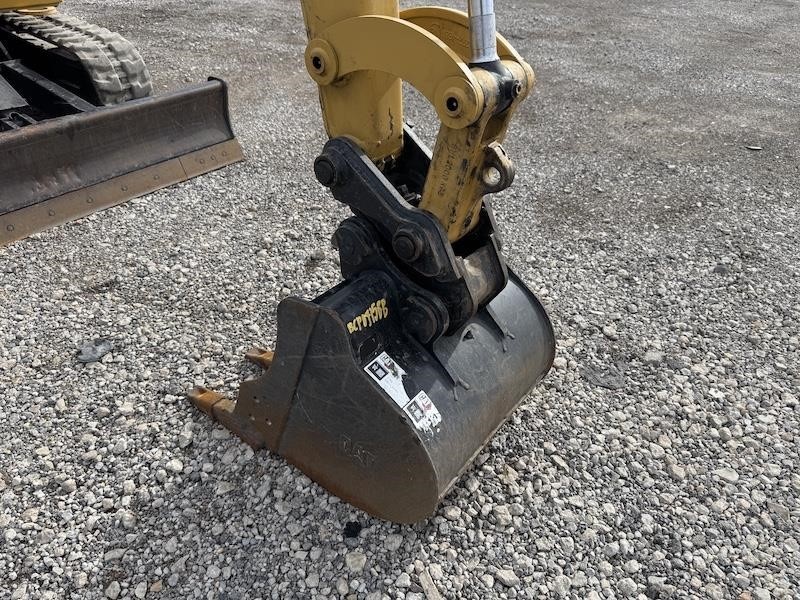

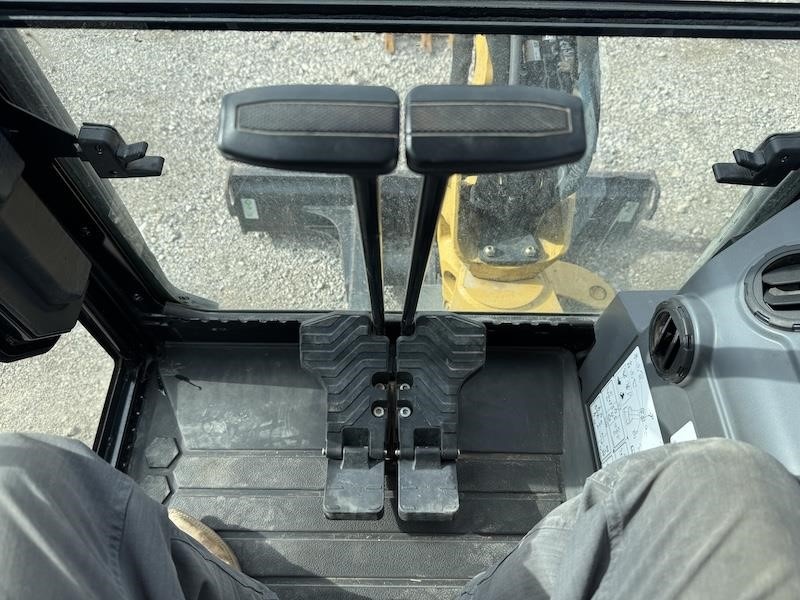

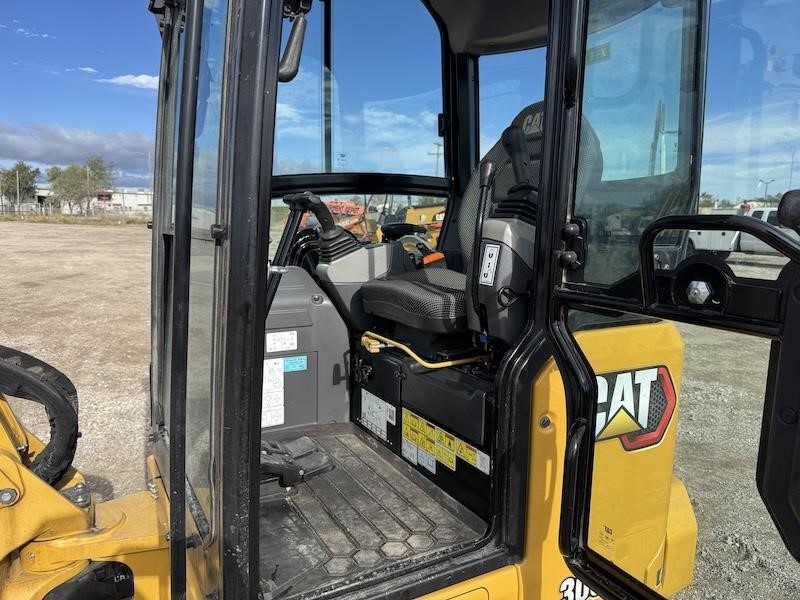

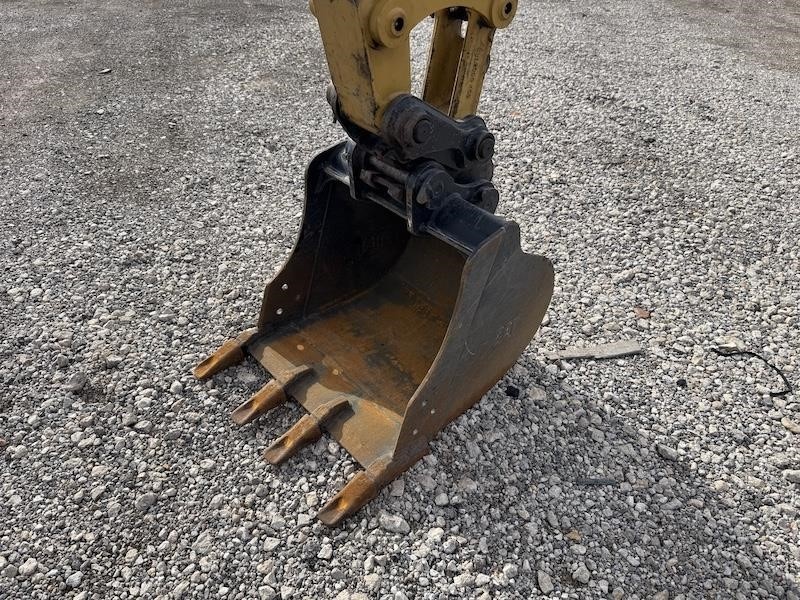

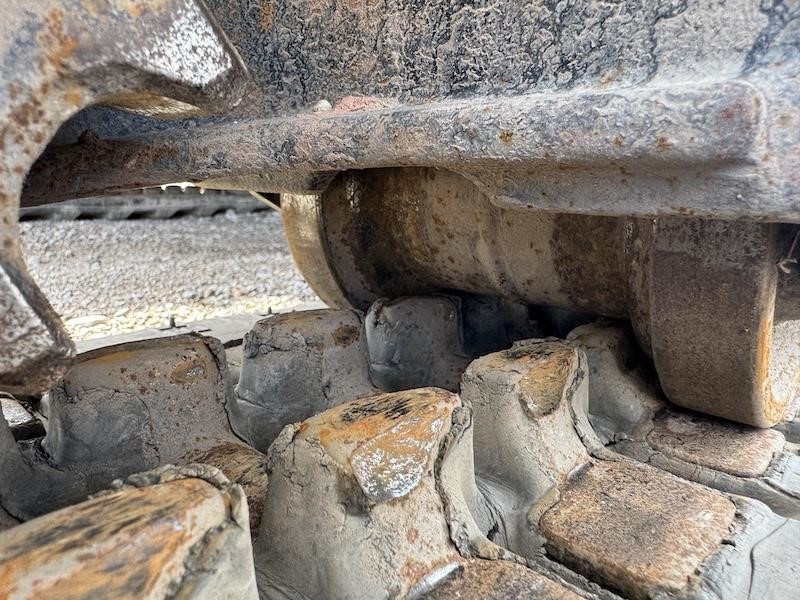

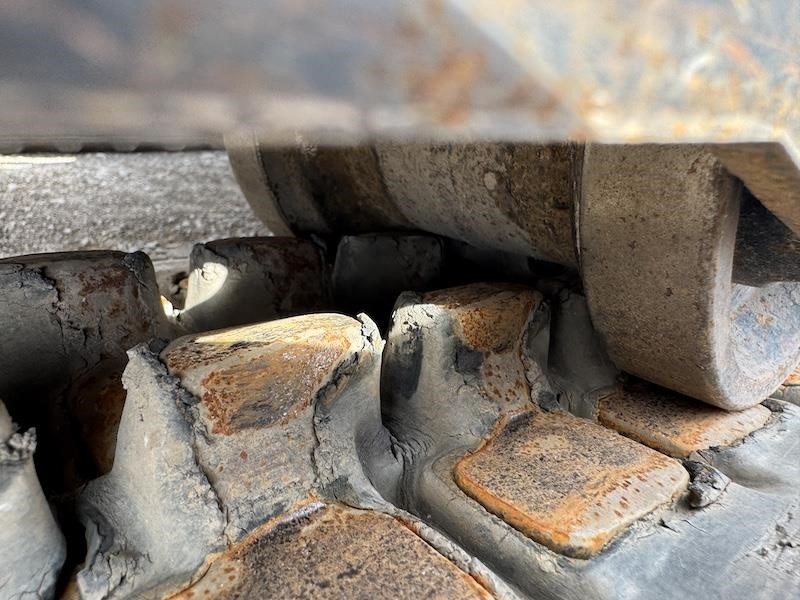

EROPS, A/C, Heat, Aux Hyd, Blade, Coupler, 61" Stick, 2 Speed, Rubber Tracks, 22" Bucket. Warranty until 5/11/2028 or 2,000hrs.
Specifications
General
| Year | 2023 |
| Make | caterpillar |
| Model | 303E CR |
| Hours | 753 |
| Condition | Used |
| Rated Net Power @ 2,400 rpm (ISO 9249/EEC 80/1269) | 17.5 kW / 23.5 hp |
| Gross Power (ISO 14396) | 18.5 kW / 24.8 hp |
Engine & Powertrain
| Engine Model | Cat C1.3 |
| Displacement | 1.26 L / 77 in3 |
| Service Refill Capacities Cooling System | 4.7 L / 1.2 gal |
| Service Refill Capacities Engine Oil | 5.7 L / 1.5 gal |
| Service Refill Capacities Fuel Tank | 45 L / 11.8 gal |
Working Range
| Travel Speed - High | 4.5 km/h / 2.8 mph |
| Travel Speed - Low | 2.4 km/h / 1.5 mph |
| Max Traction Force - High Speed | 15.2 kN / 3,417 lb |
| Max Traction Force - Low Speed | 30.9 kN / 6,946 lb |
| Gradeability (maximum) | 30 deg |
| Service Refill Capacities Hydraulic Tank | 47 L / 12.4 gal |
| Service Refill Capacities Hydraulic System | 65 L / 17.2 gal |
| Pump Flow at 2,400 rpm | 87.6 L/min / 23.1 gal/min |
| Operating Pressure - Equipment | 245 bar / 3,553 psi |
| Operating Pressure - Travel | 245 bar / 3,553 psi |
| Operating Pressure - Swing | 181 bar / 2,625 psi |
| Digging Force - Stick (standard) | 16.6 kN / 3,731 lb |
| Digging Force - Bucket | 28.4 kN / 6,384 lb |
| Machine Swing Speed | 9 rpm |
| 1 Dig Depth | 2750 mm / 108 in |
| 3 Maximum Reach at Ground Level | 4810 mm / 189 in |
| 4 Maximum Reach | 4950 mm / 195 in |
| 8 Tail Swing | 890 mm / 35 in |

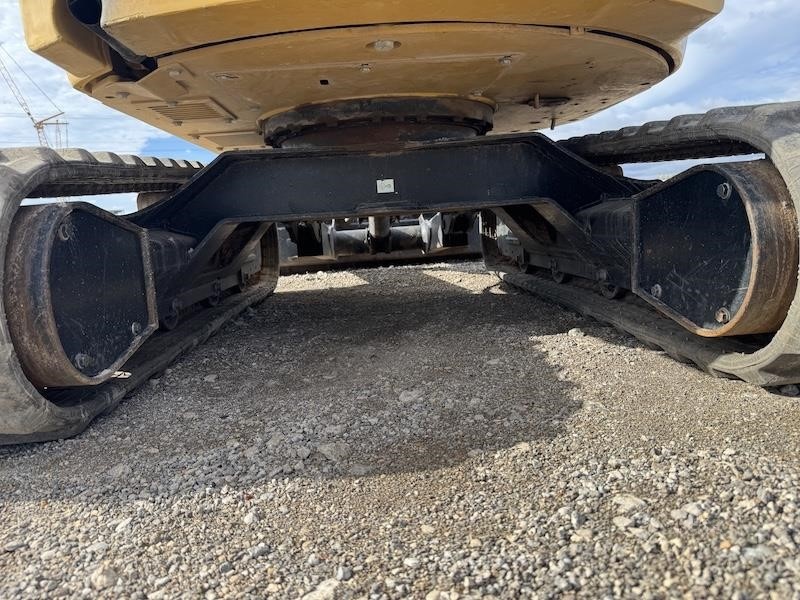

Undercarriage & Attachments
| Boom Swing - Left | 80 deg |
| Boom Swing - Right | 50 deg |

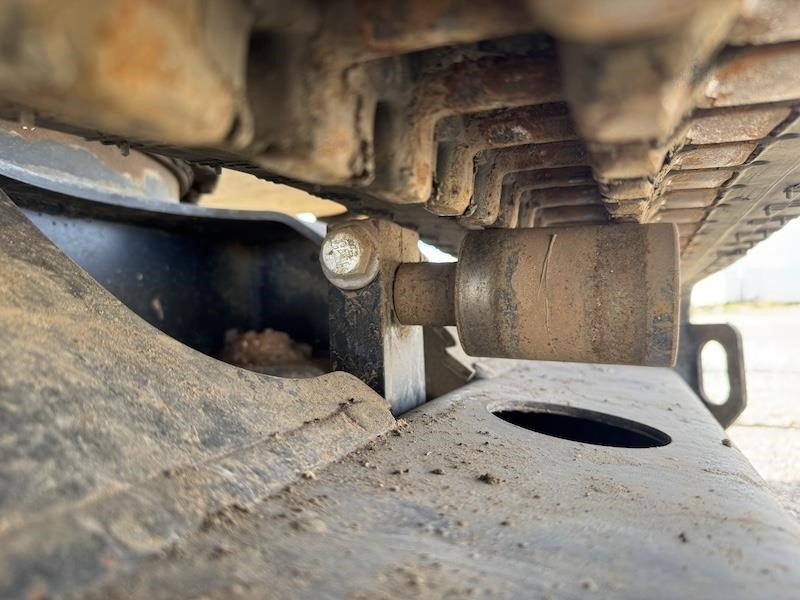

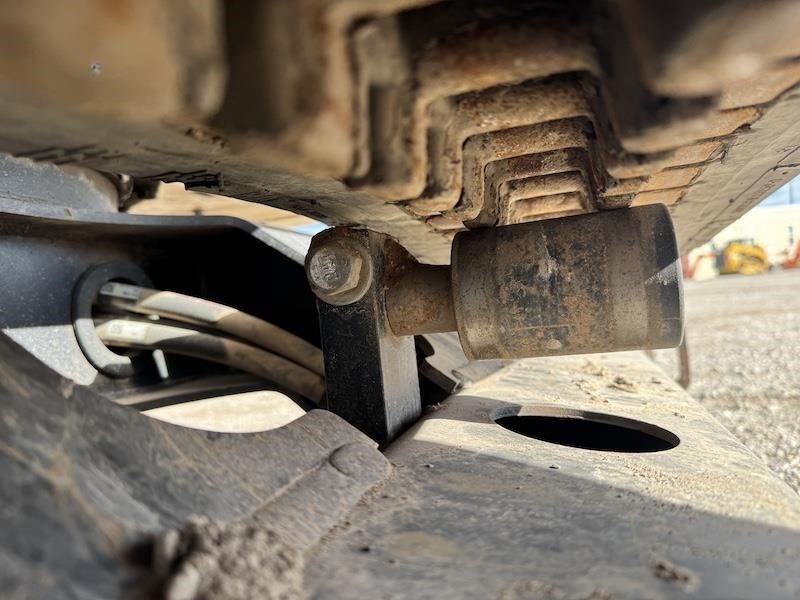

| Number of Track Rollers | 3 |
| Track Roller Type | Double Flange |
Dimensions
| Operating Weight with Canopy | 3310 kg / 7,297 lb |
| Operating Weight with Cab | 3530 kg / 7,782 lb |
| Ground Pressure | 32.2 kPa / 4.6 psi |
| Blade Width | 1550 mm / 60 in |
| 5 Maximum Dig Height | 4530 mm / 178 in |
| 6 Maximum Dump Clearance | 3150 mm / 124 in |
| 11 Boom Height in Shipping Position | 1590 mm / 63 in |
| 12 O/A Shipping Height | 2500 mm / 98 in |
| 13 Swing Bearing Height | 565 mm / 22 in |
| 14 O/A Undercarriage Length | 2210 mm / 87 in |
| 15 O/A Shipping Length | 4470 mm / 176 in |
| 18 Track Belt/Shoe Width | 300 mm / 12 in |
| 19 O/A Track Width | 1550 mm / 60 in |

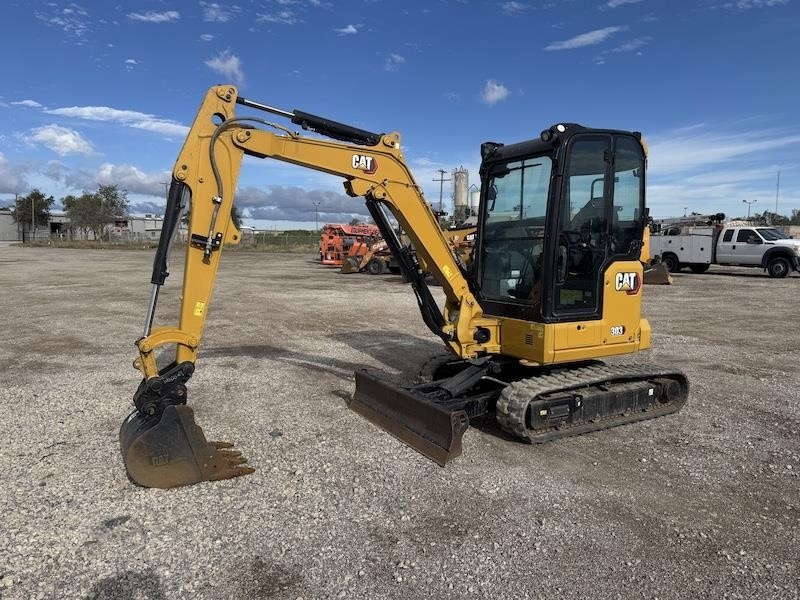

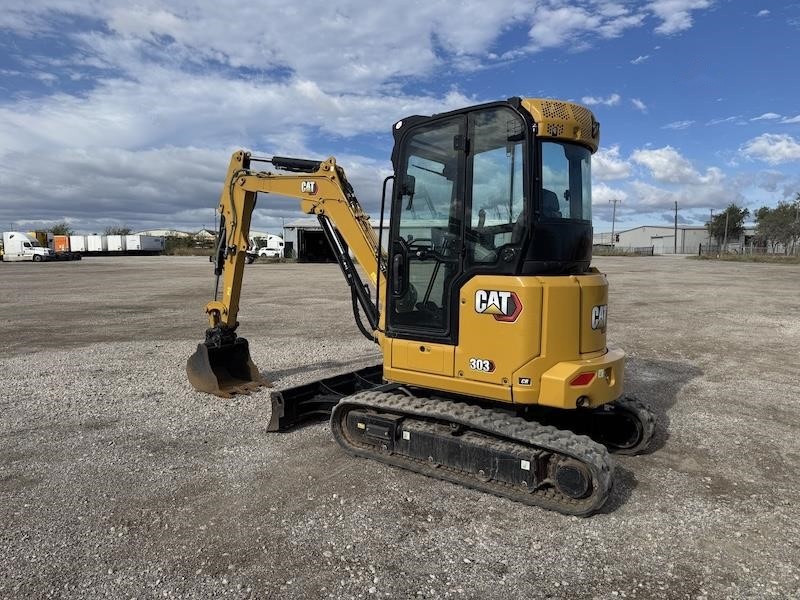

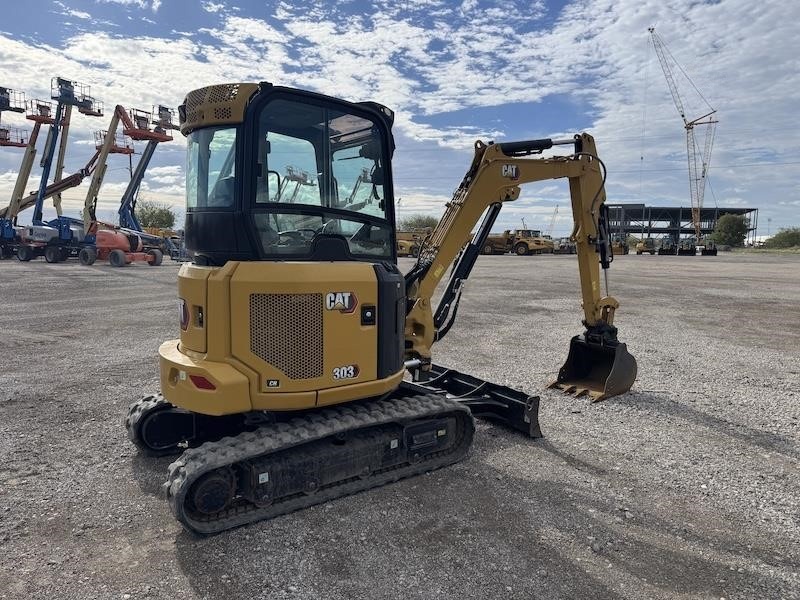

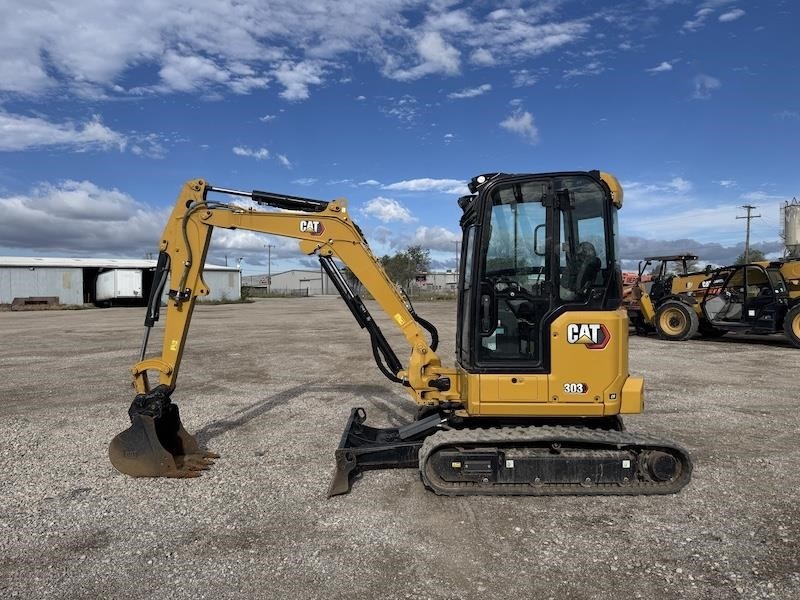

2023 Caterpillar 303 CR Mini Excavator
