Item Specifications
Category
Condition
Used
Item Number
#2008
Make
caterpillar
Model
910
Year
2020
Industry
construction
Equipment Type
wheel loaders
Location
Ft. Worth, TX

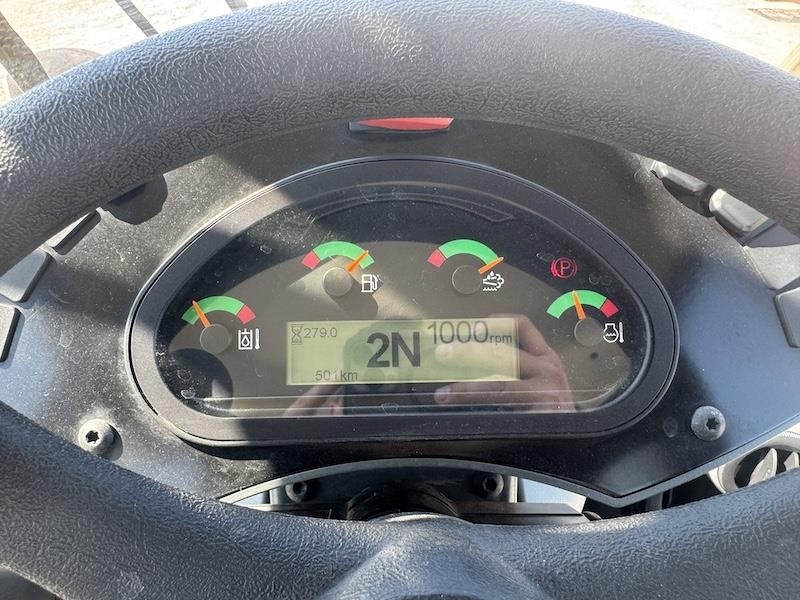

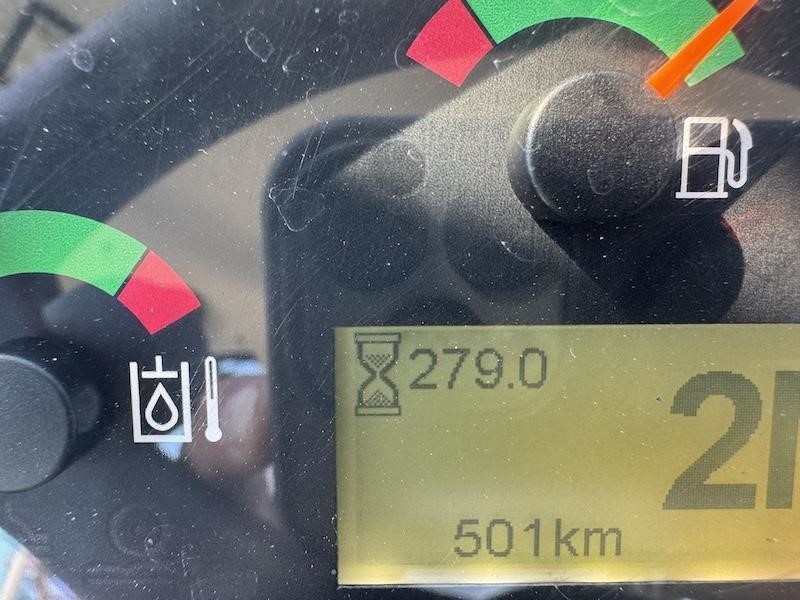

Hours
279
Also Available In
TX
Item Description

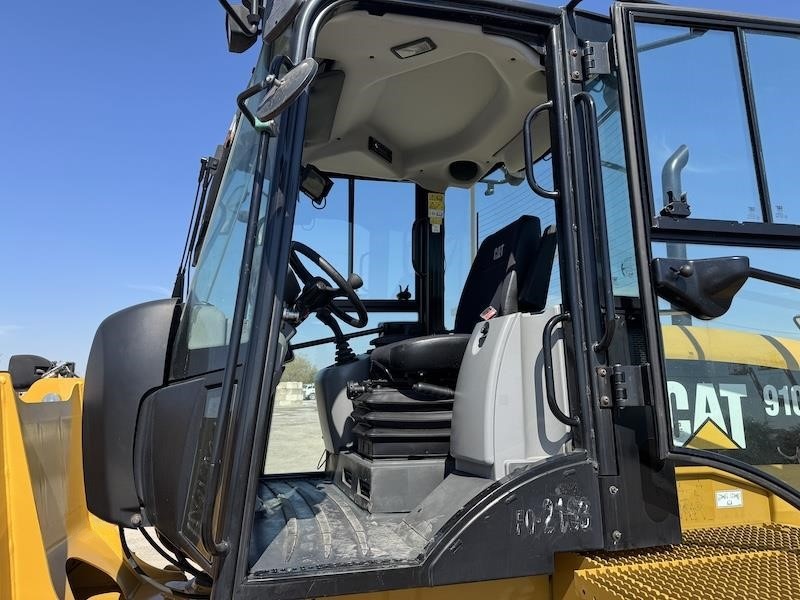

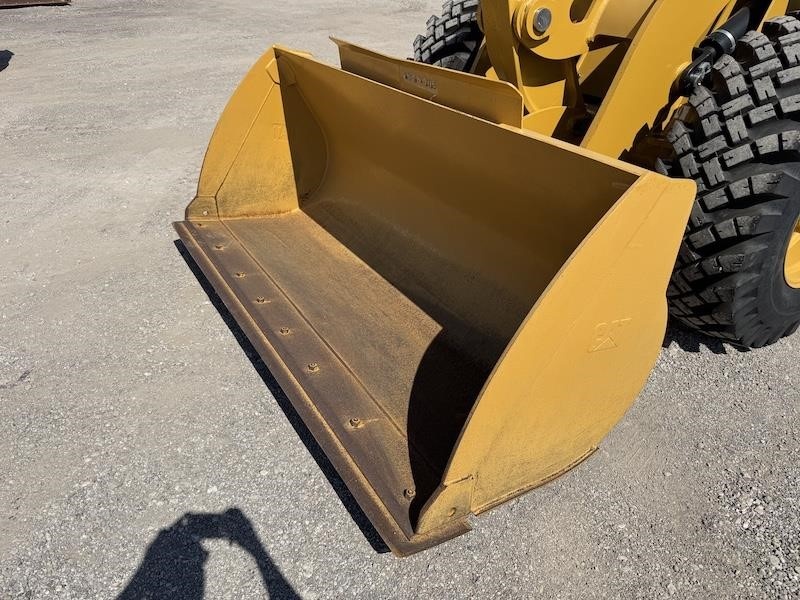

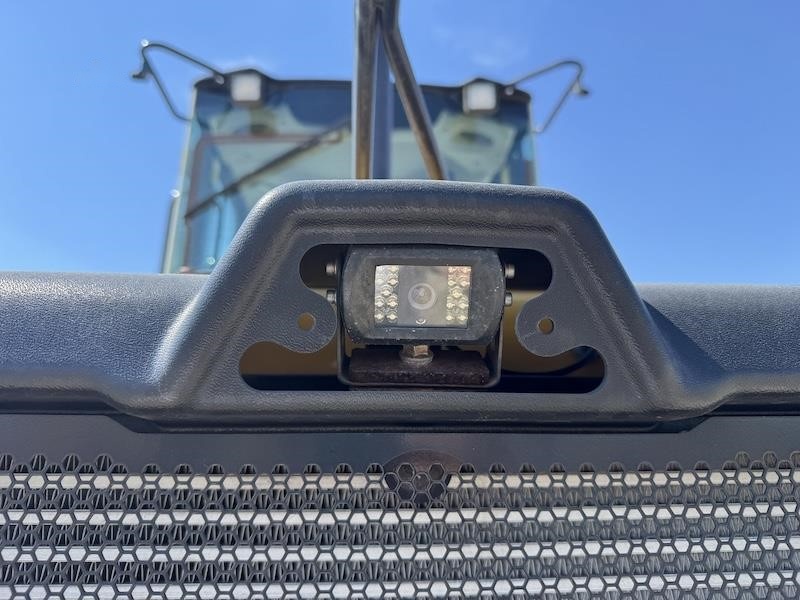

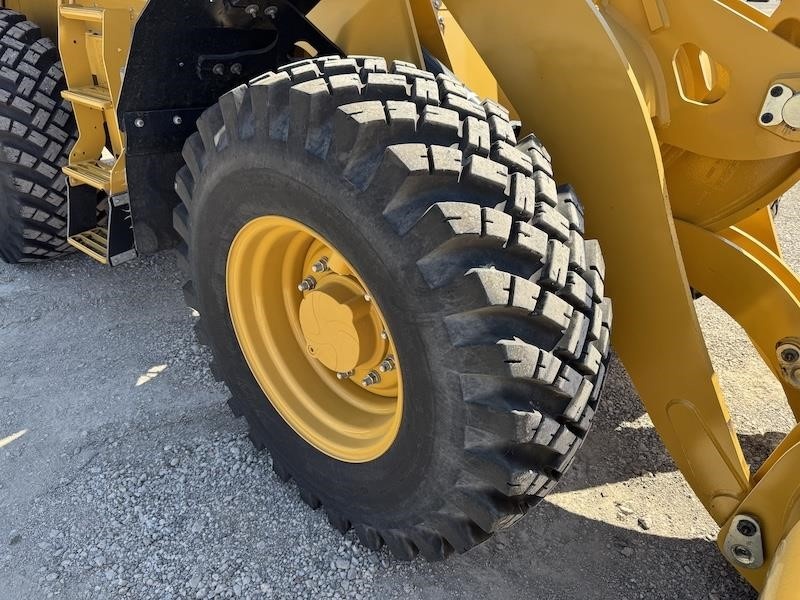

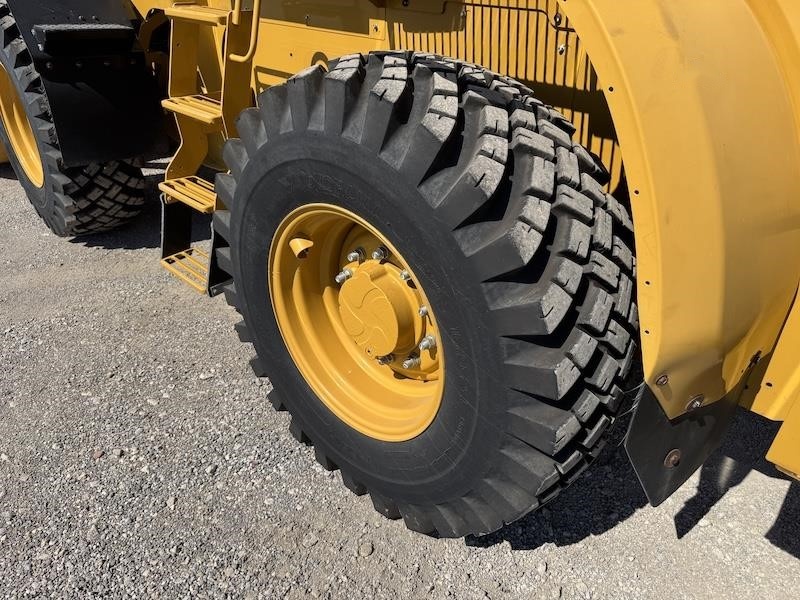

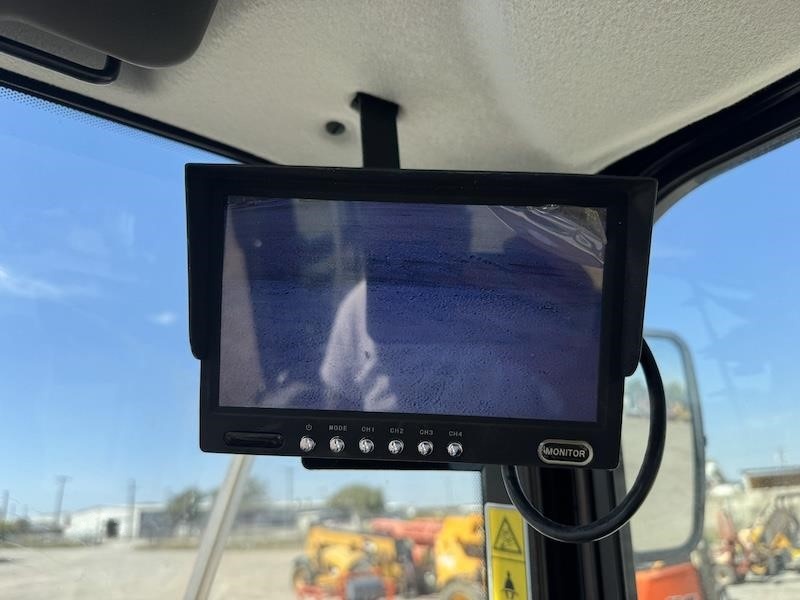

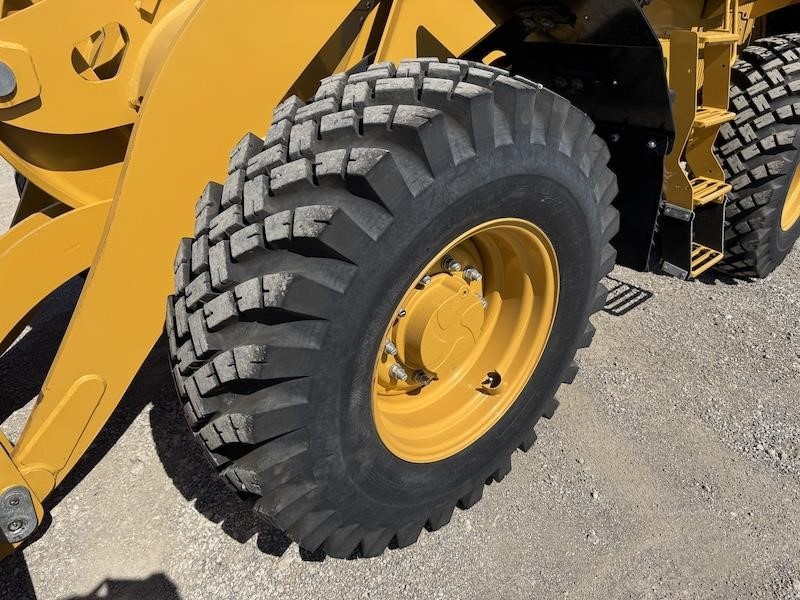

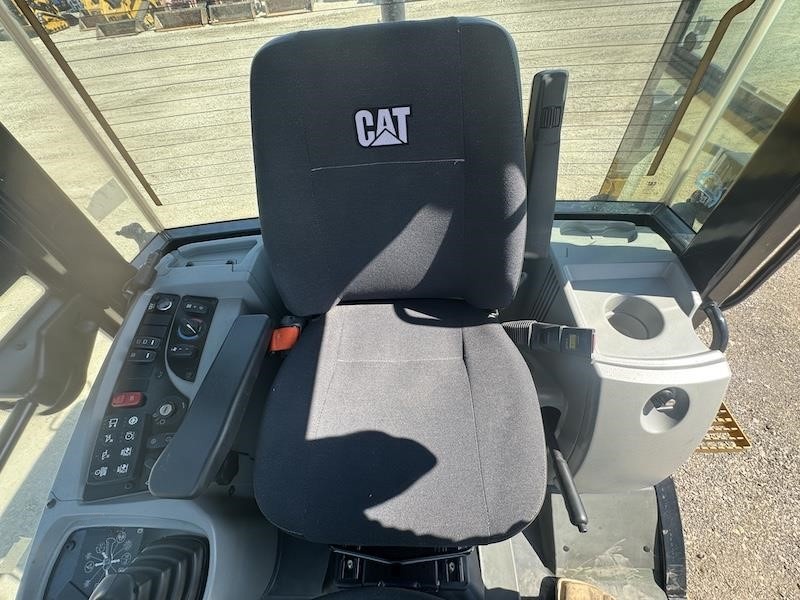

EROPS, A/C, Heat, 4WD, Ride Control, Traction Control, Backup Camera, 16.9-24 Tires, 90" Bucket
Specifications
General
| Year | 2020 |
| Make | caterpillar |
| Model | 910 |
| Hours | 279 |
| Condition | Used |
| ROPS | ISO 3471:2008 |
| FOPS | EN ISO 3449:2008 (ISO 3449:2005) |
Engine & Powertrain
| Engine Model | Cat C3.6 |
| Maximum Engine Speed | 2,350 RPM |
| Rated Engine Speed | 2,200 RPM |
| Displacement | 3.6 L |
| Displacement (4) | 220 in3 |
| Maximum Gross Torque - SAE J1995 | 454 N·m 335 lbf-ft |
| Maximum Gross Torque - ISO 14396 | 450 N·m 332 lbf-ft |
| Maximum Net Torque - SAE J1349 | 446 N·m 329 lbf-ft |
| Maximum Net Torque - ISO 9249 | 443 N·m 327 lbf-ft |
| Axles - Front | Fixed |
| Axles - Front (10) | Locking differential (standard) |
| Axles - Rear | 11 degrees |
| Axles - Rear (12) | , L |
Working Range
| Tipping Load - Straight (ISO 14397-1) (High Lift - IT) | 5099 kg |
| Tipping Load - Straight (ISO 14397-1) (High Lift - IT) (56) | 11,239 lb |
| Tipping Load - Full Turn (ISO 14397-1) (High Lift - IT) | 4240 kg |
| Tipping Load - Full Turn (ISO 14397-1) (High Lift - IT) (58) | 9,344 lb |
| Breakout Force (High Lift - IT) | 6800 kg |
| Breakout Force (High Lift - IT) (60) | 14,987 lb |
Undercarriage & Attachments
| Bucket Capacities - General Purpose | 1.9 m3 |
| Bucket Capacities - General Purpose (1) | 2.5 yd3 |
| Bucket Capacities - Light Material | 3.5 m3 |
| Bucket Capacities - Light Material (3) | 4.6 yd3 |
| Tires - Standard Size | 15.5 R25 L2 XTLA |
| Reach: Bucket at 45 Degrees (High Lift - IT) | 1054 mm 3'5" |
Dimensions
| Height: Ground to Cab (High Lift - IT) | 3020 mm 9'10" |
| Height: Ground to Beacon (High Lift - IT) | 3210 mm 10'6" |
| Height: Ground Axle Center (High Lift - IT) | 600 mm |
| Height: Ground Axle Center (High Lift - IT) (3) | 1'11" |
| Height: Ground Clearance (High Lift - IT) | 348 mm |
| Height: Ground Clearance (High Lift - IT) (5) | 1'1" |
| Length: Overall (High Lift - IT) | 6869 mm 22'6" |
| Length: Rear Axle to Bumper (High Lift - IT) | 1634 mm 5'4" |
| Length: Hitch to Front Axle (High Lift - IT) | 1300 mm 4'3" |
| Length: Wheel Base (High Lift - IT) | 2600 mm 8'6" |
| Clearance: Bucket at 45 Degrees (High Lift - IT) | 3176 mm 10'5" |
| Clearance: Load Over Height (High Lift - IT) | 3397 mm 11'1" |
| Clearance: Level Bucket (High Lift - IT) | 3774 mm 12'4" |
| Height: Bucket Pin (High Lift - IT) | 4030 mm 13'2" |
| Height: Overall (High Lift - IT) | 4920 mm 16'1" |
| Carry Height: Bucket Pin (High Lift - IT) | 480 mm |
| Carry Height: Bucket Pin (High Lift - IT) (16) | 1'6" |
| Width: Bucket (High Lift - IT) | 2401 mm 7'10" |
| Width: Tread Center (High Lift - IT) | 1800 mm 5'10" |

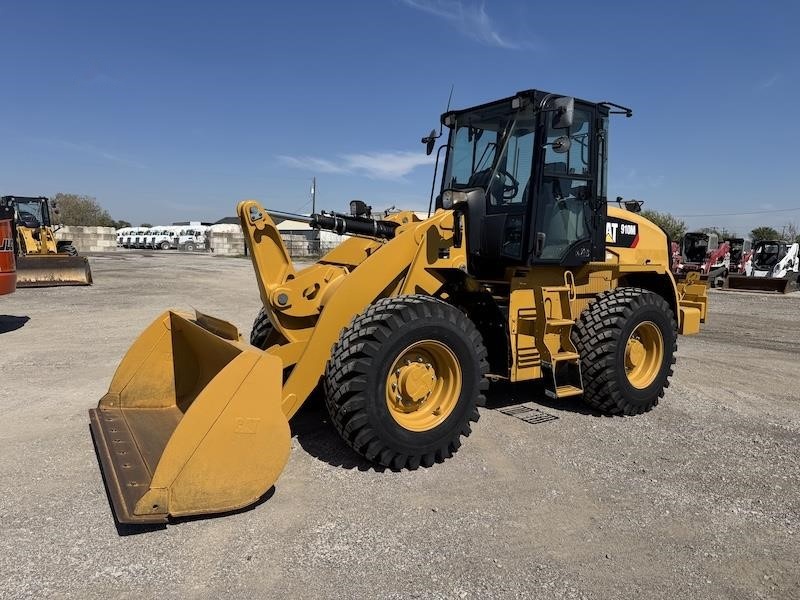

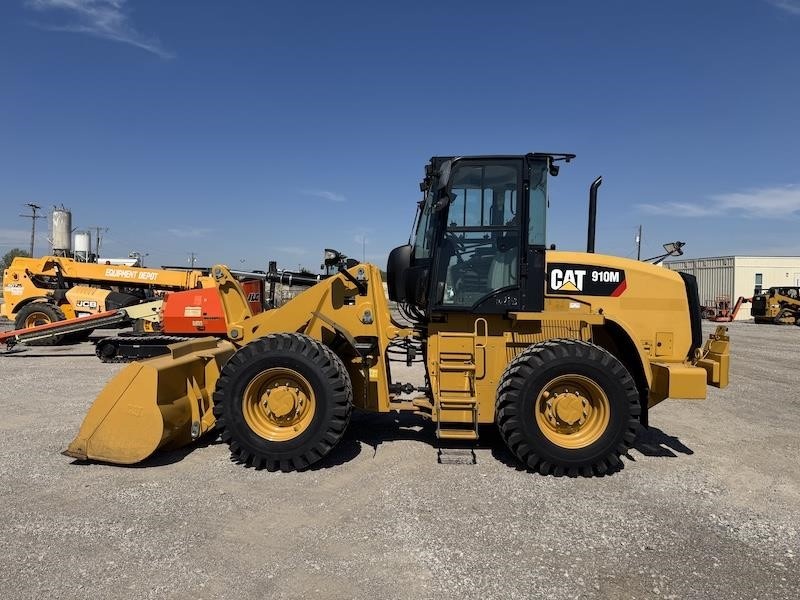

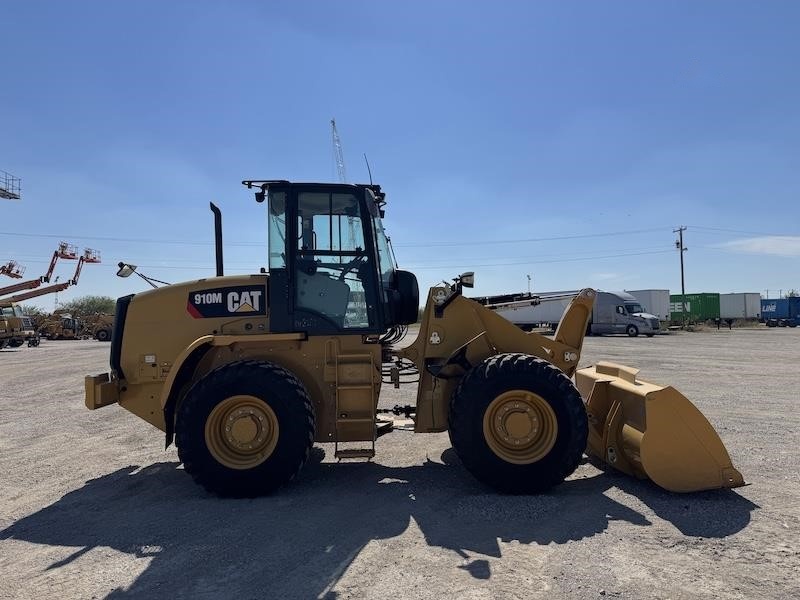

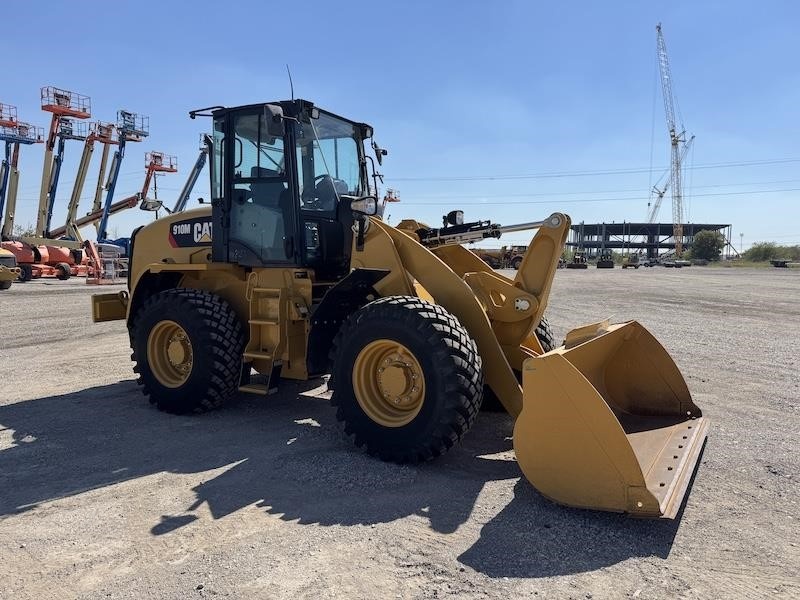

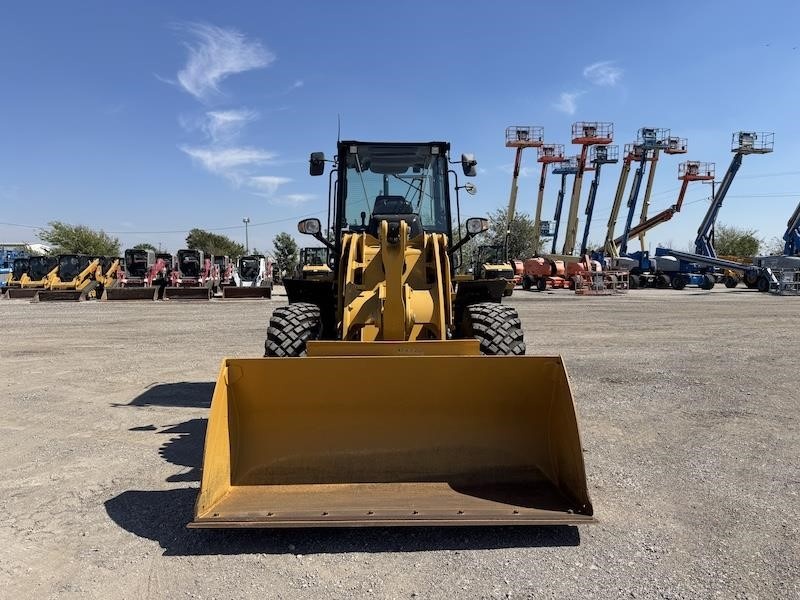

2020 Caterpillar 910M Wheel Loader
