Item Specifications
Category
Condition
Used
Item Number
#2004
Make
caterpillar
Model
246D3
Year
2022
Industry
construction
Equipment Type
skid steers
Location
Fort Worth, TX
Hours
1,093
Also Available In
TX
Item Description
This 2022 Caterpillar 246D3 skid steer is suited to loading, moving material, and site preparation. Its compact size helps it maneuver in confined work areas. Auxiliary hydraulics can operate compatible attachments for additional tasks. Mileage and/or engine hours are approximate and subject to change. Please contact your sales representative for the most current readings.
Specifications
General
| Year | 2022 |
| Make | caterpillar |
| Model | 246D3 |
| Hours | 1,093 |
| Condition | Used |
| Gross Power SAE J1995 | 55.4 kW / 74.3 hp |
| Net Power SAE J1349 | 54.4 kW / 72.9 hp |
| Net Power ISO 9249 | 54.9 kW / 73.7 hp |
| Stroke | 120 mm / 4.7 in |
| Bore | 94 mm / 3.7 in |
| 11 Departure Angle | 26 deg |
| 13 Maximum Dump Angle | 39 deg |
| ROPS | ISO 3471:2008 |
| FOPS | ISO 3449:2005 Level I |
| Noise Level Inside Cab | 81 dB(A) |
| Noise Level Outside Cab | 101 dB(A) |
Engine & Powertrain
| Engine Model | Cat C3.3B DIT (turbo) |
| Peak Torque at 1,500 rpm SAE J1995 | 265 N·m / 195 lbf-ft |
| Displacement | 3.3 L / 203 in3 |
| Breakout Force, Tilt Cylinder | 3336 kg / 7,355 lb |
| Service Refill Capacities Cooling System | 14 L / 3.7 gal |
| Service Refill Capacities Engine Crankcase | 11 L / 3.0 gal |
| Service Refill Capacities Fuel Tank | 105 L / 27.7 gal |
Working Range
| Travel Speed (Forward or Reverse) One Speed | 12.5 km/h / 7.7 mph |
| Travel Speed (Forward or Reverse) Two Speed Option | 17.7 km/h / 11.0 mph |
| Rated Operating Capacity | 975 kg / 2,150 lb |
| Tipping Load | 1950 kg / 4,300 lb |
| Hydraulic Flow - Standard Loader Hydraulic Pressure | 23 000 kPa / 3,335 psi |
| Hydraulic Flow - Standard Loader Hydraulic Flow | 86 L/min / 23 gal/min |
| Hydraulic Flow - Standard Hydraulic Power (calculated) | 33 kW / 44 hp |
| Hydraulic Flow - High Flow XPS Maximum Loader Hydraulic Pressure | 28 000 kPa / 4,061 psi |
| Hydraulic Flow - High Flow XPS Maximum Loader Hydraulic Flow | 121 L/min / 32 gal/min |
| Hydraulic Flow - High Flow XPS Hydraulic Power (calculated) | 57 kW / 76 hp |
| Service Refill Capacities Chain Box, each side | 12.7 L / 3.3 gal |
| Service Refill Capacities Hydraulic System | 52 L / 13.7 gal |
| Service Refill Capacities Hydraulic Tank | 39 L / 10.3 gal |
Dimensions
| Operating Weight | 3392 kg / 7,478 lb |
| Rated Operating Capacity with Optional Counterweight | 1088 kg / 2,400 lb |

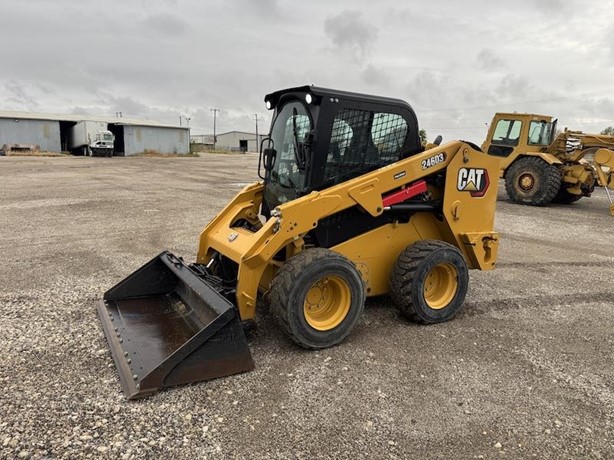

2022 Caterpillar 246D3 Skid Steer
