Item Specifications
Category
Condition
Used
Item Number
#1998
Make
caterpillar
Model
307.5
Year
2022
Industry
construction
Equipment Type
mini excavators
Location
Fort Worth, TX

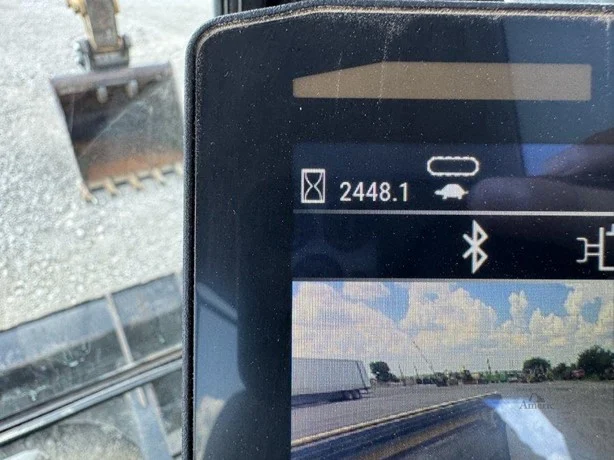

Hours
2,448
Also Available In
TX
Item Description
This 2022 Caterpillar 307.5 mini excavator is suited to trenching, digging, and site preparation. Its blade can assist with backfilling and leveling. Auxiliary hydraulics can operate compatible attachments for additional tasks. Mileage and/or engine hours are approximate and subject to change. Please contact your sales representative for the most current readings.
Specifications
General
| Year | 2022 |
| Make | caterpillar |
| Model | 307.5 |
| Hours | 2,448 |
| Condition | Used |
| Rated Net Power (ISO 9249, 80/1269/EEC) | 40.9 kW / 54.8 hp |
| Bore | 87 mm / 3.4 in |
| Stroke | 102.4 mm / 4 in |
| Roll Over Protective Structure (ROPS) | ISO 12117-2:2008 |
| Top Guard | ISO 10262:1998 (Level I) |
Engine & Powertrain
| Engine Model | Cat C2.4 Turbo |
| Engine Power (ISO 14396) | 43.2 kW / 57.9 hp |
| Displacement | 2.43 L / 148 in3 |
| Cooling System | 10 L / 2.6 gal |
| Engine Oil | 9.5 L / 2.5 gal |
| Fuel Tank | 145 L / 38 gal |
Working Range
| Travel Speed - High | 5.0 km/h / 3.1 mph |
| Travel Speed - Low | 3.1 km/h / 1.9 mph |
| Maximum Traction Force - High Speed | 26.1 kN / 5,856 lb |
| Maximum Traction Force - Low Speed | 62.4 kN / 14,035 lb |
| Gradeability (maximum) | 30 degrees |
| Hydraulic Tank | 53 L / 14 gal |
| Hydraulic System (refill) | 110 L / 29 gal |
| Pump Flow @ 2,400 rpm | 167 L/min / 44 gal/min |
| Operating Pressure - Equipment | 285 bar / 4,134 psi |
| Operating Pressure - Travel | 285 bar / 4,134 psi |
| Operating Pressure - Swing | 250 bar / 3,626 psi |
| Maximum Auxiliary Circuit - Primary, Flow at Pump | 131 L/min / 35 gal/min |
| Maximum Auxiliary Circuit - Primary, Pressure at Pump | 285 bar / 4,134 psi |
| Maximum Auxiliary Circuit - Secondary, Flow at Pump | 33 L/min / 9 gal/min |
| Maximum Auxiliary Circuit - Secondary, Pressure at Pump | 285 bar / 4,134 psi |
| Digging Force - Stick (standard) | 37.8 kN / 8,504 lb |
| Digging Force - Stick (long) | 33.7 kN / 7,579 lb |
| Digging Force - Bucket | 54.6 kN / 12,272 lb |
| Machine Swing Speed | 10 rpm |
Dimensions
| Minimum Operating Weight with Cab | 7505 kg / 16,549 lb |
| Maximum Operating Weight with Cab | 8120 kg / 17,905 lb |
| Weight Increase - Counterweight | 250 kg / 552 lb |
| Weight Increase - Long Stick | 82 kg / 181 lb |
| Weight Increase - Steel Tracks with Pads | 285 kg / 628 lb |
| Ground Pressure - Minimum Weight | 34.8 kPa / 5.1 psi |
| Ground Pressure - Maximum Weight | 37.7 kPa / 5.5 psi |
| Blade Width | 2280 mm / 90 in |
| Blade Height | 431 mm / 17 in |

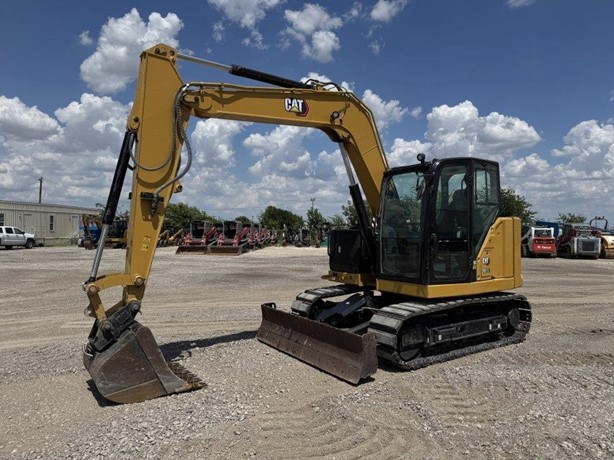

2022 Caterpillar 307.5 Mini Excavator
