Item Specifications
Category
Condition
Used
Item Number
#1968
Make
takeuchi
Model
TB230
Year
2020
Industry
construction
Equipment Type
mini excavators
Location
Ft. Worth, TX
Also Available In
TX
Item Description

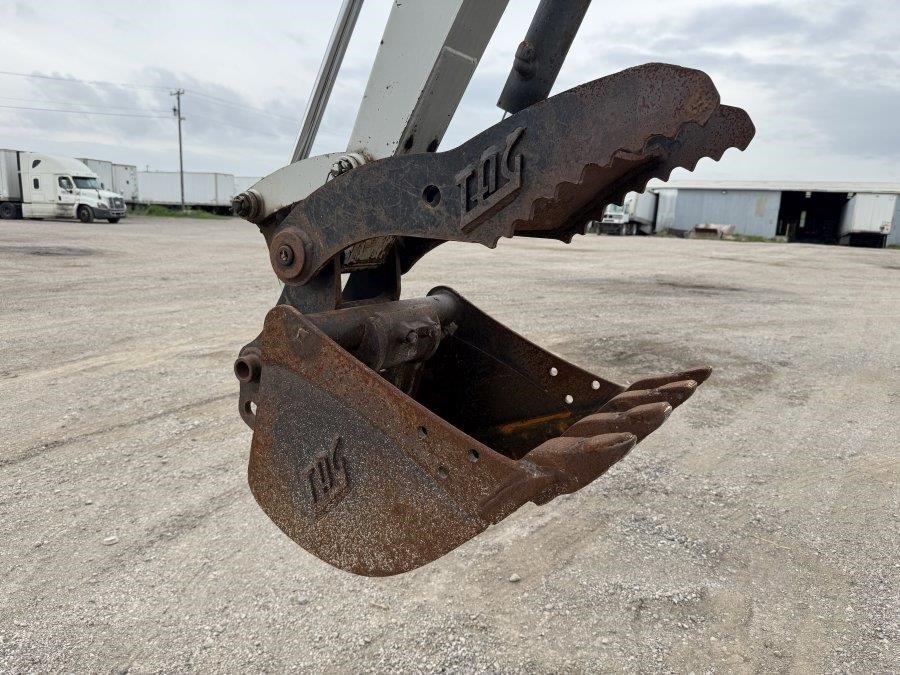

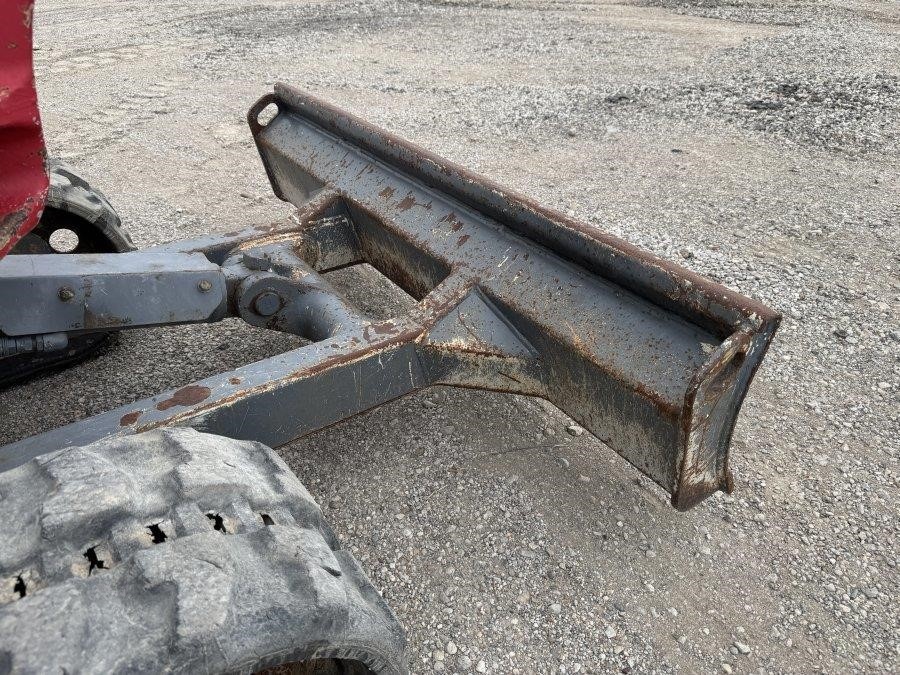

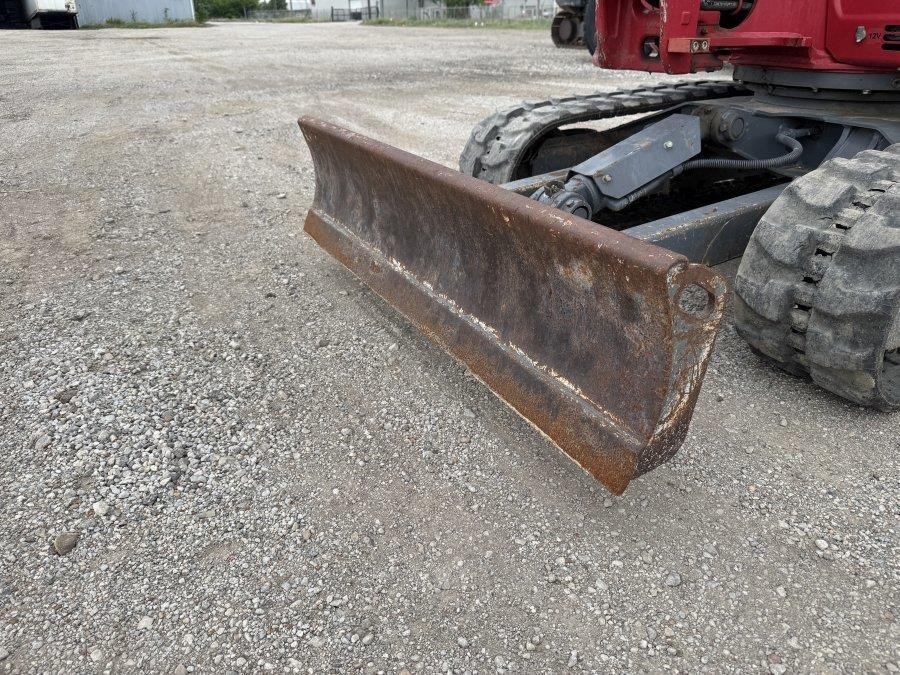

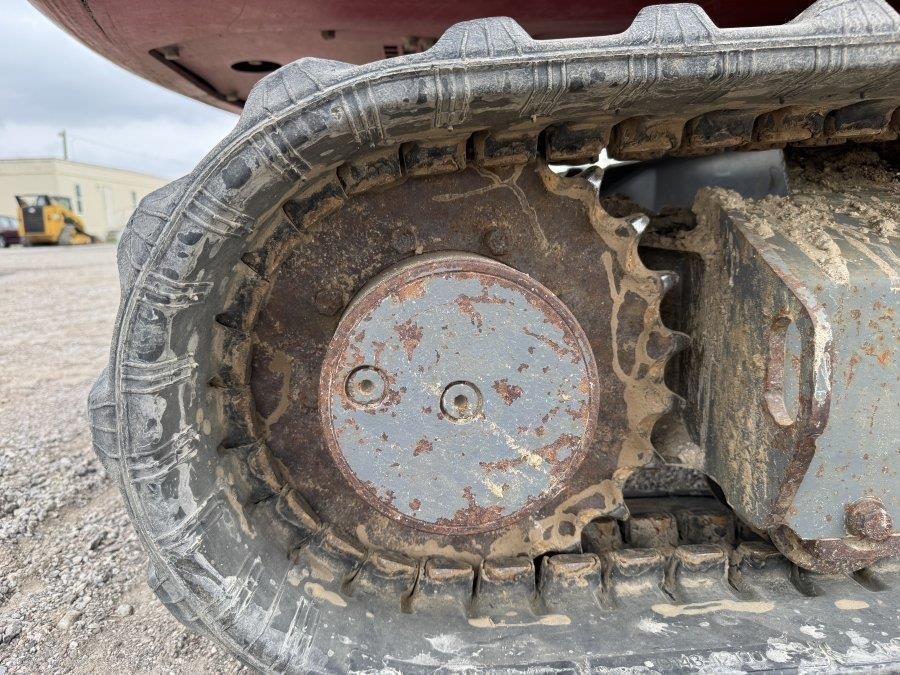

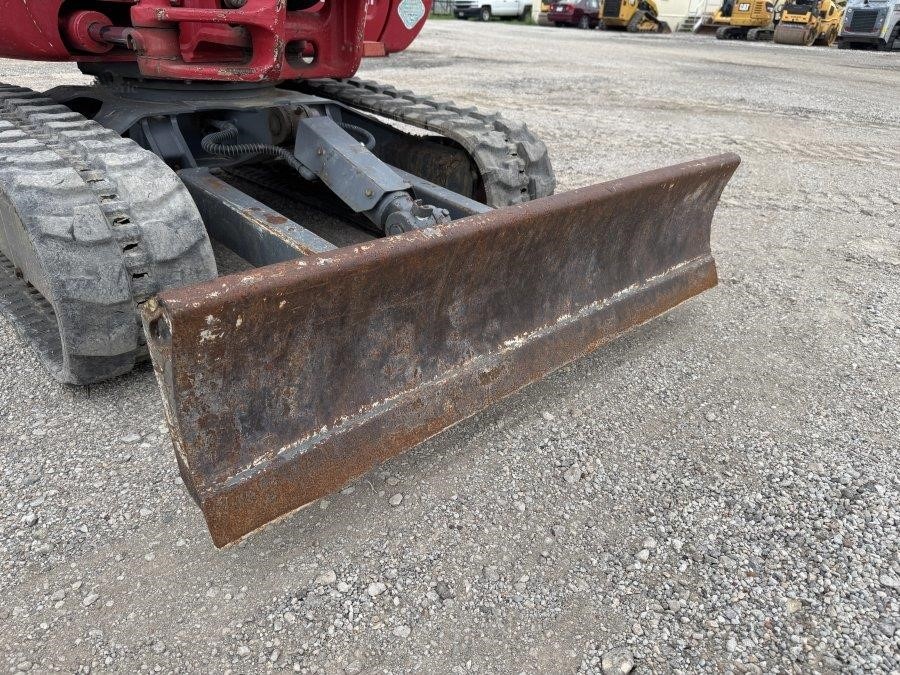

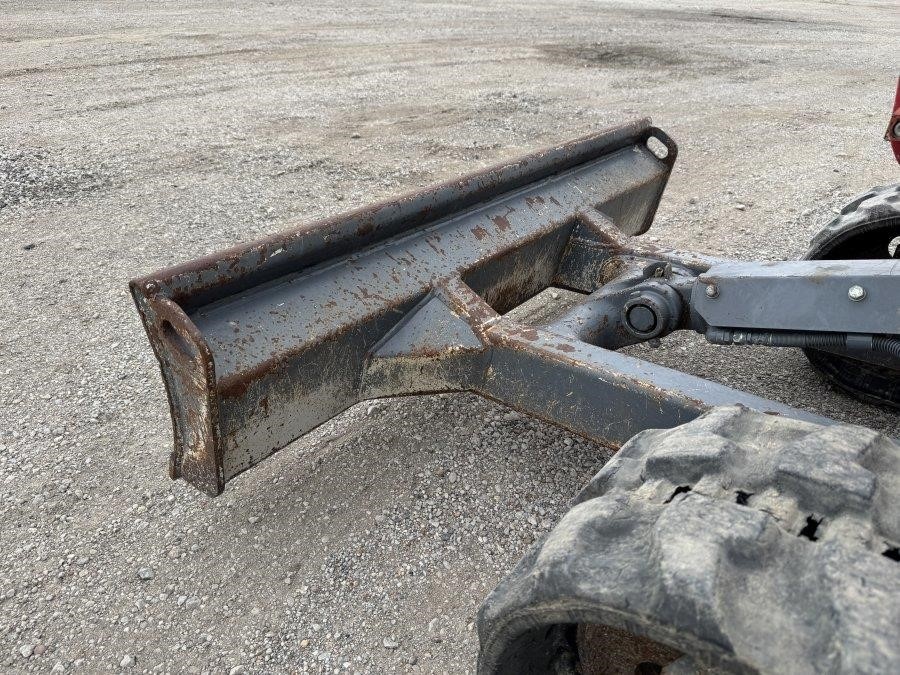

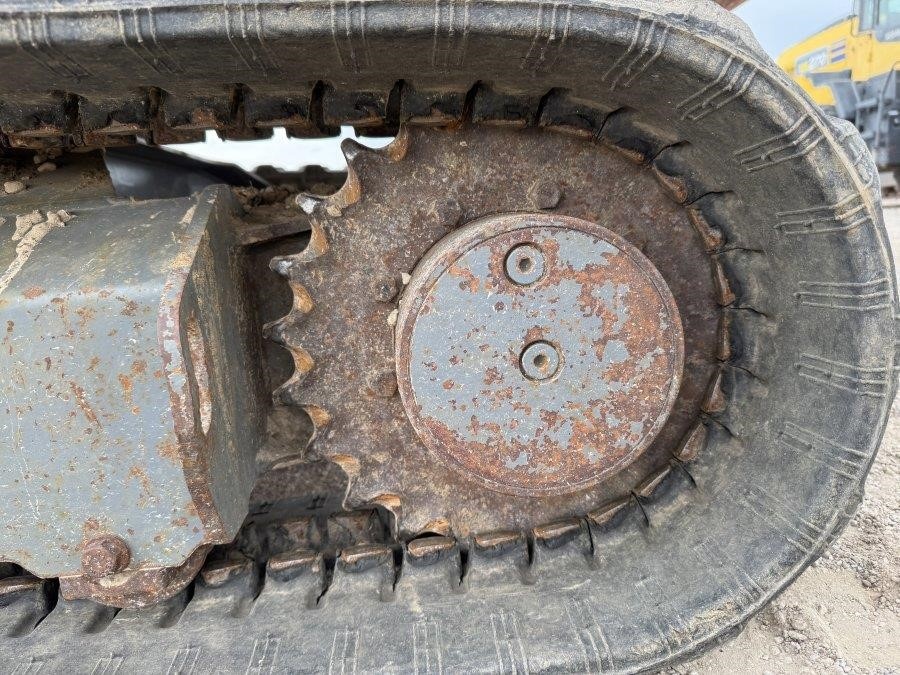

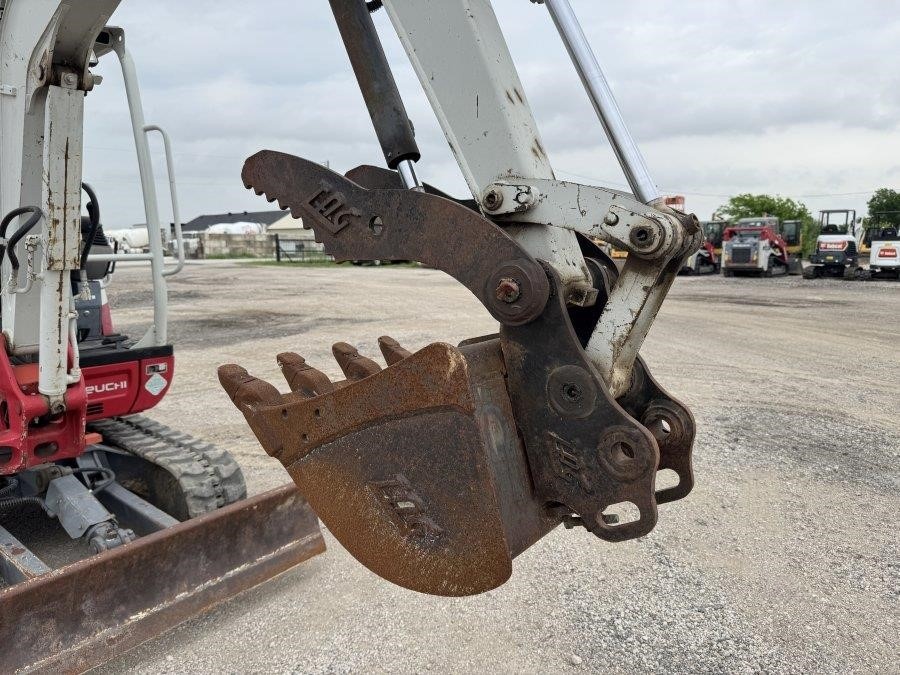

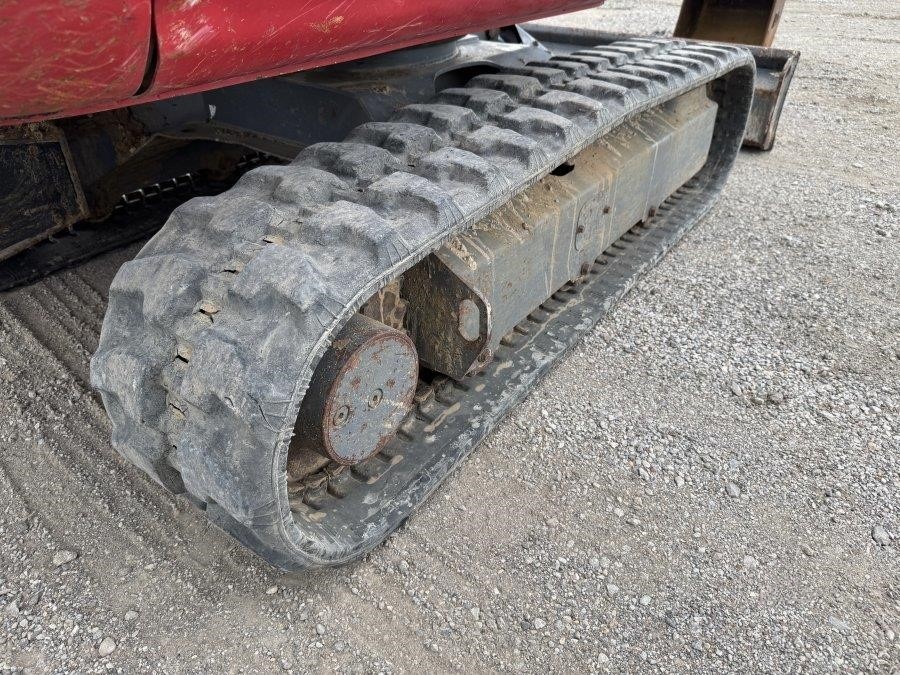

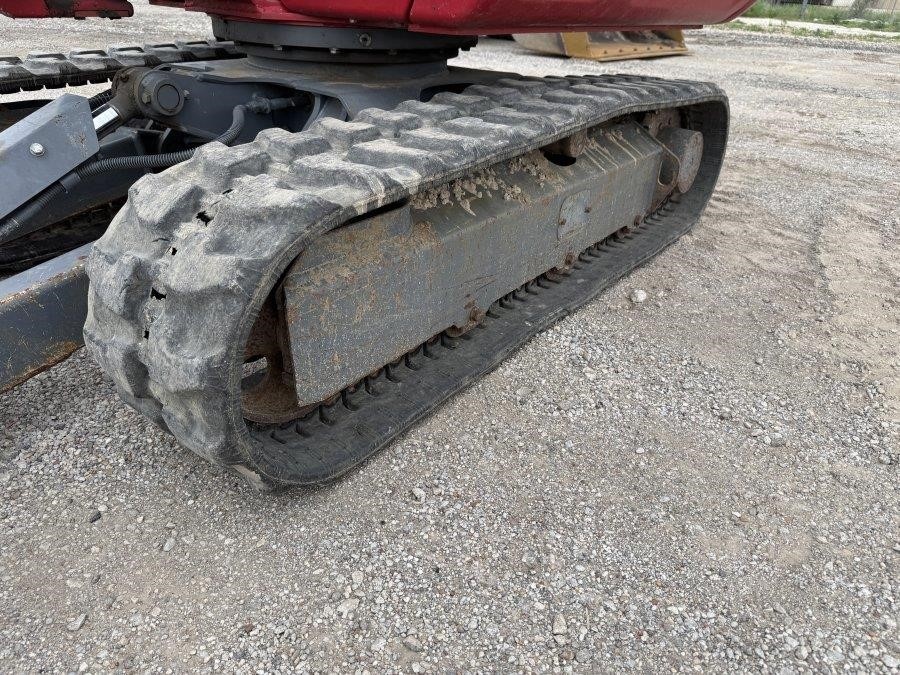

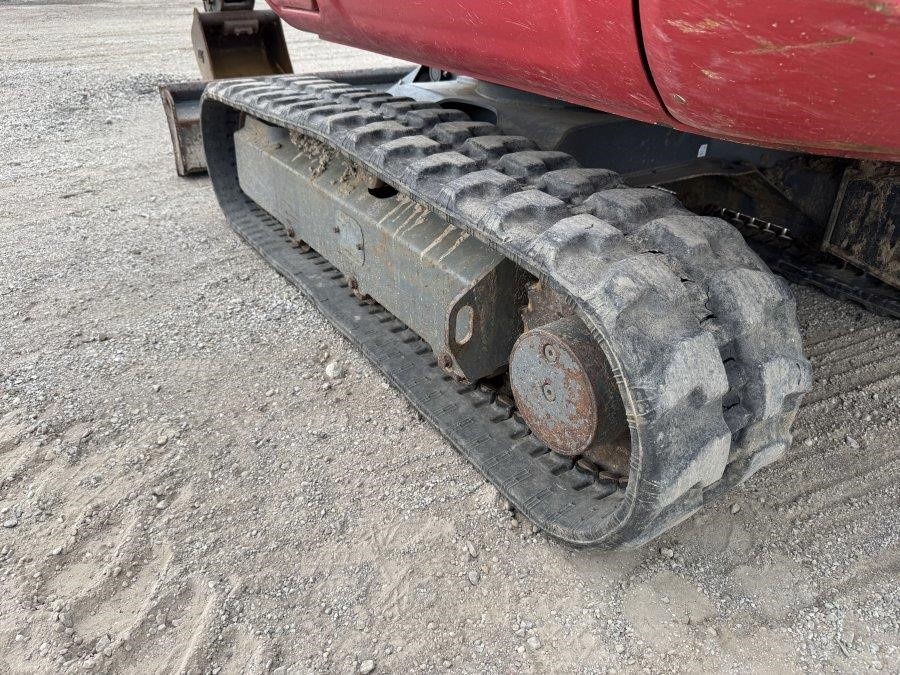

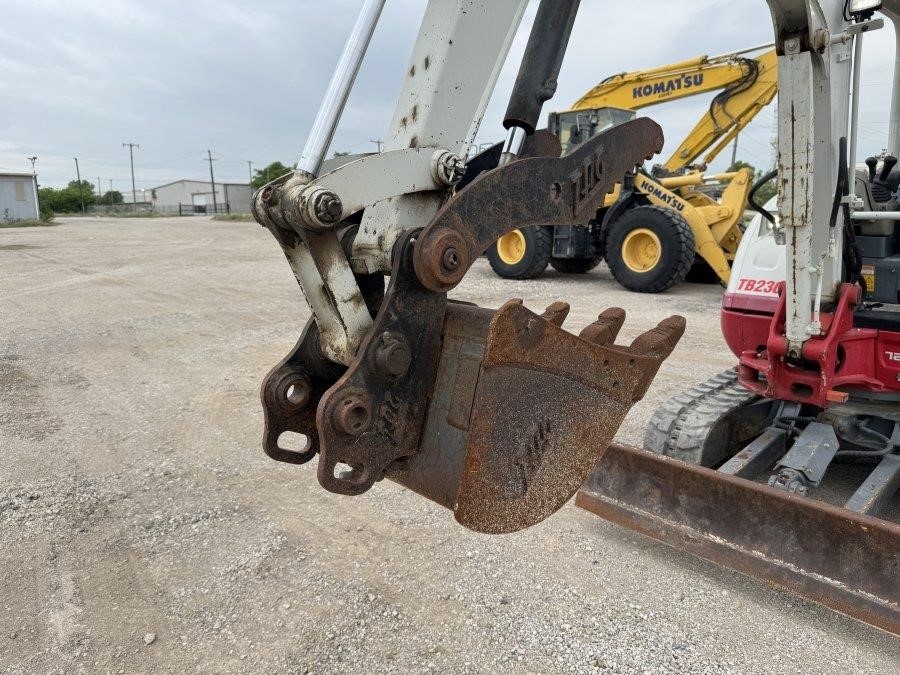

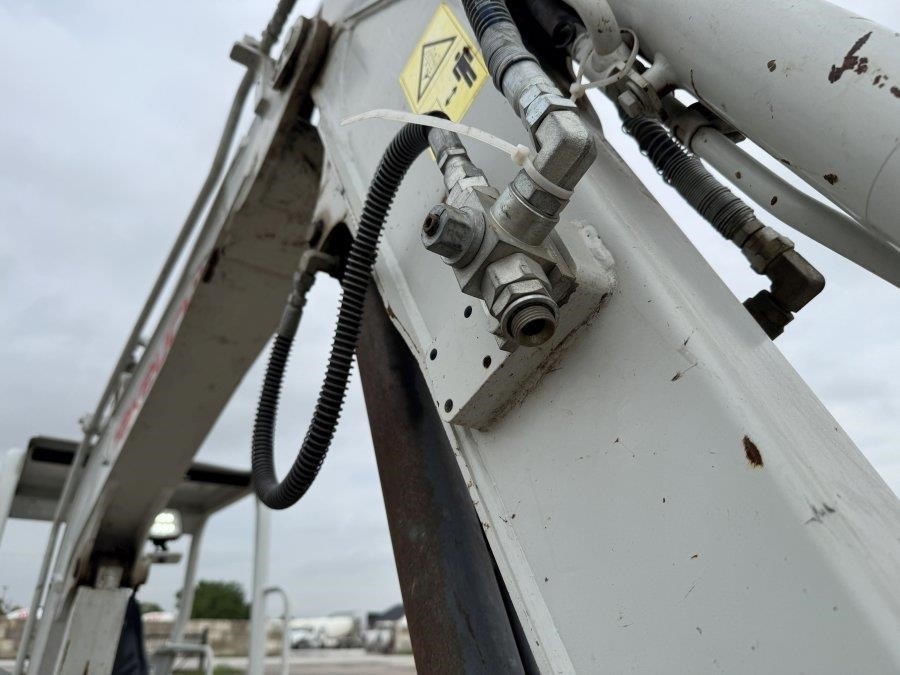

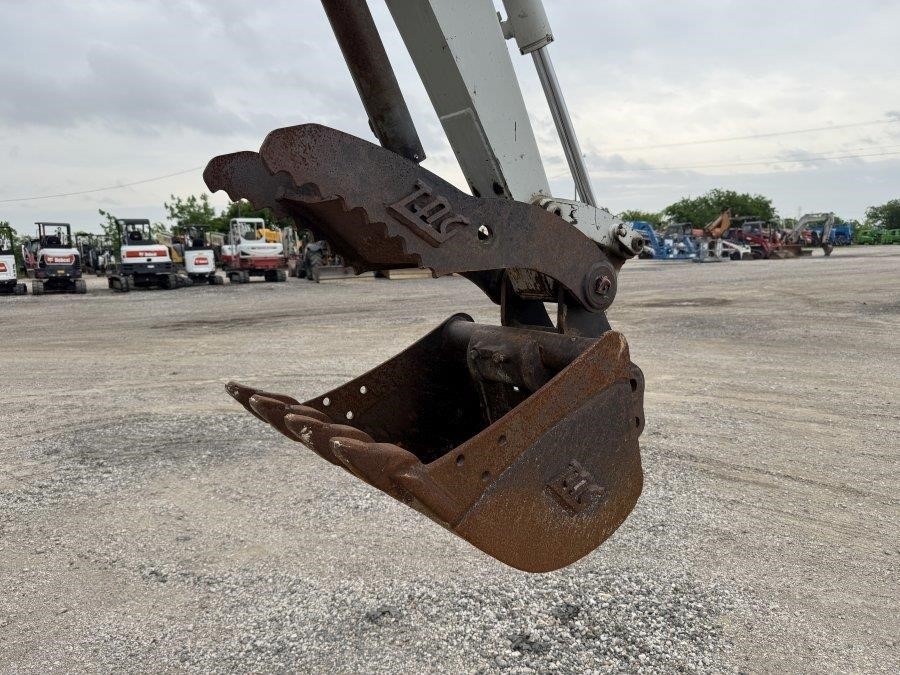

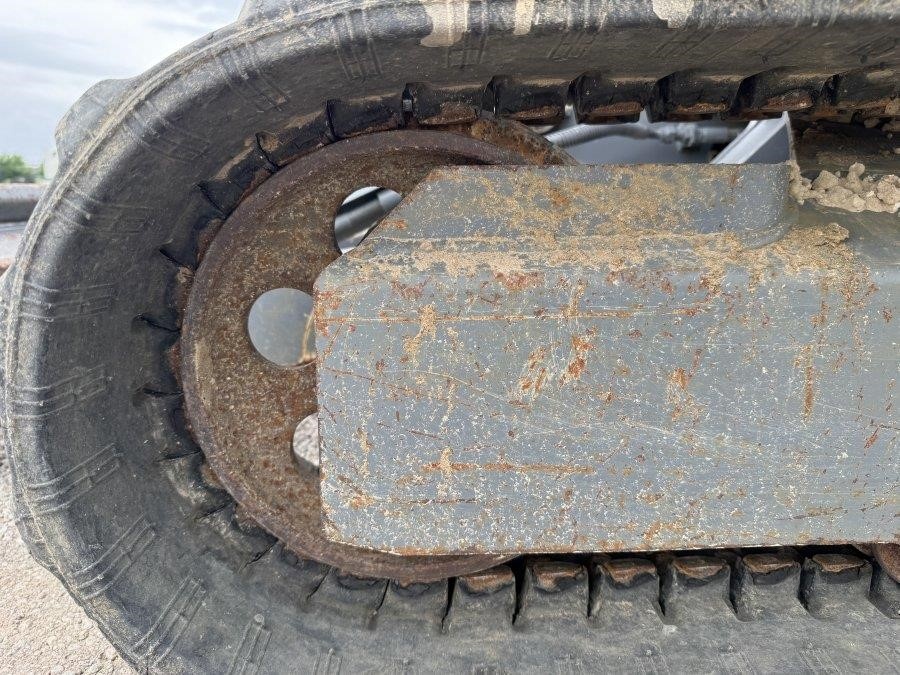

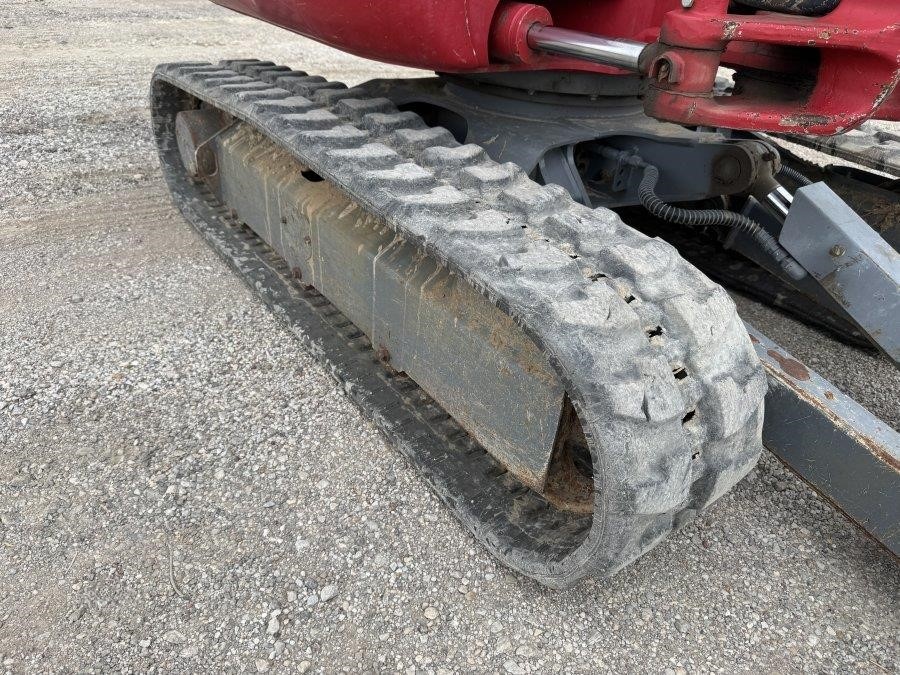

OROPS, Aux Hyd, Hyd Thumb, Blade, W/R Style Coupler, 57" Stick, 2 Speed, 12" Rubber Tracks, 20" Tooth Bucket
Specifications
General
| Year | 2020 |
| Make | takeuchi |
| Model | TB230 |

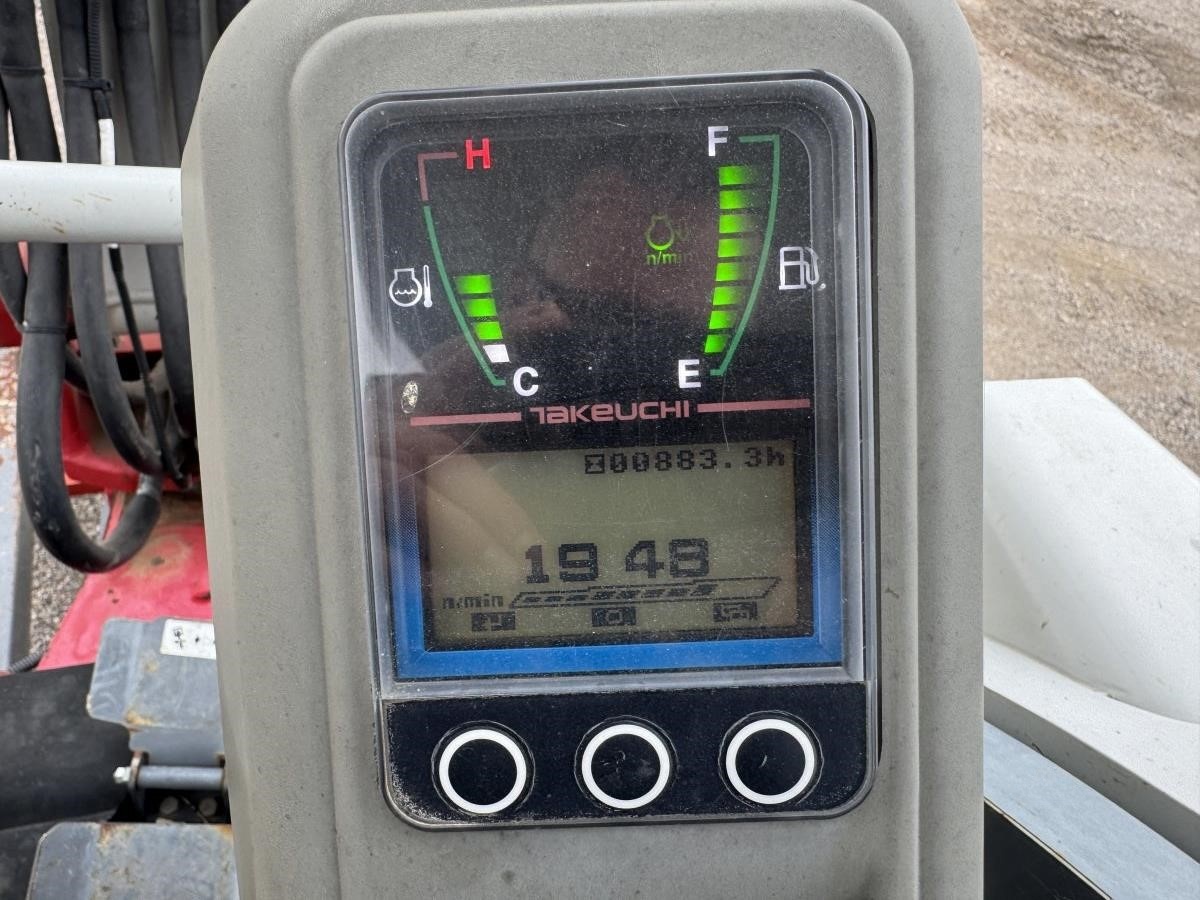

| Hours | 883 |
| Condition | Used |
| Traction Force | 6,340 lb (2,876 kg) |
Engine & Powertrain

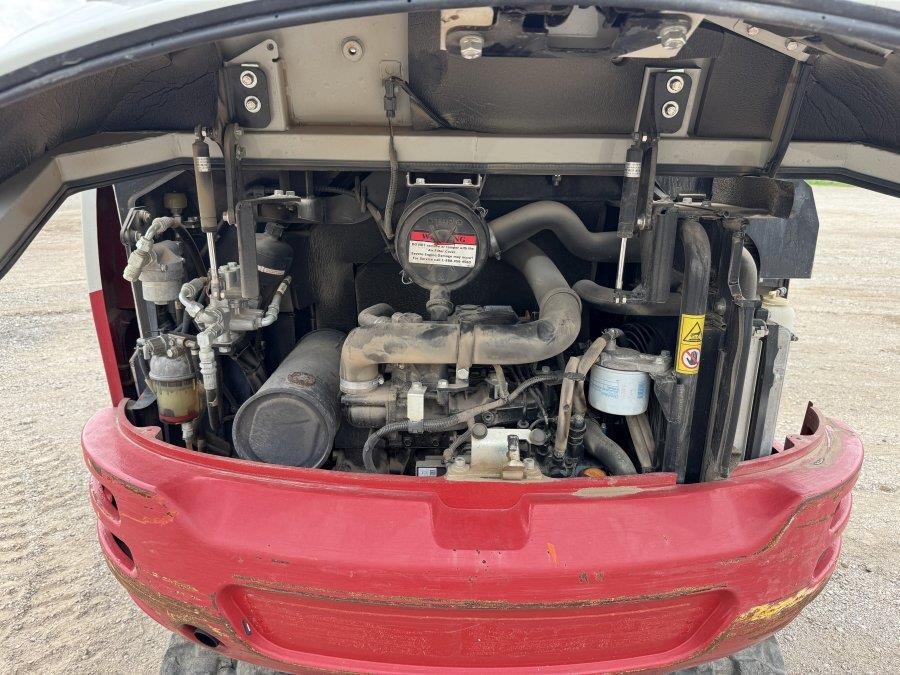

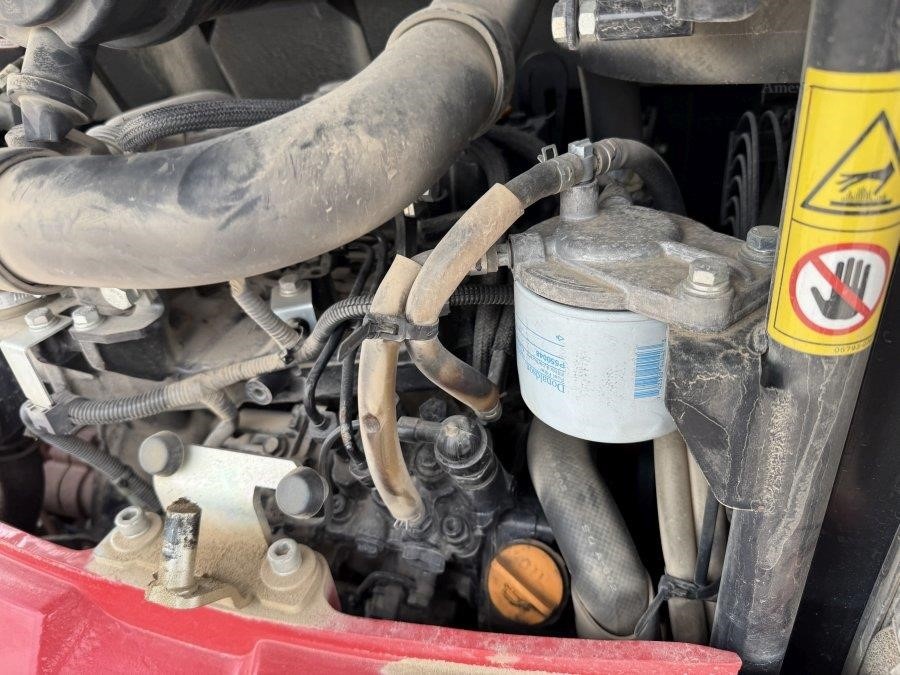

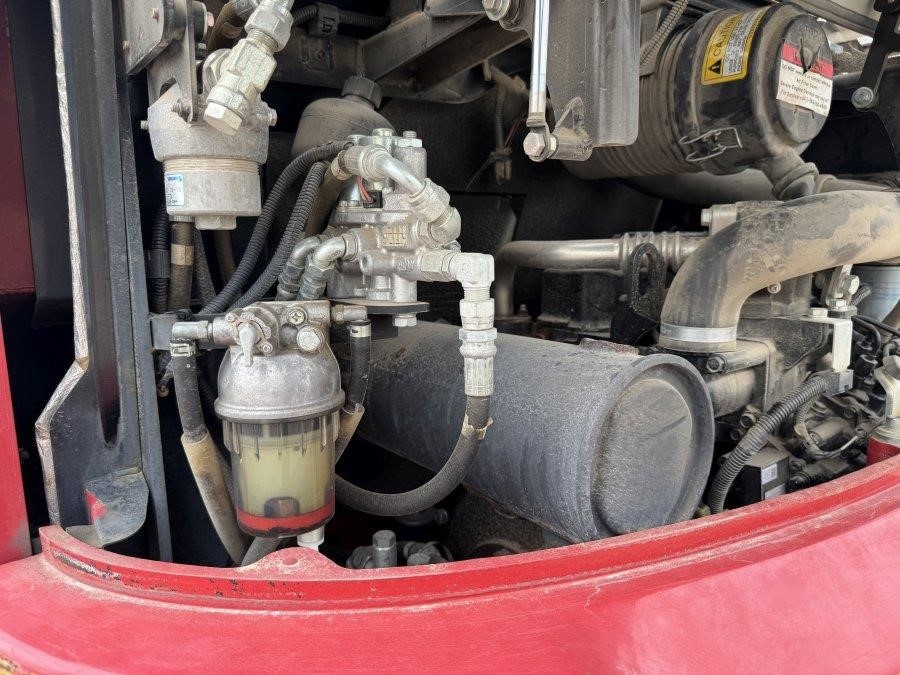

| Engine Make / Model | Yanmar / 3TNV88F |
| Engine Displacement | 81.0 cu in (1.3 L) |
| Horsepower @ 2,400 rpm | 24.4 hp (18.2 kW) |
| Maximum Torque @ 1,440 rpm | 63 ft-lb (85.3 Nm) |
| Fuel Tank Capacity | 14.0 gal (53.0 L) |
Working Range
| Slew Speed | 10.3 rpm |
| Max Travel Speed, Low Range | 1.8 mph (2.9 km/hr) |
| Max Travel Speed, High Range | 3.2 mph (5.2 km/hr) |

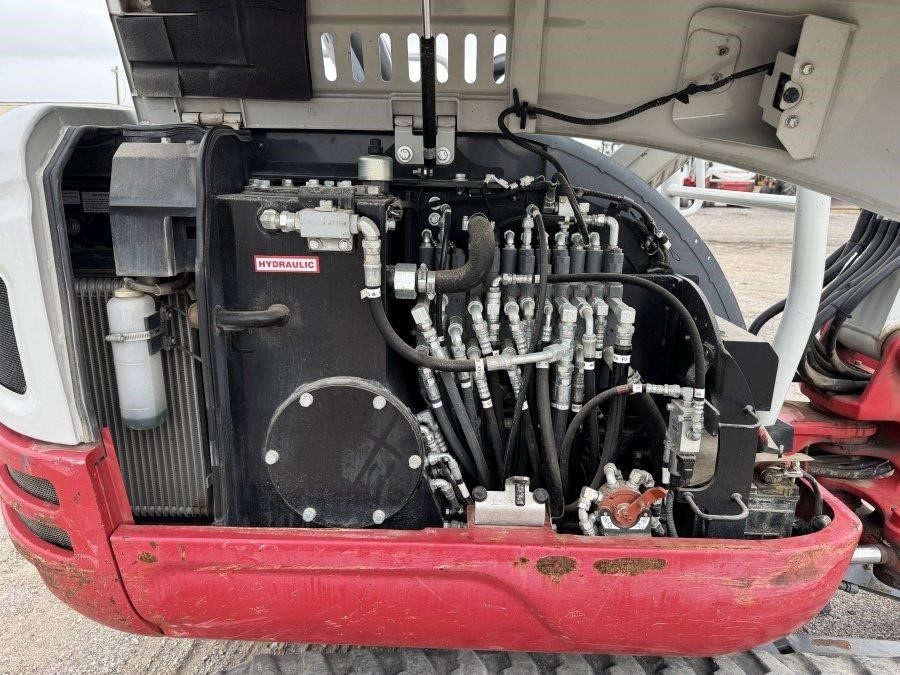

| Total Hydraulic Flow | 24.2 gpm (91.6 Lpm) |
| Auxiliary Flow - Primary Circuit | 13.4 gpm (50.6 Lpm) |
| Hydraulic System Pressure | 3,046 psi (21.0 MPa) |
| Hydraulic Reservoir Capacity | 9.2 gal (35.0 L) |
| Hydraulic System Capacity | 14.8 gal (56.0 L) |
| A Maximum Reach | 15 ft 10.9 in (4,850 mm) |
| C Maximum Digging Depth | 9 ft 3.6 in (2,835 mm) |
Undercarriage & Attachments
| Maximum Bucket Breakout Force | 6,471 lb (2,935 kg) |
| Maximum Arm Digging Force | 2,900 lb (1,325 kg) |
Dimensions
| Operating Weight | 6,360 lb (2,885 kg) lb |
| Arm Length | 4 ft 9.0 in (1,445 mm) |
| Ground Pressure | 4.3 psi (29.4 kPa) |
| E Maximum Dig Height | 14 ft 7.0 in (4,450 mm) |
| F Maximum Dumping Height | 10 ft 7.2 in (3,230 mm) |
| J Transport Length | 15 ft 0.9 in (4,595 mm) |
| K Transport Height | 8 ft 3.9 in (2,540 mm) |
| O Undercarriage Width | 4 ft 9.1 in (1,450 mm) |

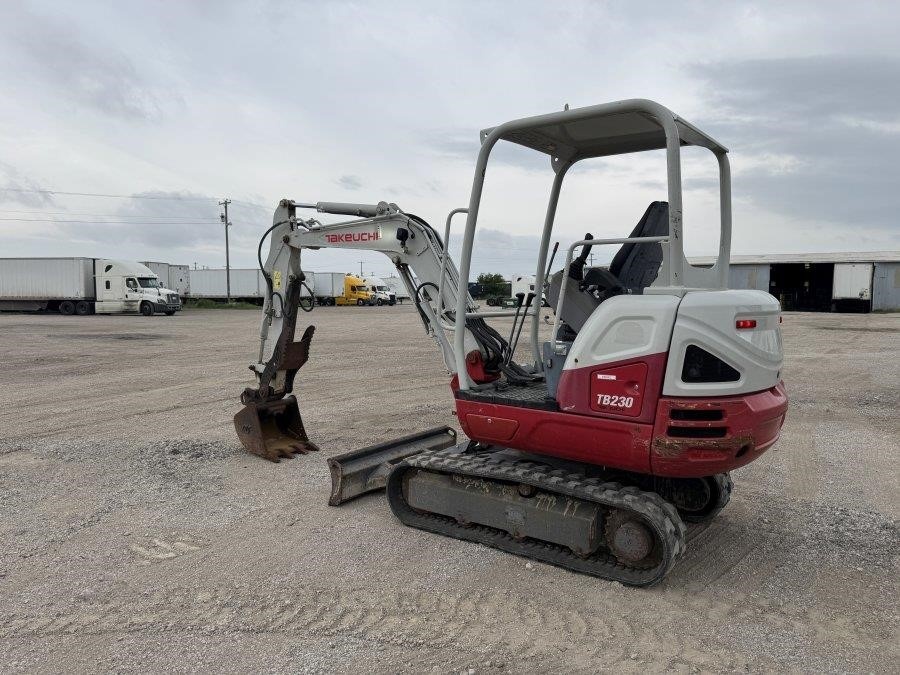

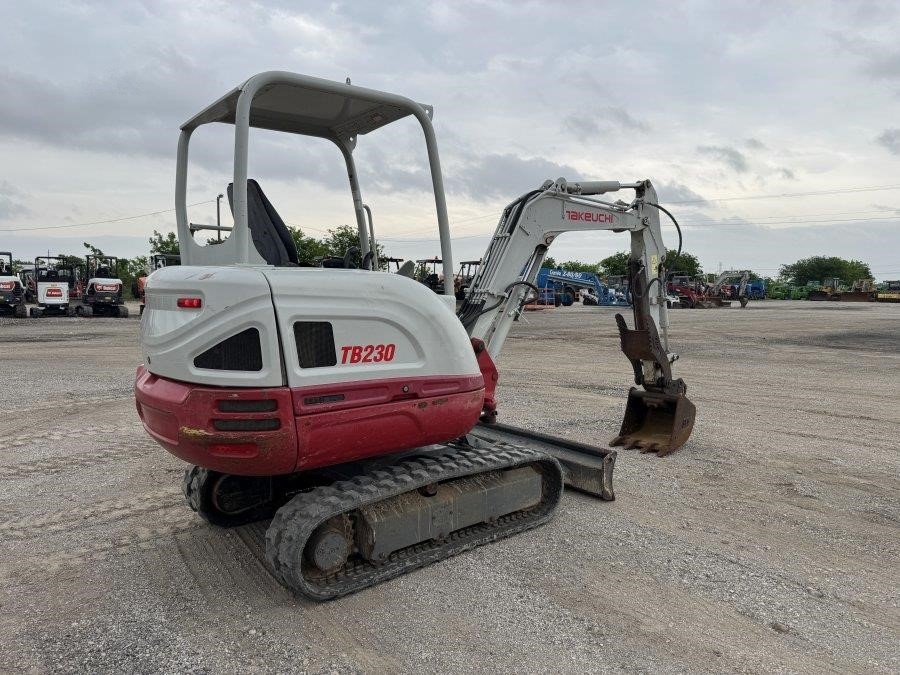

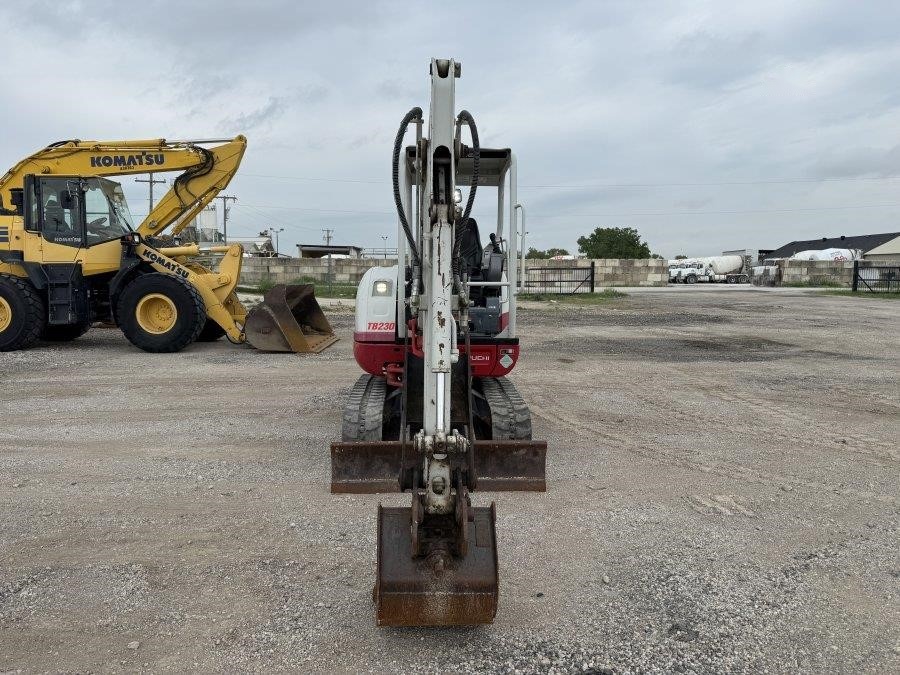

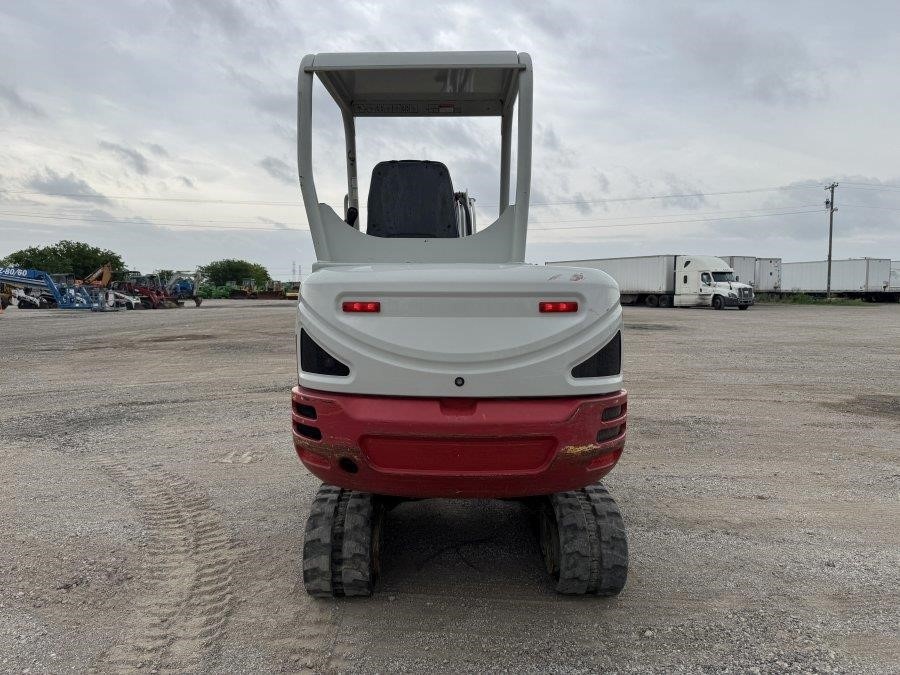

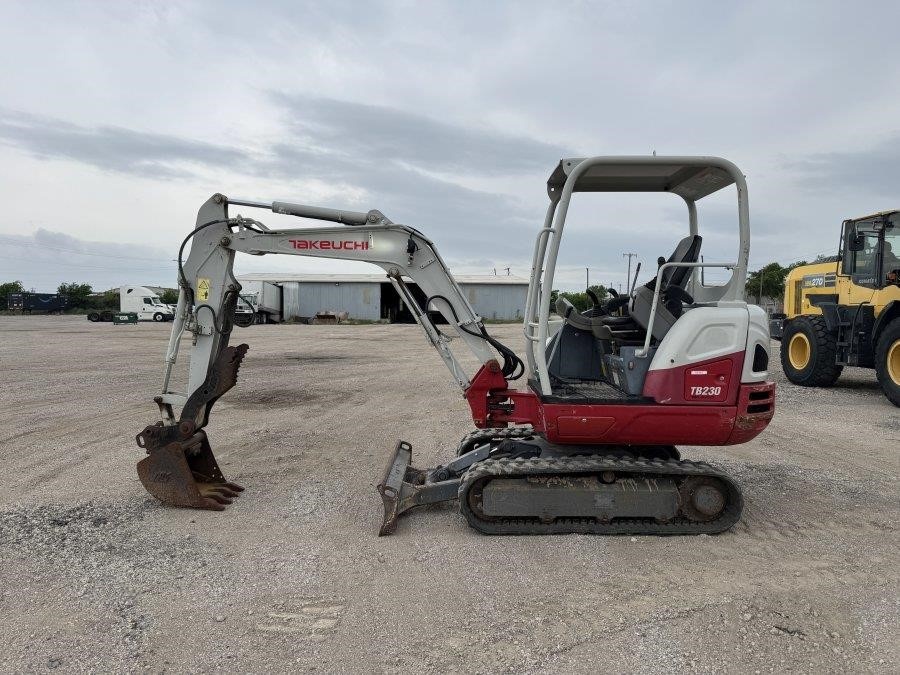

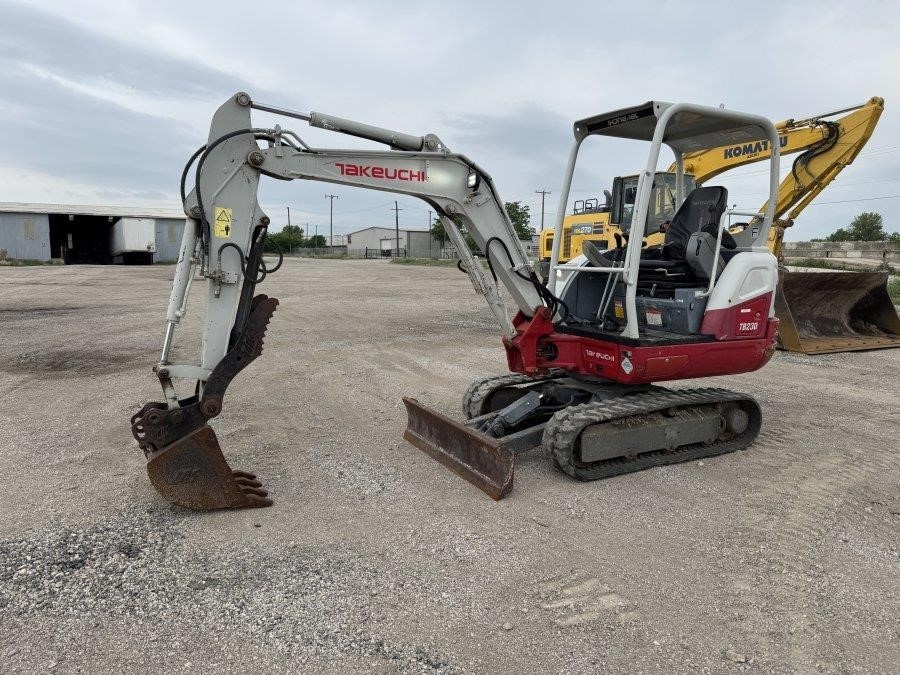

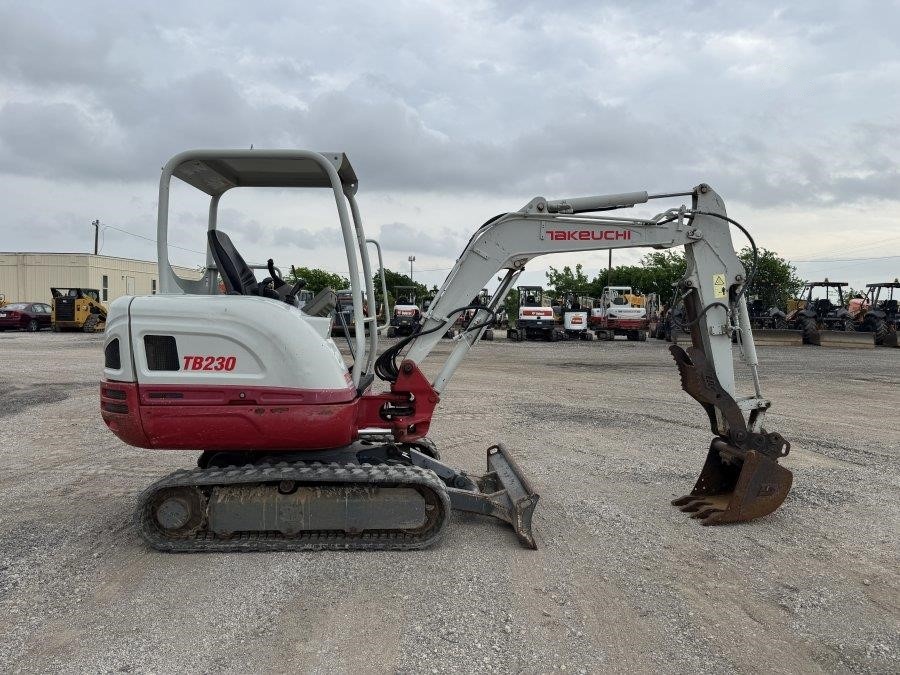

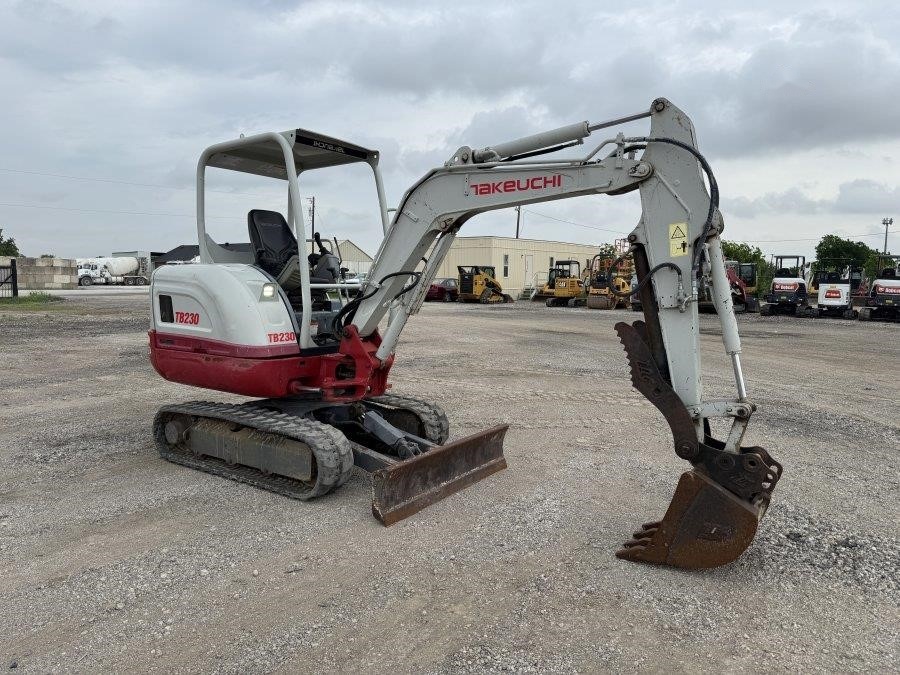

2020 Takeuchi TB230 Mini Excavator
