Item Specifications
Category
Condition
Used
Item Number
#1961
Make
caterpillar
Model
226D3
Year
2020
Industry
construction
Equipment Type
skid steers
Location
Ft. Worth, TX
Also Available In
TX
Item Description

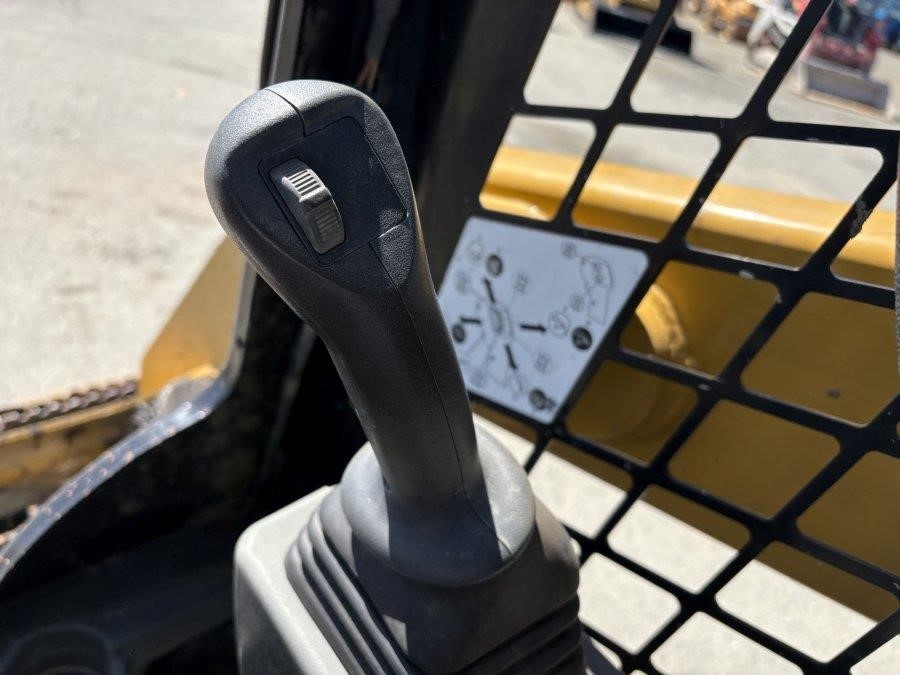

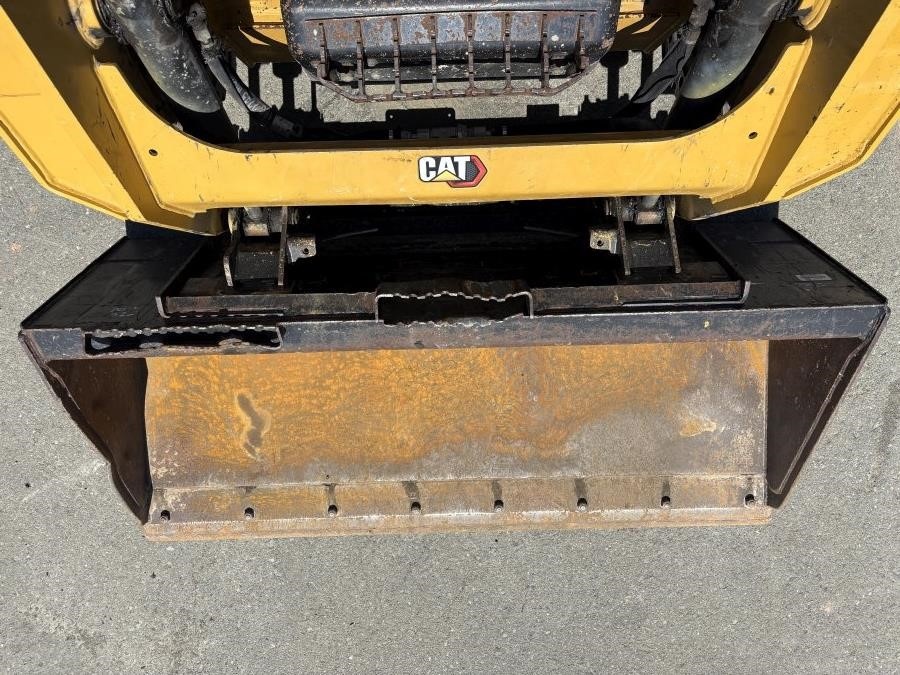

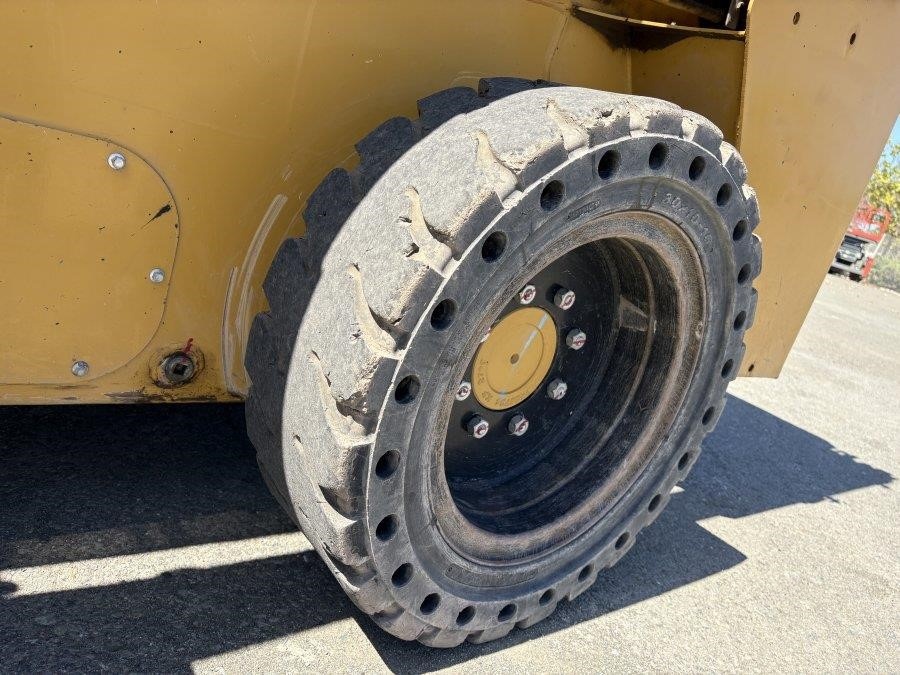

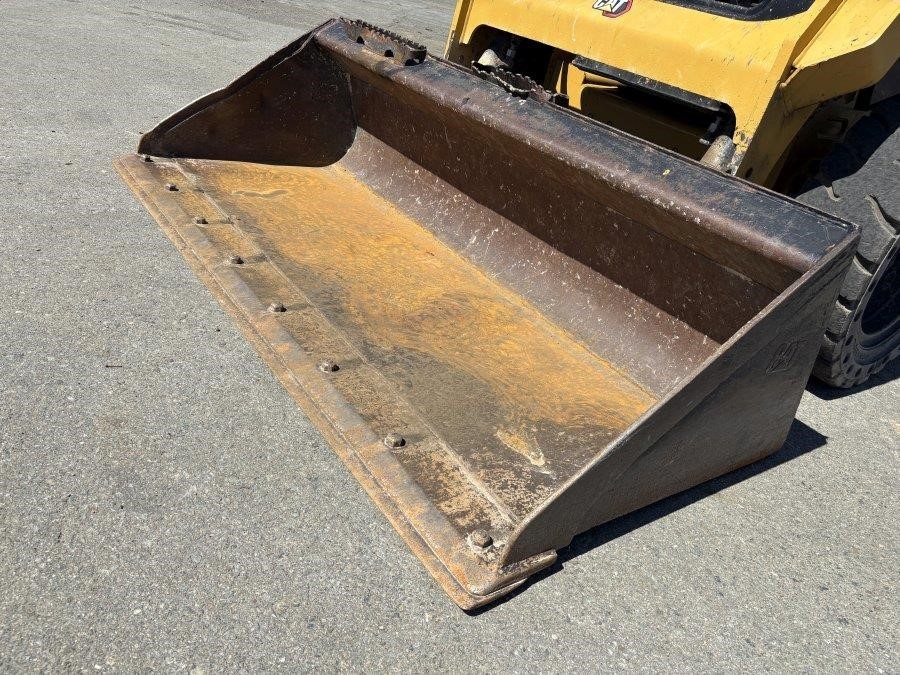

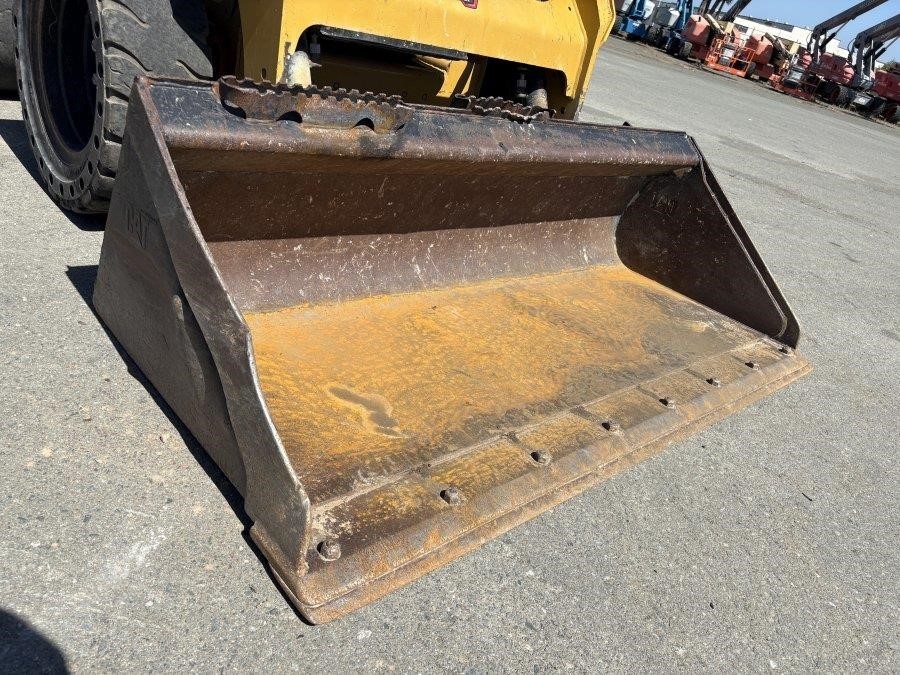

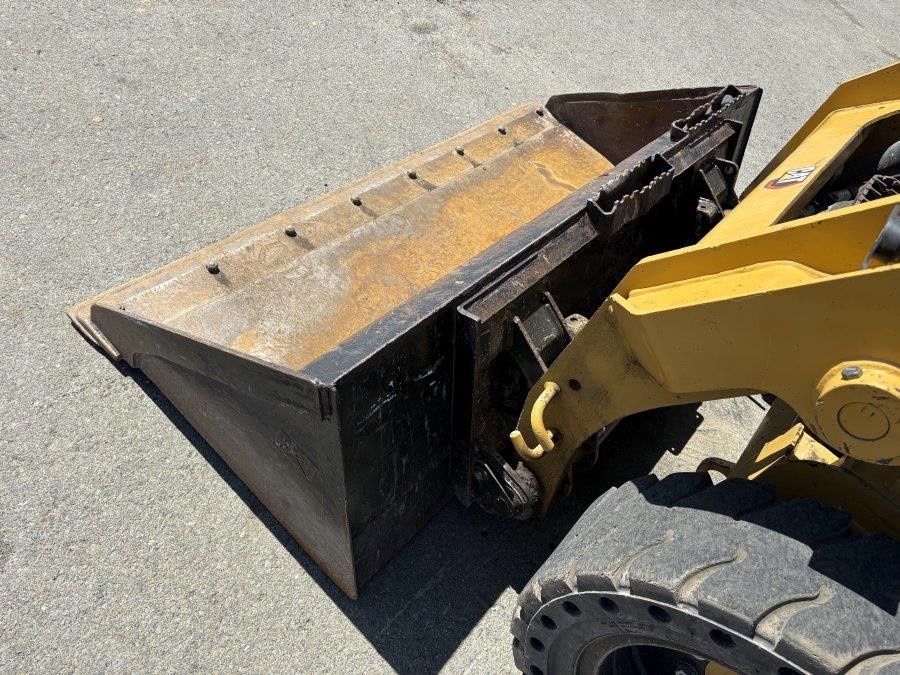

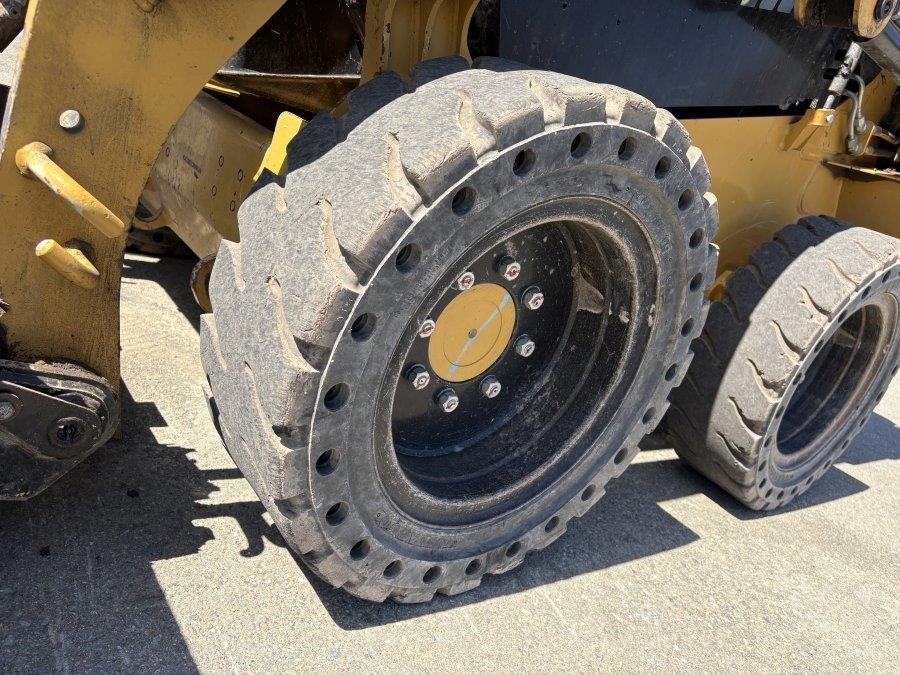

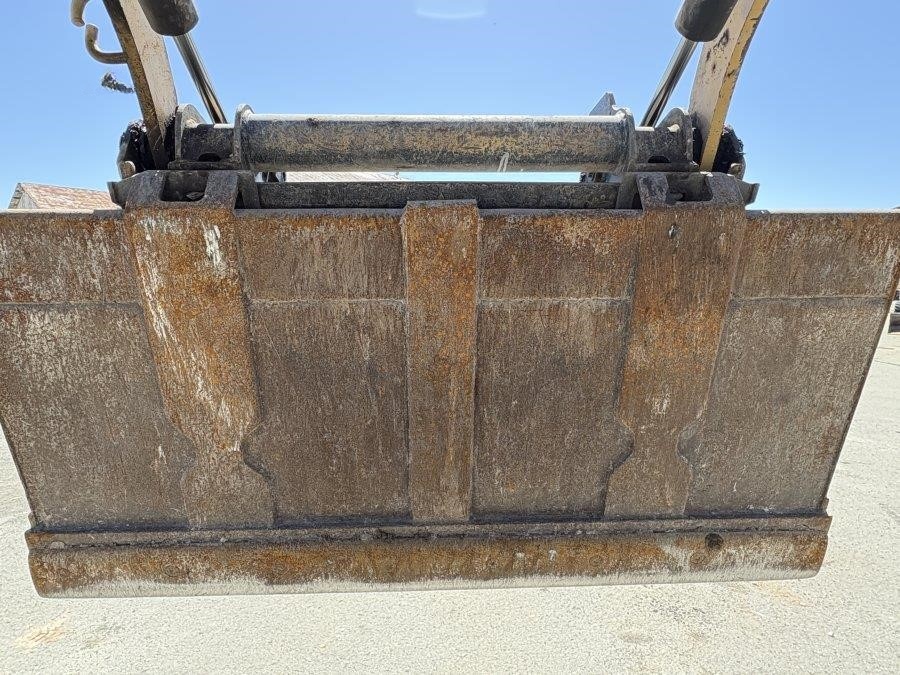

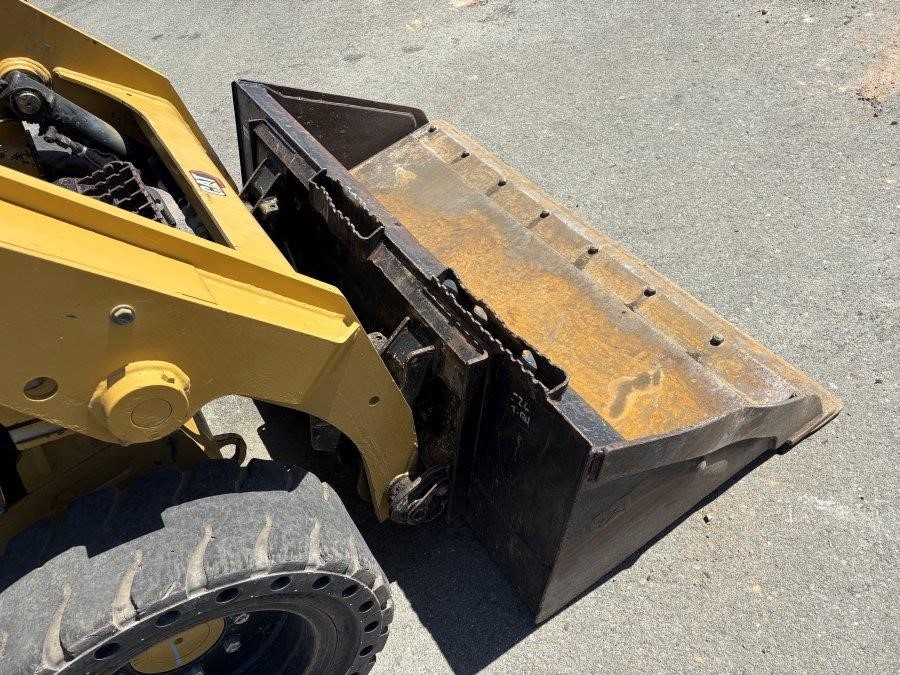

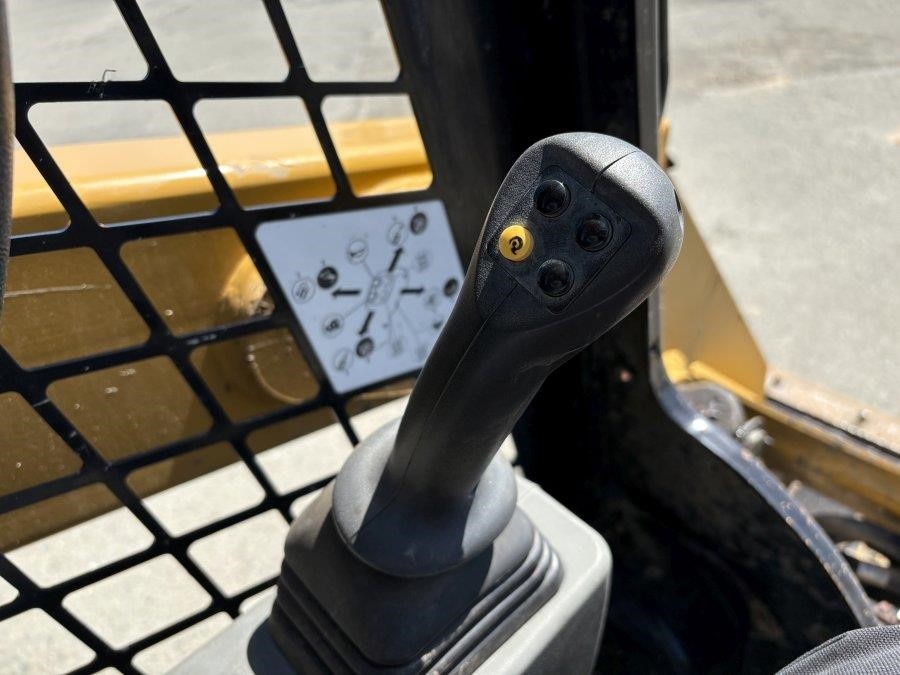

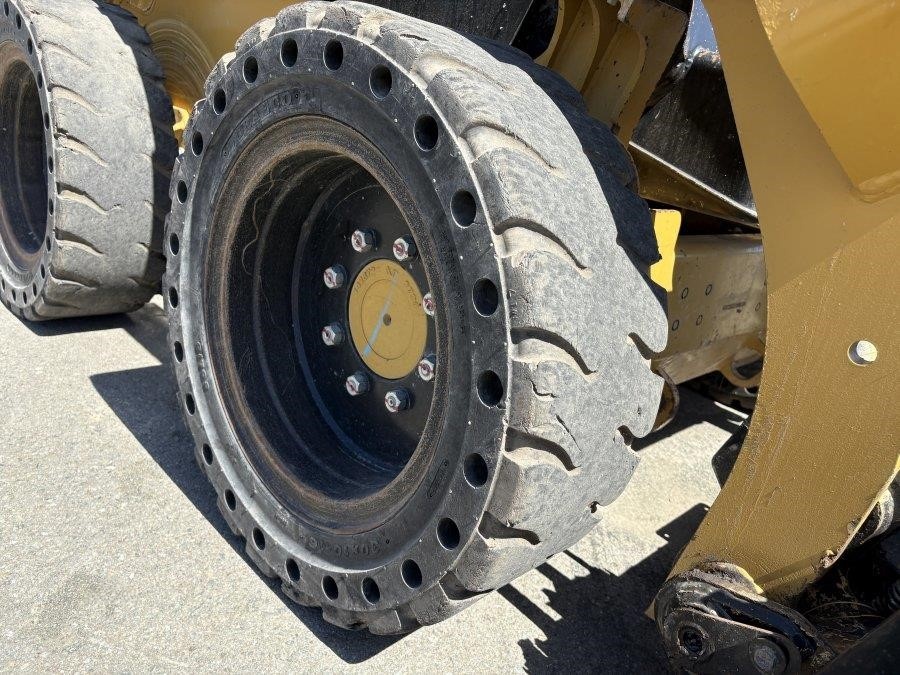

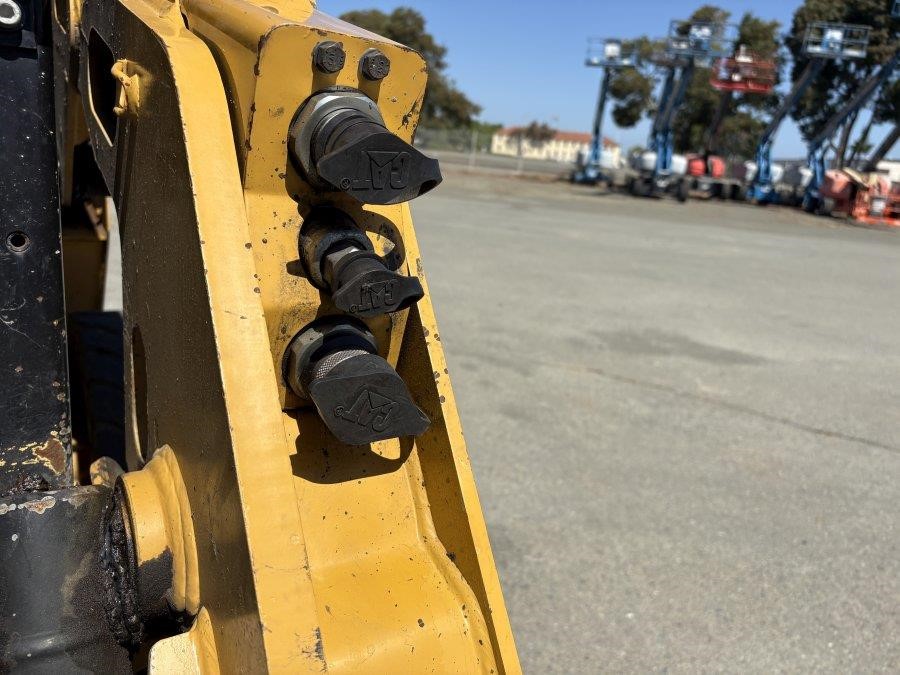

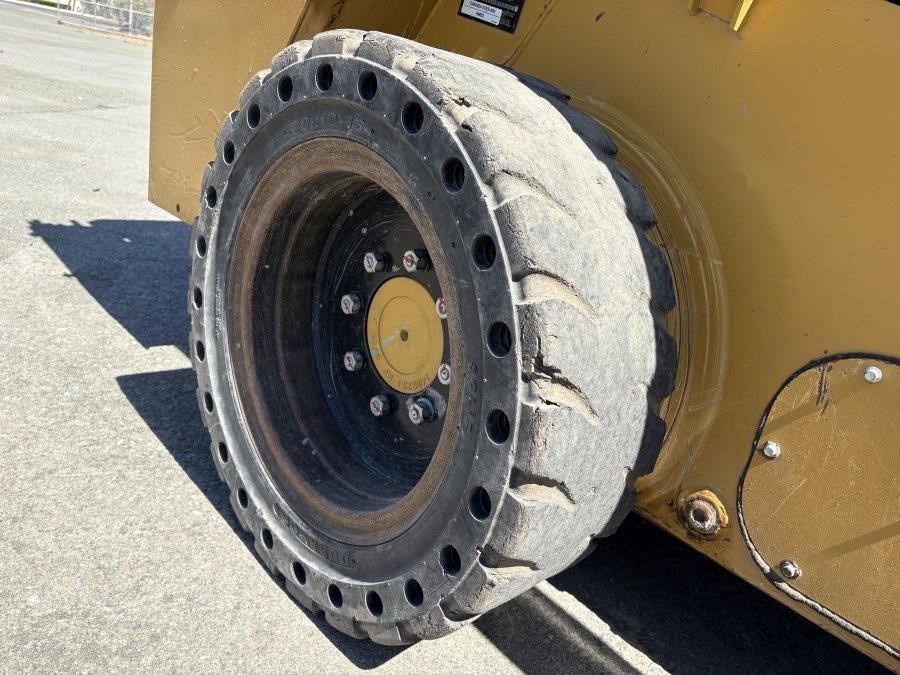

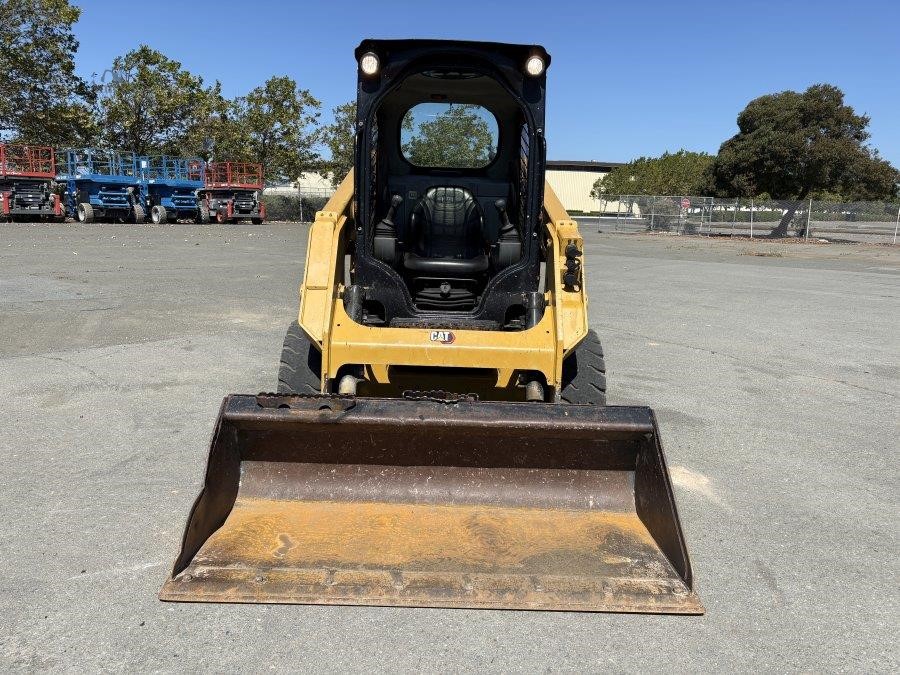

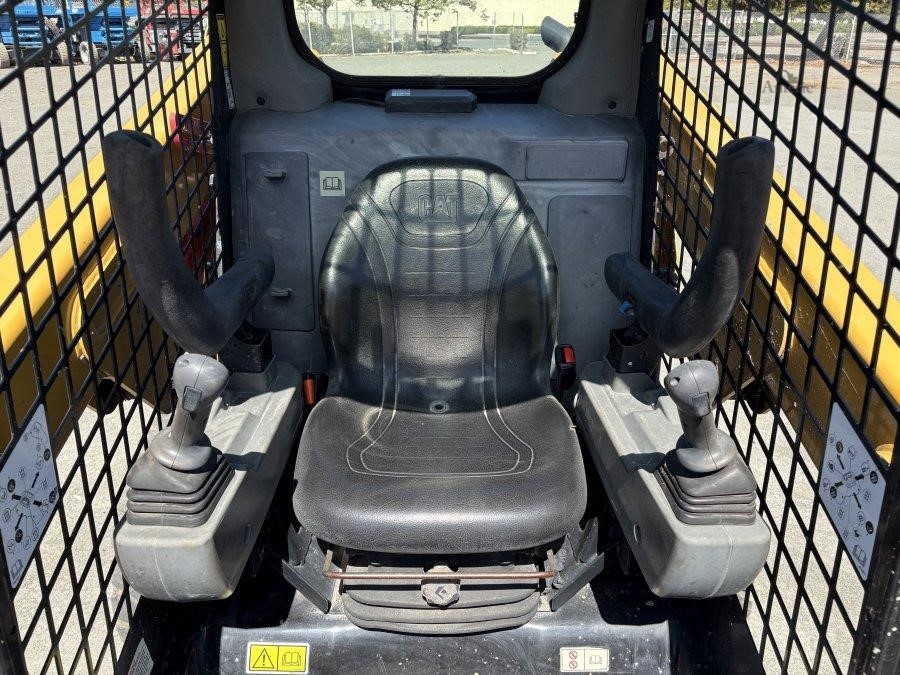

OROPS, Aux Hyd, Pilot Control, Demo Tires, 68" Bucket
Specifications
General
| Year | 2020 |
| Make | caterpillar |
| Model | 226D3 |

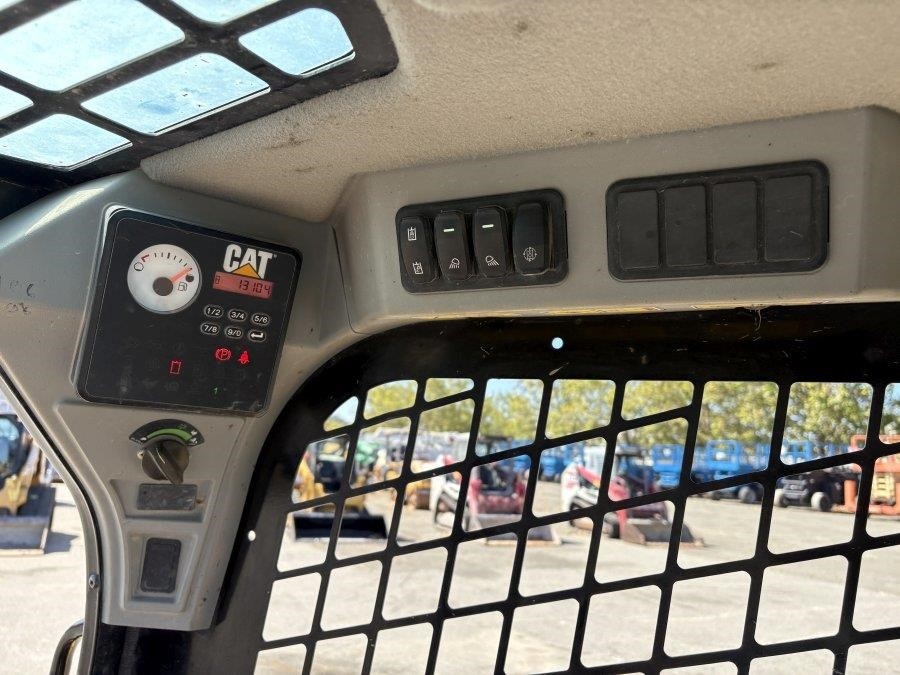

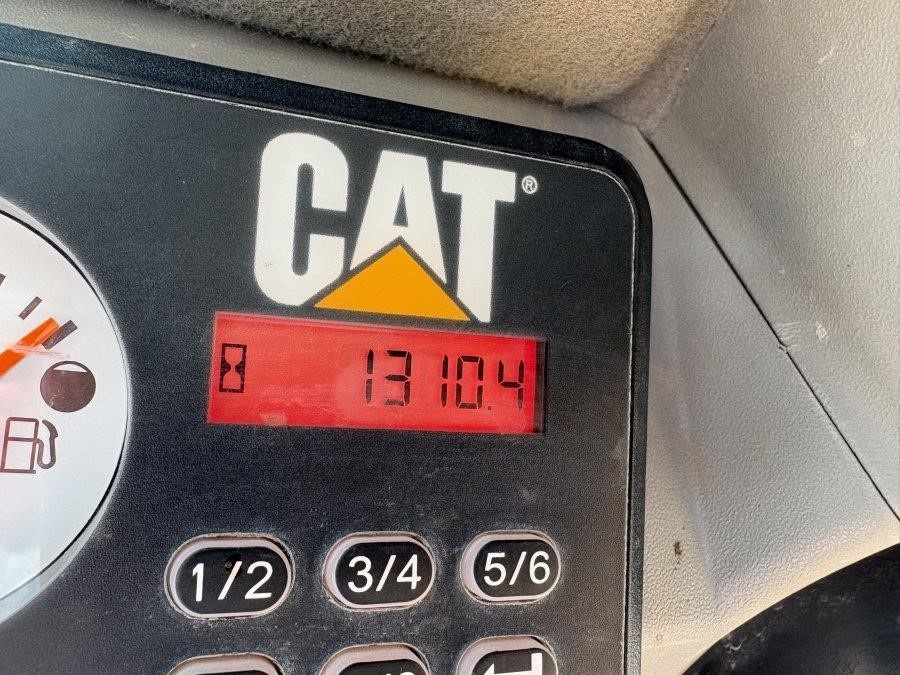

| Hours | 1310 |
| Condition | Used |
| Gross Power SAE J1995 | 50.1 kW |
| Net Power SAE 1349 | 49.1 kW |
| Net Power ISO 9249 | 49.6 kW |
| Stroke | 100 mm |
| Stroke (in) | 3.9 in |
| Bore | 84 mm |
| Bore (in) | 3.3 in |
| Departure Angle | 27.9° |
| Maximum Dump Angle | 46.7° |
| ROPS | ISO 3471:2008 |
| FOPS | ISO 3449:2005 Level I |
| Chain Box, each side | 7 L |
| Chain Box, each side (gal) | 1.8 gal |
| Noise Level - Inside Cab | 83 dB(A) |
| Noise Level - Outside Cab | 102 dB(A) |
Engine & Powertrain

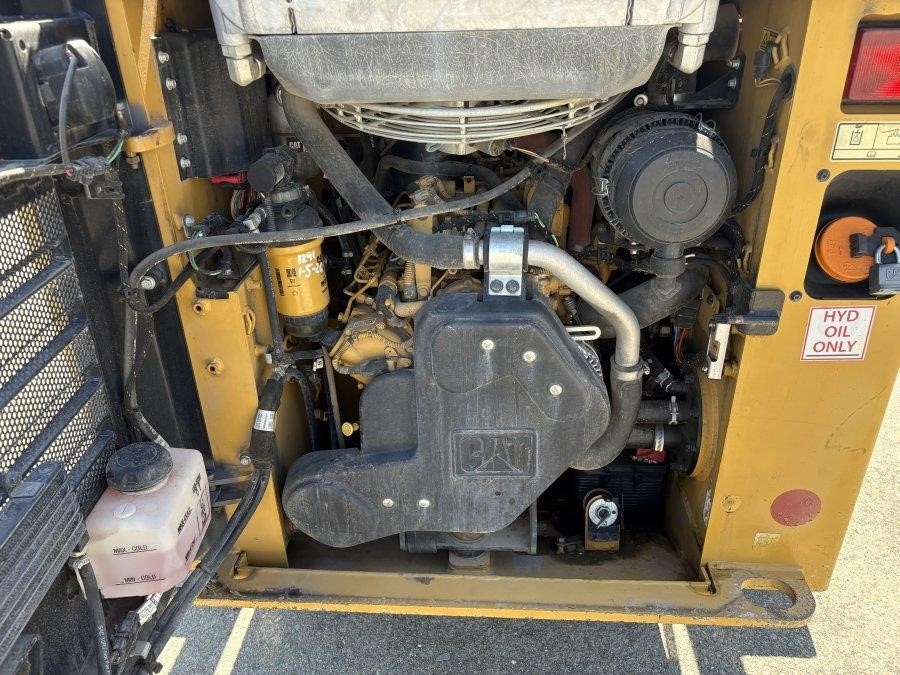

| Engine Model | Cat C2.2 CRDI |
| Gross Power SAE J1995 (hp) | 67.1 hp |
| Net Power SAE 1349 (hp) | 65.8 hp |
| Net Power ISO 9249 (hp) | 66.5 hp |
| Peak Torque at 1,500 rpm SAE J1995 | 208 N·m |
| Peak Torque at 1,500 rpm SAE J1995 (lbf-ft) | 153 lbf-ft |
| Displacement | 2.2 L |
| Displacement (in³) | 134.3 in³ |
| Breakout Force, Tilt Cylinder | 1781 kg |
| Breakout Force, Tilt Cylinder (lb) | 3,927 lb |
| Bumper Overhang behind Rear Axle | 894 mm |
| Bumper Overhang behind Rear Axle (in) | 35.2 in |
| Cooling System | 12 L |
| Cooling System (gal) | 3.2 gal |
| Engine Crankcase | 10 L |
| Engine Crankcase (gal) | 2.6 gal |
| Fuel Tank | 57 L |
| Fuel Tank (gal) | 15.1 gal |
Working Range
| Rated Operating Capacity | 705 kg |
| Rated Operating Capacity (lb) | 1,550 lb |
| Tipping Load | 1410 kg |
| Tipping Load (lb) | 3,100 lb |
| Loader Hydraulic Pressure - Standard | 23 000 kPa |
| Loader Hydraulic Pressure - Standard (psi) | 3,336 psi |
| Loader Hydraulic Flow - Standard | 69 L/min |
| Loader Hydraulic Flow - Standard (gal/min) | 18 gal/min |
| Hydraulic Power (calculated) - Standard | 26.5 kW |
| Hydraulic Power (calculated) - Standard (hp) | 35.5 hp |
| Maximum Loader Hydraulic Pressure - High Flow | 23 000 kPa |
| Maximum Loader Hydraulic Pressure - High Flow (psi) | 3,336 psi |
| Maximum Loader Hydraulic Flow - High Flow | 99 L/min |
| Maximum Loader Hydraulic Flow - High Flow (gal/min) | 26 gal/min |
| Hydraulic Power (calculated) - High Flow | 38.0 kW |
| Hydraulic Power (calculated) - High Flow (hp) | 50.9 hp |
| Travel Speed (Forward or Reverse) - One Speed | 12.3 km/h |
| Travel Speed (Forward or Reverse) - One Speed (mph) | 7.6 mph |
| Travel Speed (Forward or Reverse) - Two Speed Option | 17.8 km/h |
| Travel Speed (Forward or Reverse) - Two Speed Option (mph) | 11.1 mph |
| Reach at Maximum Lift and Dump | 533 mm |
| Reach at Maximum Lift and Dump (in) | 21.0 in |
| Maximum Reach with Arms Parallel to Ground | 1288 mm |
| Maximum Reach with Arms Parallel to Ground (in) | 50.7 in |
| Hydraulic System | 45 L |
| Hydraulic System (gal) | 11.9 gal |
| Hydraulic Tank | 34 L |
| Hydraulic Tank (gal) | 9.0 gal |
Dimensions
| Operating Weight | 2653 kg lb |
| Operating Weight (lb) | 5,849 lb |
| Rated Operating Capacity with Optional Counterweight | 750 kg |
| Rated Operating Capacity with Optional Counterweight (lb) | 1,650 lb |
| Wheelbase | 1054 mm |
| Wheelbase (in) | 41.5 in |
| Length without Bucket | 2524 mm |
| Length without Bucket (in) | 99.4 in |
| Length with Bucket on Ground | 3234 mm |
| Length with Bucket on Ground (in) | 127.3 in |
| Height to Top of Cab | 2028 mm |
| Height to Top of Cab (in) | 79.8 in |
| Maximum Overall Height | 3652 mm |
| Maximum Overall Height (in) | 143.8 in |
| Bucket Pin Height at Maximum Lift | 2818 mm |
| Bucket Pin Height at Maximum Lift (in) | 110.9 in |
| Bucket Pin Height at Carry Position | 215 mm |
| Bucket Pin Height at Carry Position (in) | 8.5 in |
| Clearance at Maximum Lift and Dump | 2077 mm |
| Clearance at Maximum Lift and Dump (in) | 81.8 in |
| Ground Clearance | 175 mm |
| Ground Clearance (in) | 6.9 in |
| Vehicle Width over Tires | 1497 mm |
| Vehicle Width over Tires (in) | 58.9 in |
| Turning Radius from Center - Machine Rear | 1513 mm |
| Turning Radius from Center - Machine Rear (in) | 59.6 in |
| Turning Radius from Center - Coupler | 1104 mm |
| Turning Radius from Center - Coupler (in) | 43.5 in |
| Turning Radius from Center - Bucket | 1977 mm |
| Turning Radius from Center - Bucket (in) | 77.8 in |
| Rack Back Angle at Maximum Height | 88.9° |

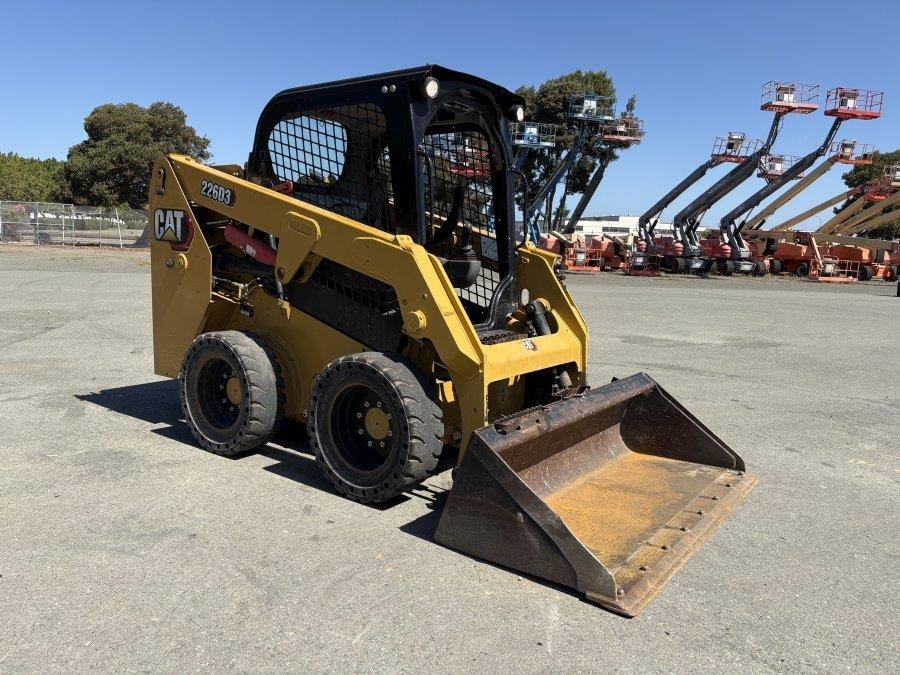

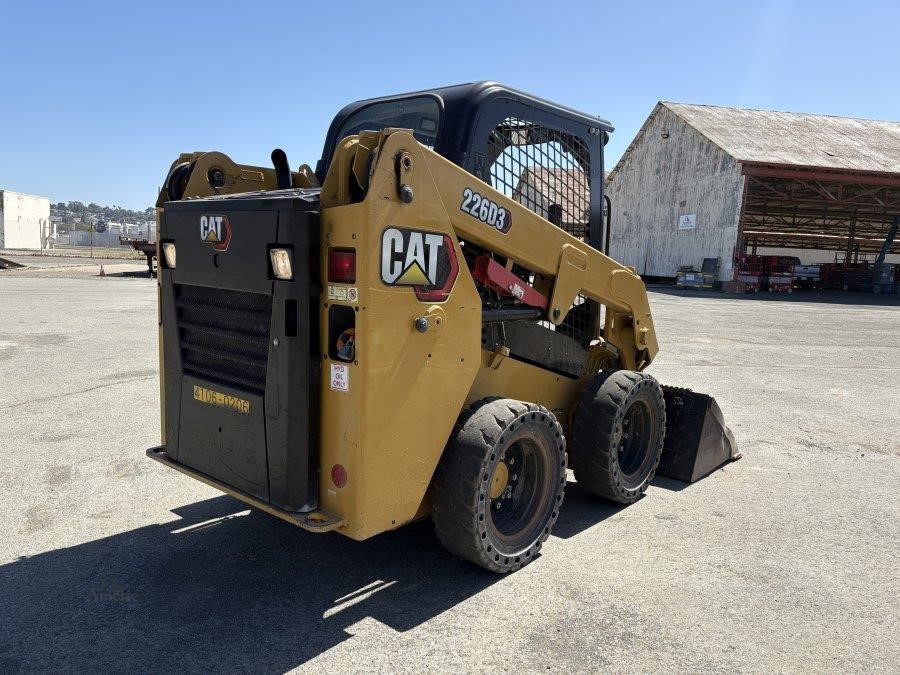

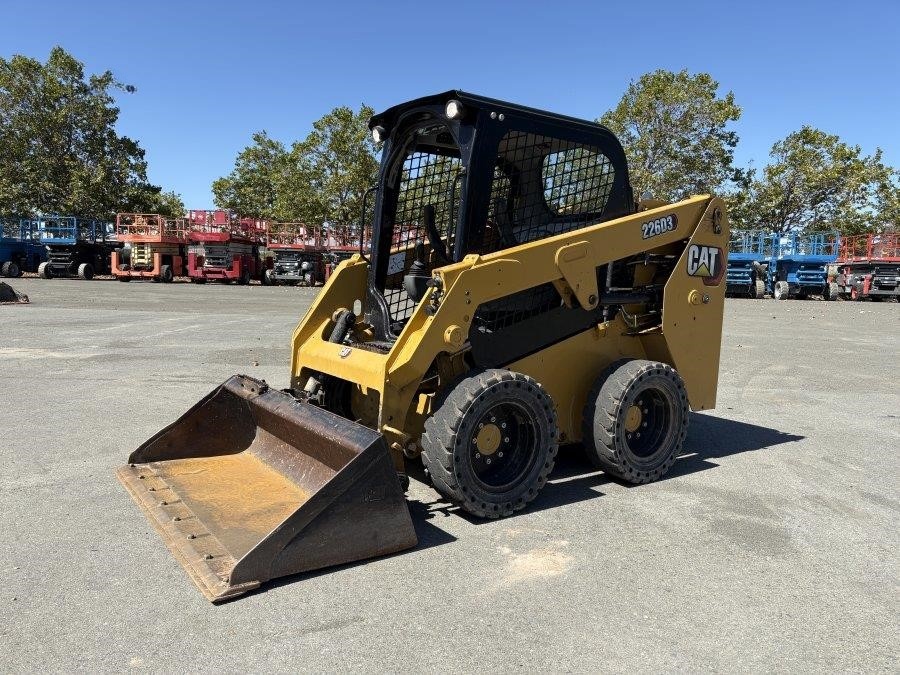

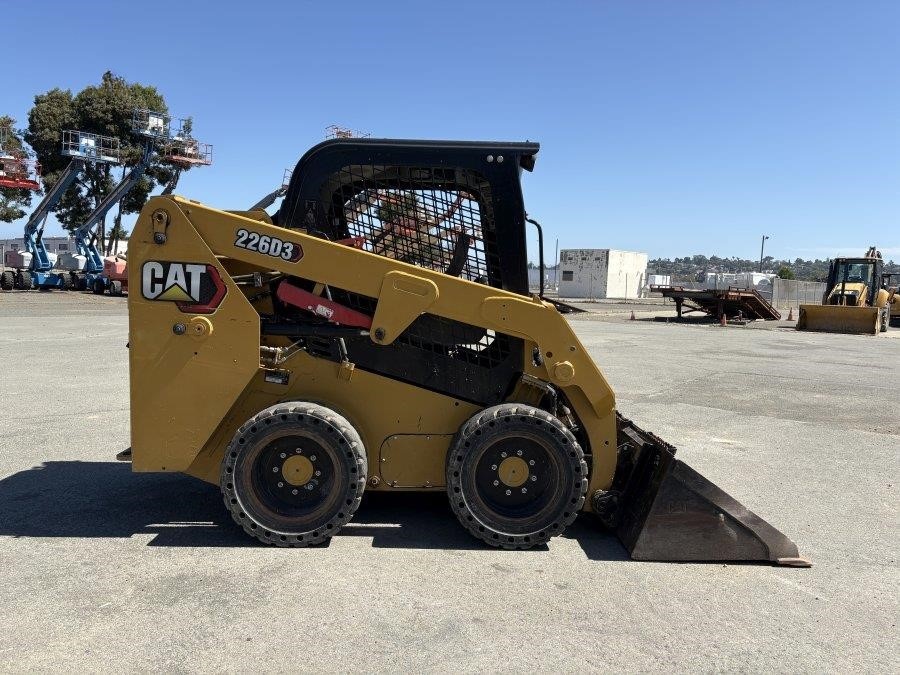

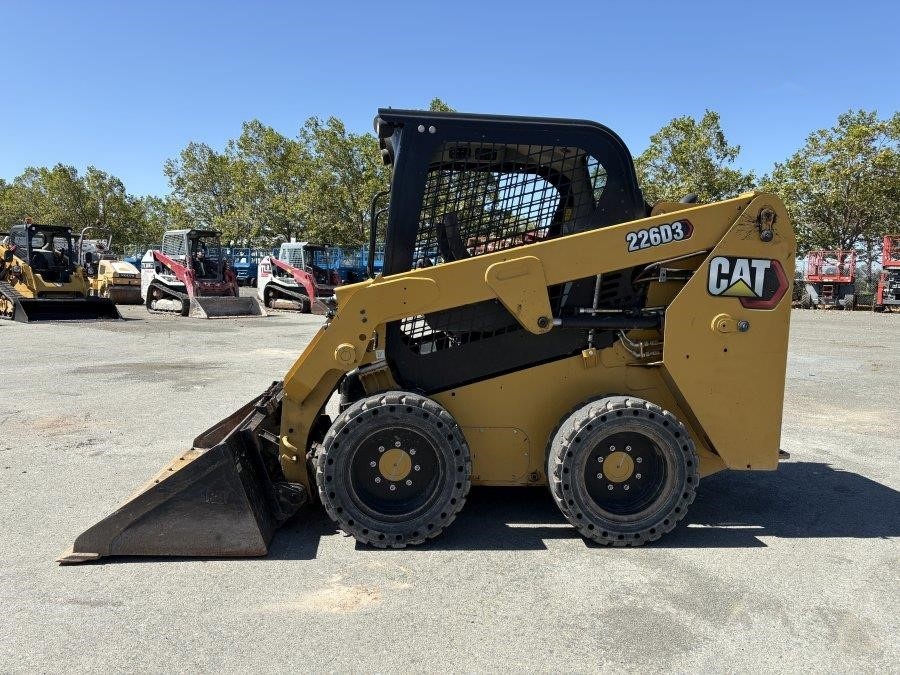

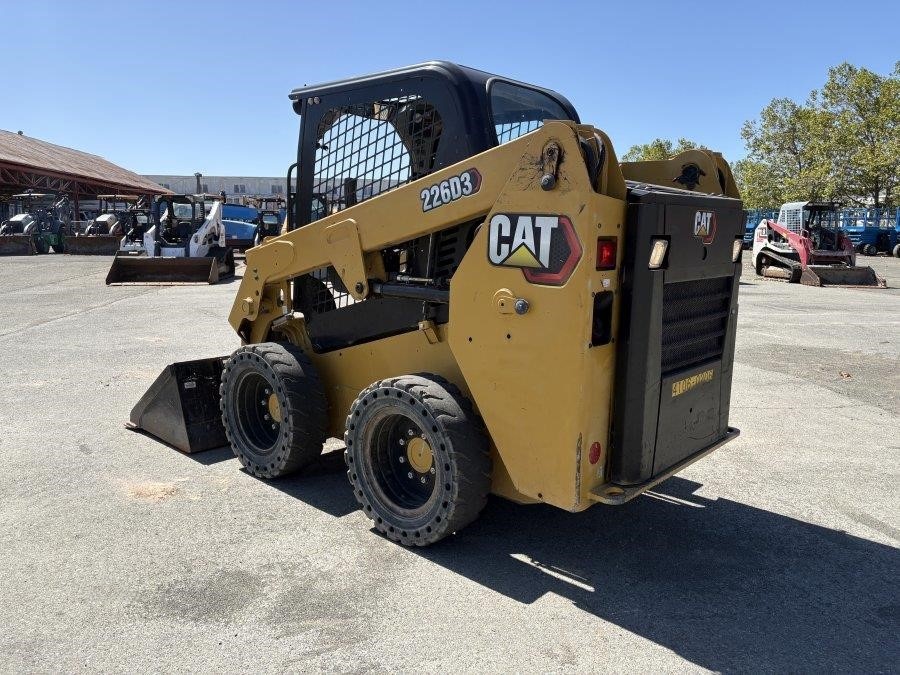

2020 Caterpillar 226D3 Skid Steer Loader
