Item Specifications
Category
Condition
Used
Item Number
#1958
Make
case
Model
570N EP
Year
2020
Industry
construction
Equipment Type
wheel loaders
Location
Ft. Worth, TX
Also Available In
TX
Item Description

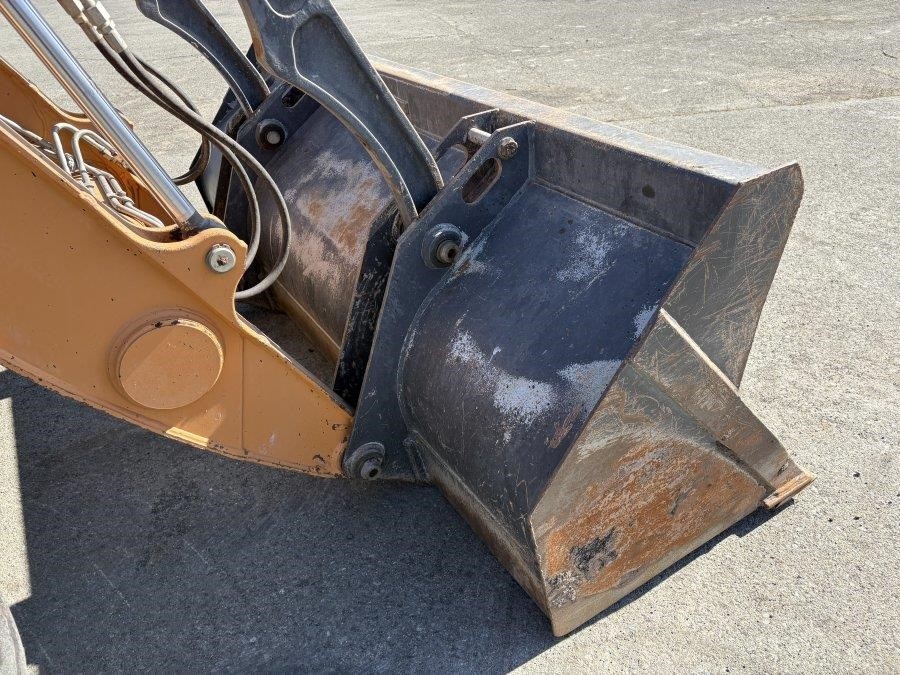

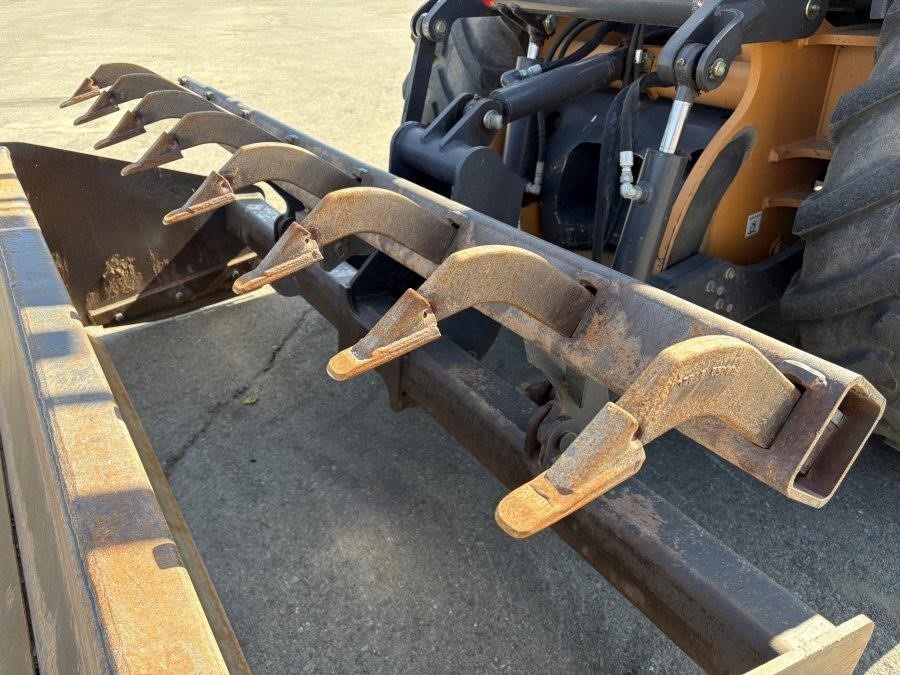

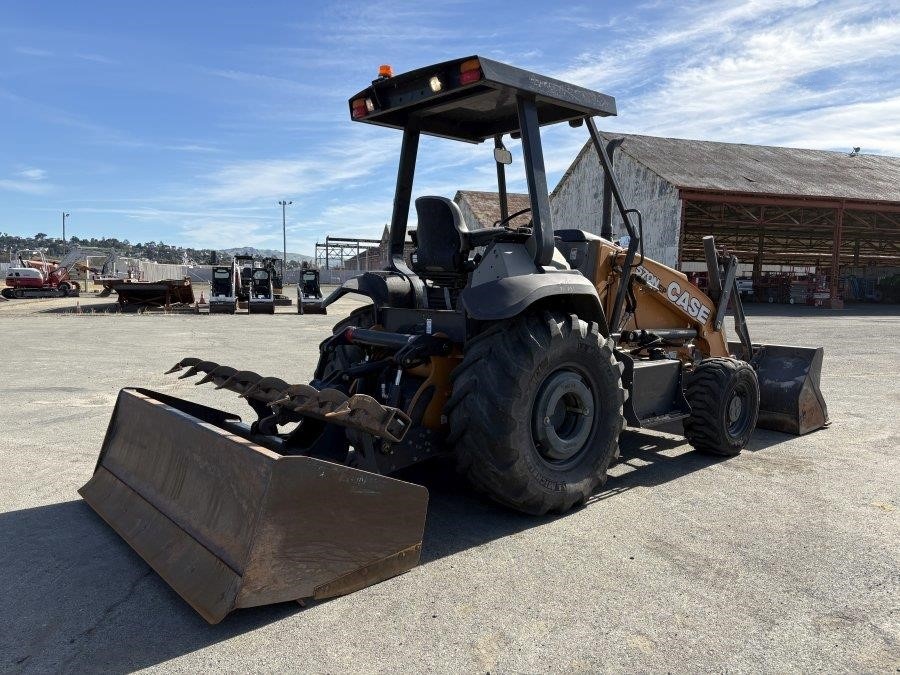

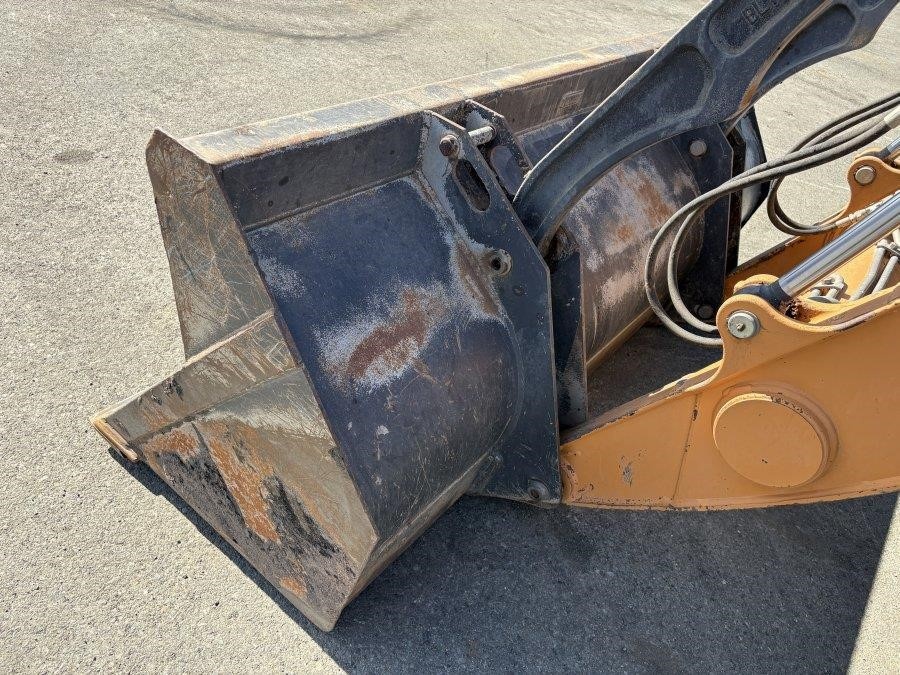

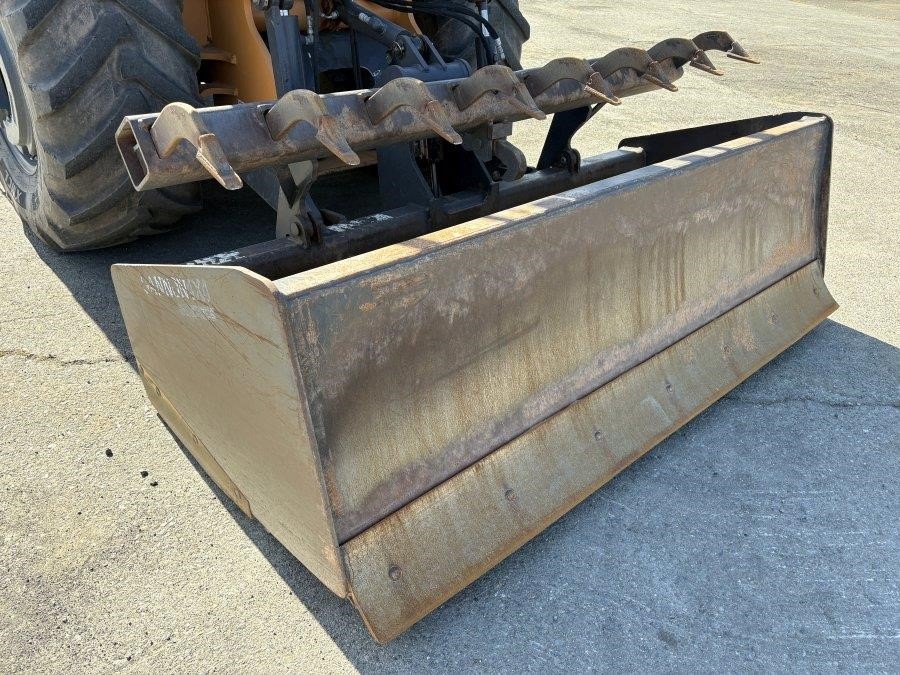

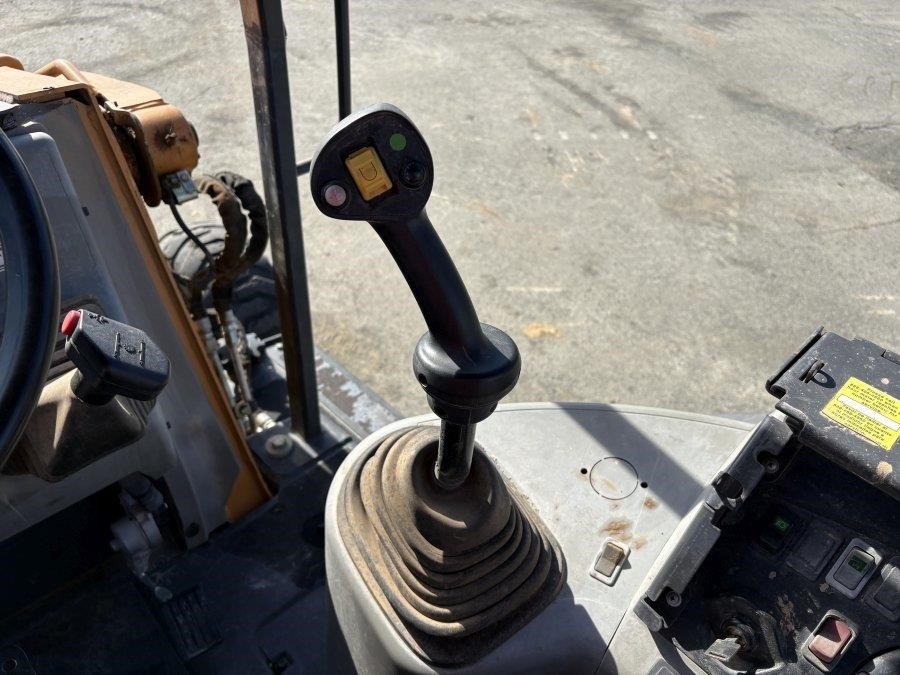

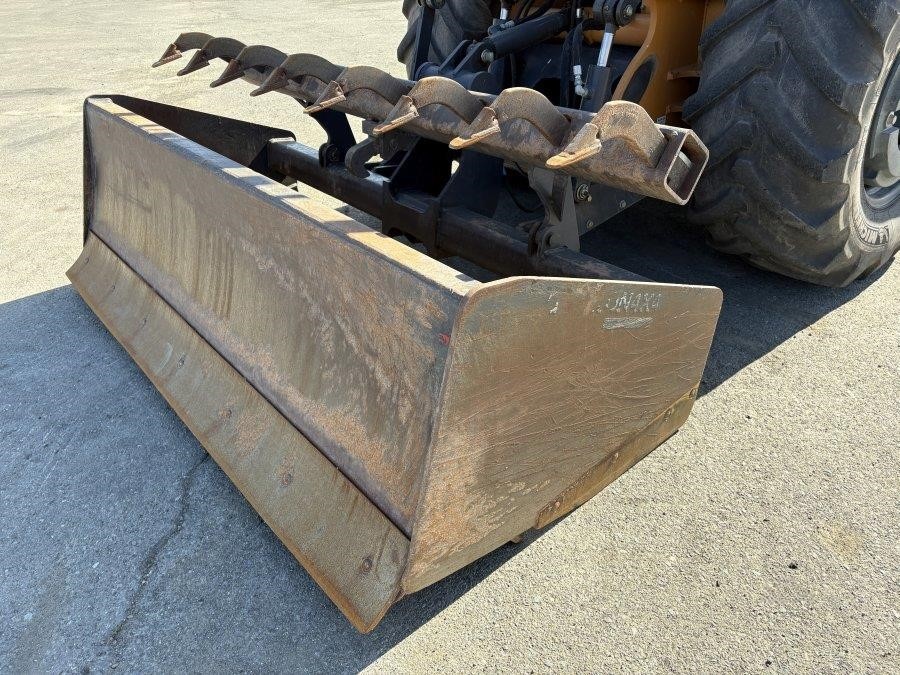

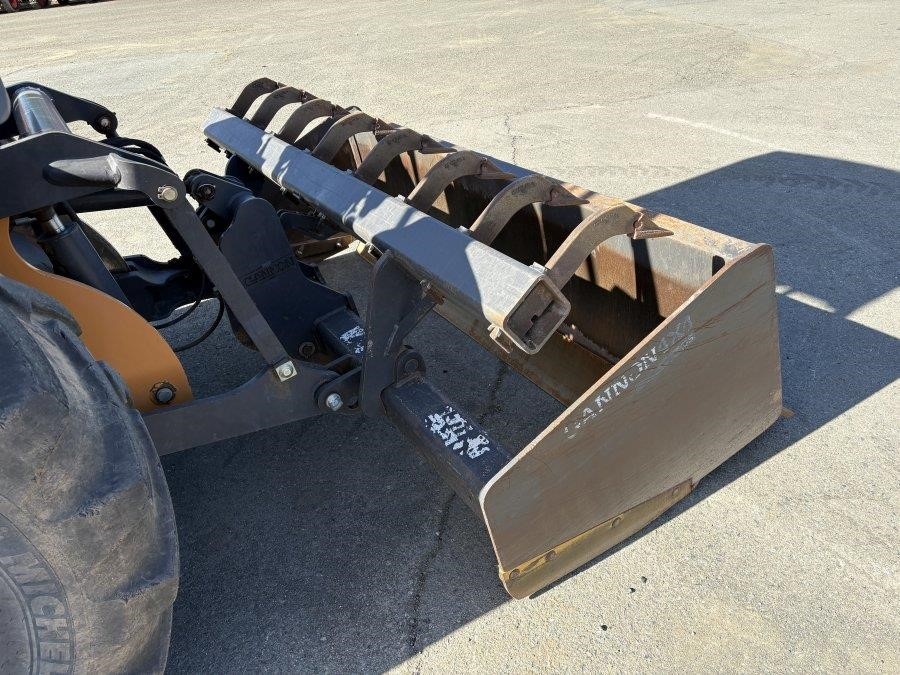

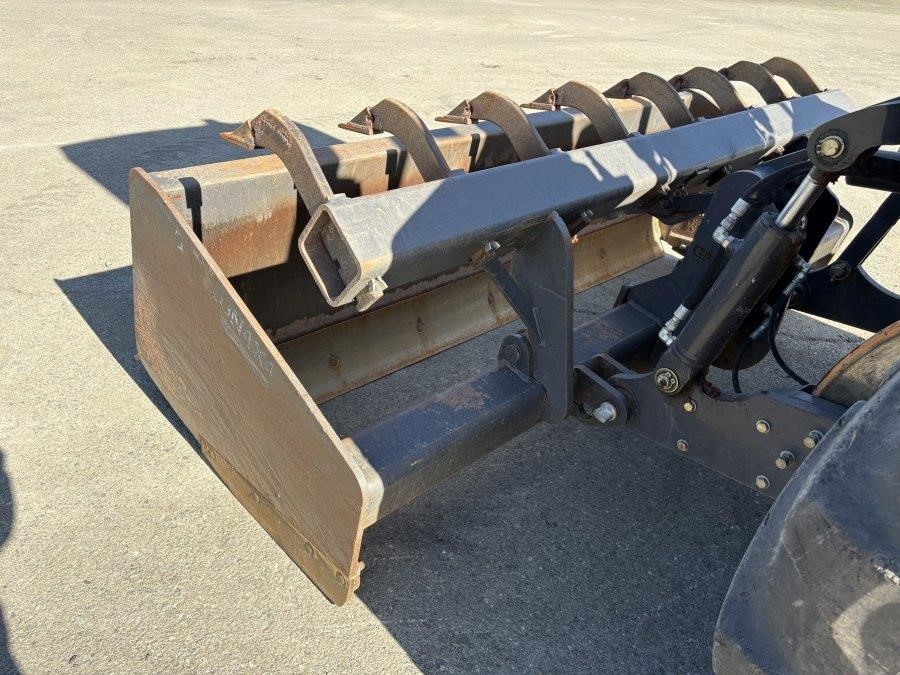

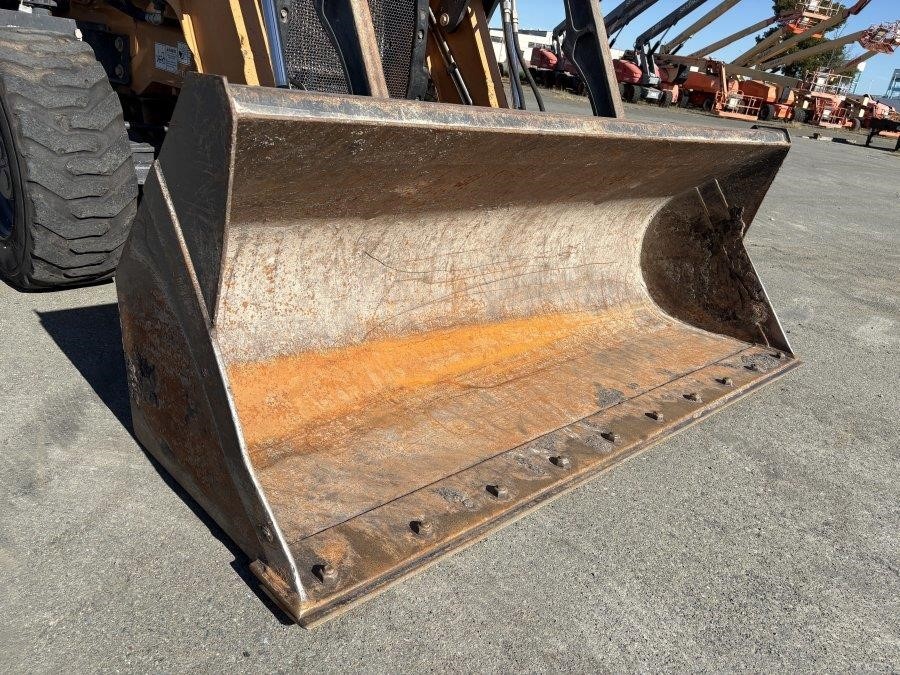

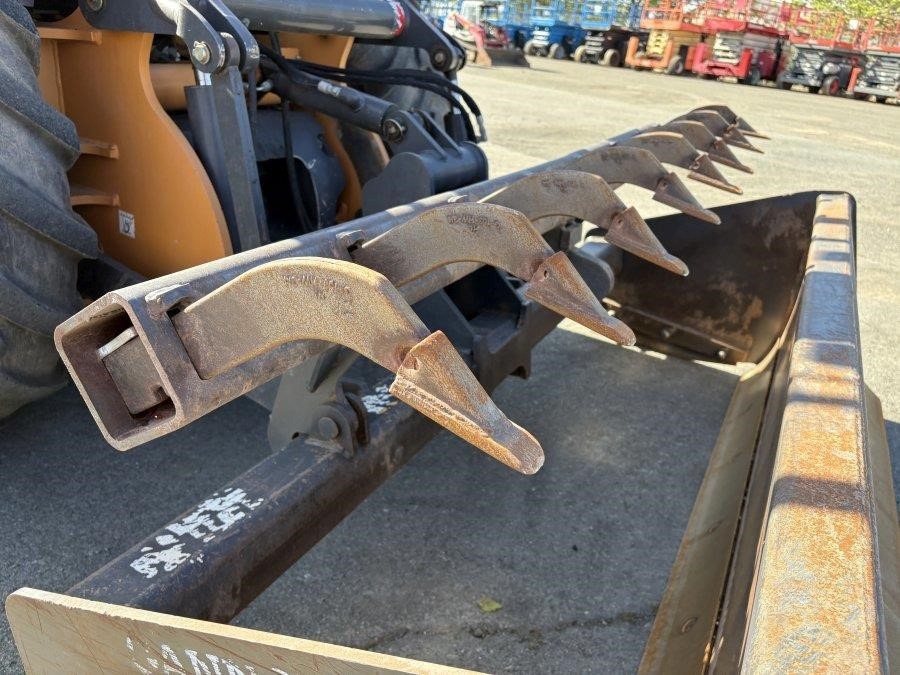

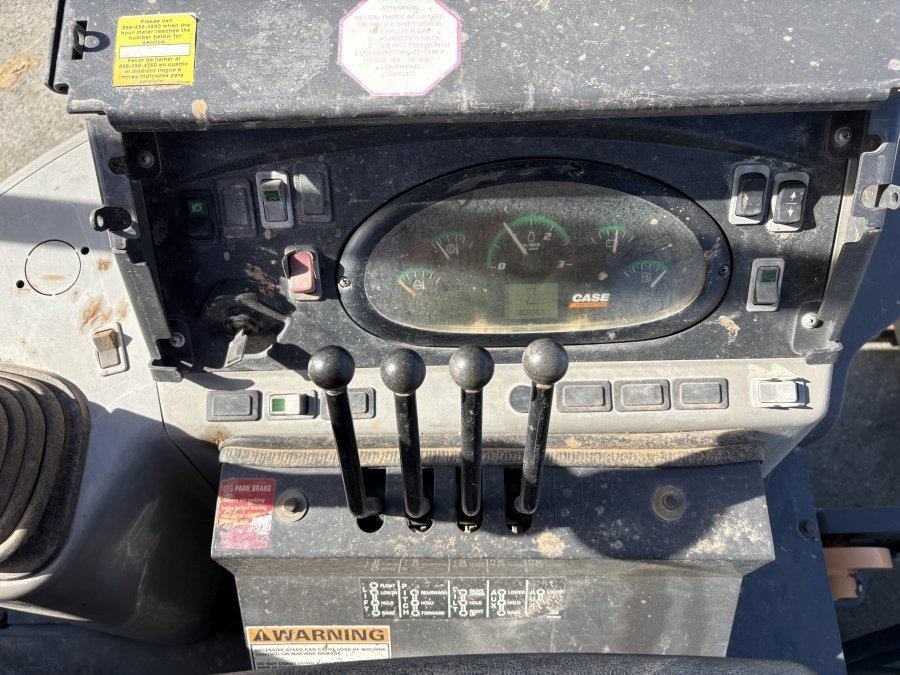

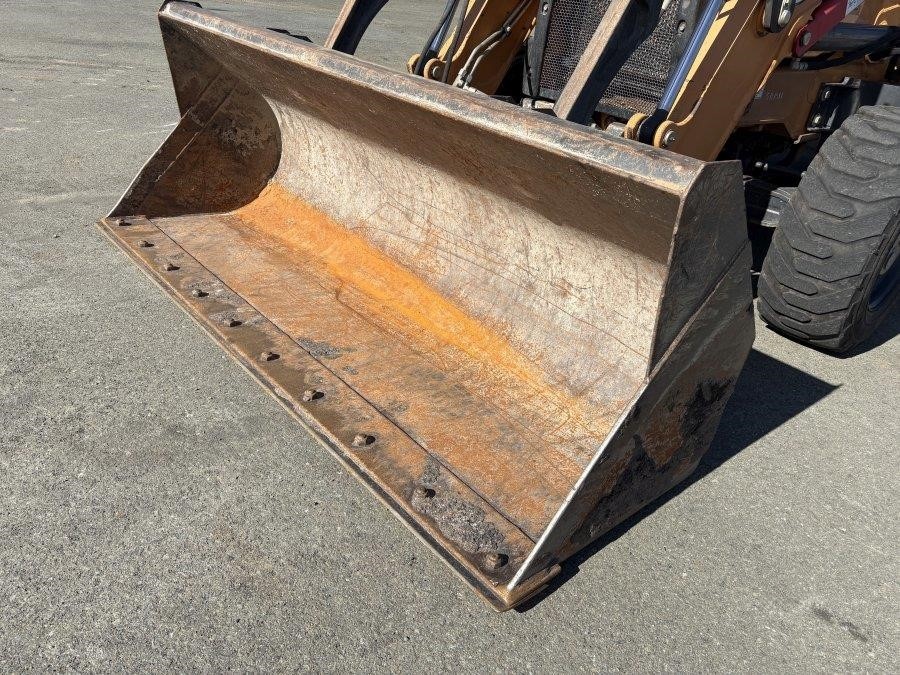

OROPS, 4WD, 3rd Valve, 4 Stick Control, Scraper Box, 84" Bucket
Specifications
General
| Year | 2020 |
| Make | case |
| Model | 570N EP |

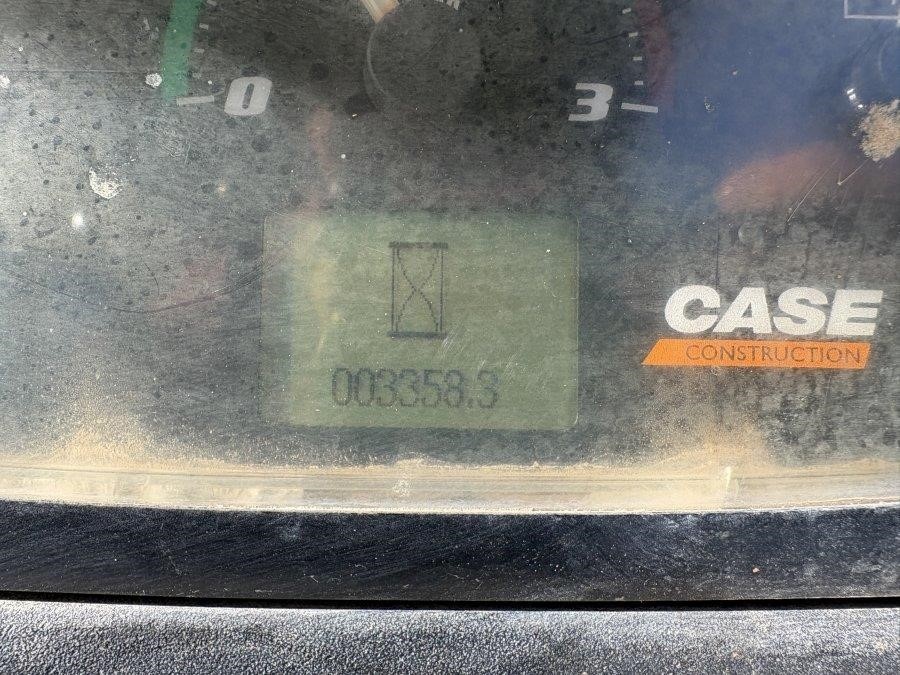

| Hours | 3358 |
| Condition | Used |
| Net Power | 72 hp |
| Gross Power | 74 hp |
| Power Measured @ | 2200 rpm |
| Bore | 4.4 in |
| Stroke | 4.4 in |
| Operating Voltage | 12 V |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 4 |
| Brakes Actuation | Hydraulic |
| Service Brake | Wet Multi Disc |
Engine & Powertrain
| Battery | 850 cold-cranking |
| Alternator | 120 amps |
| Emissions Certification | Tier 4 Final |
| Fuel | Diesel |
| Fuel Injection | Direct, high pressure common rail – HPCR |
| Emission Tier Level | Tier 4 |
| Engine Oil | CJ-4 – semi-synthetic 10W40 |
| Engine Speed - Rated Speed, Full Load | 2200 rpm |
| Horsepower - Gross | 74 hp |
| Horsepower - Net | 72 hp |
| Number Of Cylinders | 4 |

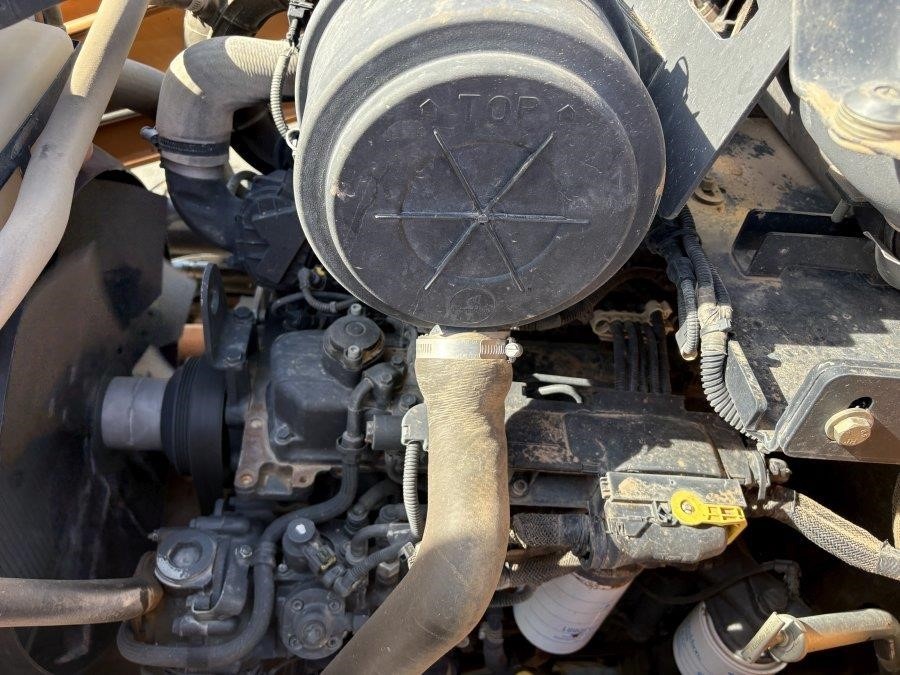

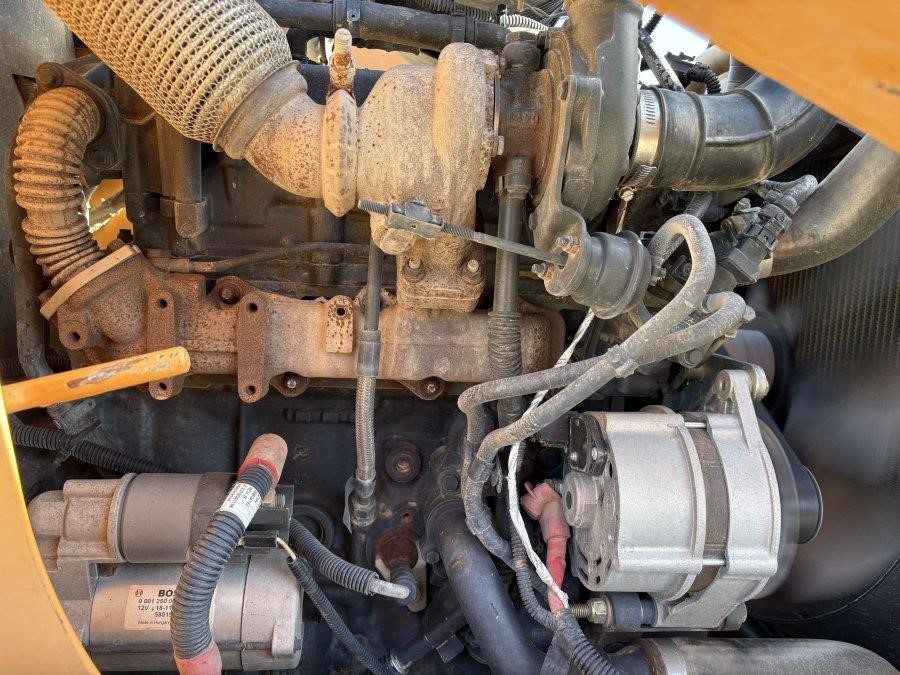

| Engine Model | FPT F5HFL463D |
| Engine Type | Diesel 4-stroke, Turbocharged |
| Max Torque | 235 lb ft |
| Torque Measured @ | 1400 rpm |
| Net Torque Rise | 35 % |
| Net Max Torque | 228 lb ft |
| Displacement | 207.5 cu in |
| Fuel Capacity | 30.2 gal |
| Front Axle Fluid Capacity | 0.2 gal |
| Rear Axle Fluid Capacity | 3.6 gal |
| Transmission Number Of Forward / Reverse Speeds | 4 |
| Transmission Type | Syncroshuttle |
Working Range
| Hydraulic System Fluid Capacity | 28.5 gal |
| Oil System Fluid Capacity | 2.2 gal |
| Max Speed - Forward | 24 mph |
| Max Speed Reverse | 24 mph |
| Hydraulic Pump Type | Gear Pump |
| Flow Capacity | 28.6 gal/min |
| Hydraulic Relief Valve Pressure | 3000 psi |
Undercarriage & Attachments

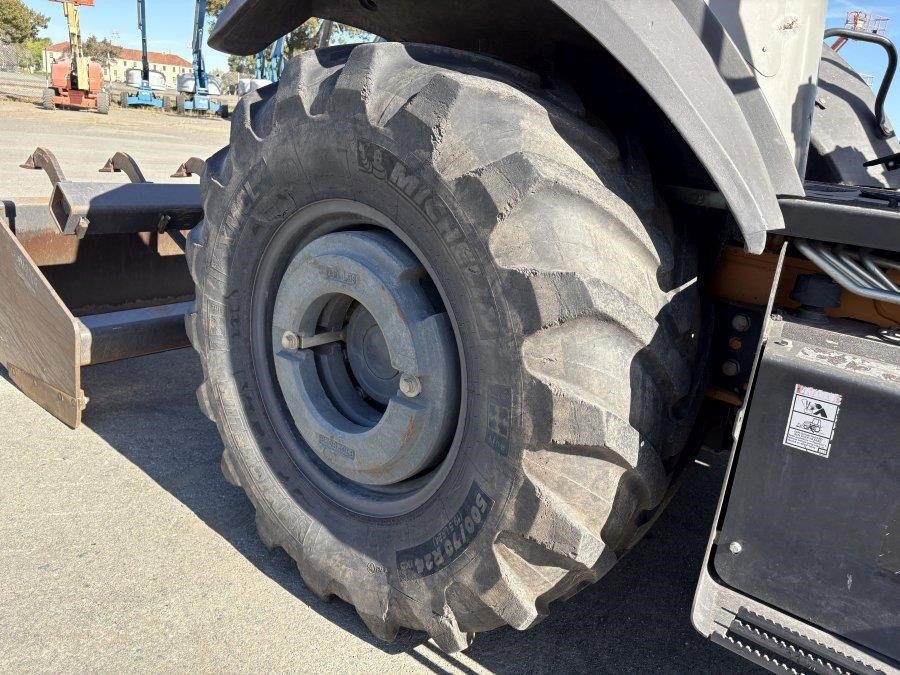

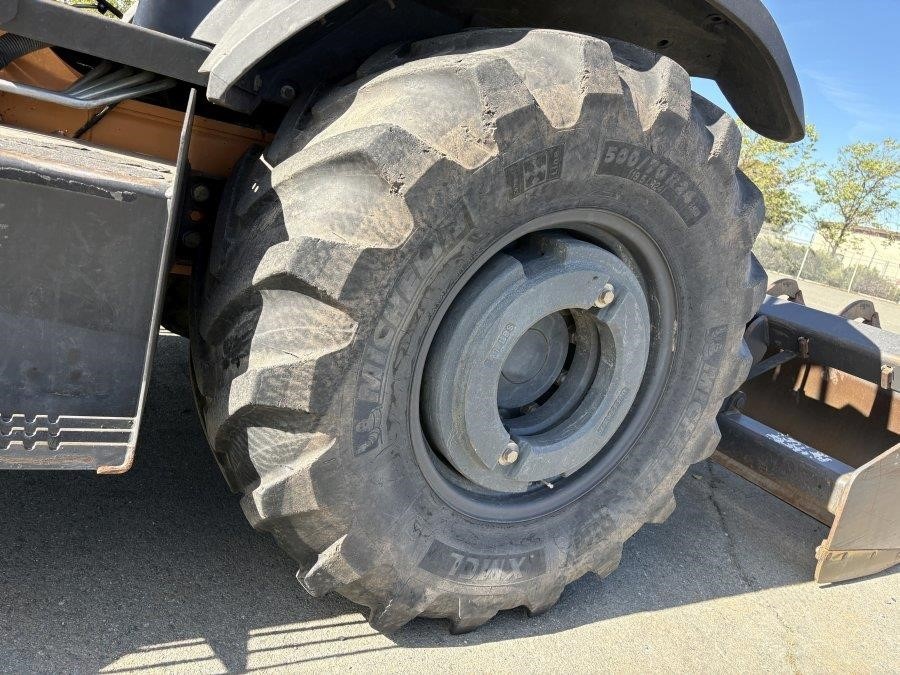

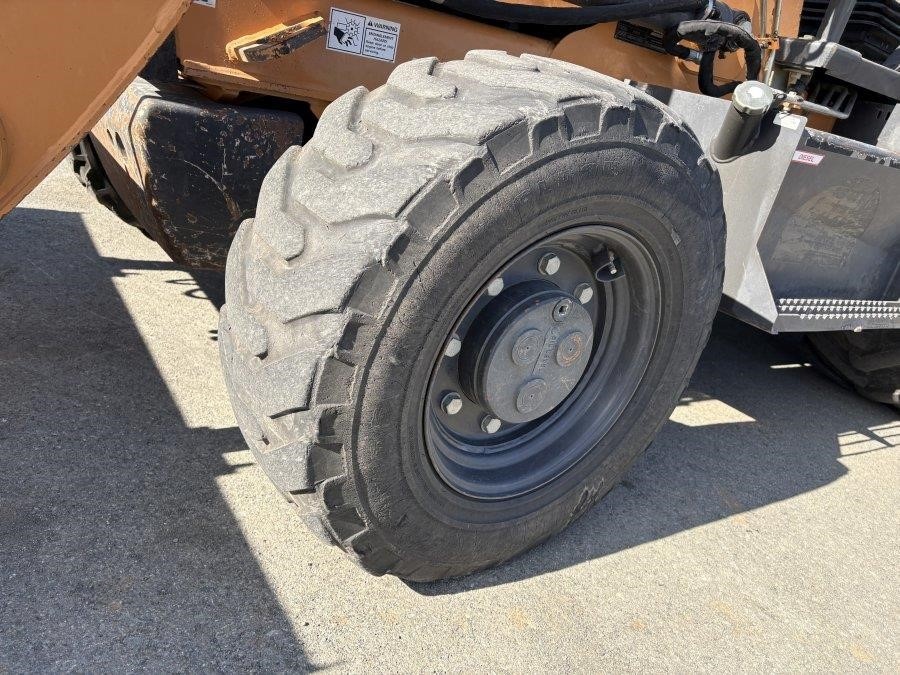

| Rear Tires Size 2wd/4wd | 19.5 L x 24.0, 10-ply |
| Bucket Breakout Force, Lift | 9271 lb |
| Bucket Digging Depth | 0.7 ft in |
Dimensions
| Transport Height | 8.99 ft in ft |
| Wheelbase | 7 ft in |
| Ground Clearance | 10.9 ft in |
| Overall Height Canopy | 9 ft in |
| Height To Top Of Suspended Cab | 9 ft in |
| Cab Height | 106.8 in |
| Overall Length | 202.76 in |
| Overall Width | 6.8 ft in |
| Loader Reach At Max Dump Height | 0.19 ft in |
| Coupler Pin-On Lift Capacity At Full Height | 6503 lb |
| Dump Angle @ Max. Height | 46 degrees |
| Operating Weight | 11135.6 lb |
| Bucket Hinge Pin Max Height | 11.3 ft in |
| Bucket Dump Clearance At Max Raise | 8.8 ft in |

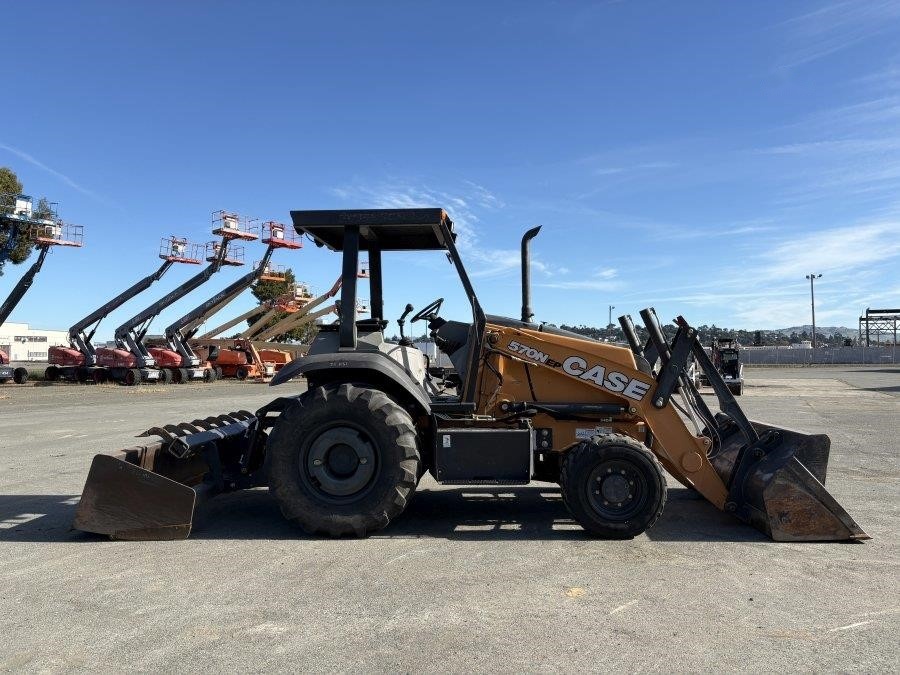

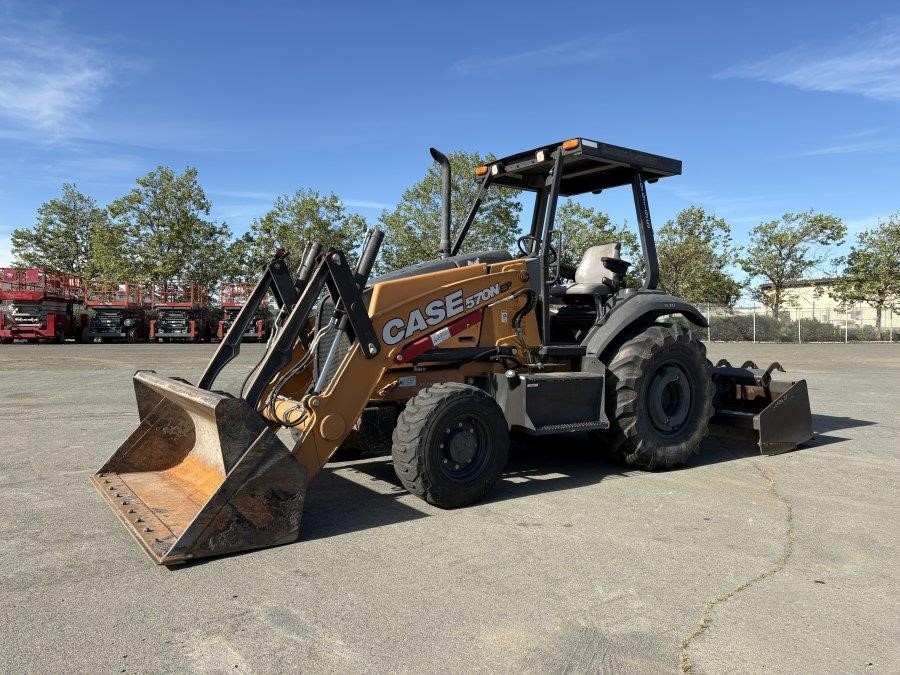

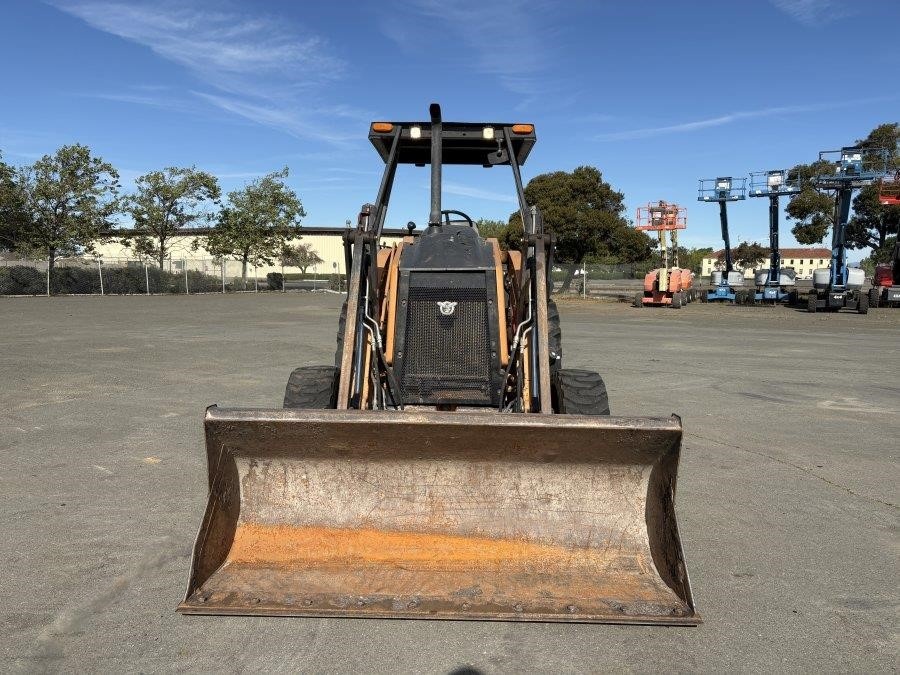

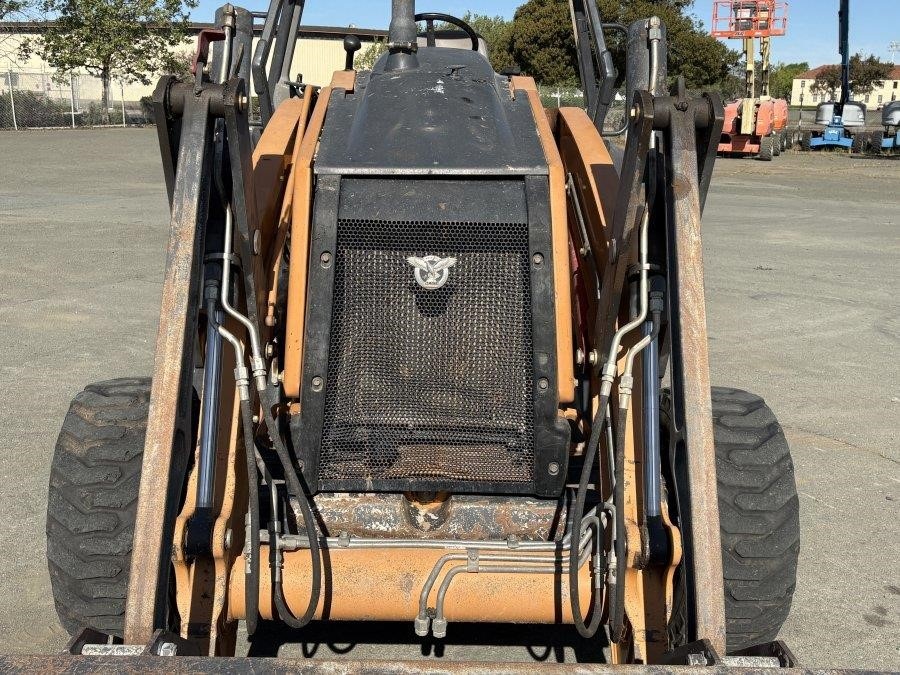

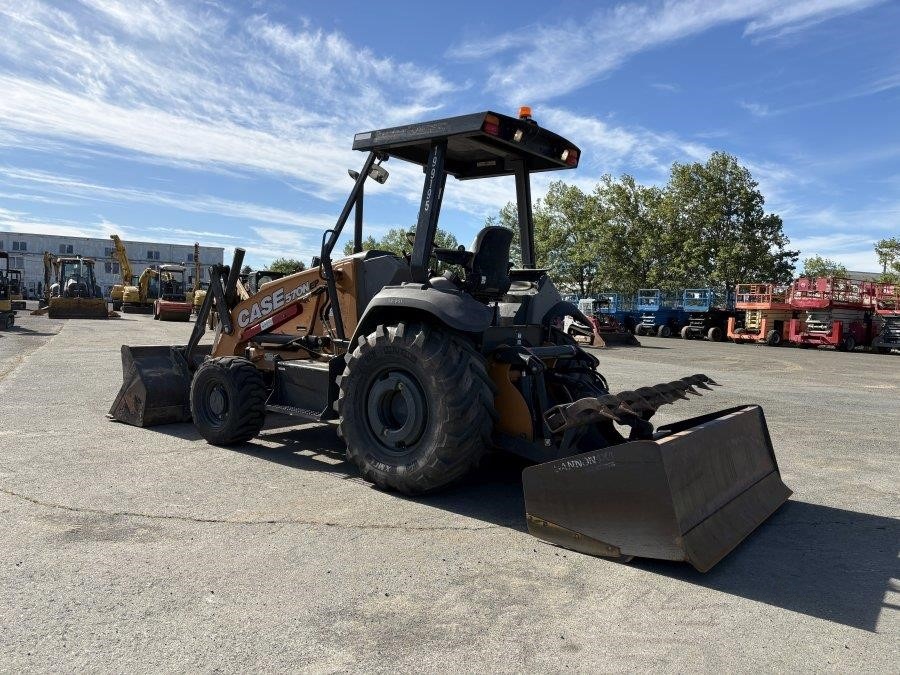

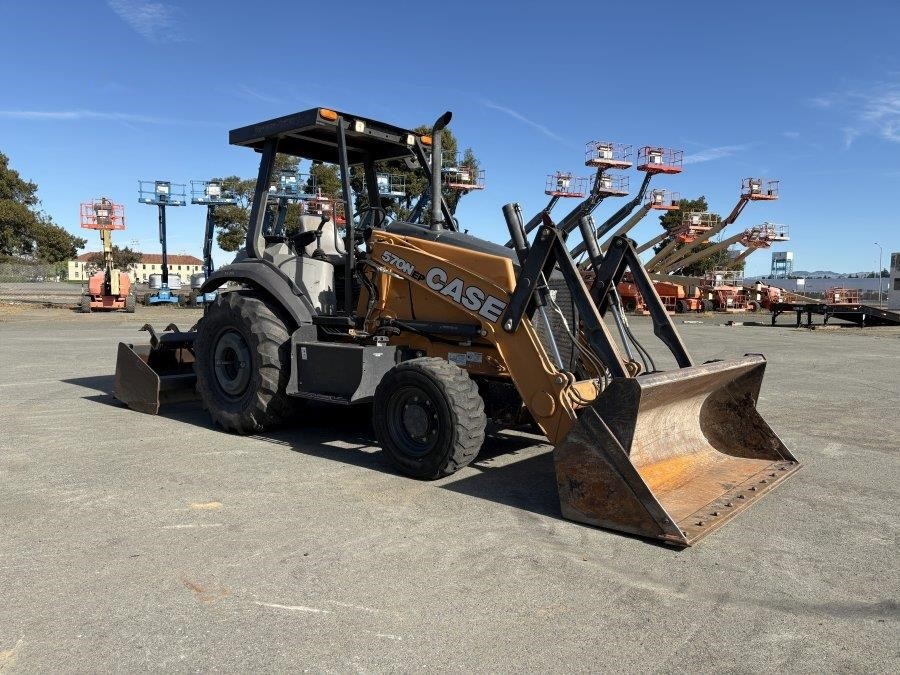

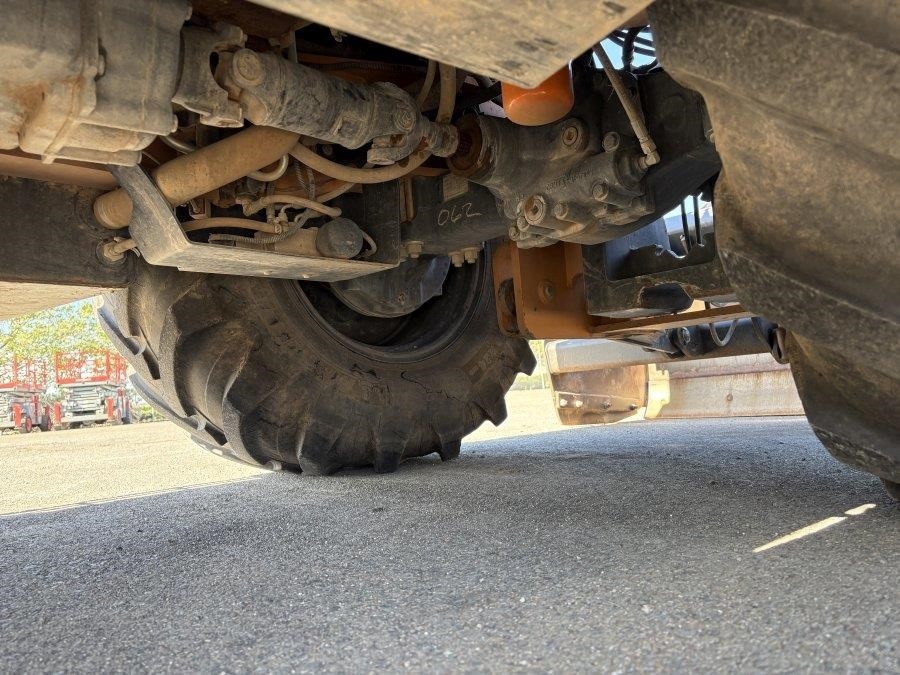

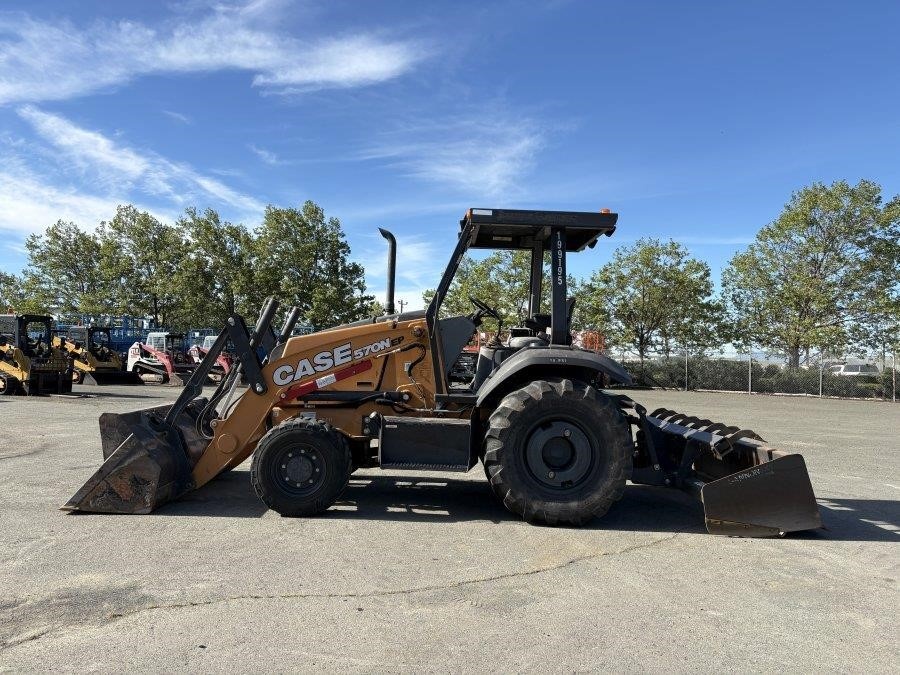

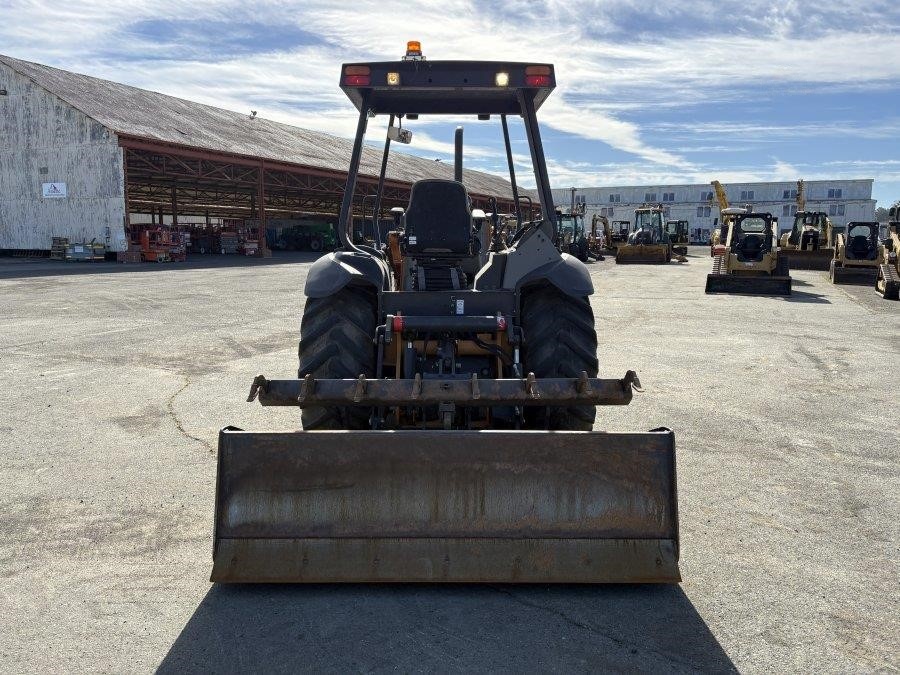

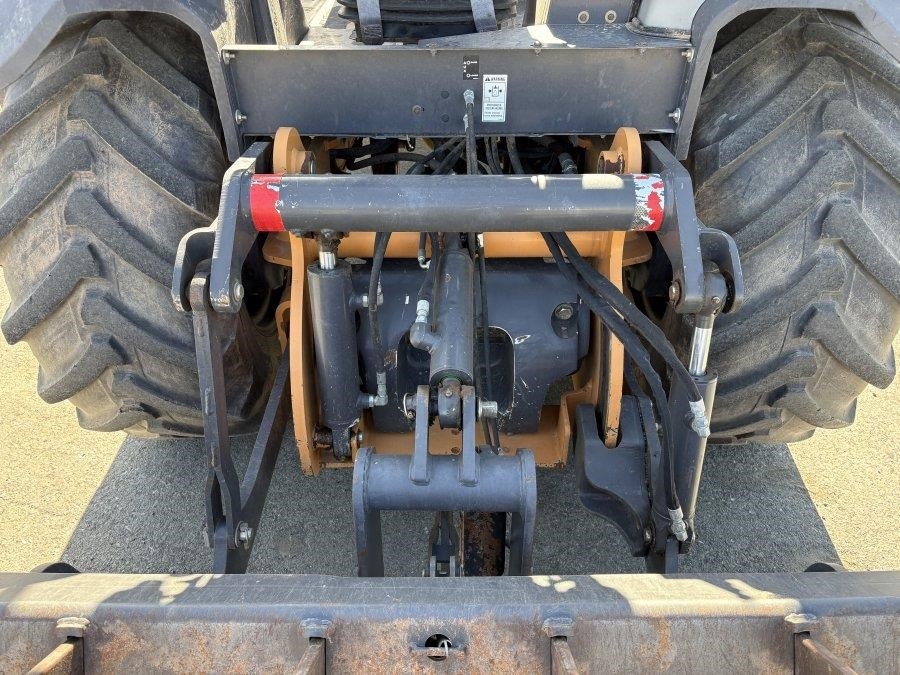

2020 Case 570N EP Skip Loader
