Item Specifications
Category
Condition
Used
Item Number
#1951
Make
takeuchi
Model
TL8
Year
2019
Industry
construction
Equipment Type
compact track loaders
Location
Ft. Worth, TX
Also Available In
TX
Item Description

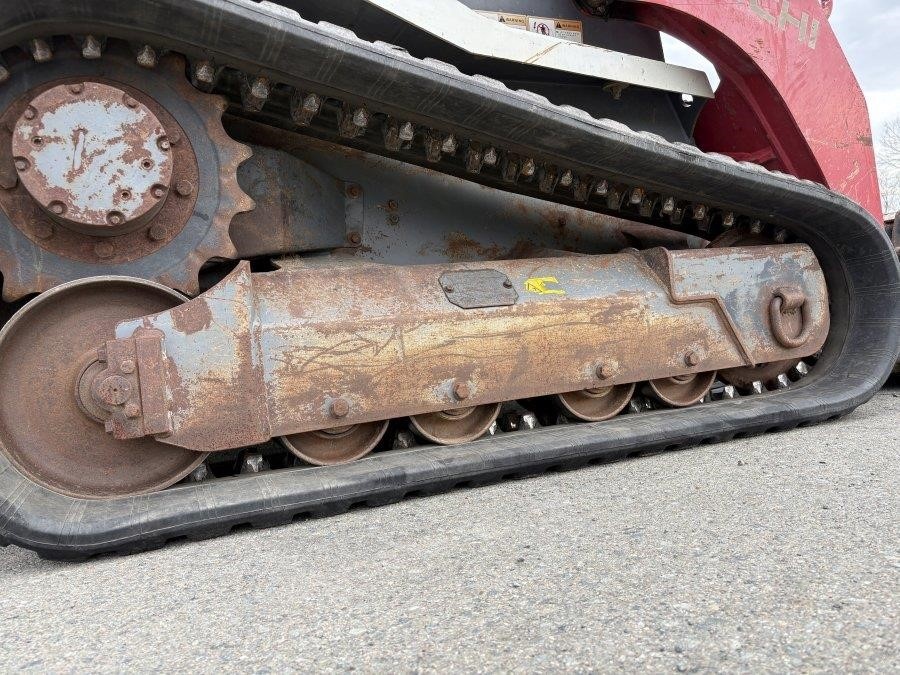

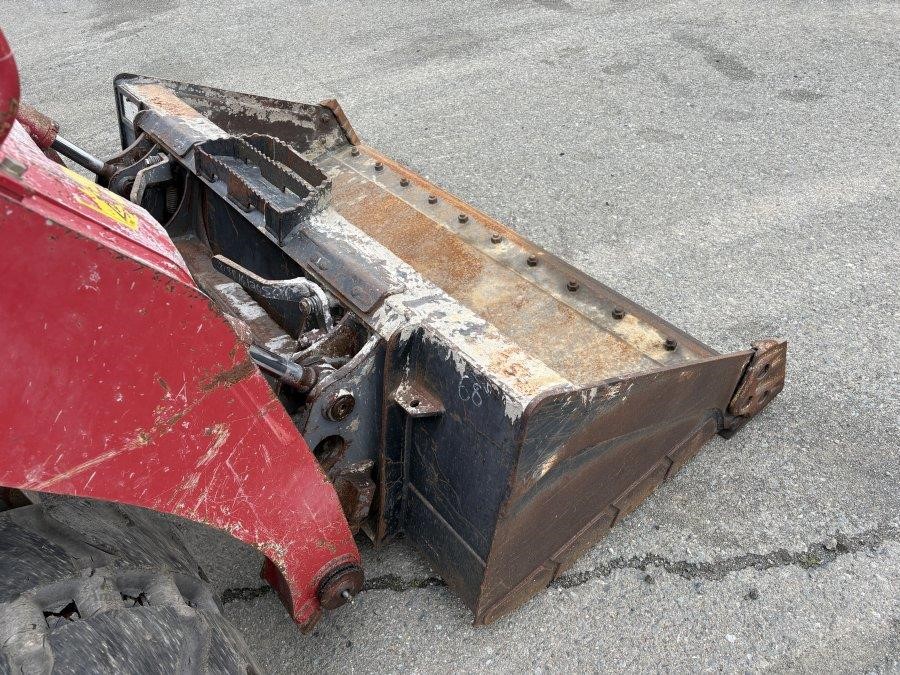

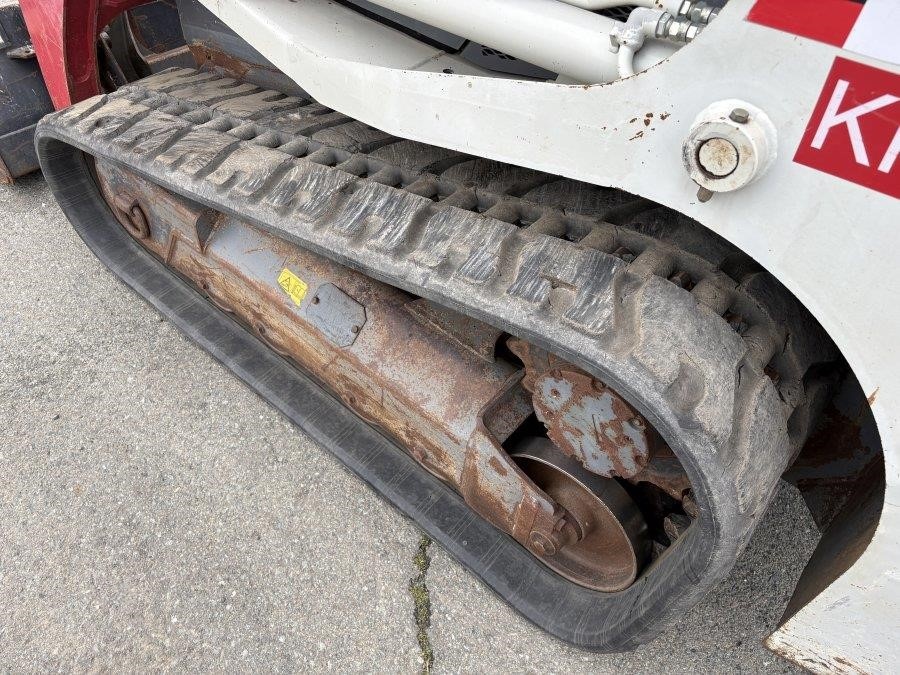

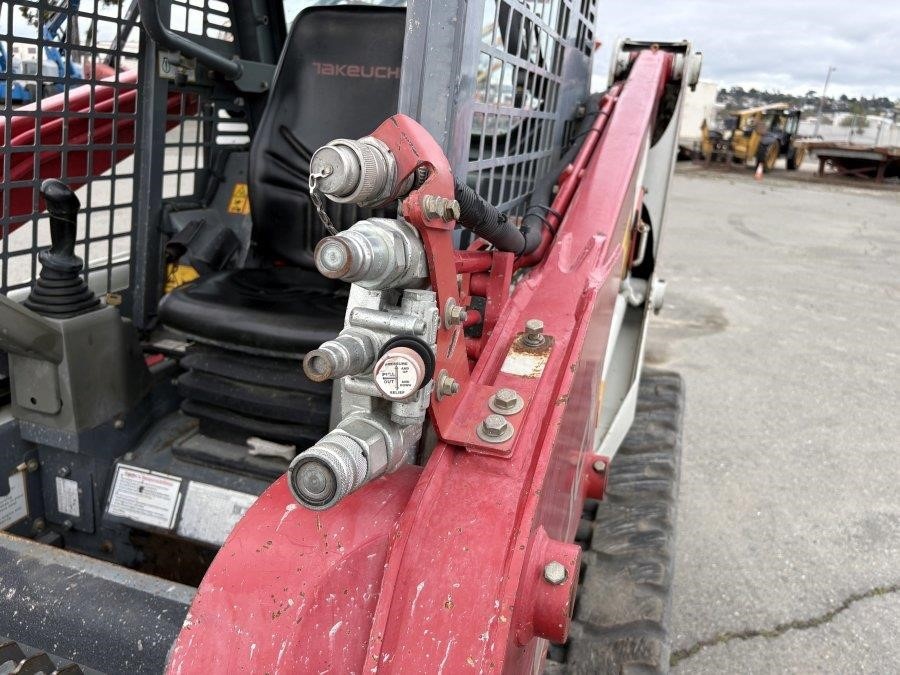

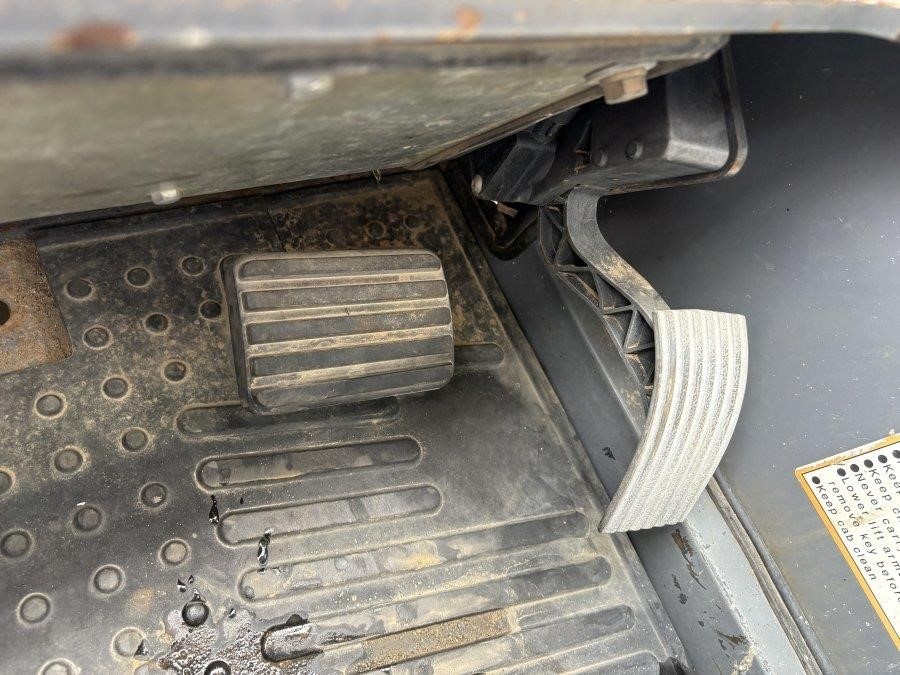

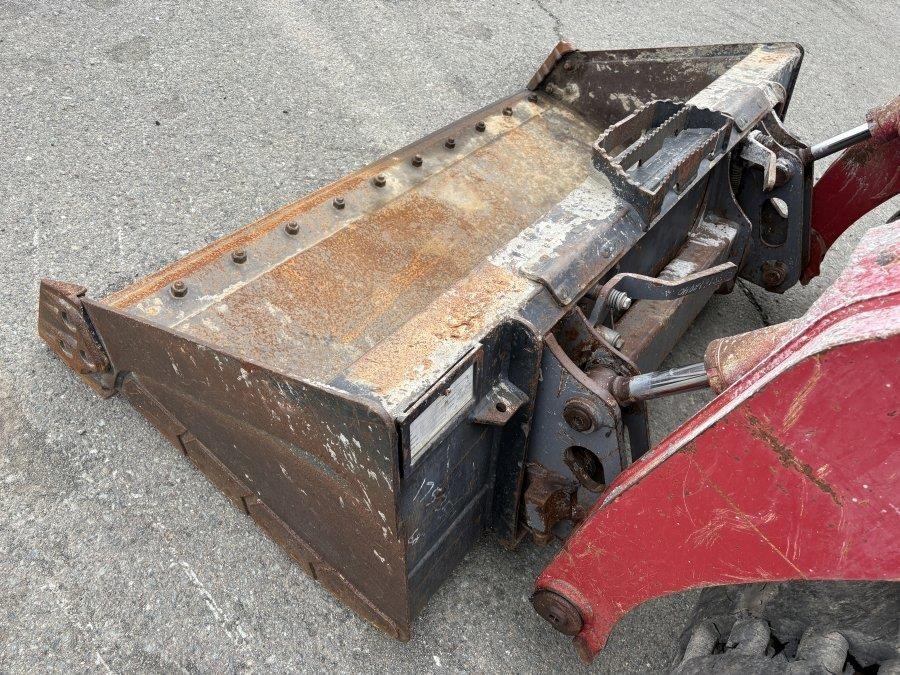

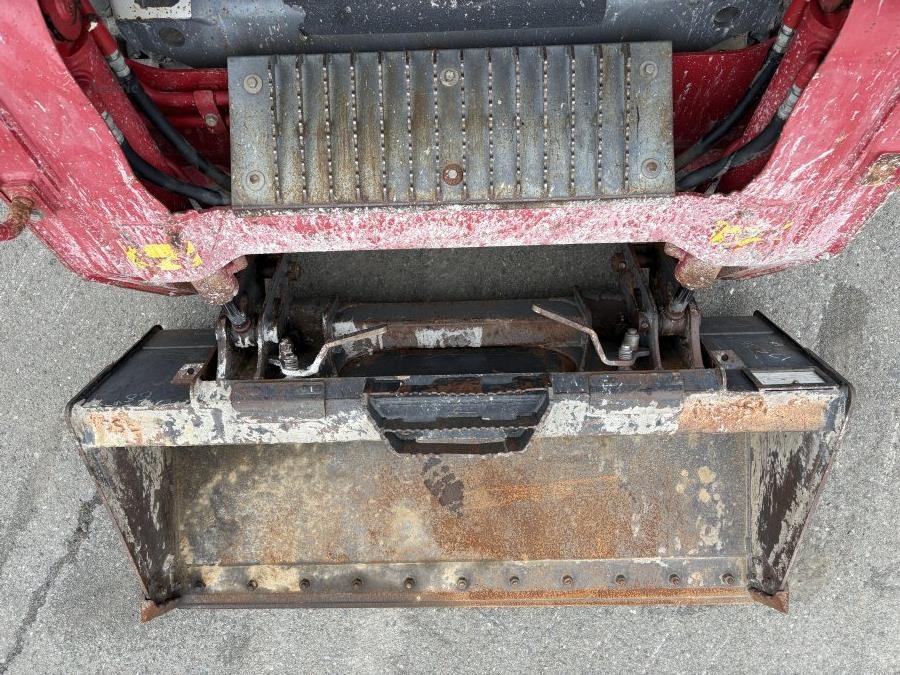

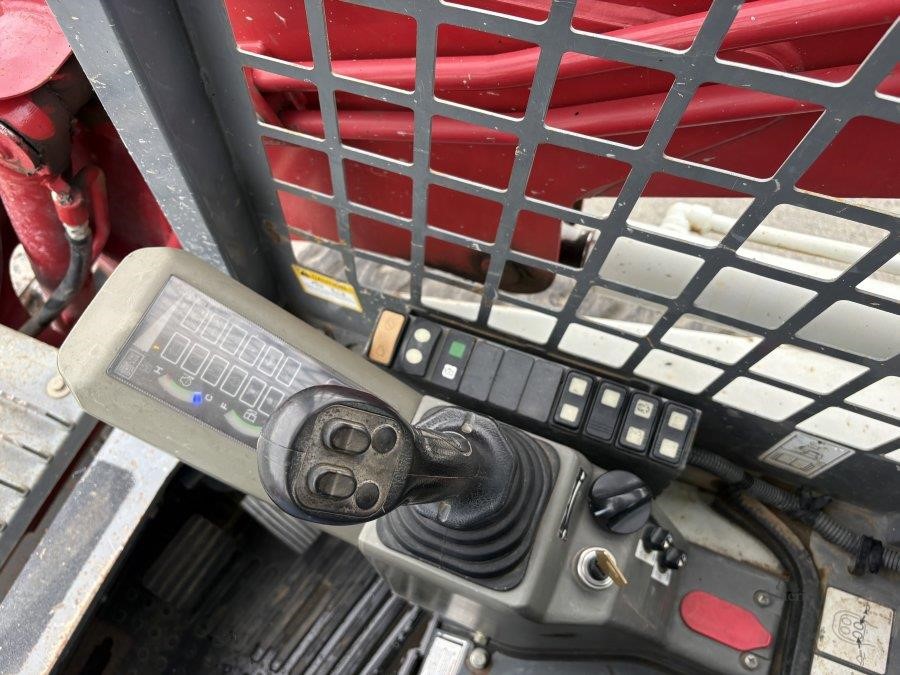

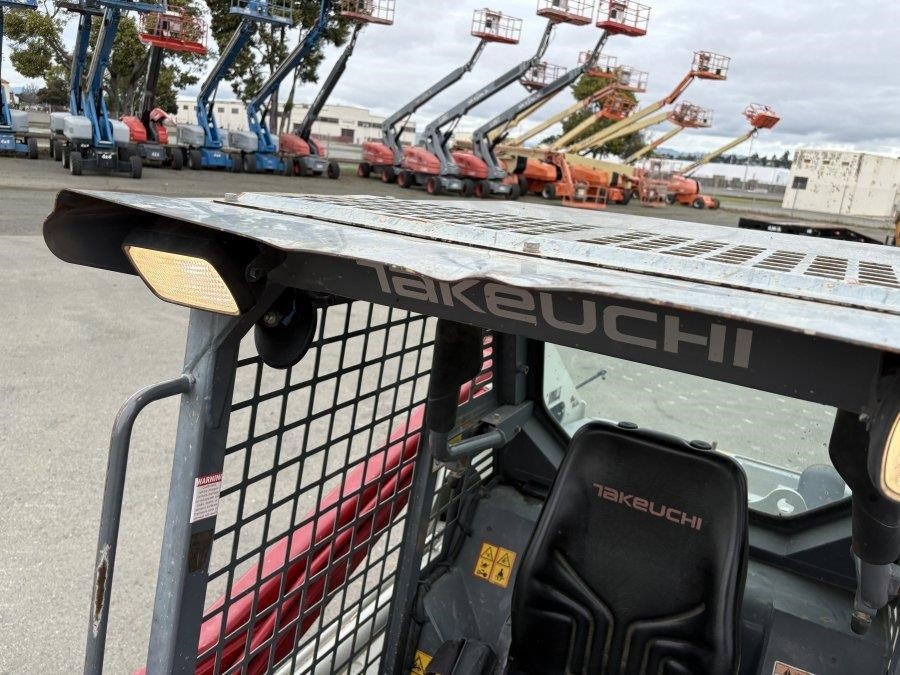

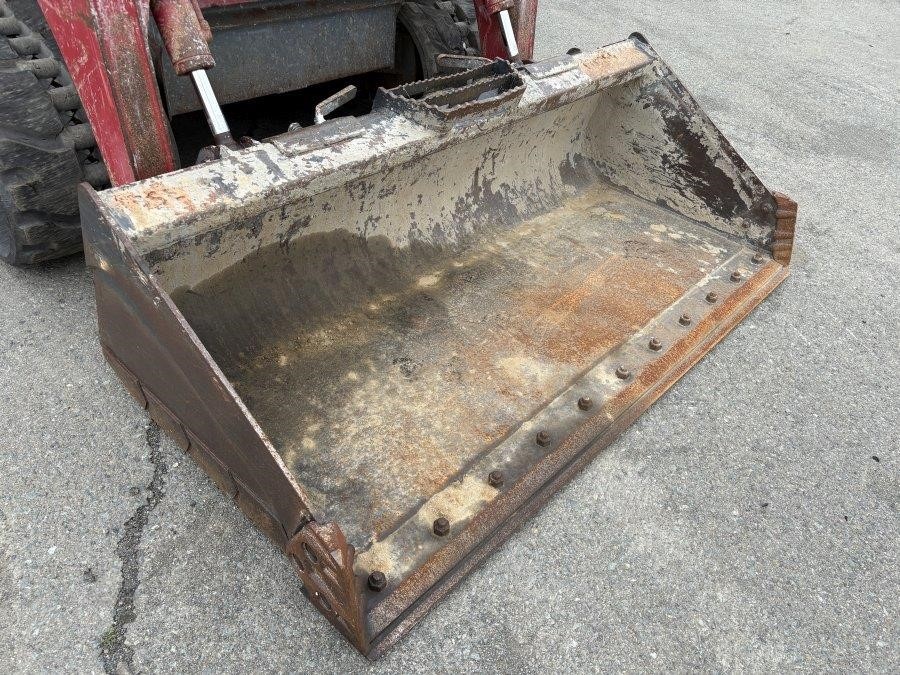

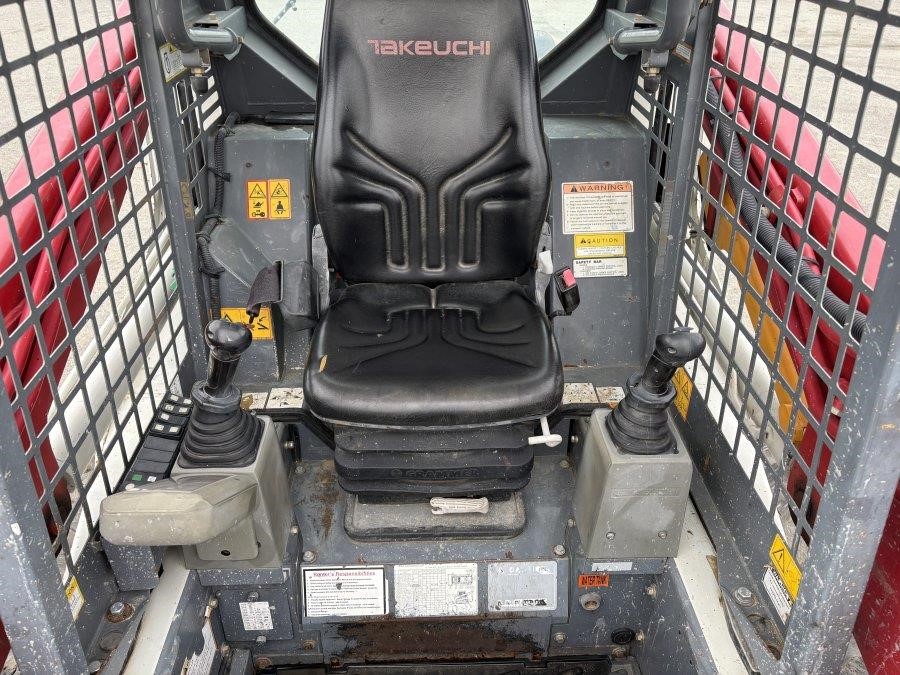

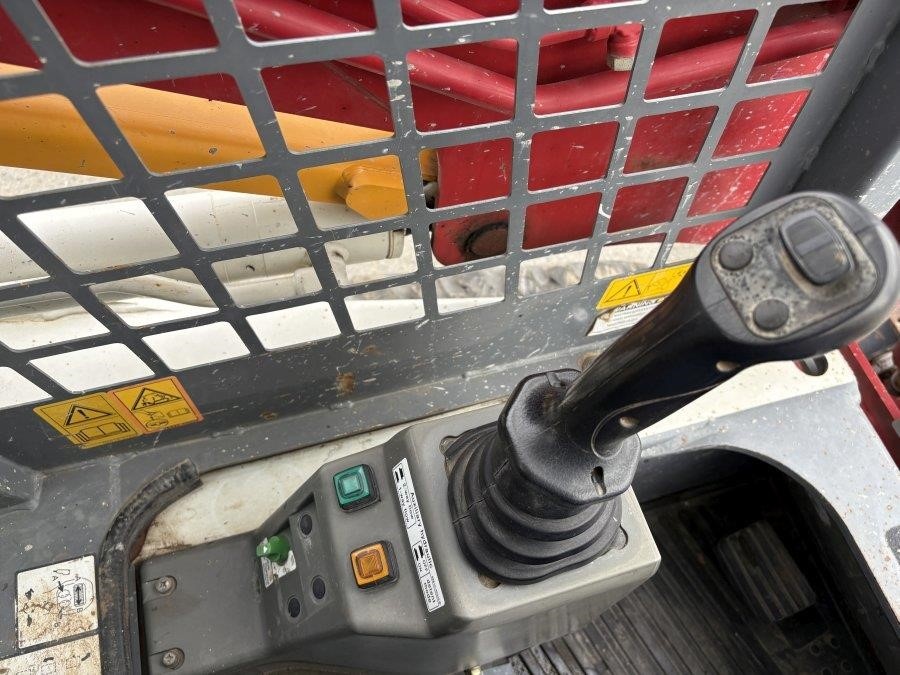

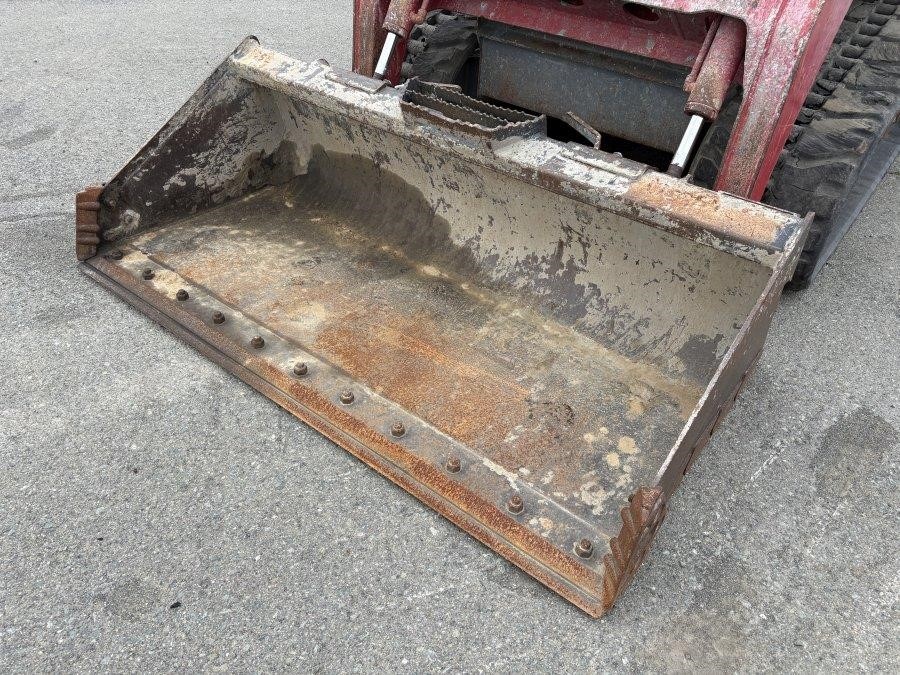

OROPS, Aux Hydraulics, Pilot Control, 2 Speed, 16" Width Rubber Tracks, Foot Throttle, 68" Bucket
Specifications
General
| Year | 2019 |
| Make | takeuchi |
| Model | TL8 |
| Hours | 2092 |
| Condition | Used |
| Traction Force | 9,127 lbs (4,140 kg) |
Engine & Powertrain

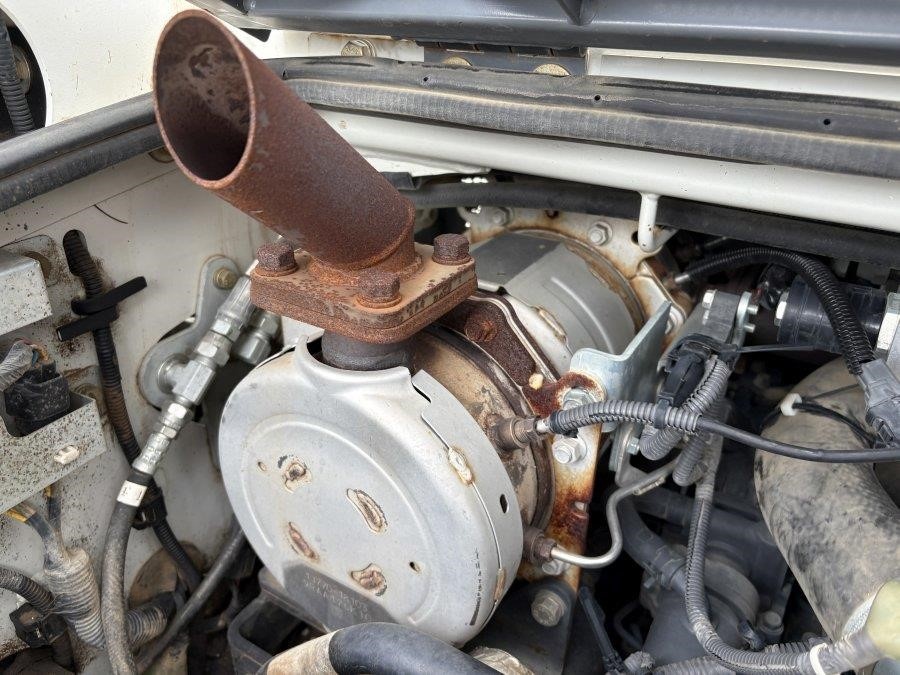

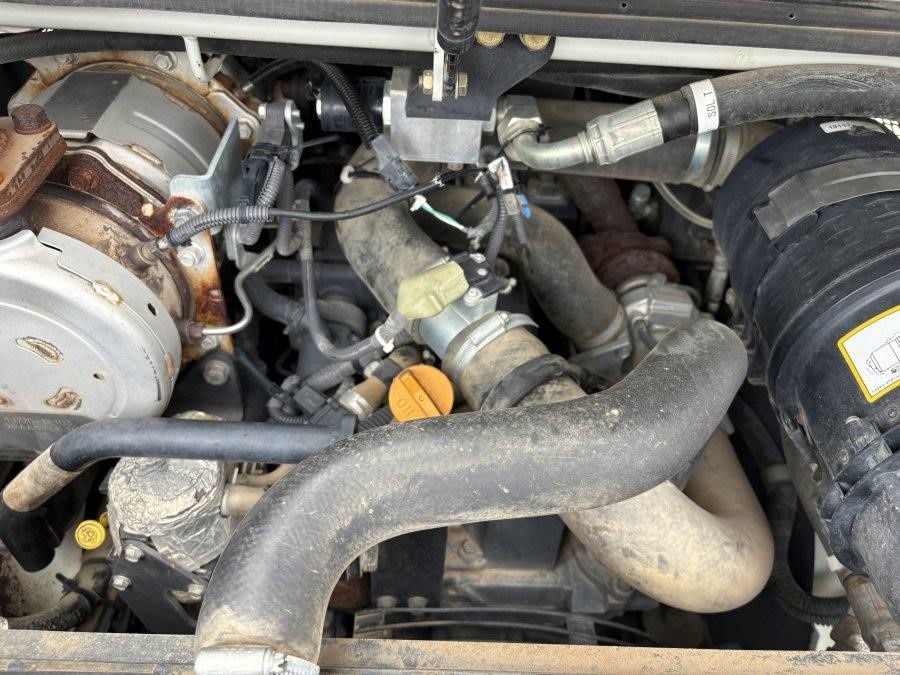

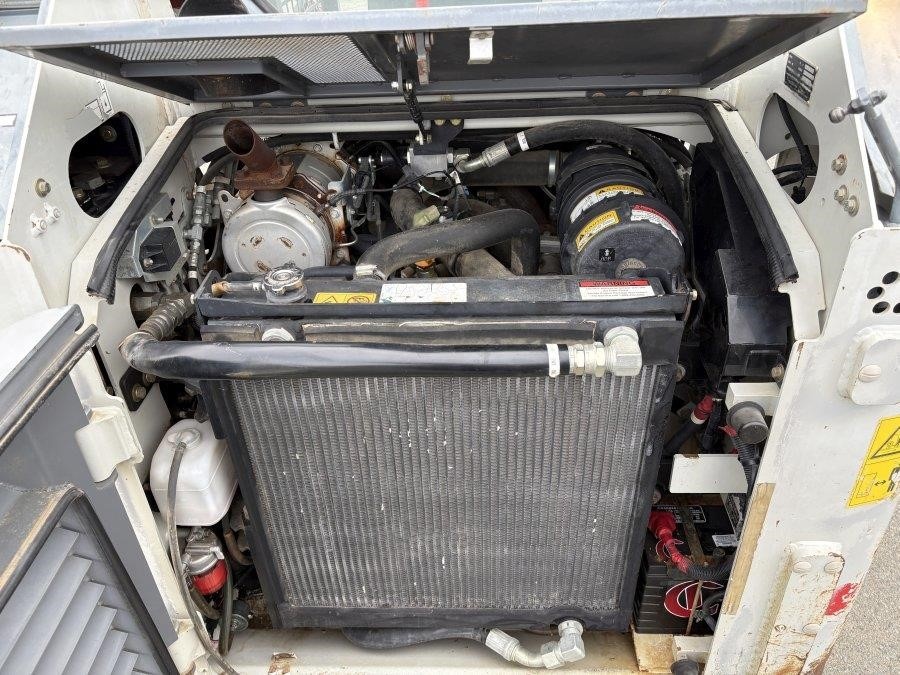

| Engine Make / Model | Kubota / V3307-CR-Turbo |
| Cylinders / Displacement | 4 / 203 cu in (3.3 L) |
| Horsepower | 74.3 hp (55.4 kW) |
| Rated Engine Speed | 2,600 rpm |
| Maximum Torque | 192 ft-lb @ 1,500 rpm (260 Nm) |
| Fuel Tank Capacity | 19.8 gal (75.0 L) |
| Fuel Consumption, 65% of full load | 2.69 gal / hr (10.2 L / hr) |
Working Range
| Tipping Load | 6,020 lbs (2,731 kg) |
| Rated Operating Capacity, SAE J818 | 2,105 lbs (955 kg) |
| Operating Load at 50% of Tipping Load | 3,010 lbs (1,365 kg) |
| Hydraulic Reservoir Capacity | 10.3 gal (39.0 L) |
| Hydraulic System Capacity | 15.3 gal (58.0 L) |
| Auxiliary Flow - Primary Circuit | 18.4 gpm (69.5 L / min) |
| Auxiliary Flow - Optional High Flow | 33.0 gpm (124.9 L / min) |
| Hydraulic System Pressure | 3,046 psi (21.0 MPa) |
| Maximum Travel Speed, Low | 4.6 mph (7.4 km / hr) |
| Maximum Travel Speed, High | 6.8 mph (11.0 km / hr) |

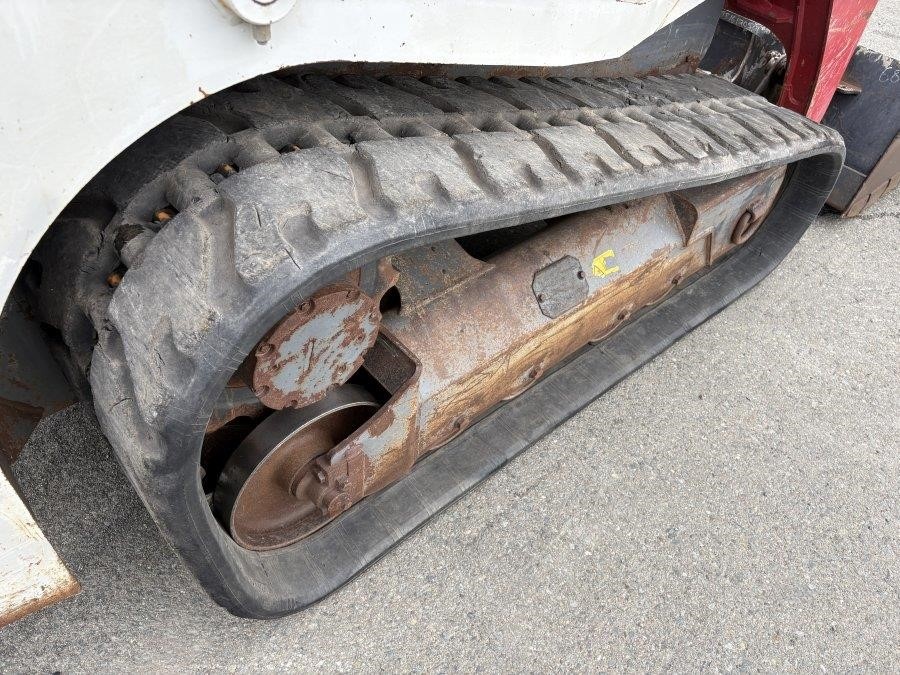

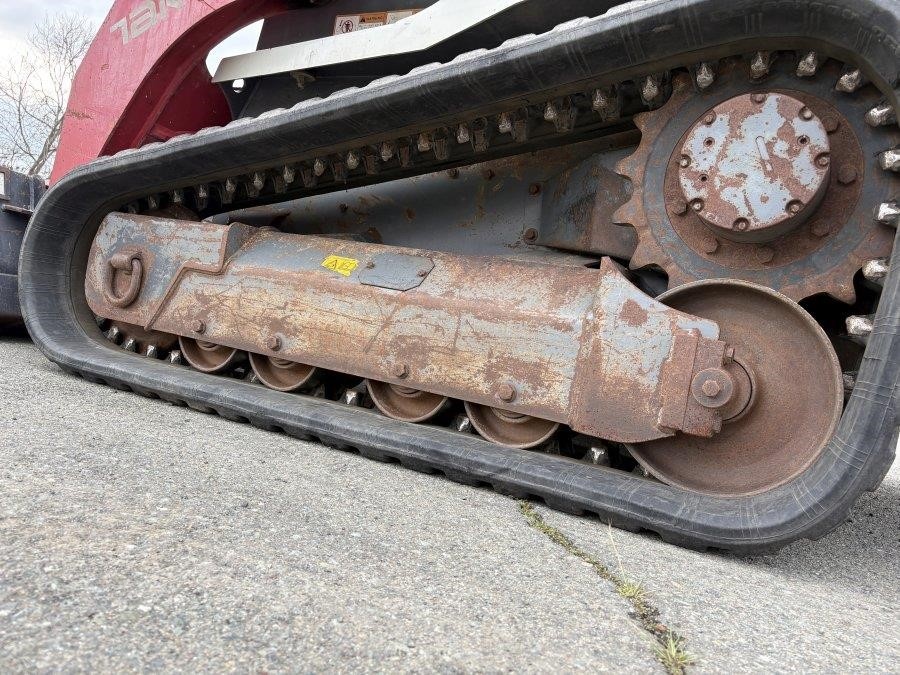

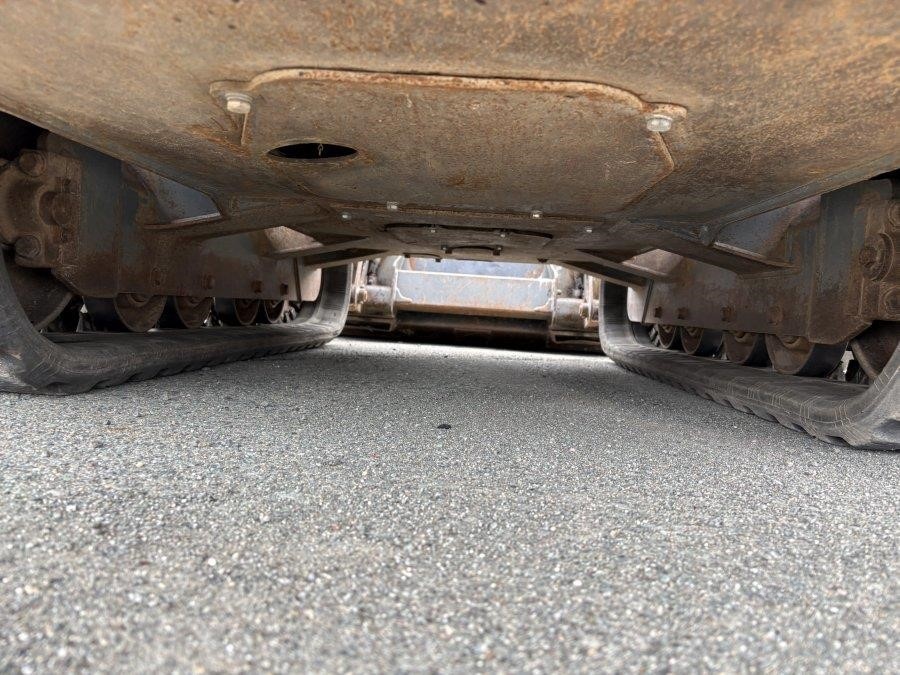

Undercarriage & Attachments
| Bucket Breakout Force | 6,856 lbs (3,110 kg) |
| Lift Arm Breakout Force | 6,709 lbs (3,100 kg) |
| Capacity SAE Heaped (Optional Bucket) | 14.0 cu ft (.040 m³) |
Dimensions
| Operating Weight, Canopy | 8,455 lbs (3,835 kg) |
| Operating Weight, Cab | 8,631 lbs (3,915 kg) |
| Rated Operating Capacity with opt. Counterweight | 2,323 lbs (1,054 kg) |
| A. Overall Operating Height | 12 ft 9.7 in (3,905 mm) |
| B. Maximum Lift Height to Bucket Pin | 9 ft 11 in (3,030 mm) |
| Transport Length | 11 ft 3.0 in (3,400 mm) ft |
| Machine Length | 8 ft 11.8 in (2,740 mm) |
| Track Width | 15.7 in (400 mm) |

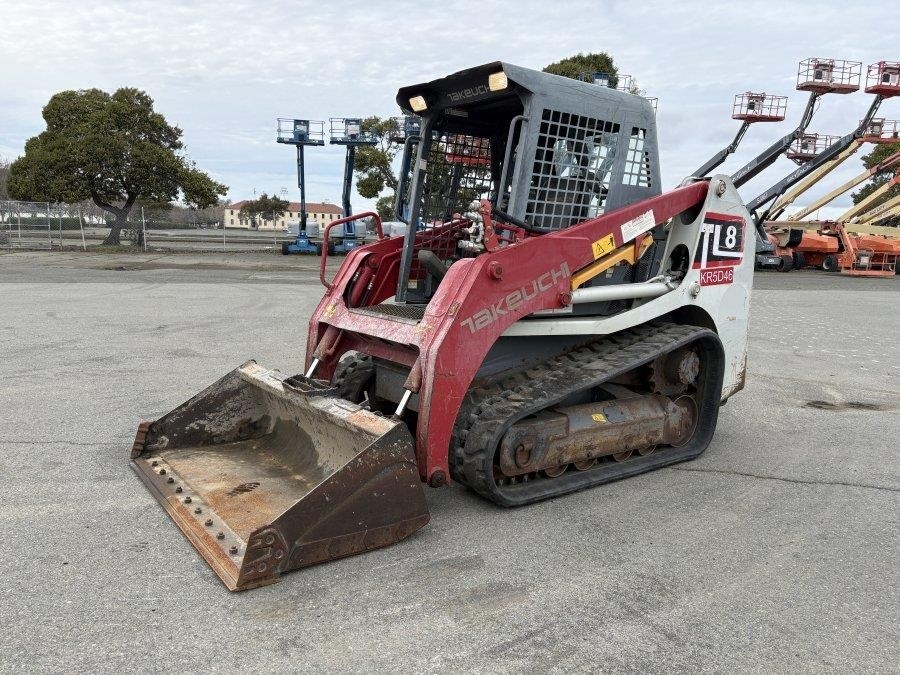

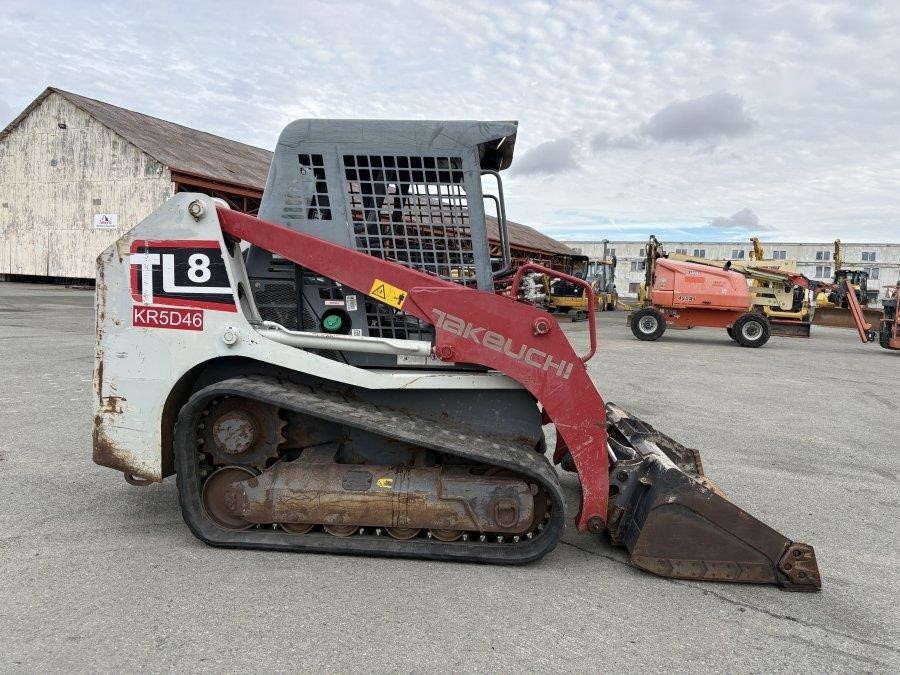

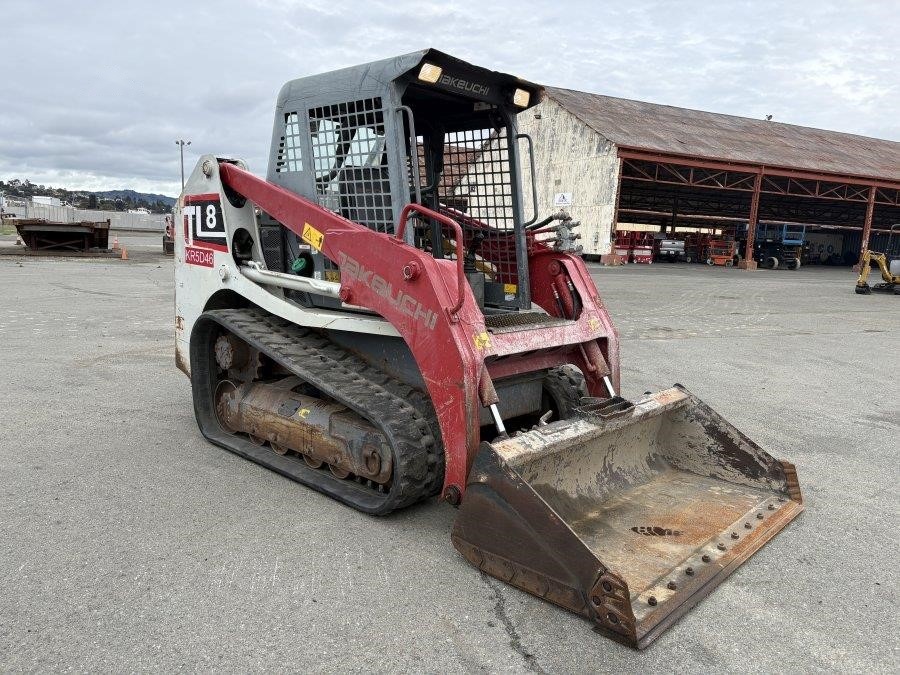

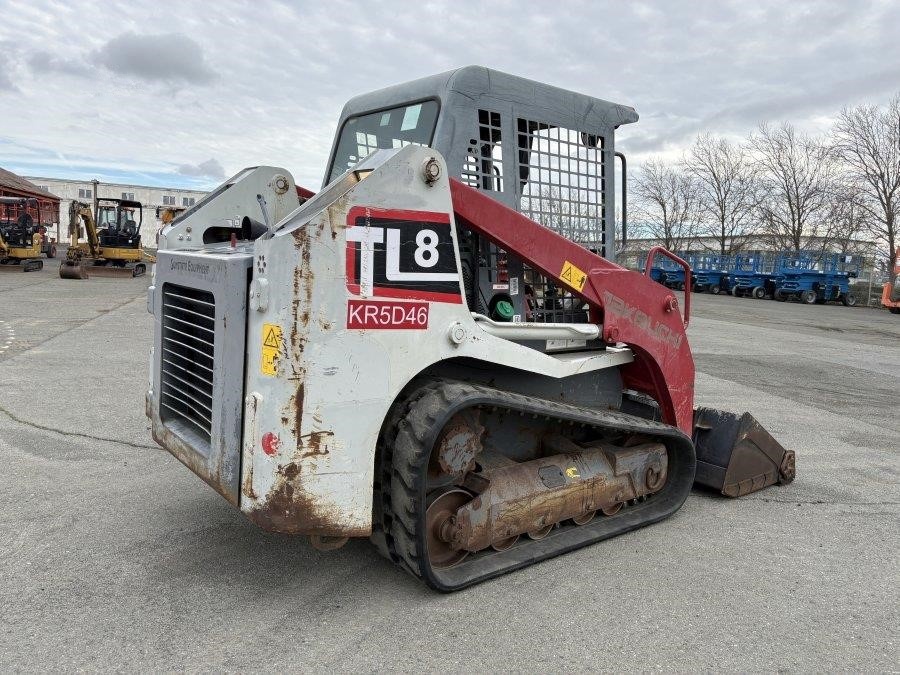

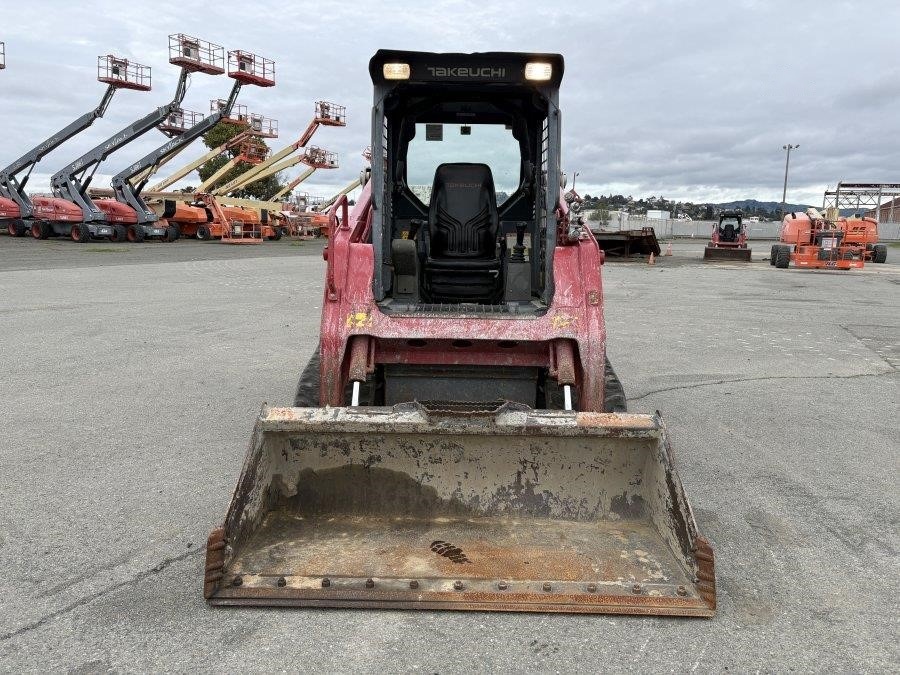

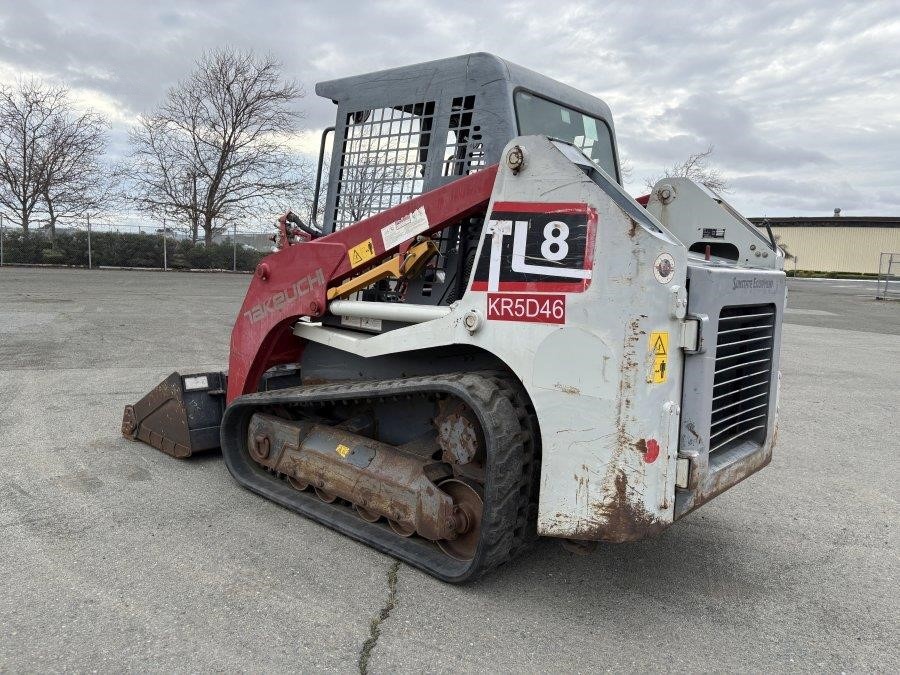

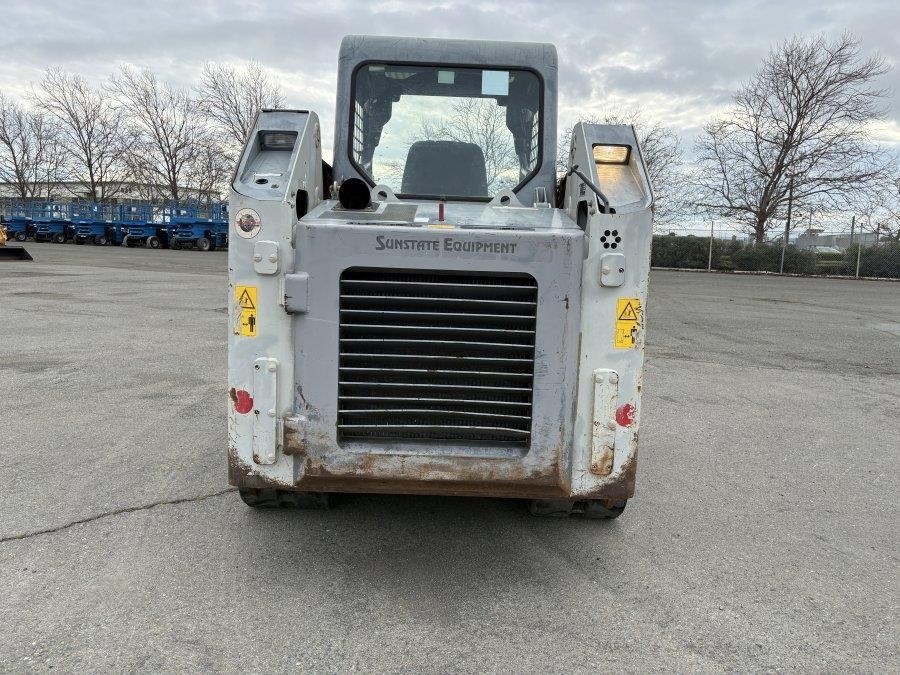

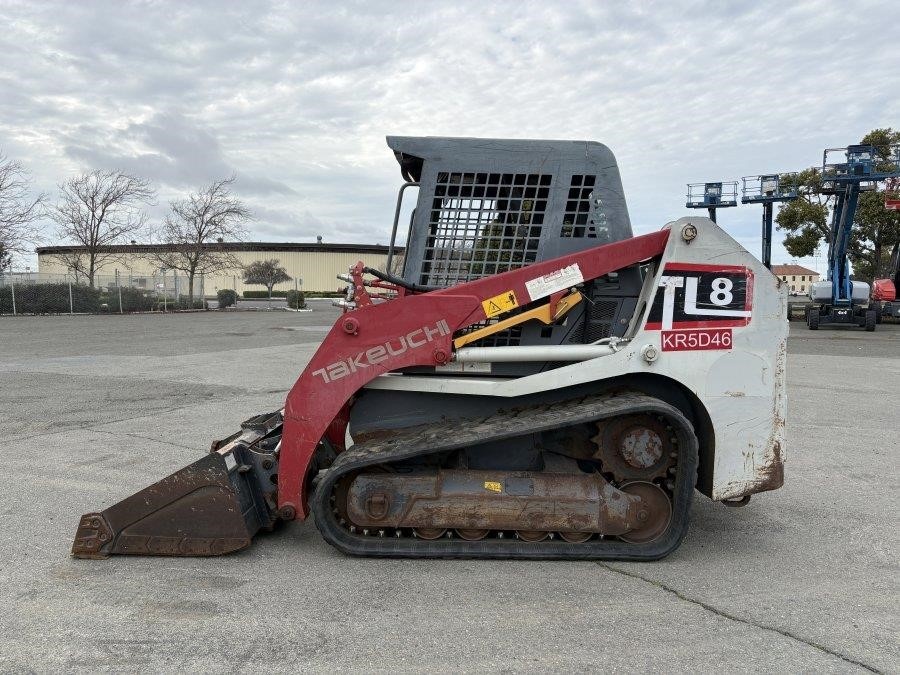

2019 Takeuchi TL8 Compact Track Loader
