Item Specifications
Category
Condition
Used
Item Number
#1950
Make
takeuchi
Model
TL8
Year
2019
Industry
construction
Equipment Type
compact track loaders
Location
Ft. Worth, TX
Also Available In
TX
Item Description

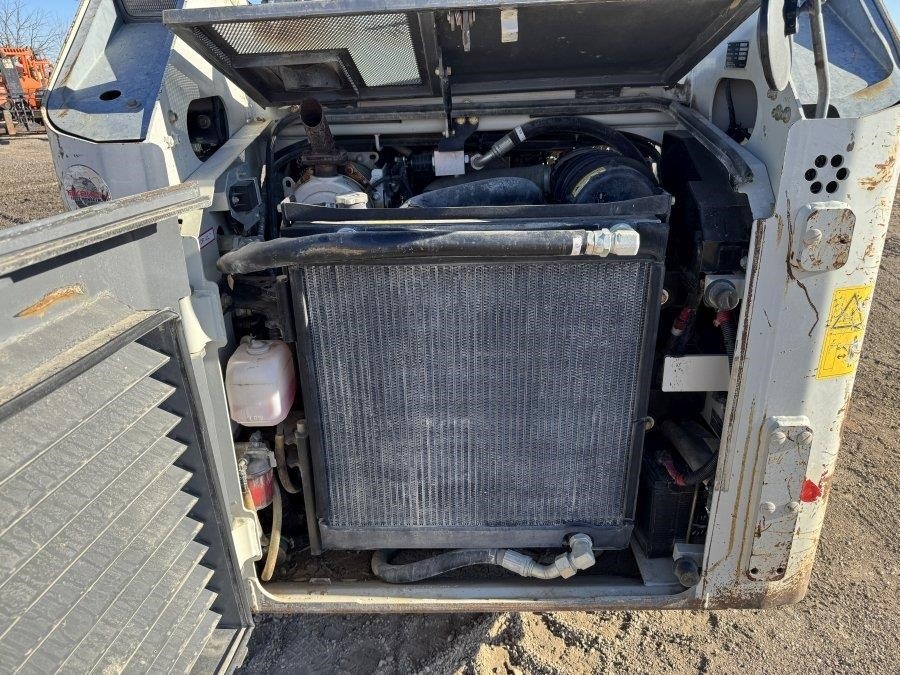

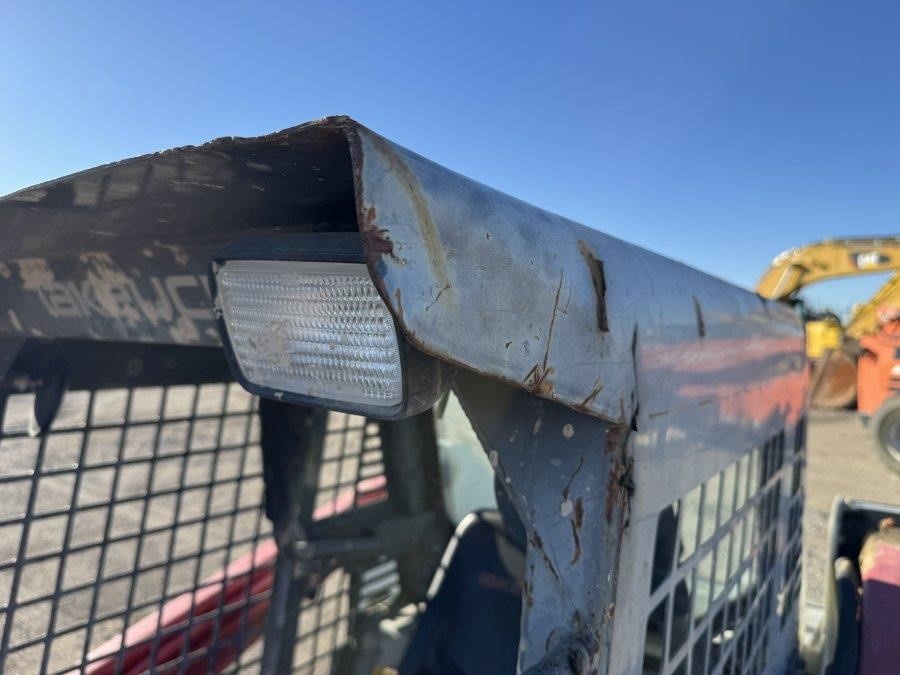

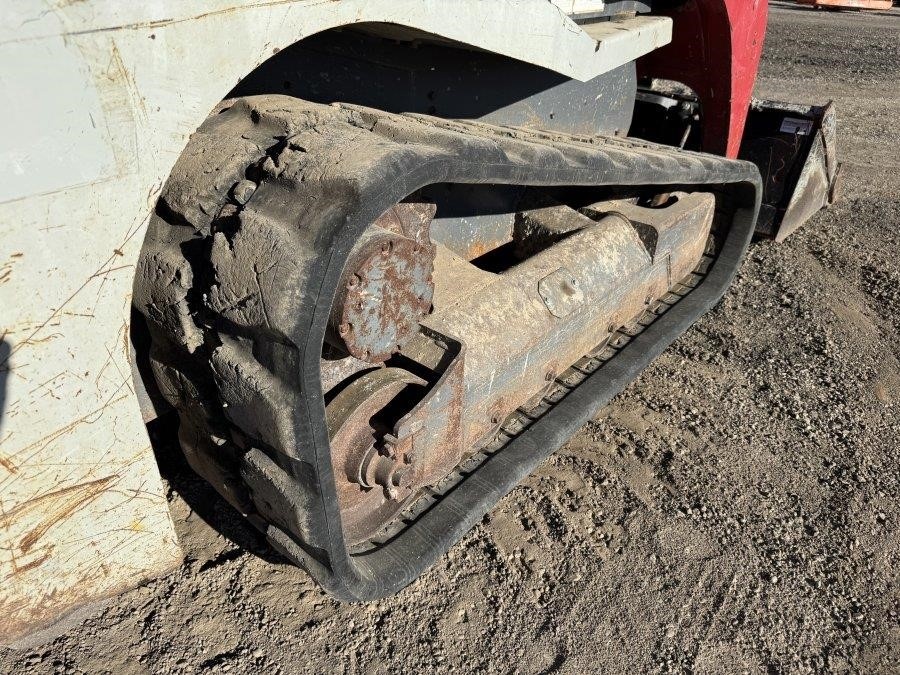

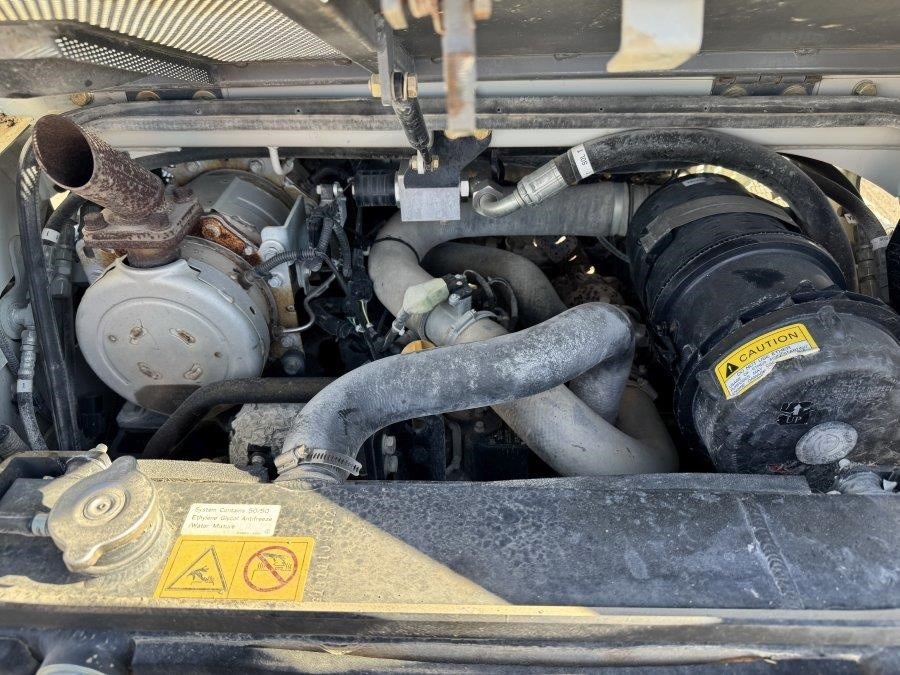

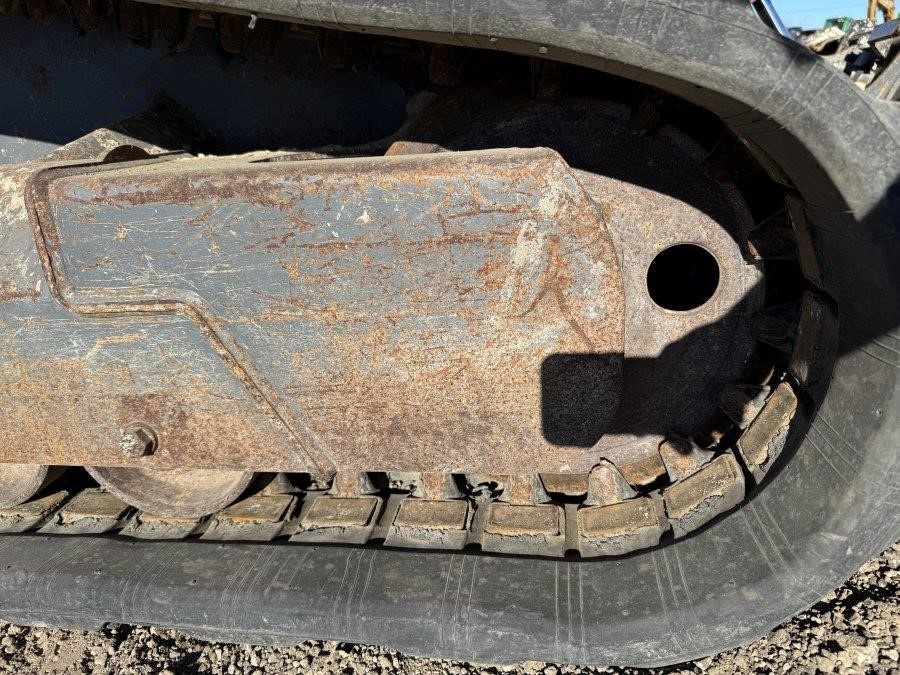

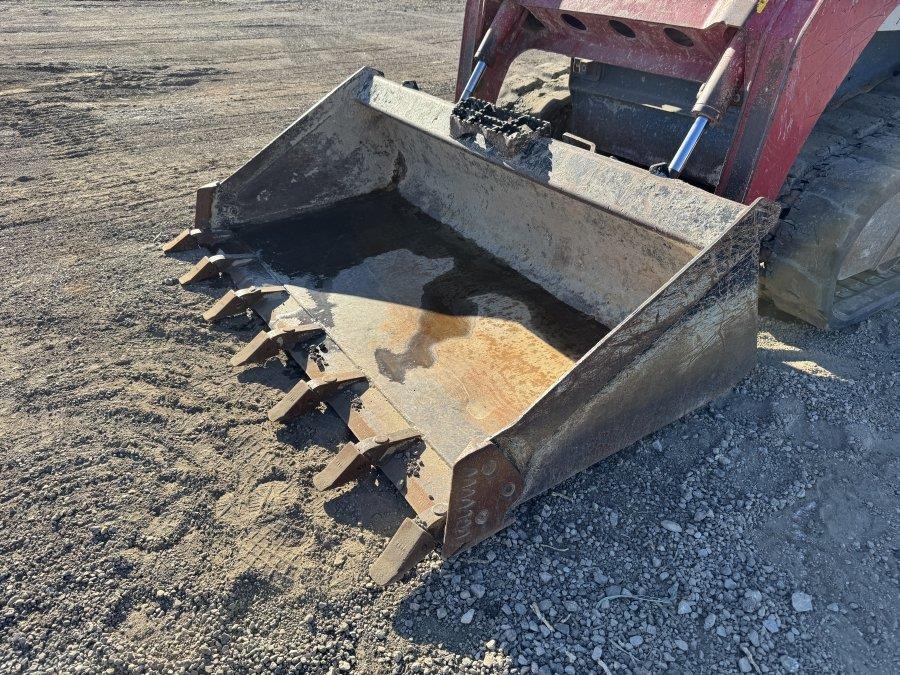

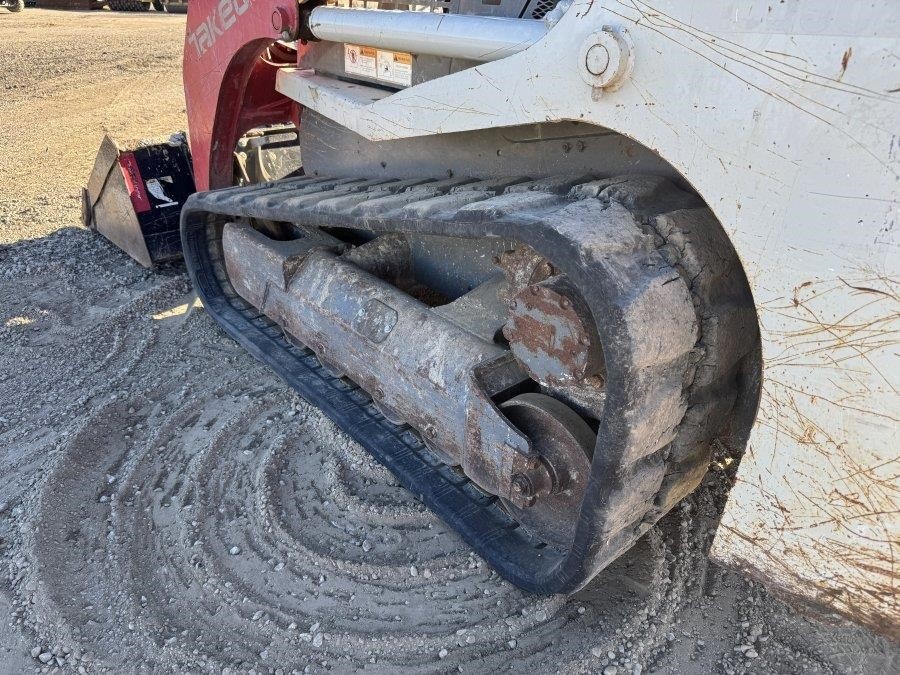

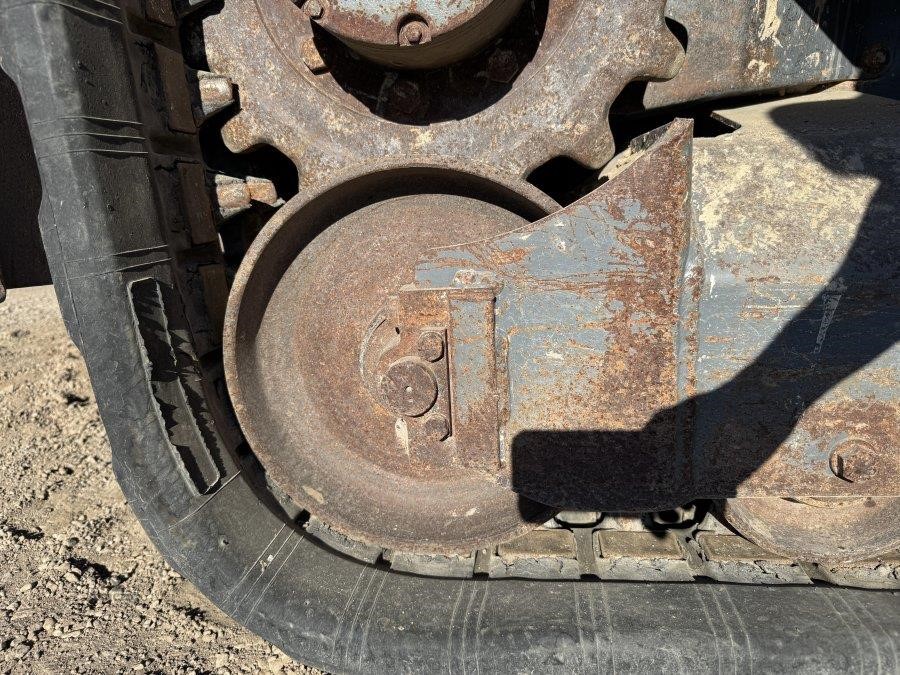

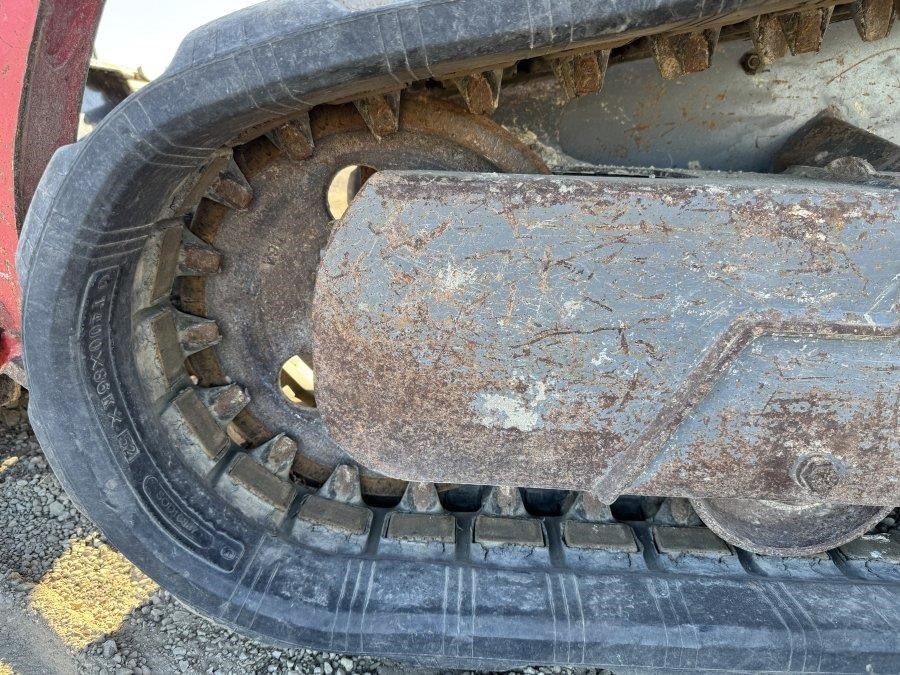

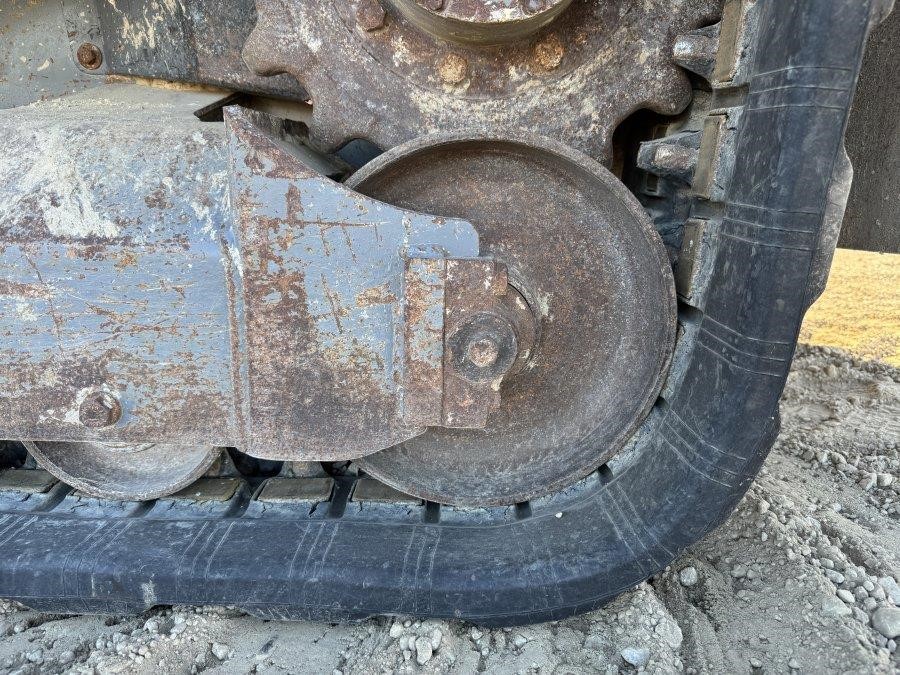

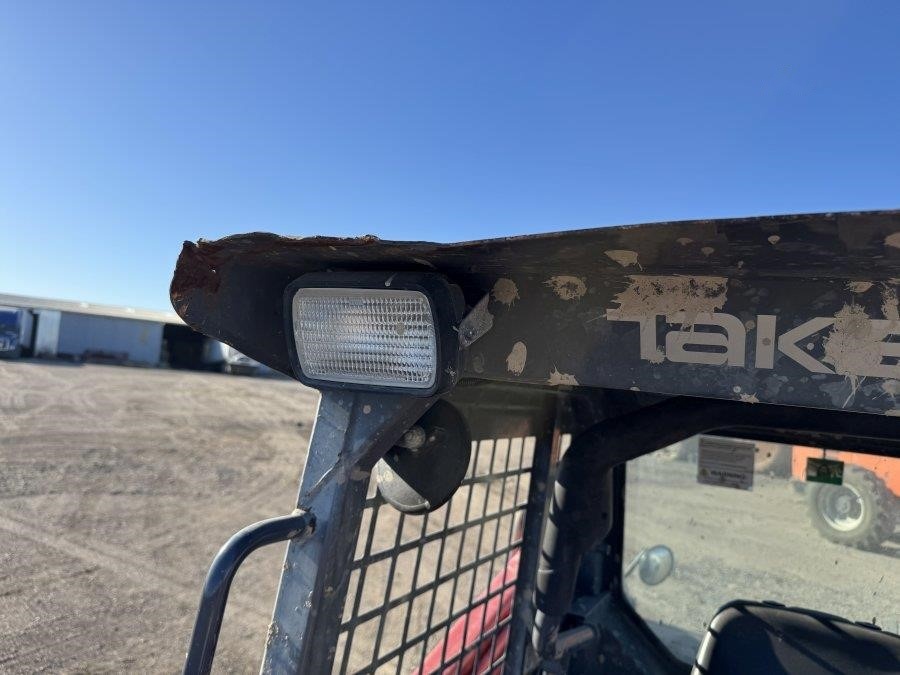

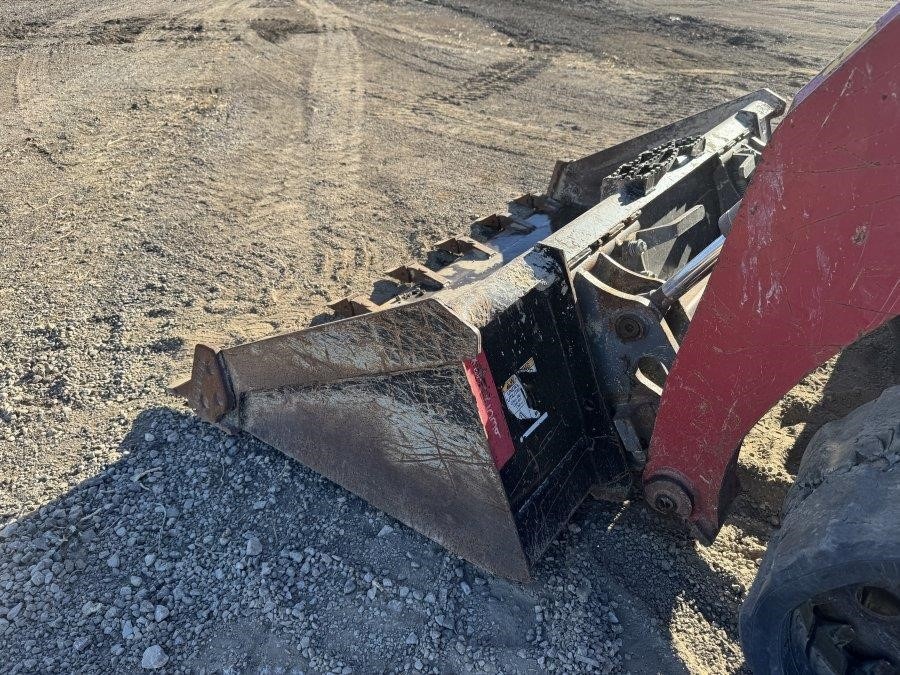

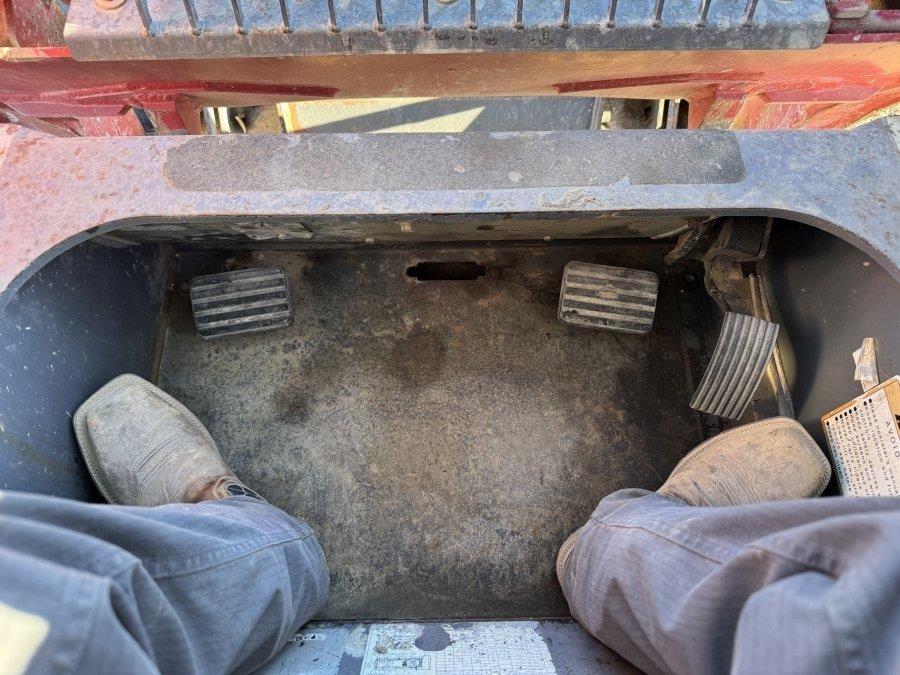

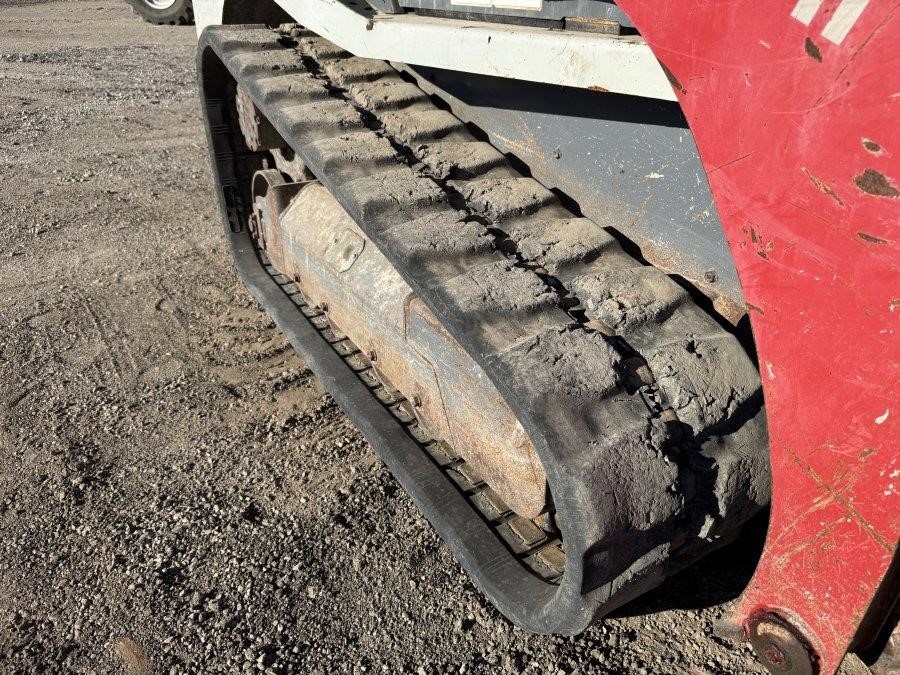

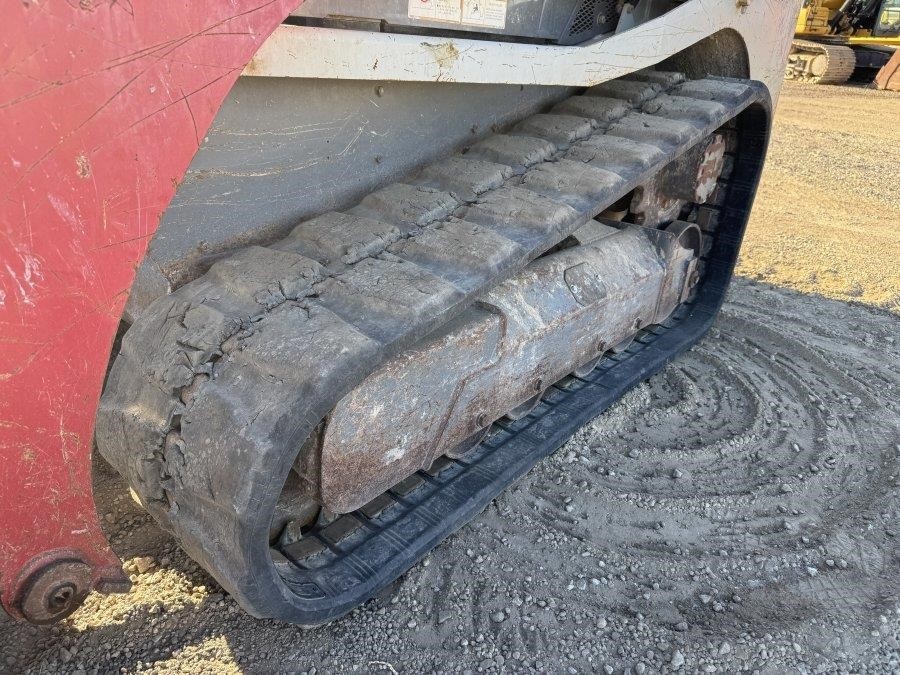

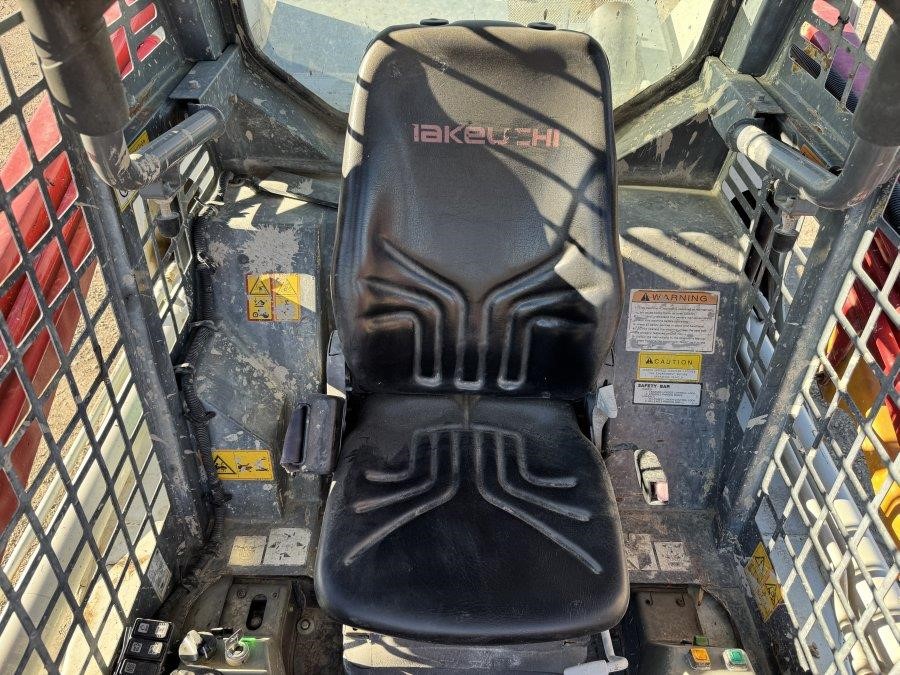

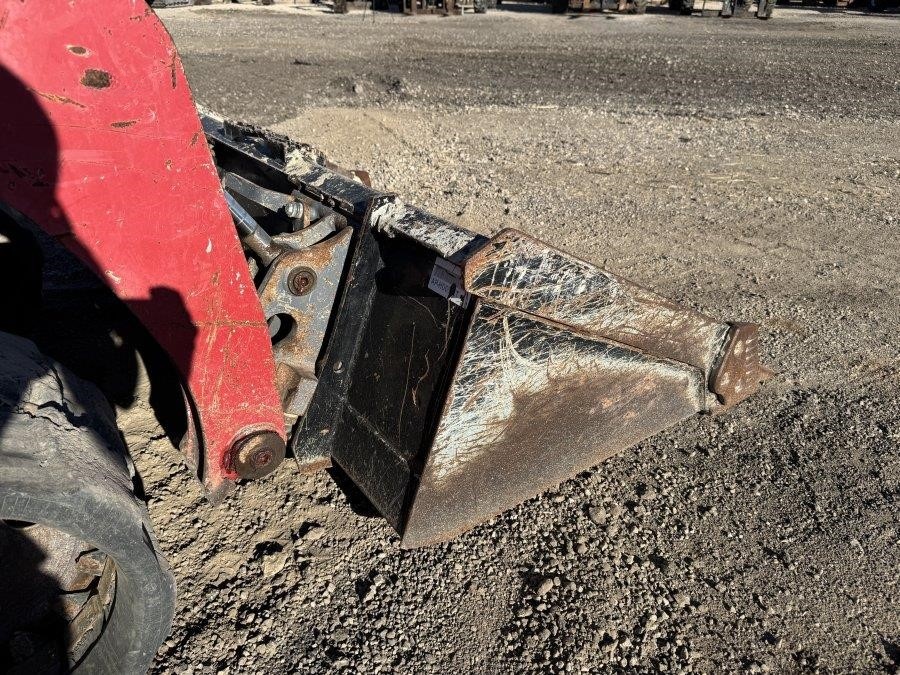

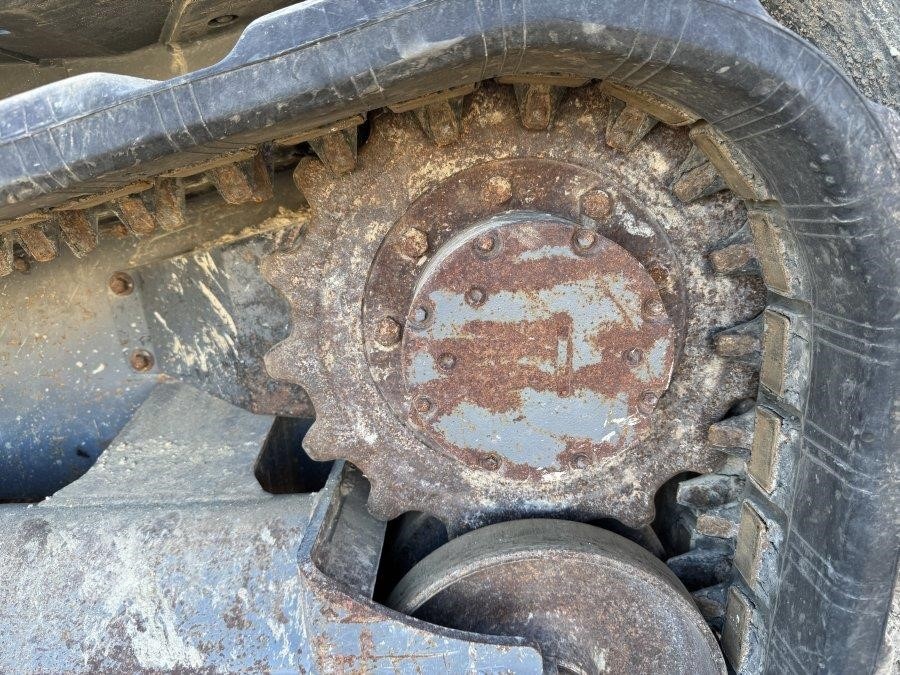

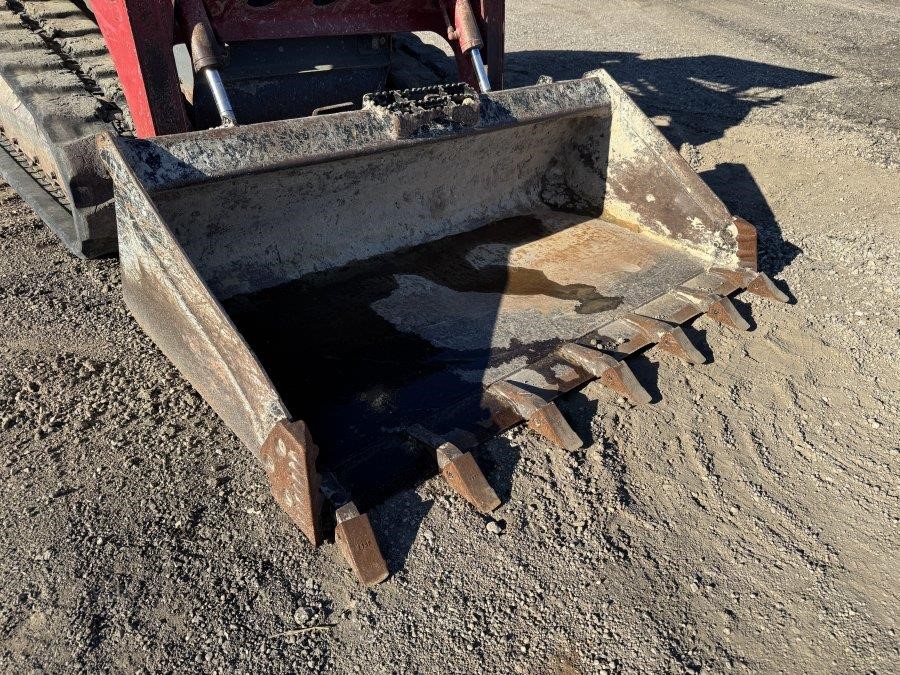

OROPS, Aux Hydraulics, Kubota Diesel Engine, Foot Throttle, 16" Rubber Tracks, 68" Tooth Bucket
Specifications
General
| Year | 2019 |
| Make | takeuchi |
| Model | TL8 |

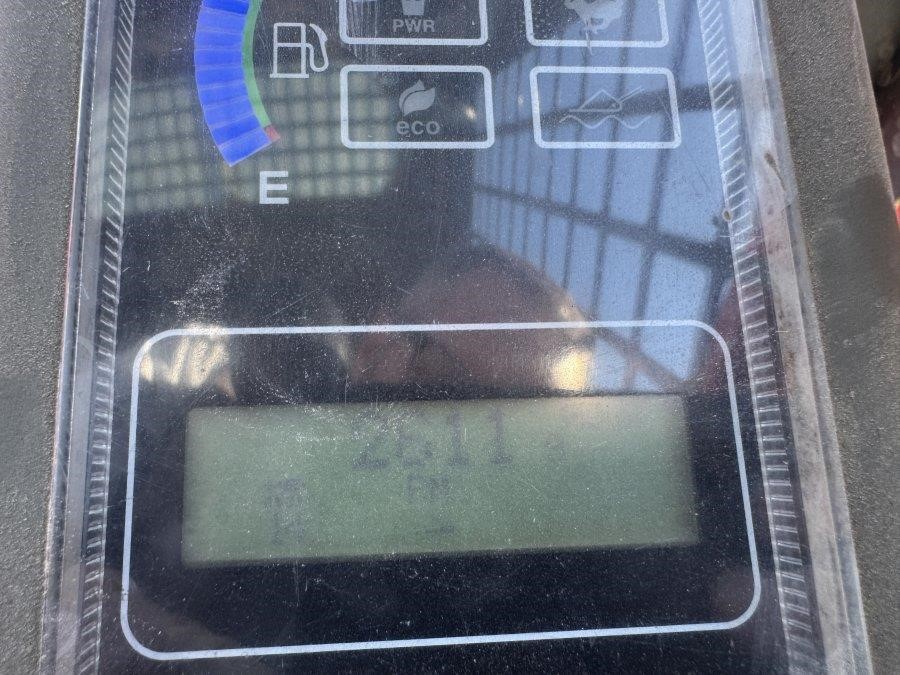

| Hours | 2611 |
| Condition | Used |
| Traction Force | 9,127 lbs (4,140 kg) |
Engine & Powertrain

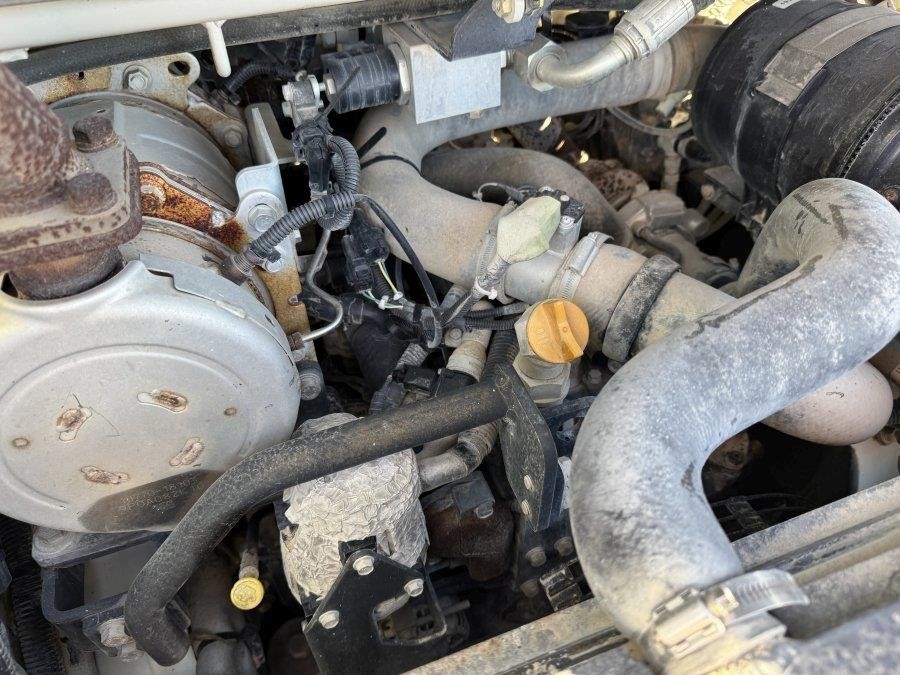

| Engine Make / Model | Kubota / V3307-CR-Turbo |
| Cylinders / Displacement | 4 / 203 cu in (3.3 L) |
| Horsepower | 74.3 hp (55.4 kW) |
| Rated Engine Speed | 2,600 rpm |
| Maximum Torque | 192 ft-lb @ 1,500 rpm (260 Nm) |
| Fuel Tank Capacity | 19.8 gal (75.0 L) |
| Fuel Consumption, 65% of full load | 2.69 gal / hr (10.2 L / hr) |
Working Range
| Tipping Load | 6,020 lbs (2,731 kg) |
| Rated Operating Capacity, SAE J818 | 2,105 lbs (955 kg) |
| Operating Load at 50% of Tipping Load | 3,010 lbs (1,365 kg) |
| Hydraulic Reservoir Capacity | 10.3 gal (39.0 L) |
| Hydraulic System Capacity | 15.3 gal (58.0 L) |
| Auxiliary Flow - Primary Circuit | 18.4 gpm (69.5 L / min) |
| Auxiliary Flow - Optional High Flow | 33.0 gpm (124.9 L / min) |
| Hydraulic System Pressure | 3,046 psi (21.0 MPa) |
| Maximum Travel Speed, Low | 4.6 mph (7.4 km / hr) |
| Maximum Travel Speed, High | 6.8 mph (11.0 km / hr) |
Undercarriage & Attachments
| Bucket Breakout Force | 6,856 lbs (3,110 kg) |
| Lift Arm Breakout Force | 6,709 lbs (3,100 kg) |
| Capacity SAE Heaped (Optional Bucket) | 14.0 cu ft (.040 m³) |
Dimensions
| Operating Weight, Canopy | 8,455 lbs (3,835 kg) |
| Operating Weight, Cab | 8,631 lbs (3,915 kg) |
| Rated Operating Capacity with opt. Counterweight | 2,323 lbs (1,054 kg) |
| A. Overall Operating Height | 12 ft 9.7 in (3,905 mm) |
| B. Maximum Lift Height to Bucket Pin | 9 ft 11 in (3,030 mm) |
| Transport Length | 11 ft 3.0 in (3,400 mm) ft |
| Machine Length | 8 ft 11.8 in (2,740 mm) |
| Track Width | 15.7 in (400 mm) |

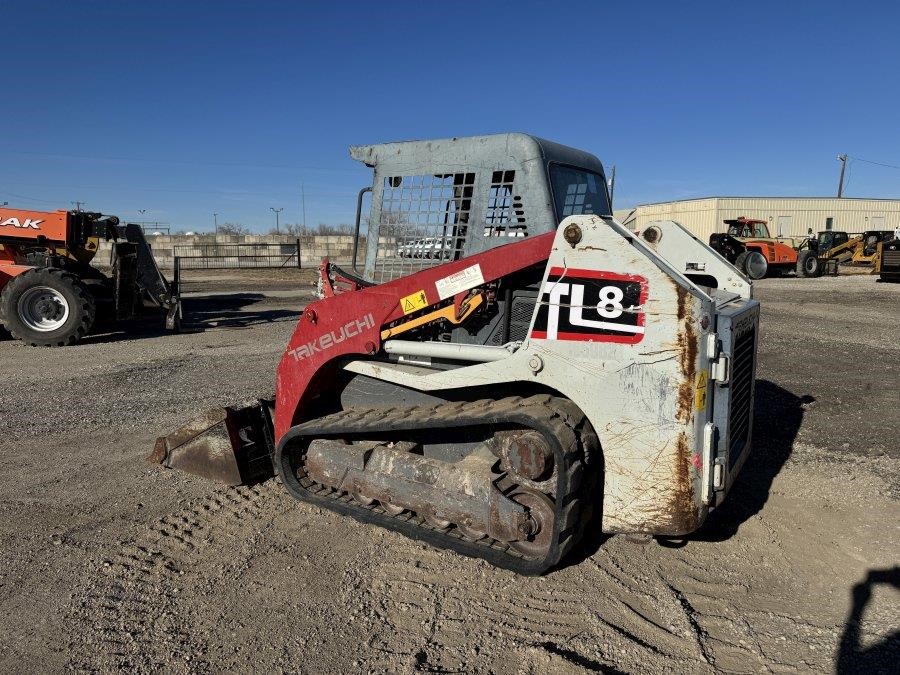

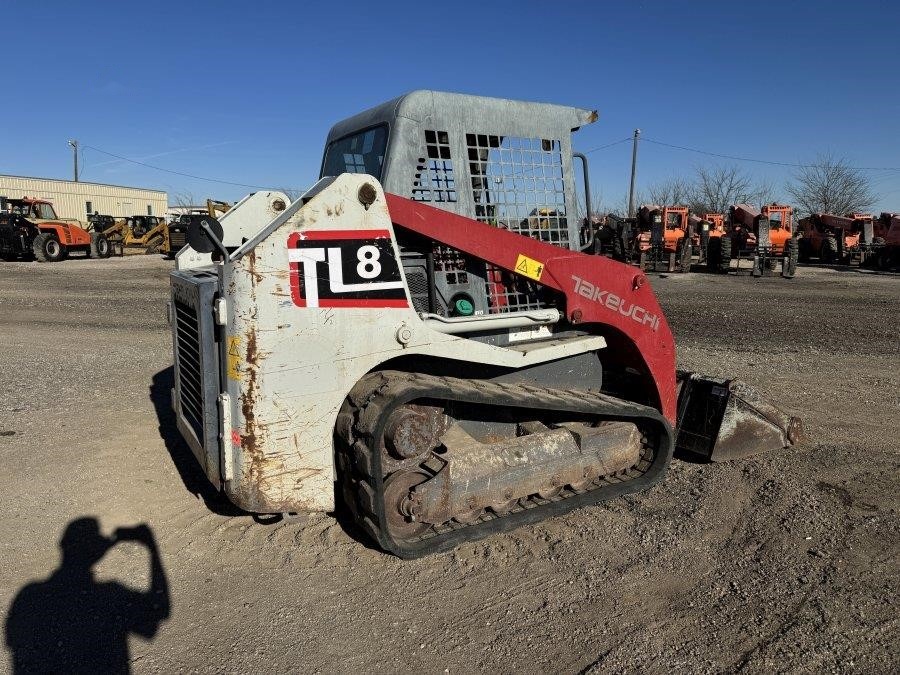

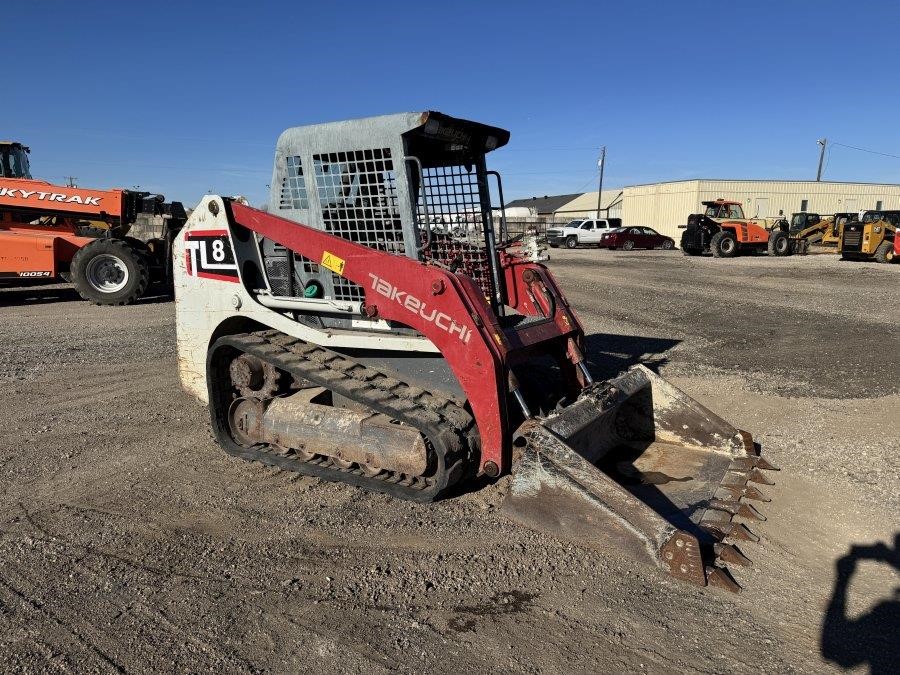

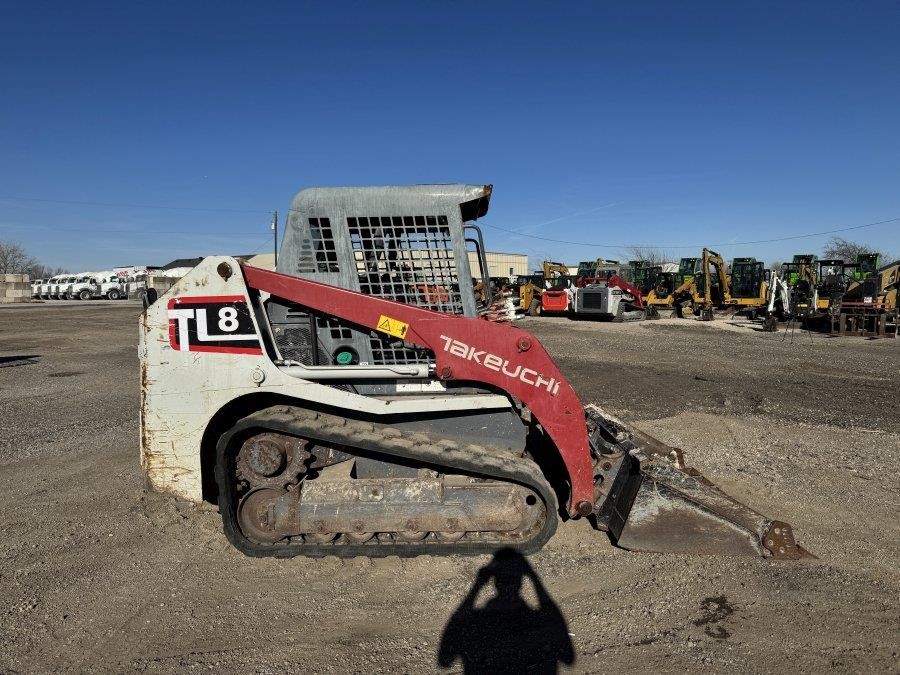

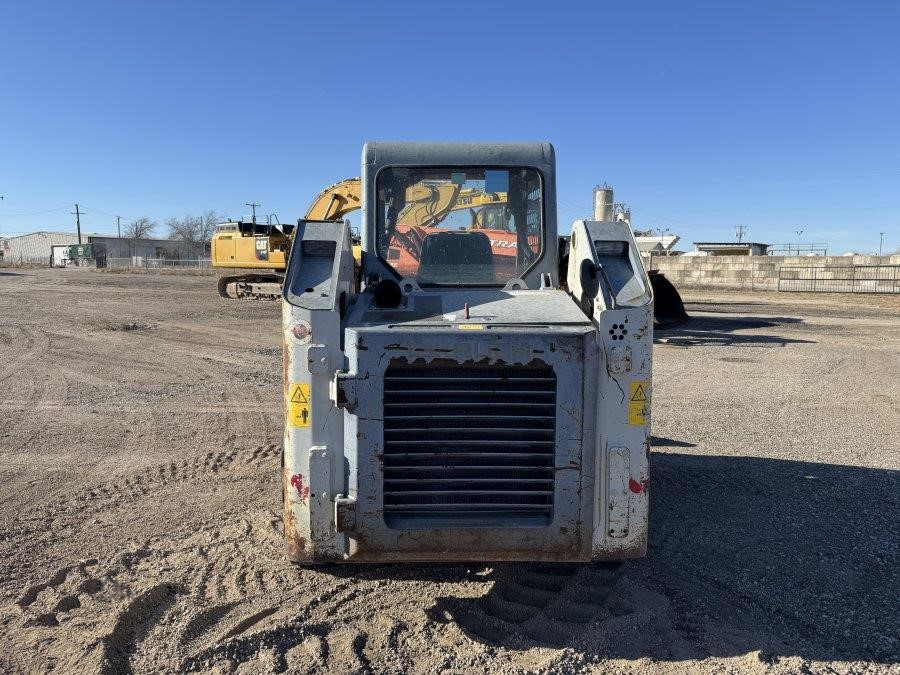

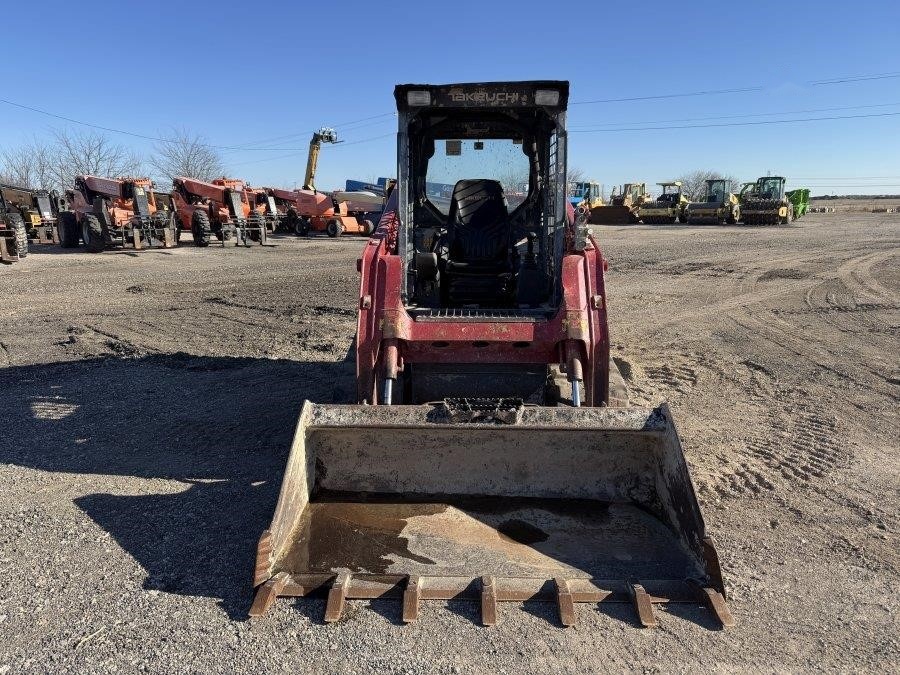

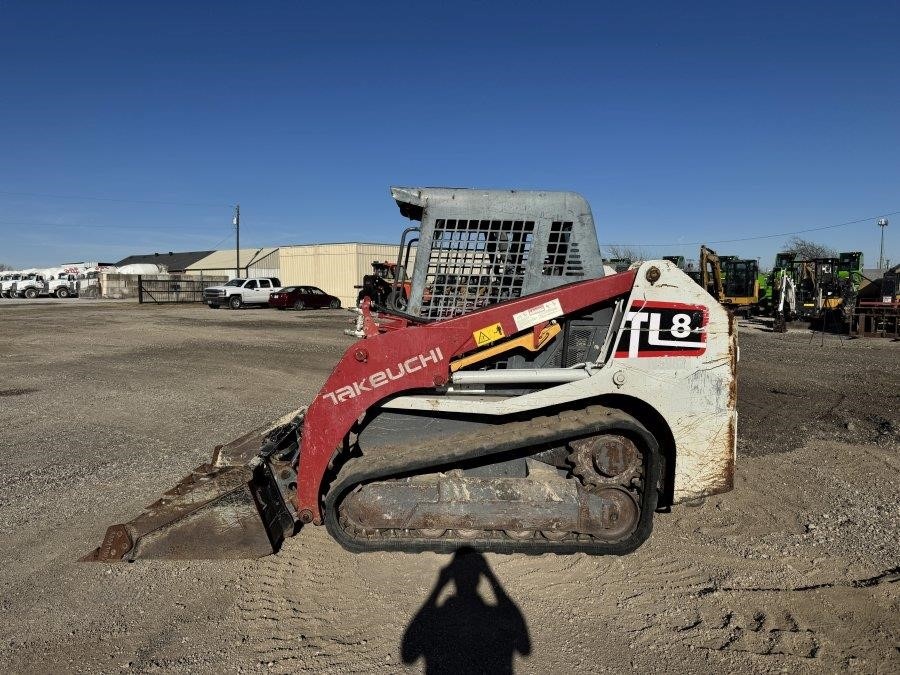

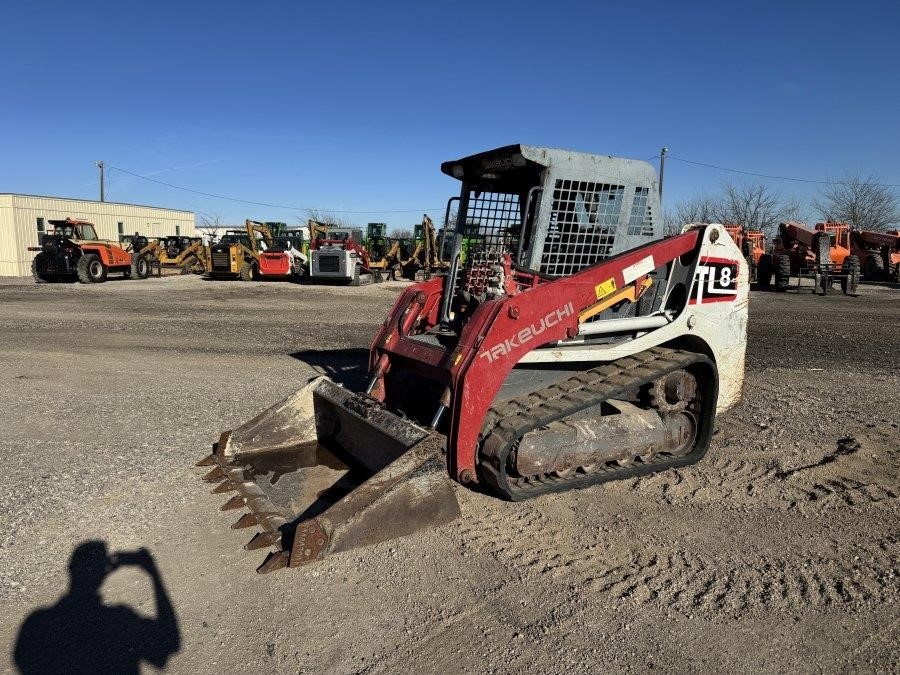

2019 Takeuchi TL8 Compact Track Loader
BUY NOW OR MAKE OFFERAvailable
