Item Specifications
Category
Condition
Used
Item Number
#1949
Make
takeuchi
Model
TB260
Year
2019
Industry
construction
Equipment Type
excavators
Location
Ft. Worth, TX
Also Available In
TX
Item Description

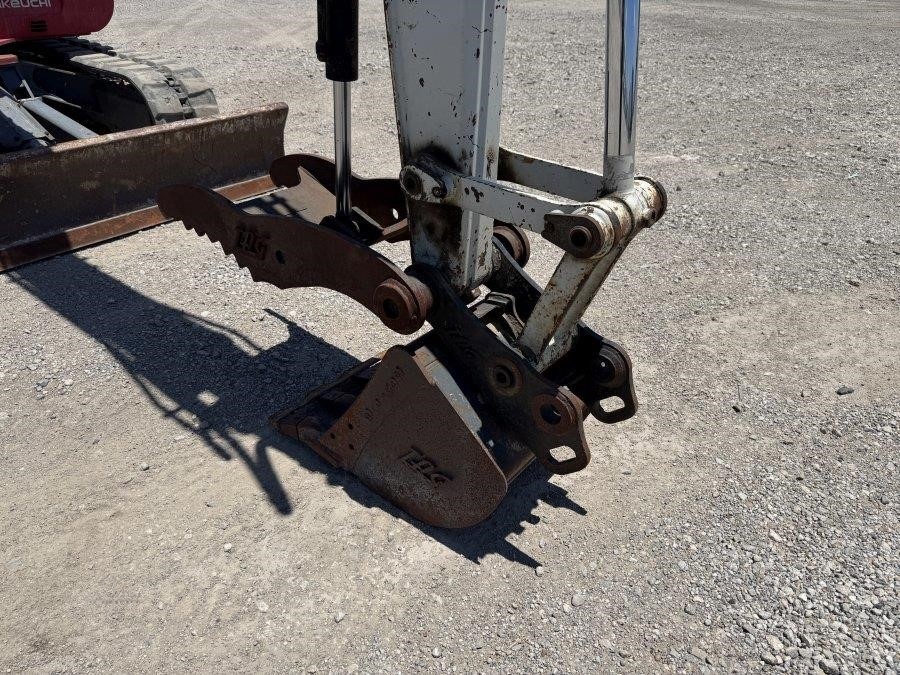

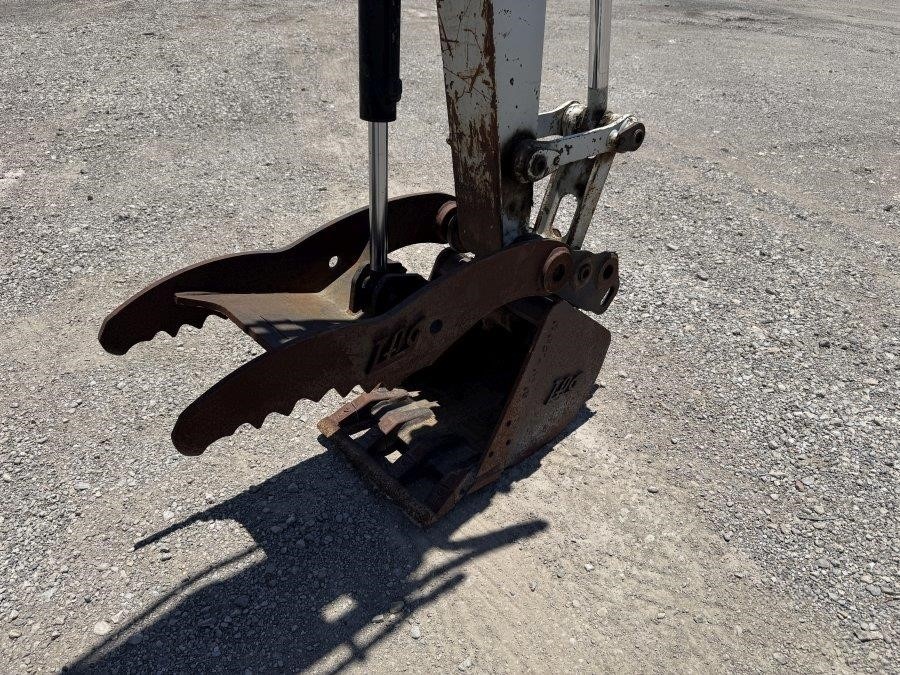

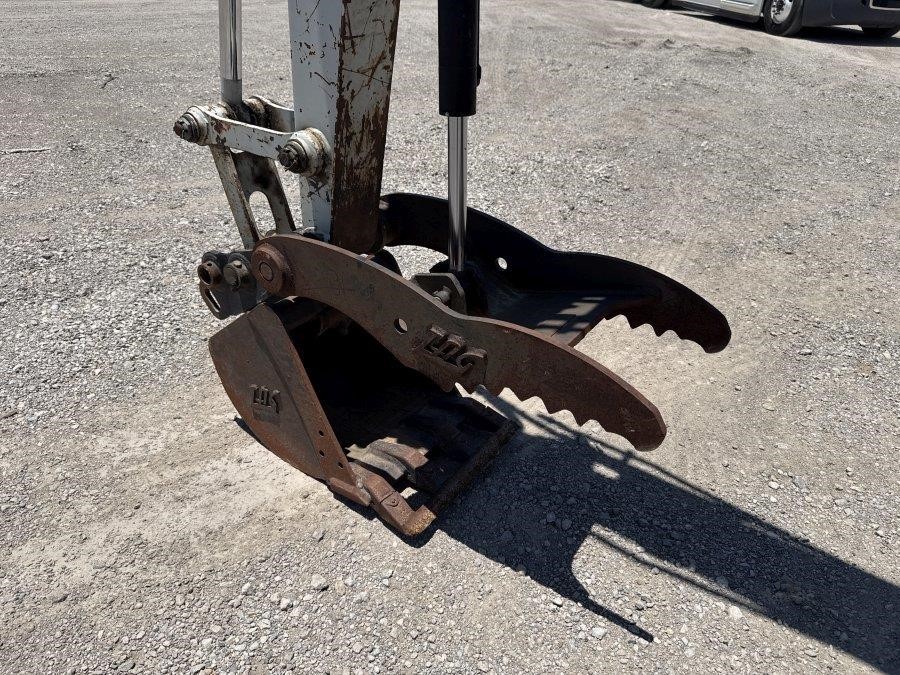

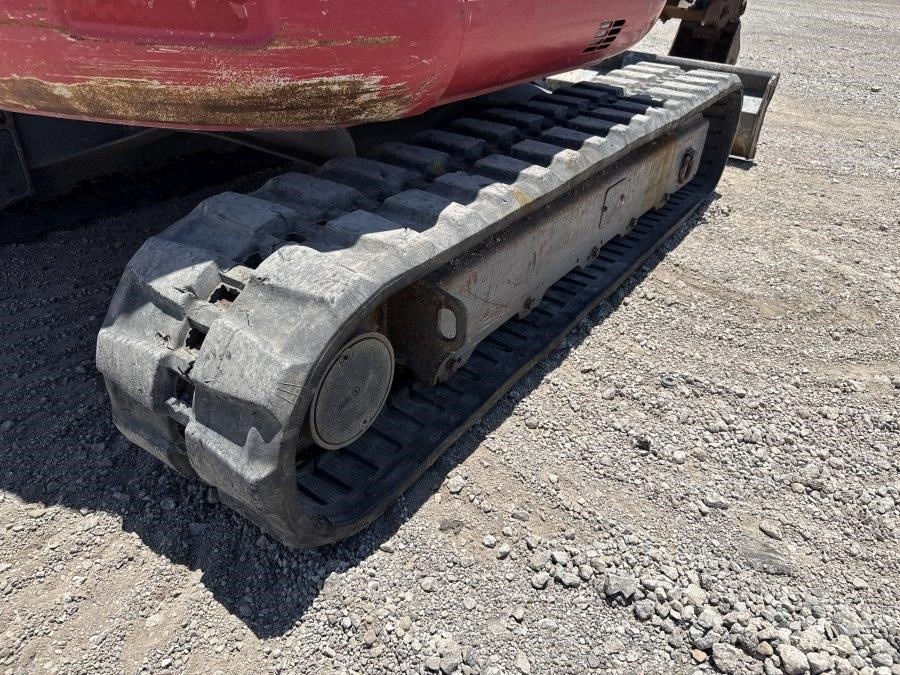

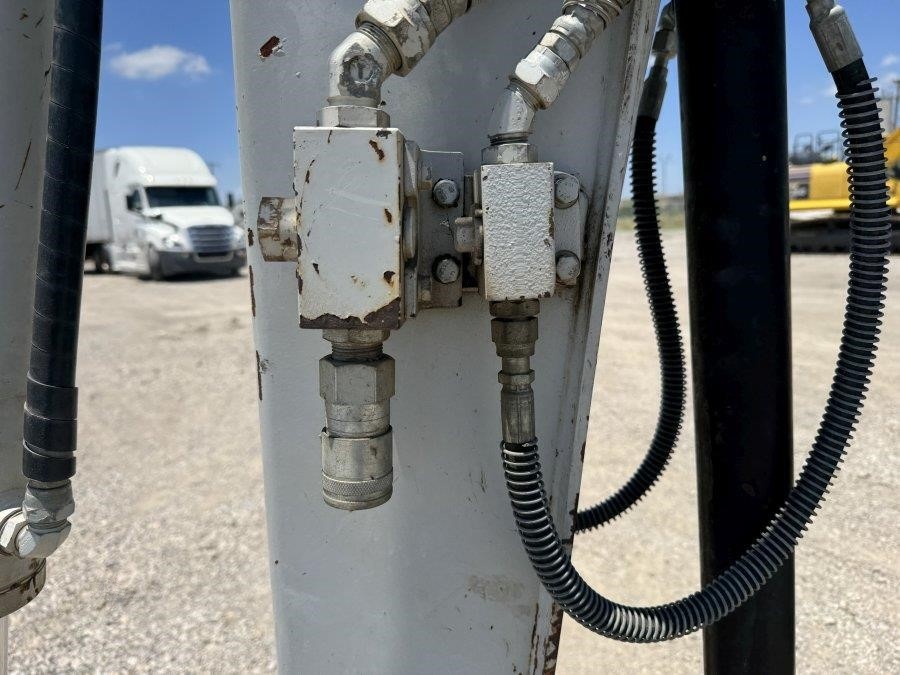

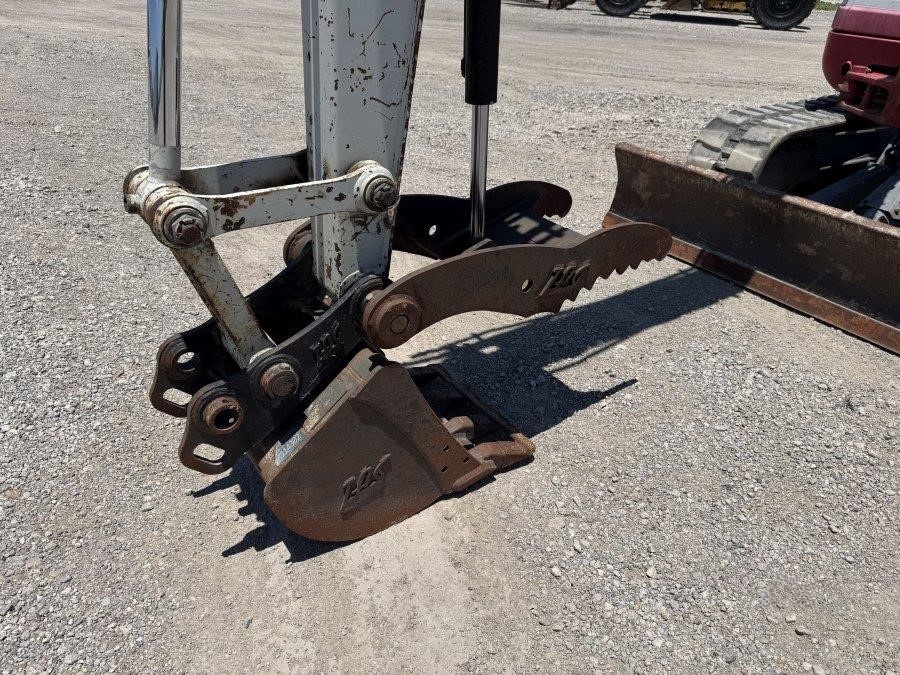

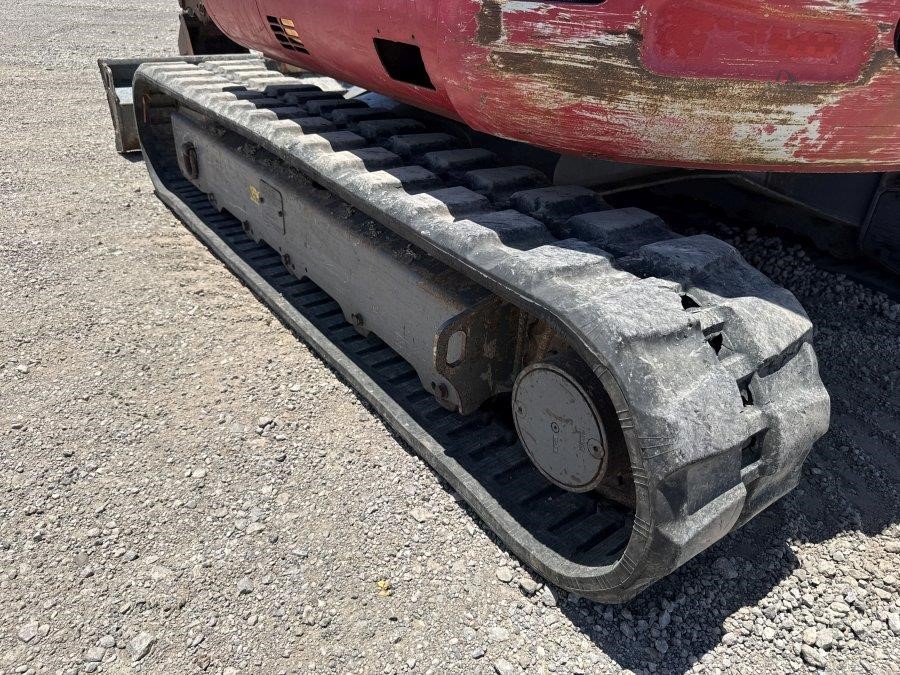

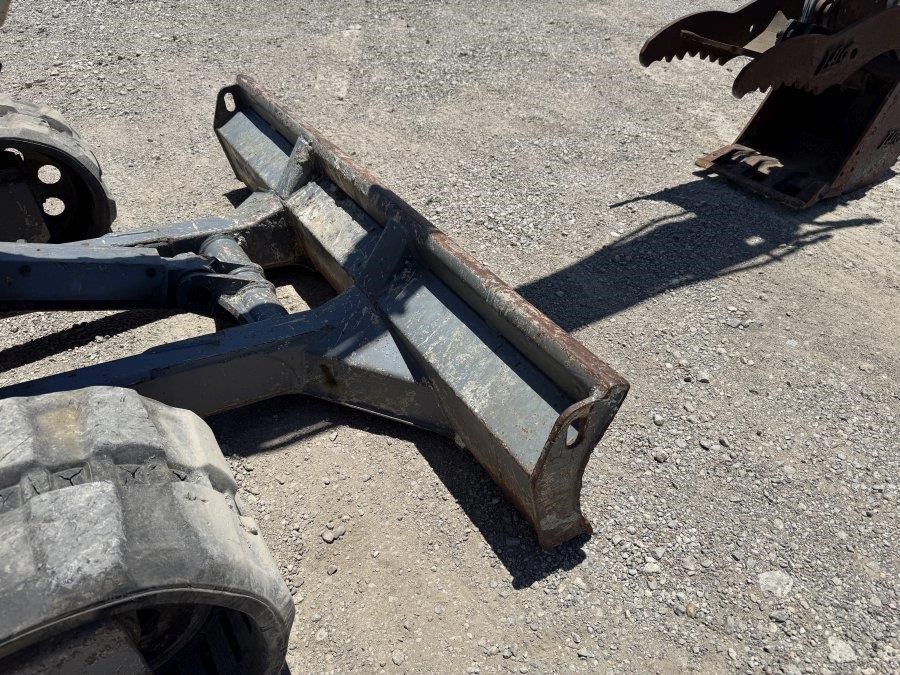

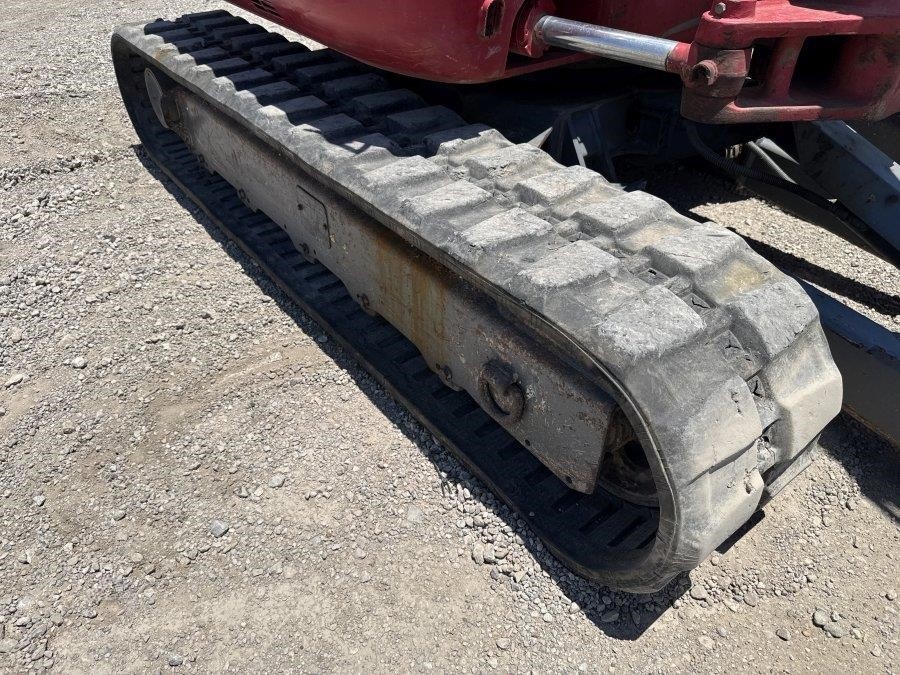

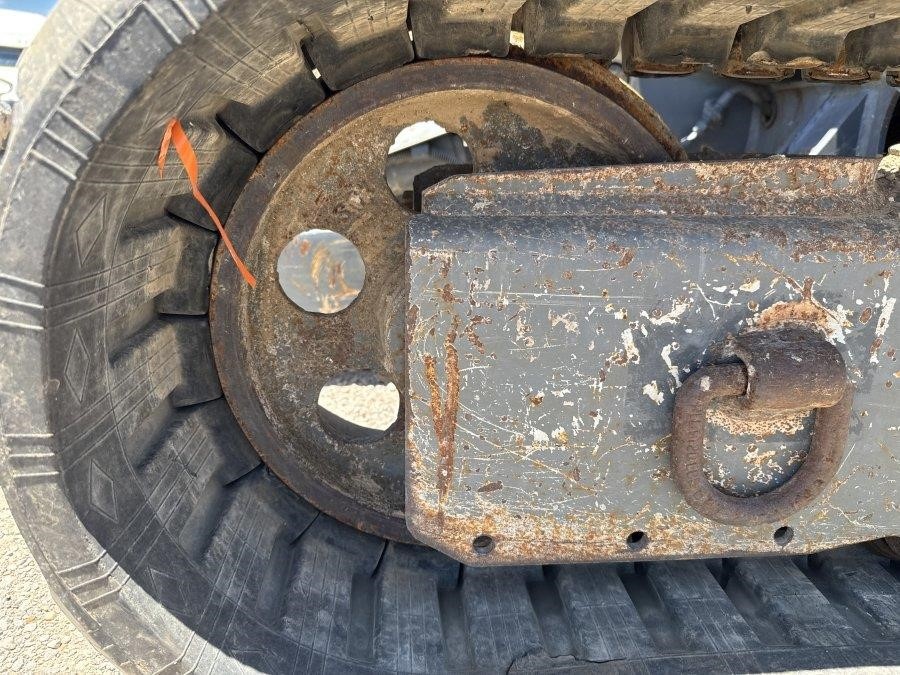

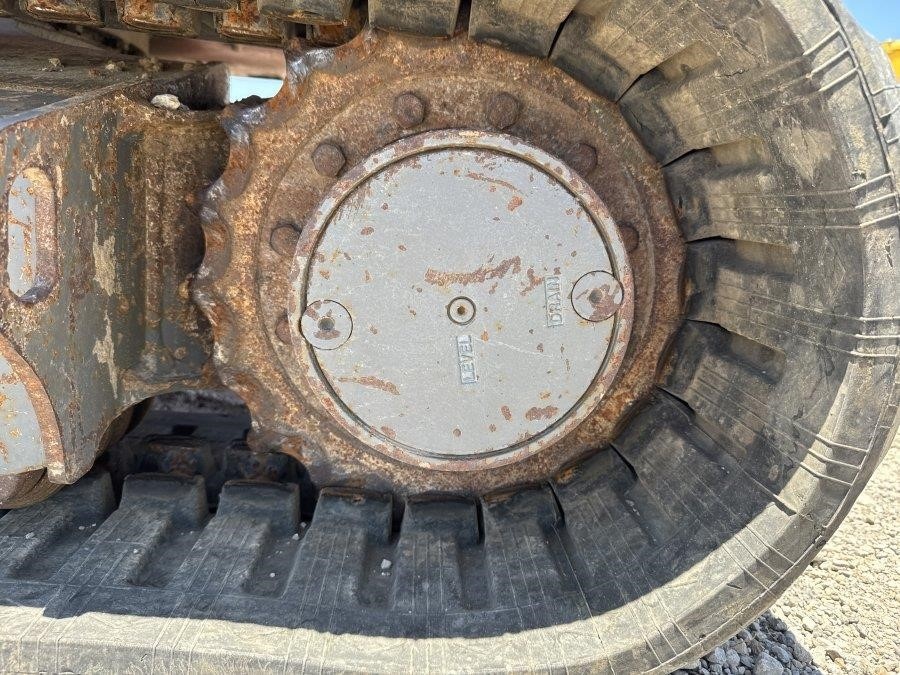

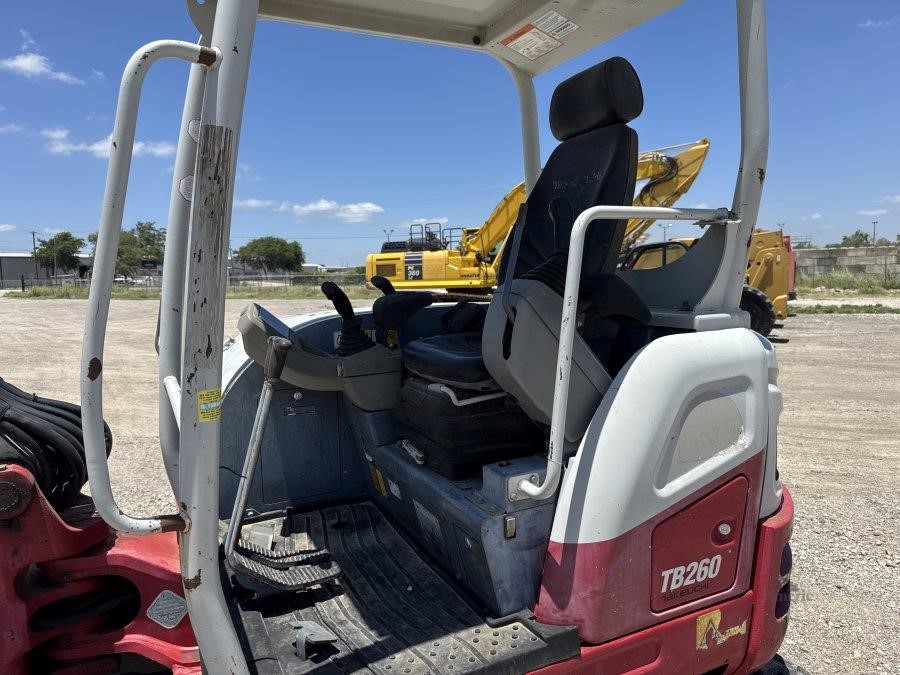

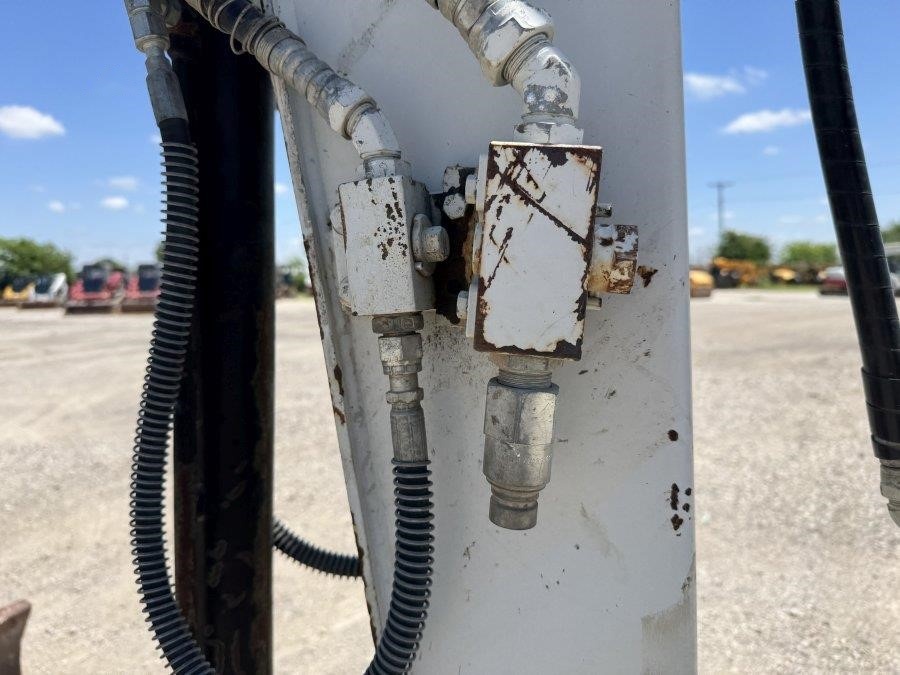

OROPS, Aux Hydraulics, Hydraulic Thumb, Blade, W/R Style Coupler, 2 Speed, 70" Stick, 16" Rubber Tracks, 18" Tooth Bucket
Specifications
General
| Year | 2019 |
| Make | takeuchi |
| Model | TB260 |

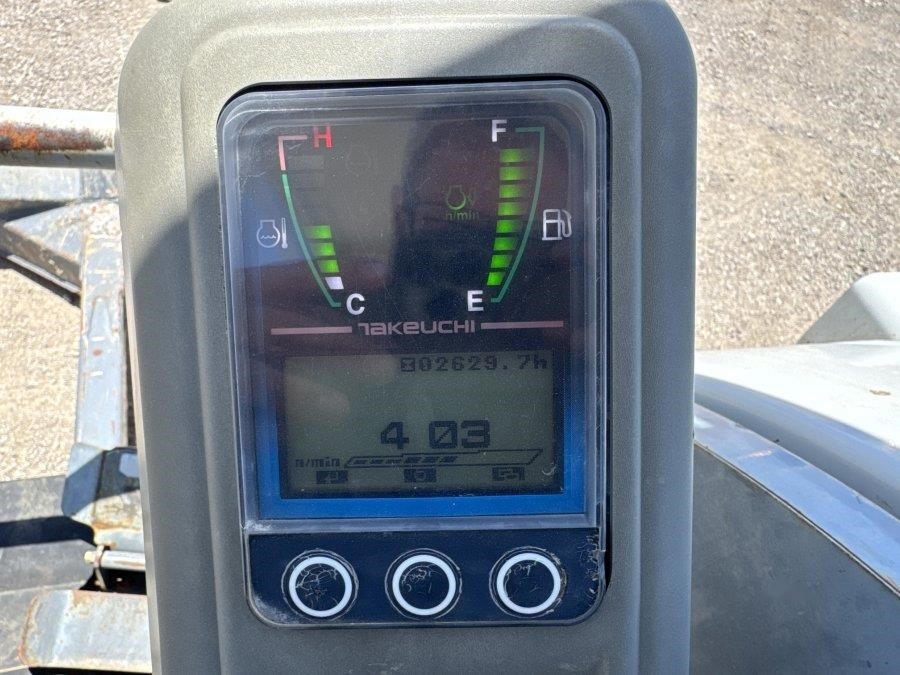

| Hours | 2629 |
| Condition | Used |
| Rated Output (kW)/rpm | 35.5 / 2400 |
| Slew Radius (mm) | 1300 |
Engine & Powertrain

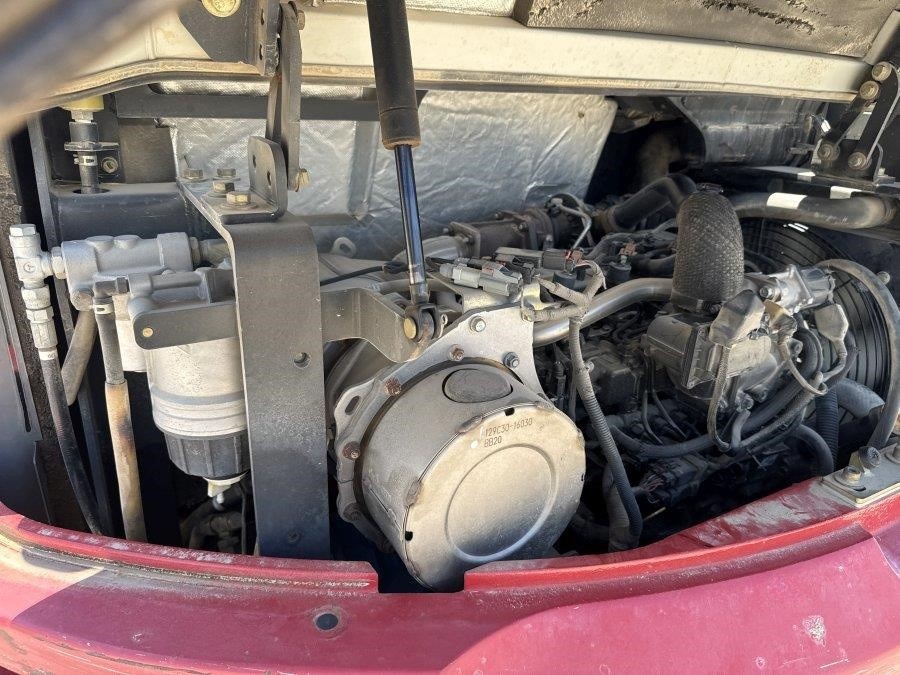

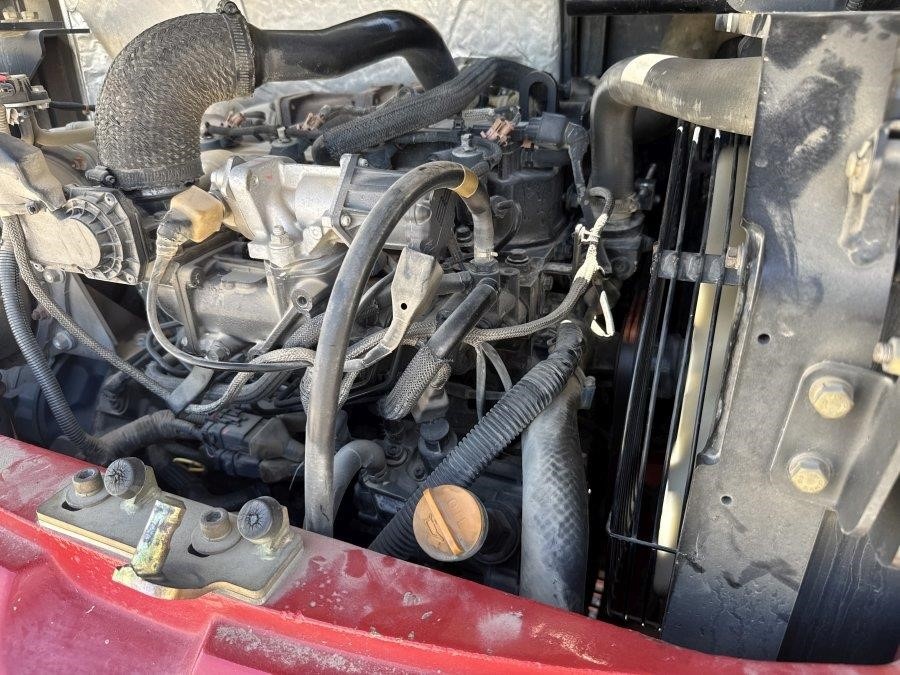

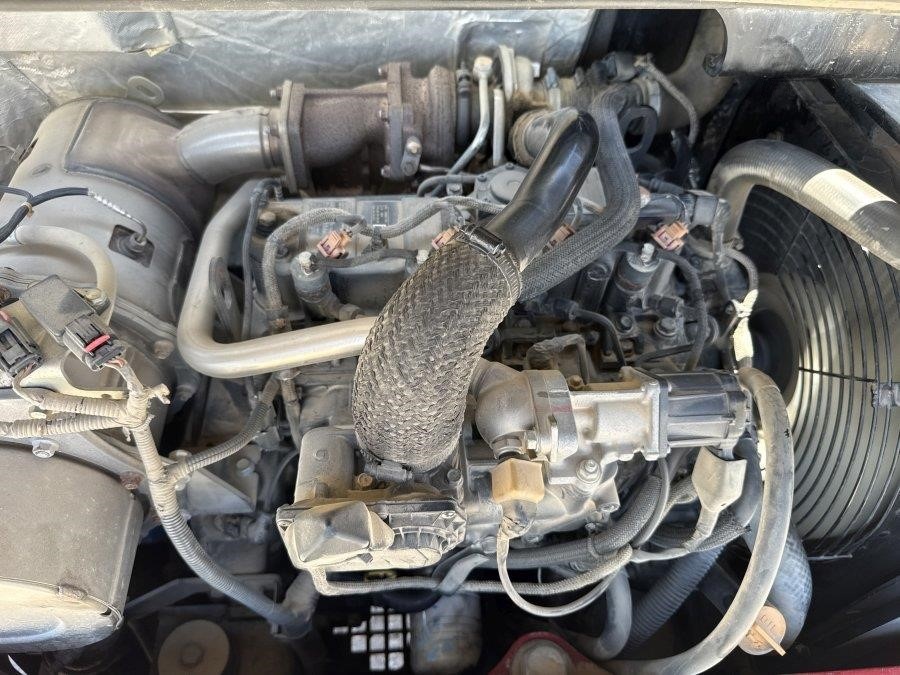

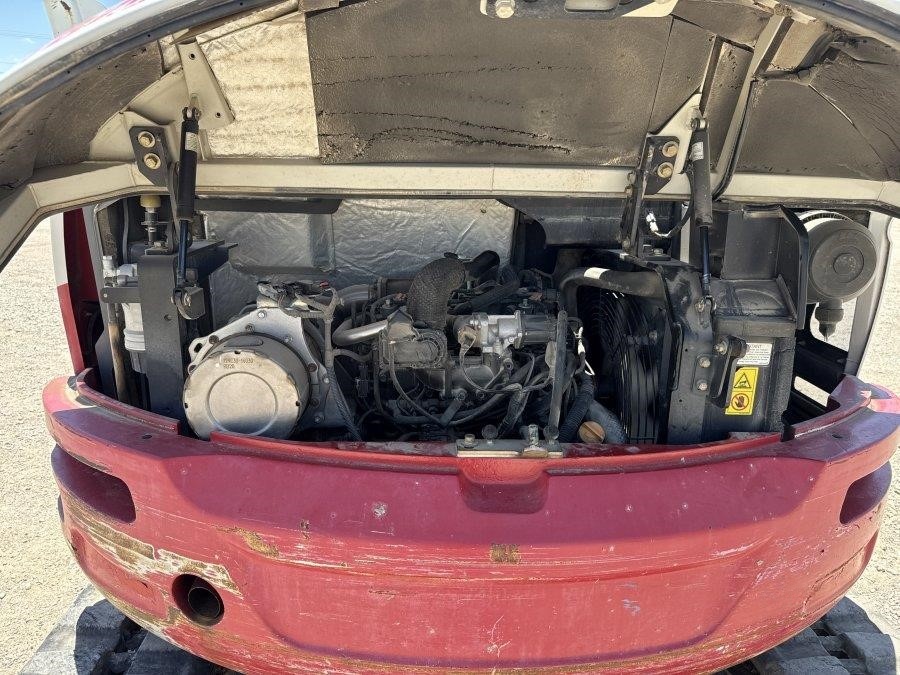

| Engine Make | Yanmar |
| Engine Model | 4TNV86CT-PTB |
| Maximum Torque (Nm) | 177 |
| Cylinders | 4 |
| Displacement (cc) | 2091 |
| Electrical System | 12volts 90amp |
| Fuel Tank (l) | 81 |
| Engine Lubrication (l) | 7.4 |
| Cooling System (l) | 11 |
Working Range
| Min. Front Swing Radius (mm) | 2420 |
| Max Digging Depth (mm) | 3895 |
| Max Reach at Ground Level (mm) | 6130 |
| Max Vertical Digging Depth (mm) | 3895 |
| Set Pressure (bar) | 240 |
| Pump Type | Rexroth Var x 2 Gear x 2 |
| 1st Aux Max Flow (l/min) | 102 |
| 1st Aux Pressure (bar) | 210 |
| 2nd Aux Max Flow (l/min) | 44 |
| 2nd Aux Pressure (bar) | 206 |
| Slew Speed (rpm) | 9.4 |
| Travel Speed (K/ph) | 2.8-4.9 |
| Maximum Gradeability | 30° |
| Hydraulic System (l) | 90 |

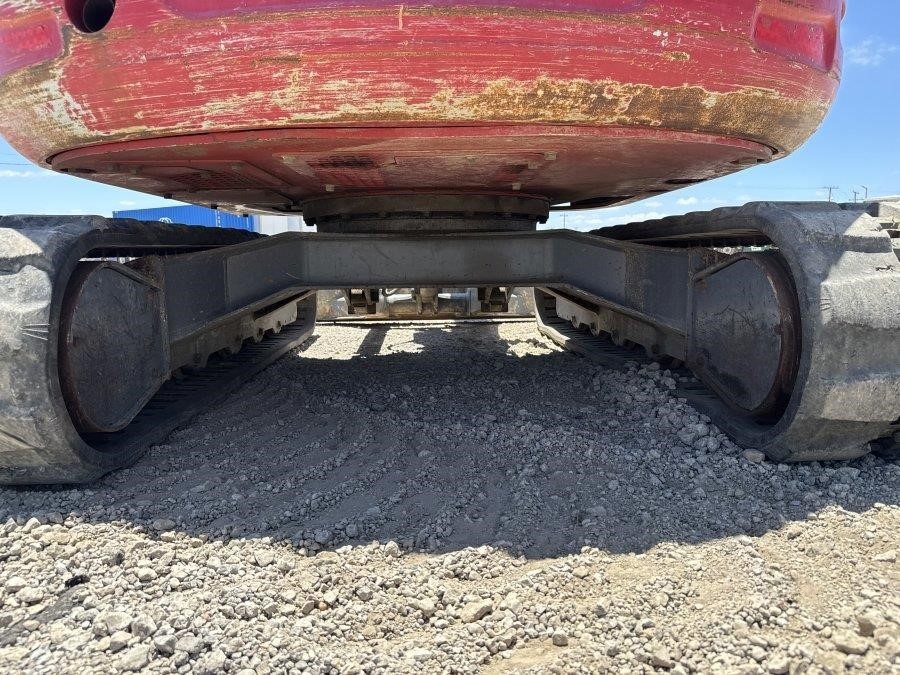

Undercarriage & Attachments

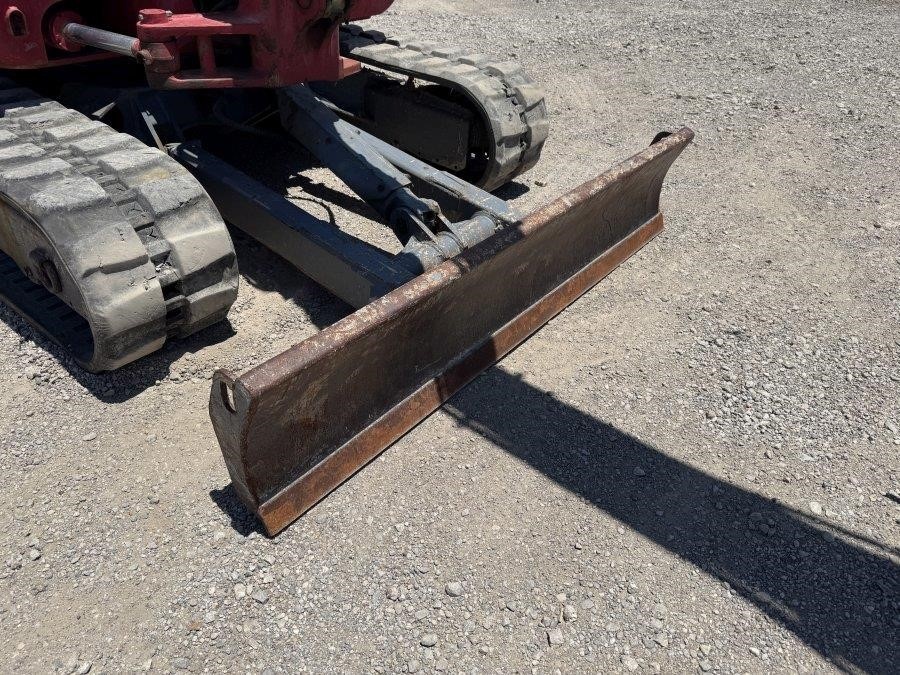

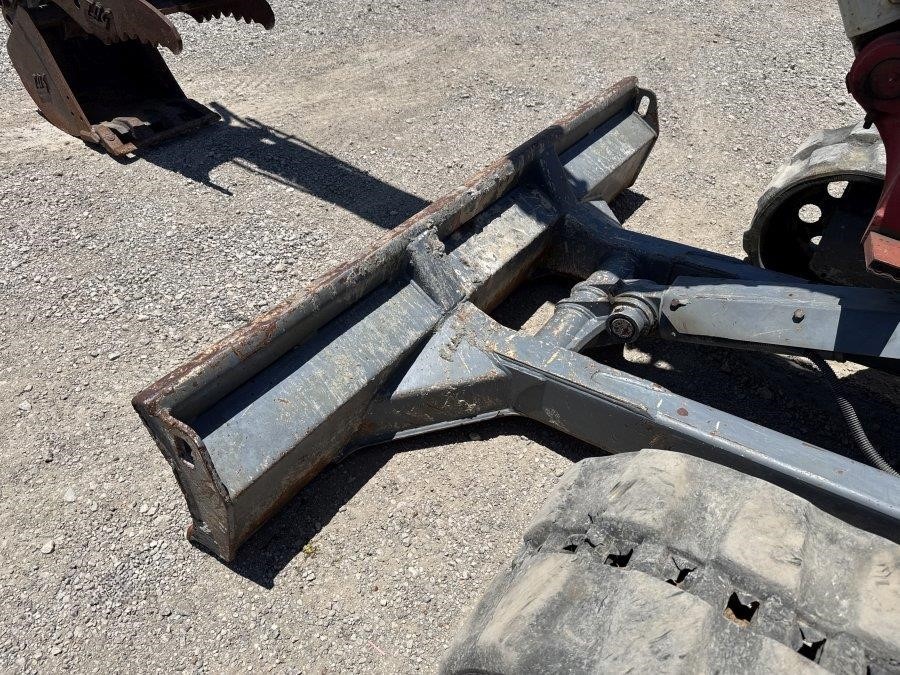

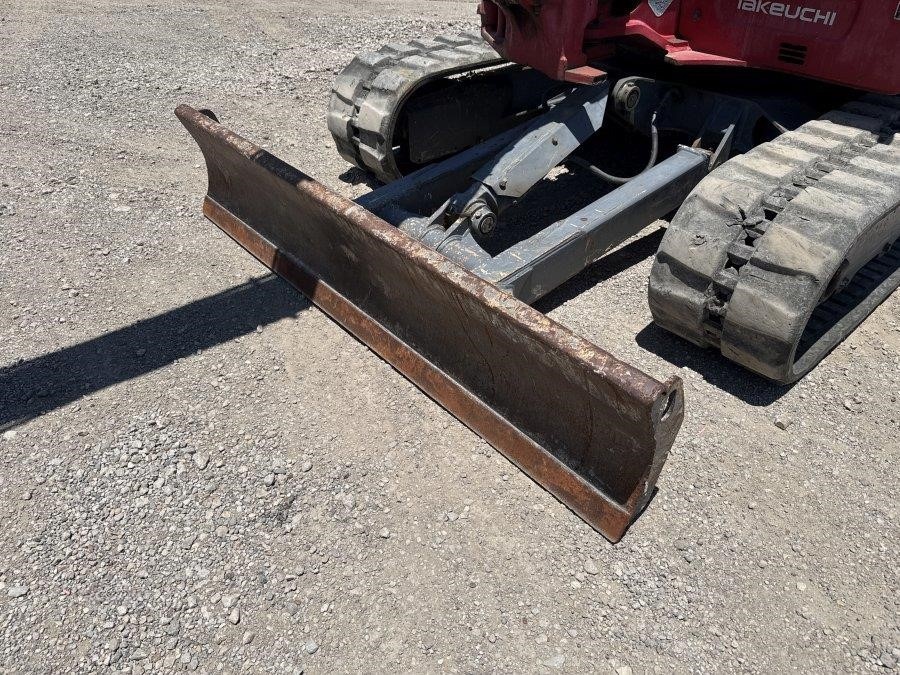

| Dozer Blade (W x H) (mm) | 430 x 2000 |
| Max Bucket Digging Force (kN) | 43.2 |
| Max Arm Digging Force (kN) | 25.6 |
| Boom Swing Angle (L/R) | 78°/55° |
Dimensions
| Op. Weight (bucket, hitch, fuel) kg | 5846 |
| Length (Transporting) (mm) | 5550 |
| Width (mm) | 2000 |
| Height (mm) | 2560 |
| Ground Clearance (mm) | 330 |
| Max Dump Height (mm) | 4220 |
| Track Width (mm) | 400 |
| Ground Contact Length (mm) | 2050 |
| Ground Pressure (kPa) | 31.5 |

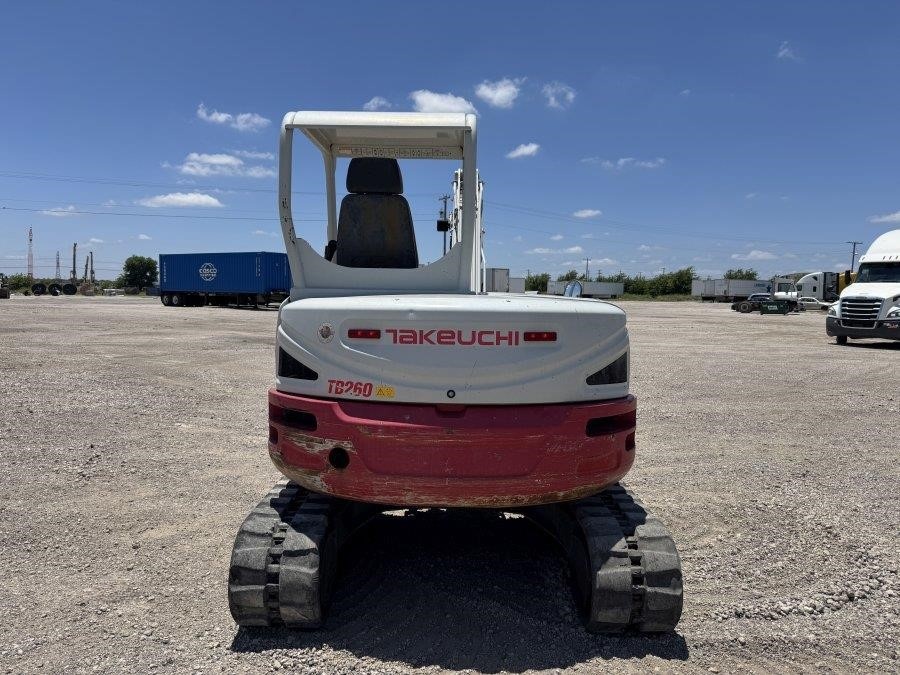

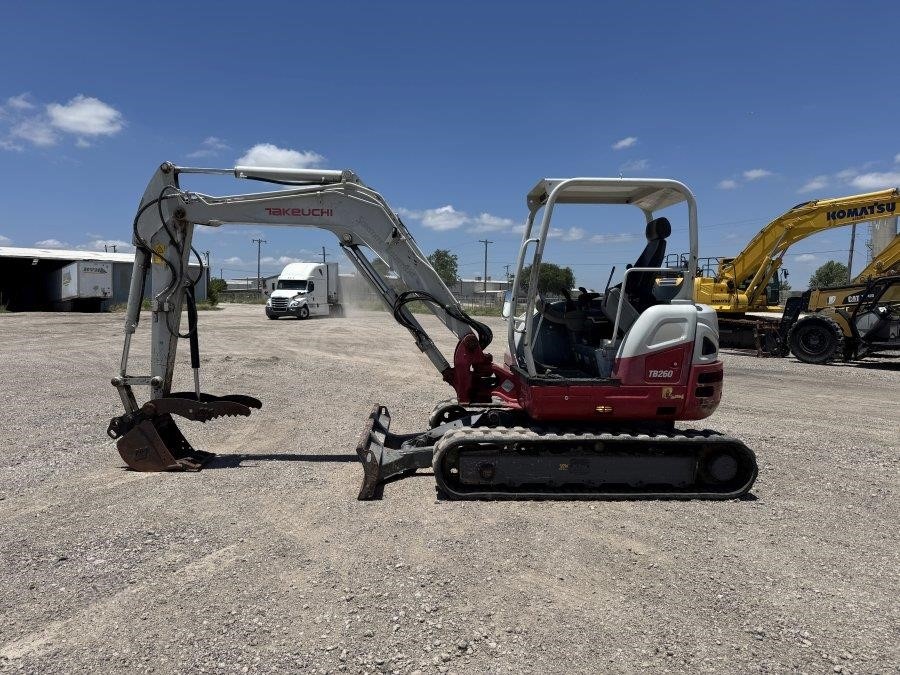

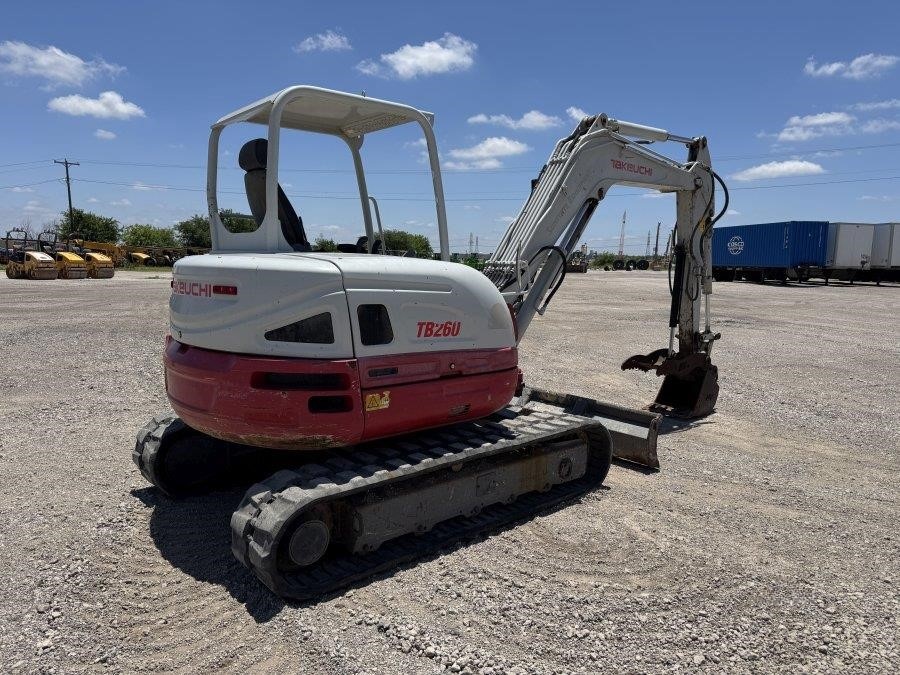

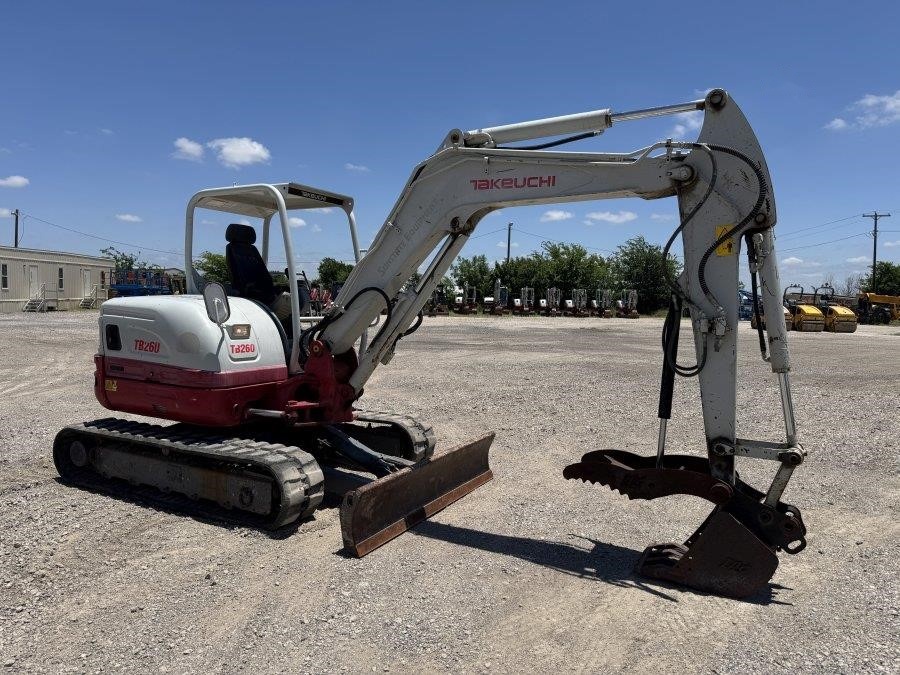

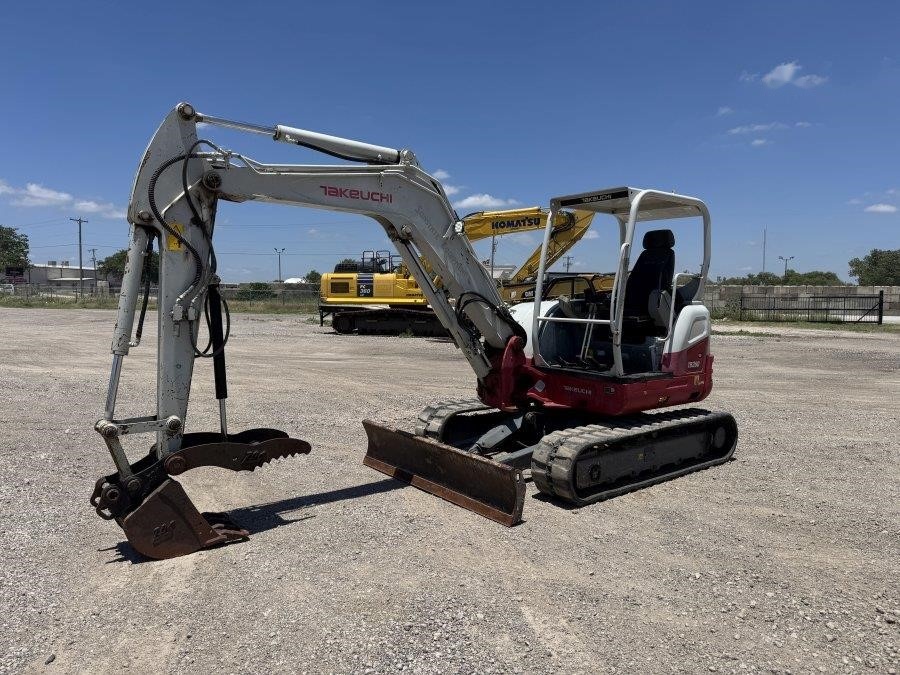

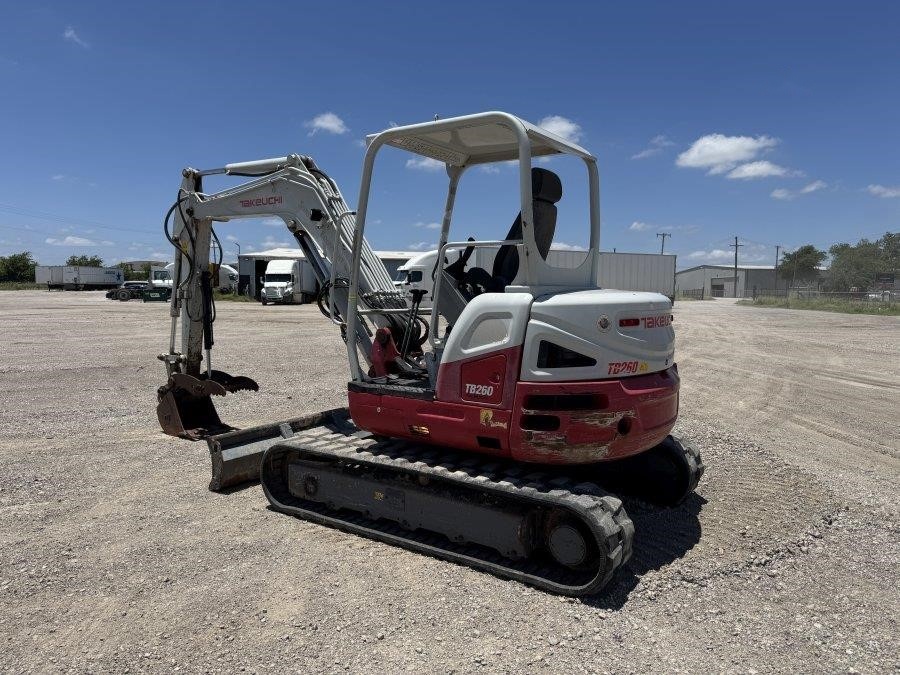

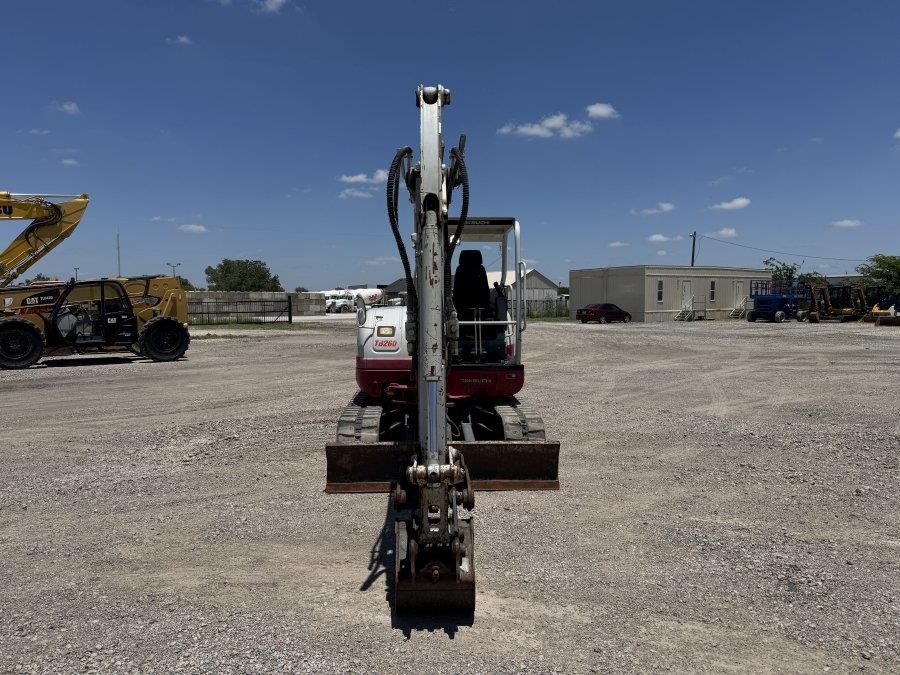

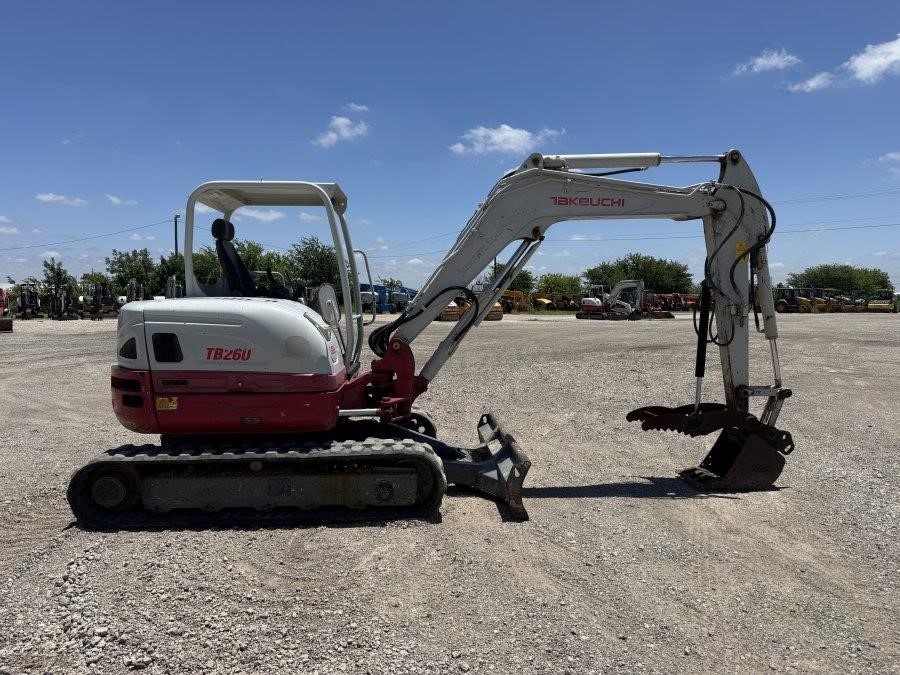

2019 Takeuchi TB260 Hydraulic Excavator
BUY NOW OR MAKE OFFERAvailable
