Item Specifications
Category
Condition
Used
Item Number
#1947
Make
deere
Model
324G
Year
2019
Industry
construction
Equipment Type
skid steers
Location
Ft. Worth, TX
Also Available In
TX
Item Description

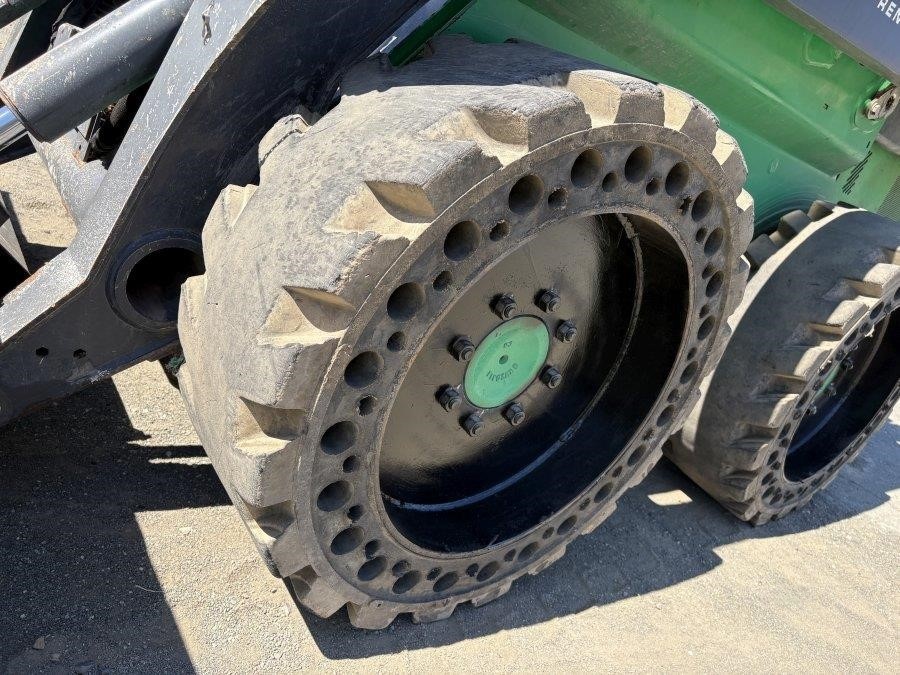

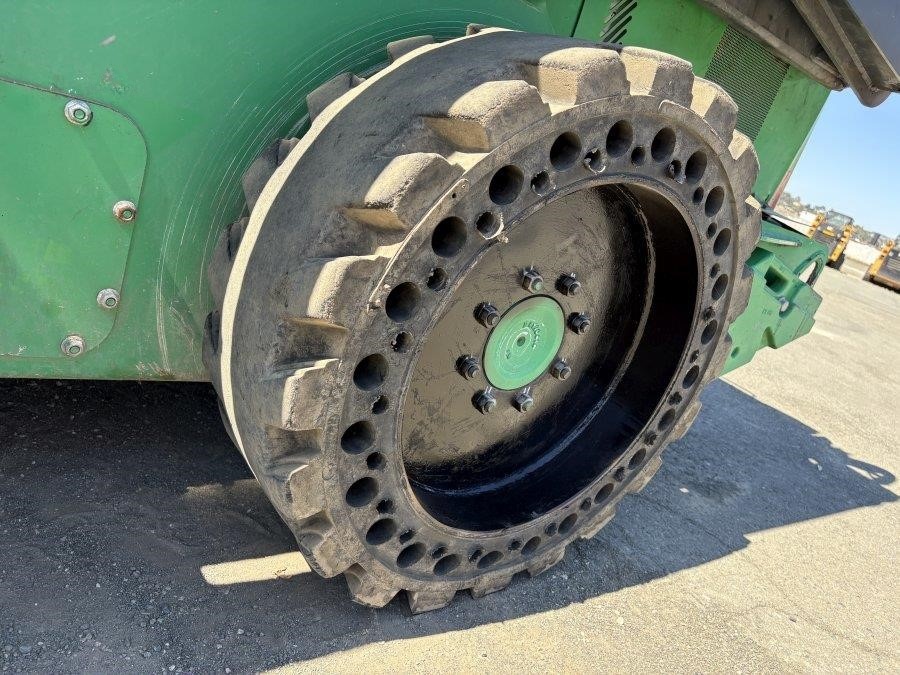

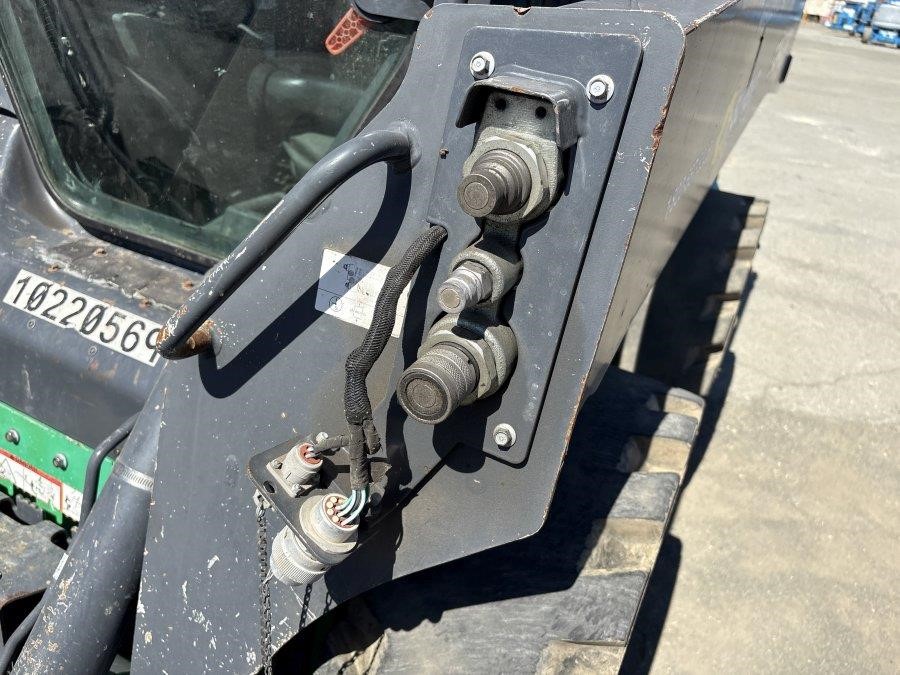

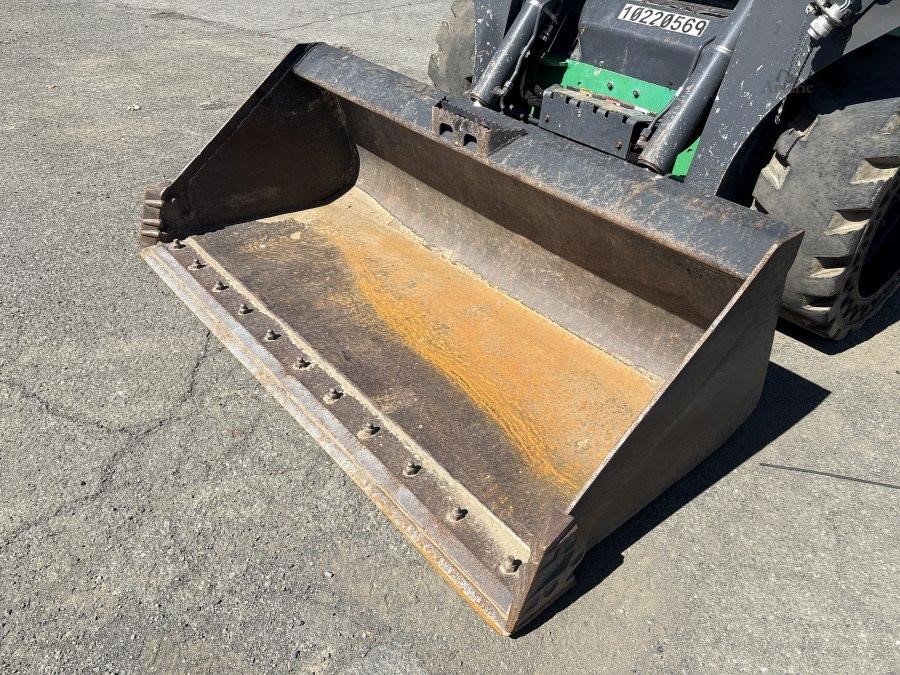

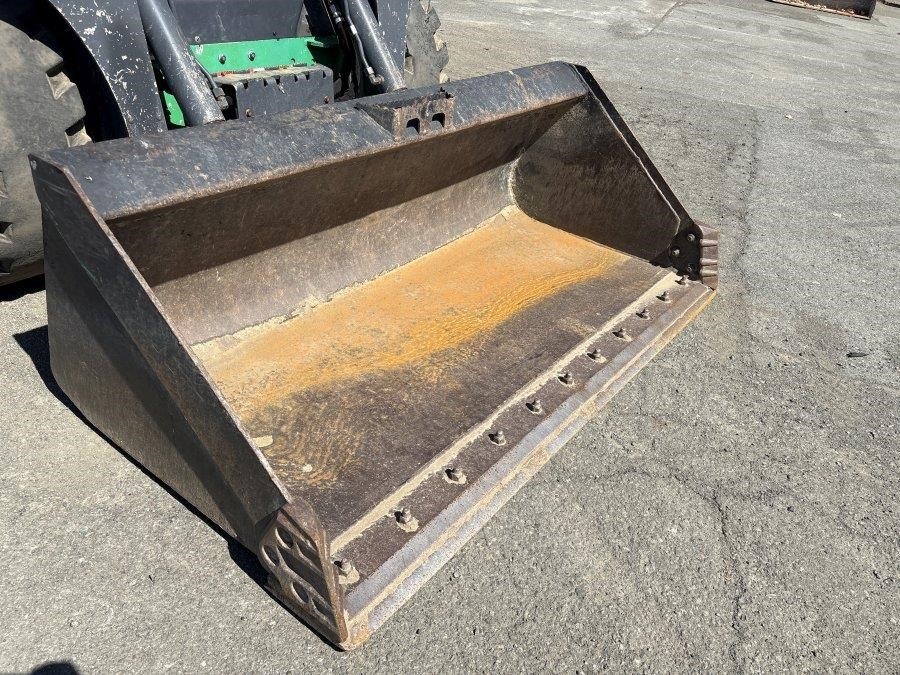

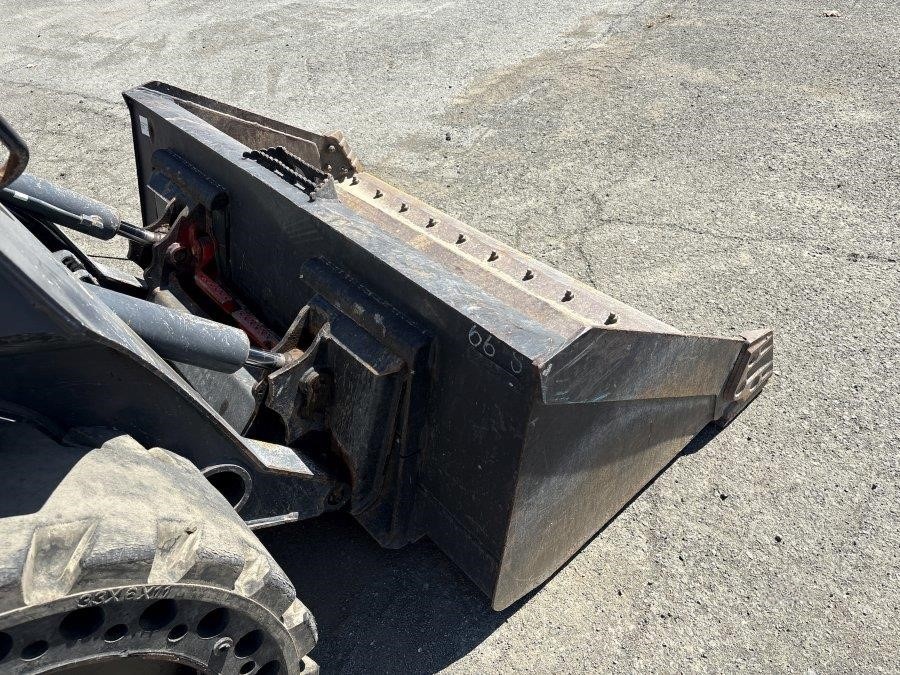

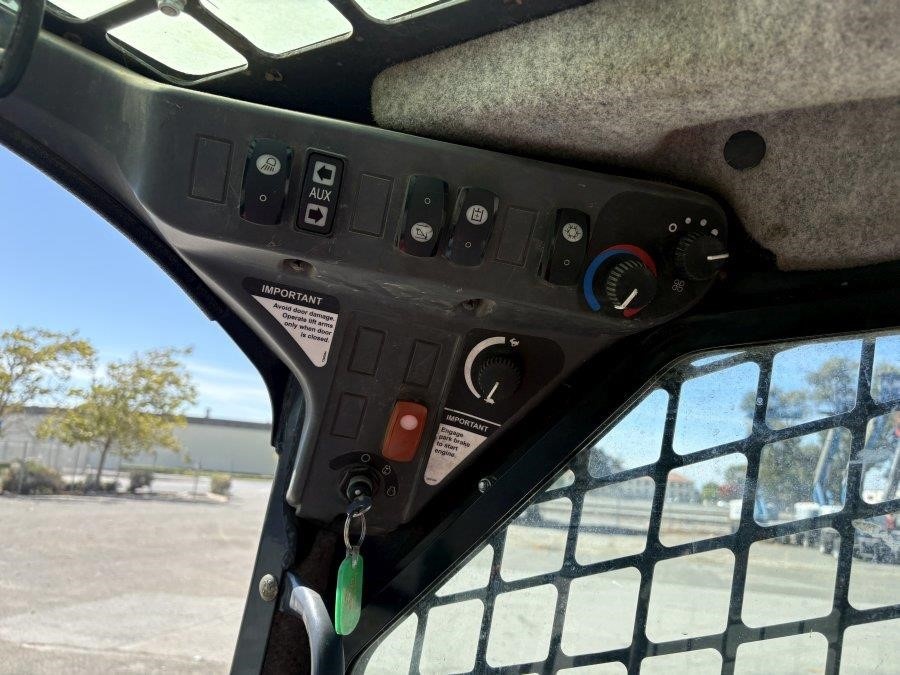

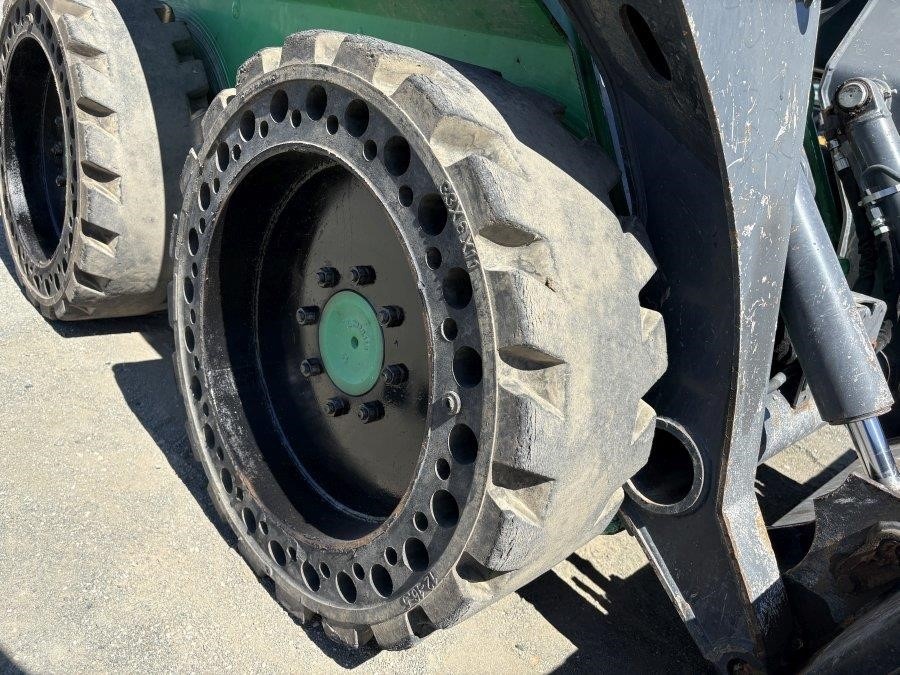

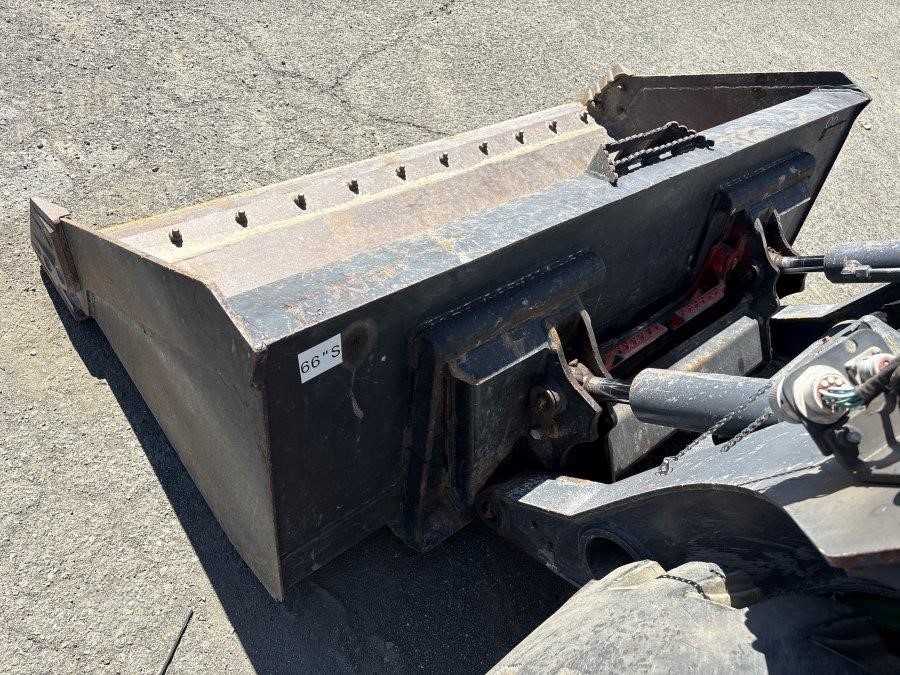

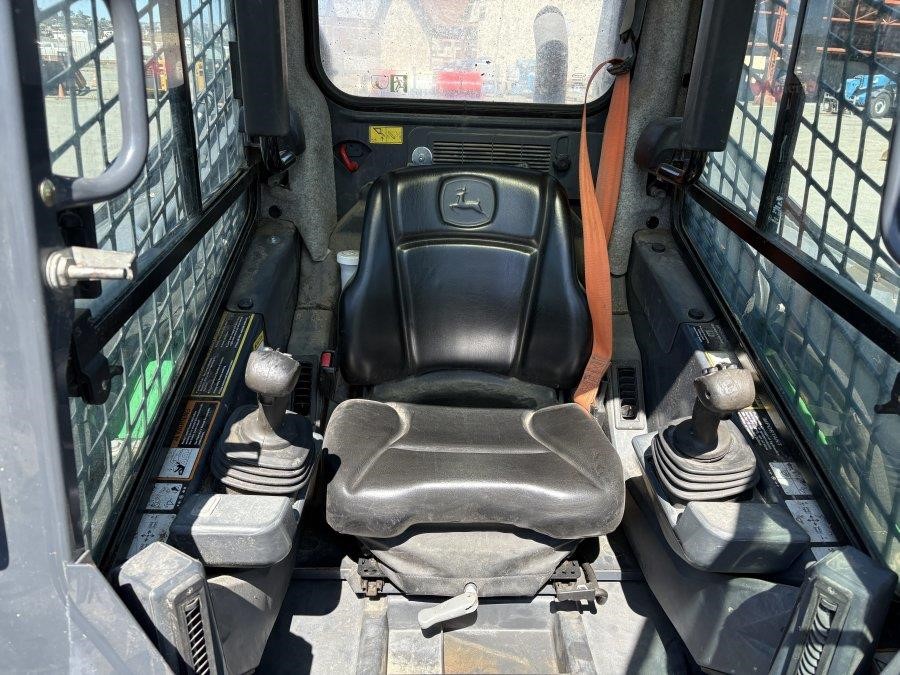

EROPS, A/C, Heat, Aux Hydraulic, Pilot Controls, Demo Tires, Bucket
Specifications
General
| Year | 2019 |
| Make | deere |
| Model | 324G |

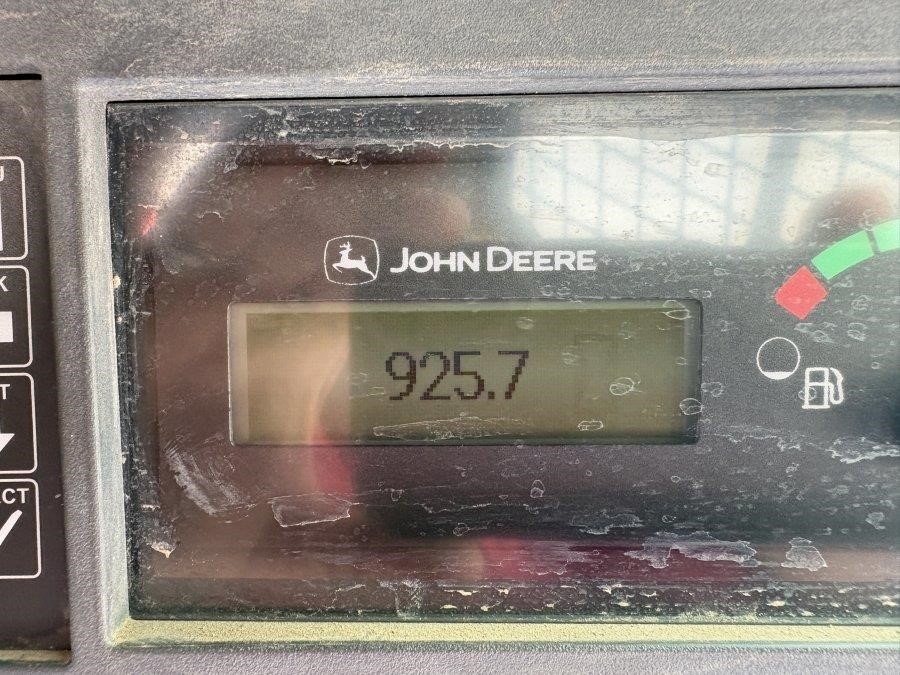

| Hours | 925 |
| Condition | Used |
| Gross Rated Power (ISO 14396) | 55.0 kW (74 hp) at 2,500 rpm |
| Aspiration | Turbocharged |
| Tractive Effort | 3220 kgf (7,491 lbf) |
| Angle of Departure | 28 deg. |
Engine & Powertrain
| Cylinders | 4 |
| Displacement | 3.3 L (203 cu. in.) |
| Torque Rise, 4TNV98CT | 34% at 1,800 rpm |
| Torque Rise, 4TNV98T | 36% at 1,800 rpm |
| Rated Engine Speed | 2,500 rpm |
| Maximum Axle Torque | 6771 Nm (4,994 lb.-ft.) |
| Hydraulic Horsepower Flow, Standard | 31 kW (42 hp) |
| Hydraulic Horsepower Flow, High Flow | 47 kW (64 hp) |
| Electrical Voltage | 12 volt |
| Battery Capacity | 750 CCA standard / 925 CCA optional |
| Alternator Rating | 75 amp |
| Refill Capacity Fuel Tank | 79 L (21 gal.) |
Working Range
| Travel Speed, 2 Speed, High, Standard | 19.3 km/h (12 mph) |
| Hydraulics Pump Flow Standard | 78 L/m (21 gpm) |
| Hydraulics Pump Flow Total With High-Flow Option | 120 L/m (32 gpm) |
| System Pressure at Couplers | 23 787 kPa (3,450 psi) |
| Tipping Load | 2443 kg (5,380 lb.) |
| SAE Rated Operating Capacity | 1221 kg (2,690 lb.) |
Undercarriage & Attachments

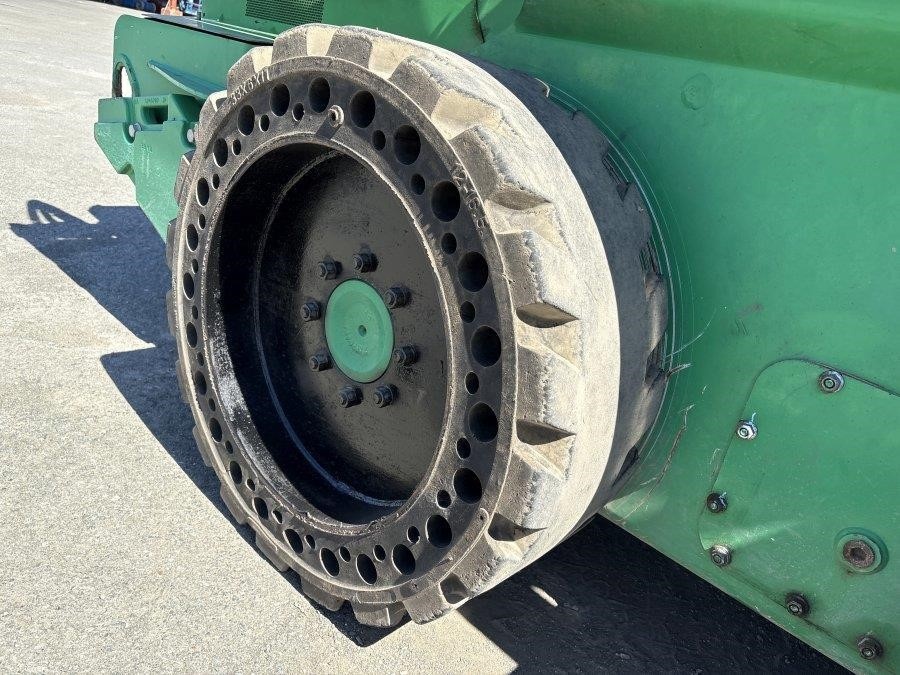

| Standard Tire Size | 12 x 16.5 12 PR SKS |
| Dump Reach With Foundry Bucket | 0.76 m (29.9 in.) |
| Dump Reach With Construction Bucket | 0.95 m (37.3 in.) (3 ft. 1 in.) |
| Front Turn Radius With Foundry Bucket | 2.02 m (79.6 in.) (6 ft. 8 in.) |
| Bucket Rollback (ground level) | 34 deg. |
| Boom Breakout Force With Foundry Bucket | 2384 kg (5,250 lb.) |
| Boom Breakout Force With Construction Bucket | 2157 kg (4,750 lb.) |
| Bucket Breakout Force With Foundry Bucket | 3973 kg (8,750 lb.) |
| Bucket Breakout Force With Construction Bucket | 2724 kg (6,000 lb.) |
Dimensions
| Operating Weight, Base Machine | 3496 kg (7,700 lb.) |
| Length Without Bucket | 2.85 m (112.3 in.) (9 ft. 4 in.) |
| Length With Foundry Bucket | 3.46 m (136.3 in.) (11 ft. 4 in.) |
| Length With Construction Bucket | 3.71 m (146.1 in.) (12 ft. 2 in.) |
| Width Without Bucket | 1.70 m (67.0 in.) (5 ft. 7 in.) |
| Height to Top of ROPS | 2.06 m (81.1 in.) (6 ft. 9 in.) |
| Height to Hinge Pin | 3.20 m (126.0 in.) (10 ft. 6 in.) |
| Dump Height With Foundry Bucket | 2.59 m (102.1 in.) (8 ft. 6 in.) |
| Dump Height With Construction Bucket | 2.43 m (95.5 in.) (8 ft. 0 in.) |
| Wheelbase | 1.12 m (44.2 in.) (3 ft. 8 in.) |
| Ground Clearance | 0.24 m (9.3 in.) |
| Dump Angle (full lift height) | 41 deg. |
| SAE Rated Operating Capacity With Counterweight | 1294 kg (2,850 lb.) |

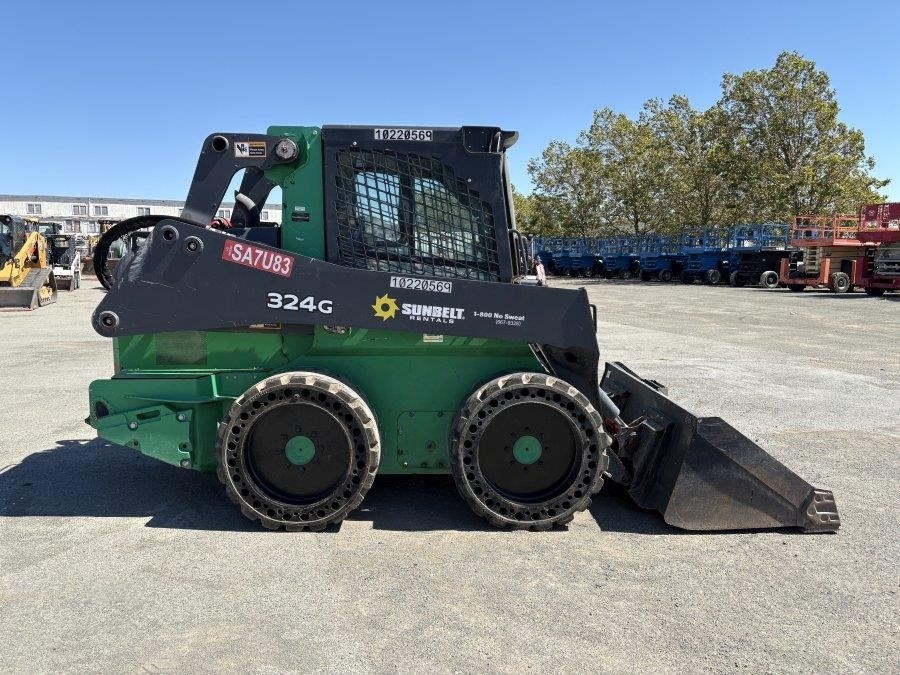

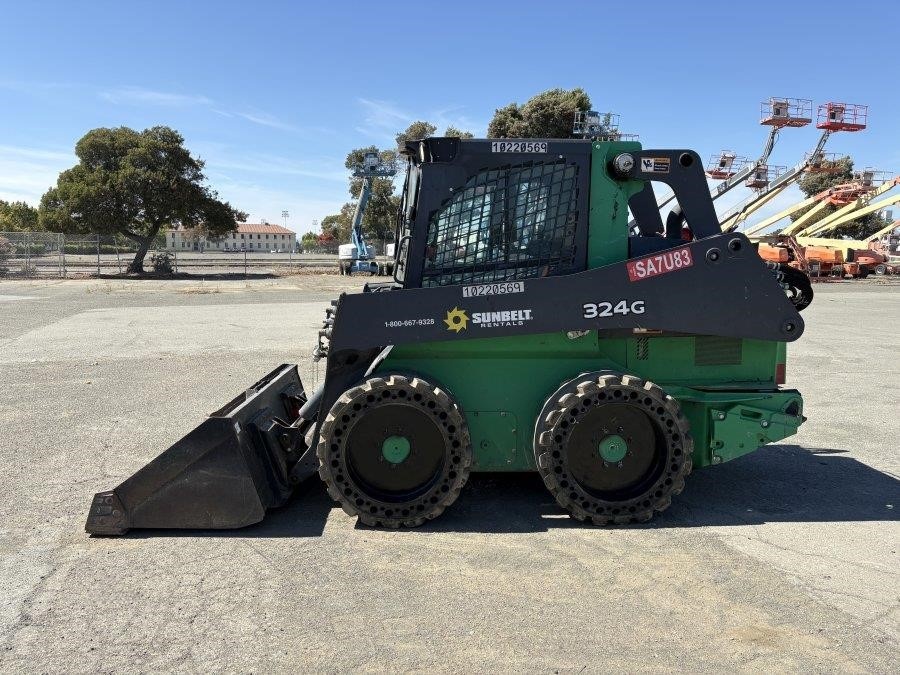

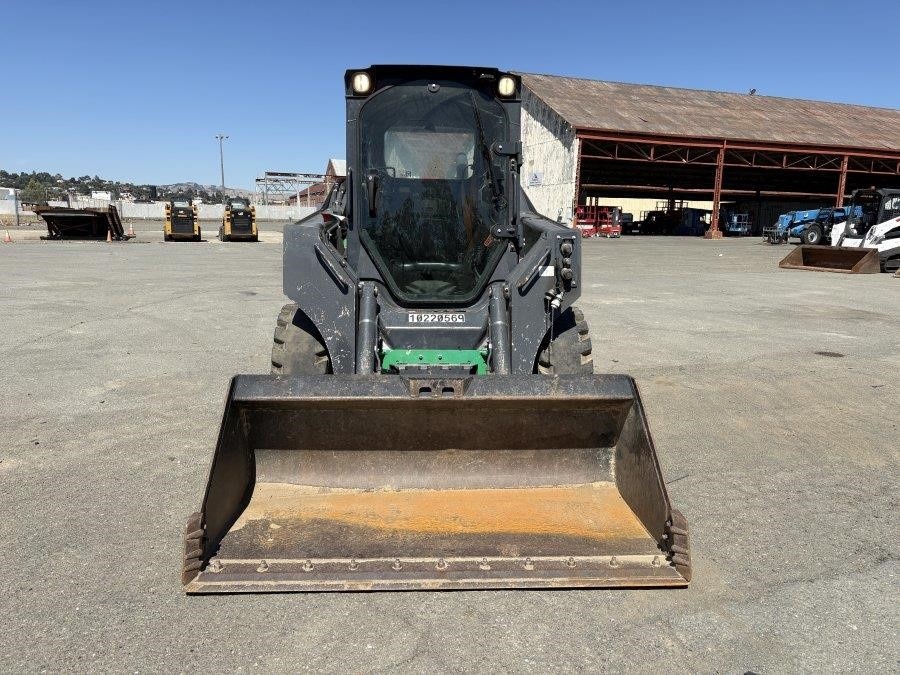

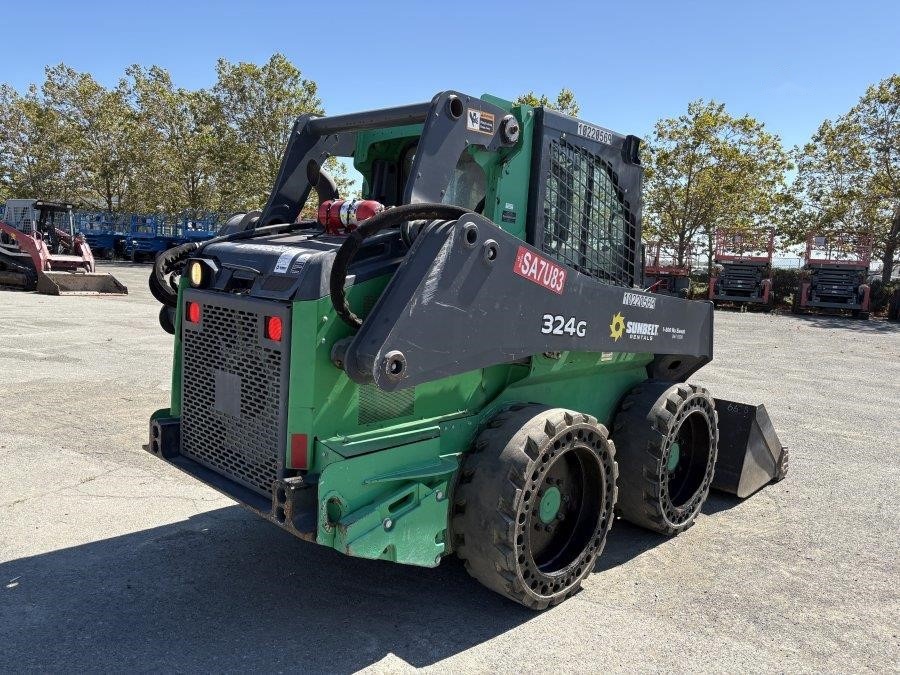

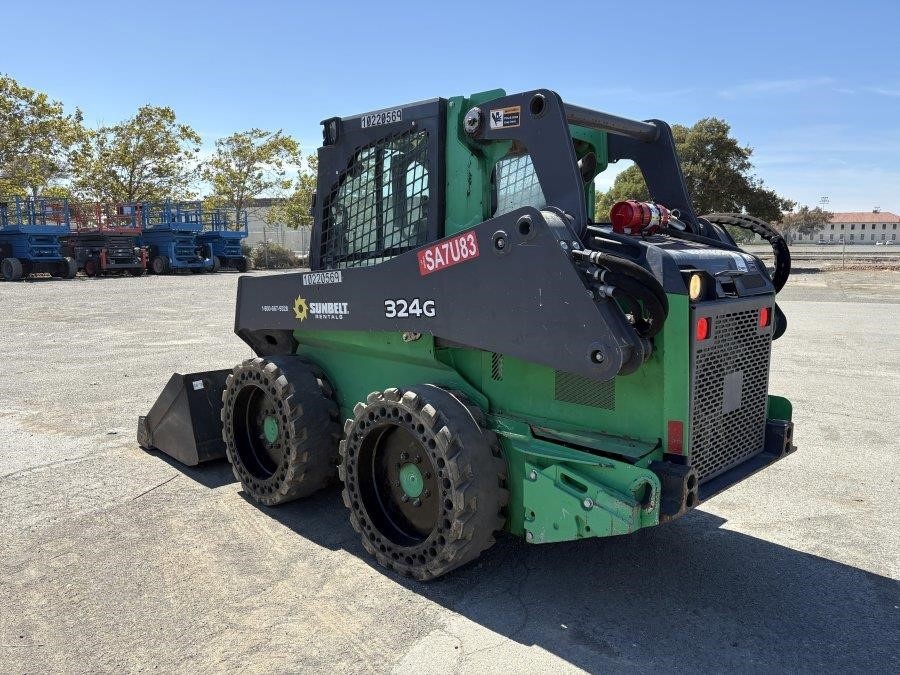

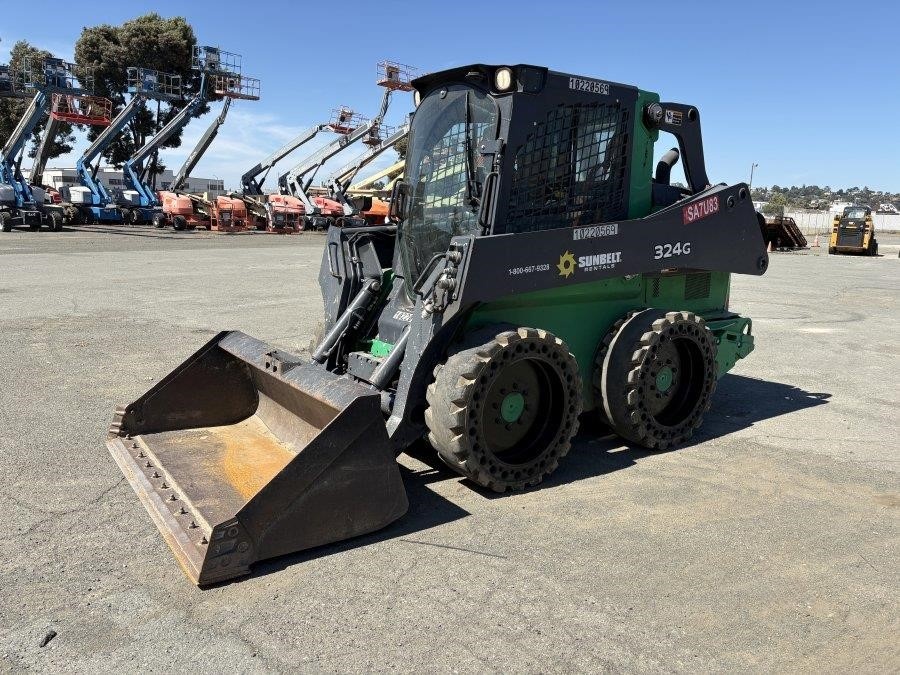

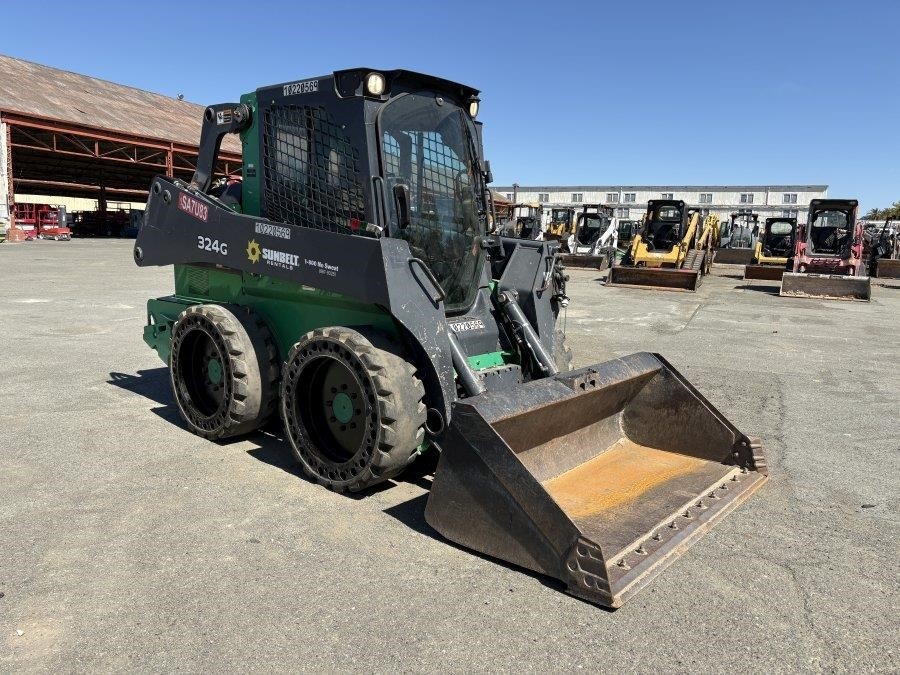

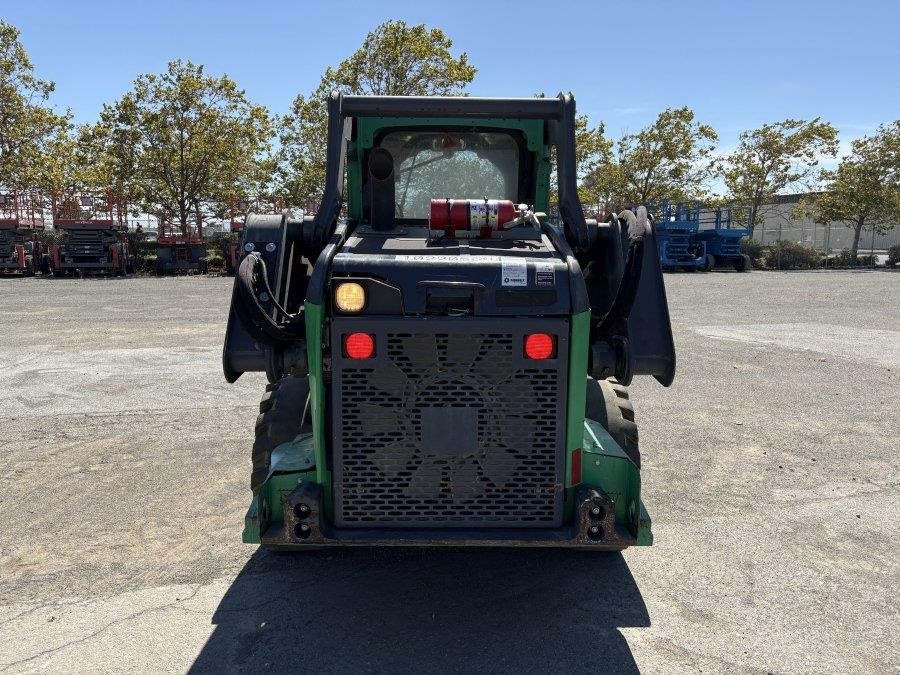

2019 Deere 324G Skid Steer
BUY NOW OR MAKE OFFERAvailable
