Item Specifications
Category
Condition
Used
Item Number
#1938
Make
Maeda
Model
MC405CRME
Year
2018
Industry
construction
Equipment Type
cranes
Location
Ft. Worth, TX
Also Available In
TX
Item Description

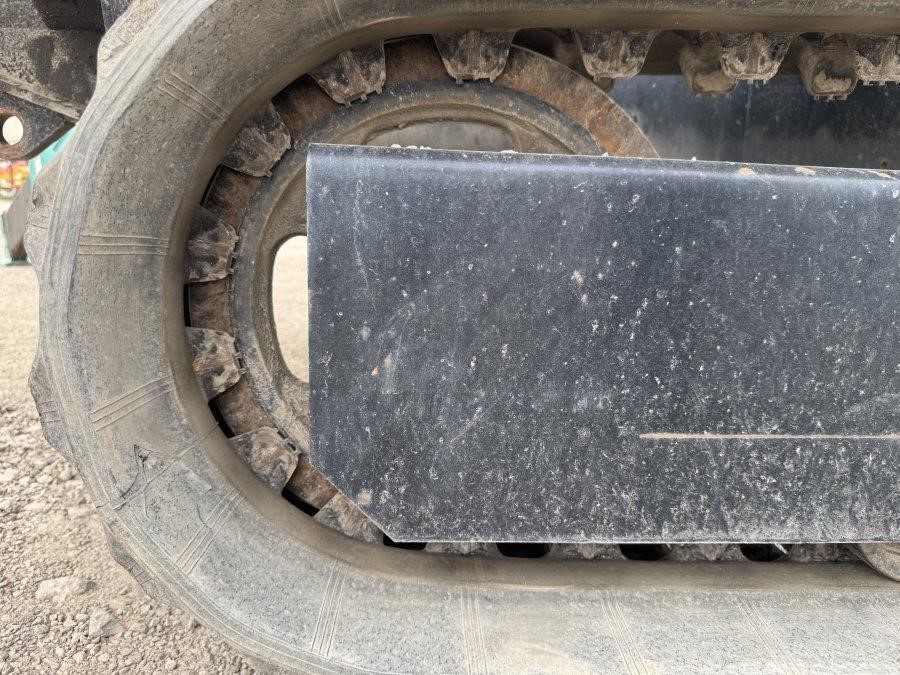

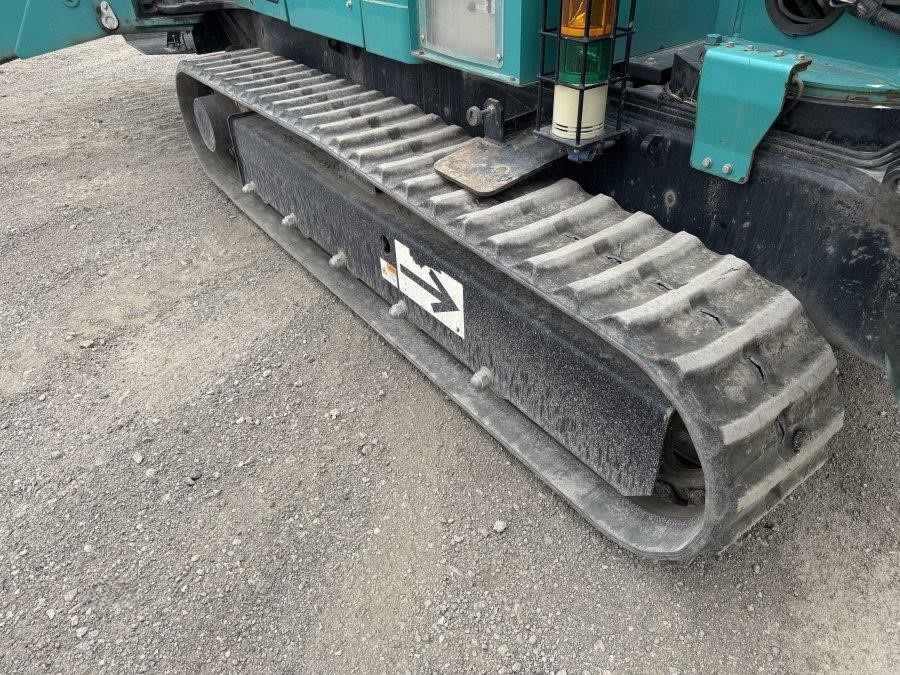

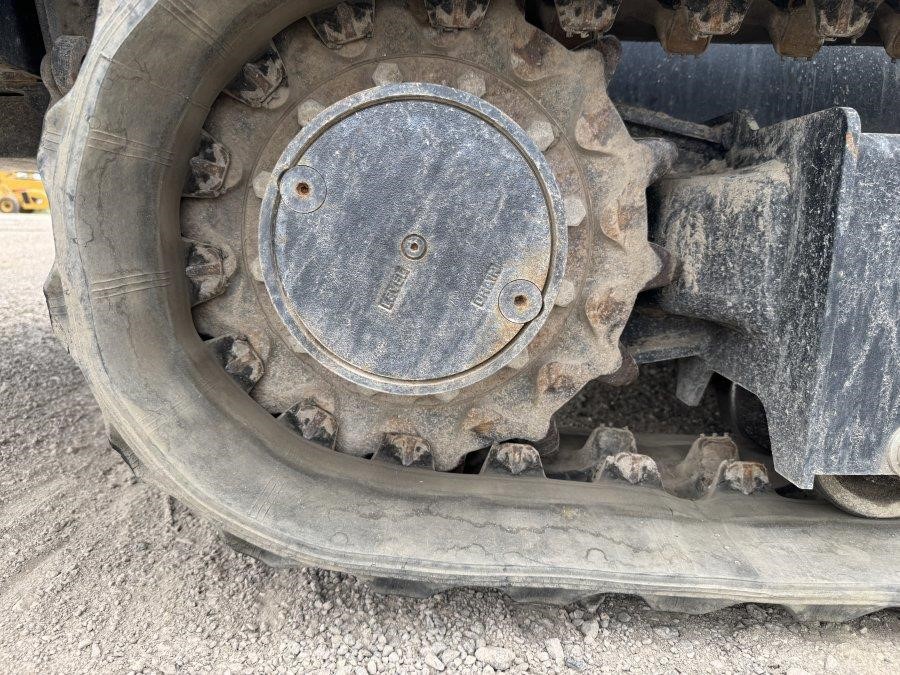

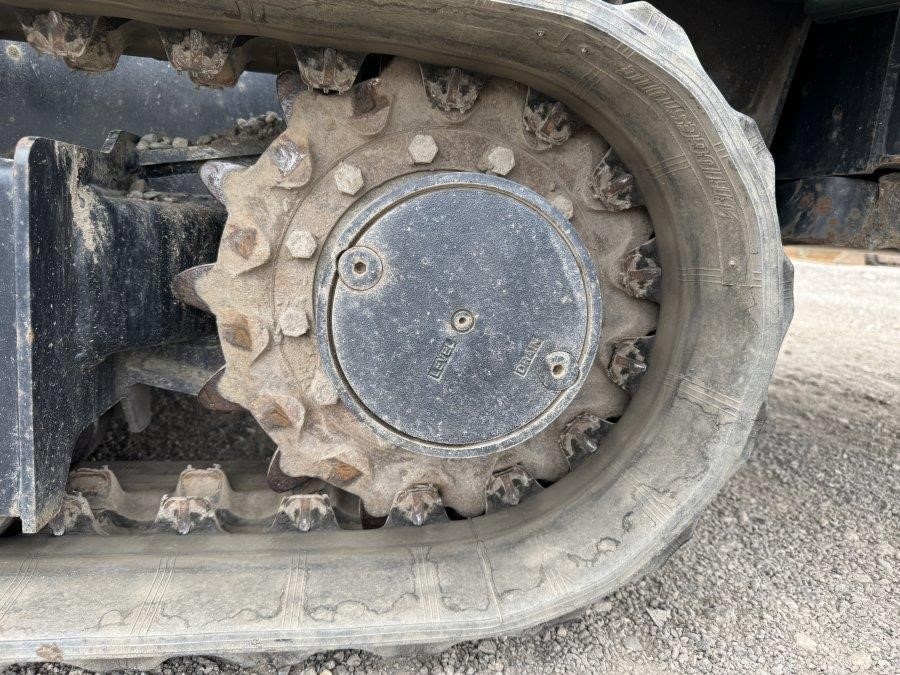

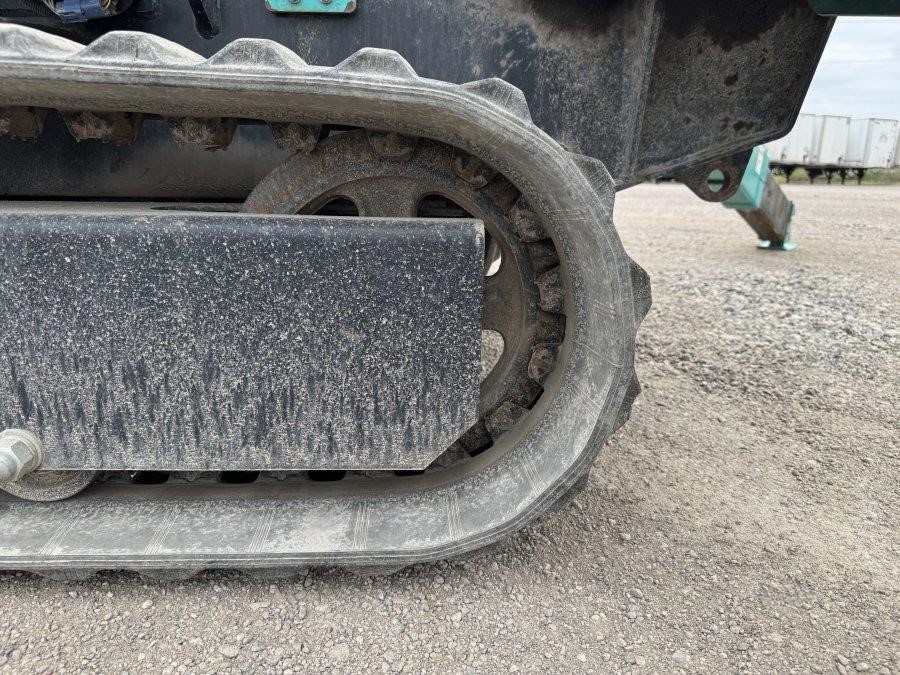

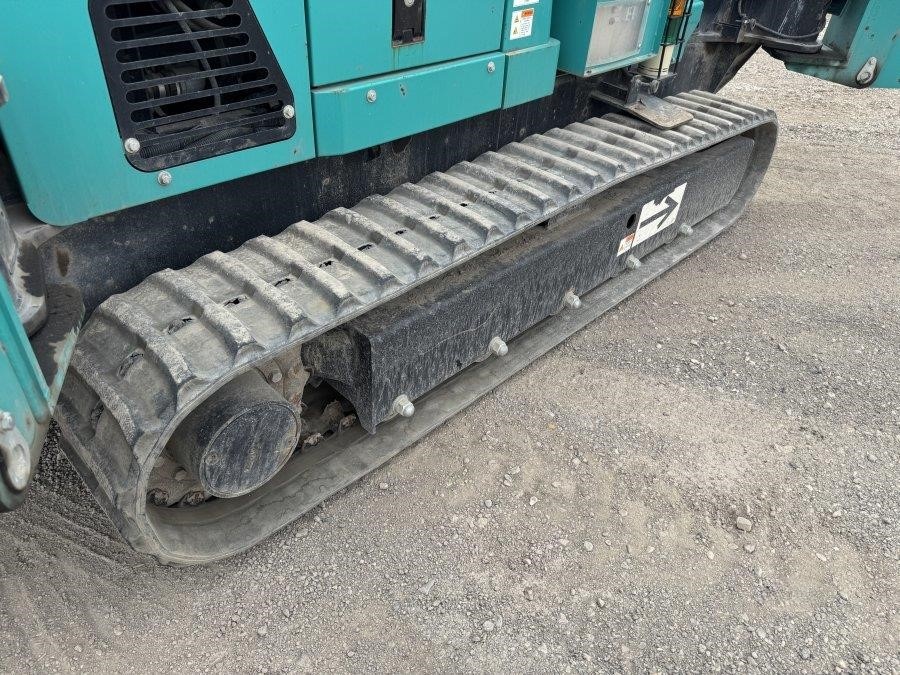

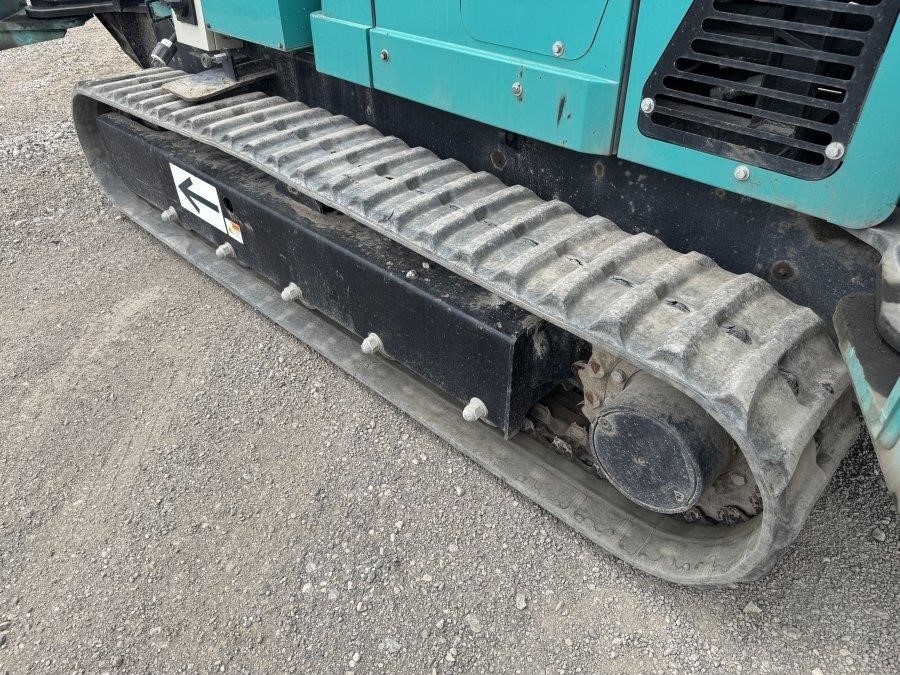

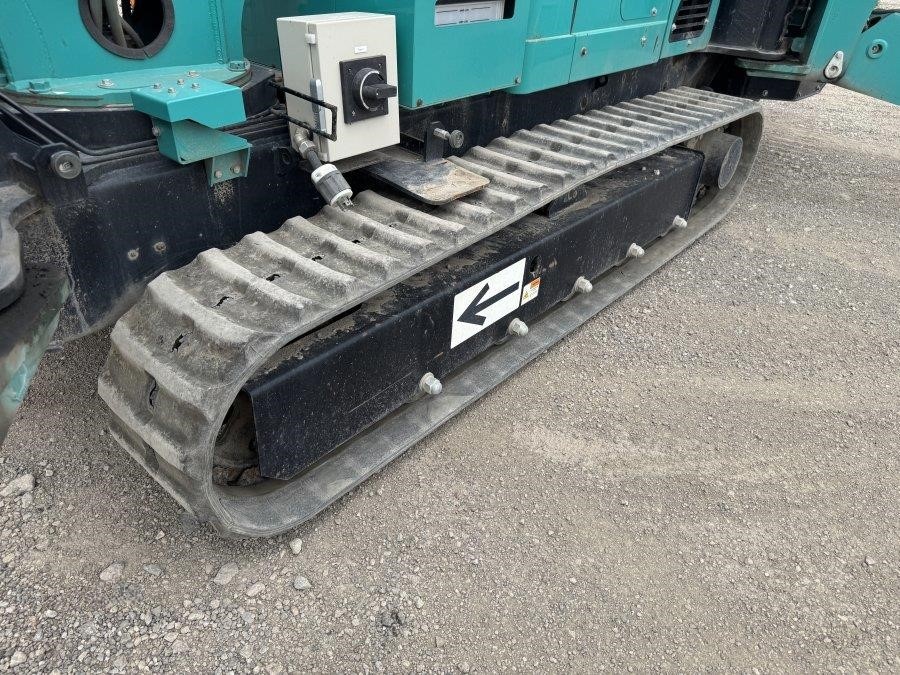

3.8T Lifting Cap, 54' Max Length Load, Outriggers, 13" Rubber Tracks
Specifications
General
| Year | 2018 |
| Make | Maeda |
| Model | MC405CRME |

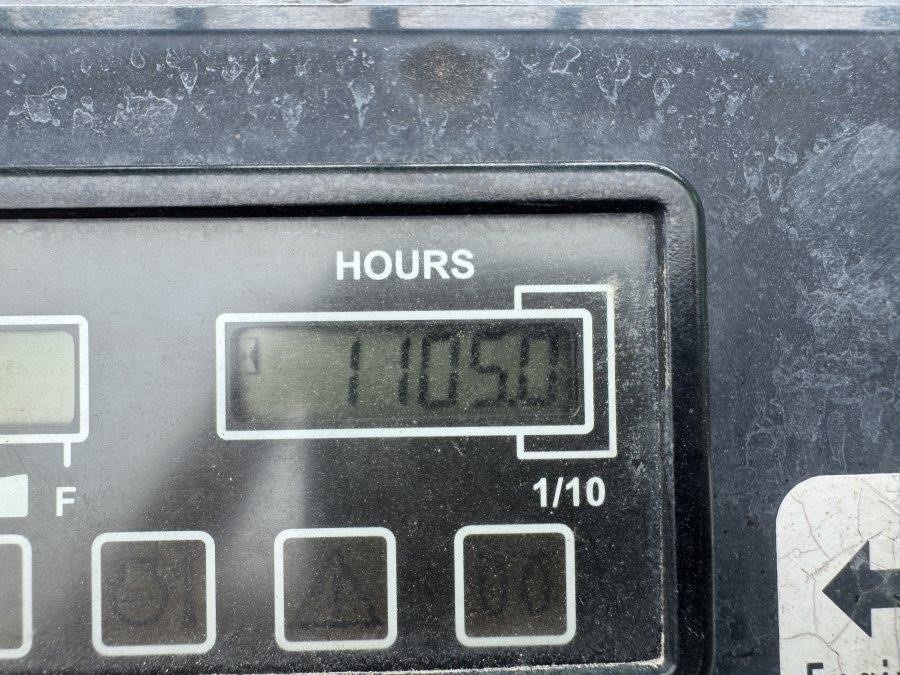

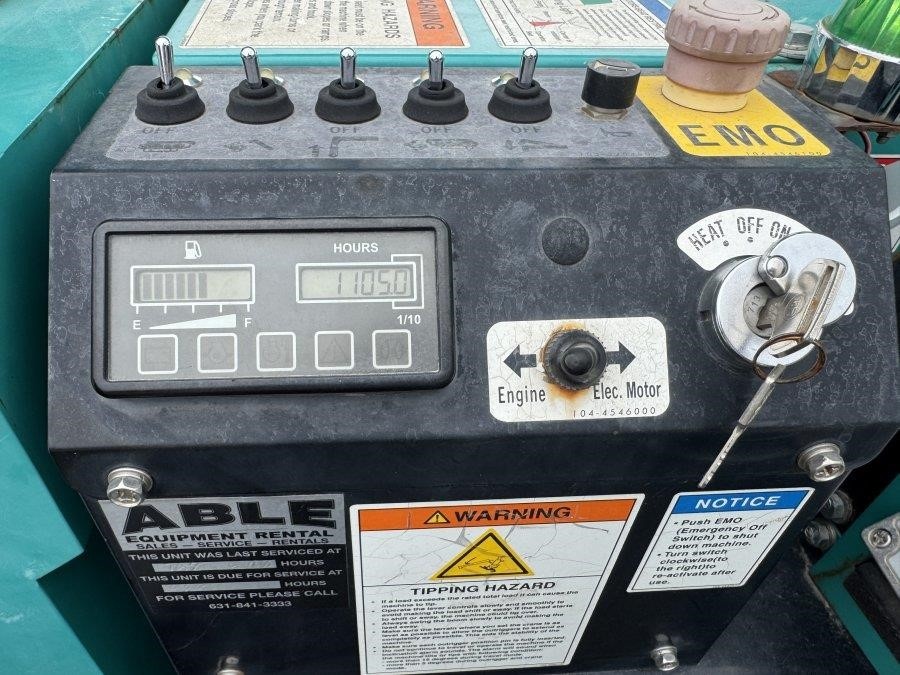

| Hours | 1105 |
| Condition | Used |
| Working Radius | Maximum 16.0m x 210kg |

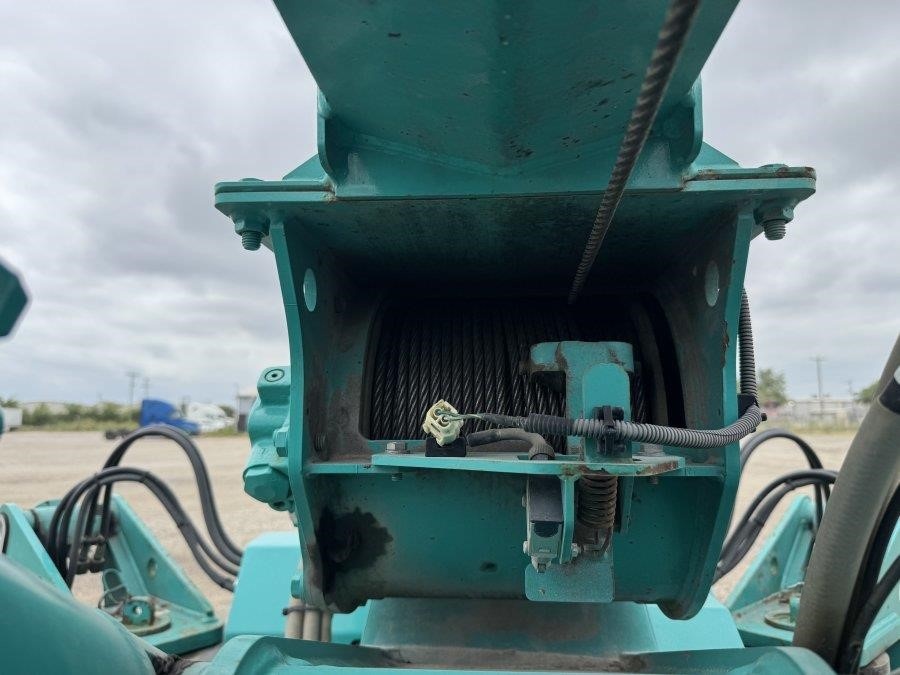

| Hoist Rope | Type IWRC 6 x WS (26) Ø 8mm x 92m |
| Traction System, Gradability | 20º |
| Electric Motor (Optional) Size | 7.5 kW 4P 380V |
Engine & Powertrain

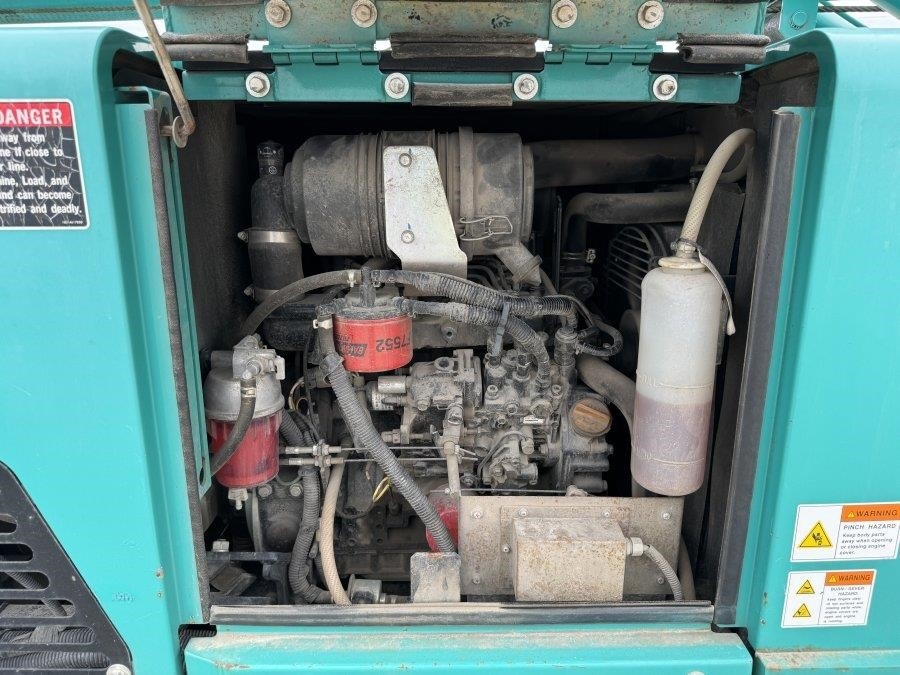

| Engine Model | Yanmar 3TNV88-BPMB |
| Engine Type | 3 cylinder water cooled diesel |
| Engine Rated output | 21.4 kW / 2400 rpm |
| Fuel tank capacity | Diesel / 60L |
Working Range
| Capacity | Maximum 3.83 t x 2.7m |
| Hook Speed | Maximum 18m / min (4 falls, 4th layer) |
| Single Line Speed | Maximum 72m / min. (4th layer) |
| Slew System, Slew angle / speed | 360º continuous / 2.5 rpm |
| Traction System, Travel speed | 0 - 3.3 km/h |
Undercarriage & Attachments
| Boom Hoist System, Telescoping speed | 11.7m / 41.3 sec |

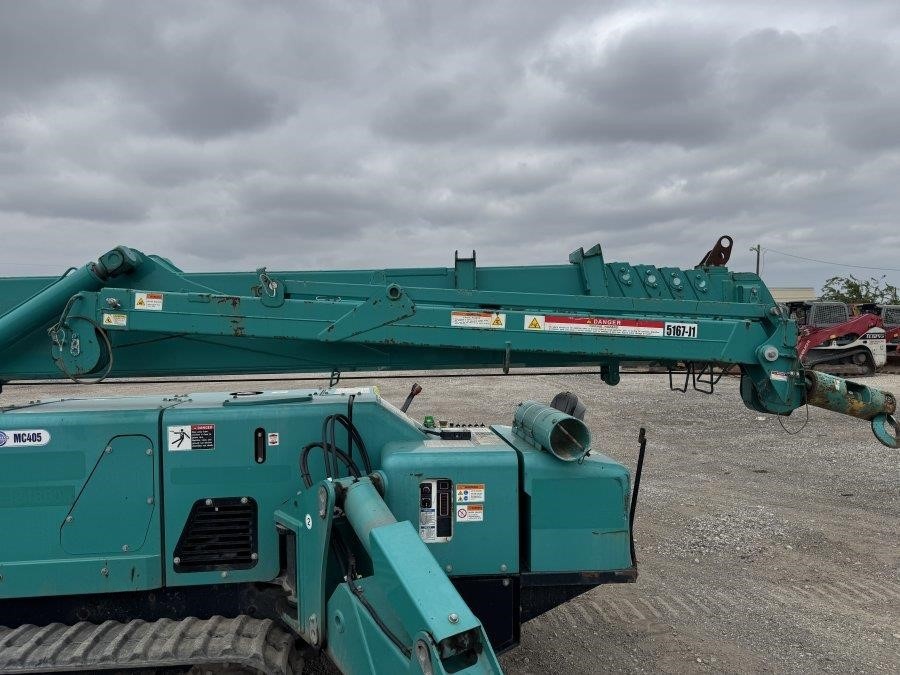

| Boom Hoist System, Boom type | Fully automatic 5 section pentagonal telescopic boom |
| Boom Hoist System, Hoist angle / speed | 0º - 80º / 17 sec |
Dimensions
| Lifting Height | Maximum 16.8m x 1130kg (20.7m x 520kg with Fly-Jib) |
| Dimensions, MC405 CRM(E) | 4980mm x 1380mm x 1980mm |
| Weight, MC405 CRME | 5750kg |

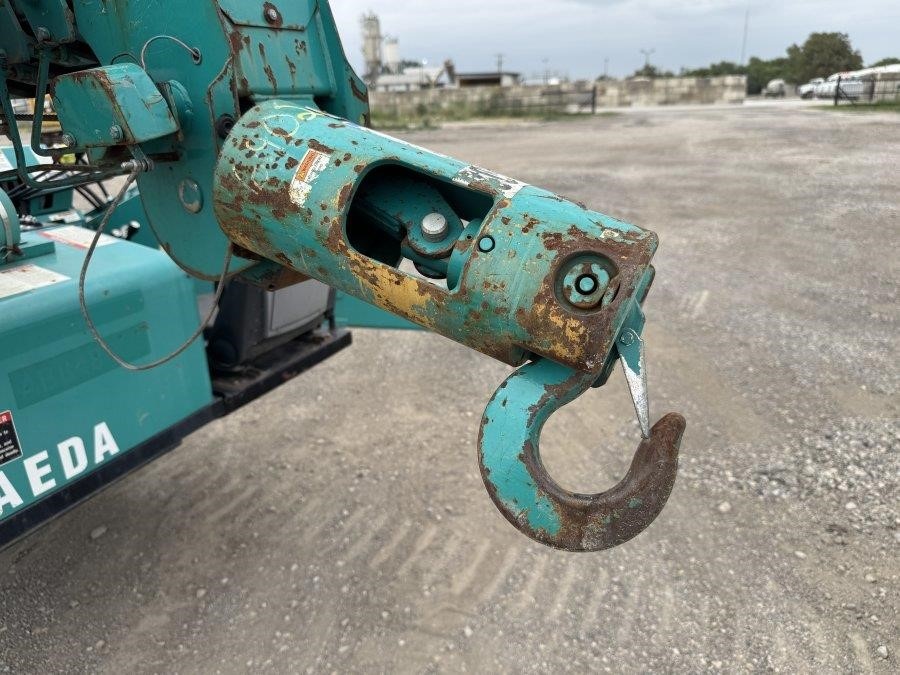

| Hook Block Weight | 50kg |

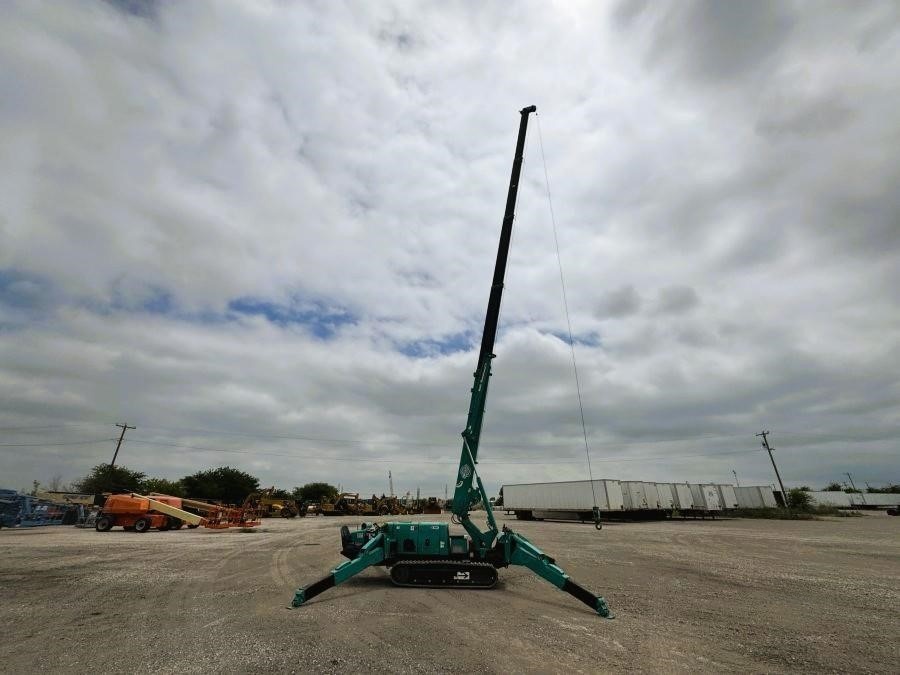

| Telescopic System, Boom length | 4.735m - 16.475m |

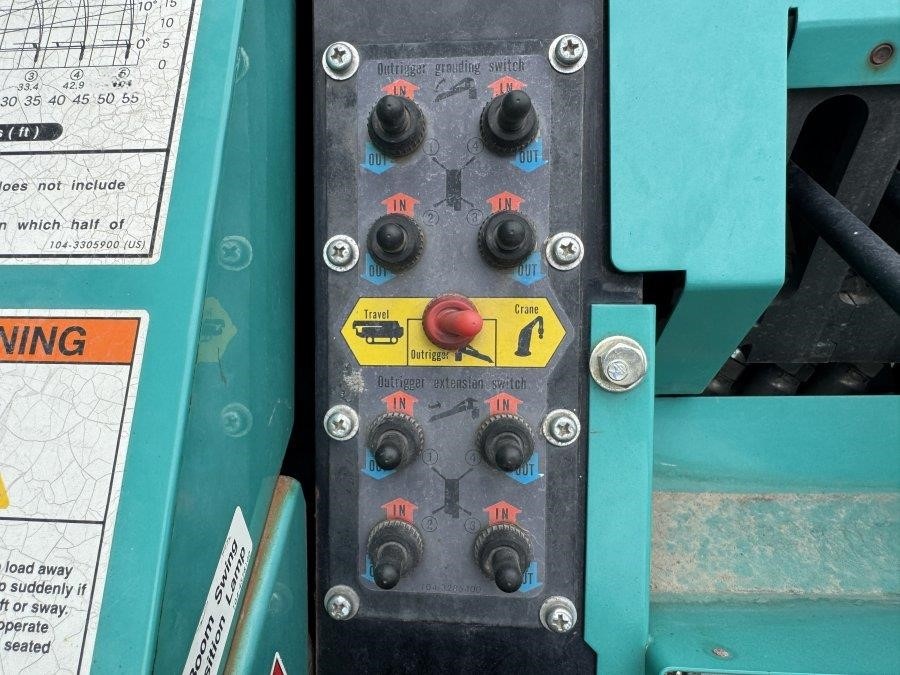

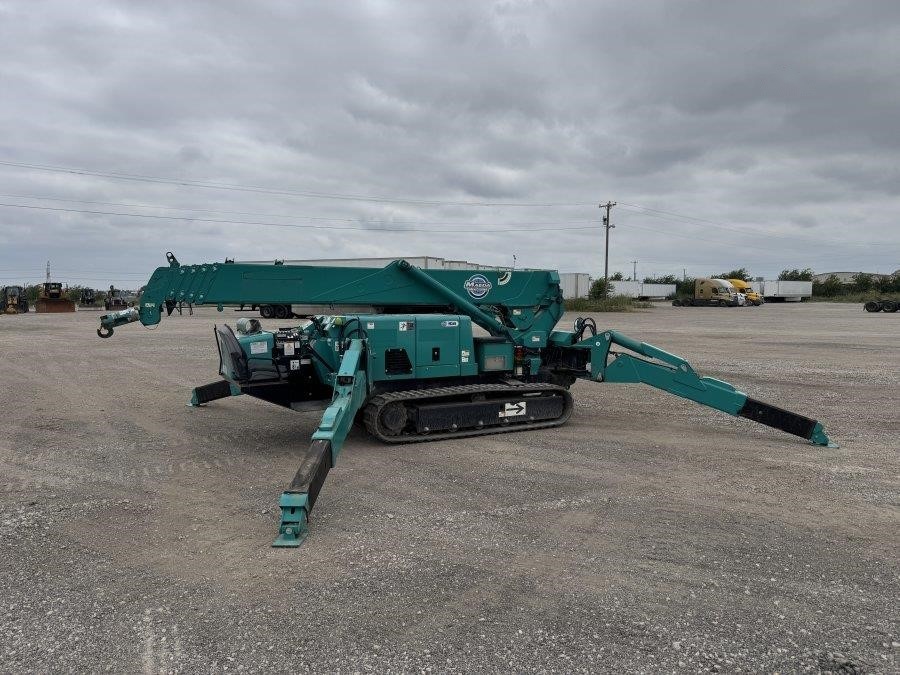

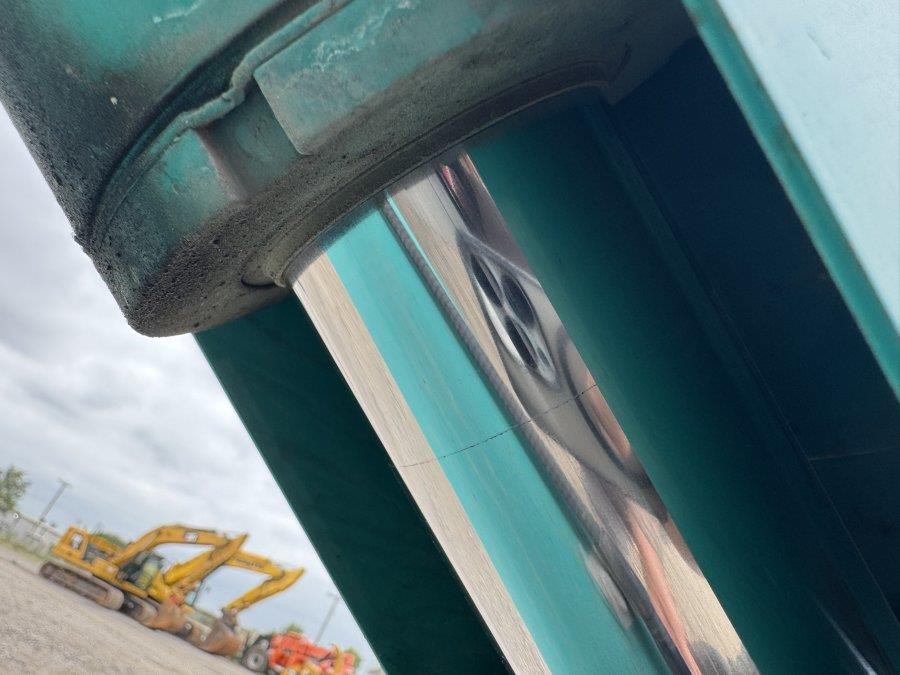

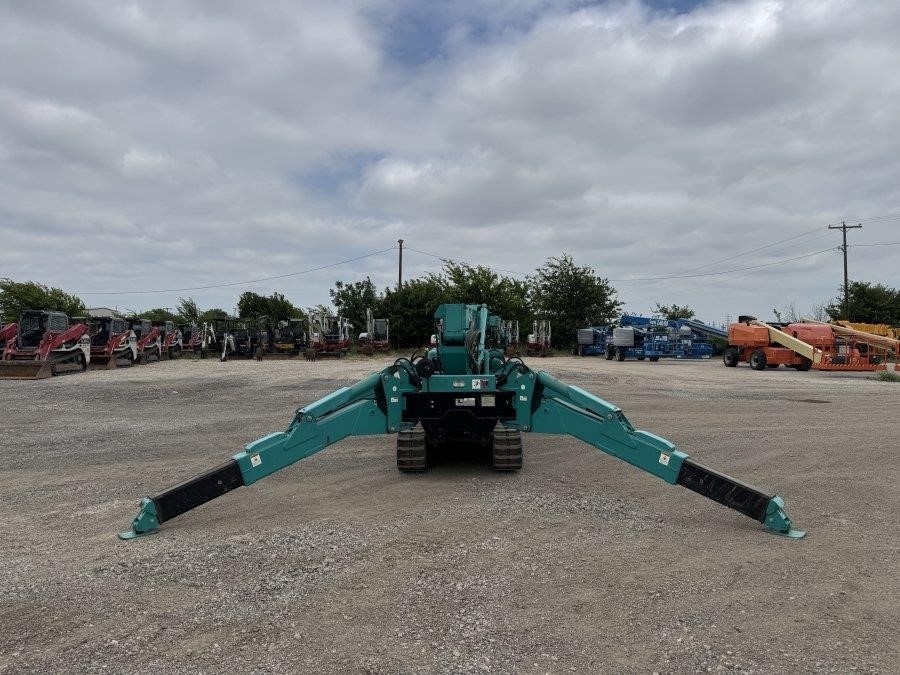

| Outrigger System, Maximum extended dimensions | (Length) 5786mm x (Front) 5118mm x (Rear) 5520mm |

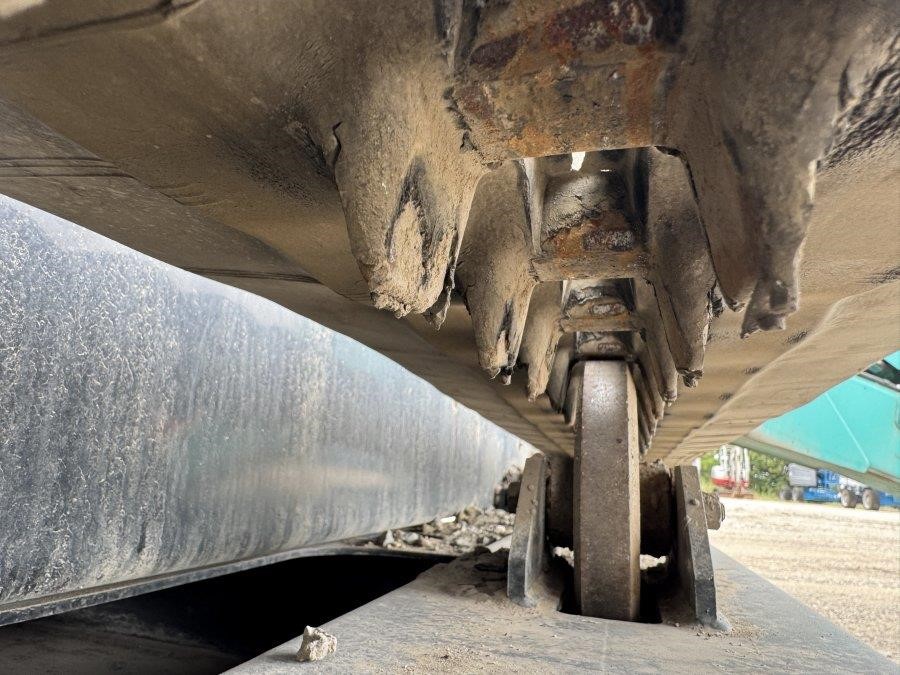

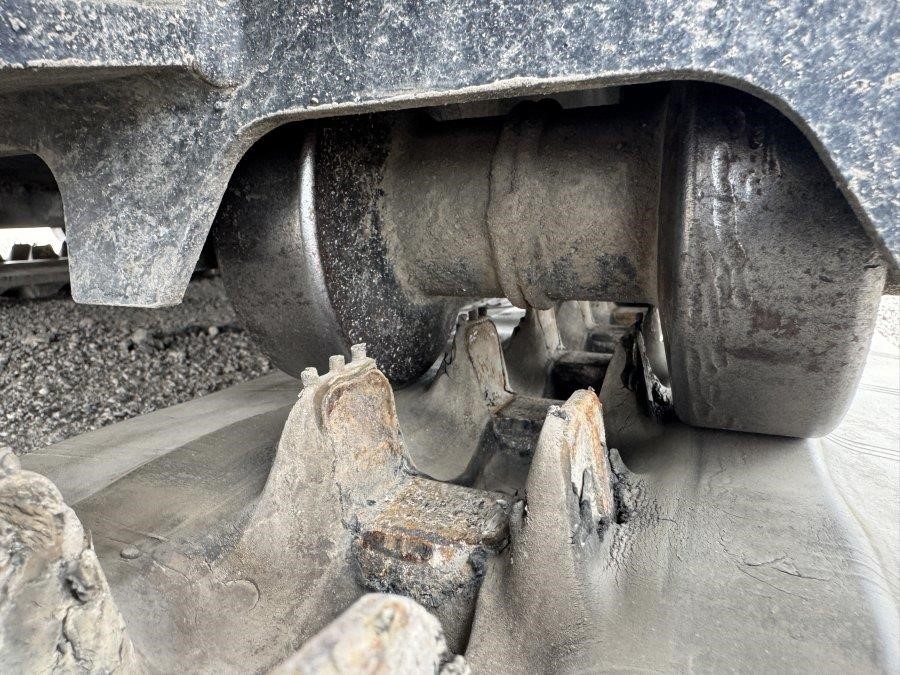

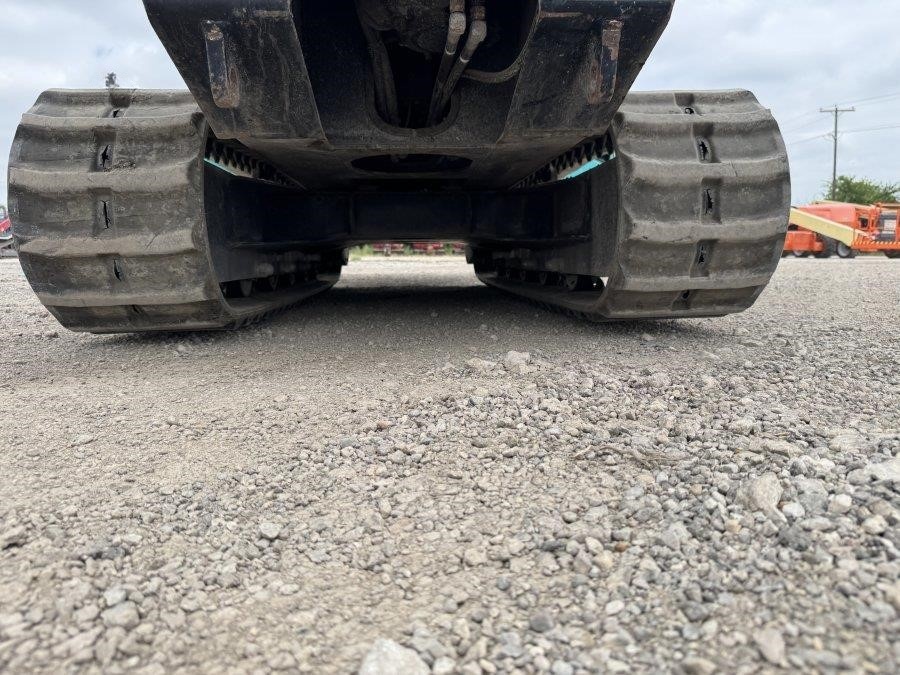

| Ground length x width | 1720mm x 320mm (Track dimensions) |
| Ground pressure | 0.50 kgf / cm² (0.52 kgf / cm² CRME) |

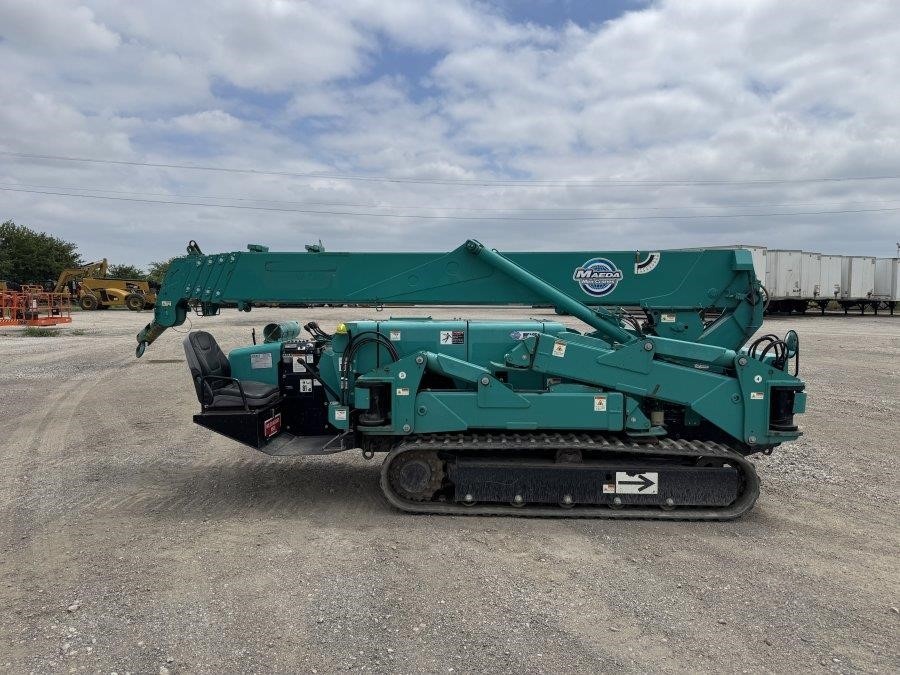

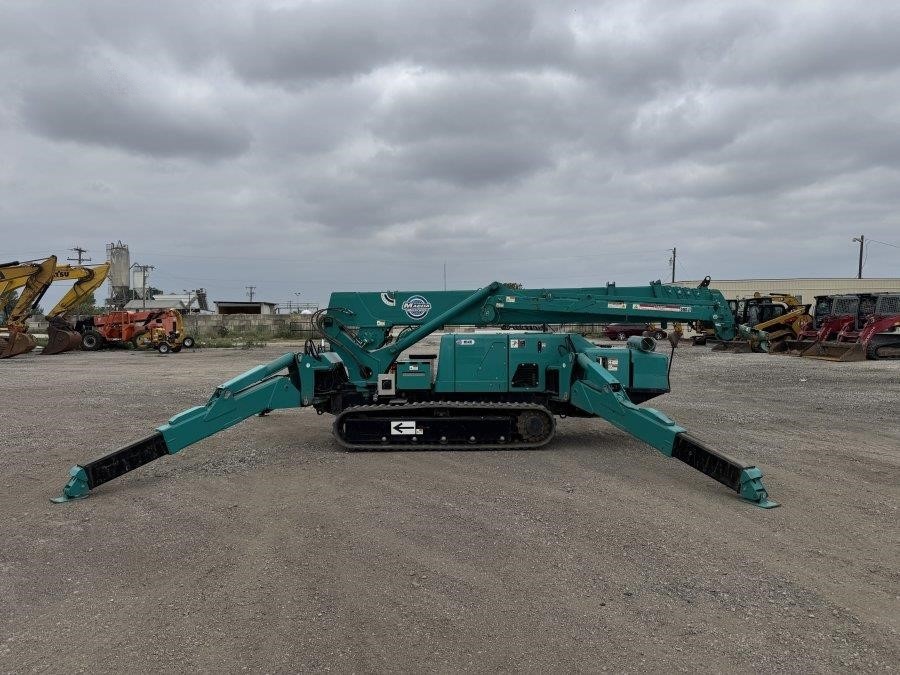

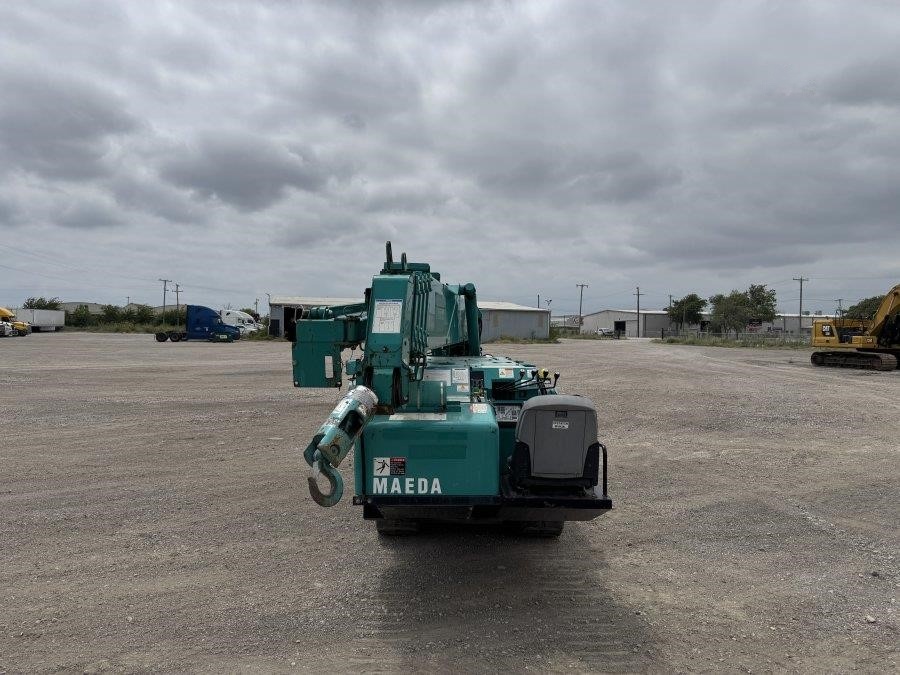

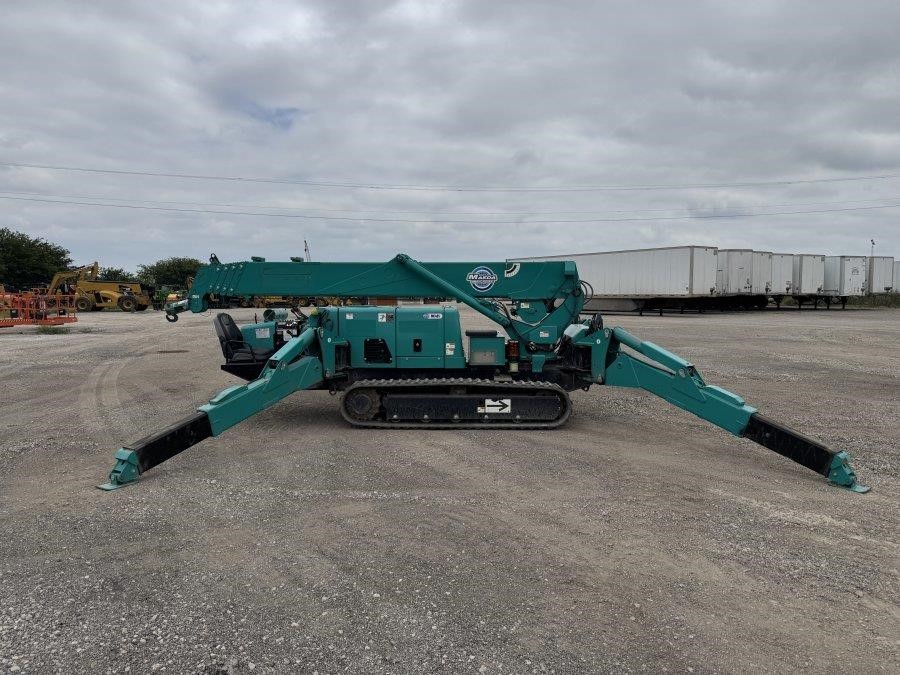

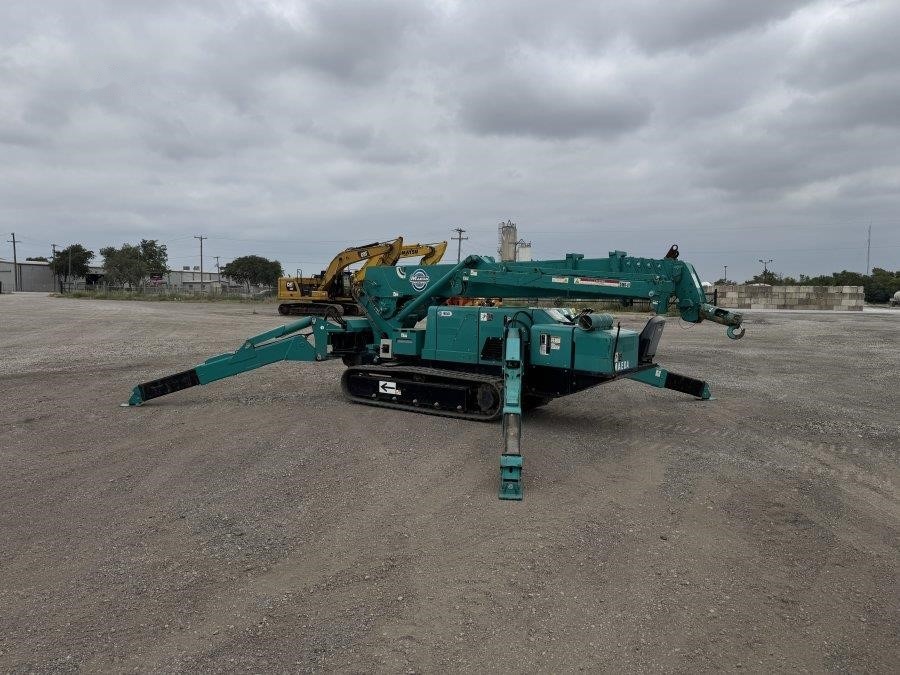

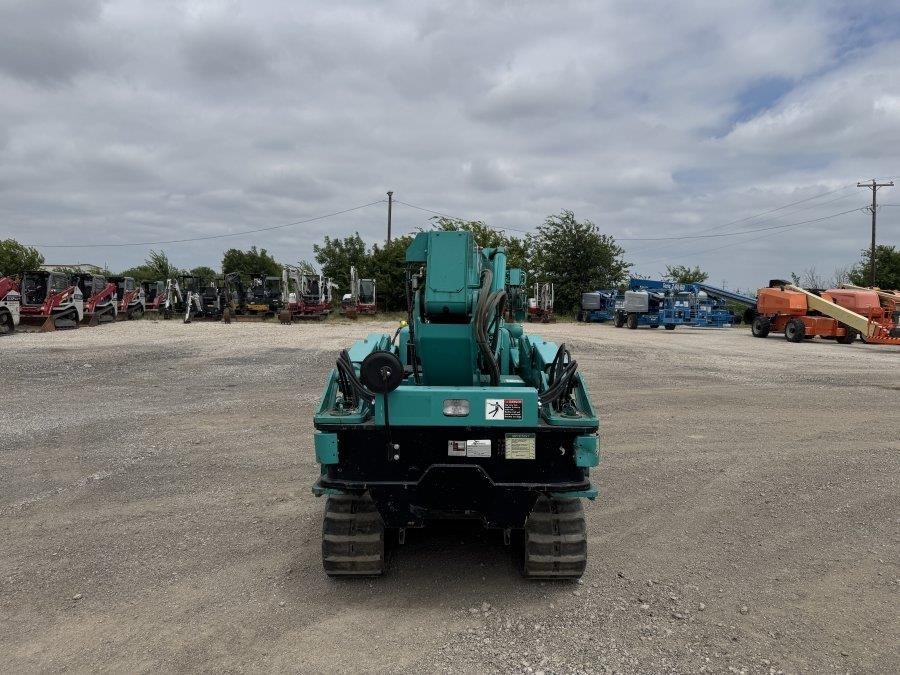

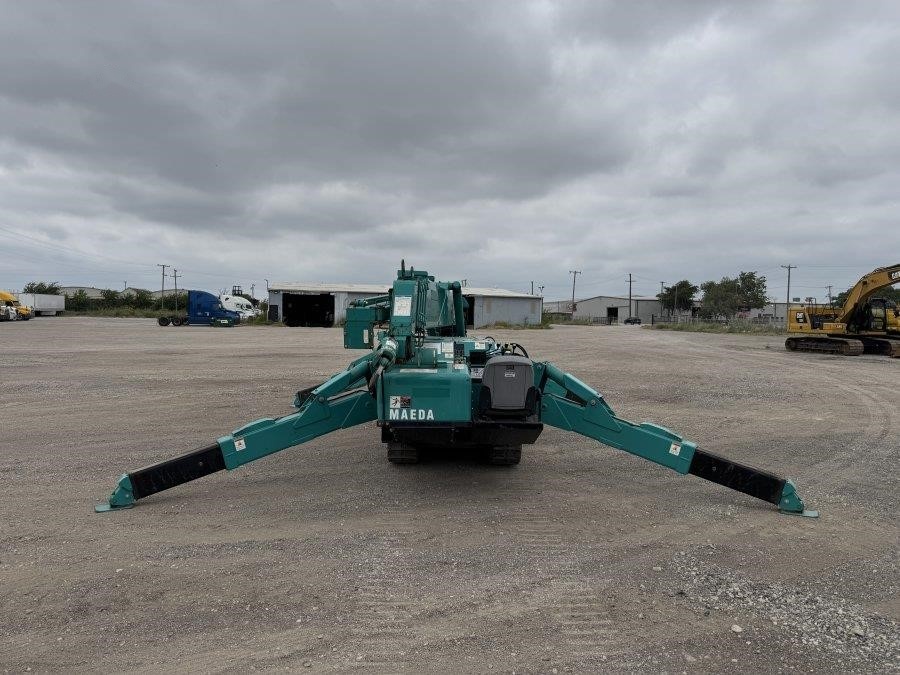

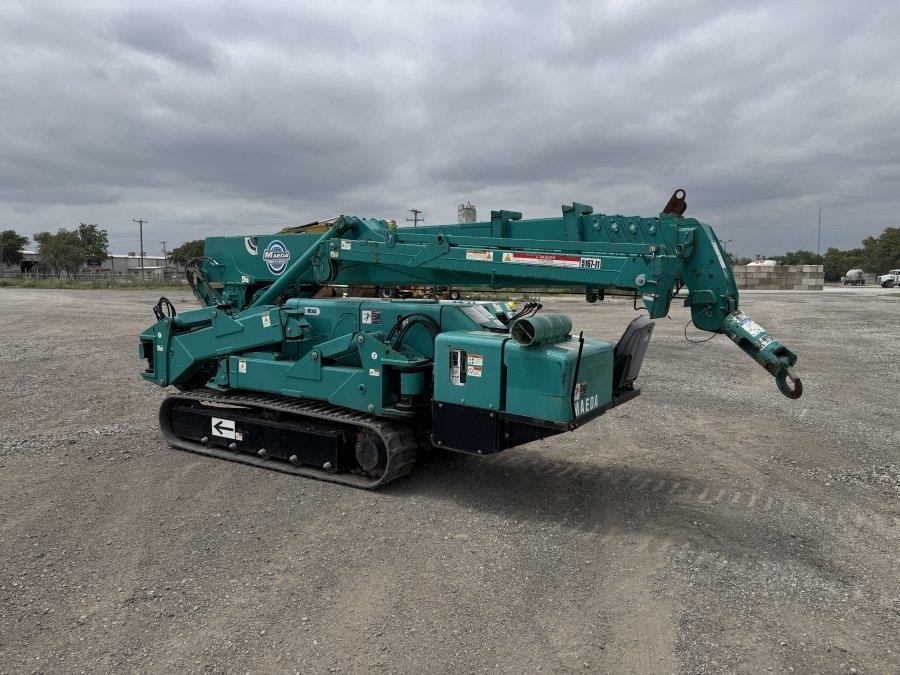

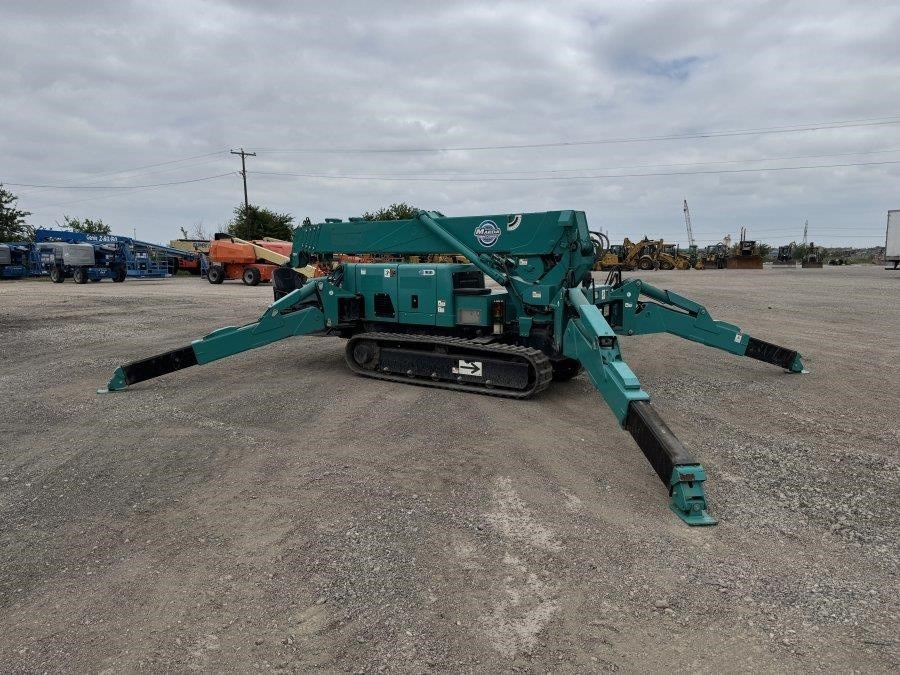

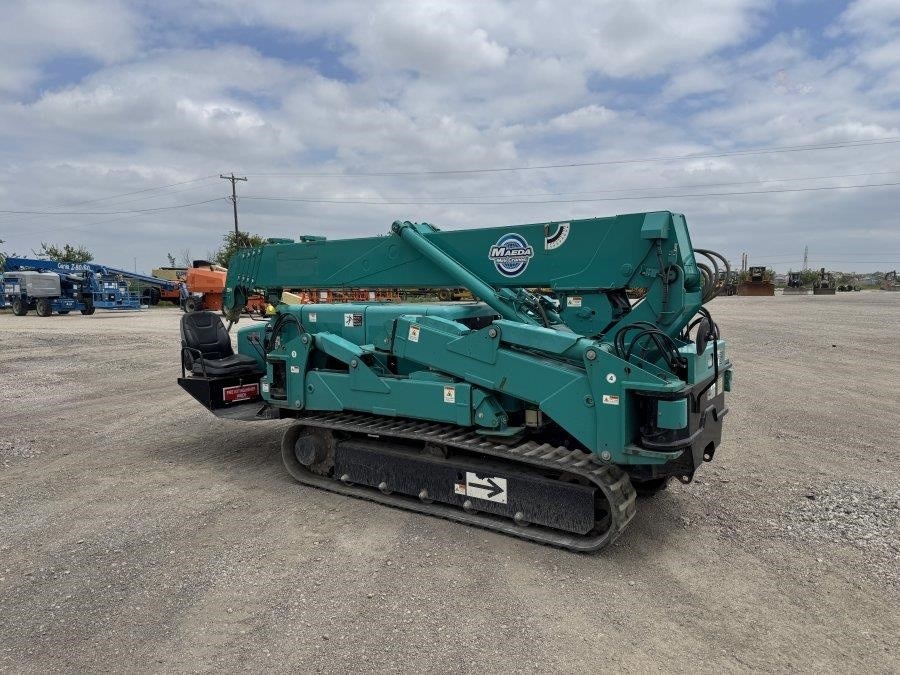

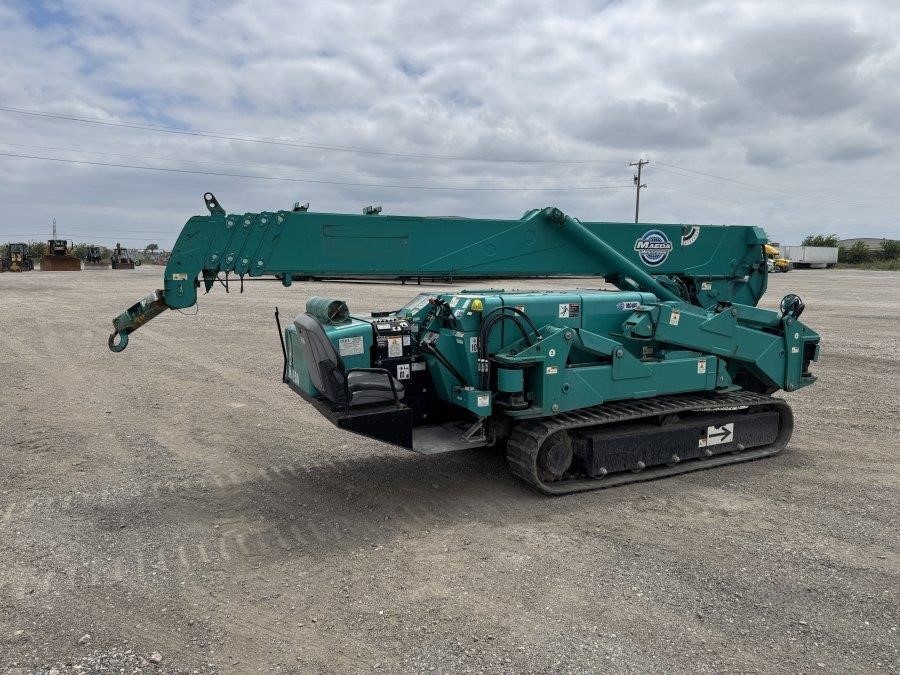

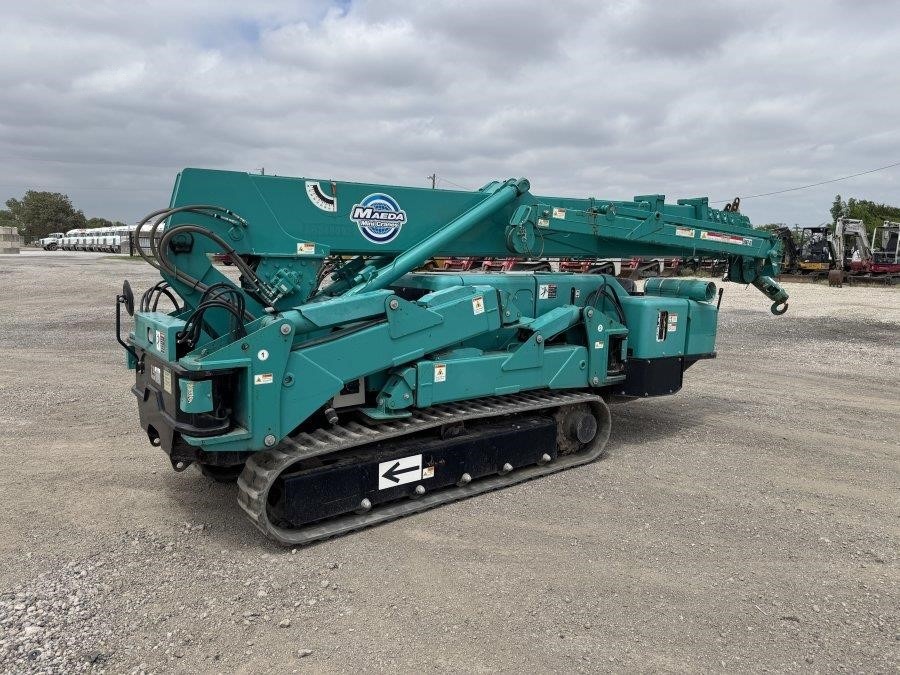

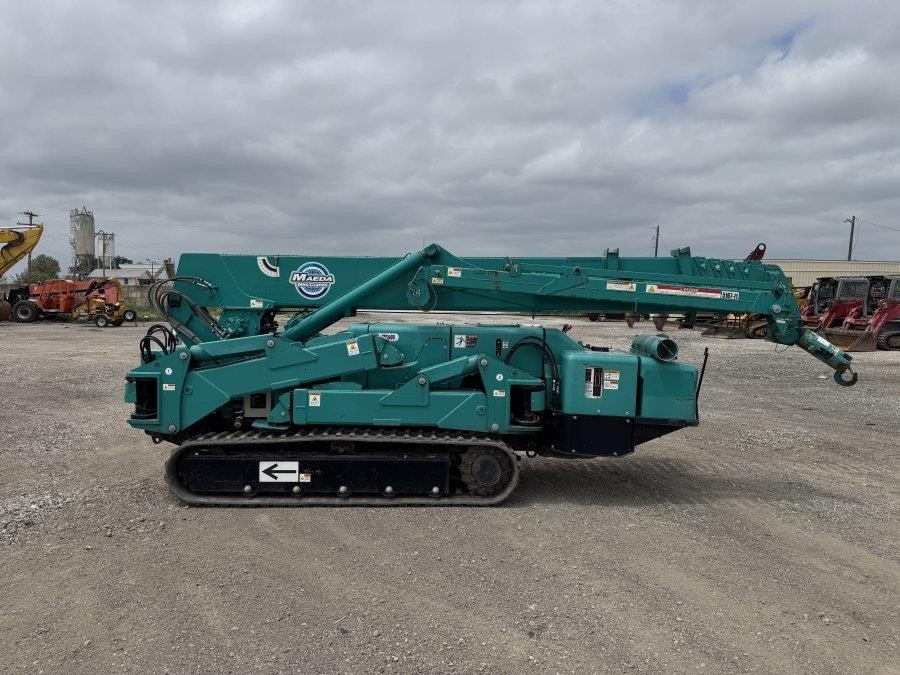

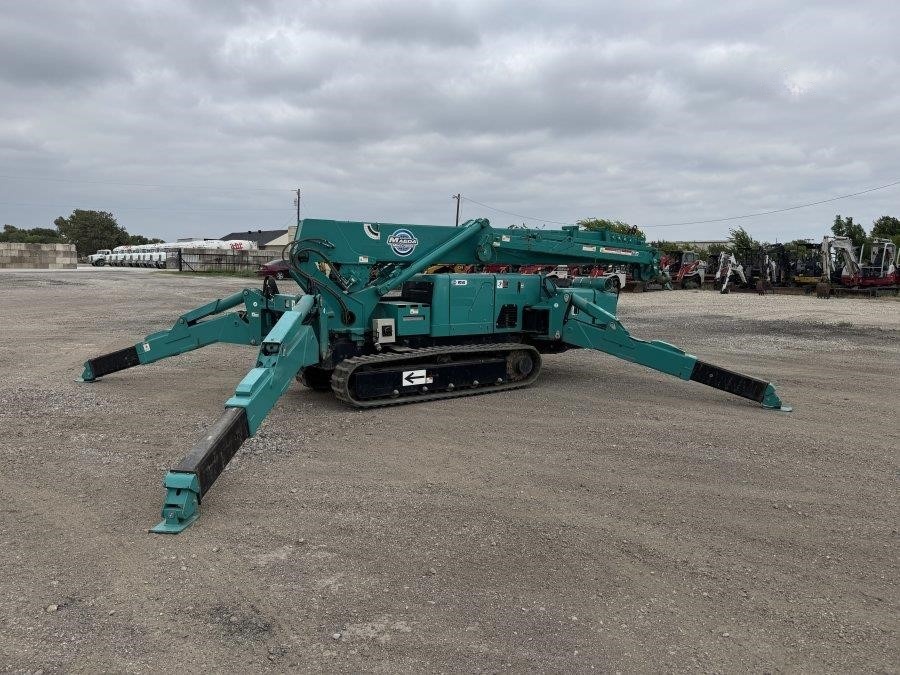

2018 Maeda MC405CRME Mini Crane
