Item Specifications
Category
Condition
Used
Item Number
#1927
Make
caterpillar
Model
308E2 CR
Year
2018
Industry
construction
Equipment Type
excavators
Location
Ft. Worth, TX
Also Available In
TX
Item Description

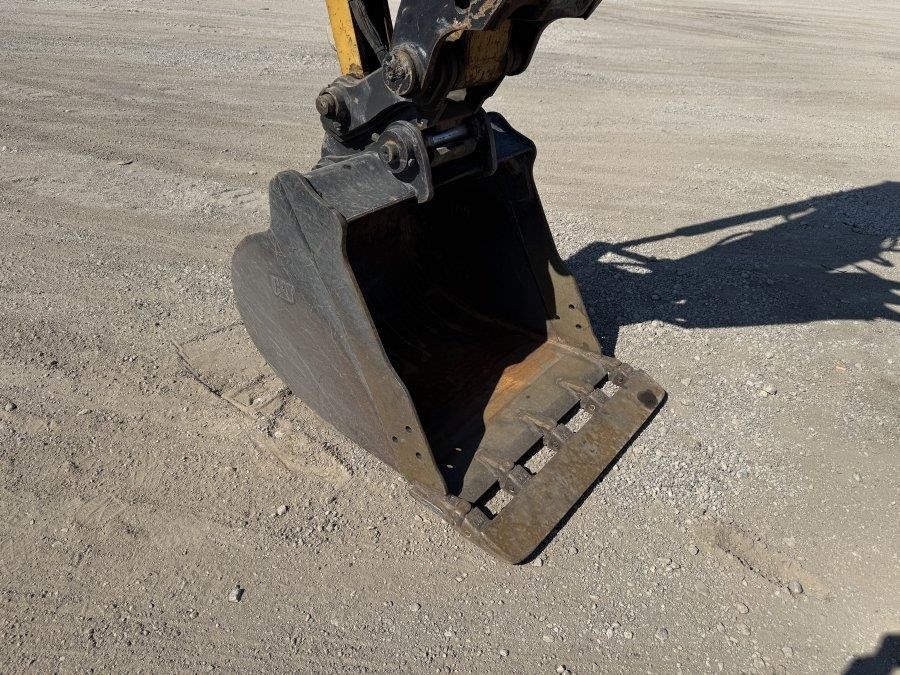

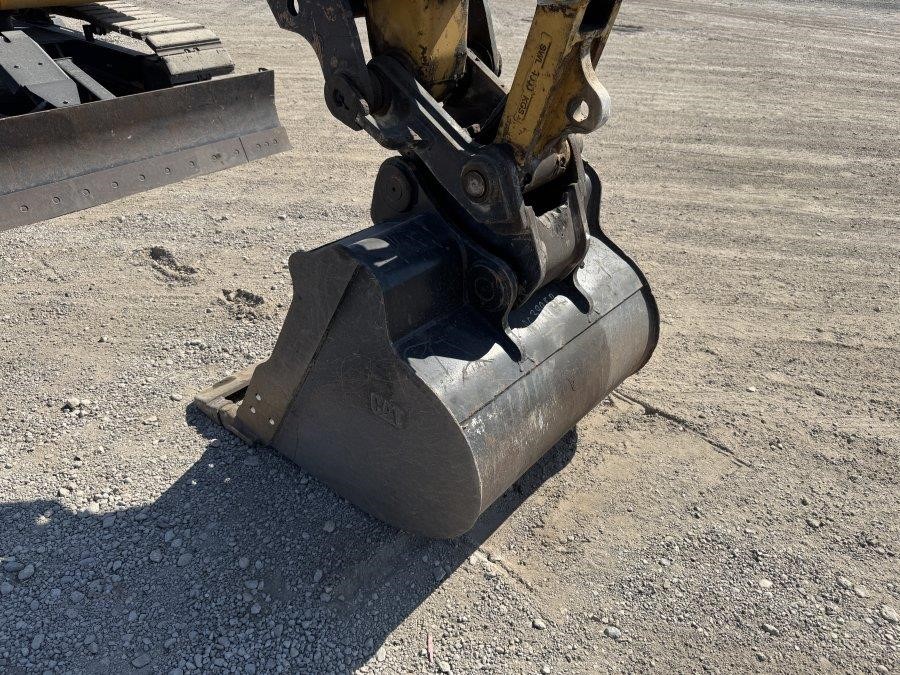

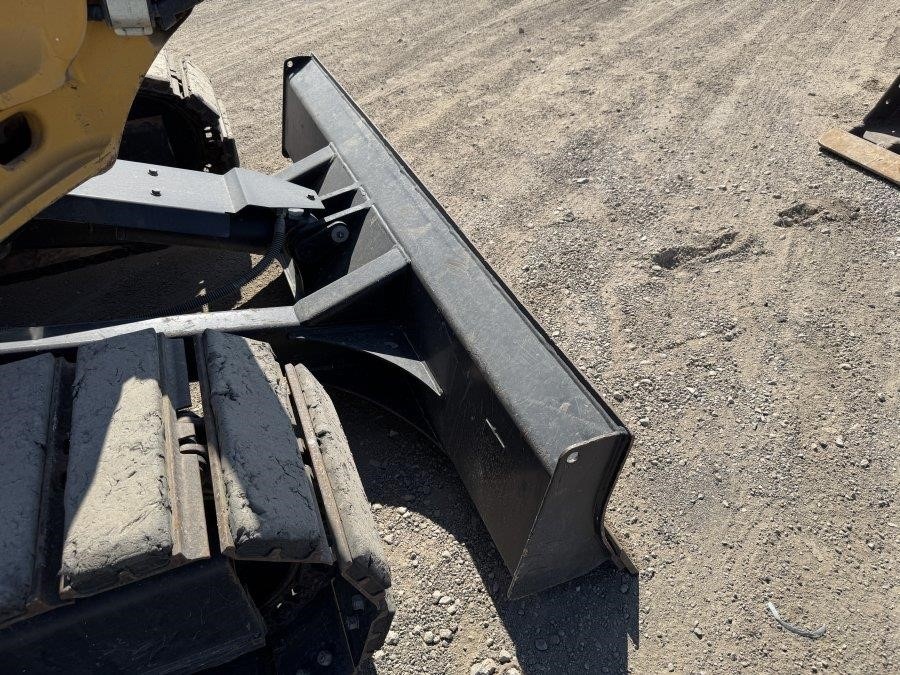

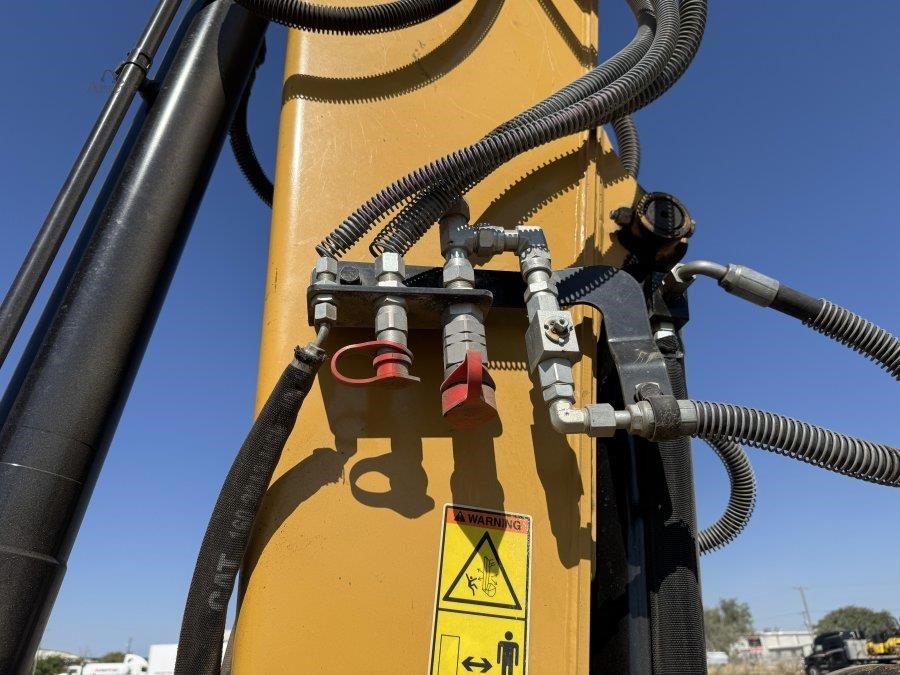

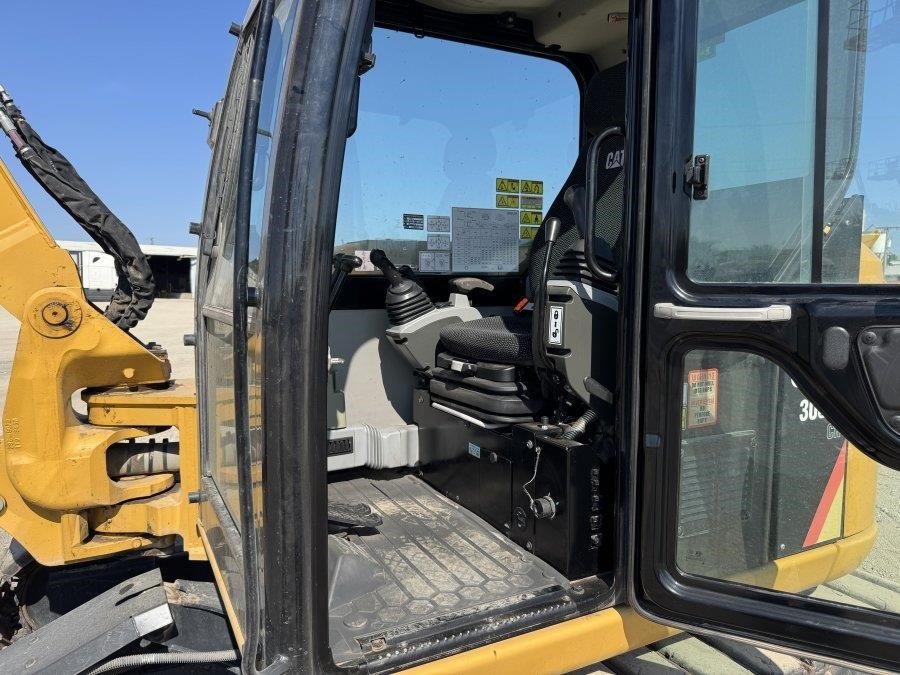

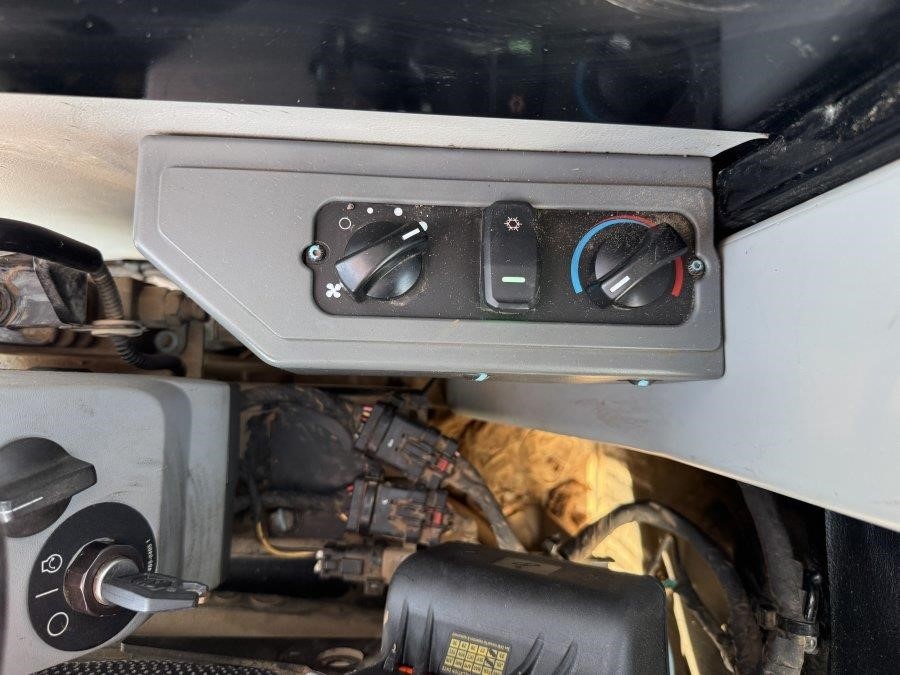

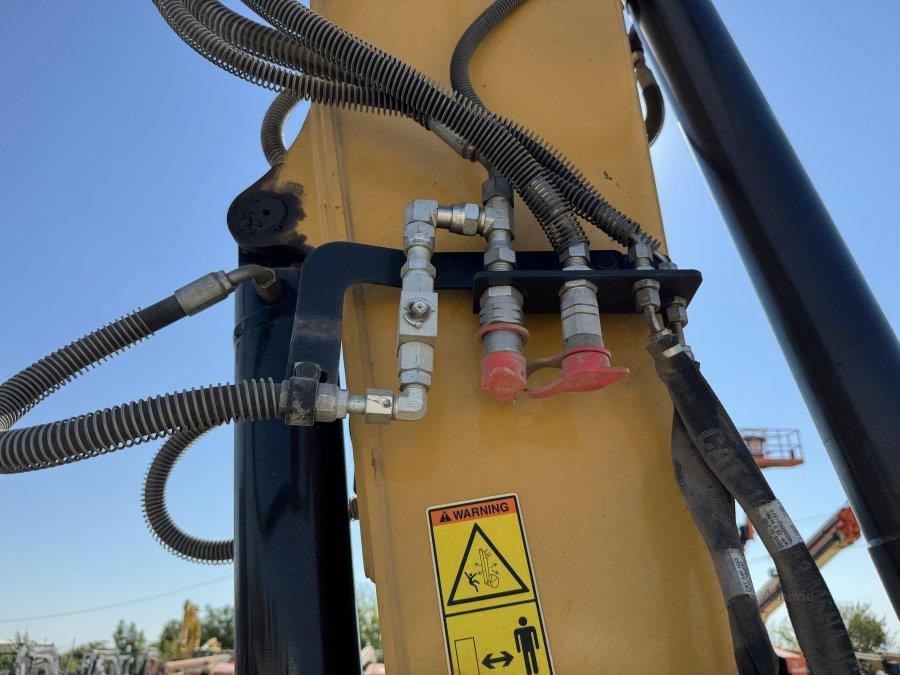

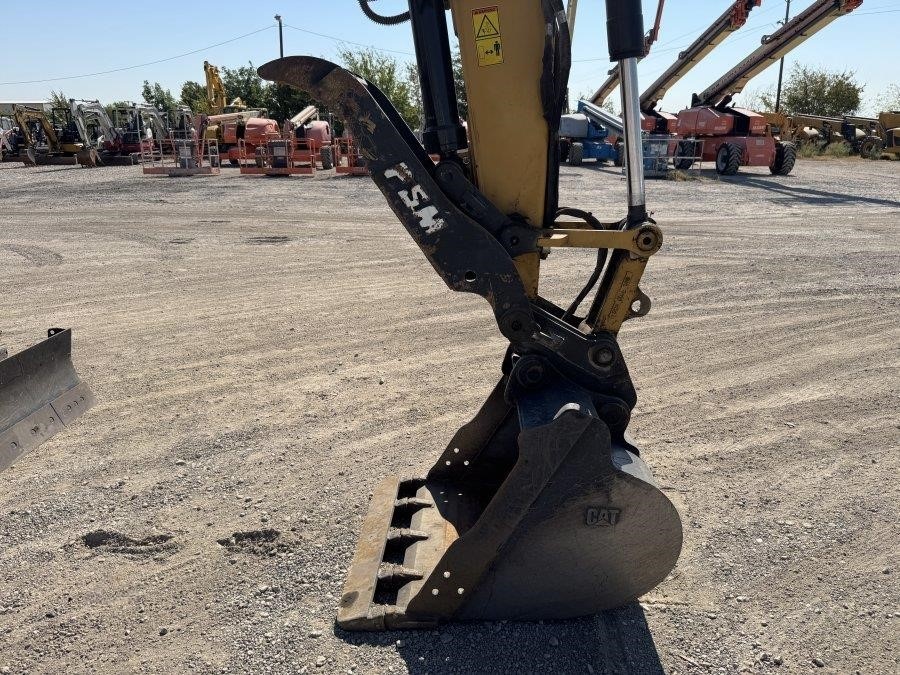

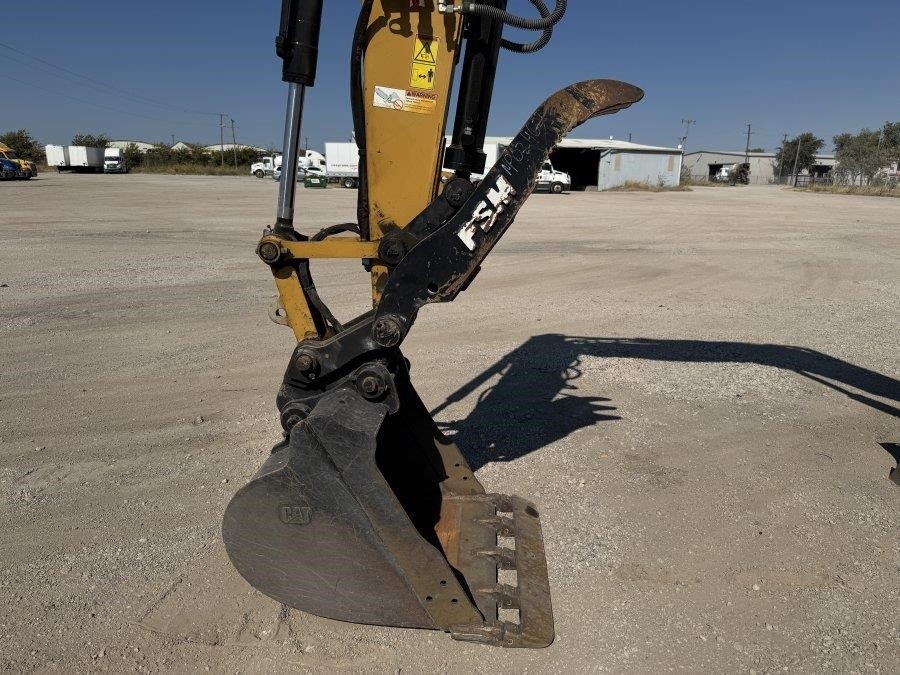

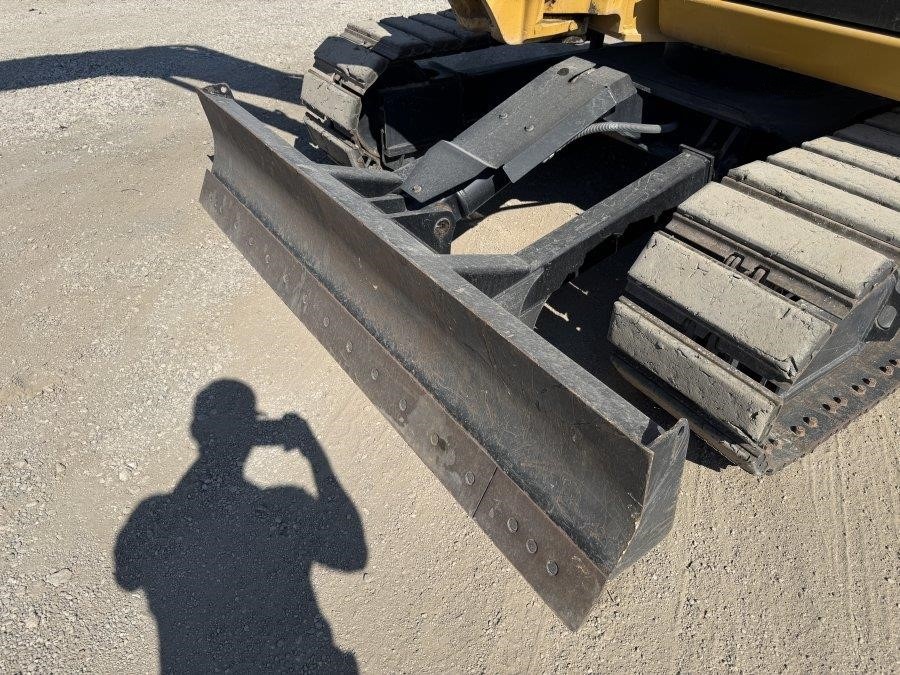

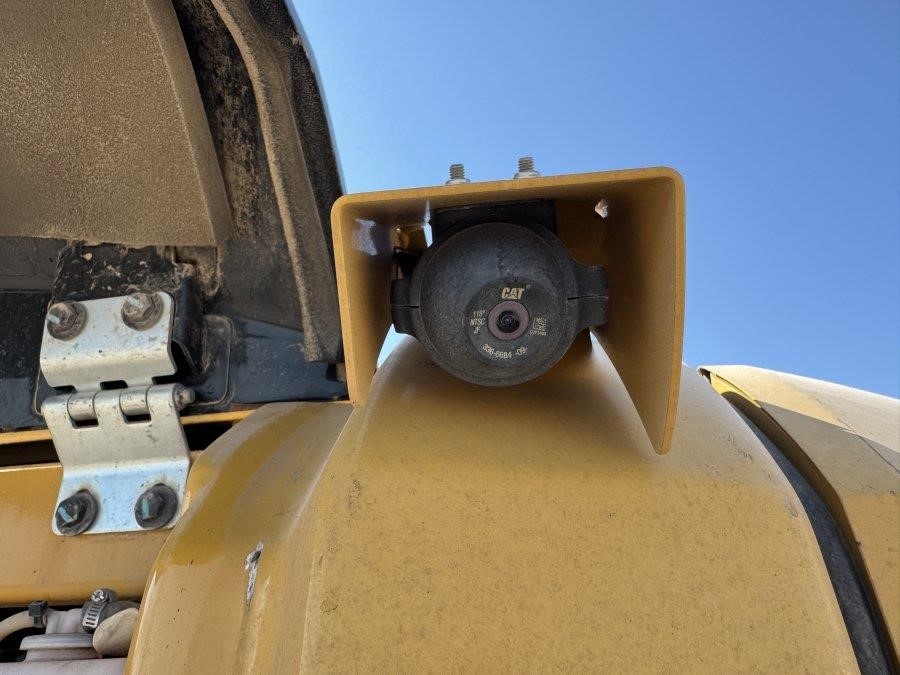

EROPS, A/C, Heat, Aux Hydraulics, Hydraulic Thumb, Hydraulic Coupler, Blade, 87" Stick, 2 Speed, Backup Camera, 36" Bucket
Specifications
General
| Year | 2018 |
| Make | caterpillar |
| Model | 308E2 CR |

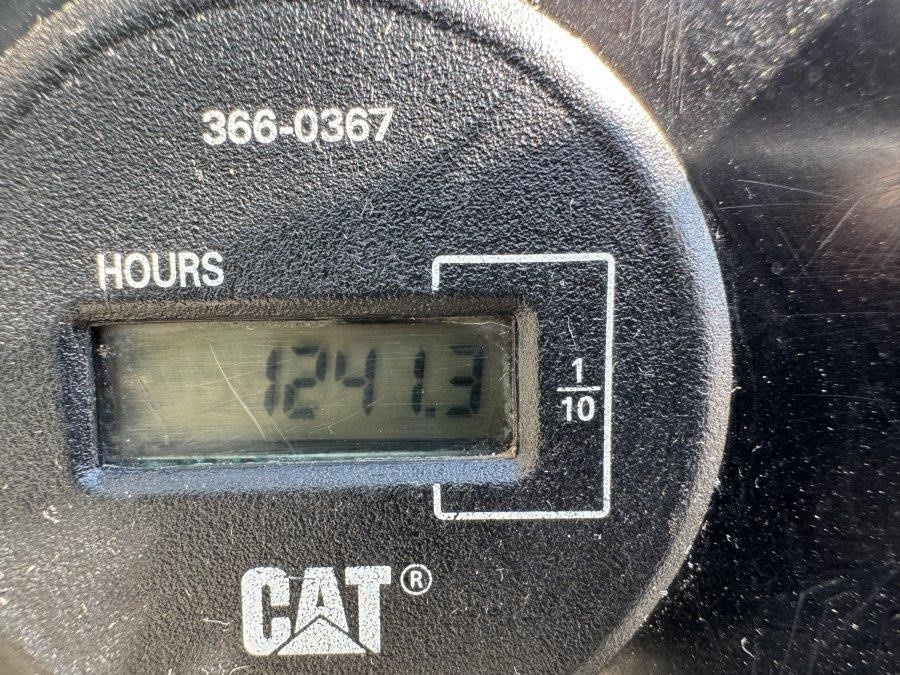

| Hours | 1241 |
| Condition | Used |
| Rated Net Power @ 2,400 rpm ISO 9249/EEC 80/1269 | 48.5 kW 65 hp |
| Gross Power ISO 14396 | 49.7 kW 66.6 hp |
| Bore | 94 mm 3.7 in |
| Stroke | 120 mm 4.7 in |
| Auxiliary Circuit – Primary (186 bar/2,734 psi) | 128 L/min 33.8 gal/min |
| Auxiliary Circuit – Secondary (174 bar/2,524 psi) | 64 L/min 16.9 gal/min |
| Machine Overhang | 279.4 mm 11 in |

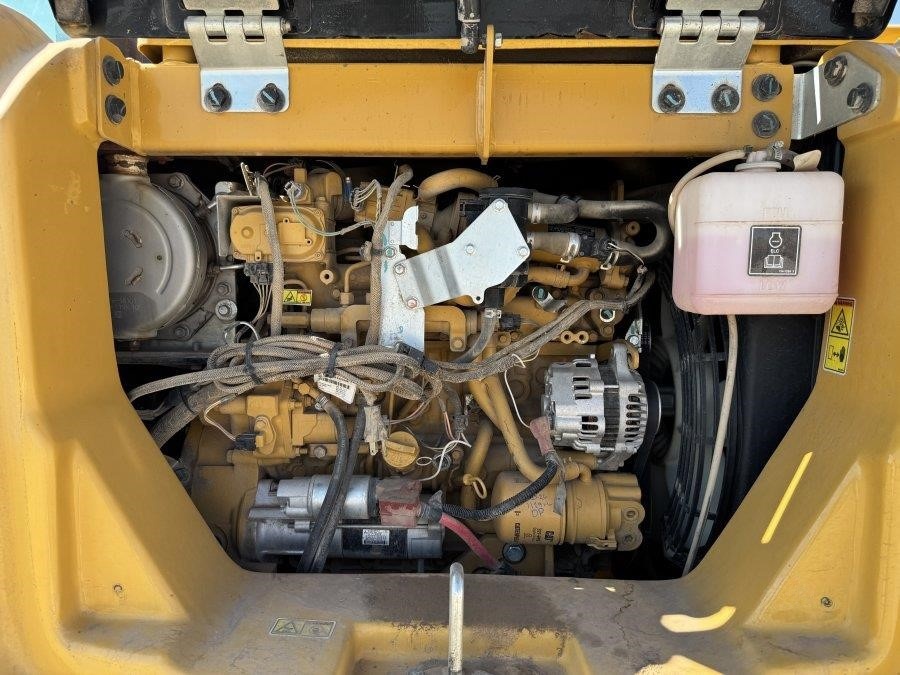

Engine & Powertrain
| Engine Model | Cat C3.3B* |
| Displacement | 3.33 L 203.2 in3 |
| Fuel Tank (refill capacity) | 125 L 33 gal |
| Cooling System (refill capacity) | 14 L 3.7 gal |
| Engine Oil (refill capacity) | 11.2 L 3.0 gal |
Working Range
| Machine Swing Speed | 11 rpm |
| Travel Speed High | 5.1 km/h 3.17 mph |
| Travel Speed Low | 2.8 km/h 1.74 mph |
| Maximum Traction Force High Speed | 37.4 kN 8,408 lbf |
| Maximum Traction Force Low Speed | 64.5 kN 14,500 lbf |
| Gradeability (maximum) | 30° |
| Hydraulic Tank (refill capacity) | 82 L 21.7 gal |
| Hydraulic System (refill capacity) | 94 L 24.8 gal |
| Pump Flow at 2,000 rpm | 150 L/min 39.6 gal/min |
| Operating Pressure – Equipment | 28 000 kPa 4,061 psi |
| Operating Pressure – Travel | 28 000 kPa 4,061 psi |
| Operating Pressure – Swing | 24 000 kPa 3,481 psi |
| Digging Force – Stick (standard) | 40.1 kN 9,015 lbf |
| Digging Force – Stick (long) | 35.1 kN 7,891 lbf |
| Digging Force – Bucket | 60.2 kN 13,534 lbf |
| Dynamic Operator Sound Pressure | 70 dB(A) ISO 6396 |
| Average Exterior Sound Pressure | 99 dB(A) ISO 6395 – Dynamic Test |

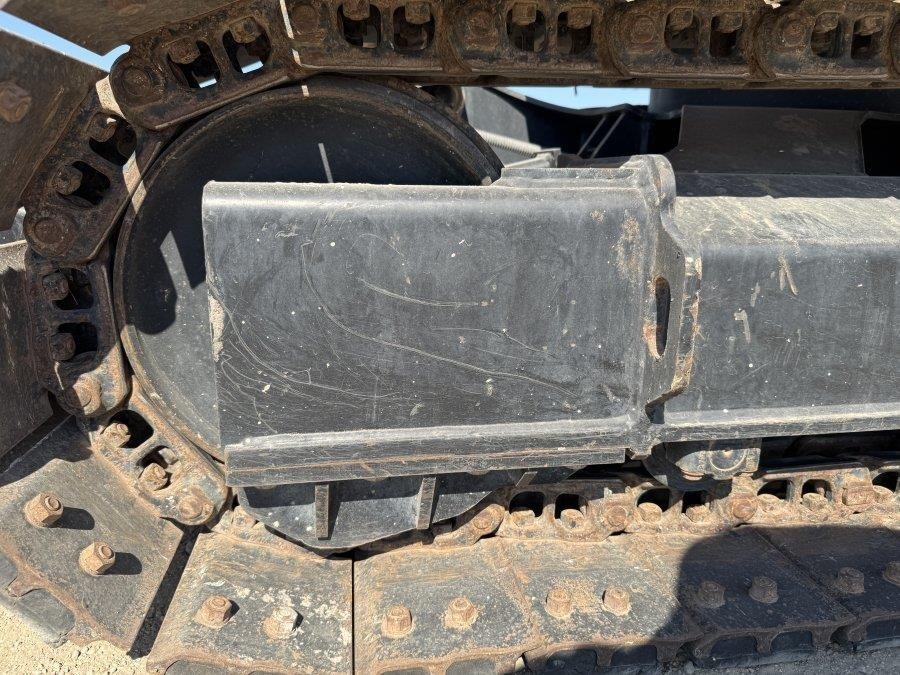

Undercarriage & Attachments
| Boom Swing – Left | 60° |
| Boom Swing – Right | 50° |
| Blade Dig Depth | 360 mm 14.2 in |
| 1 Dig Depth (Standard Stick) | 4150 mm 13'7" |
| 2 Vertical Wall (Standard Stick) | 2980 mm 9'9" |
| 3 Maximum Reach at Ground Level (Standard Stick) | 6820 mm 22'9" |
| 4 Maximum Reach (Standard Stick) | 7020 mm 23'0" |
| 7 Linkage In Minimum Radius (Standard Stick) | 2800 mm 9'2" |
| 10 Maximum Blade Depth (Standard Stick) | 320 mm 1'1" |
| 16 Boom Swing Right (Standard Stick) | 1010 mm 3'4" |
| 17 Boom Swing Left (Standard Stick) | 635 mm 2'1" |
Dimensions
| Operating Weight with Cab | 8400 kg 18,519 lb |
| Ground Pressure | 36.3 kPa 5.26 psi |
| Blade Width | 2320 mm 91.3 in |
| Blade Height | 450 mm 17.7 in |
| Blade Lift Height | 380 mm 15.0 in |
| Stick Length – Standard | 1670 mm 5 ft 6 in |
| Stick Length – Long | 2210 mm 7 ft 3 in |
| Machine Overhang with Counterweight | 406 mm 16 in |
| Counterweight | 251 kg 551 lb |
| 5 Maximum Dig Height (Standard Stick) | 6640 mm 21'9" |
| 6 Maximum Dump Clearance (Standard Stick) | 4670 mm 15'4" |
| 8 Tail Swing Standard Counterweight (Standard Stick) | 1450 mm 4'9" |
| 9 Maximum Blade Height (Standard Stick) | 420 mm 1'5" |
| 11 Boom Height in Shipping Position (Standard Stick) | 2280 mm 7'6" |
| 12 O/A Shipping Height (Standard Stick) | 2550 mm 8'4" |
| 13 Swing Bearing Height (Standard Stick) | 735 mm 2'5" |
| 14 O/A Undercarriage Length (Standard Stick) | 2903 mm 9'6" |
| 15 O/A Shipping Length (Standard Stick) | 6380 mm 20'11" |
| 18 Track Belt/Shoe Width (Standard Stick) | 450 mm 1'6" |
| 19 O/A Track Width (Standard Stick) | 2320 mm 7'7" |

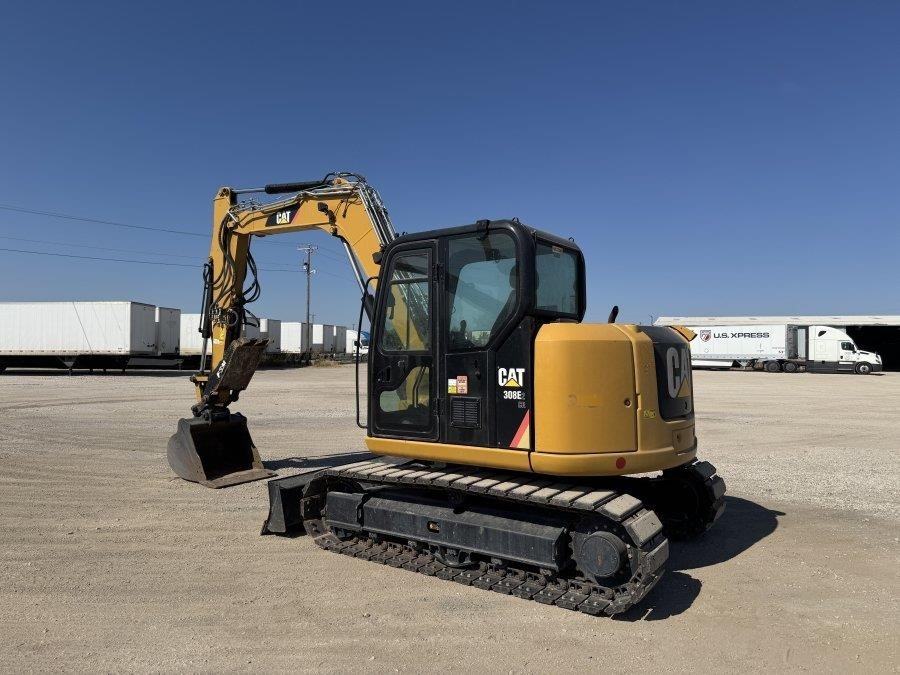

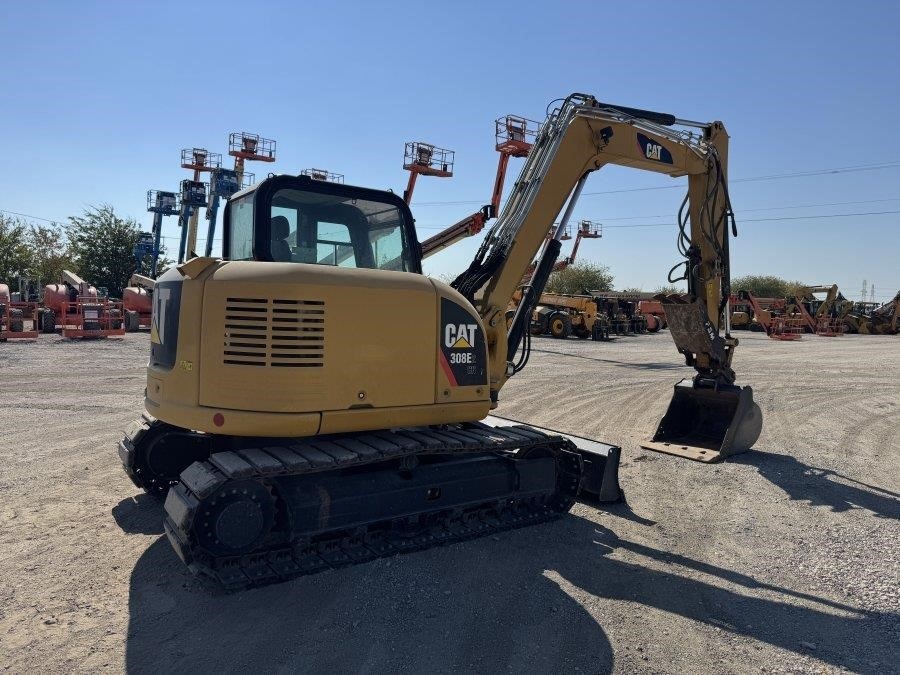

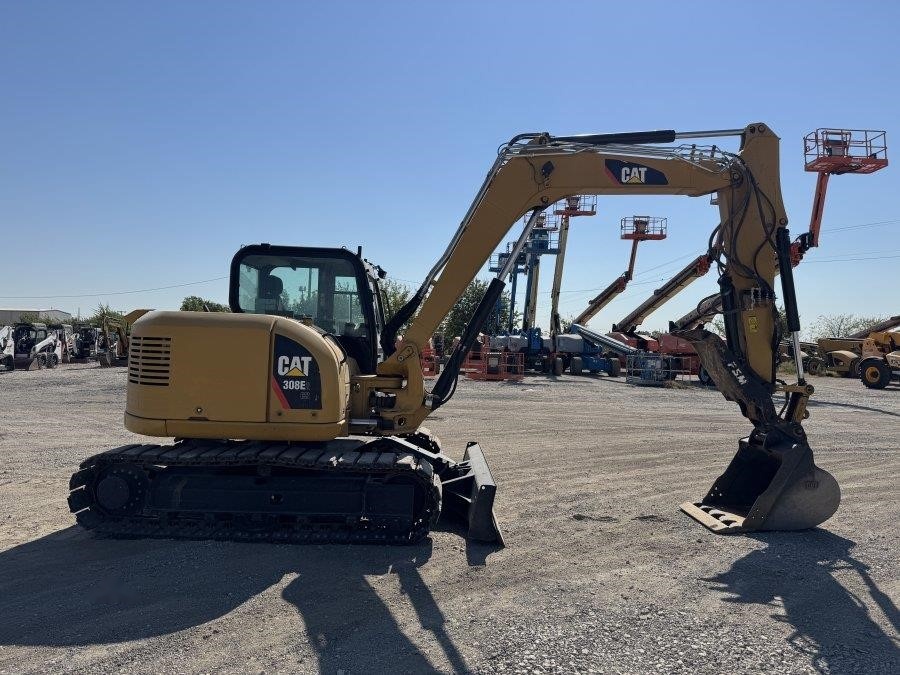

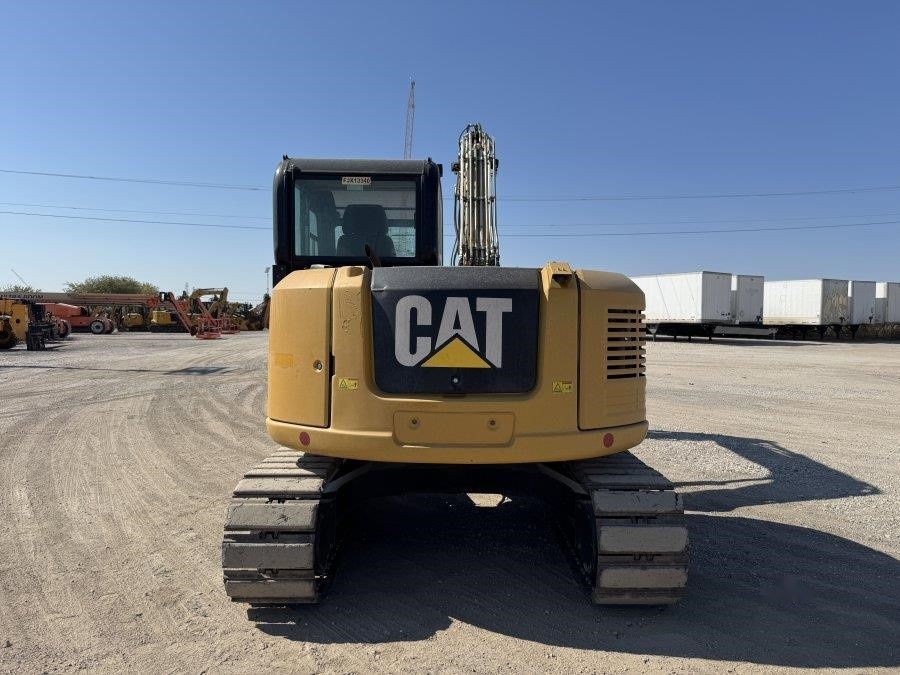

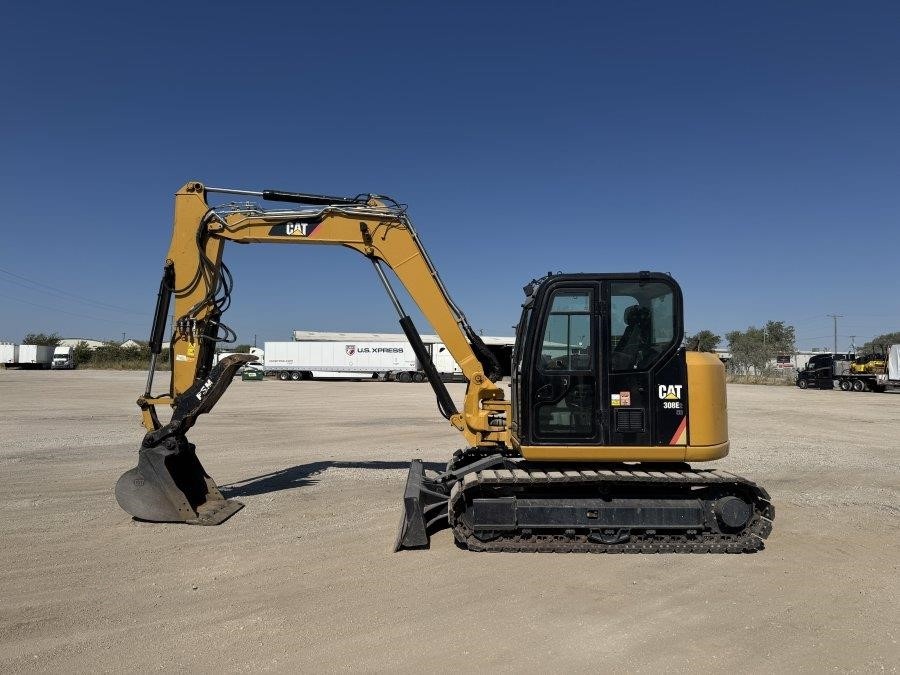

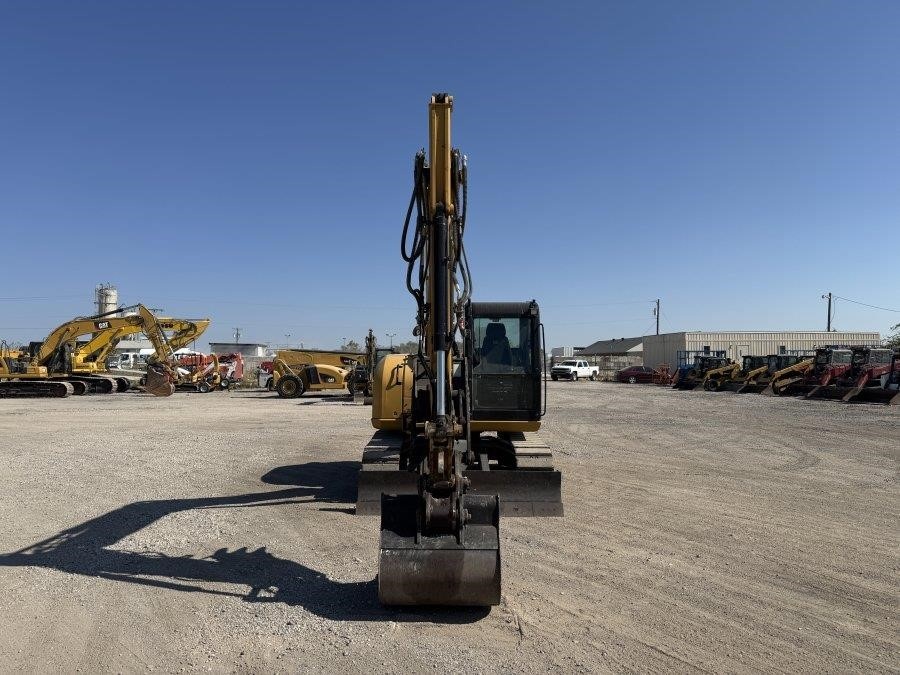

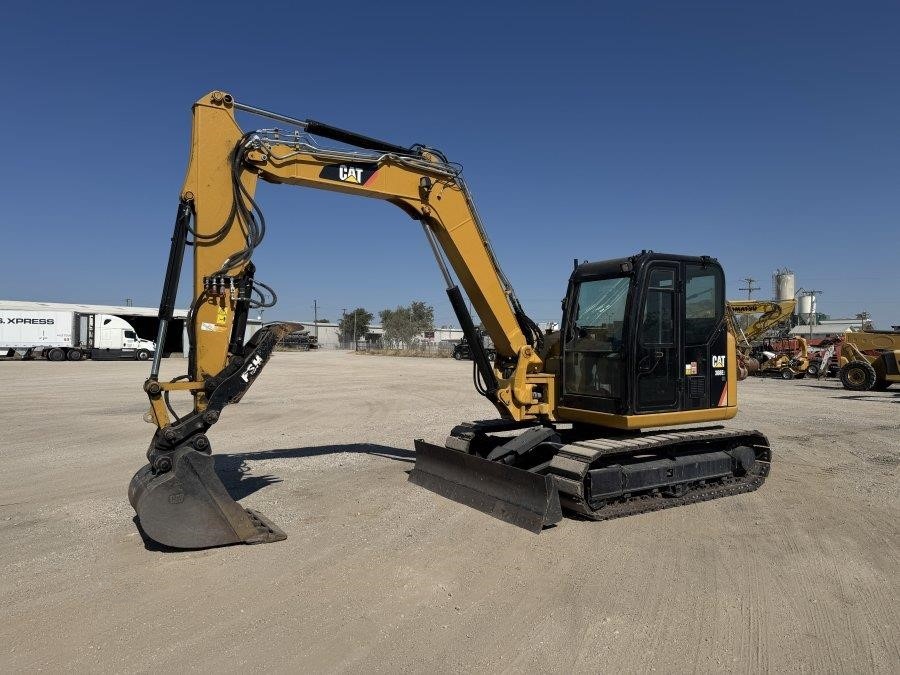

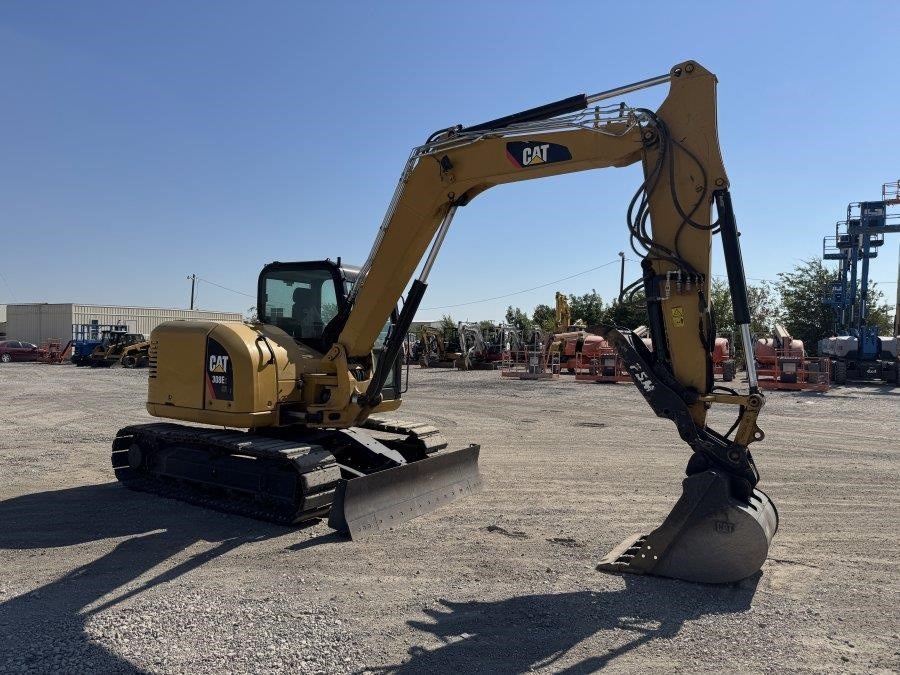

2018 Caterpillar 308E2 CR Hydraulic Excavator
