Item Specifications
Category
Condition
Used
Item Number
#1919
Make
genie
Model
Z60-37FE
Year
2017
Industry
aerial
Equipment Type
aerial lifts articulating boom
Location
Ft. Worth, TX
Also Available In
TX
Item Description

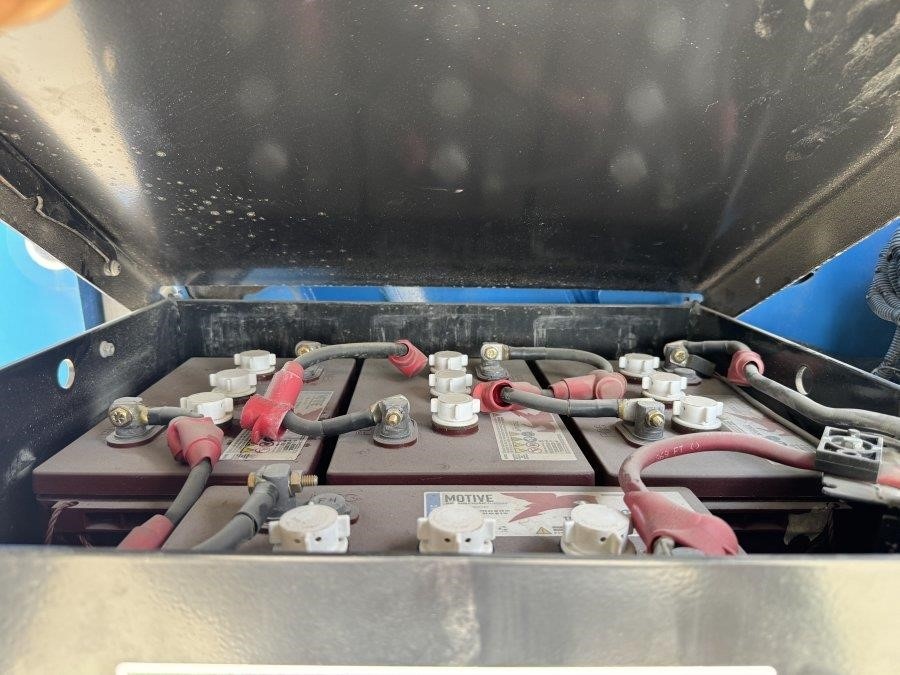

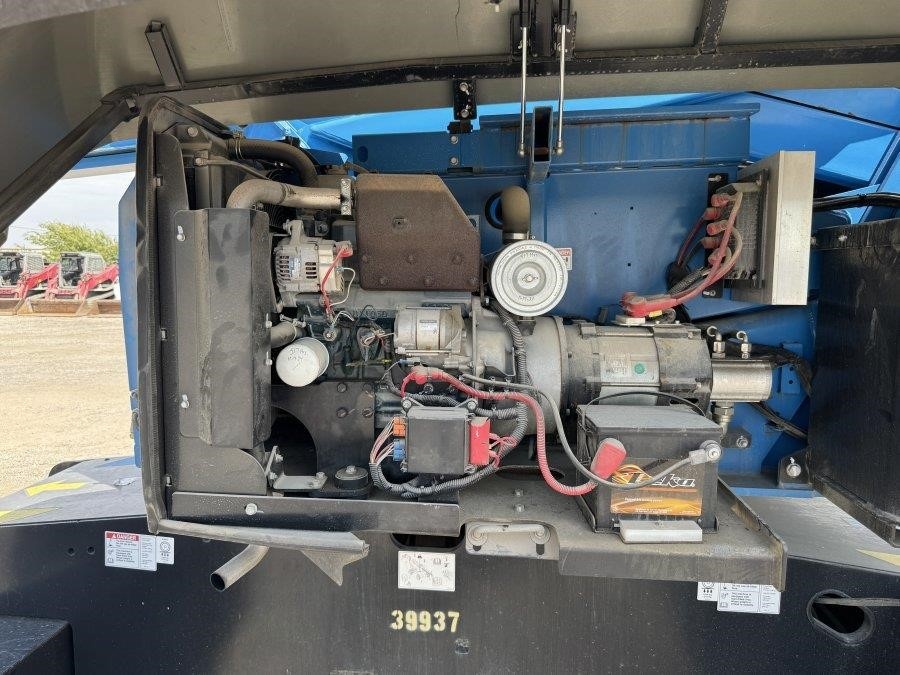

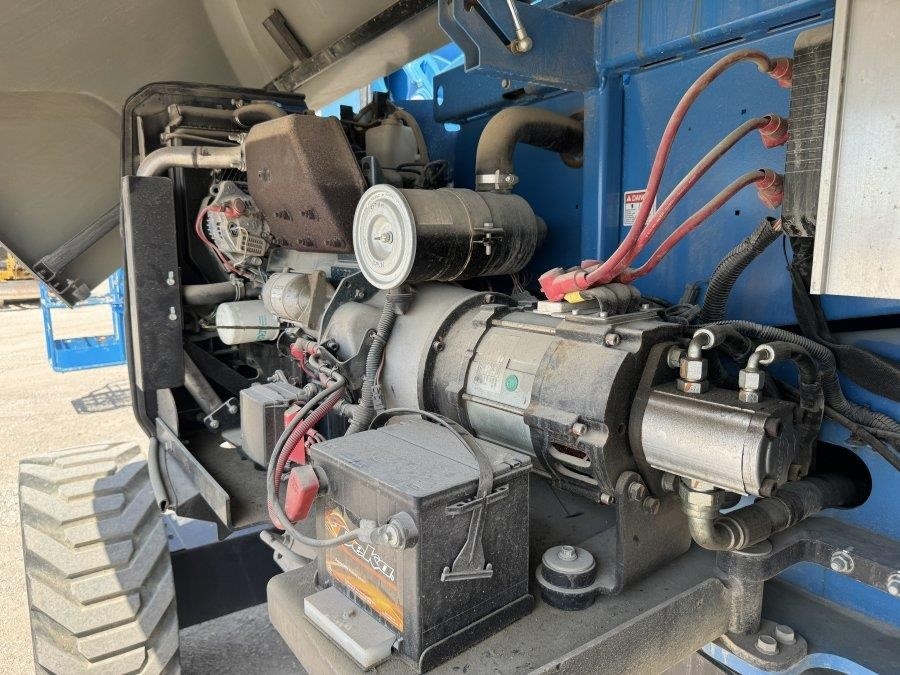

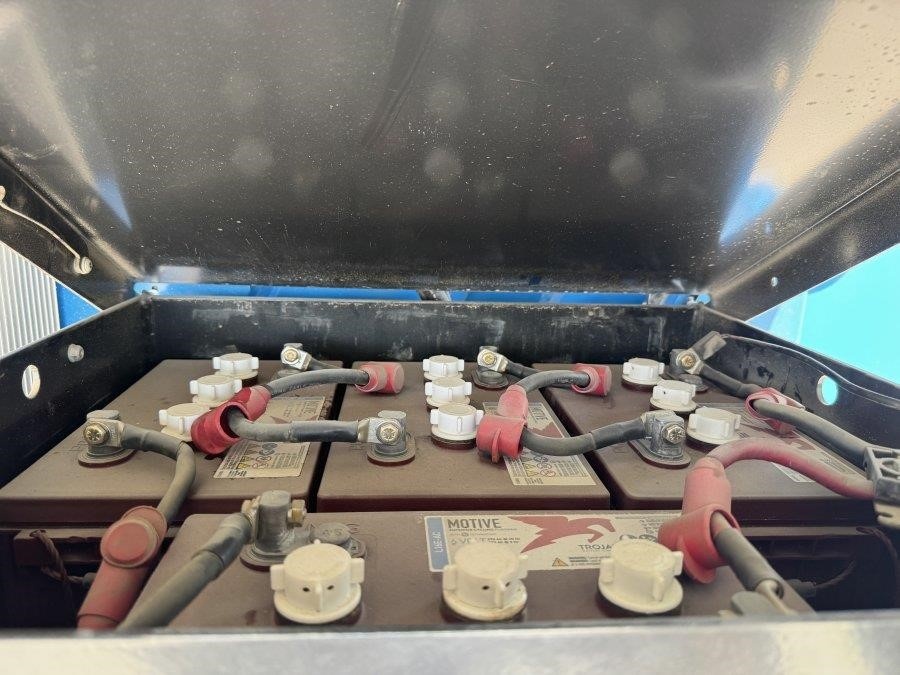

60' Platform Height, JIB, 4WD, Diesel/Electric Powered, Foam Filled Tires
Specifications
General
| Year | 2017 |
| Make | genie |
| Model | Z60-37FE |

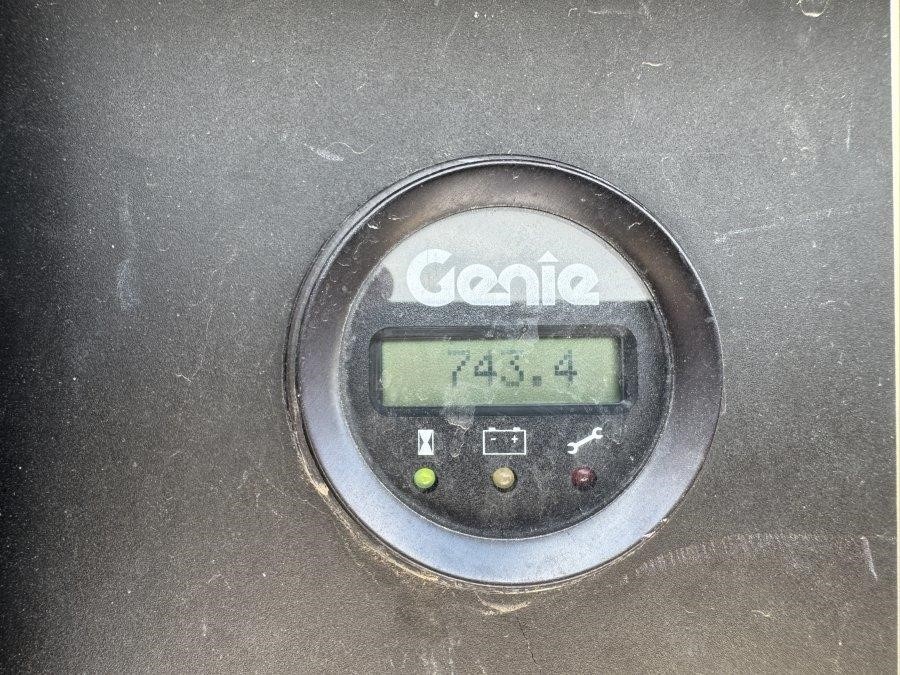

| Hours | 743 |
| Condition | Used |
| Vertical jib rotation | 135° |

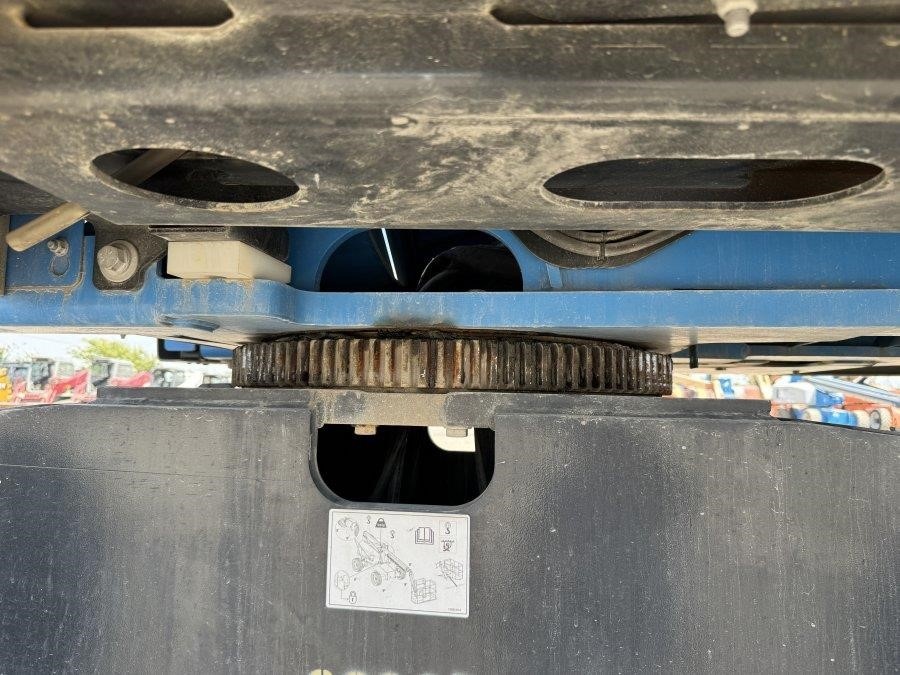

| Turntable rotation | 355° non-continuous |
| Drive system | 34 V 3-Phase AC |
Engine & Powertrain
| Fuel tank capacity (US) | 17 gal |
| Fuel tank capacity (Metric) | 64.35 L |
Working Range
| Horizontal reach maximum (US) | 36 ft 7 in |
| Horizontal reach maximum (Metric) | 11.15 m |
| Lift capacity (US) | 500 lb |
| Lift capacity (Metric) | 227 kg |
| Platform rotation | 160° |
| Drive speed - stowed (US) | 4.0 mph |
| Drive speed - stowed (Metric) | 6.44 km/h |
| Gradeability - 4WD - stowed | 45% |
| Hydraulic tank capacity (US) | 18 gal |
| Hydraulic tank capacity (Metric) | 68.14 L |
Undercarriage & Attachments

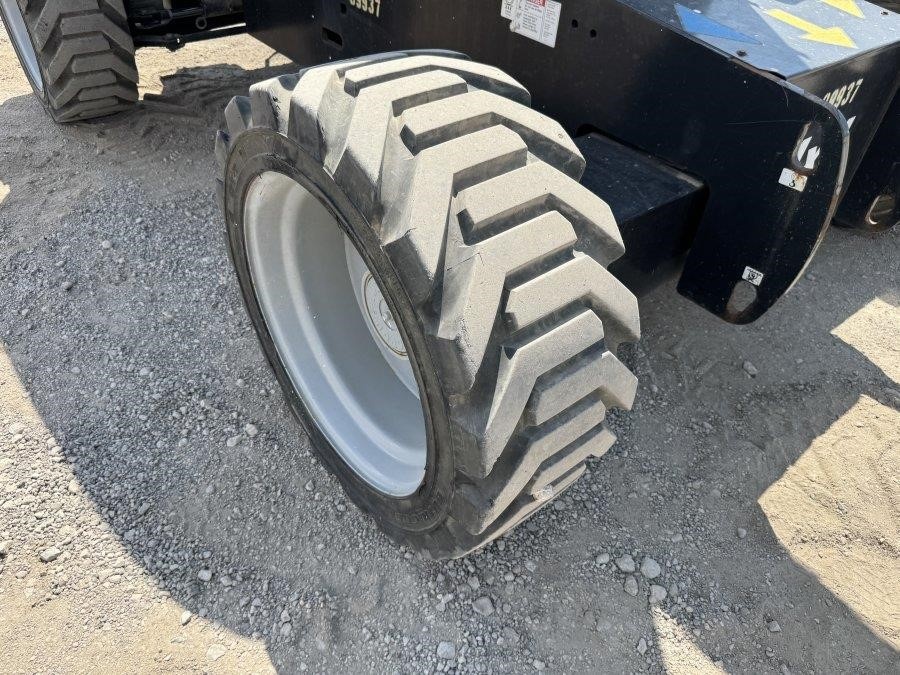

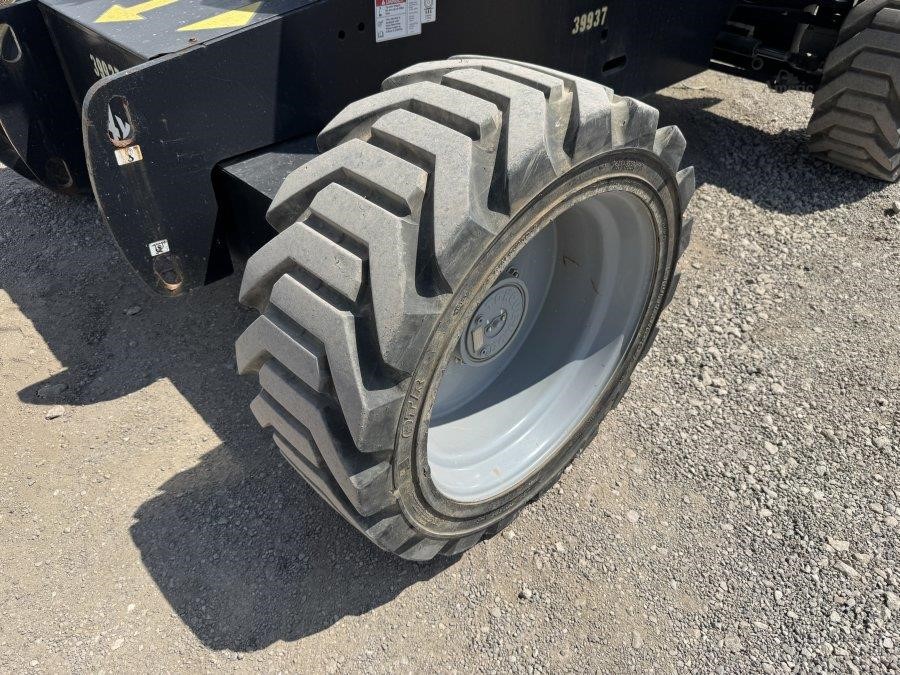

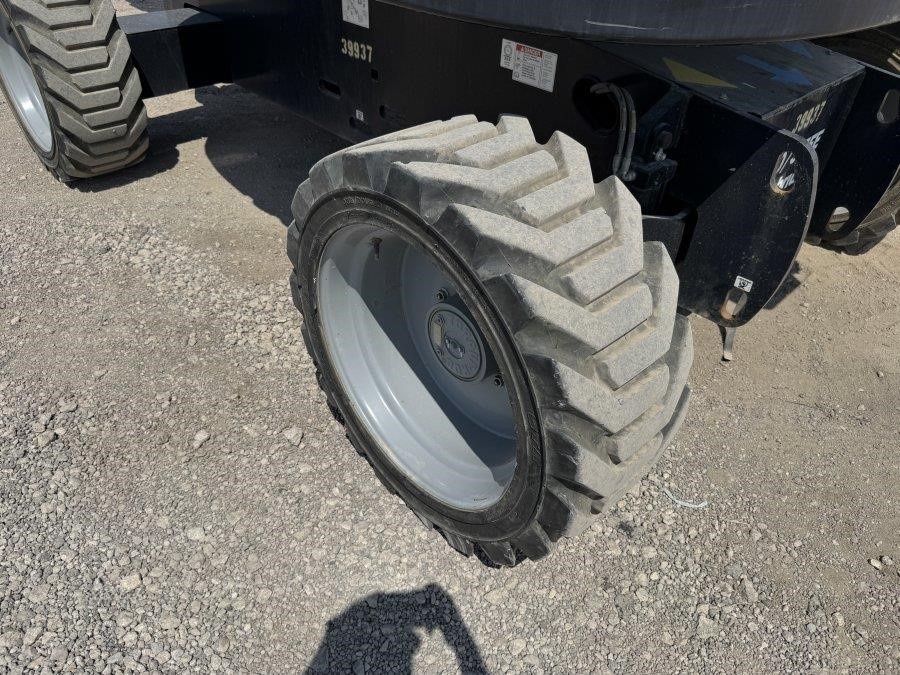

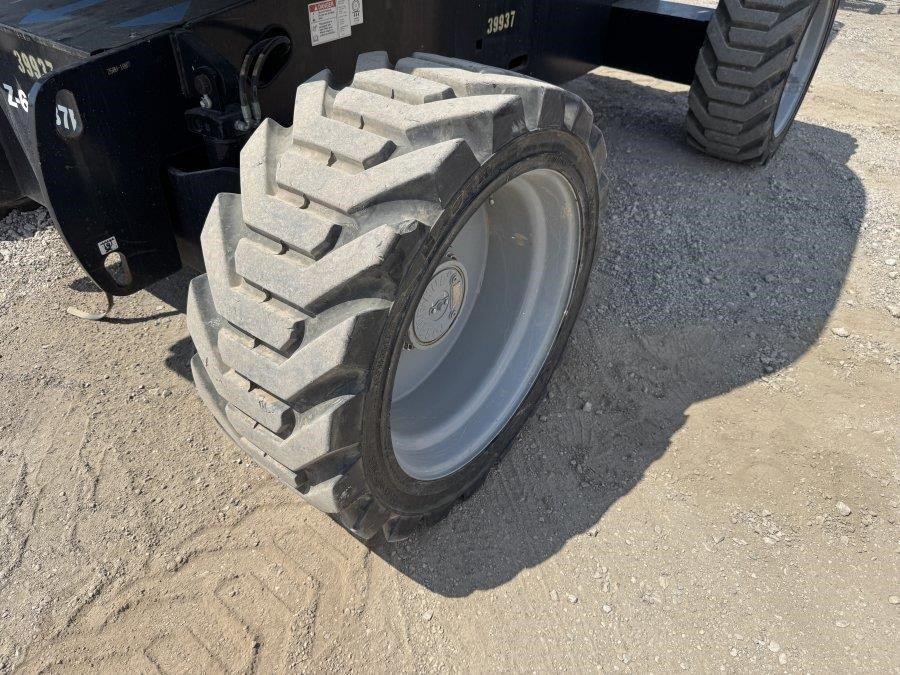

| Tires | 355/55D625, 14 Ply |
Dimensions

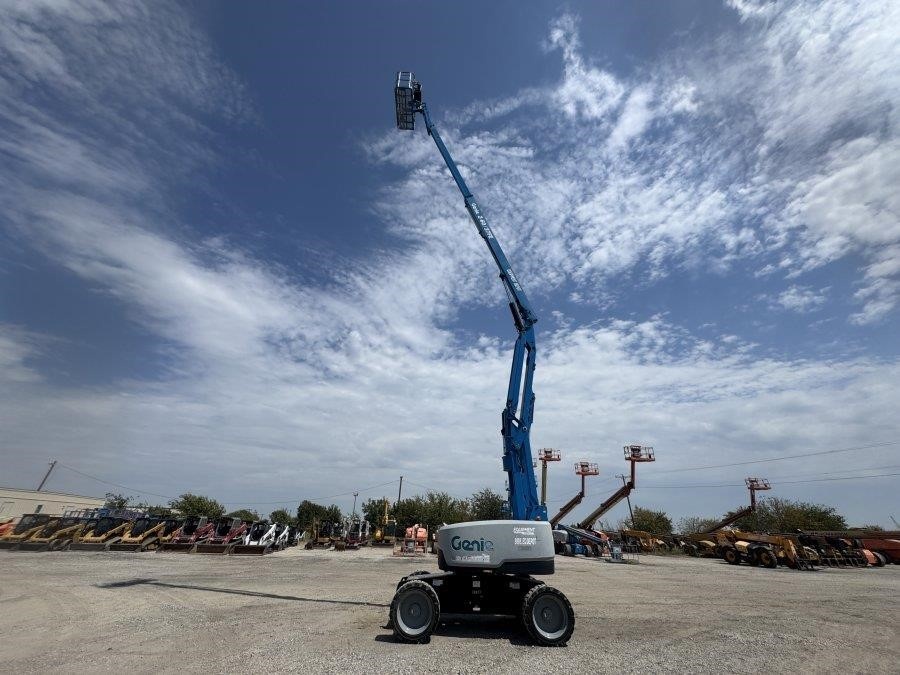

| Working height maximum (US) | 65 ft 7 in |
| Working height maximum (Metric) | 20.16 m |
| Platform height maximum (US) | 59 ft 7 in |
| Platform height maximum (Metric) | 18.16 m |
| Up and over clearance maximum (US) | 24 ft 3 in |
| Up and over clearance maximum (Metric) | 7.39 m |
| Platform length - 8 ft / 6 ft model (US) | 3 ft / 2 ft 6 in |
| Platform length - 8 ft / 6 ft model (Metric) | 0.91 m /0.76 m |
| Platform width - 8 ft / 6 ft model (US) | 8 ft / 6 ft |
| Platform width - 8 ft / 6 ft model (Metric) | 2.44 m /1.83 m |
| Height - stowed (US) | 8 ft 4 in |
| Height - stowed (Metric) | 2.54 m |
| Length - stowed (US) | 26 ft 9 in |
| Length - stowed (Metric) | 8.15 m |
| Width (US) | 8 ft 2 in |
| Width (Metric) | 2.49 m |
| Wheelbase (US) | 8 ft 2 in |
| Wheelbase (Metric) | 2.49 m |
| Ground clearance - center (US) | 1 ft 1 in |
| Ground clearance - center (Metric) | 0.33 m |
| Turning radius - inside (US) | 8 ft 3 in |
| Turning radius - inside (Metric) | 2.51 m |
| Turning radius - outside (US) | 18 ft 8 in |
| Turning radius - outside (Metric) | 5.69 m |
| Weight - Z-60/37FE (US) | 17,100 lb |
| Weight - Z-60/37FE (Metric) | 7,756 kg |

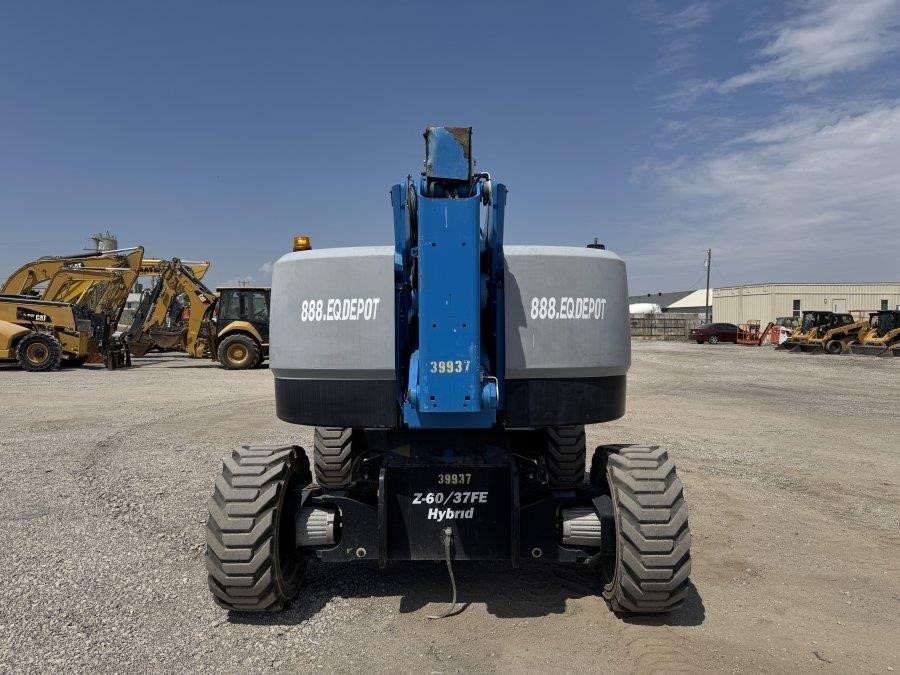

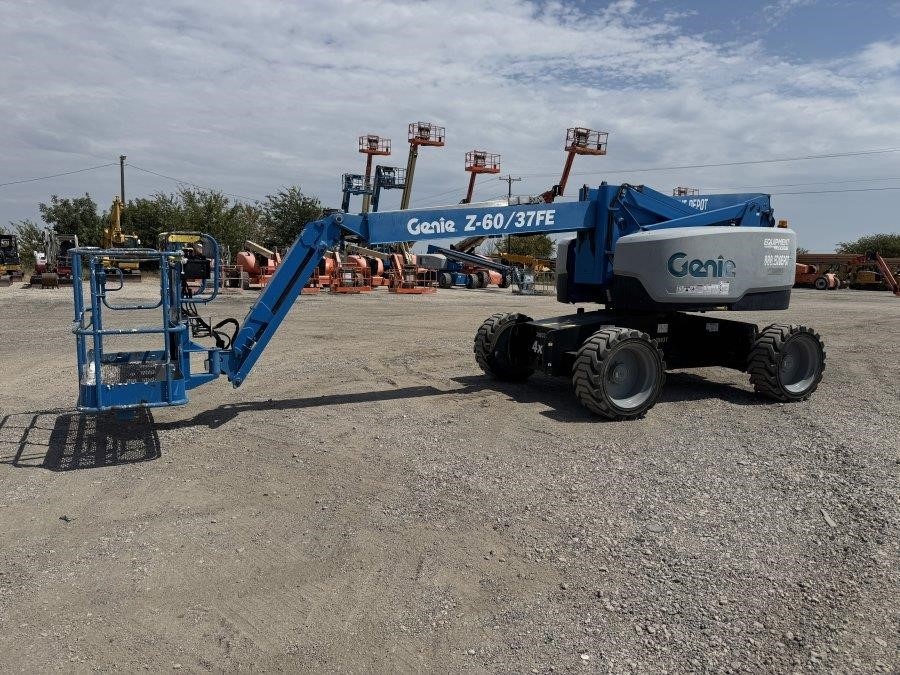

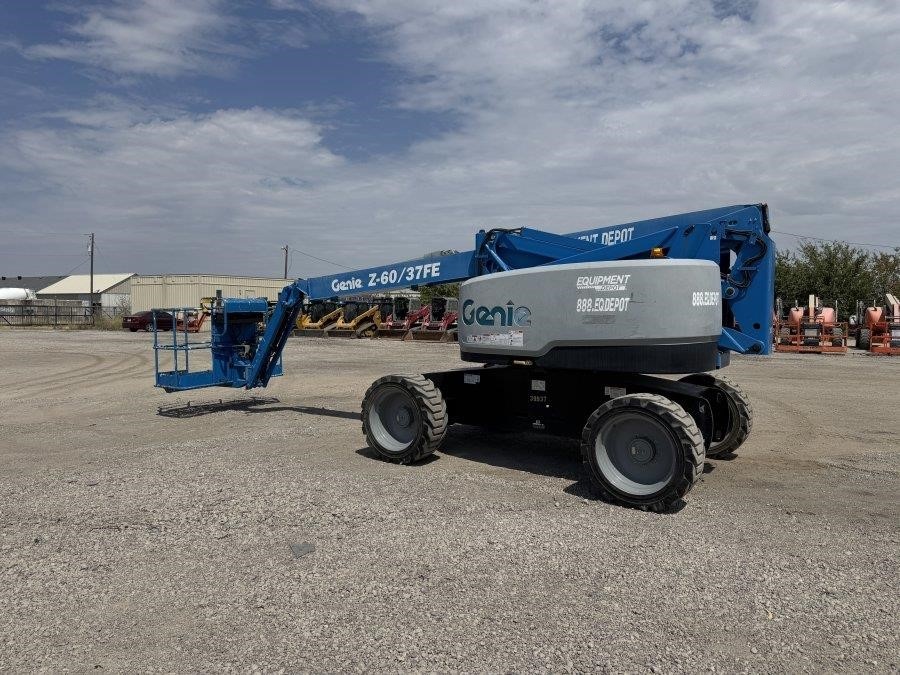

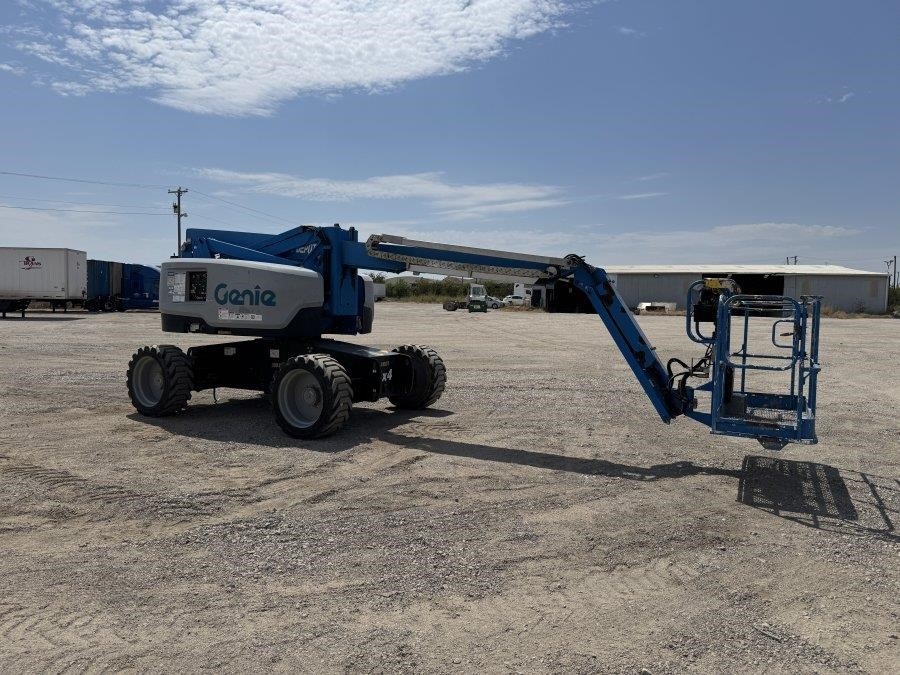

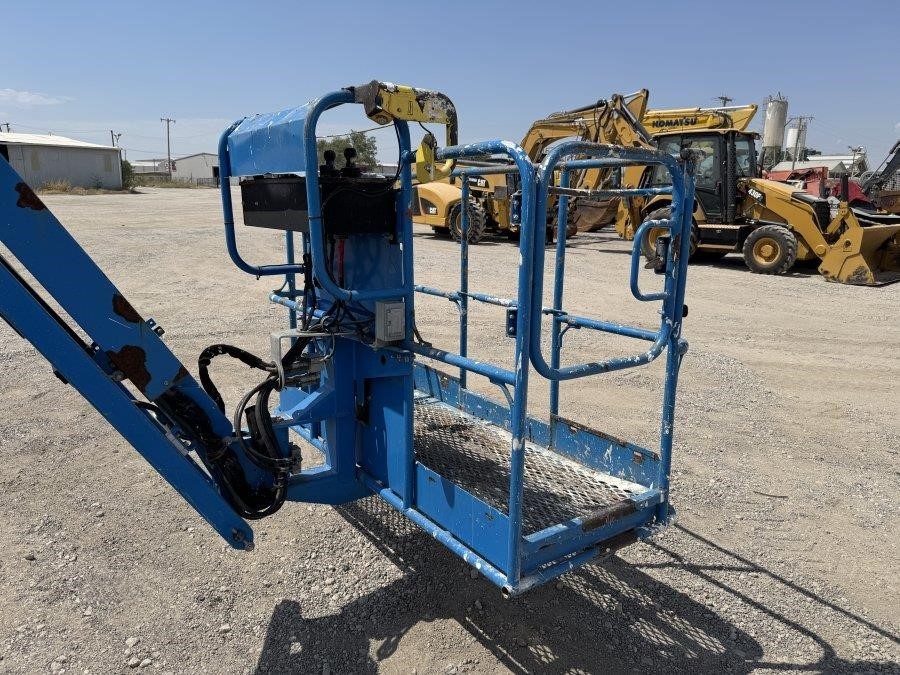

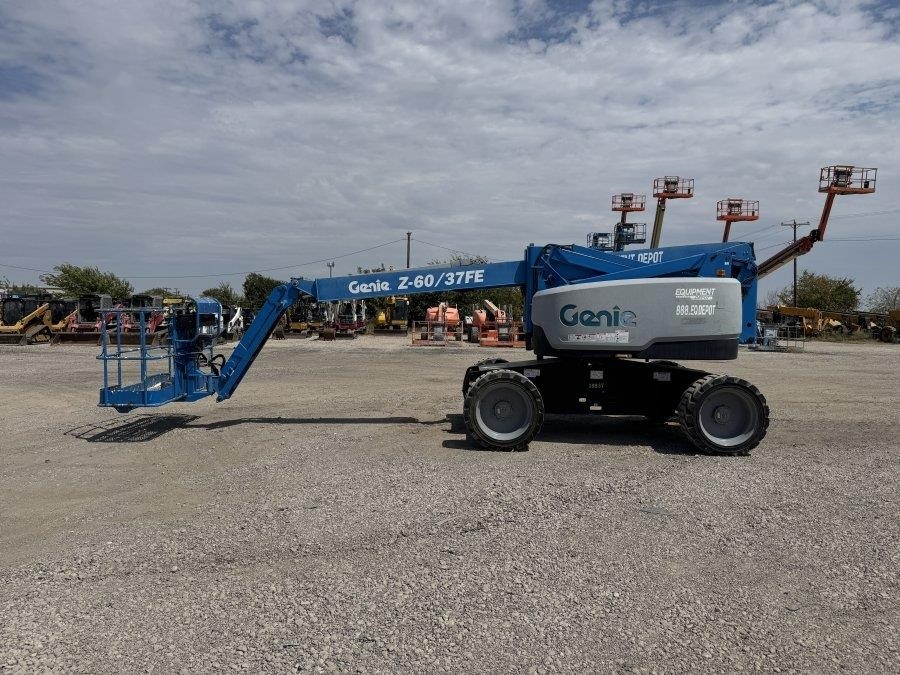

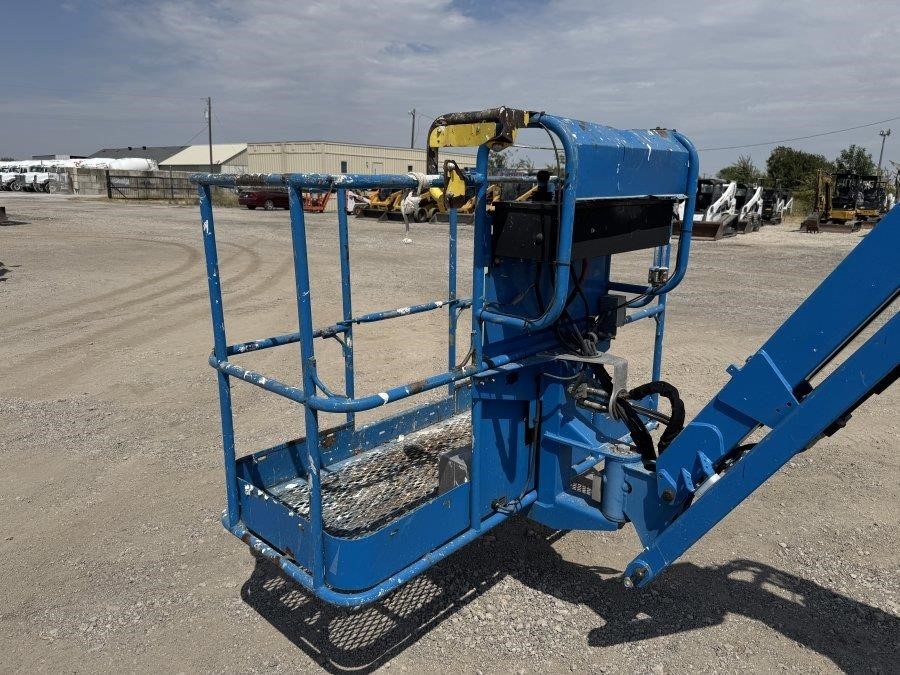

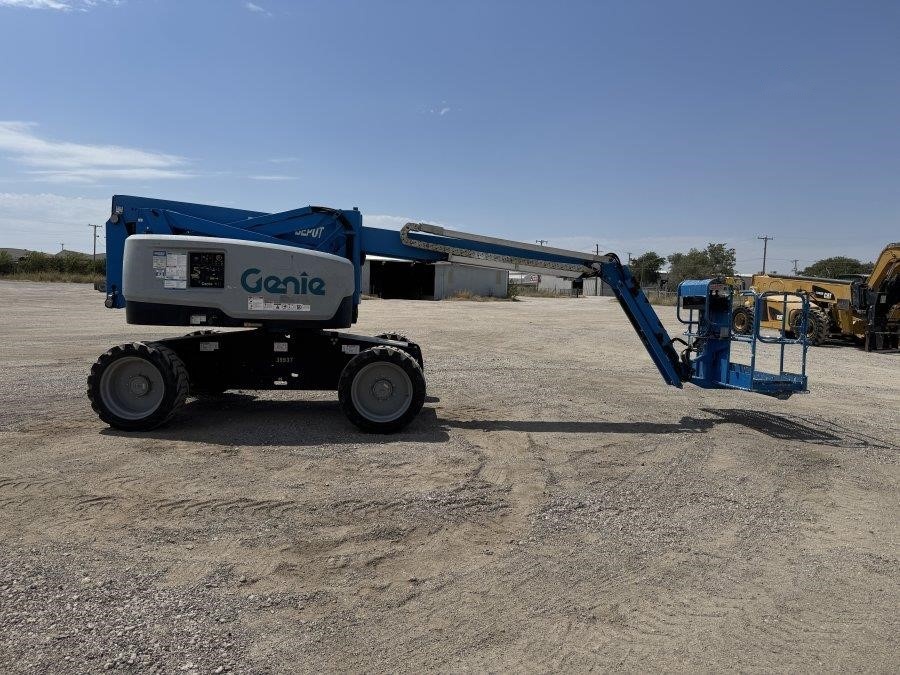

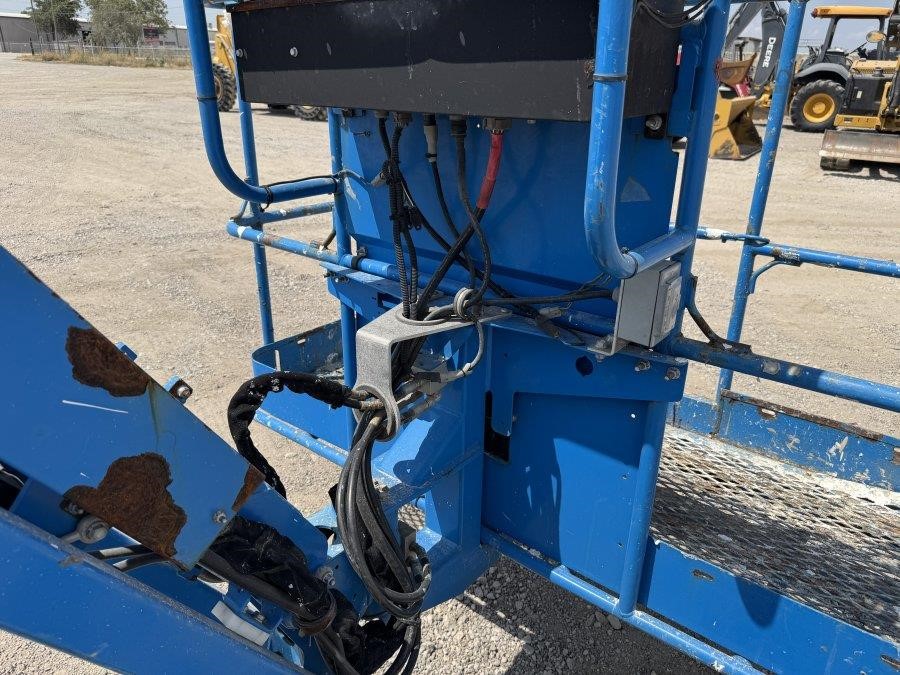

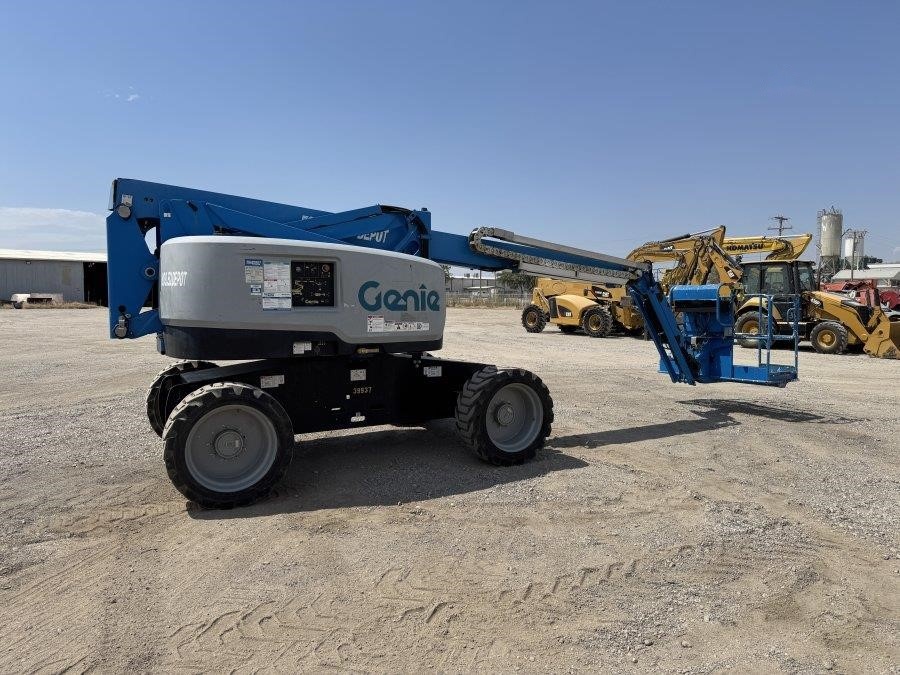

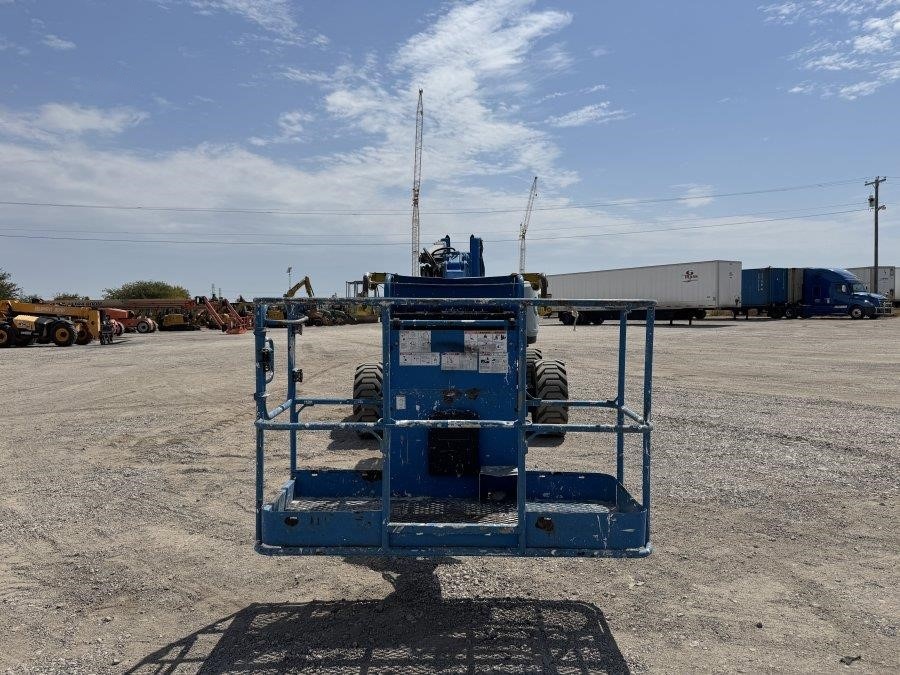

2017 Genie Z60-37FE Articulating Boom Lift
BUY NOW OR MAKE OFFERAvailable
