Item Specifications
Category
Condition
Used
Item Number
#1916
Make
caterpillar
Model
259D
Year
2017
Industry
construction
Equipment Type
compact track loaders
Location
Ft. Worth, TX
Also Available In
TX
Item Description

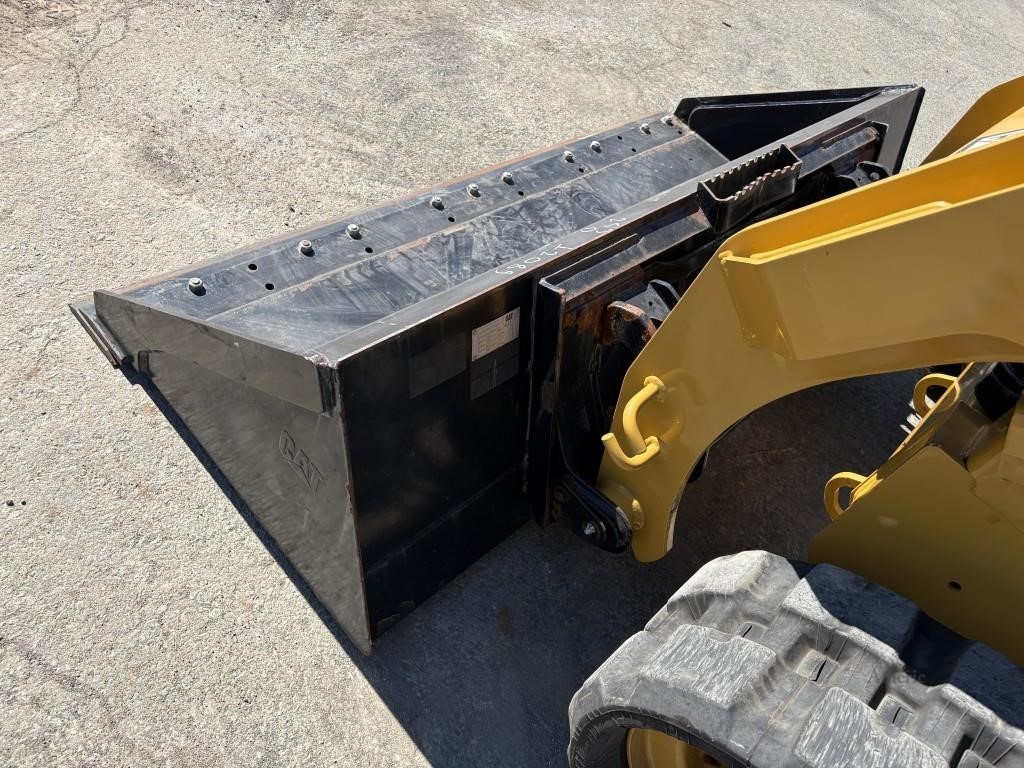

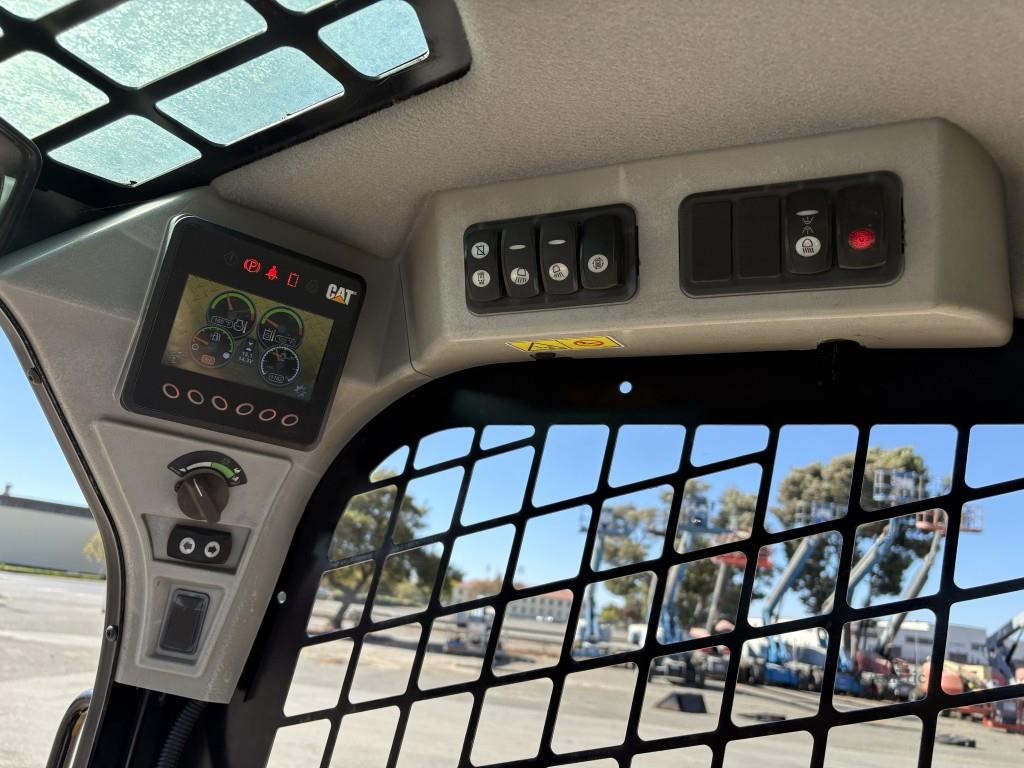

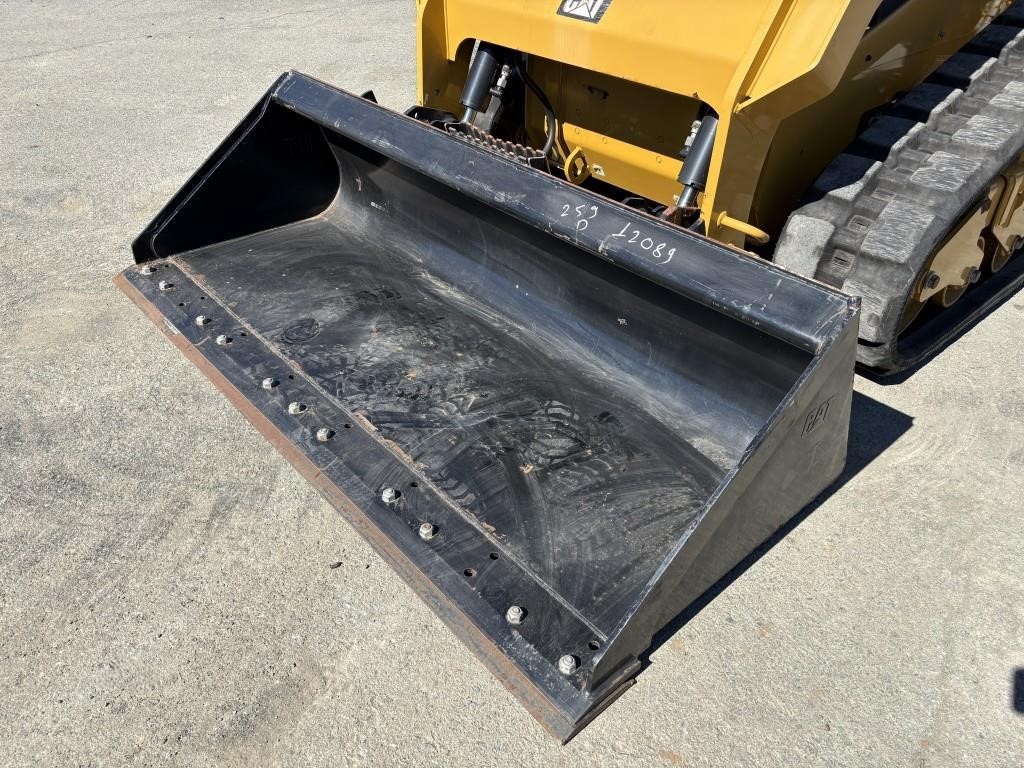

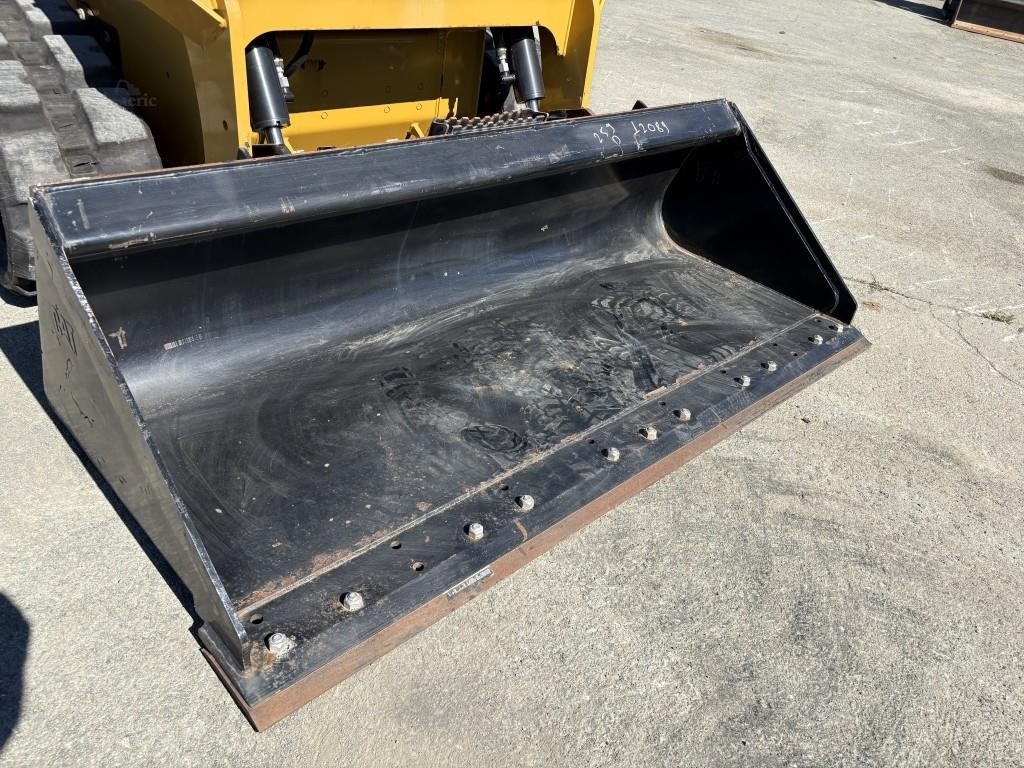

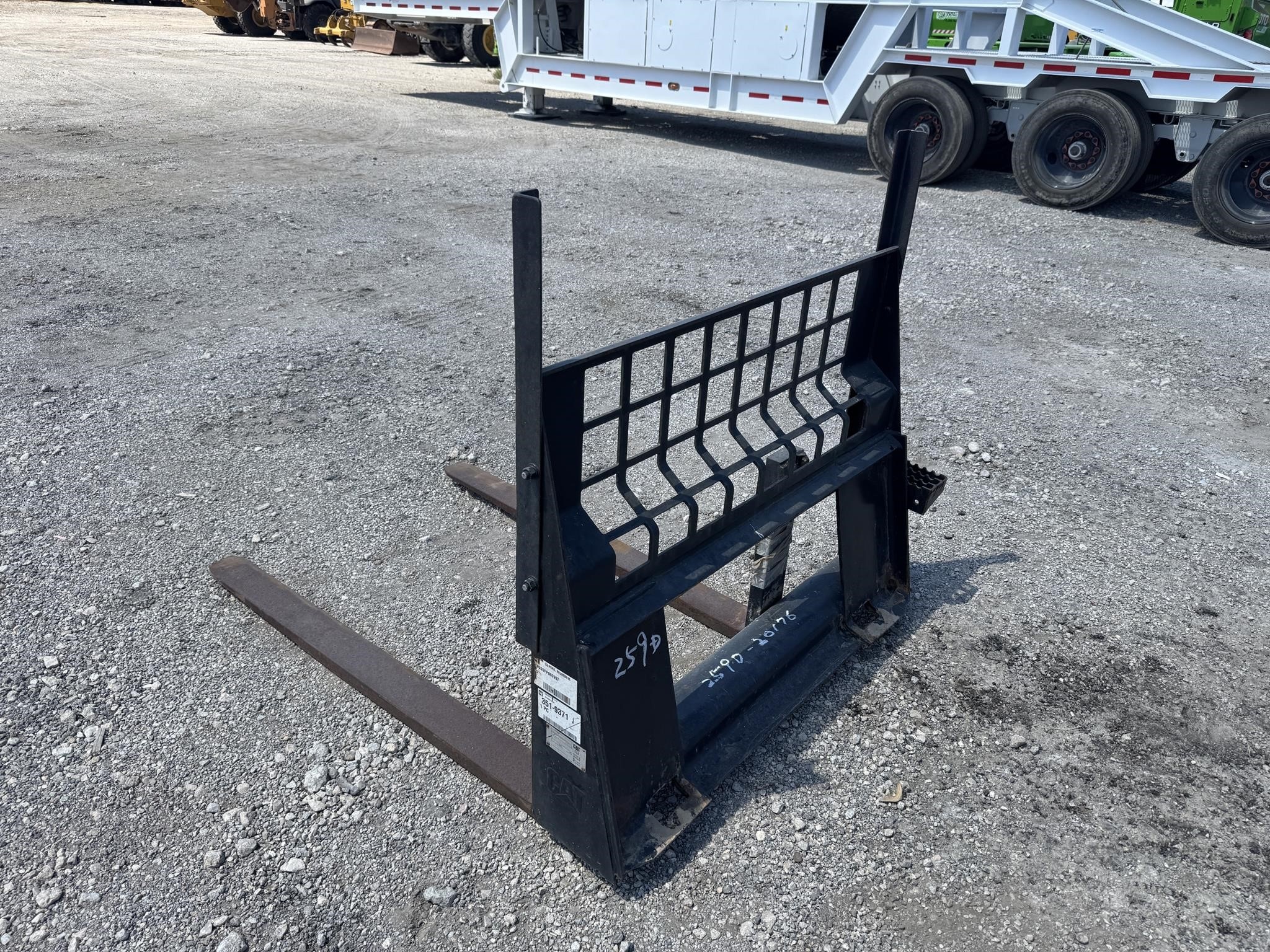

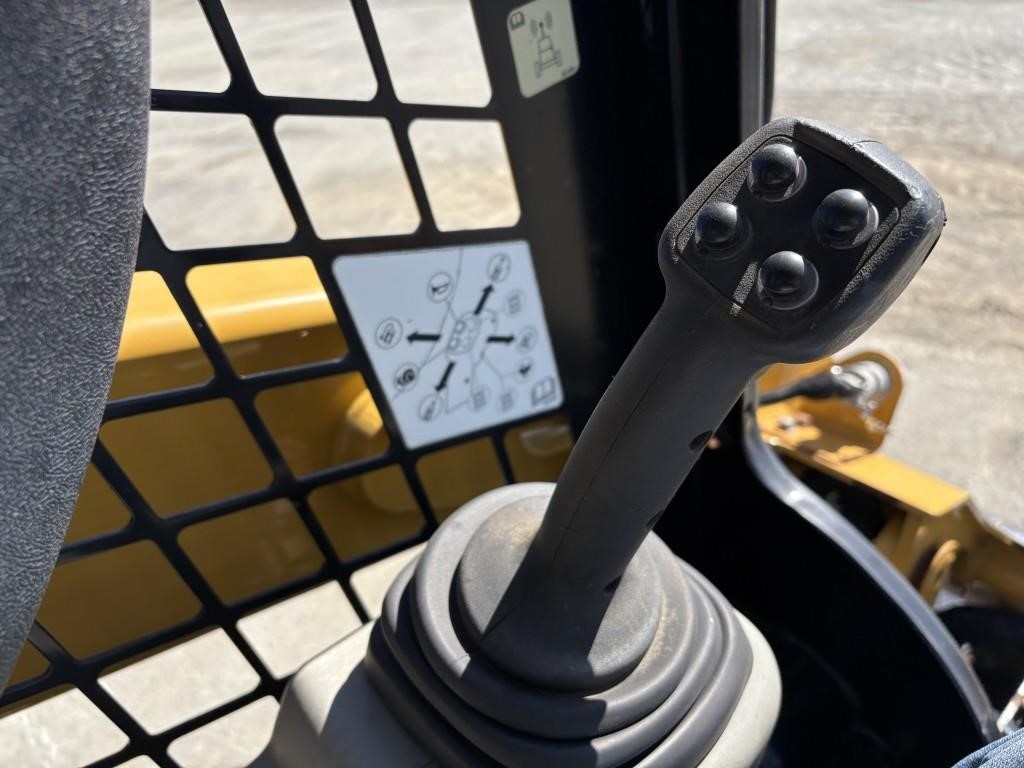

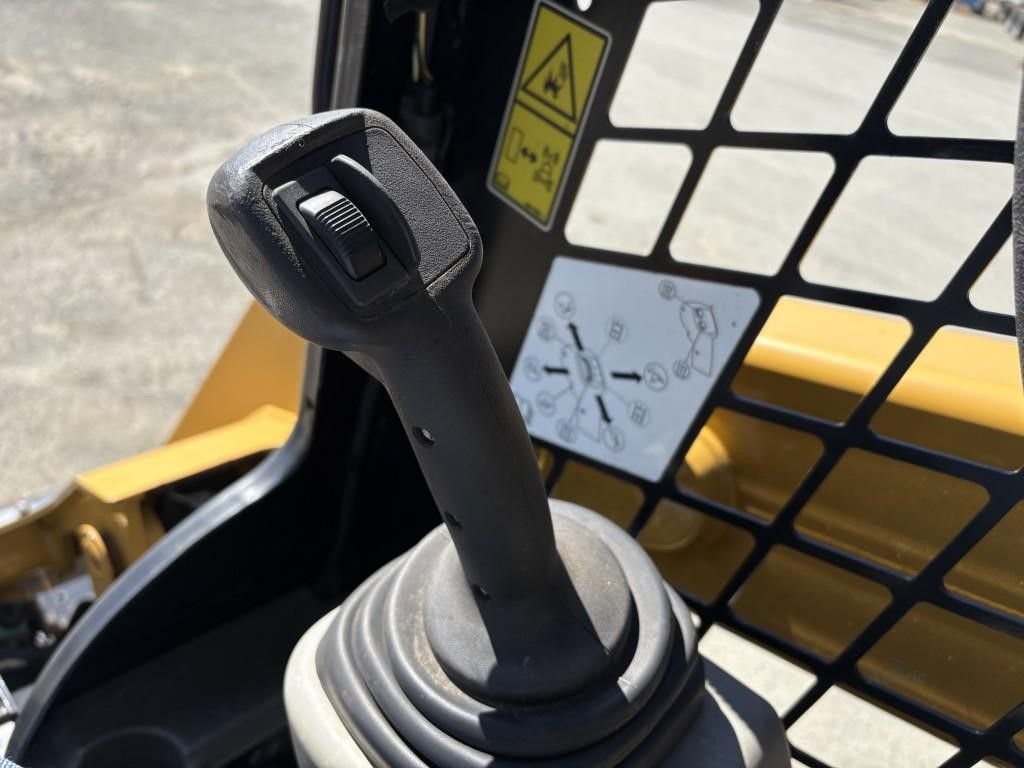

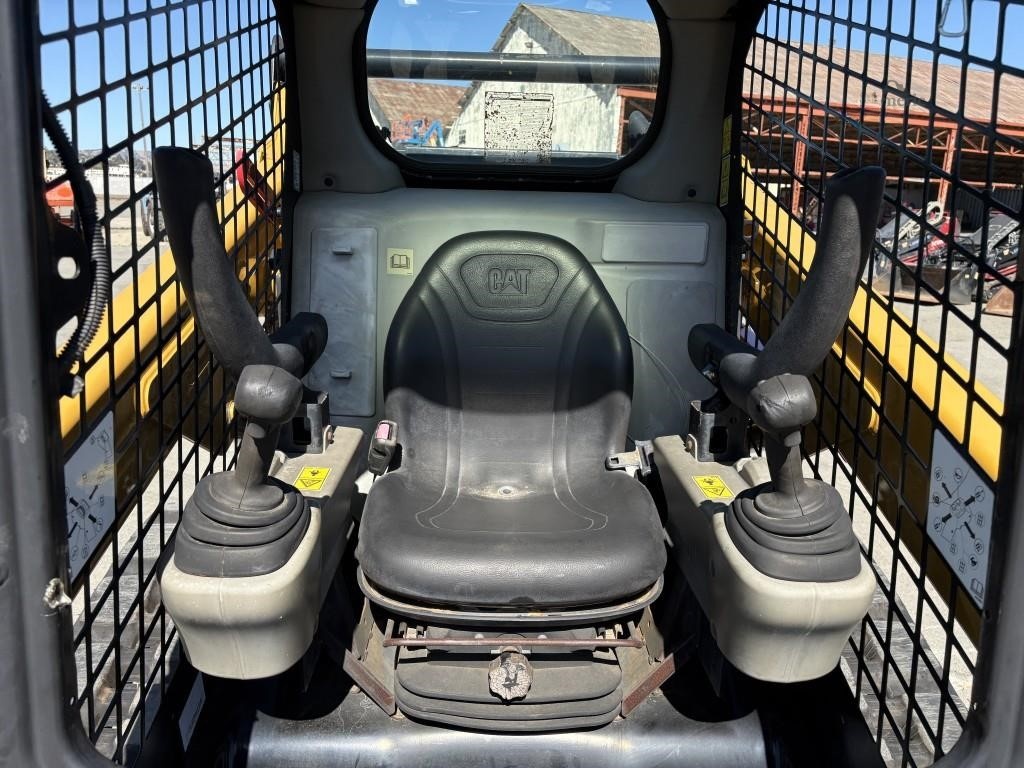

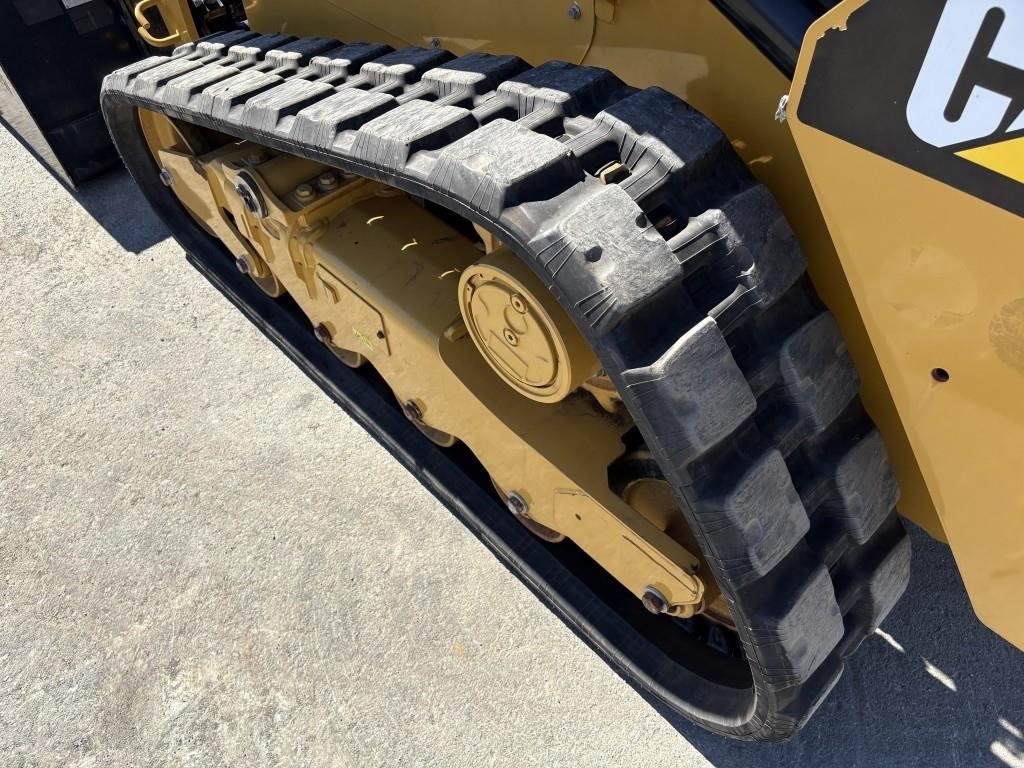

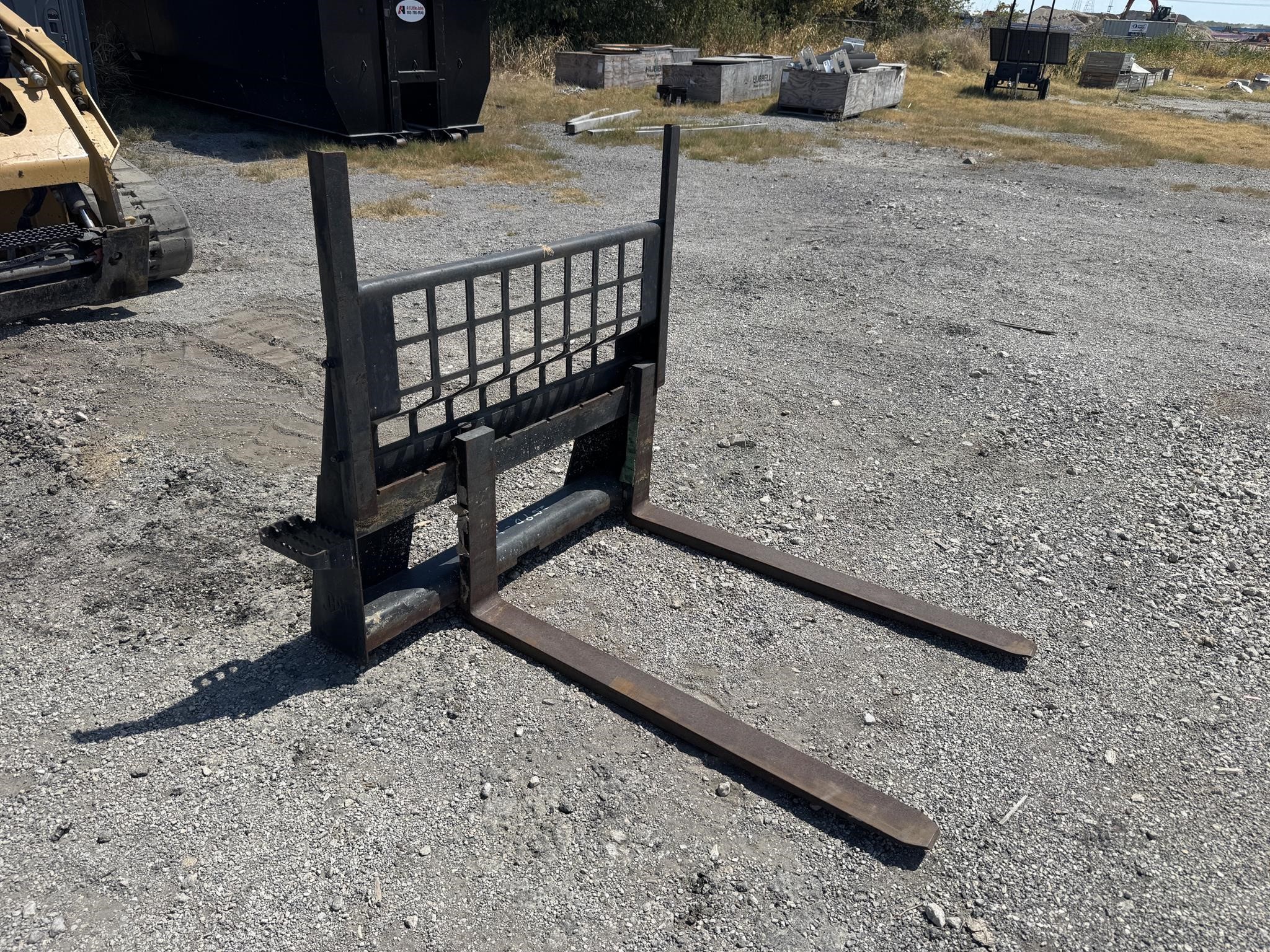

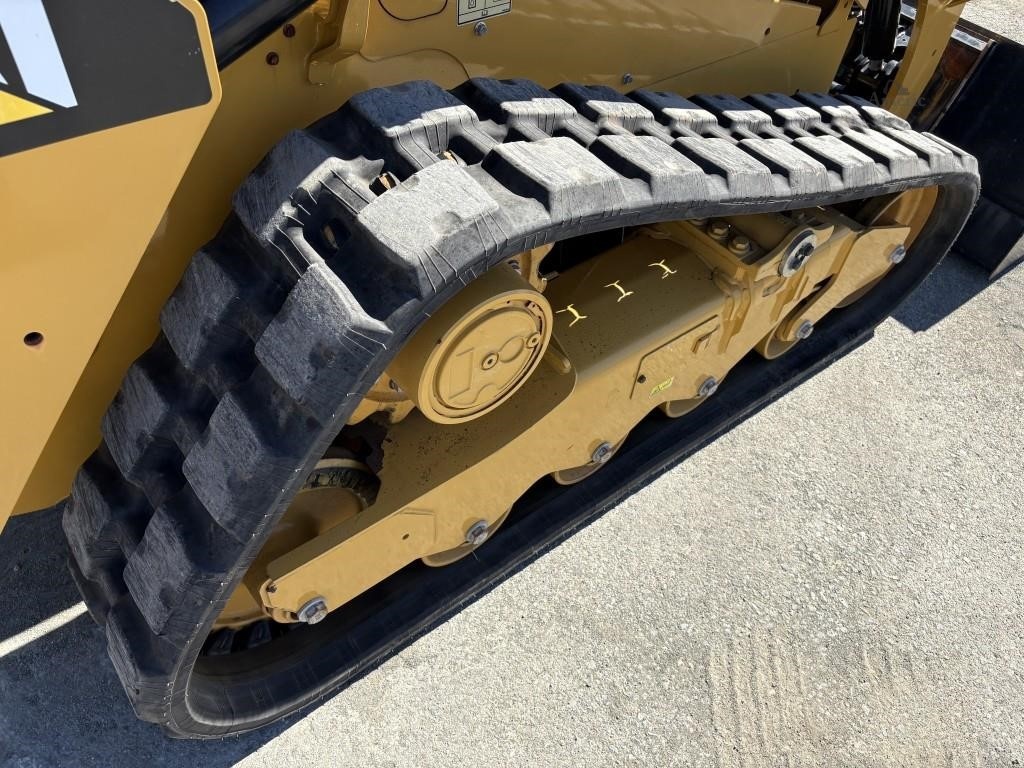

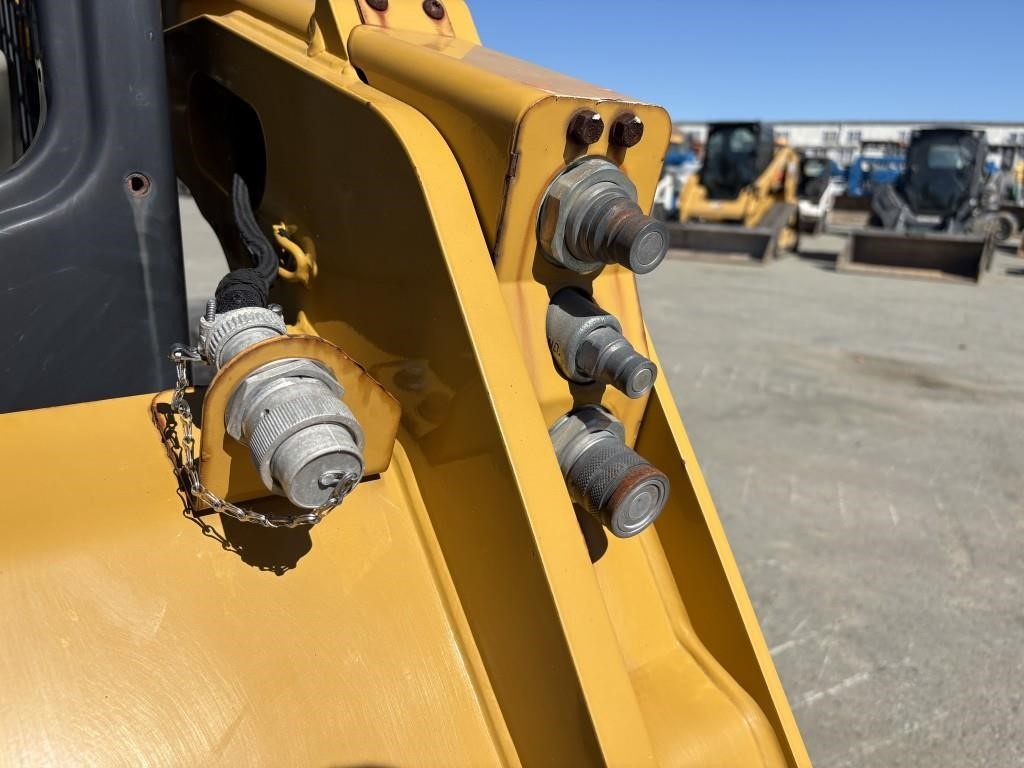

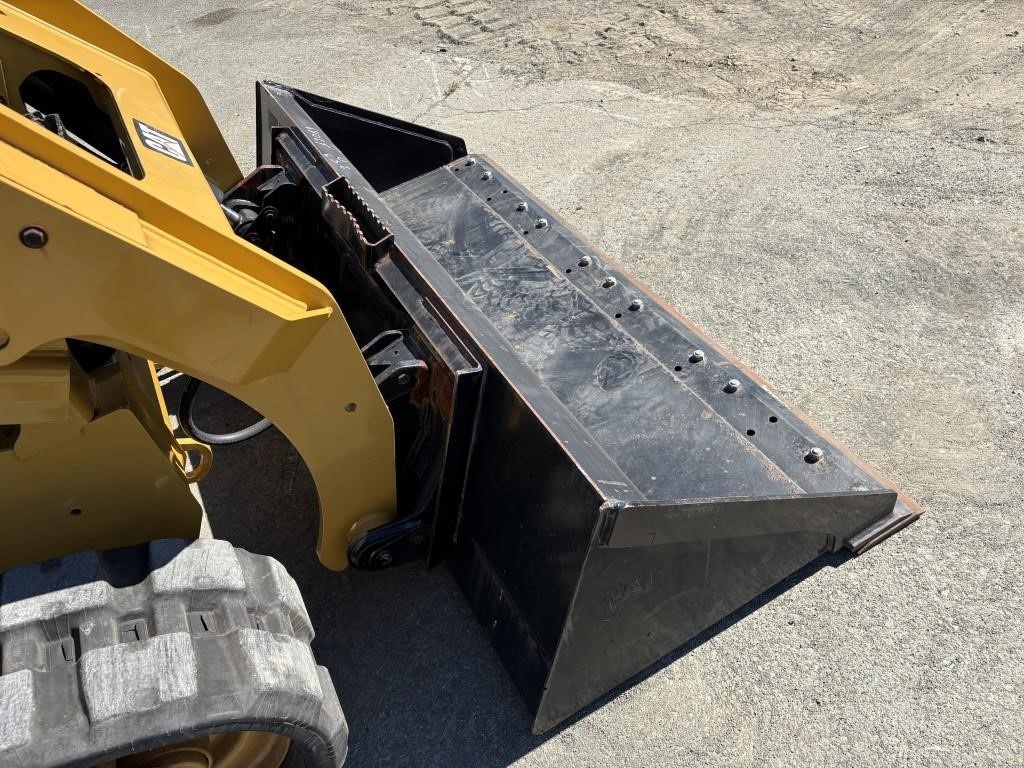

UNUSED, OROPS, Aux Hydraulics, Pilot Control, 2 Speed, Rubber Tracks, Bucket, Forks
Specifications
General
| Year | 2017 |
| Make | caterpillar |
| Model | 259D |

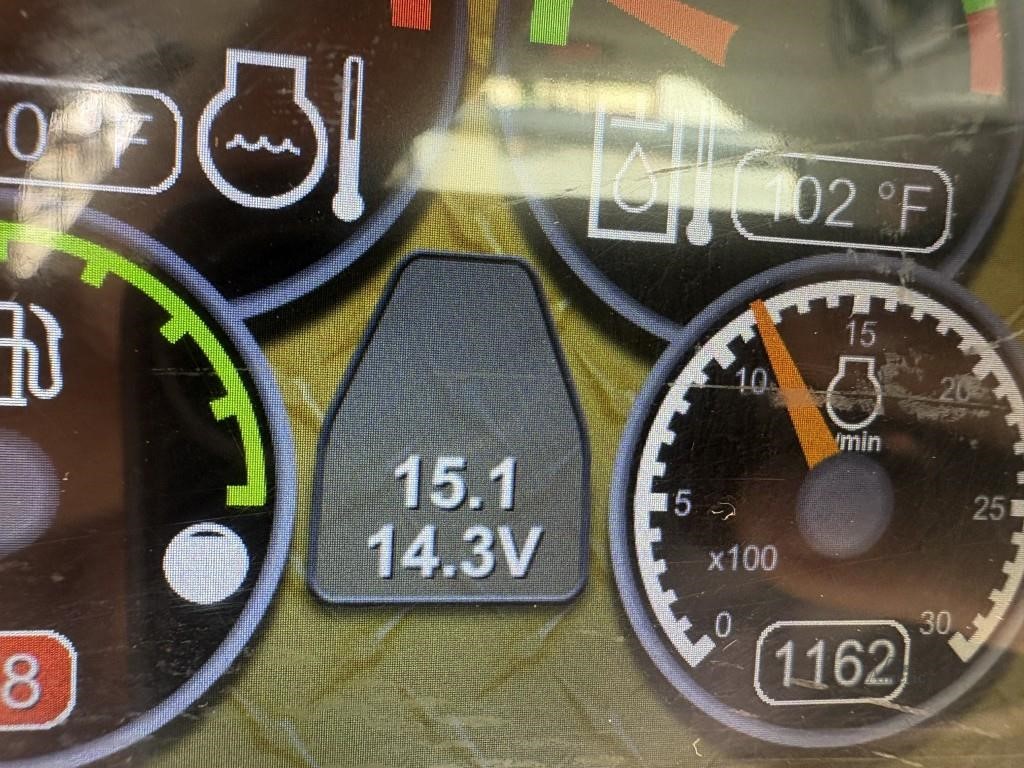

| Hours | 15 |
| Condition | Used |
| Gross Power (SAE J1995) | 55.4 kW |
| Net Power (SAE J1349) | 54.6 kW |
| Net Power (ISO 9249) | 55.1 kW |
| Stroke | 120 mm |
| Bore | 94 mm |
| 12 Departure Angle | 35° |
| 13 Maximum Dump Angle | 52° |

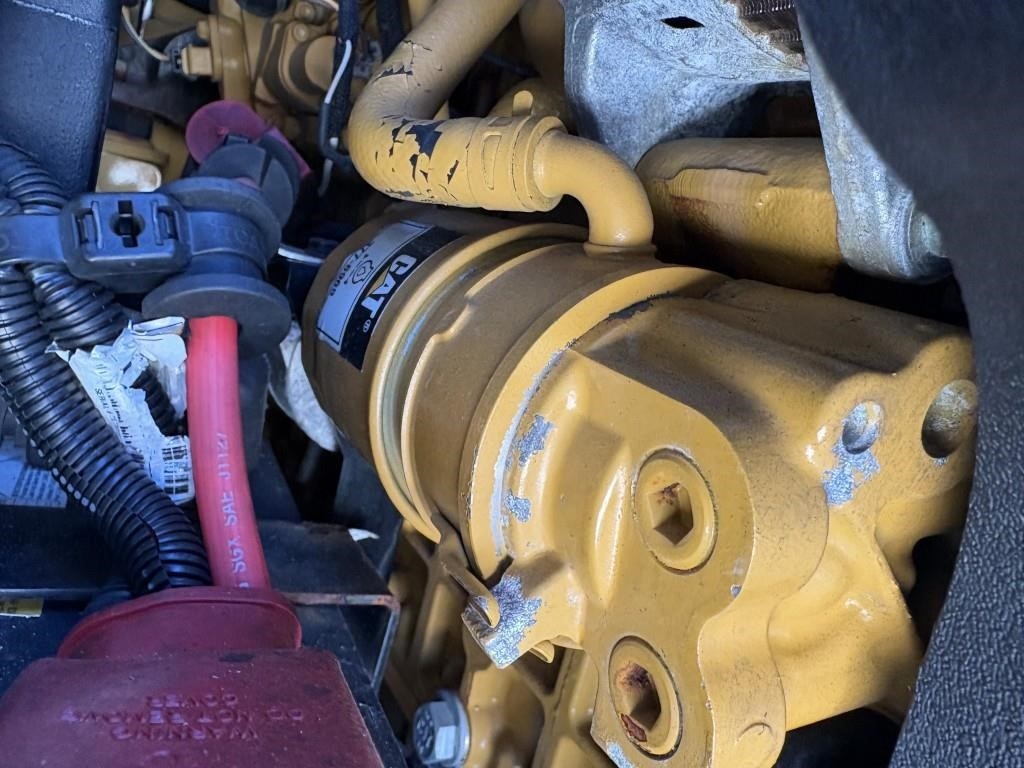

Engine & Powertrain

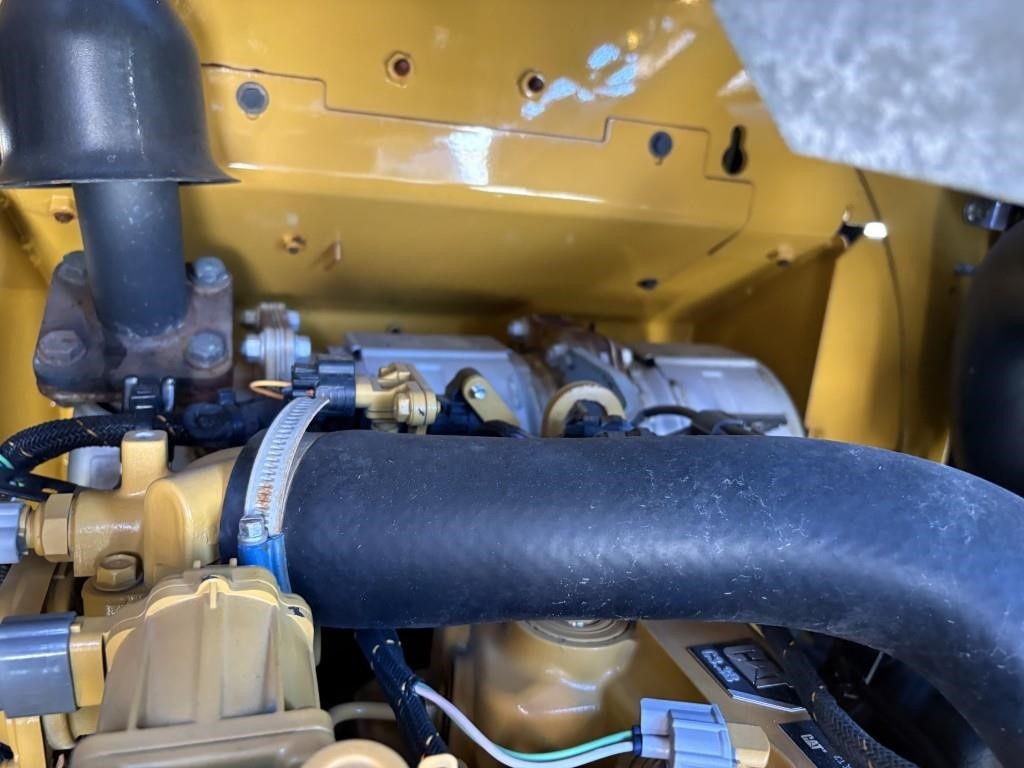

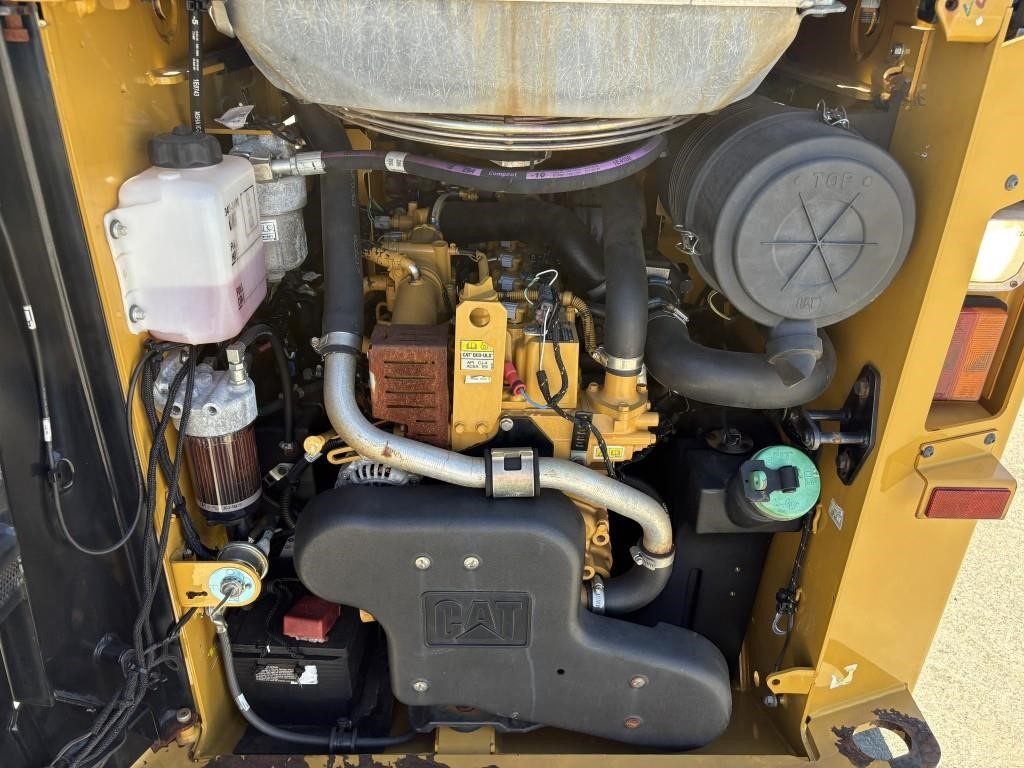

| Engine Model | Cat C3.3B DIT (turbo) |
| Displacement | 3.3 L |
| Breakout Force, Tilt Cylinder | 2284 kg |
Working Range
| Travel Speed (Forward or Reverse) - One Speed | 9.5 km/h |
| Travel Speed (Forward or Reverse) - Two Speed | 13.7 km/h |
| Rated Operating Capacity at 35% Tipping Load | 921 kg |
| Rated Operating Capacity at 50% Tipping Load | 1315 kg |
| Tipping Load | 2631 kg |
| Hydraulic Flow – Standard, Loader Hydraulic Pressure | 23 000 kPa |
| Hydraulic Flow – Standard, Loader Hydraulic Flow | 76 L/min |
| Hydraulic Flow – Standard, Hydraulic Power (calculated) | 29 kW |
| Hydraulic Flow – High Flow, Maximum Loader Hydraulic Pressure | 23 000 kPa |
| Hydraulic Flow – High Flow, Maximum Loader Hydraulic Flow | 112 L/min |
| Hydraulic Flow – High Flow, Hydraulic Power (calculated) | 43 kW |
| Service Refill Capacities – Cooling System | 14 L |
| Service Refill Capacities – Engine Crankcase | 11 L |
| Service Refill Capacities – Fuel Tank | 105 L |
| Service Refill Capacities – Hydraulic System | 50 L |
| Service Refill Capacities – Hydraulic Tank | 39 L |
| 9 Reach at Maximum Lift and Dump | 608 mm |
| 18 Maximum Reach with Arms Parallel to Ground | 1305 mm |

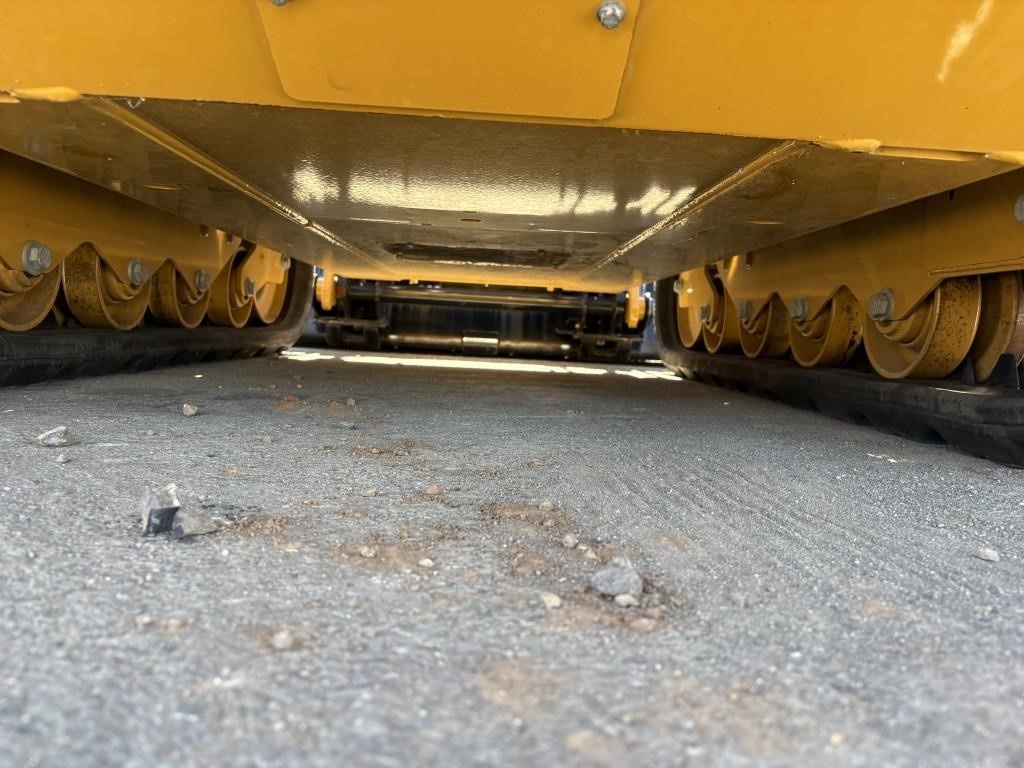

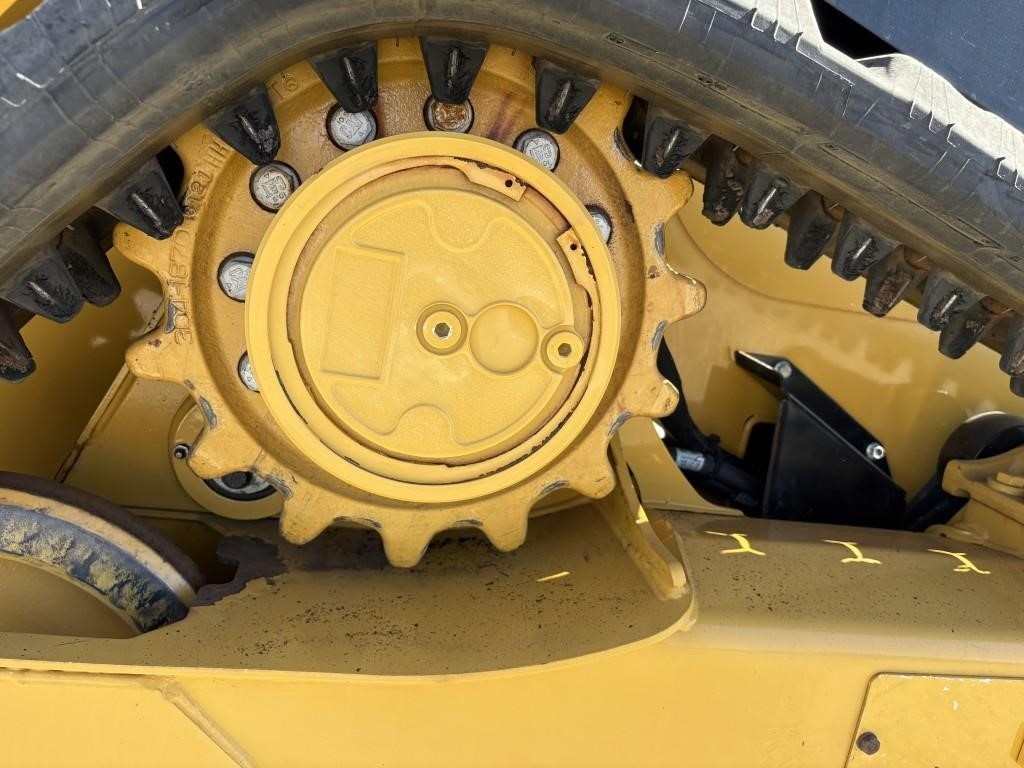

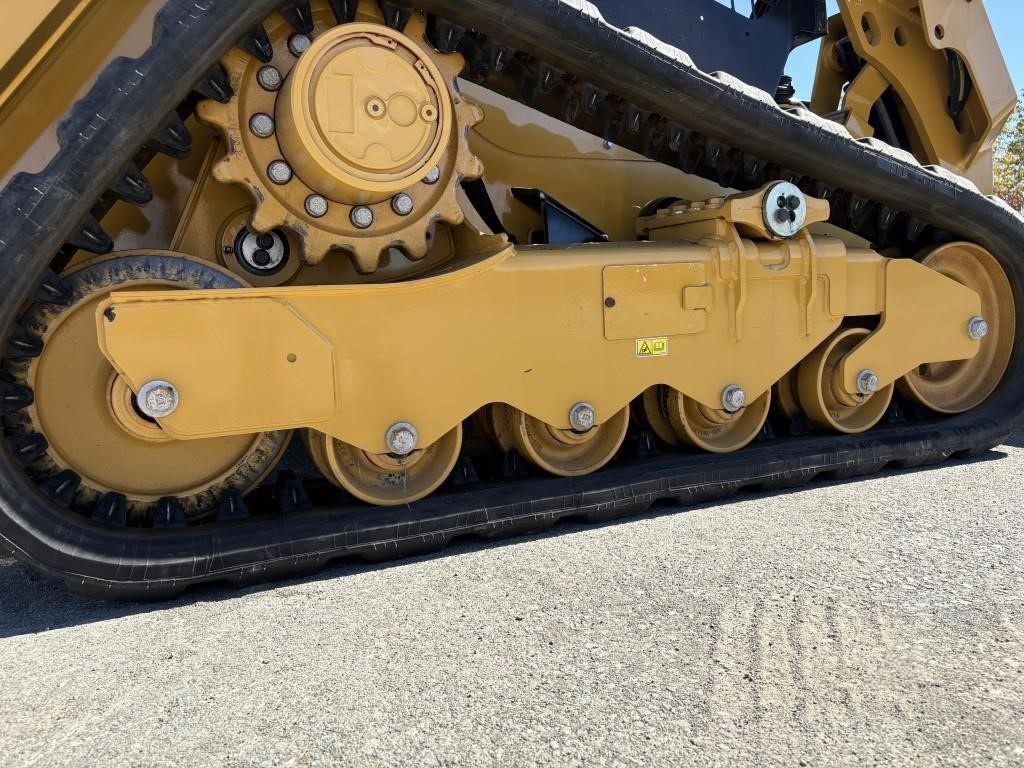

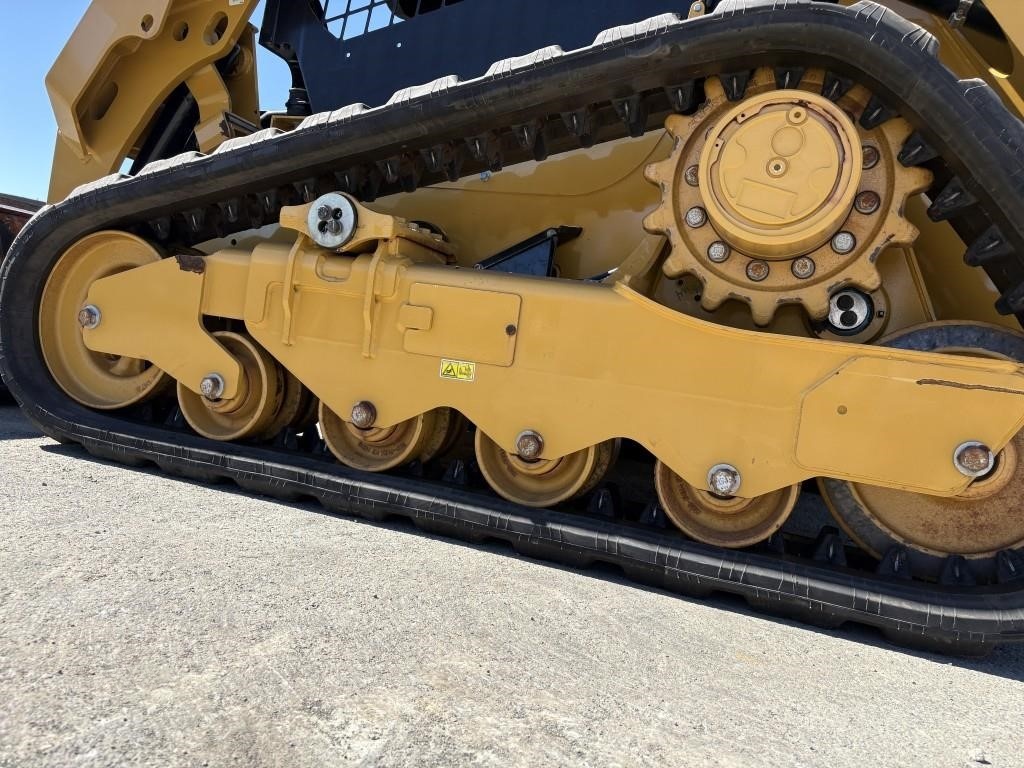

Undercarriage & Attachments
| Ground Contact Area (with 320 mm/12.6 in track) | 0.96 m2 |
| Ground Contact Area (with 400 mm/15.7 in track) | 1.19 m2 |
| 20 Bucket Pin Reach at Maximum Lift | 238 mm |
Dimensions
| Operating Weight | 4013 kg lb |
| Rated Operating Capacity with Optional Counterweight | 1406 kg |
| Ground Pressure (with 320 mm/12.6 in track) | 33.4 kPa |
| Ground Pressure (with 400 mm/15.7 in track) | 33.9 kPa |
| 1 Length of Track on Ground | 1499 mm |
| 2 Overall Length of Track | 1999 mm |
| 3 Length without Bucket | 2767 mm |
| 4 Length with Bucket on Ground | 3486 mm |
| 5 Height to Top of Cab | 2111 mm |
| 6 Maximum Overall Height | 3915 mm |
| 7 Bucket Pin Height at Maximum Lift | 3075 mm |
| 8 Bucket Pin Height at Carry Position | 198 mm |
| 10 Clearance at Maximum Lift and Dump | 2283 mm |
| 11 Ground Clearance | 226 mm |
| 14 Vehicle Width (320 mm/12.6 in tracks) – 259D only | 1676 mm |
| 14 Vehicle Width (400 mm/15.7 in tracks) – 259D/289D | 1755 mm |
| 15 Turning Radius from Center – Machine Rear | 1561 mm |
| 16 Turning Radius from Center – Coupler | 1392 mm |
| 17 Turning Radius from Center – Bucket | 2184 mm |
| 19 Rack Back Angle at Maximum Height | 87° |

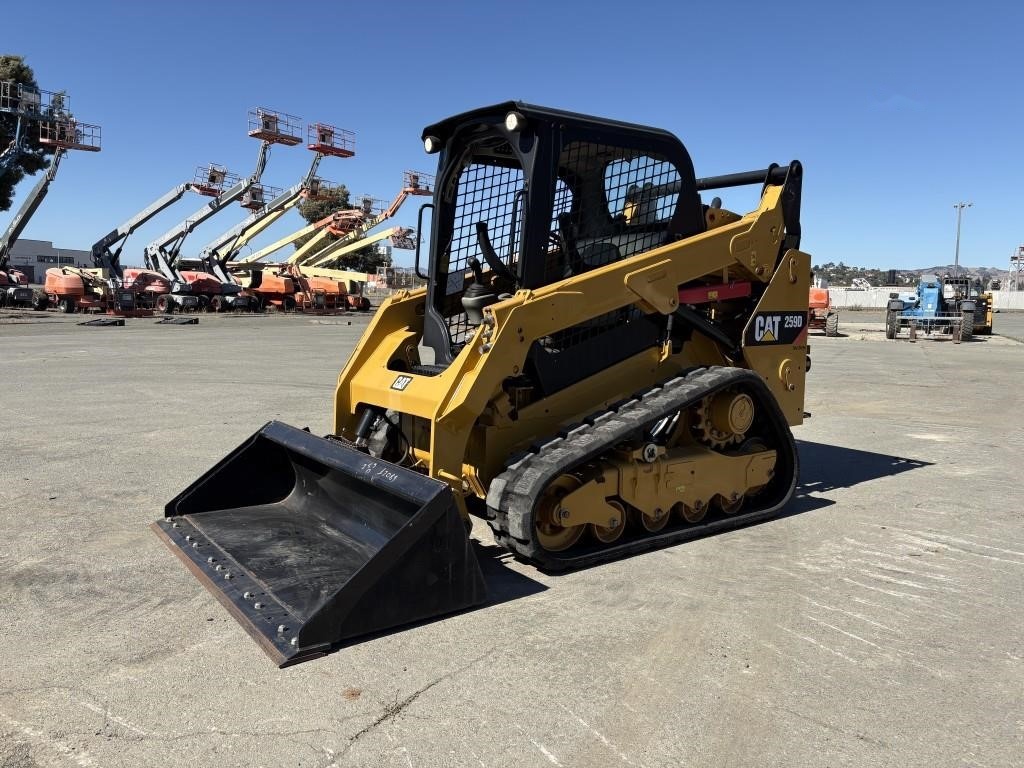

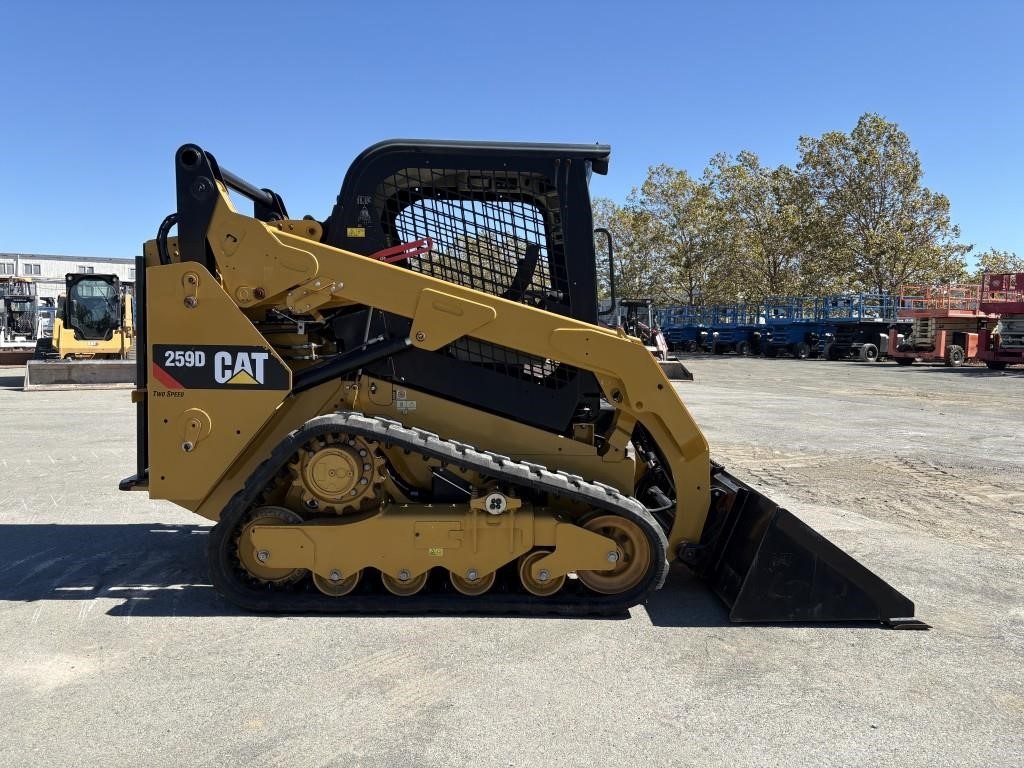

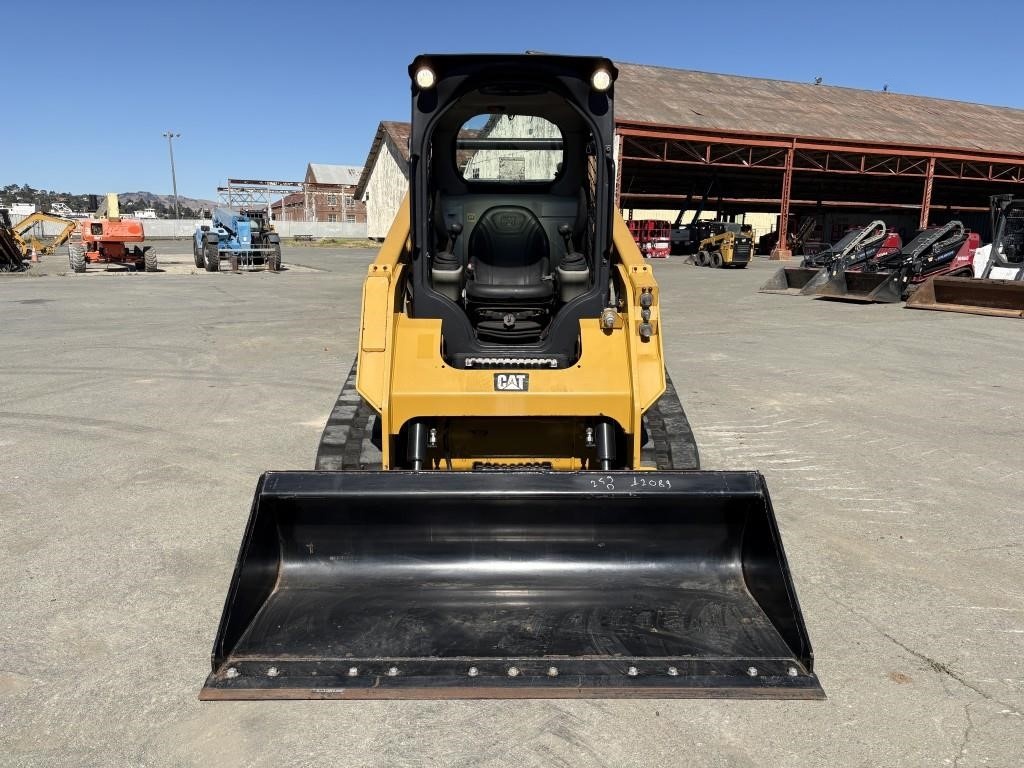

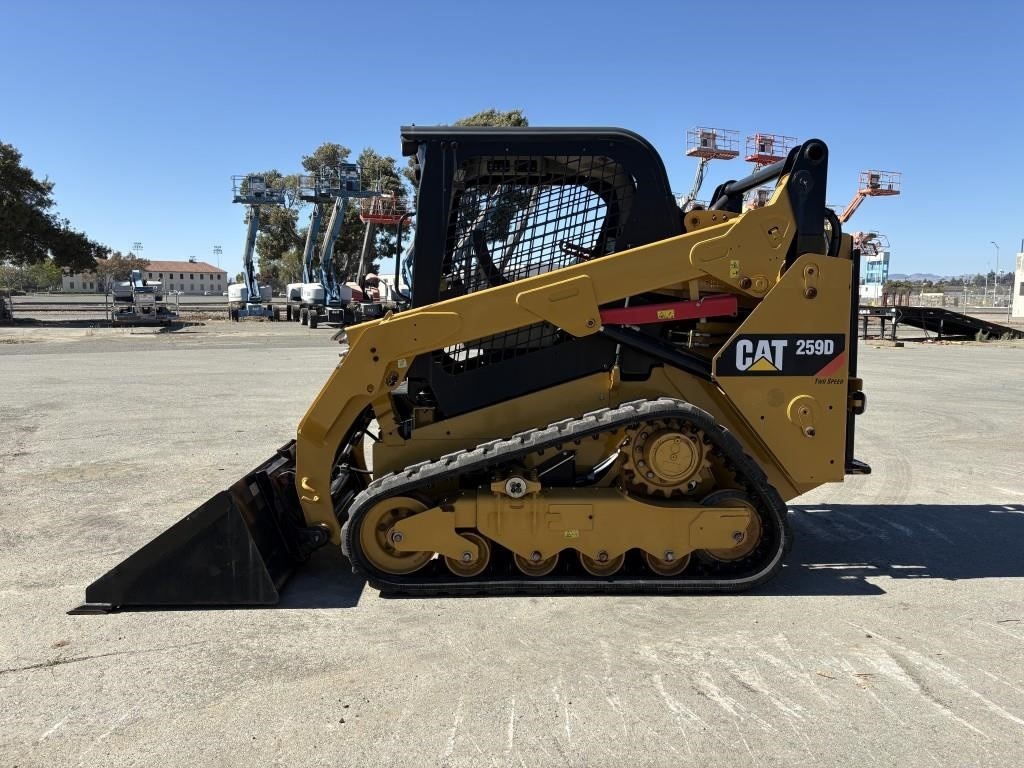

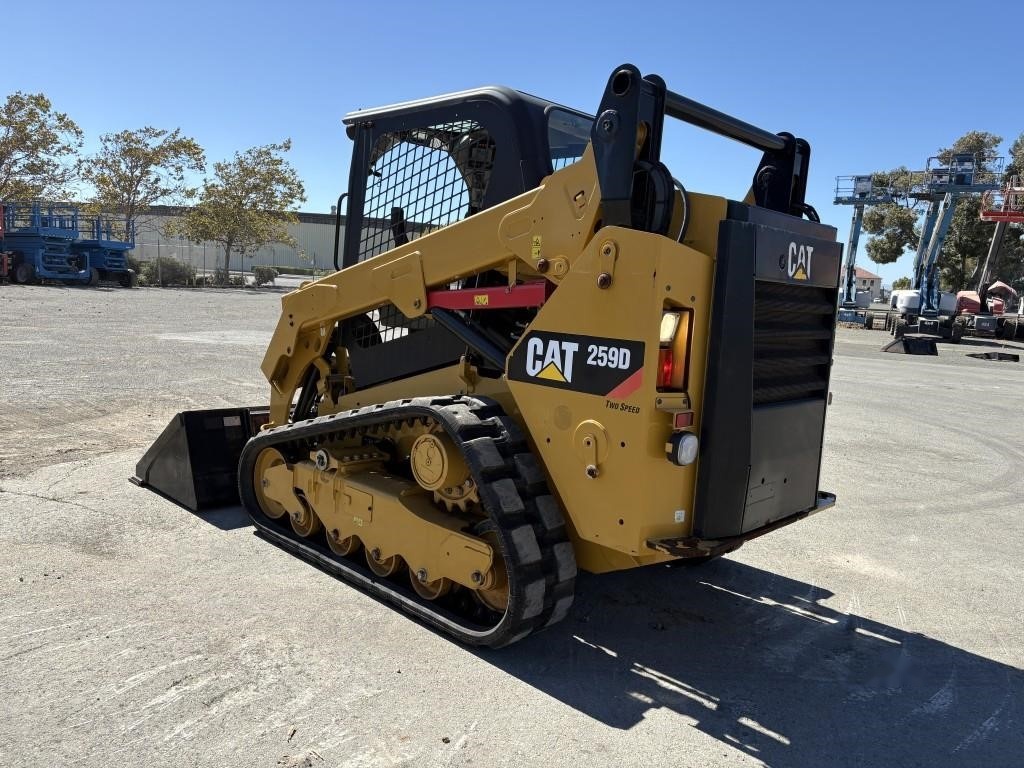

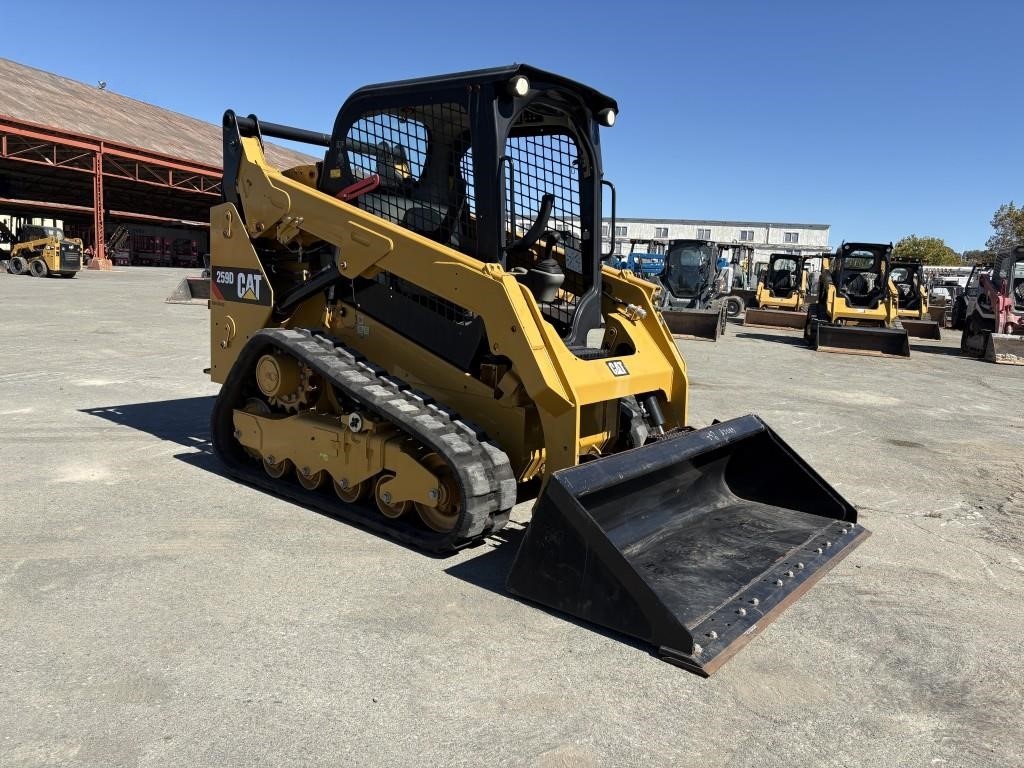

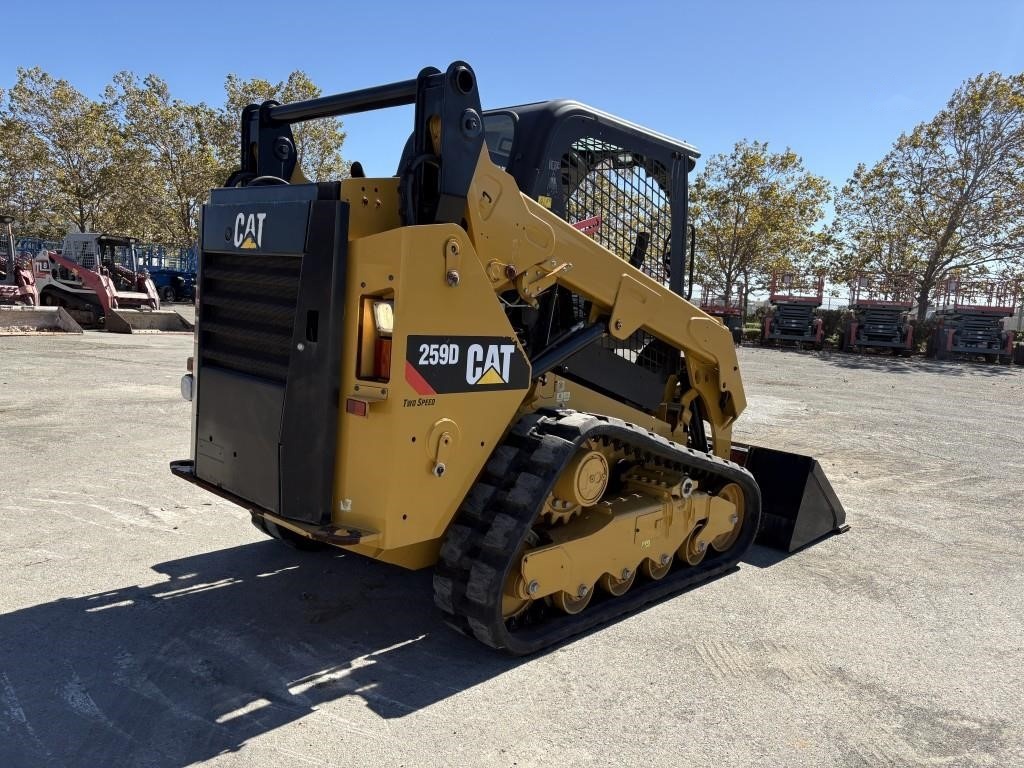

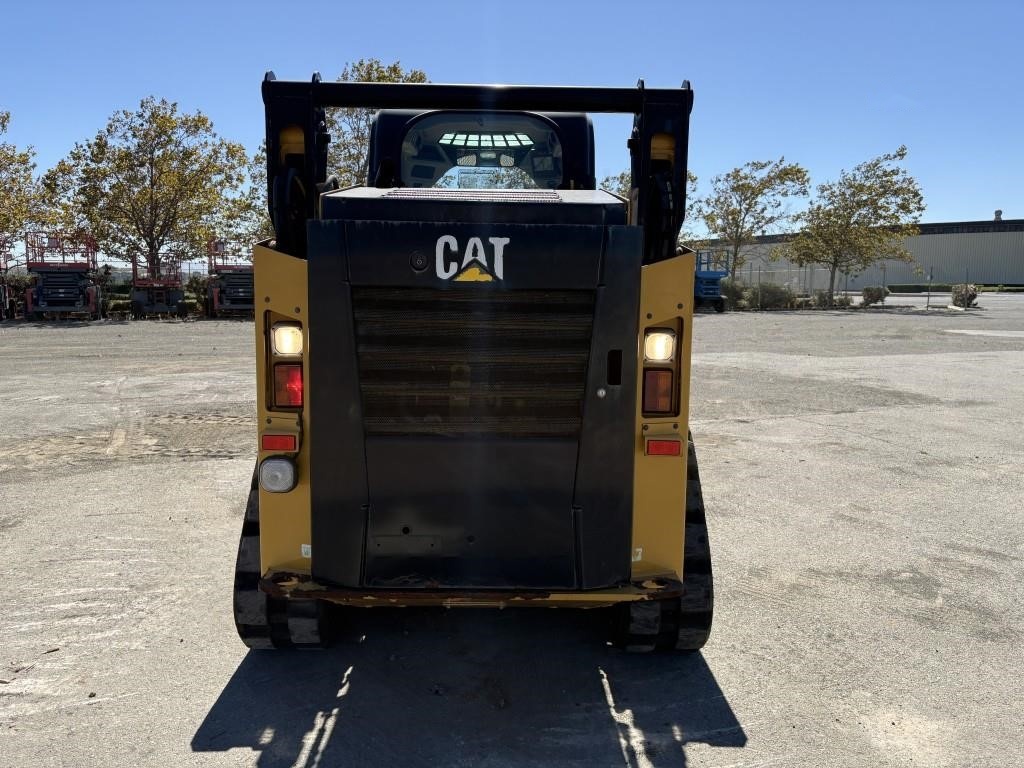

2017 Caterpillar 259D Compact Track Loader
BUY NOW OR MAKE OFFERAvailable
