Item Specifications
Category
Condition
Used
Item Number
#1914
Make
caterpillar
Model
420F
Year
2014
Industry
construction
Equipment Type
backhoe loaders
Location
Ft. Worth, TX

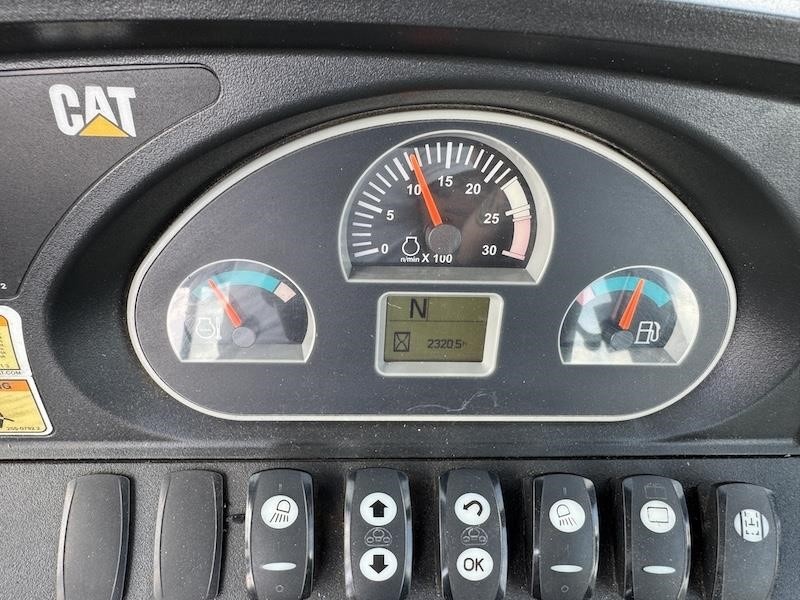

Hours
2320
Also Available In
TX
Item Description

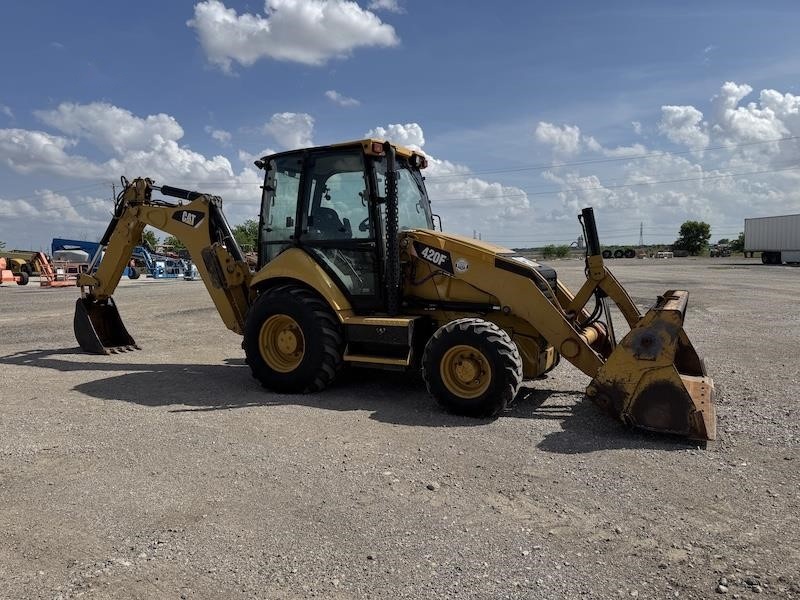

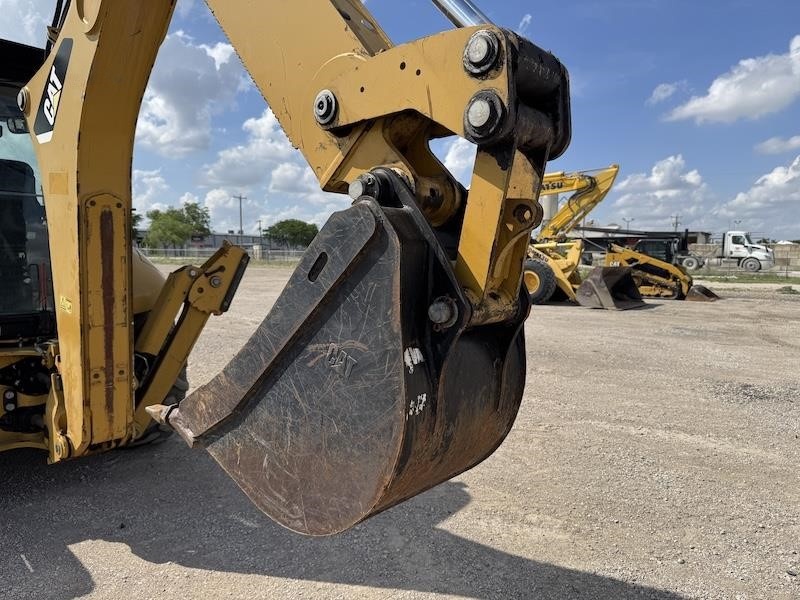

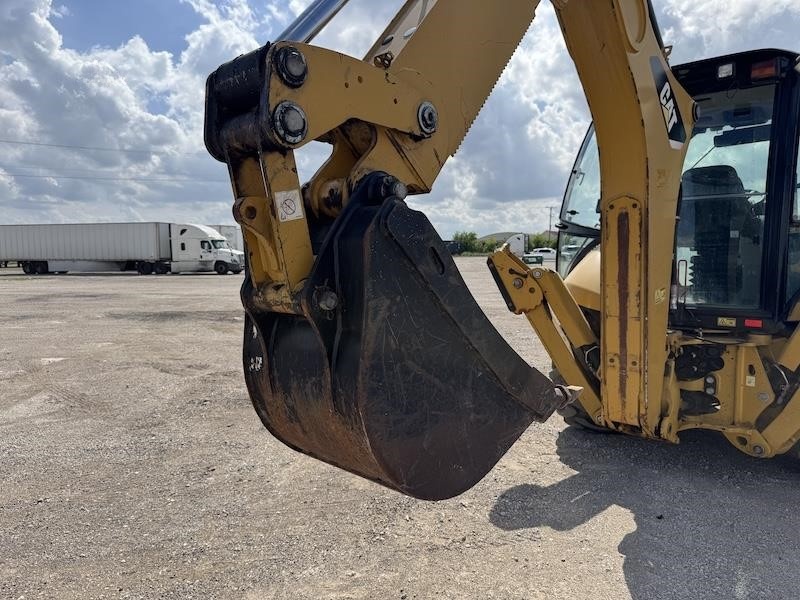

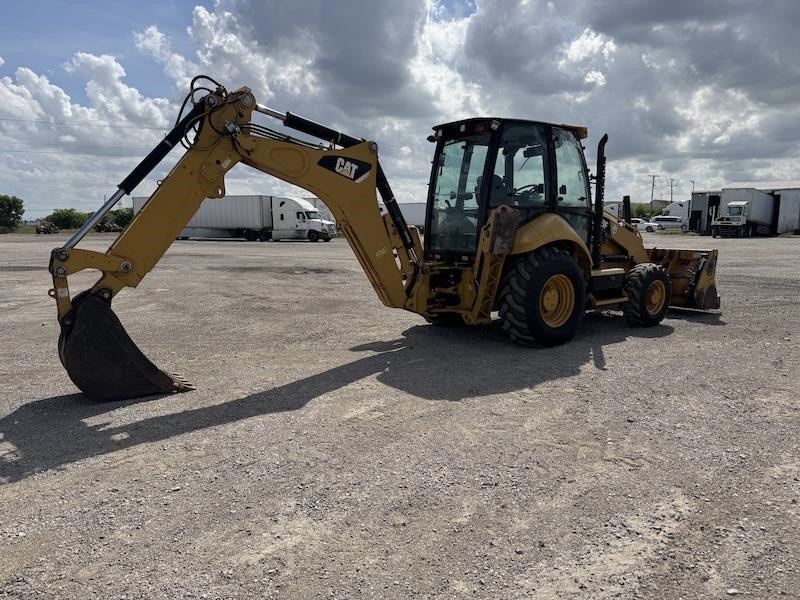

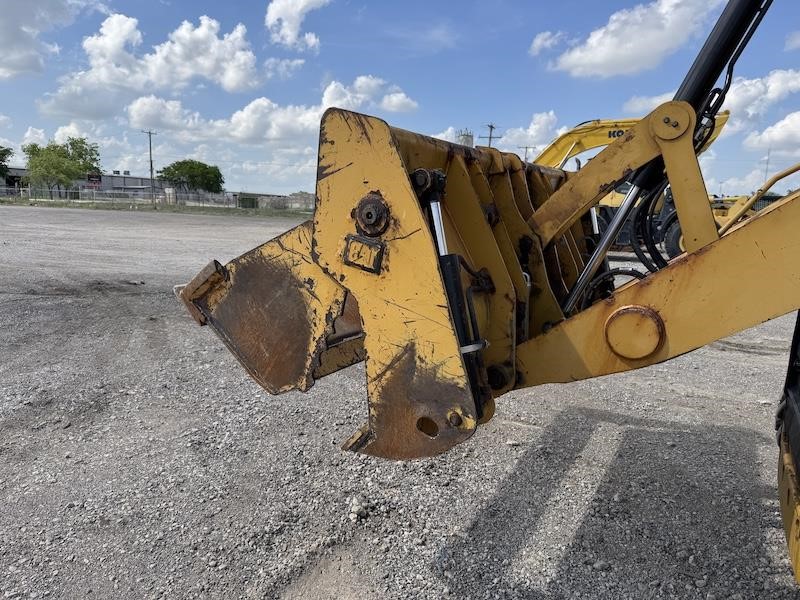

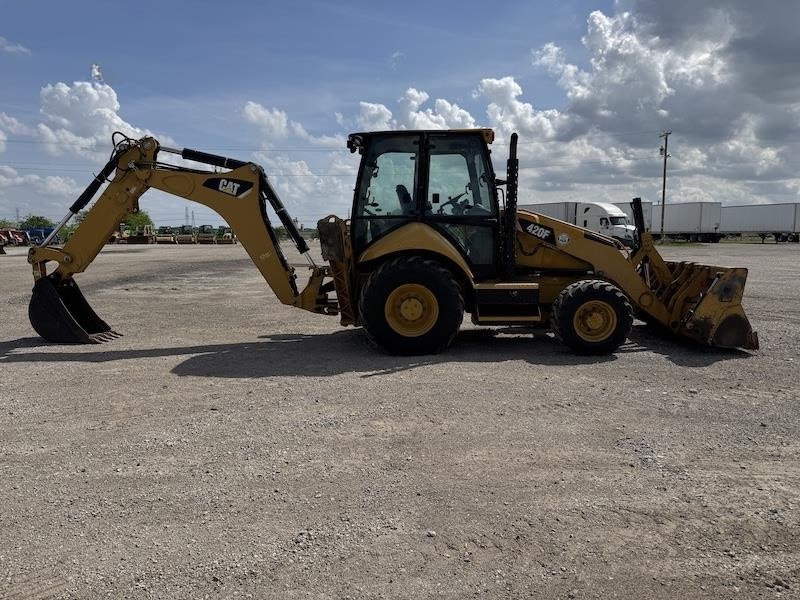

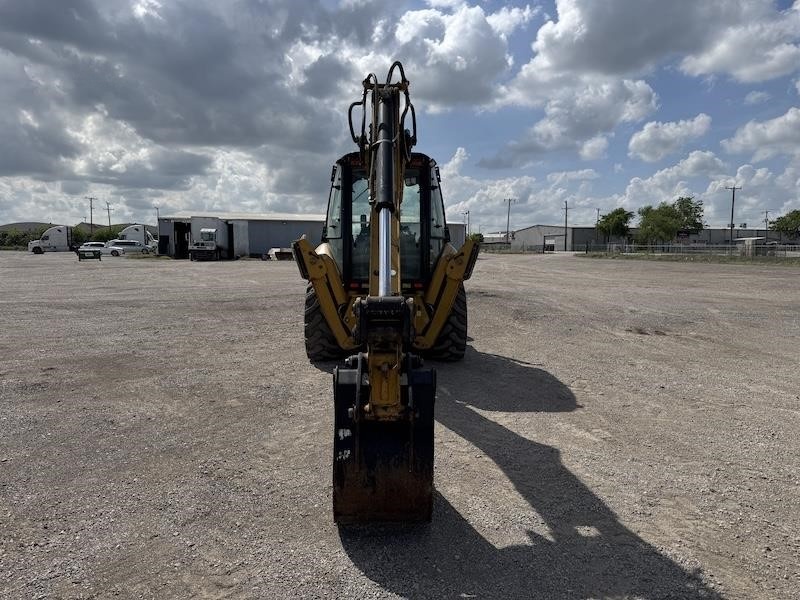

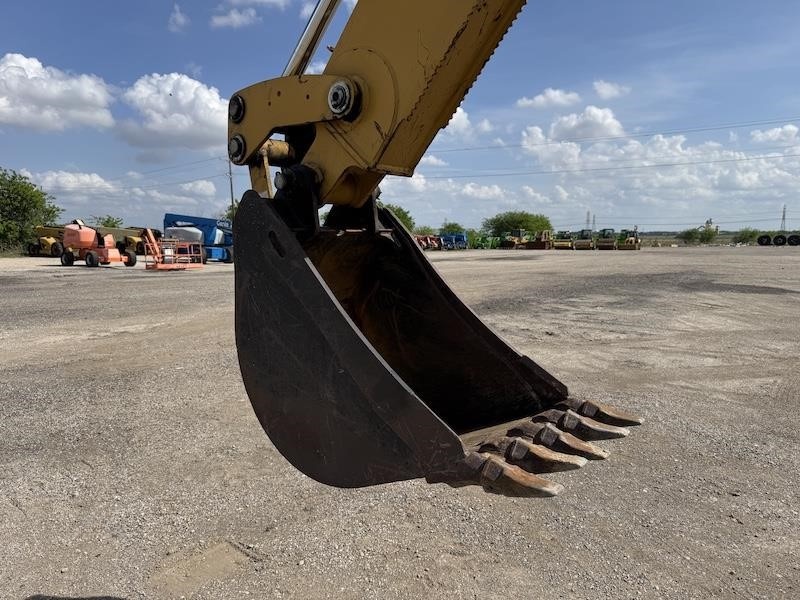

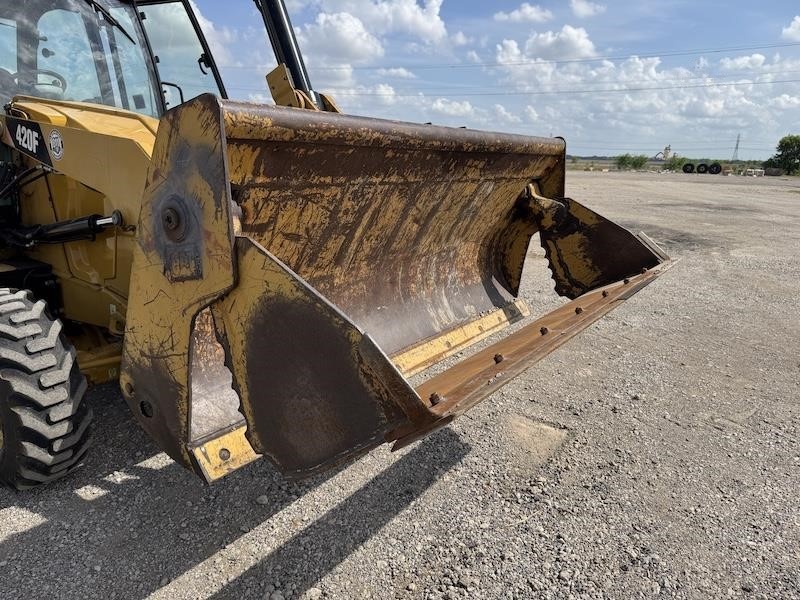

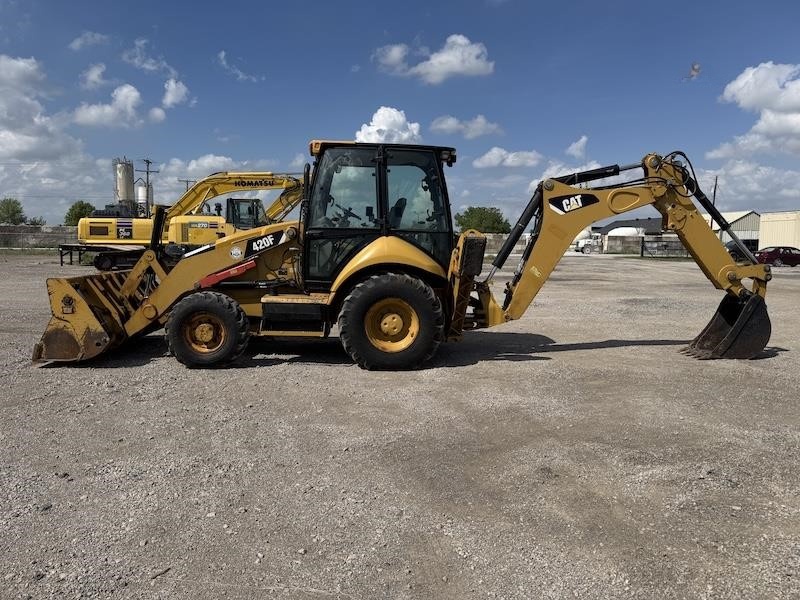

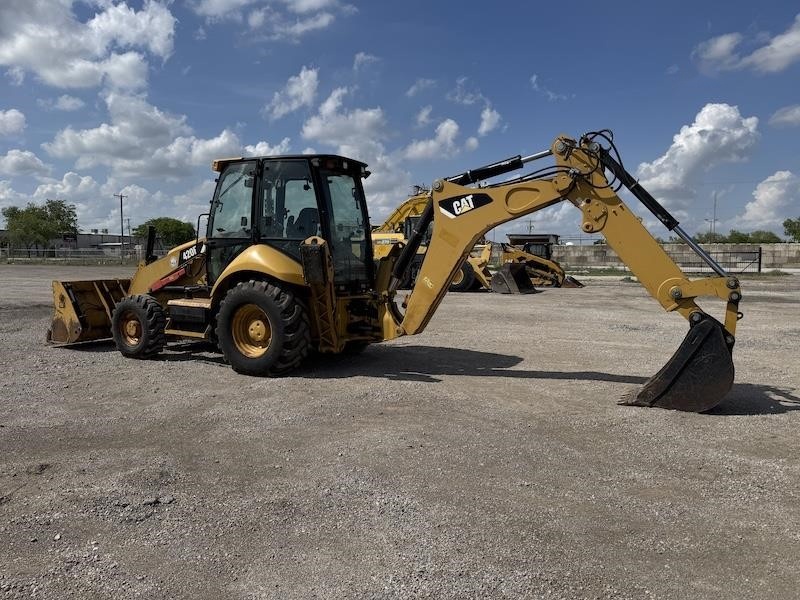

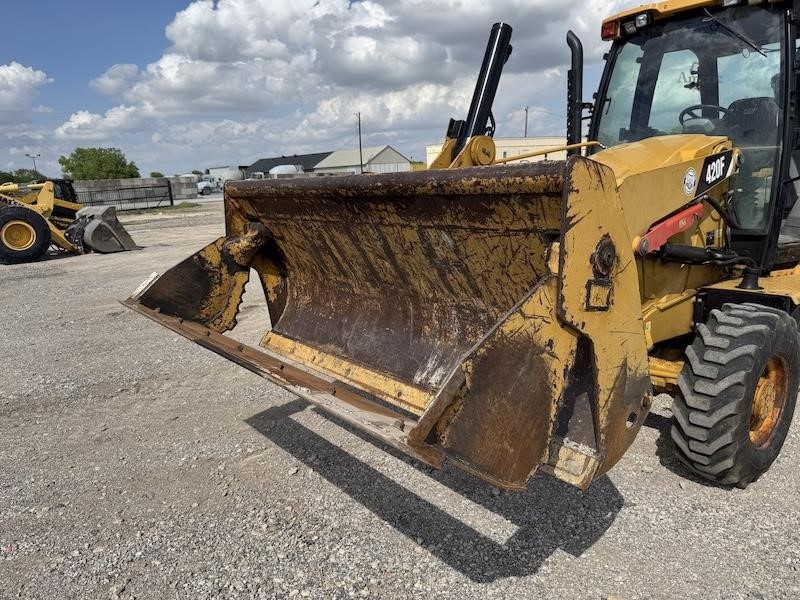

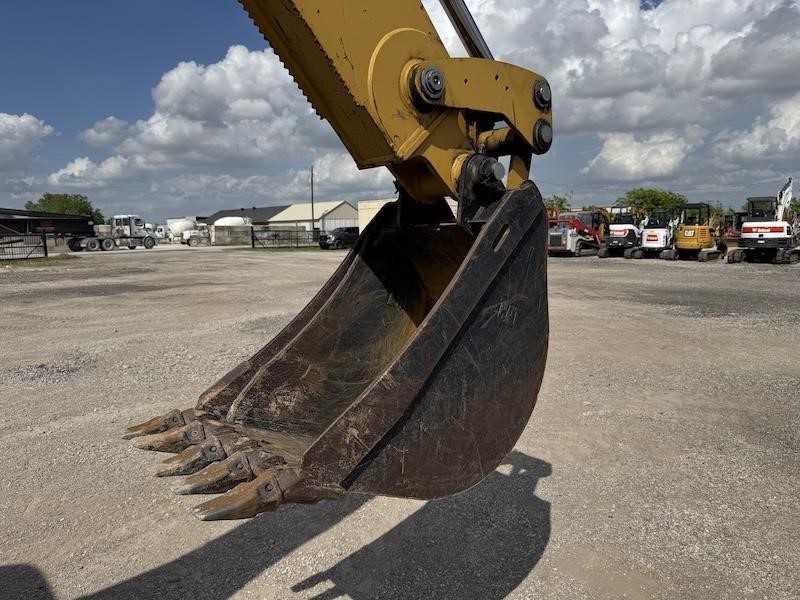

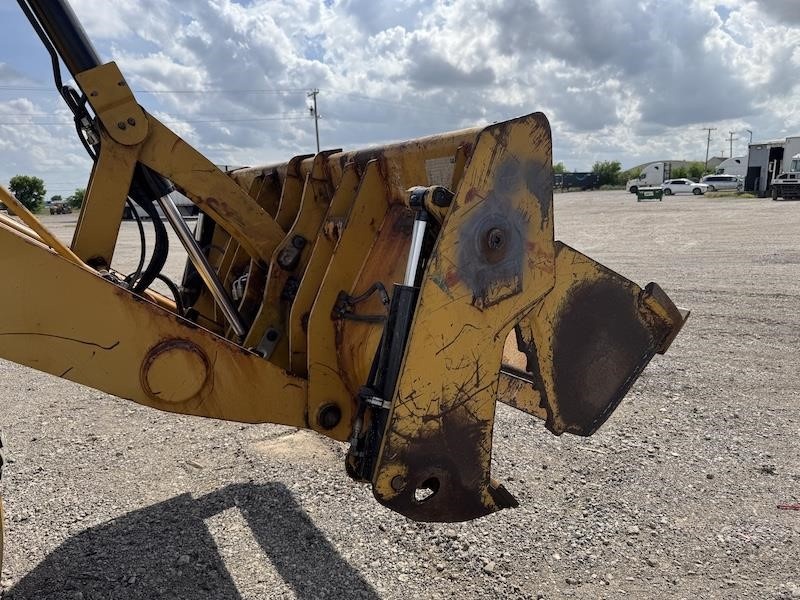

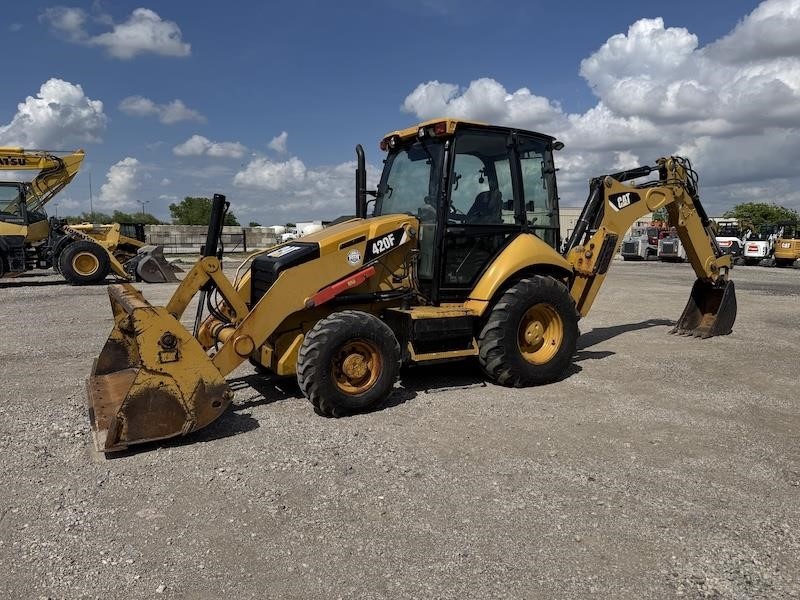

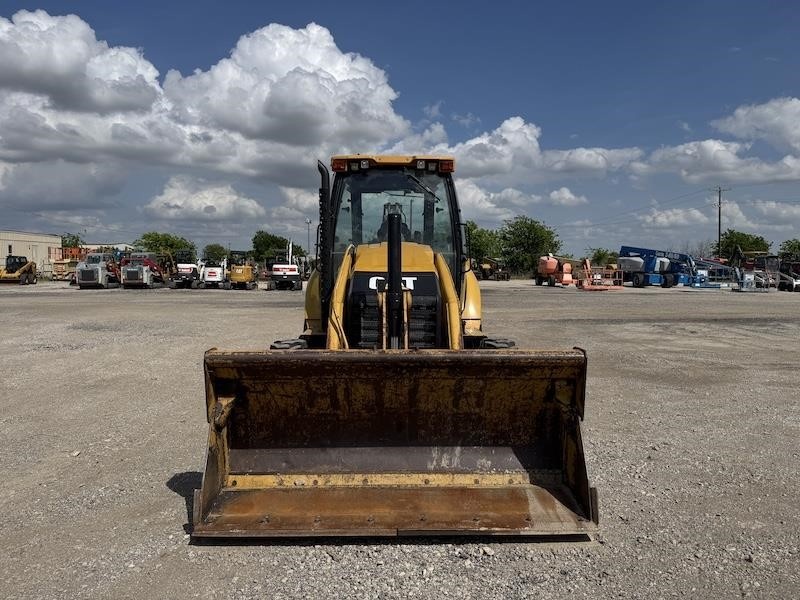

This 2014 Caterpillar 420F backhoe loader handles trenching, loading, and grading. Its extendable backhoe reaches into the work area, while the four-in-one front bucket handles material; the listing states the machine has been fully serviced. Mileage and/or engine hours are approximate and subject to change. Please contact your sales representative for the most current readings.
Specifications
General
| Year | 2014 |
| Make | caterpillar |
| Model | 420F |
| Hours | 2320 |
| Condition | Used |
| Gross Power (SAE J1995) | 76 kW 102 hp |
| Gross Power (ISO 14396) | 74 kW 100 hp |
| Rated Net Power @ 2,200 rpm (SAE J1349) | 69 kW 93 hp |
| Rated Net Power @ 2,200 rpm (ISO 9249/EEC 80/1269) | 70 kW 94 hp |
| Bore | 105 mm 4.13 in |
| Stroke | 127 mm 5 in |
| Forward – 4th (Power Shuttle) | 40 km/h |
| Turning Circle – Outside, Front Wheels | 8.18 m 26'10" |
Engine & Powertrain

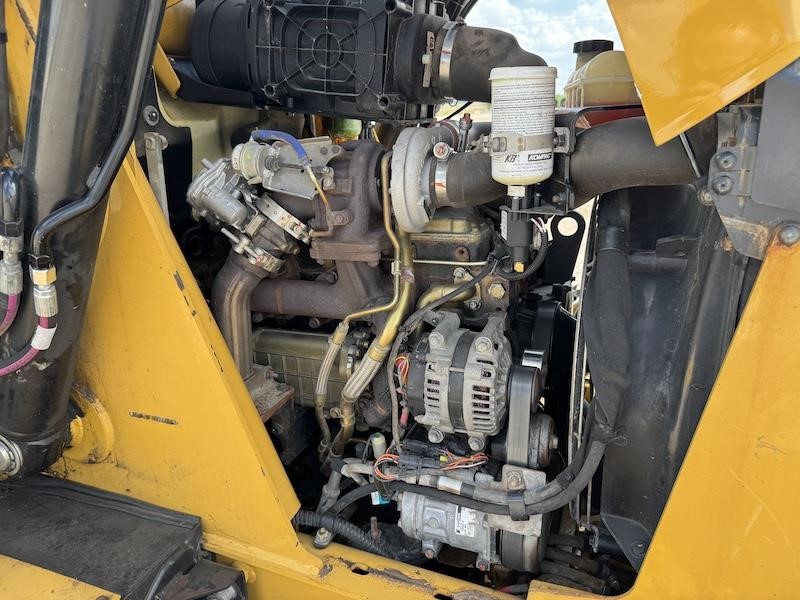

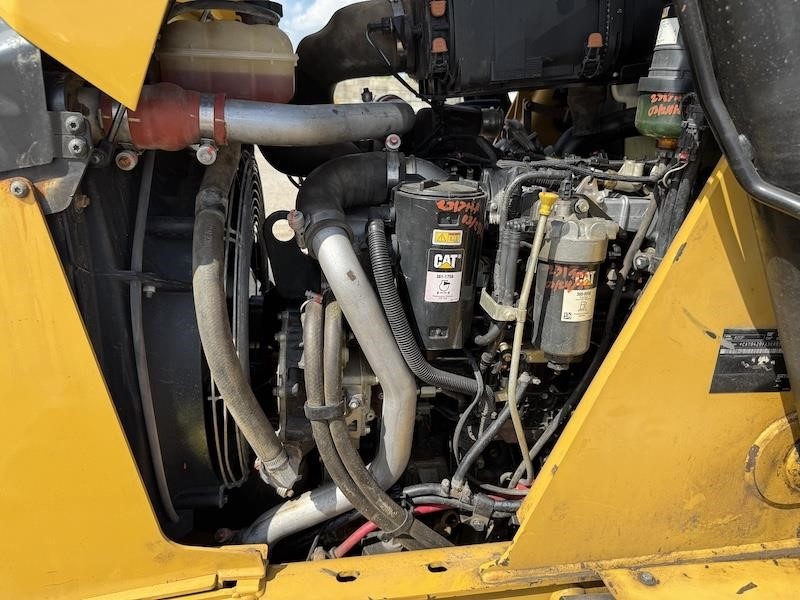

| Engine Model | Cat C4.4 ACERT |
| Net Peak Torque @ 1,400 rpm | 438 N·m 323 lb-ft |
| Displacement | 4.4 L 268 in3 |
| Fuel Tank | 165 L 44 gal |
Working Range
| Hydraulic System Type | Closed Center |
| Pump Type | Variable Flow, Axial Piston |
| Pump Capacity @ 2,200 rpm | 163 L/min 43 gal/min |
| System Pressure – Backhoe | 25 000 kPa 3,600 psi |
| System Pressure – Loader | 25 000 kPa 3,600 psi |
| Hydraulic Tank | 40.0 L 10.6 gal |
| Digging Depth, SAE (maximum) – Standard Stick | 4360 mm 14'4" |
| Digging Depth, SAE (maximum) – E-Stick Extended | 5442 mm 17'11" |
| Reach from Swing Pivot at Ground Line – Standard Stick | 6702 mm 22'1" |
Undercarriage & Attachments
| Turning Circle – Outside, Widest Loading Bucket | 10.97 m 36'0" |
| Bucket Dig Force – Standard Stick | 62 659 N 14,086 lb |
| Stick Dig Force – Standard Stick | 43 510 N 9,781 lb |
Dimensions
| Operating Weight – Nominal | 6983 kg 15,395 lb |
| Operating Weight – Maximum | 11 000 kg 24,251 lb |

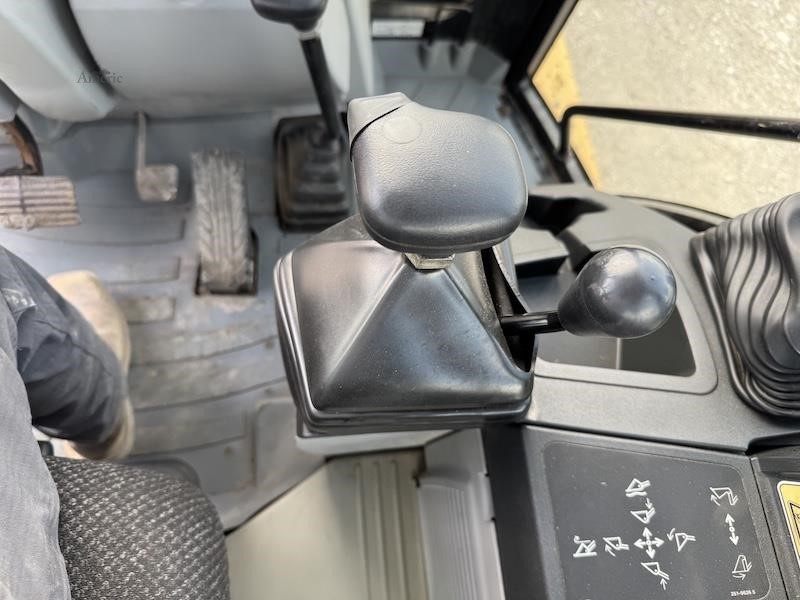

2014 Caterpillar 420F Backhoe Loader
