Item Specifications
Category
Condition
Used
Item Number
#1909
Make
takeuchi
Model
TL10V2
Year
2020
Industry
construction
Equipment Type
compact track loaders
Location
Ft. Worth, TX
Also Available In
TX
Item Description

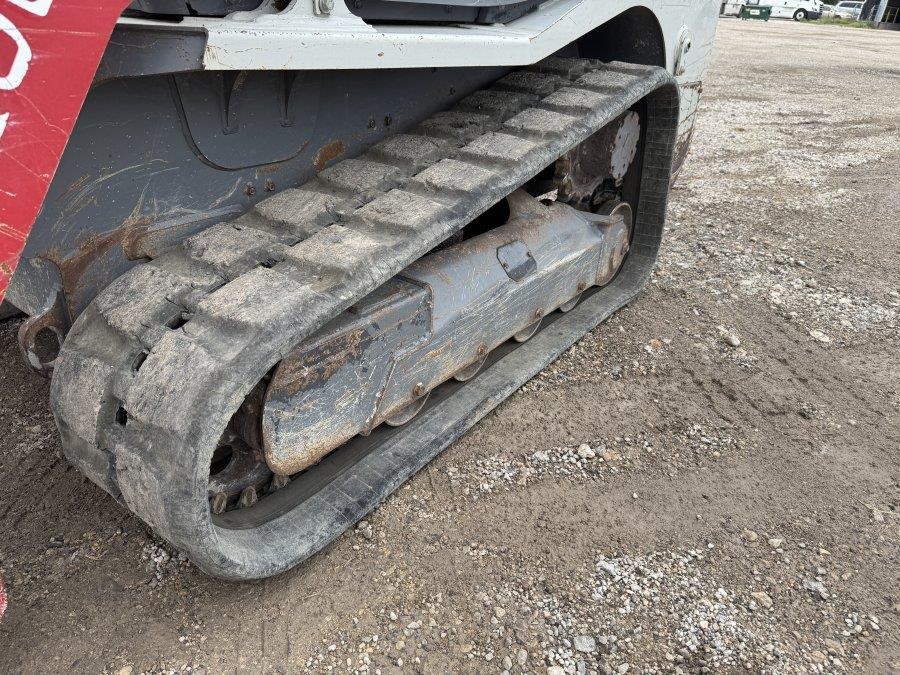

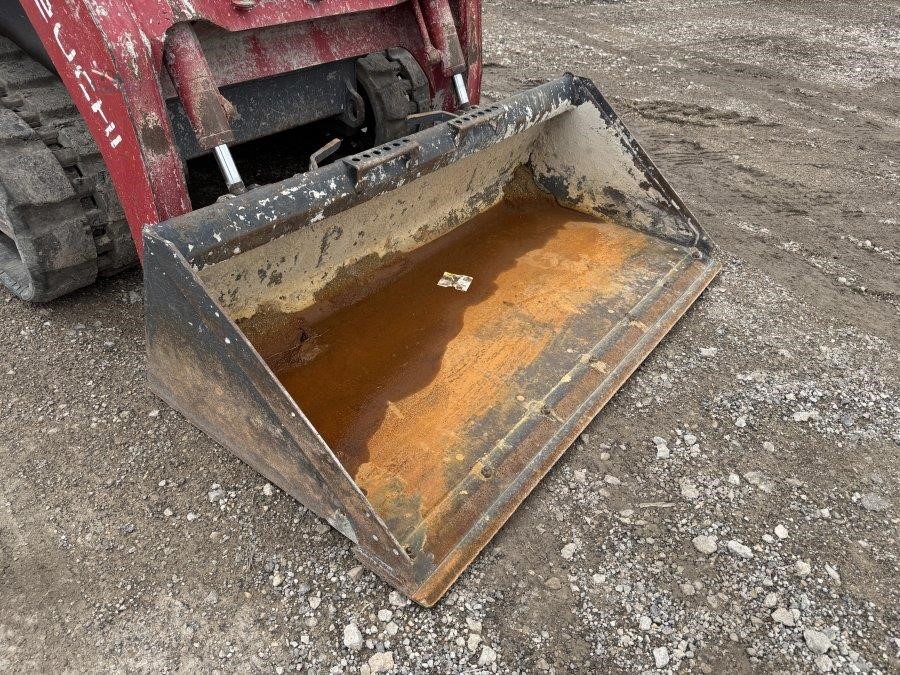

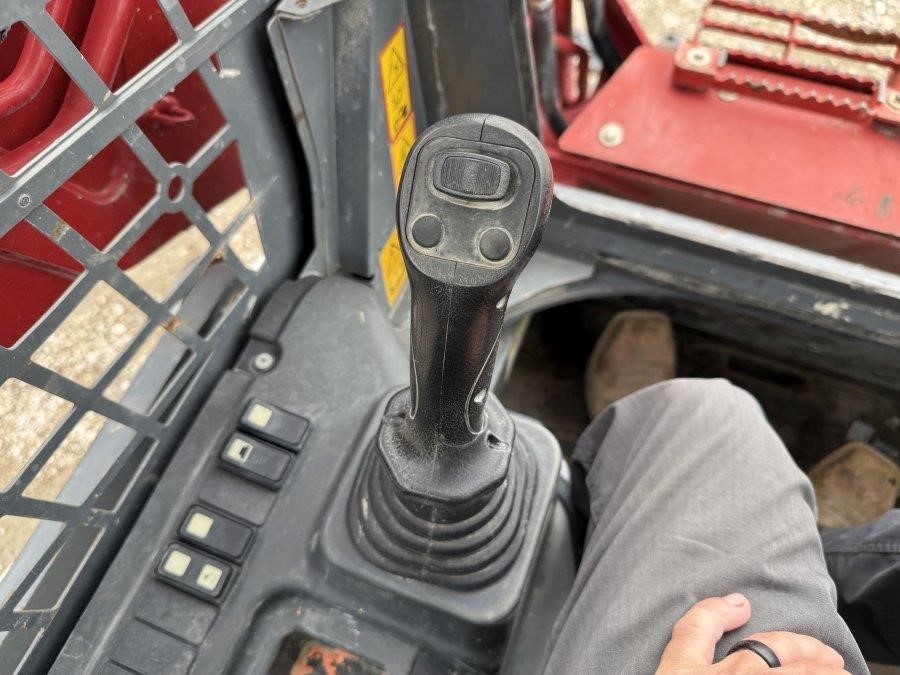

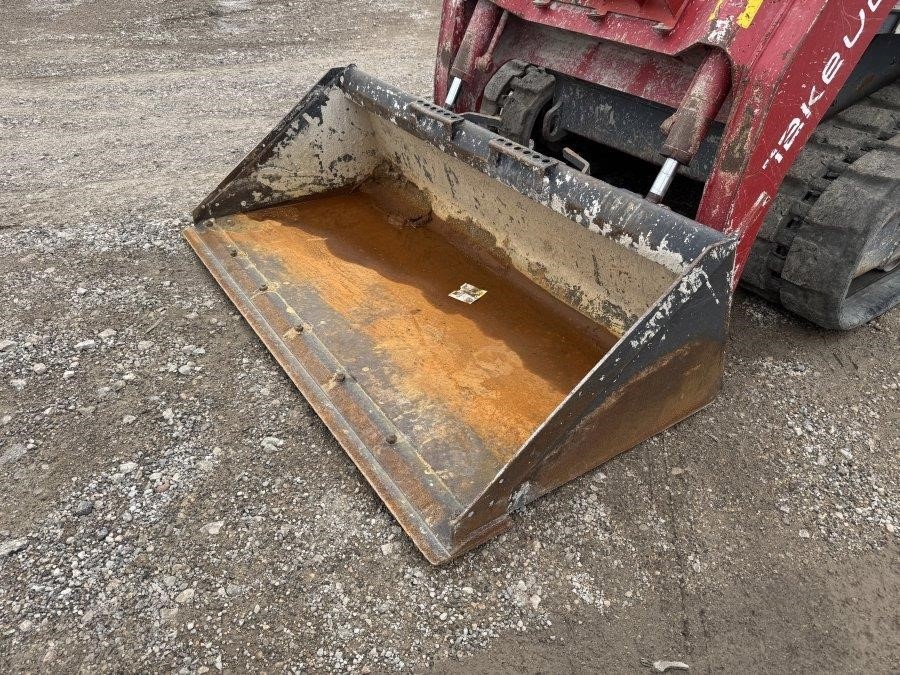

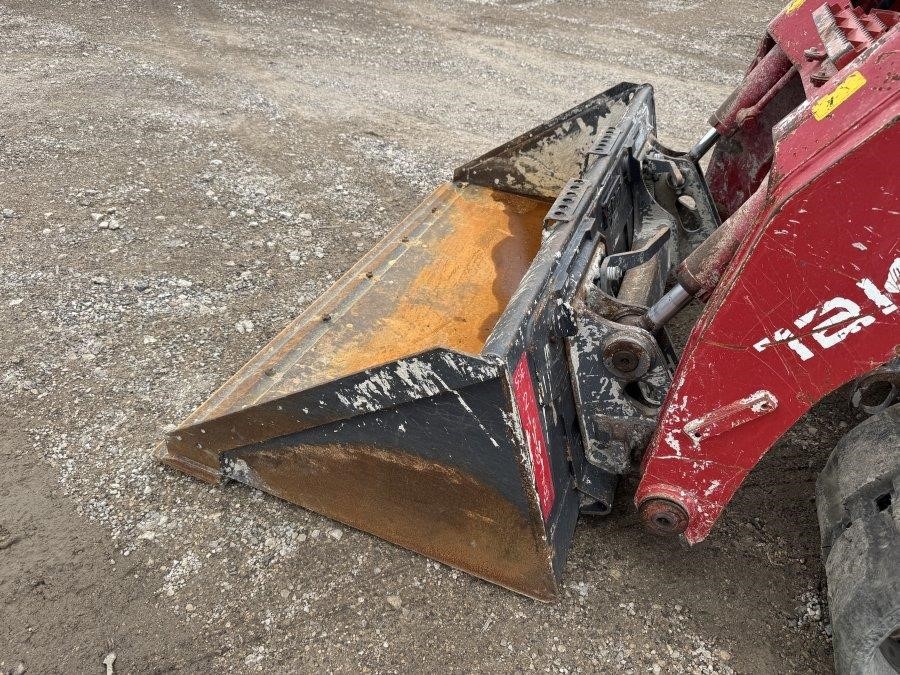

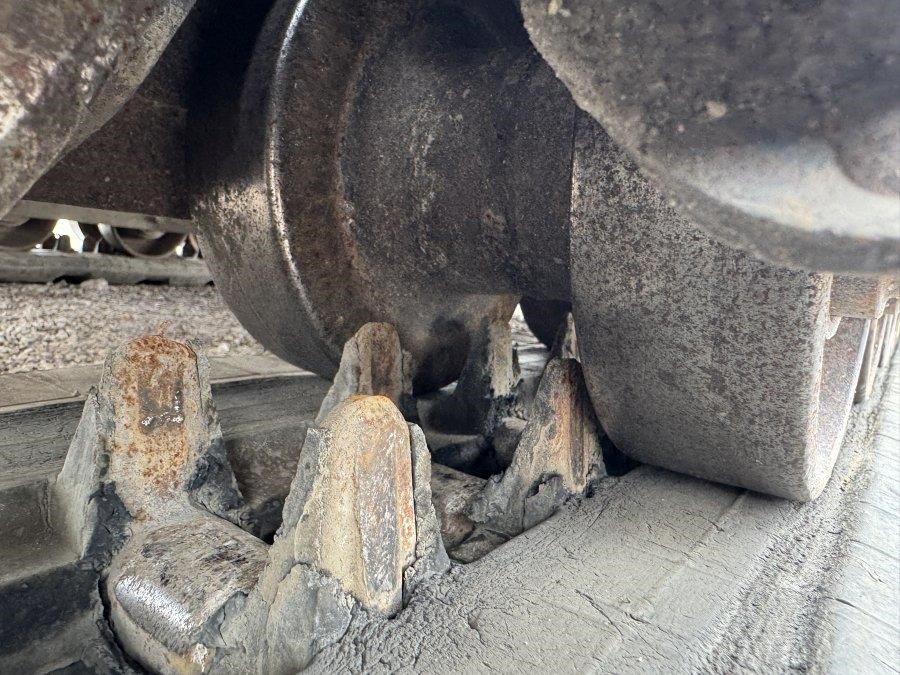

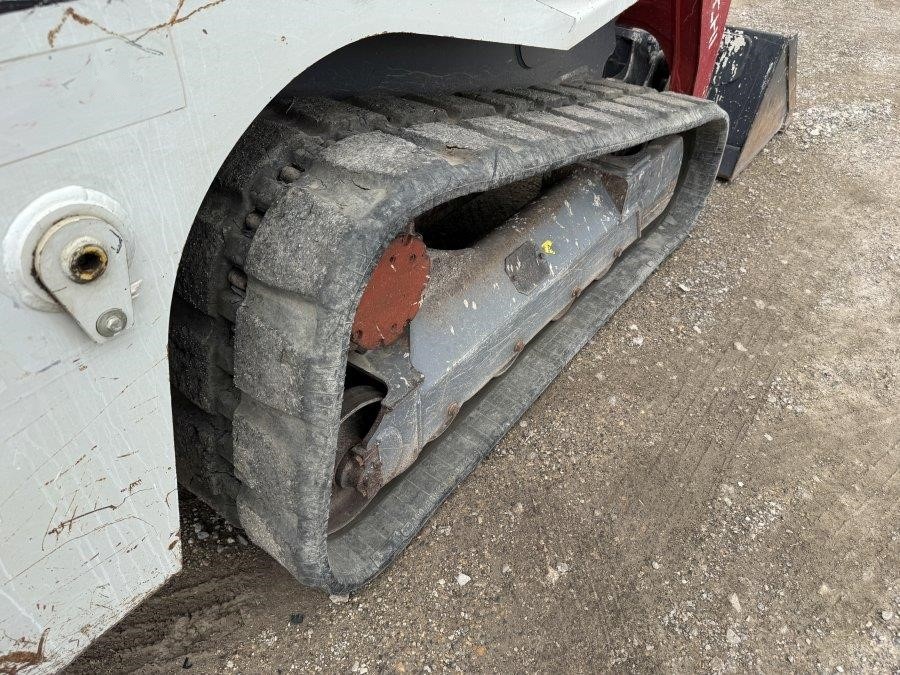

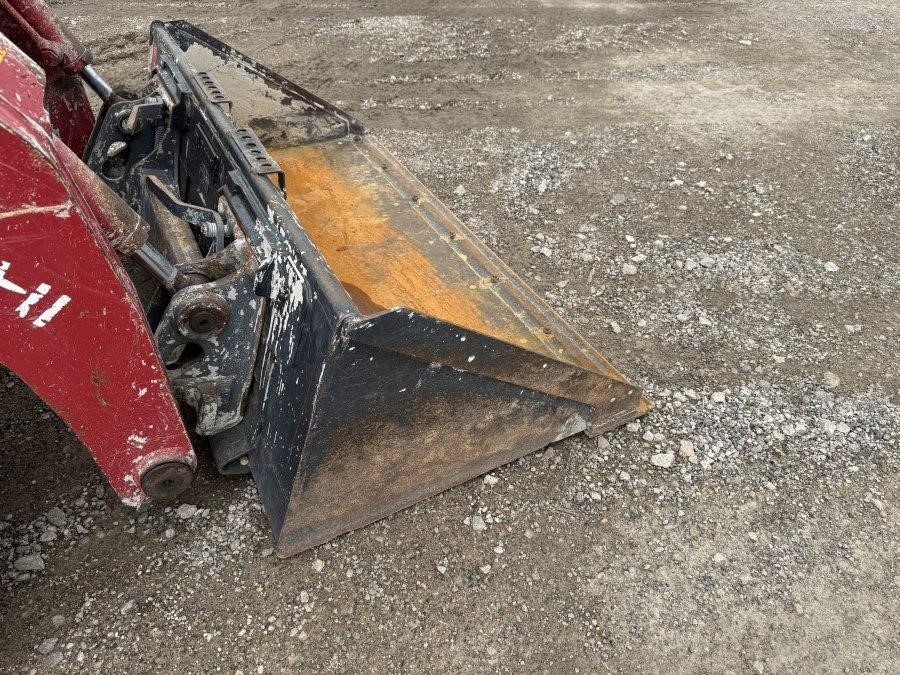

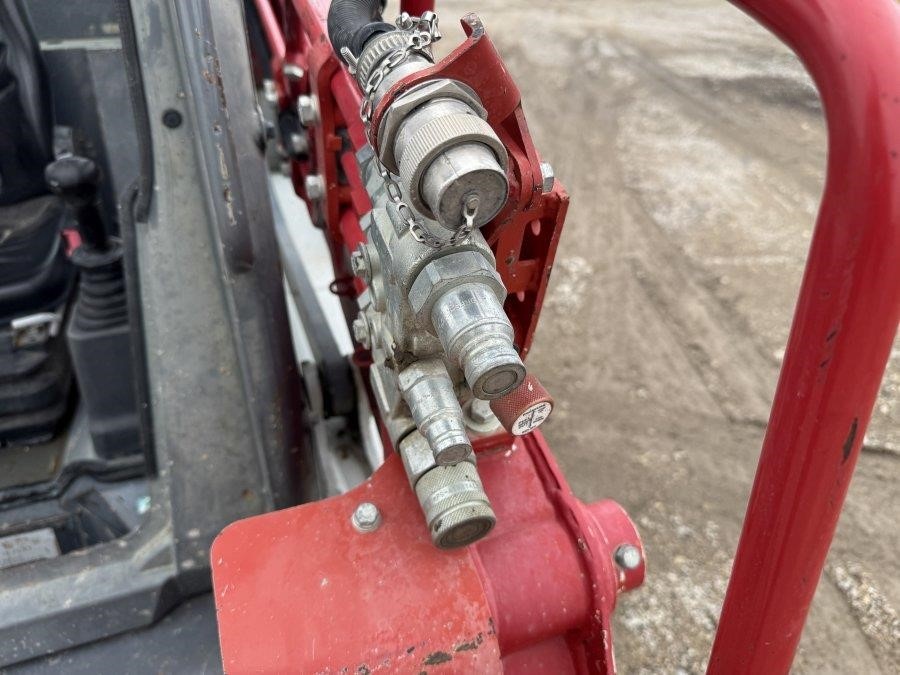

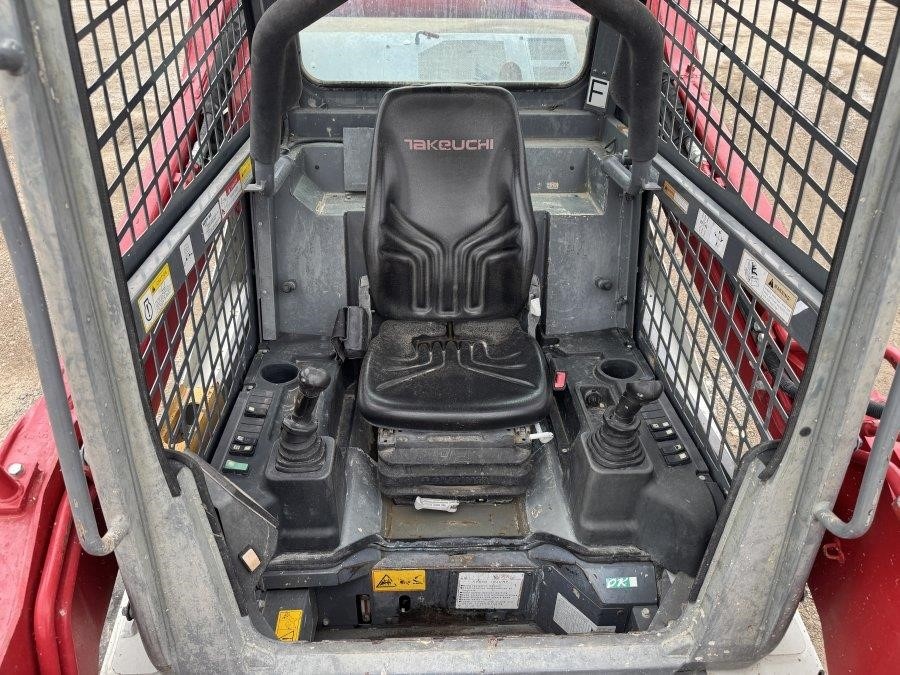

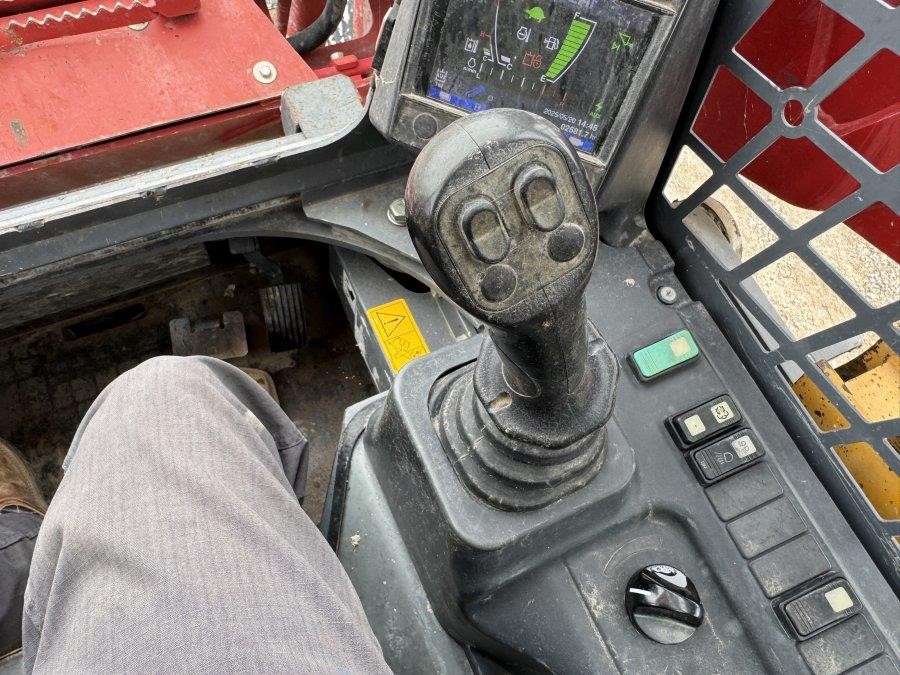

OROPS, Aux Hydraulics, Kubota Diesel Engine, Pilot Control, Foot Throttle, 2 Speed, Backup Camera, 16" Rubber Tracks, 68" Bucket
Specifications
General
| Year | 2020 |
| Make | takeuchi |
| Model | TL10V2 |

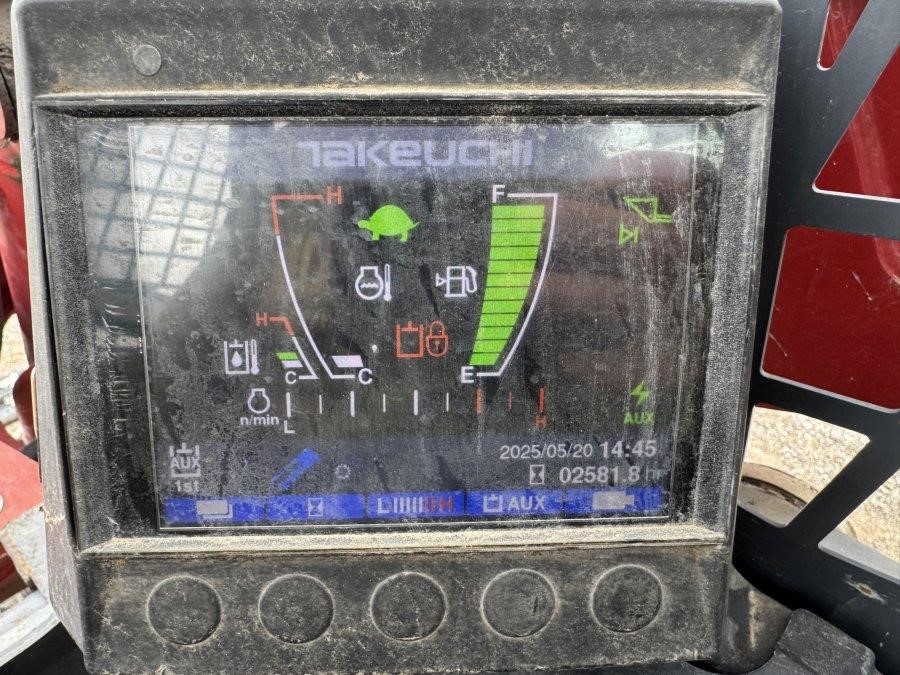

| Hours | 2581 |
| Condition | Used |
| Traction Force | 9,730 lb (4,410 kg) |
Engine & Powertrain

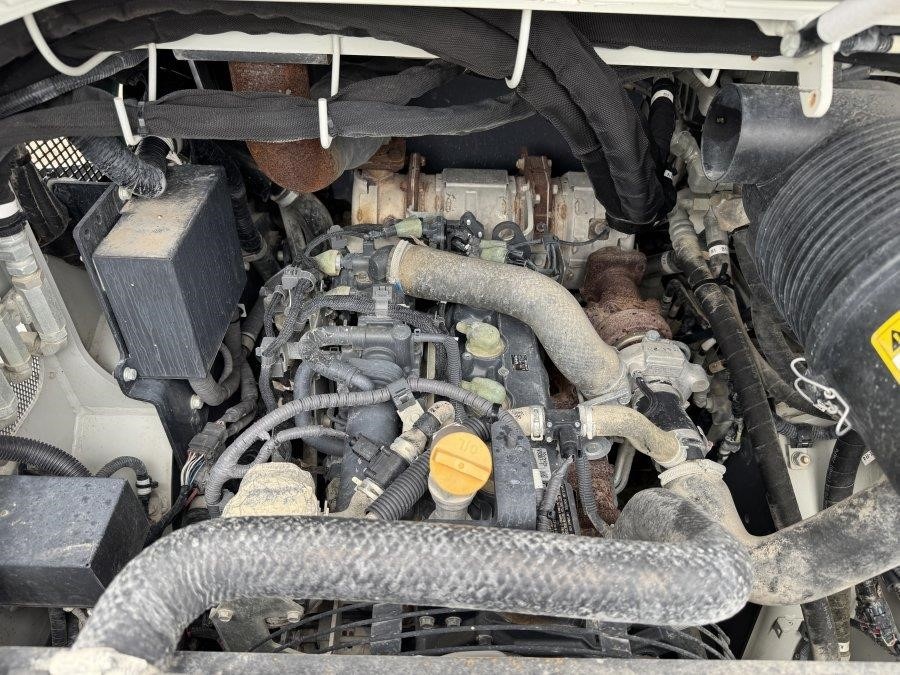

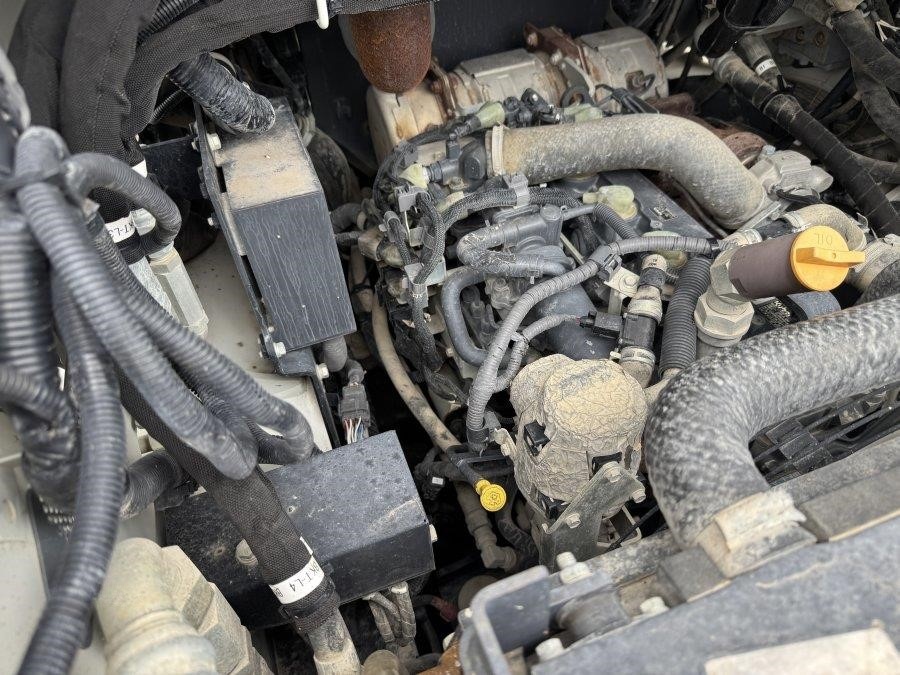

| Engine Make / Model | Kubota / V3307CR-TE4B |
| Engine Displacement | 203 cu in (3.3 L) |
| Horsepower @ 2,600 rpm | 74.3 hp (55.4 kW) |
| Maximum Torque @ 1,500 rpm | 195 ft-lb (265.0 Nm) |
| Fuel Tank Capacity | 21.5 gal (81.0 L) |
Working Range
| Tipping Load | 7,205 lb (3,268 kg) |
| Rated Operating Capacity, SAE J818 | 2,522 lb (1,145 kg) |
| Operating Load at 50% of Tipping Load | 3,600 lb (1,635 kg) |
| Travel speed - Low | 4.8 mph (7.7 km/hr) |
| Travel speed - High | 7.0 mph (11.3 km/hr) |
| Auxiliary Flow - Primary Circuit | 18.8 gpm (71.2 Lpm) |
| Auxiliary Flow - High Flow (optional) | 32.8 gpm (124.0 Lpm) |
| Hydraulic System Pressure | 3,481 psi (24.0 MPa) |
| Hydraulic Reservoir Capacity | 9.5 gal (36.0 L) |
| Hydraulic System Capacity | 17.2 gal (65.0 L) |
Undercarriage & Attachments
| Bucket Breakout Force | 6,520 lb (2,960 kg) |
| Lift Arm Breakout Force | 5,400 lb (2,450 kg) |
Dimensions
| Operating Weight - Canopy | 9,950 lb (4,515 kg) |
| Operating Weight - Cab | 10,270 lb (4,660 kg) |
| Ground Pressure - Canopy | 4.9 psi (34.3 kPa) |
| Ground Pressure - Cab | 5.1 psi (35.4 kPa) |
| A Maximum Lift Height to Bucket Pin | 10 ft 4.8 in (3,169 mm) |
| G Machine Length | 9 ft 7.2 in (2,925 mm) |
| I Transport Height | 7 ft 5.4 in (2,270 mm) |
| N Track Width | 15.7 in (400 mm) |

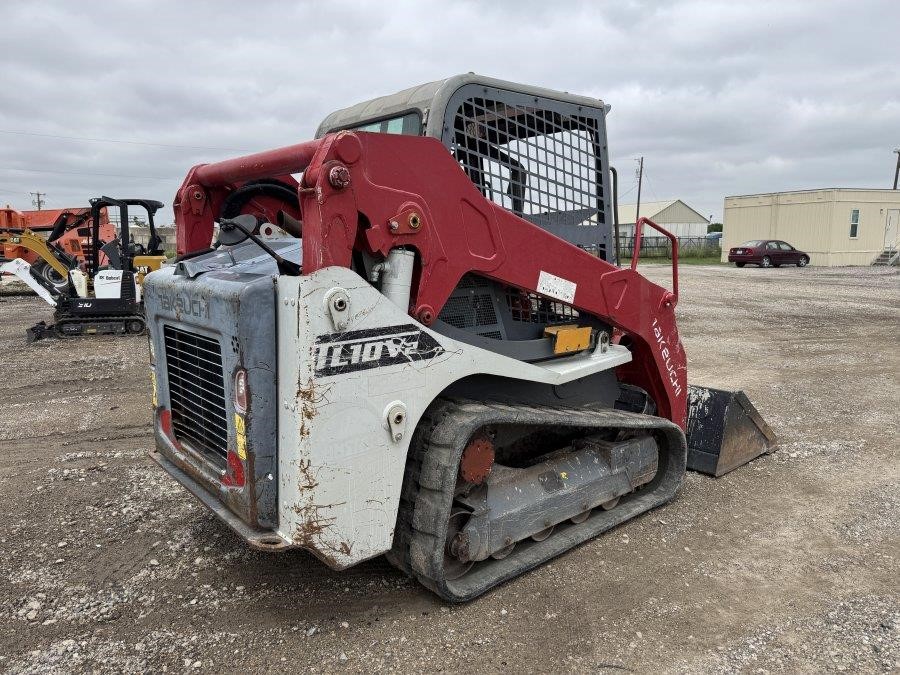

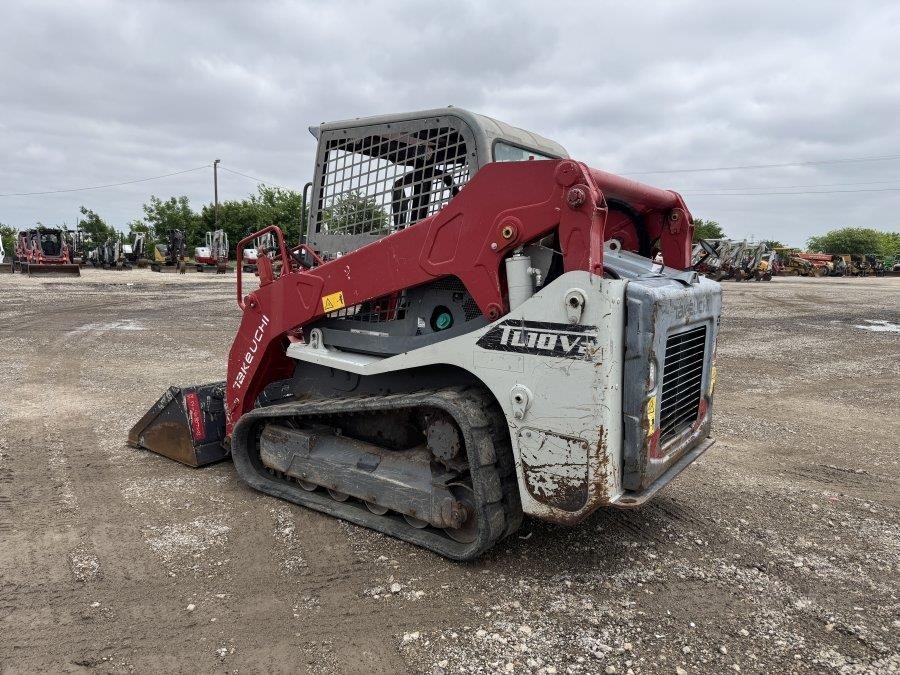

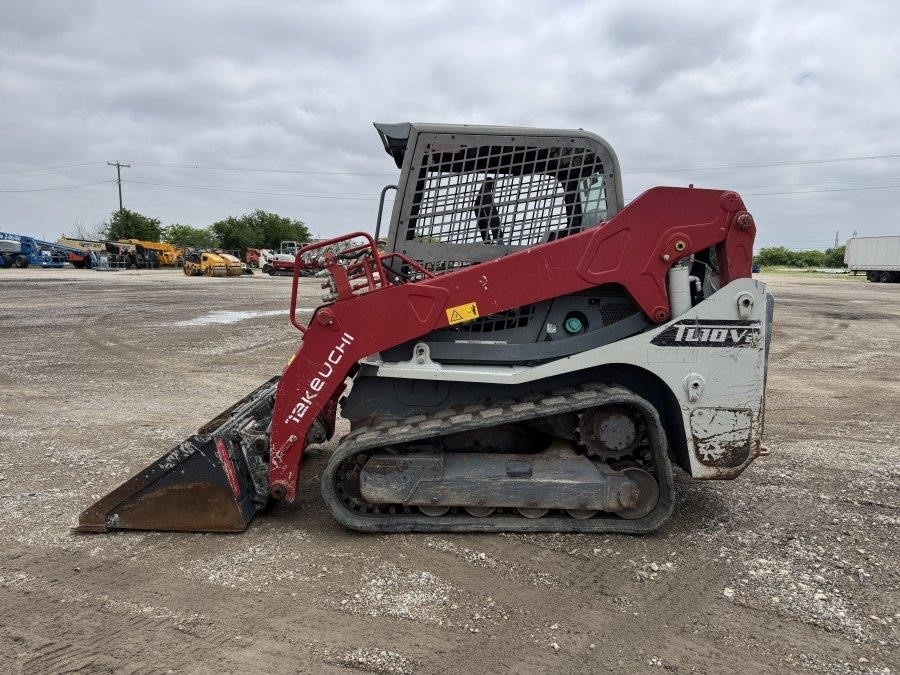

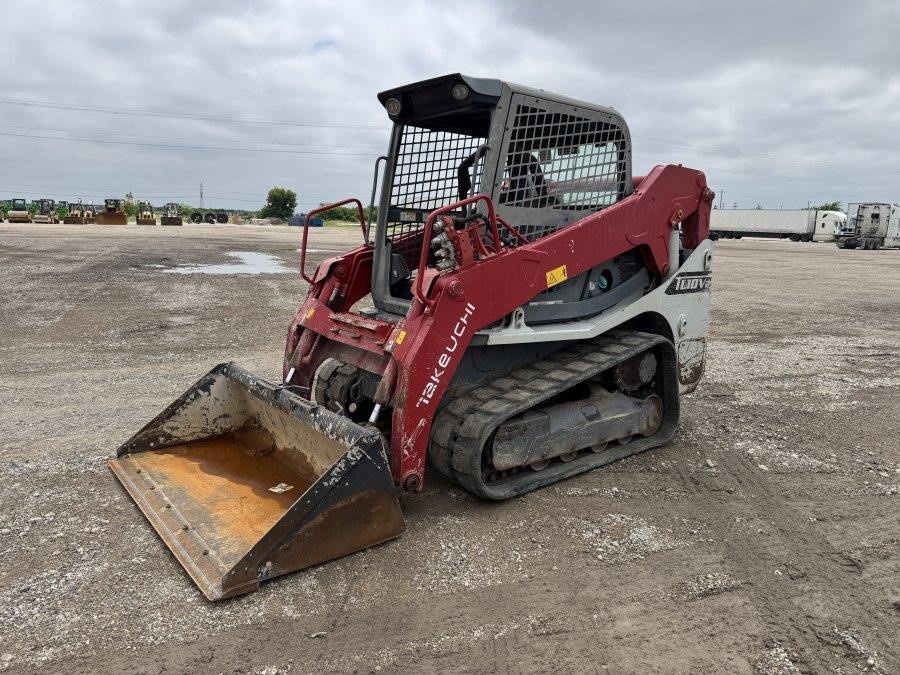

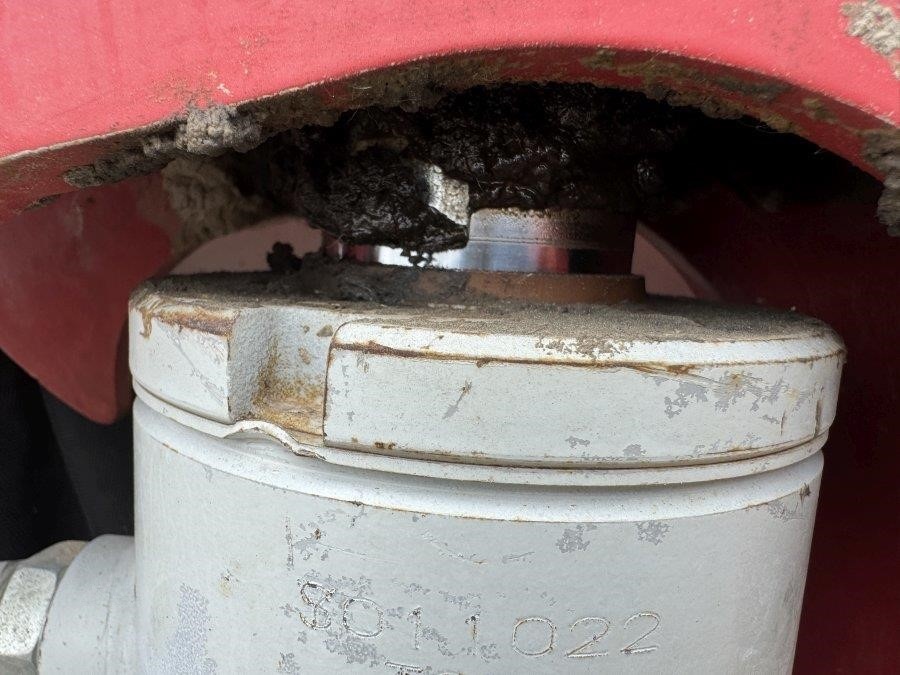

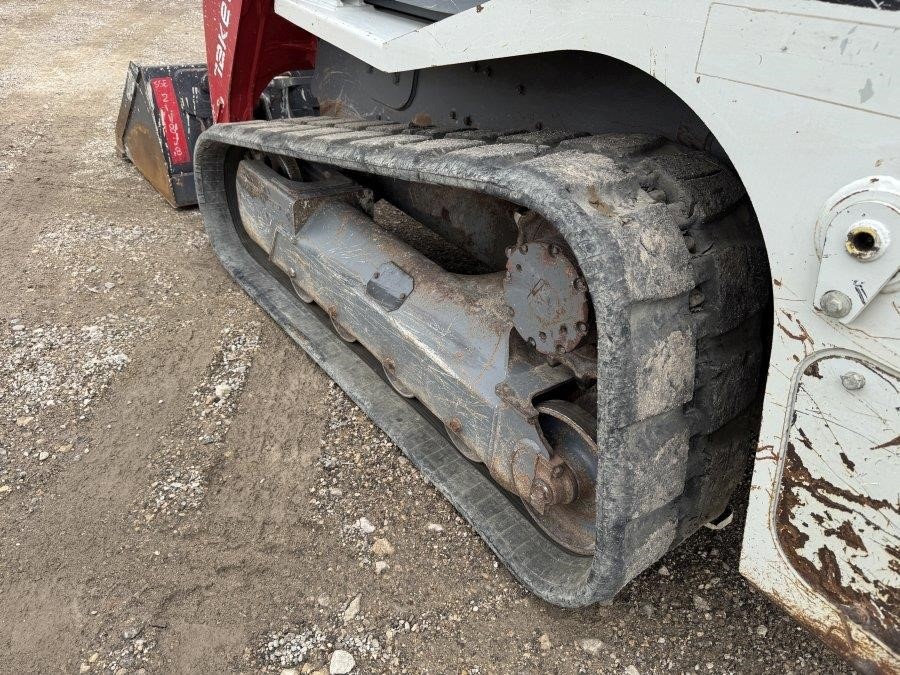

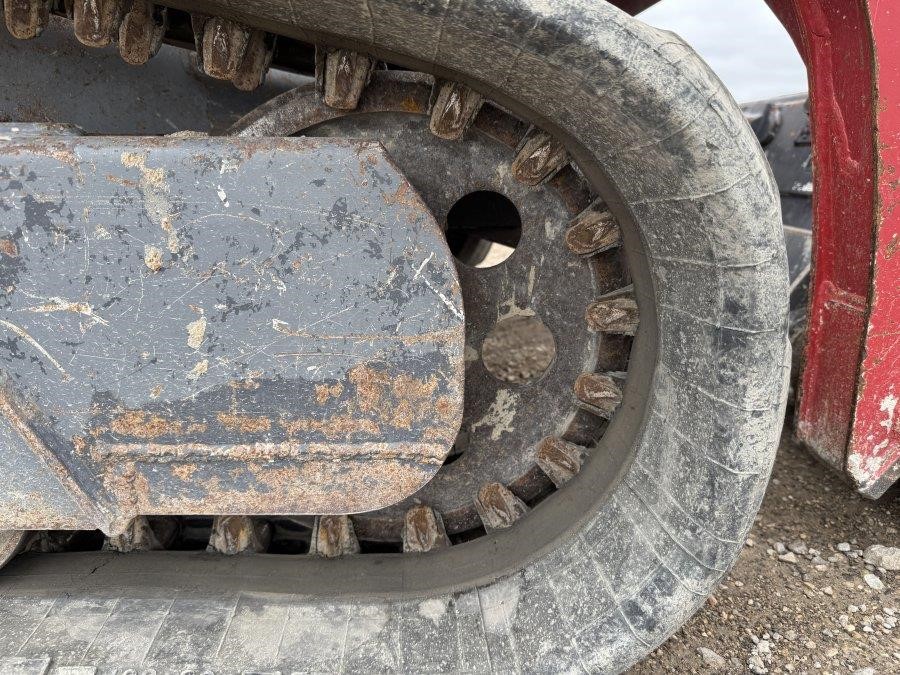

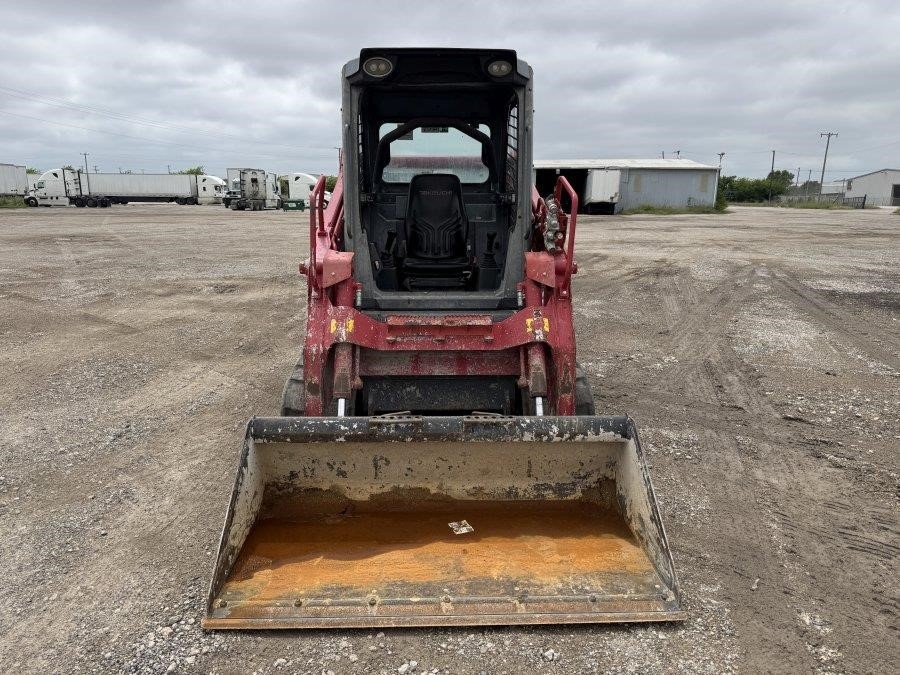

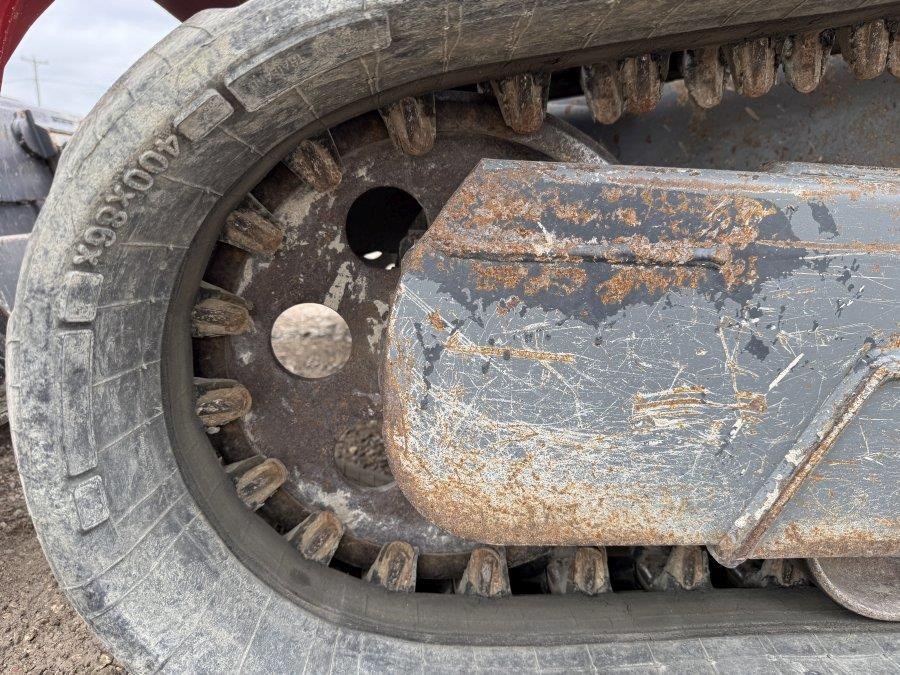

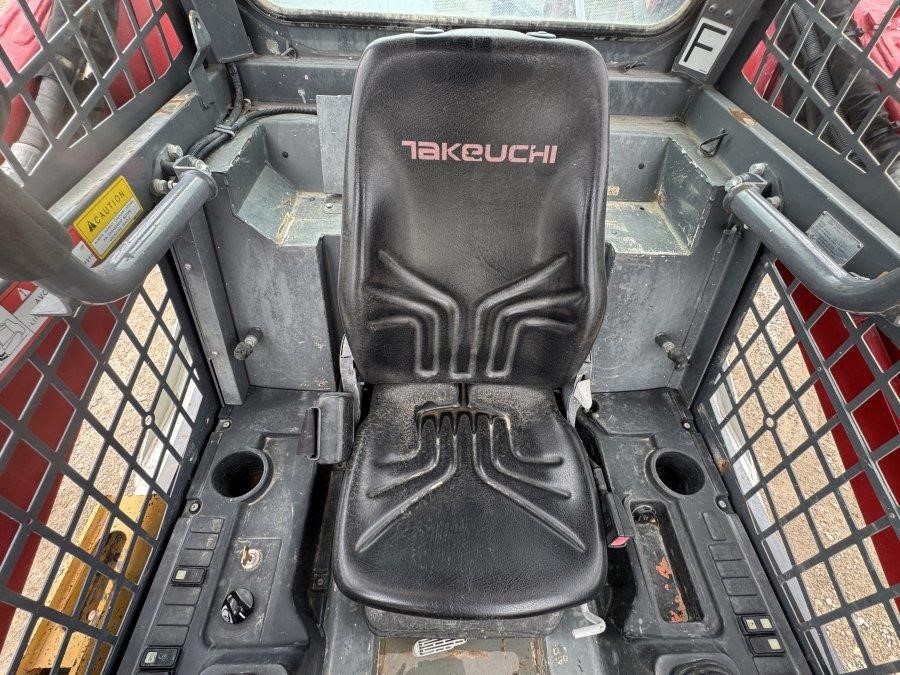

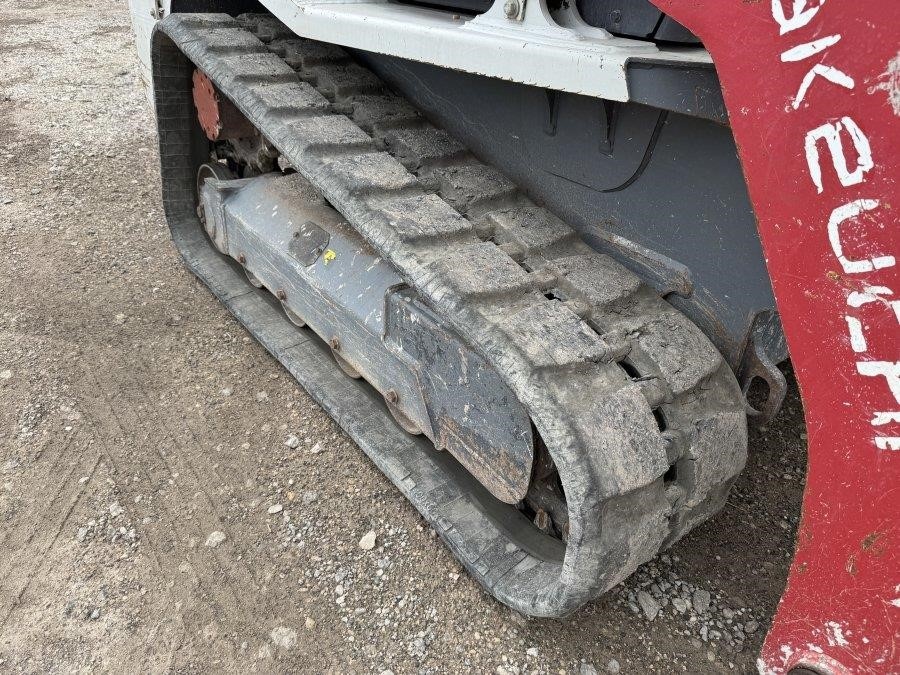

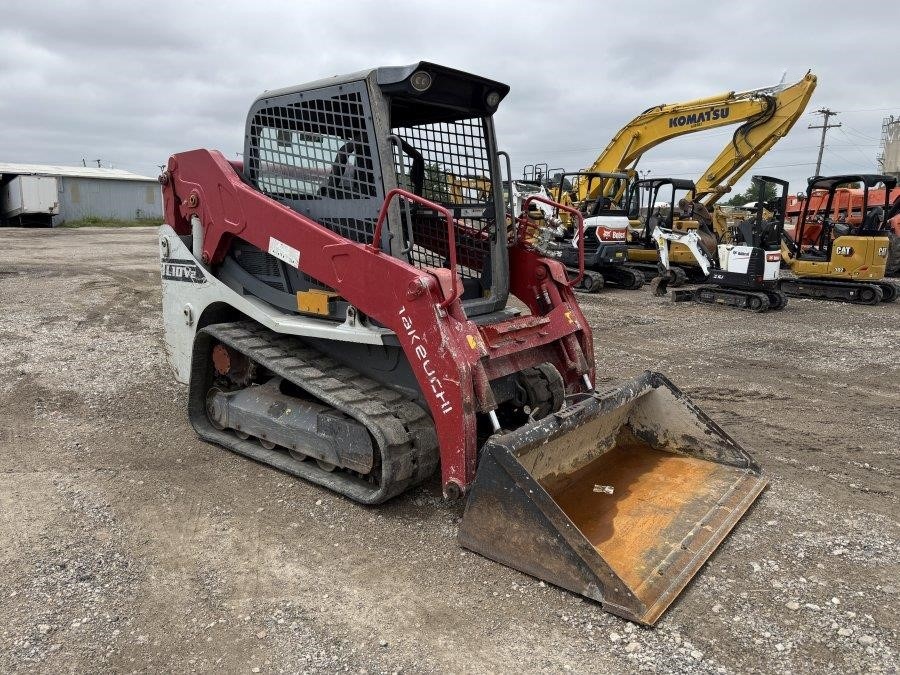

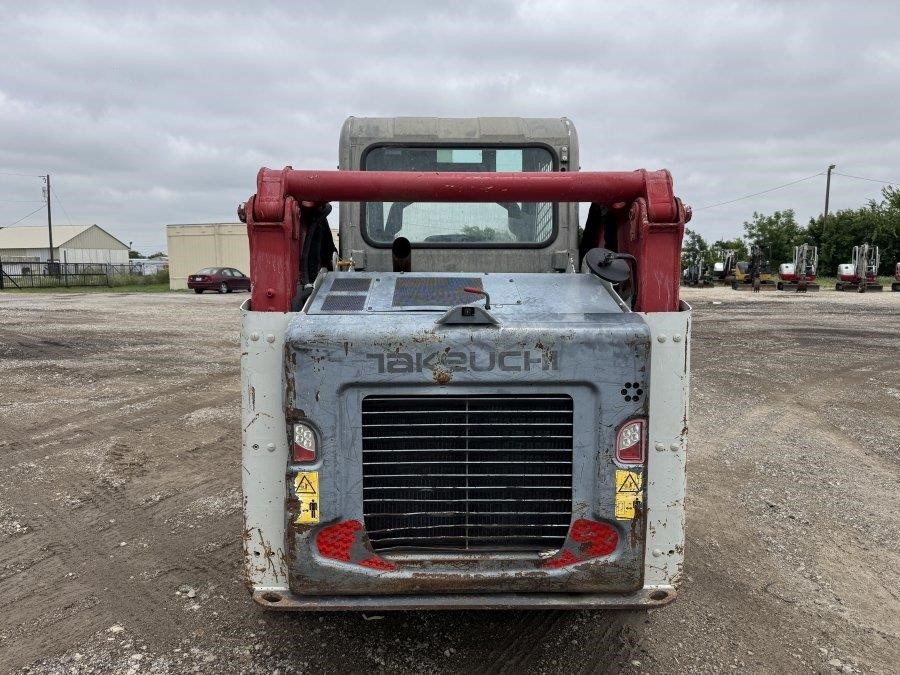

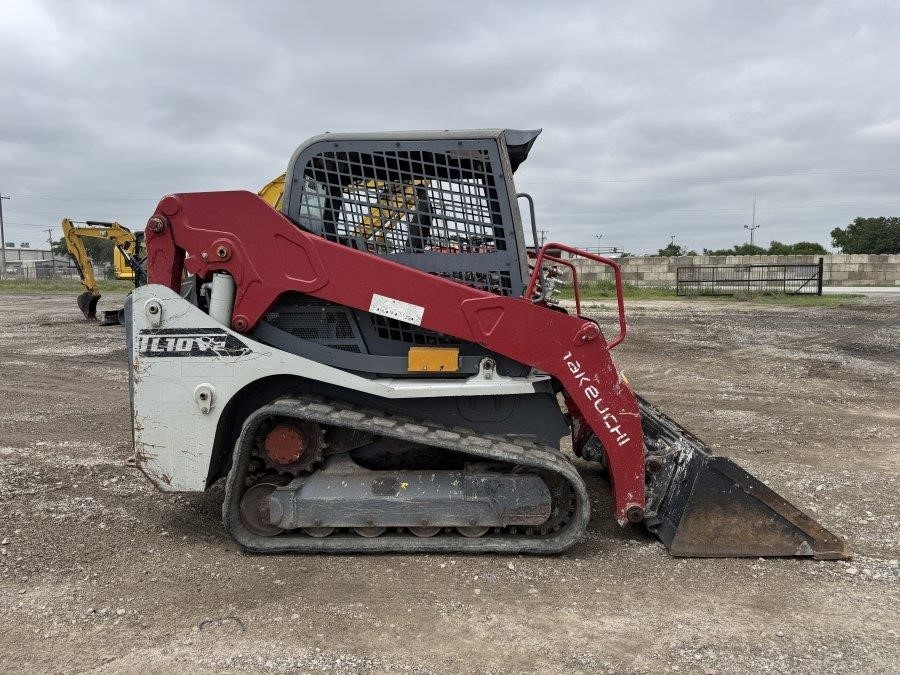

2020 Takeuchi TL10V2 Compact Track Loader
