Item Specifications
Category
Condition
Used
Item Number
#1889
Make
bobcat
Model
E10
Year
2022
Industry
construction
Equipment Type
mini excavators
Location
Ft. Worth, TX
Also Available In
TX
Item Description

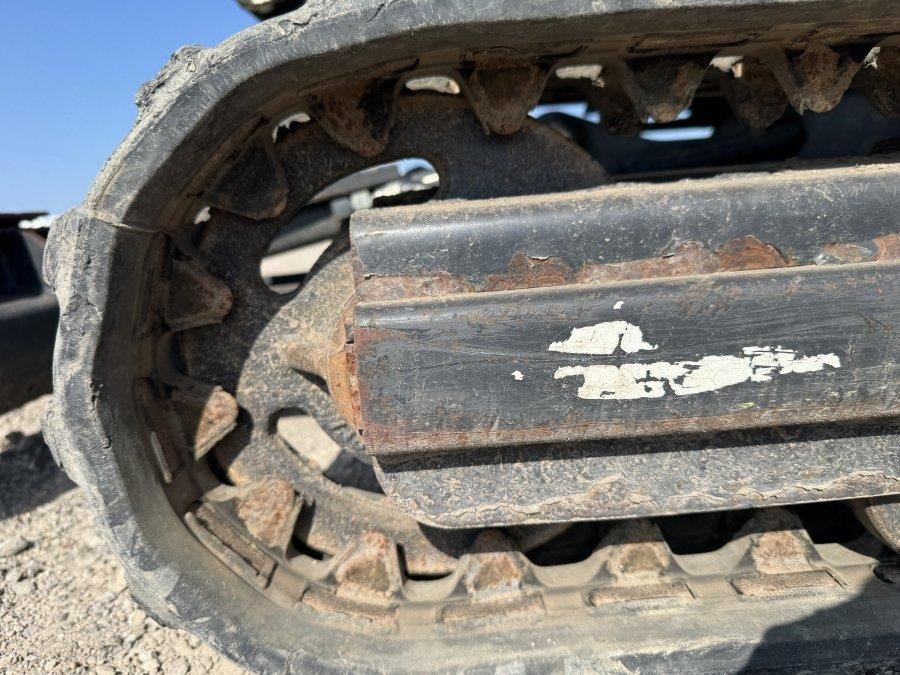

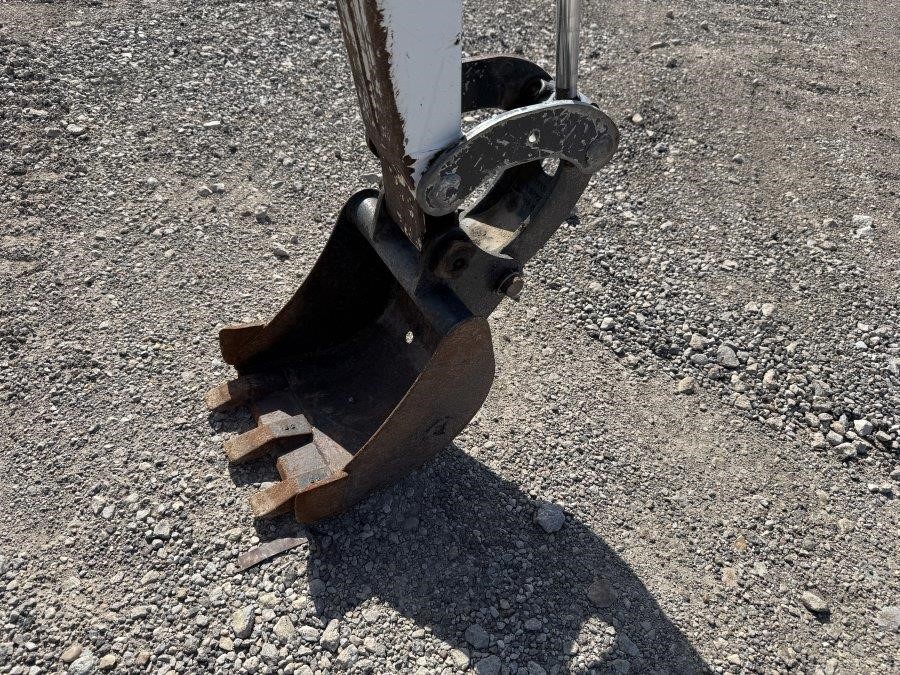

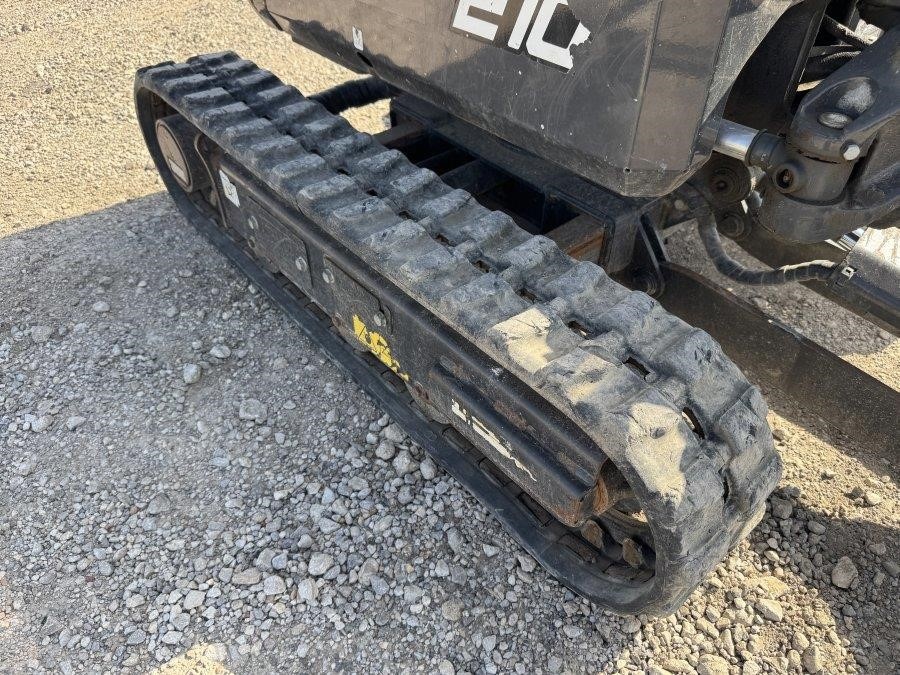

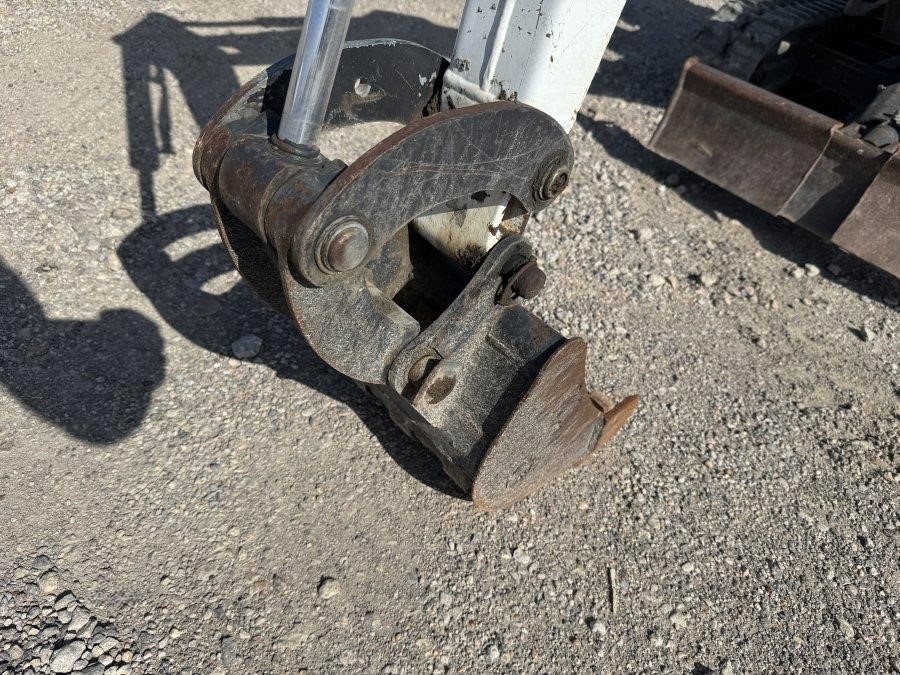

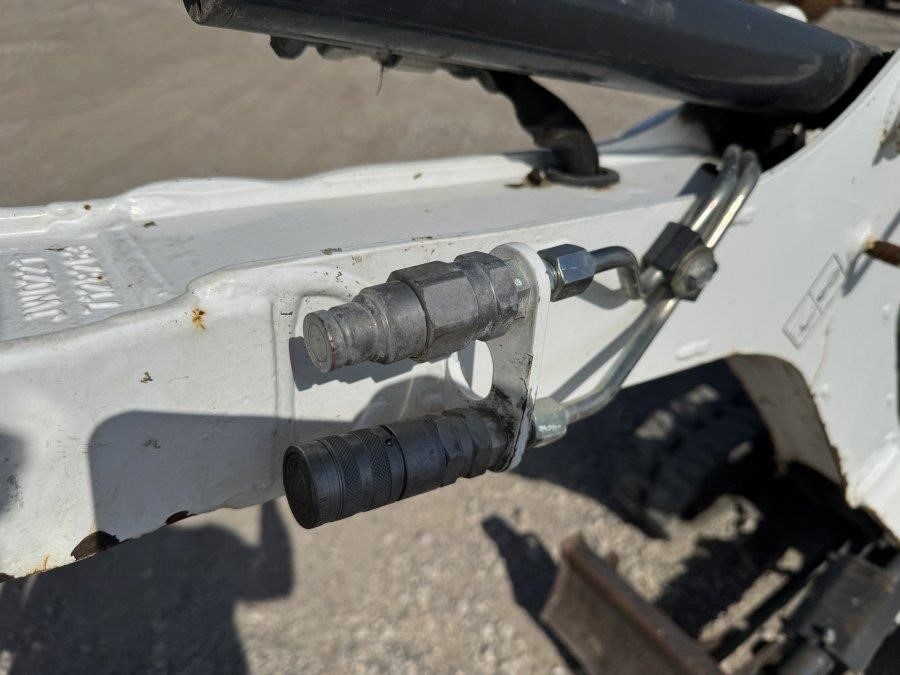

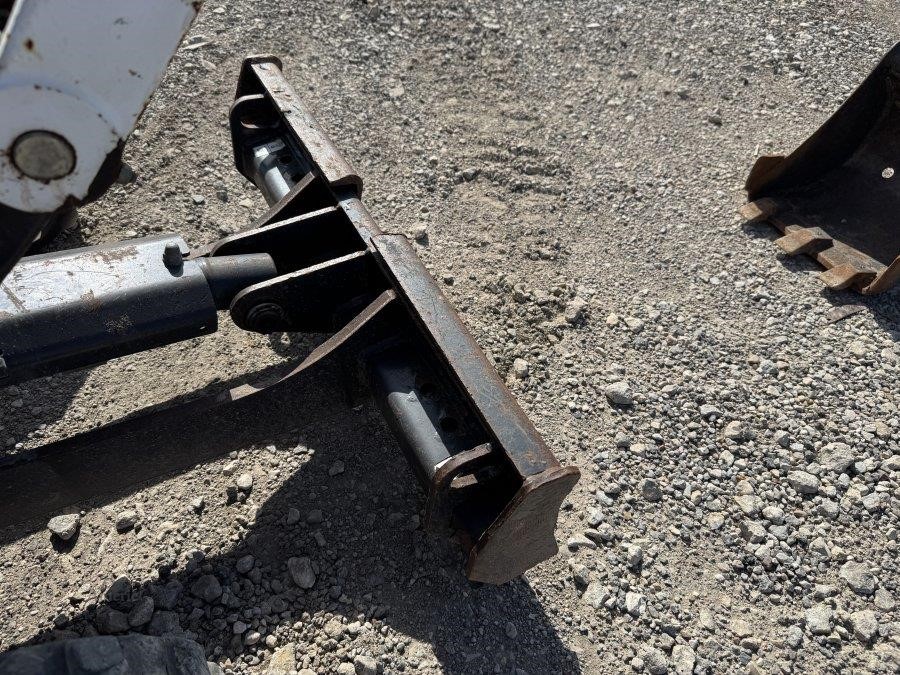

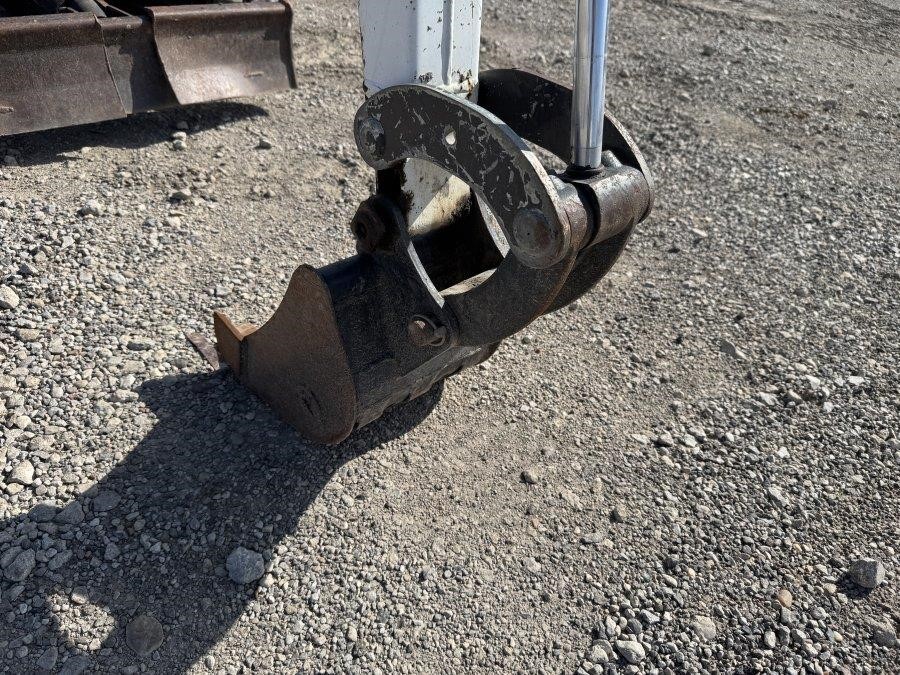

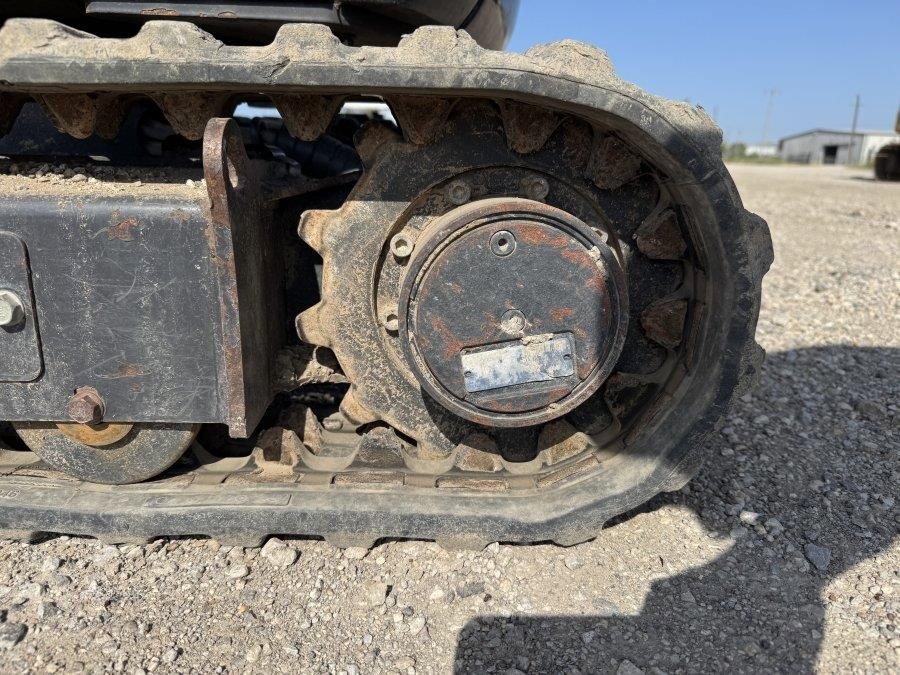

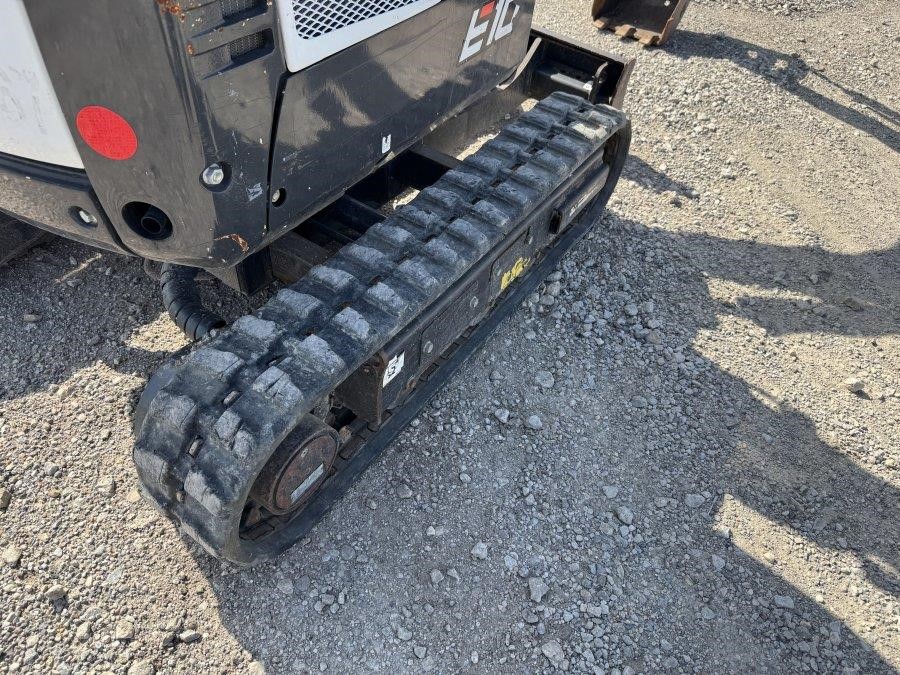

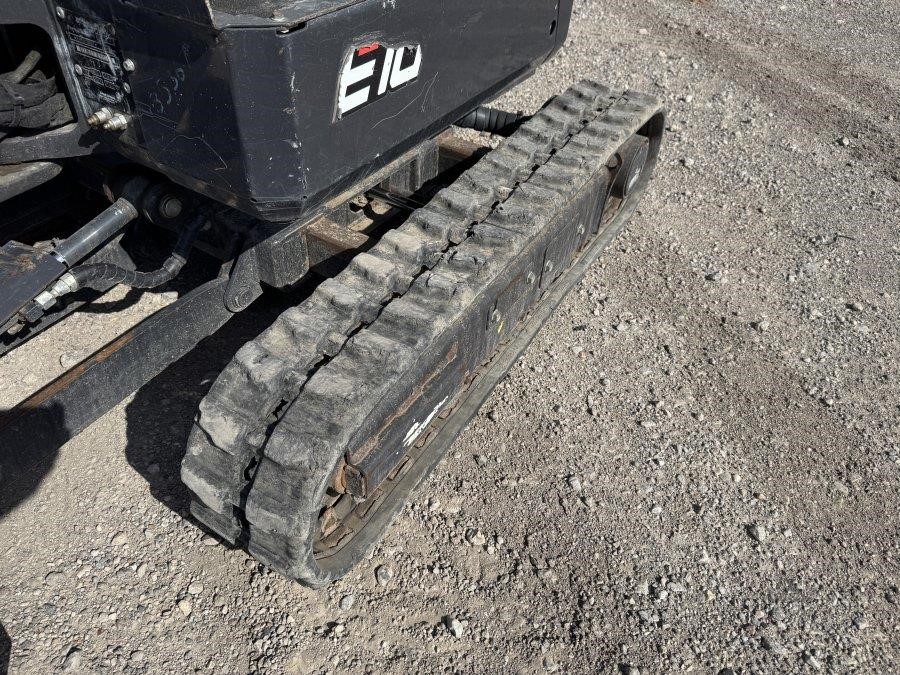

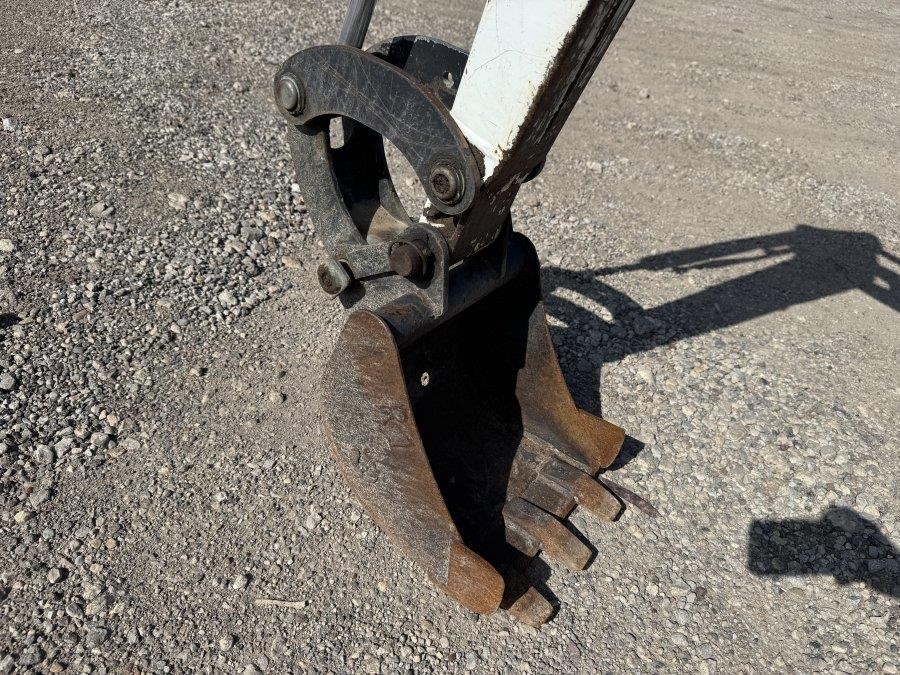

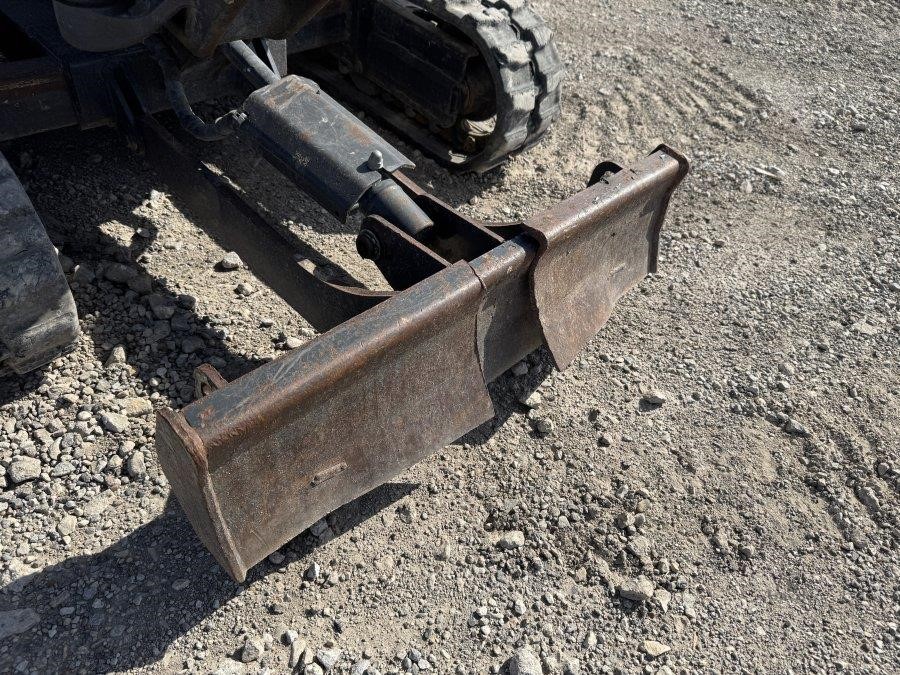

OROPS, Aux Hydraulics, Expandable Blade, 2 Speed, 28" Stick, 7" Rubber Tracks, 12" Tooth Bucket
Specifications
General
| Year | 2022 |
| Make | bobcat |
| Model | E10 |

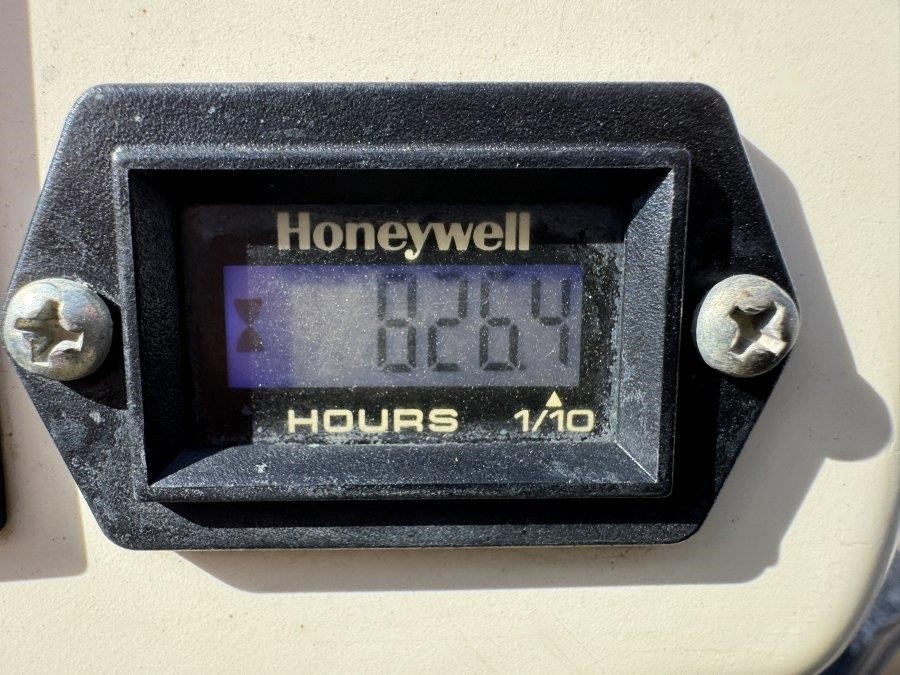

| Hours | 826 |
| Condition | Used |
| Maximum power at 2000 RPM (ISO 9249) | 7.4 kW |
| Bore / Stroke | 67 mm / 68 mm |
| Starter | 12 V — 1.4 kW |
| Control valve | Nine-spool parallel type, open centre |
| Slew circle | Single row shear-type ball bearings |
| Slew drive | Orbit motor |
| Slew rate | 9 RPM |
| Travel brake | Hydraulic lock in motor circuit |
| Slew brake | Hydraulic lock on motor and pin lock |
Engine & Powertrain

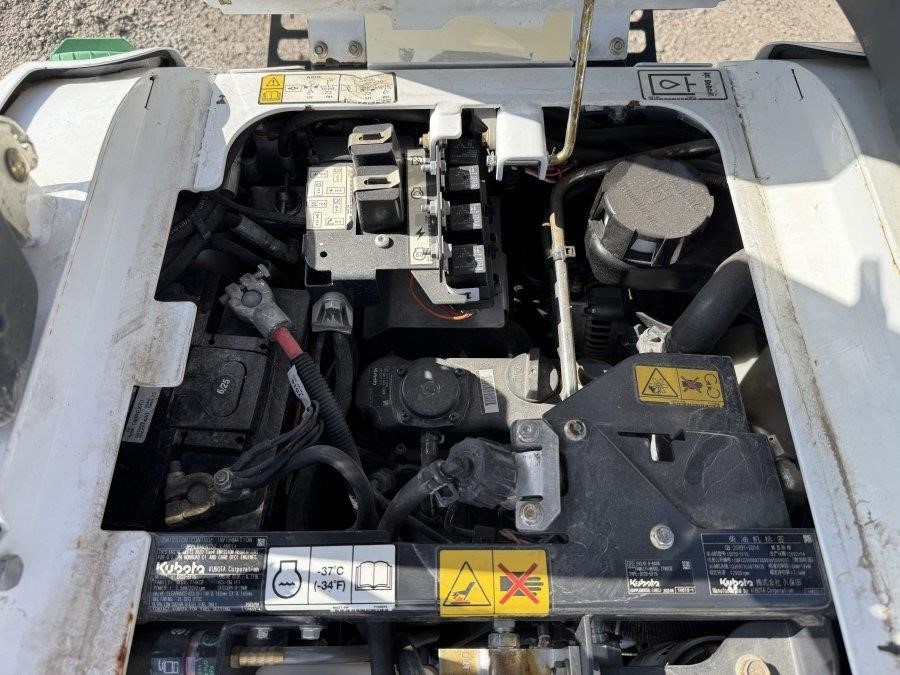

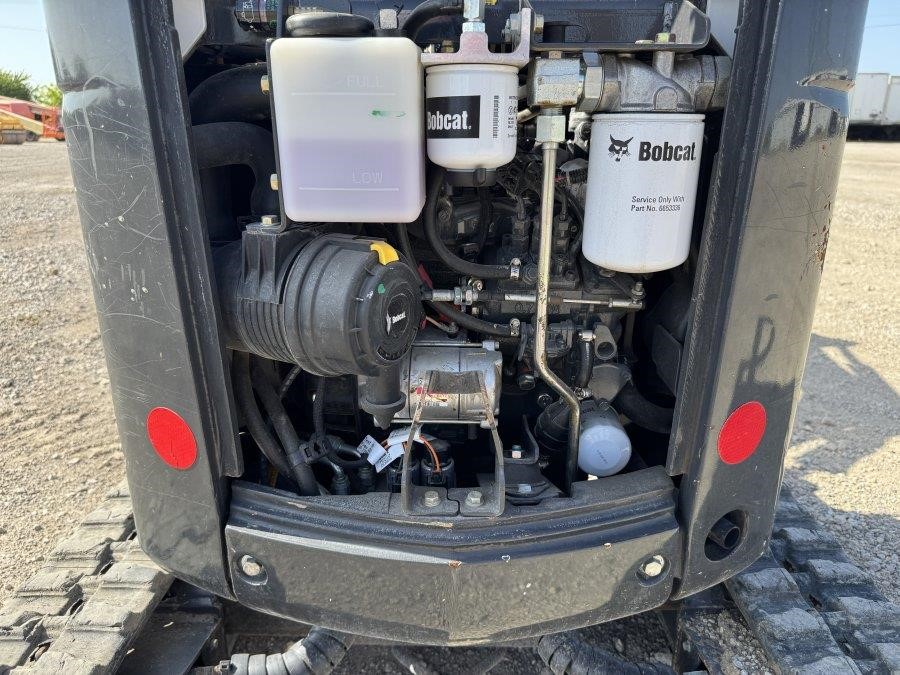

| Engine make / model | Kubota / D722-E2B-BCZ-6 (TIER 2) |
| Fuel / Cooling | Diesel / Liquid |
| Torque at 1600 RPM (SAE Net) | 39.1 Nm |
| Number of cylinders | 3 |
| Displacement | 0.72 l |
| Alternator | 12 V — 40 A |
| Cooling system (fluid capacity) | 3.0 l |
| Engine lubrication plus oil filter | 3.5 l |
| Fuel reservoir | 16.0 l |
Working Range

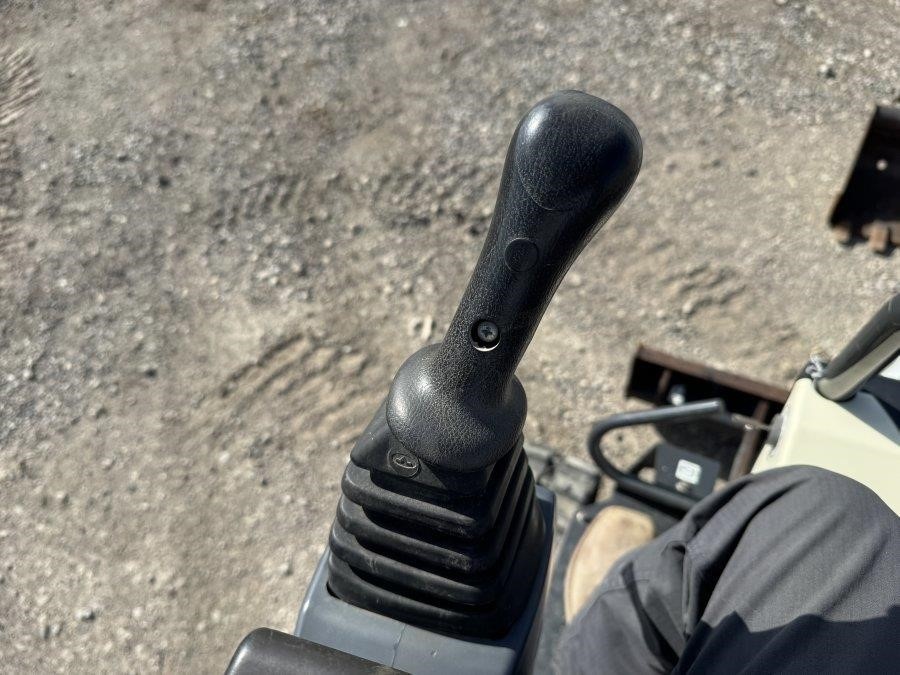

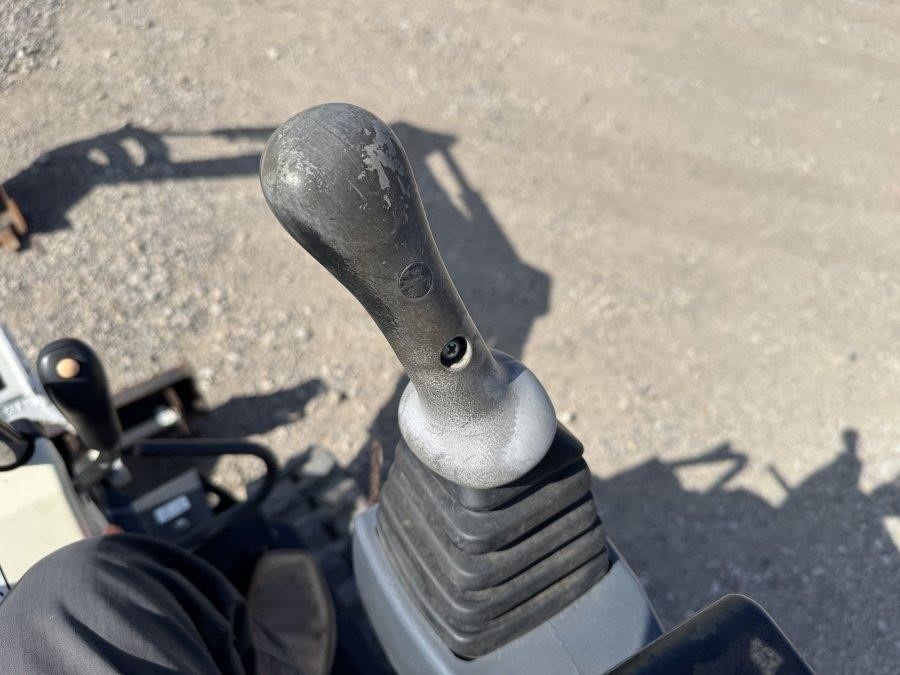

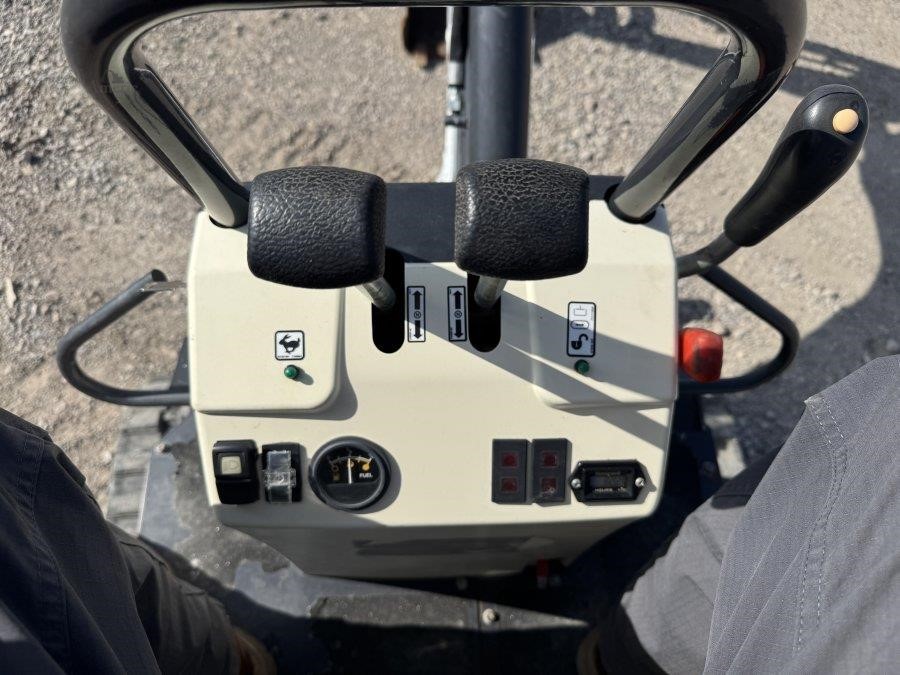

| Hydraulics (controls) | Two joysticks |
| Pump type | Double gear pump |
| Pump capacity | 2 x 10 l/min @ 2000 RPM |
| Auxiliary flow | 20 l/min |
| System relief pressure for implement circuits | 190 bar |
| System relief pressure for auxiliary circuits | 190 bar |
| Drawbar pull | 9905 N |
| Travel speed (low range) | 2.1 km/h |
| Travel speed (high range) | 3.1 km/h |
| Maximum digging depth | 1820 mm |
| Gradeability travelling down or backing up slopes | 30° |
| Hydraulic reservoir | 2.6 l |
| Hydraulic system (fluid capacity) | 10.1 l |

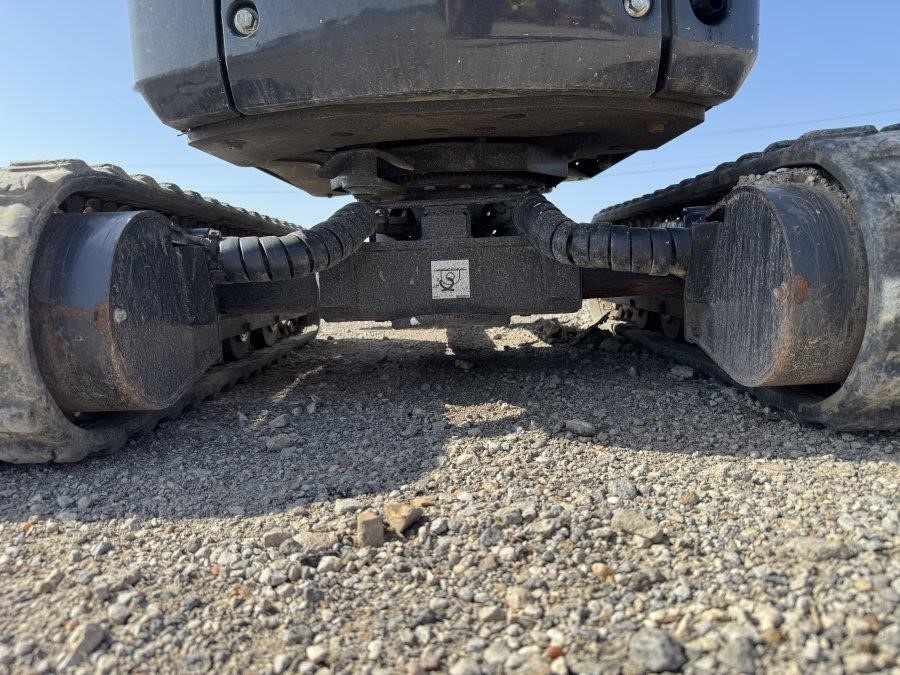

Undercarriage & Attachments
| Digging force, dipperstick | 5550 N |
| Digging force, bucket | 8294 N |
| Boom swing, left | 70° |
| Boom swing, right | 70° |

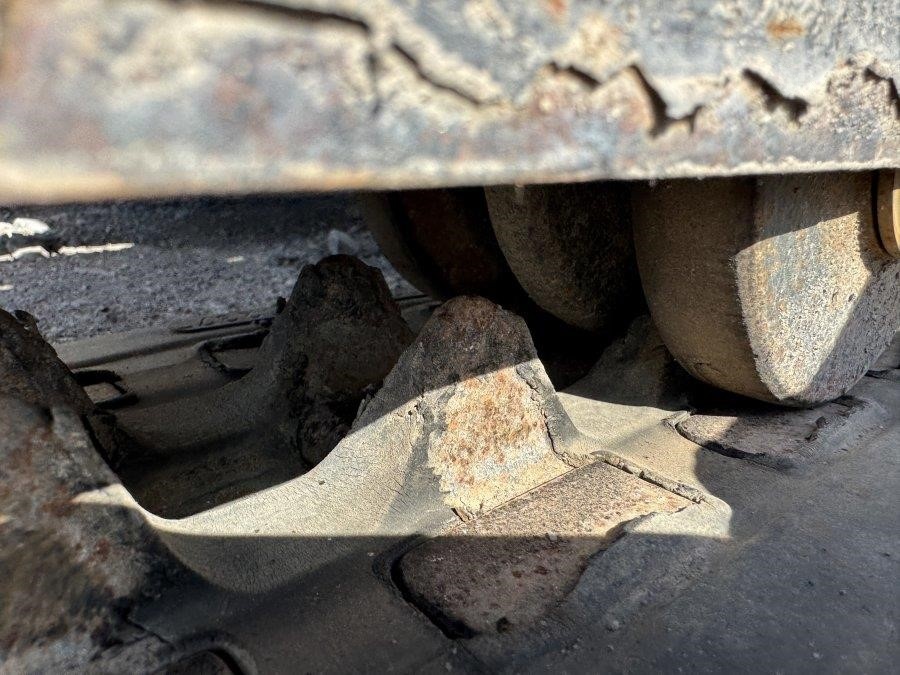

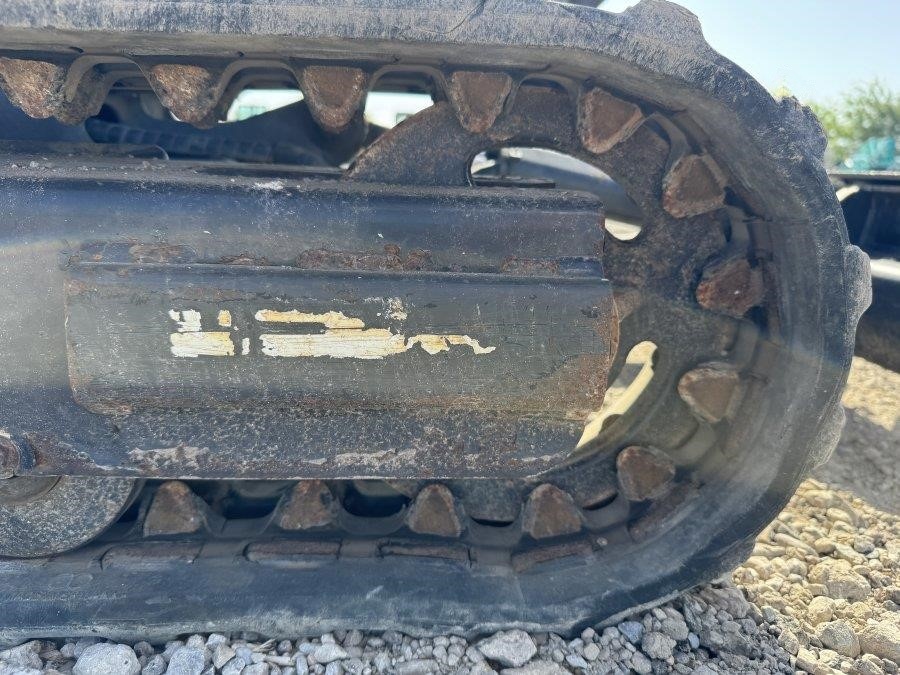

| Number of track rollers per side | 3 |
Dimensions
| Operating weight with TOPS structure | 1176 kg |
| Ground pressure | 29.7 kPa |

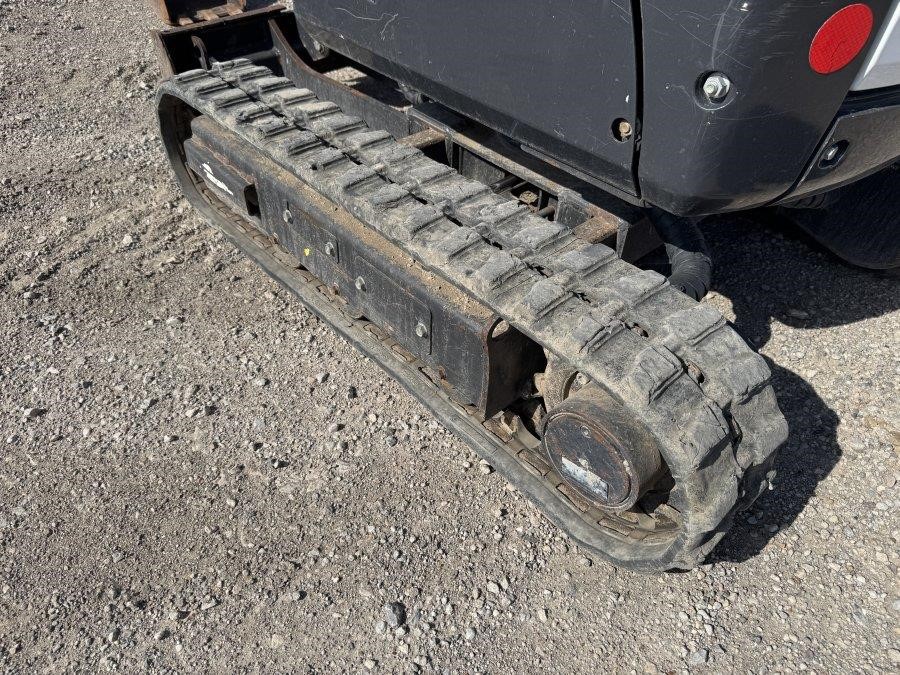

| Track width, rubber, standard | 180 mm |

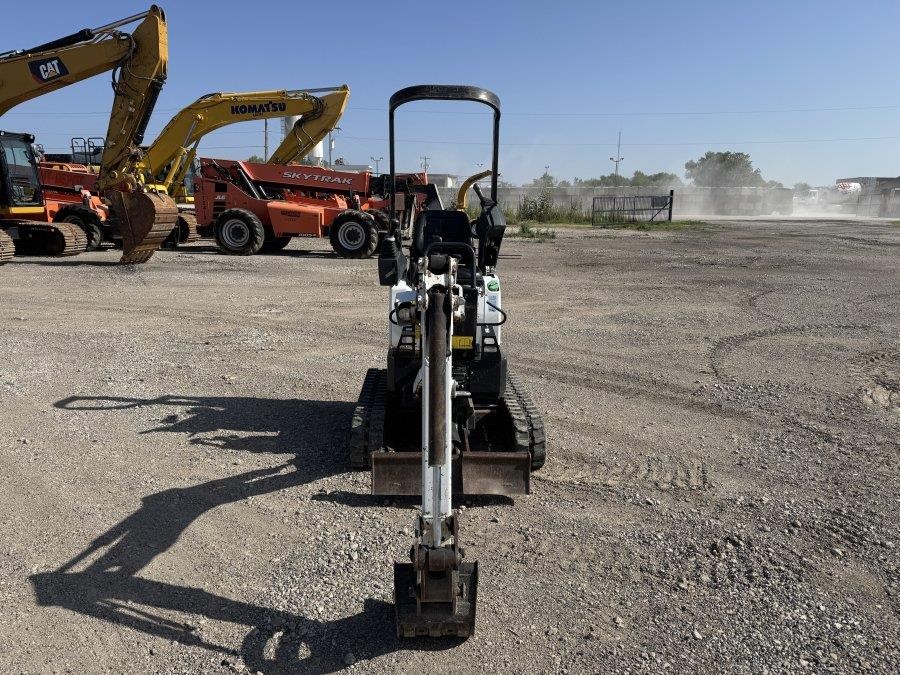

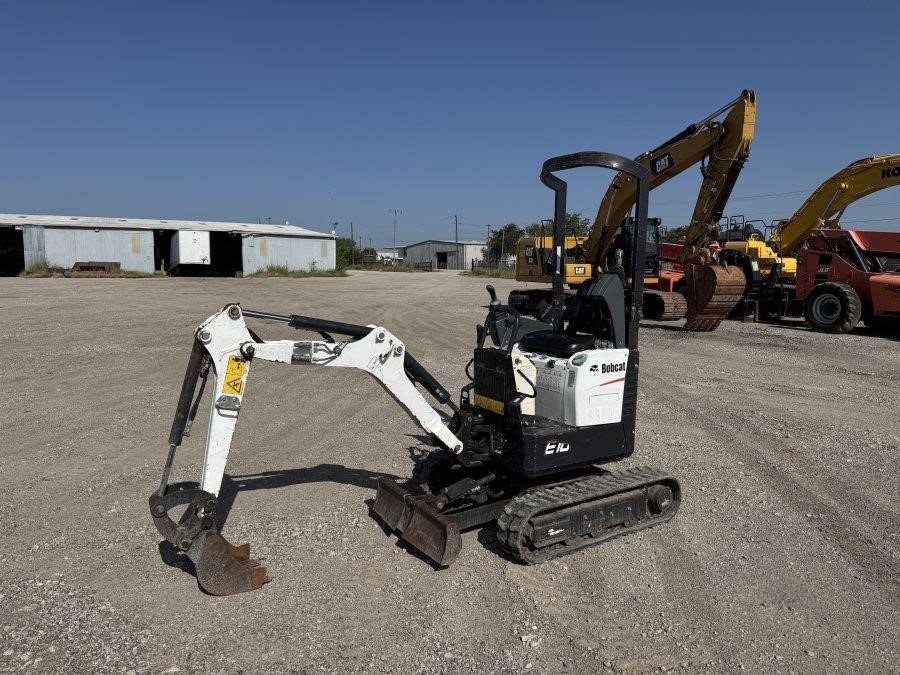

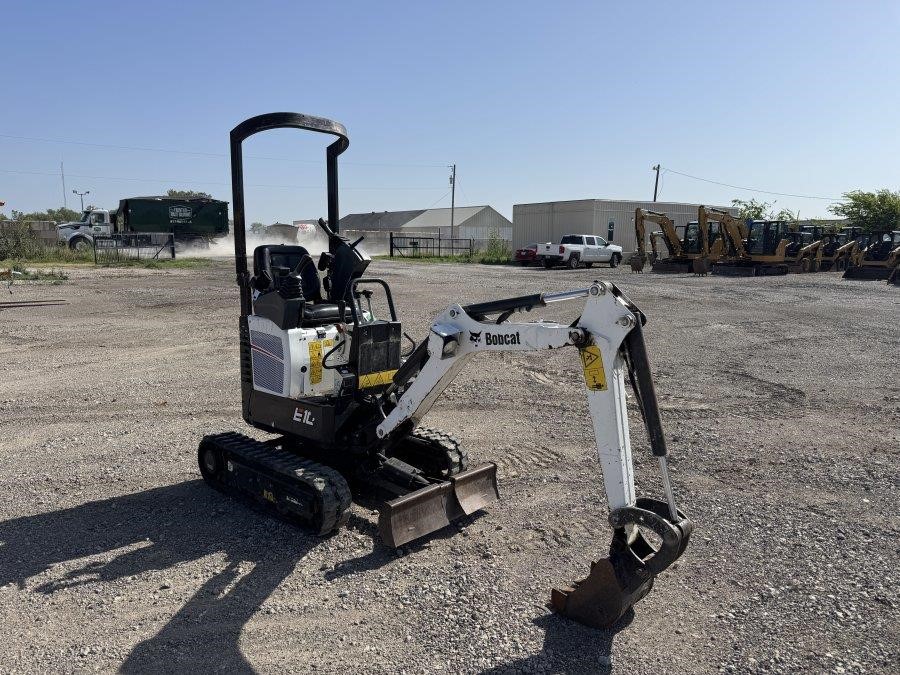

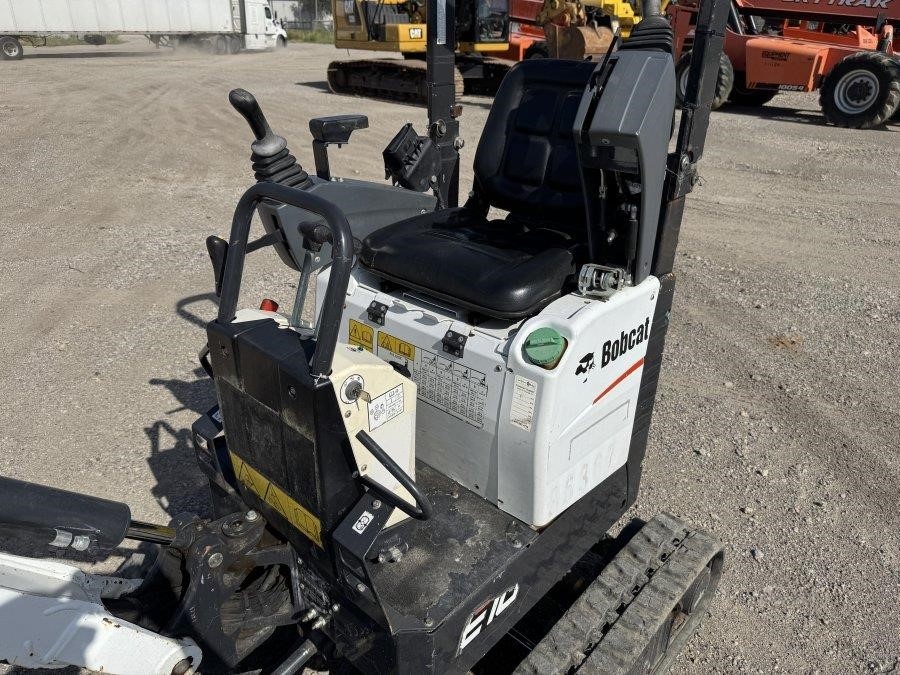

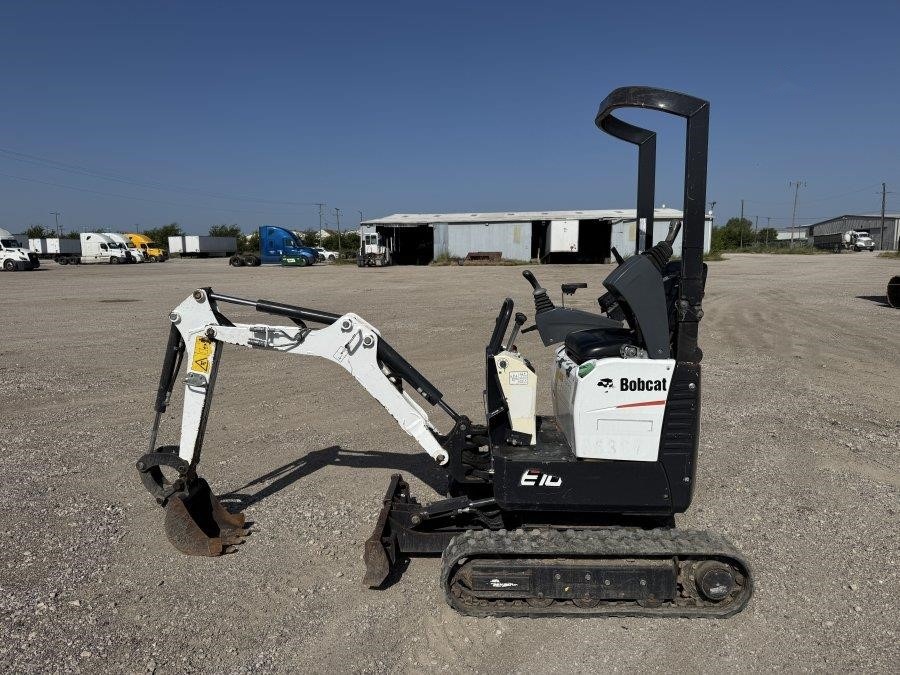

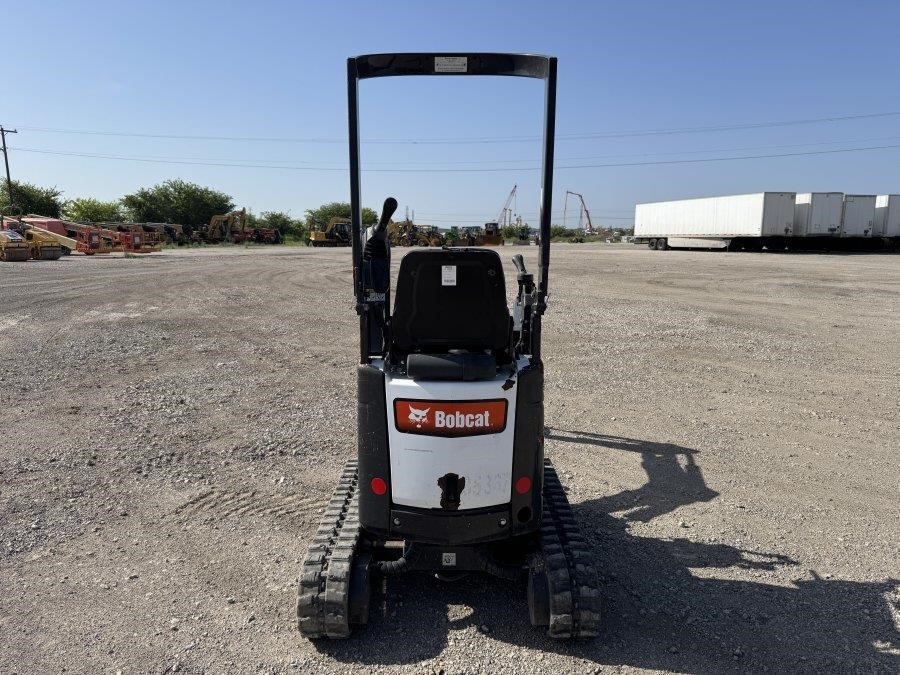

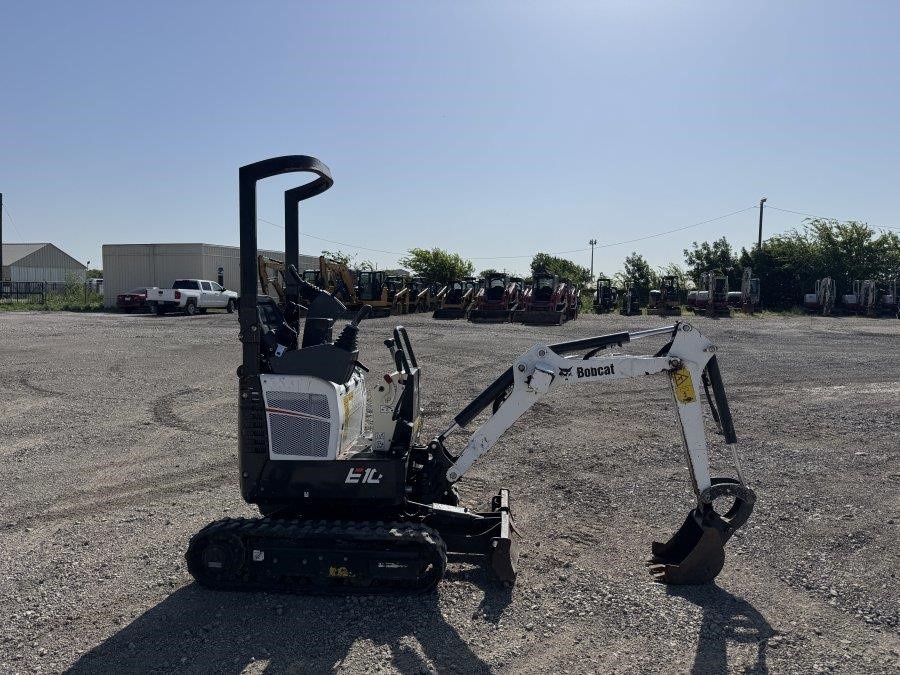

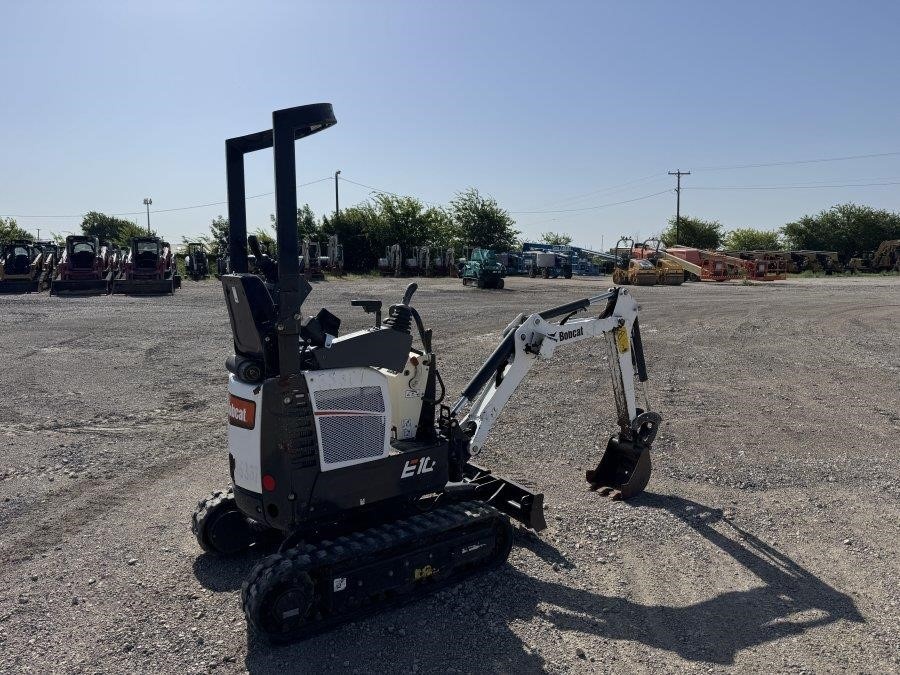

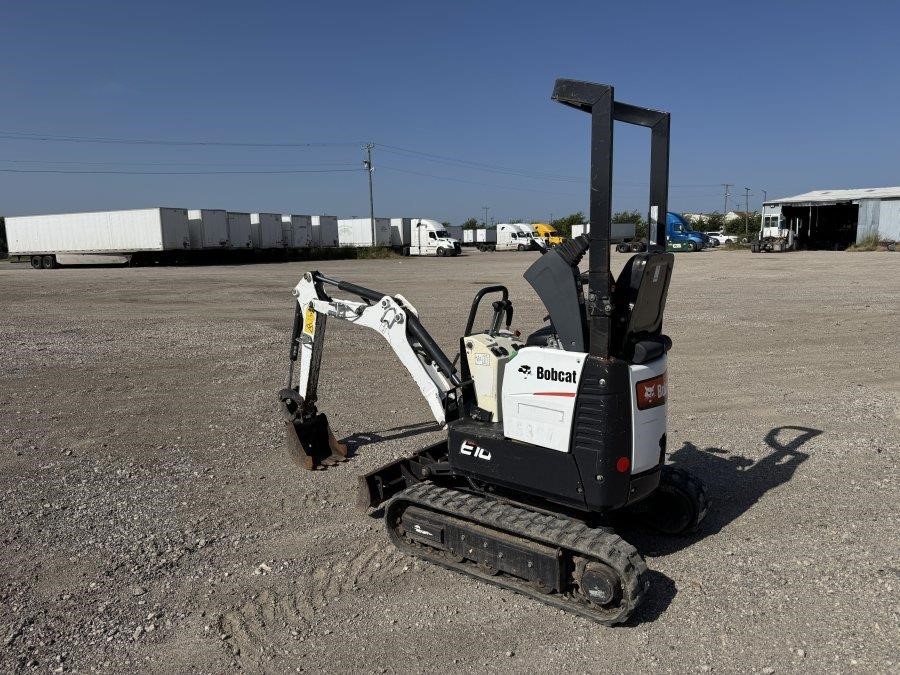

2022 Bobcat E10 Mini Excavator
BUY NOW OR MAKE OFFERAvailable
