Item Specifications
Category
Condition
Used
Item Number
#1888
Make
caterpillar
Model
289d3
Year
2022
Industry
construction
Equipment Type
compact track loaders
Location
Ft. Worth, TX
Also Available In
TX
Item Description

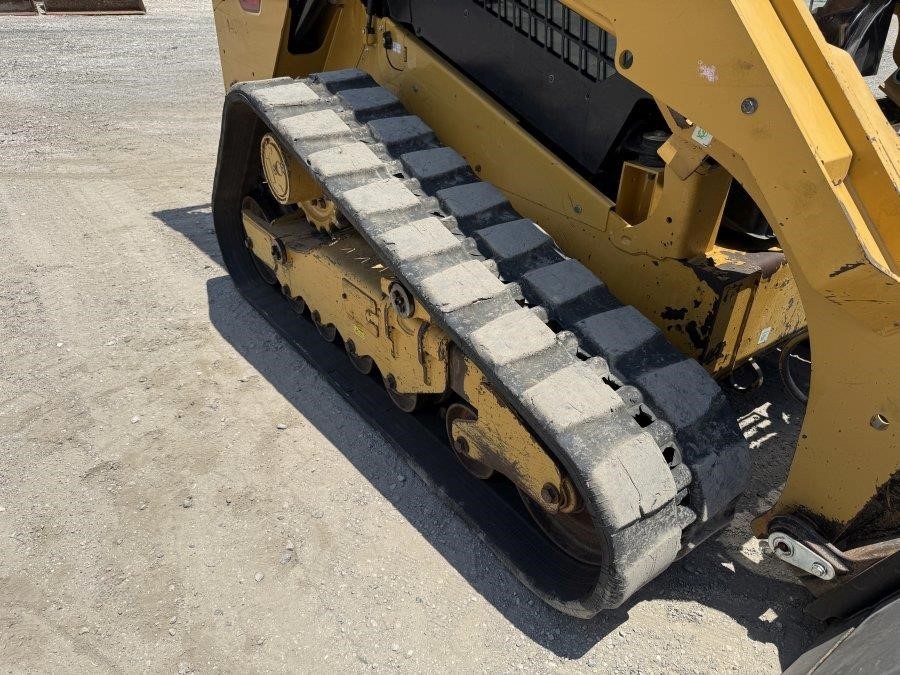

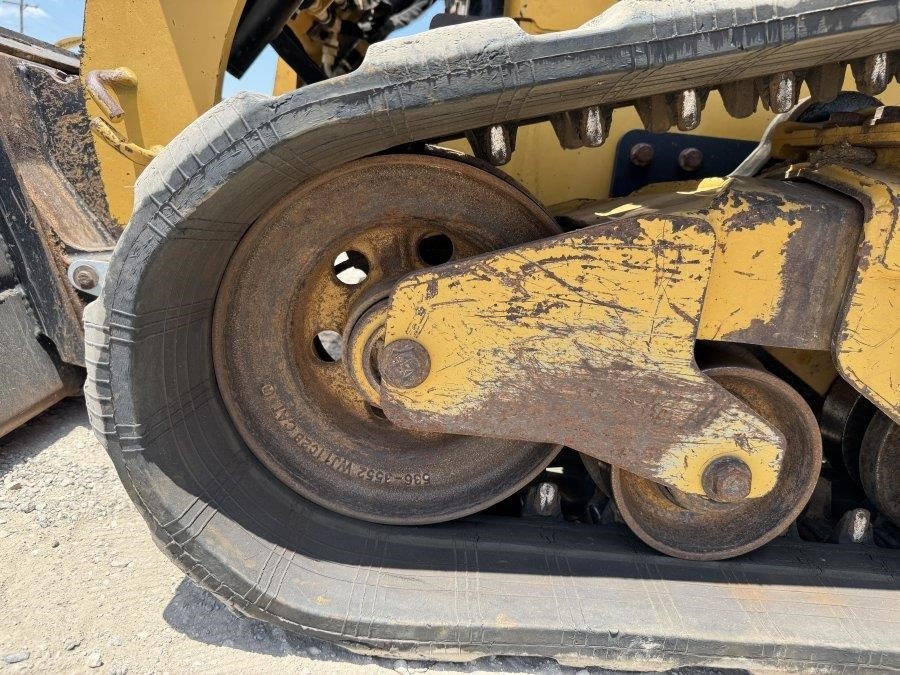

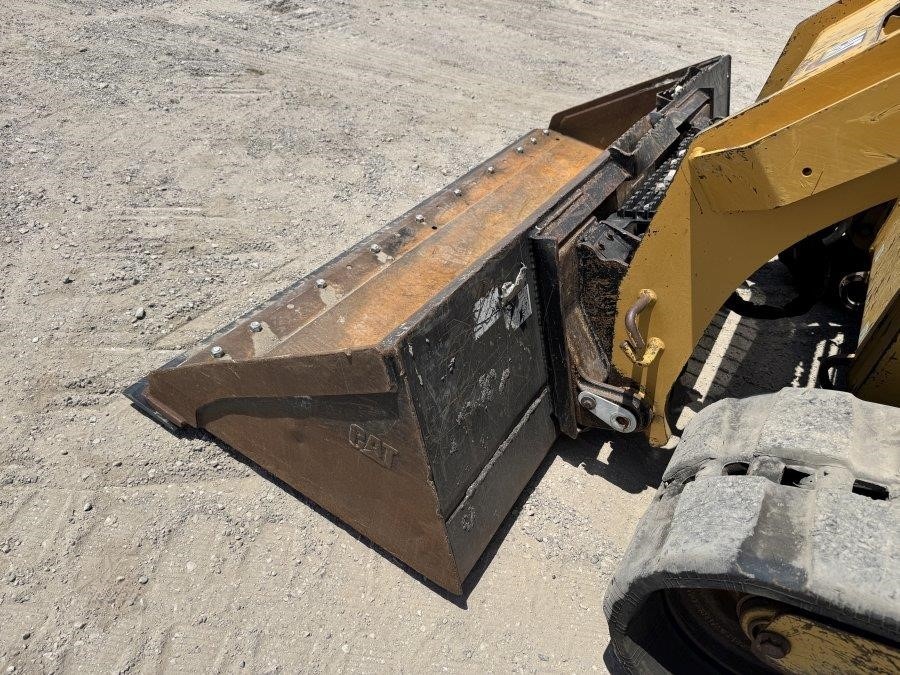

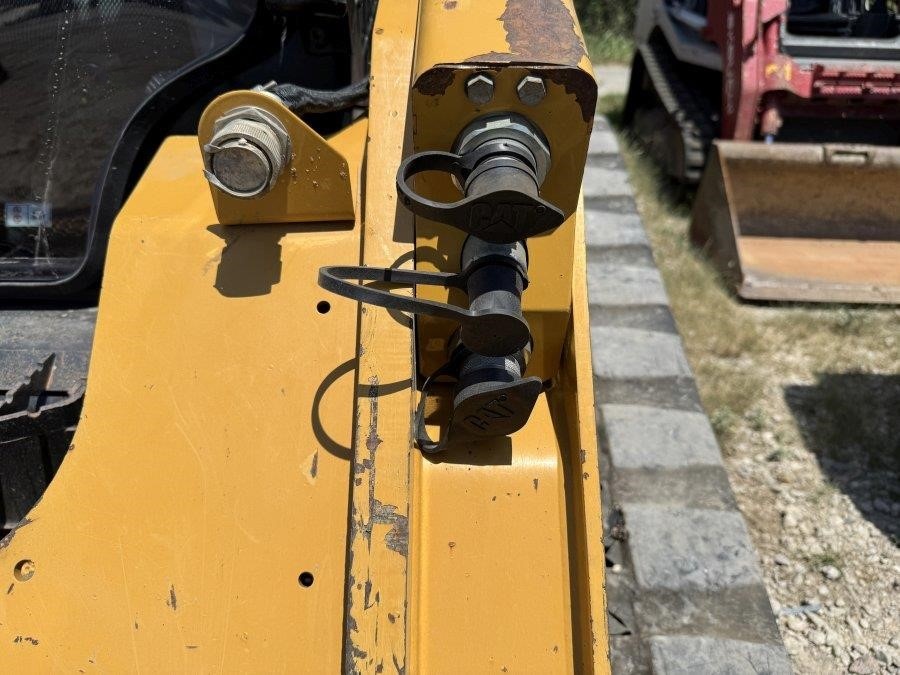

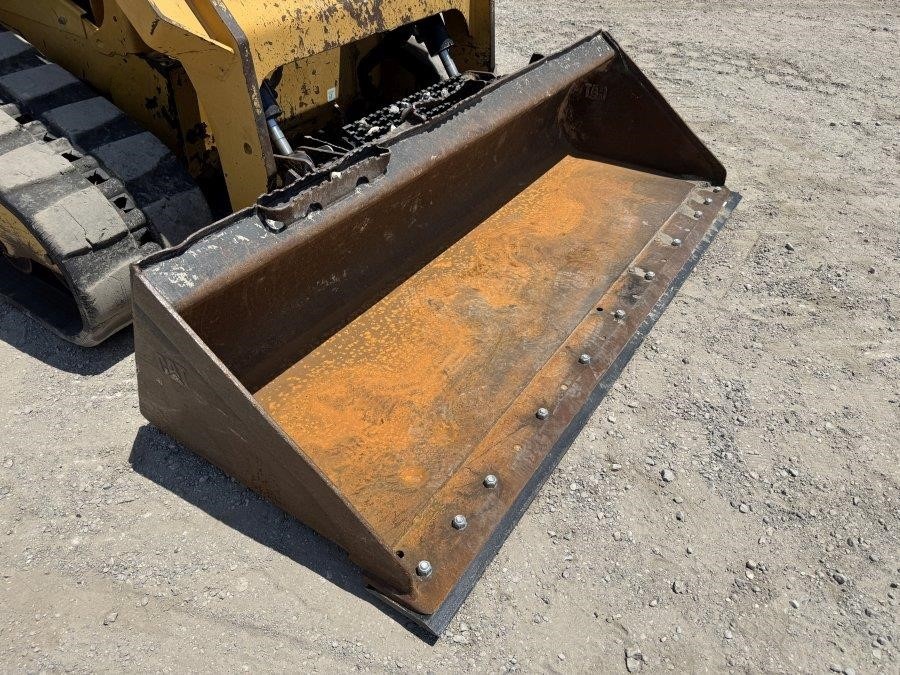

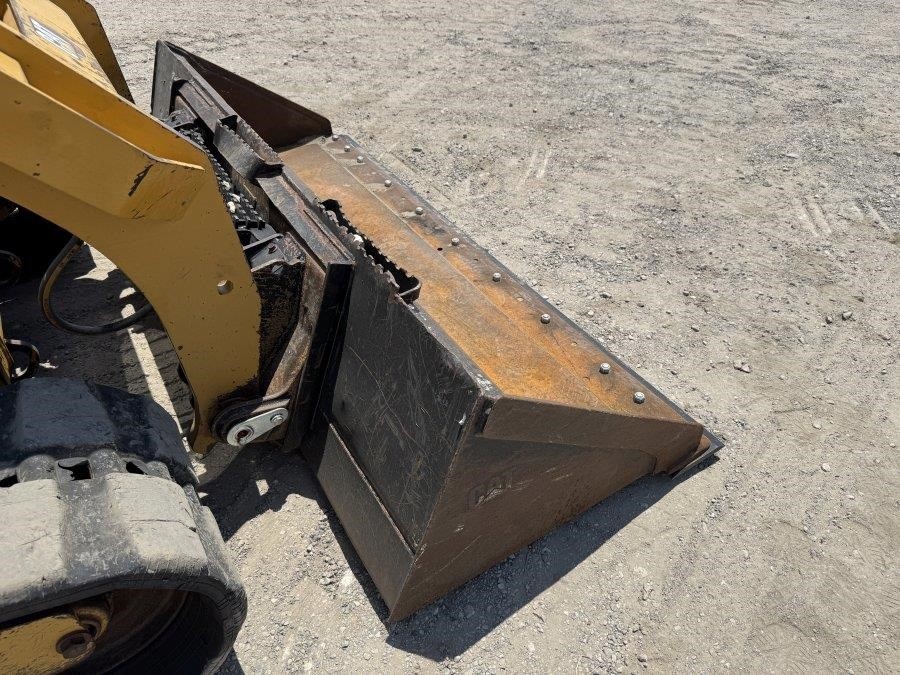

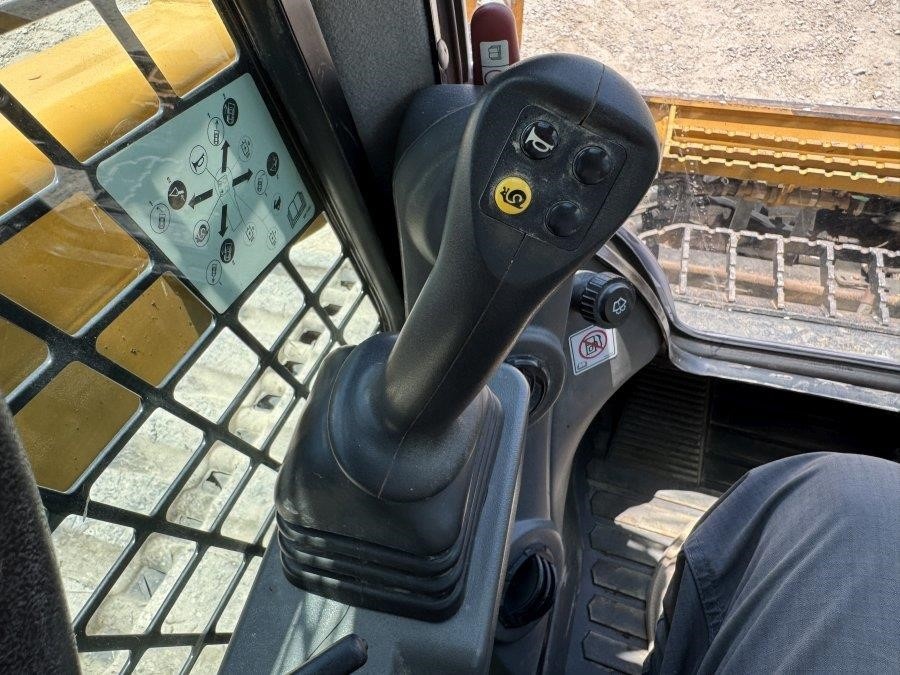

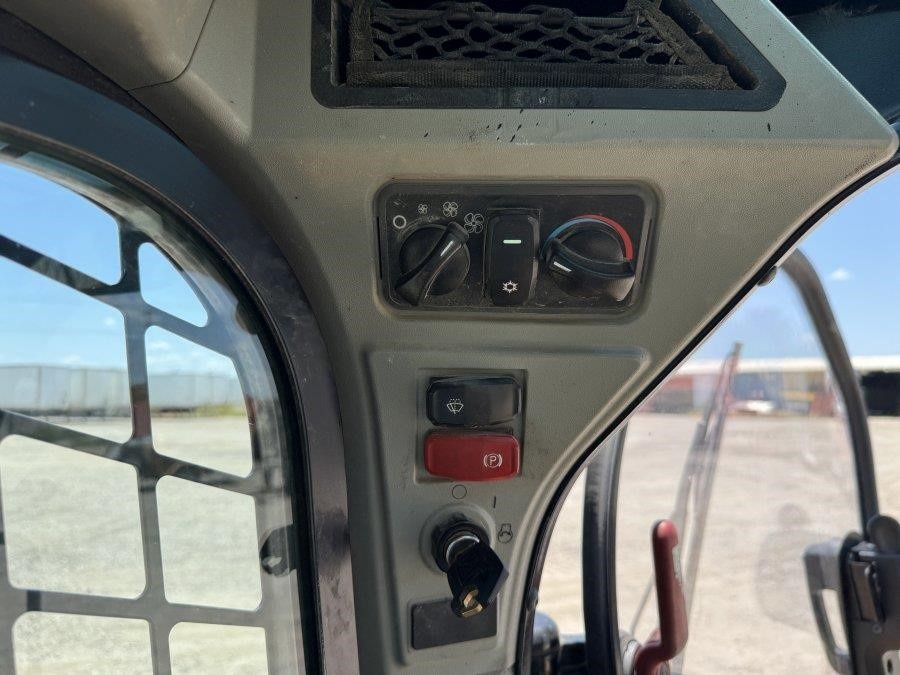

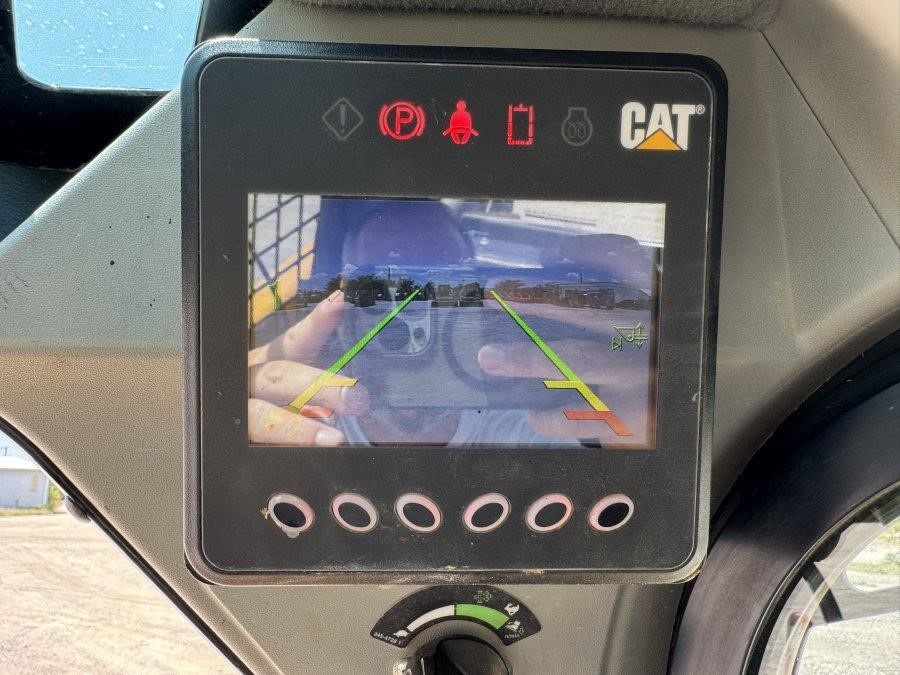

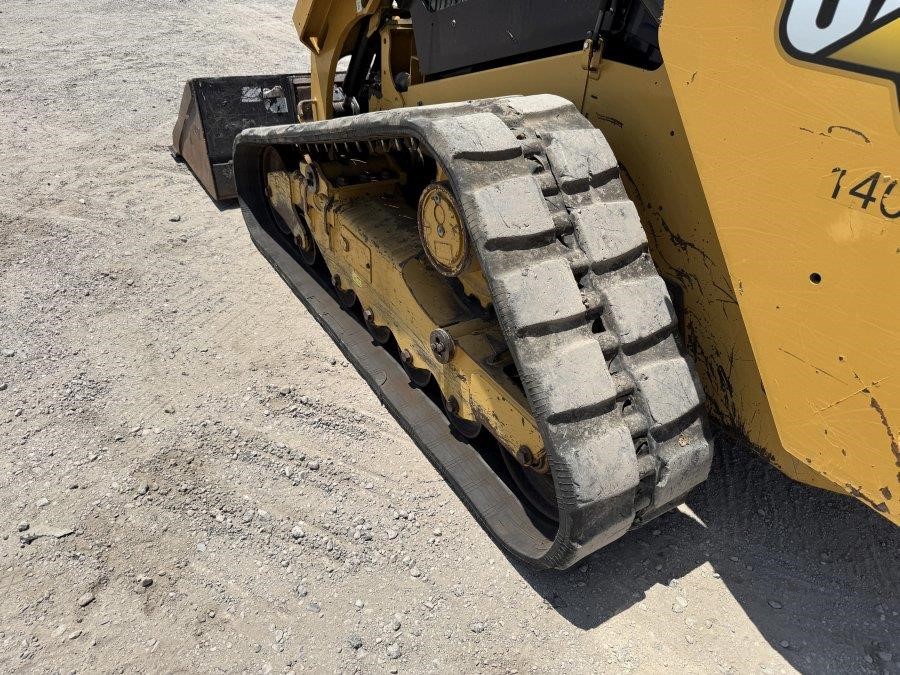

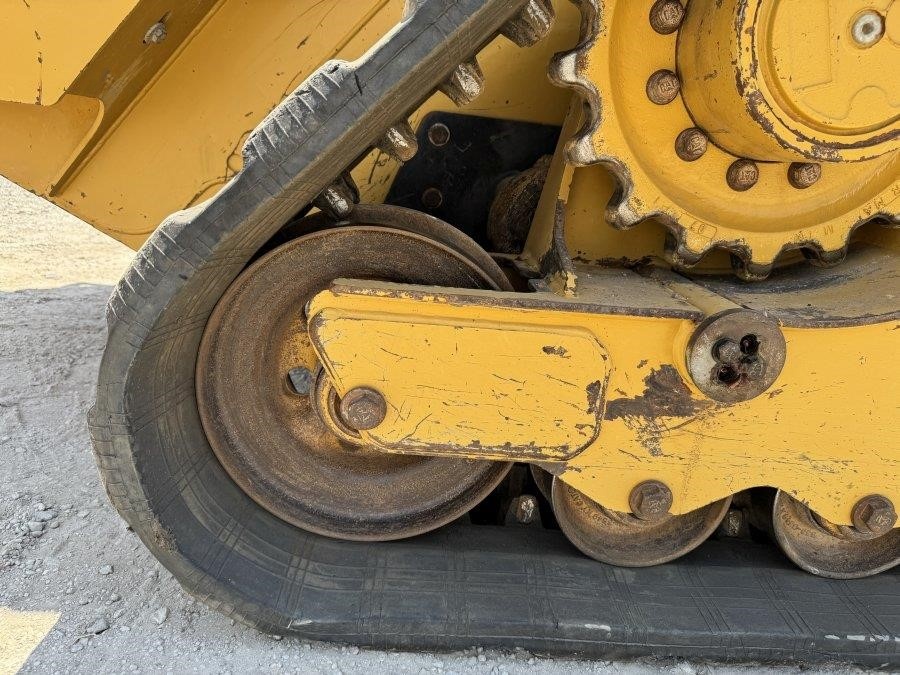

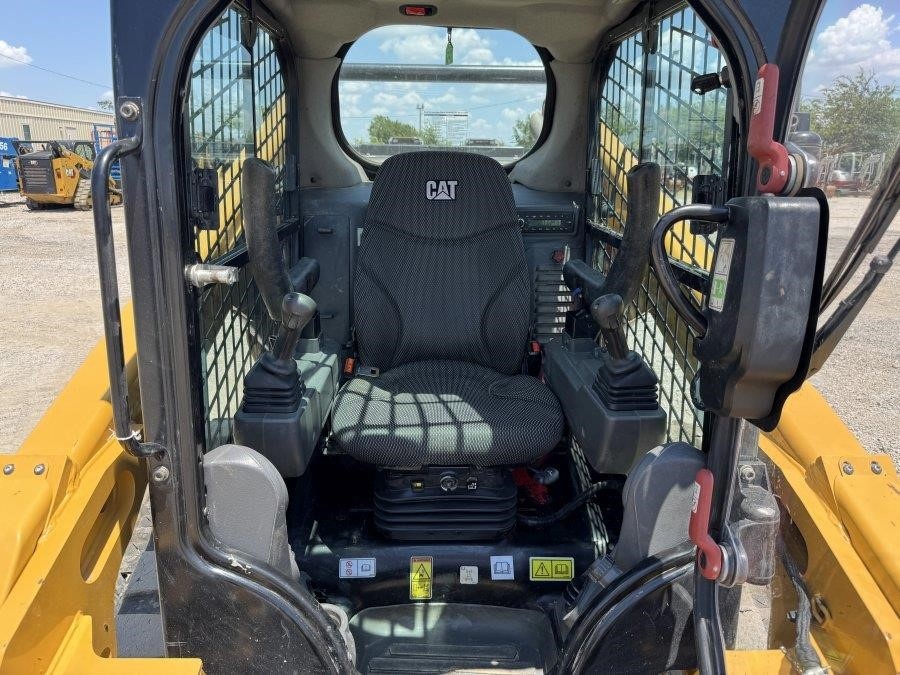

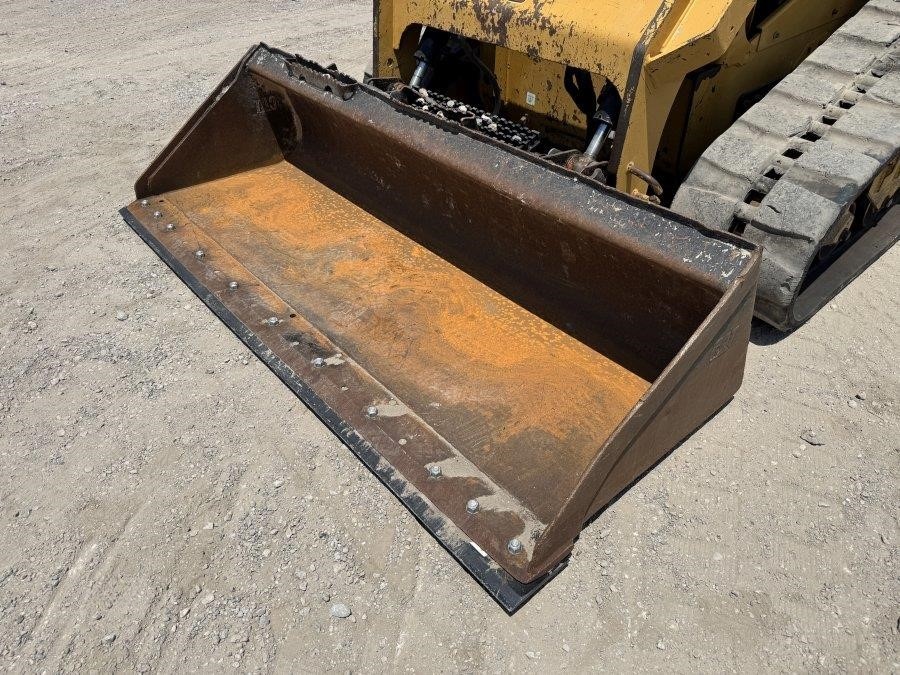

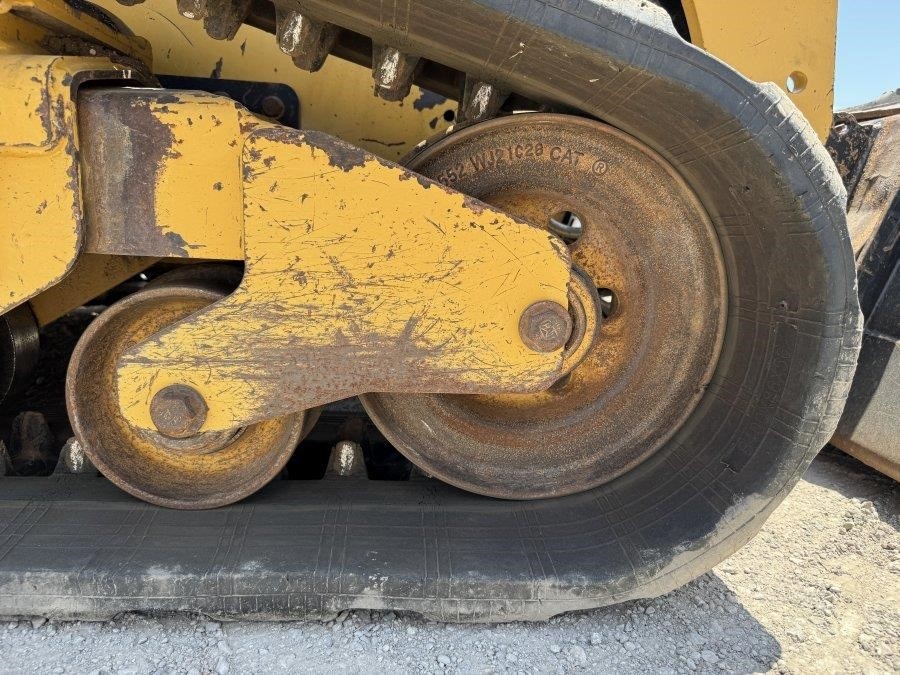

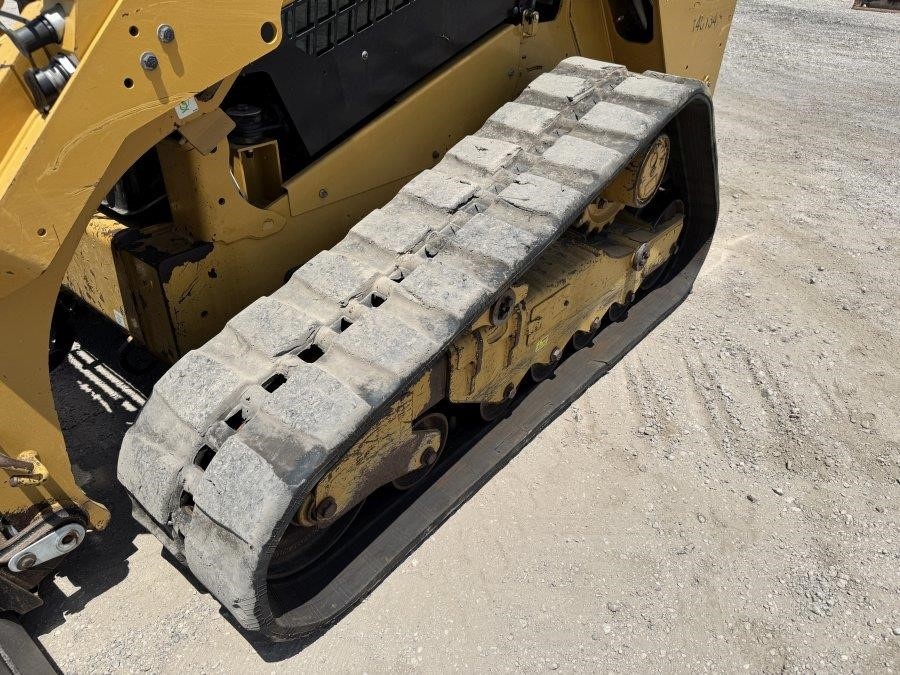

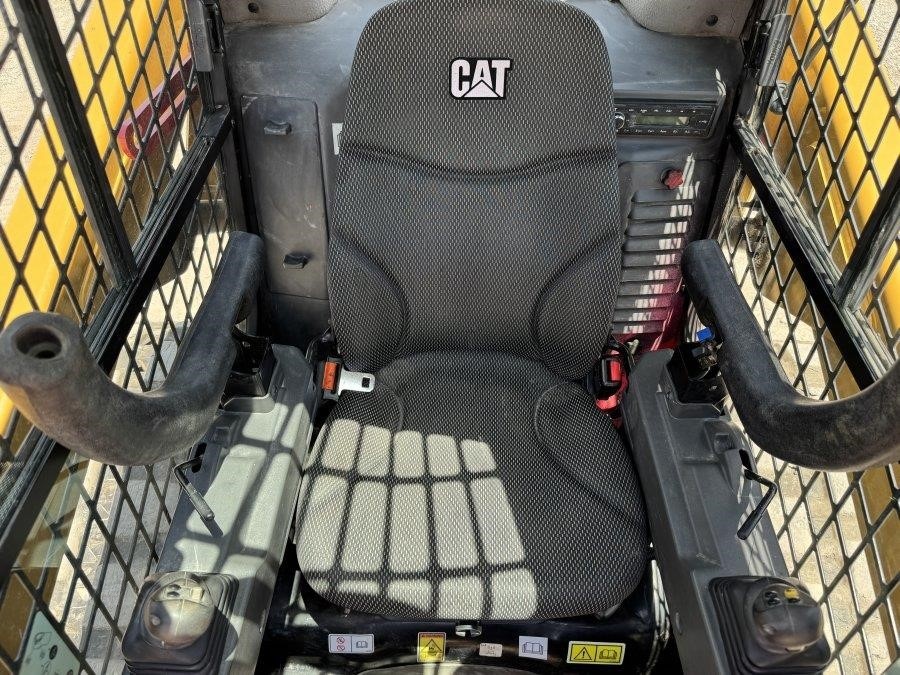

EROPS, A/C, Heat, Aux Hydraulics, Hydraulic Coupler, Pilot Control, 2 Speed, Backup Camera, 16" Rubber Tracks, 80" Bucket
Specifications
General
| Year | 2022 |
| Make | caterpillar |
| Model | 289d3 |

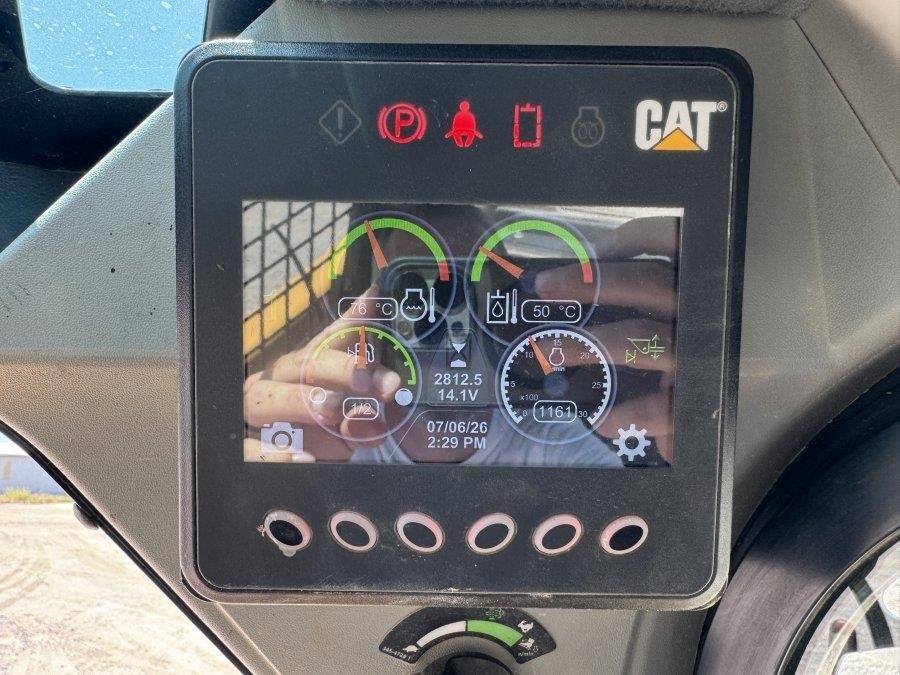

| Hours | 2812 |
| Condition | Used |
| Gross Power SAE J1995 | 55.4 kW 74.3 hp |
| Net Power SAE 1349 | 54.4 kW 72.9 hp |
| Net Power ISO 9249 | 54.9 kW 73.7 hp |
| Stroke | 120 mm 4.7 in |
| Bore | 94 mm 3.7 in |
| ROPS | ISO 3471:2008 |
| FOPS | ISO 3449:2005 Level I |
| Inside Cab Noise Level | 83 dB(A) |
| Outside Cab Noise Level | 103 dB(A) |
| Departure Angle | 33° |
| Maximum Dump Angle | 51° |
Engine & Powertrain

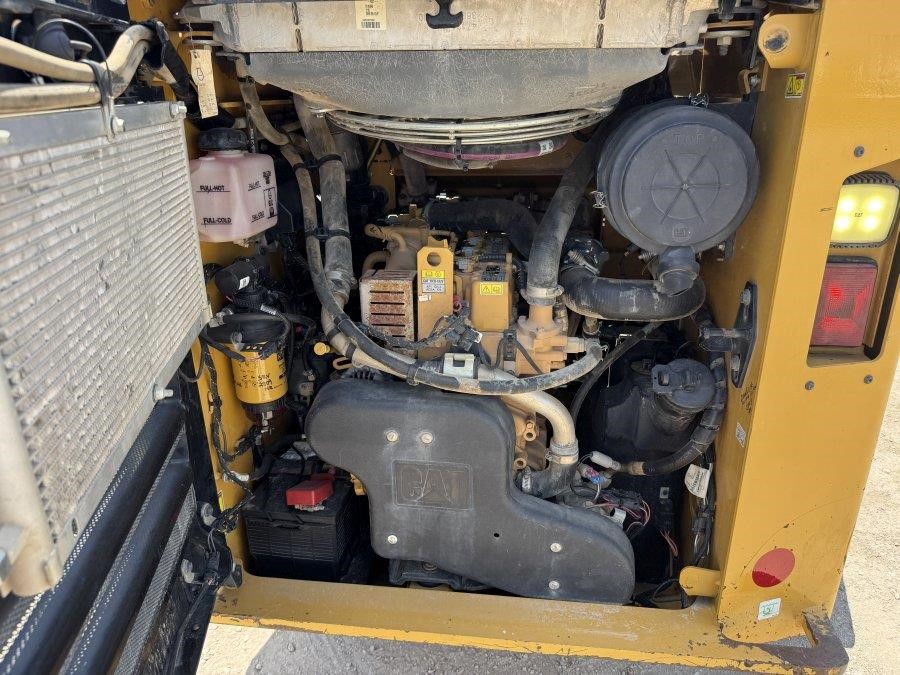

| Engine Model | Cat C3.3B DIT (turbo) |
| Peak Torque at 1,500 rpm SAE J1995 | 265 N·m 195 lbf-ft |
| Displacement | 3.3 L 203 in3 |
| Breakout Force, Tilt Cylinder | 3307 kg 7,291 lb |
| Cooling System | 14 L 3.7 gal |
| Engine Crankcase | 11 L 3.0 gal |
| Fuel Tank | 105 L 27.7 gal |
Working Range
| Travel Speed (Forward or Reverse) - One Speed | 7.2 km/h 4.5 mph |
| Travel Speed (Forward or Reverse) - Two Speed | 13.3 km/h 8.3 mph |
| Loader Hydraulic Pressure (Standard) | 23 000 kPa 3,335 psi |
| Loader Hydraulic Flow (Standard) | 86 L/min 23 gal/min |
| Hydraulic Power (calculated, Standard) | 33 kW 44 hp |
| Maximum Loader Hydraulic Pressure (High Flow XPS) | 28 000 kPa 4,061 psi |
| Maximum Loader Hydraulic Flow (High Flow XPS) | 121 L/min 32 gal/min |
| Hydraulic Power (calculated, High Flow XPS) | 57 kW 76 hp |
| Rated Operating Capacity: 35% Tipping Load | 1207 kg 2,660 lb |
| 50% Tipping Load | 1724 kg 3,800 lb |
| Tipping Load | 3447 kg 7,600 lb |
| Hydraulic System | 52 L 13.7 gal |
| Hydraulic Tank | 39 L 10.3 gal |
| Reach at Maximum Lift and Dump | 761 mm 30.0 in |
| Maximum Reach with Arms Parallel to Ground | 1270 mm 50.0 in |

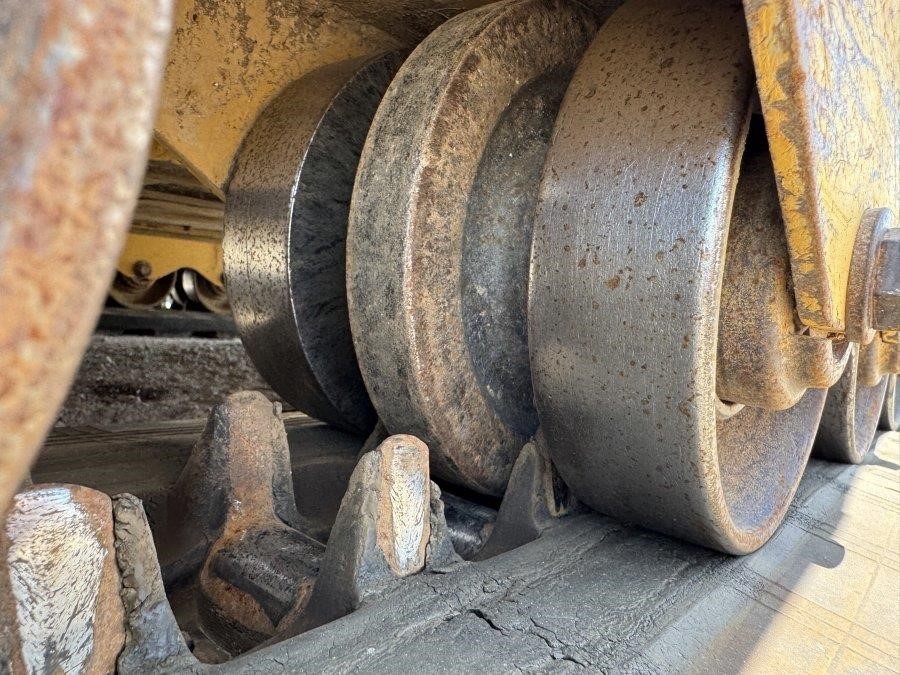

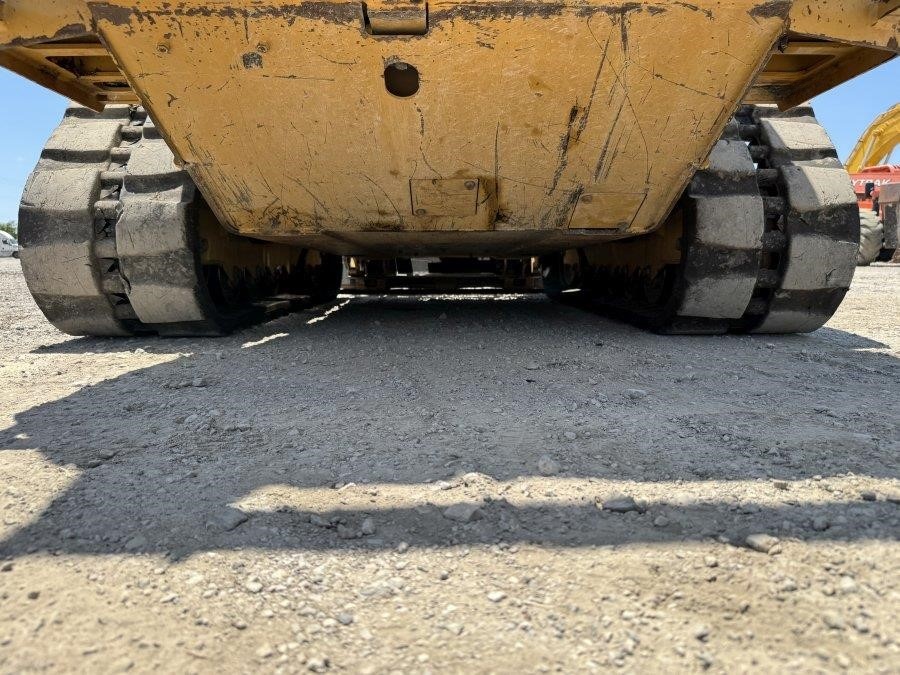

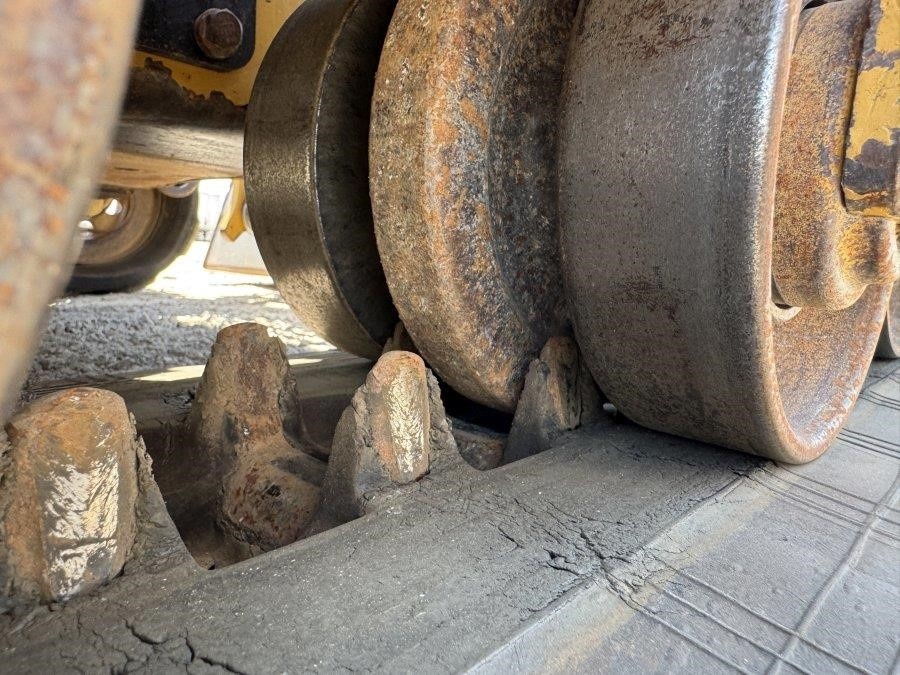

Undercarriage & Attachments
| Ground Contact Area (400 mm/15.7 in track) | 1.30 m2 2,015 in2 |
| Ground Contact Area (450 mm/17.7 in track) | 1.47 m2 2,272 in2 |
| Bucket Pin Reach at Maximum Lift | 369 mm 14.5 in |
Dimensions
| Operating Weight | 4778 kg 10,533 lb |
| Rated Operating Capacity with Optional Counterweight | 1837 kg 4,050 lb |
| Ground Pressure (400 mm/15.7 in track) | 36.1 kPa 5.2 psi |
| Ground Pressure (450 mm/17.7 in track) | 32.0 kPa 4.6 psi |
| Length of Track on Ground | 1630 mm 64.2 in |
| Overall Length of Track | 2129 mm 83.8 in |
| Length without Bucket | 2995 mm 117.9 in |
| Length with Bucket on Ground | 3714 mm 146.2 in |
| Height to Top of Cab | 2113 mm 83.2 in |
| Maximum Overall Height | 4015 mm 158.1 in |
| Bucket Pin Height at Maximum Lift | 3178 mm 125.1 in |
| Bucket Pin Height at Carry Position | 190 mm 7.5 in |
| Clearance at Maximum Lift and Dump | 2387 mm 94.0 in |
| Ground Clearance | 226 mm 8.9 in |
| Vehicle Width (450 mm/17.7 in tracks) | 1981 mm 78.0 in |
| Turning Radius from Center – Machine Rear | 1796 mm 70.7 in |
| Turning Radius from Center – Coupler | 1410 mm 55.5 in |
| Turning Radius from Center – Bucket | 2256 mm 88.8 in |
| Rack Back Angle at Maximum Height | 84° |

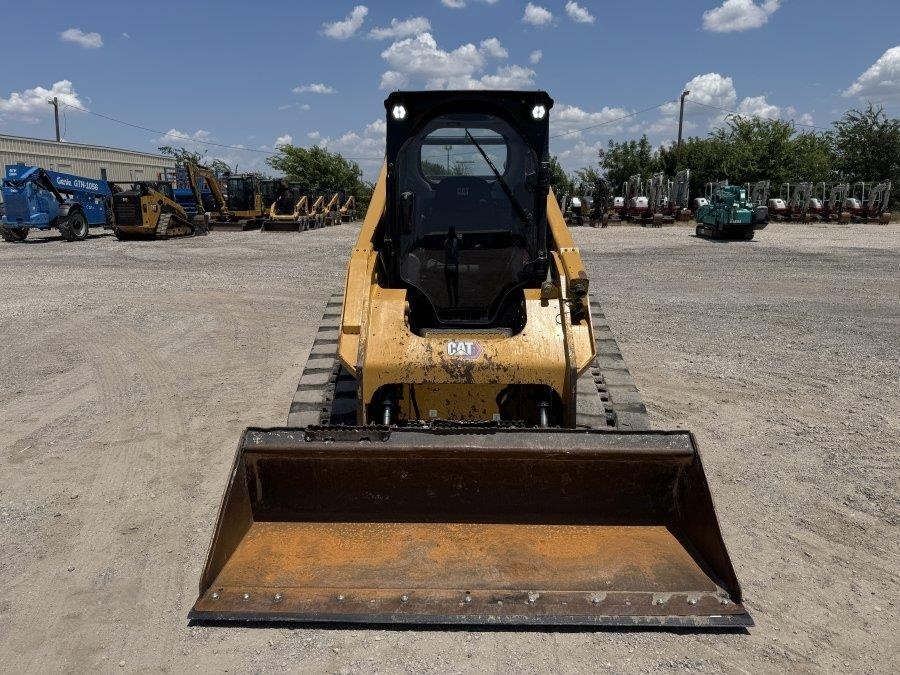

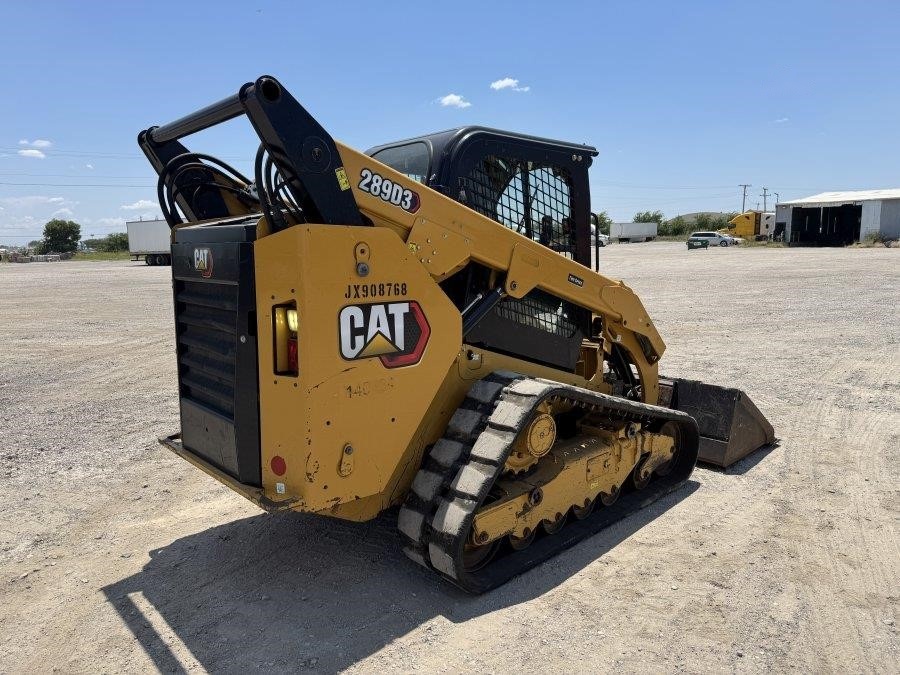

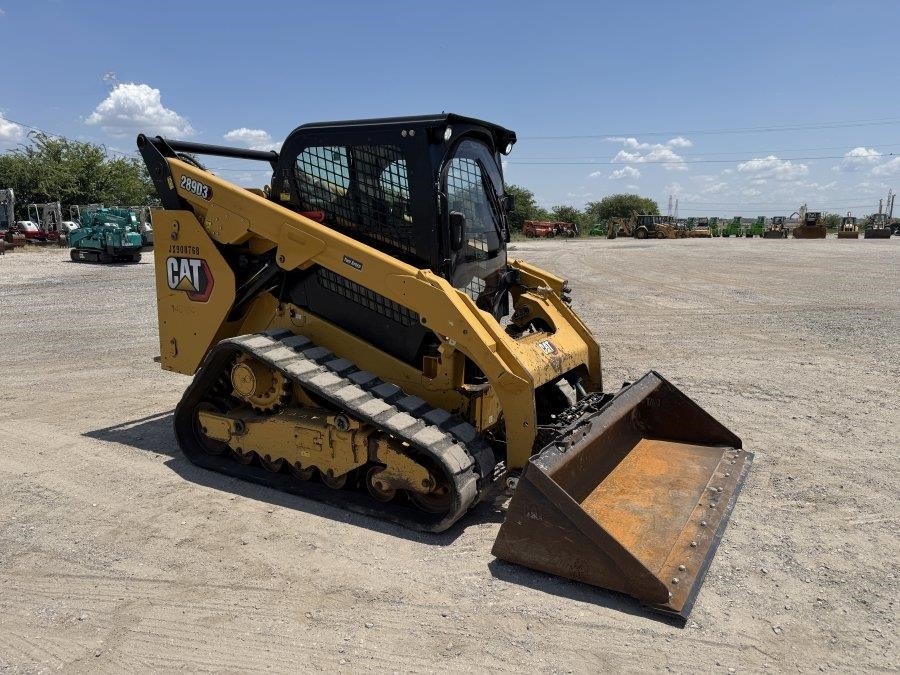

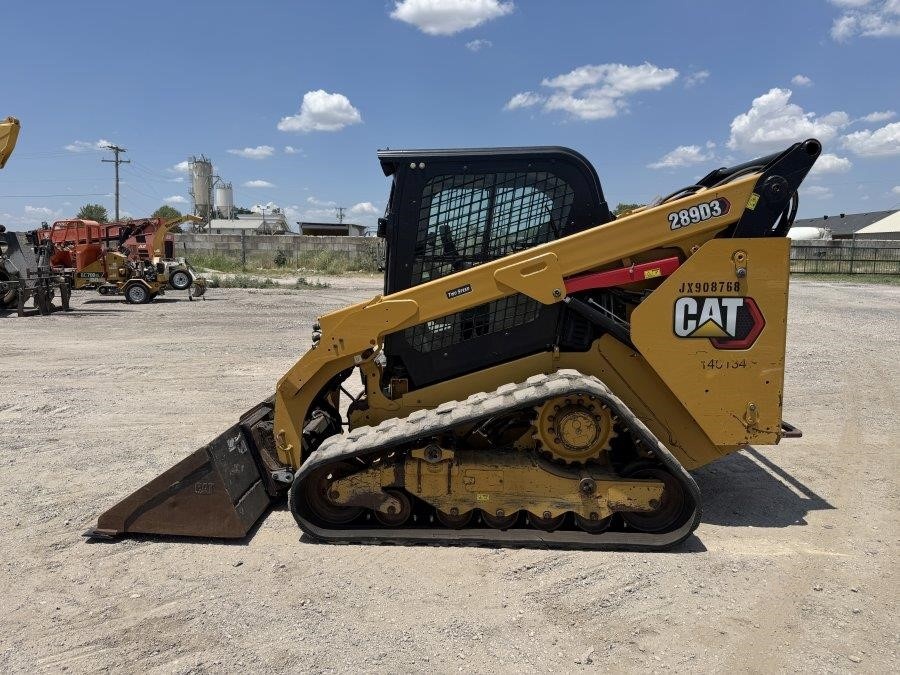

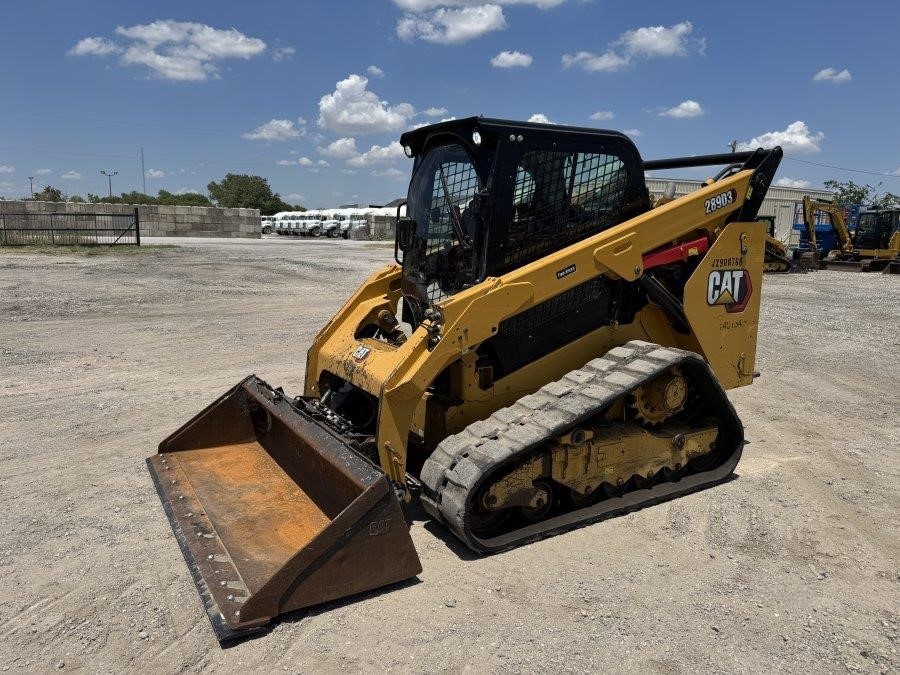

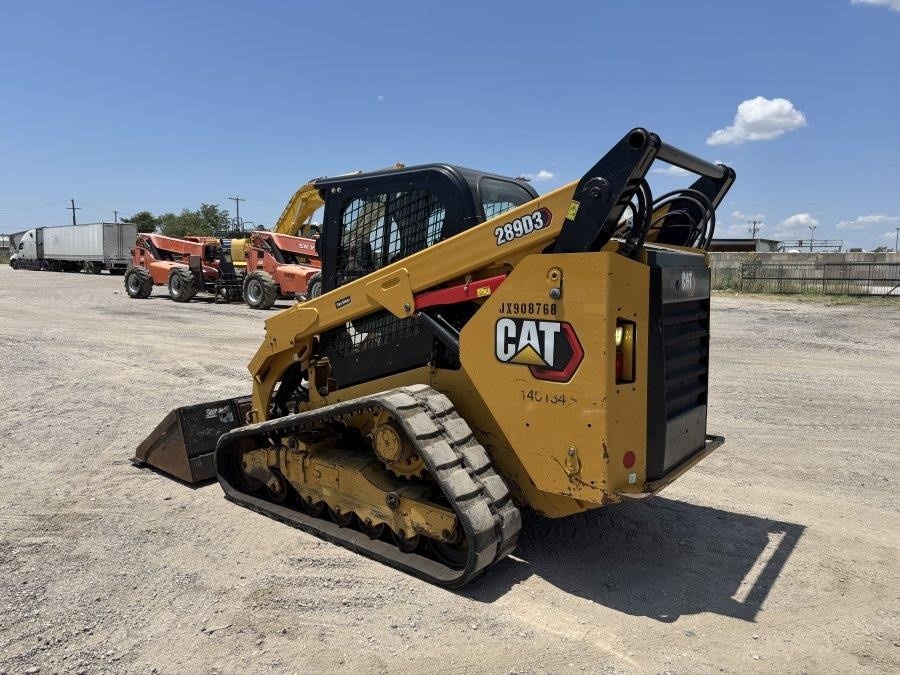

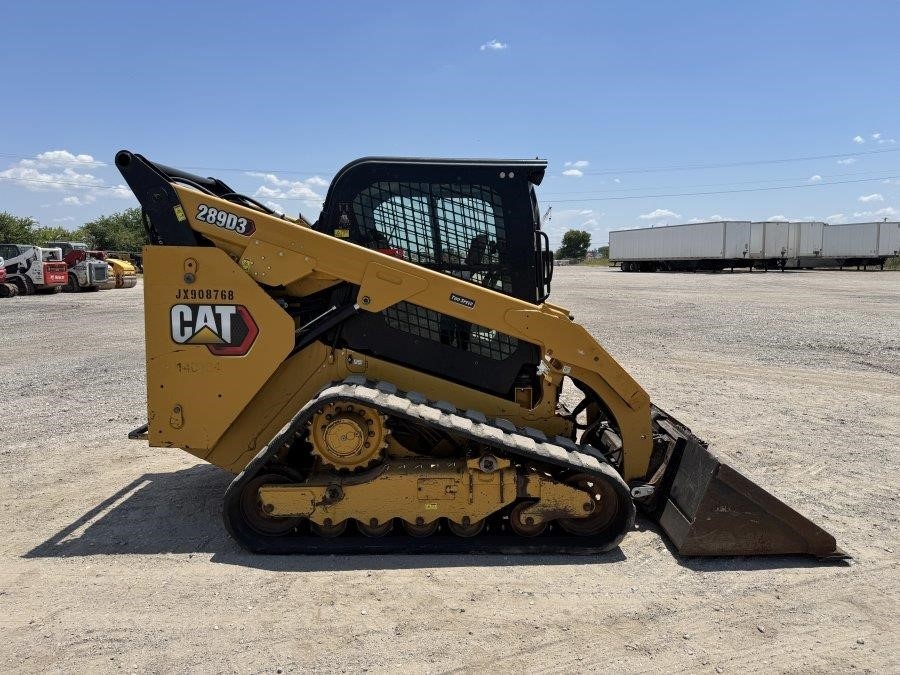

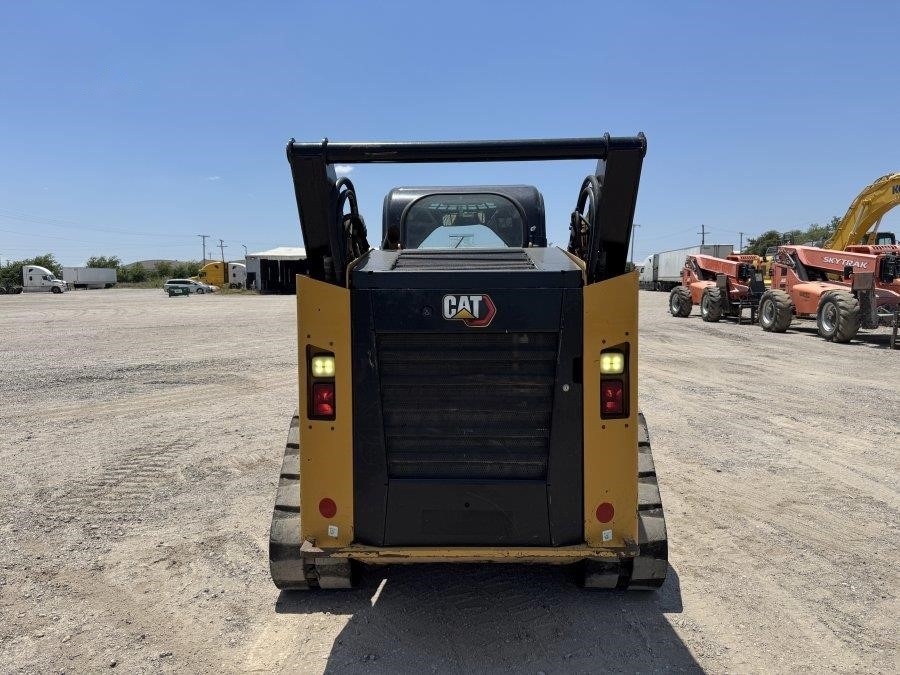

2022 Caterpillar 289D3 Compact Track Loader
