Item Specifications
Category
Condition
Used
Item Number
#1886
Make
caterpillar
Model
305E2 CR
Year
2022
Industry
construction
Equipment Type
mini excavators
Location
Ft. Worth, TX
Also Available In
TX
Item Description

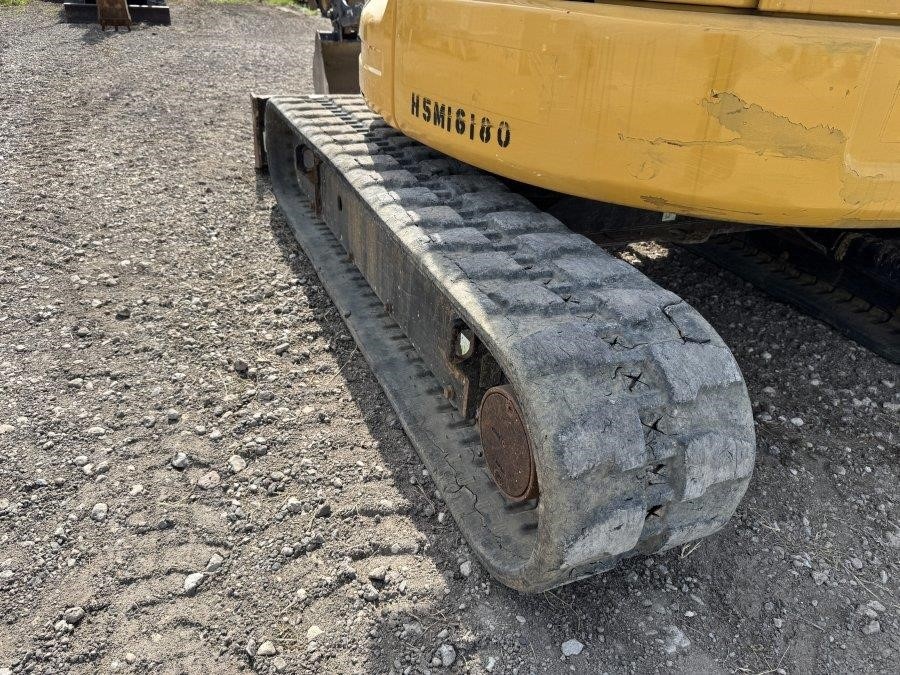

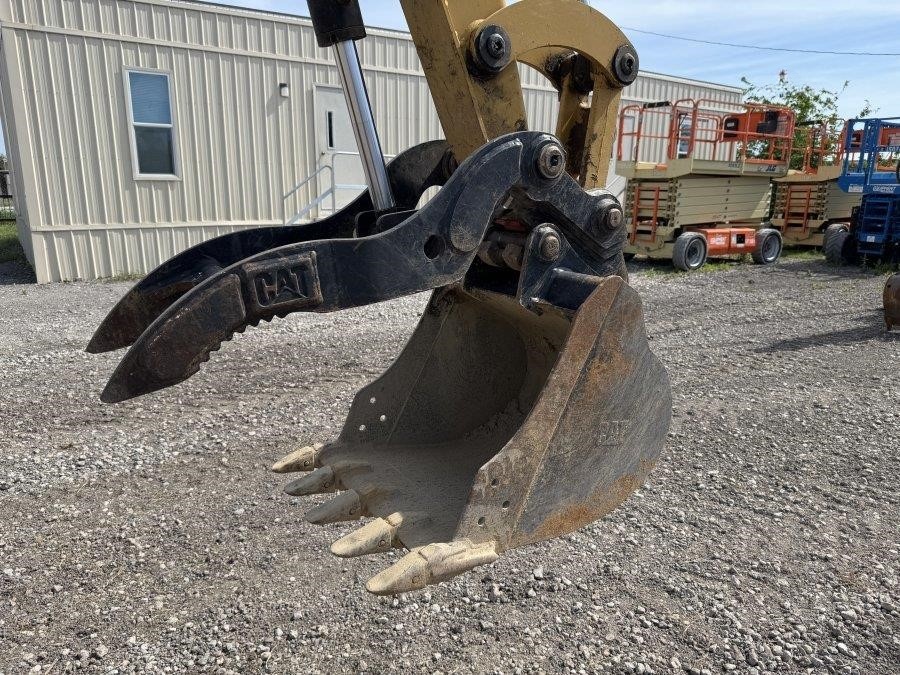

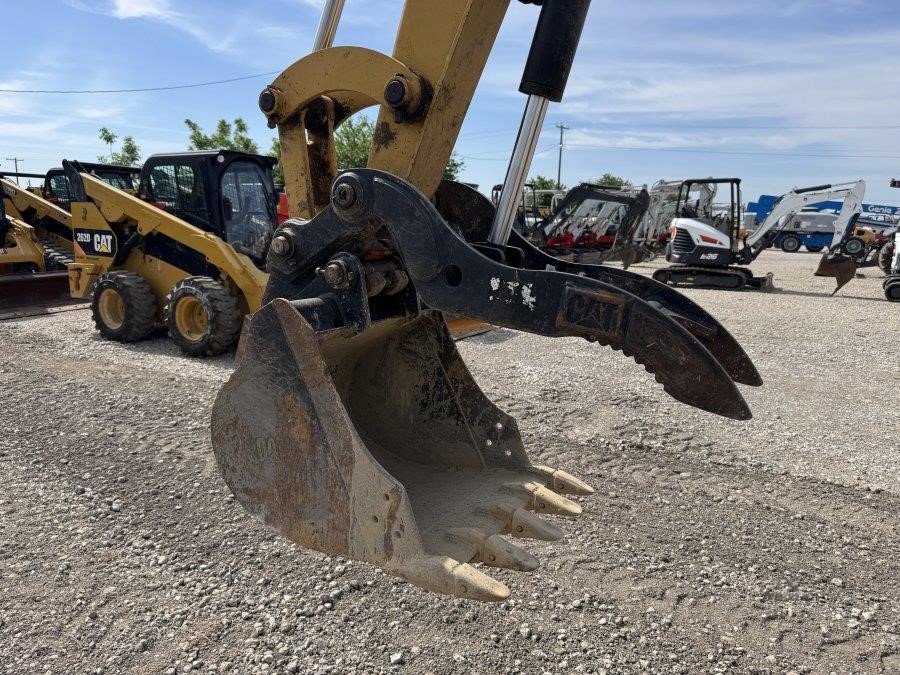

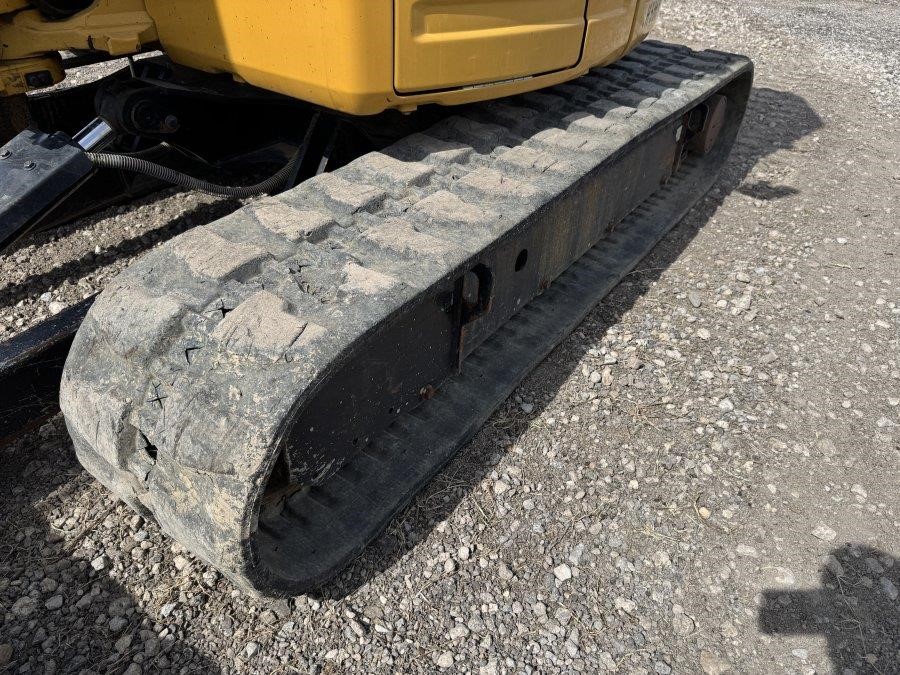

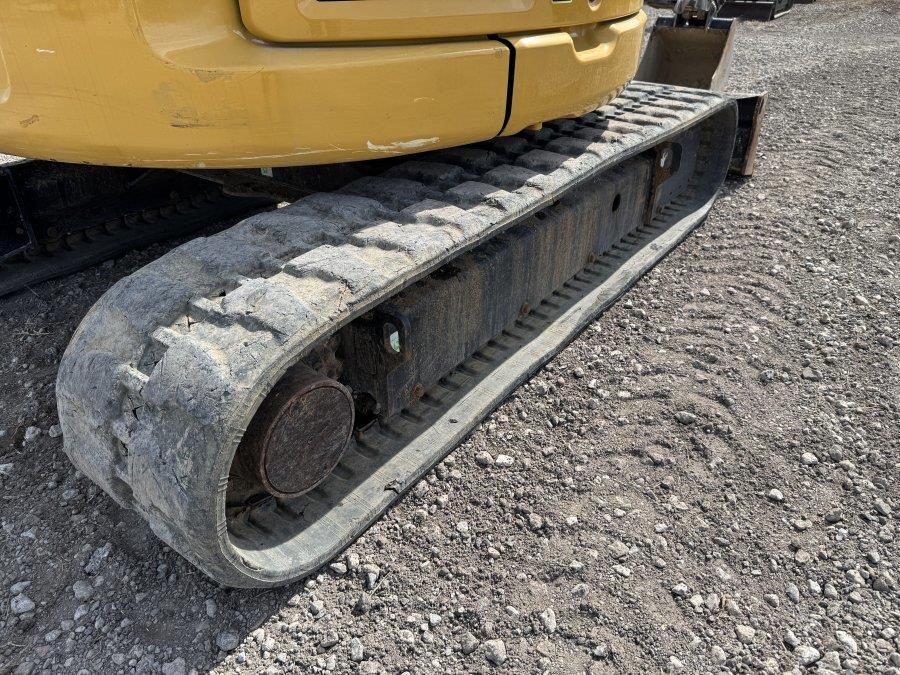

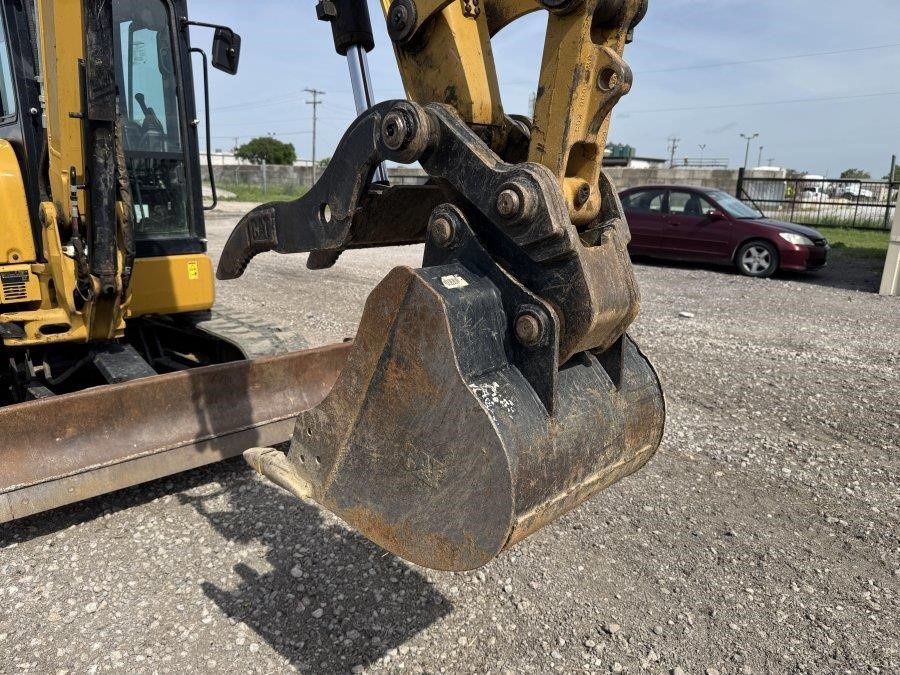

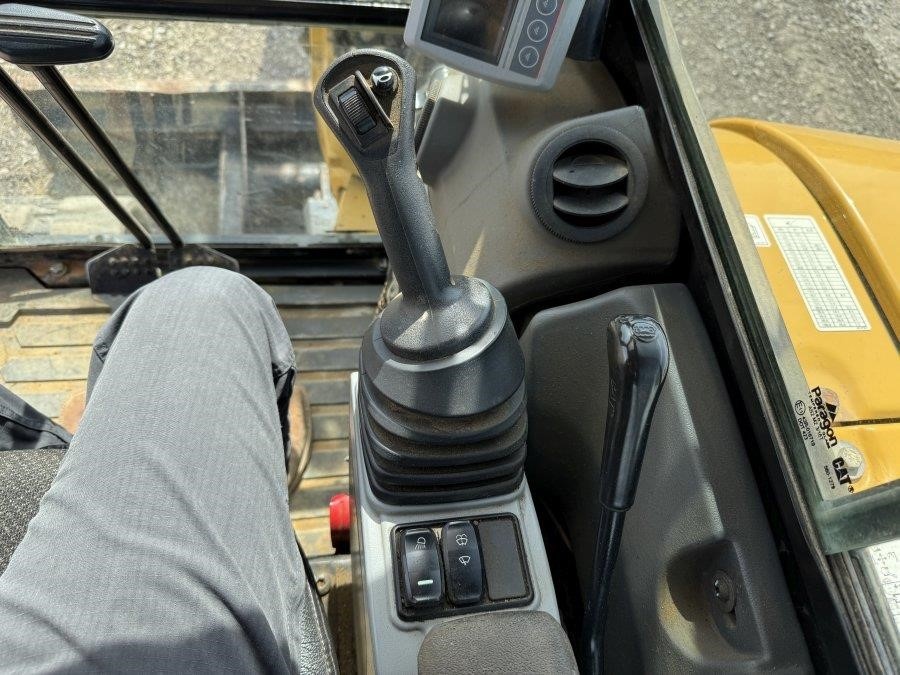

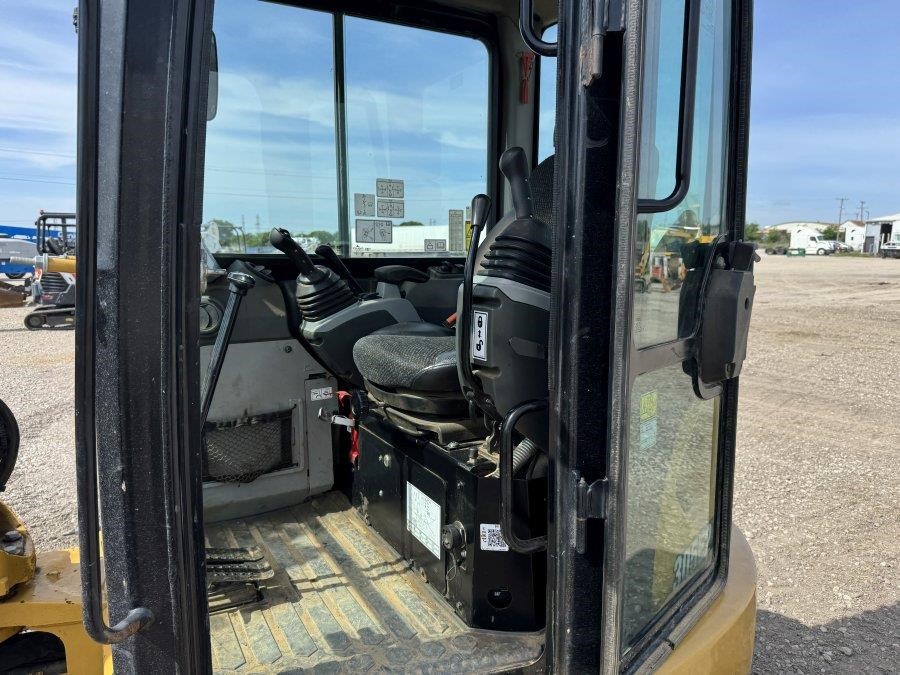

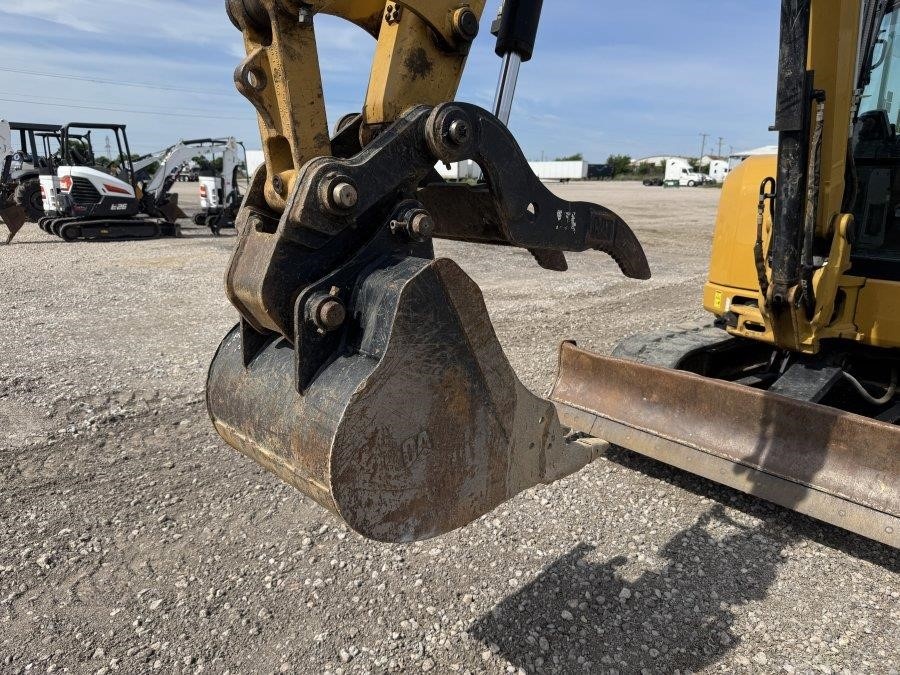

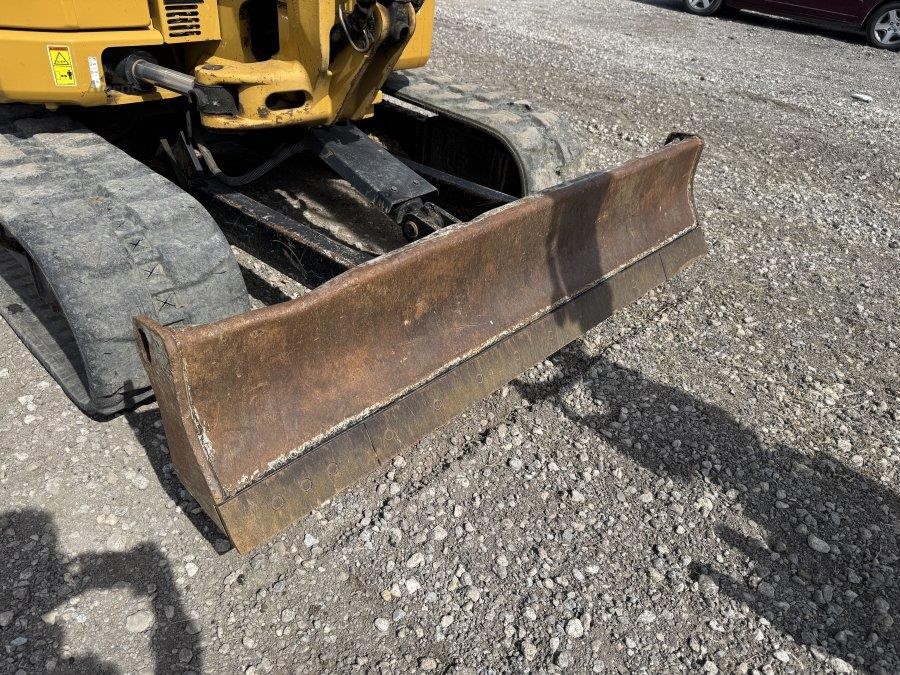

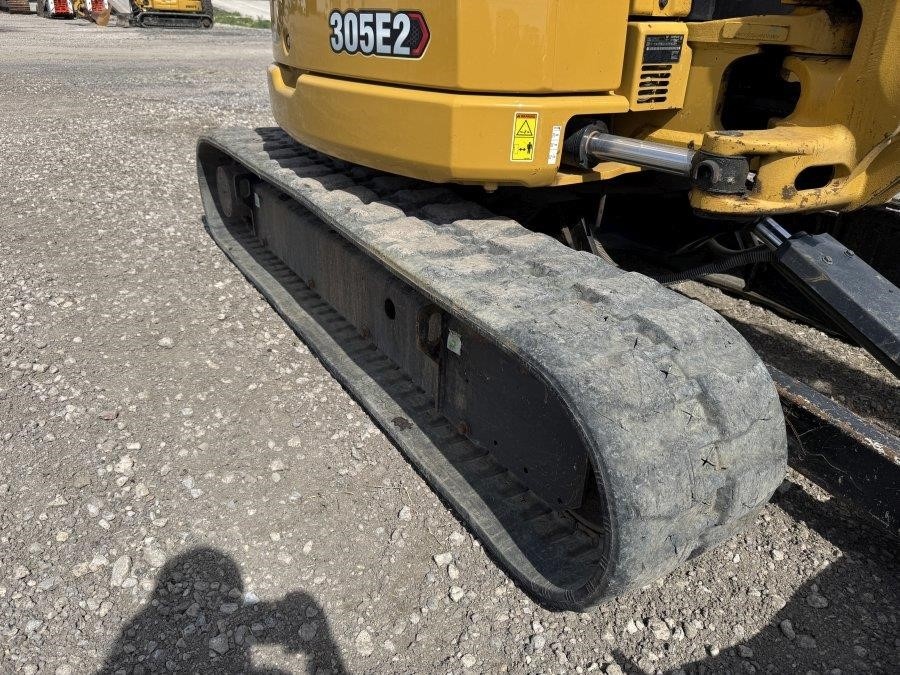

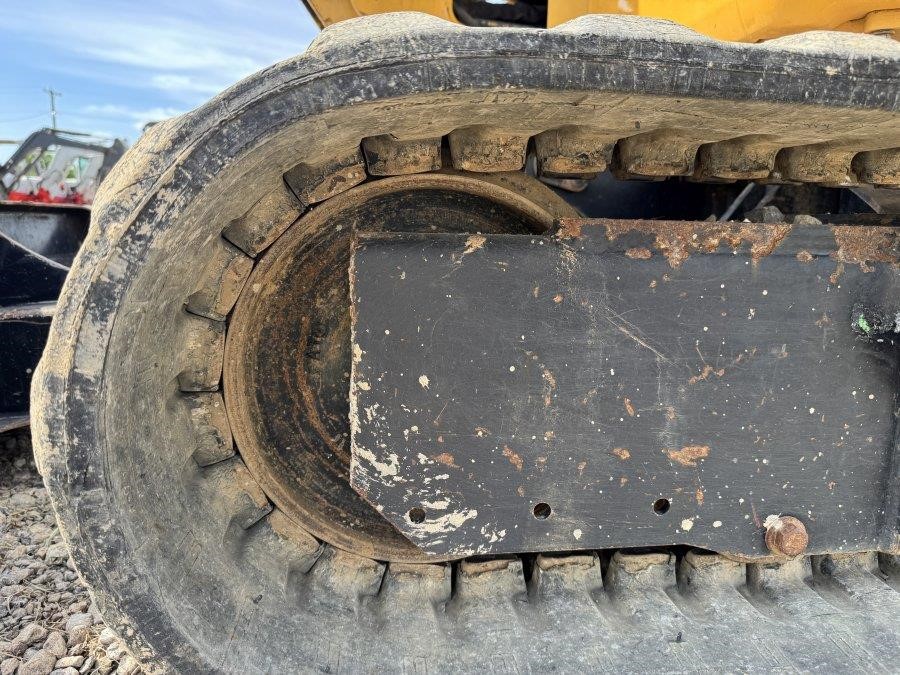

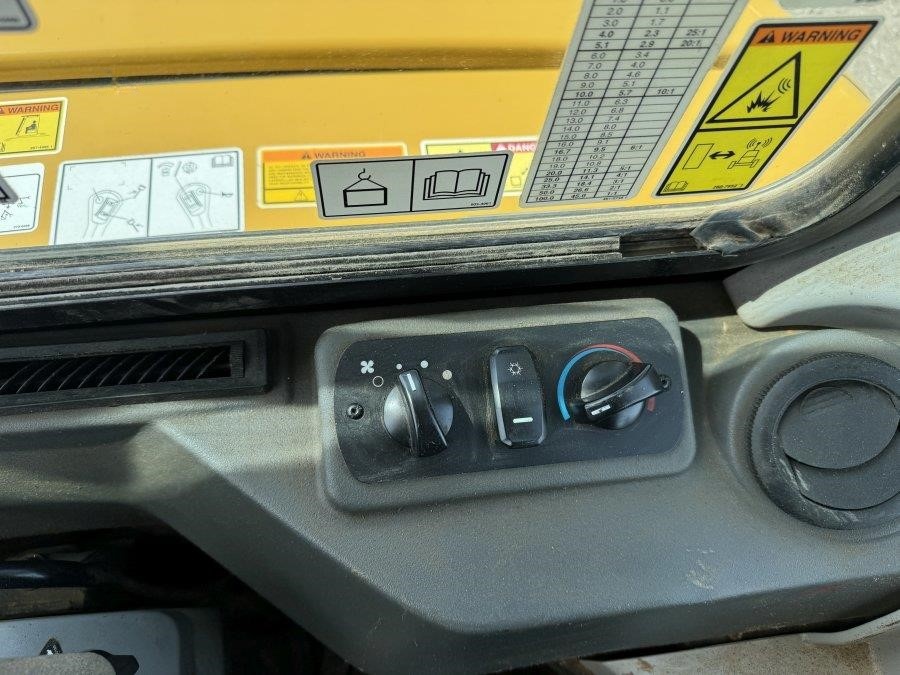

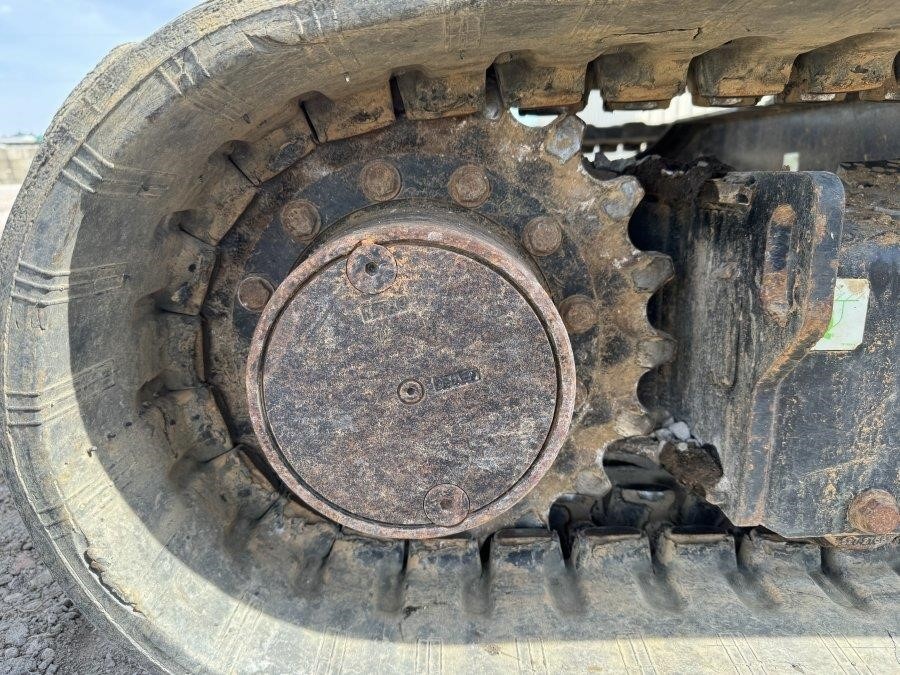

EROPS, A/C, Heat, Aux Hydraulics, Hydraulic Thumb, Blade, 2 Speed, 69" Stick, 16" Rubber Tracks, 24" Bucket
Specifications
General
| Year | 2022 |
| Make | caterpillar |
| Model | 305E2 CR |

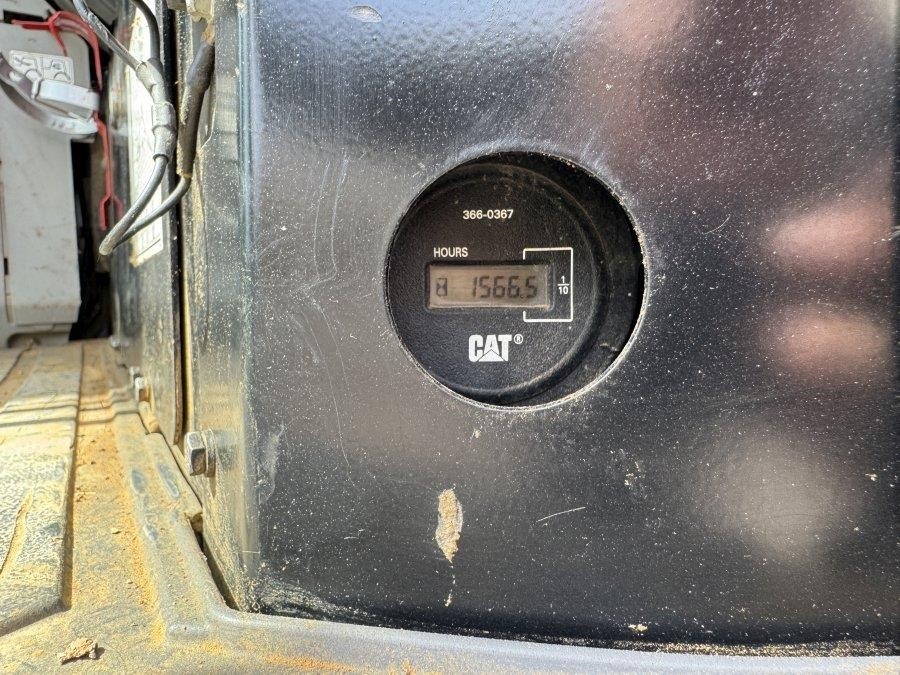

| Hours | 1566 |
| Condition | Used |
| Rated Net Power @ 2,200 rpm ISO 9249/EEC 80/1269 | 30 kW 40.2 hp |
| Gross Power ISO 14396 | 31.2 kW 41.8 hp |
| Bore | 87 mm 3.4 in |
| Stroke | 102.4 mm 4 in |

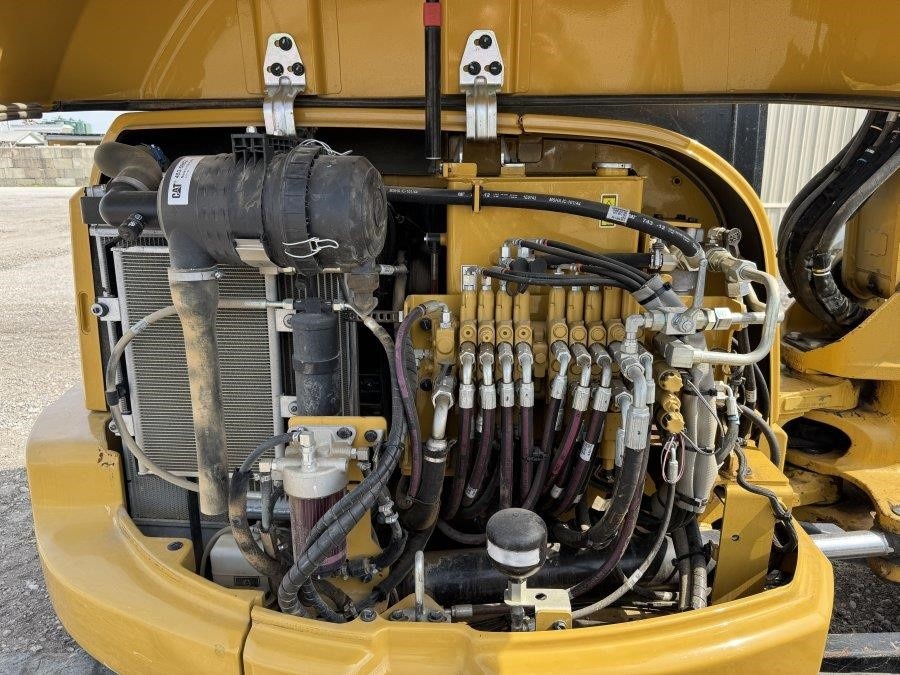

| Auxiliary Circuit – Primary (186 bar/2,734 psi) | 80 L/min 21.1 gal/min |
| Auxiliary Circuit – Secondary (174 bar/2,524 psi) | 25 L/min 6.6 gal/min |
| Exterior Sound Power Level (ISO 6395:2008) | 96 dB(A) |
| Number of Carrier Rollers | 1 |
Engine & Powertrain

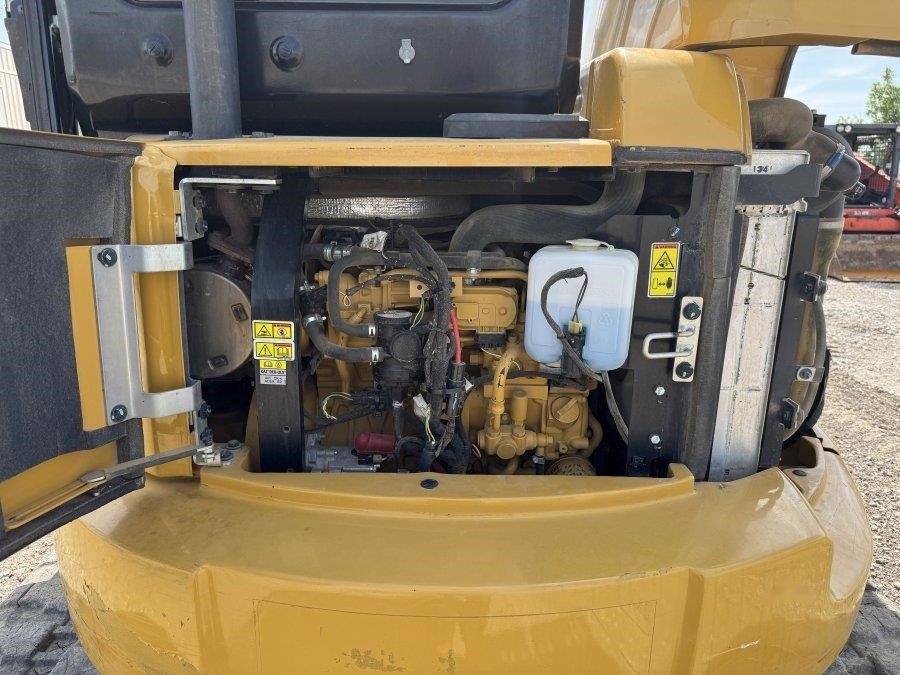

| Engine Model | Cat C2.4 |
| Displacement | 2.4 L 146 in3 |

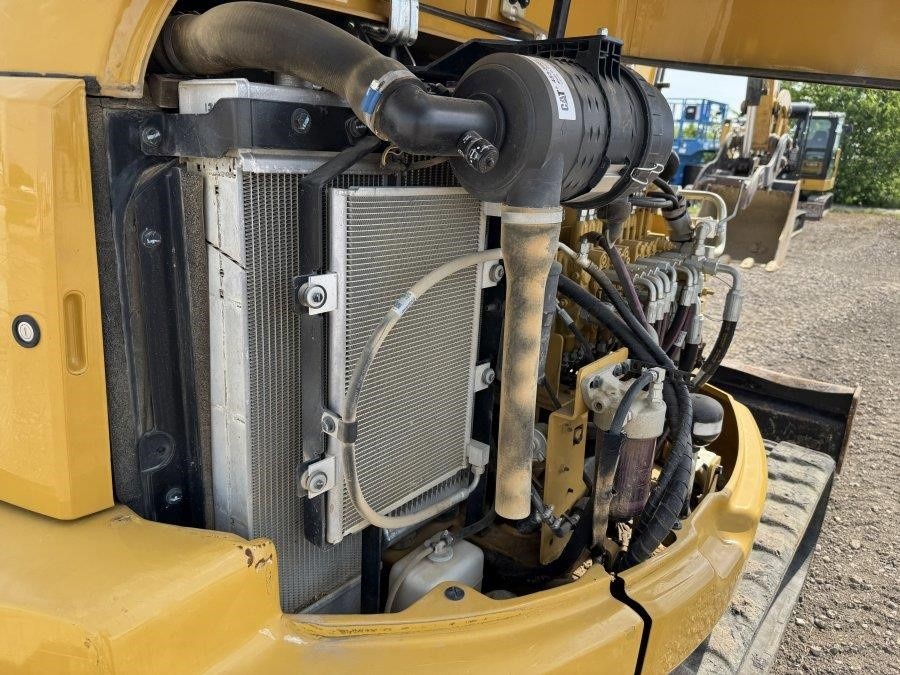

| Cooling System | 10.5 L 2.8 gal |
| Engine Oil | 9.5 L 2.5 gal |
| Fuel Tank | 63 L 16.6 gal |
Working Range
| Machine Swing Speed | 10 rpm |
| Travel Speed – High | 4.4 km/h 2.7 mph |
| Travel Speed – Low | 2.8 km/h 1.7 mph |
| Max Traction Force – High Speed | 24.1 kN 5,418 lb |
| Max Traction Force – Low Speed | 45.2 kN 10,161 lb |
| Gradeability (maximum) | 30° |
| Hydraulic Tank | 68.3 L 18 gal |
| Hydraulic System | 78 L 20.6 gal |
| Pump Flow at 2,400 rpm | 150 L/min 39.6 gal/min |
| Operating Pressure – Equipment | 245 bar 3,553 psi |
| Operating Pressure – Travel | 245 bar 3,553 psi |
| Operating Pressure – Swing | 216 bar 3,132 psi |
| Digging Force – Stick (standard) | 24.7 kN 5,550 lb |
| Digging Force – Stick (long) | 21.3 kN 4,788 lb |
| Digging Force – Bucket | 44.7 kN 10,050 lb |
| Dynamic Operator Sound Pressure Level (ISO 6396:2008) | 81 dB(A) |
| Tail Swing | 1100 mm 43 in |

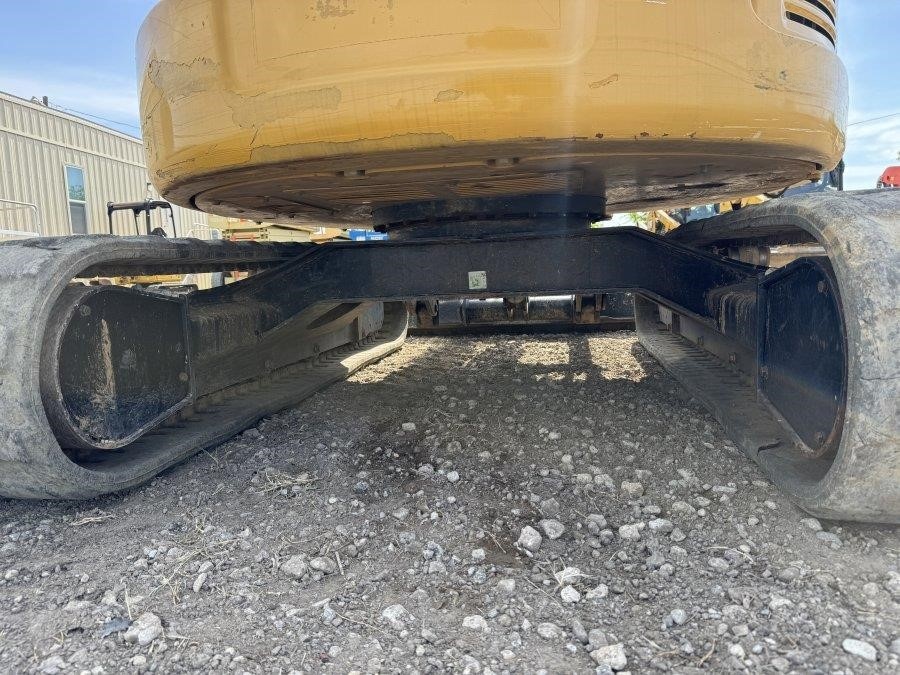

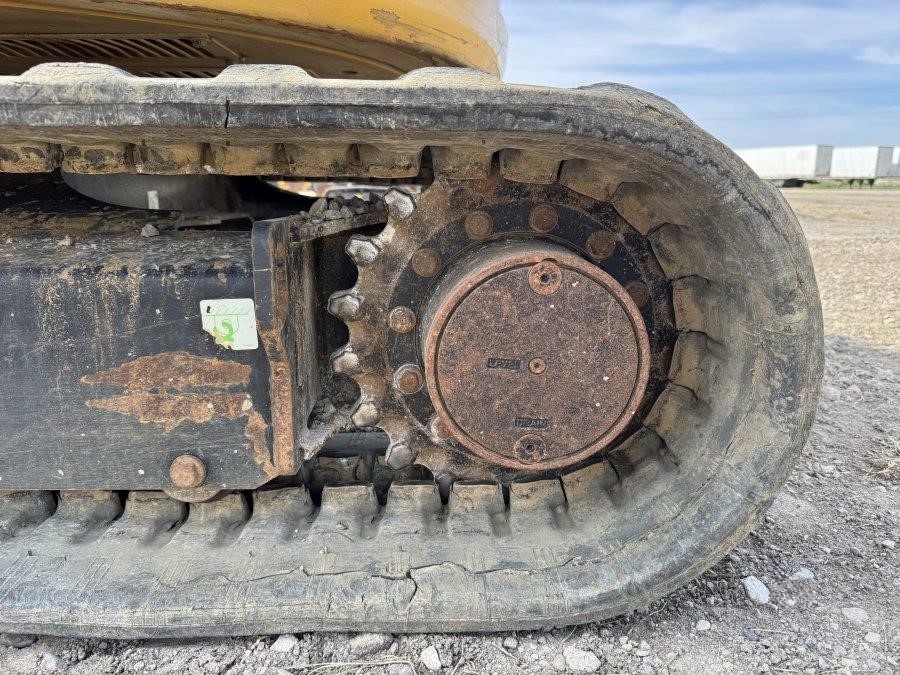

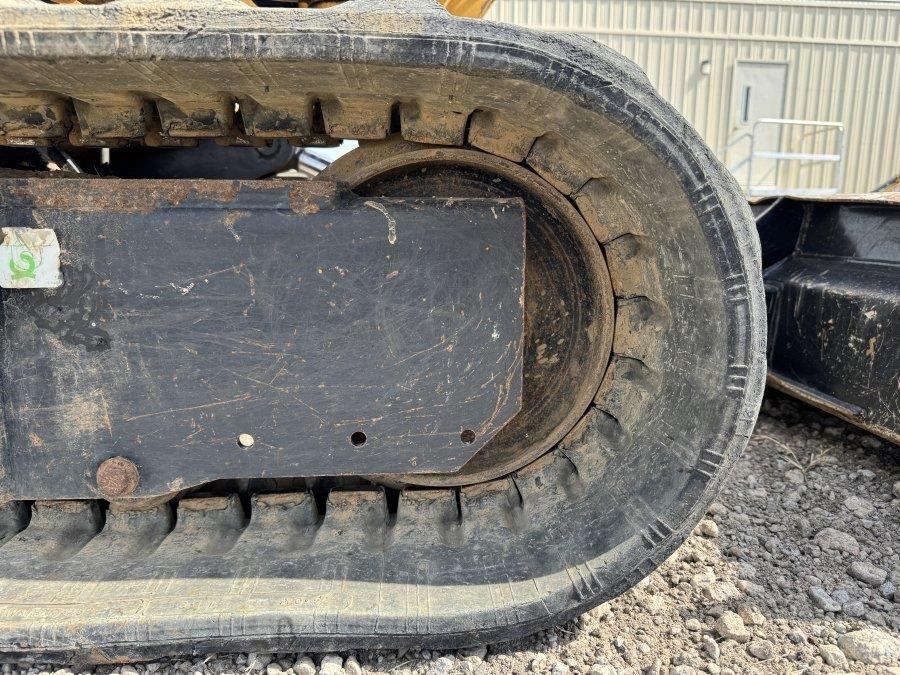

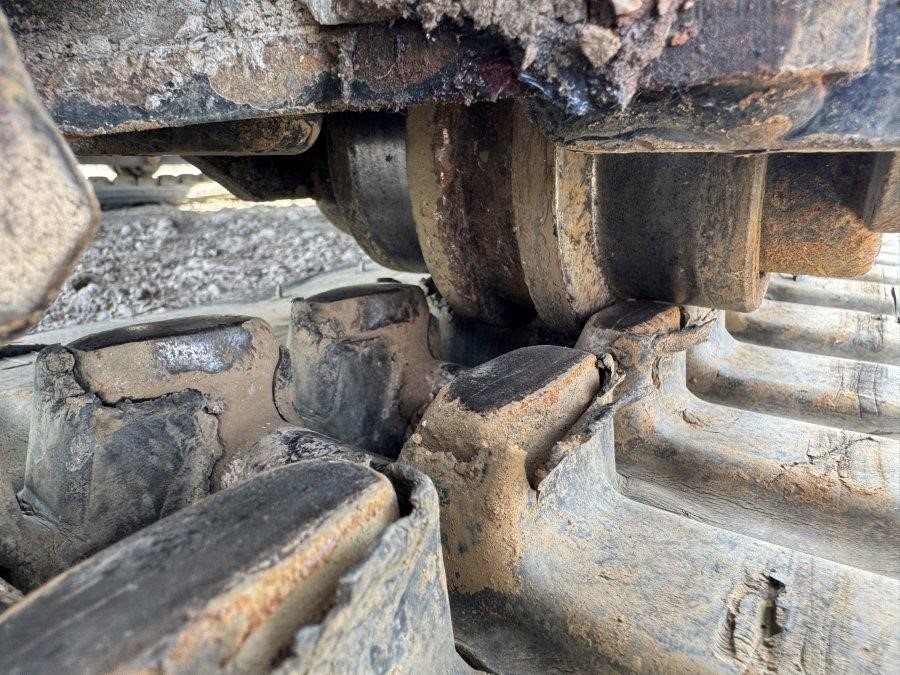

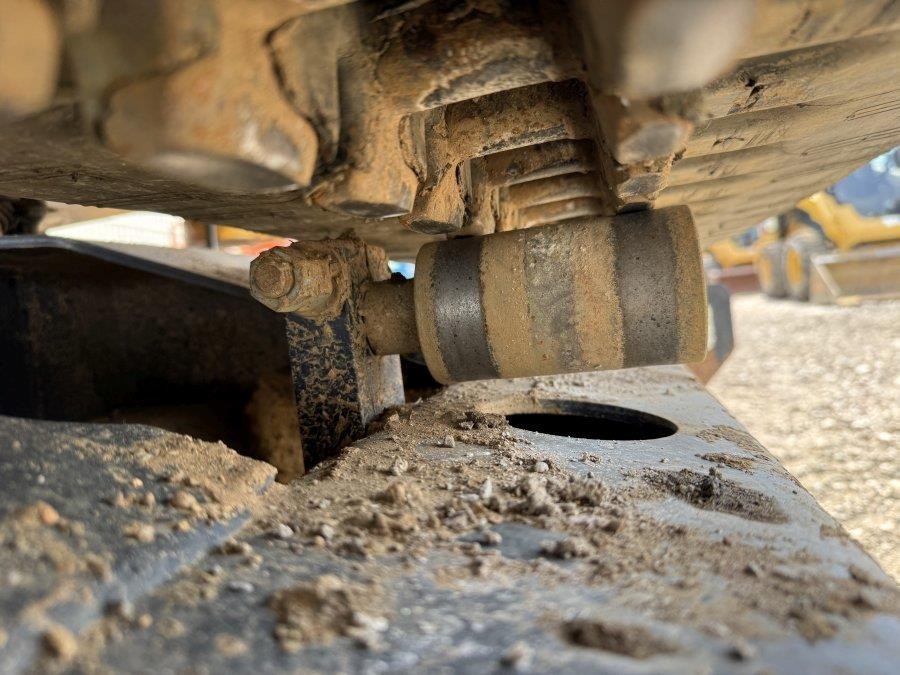

Undercarriage & Attachments
| Boom Swing – Left (without stop) | 80° |
| Boom Swing – Left (with stop) | 60° |
| Boom Swing – Right | 50° |
| Blade Dig Depth | 555 mm 21.9 in |

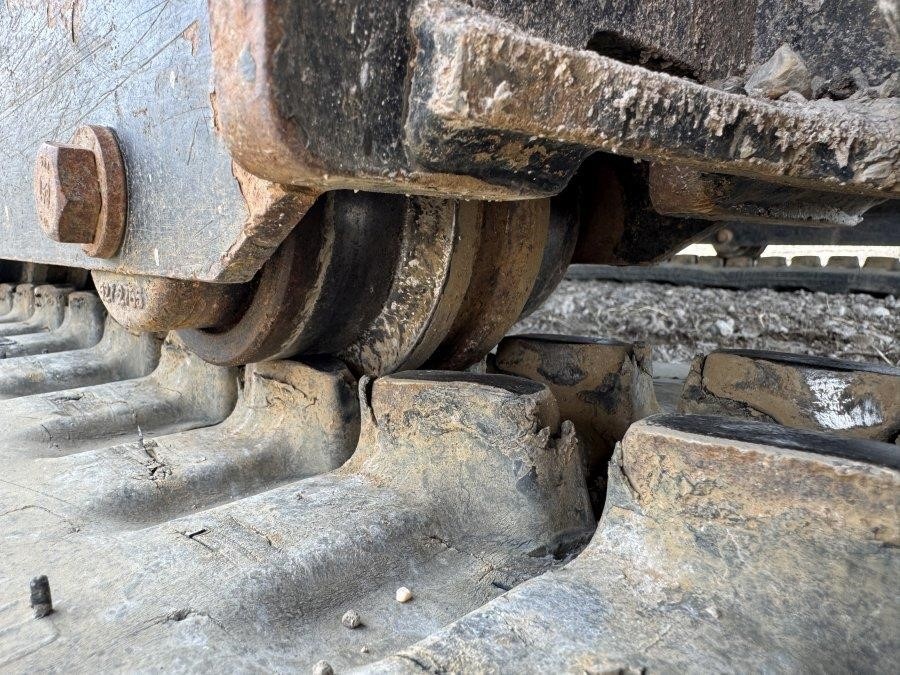

| Number of Track Rollers | 4 |
| Track Roller Type | Center Flange |
| Dig Depth (Standard Stick) | 3280 mm 129 in |
| Vertical Wall (Standard Stick) | 2320 mm 91 in |
| Maximum Reach at Ground Level (Standard Stick) | 5330 mm 210 in |
| Maximum Reach (Standard Stick) | 5600 mm 220 in |
| Boom In Reach (Standard Stick) | 2350 mm 93 in |
| Maximum Blade Depth | 555 mm 22 in |
Dimensions
| Weight – Canopy, Standard Stick | 4975 kg 10,970 lb |
| Weight – Canopy, Long Stick | 5020 kg 11,069 lb |
| Weight – Cab, Standard Stick | 5140 kg 11,334 lb |
| Weight – Cab, Long Stick | 5185 kg 11,443 lb |
| Ground Pressure – Canopy | 29.5 kPa 4.3 psi |
| Ground Pressure – Cab | 30.5 kPa 4.4 psi |

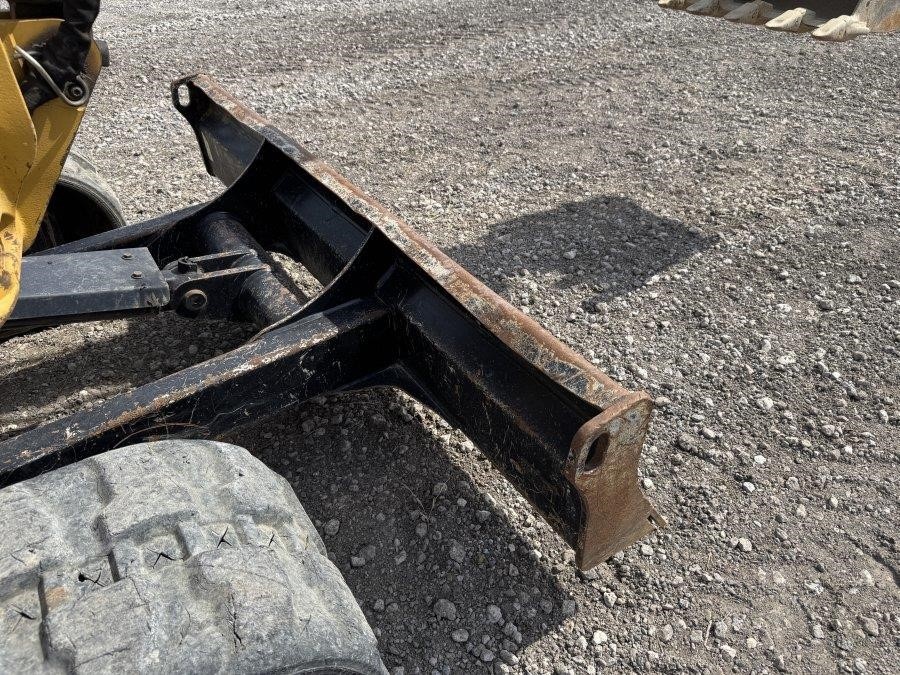

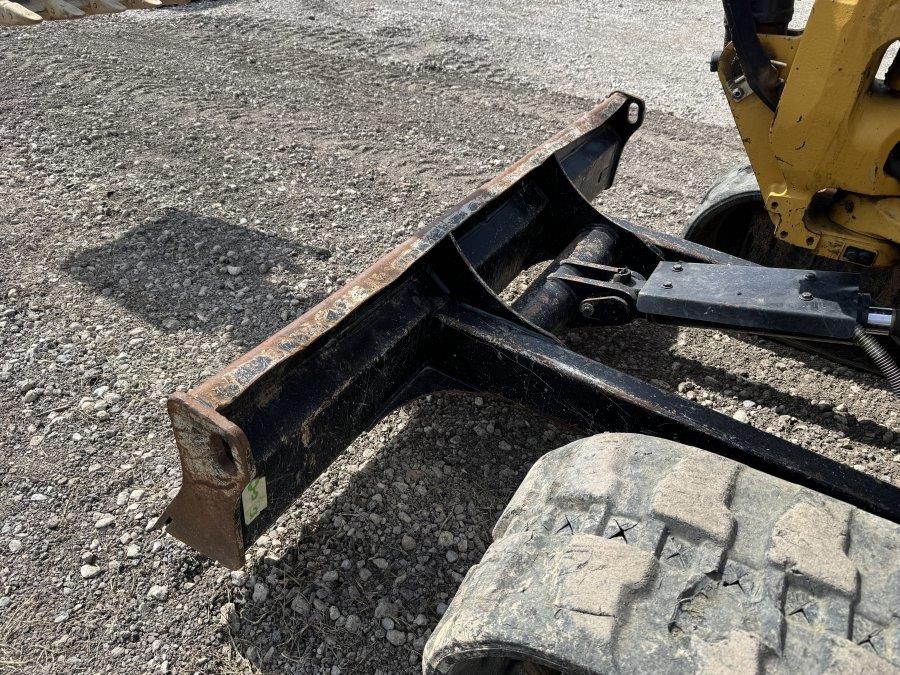

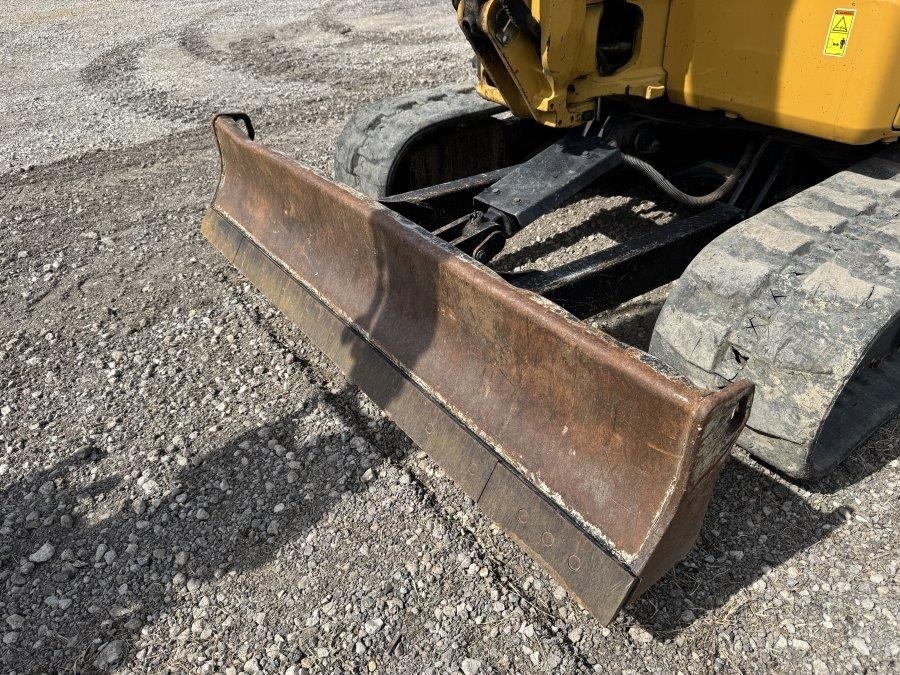

| Blade Width | 1980 mm 78.0 in |
| Blade Height | 375 mm 14.8 in |
| Blade Lift Height | 405 mm 15.9 in |
| Stick Length – Standard | 1350 mm 52 in |
| Stick Length – Long | 1750 mm 67 in |
| Maximum Dig Height (Standard Stick) | 5250 mm 207 in |
| Maximum Dump Clearance (Standard Stick) | 3720 mm 129 in |
| Maximum Blade Height | 405 mm 16 in |
| O/A Shipping Length (Standard Stick) | 5180 mm 204 in |
| Track Belt/Shoe Width | 400 mm 16 in |
| O/A Track Width | 1980 mm 78 in |

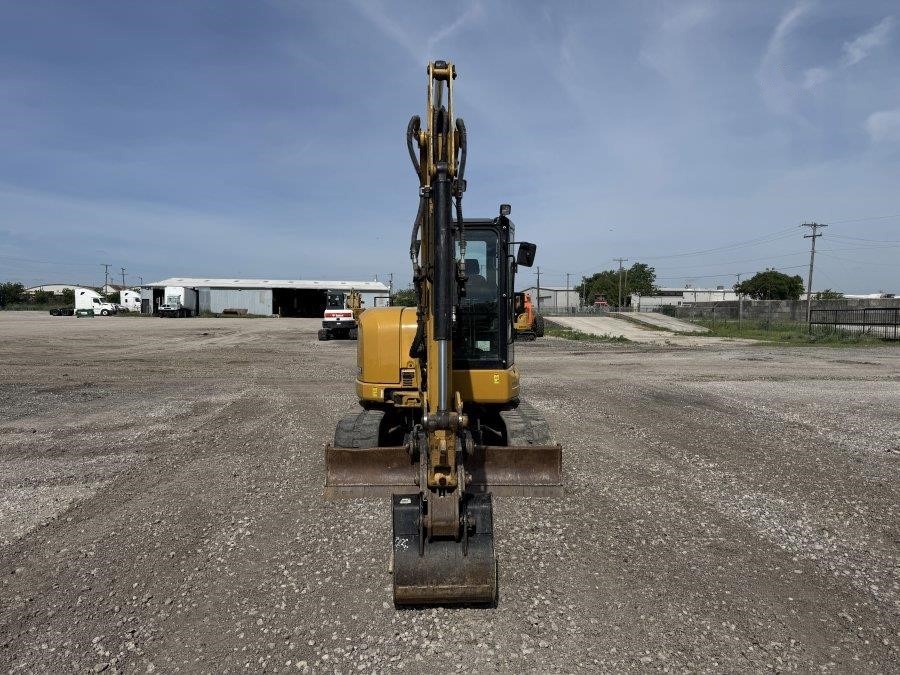

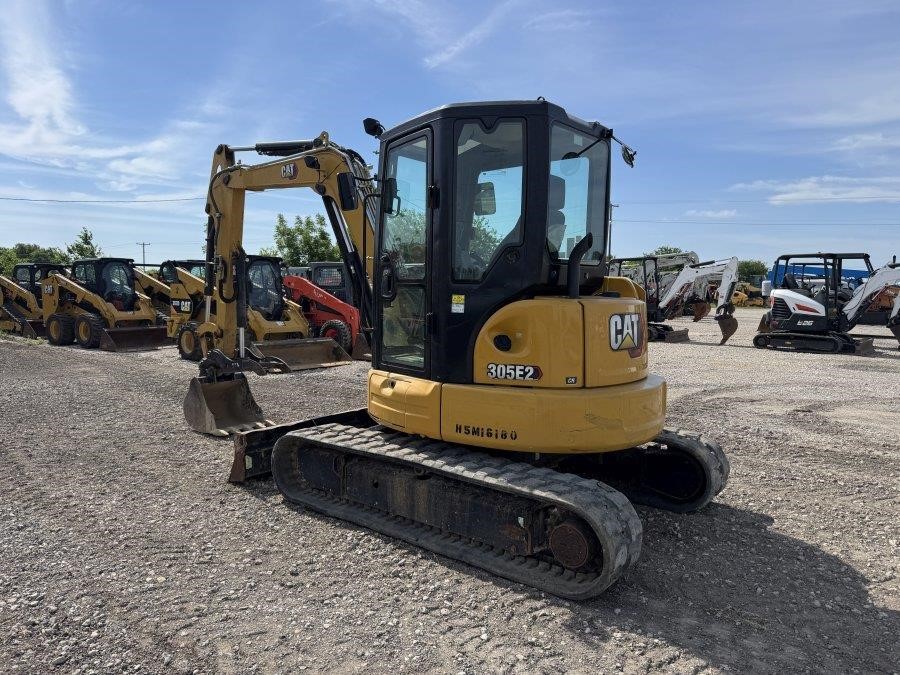

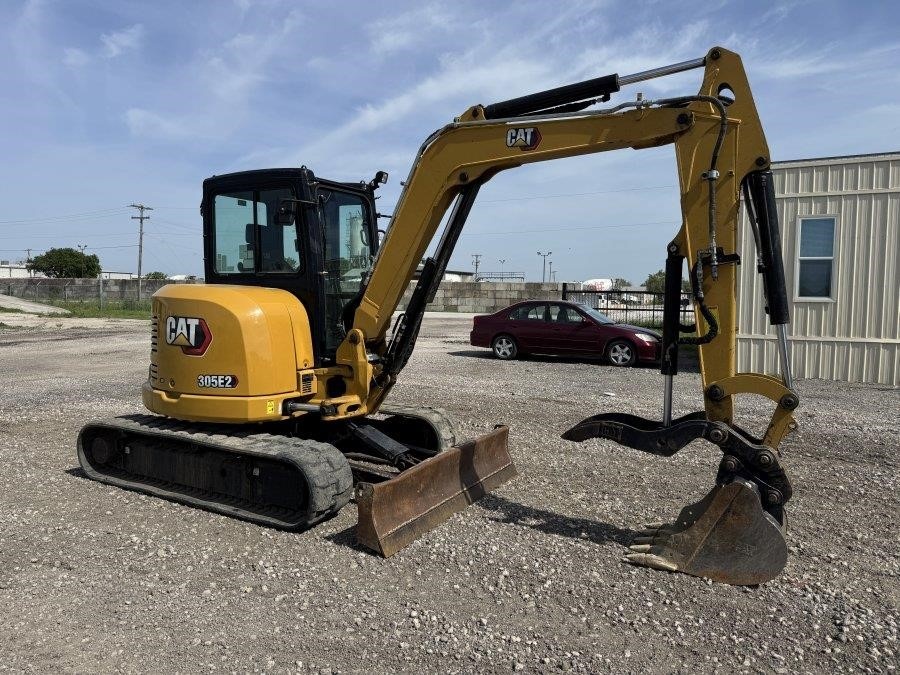

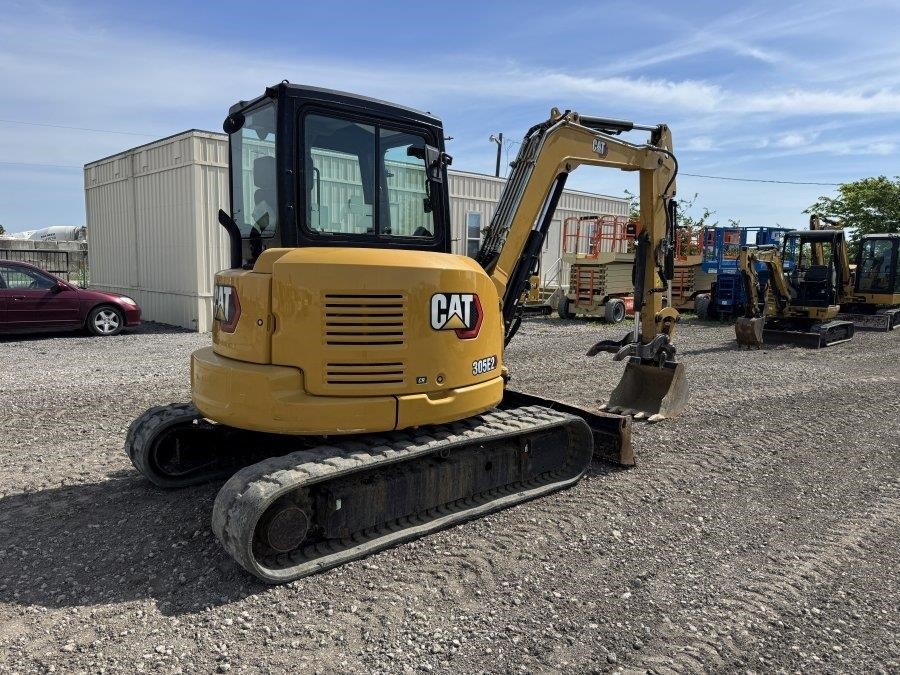

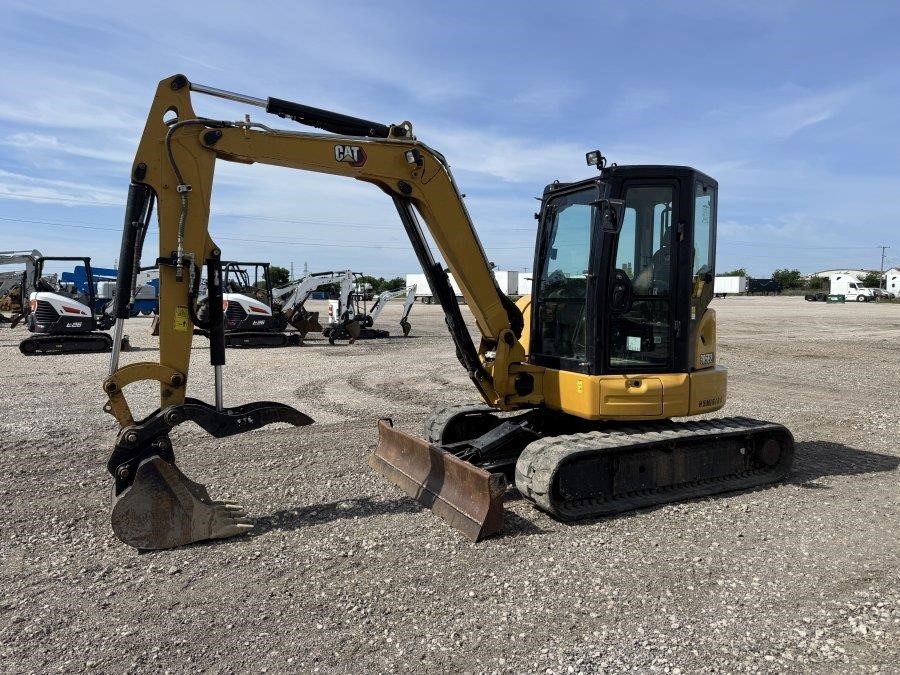

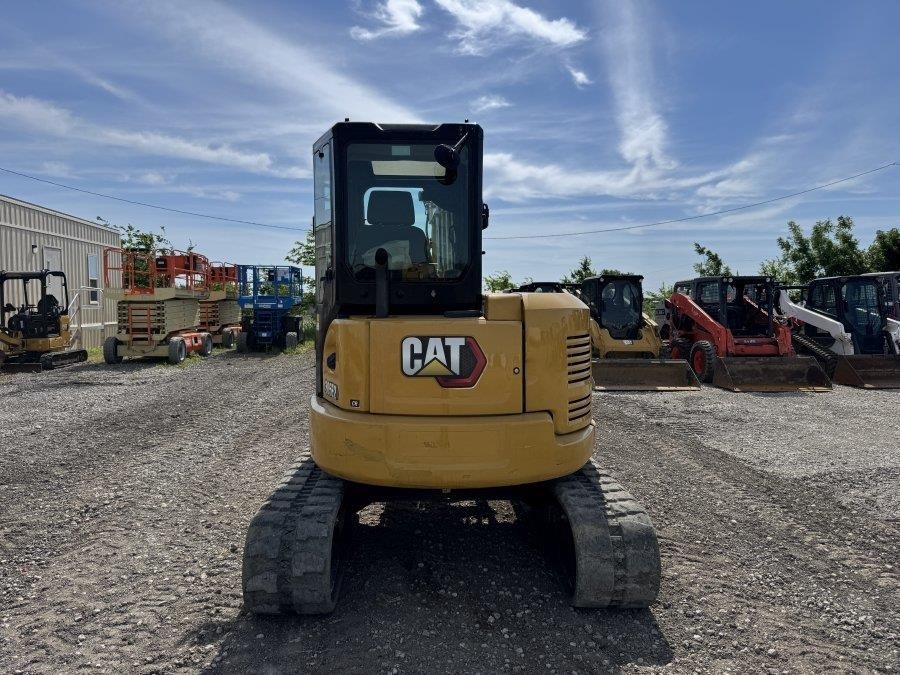

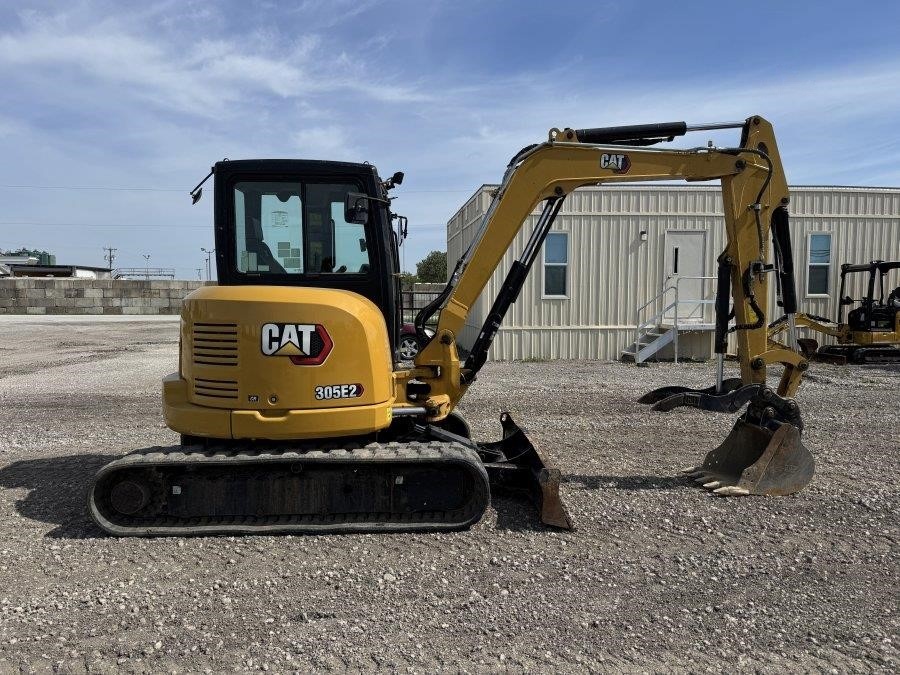

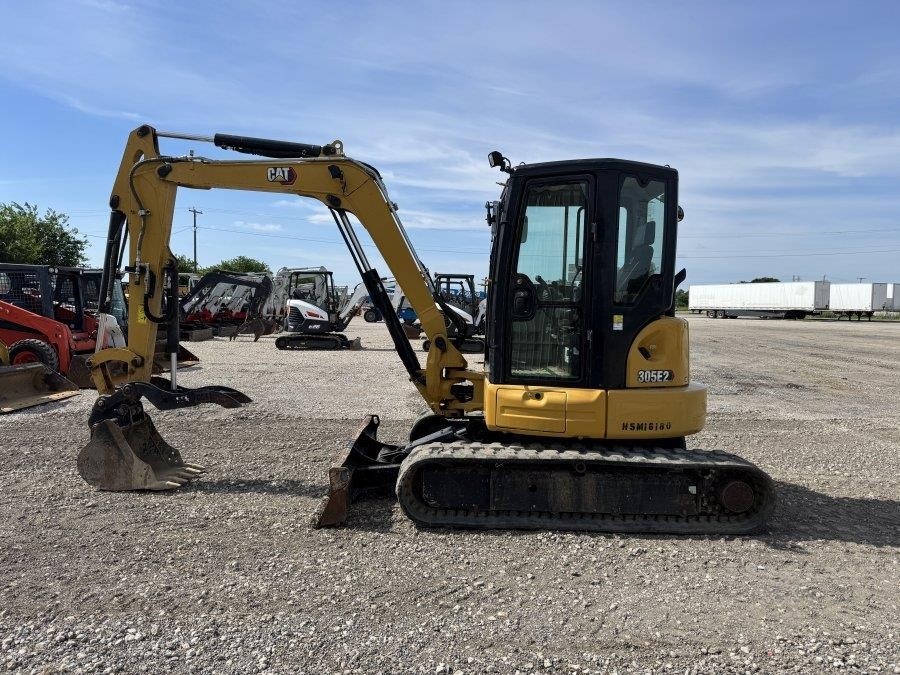

2022 Caterpillar 305E2 CR Mini Excavator
