Item Specifications
Category
Condition
Used
Item Number
#1881
Make
caterpillar
Model
306CR
Year
2022
Industry
construction
Equipment Type
excavators
Location
Ft. Worth, TX
Also Available In
TX
Item Description

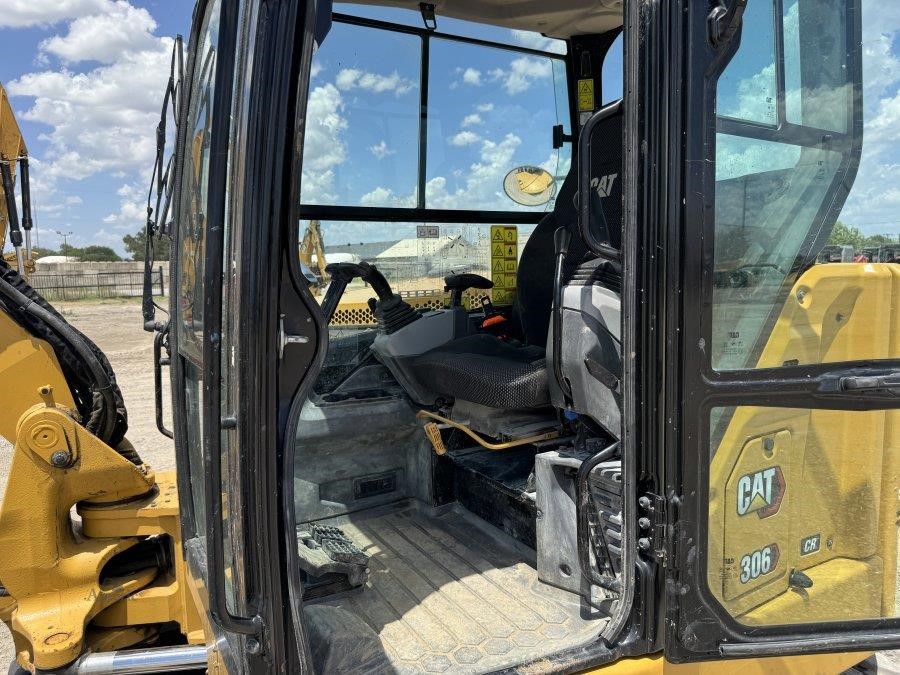

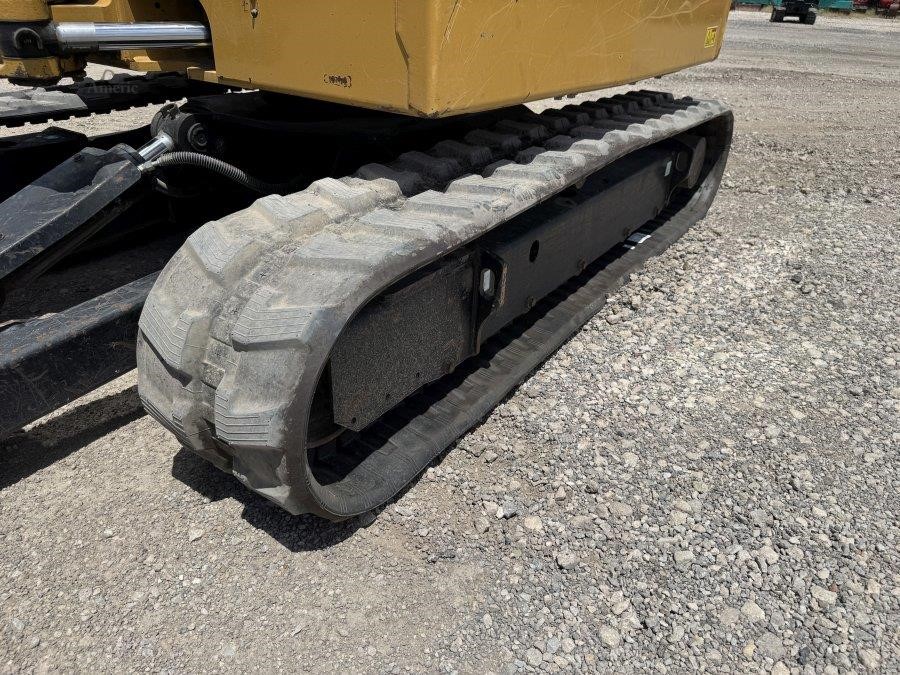

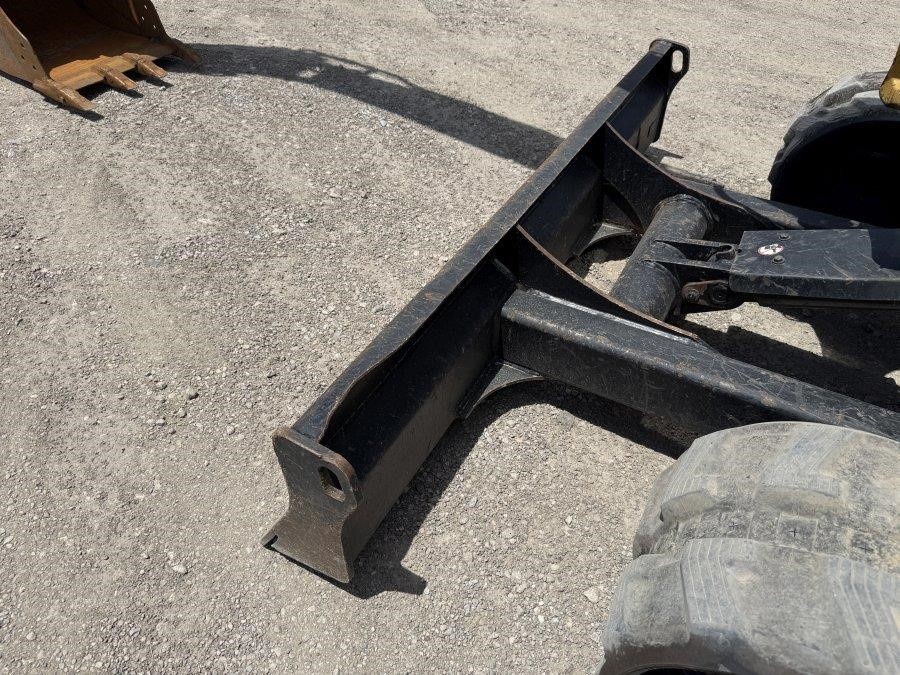

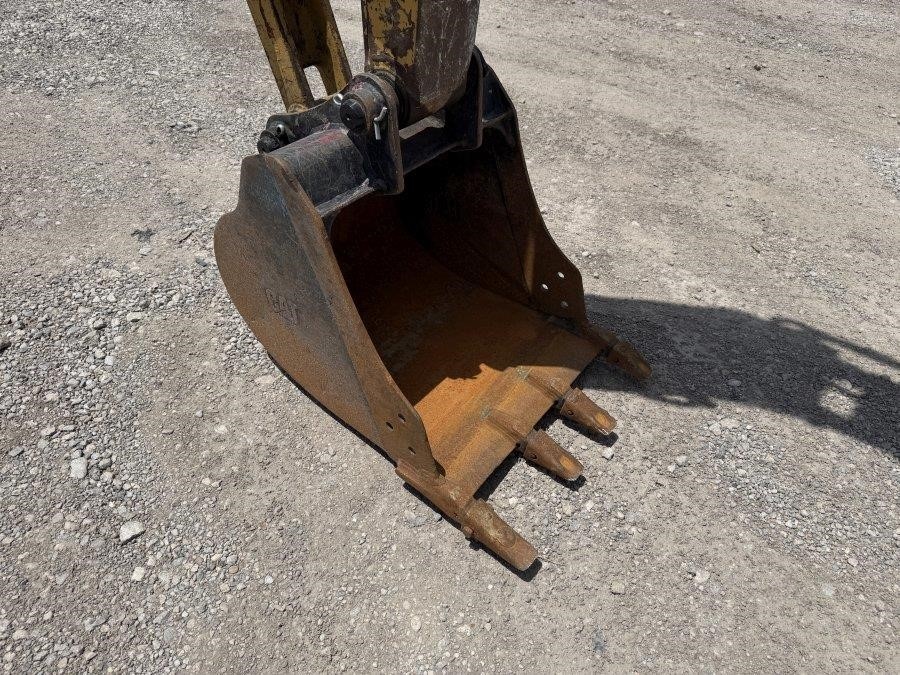

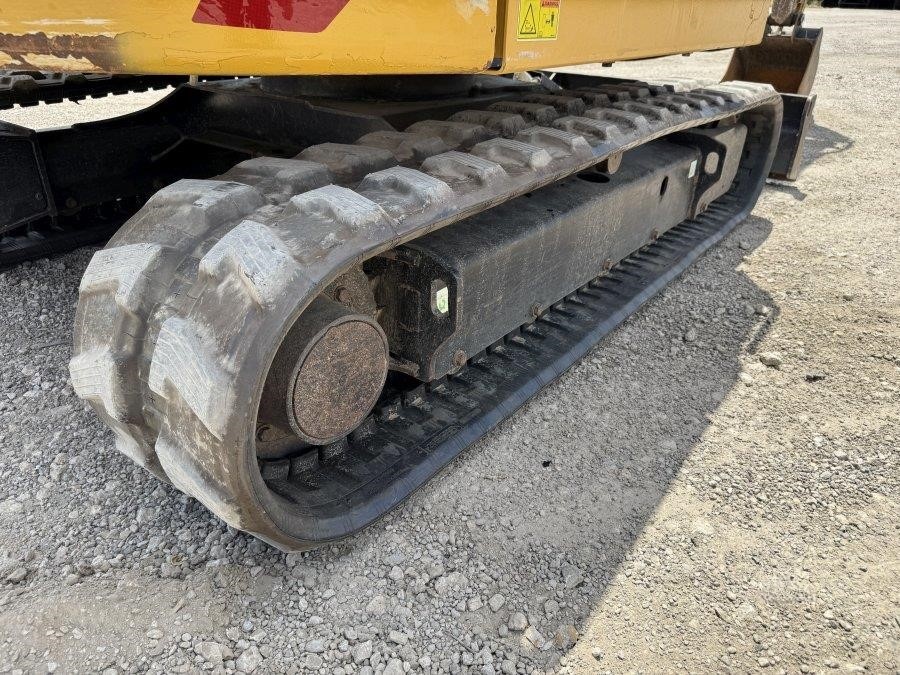

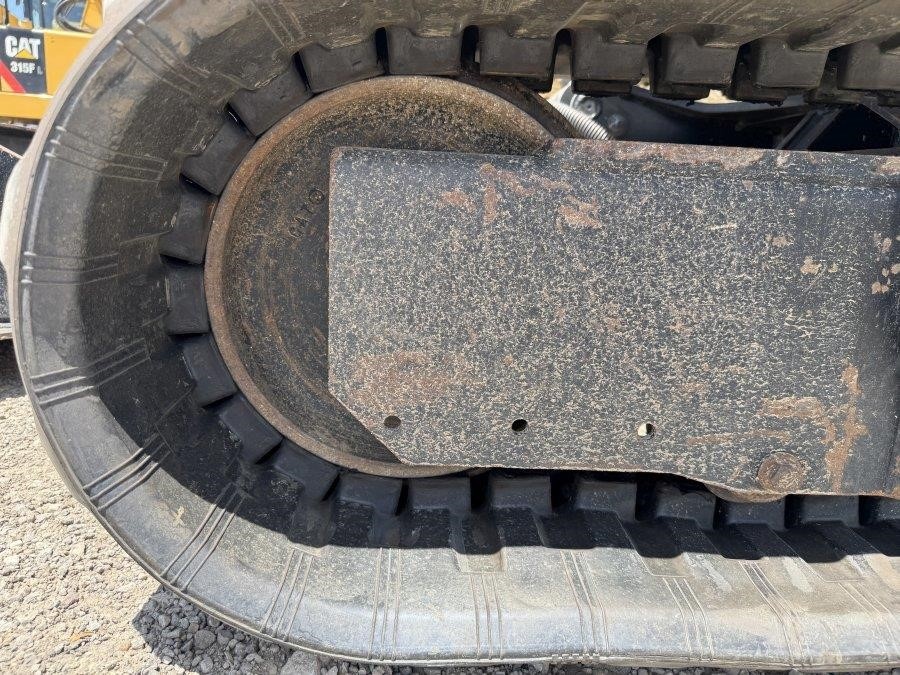

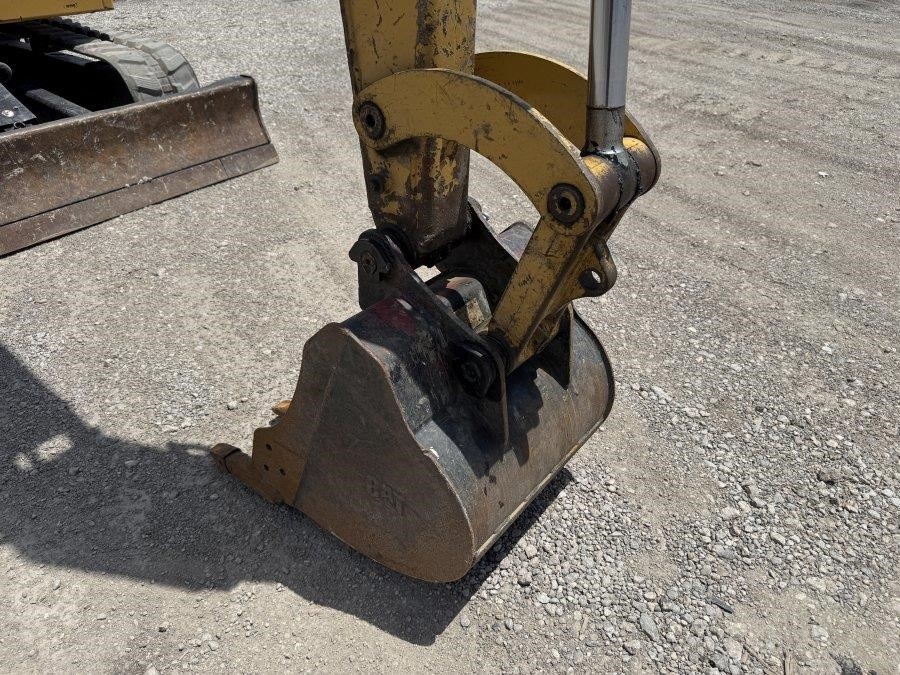

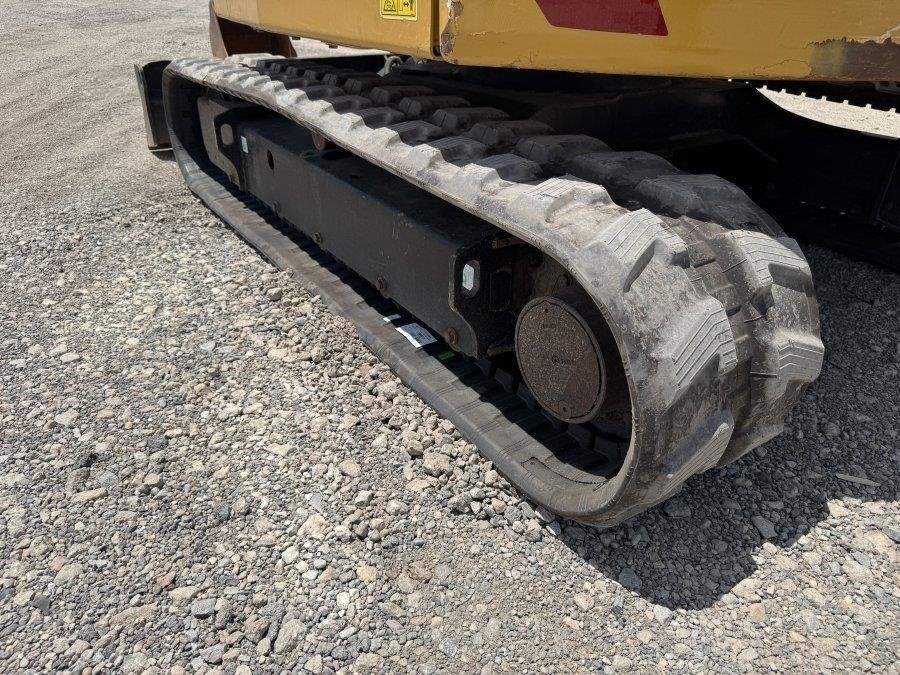

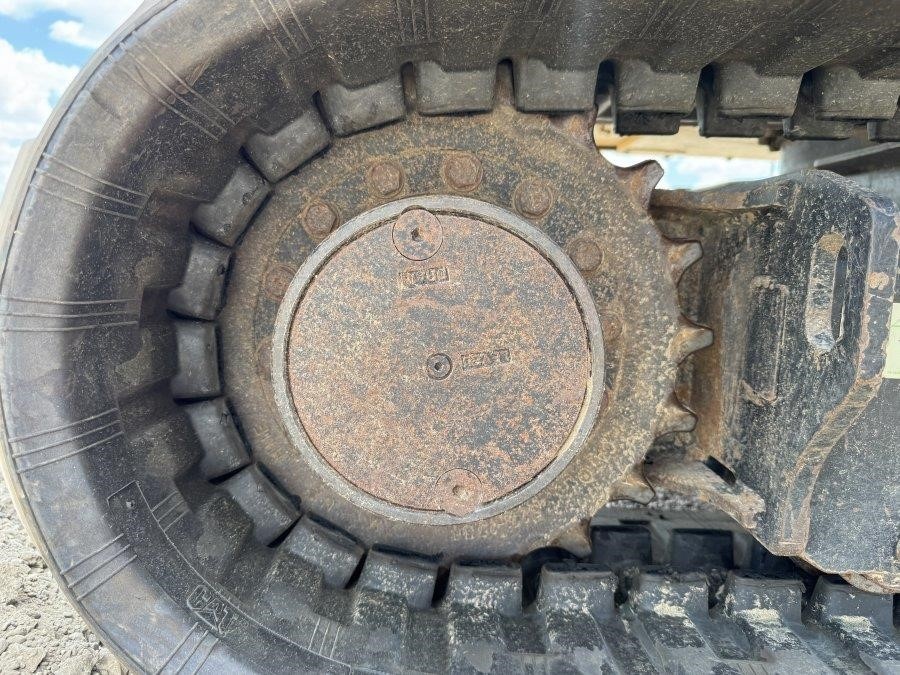

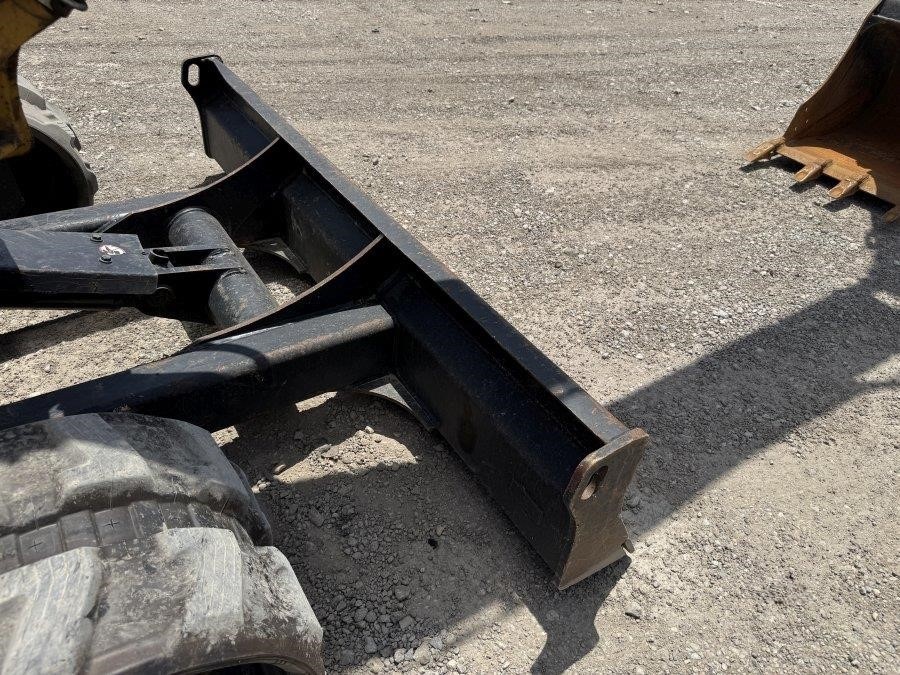

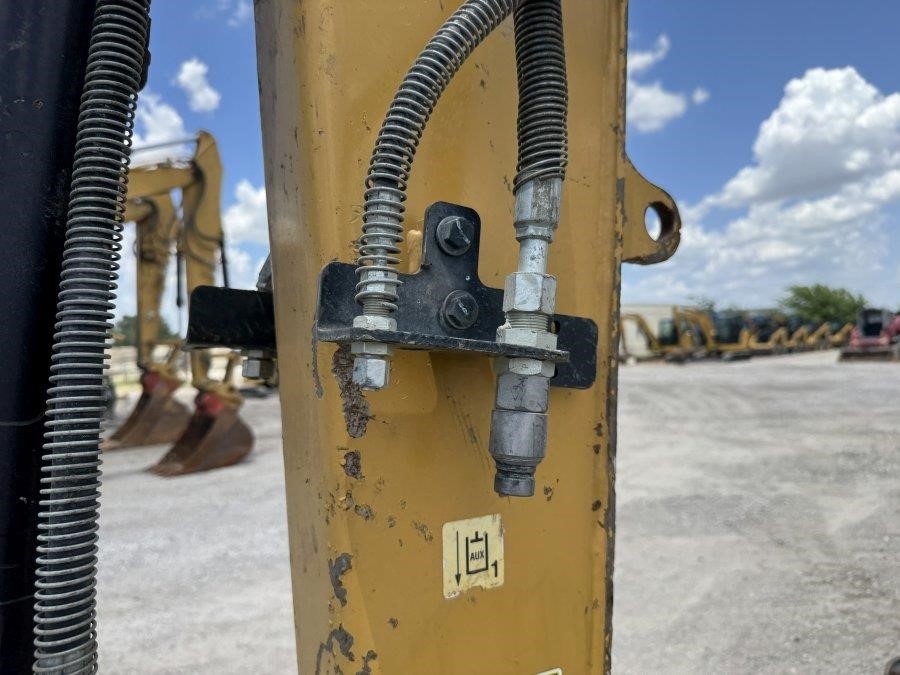

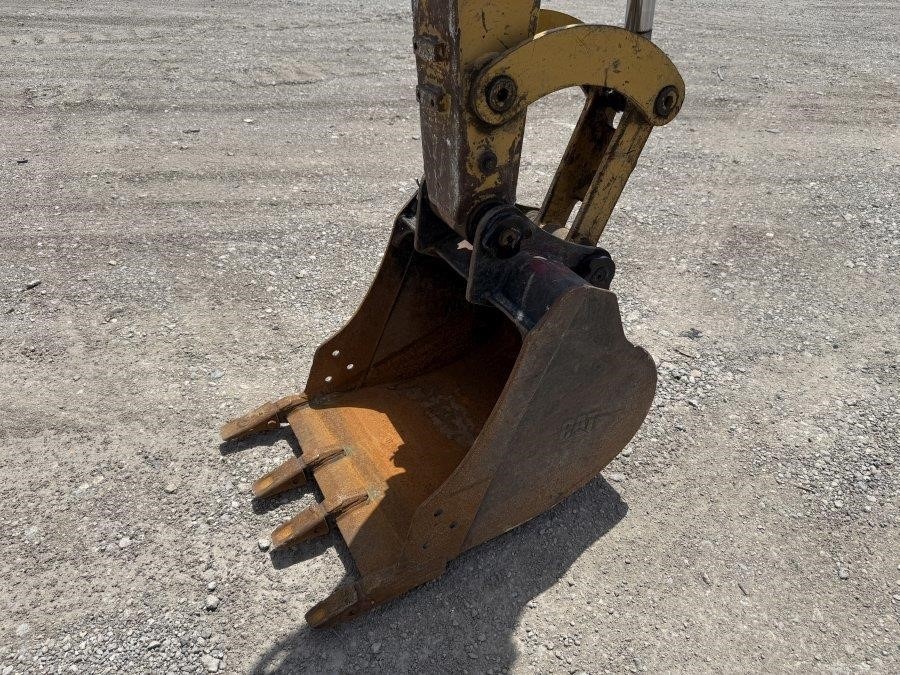

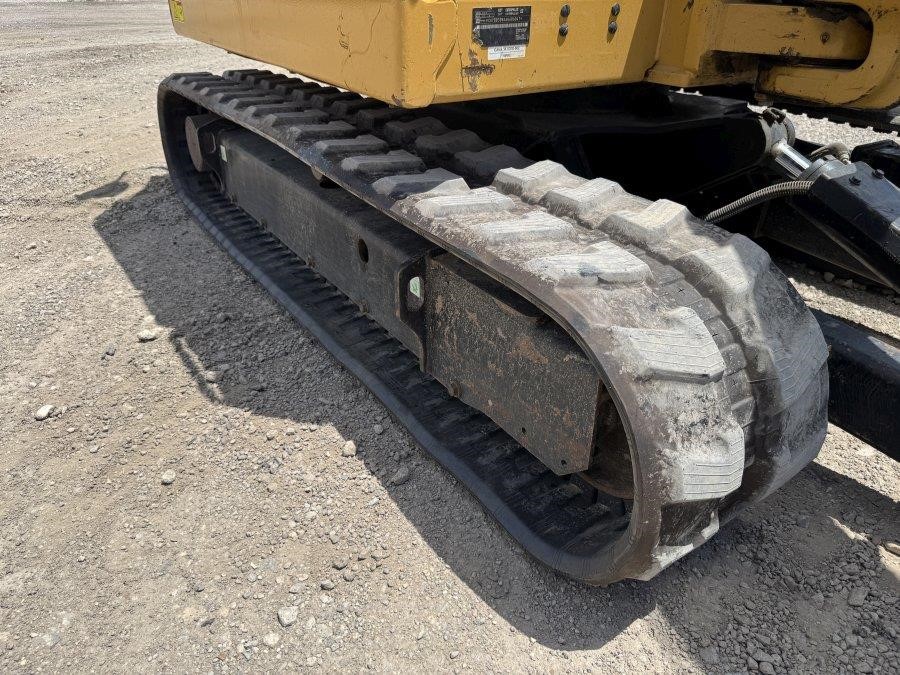

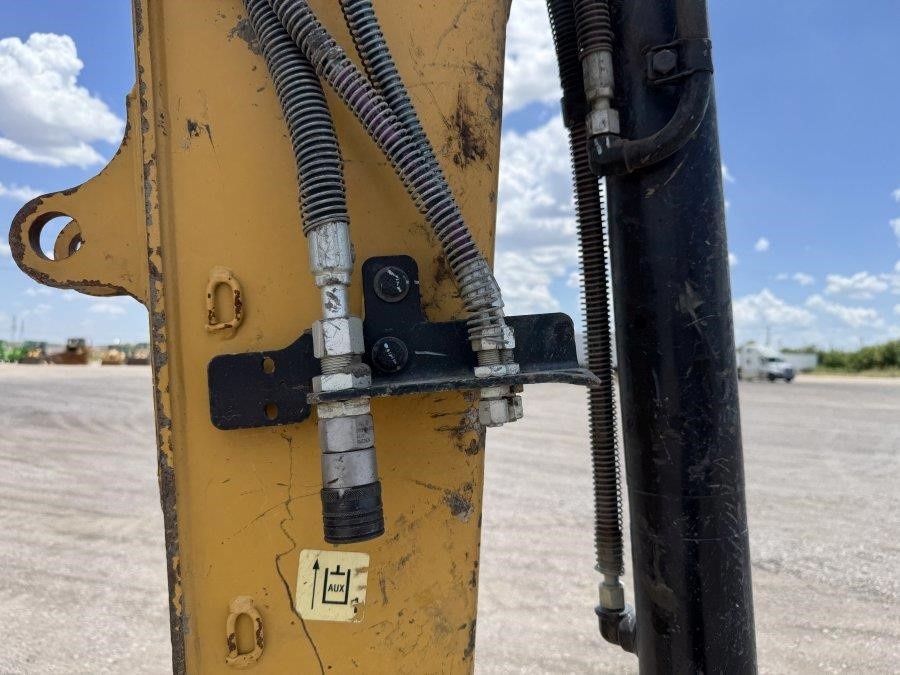

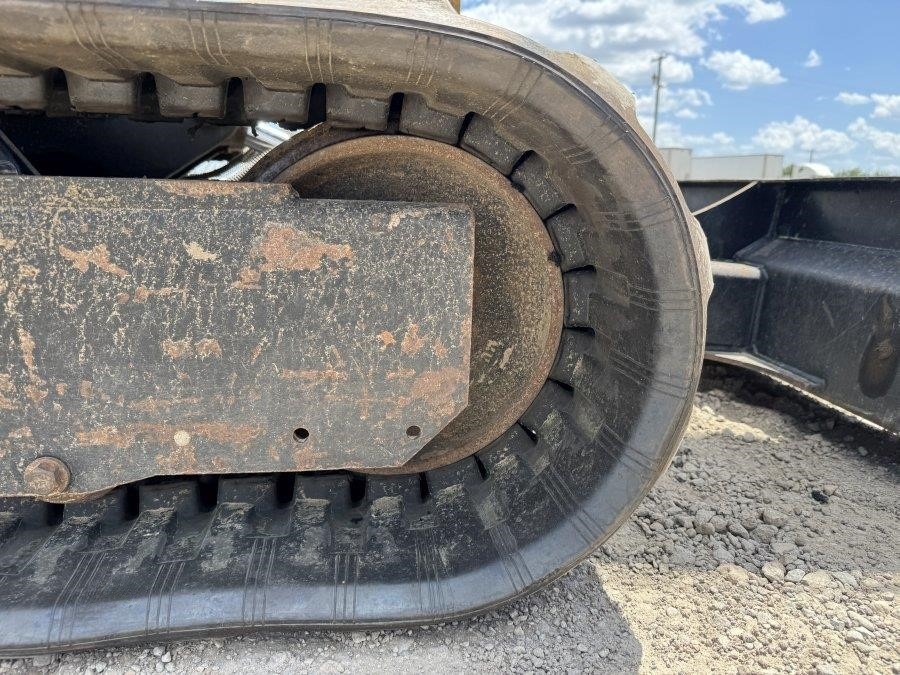

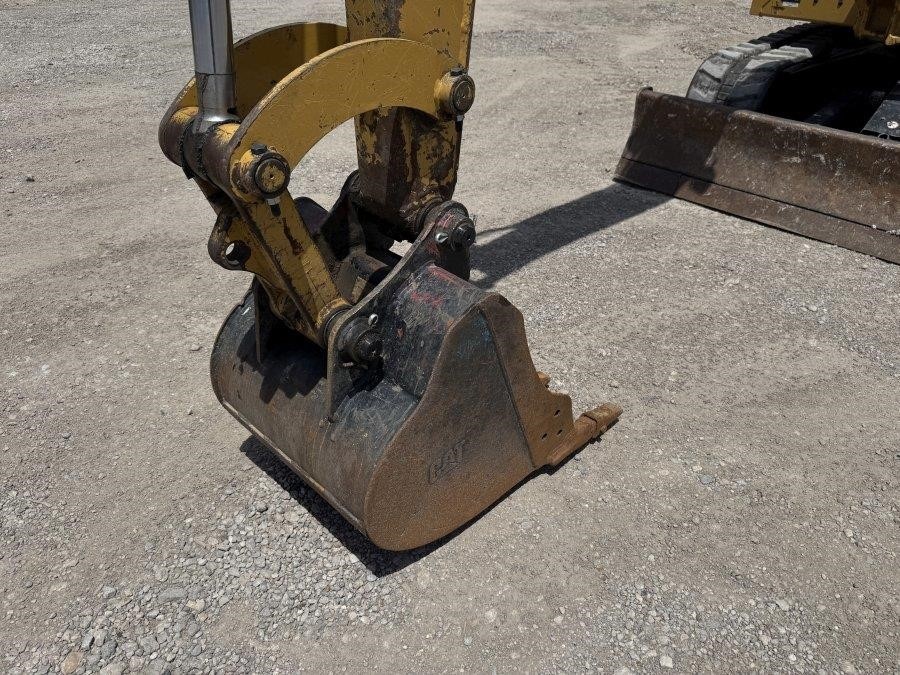

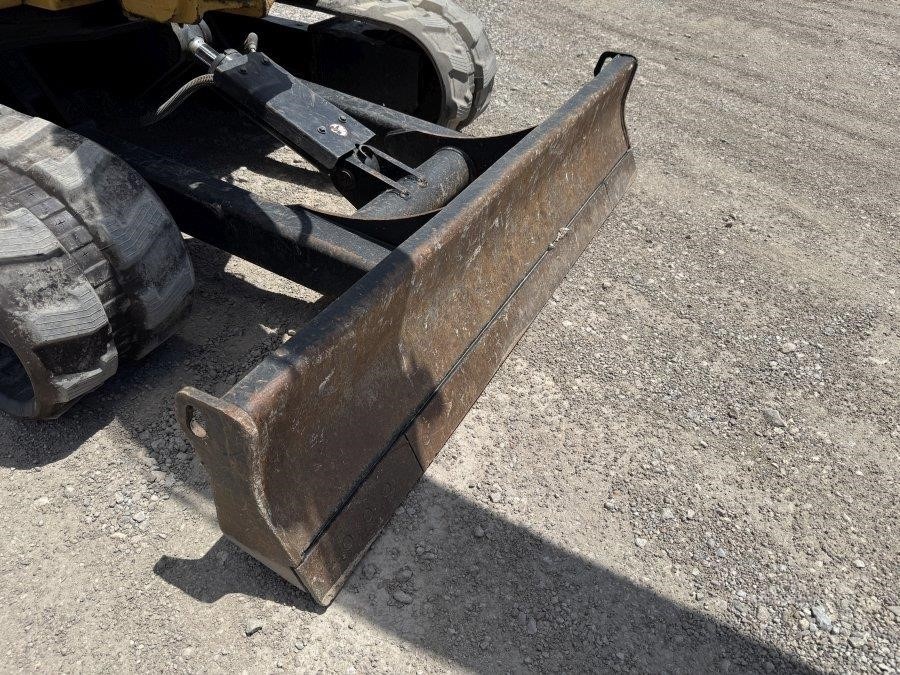

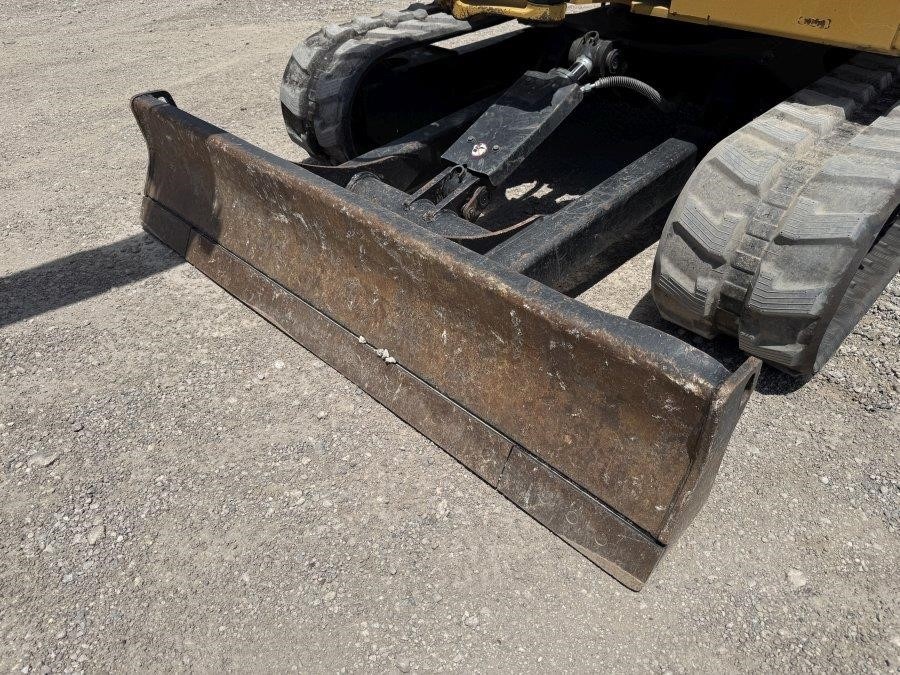

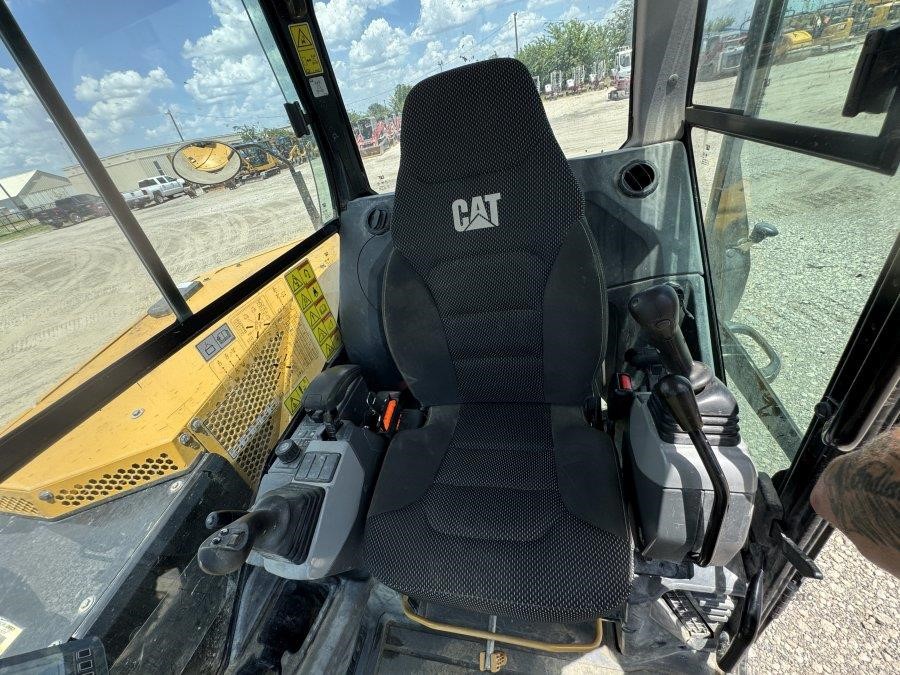

EROPS, A/C, Heat, Aux Hydraulics, Blade, 2 Speed, 78" Stick, 16" Rubber Tracks (Brand New), 24" Tooth Bucket
Specifications
General
| Year | 2022 |
| Make | caterpillar |
| Model | 306CR |

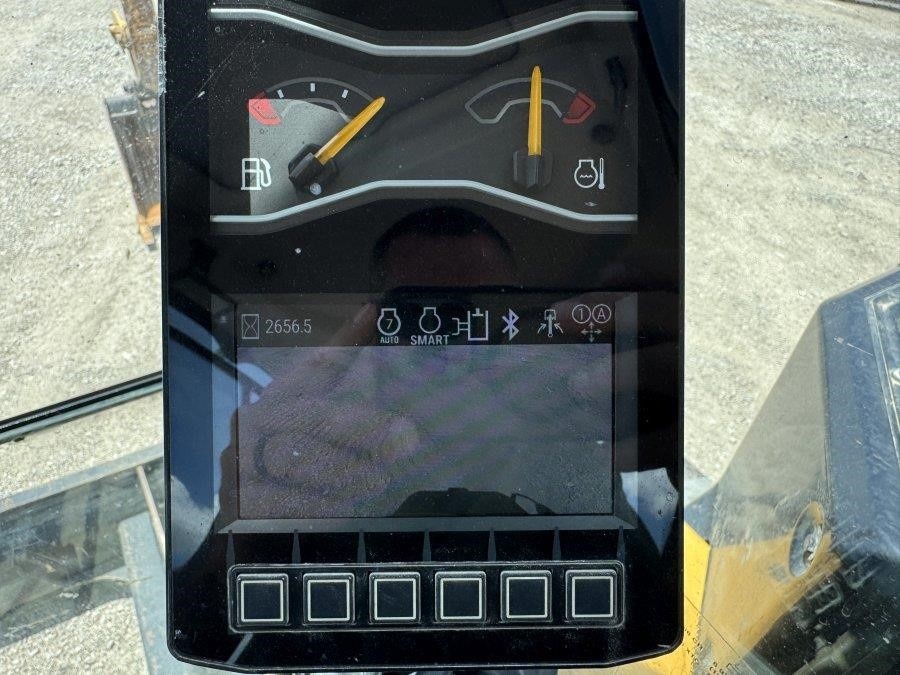

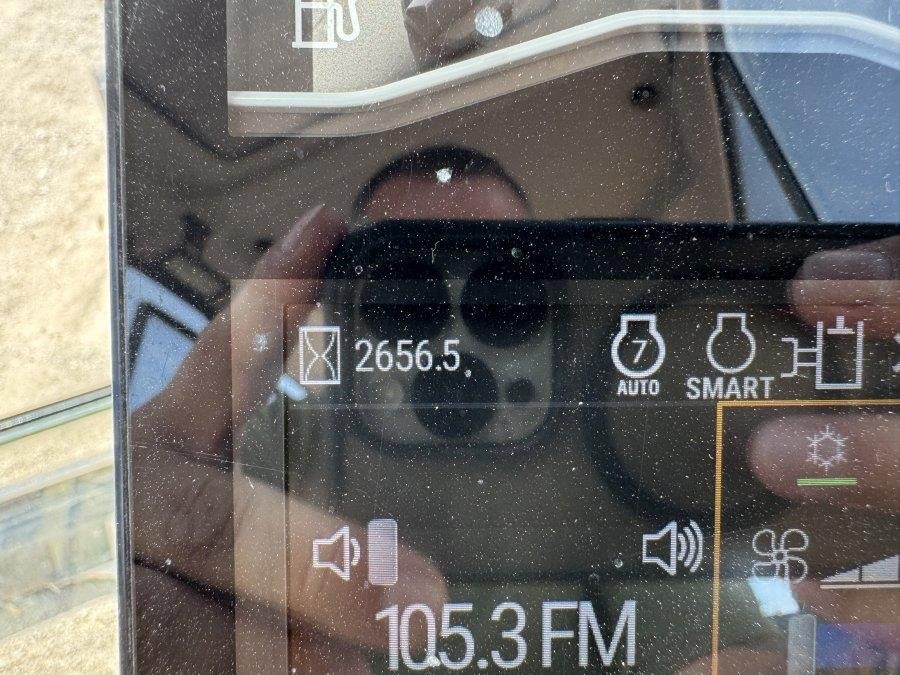

| Hours | 2656 |
| Condition | Used |
| Rated Net Power @ 2,200 rpm (U.S. EPA Tier 4 Final/EU Stage V) | 41.7 kW |
| Gross Power (ISO 9249/EEC 80/1269) | 43.2 kW |
| Bore | 87 mm |
| Stroke | 102.4 mm |
| Roll Over Protective Structure (ROPS) | ISO 12117-2:2008 |
| Tip Over Protective Structure (TOPS) | ISO 12117:1997 |
| Top Guard | ISO 10262:1998 (Level II) |
Engine & Powertrain

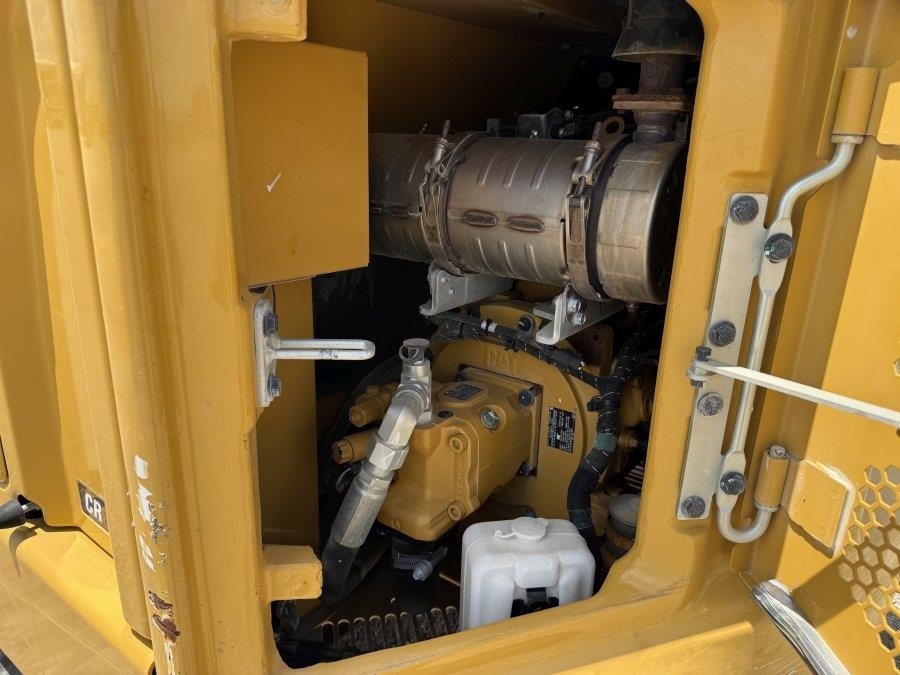

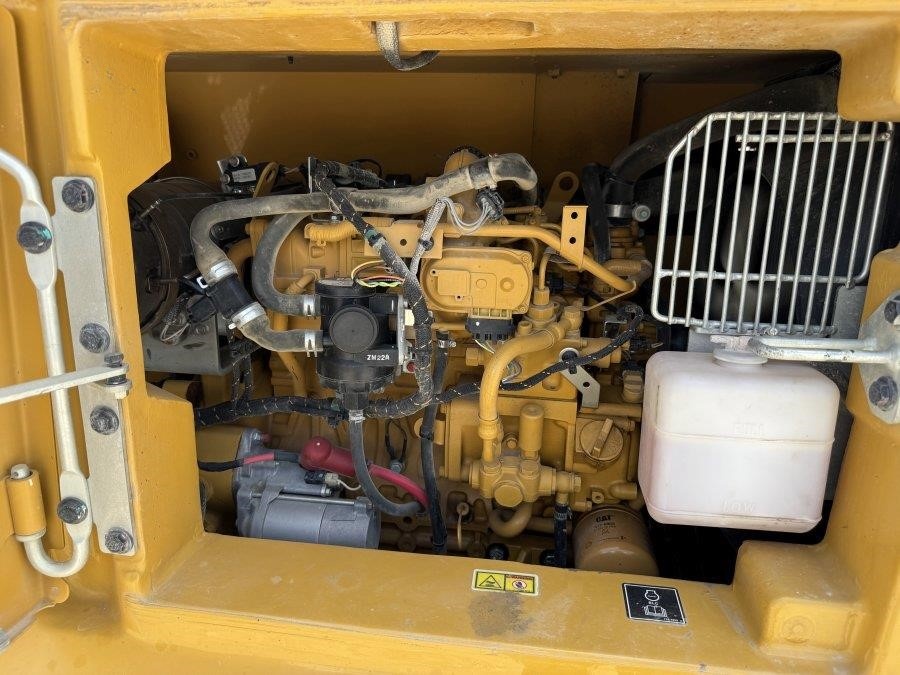

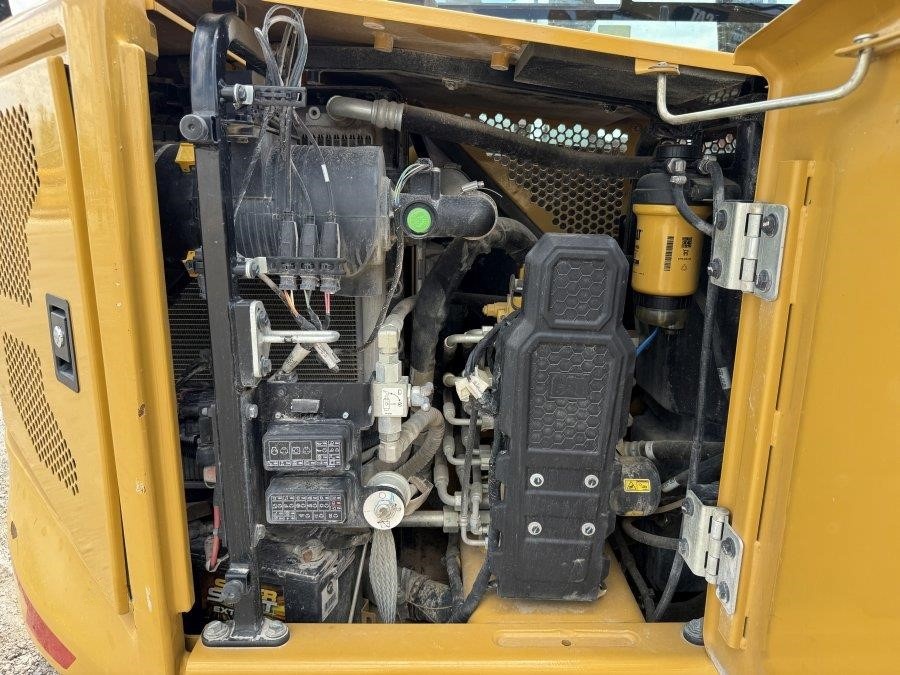

| Engine Model | Cat C2.4 Turbo |
| Displacement (ISO 14396) | 2.43 L |
| Cooling System | 10.0 L |
| Engine Oil | 8.0 L |
| Fuel Tank | 130 L |
Working Range
| Travel Speed – High | 5.0 km/h |
| Travel Speed – Low | 2.8 km/h |
| Maximum Traction Force – High Speed | 31 kN |
| Maximum Traction Force – Low Speed | 56 kN |
| Gradeability (maximum) | 30 degrees |
| Hydraulic Tank | 53 L |
| Hydraulic System | 104 L |
| Pump Flow @ 2,400 rpm | 151 L/min |
| Operating Pressure – Equipment | 24 500 kPa |
| Operating Pressure – Travel | 24 500 kPa |
| Operating Pressure – Swing | 22 500 kPa |
| Auxiliary Circuit – Primary Flow | 90 L/min |
| Auxiliary Circuit – Primary Pressure | 24 500 kPa |
| Auxiliary Circuit – Secondary Flow | 33 L/min |
| Auxiliary Circuit – Secondary Pressure | 24 500 kPa |
| Digging Force – Stick (Standard) | 29.5 kN |
| Digging Force – Stick (Long) | 26.5 kN |
| Digging Force – Bucket | 51.5 kN |
| Machine Swing Speed | 11 rpm |
| Operator Sound Pressure (ISO 6396:2008) | 72 dB(A) |
| Average Exterior Sound Pressure (ISO 6395:2008) | 99 dB(A) |

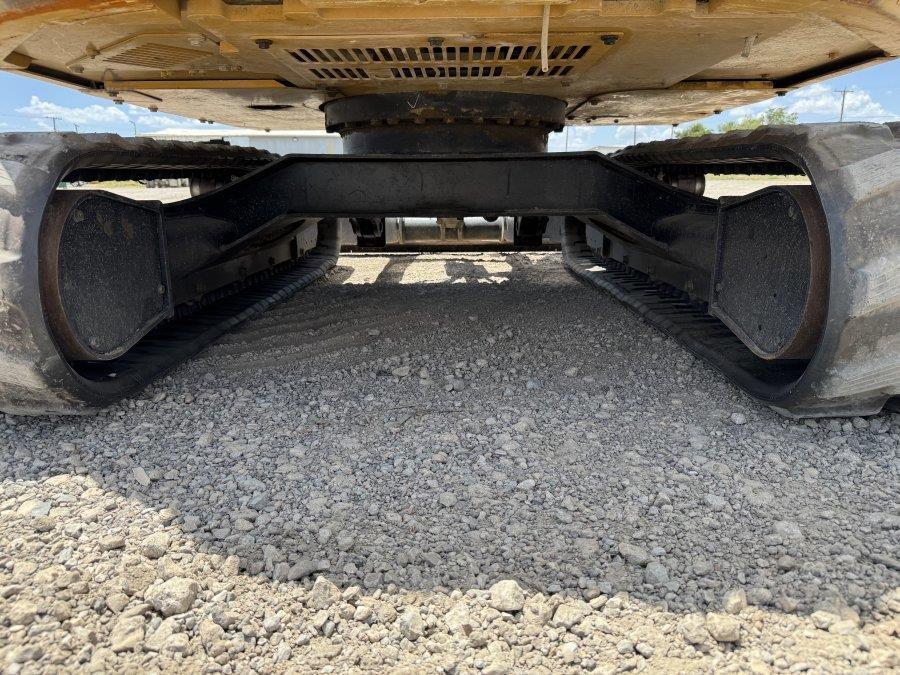

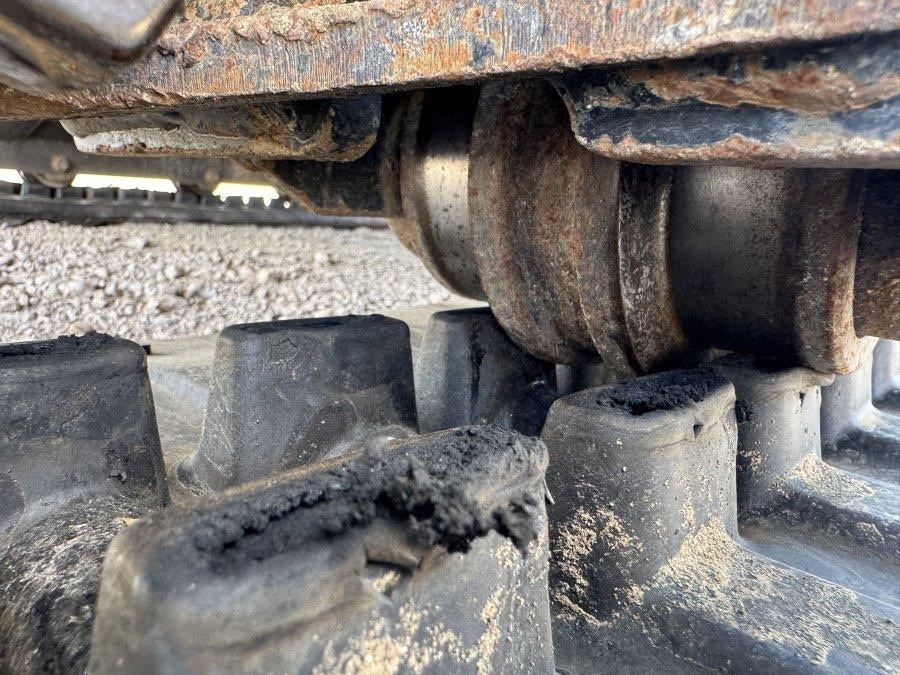

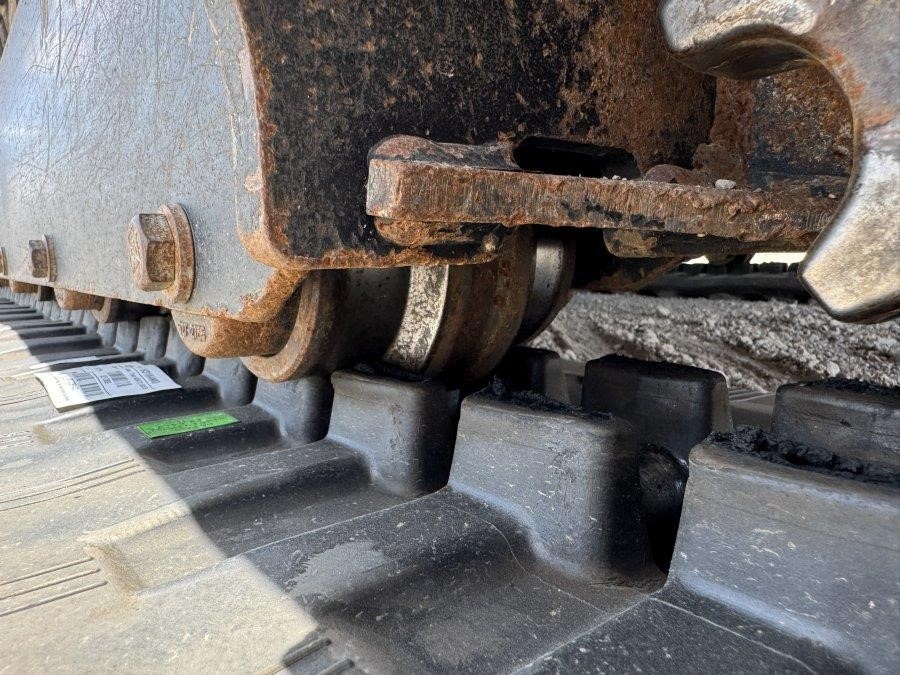

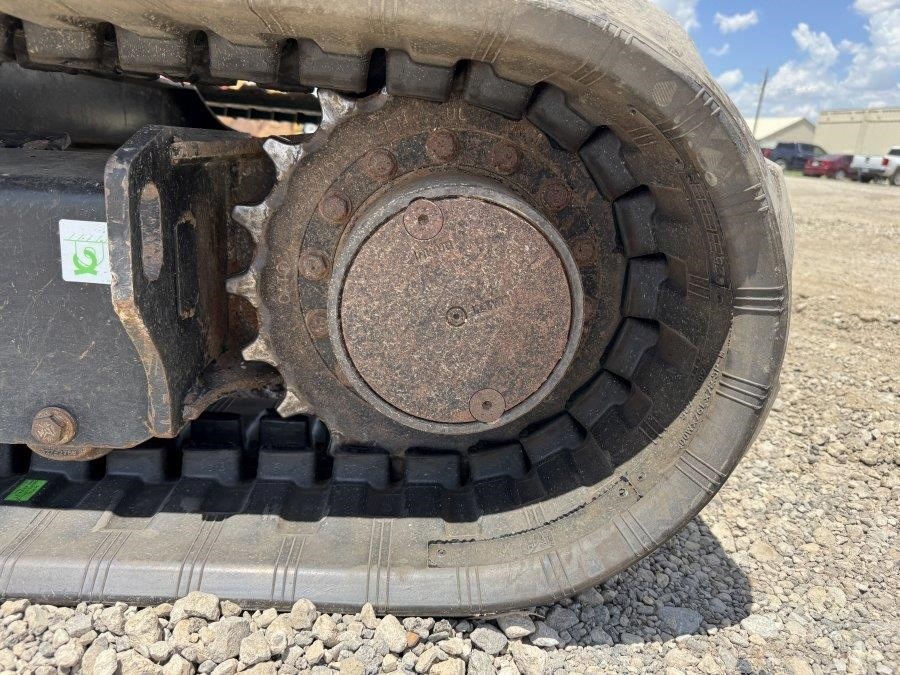

Undercarriage & Attachments
| Boom Swing – Left | 60 degrees |
| Boom Swing – Right | 65 degrees |
Dimensions
| Minimum Operating Weight with Canopy* | 6410 kg |
| Maximum Operating Weight with Canopy** | 7090 kg |
| Minimum Operating Weight with Cab* | 6470 kg |
| Maximum Operating Weight with Cab** | 7150 kg |
| Weight Increase - Counterweight | 250 kg |
| Weight Increase - Long Stick | 44 kg |
| Weight Increase - Steel Tracks with Pads | 375 kg |
| Weight Increase - Angle Blade | 102 kg |
| Weight Increase - XTC Carriage (no tool) | 64 kg |
| Ground Pressure – Minimum Weight | 35.4 kPa |
| Ground Pressure – Maximum Weight | 39.1 kPa |
| Straight Blade Width | 1980 mm |
| Straight Blade Height | 390 mm |
| Angle Blade Width | 1980 mm |
| Angle Blade Height | 400 mm |

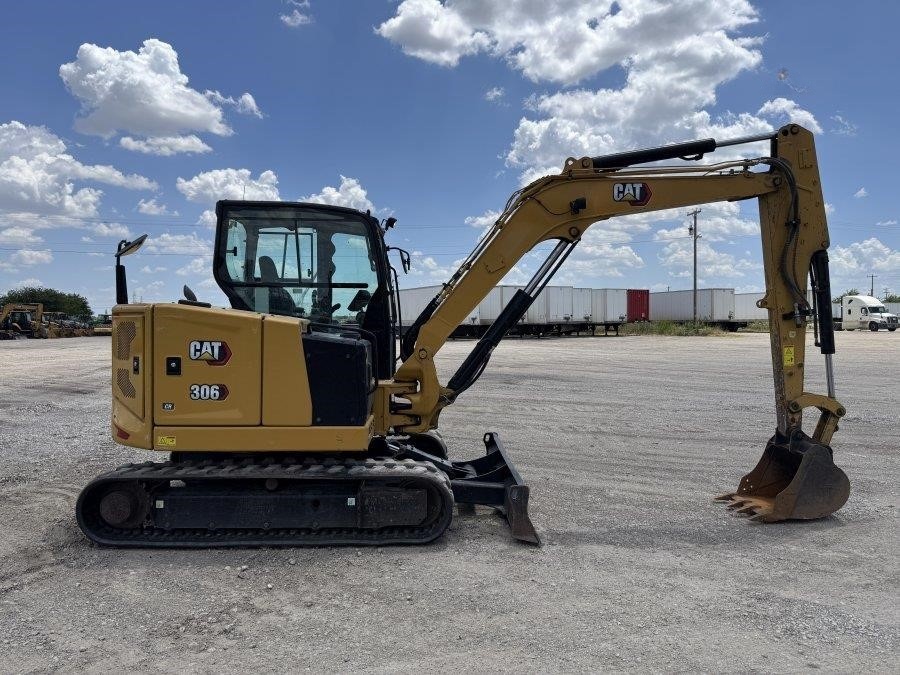

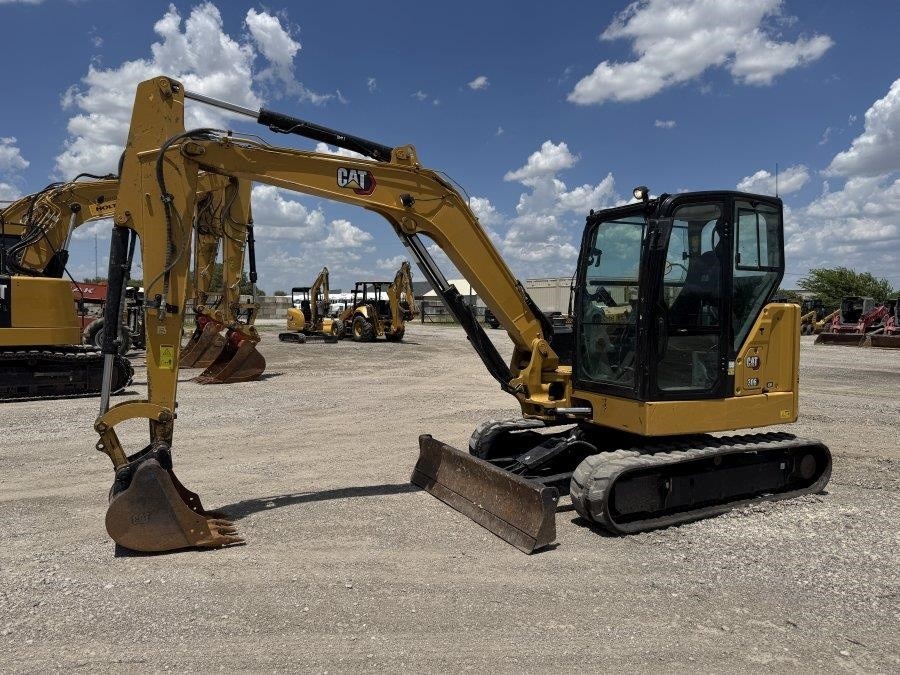

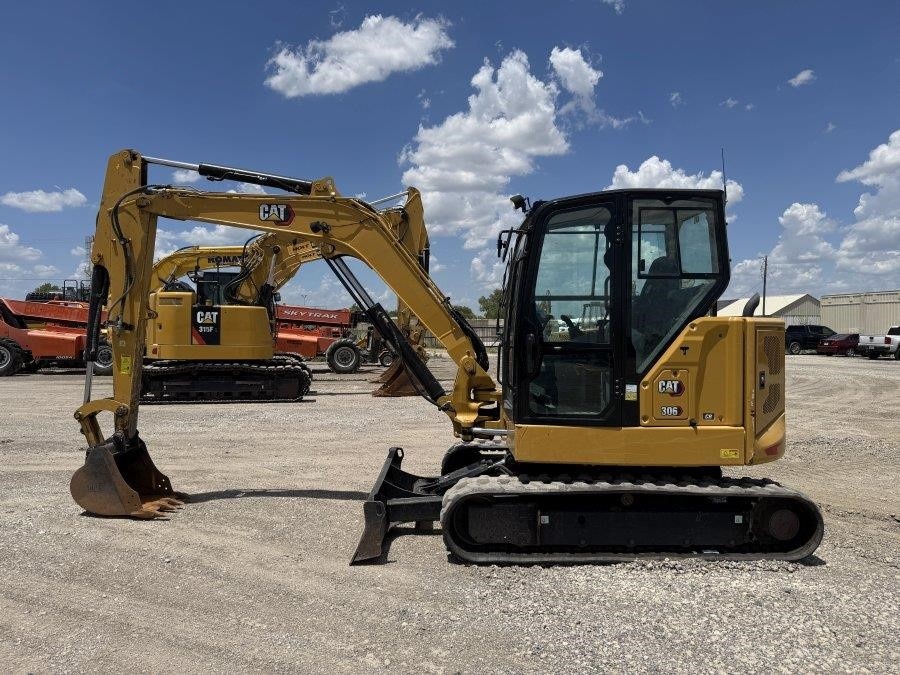

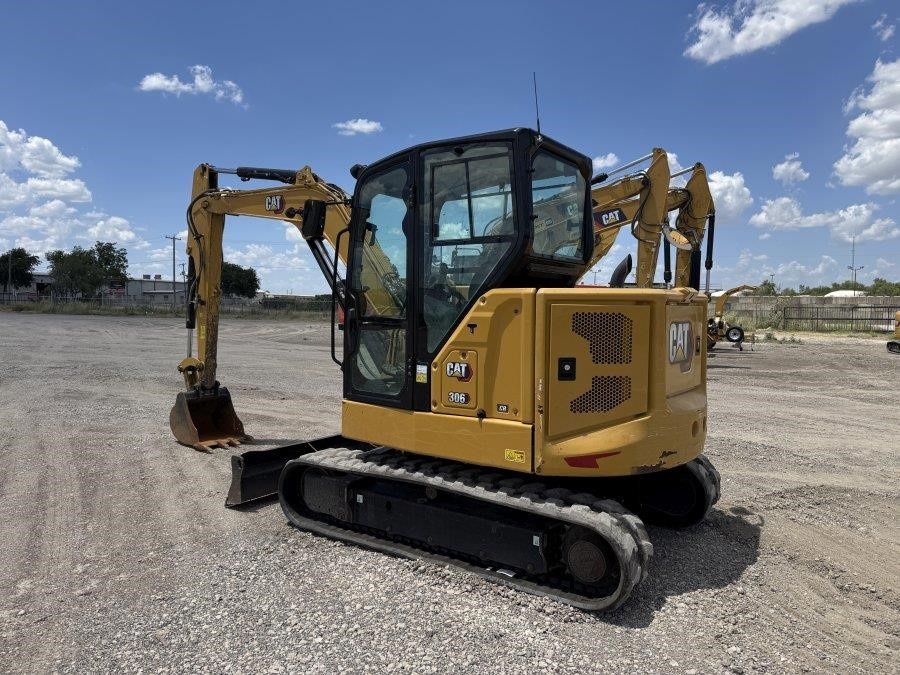

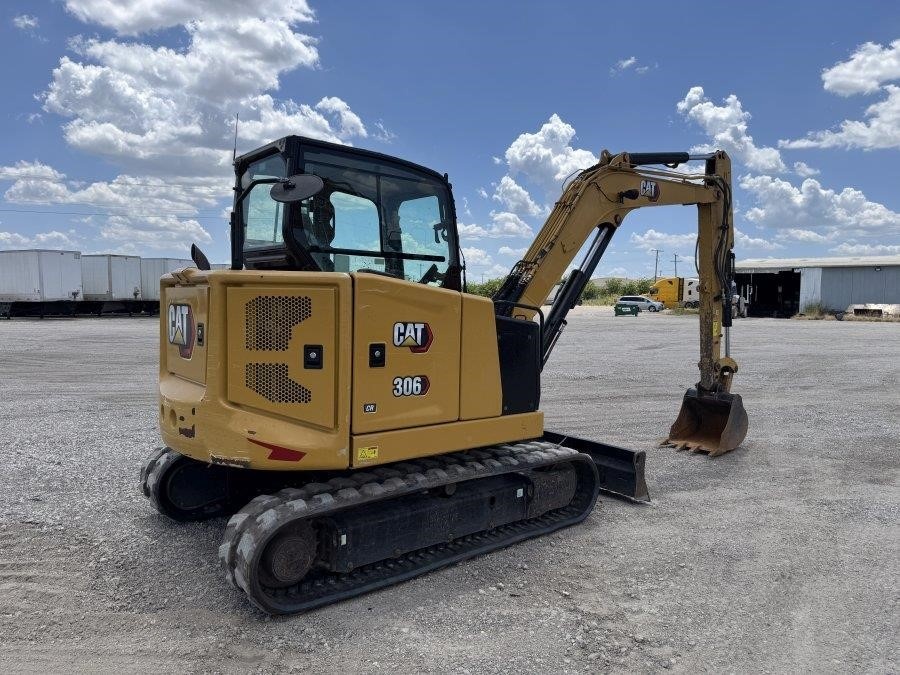

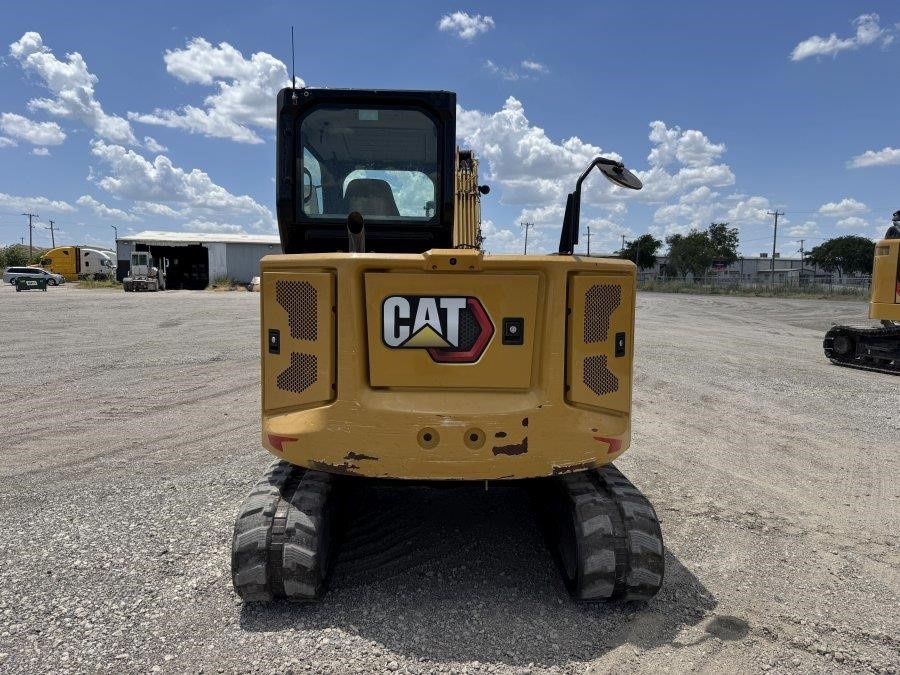

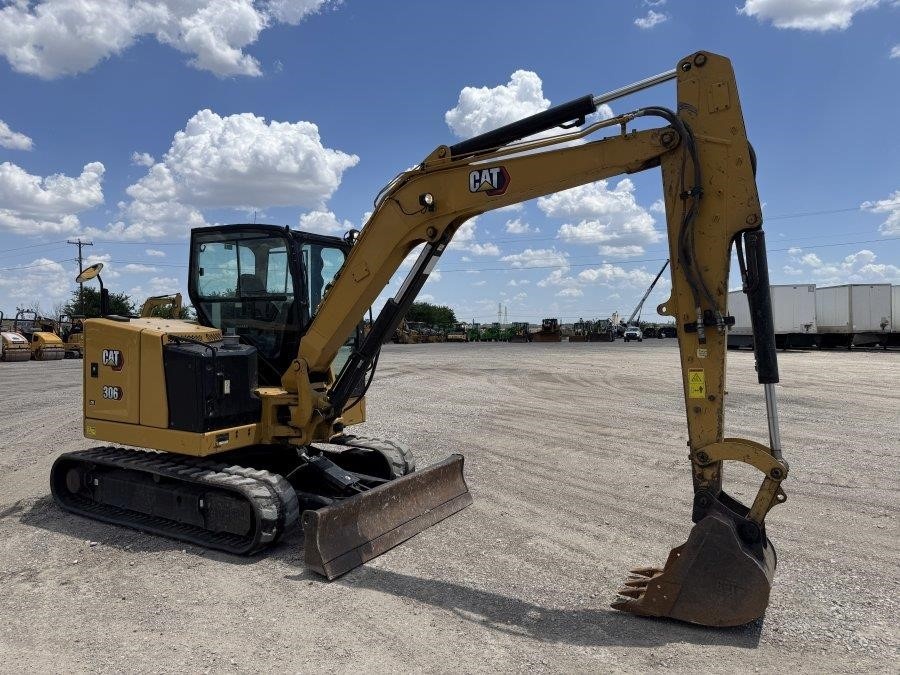

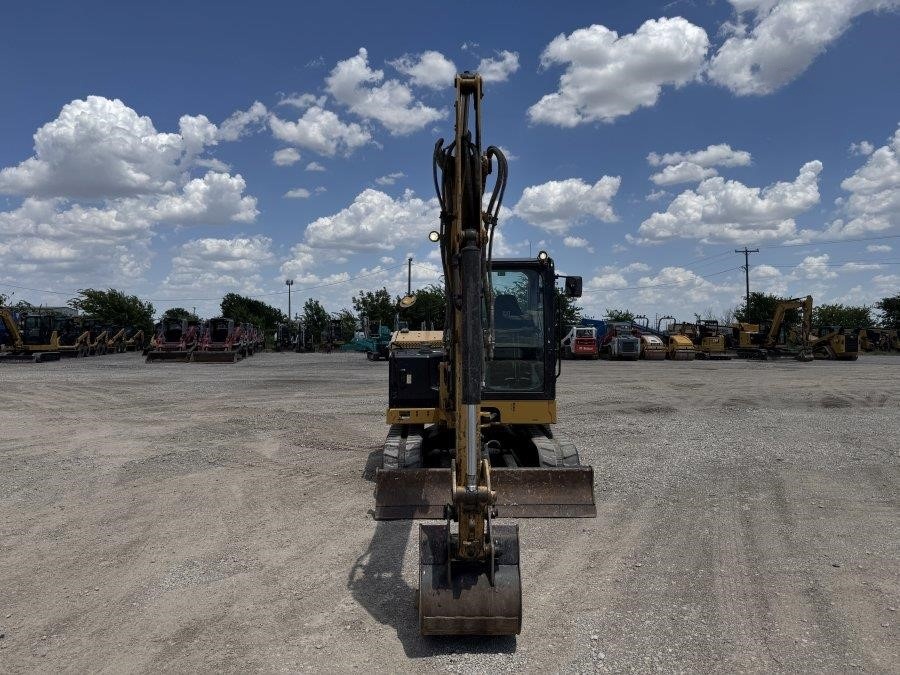

2022 Caterpillar 306CR Hydraulic Excavator
