Item Specifications
Category
Condition
Used
Item Number
#1879
Make
caterpillar
Model
D1
Year
2022
Industry
construction
Equipment Type
crawler dozer
Location
Ft. Worth, TX

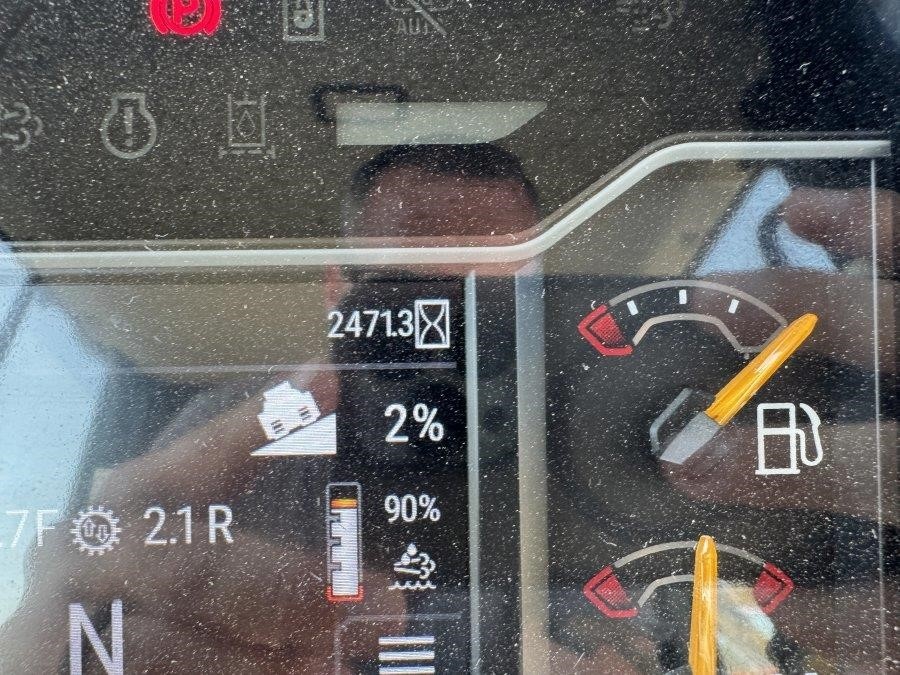

Hours
2471
Item Description

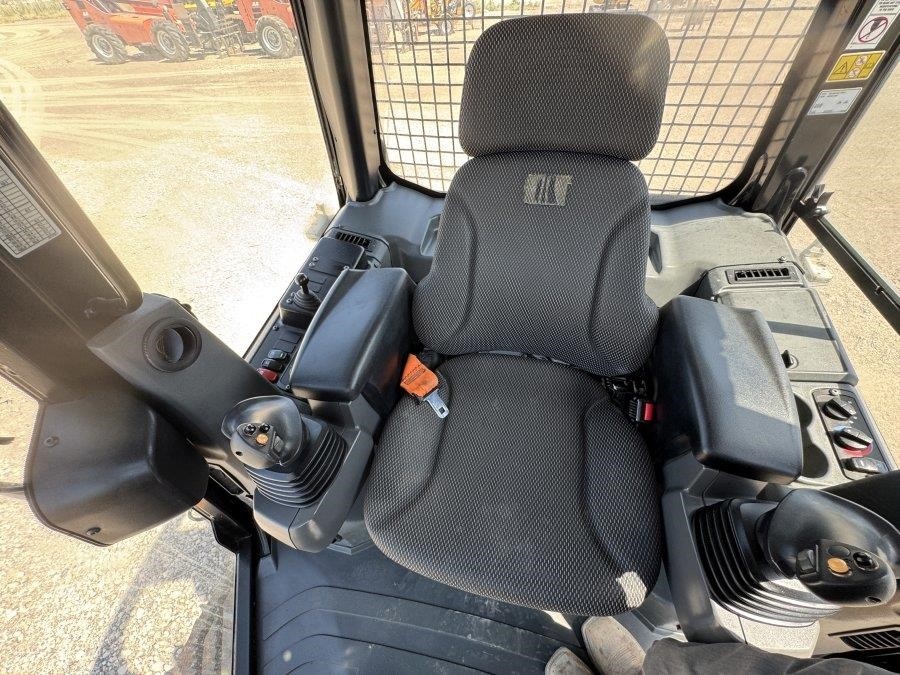

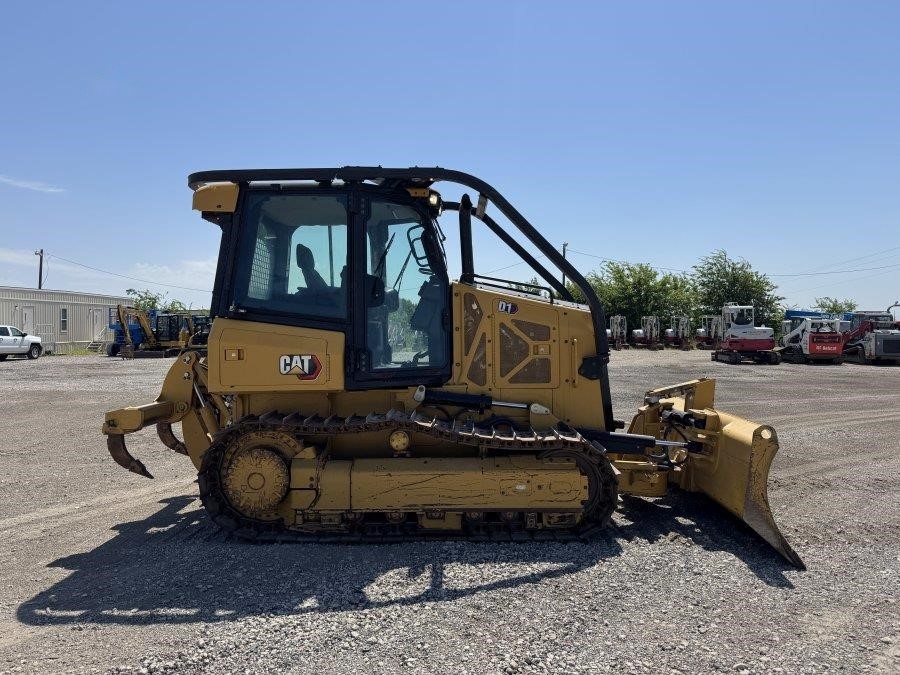

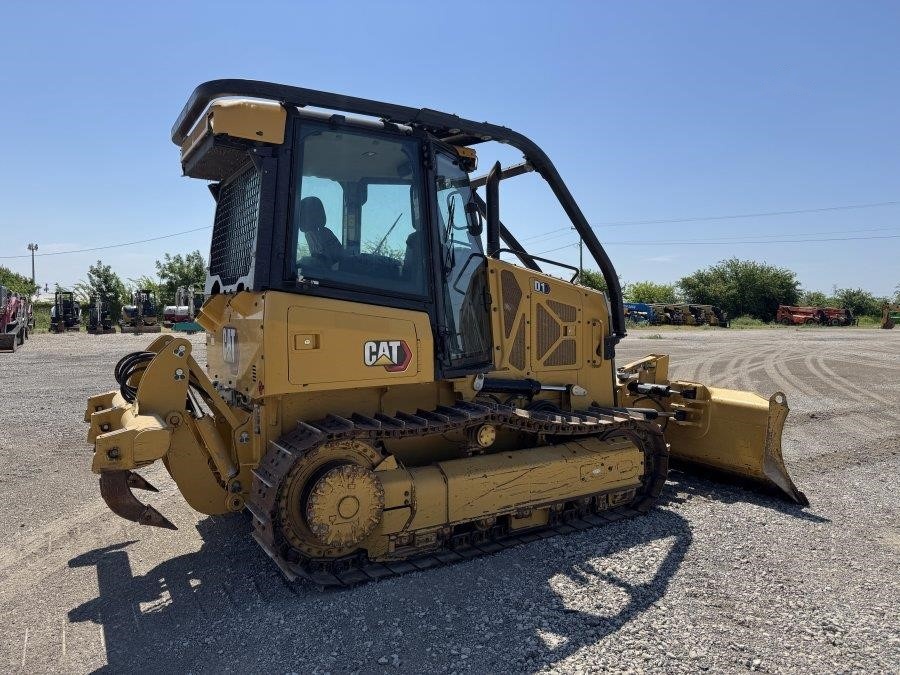

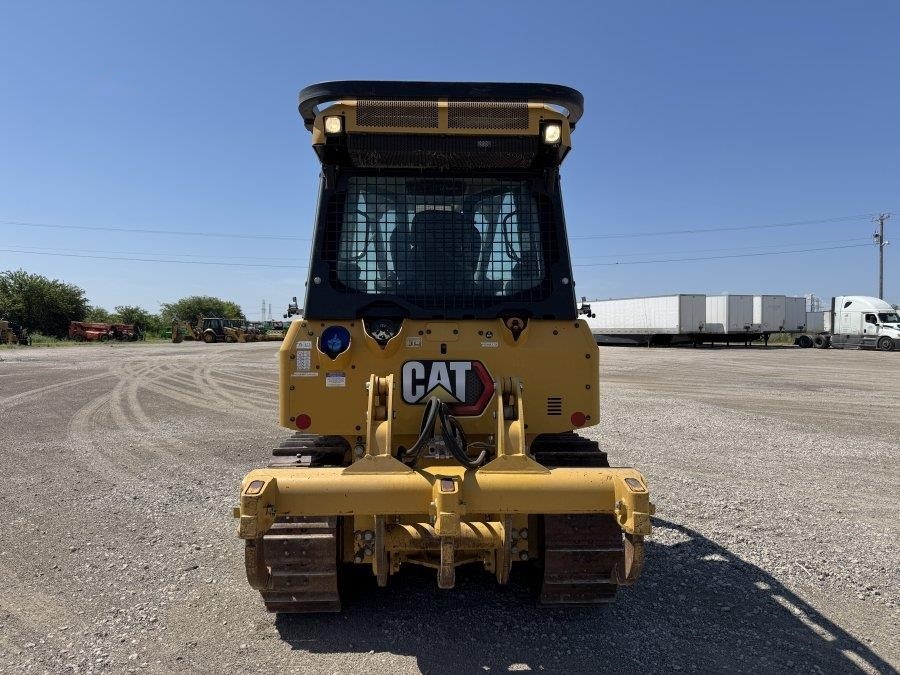

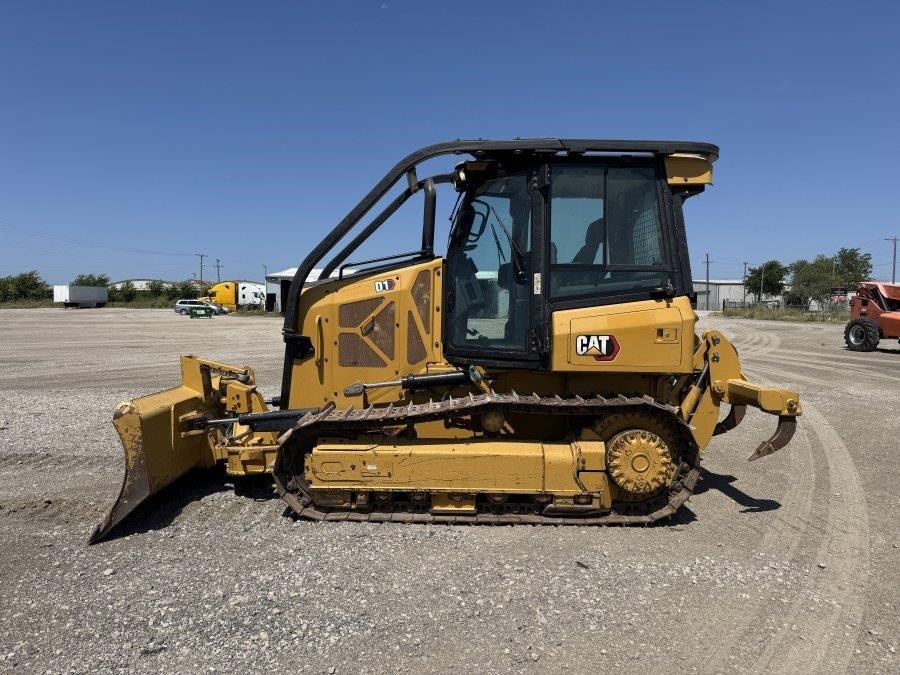

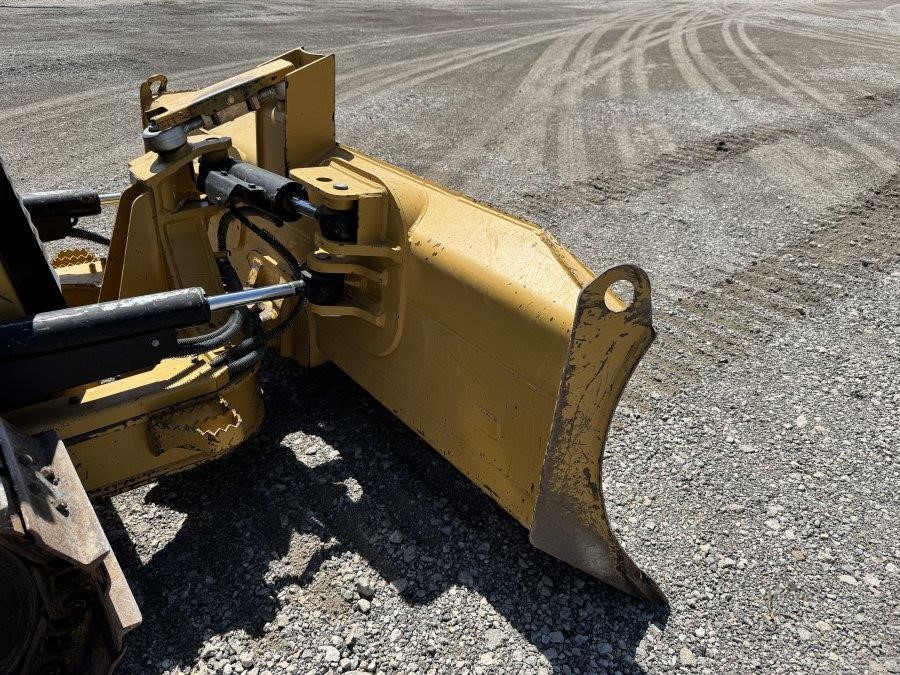

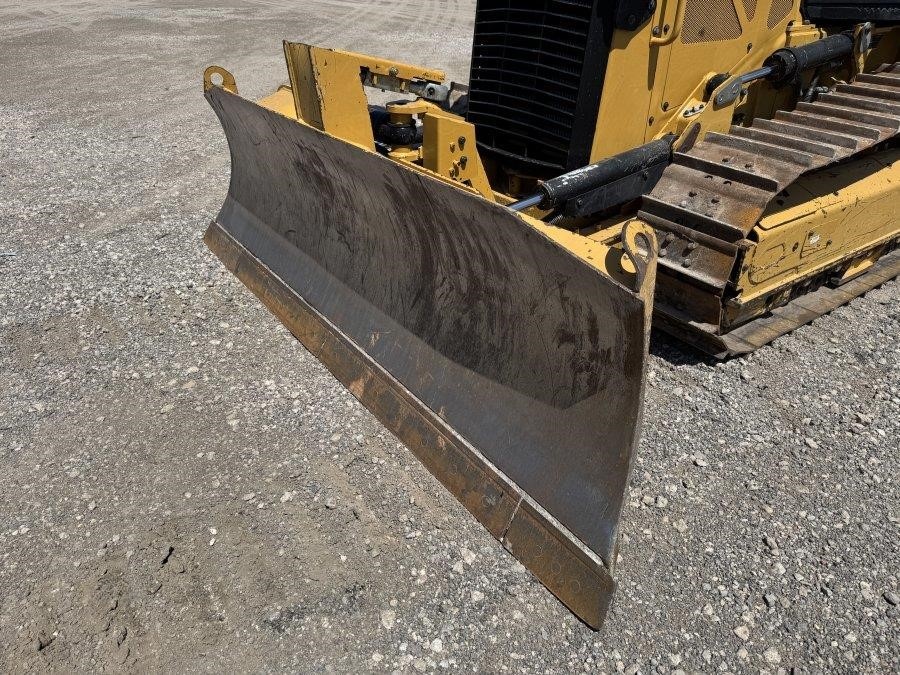

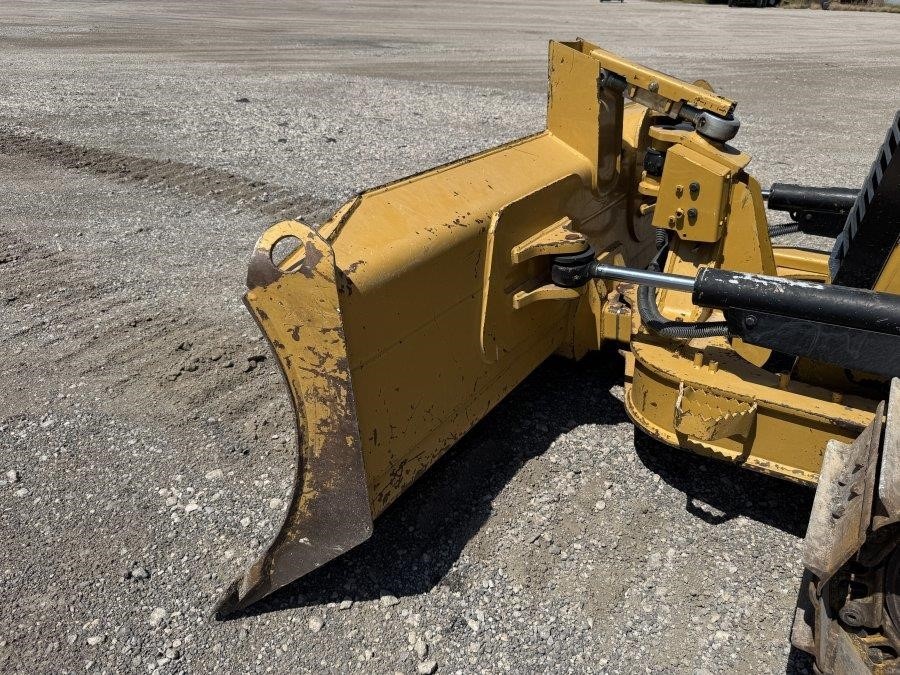

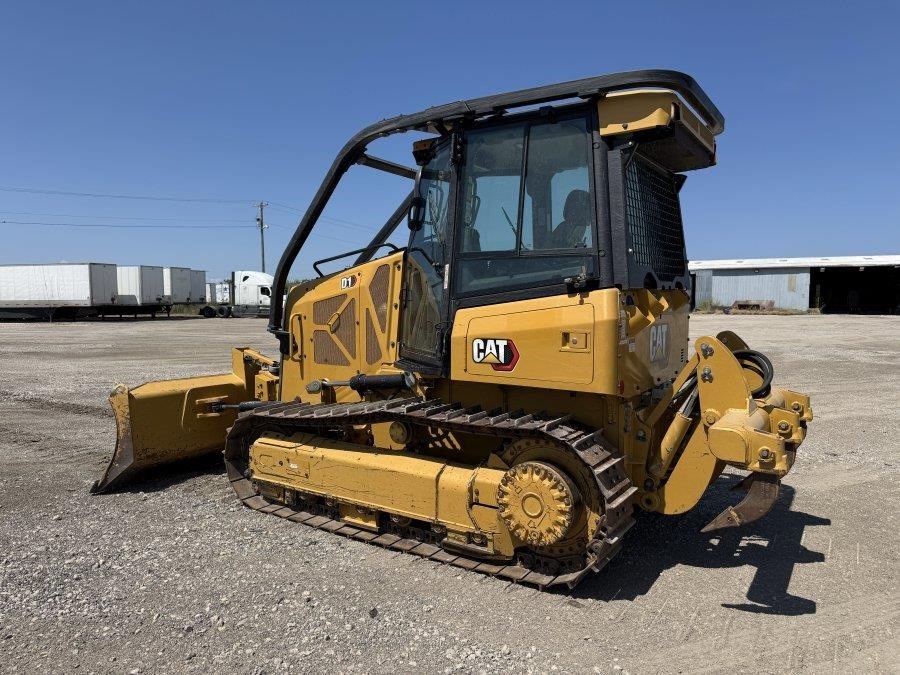

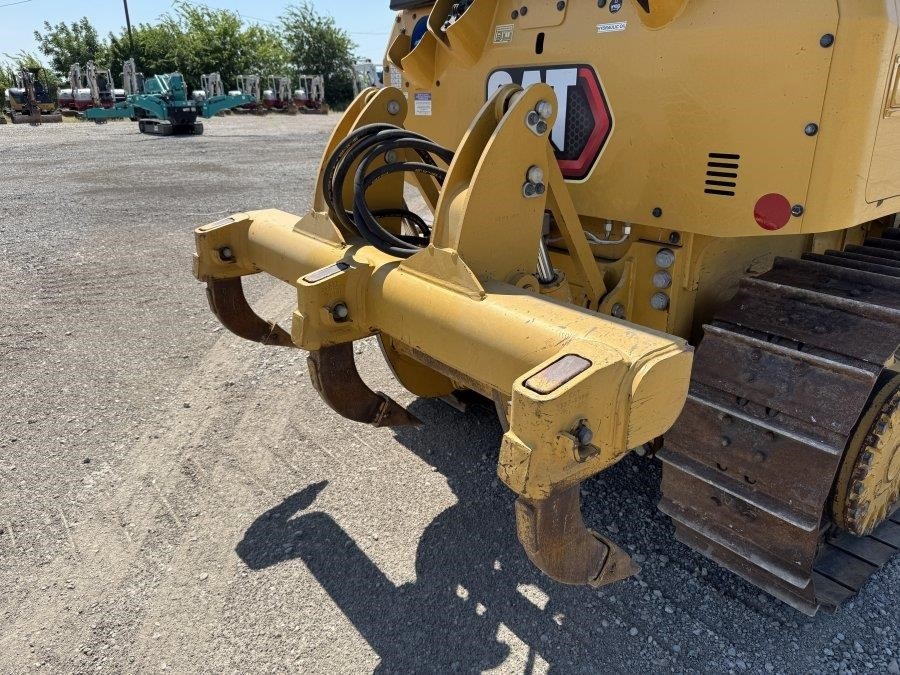

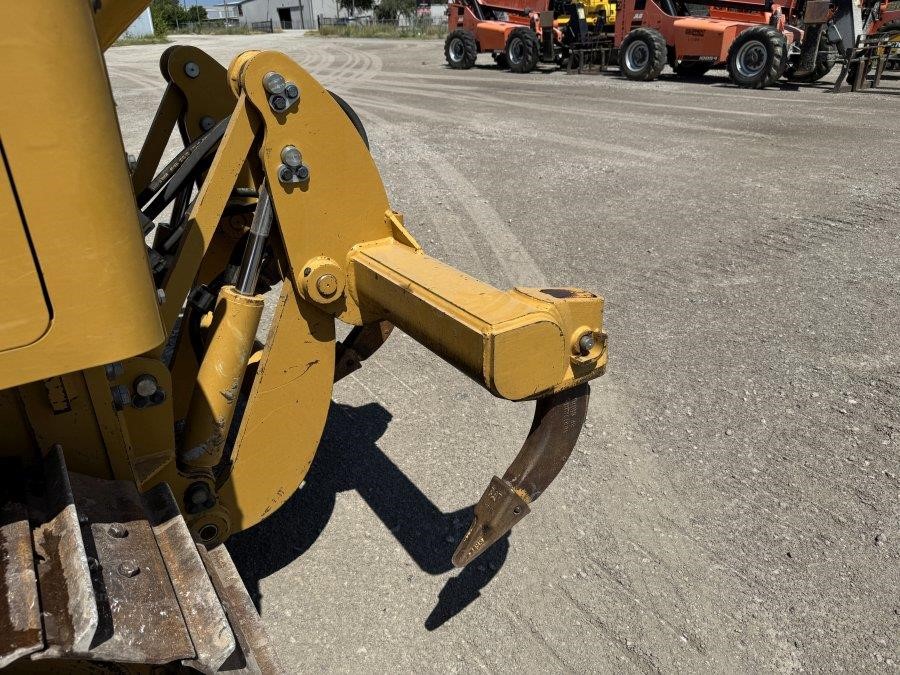

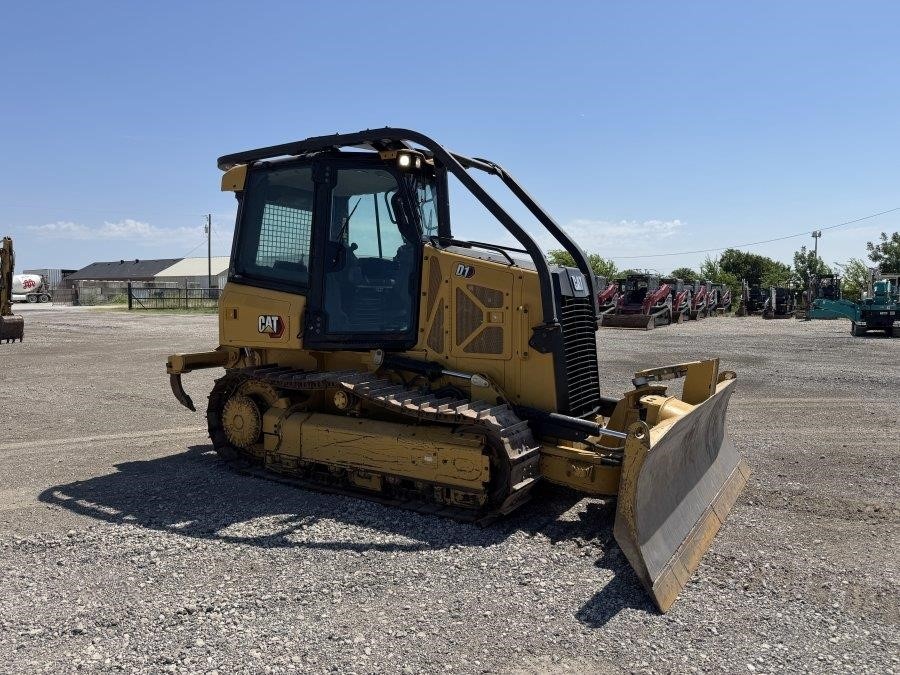

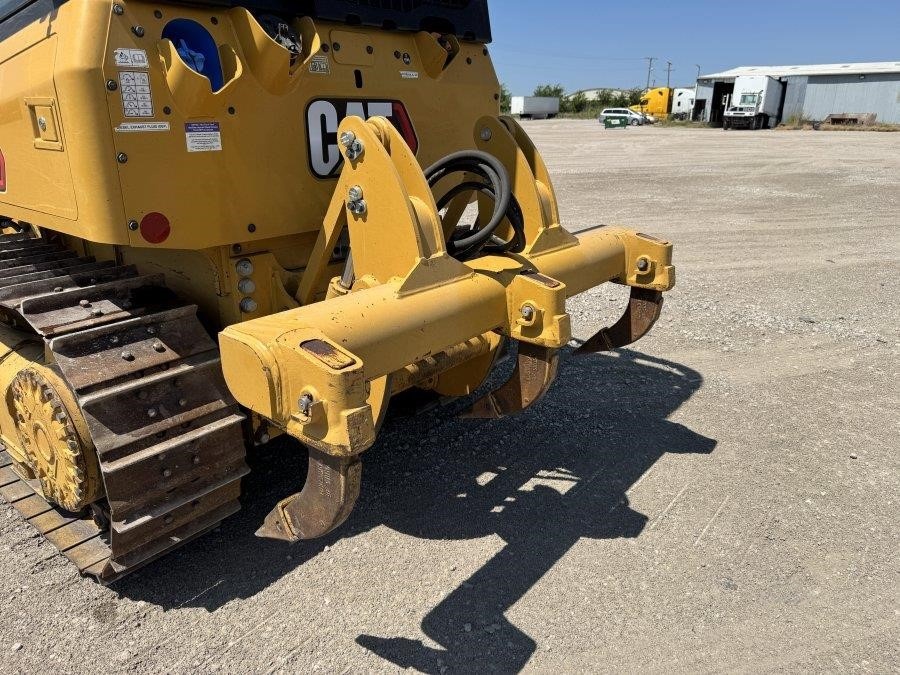

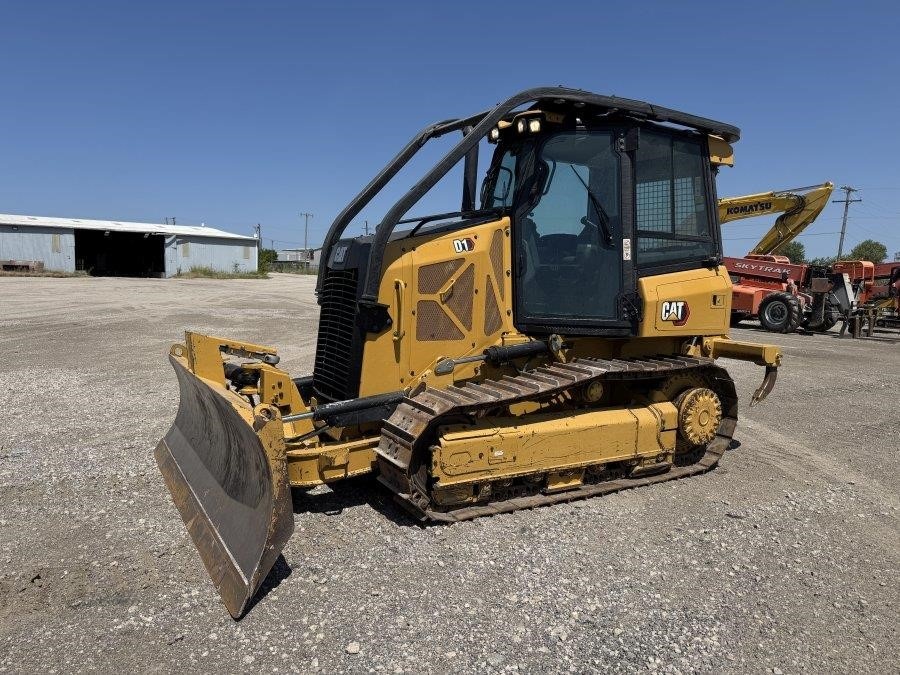

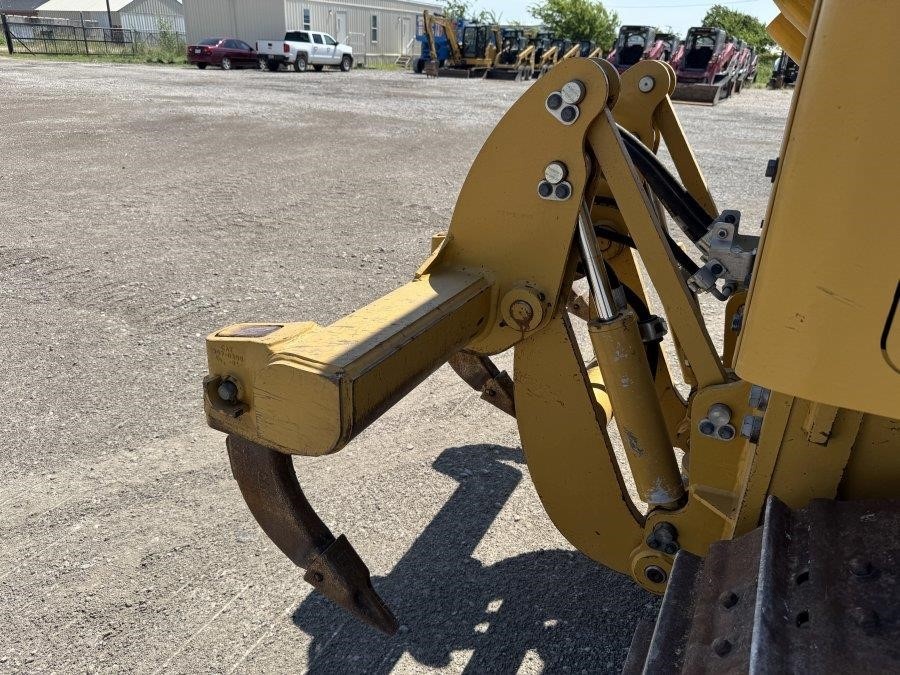

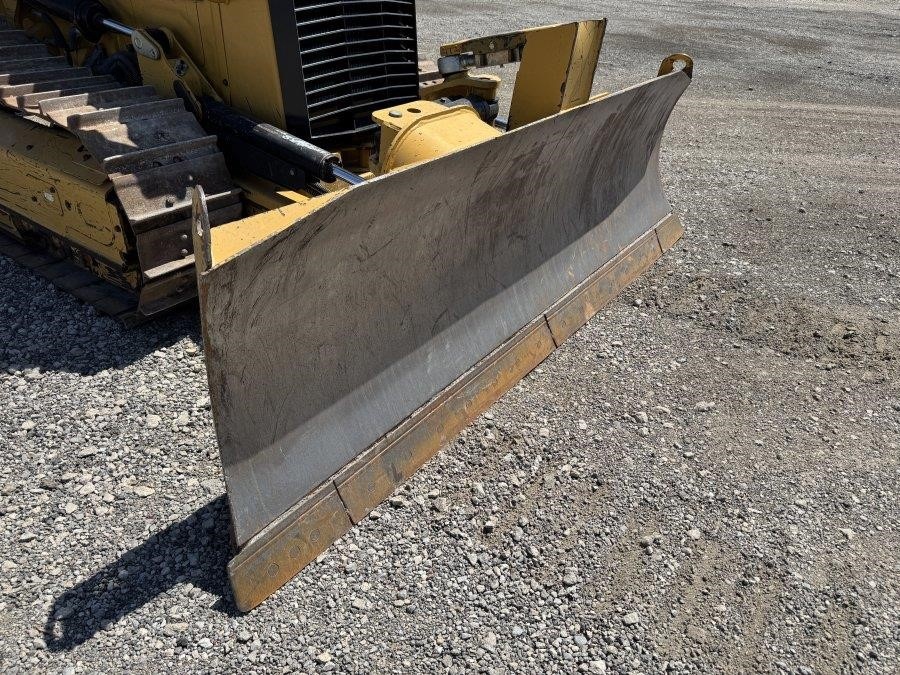

This 2022 Caterpillar D1 crawler dozer clears ground and shapes grades. Its six-way blade moves material, while the multi-shank ripper breaks up firm ground and the sweeps help protect the operator area. Mileage and/or engine hours are approximate and subject to change. Please contact your sales representative for the most current readings.
Specifications
General
| Year | 2022 |
| Make | caterpillar |
| Model | D1 |
| Hours | 2471 |
| Condition | Used |
| Gross Power @ 2,200 rpm (ISO 14396) | 65.9 kW / 88.4 hp |
| Net Power @ 2,200 rpm (SAE J1349) | 59.7 kW / 80 hp |
| Net Power @ 2,200 rpm (ISO 9249/EEC 80/1269) | 59.7 kW / 80 hp |
| Power Train | Hydrostatic |
| Rollover Protective Structure (ROPS) | ISO 3471:2008 |
| Falling Object Protective Structure (FOPS) | ISO 3449:2005 Level II |
| Relief Valve Settings | 48 500 kPa / 7,033 psi |

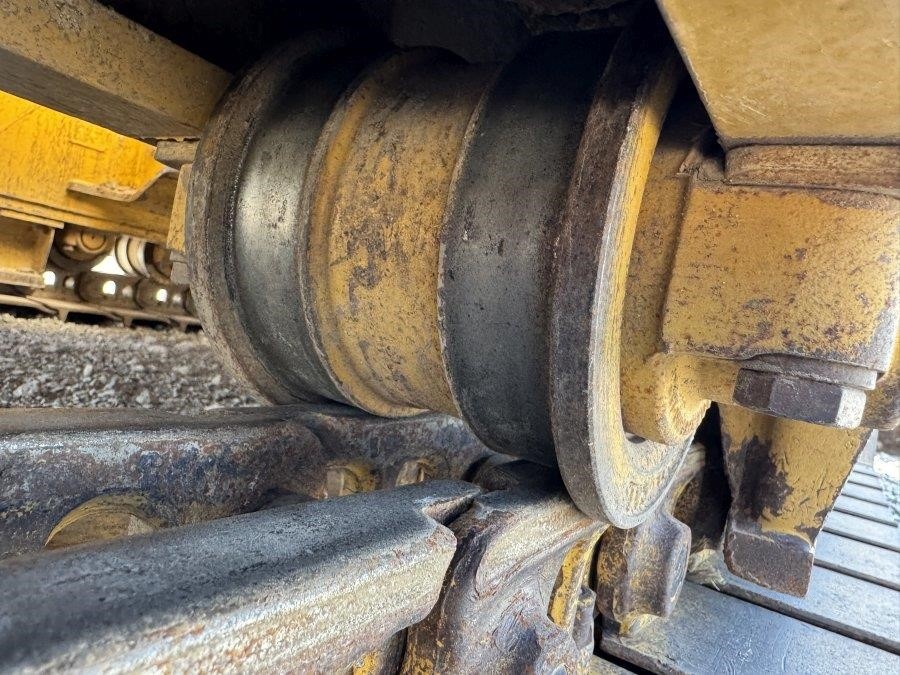

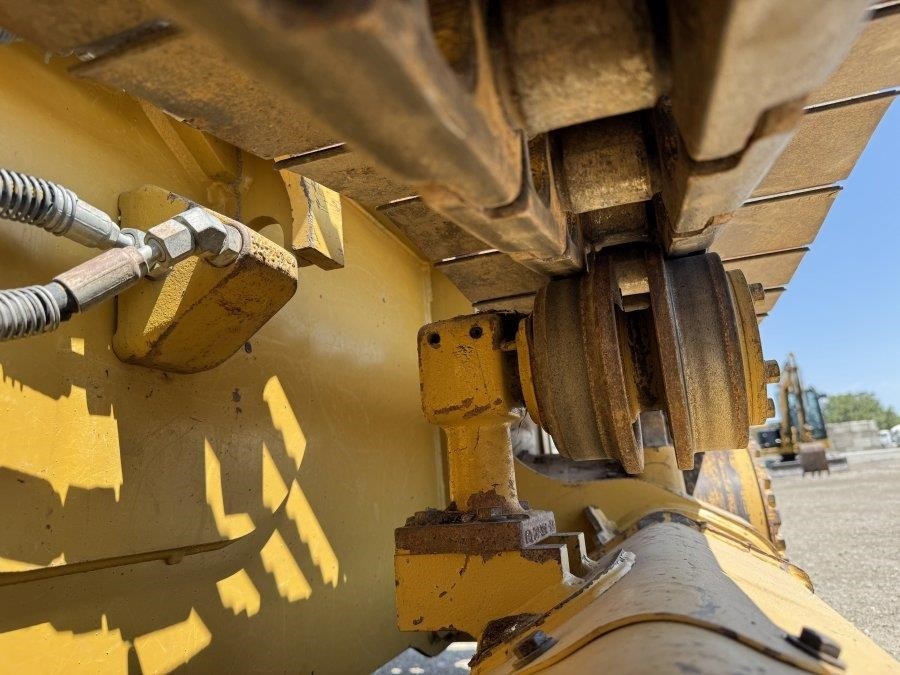

| Number of Rollers (each side) | 6 |
| Crankcase and Filter | 10.5 L / 2.8 gal |
| Final Drives, (each side) | 10 L / 2.6 gal |
| Final Drives, LGP (each side) | 10 L / 2.6 gal |
| Diesel Exhaust Fluid (DEF) Tank | 19 L / 4.9 gal |
Engine & Powertrain

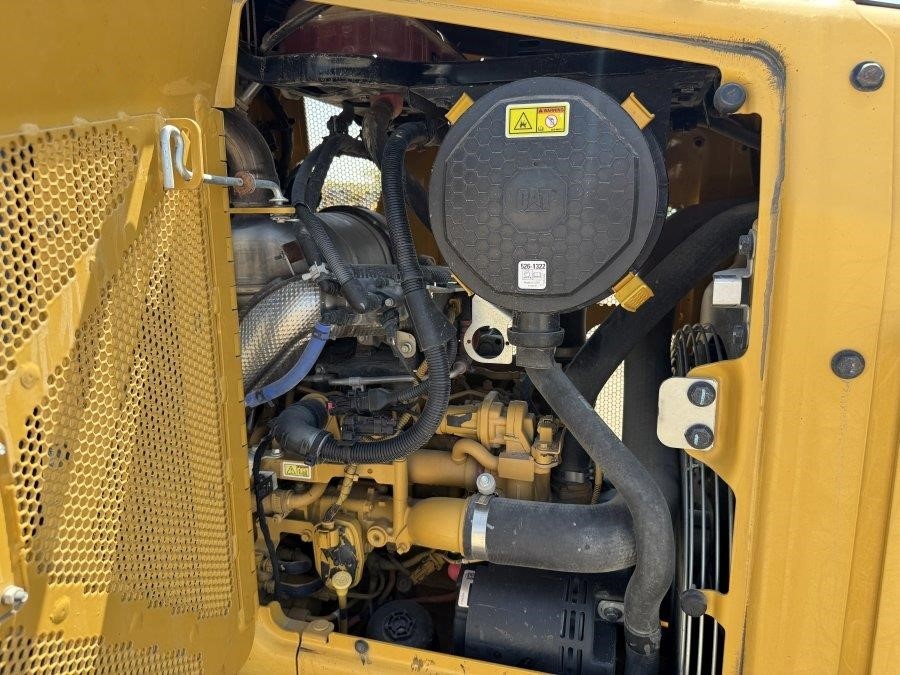

| Engine Model | Cat® C3.6 |
| Displacement | 3.6 L / 220 in3 |
| Transmission - Drive Pumps | 1 |
| Transmission - Track Motors | 2 |
| Fuel Tank | 195 L / 51.5 gal |
| Cooling System | 19 L / 4.2 gal |
| Transmission/Hydraulic Tank | 90 L / 23.8 gal |
Working Range
| Maximum Travel Speed - Forward | 9 km/h / 5.6 mph |
| Maximum Travel Speed - Reverse | 10 km/h / 6.2 mph |

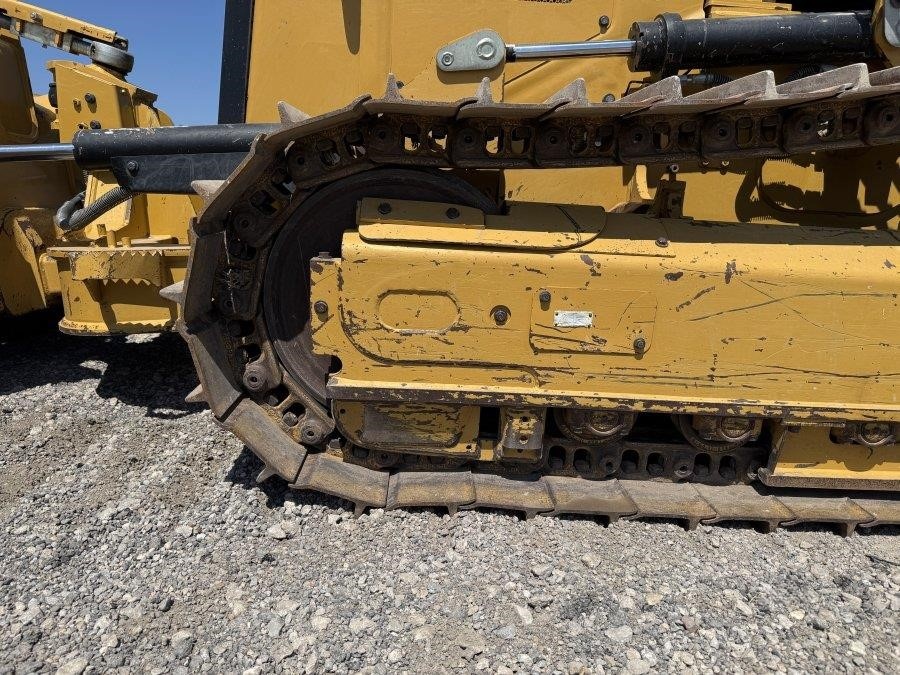

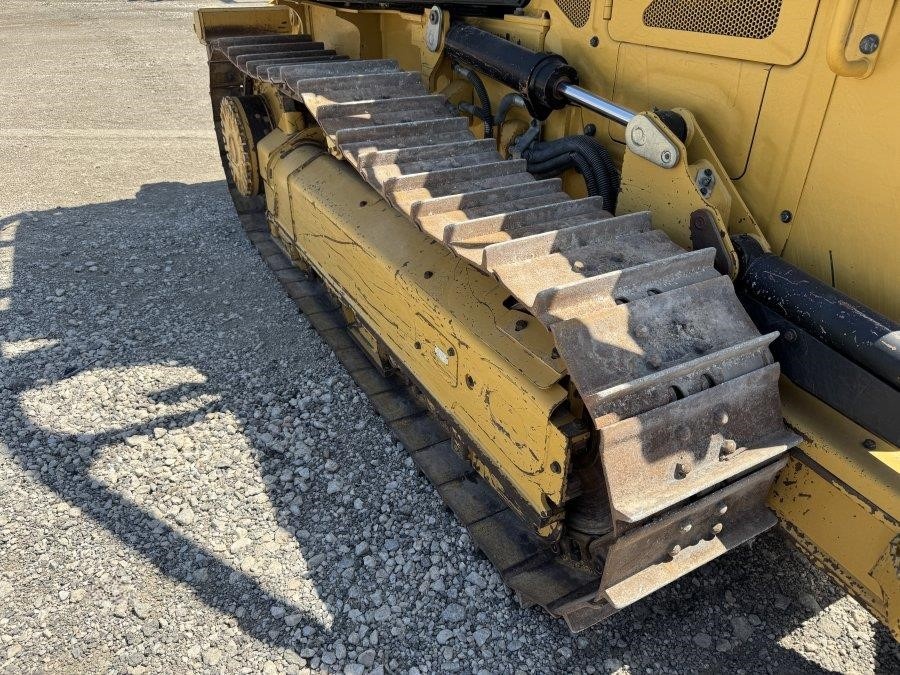

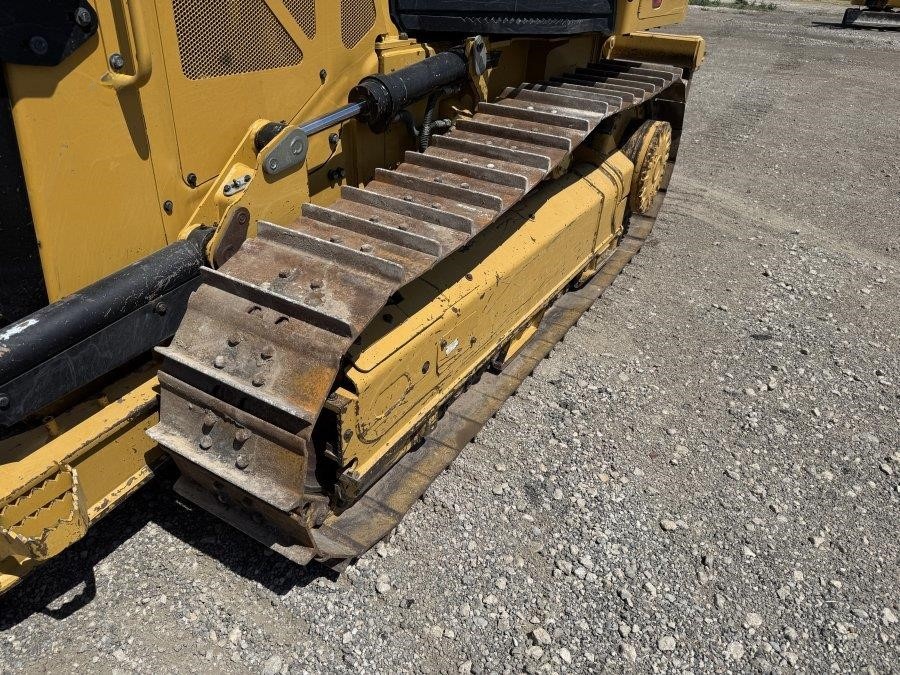

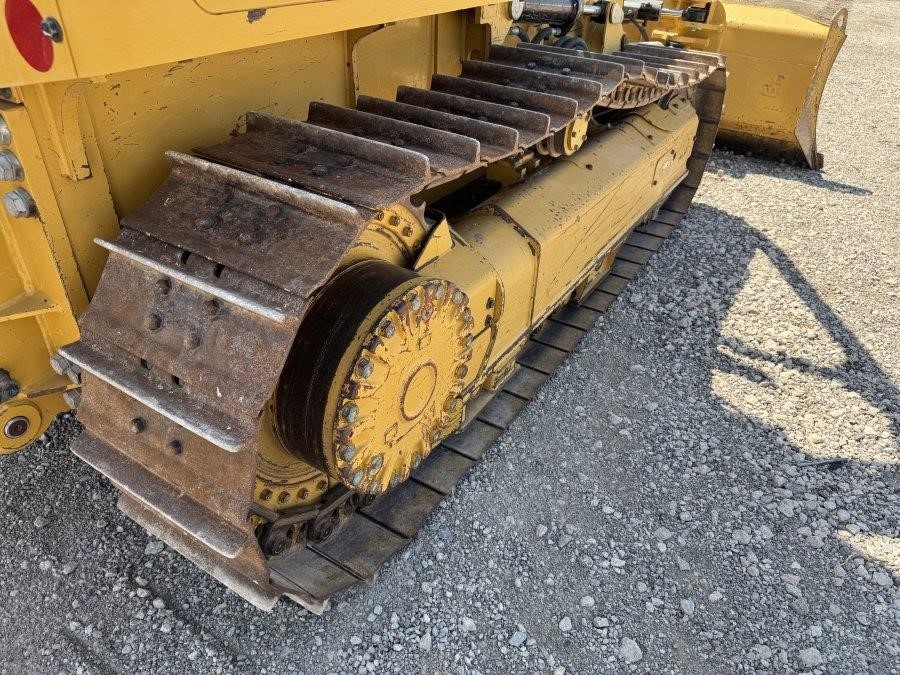

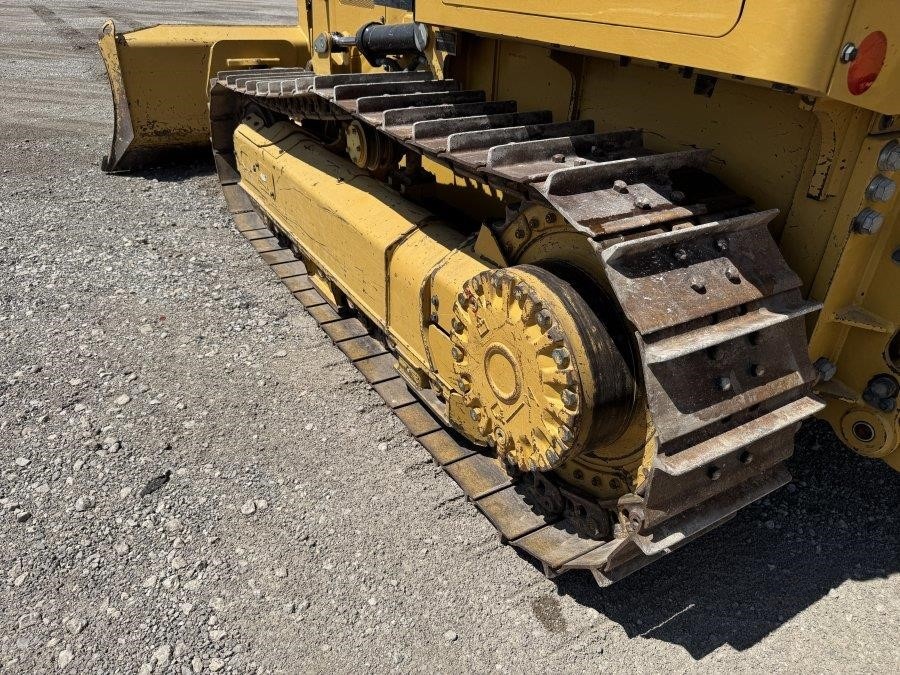

Undercarriage & Attachments
| Number of Shoes (each side) - Heavy Duty (HD) Undercarriage | 43 |
| Number of Shoes (each side) - Abrasion Undercarriage | 38 |
| Track Gauge | 1495 mm / 59 in |
| Track Gauge - LGP | 1725 mm / 68 in |
| Track Gauge - LGP, 762 mm (30 in) | 1860 mm / 73 in |
Dimensions
| Operating Weight | 8099 kg / 17,855 lb |
| Operating Weight - LGP | 8545 kg / 18,839 lb |
| Operating Weight - LGP, 762 mm/30 in | 8752 kg / 19,295 lb |
| Shoe Width | 406 mm / 16 in |
| Shoe Width - LGP | 635 mm / 25 in |
| Shoe Width - LGP, 762 mm (30 in) | 762 mm / 30 in |
| Length of Track on Ground | 2248 mm / 89 in |
| Length of Track on Ground - LGP | 2248 mm / 89 in |
| Length of Track on Ground - LGP, 762 mm (30 in) | 2248 mm / 89 in |
| Ground Pressure | 44.5 kPa / 6.45 psi |
| Ground Pressure - LGP | 29.9 kPa / 4.3 psi |
| Ground Pressure - LGP, 762 mm (30 in) | 25.5 kPa / 3.7 psi |

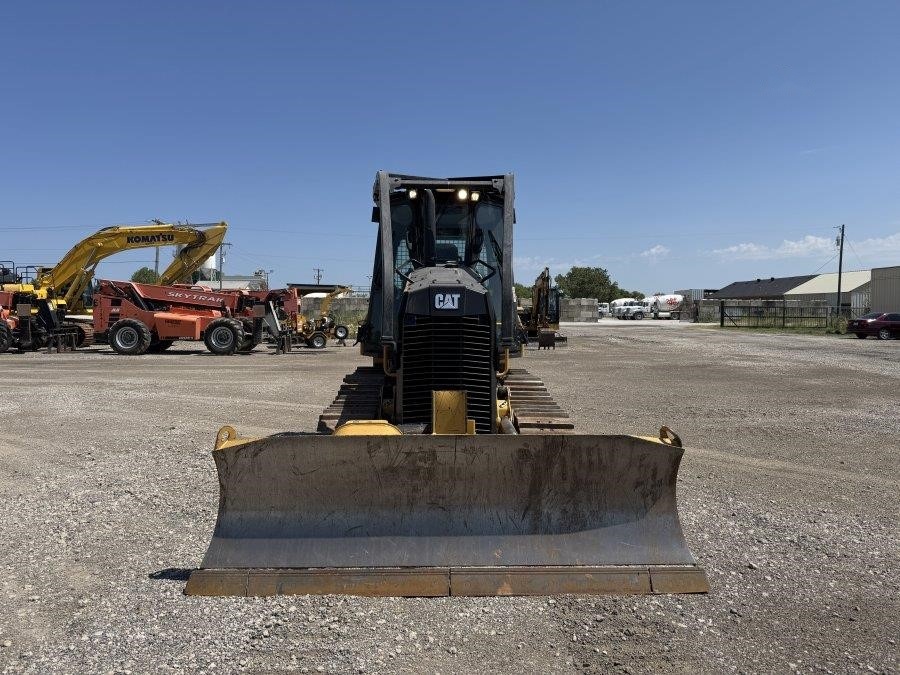

2022 Caterpillar D1 Crawler Dozer
