Item Specifications
Category
Condition
Used
Item Number
#1877
Make
caterpillar
Model
239d3
Year
2023
Industry
construction
Equipment Type
compact track loaders
Location
Ft. Worth, TX
Also Available In
TX
Item Description

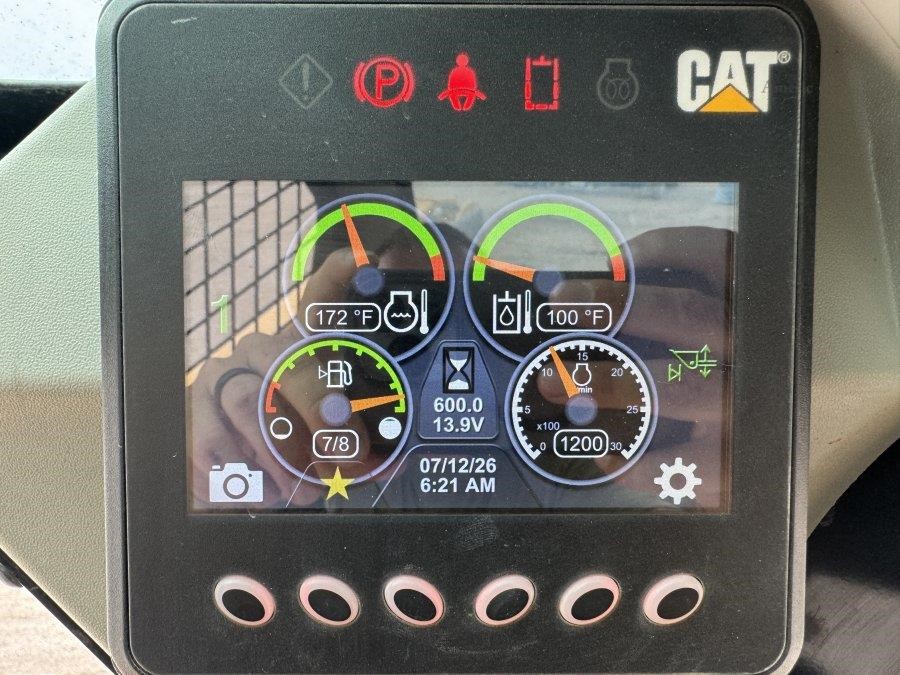

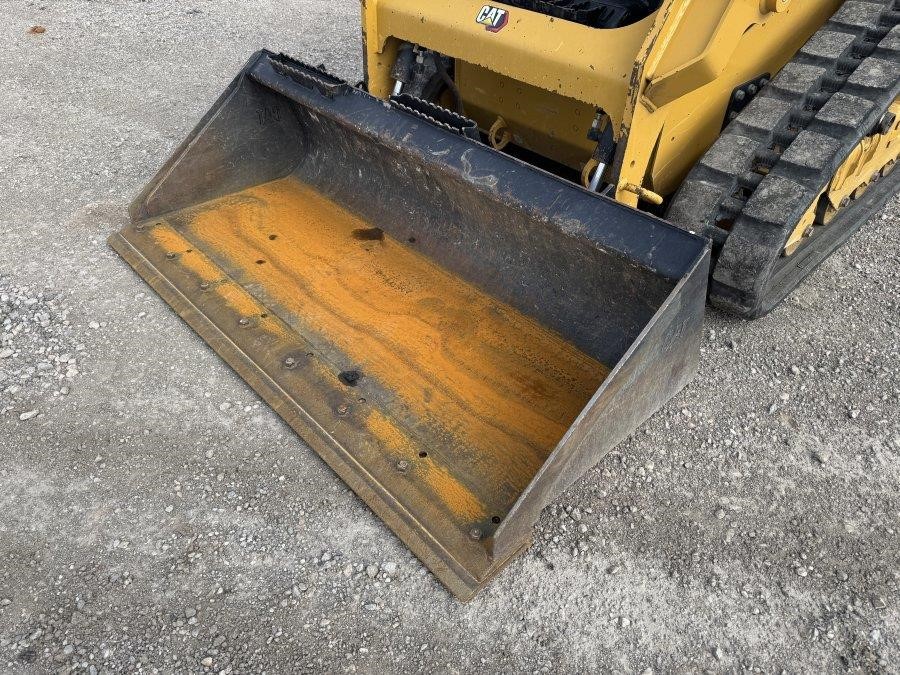

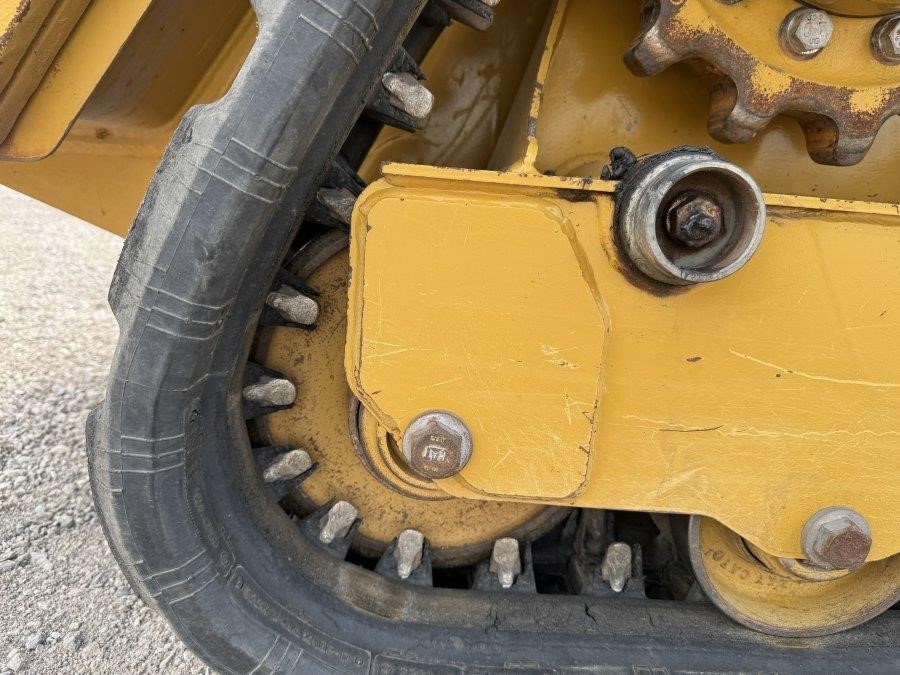

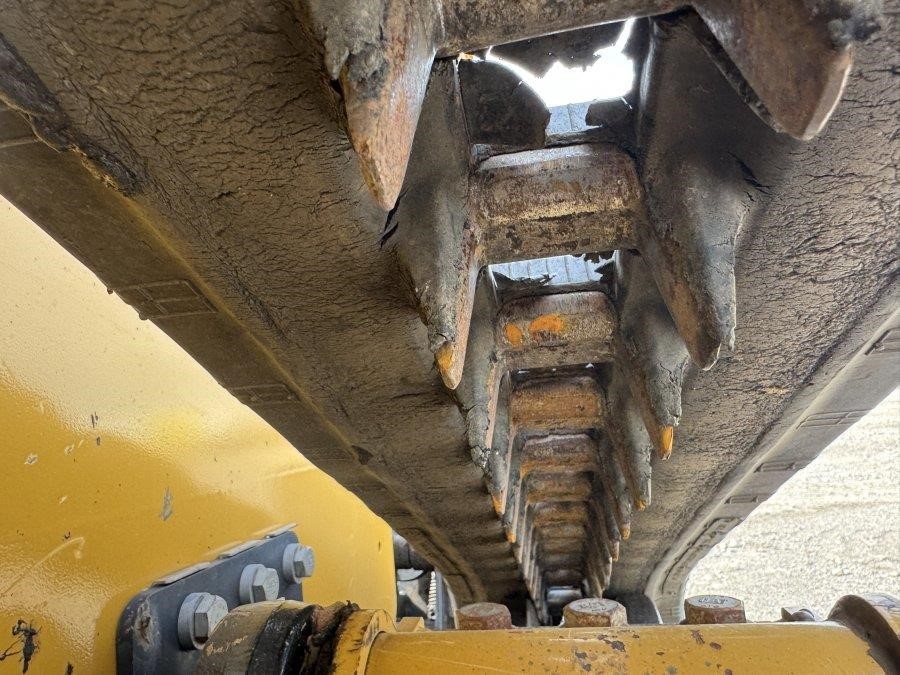

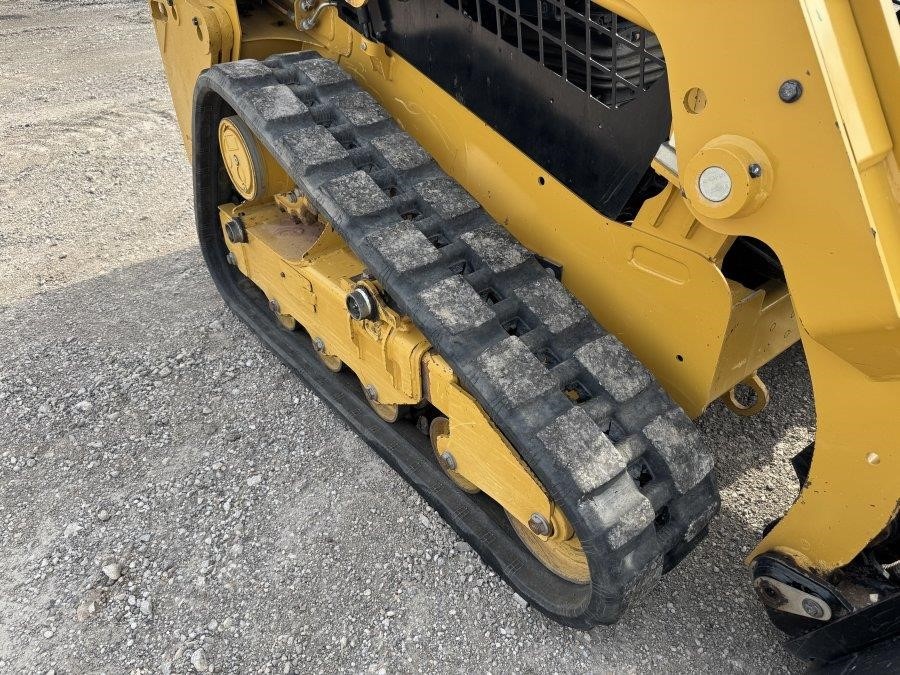

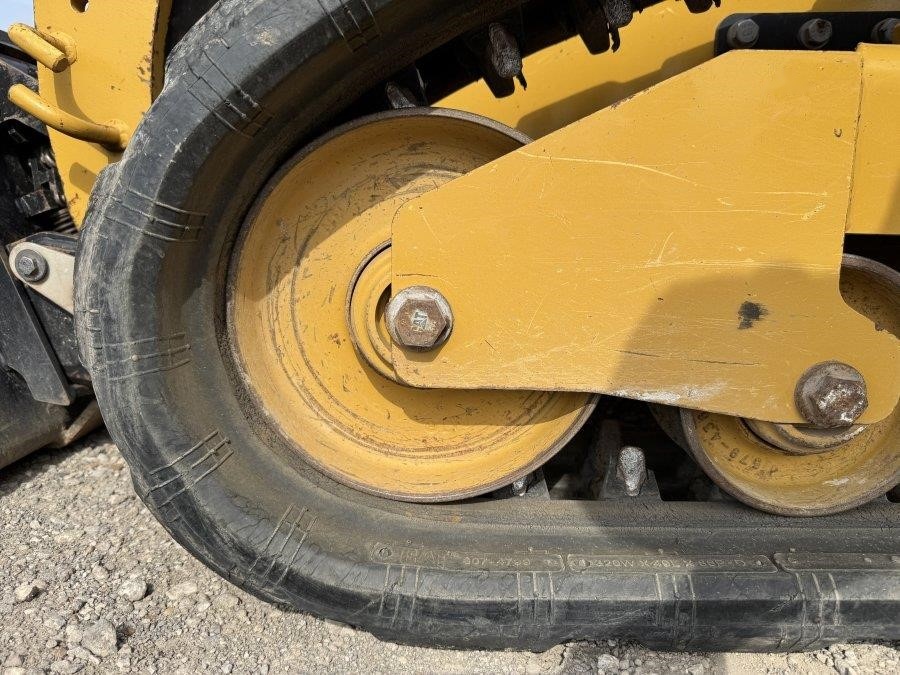

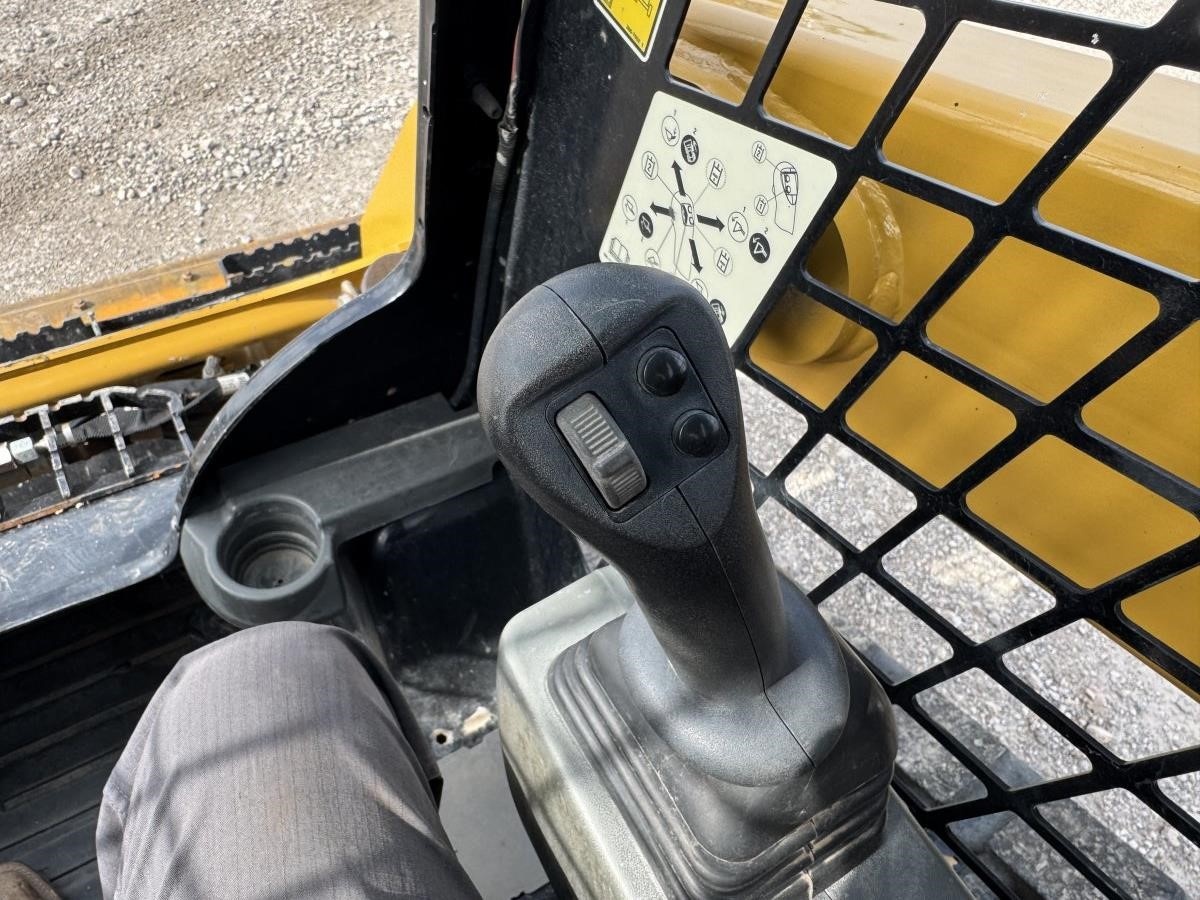

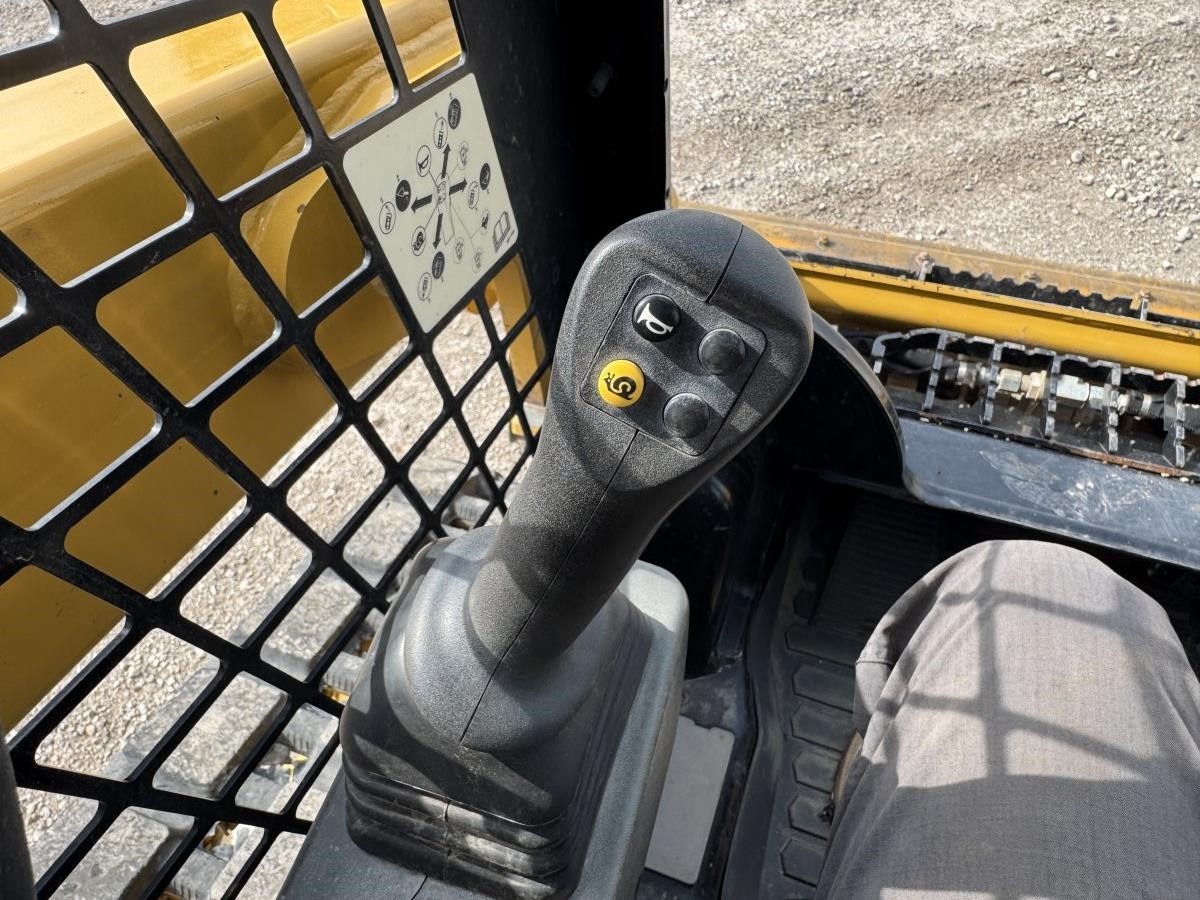

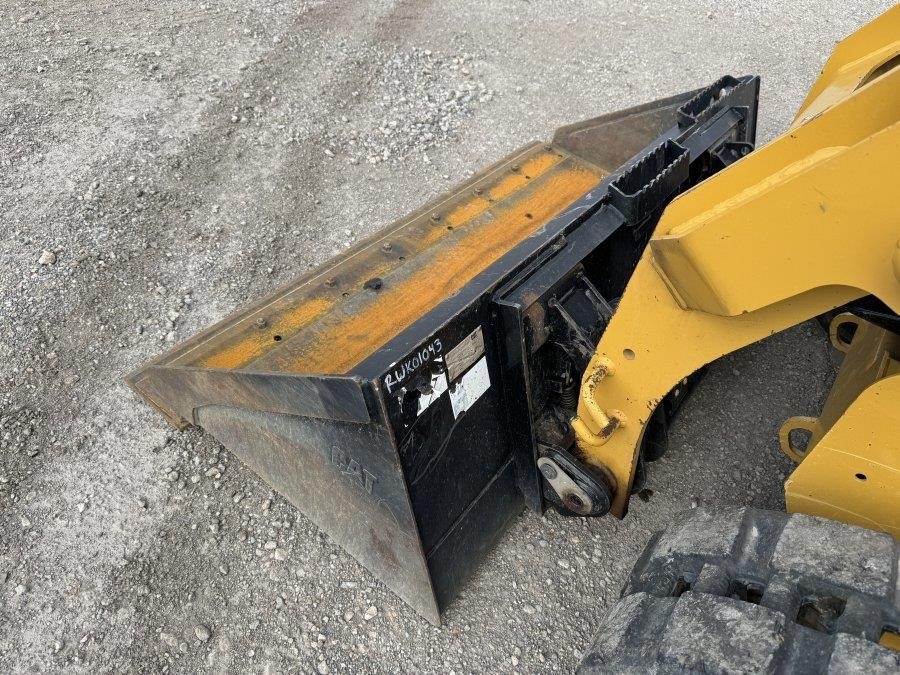

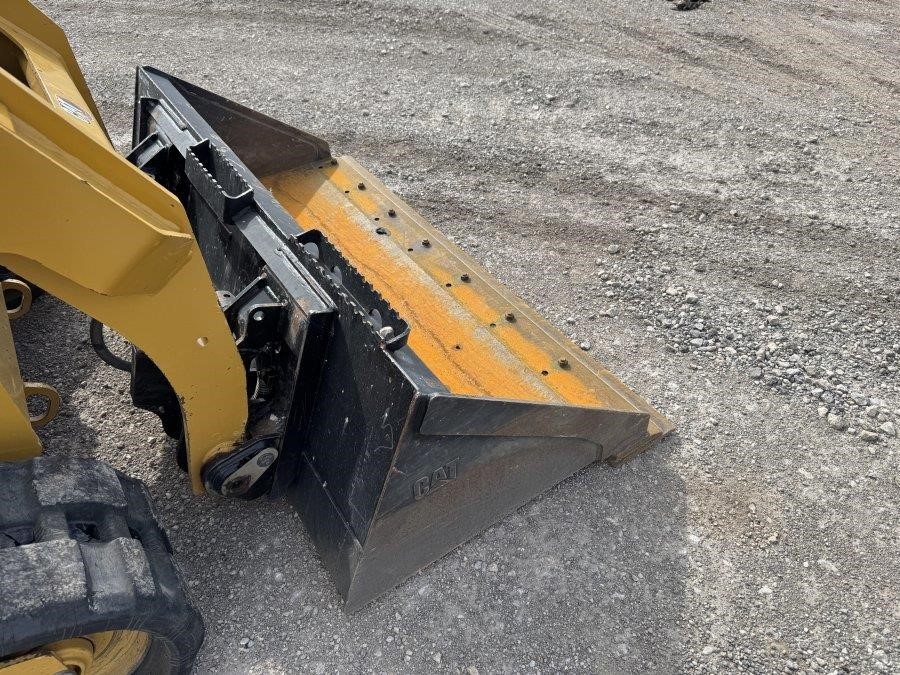

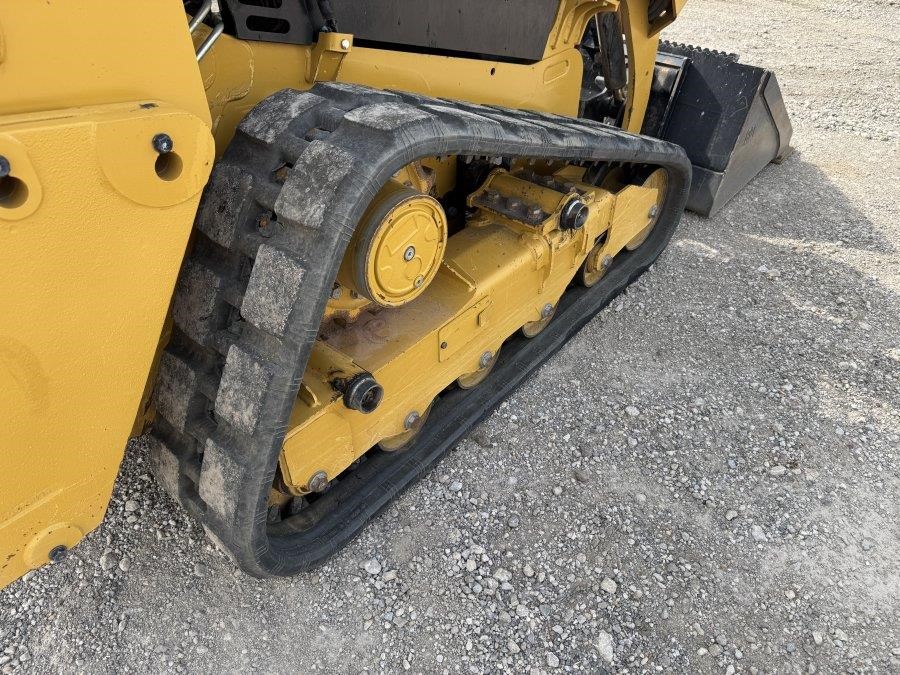

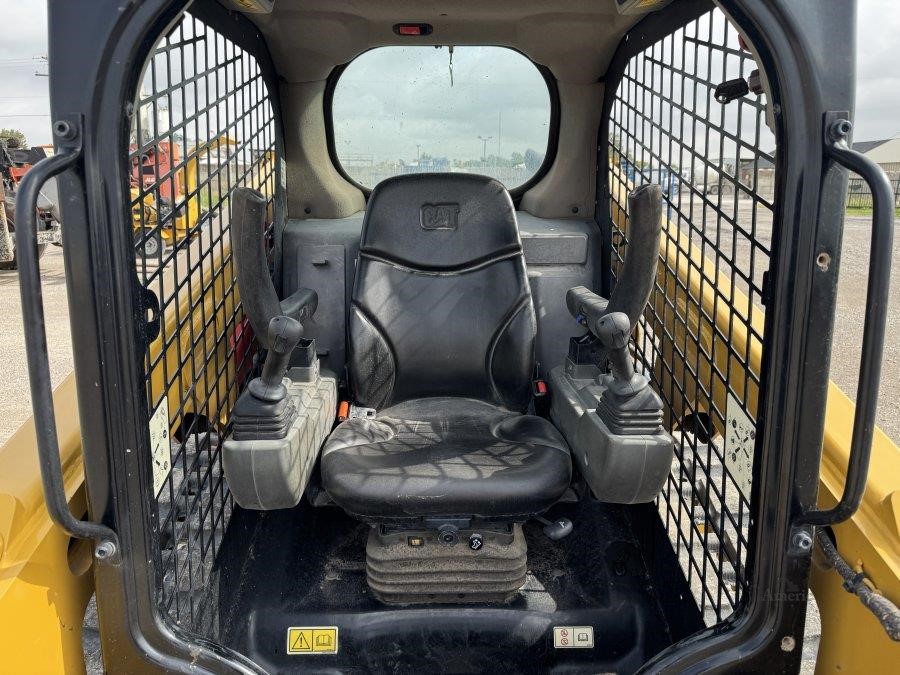

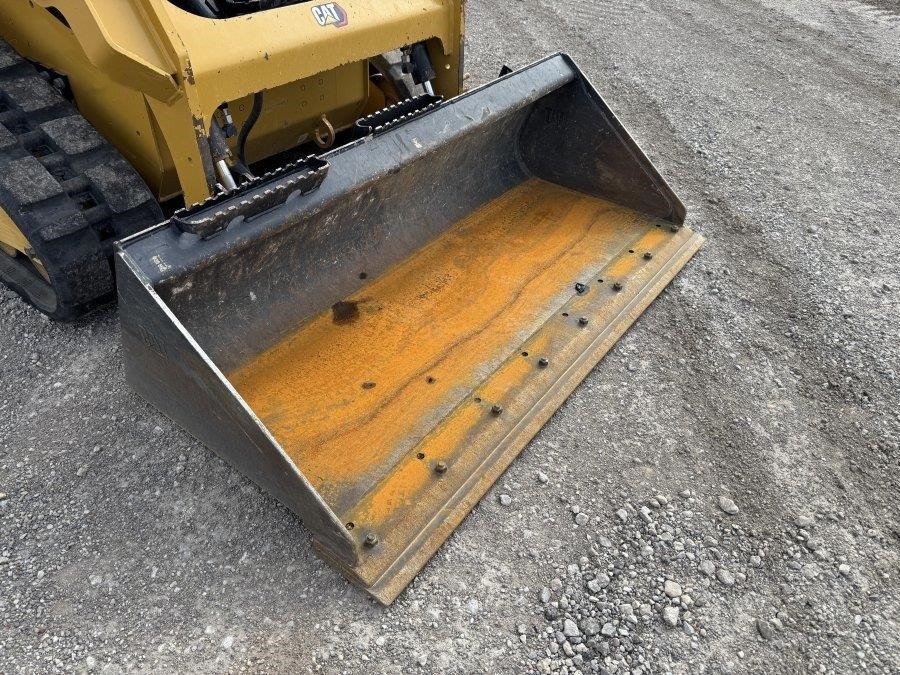

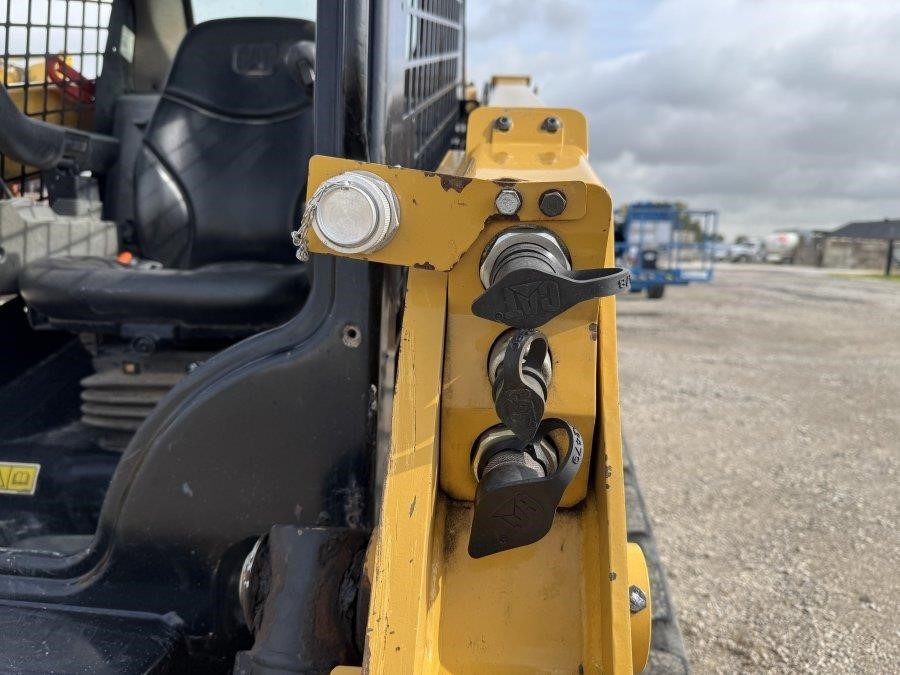

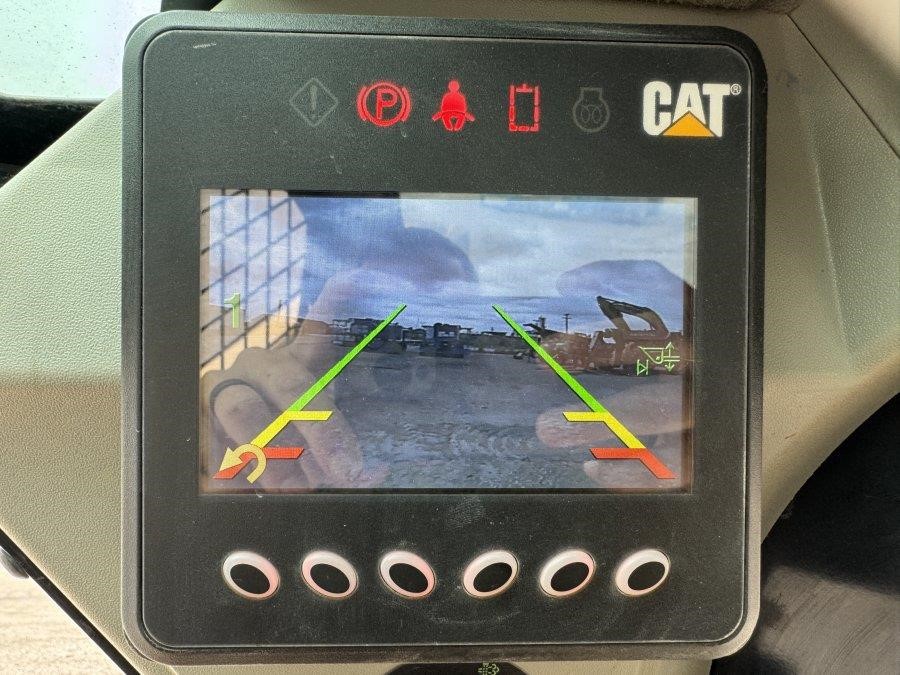

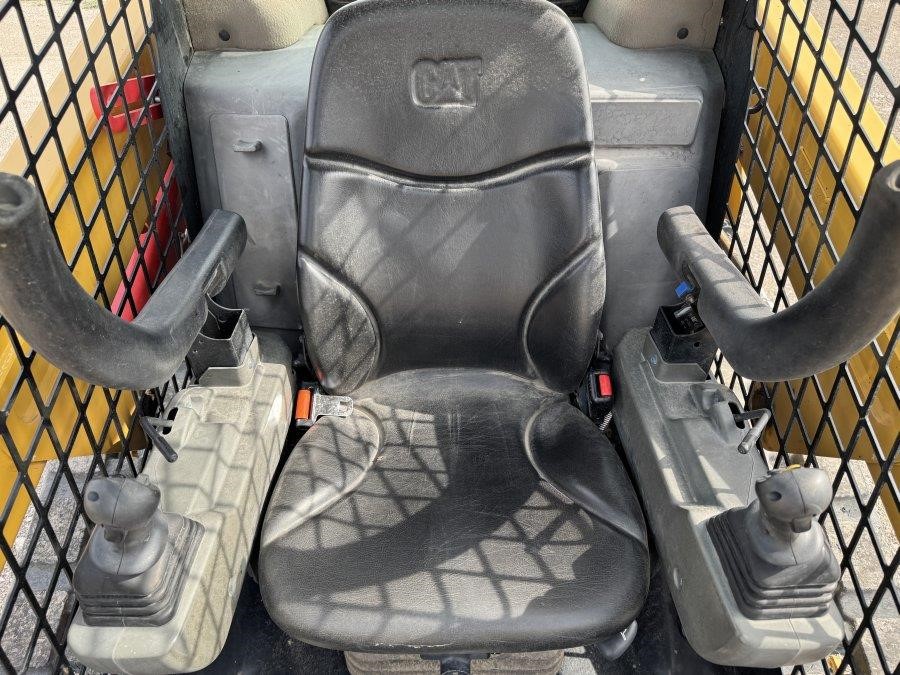

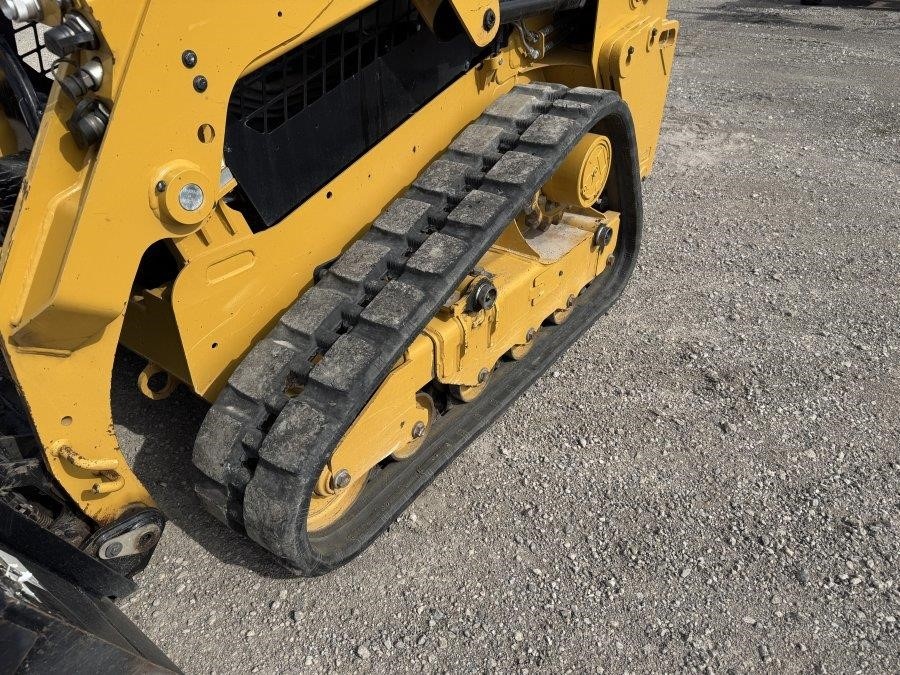

OROPS, Aux Hydraulics, Pilot Control, Backup Camera, 12" Rubber Tracks, 68" Bucket. 4YR/2,000HR warranty (PWT, HYD, TECH) until 1/11/2028.
Specifications
General
| Year | 2023 |
| Make | caterpillar |
| Model | 239d3 |
| Hours | 600 |
| Condition | Used |
| Gross Power SAE J1995 | 50.1 kW |
| Net Power SAE 1349 | 49.1 kW |
| Net Power ISO 9249 | 49.6 kW |
| Stroke | 100 mm |
| Stroke (in) | 3.9 in |
| Bore | 84 mm |
| Bore (in) | 3.3 in |
| ROPS | ISO 3471:2008 |
| FOPS | ISO 3449:2005 Level I |
| Noise Level - Inside Cab | 83 dB(A) |
| Noise Level - Outside Cab | 103 dB(A) |
| Departure Angle | 34.5° |
| Maximum Dump Angle | 50.3° |
Engine & Powertrain

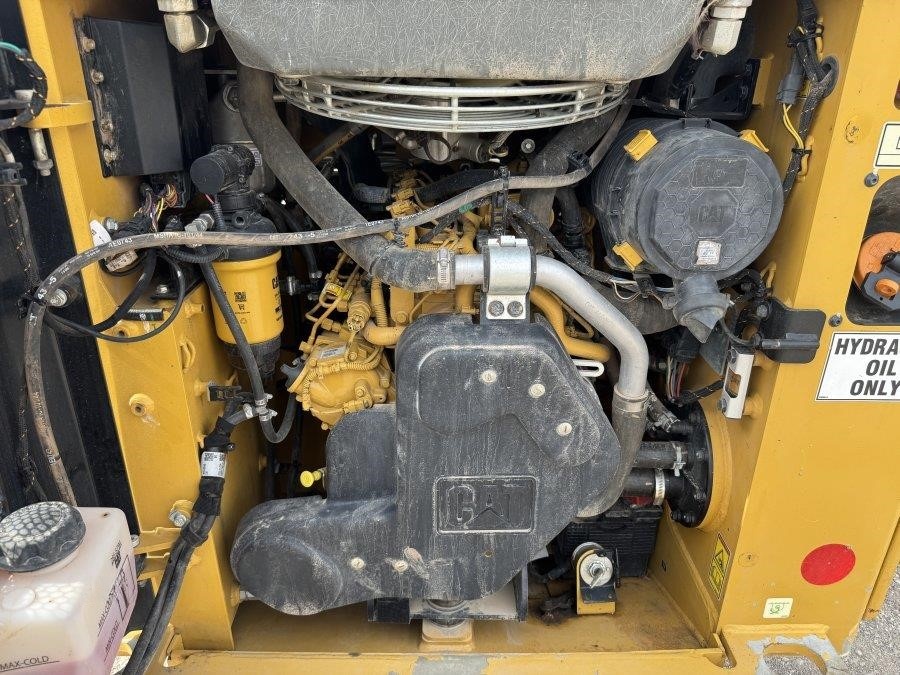

| Engine Model | Cat C2.2 CRDI |
| Gross Power SAE J1995 (hp) | 67.1 hp |
| Net Power SAE 1349 (hp) | 65.8 hp |
| Net Power ISO 9249 (hp) | 66.5 hp |
| Peak Torque at 1,500 rpm SAE J1995 | 208 N·m |
| Peak Torque at 1,500 rpm SAE J1995 (lbf-ft) | 153 lbf-ft |
| Displacement | 2.2 L |
| Displacement (in3) | 134.3 in3 |
| Breakout Force, Tilt Cylinder | 1775 kg |
| Breakout Force, Tilt Cylinder (lb) | 3,913 lb |
| Cooling System | 12 L |
| Cooling System (gal) | 3.2 gal |
| Engine Crankcase | 10 L |
| Engine Crankcase (gal) | 2.6 gal |
| Fuel Tank | 57 L |
| Fuel Tank (gal) | 15.1 gal |
Working Range
| Travel Speed (Forward or Reverse) - One Speed | 8.1 km/h |
| Travel Speed (Forward or Reverse) - One Speed (mph) | 5 mph |
| Travel Speed (Forward or Reverse) - Two Speed | 12.2 km/h |
| Travel Speed (Forward or Reverse) - Two Speed (mph) | 7.6 mph |
| Loader Hydraulic Pressure - Standard | 23 000 kPa |
| Loader Hydraulic Pressure - Standard (psi) | 3,336 psi |
| Loader Hydraulic Flow - Standard | 69 L/min |
| Loader Hydraulic Flow - Standard (gal/min) | 18 gal/min |
| Hydraulic Power (calculated) - Standard | 26.5 kW |
| Hydraulic Power (calculated) - Standard (hp) | 35.5 hp |
| Loader Hydraulic Pressure - High Flow | 23 000 kPa |
| Loader Hydraulic Pressure - High Flow (psi) | 3,336 psi |
| Loader Hydraulic Flow - High Flow | 99 L/min |
| Loader Hydraulic Flow - High Flow (gal/min) | 26 gal/min |
| Hydraulic Power (calculated) - High Flow | 38.0 kW |
| Hydraulic Power (calculated) - High Flow (hp) | 50.9 hp |
| Rated Operating Capacity - 35% Tipping Load | 695 kg |
| Rated Operating Capacity - 35% Tipping Load (lb) | 1,530 lb |
| Rated Operating Capacity - 50% Tipping Load | 995 kg |
| Rated Operating Capacity - 50% Tipping Load (lb) | 2,185 lb |
| Tipping Load | 1985 kg |
| Tipping Load (lb) | 4,370 lb |
| Hydraulic System | 45 L |
| Hydraulic System (gal) | 11.9 gal |
| Hydraulic Tank | 34 L |
| Hydraulic Tank (gal) | 9.0 gal |
| Reach at Maximum Lift and Dump | 563 mm |
| Reach at Maximum Lift and Dump (in) | 22.2 in |
| Maximum Reach with Arms Parallel to Ground | 1356 mm |
| Maximum Reach with Arms Parallel to Ground (in) | 53.4 in |

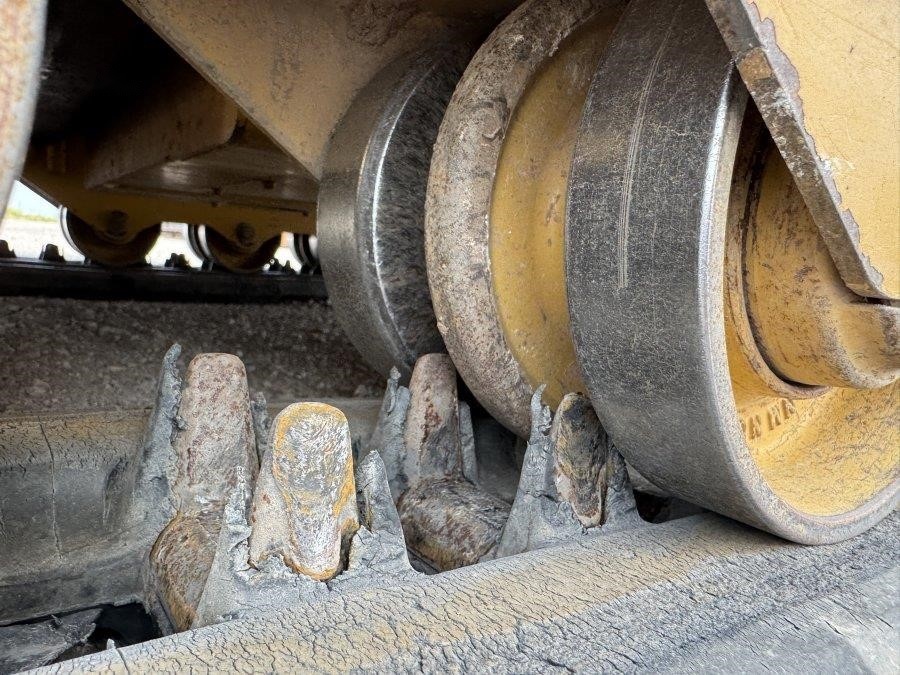

Undercarriage & Attachments
| Ground Contact Area (320 mm/12.6 in track) | 0.89 m2 |
| Ground Contact Area (320 mm/12.6 in track) (in2) | 1,373 in2 |
| Ground Contact Area (400 mm/15.7 in track) | 1.11 m2 |
| Ground Contact Area (400 mm/15.7 in track) (in2) | 1,716 in2 |
Dimensions
| Operating Weight | 3372 kg lb |
| Operating Weight (lb) | 7,434 lb |
| Rated Operating Capacity with Optional Counterweight | 1090 kg |
| Rated Operating Capacity with Optional Counterweight (lb) | 2,400 lb |
| Ground Pressure (320 mm/12.6 in track) | 37.3 kPa |
| Ground Pressure (320 mm/12.6 in track) (psi) | 5.4 psi |
| Ground Pressure (400 mm/15.7 in track) | 30.6 kPa |
| Ground Pressure (400 mm/15.7 in track) (psi) | 4.4 psi |
| Length of Track on Ground | 1384 mm |
| Length of Track on Ground (in) | 54.5 in |
| Overall Length of Track | 1808 mm |
| Overall Length of Track (in) | 71.2 in |
| Length without Bucket | 2522 mm |
| Length without Bucket (in) | 99.3 in |
| Length with Bucket on Ground | 3234 mm |
| Length with Bucket on Ground (in) | 127.3 in |
| Height to Top of Cab | 2034 mm |
| Height to Top of Cab (in) | 80.1 in |
| Maximum Overall Height | 3645 mm |
| Maximum Overall Height (in) | 143.5 in |
| Bucket Pin Height at Maximum Lift | 2825 mm |
| Bucket Pin Height at Maximum Lift (in) | 111.2 in |
| Bucket Pin Height at Carry Position | 218 mm |
| Bucket Pin Height at Carry Position (in) | 8.6 in |
| Clearance at Maximum Lift and Dump | 2057 mm |
| Clearance at Maximum Lift and Dump (in) | 81.0 in |
| Ground Clearance | 195 mm |
| Ground Clearance (in) | 7.7 in |
| Vehicle Width (320 mm/12.6 in tracks) | 1676 mm |
| Vehicle Width (320 mm/12.6 in tracks) (in) | 66.0 in |
| Vehicle Width (400 mm/15.7 in tracks) | 1756 mm |
| Vehicle Width (400 mm/15.7 in tracks) (in) | 69.1 in |
| Turning Radius from Center - Machine Rear | 1458 mm |
| Turning Radius from Center - Machine Rear (in) | 57.4 in |
| Turning Radius from Center - Coupler | 1159 mm |
| Turning Radius from Center - Coupler (in) | 45.6 in |
| Turning Radius from Center - Bucket | 2069 mm |
| Turning Radius from Center - Bucket (in) | 81.5 in |
| Rack Back Angle at Maximum Height | 85.5° |

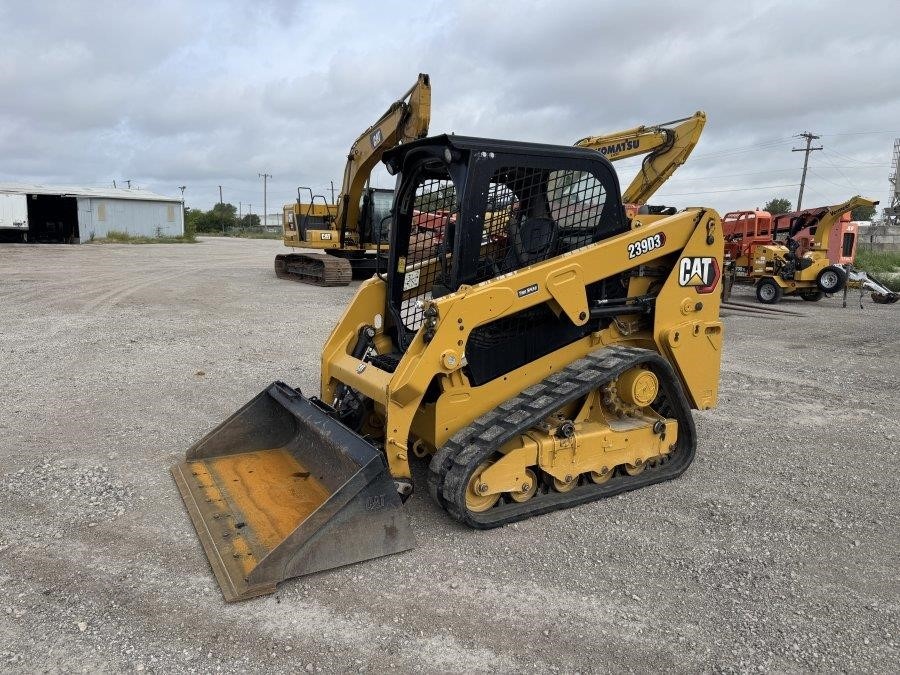

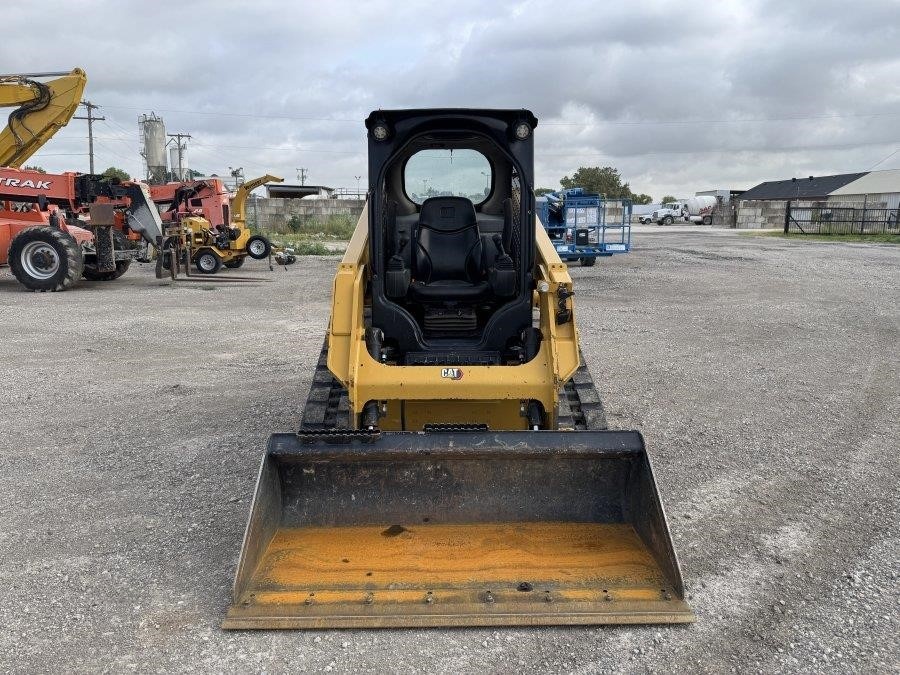

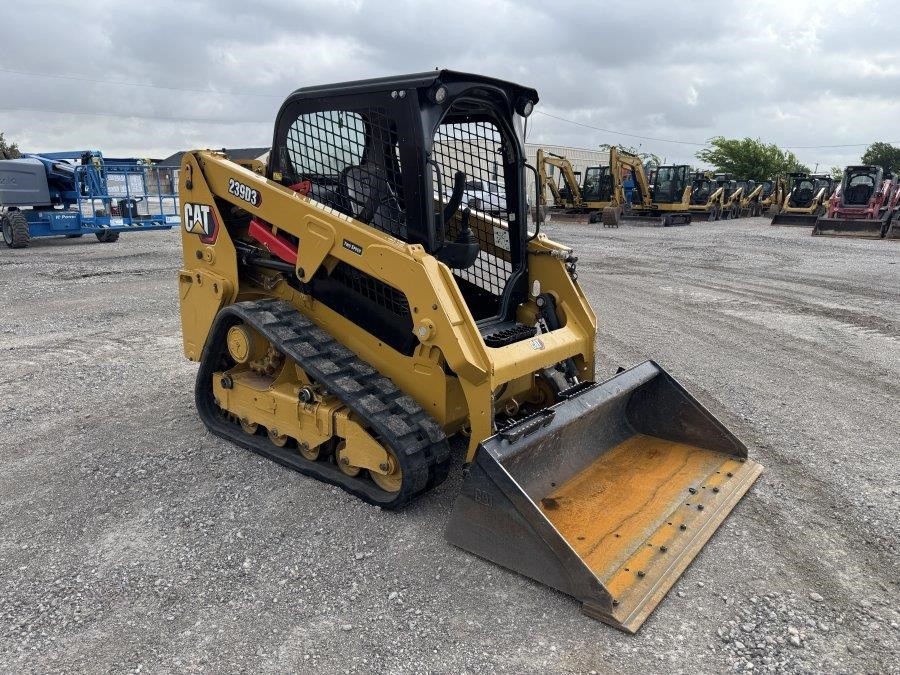

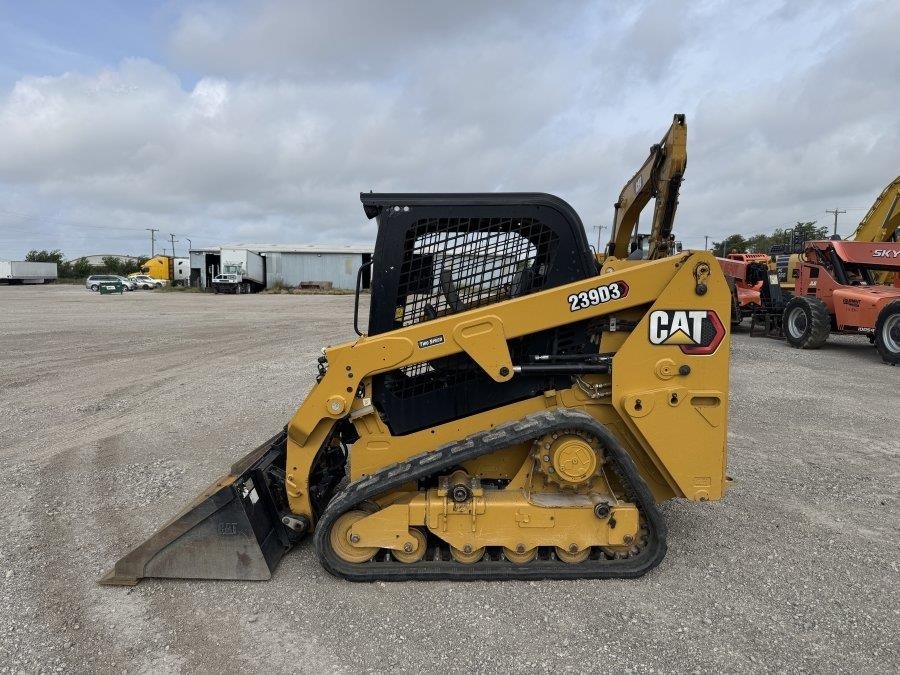

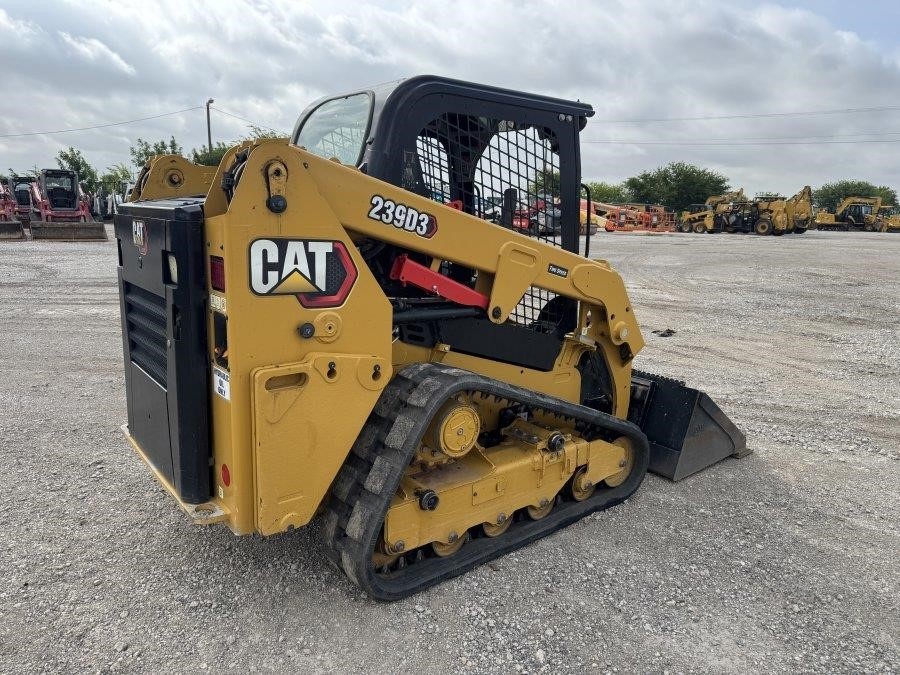

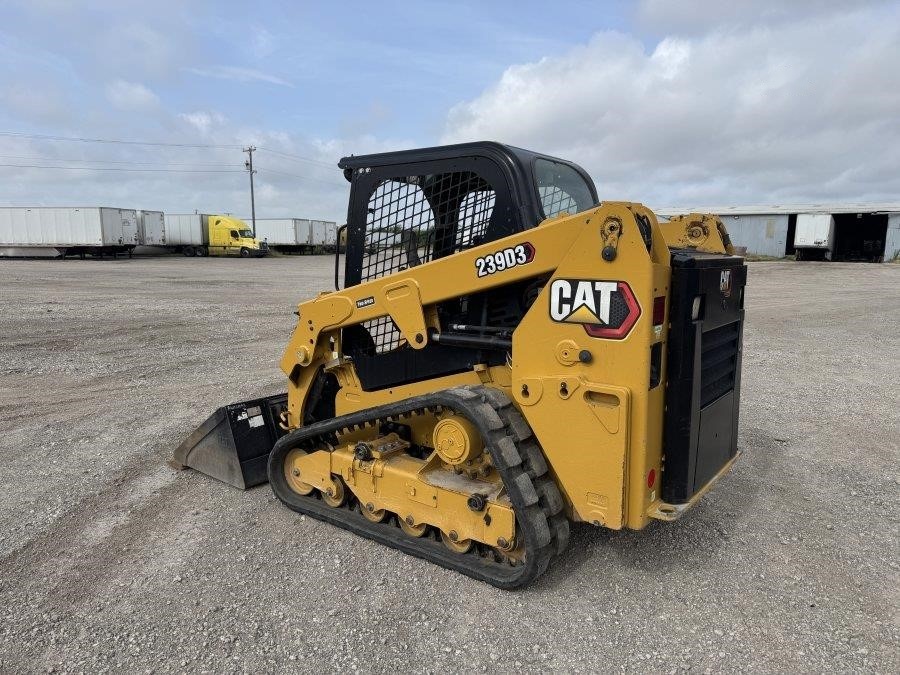

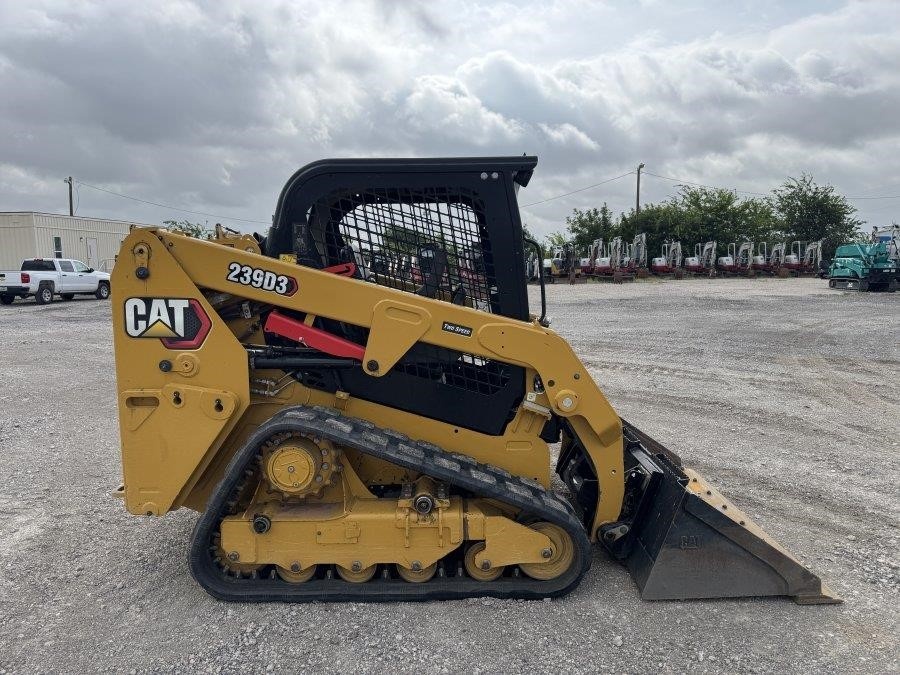

2023 Caterpillar 239D3 Compact Track Loader
BUY NOW OR MAKE OFFERAvailable
