Item Specifications
Category
Condition
Used
Item Number
#1873
Make
caterpillar
Model
302CR
Year
2023
Industry
construction
Equipment Type
excavators
Location
Ft. Worth, TX

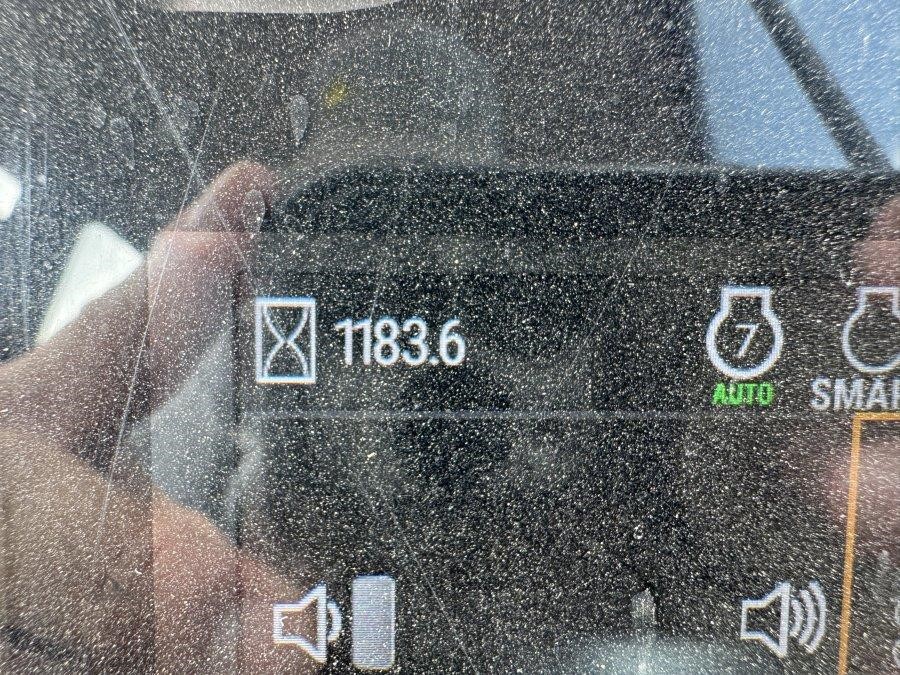

Hours
1183
Also Available In
TX
Item Description

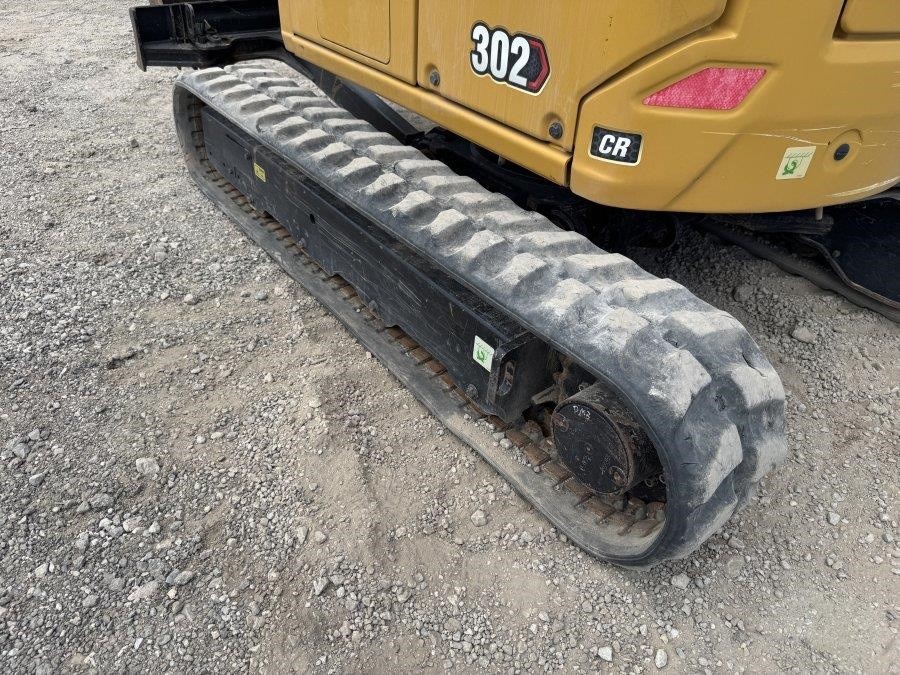

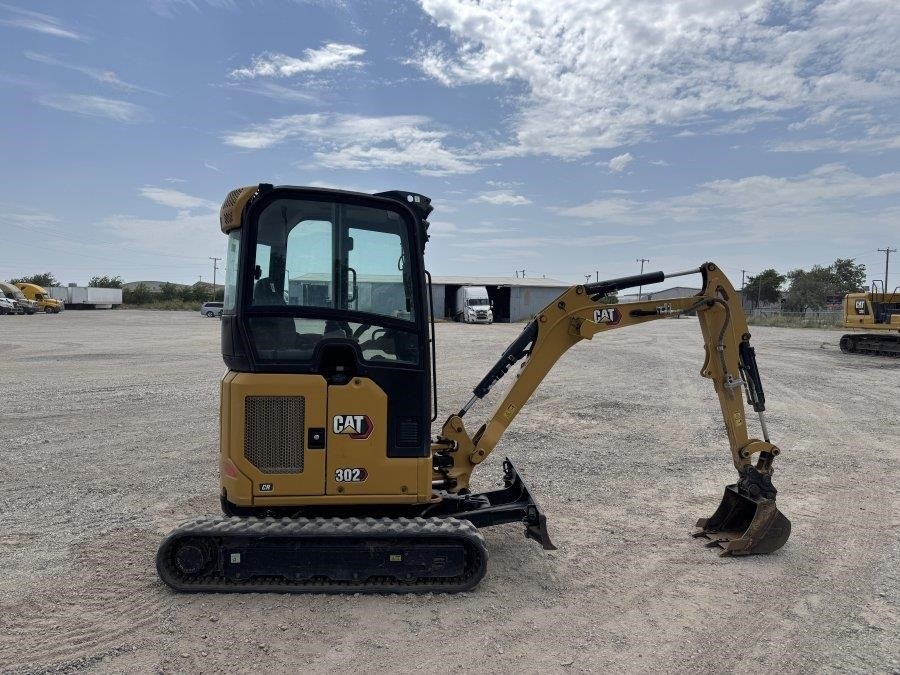

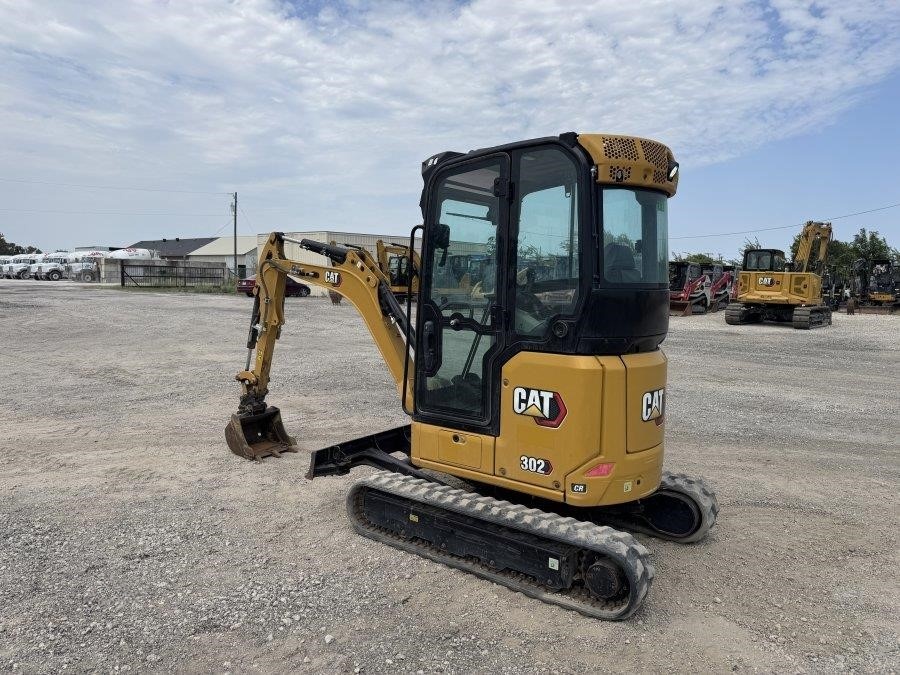

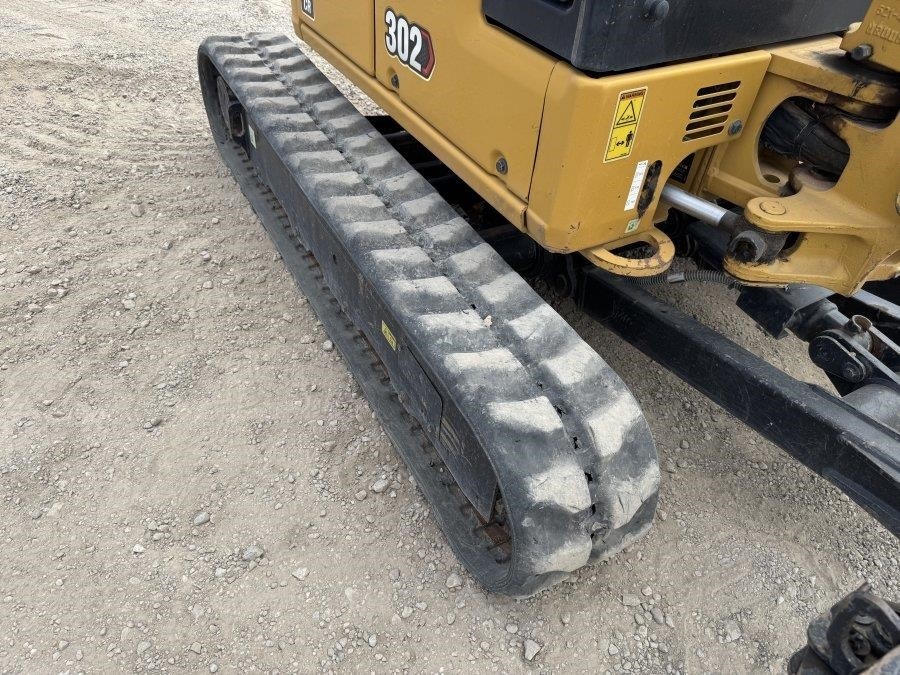

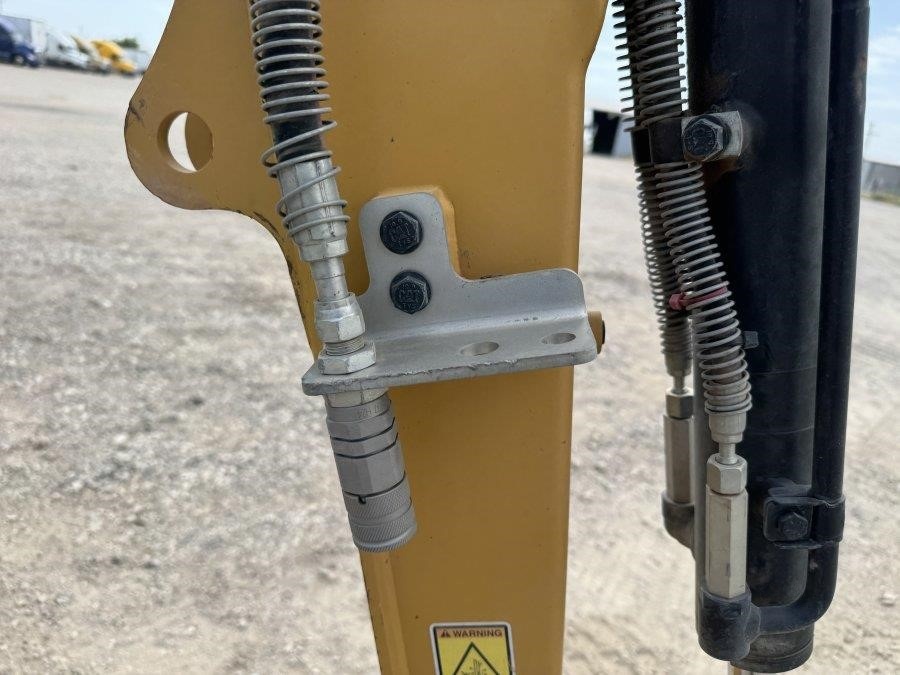

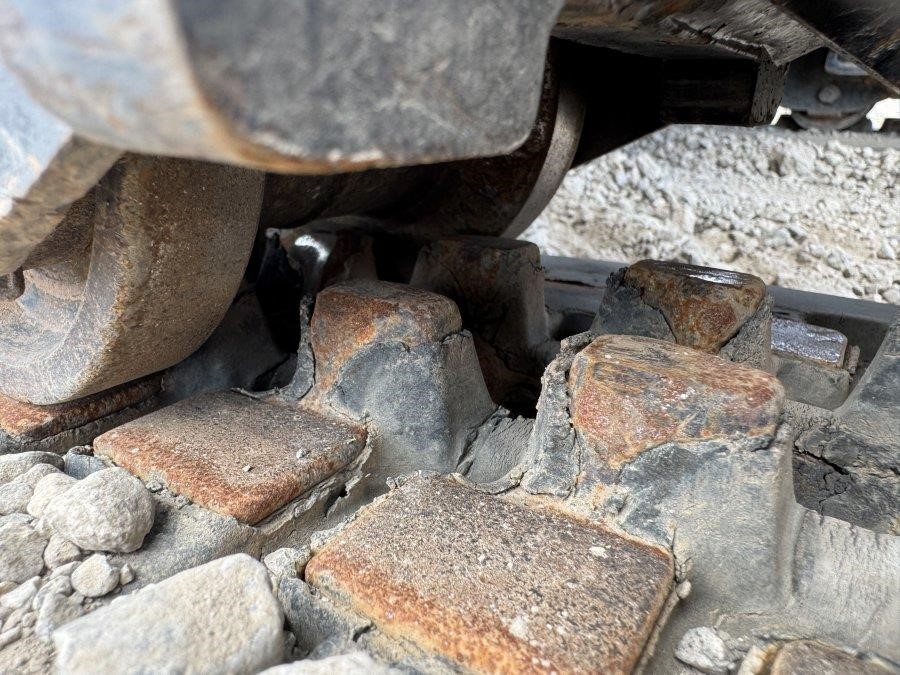

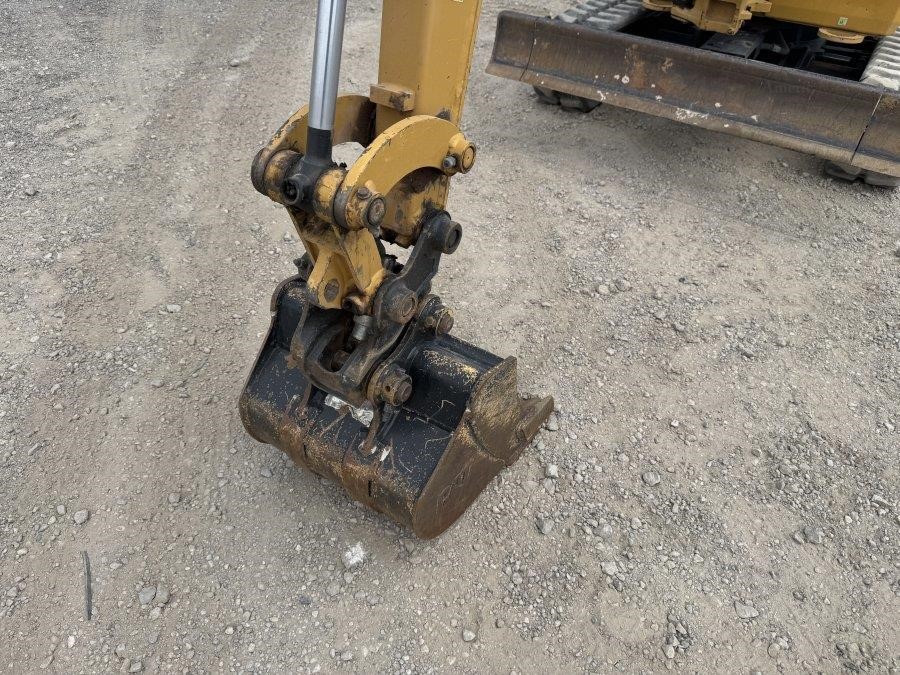

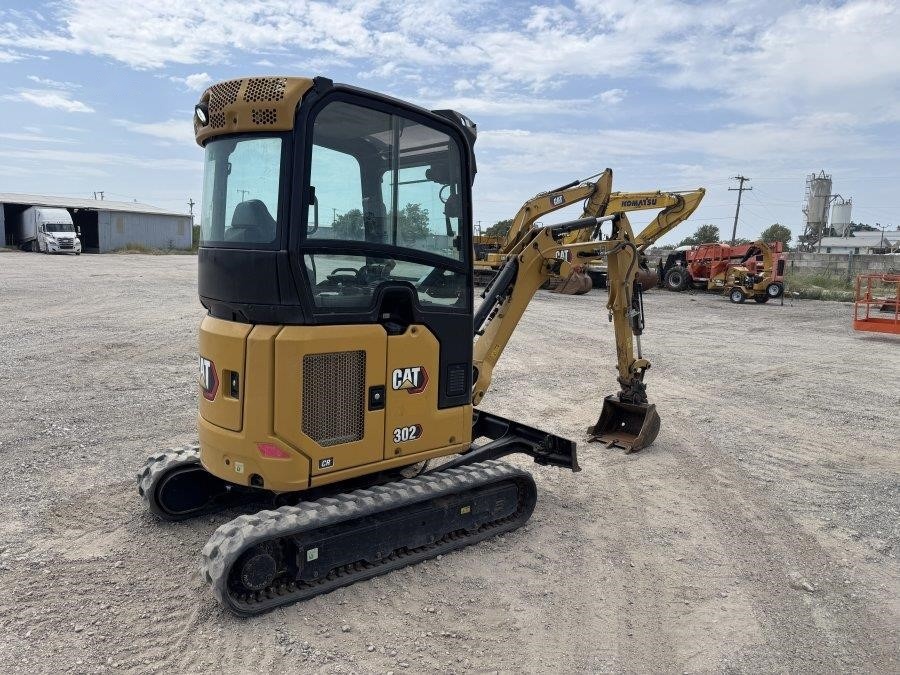

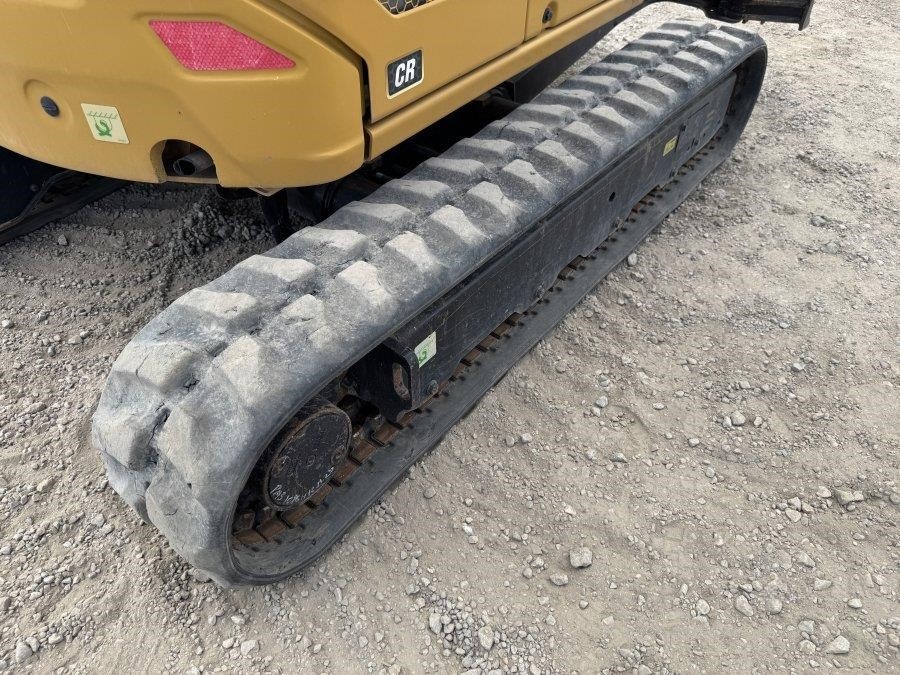

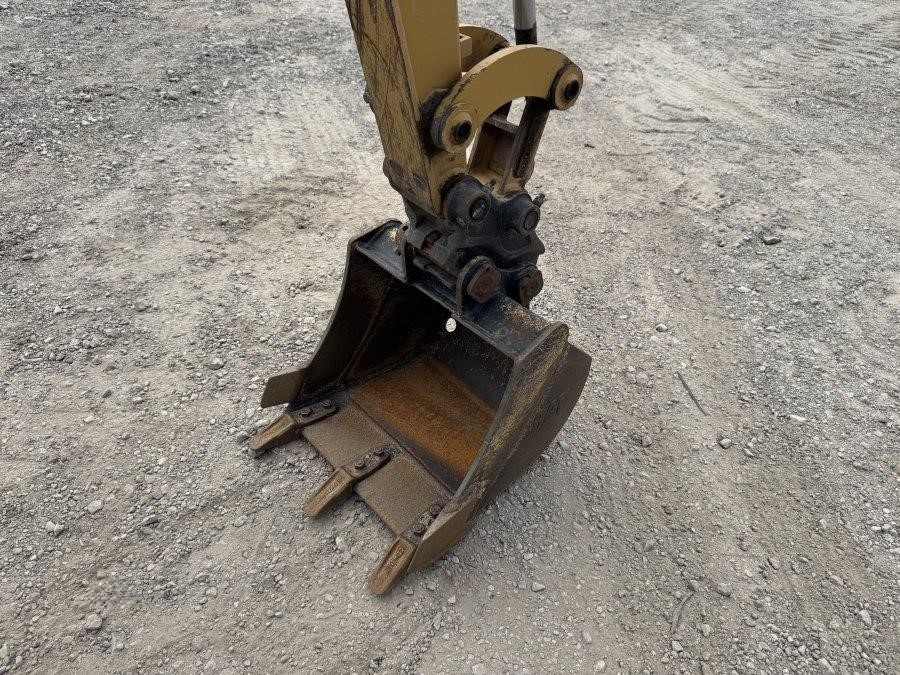

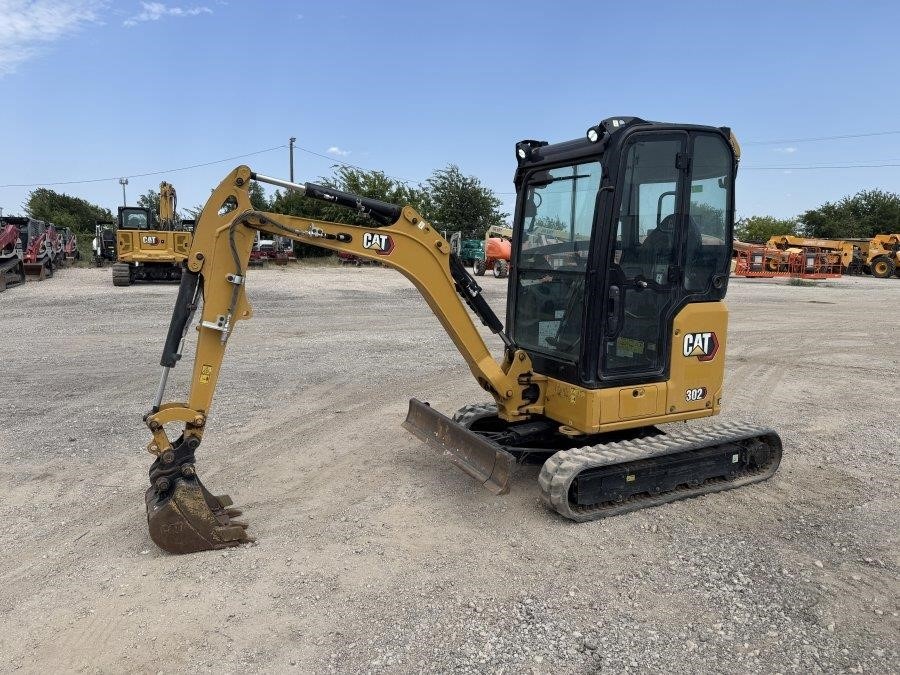

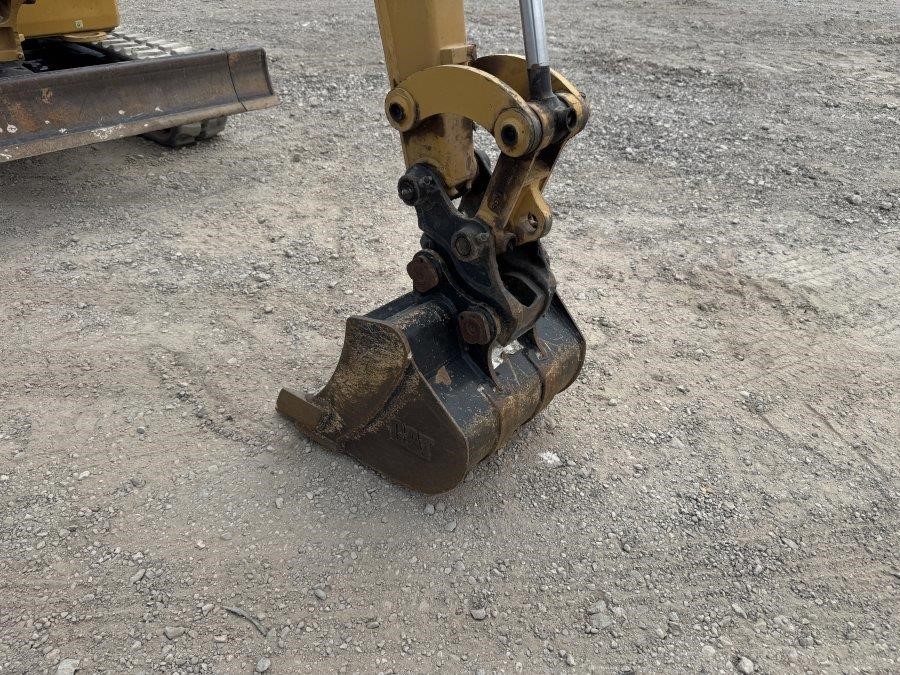

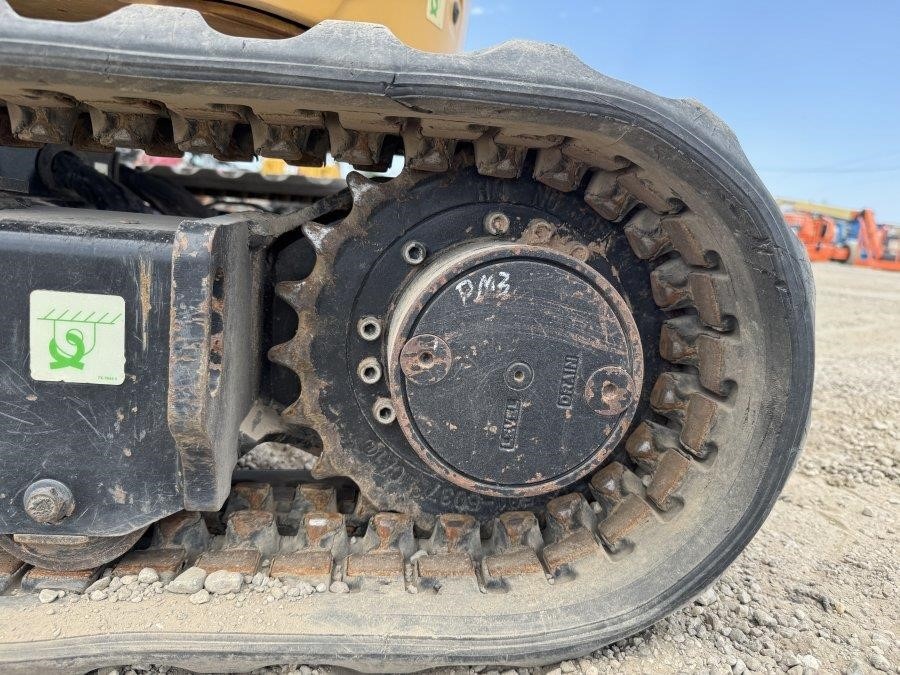

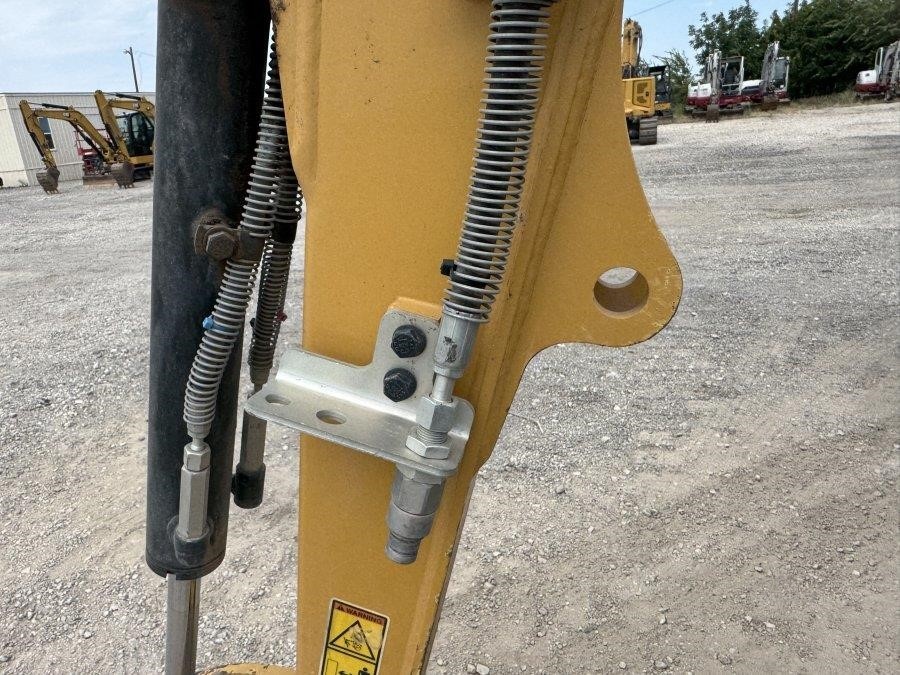

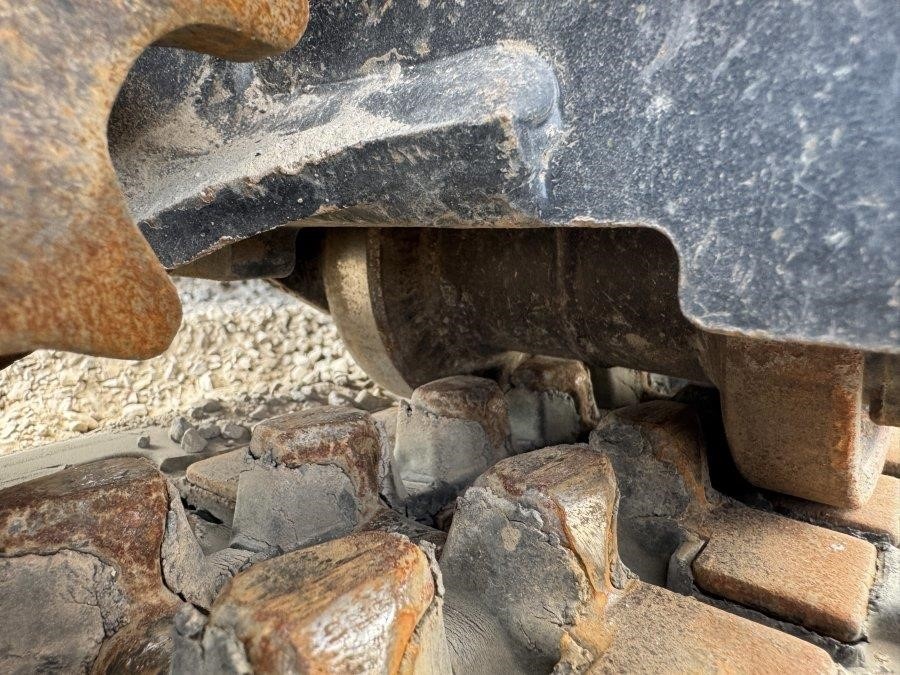

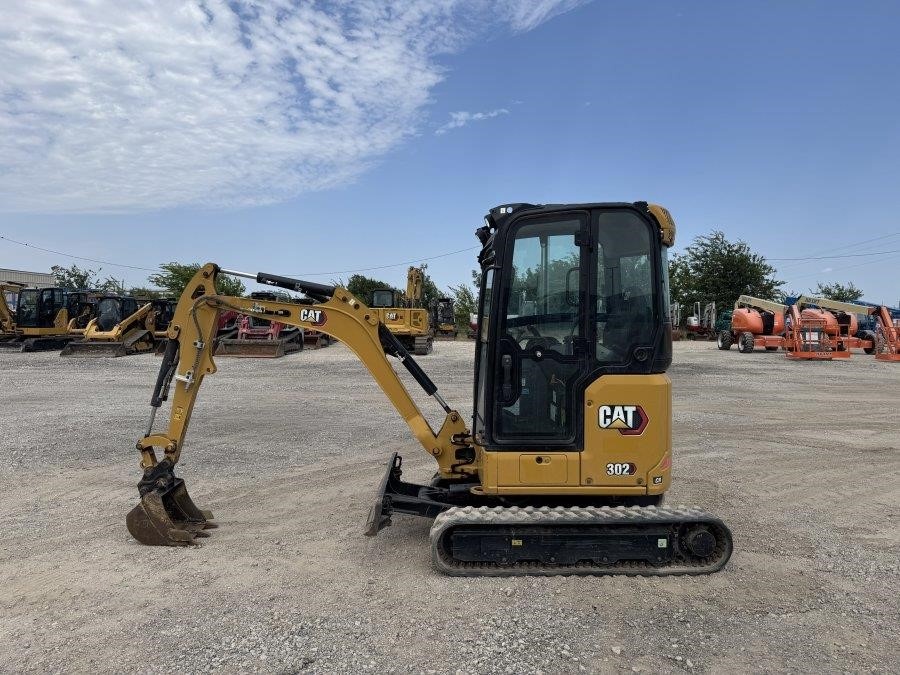

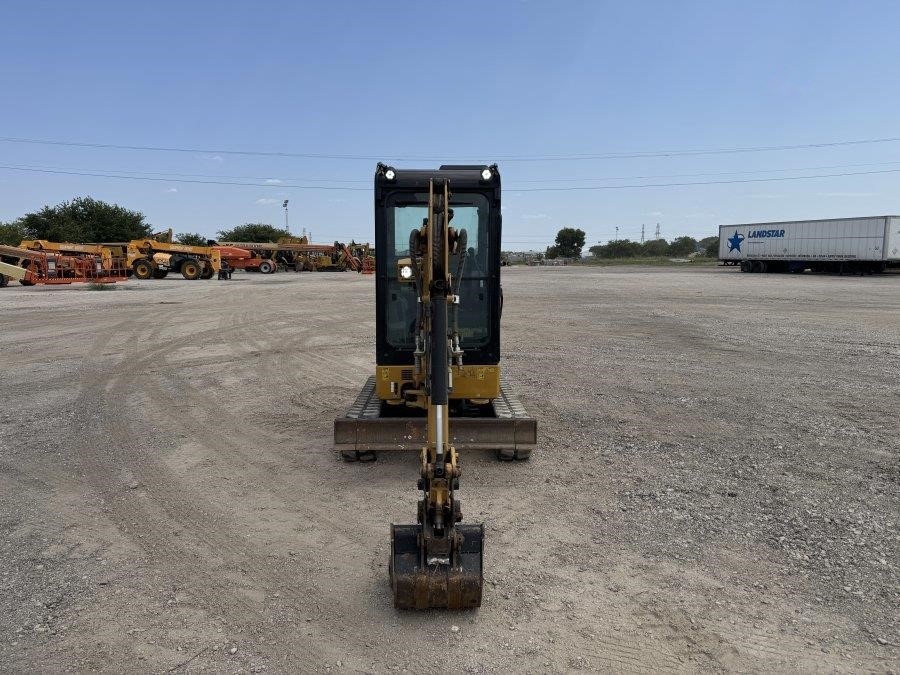

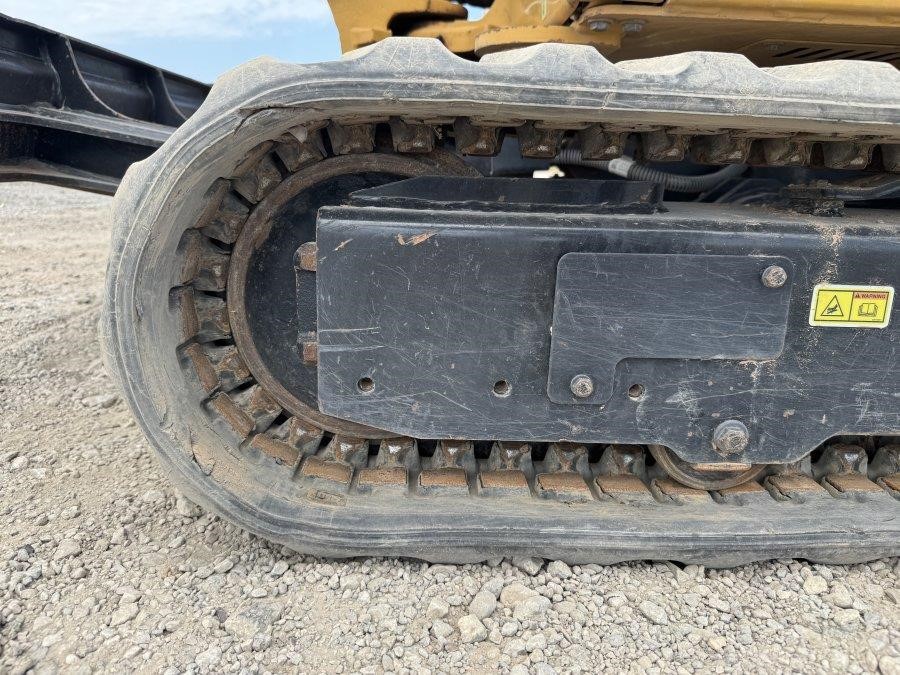

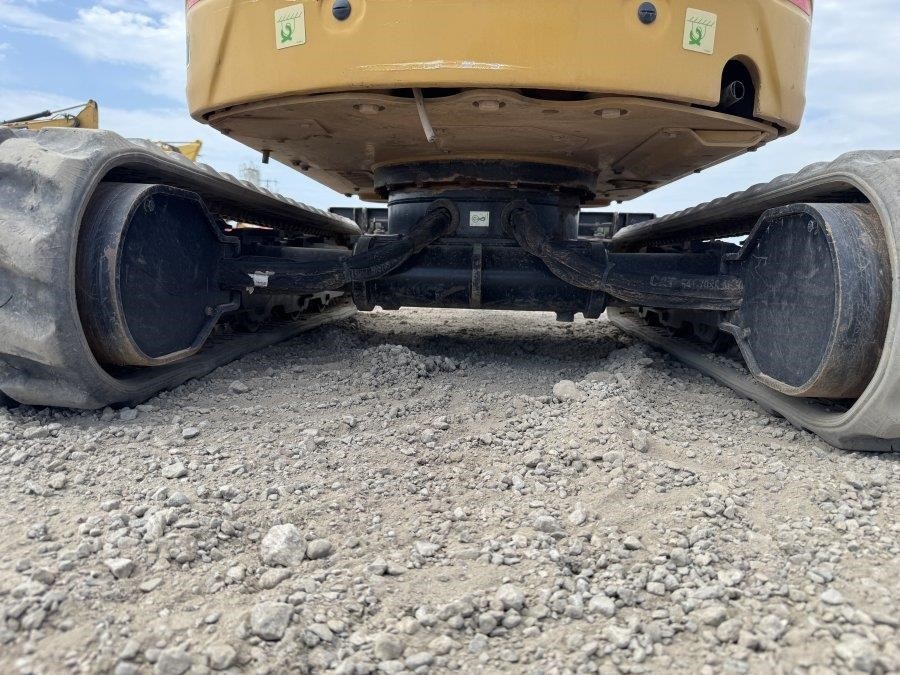

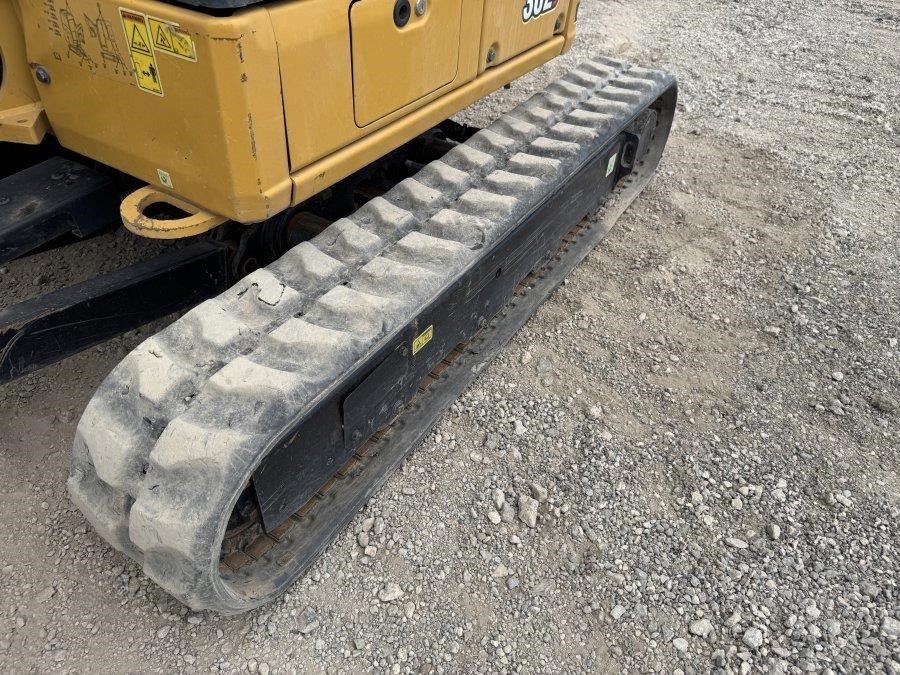

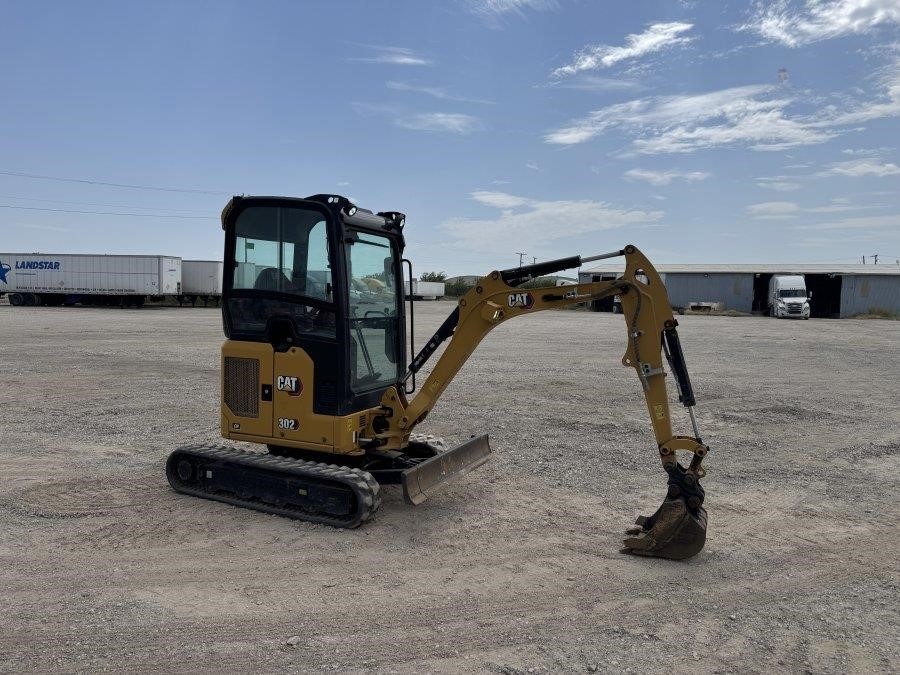

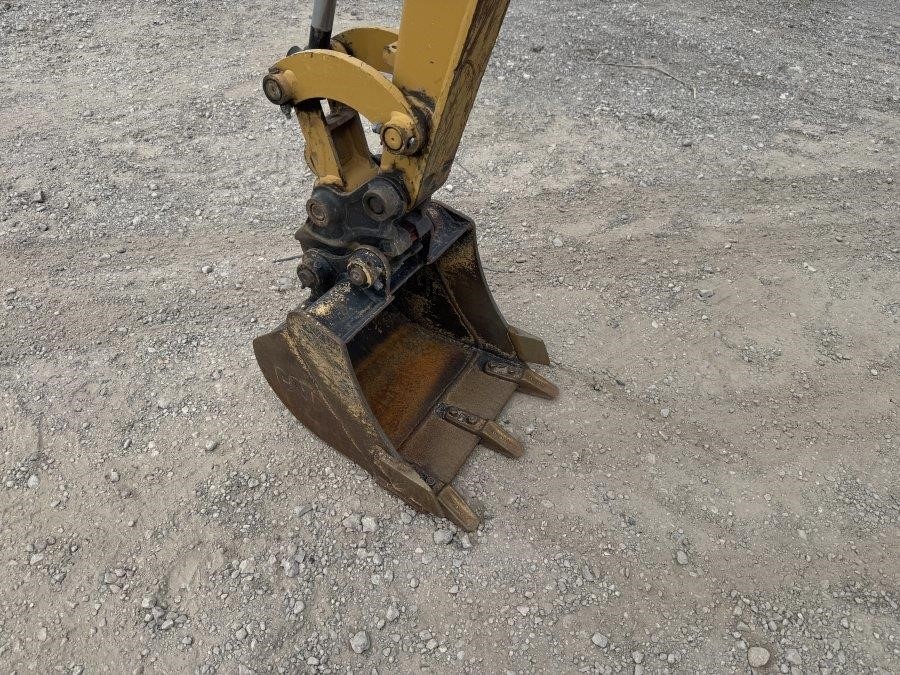

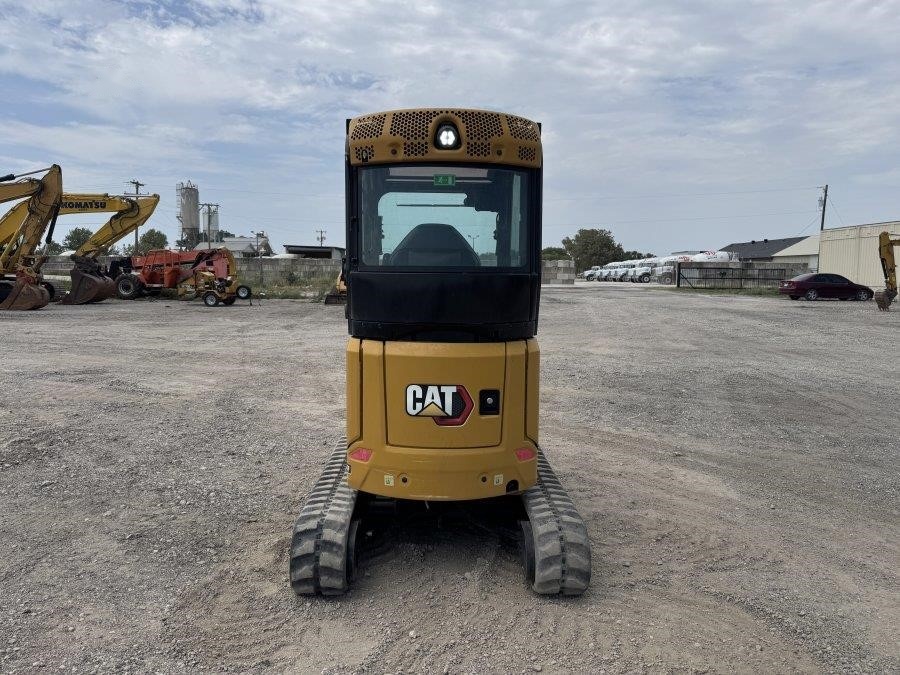

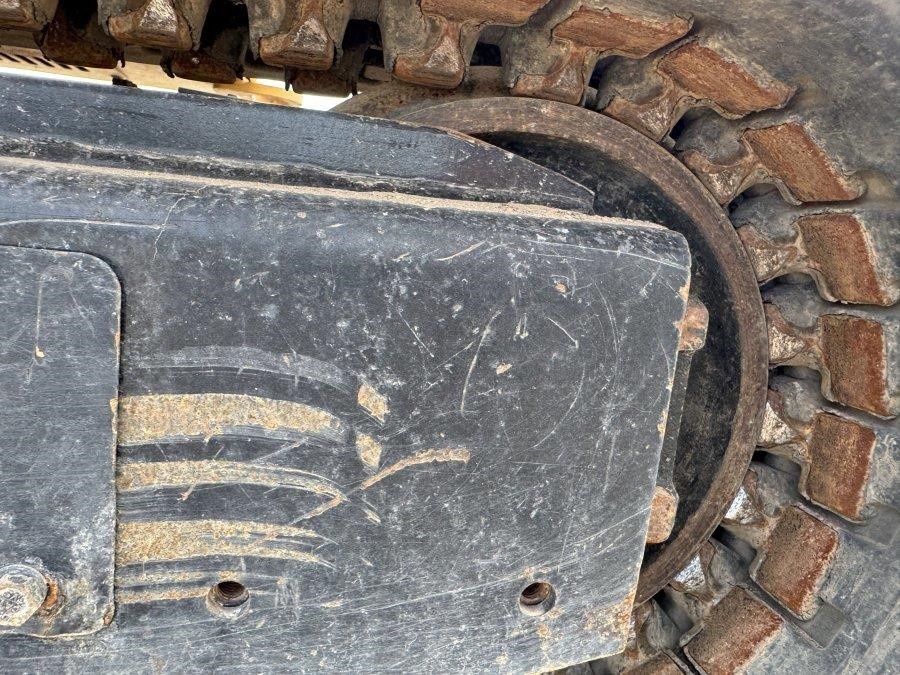

This 2023 Caterpillar 302CR excavator can dig trenches and work where access is limited. Its rubber tracks support site travel, while the tooth bucket, hydraulic coupler, and auxiliary hydraulics support digging and attachment work. Mileage and/or engine hours are approximate and subject to change. Please contact your sales representative for the most current readings.
Specifications
General
| Year | 2023 |
| Make | caterpillar |
| Model | 302CR |
| Hours | 1183 |
| Condition | Used |
| Roll Over Protective Structure (ROPS) | ISO 12117-2: 2008 |
| Tip Over Protective Structure (TOPS) | ISO 12117: 1997 |
| Top Guard | ISO 10262: 1998 (Level II) |
Engine & Powertrain

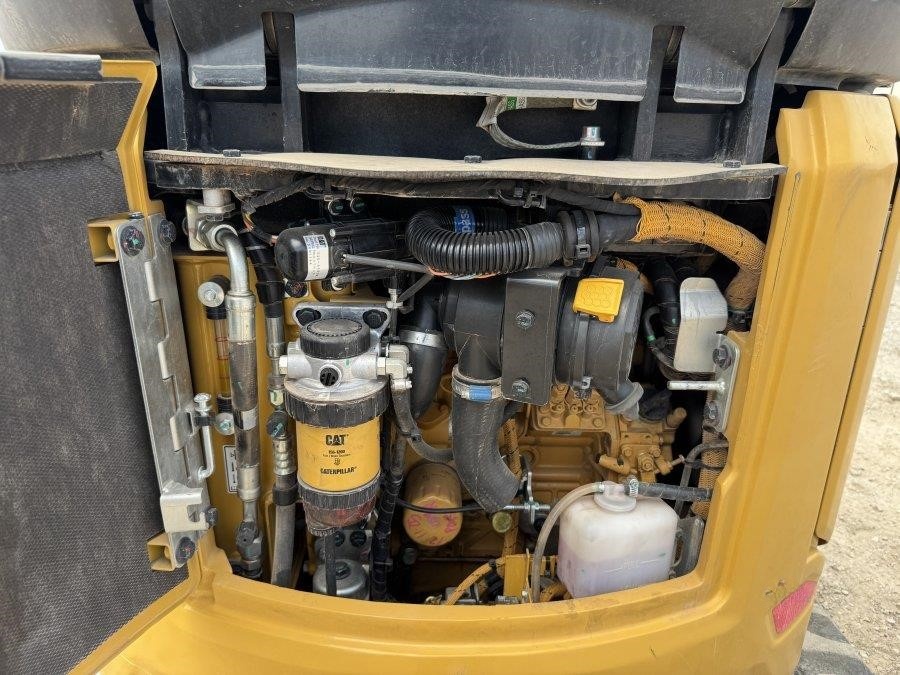

| Engine Model | C1.1 |
| Cooling System | 3.9 L / 1.0 gal |
| Engine Oil | 4.4 L / 1.2 gal |
| Fuel Tank | 26.0 L / 6.9 gal |
Working Range
| Travel Speed - High | 4.4 km/h / 2.7 mph |
| Travel Speed - Low | 2.9 km/h / 1.8 mph |
| Maximum Traction Force - High Speed | 13.2 kN / 2,967.5 lbf |
| Maximum Traction Force - Low Speed | 20.0 kN / 4,496.2 lbf |
| Gradeability (maximum) | 30 degrees |
| Hydraulic Tank | 18.0 L / 4.8 gal |
| Hydraulic System (refill) | 26.0 L / 6.9 gal |
| Pump Flow @ 2,400 rpm | 66 L/min / 17.4 gal/min |
| Operating Pressure - Equipment | 245 bar / 3,553.4 psi |
| Operating Pressure - Travel | 245 bar / 3,553.4 psi |
| Operating Pressure - Swing | 147 bar / 2,132.1 psi |
| Auxiliary Circuit - Primary, Flow | 33 L/min / 8.7 gal/min |
| Auxiliary Circuit - Primary, Pressure | 245 bar / 3,553.4 psi |
| Auxiliary Circuit - Secondary, Flow | 14 L/min / 3.7 gal/min |
| Auxiliary Circuit - Secondary, Pressure | 245 bar / 3,553.4 psi |
| Digging Force - Stick (standard) | 11.3 kN / 2,540.3 lbf |
| Digging Force - Stick (long) | 9.8 kN / 2,203.1 lbf |
| Digging Force - Bucket | 19.6 kN / 4,406.3 lbf |
| Machine Swing Speed | 9.8 rpm |
| Operator Sound Pressure (ISO 6396:2008) | 73 dB(A) |
| Average Exterior Sound Pressure (ISO 6395:2008) | 93 dB(A) |
Dimensions
| Weight Increase - Long Stick | 10 kg / 22 lb |
| Weight Increase - Steel Tracks | 60 kg / 132 lb |
| Ground Pressure - Minimum Weight | 23.7 kPa / 3.4 psi |
| Ground Pressure - Maximum Weight | 26.8 kPa / 3.9 psi |

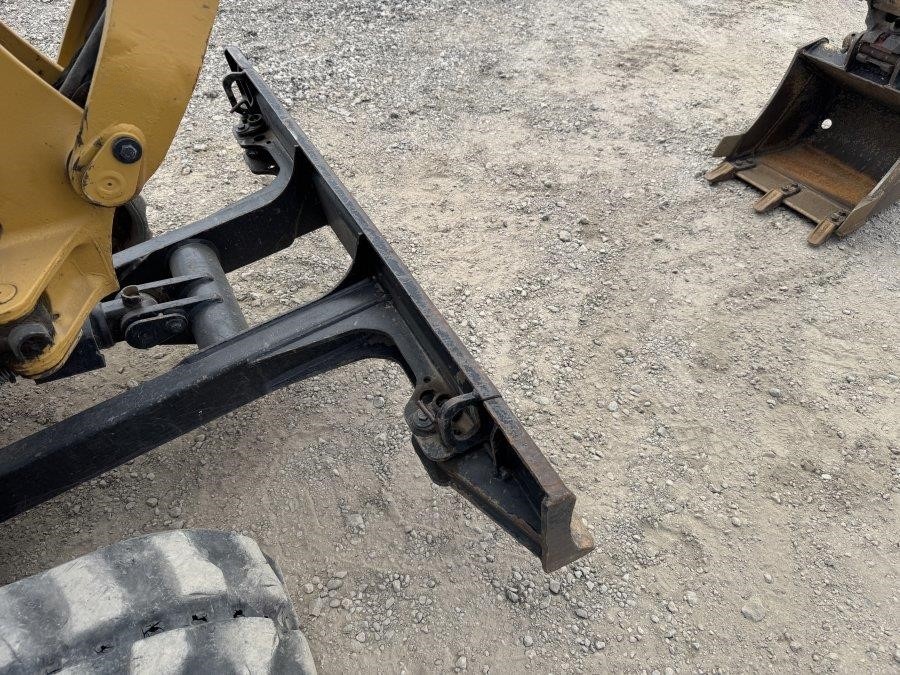

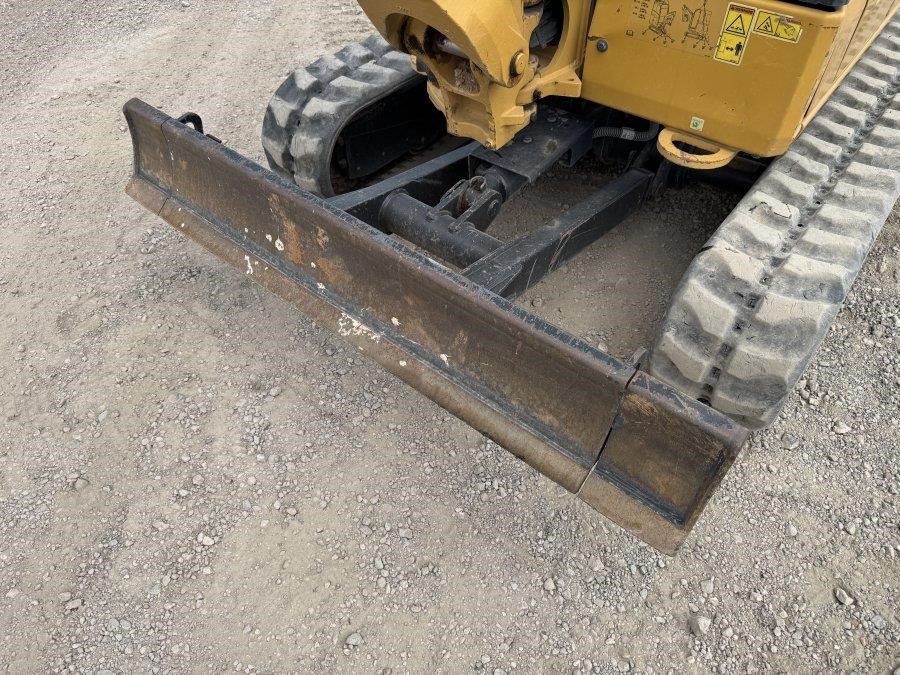

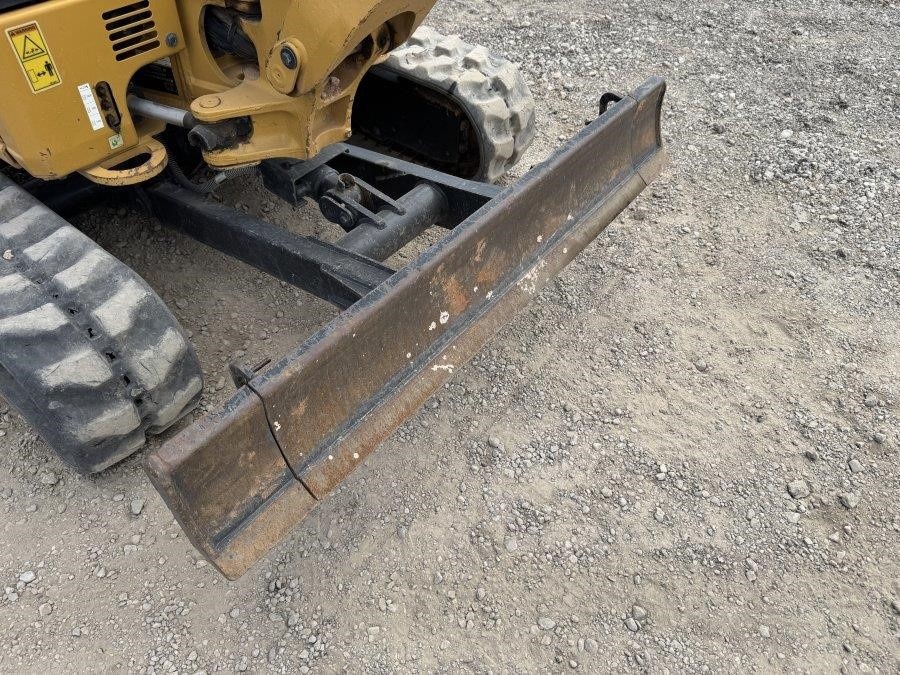

| Blade Width | 1090 mm / 42.9 in |
| Blade Height | 225 mm / 8.9 in |
