Item Specifications
Category
Condition
Used
Item Number
#1871
Make
caterpillar
Model
308 CR
Year
2023
Industry
construction
Equipment Type
excavators
Location
Ft. Worth, TX

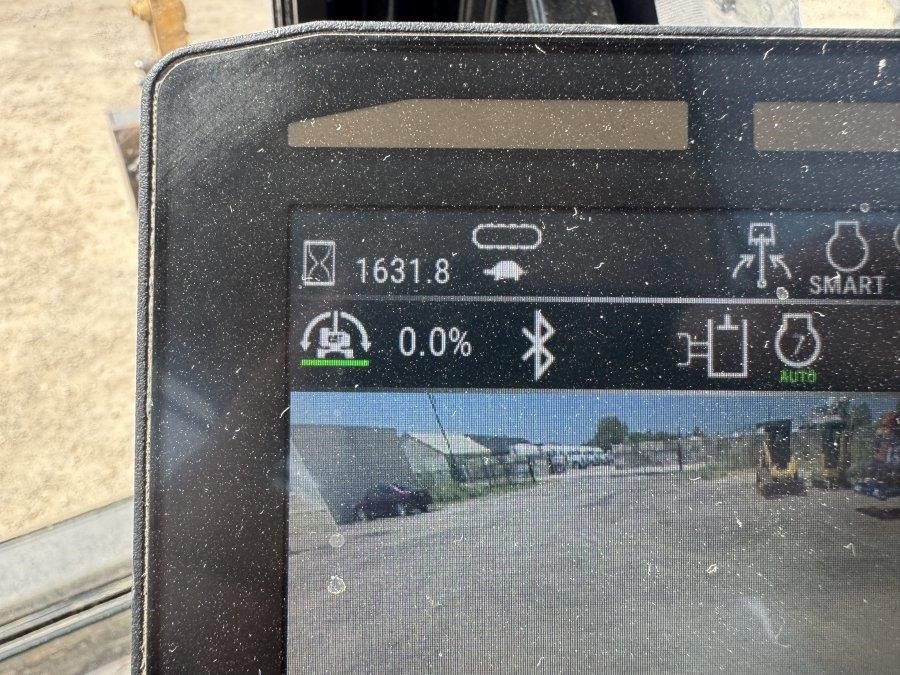

Hours
1631
Also Available In
TX
Item Description

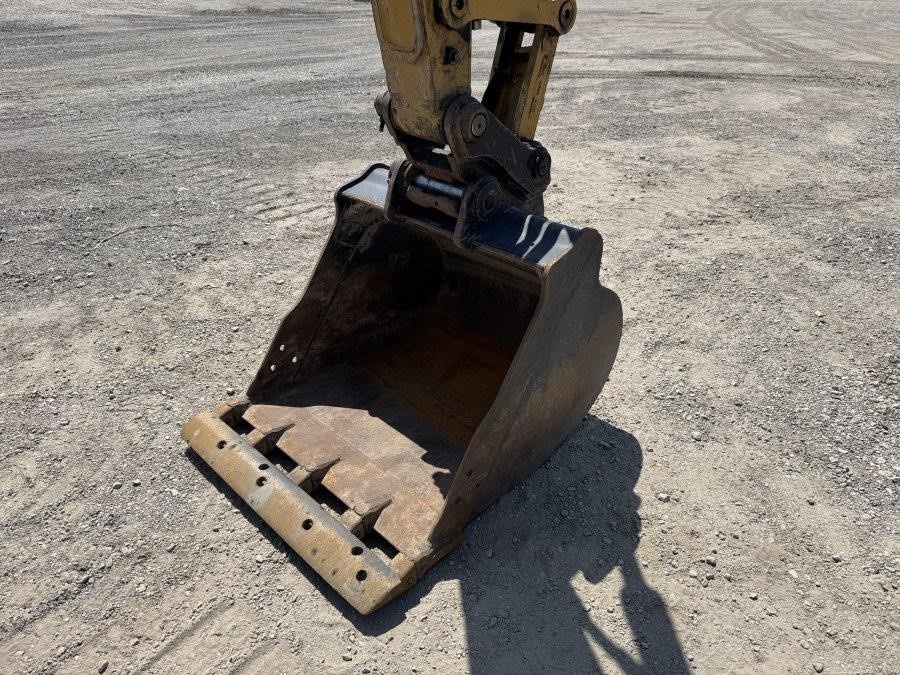

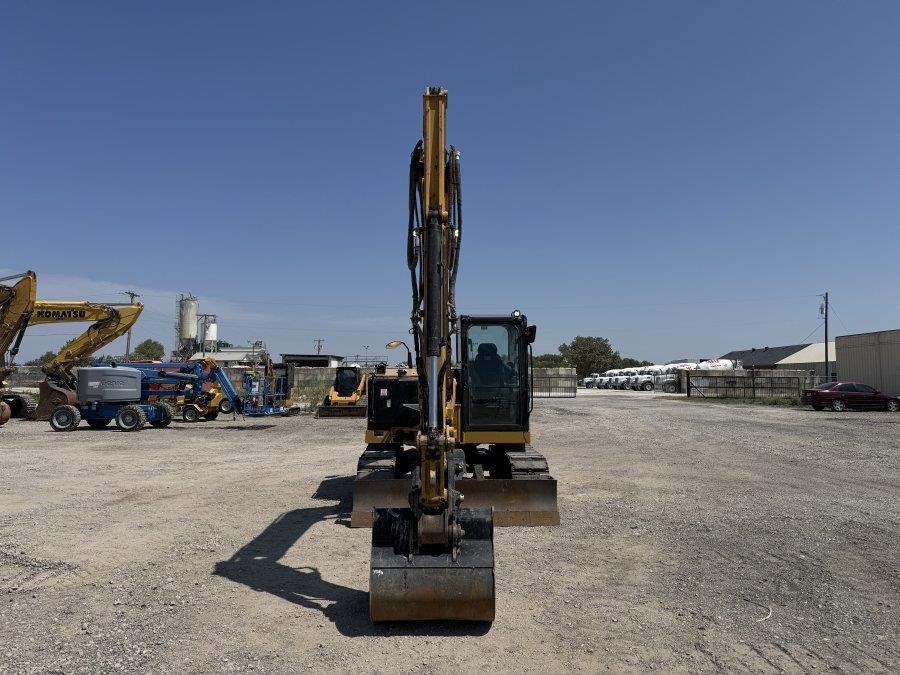

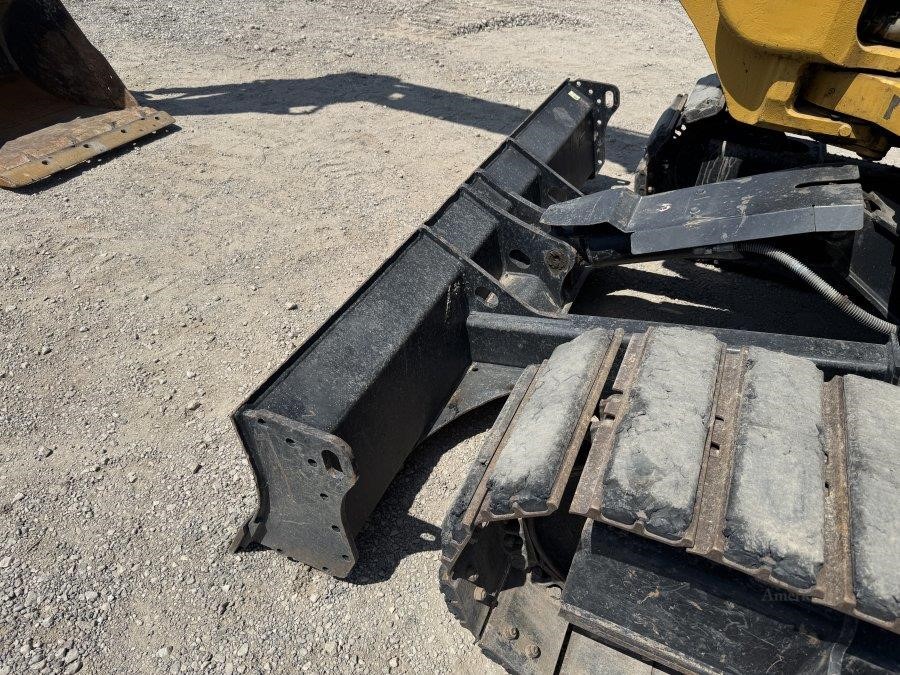

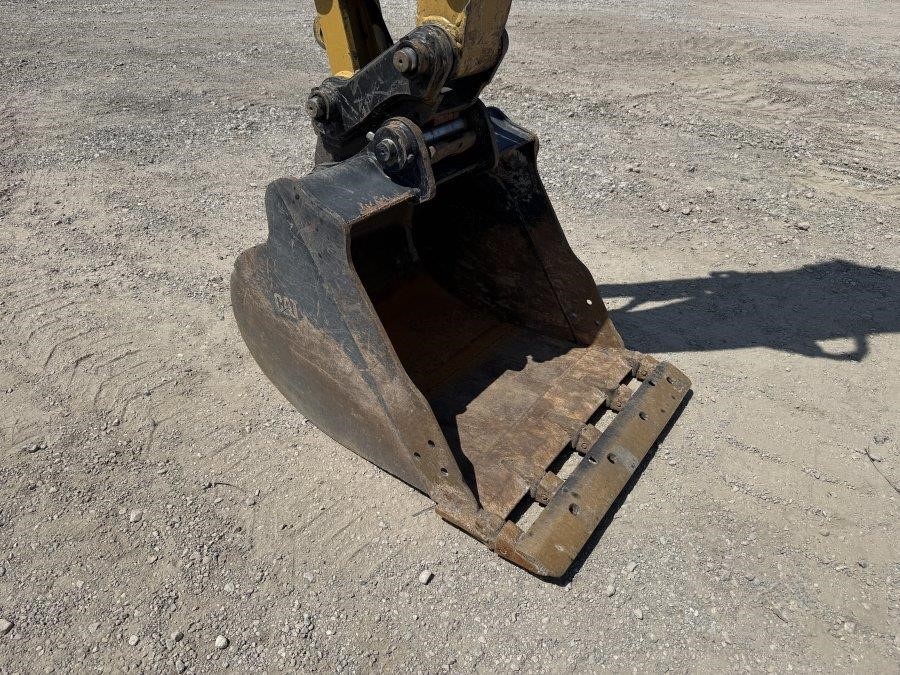

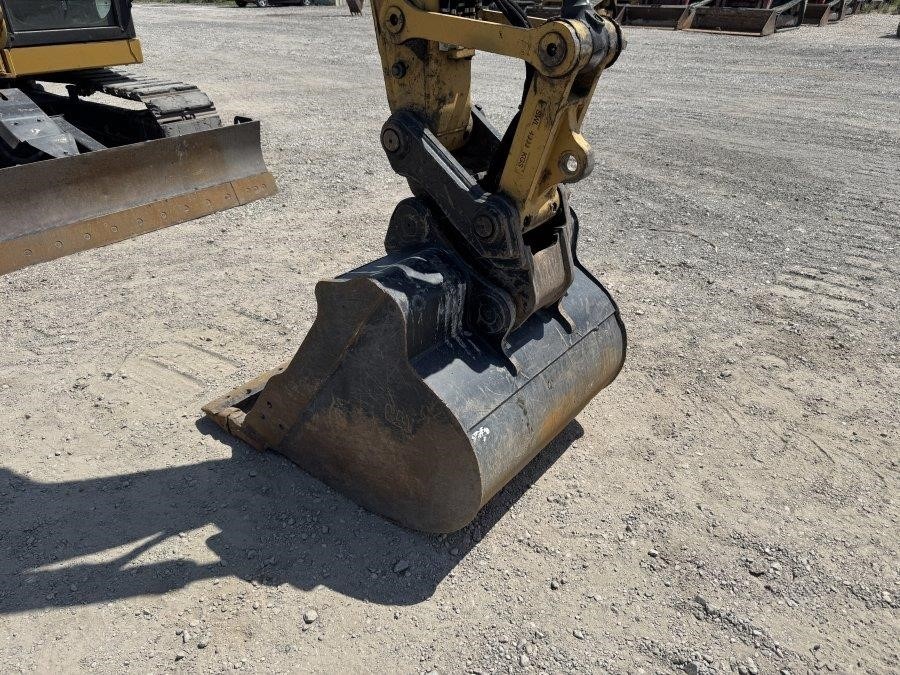

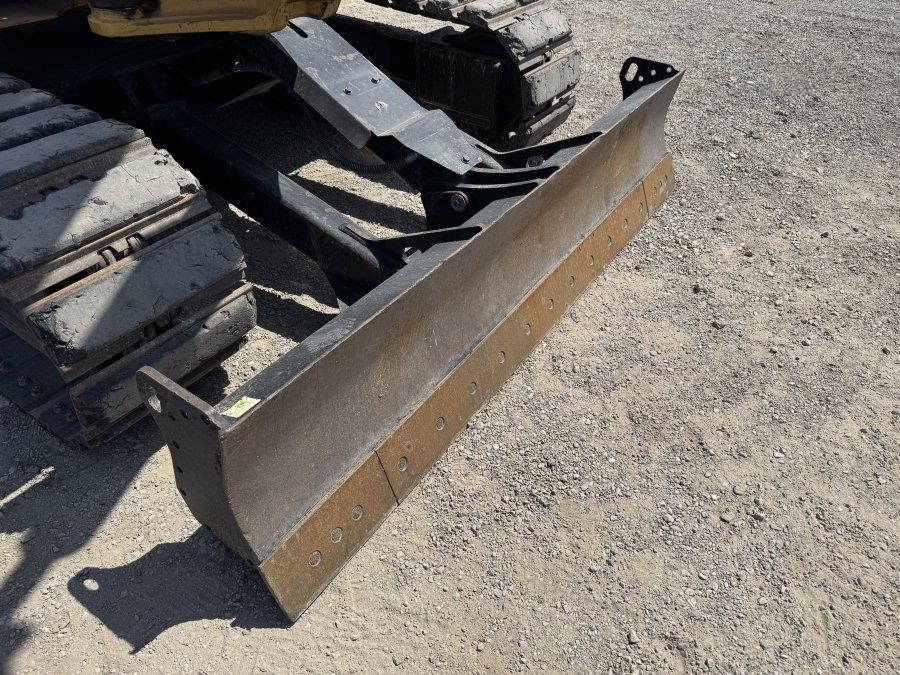

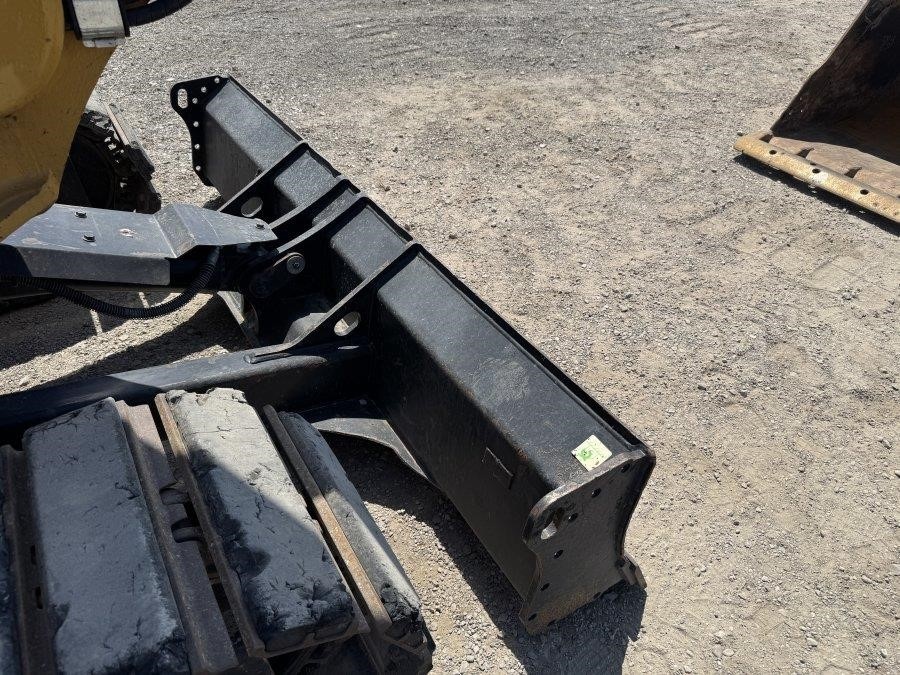

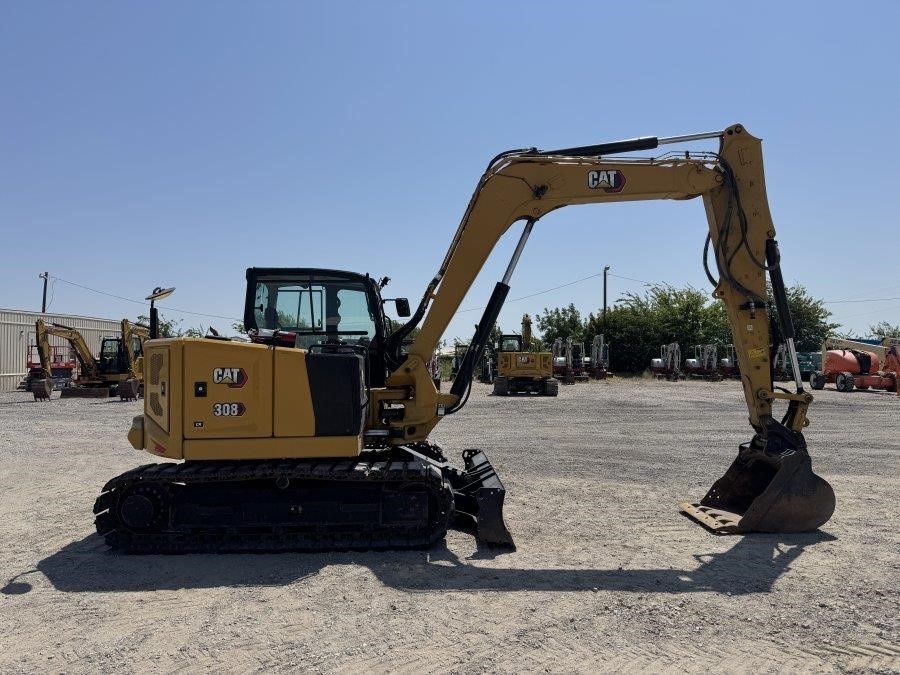

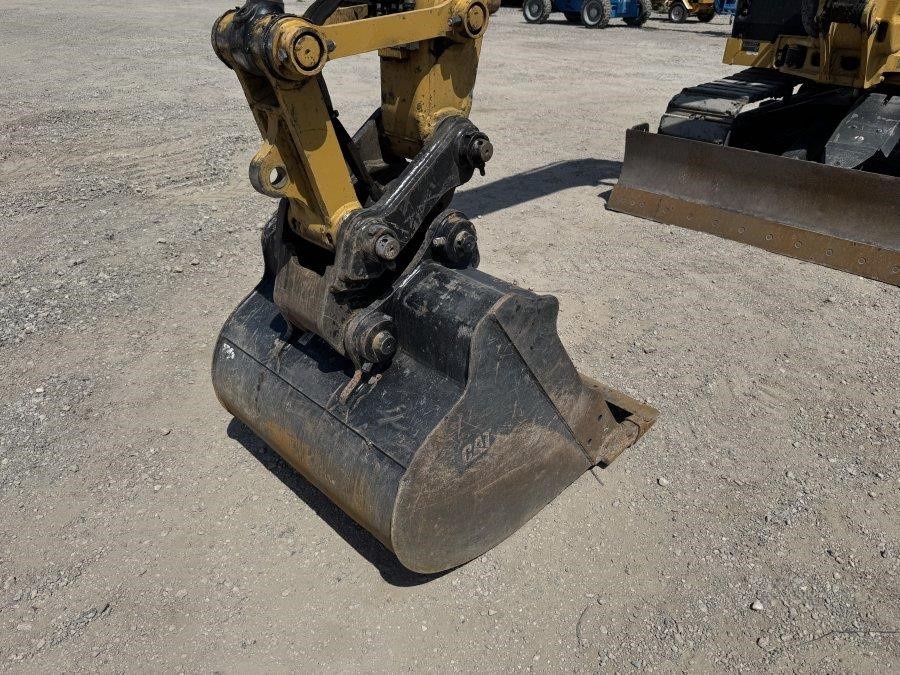

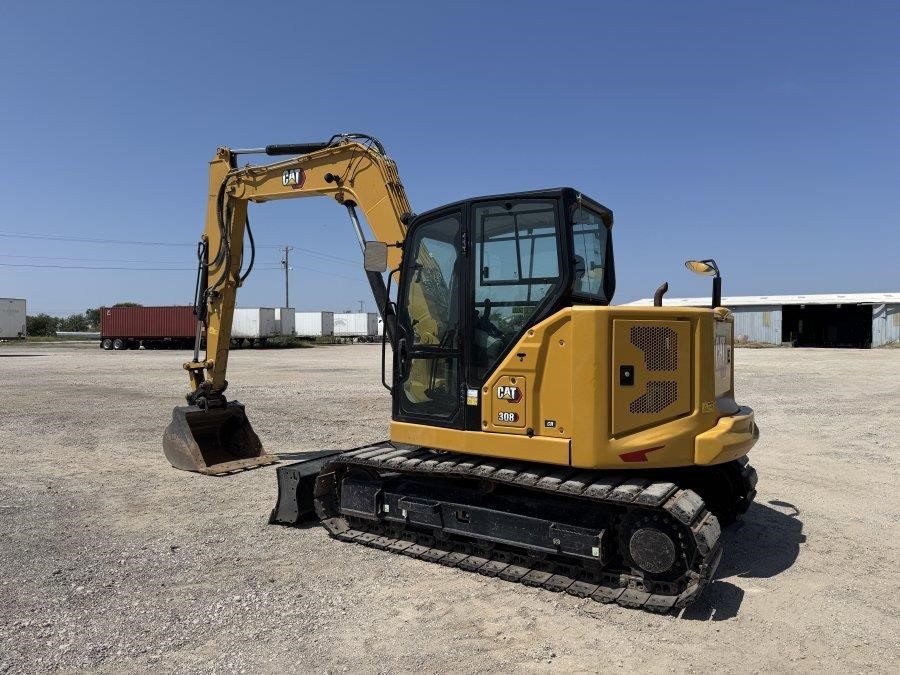

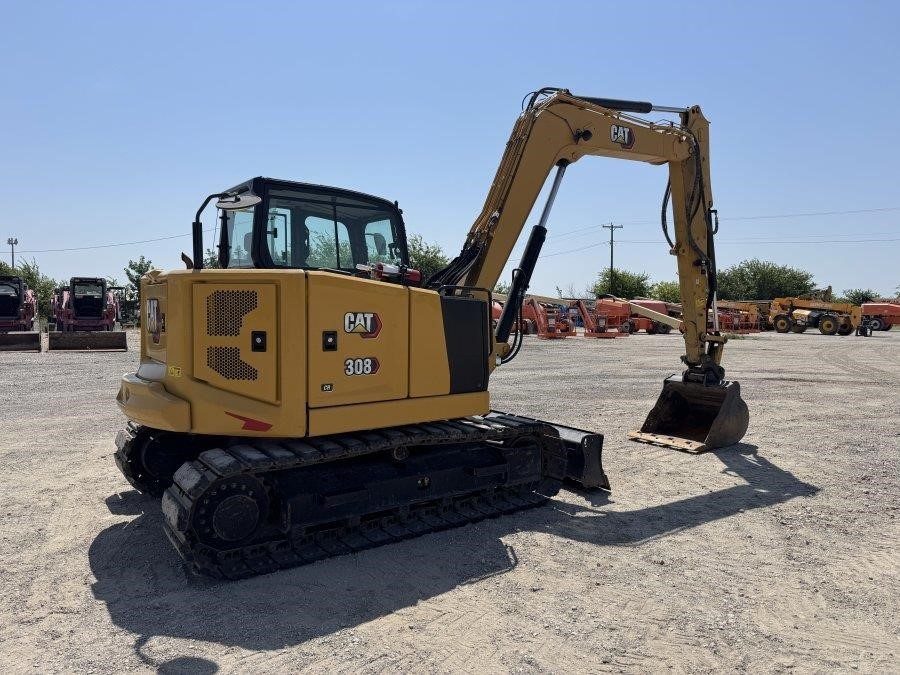

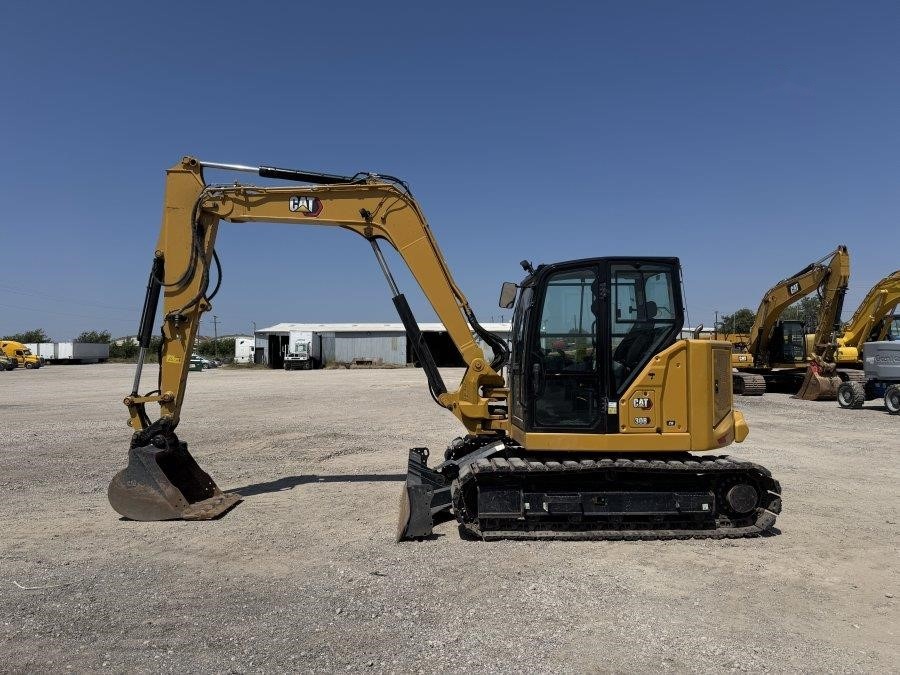

This 2023 Caterpillar 308 CR excavator handles trenching, digging, and backfilling. Its bucket and blade support excavation and cleanup, while the hydraulic coupler and auxiliary hydraulics support attachment work. Mileage and/or engine hours are approximate and subject to change. Please contact your sales representative for the most current readings.
Specifications
General
| Year | 2023 |
| Make | caterpillar |
| Model | 308 CR |
| Hours | 1631 |
| Condition | Used |
| Net Power (ISO 9249, 80/1269/EEC) | 51.8 kW / 69.5 hp |
| Bore | 94 mm / 3.7 in |
| Stroke | 120 mm / 4.7 in |
| Roll Over Protective Structure (ROPS) | ISO 12117-2:2008 |
| Top Guard | ISO 10262:1998 (Level I) |
Engine & Powertrain

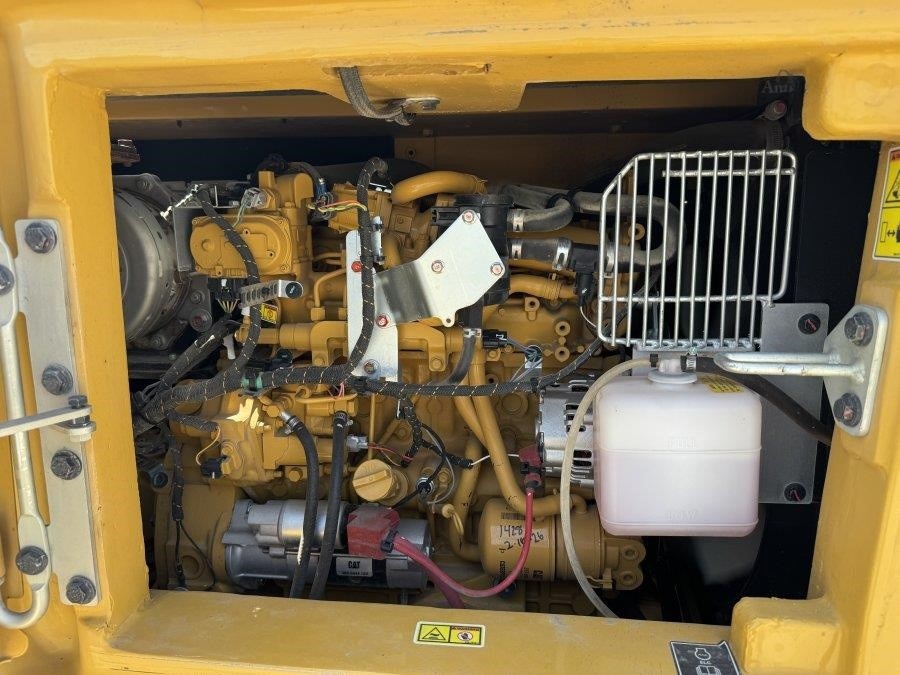

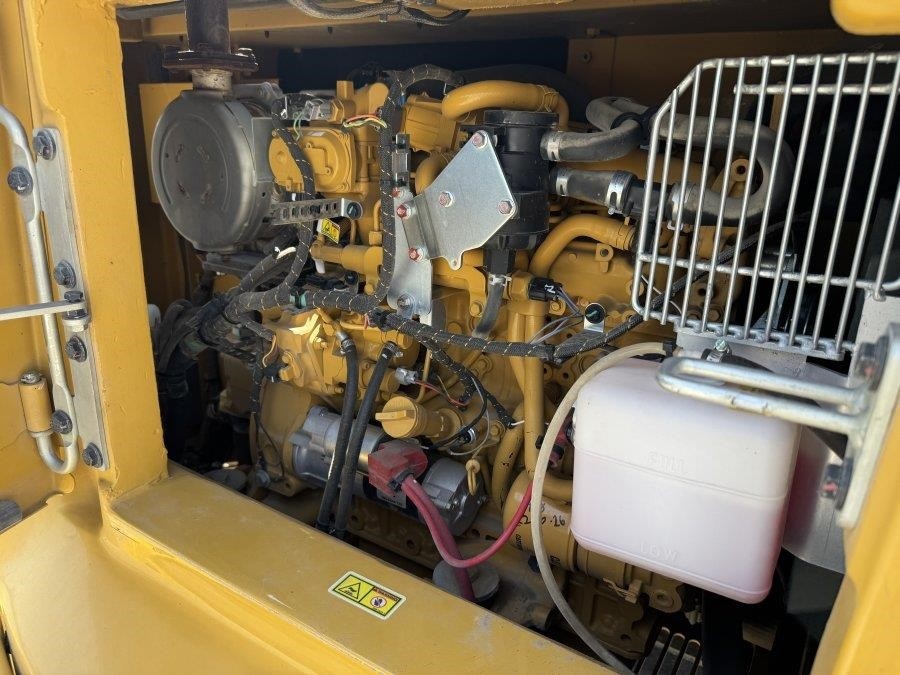

| Engine Model | Cat C3.3B |
| Engine Power (ISO 14396) | 55.4 kW / 74.3 hp |
| Displacement | 3.33 L / 203 in3 |
| Cooling System (refill) | 10.0 L / 2.6 gal |
| Engine Oil | 11.2 L / 3.0 gal |
| Fuel Tank | 147 L / 39 gal |
Working Range
| Travel Speed - High | 5.1 km/h / 3.2 mph |
| Travel Speed - Low | 3.1 km/h / 1.9 mph |
| Maximum Traction Force - High Speed | 27.8 kN / 6,250 lbf |
| Maximum Traction Force - Low Speed | 67.5 kN / 15,175 lbf |
| Gradeability (maximum) | 30 degrees |
| Pump Flow @ 2,400 rpm | 167 L/min / 44 gal/min |
| Operating Pressure - Equipment | 285 bar / 4,134 psi |
| Operating Pressure - Travel | 285 bar / 4,134 psi |
| Operating Pressure - Swing | 250 bar / 3,626 psi |
| Maximum Auxiliary Circuit - Primary, Flow at Pump | 131 L/min / 35 gal/min |
| Maximum Auxiliary Circuit - Primary, Pressure at Pump | 285 bar / 4,134 psi |
| Maximum Auxiliary Circuit - Secondary, Flow at Pump | 33 L/min / 9 gal/min |
| Maximum Auxiliary Circuit - Secondary, Pressure at Pump | 285 bar / 4,134 psi |
| Digging Force - Stick (Standard) | 42.3 kN / 9,509 lbf |
| Digging Force - Stick (Long) | 35.7 kN / 8,032 lbf |
| Digging Force - Bucket | 62.0 kN / 13,946 lbf |
| Machine Swing Speed | 10.6 rpm |
| Hydraulic Tank | 53 L / 14 gal |
| Hydraulic System (refill) | 110 L / 29 gal |

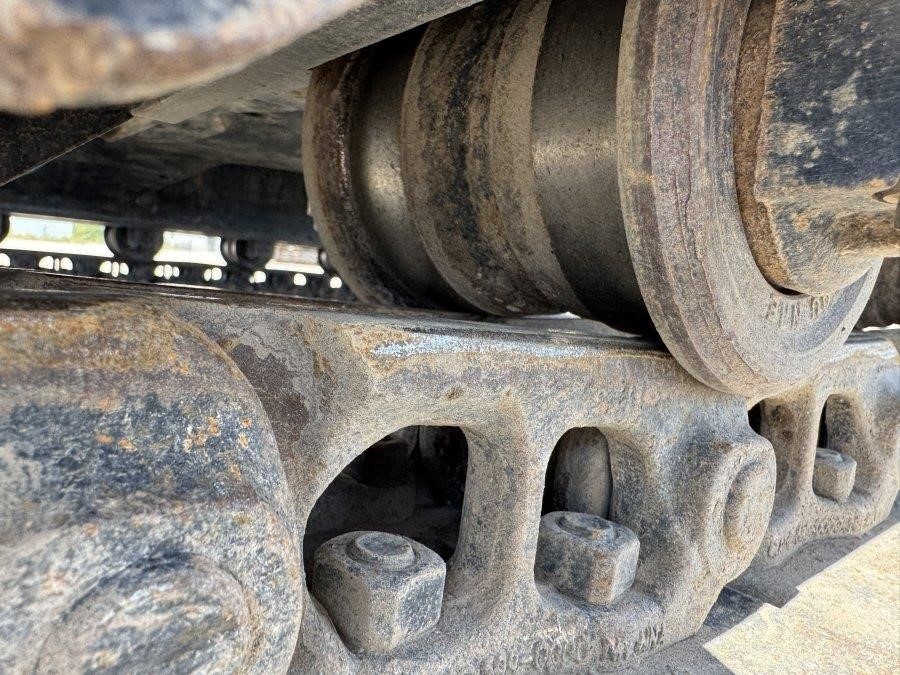

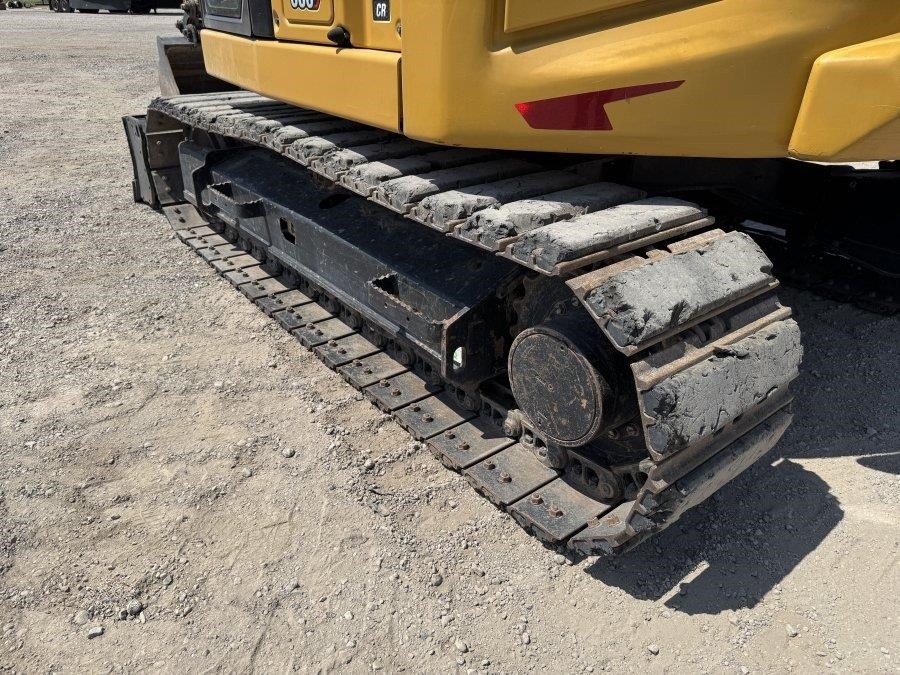

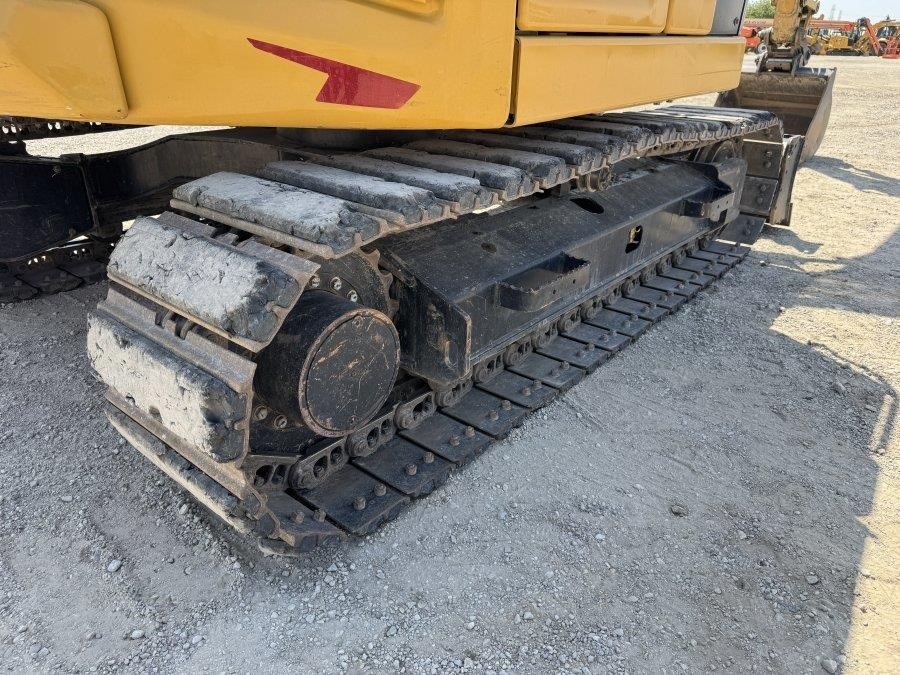

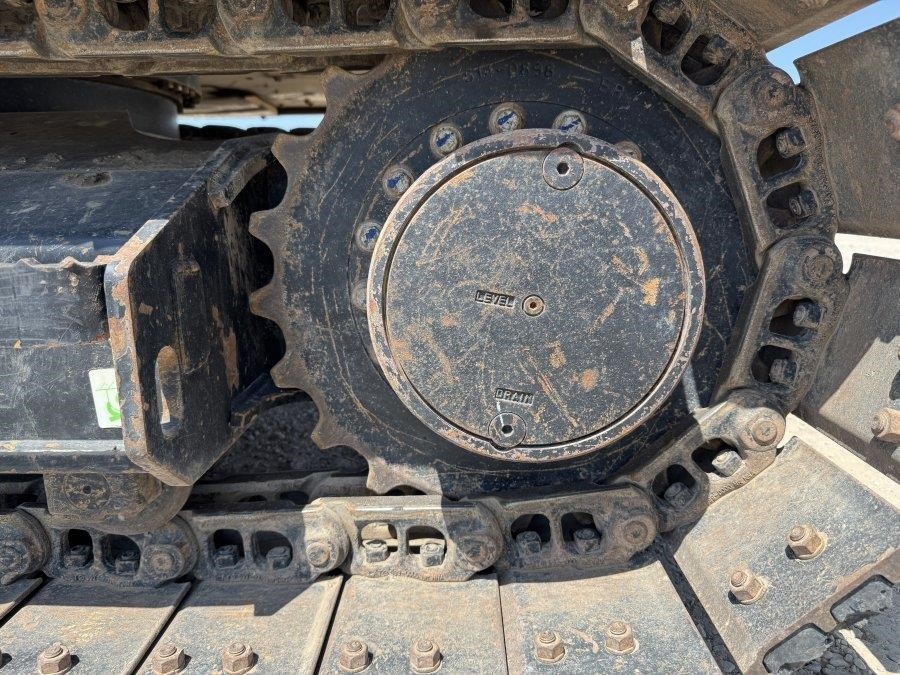

Undercarriage & Attachments
| Boom Swing - Left | 60 degrees |
| Boom Swing - Right | 50 degrees |
Dimensions
| Minimum Operating Weight with Cab | 8440 kg / 18,610 lb |
| Maximum Operating Weight with Cab | 9355 kg / 20,628 lb |
| Weight Increase - Counterweight | 250 kg / 551 lb |
| Weight Increase - Counterweight (3) | 500 kg / 1,103 lb |
| Weight Increase - Long Stick | 66 kg / 146 lb |
| Weight Increase - Steel Tracks with Pads | 341 kg / 752 lb |
| Ground Pressure - Minimum Weight | 36.9 kPa / 5.4 psi |
| Ground Pressure - Maximum Weight | 40.9 kPa / 5.9 psi |

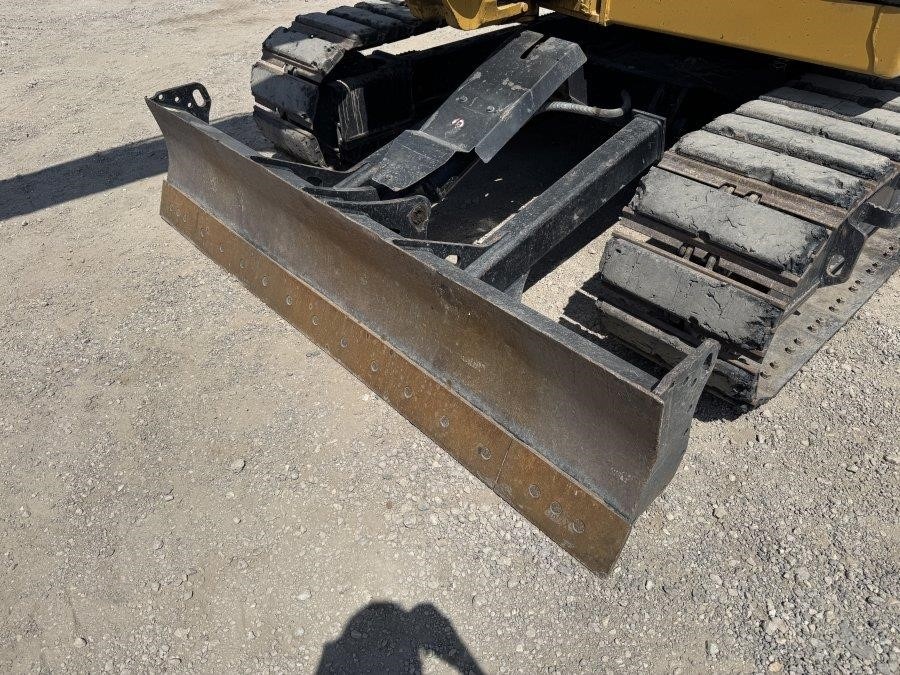

| Blade Width (Standard) | 2300 mm / 90.6 in |
| Blade Width (Wide) | 2450 mm / 96.5 in |
| Blade Height | 431 mm / 17 in |

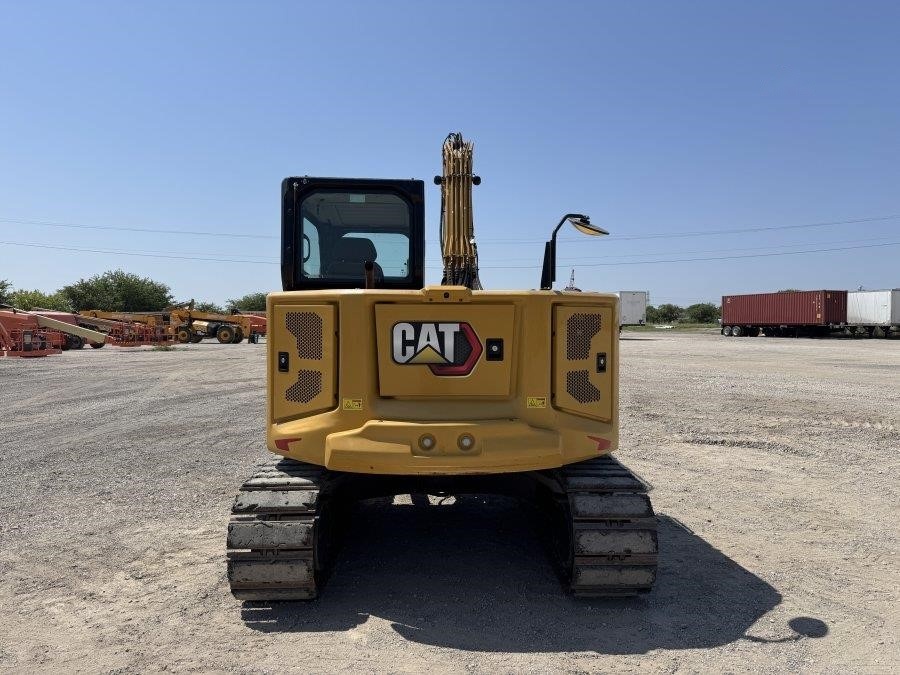

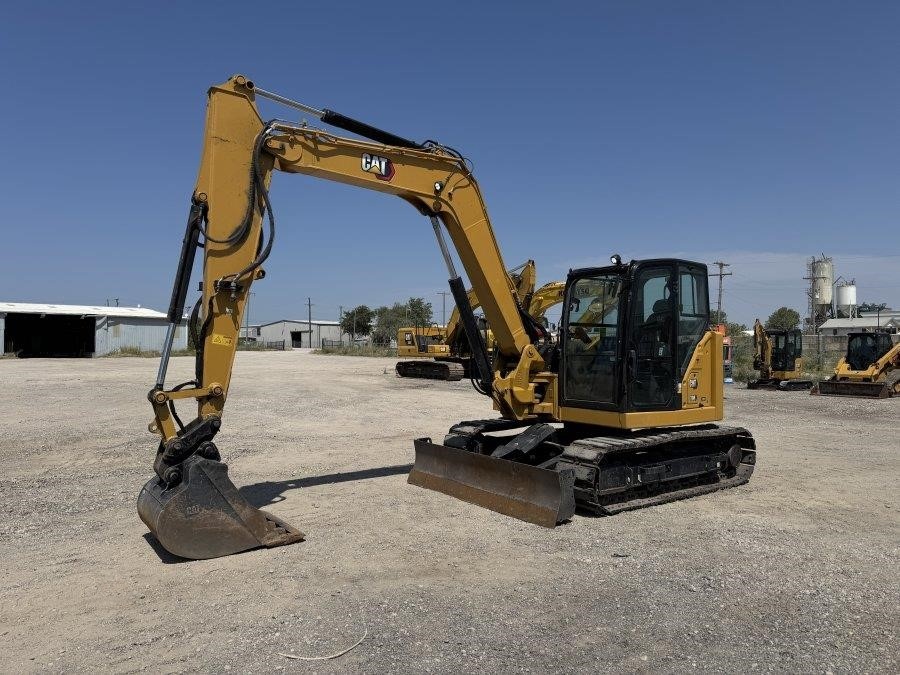

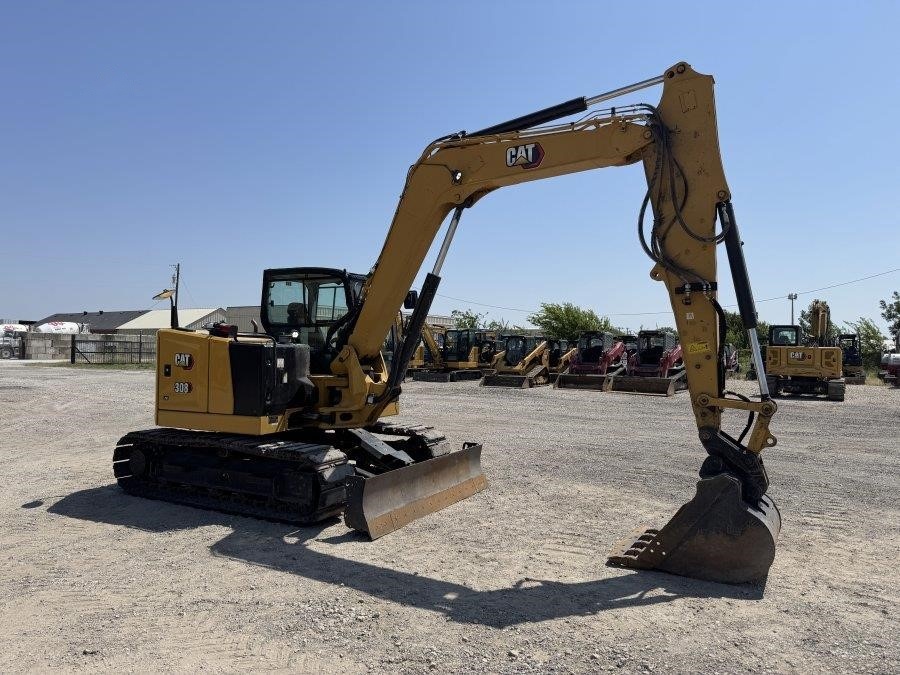

2023 Caterpillar 308 CR Hydraulic Excavator
BUY NOW OR MAKE OFFERAvailable
Listing Price
BUY NOW OR MAKE OFFER
$81,500.00
Plus Buyer Fee ($8,150.00)
est. $1,350.69/mo
GET FINANCING
