Item Specifications
Category
Condition
Used
Item Number
#1870
Make
caterpillar
Model
910
Year
2023
Industry
construction
Equipment Type
wheel loaders
Location
Ft. Worth, TX
Also Available In
TX
Item Description

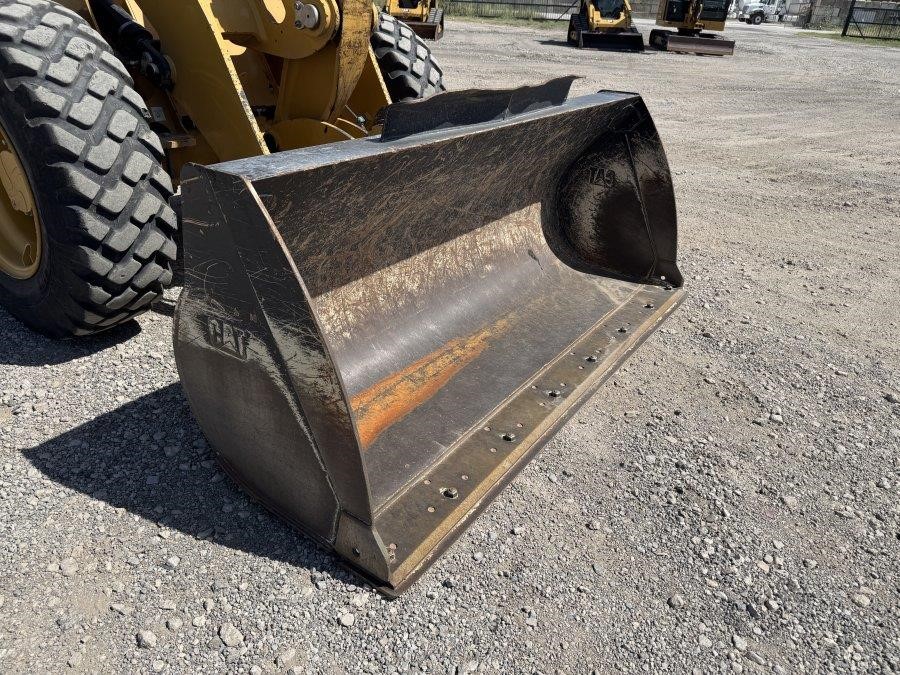

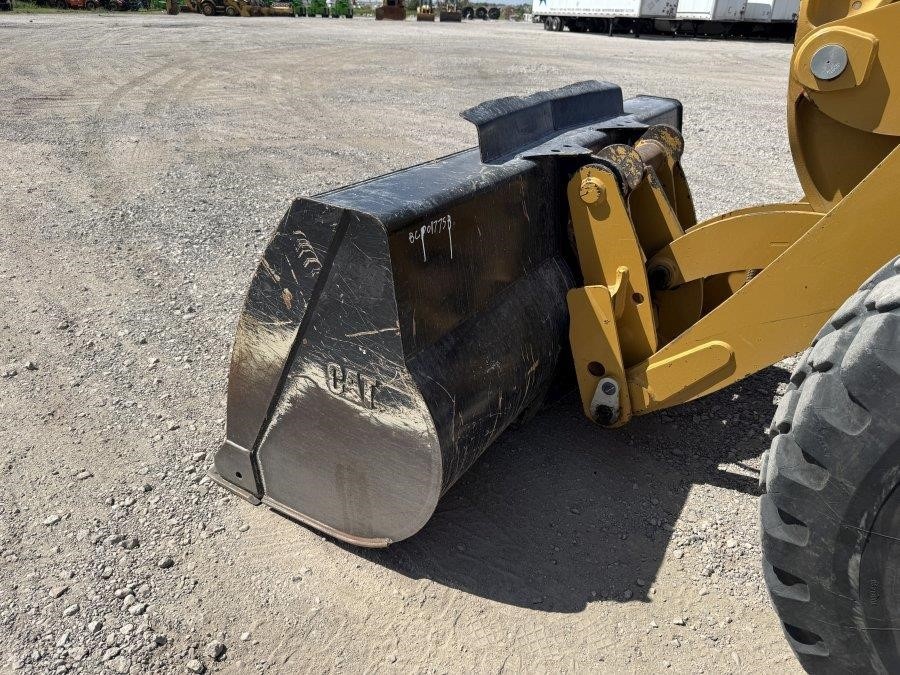

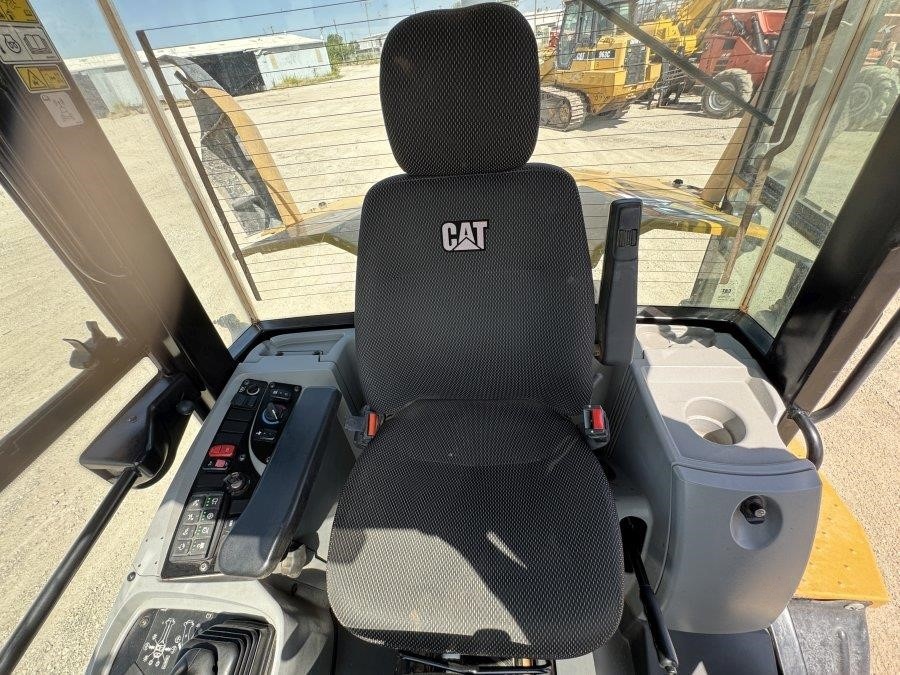

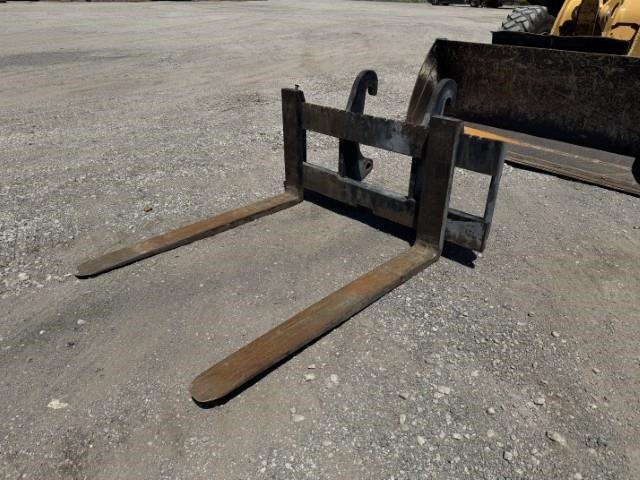

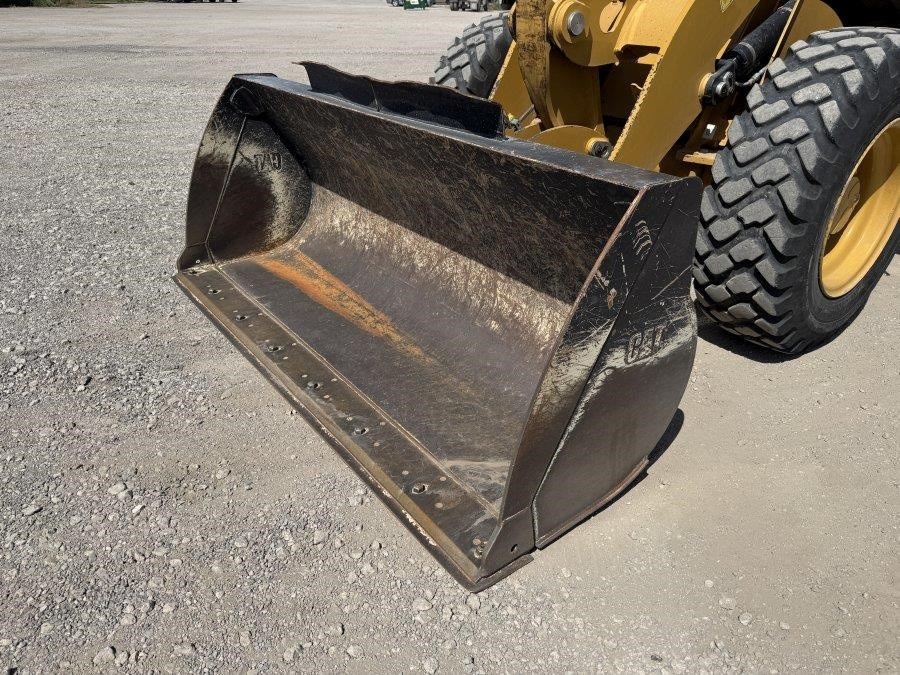

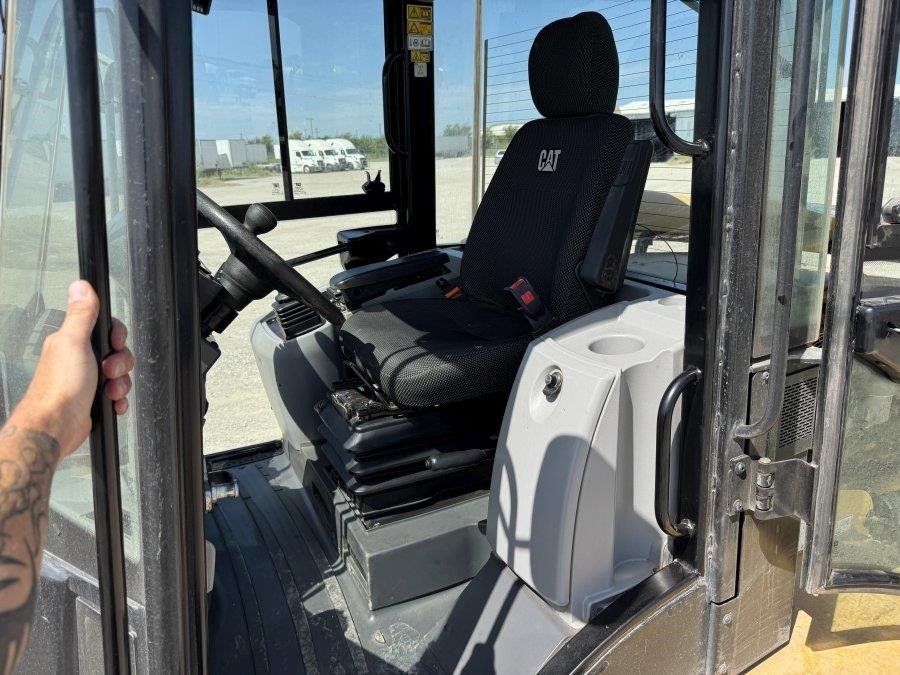

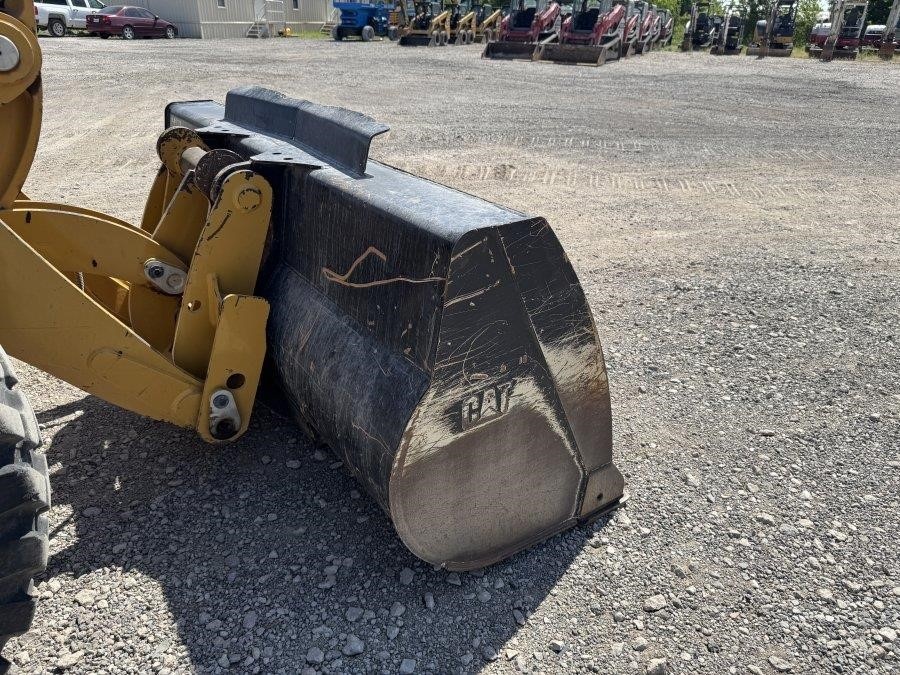

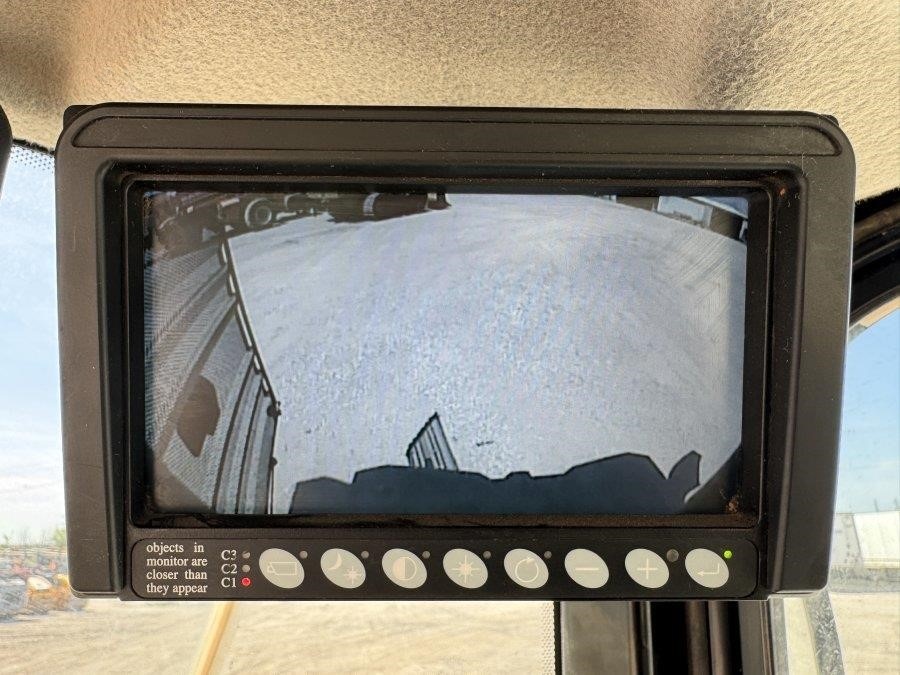

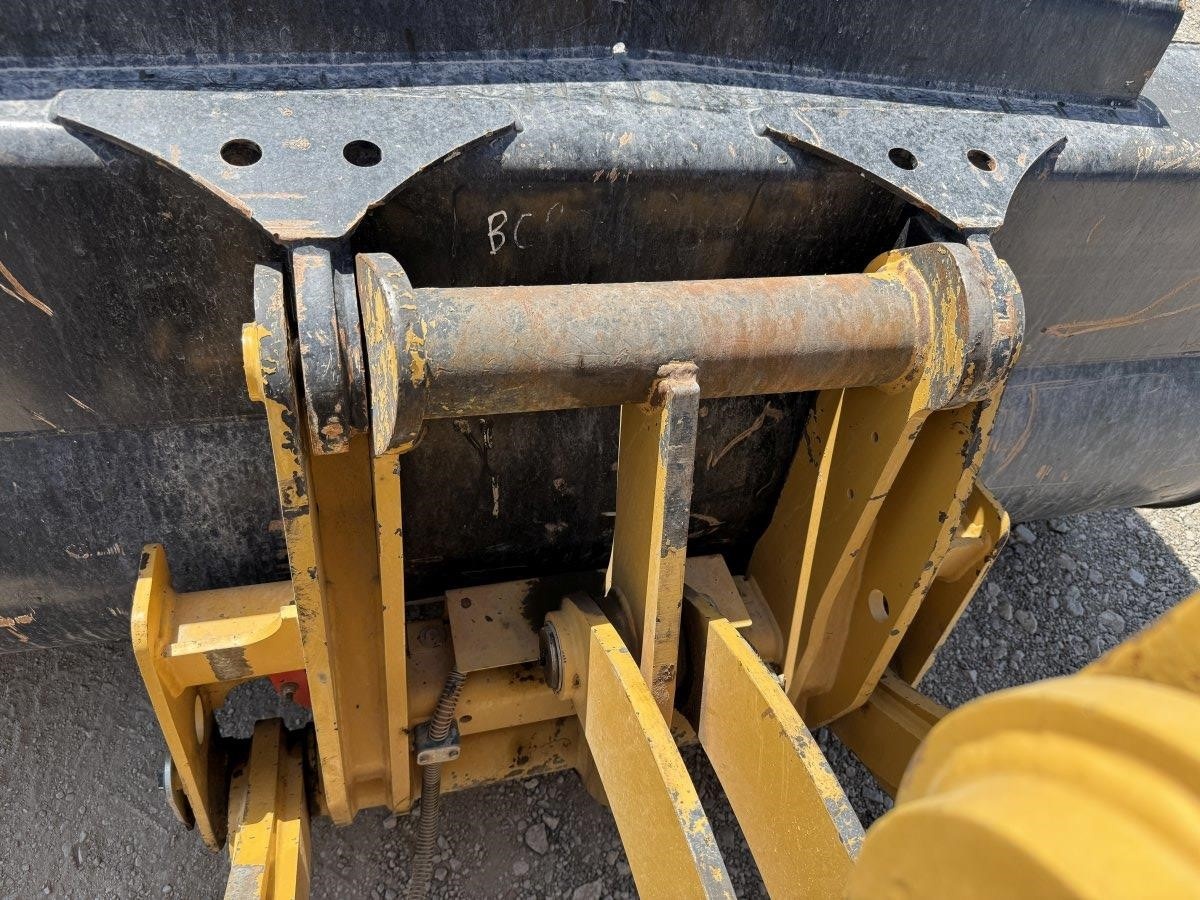

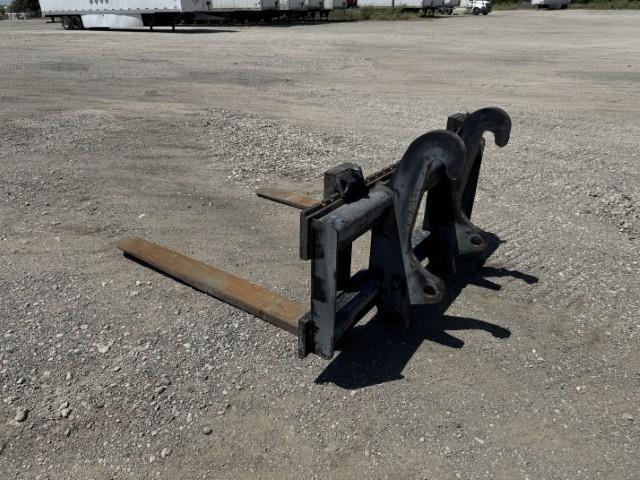

EROPS, A/C, Heat, 4WD, Hydraulic Coupler, Ride Control, Traction Control, Backup Camera, 15.5 R25 Tires, 94" Bucket, 60" Forks. 4YR/3000HR warranty (PWT-HYD-TECH) until 9/6/2027.
Specifications
General
| Year | 2023 |
| Make | caterpillar |
| Model | 910 |

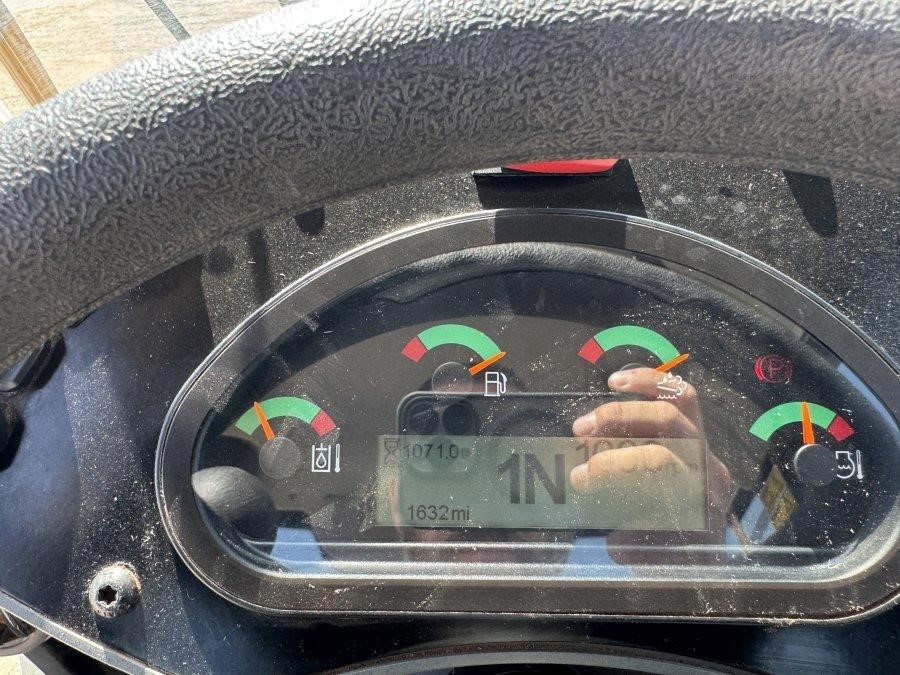

| Hours | 1071 |
| Condition | Used |
| Maximum Gross Power - SAE J1995 | 83 kW |
| Maximum Gross Power - SAE J1995 (1) | 111 hp |
| Maximum Gross Power - ISO 14396 | 82 kW |
| Maximum Gross Power - ISO 14396 (3) | 110 hp |
| Maximum Gross Power - ISO 14396 (DIN) | 82 kW |
| Maximum Gross Power - ISO 14396 (DIN) (5) | 111 hp |
| Rated Net Power - SAE J1349 | 74 kW |
| Rated Net Power - SAE J1349 (7) | 99 hp |
| Rated Net Power - ISO 9249 | 73 kW |
| Rated Net Power - ISO 9249 (9) | 98 hp |
| Rated Net Power - ISO 9249 (DIN) | 73 kW |
| Rated Net Power - ISO 9249 (DIN) (11) | 99 hp |
| Bore | 98 mm |
| Bore (13) | 3.86 in |
| Stroke | 120 mm |
| Stroke (15) | 4.72 in |
| Steering Articulation Angle (each direction) | 40 degrees |
| Steering Cycle Times (full left to full right) | 3.2 seconds |
| Number of Steering Wheel Turns - full left to full right or full right to full left | 3.75 turns |
| ROPS | ISO 3471:2008 |
| FOPS | EN ISO 3449:2008 (ISO 3449:2005) |
| Labelled sound power level, CE marked (2000/14/EC as amended by 2005/88/EC) | 103 dB(A) |
Engine & Powertrain

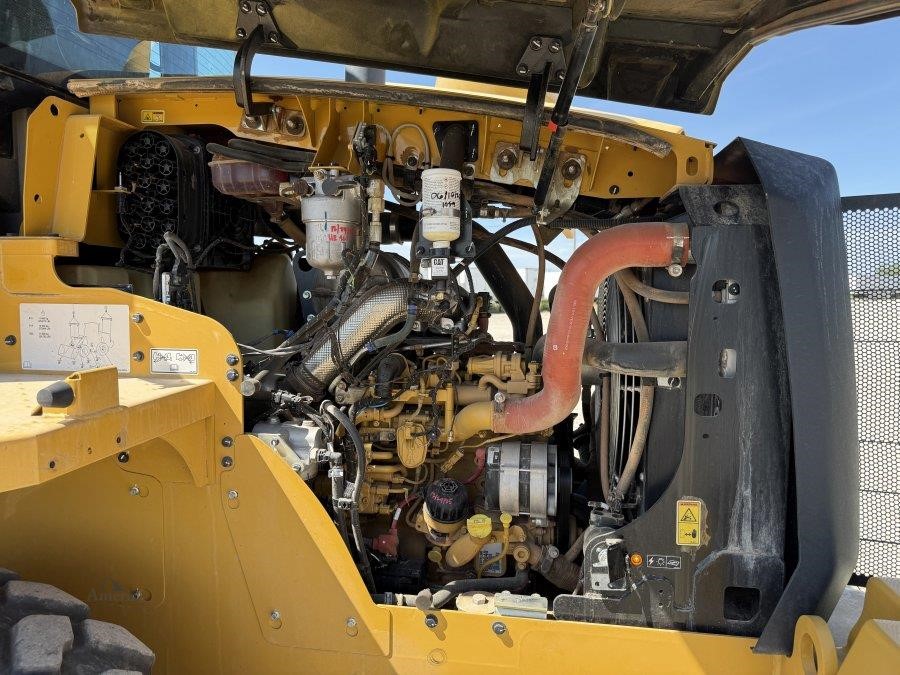

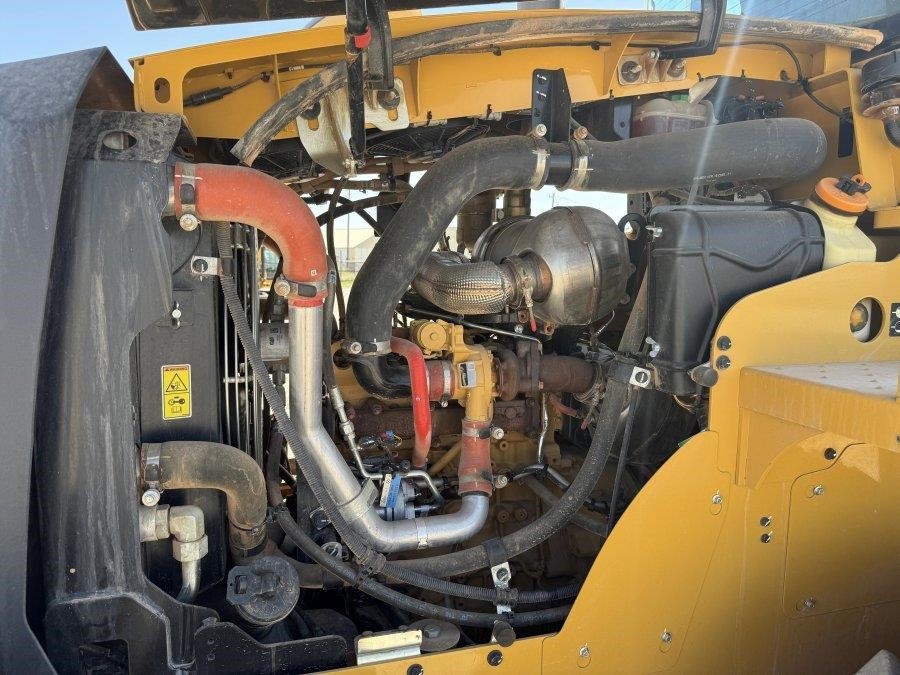

| Engine Model | Cat C3.6 |
| Maximum Engine Speed | 2,350 RPM |
| Rated Engine Speed | 2,200 RPM |
| Displacement | 3.6 L |
| Displacement (4) | 220 in3 |
| Maximum Gross Torque - SAE J1995 | 454 N·m 335 lbf-ft |
| Maximum Gross Torque - ISO 14396 | 450 N·m 332 lbf-ft |
| Maximum Net Torque - SAE J1349 | 446 N·m 329 lbf-ft |
| Maximum Net Torque - ISO 9249 | 443 N·m 327 lbf-ft |
| Axles - Front | Fixed |
| Axles - Front (10) | Locking differential (standard) |
| Axles - Rear | 11 degrees |
| Axles - Rear (12) | , L |
Working Range
| Maximum Flow - Steering Pump | 66 L/min |
| Maximum Flow - Steering Pump (1) | 17 gal/min |
| Maximum Working Pressure - Steering Pump | 500 kPa |
| Maximum Working Pressure - Steering Pump (3) | 2,683 psi |
| Maximum Flow - Implement Pump | 122 L/min |
| Maximum Flow - Implement Pump (5) | 32 gal/min |
| 3rd Function, Maximum Flow | 90 L/min |
| 3rd Function, Maximum Flow (7) | 24 gal/min |
| 4th Function, Maximum Flow | 90 L/min |
| 4th Function, Maximum Flow (9) | 24 gal/min |
| Maximum Working Pressure - Implement Pump | 500 kPa |
| Maximum Working Pressure - Implement Pump (11) | 3,408 psi |
| Relief Pressure - Tilt Cylinder | 000 kPa |
| Relief Pressure - Tilt Cylinder (13) | 4,931 psi |
| 3rd Function Maximum Working Pressure | 000 kPa |
| 3rd Function Maximum Working Pressure (15) | 3,046 psi |
| 4th Function Maximum Working Pressure | 000 kPa |
| 4th Function Maximum Working Pressure (17) | 3,046 psi |
| Hydraulic Cycle Times - Raise (ground level to maximum lift) | 5.2 seconds |
| Hydraulic Cycle Times - Dump (at maximum reach) | 1.4 seconds |
| Hydraulic Cycle Times - Rack Back | 2.2 seconds |
| Hydraulic Cycle Times - Float Down (maximum lift to ground level) | 3.7 seconds |
| Hydraulic Cycle Times - Total Cycle Time | 12.5 seconds |
| Service Refill Capacities - Fuel Tank | 165 L |
| Service Refill Capacities - Fuel Tank (24) | 43.6 gal |
| Service Refill Capacities - Cooling System | 21.5 L |
| Service Refill Capacities - Cooling System (26) | 5.7 gal |
| Service Refill Capacities - Engine Crankcase | 10 L |
| Service Refill Capacities - Engine Crankcase (28) | 2.6 gal |
| Service Refill Capacities - Axles: Front Center Differential | 7.5 L |
| Service Refill Capacities - Axles: Front Center Differential (30) | 2.0 gal |
| Service Refill Capacities - Axles: Rear Center Differential | 7.5 L |
| Service Refill Capacities - Axles: Rear Center Differential (32) | 2.0 gal |
| Service Refill Capacities - Hydraulic System (including tank) | 98 L |
| Service Refill Capacities - Hydraulic System (including tank) (34) | 25.9 gal |
| Service Refill Capacities - Hydraulic Tank | 55 L |
| Service Refill Capacities - Hydraulic Tank (36) | 14.5 gal |
| Service Refill Capacities - Transmission | 3.2 L |
| Service Refill Capacities - Transmission (38) | 0.8 gal |
| Service Refill Capacities - Diesel Exhaust Fluid (DEF) Tank | 18 L |
| Service Refill Capacities - Diesel Exhaust Fluid (DEF) Tank (40) | 4.8 gal |
| Forward and Reverse - Speed Range 1 | 10 km/h |
| Forward and Reverse - Speed Range 1 (42) | 6.3 mph |
| Forward and Reverse - Speed Range 2 | 20 km/h |
| Forward and Reverse - Speed Range 2 (44) | 12.5 mph |
| Forward and Reverse - Speed Range 3 | 40 km/h |
| Forward and Reverse - Speed Range 3 (46) | 25 mph |
| Declared dynamic operator sound pressure level (ISO 6396:2008) | 77 dB(A) |
| Dig Depth (High Lift - IT) | 295 mm |
| Dig Depth (High Lift - IT) (49) | 11.6" |
| Rack Angle at Full Lift (High Lift - IT) | 59 degrees |
| Dump Angle at Full Lift (High Lift - IT) | 43 degrees |
| Rack Angle at Carry (High Lift - IT) | 50 degrees |
| Departure Angle (High Lift - IT) | 33 degrees |
| Articulation Angle (High Lift - IT) | 40 degrees |
| Tipping Load - Straight (ISO 14397-1) (High Lift - IT) | 5099 kg |
| Tipping Load - Straight (ISO 14397-1) (High Lift - IT) (56) | 11,239 lb |
| Tipping Load - Full Turn (ISO 14397-1) (High Lift - IT) | 4240 kg |
| Tipping Load - Full Turn (ISO 14397-1) (High Lift - IT) (58) | 9,344 lb |
| Breakout Force (High Lift - IT) | 6800 kg |
| Breakout Force (High Lift - IT) (60) | 14,987 lb |
Undercarriage & Attachments
| Bucket Capacities - General Purpose | 1.9 m3 |
| Bucket Capacities - General Purpose (1) | 2.5 yd3 |
| Bucket Capacities - Light Material | 3.5 m3 |
| Bucket Capacities - Light Material (3) | 4.6 yd3 |

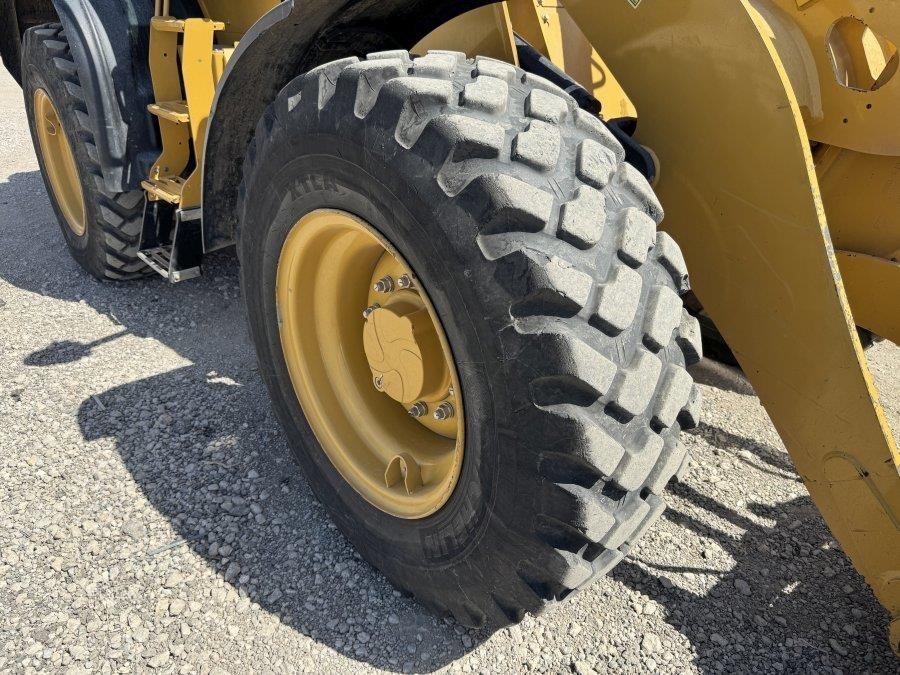

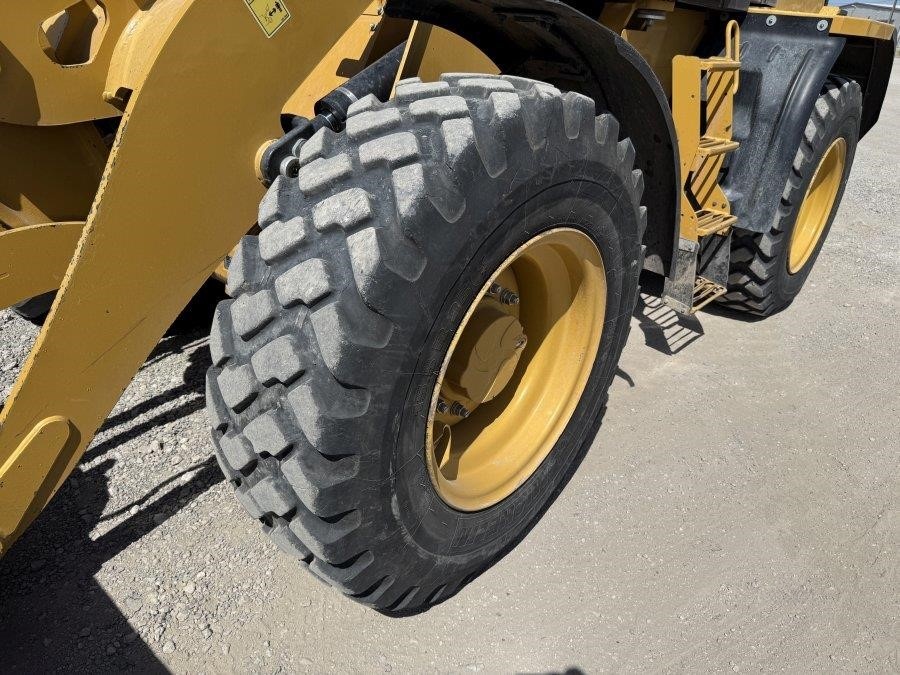

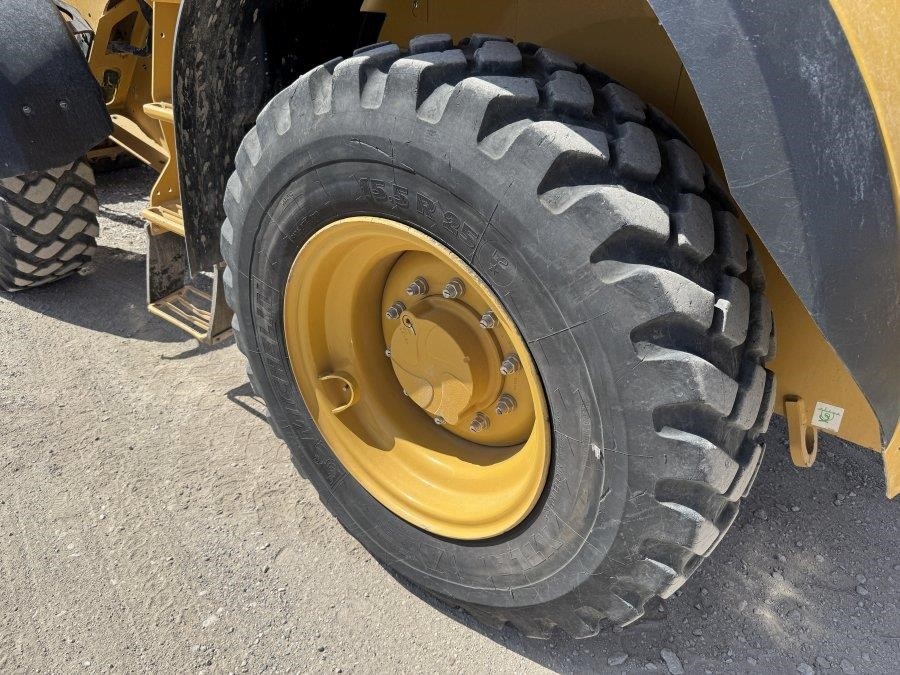

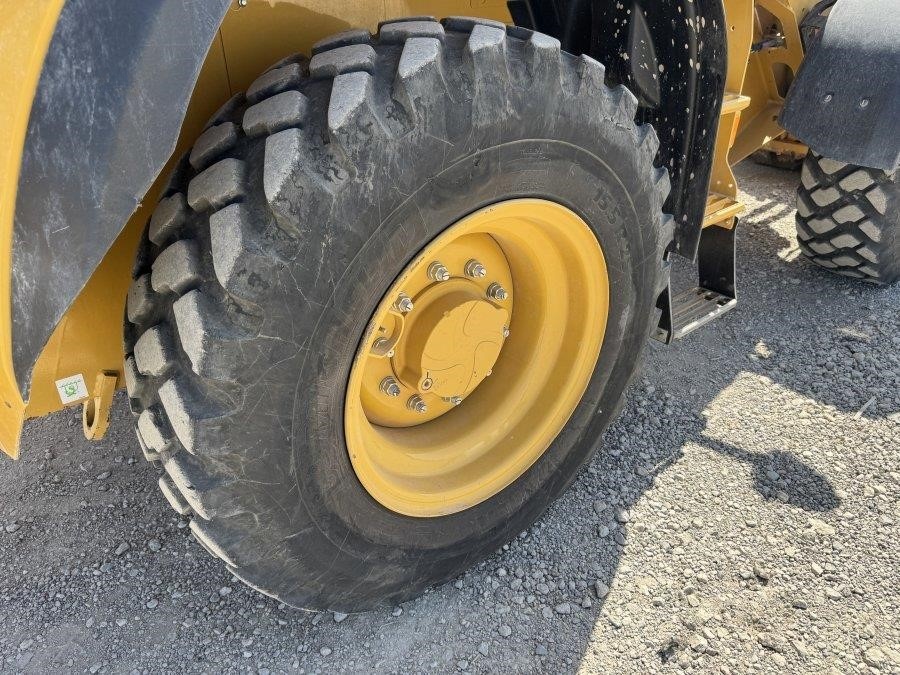

| Tires - Standard Size | 15.5 R25 L2 XTLA |
| Reach: Bucket at 45 Degrees (High Lift - IT) | 1054 mm 3'5" |
Dimensions
| Height: Ground to Cab (High Lift - IT) | 3020 mm 9'10" |
| Height: Ground to Beacon (High Lift - IT) | 3210 mm 10'6" |
| Height: Ground Axle Center (High Lift - IT) | 600 mm |
| Height: Ground Axle Center (High Lift - IT) (3) | 1'11" |
| Height: Ground Clearance (High Lift - IT) | 348 mm |
| Height: Ground Clearance (High Lift - IT) (5) | 1'1" |
| Length: Overall (High Lift - IT) | 6869 mm 22'6" |
| Length: Rear Axle to Bumper (High Lift - IT) | 1634 mm 5'4" |
| Length: Hitch to Front Axle (High Lift - IT) | 1300 mm 4'3" |
| Length: Wheel Base (High Lift - IT) | 2600 mm 8'6" |
| Clearance: Bucket at 45 Degrees (High Lift - IT) | 3176 mm 10'5" |
| Clearance: Load Over Height (High Lift - IT) | 3397 mm 11'1" |
| Clearance: Level Bucket (High Lift - IT) | 3774 mm 12'4" |
| Height: Bucket Pin (High Lift - IT) | 4030 mm 13'2" |
| Height: Overall (High Lift - IT) | 4920 mm 16'1" |
| Carry Height: Bucket Pin (High Lift - IT) | 480 mm |
| Carry Height: Bucket Pin (High Lift - IT) (16) | 1'6" |
| Width: Bucket (High Lift - IT) | 2401 mm 7'10" |
| Width: Tread Center (High Lift - IT) | 1800 mm 5'10" |
| Turning Radius: Over Bucket (High Lift - IT) | 5440 mm |
| Turning Radius: Over Bucket (High Lift - IT) (20) | 17'10" |
| Width: Over Tires (High Lift - IT) | 2259 mm 7'4" |
| Turning Radius: Outside of Tires (High Lift - IT) | 4716 mm 15'5" |
| Turning Radius: Inside of Tires (High Lift - IT) | 2446 mm 8'0" |
| Operating Weight (High Lift - IT) | 8428 kg |
| Operating Weight (High Lift - IT) (25) | 18,575 lb |

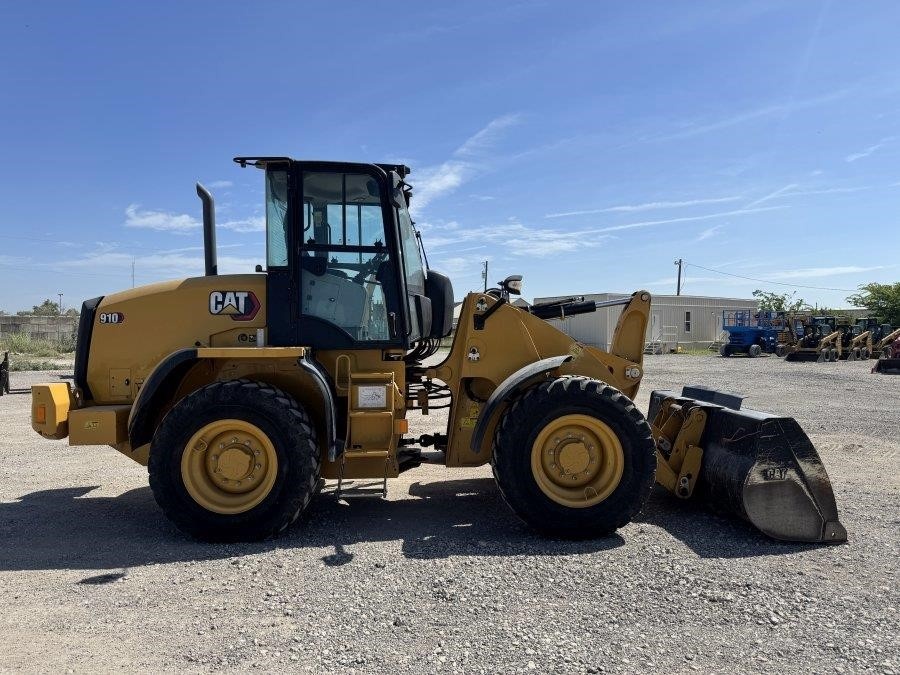

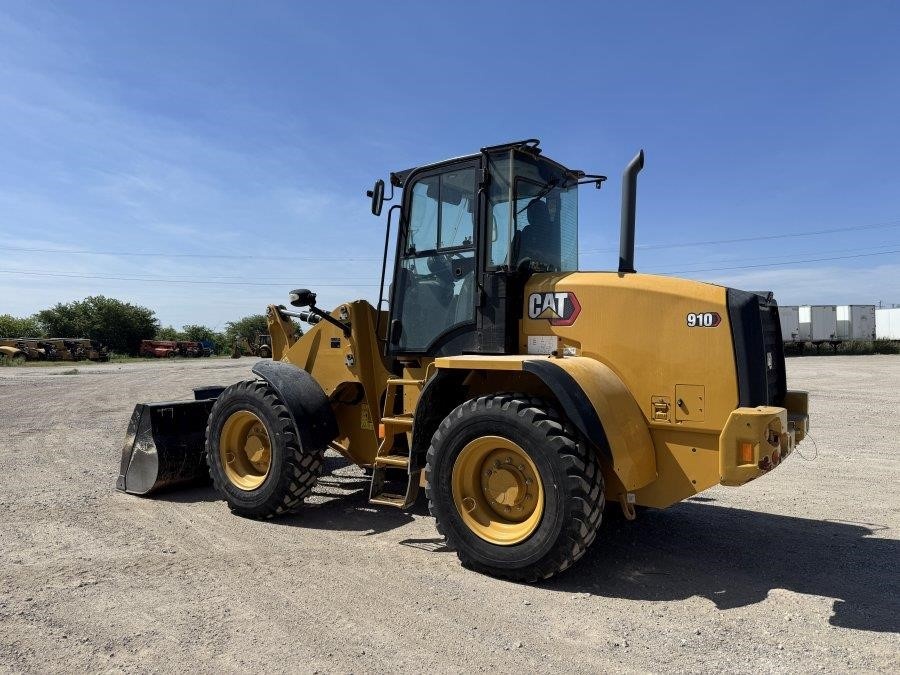

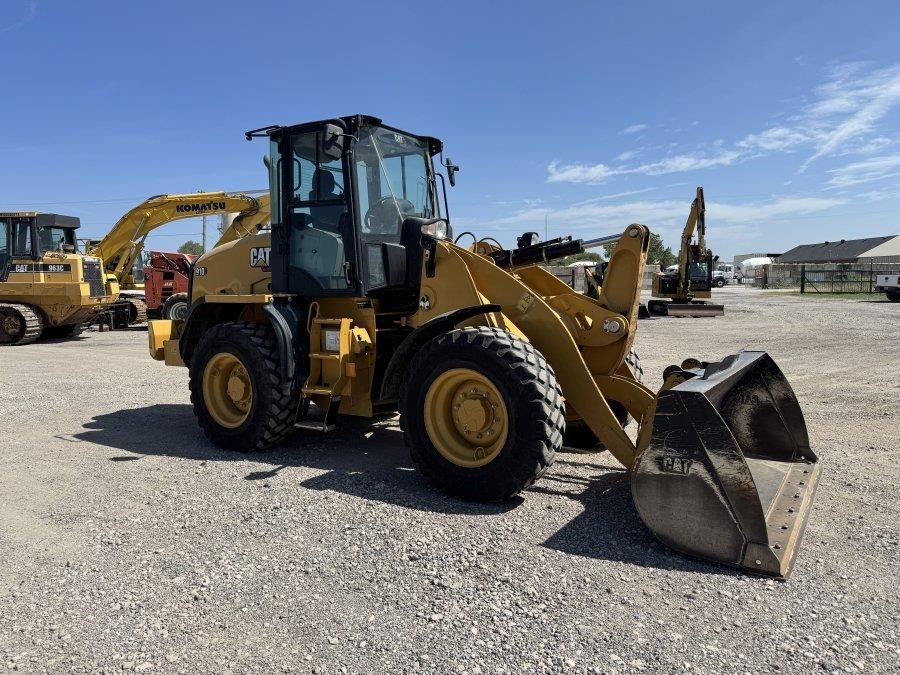

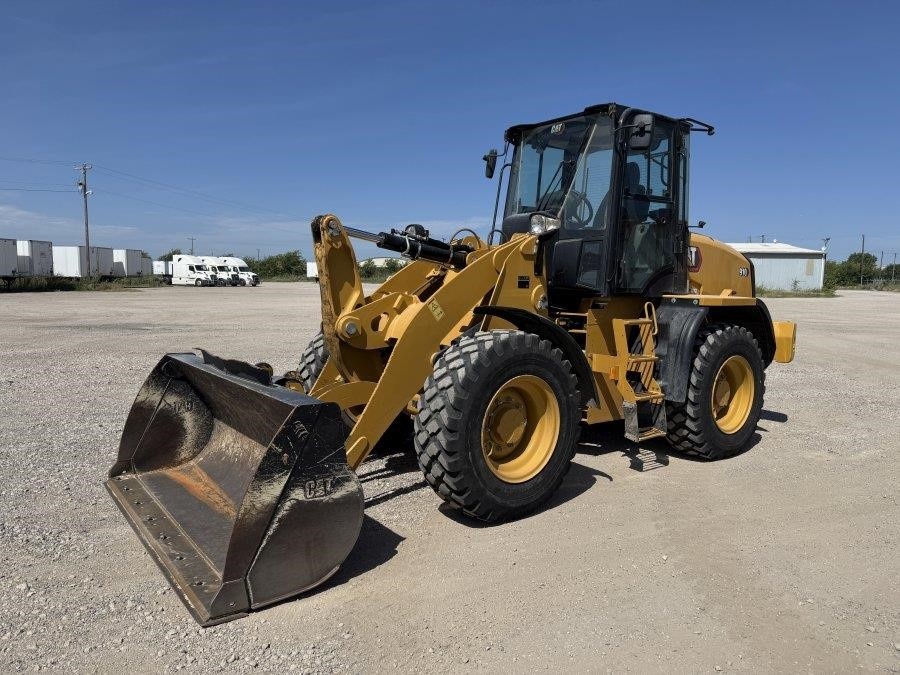

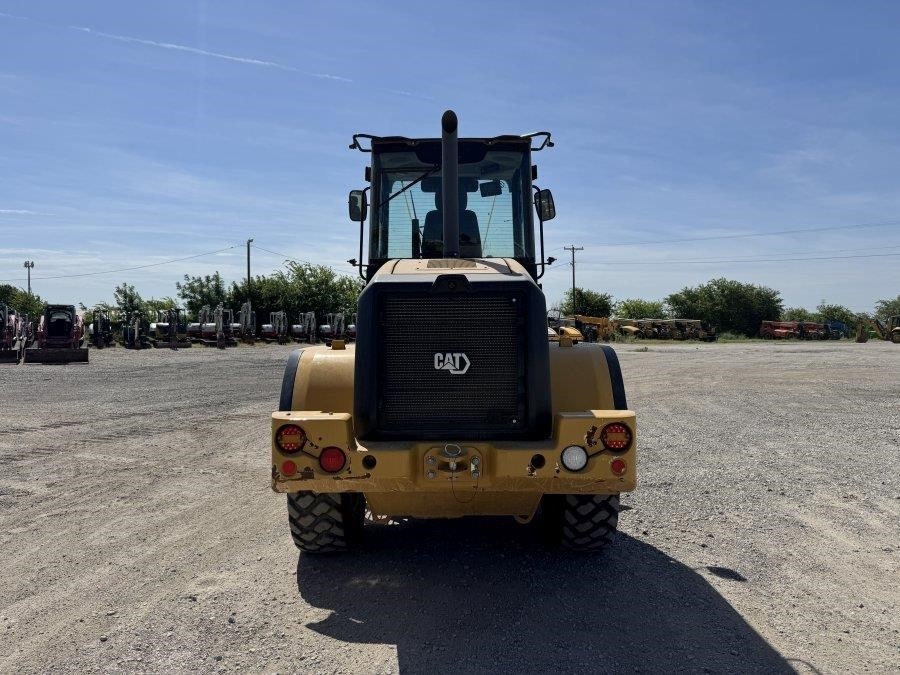

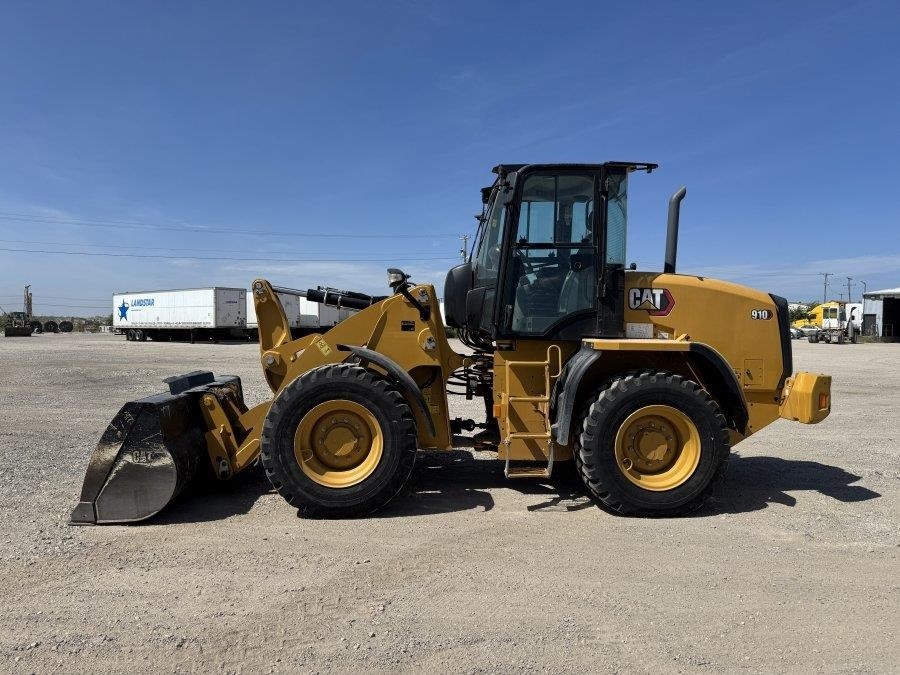

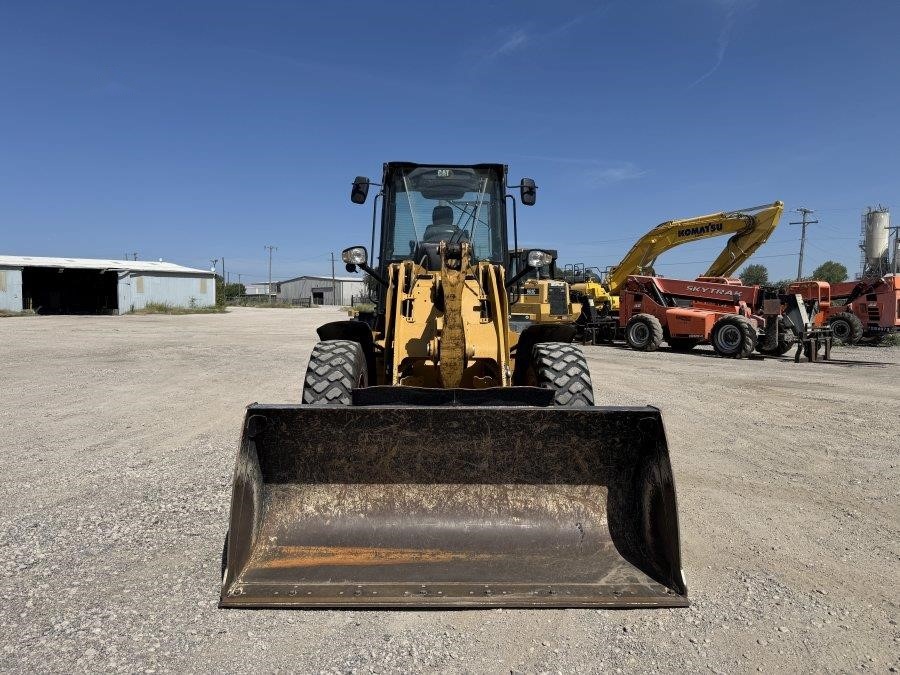

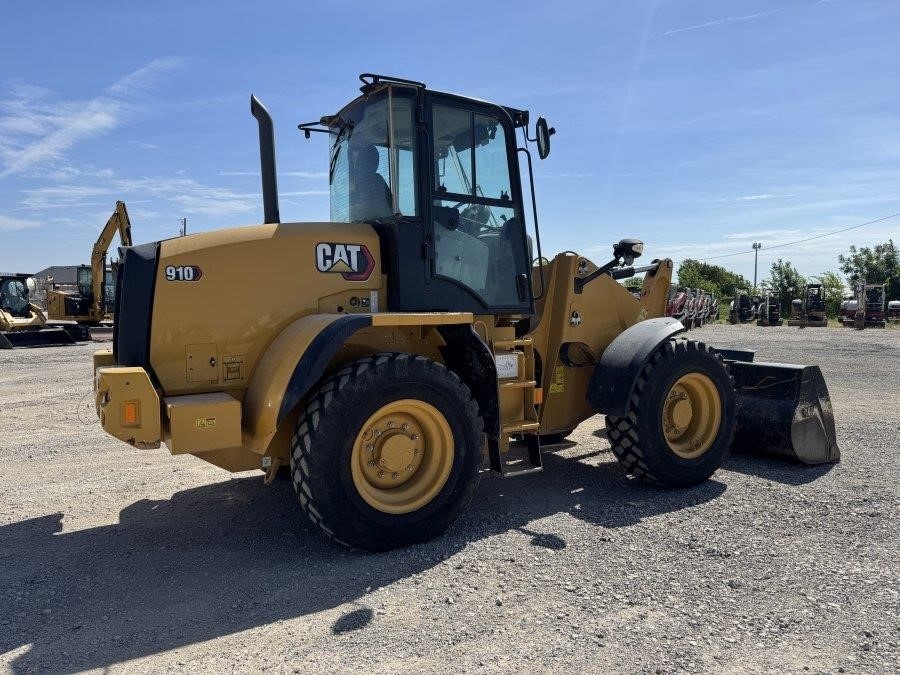

2023 Caterpillar 910 Wheel Loader
