Item Specifications
Category
Condition
Used
Item Number
#1869
Make
caterpillar
Model
226D3
Year
2024
Industry
construction
Equipment Type
skid steers
Location
Ft. Worth, TX
Also Available In
TX
Item Description

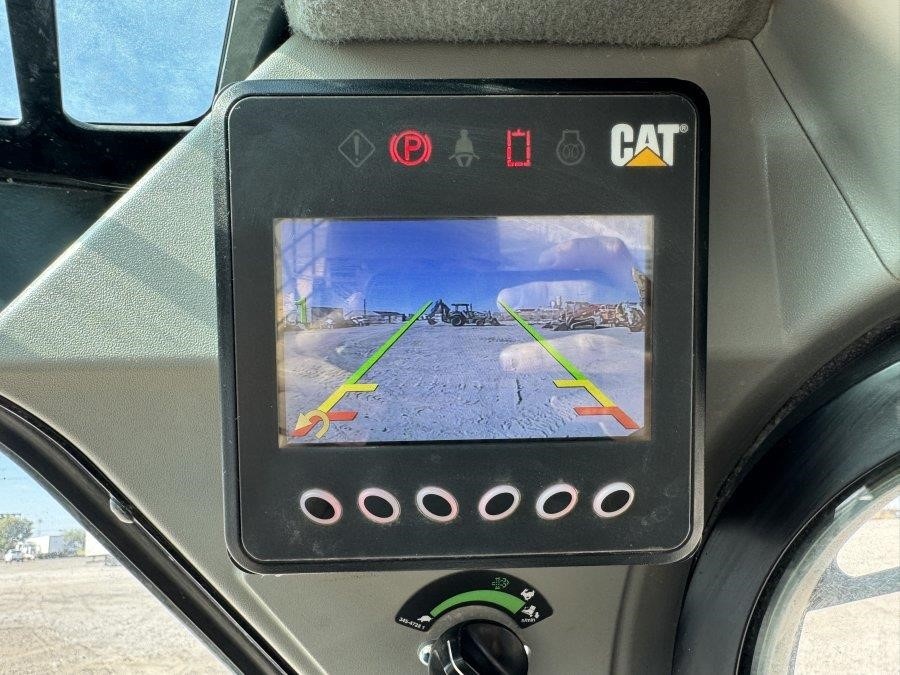

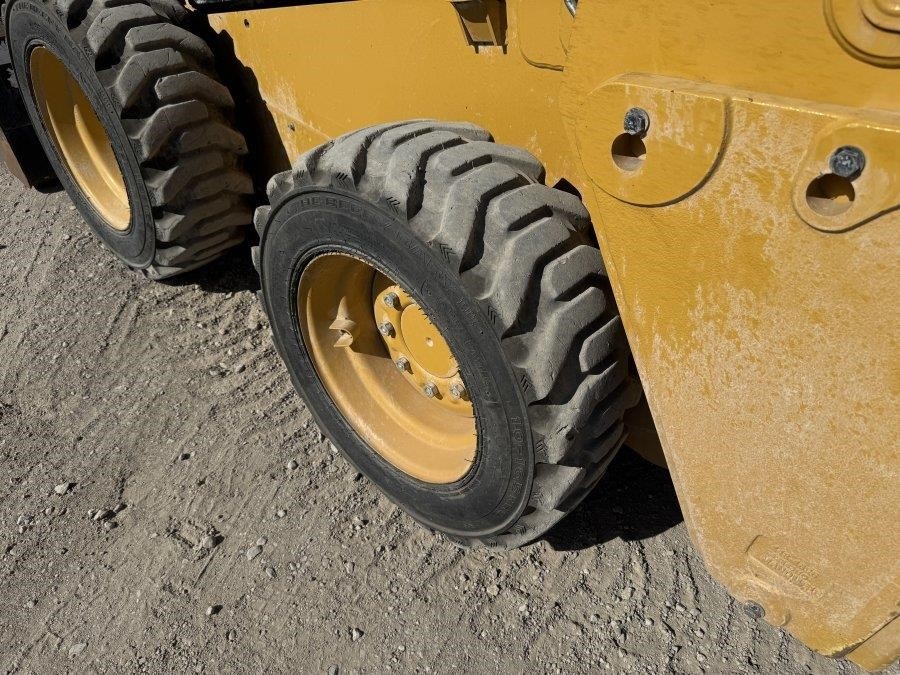

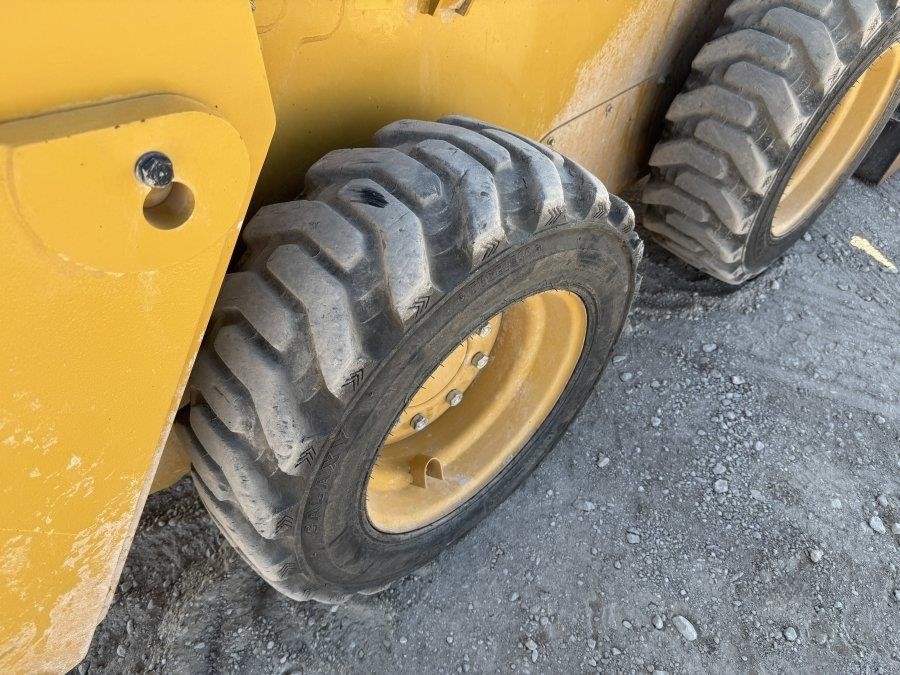

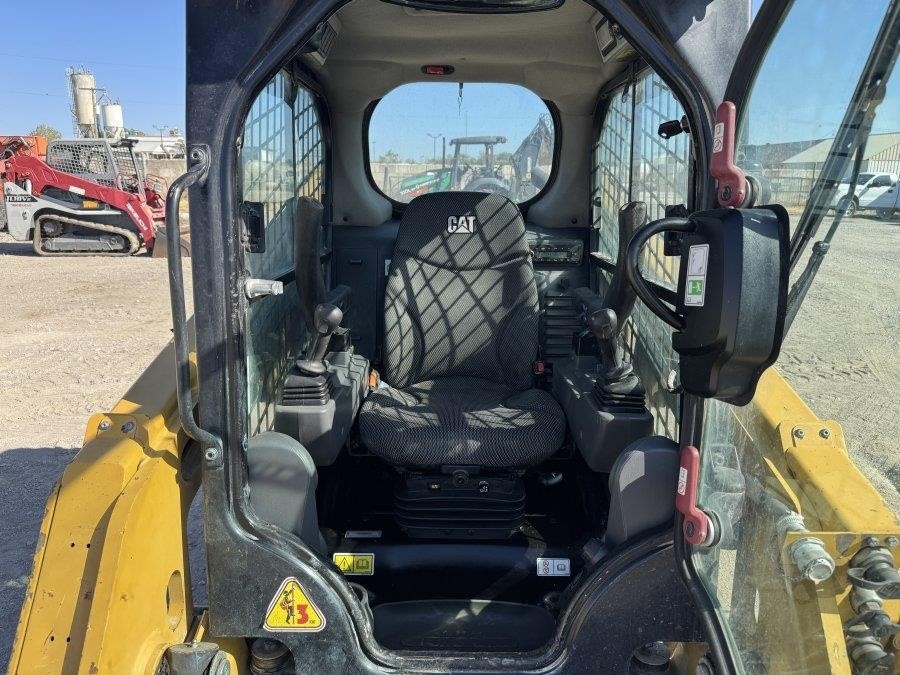

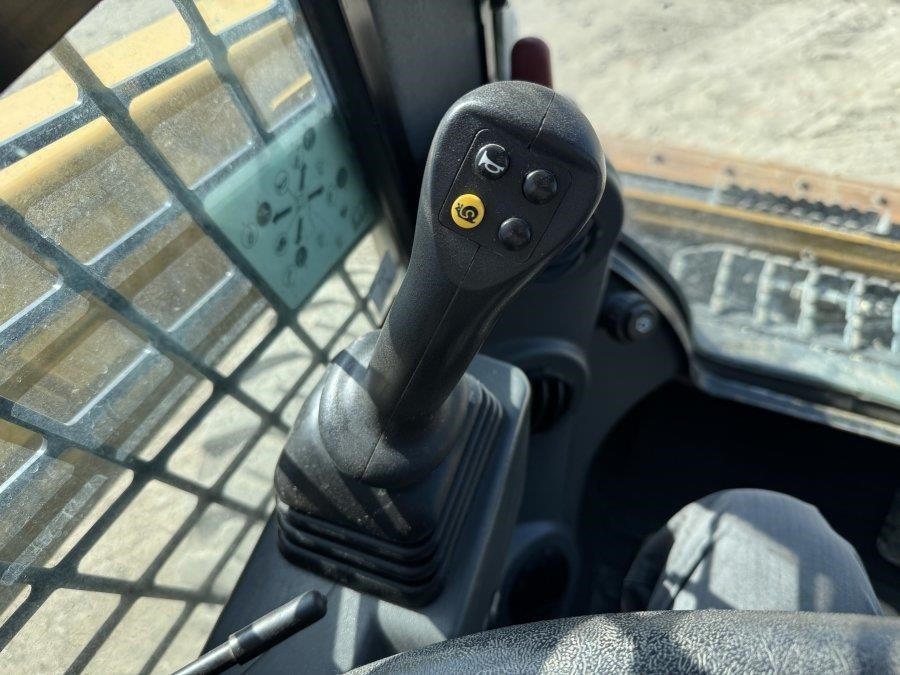

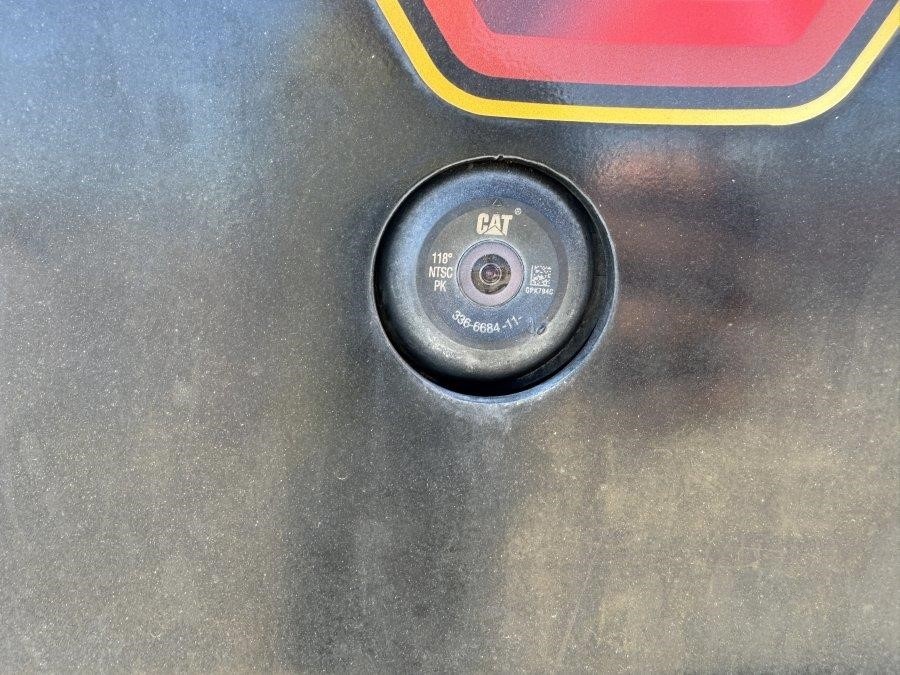

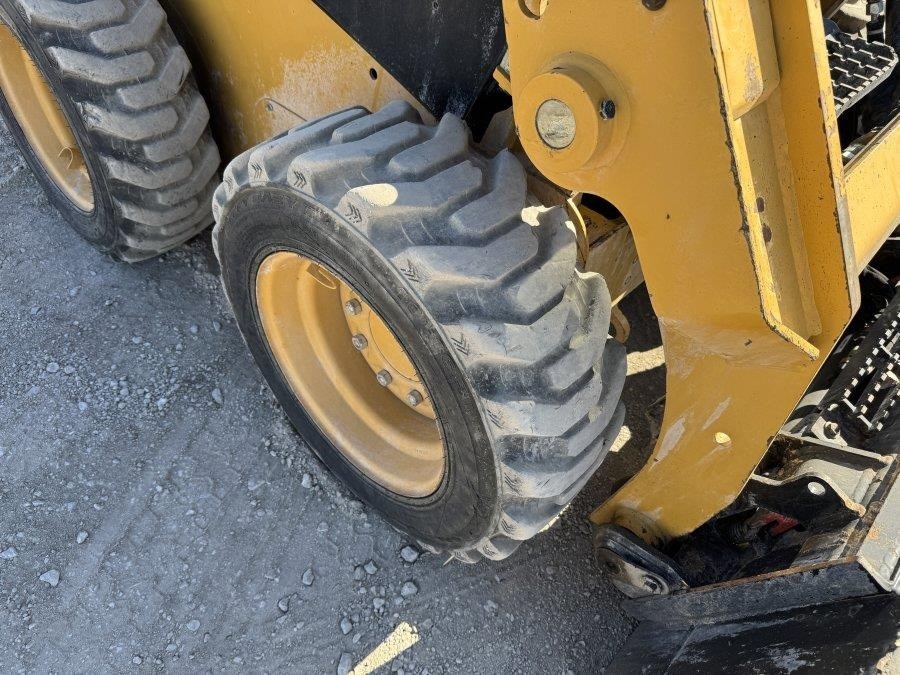

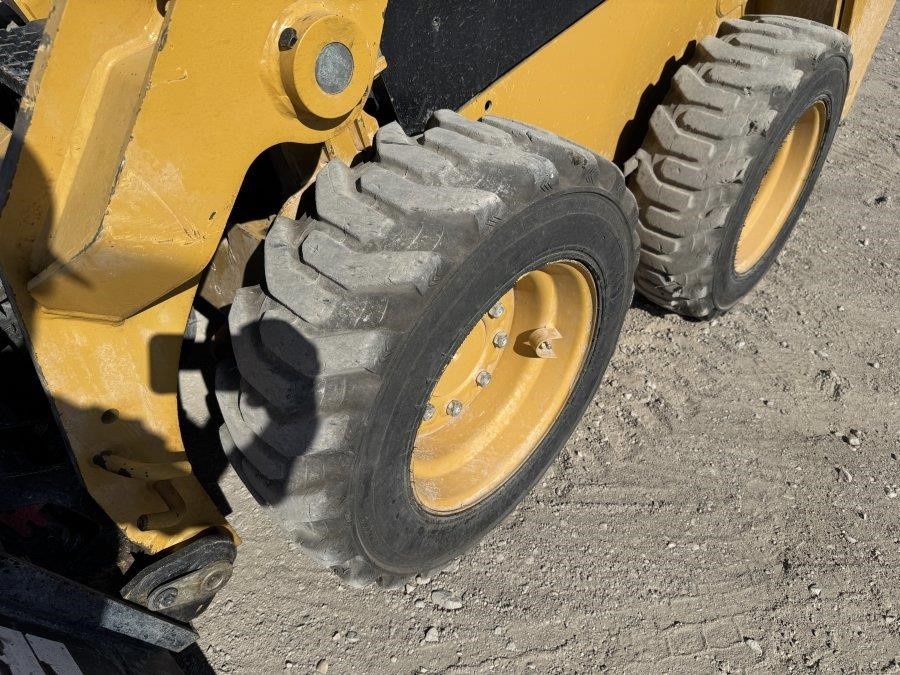

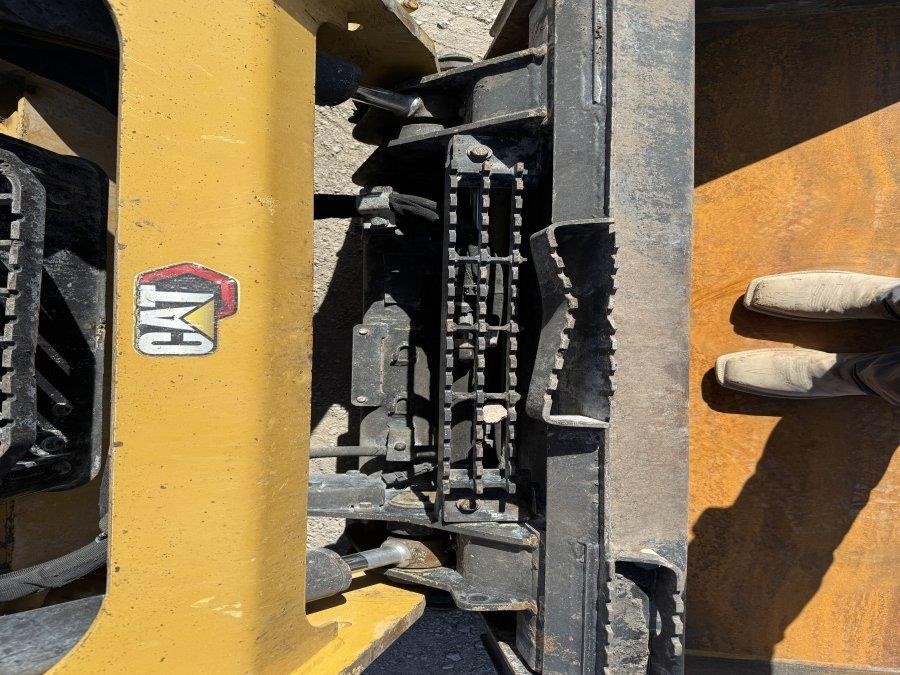

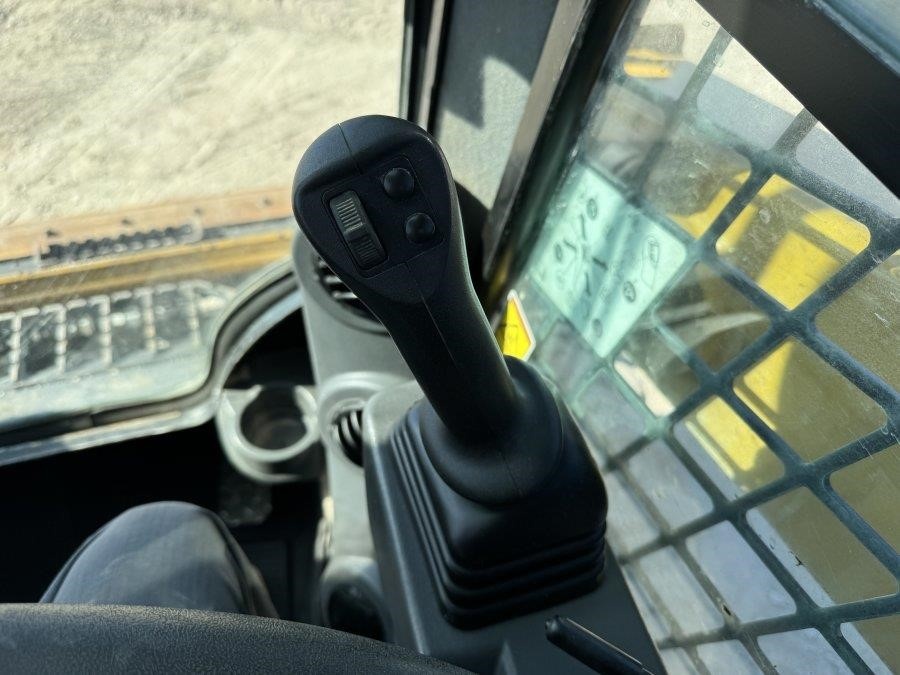

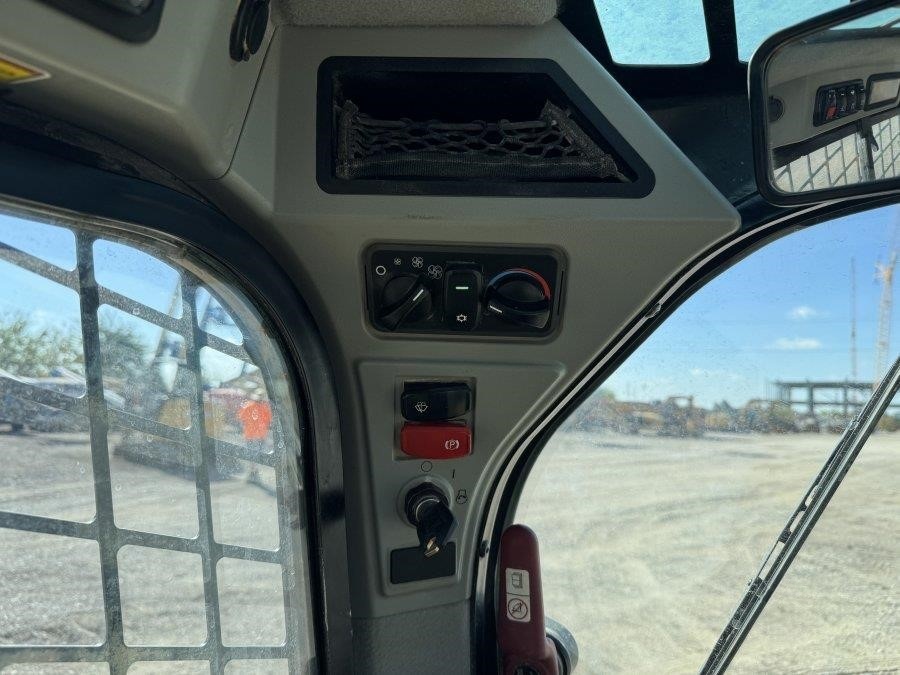

EROPS, A/C, Heat, Aux Hydraulic, Hydraulic Coupler, Pilot Control, 2 Speed, 10-16.5 Pneumatic Tires, Backup Camera. Warranty through April 2027 or 3,000hrs.
Specifications
General
| Year | 2024 |
| Make | caterpillar |
| Model | 226D3 |

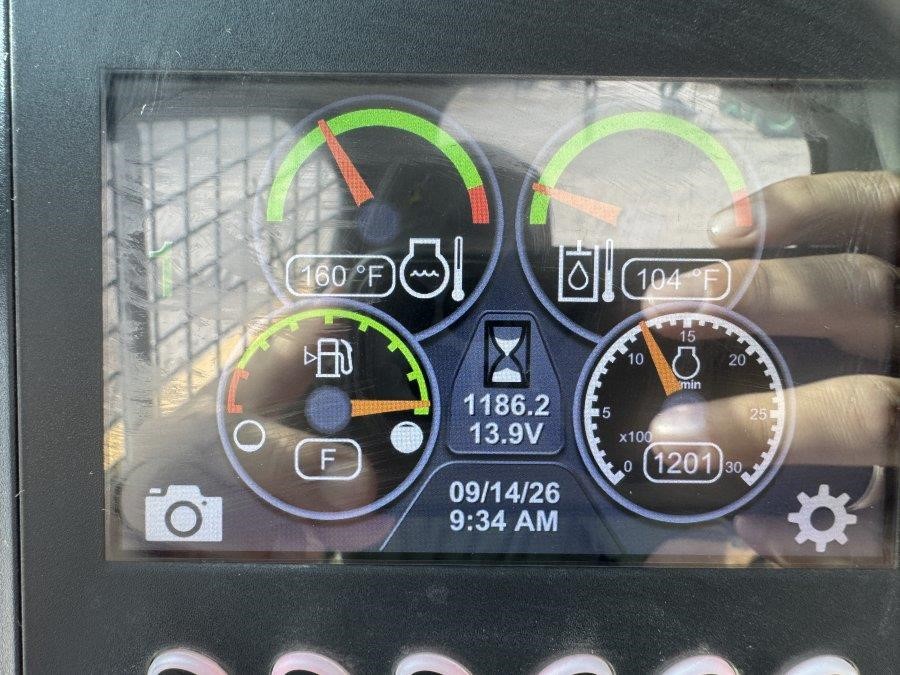

| Hours | 1186 |
| Condition | Used |
| Gross Power SAE J1995 | 50.1 kW |
| Net Power SAE 1349 | 49.1 kW |
| Net Power ISO 9249 | 49.6 kW |
| Stroke | 100 mm |
| Stroke (in) | 3.9 in |
| Bore | 84 mm |
| Bore (in) | 3.3 in |
| Departure Angle | 27.9° |
| Maximum Dump Angle | 46.7° |
| ROPS | ISO 3471:2008 |
| FOPS | ISO 3449:2005 Level I |
| Chain Box, each side | 7 L |
| Chain Box, each side (gal) | 1.8 gal |
| Noise Level - Inside Cab | 83 dB(A) |
| Noise Level - Outside Cab | 102 dB(A) |
Engine & Powertrain

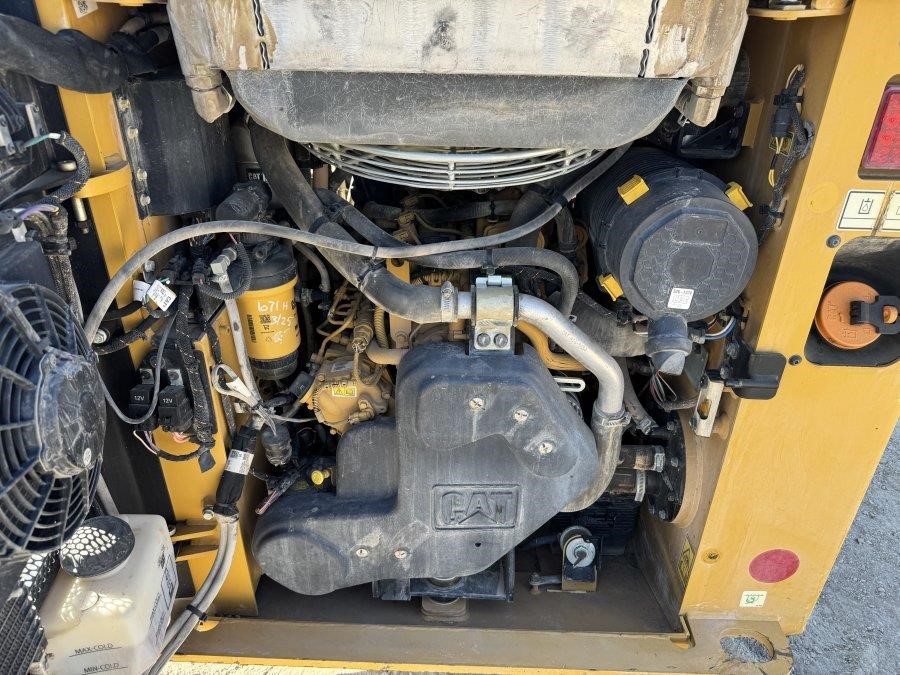

| Engine Model | Cat C2.2 CRDI |
| Gross Power SAE J1995 (hp) | 67.1 hp |
| Net Power SAE 1349 (hp) | 65.8 hp |
| Net Power ISO 9249 (hp) | 66.5 hp |
| Peak Torque at 1,500 rpm SAE J1995 | 208 N·m |
| Peak Torque at 1,500 rpm SAE J1995 (lbf-ft) | 153 lbf-ft |
| Displacement | 2.2 L |
| Displacement (in³) | 134.3 in³ |
| Breakout Force, Tilt Cylinder | 1781 kg |
| Breakout Force, Tilt Cylinder (lb) | 3,927 lb |
| Bumper Overhang behind Rear Axle | 894 mm |
| Bumper Overhang behind Rear Axle (in) | 35.2 in |
| Cooling System | 12 L |
| Cooling System (gal) | 3.2 gal |
| Engine Crankcase | 10 L |
| Engine Crankcase (gal) | 2.6 gal |
| Fuel Tank | 57 L |
| Fuel Tank (gal) | 15.1 gal |
Working Range
| Rated Operating Capacity | 705 kg |
| Rated Operating Capacity (lb) | 1,550 lb |
| Tipping Load | 1410 kg |
| Tipping Load (lb) | 3,100 lb |
| Loader Hydraulic Pressure - Standard | 23 000 kPa |
| Loader Hydraulic Pressure - Standard (psi) | 3,336 psi |
| Loader Hydraulic Flow - Standard | 69 L/min |
| Loader Hydraulic Flow - Standard (gal/min) | 18 gal/min |
| Hydraulic Power (calculated) - Standard | 26.5 kW |
| Hydraulic Power (calculated) - Standard (hp) | 35.5 hp |
| Maximum Loader Hydraulic Pressure - High Flow | 23 000 kPa |
| Maximum Loader Hydraulic Pressure - High Flow (psi) | 3,336 psi |
| Maximum Loader Hydraulic Flow - High Flow | 99 L/min |
| Maximum Loader Hydraulic Flow - High Flow (gal/min) | 26 gal/min |
| Hydraulic Power (calculated) - High Flow | 38.0 kW |
| Hydraulic Power (calculated) - High Flow (hp) | 50.9 hp |
| Travel Speed (Forward or Reverse) - One Speed | 12.3 km/h |
| Travel Speed (Forward or Reverse) - One Speed (mph) | 7.6 mph |
| Travel Speed (Forward or Reverse) - Two Speed Option | 17.8 km/h |
| Travel Speed (Forward or Reverse) - Two Speed Option (mph) | 11.1 mph |
| Reach at Maximum Lift and Dump | 533 mm |
| Reach at Maximum Lift and Dump (in) | 21.0 in |
| Maximum Reach with Arms Parallel to Ground | 1288 mm |
| Maximum Reach with Arms Parallel to Ground (in) | 50.7 in |
| Hydraulic System | 45 L |
| Hydraulic System (gal) | 11.9 gal |
| Hydraulic Tank | 34 L |
| Hydraulic Tank (gal) | 9.0 gal |
Dimensions
| Operating Weight | 2653 kg lb |
| Operating Weight (lb) | 5,849 lb |
| Rated Operating Capacity with Optional Counterweight | 750 kg |
| Rated Operating Capacity with Optional Counterweight (lb) | 1,650 lb |
| Wheelbase | 1054 mm |
| Wheelbase (in) | 41.5 in |
| Length without Bucket | 2524 mm |
| Length without Bucket (in) | 99.4 in |
| Length with Bucket on Ground | 3234 mm |
| Length with Bucket on Ground (in) | 127.3 in |
| Height to Top of Cab | 2028 mm |
| Height to Top of Cab (in) | 79.8 in |
| Maximum Overall Height | 3652 mm |
| Maximum Overall Height (in) | 143.8 in |
| Bucket Pin Height at Maximum Lift | 2818 mm |
| Bucket Pin Height at Maximum Lift (in) | 110.9 in |
| Bucket Pin Height at Carry Position | 215 mm |
| Bucket Pin Height at Carry Position (in) | 8.5 in |
| Clearance at Maximum Lift and Dump | 2077 mm |
| Clearance at Maximum Lift and Dump (in) | 81.8 in |
| Ground Clearance | 175 mm |
| Ground Clearance (in) | 6.9 in |
| Vehicle Width over Tires | 1497 mm |
| Vehicle Width over Tires (in) | 58.9 in |
| Turning Radius from Center - Machine Rear | 1513 mm |
| Turning Radius from Center - Machine Rear (in) | 59.6 in |
| Turning Radius from Center - Coupler | 1104 mm |
| Turning Radius from Center - Coupler (in) | 43.5 in |
| Turning Radius from Center - Bucket | 1977 mm |
| Turning Radius from Center - Bucket (in) | 77.8 in |
| Rack Back Angle at Maximum Height | 88.9° |

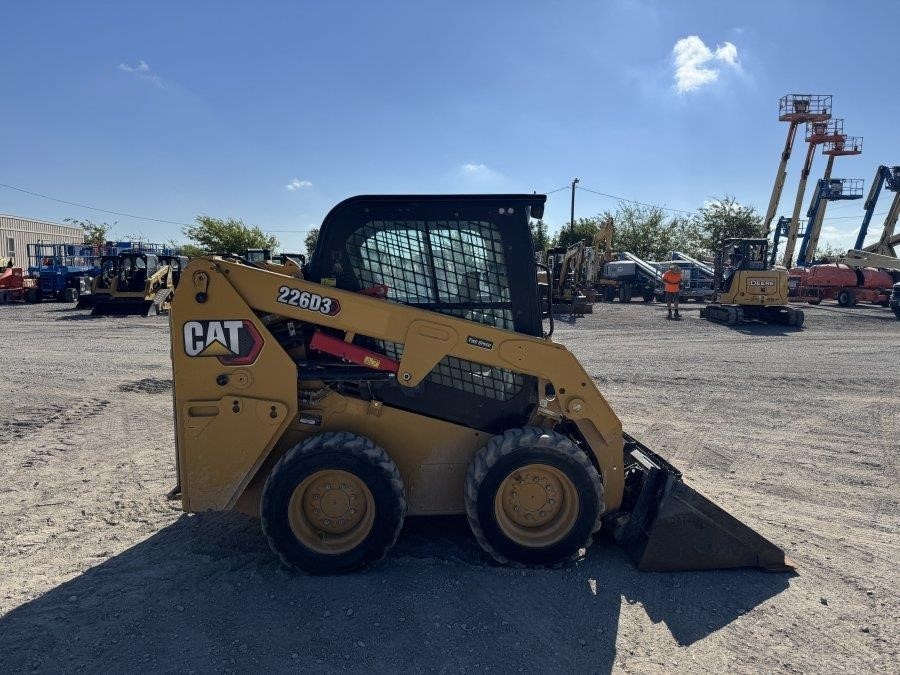

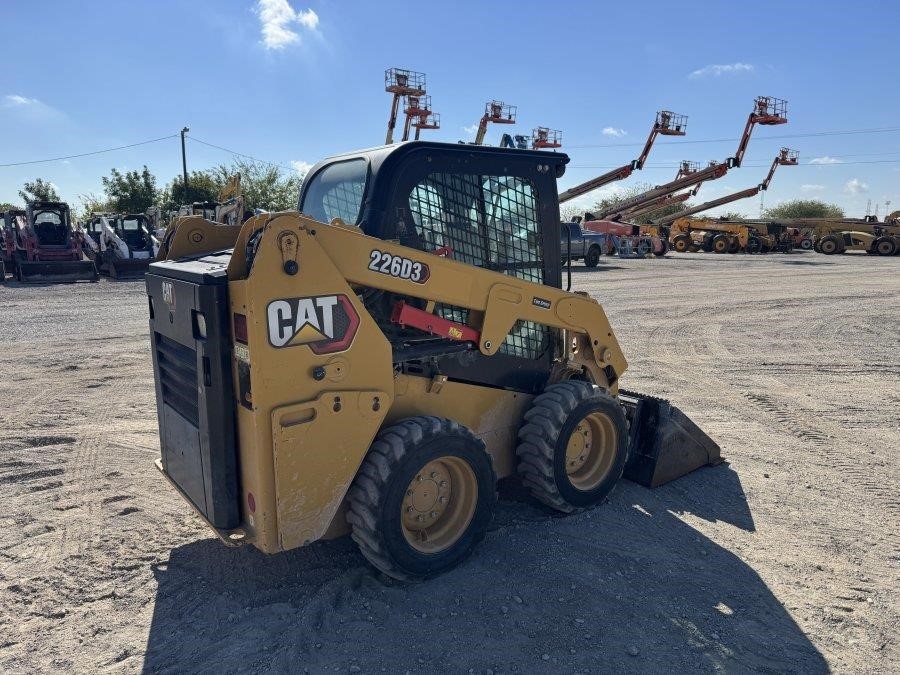

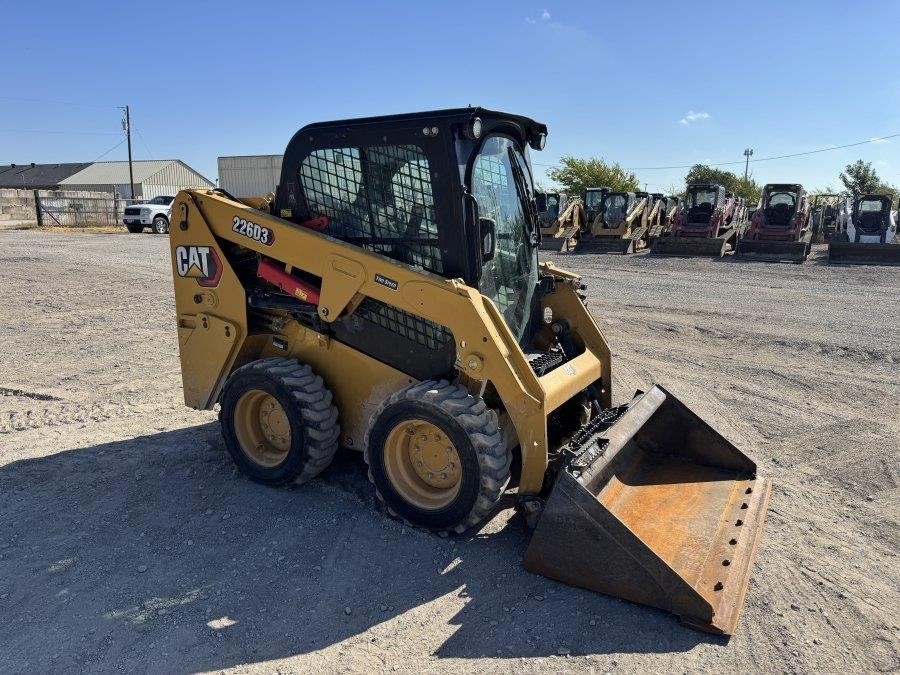

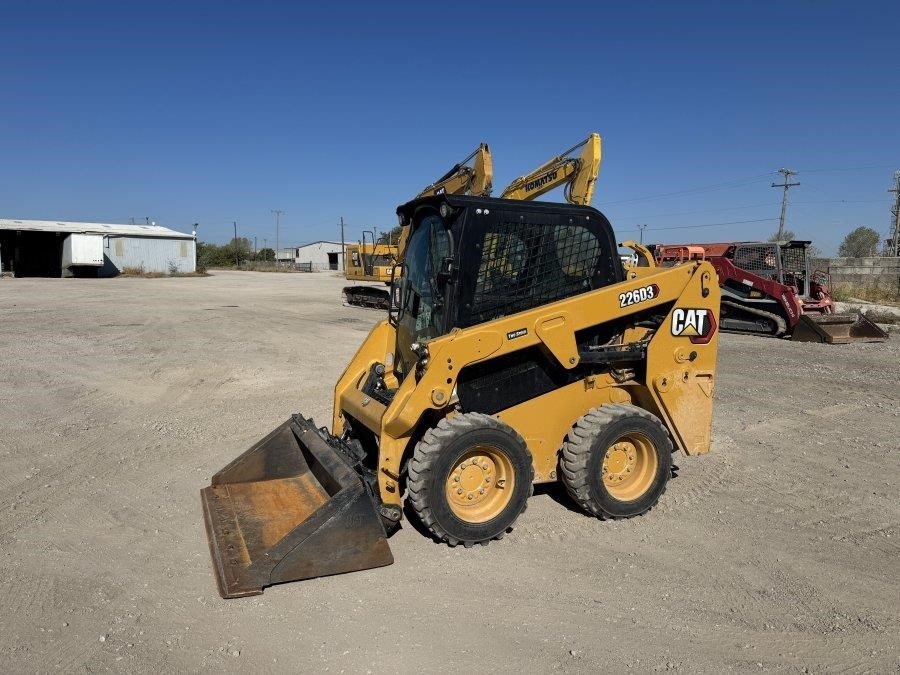

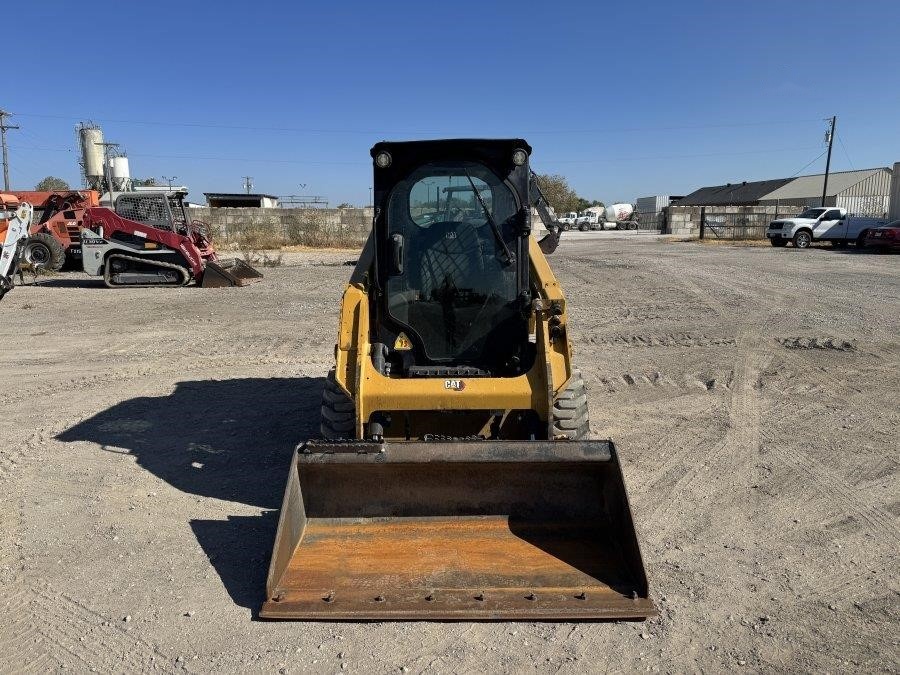

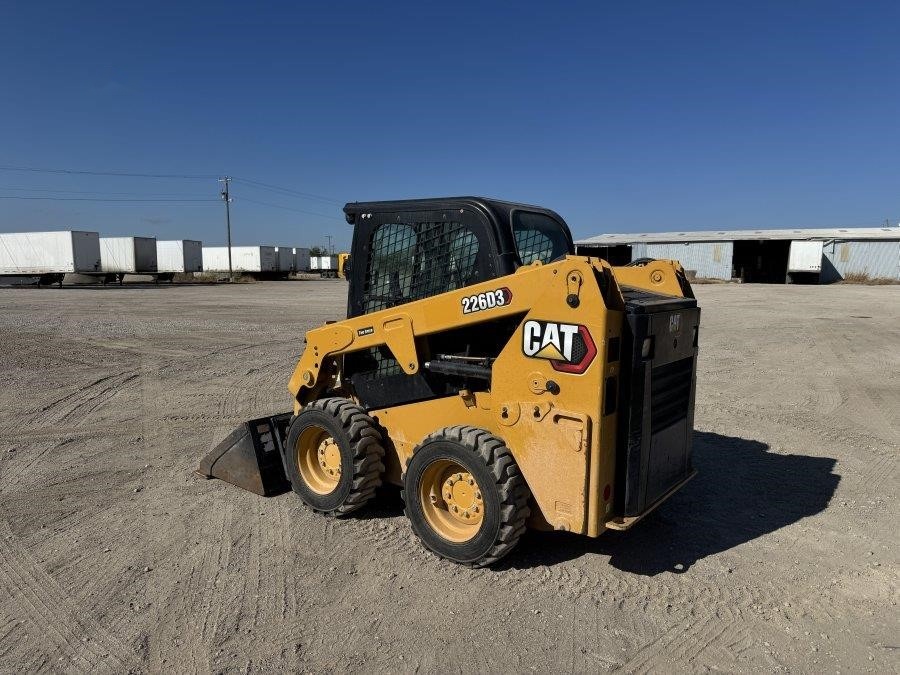

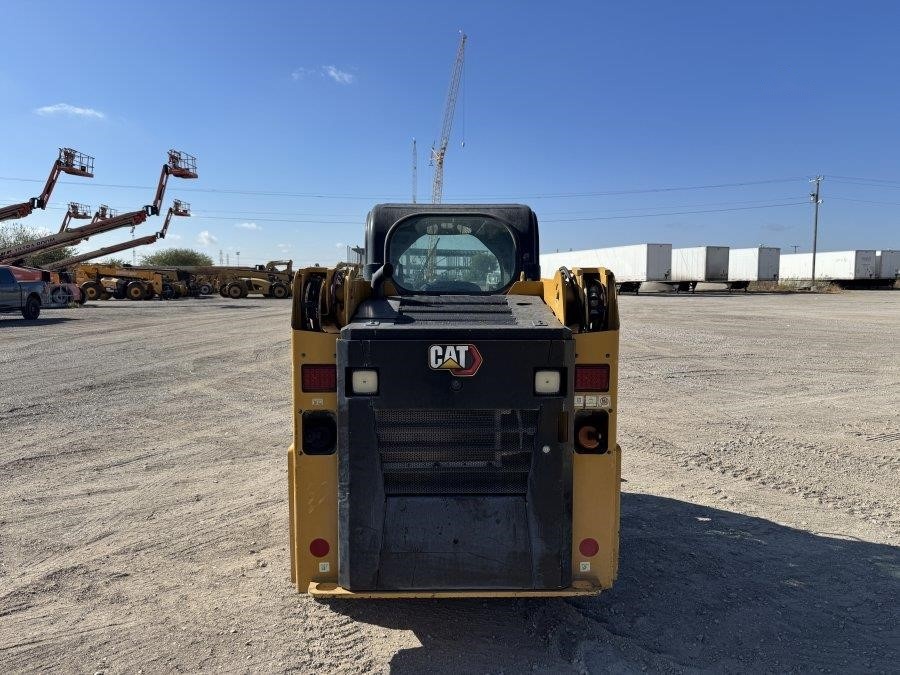

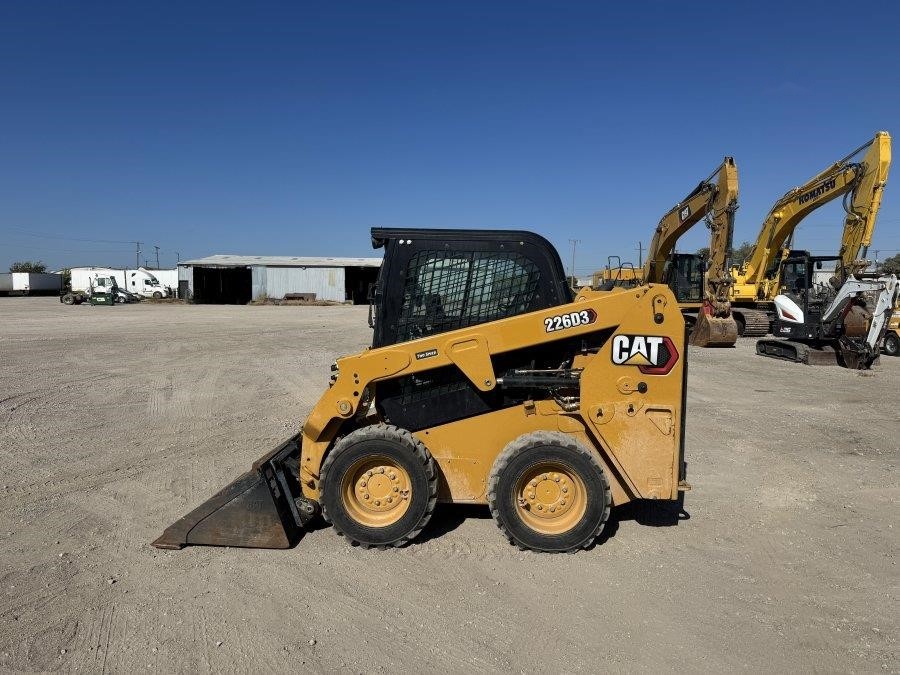

2024 Caterpillar 226D3 Compact Wheel Loader
