Item Specifications
Category
Condition
Used
Item Number
#1868
Make
caterpillar
Model
730
Year
2024
Industry
construction
Equipment Type
articulated dump trucks
Location
Ft. Worth, TX
Also Available In
TX
Item Description

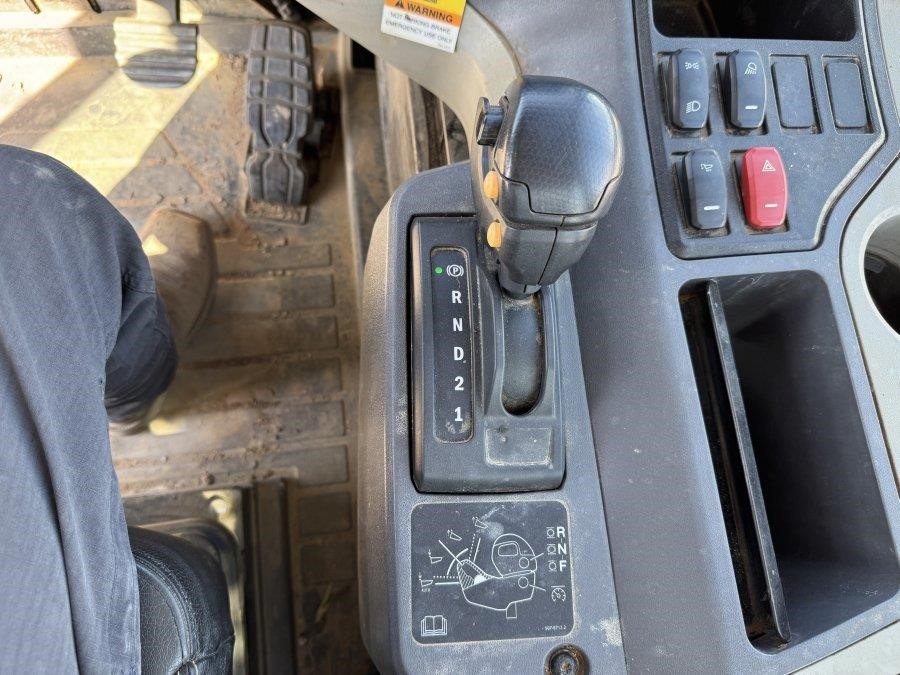

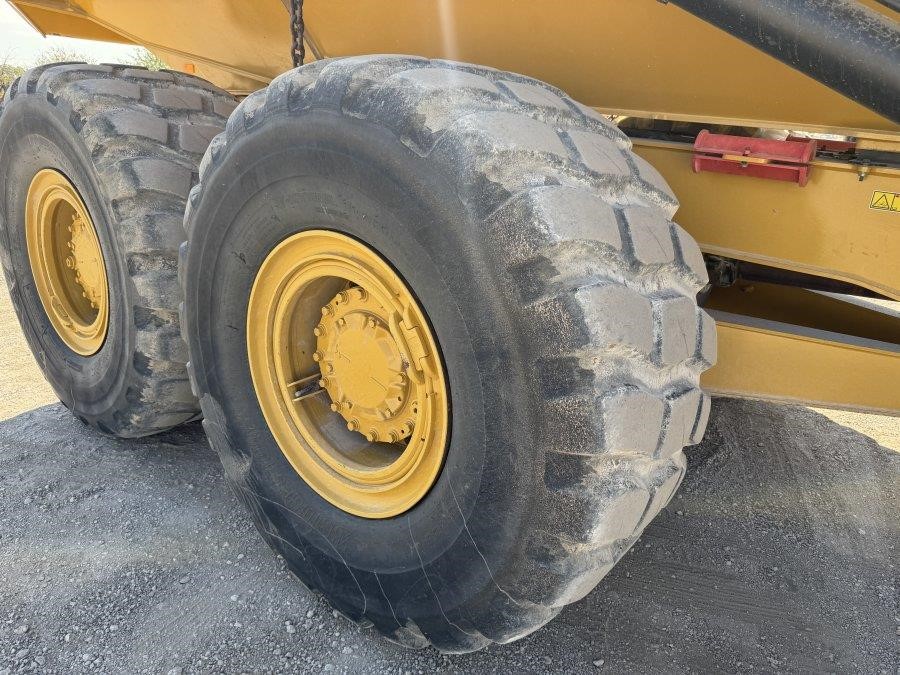

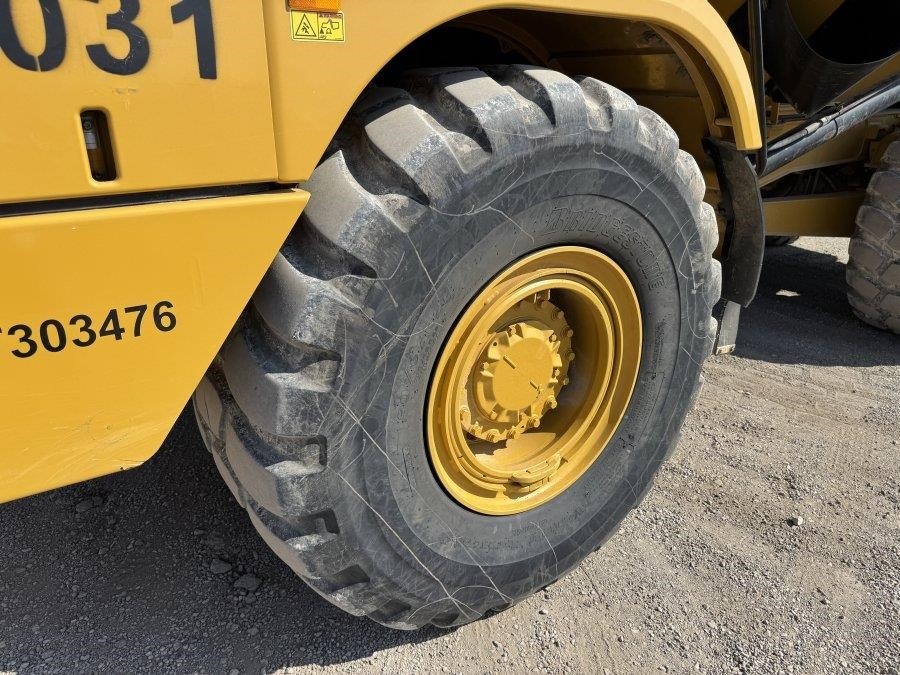

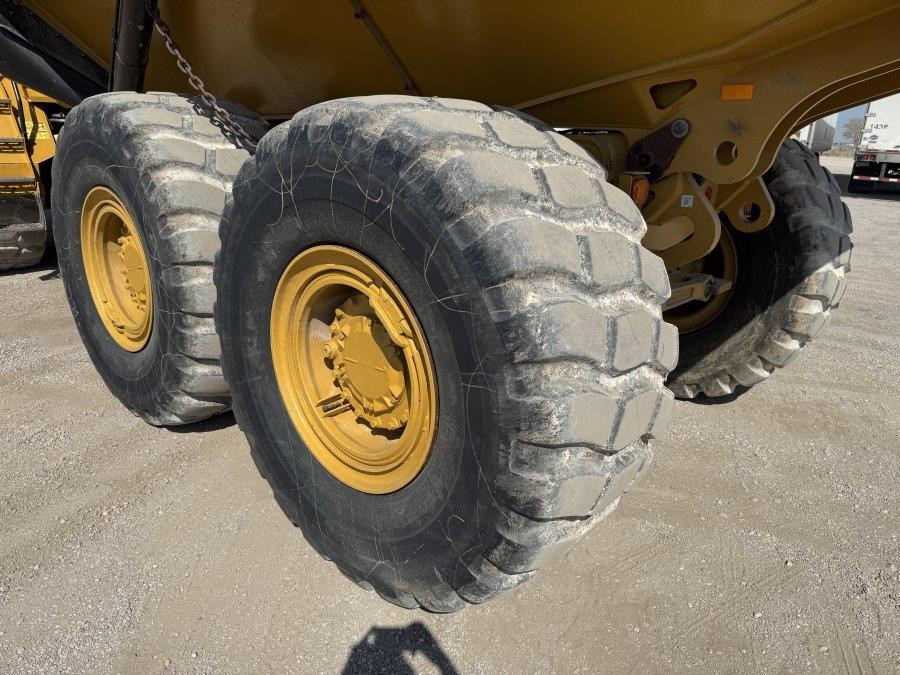

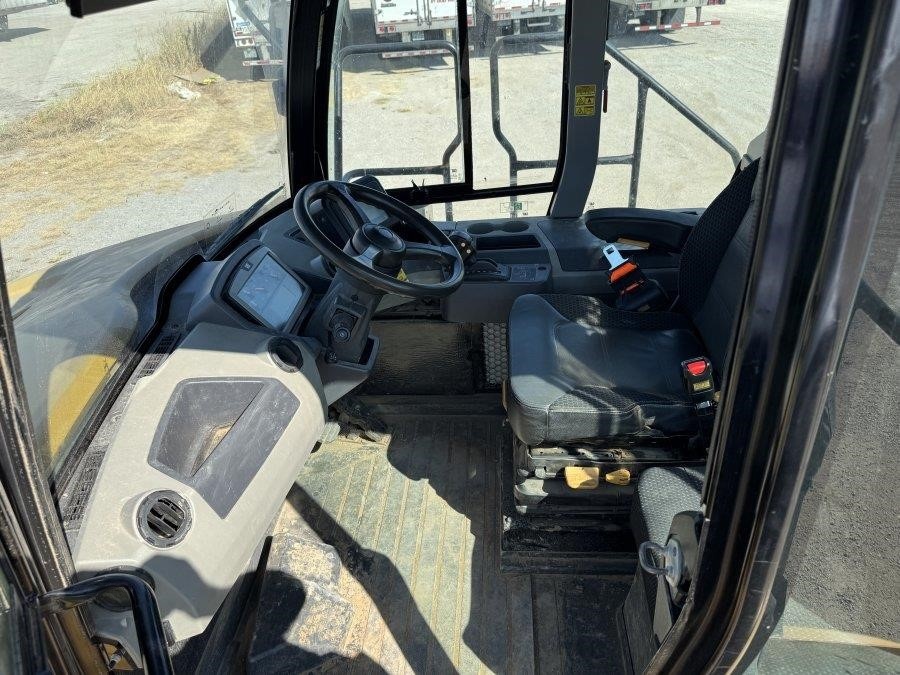

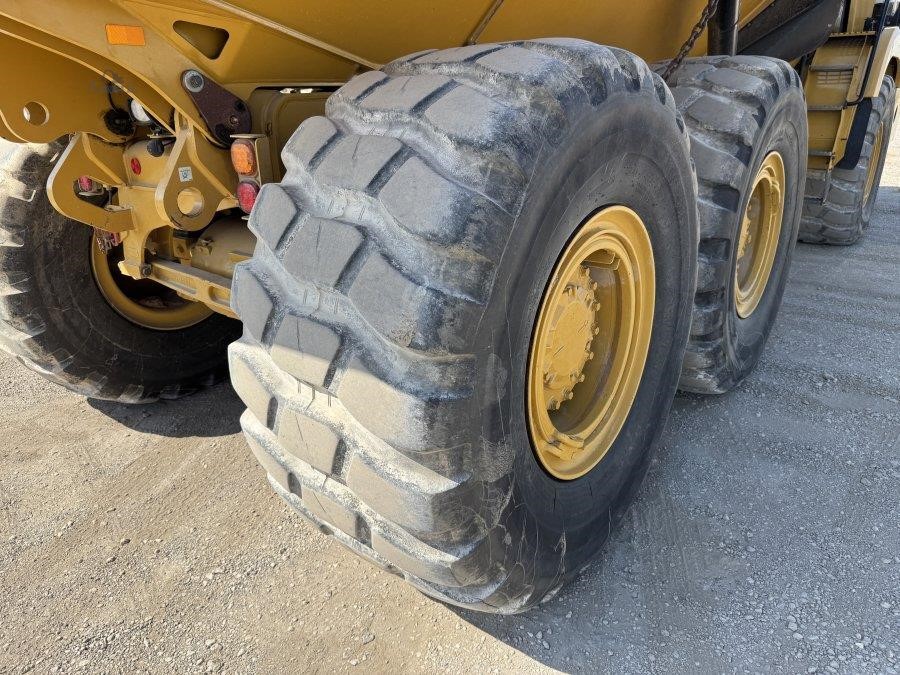

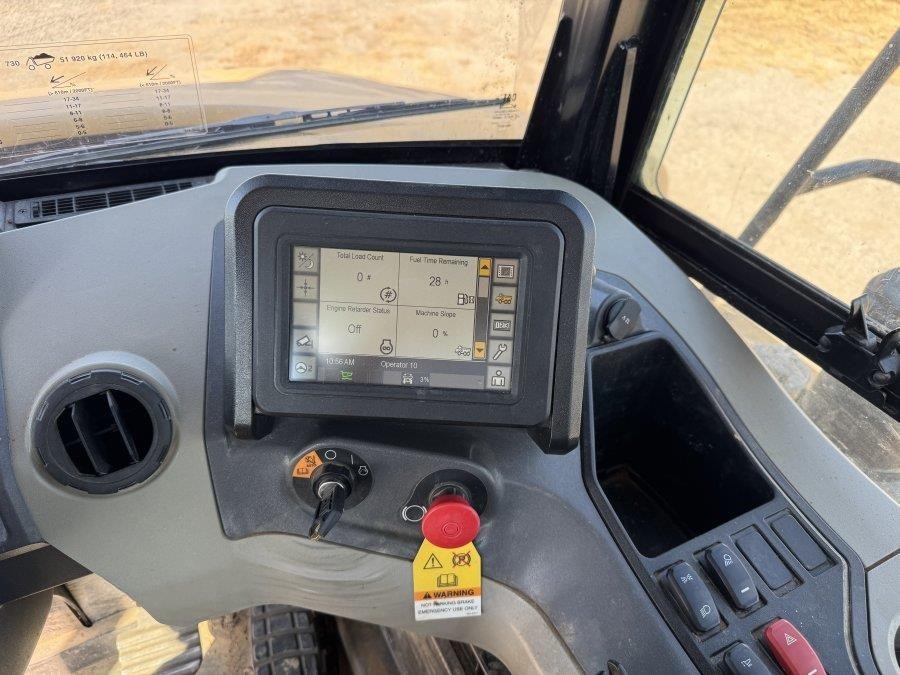

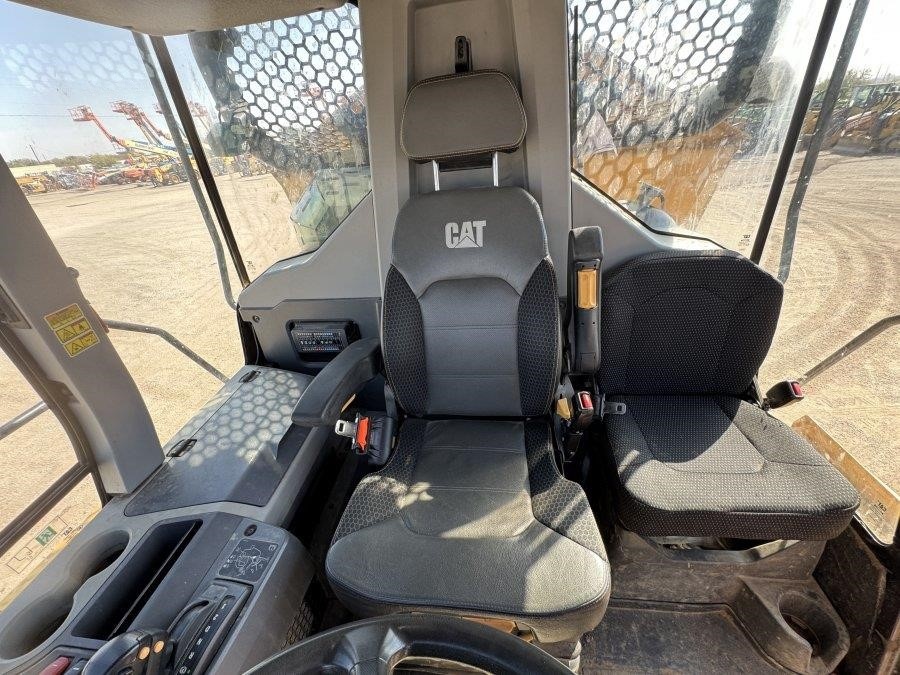

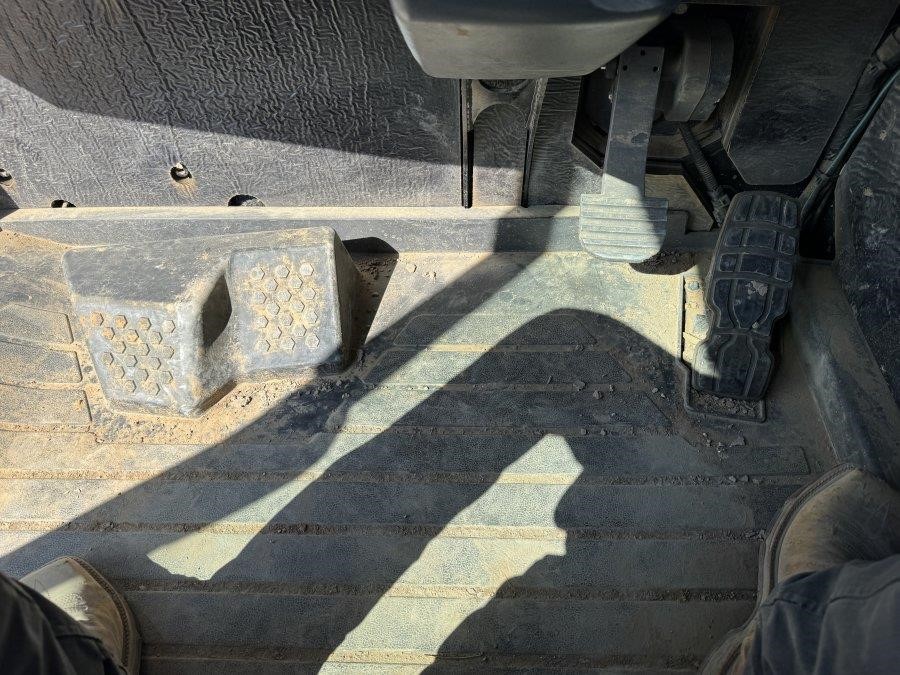

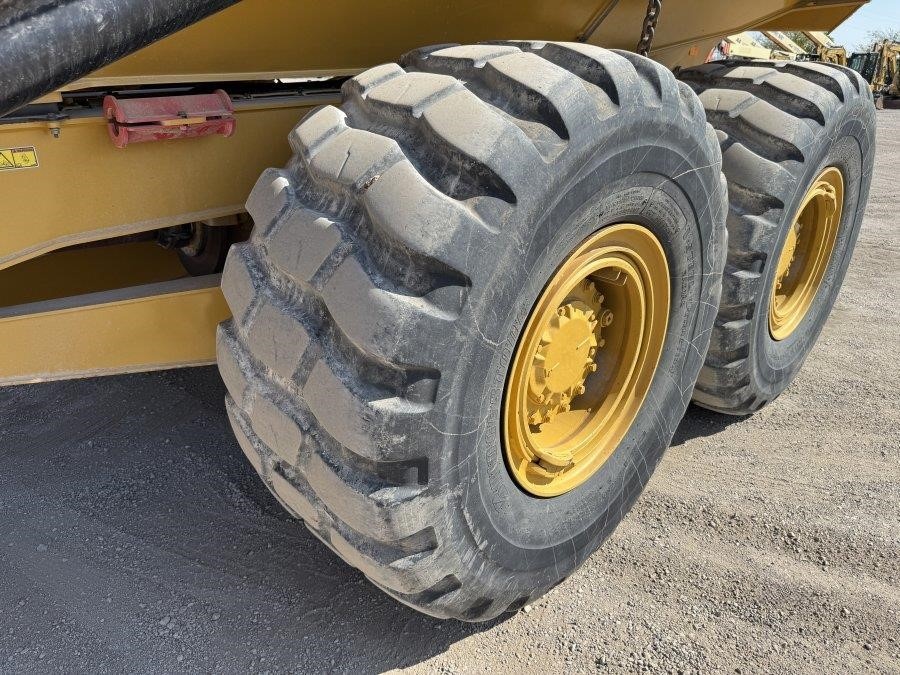

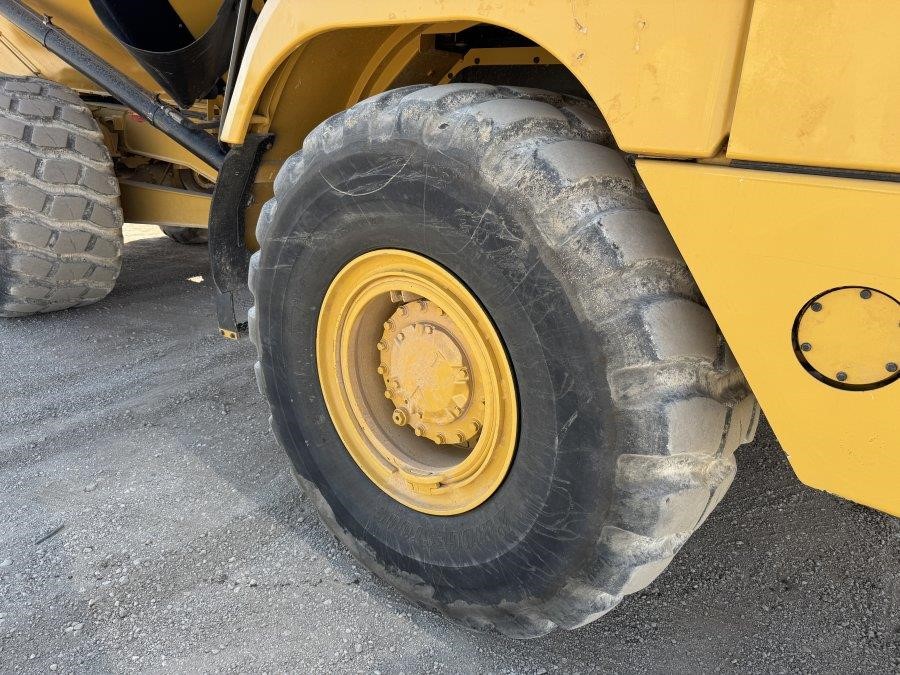

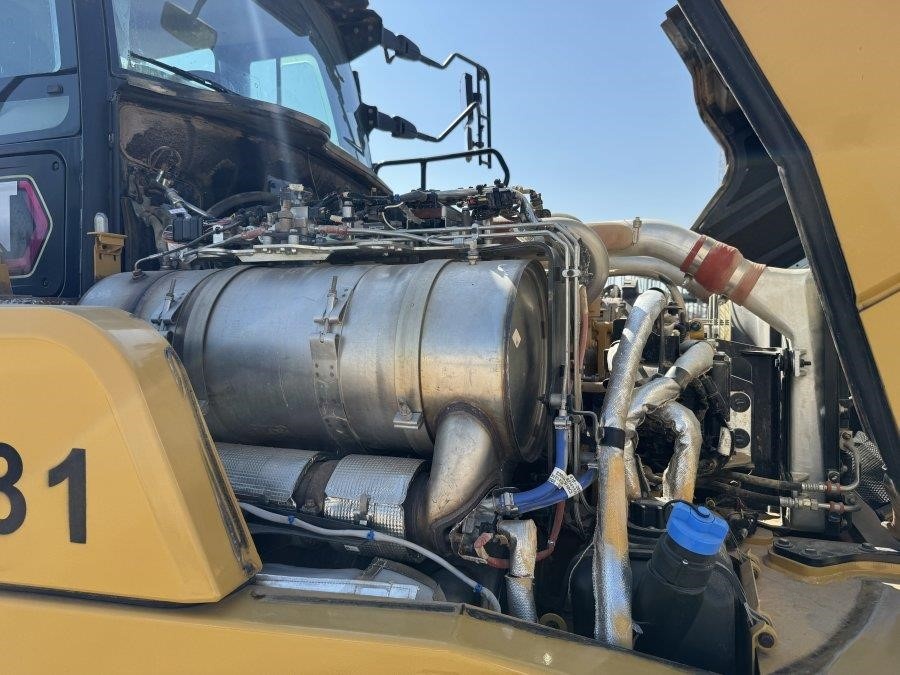

CAB, A/C, Heat, CAT C13 Diesel Engine, Auto Transmission, 3 Speed, 30/65R25 Tires, Tailgate
Specifications
General
| Year | 2024 |
| Make | caterpillar |
| Model | 730 |

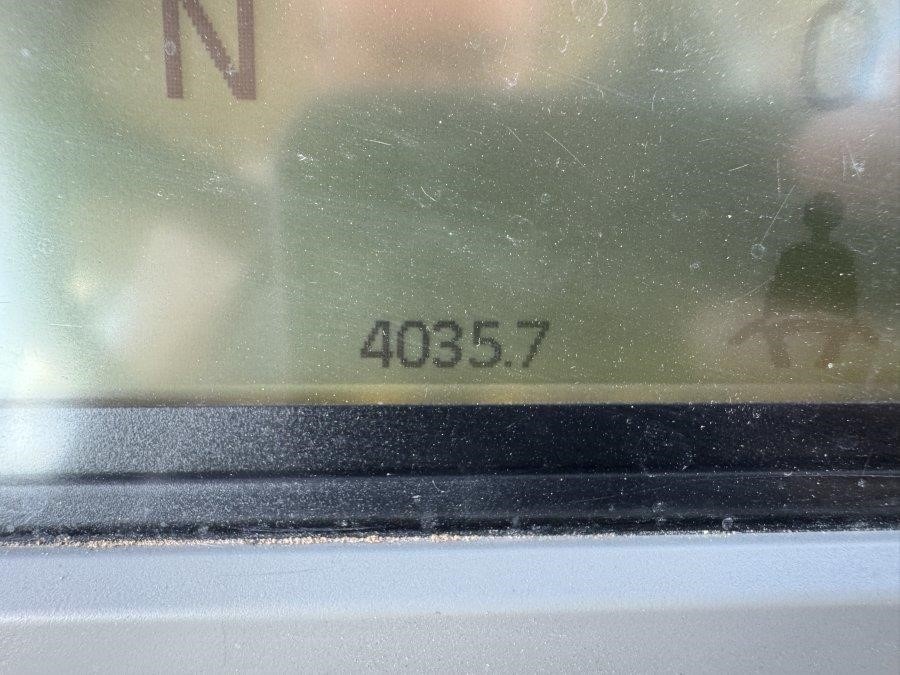

| Hours | 4035 |
| Condition | Used |
| Gross Power - SAE J1995 | 280 kW 375 hp |
| Net Power - SAE J1349 | 274 kW 367 hp |
| Net Power - ISO 14396 | 276 kW 370 hp |
| Bore | 130 mm |
| Bore (4) | 5.1 in |
| Stroke | 157 mm |
| Stroke (6) | 6.2 in |
| Sound Levels - Interior Cab | 72 dB(A) |

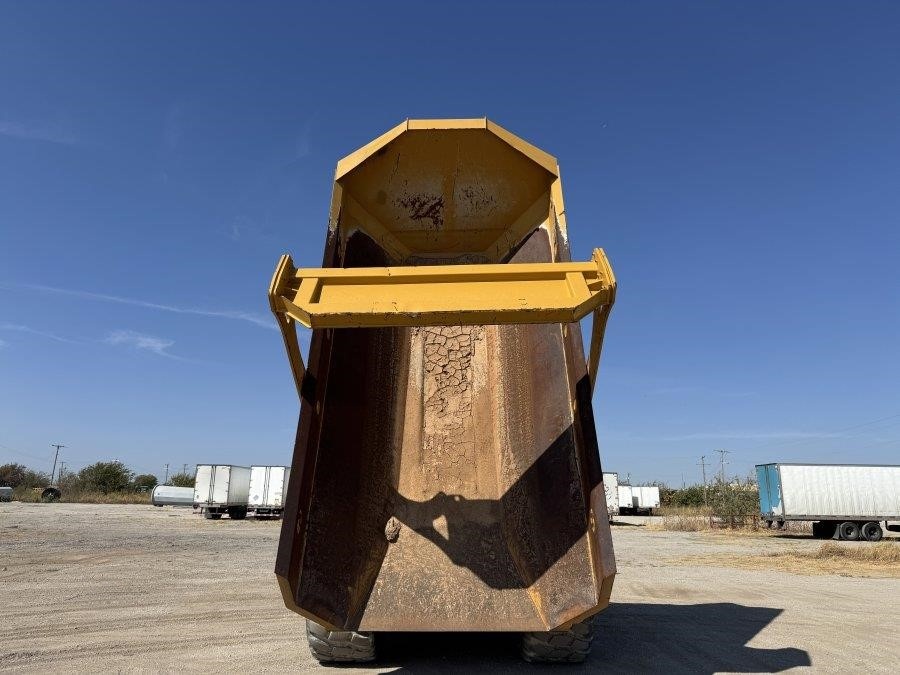

| Body Hoist - Raise Time | 12 Seconds |
| Body Hoist - Lower Time | 8 Seconds |
| Standards - Brakes | ISO 3450 – 2011 |
| Standards - Cab/FOPS | ISO 3449 Level II – 2005 |
| Standards - Cab/ROPS | ISO 3471 – 2008 |
| Standards - Steering | ISO 5010 – 2007 |
| Body Plate Thickness - Front Plate | 7 mm |
| Body Plate Thickness - Base Plate | 13 mm |
| Body Plate Thickness - Side Plates | 11 mm |
Engine & Powertrain

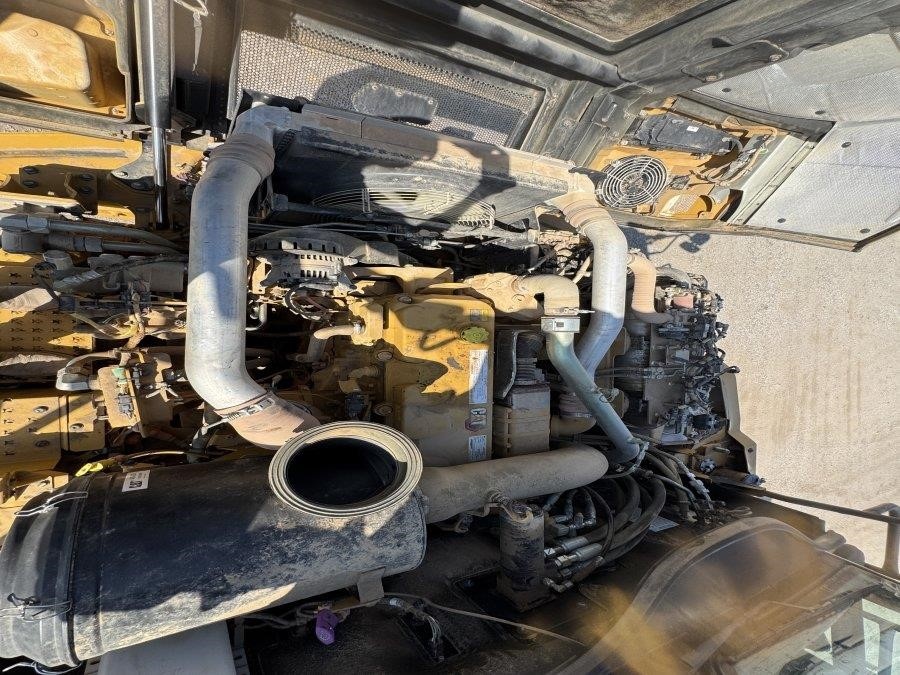

| Engine Model | Cat C13 ACERT |
| Displacement | 12.5 L |
| Displacement (2) | 762.8 in3 |
| No Engine De-rating Below | 3810 m |
| No Engine De-rating Below (4) | 12,500 ft |
| Peak Engine Torque Gross (SAE J1995) | 2141 N∙m |
| Peak Engine Torque Gross (SAE J1995) (6) | 1,579 lbf-ft |
| Peak Engine Torque Net (SAE J1349) | 2120 N∙m |
| Peak Engine Torque Net (SAE J1349) (8) | 1,564 lbf-ft |
| Peak Engine Torque Speed | 1,200 rpm |
| Transmission - Forward 1 | 8 km/h |
| Transmission - Forward 1 (11) | 5 mph |
| Transmission - Forward 2 | 15 km/h |
| Transmission - Forward 2 (13) | 9 mph |
| Transmission - Forward 3 | 22 km/h |
| Transmission - Forward 3 (15) | 14 mph |
| Transmission - Forward 4 | 34 km/h |
| Transmission - Forward 4 (17) | 21 mph |
| Transmission - Forward 5 | 47 km/h |
| Transmission - Forward 5 (19) | 29 mph |
| Transmission - Forward 6 | 55 km/h |
| Transmission - Forward 6 (21) | 34 mph |
| Transmission - Reverse 1 | 9 km/h |
| Transmission - Reverse 1 (23) | 6 mph |
Working Range
| Rated Payload | 28 tonnes |
| Rated Payload (1) | 31 tons |
| Body Capacities - Heaped SAE 2:1 | 17.5 m3 23 yd3 |
| Body Capacities - Struck | 13.3 m3 |
| Body Capacities - Struck (4) | 17.4 yd3 |
| Body Capacities - Tailgate Heaped SAE 2:1 | 18.8 m3 |
| Body Capacities - Tailgate Heaped SAE 2:1 (6) | 24.6 yd3 |
| Body Capacities - Tailgate Struck | 13.9 m3 |
| Body Capacities - Tailgate Struck (8) | 18.2 yd3 |
| Service Refill Capacities - Fuel Tank | 412 L |
| Service Refill Capacities - Fuel Tank (10) | 108.8 gal |
| Service Refill Capacities - Cooling System | 83 L |
| Service Refill Capacities - Cooling System (12) | 21.9 gal |
| Service Refill Capacities - Hydraulic System | 110 L |
| Service Refill Capacities - Hydraulic System (14) | 29.1 gal |
| Service Refill Capacities - Engine Crankcase | 38 L |
| Service Refill Capacities - Engine Crankcase (16) | 10 gal |
| Service Refill Capacities - Transmission | 47 L |
| Service Refill Capacities - Transmission (18) | 12.4 gal |
| Service Refill Capacities - Final Drives/Differential | 125 L |
| Service Refill Capacities - Final Drives/Differential (20) | 33 gal |
| Service Refill Capacities - Output Transfer Gear Box | 24 L |
| Service Refill Capacities - Output Transfer Gear Box (22) | 6.3 gal |

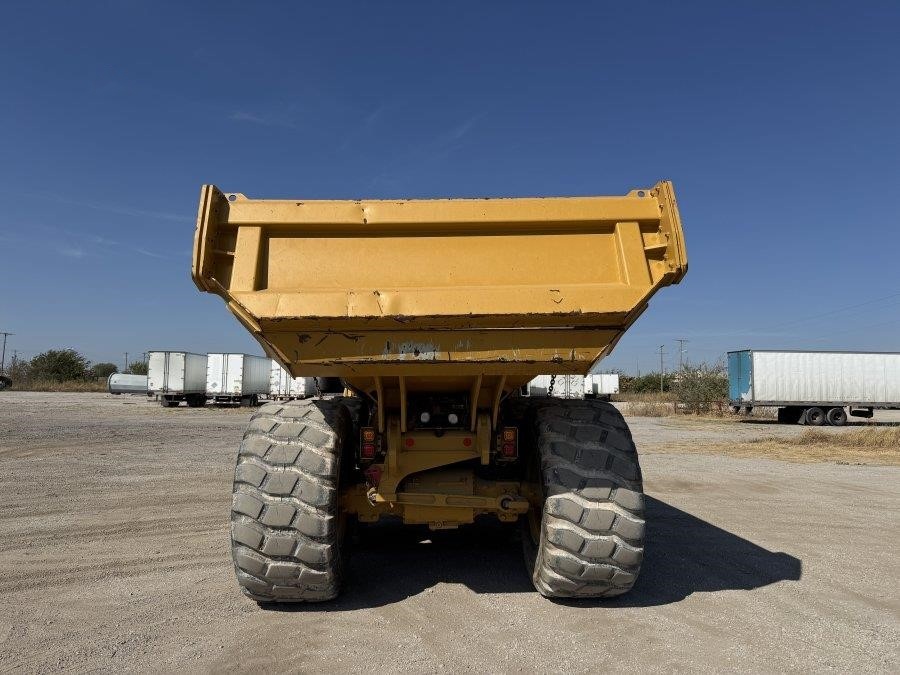

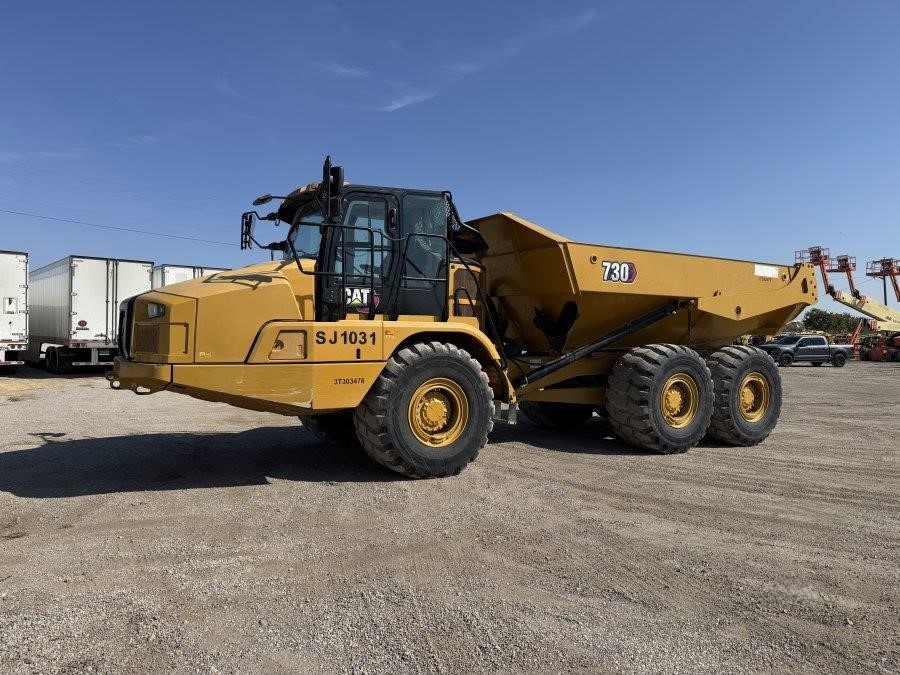

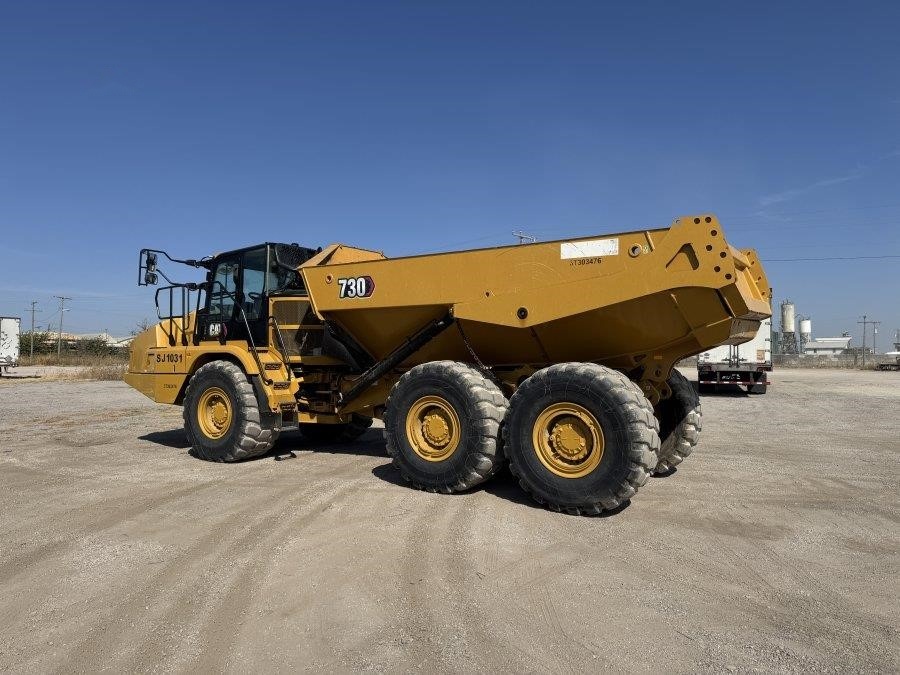

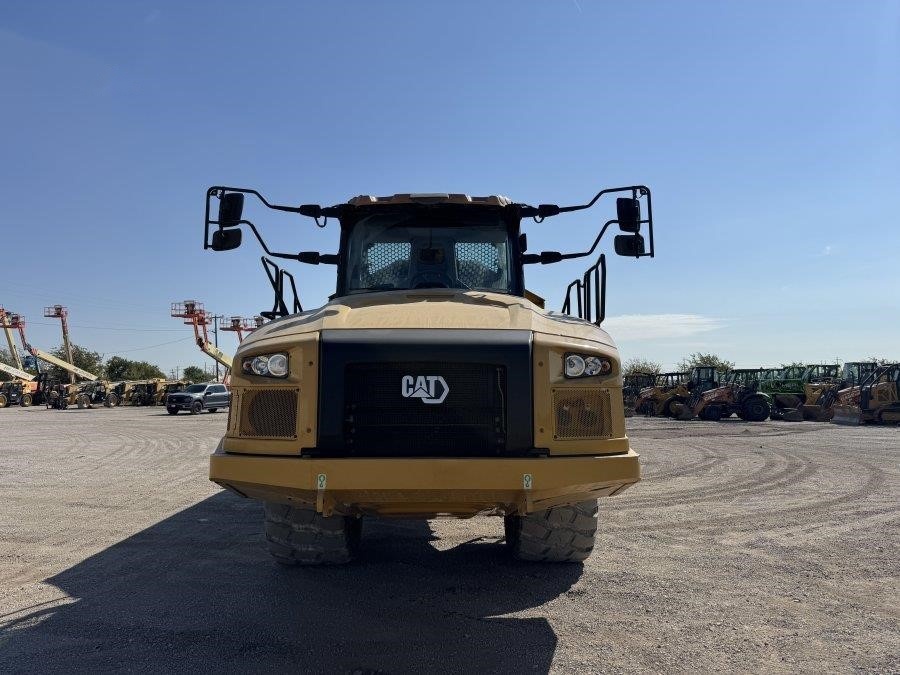

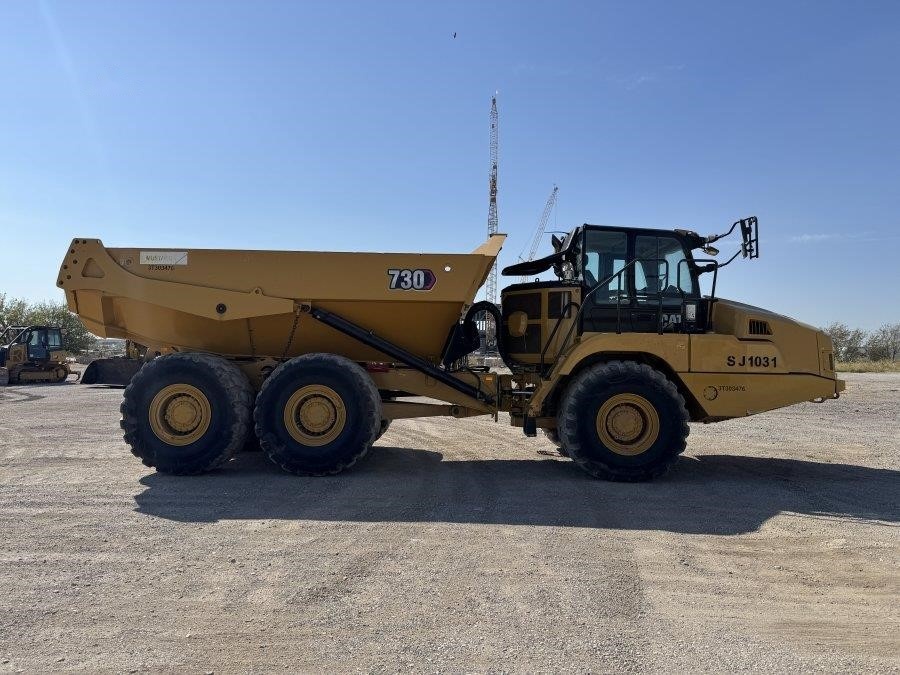

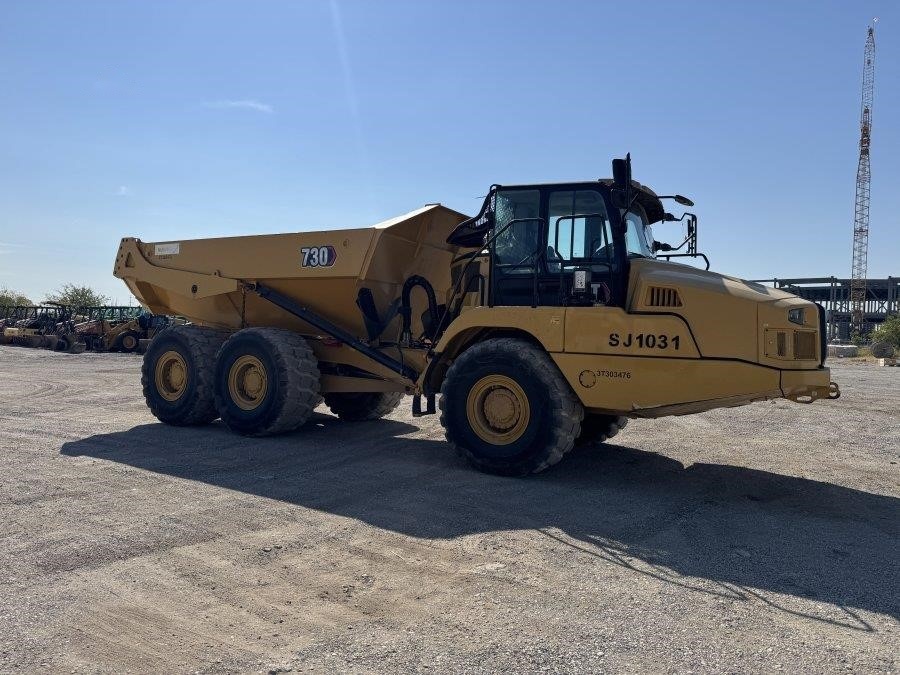

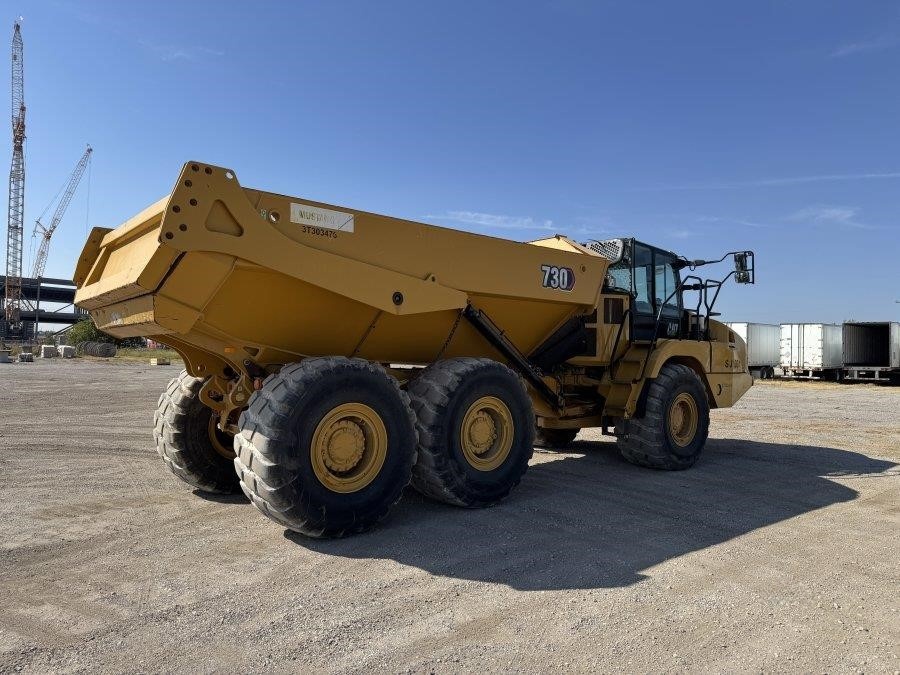

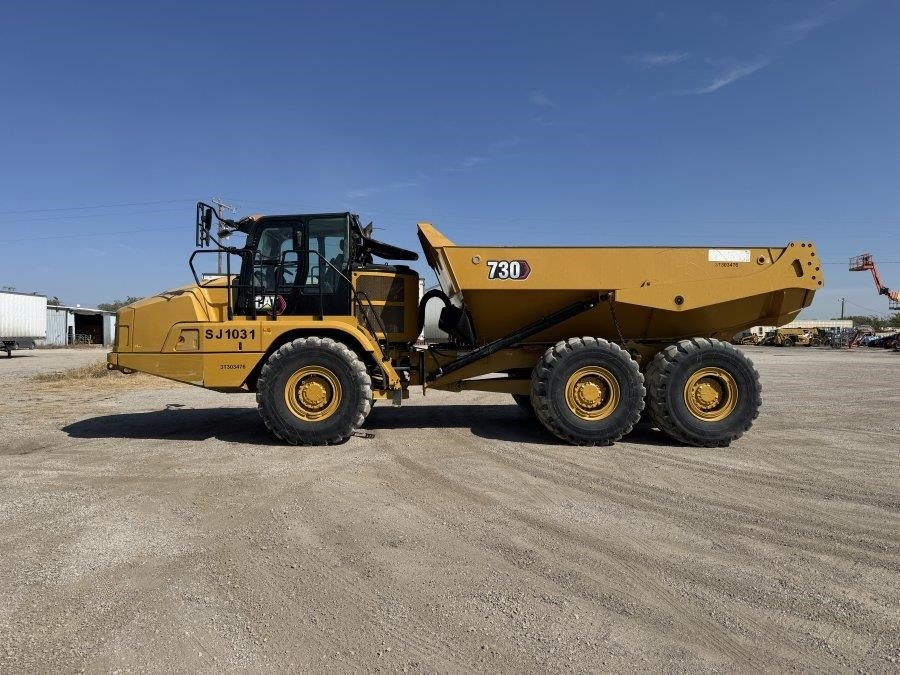

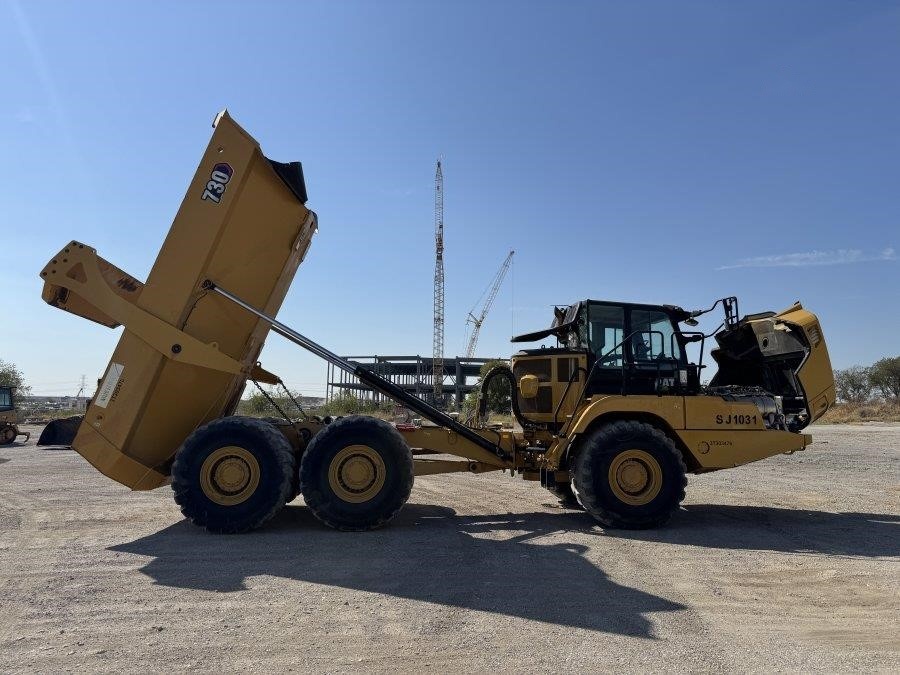

2024 Caterpillar 730 Articulated Dump Truck
