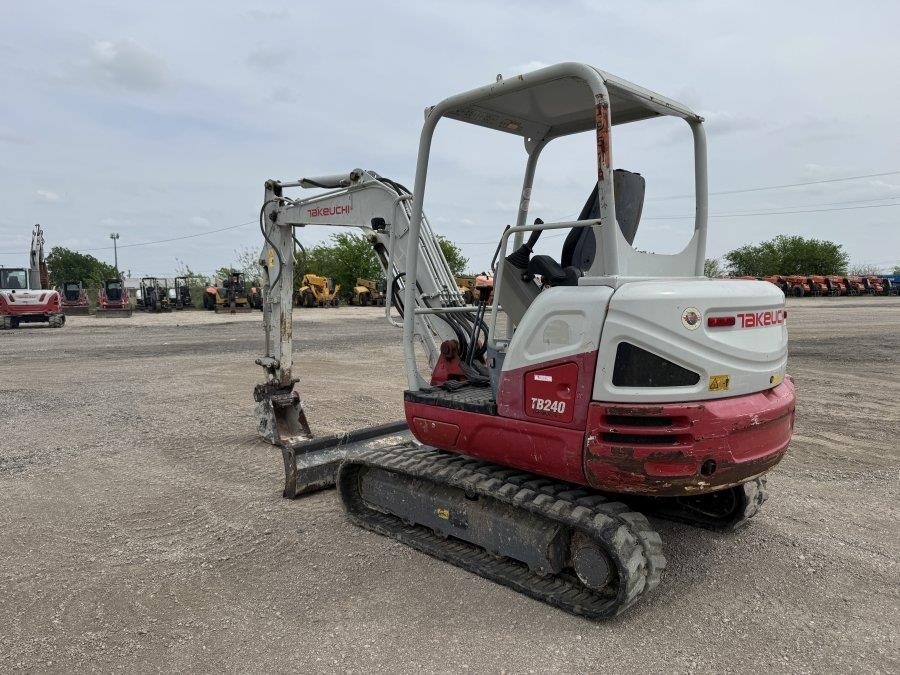

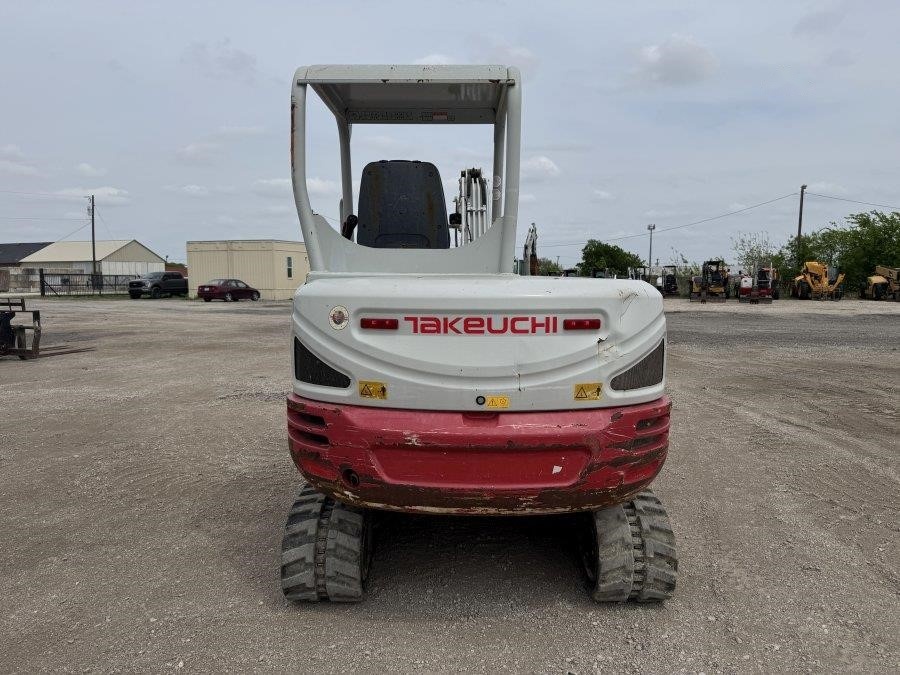

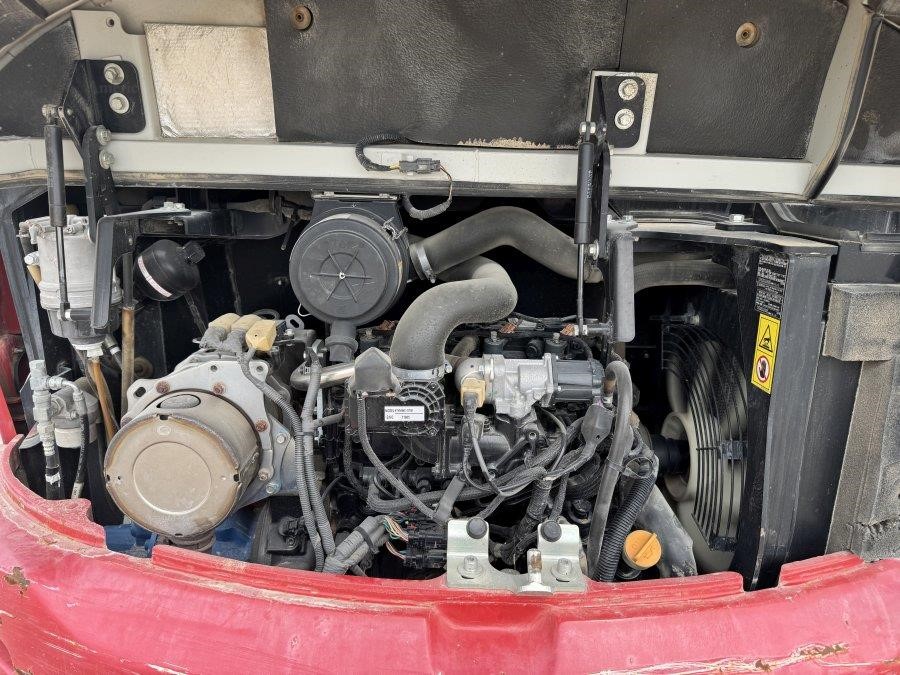

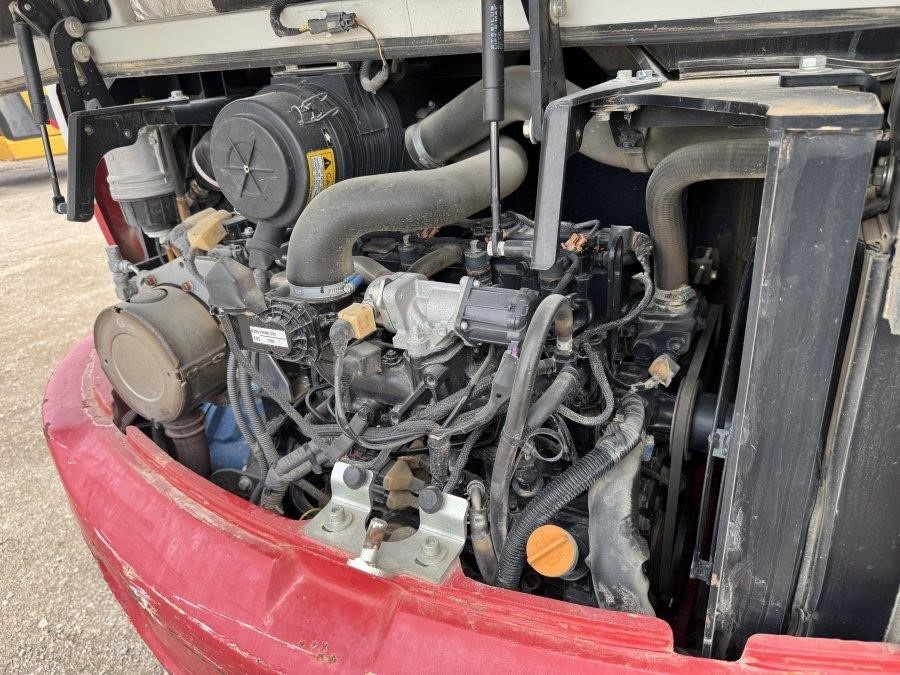

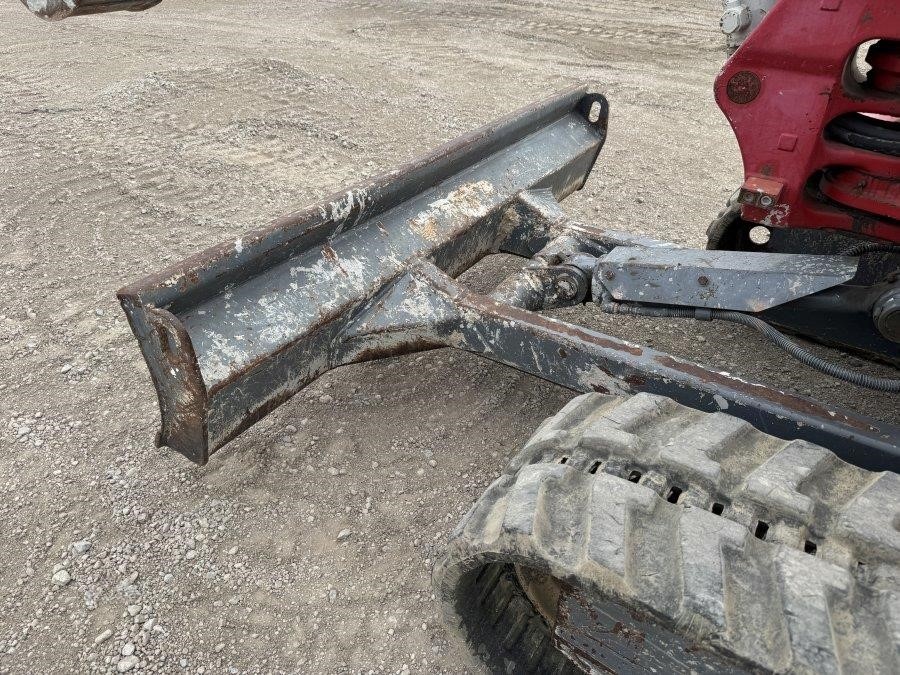

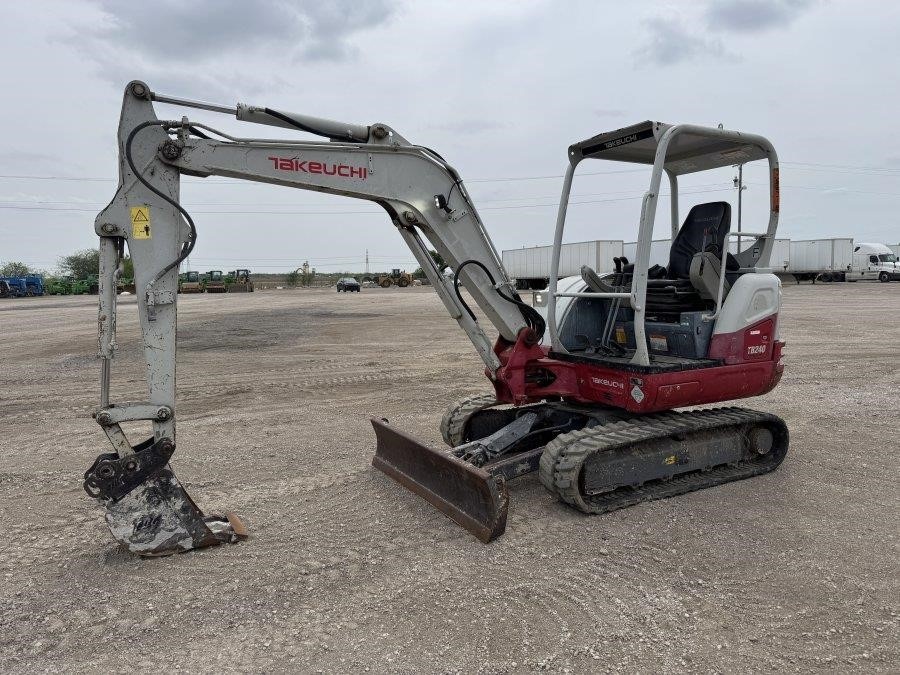

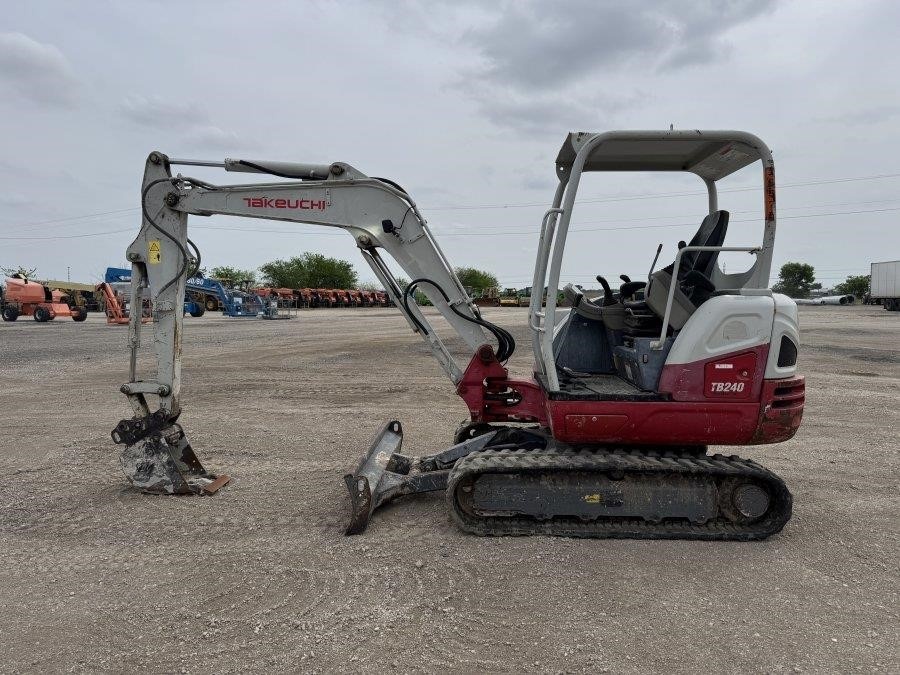

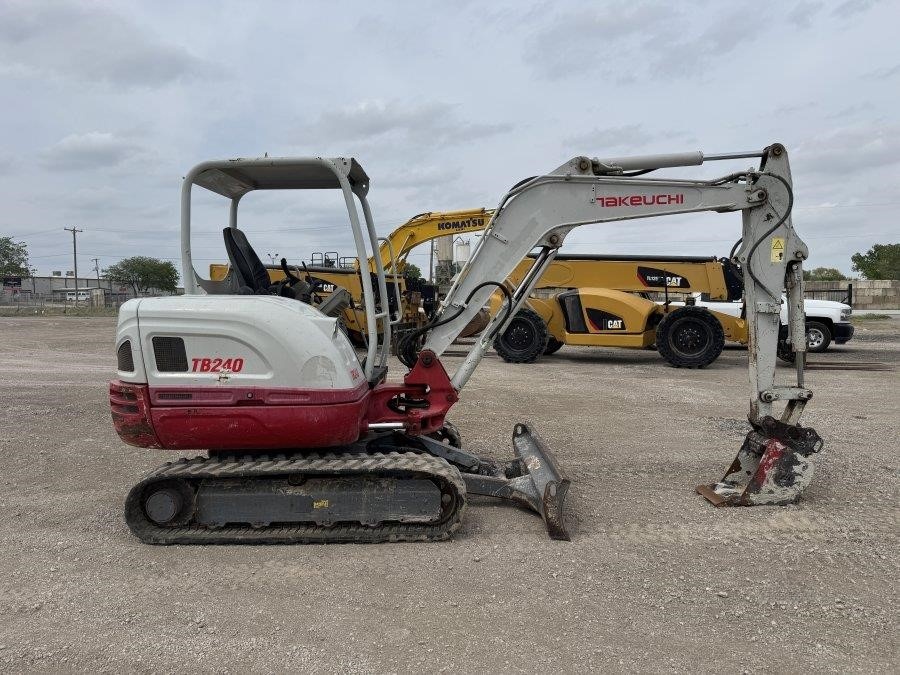

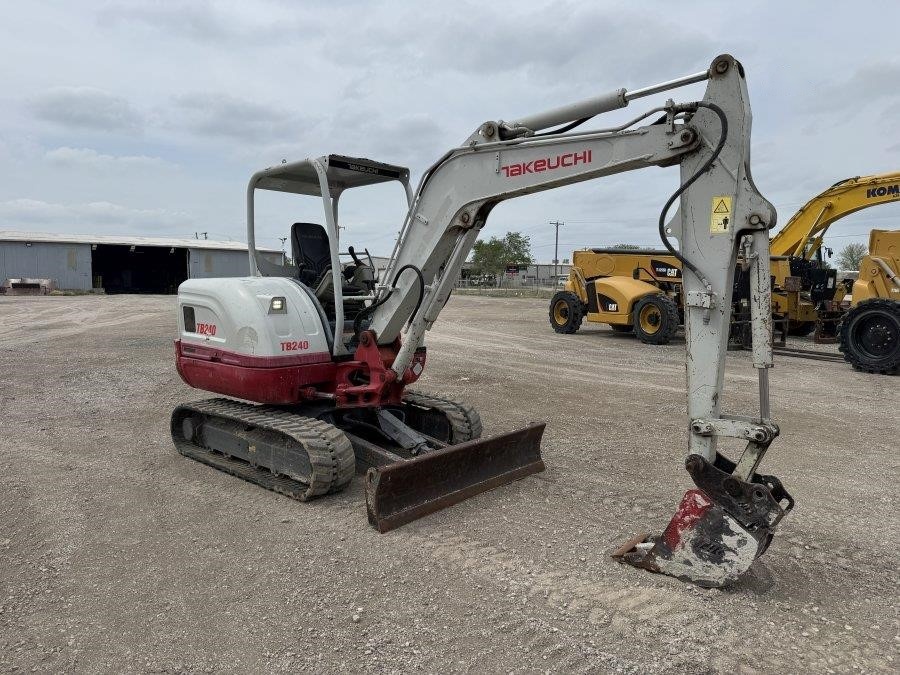

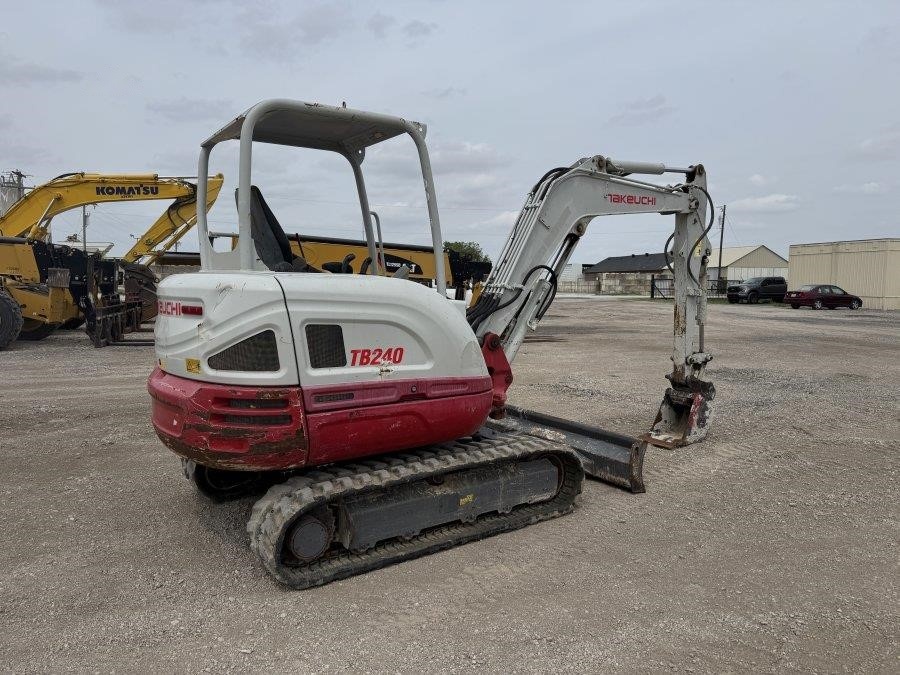

2020 Takeuchi TB240 Mini Excavators. Condition: Used. Traction Force: 9,533 lb (4,324 kg). Engine Make / Model: Yanmar / 4TNV88C. Engine Displacement: 133.6 cu in (2.2 L). Horsepower @ 2,200 rpm: 35.8 hp (26.7 kW). Maximum Torque @ 1,430 rpm: 102.6 ft-lb (139.1 Nm). Slew Speed: 9.6 rpm. Max Travel Speed - Low Range: 1.8 mph (2.9 km/hr). Max Travel Speed - High Range: 3.3 mph (5.3 km/hr). Fluid Capacities - Engine Lubrication: 7.8 qt (7.4 L). Fluid Capacities - Cooling System: 9.5 qt (9.0 L). Fluid Capacities - Fuel Tank Capacity: 18.5 gal (70.0 L). Fluid Capacities - Fuel Consumption (65% of Full Load): 1.2 gal/hr (4.8 L/hr). Fluid Capacities - Hydraulic Reservoir Capacity: 10.8 gal (41.0 L). Fluid Capacities - Hydraulic System Capacity: 19.5 gal (74.0 L). Hydraulic System - Total Hydraulic Flow: 30.6 gpm (115.8 Lpm). Hydraulic System - Auxiliary Hydraulic Flow: 17.1 gpm (64.9 Lpm). Hydraulic System - System Operating Pressure: 3,481 psi (24.0 MPa). TB240 Lifting Capacities at Ground Level - Lift Point Radius 9 ft (2,743 mm), Over Front Blade Down: 3,683 lb (1,670 kg). TB240 Lifting Capacities at Ground Level - Lift Point Radius 12 ft (3,657 mm), Over Front Blade Down: 2,462 lb (1,116 kg). TB240 Lifting Capacities at Ground Level - Lift Point Radius 9 ft (2,743 mm), Over Side: 2,019 lb (915 kg). TB240 Lifting Capacities at Ground Level - Lift Point Radius 12 ft (3,657 mm), Over Side: 1,356 lb (615 kg). A Maximum Reach: 18 ft 2.3 in (5,545 mm). B Maximum Reach at Ground Level: 17 ft 9.6 in (5,425 mm). C Maximum Digging Depth: 11 ft 4.4 in (3,465 mm). D Maximum Vertical Digging Depth: 8 ft 8.9 in (2,665 mm). G Front Swing Radius: 6 ft 8.2 in (2,037 mm). I Tail Swing (Slew) Radius: 4 ft 5.7 in (1,365 mm). Maximum Bucket Breakout Force: 9,959 lb (4,517 kg). Maximum Arm Digging Force: 4,110 lb (1,864 kg). H Front Swing Radius with Boom Offset: 5 ft 4.0 in (1,626 mm). Operating Weight - Canopy: 8,570 lb (3,890 kg). Operating Weight - Cab: 8,990 lb (4,080 kg). Arm Length: 5 ft 3 in (1,600 mm). Ground Pressure - Canopy: 4.4 psi (30.2 kPa). Ground Pressure - Cab: 4.6 psi (31.6 kPa). E Maximum Dig Height: 17 ft 2.5 in (5,244 mm). F Maximum Dumping Height: 12 ft 6.7 in (3,828 mm). J Transport Length: 16 ft 8.2 in (5,020 mm). K Transport Height: 8 ft 2.6 in (2,505 mm). L Ground Clearance: 11.6 in (295 mm). M Undercarriage Length: 6 ft 11.0 in (2,110 mm). N Track Width (Rubber): 13.8 in (350 mm). O Undercarriage Width: 5 ft 8.5 in (1,740 mm). 2235 hours.
