Item Specifications
Category
Condition
Used
Item Number
#1845
Make
jcb
Model
930_2
Year
2009
Industry
construction
Equipment Type
forklifts
Location
Ft. Worth, TX
Also Available In
TX
Item Description
This used 2009 JCB 930 rough terrain forklift is designed for lifting and moving materials on outdoor job sites. Its diesel engine, large tires, and mast make it suitable for construction yards and other uneven work areas. It offers a practical material-handling option where a conventional warehouse forklift may be less suited to the terrain. Mileage and/or engine hours are approximate and subject to change. Please contact your sales representative for the most current readings.
Specifications
General
| Year | 2009 |
| Make | jcb |
| Model | 930_2 |

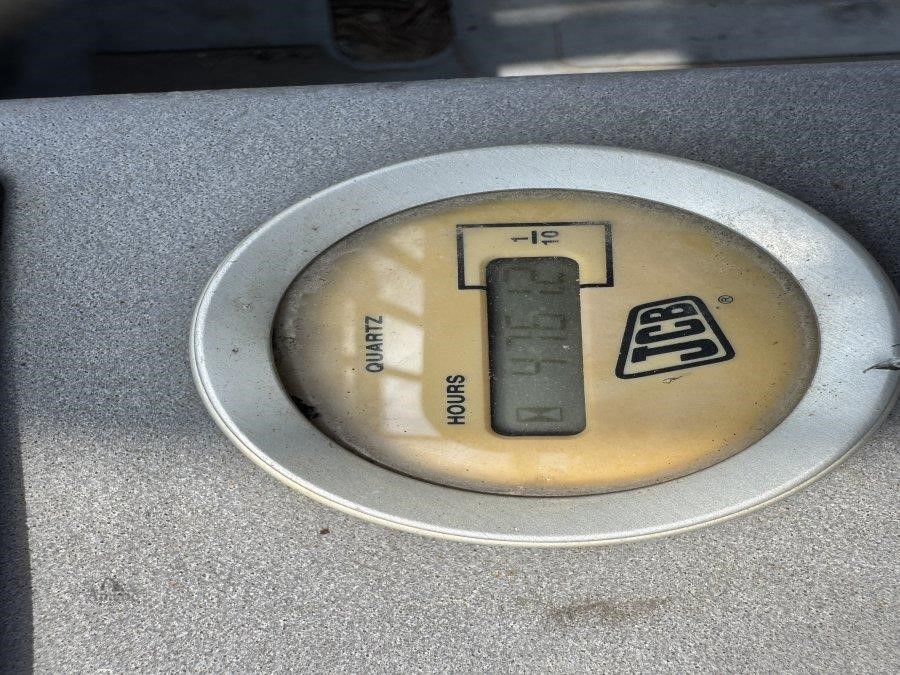

| Hours | 4761 |
| Condition | Used |
| Gross Power - ISO 14396 @ 2000 rpm | 74 hp (55 kW) |
| Gears Forward/Reverse | 4/4 |
| Gear Selection | Manual |
| System Voltage | 12 Volt |
| Outside Turn Radius 2WD (930) | 14 ft 4.4 in |
| Outside Turn Radius 4WD (930) | 14 ft 3.3 in |
| Departure Angle (930) | 53 degrees |
| Obstruction Angle (930) | 51 degrees |

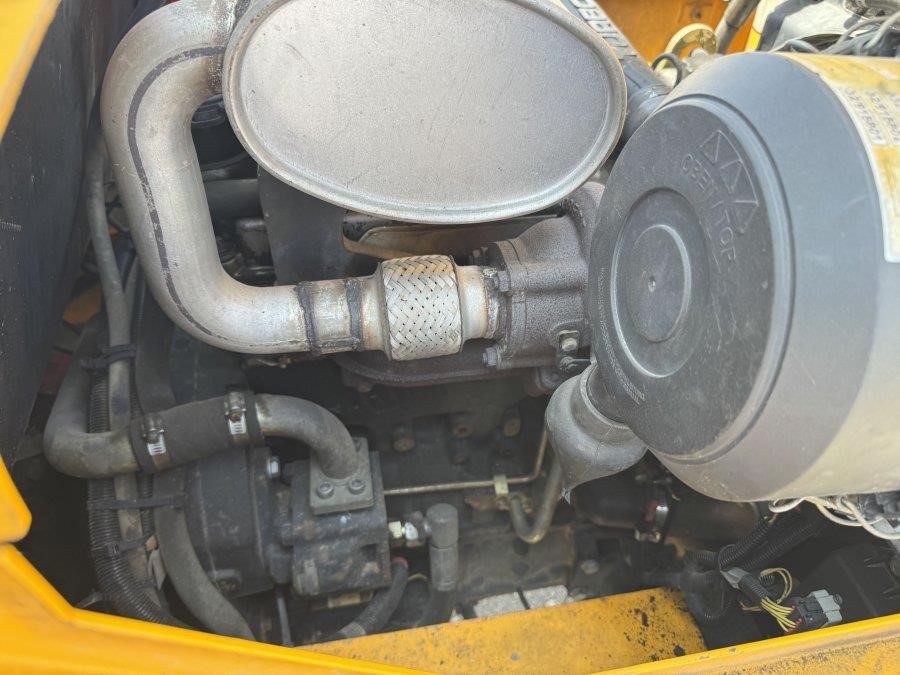

Engine & Powertrain

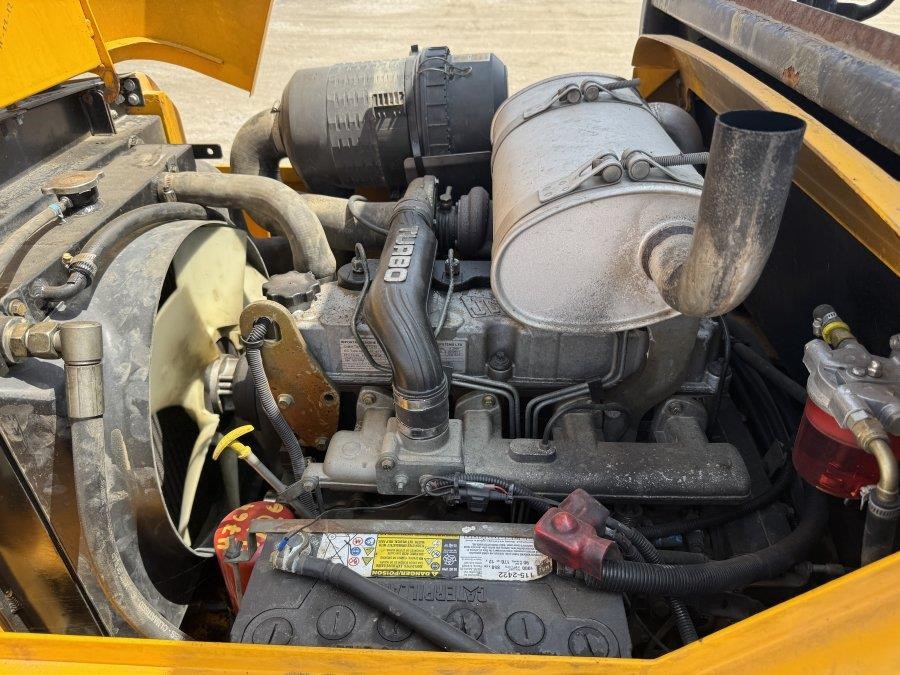

| Engine Model | JCB ECOMAX TCAE-55 |
| Engine Displacement | 4.4 liters |
| Fuel | Diesel |
| Cooling | Liquid |
| Gross Torque - ISO 14396 @ 1300 rpm | 295 lb-ft |
| Emission Certification | TIER IV FINAL |
| Engine Oil Service Intervals | 500 hours |
| Torque Converter | 11 inches, ratio 2.20:1 |
| Alternator Output | 95 Amp |
Working Range
| Travel Speeds - Gear 1/2/3/4 | 3.2 / 5.3 / 10.1 / 18.4 mph |
| Lift Capacity, 15 ft FL - 66 in Shaft Carriage (930) | 6,000 lb, max fork height 180.5 in |
| Lift Capacity, 22 ft CV - 66 in Shaft Carriage (930) | 2,500 lb, max fork height 264.5 in |

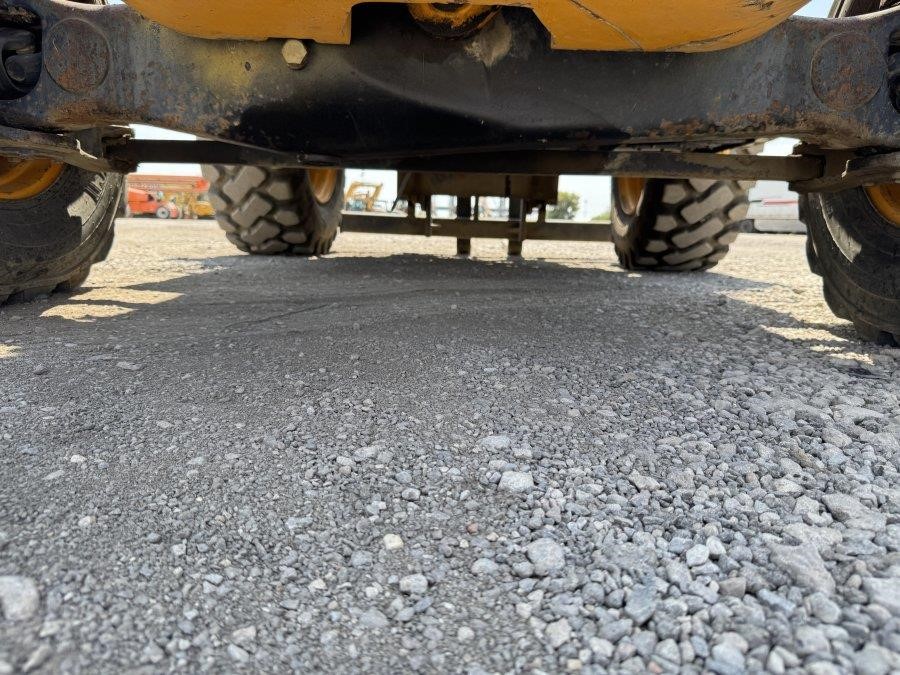

Undercarriage & Attachments

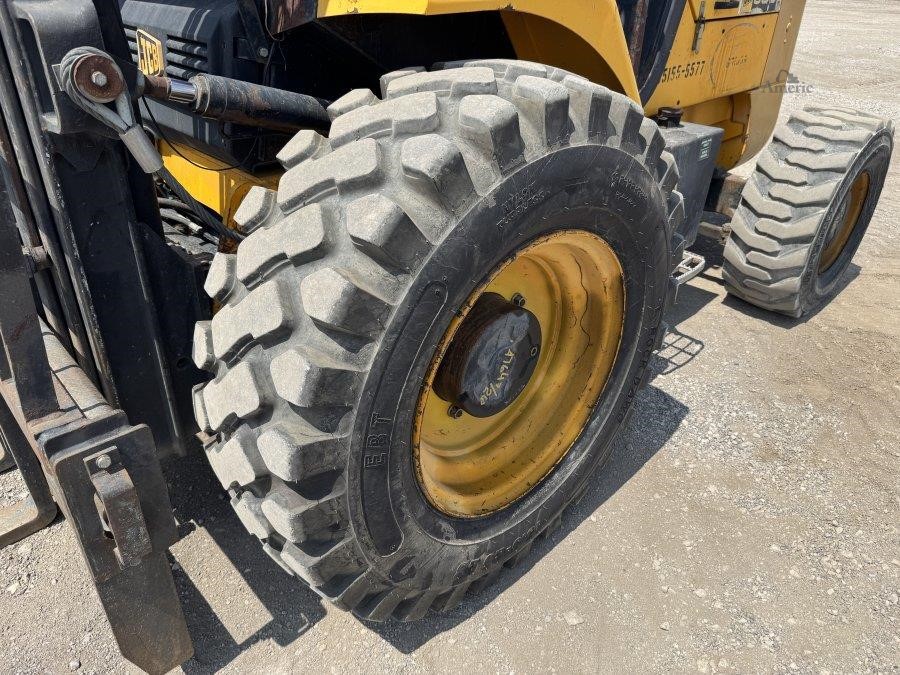

| Standard Tires - Front 2WD | 15.5-25 |
| Standard Tires - Front 4WD | 15.5-25 (12 ply) |
| Standard Tires - Rear 4WD | 12.5/80-18 (10 ply) |
| Mast Tilt Forwards (930) | 18 degrees |
| Mast Tilt Backwards (930) | 10 degrees |
Dimensions
| Overall Cab Height (930) | 8 ft 4 in |
| Overall Width Over Tires (930) | 7 ft 2 in |
| Overall Length to Front Carriage (930) | 11 ft 7 in |
| Wheelbase (930) | 6 ft 9 in |
| Ground Clearance (930) | 0 ft 10 in |
| Machine Weight, 15 ft 0 in Freelift Mast (930) | 13,985 lb |
| Machine Weight, 22 ft 0 in Clearview Mast (930) | 14,495 lb |
| Machine Weight, 22 ft 0 in Freelift Mast (930) | 14,600 lb |

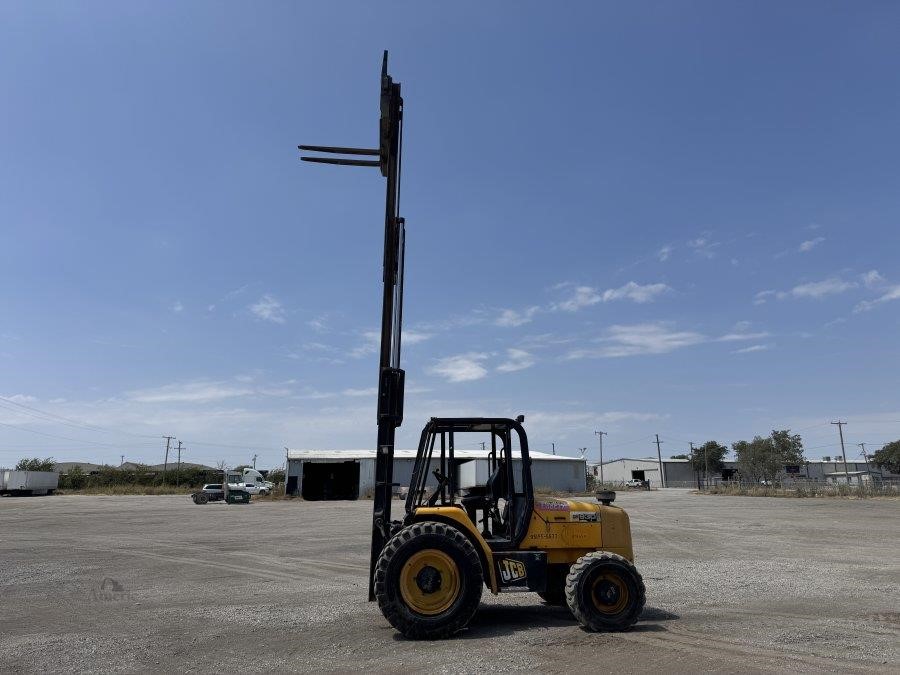

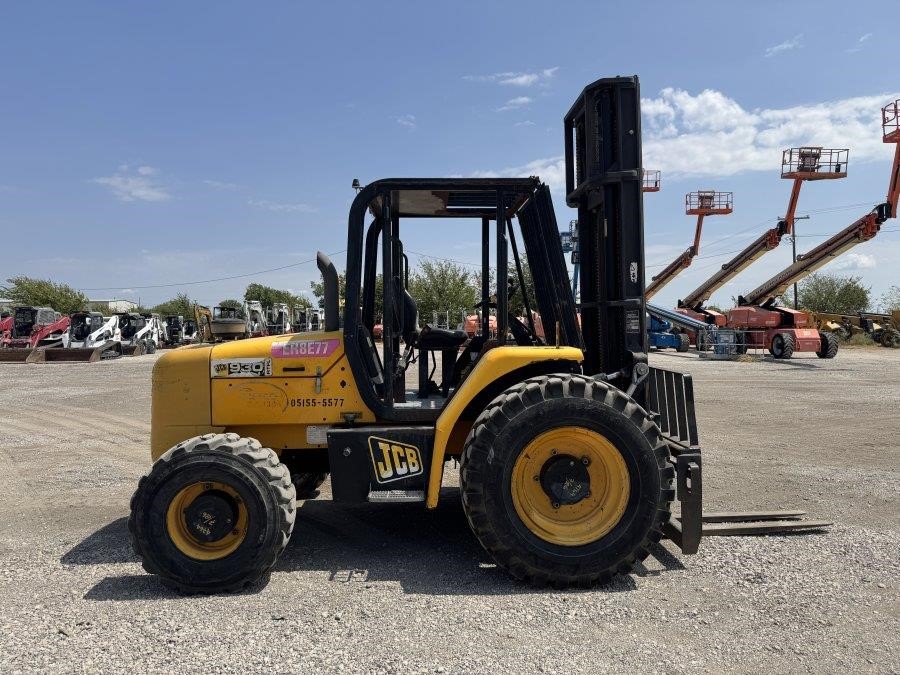

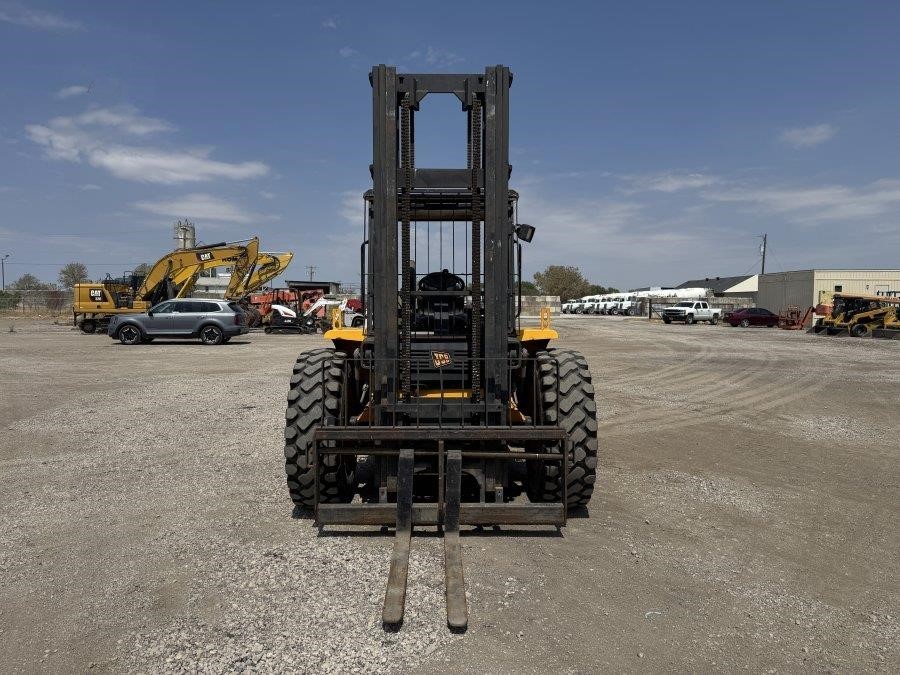

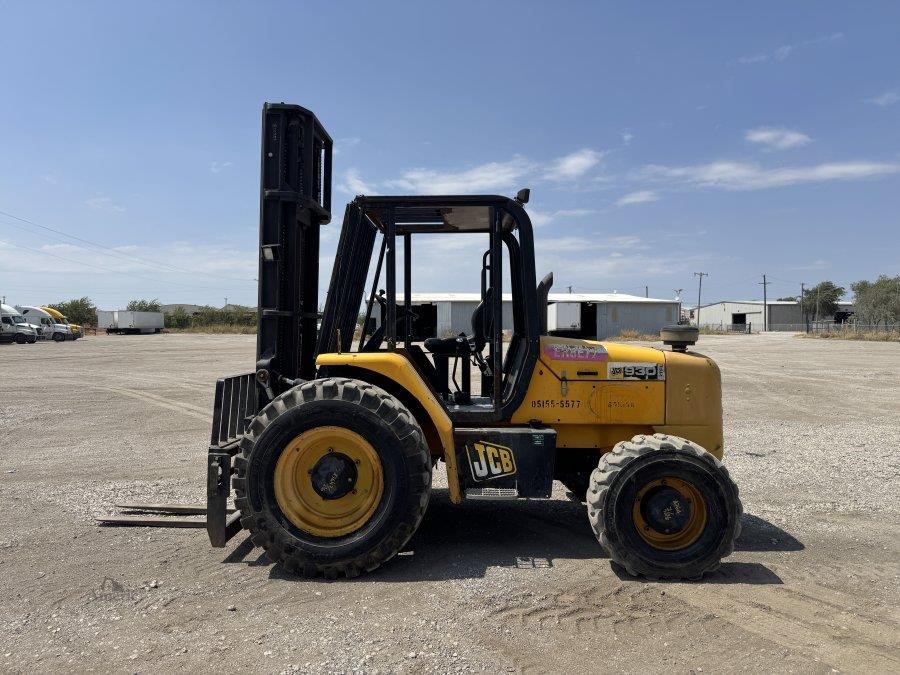

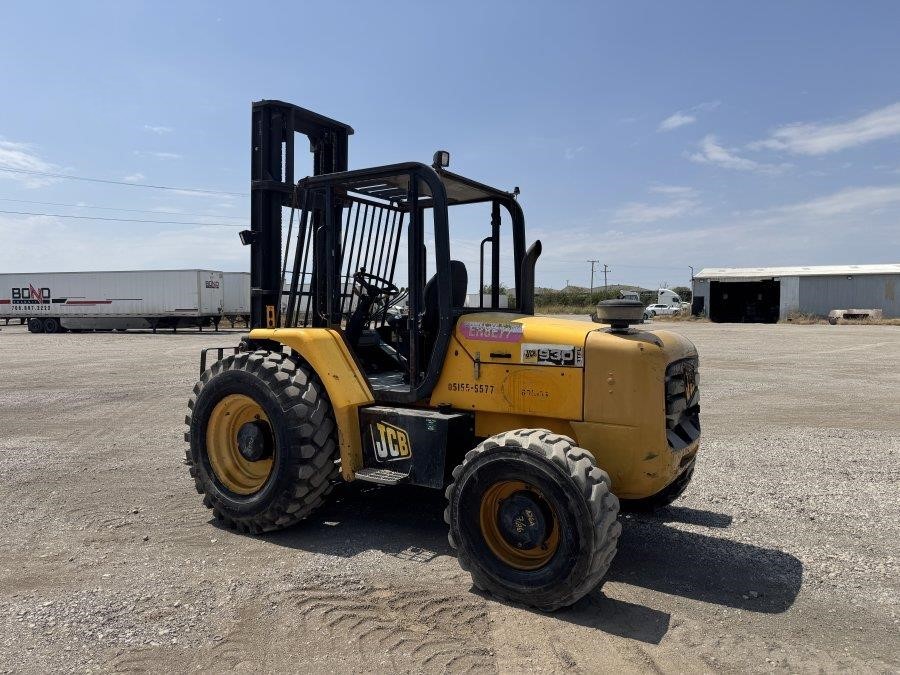

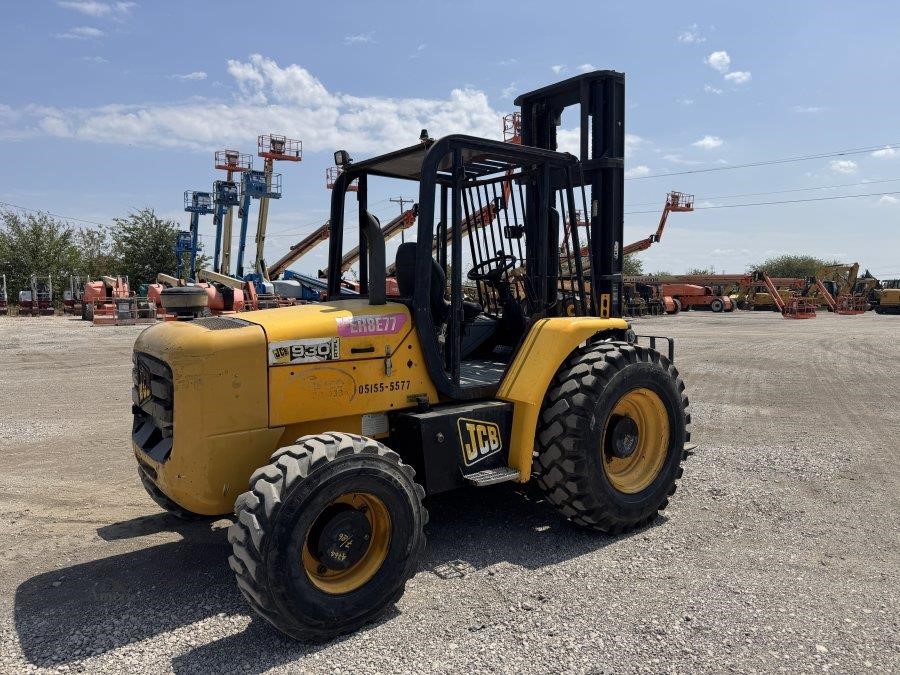

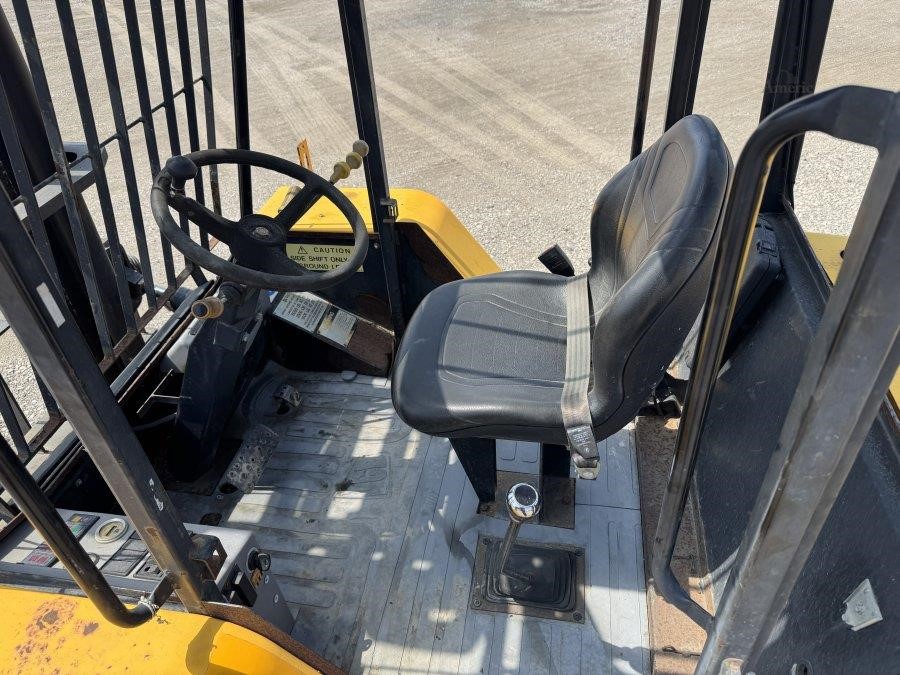

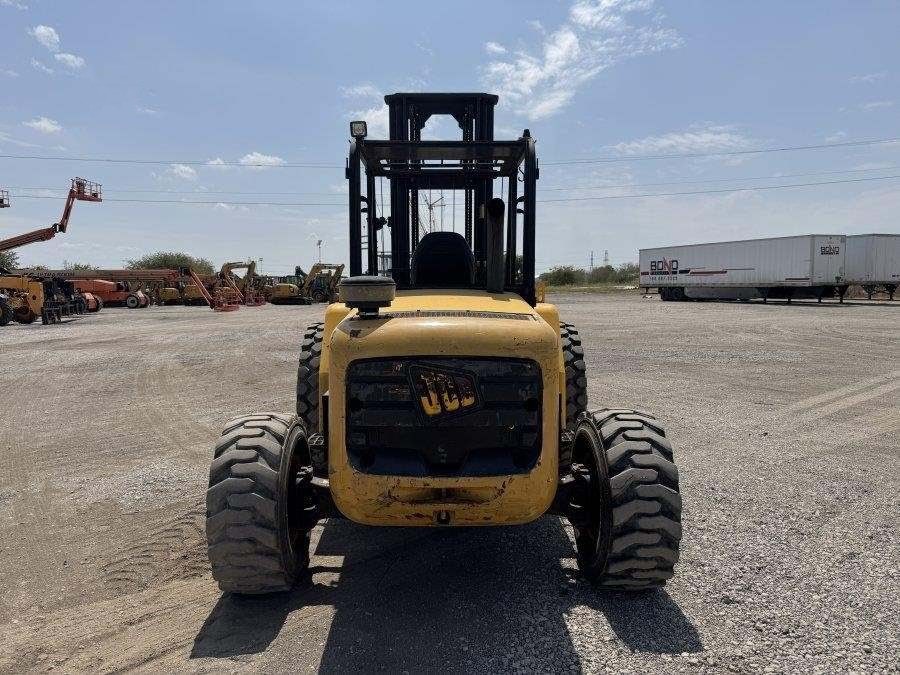

2009 JCB 930 Rough Terrain Forklift
