Financing 1 / 5
Item Specifications
Category
Condition
Used
Item Number
#1827
Make
case
Model
cx145d
Year
2019
Industry
construction
Equipment Type
excavators
Location
Corpus Christi, TX
Serial
DAC145K7NJS7*****
Hours
2824
Also Available In
TX
Item Description
This 2019 Case CX145D excavator handles trenching, digging, and loading near structures. Its reduced tail swing helps it work where space is limited, while the tracked undercarriage supports jobsite travel. Mileage and/or engine hours are approximate and subject to change. Please contact your sales representative for the most current readings.
Specifications
General
| Year | 2019 |
| Make | case |
| Model | cx145d |
| Hours | 2824 |
| Serial Number | DAC145K7NJS7***** |
| Condition | Used |
Engine & Powertrain
| Engine - Model | Isuzu AM-4JJ1X (CEGR, SCR and DOC) |
| Emissions Certification | Tier 4 Final |
| Fuel | Requires ultra low-sulfur fuel, B5 biodiesel tolerant |
| Engine - Type | Water-cooled, 4-cycle, high pressure common rail system, turbo-charged w/ air cooled intercooler |
| Engine - Cylinders | 4-cylinder in-line |
| Engine - Displacement | 183 in3 (3.0 L) |
| Engine - Bore/Stroke | 3.76 x 4.13 in (95.4 x 104.9 mm) |
| Engine - Net horsepower - SAE J1349 @ 2000 RPM | 102 hp (76.4 kW) |
| Engine - Net max. torque - SAE J1349 @ 1800 RPM | 257 lb·ft (349 N·m) |
| Engine gradeability - Side-to-side | 35° |
| Engine gradeability - Fore and aft | 35° |
| Cooling operating range | 109 to -13 F (43 to -25 C) |
| Drivetrain - Brakes | Mechanical disc |
| Electrical - Voltage | 24 Volts |
| Electrical - Alternator rating | 50 amp |
| Electrical - Batteries | 2 x 12 Volt |
| Electrical - Battery reserve capacity | 72 Ah/5 hour |
| Electrical - Work lights - 4 | 24 Volt/70 watt (1 boom, 1 upper, 2 cab) |
Working Range
| Two speed travel - Max. high speed | 3.5 mph (5.6 kph) |
| Two speed travel - Max. low speed | 2.1 mph (3.4 kph) |
| Drawbar pull | 26,100 lbf (116 kN) |
| Gradeability | 70% – 35° slope |
| Hydraulics - System design | Open center |
| Hydraulics - Max. rated flow per pump | 34.1 gpm (129 L/min) @ 2000 RPM |
| Hydraulics - System pressures - Boom, arm and bucket | 4,970 psi (343 bar) |
| Hydraulics - System pressures - w/ power boost | 5,260 psi (363 bar) |
| Hydraulics - System pressures - Travel circuit | 4,970 psi (343 bar) |
| Hydraulics - System pressures - Swing circuit | 4,050 psi (279 bar) |
| Hydraulics - Pilot pump - Max. capacity | 5.3 gpm (20 L/min) |
| Service Capacities - Fuel tank | 53 gal (200 L) |
| Service Capacities - Hydraulic system | 42 gal (158 L) |
| Service Capacities - Hydraulic tank | 20 gal (75 L) |
| Service Capacities - Engine oil w/ filter | 4.5 gal (17 L) |
| Service Capacities - Swing drive | 0.6 gal (2.2 L) |
| Service Capacities - Final drive | 0.6 gal (2.1 L) |
| Service Capacities - Cooling system | 4.4 gal (16.5 L) |
| Other Specifications - Swing speed | 0 – 12.5 RPM |
| Other Specifications - Swing brake | Mechanical disc |
Undercarriage & Attachments
| Attachment - Bucket digging force - Standard | 20,200 lb·ft (90 kN) |
| Attachment - Bucket digging force - w/ Auto Power-Boost | 21,400 lb·ft (95 kN) |
| Undercarriage - Carrier rollers - each side | 2 |
| Undercarriage - Track rollers - each side | 7 |
| Undercarriage - Shoes - triple grouser | 46 |
| Undercarriage - Shoe width - std. | 2 ft 0 in (600 mm) |
| Undercarriage - Link pitch | 6.8 in (172 mm) |
Dimensions
| Operating weight - w/ shoes | 2 ft 0 in (600 mm) |
| Operating weight - w/ bucket | 882 lb (400 kg) |
| Ground Pressure @ Standard operating weight | 5.2 psi (0.36 bar) |

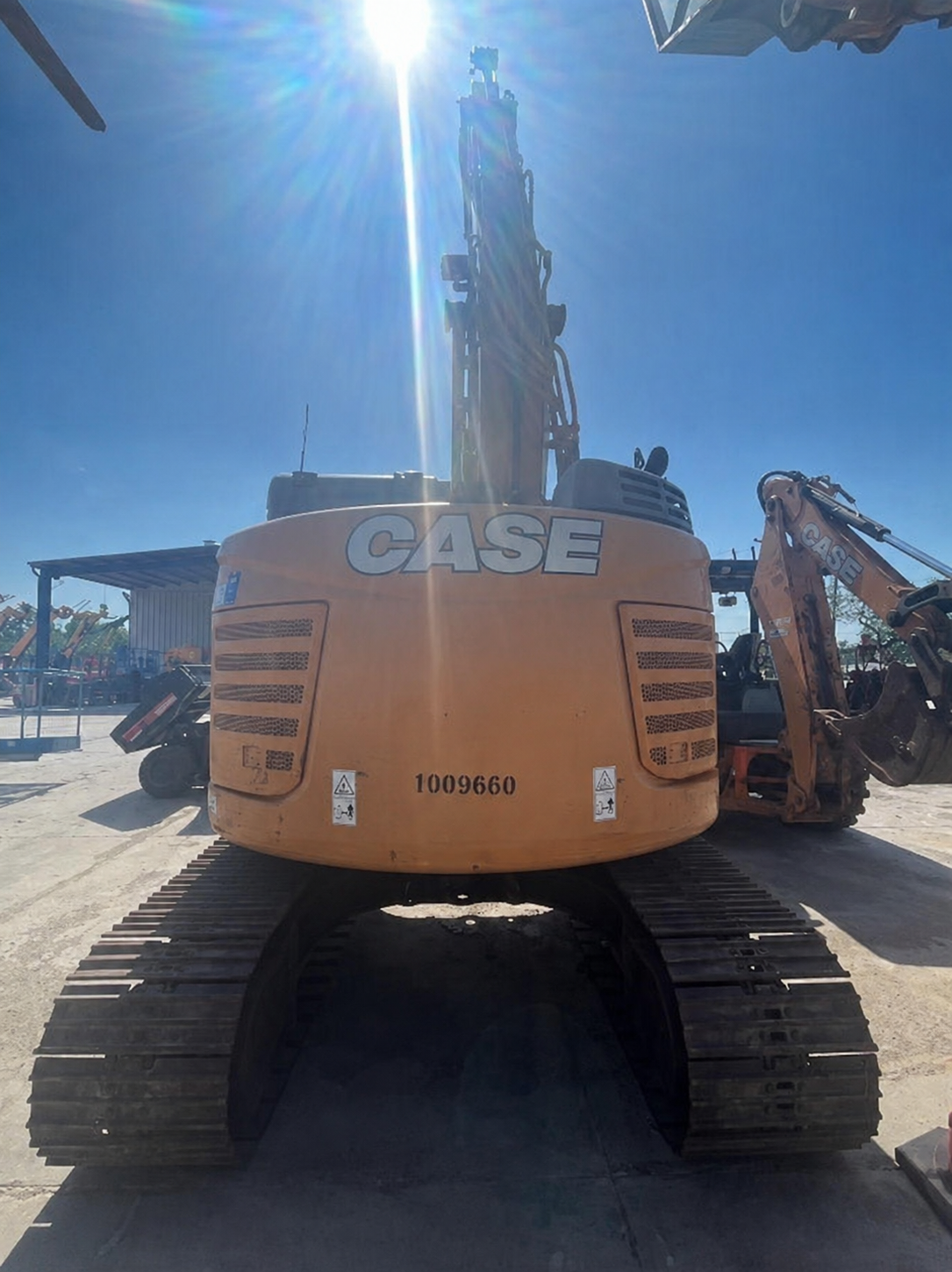

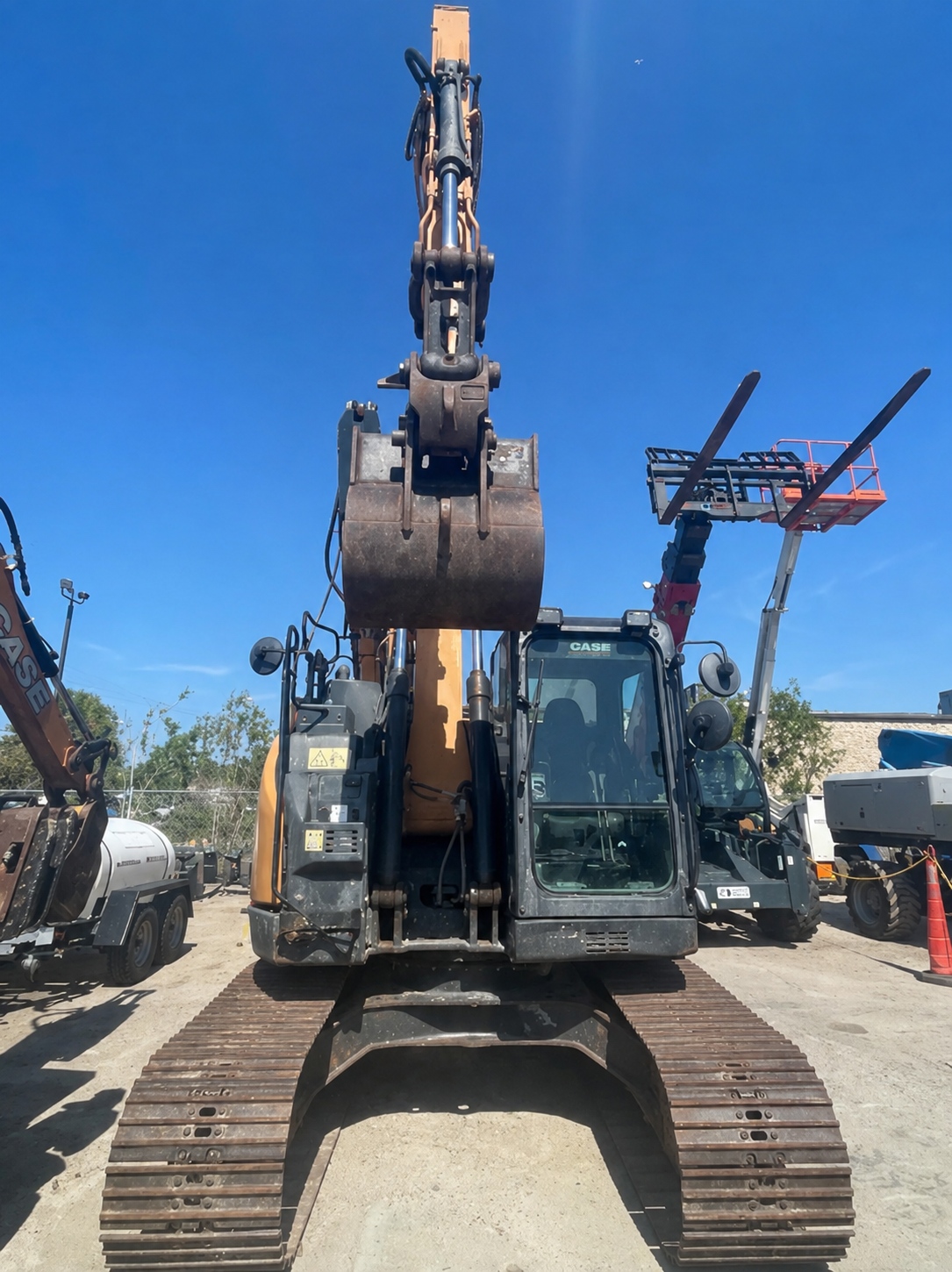

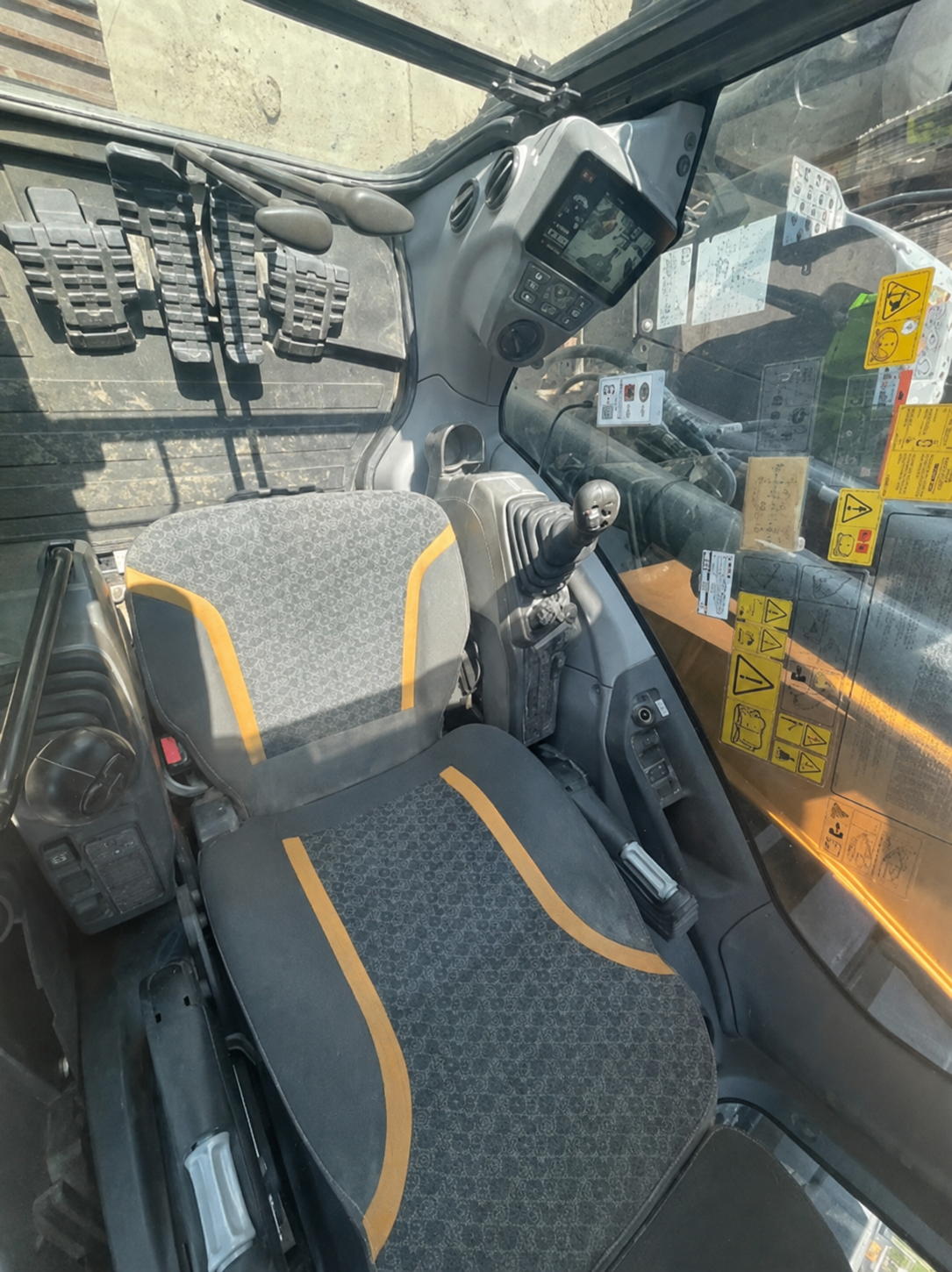

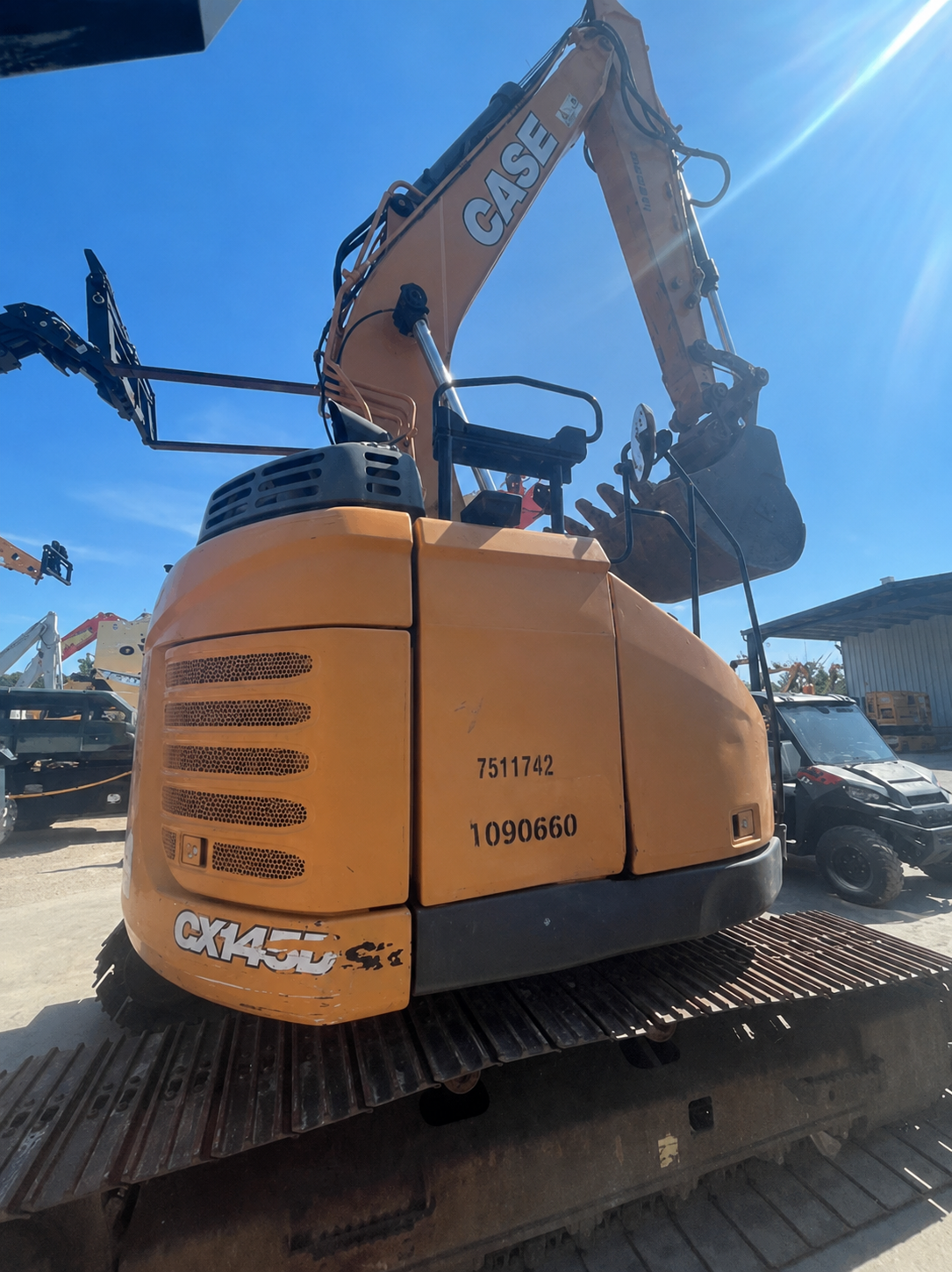

2019 Case CX145D Excavator
BUY NOW OR MAKE OFFERAvailable
