JLG 600AJ 2WD Boom Lift Financing
1 / 5

Item Specifications

Condition

Used

Item Number

#1821

Make

jlg

Model

600aj

Year

2017

Industry

aerial

Equipment Type

articulating boom lifts

Location

Corpus Christi, TX

Serial

03002*****

Hours

1663

Also Available In

TX

Item Description

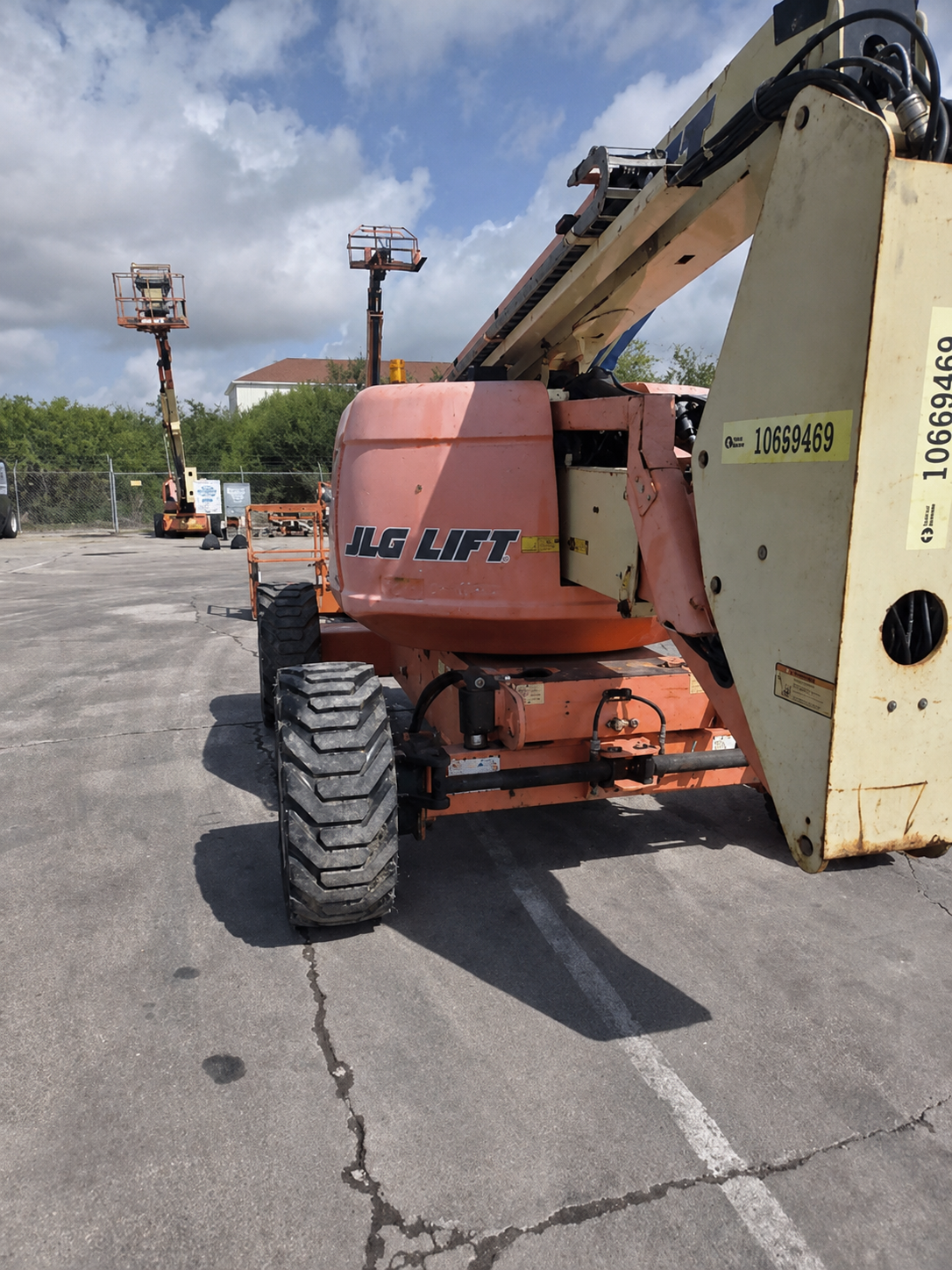

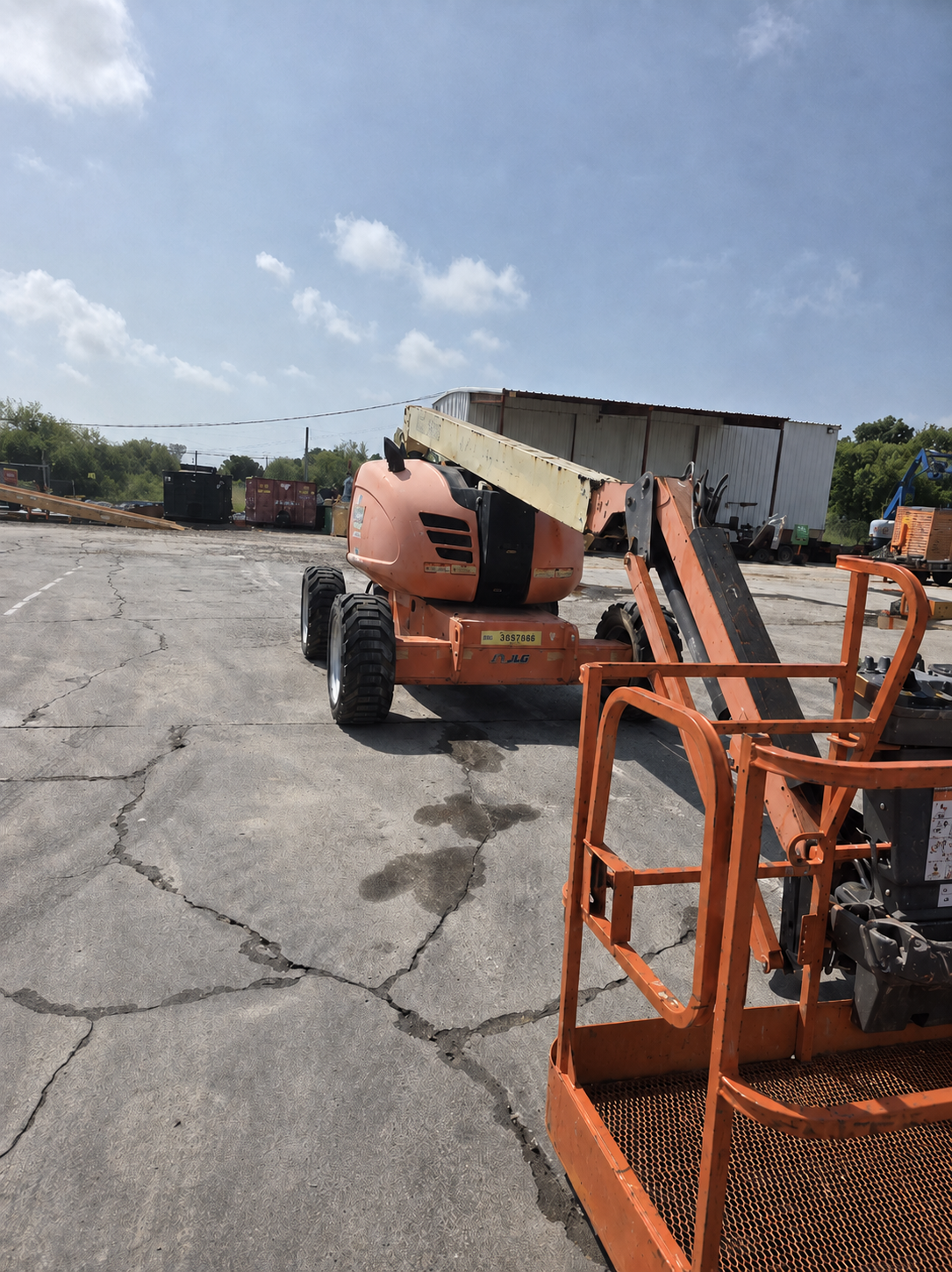

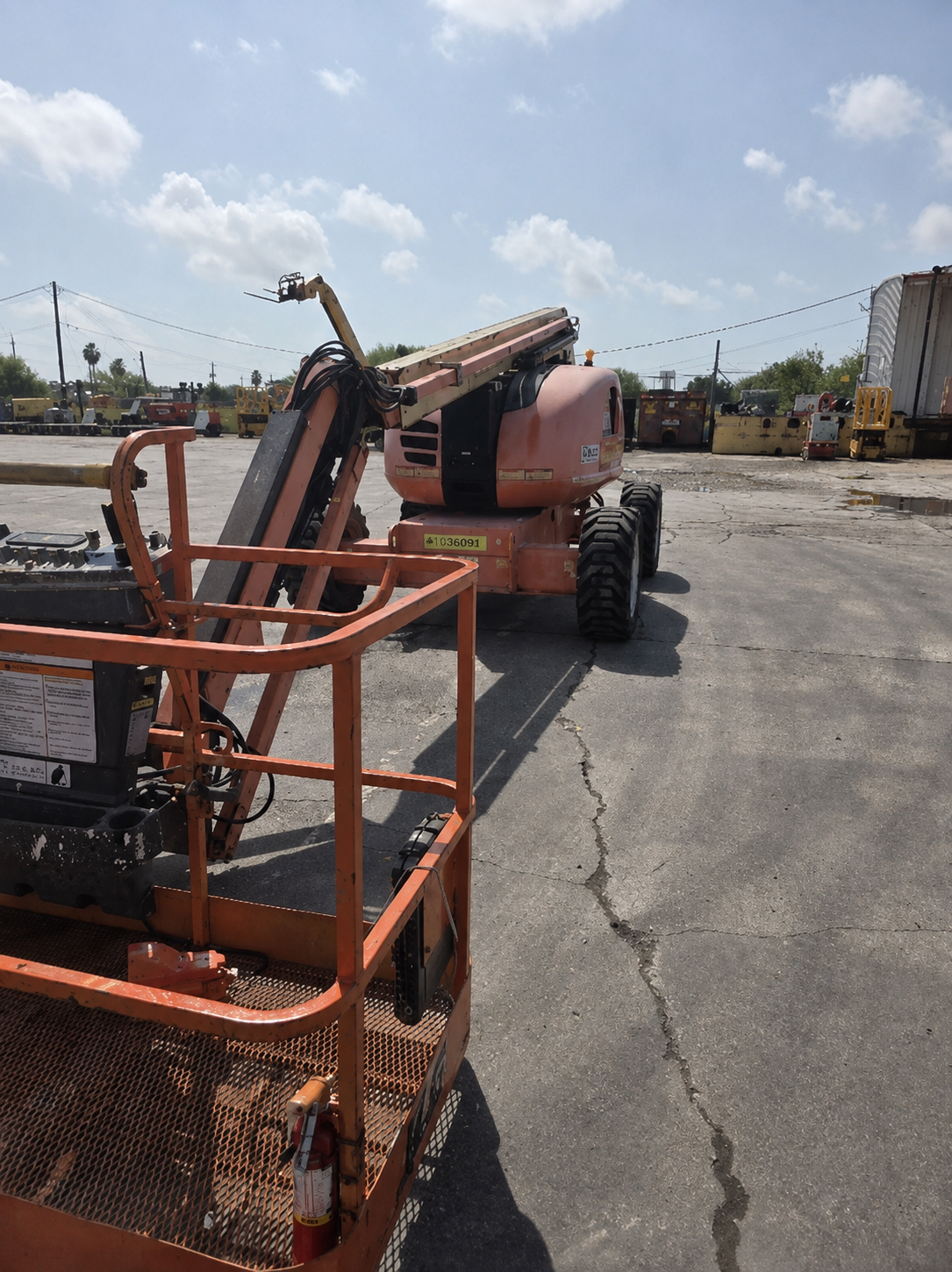

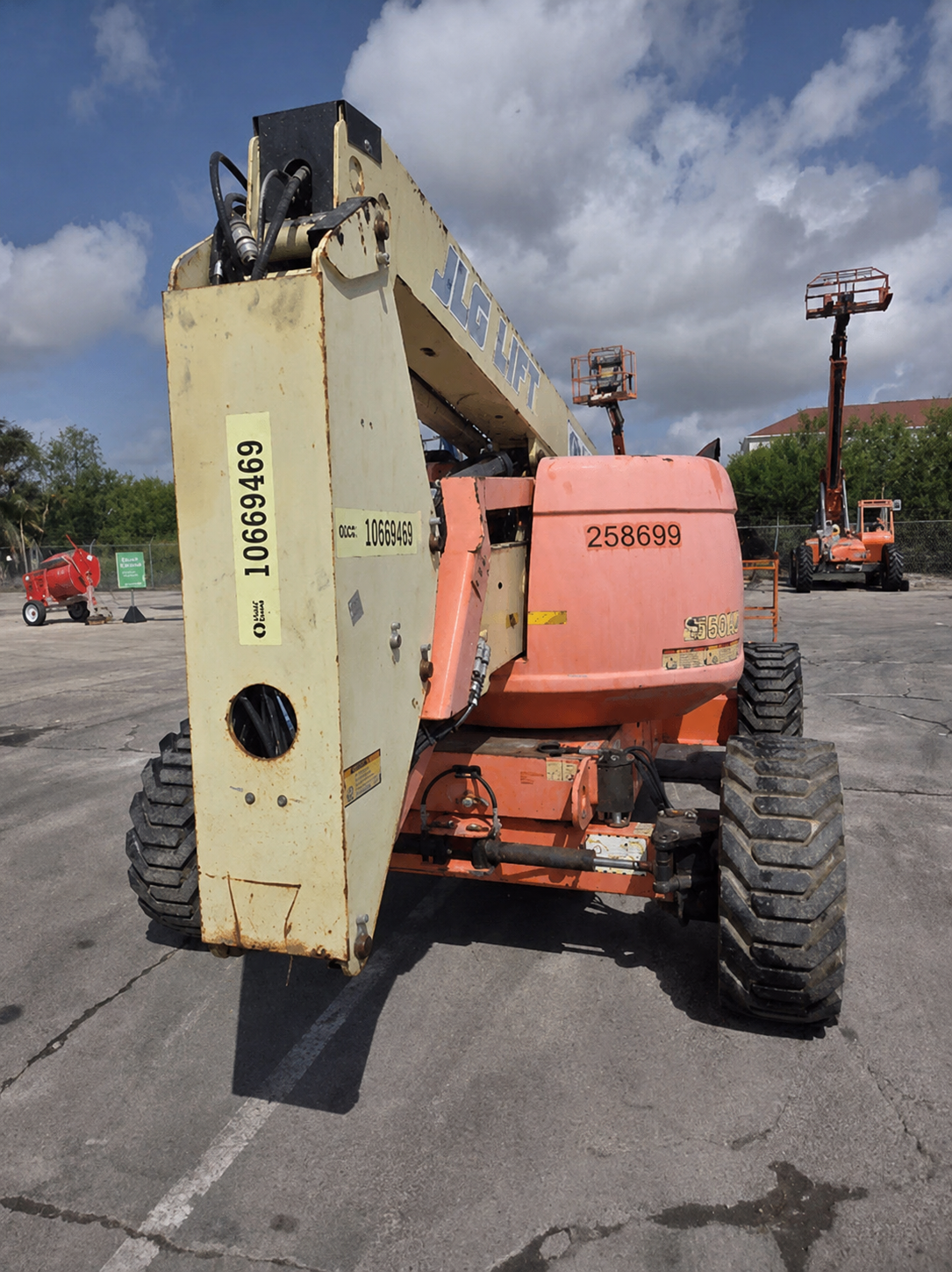

2017 JLG 600AJ with 1,663 hours, sitting in Corpus Christi, TX and ready for inspection. Powered by a Deutz D2011L04 diesel rated at 49 hp, with 2WD and lug tread 14x17.5 tires. Puts your crew 60 ft up with close to 40 ft of outreach and about 26 ft of up and over clearance, so it works over obstructions on plant, commercial and industrial jobs. The articulating jib and 8 ft platform with 180 degree rotation make positioning easy, and the platform carries 500 lb unrestricted. Turntable swings a full 360 degrees continuously. Transports at 8 ft wide and roughly 8 ft 4 in tall. Operating weight is about 23,000 lb.

Specifications

General
Year2017
Makejlg
Model600aj
Hours1663
Serial Number03002*****
ConditionUsed
Max Platform Height60.6 ft in
Max Horizontal Reach39.7 ft in
Platform Inner Width35.83 in
Platform Capacity - Unrestricted500 lb
Platform Rotation180 degrees
Max Platform Weight Capacity500.45 lb
Platform Inner Length96.07 in
Operating Weight23049.4 lb
Fuel Capacity30.1 gal
Hydraulic System Fluid Capacity30.6 gal
Max Speed4.3 mph
Tire Size14x17.5
Tire Fill/TypeLug Tread
Engine & Powertrain
Maximum Ground Bearing Pressure75 psi
Engine Make2349
Engine ModelD2011L04
Gross Power49 hp
Fuel TypeDiesel
System Voltage12 V
Working Range
Axle Oscillation0.8 ft in
Drive Speed4.3 mph
Swing360 degrees
Swing TypeContinuous
Gradeability30 %
Dimensions
Overall Length28.97 in
Overall Width8.01 ft in
Overall Height - Mast Lowered8.34 ft in
Wheelbase8.01 ft in
Ground Clearance7.88 in
Articulation Angle130 degrees
Platform Dimension A3 ft in
Platform Dimension B8 ft in
Turning Radius17.66 ft in
Up And Over Height26.7 ft in

JLG 600AJ 2WD Boom Lift

BUY NOW OR MAKE OFFERAvailable

Listing Price

BUY NOW OR MAKE OFFER

$26,292.00

est. $435.73/mo

GET FINANCING

Inspection Contact

Jason Garrett
