Item Specifications
Category
Condition
Used
Item Number
#1797
Make
hamm
Model
h10i
Year
2021
Industry
construction
Equipment Type
compactors rollers
Location
Corpus Christi, TX
Serial
WGH0H235LHAA*****
Hours
2553
Also Available In
TX
Item Description

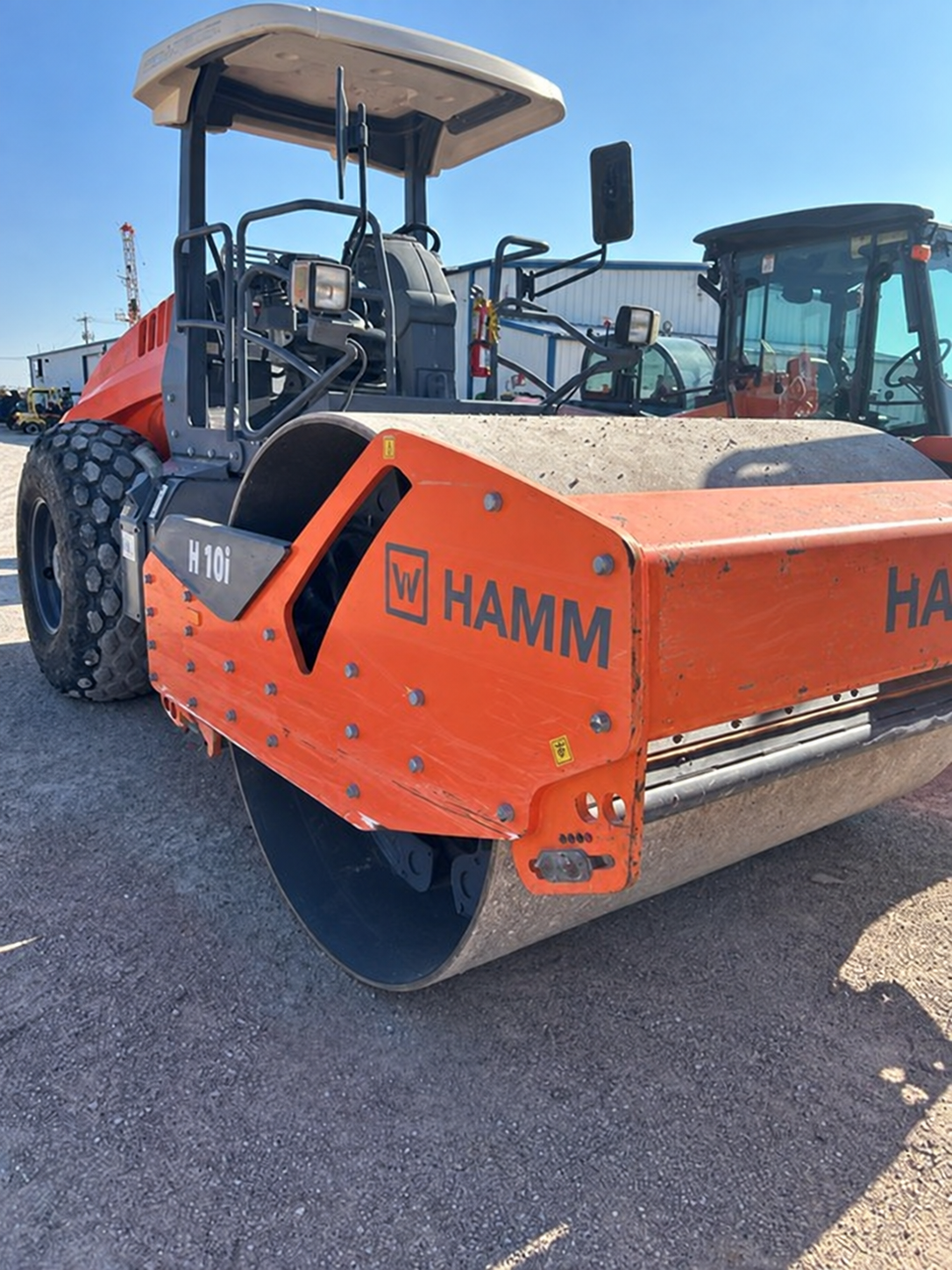

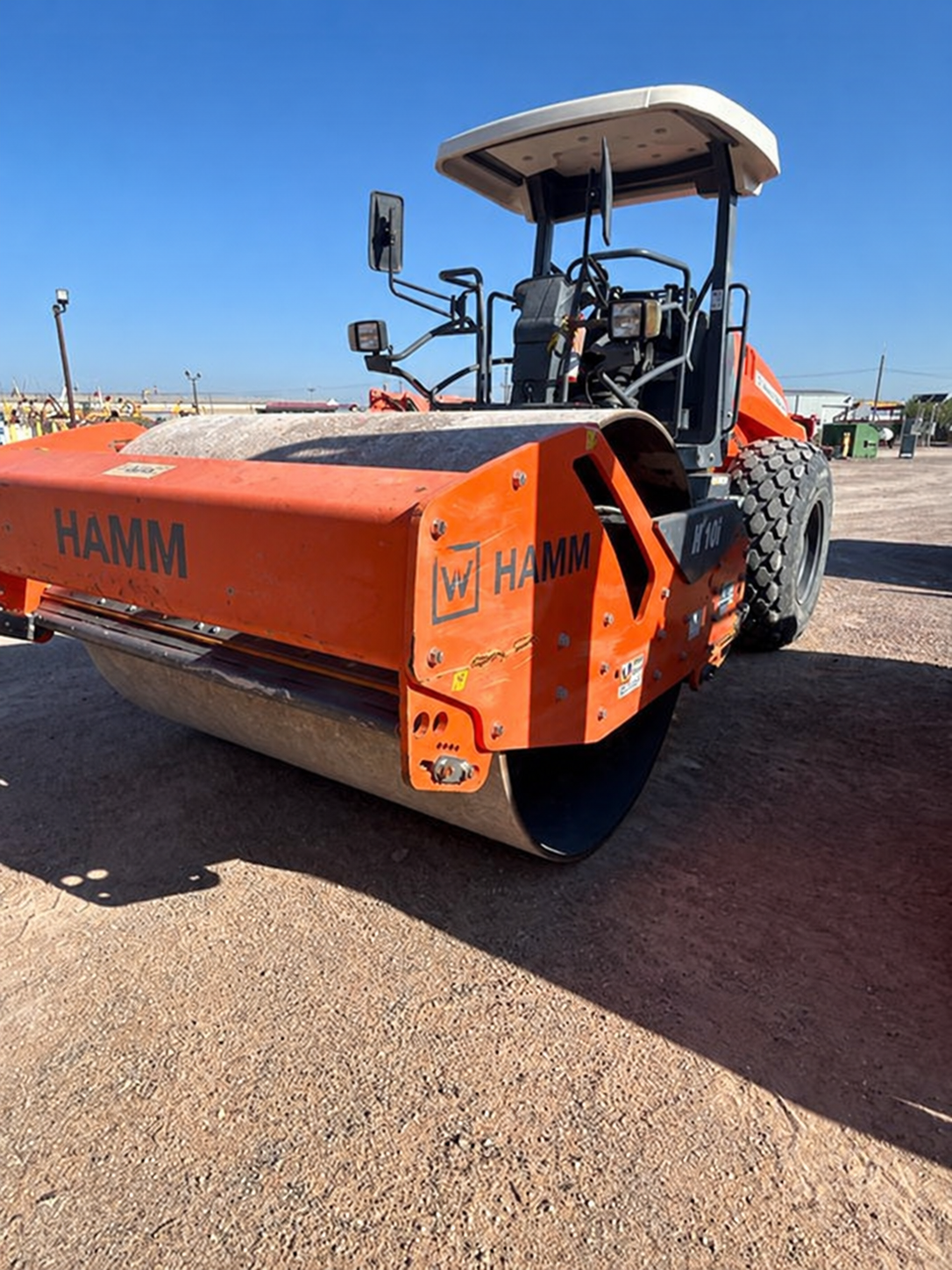

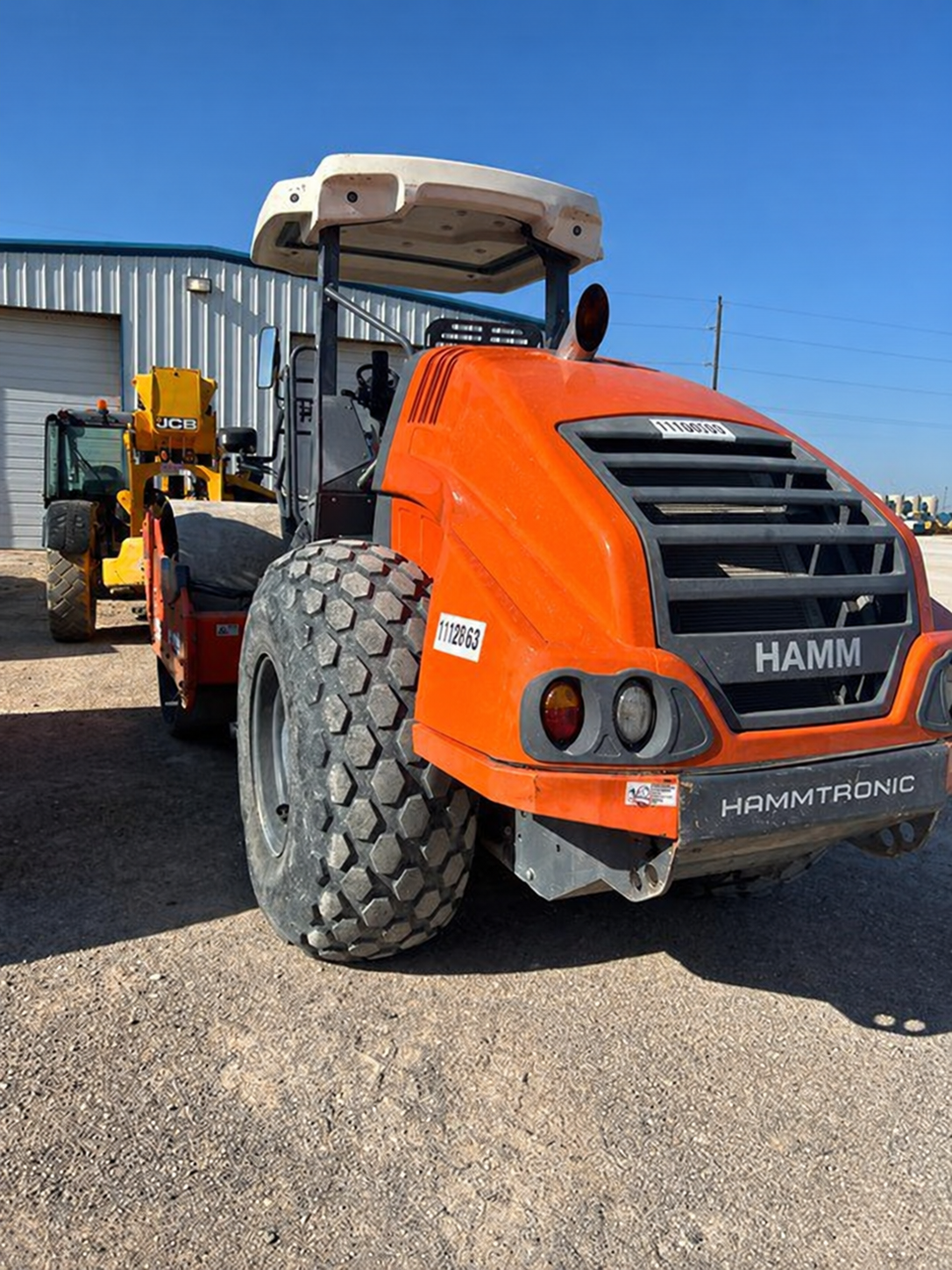

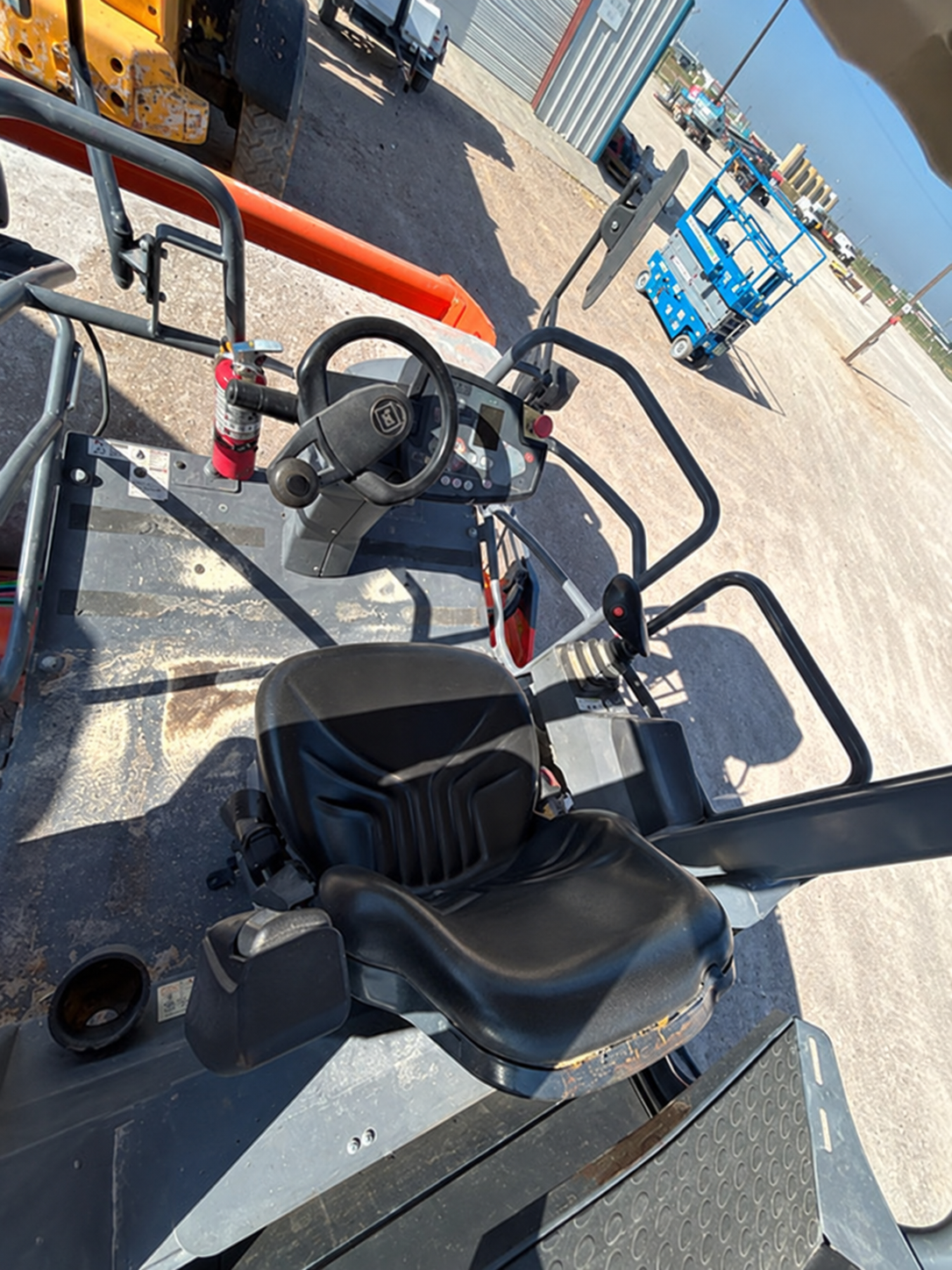

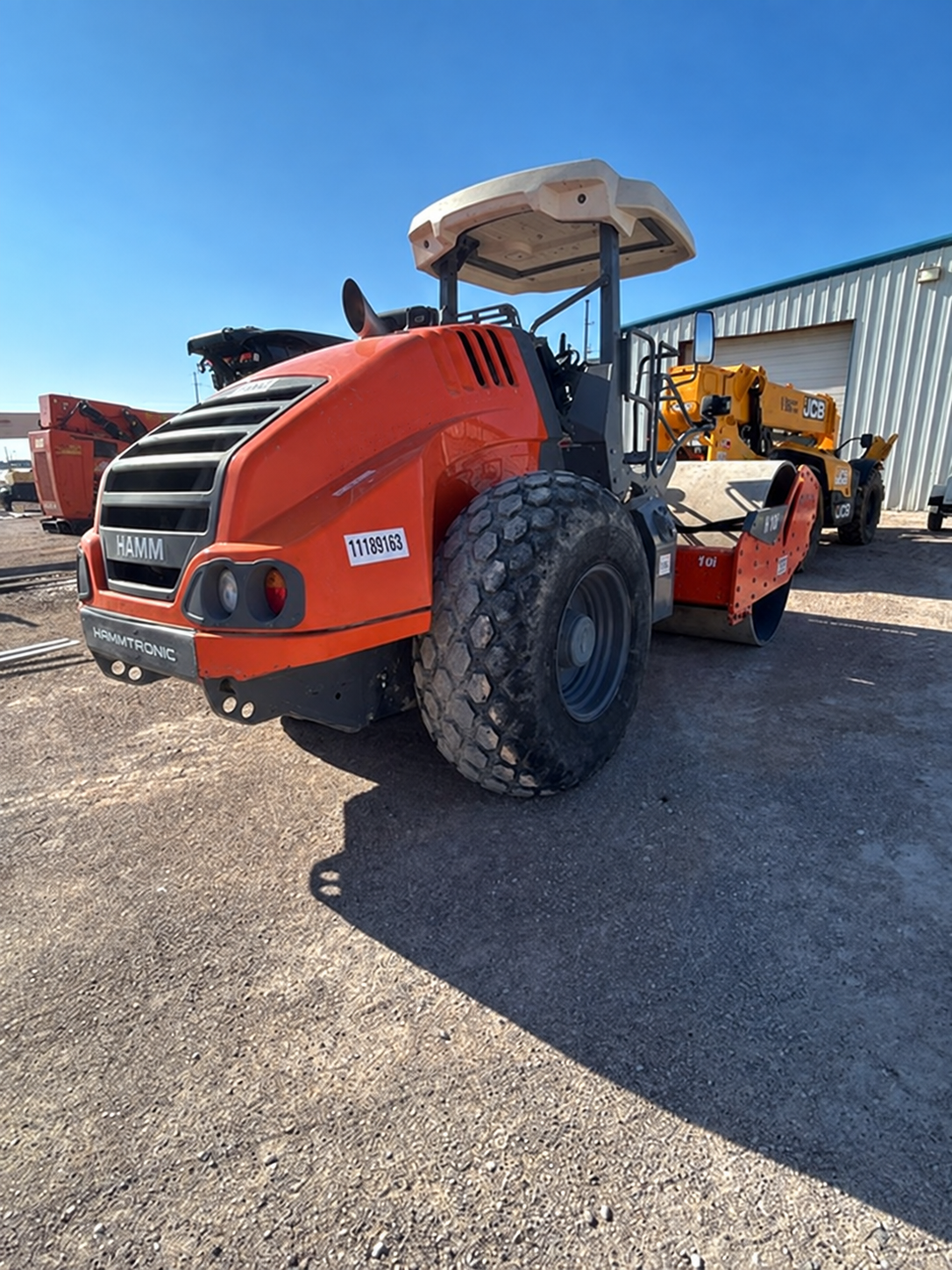

This 2021 Hamm H10I single drum compactor prepares surfaces for road and site work. Its smooth vibratory drum compacts soil and aggregate as the machine travels over the work area. Mileage and/or engine hours are approximate and subject to change. Please contact your sales representative for the most current readings.
Specifications
General
| Year | 2021 |
| Make | hamm |
| Model | h10i |
| Hours | 2553 |
| Serial Number | WGH0H235LHAA***** |
| Condition | Used |
| Drum diameter, front | 1504 mm / 59.2 in |
| Drum type, front | Smooth |
| Power rat. ISO 14396, kW/PS/rpm | 85,0/115,6/2300 |
| Vibration frequency, front, I/II | 30/36 Hz |
| Centrifugal force, front, I/II | 246/136 kN / 55,350/30,600 lbs |
Engine & Powertrain
| Axle load, front/rear | 5890/4990 kg / 12,987/11,003 lbs |
| Diesel engine - Manufacturer | DEUTZ |
| Diesel engine - Type | TCD 3.6 L4 |
| Diesel engine - Number of cylinders | 4 |
| Emission standard | EU Stage IV/EPA Tier 4 |
| Fuel tank, capacity | 280 L / 74.0 Gal |
Working Range
| Speed, infinitely variable | 0-12,0 km/h / 0.0-7.5 mph |
Dimensions
| Operating weight with cab | 10880 kg / 23,990 lbs |
| Operating weight with ROPS | 10630 kg / 23,439 lbs |
| Basic weight no cab, without ROPS | 10225 kg / 22,546 lbs |
| Operating weight, max. | 13290 kg / 29,304 lbs |
| Total length | 5960 mm / 234.6 in |
| Total height with cab | 3037 mm / 119.6 in |
| Total height with ROPS | 3077 mm / 121.1 in |
| Wheelbase | 3149 mm / 124.0 in |
| Total width with cab | 2284 mm / 89.9 in |
| Max. working width | 2140 mm / 84.3 in |
| Turning radius, inside | 3870 mm / 152.4 in |
| Drum width, front | 2140 mm / 84.3 in |
2021 Hamm H10I Compactors / Roller
