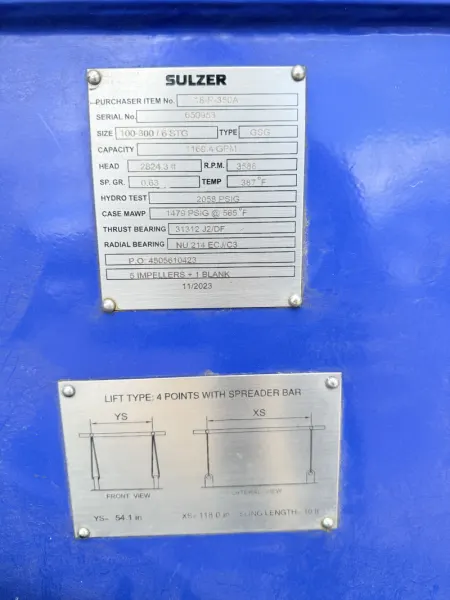

Package Includes Sulzer Multistage Process Pump with TECO-Westinghouse 1000 HP Motor – 1,169 GPM – 2,824 ft Head – 4,000V – Hazardous Location Rated Pump and motor configured as a high-pressure process pump package Pump Details Manufacturer Sulzer Model / Type Type: GSG Size: 100-300 Stages: 6 Stage Hydraulic Performance Capacity: 1,169.4 GPM Total Head: 2,824.3 ft Speed: 3,586 RPM Specific Gravity: 0.63 Operating Temperature: 387 F Pressure Ratings Hydro Test Pressure: 2,058 PSIG Case MAWP: 1,479 PSIG at 565 F Bearings Thrust Bearing: 31312 J2/DF Radial Bearing: NU 214 ECJ/C3 Impeller Configuration 5 Impellers + 1 Blank Identification Purchaser Item No.: 18-P-350B Motor Details Manufacturer TECO-Westinghouse Motor Company Round Rock, Texas Motor Specifications Series: Global XPE Premium Efficiency Severe Duty Type: AFJH-S2 Catalog Number: CB3042A Horsepower: 1000 HP Voltage: 4000 V Phase: 3 Frequency: 60 Hz Amps: 126 Poles: 2 Speed: 3,586 RPM Frame: 500CA Enclosure: TEFC Insulation Class: F NEMA Design: B Service Factor: 1.0 Ambient: 40 C Duty: Continuous Efficiency NEMA Nominal Efficiency: 96.4 percent NEMA Minimum Efficiency: 96.0 percent Bearings Drive End: 9-80 (INS) Non-Drive End: 9-80 (INS) Weight Approx. 14,750 lbs Hazardous Area Certification (Motor) Class I Division 2 – Groups B, C & D Class I Zone 2 – Groups IIB + H2, IIB and IIA Temperature Code: T3 (SF 1.0 / 1.15 NOTE: Data plate images are representative of this package.
