2014 Multiquip DCA45SSIU4F Generator Financing
1 / 11

Item Specifications

Condition

Used

Item Number

#1464

Make

multiquip

Model

dca45ssiu4f

Year

2014

Industry

electrical

Equipment Type

generators

Location

Dickinson, TX

Serial

72*****

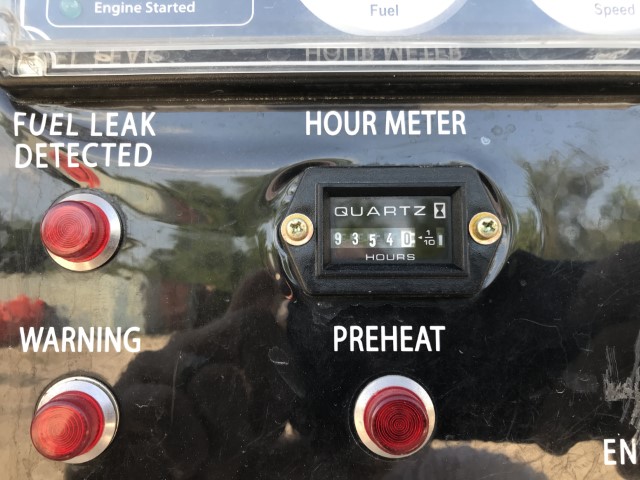

Hours

9,353

Also Available In

TX

Item Description

This 2014 Multiquip DCA45SSIU4F generator supplies power for job sites, equipment, and backup applications. Its Isuzu diesel engine allows operation without utility power. Selectable voltage settings accommodate different electrical requirements. Mileage and/or engine hours are approximate and subject to change. Please contact your sales representative for the most current readings.

Specifications

General
Year2014
Makemultiquip
Modeldca45ssiu4f
Hours9,353
Serial Number72*****
ConditionUsed
Armature ConnectionStar with Neutral
Armature Connection (alternate)Zig Zag
Phase (Star with Neutral)3
Phase (Zig Zag)Single
Standby Output (Star with Neutral)40 KW (50 KVA)
Standby Output (Zig Zag)28.8 KW
Prime Output (Star with Neutral)36 KW (45 KVA)
Prime Output (Zig Zag)26 KW
3Ø Voltage (L-L/L-N) (Voltage Selector Switch at 3Ø 240/139) (Star with Neutral)208Y/120, 220Y/127, 240Y/139
3Ø Voltage (L-L/L-N) (Voltage Selector Switch at 3Ø 240/139) (Zig Zag)N/A
3Ø Voltage (L-L/L-N) (Voltage Selector Switch at 3Ø 480/277) (Star with Neutral)416Y/240, 440Y/254, 480Y/277
3Ø Voltage (L-L/L-N) (Voltage Selector Switch at 3Ø 480/277) (Zig Zag)N/A
1Ø Voltage (L-L/L-N) (Voltage Selector Switch at 1Ø 240/120) (Star with Neutral)N/A
1Ø Voltage (L-L/L-N) (Voltage Selector Switch at 1Ø 240/120) (Zig Zag)240/120
Power Factor (Star with Neutral)0.8
Power Factor (Zig Zag)1.0
Frequency60 Hz
Winding Pitch2/3
No. of Poles4
ExcitationBrushless with AVR
Frequency Regulation: Steady State±0.25% of mean value for constant loads from no load to full load.
InsulationClass H
Make / ModelIsuzu / 4LE2X
Starting SystemElectric
Bore x Stroke (mm)85 x 96
BMEP217 psi (1499 kPa)
Compression Ratio17.6:1
Maximum Inlet Restriction (Hg)11 in. (280 mm)
Heat Rejection to Coolant (per minute)1934 Btu (2.04 MJ)
Maximum Coolant Friction Head14.5 psi (100 kPa)
Maximum Coolant Static Head3.35 feet (1.04 meters)
Ambient Temperature Range23° - 104° F (-5° - 40° C)
Combustion Air174 cfm (4.94 m3/min)
Maximum Air Cleaner Restriction25 in. H2O (6.23 kPa)
Minimum Air Opening to Room3.5 ft2 (0.33 m2)
Minimum Discharge Opening2.27 ft2 (0.21 m2)
Gas Temperature1078°F (581°C)
1Ø 120 Volt100 Amps (4 wire),108A x 2 (Zigzag)
1Ø 240 Volt50 Amps (4 wire),108A (Zigzag
3Ø 240 Volt108 Amps
3Ø 480 Volt54 Amps
Main Line Circuit Breaker Rating125 Amps
Over Current Relay Trip Set Point (480V Mode Only)54 Amps
Engine & Powertrain
Generator DesignRevolving field, self-ventilated Drip-proof, single bearing
Generator RPM1800
EmissionsEPA Tier 4 Final Certified
Engine Design4-cycle, water cooled, direct injection, turbocharged, charge air cooled and EGR
Displacement133.0 in3 (2179 cc)
No. cylinders4
Gross Engine Power Output65.7 hp (49 kW)
Engine Speed1800 rpm
Battery12V 72Ah x 1
Recommended FuelASTM-D975-No.1 & No.2-D*
Maximum Fuel Flow (per hour)3.4 gallons (13 liters)
Fuel Tank Capacity79.2 gallons (300 liters)
Fuel Consumption at full load (gph)2.93
Fuel Consumption at full load (lph)11.1
Fuel Consumption at 3/4 load (gph)2.20
Fuel Consumption at 3/4 load (lph)8.31
Fuel Consumption at 1/2 load (gph)1.60
Fuel Consumption at 1/2 load (lph)6.04
Fuel Consumption at 1/4 load (gph)1.04
Fuel Consumption at 1/4 load (lph)3.92
Alternator Cooling Air526 cfm (14.9 m3/min)
Radiator Cooling Air1900 cfm (53.8 m3/min)
Working Range
Voltage Regulation (No load to full load)±0.5%
Frequency Regulation: No Load to Full LoadIsochronous under varying loads from no load to 100% rated load
Sound Level dB(A) Full load at 23 feet66
Piston Speed1133.9 ft./min. (5.76 m/s)
Overspeed Limit2070 rpm
Oil Capacity3.2 gallons (12.2 liters)
Fan Load2.01 hp (1.5 kW)
Coolant Capacity (with radiator)4.44 gallons (16.8 liters)
Coolant Flow Rate (per minute)16.9 gallons (64.2 liters)
Gas Flow (full load)237 cfm (6.7 m3/min)
Maximum Back Pressure38.1 in. H2O (9.5 kPa)
Max. Lifting Point Capacity5,150 lbs. (2,335 kg)
Dimensions
Dry Weight2,335 lbs. (1,059 kg)
Dry Weight (with TRLR45)3,391 lbs. (1,538 kg)
Wet Weight2,974 lbs. (1,349 kg)
Wet Weight (with TRLR45)4,030 lbs. (1,828 kg)

2014 Multiquip DCA45SSIU4F Generator

BUY NOW OR MAKE OFFERAvailable

Listing Price

BUY NOW OR MAKE OFFER

$25,000.00

Plus Buyer Fee ($2,500.00)

est. $414.32/mo

GET FINANCING
