Item Specifications
Category
Condition
Used
Item Number
#1462
Make
multiquip
Model
dca400ssi4i
Year
2013
Industry
electrical
Equipment Type
generators
Location
Dickinson, TX
Serial
38*****
Hours
11,317
Also Available In
TX
Item Description
This 2013 Multiquip DCA400SSI4i generator supplies power for construction sites, industrial equipment, and backup applications. Its Isuzu diesel engine allows operation without utility power. Configurable voltage settings accommodate different electrical requirements. Mileage and/or engine hours are approximate and subject to change. Please contact your sales representative for the most current readings.
Specifications
General
| Year | 2013 |
| Make | multiquip |
| Model | dca400ssi4i |
| Hours | 11,317 |
| Serial Number | 38***** |
| Condition | Used |
| No. of Poles | 4-pole |
| Excitation | Brushless with AVR |
| Standby Output | 352 KW (440 kVA) |
| Prime Output | 320 KW (400 kVA) |
| Voltage — 3Ø | 208, 220, 240, 415, 440, 480V Reconnectable |
| Voltage — 1Ø | 120, 127, 139, 240, 254, 277V Adjustable |
| Armature Connection | Star with neutral |
| Power Factor | 0.8 |
| Frequency | 60 Hz |
| Frequency Regulation: Steady State | ±0.25% of mean value for constant loads from no load to full load. |
| Insulation | Class F |
| Make / Model | Isuzu / 6WG1X |
| Starting System | Electric |
| Bore x Stroke | 147 x 154 mm |
| BMEP | 245 psi (1688 kPa) |
| Compression Ratio | 16.5 : 1 |
| Maximum Inlet Restriction (Hg) | 8.86 in (225 mm) |
| Heat Rejection to Coolant (per minute) | 17440 Btu (18.4 MJ) |
| Maximum Coolant Friction Head | 20.3 psi (140 kPa) |
| Maximum Coolant Static Head | 29.5 feet (9.0 meters) |
| Ambient Temperature Rating | 104°F (40°C) |
| Combustion Air | 872 cfm (24.7 m3/min) |
| Maximum Air Cleaner Restriction | 25 in. H2O (6.2 kPa) |
| Gas Temperature | 968°F (520°C ) |
| 1Ø 120 Volt | 888.9 Amps (4 wire) |
| 1Ø 240 Volt | 444.4 Amps (4 wire) |
| 3Ø 240 Volt | 962.3 Amps |
| 3Ø 480 Volt | 481.1 Amps |
| Main Line Circuit Breaker Rating | 1000 Amps |
| Over Current Relay Trip Set Point | 480 Amps |
Engine & Powertrain
| Generator Design | Revolving field, Self-ventilated Drip-proof, Single bearing |
| Generator RPM | 1800 |
| Emissions | EPA Interim Tier 4 Certified |
| Engine Design | 4-cycle, water cooled, direct injection, turbocharged, charge air cooled |
| Displacement | 15681 cc |
| No. cylinders | 6 |
| Gross Engine Power Output | 532 hp (397 kWm) |
| Engine Speed | 1800 rpm |
| Battery | 12V 200Ah x 2 (24 V Systems) |
| Recommended Fuel | ASTM-D975-No.1 & No.2-D* |
| Maximum Fuel Flow (per hour) | 98.8 gallons (374 liters) |
| Fuel Tank Capacity | 129 gallons (490 liters) |
| Fuel Consumption at full load (gph) | 23.6 |
| Fuel Consumption at full load (lph) | 89.3 |
| Fuel Consumption at 3/4 load (gph) | 19.0 |
| Fuel Consumption at 3/4 load (lph) | 72.1 |
| Fuel Consumption at 1/2 load (gph) | 13.7 |
| Fuel Consumption at 1/2 load (lph) | 51.8 |
| Fuel Consumption at 1/4 load (gph) | 8.2 |
| Fuel Consumption at 1/4 load (lph) | 31.1 |
| Alternator Cooling Air | 2790 cfm (79.0 m3/min) |
| Radiator Cooling Air | 14129 cfm (400 m3/min) |
Working Range
| Voltage Regulation (No load to full load) | ±0.5% |
| Frequency Regulation: No Load to Full Load | Isochronous under varying loads from no load to 100% rated load |
| Sound Level dB(A) Full load at 23 feet | 71 |
| Piston Speed | 1707 ft/min (8.7 m/s) |
| Overspeed Limit | 2070 rpm |
| Oil Capacity | 15.1 gallons (57 liters) |
| Fan Load | 26.1 hp (19.5 kW) |
| Coolant Capacity (with radiator) | 19.4 gallons (73.6 liters) |
| Coolant Flow Rate (per minute) | 111 gallons (420 liters) |
| Gas Flow (full load) | 1826 cfm (51.7 m3/min) |
| Maximum Back Pressure | 120.4 in. H2O (30 kPa) |
| Max. Lifting Point Capacity | 16,500 lbs. (7,484 kg) |
Dimensions
| Dry Weight | 11,574 lbs. (5,250 kg) |
| Wet Weight | 12,852 lbs. (5,830 kg) |

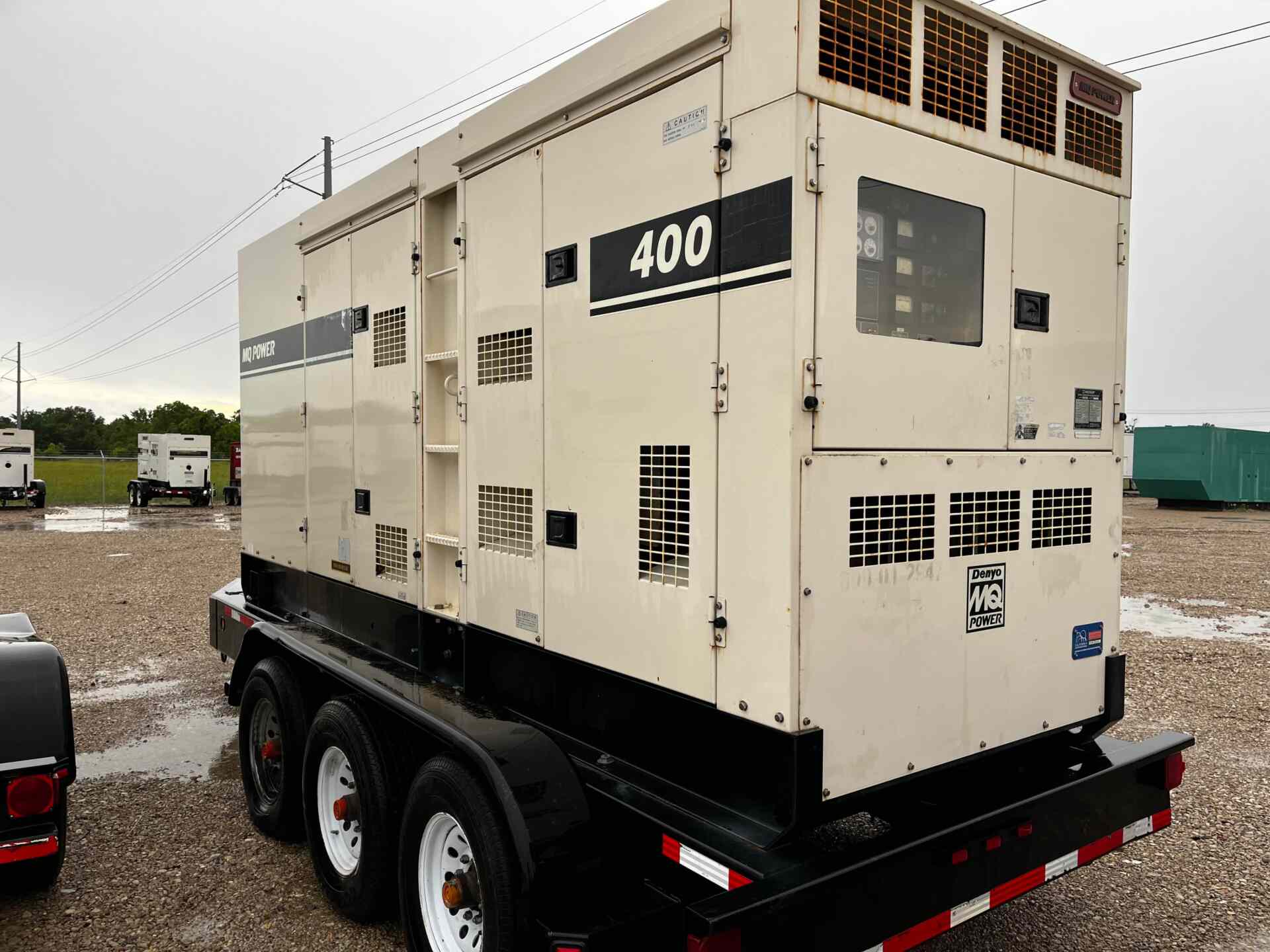

2013 Multiquip DCA400SSI4i Generator
