Item Specifications
Category
Condition
Used
Item Number
#1432
Brand
Atlas Copco
Make
atlas_copco
Model
qas25
Year
2017
Industry
electrical
Equipment Type
generators
Location
Dickinson, TX
Serial
HOP1*****
Hours
5,857
Also Available In
TX
Item Description
This 2017 Atlas Copco QAS25 generator supplies power for job sites, equipment, and backup applications. Its Isuzu engine allows operation without utility power. Selectable voltage settings and convenience receptacles provide connections for different electrical needs. Mileage and/or engine hours are approximate and subject to change. Please contact your sales representative for the most current readings.
Specifications
General
| Year | 2017 |
| Make | atlas_copco |
| Model | qas25 |
| Hours | 5,857 |
| Serial Number | HOP1***** |
| Condition | Used |
| Rated Prime Power (3-phase) | 20 kW / 25 kVA |
| Rated Standby Power (3-phase) | 22 kW / 28 kVA |
| 3-phase Power Factor | 0.8 |
| 3-phase Voltage (480V switch position) | 480Y/277 V |
| 3-phase Voltage (240-208V switch position) | 240YY/139-208YY V |
| Excitation | AREP |
| Insulation Class | H |
| Frequency | 60 Hz |
| Maximum Terminal Cable Size | 350 MCM |
| Convenience Receptacles | 2 x NEMA 5-20R & 2 x 125/250V 50A CS6364 |
| US EPA Family | ESZXL02.2ZTB |
| US EPA Tier | Tier 4 Final |
| Aspiration | Turbocharged |
| Maximum Ambient Temperature (@ Sea Level) | 122°F (50°C) |
Engine & Powertrain
| Alternator Model | LSA 40 M5 (Leroy Somer) |

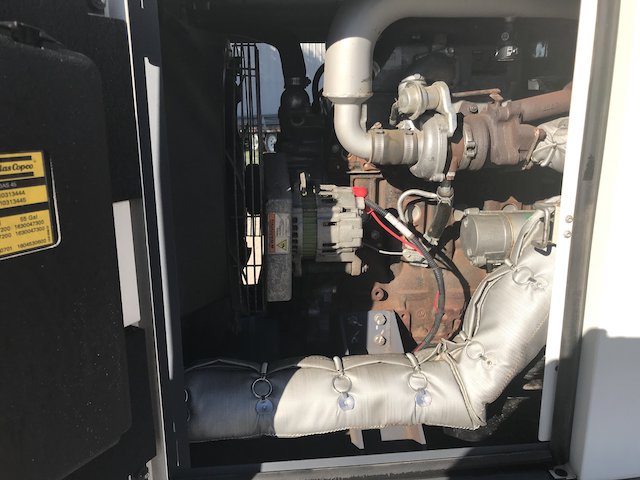

| Engine Model | Isuzu 4LE2T |
| Displacement | 2.18 L |
| Cylinders | 4 |
| Engine Control | ECU |
Working Range
| Amp Capacity @ 480V | 30 A |
| Amp Capacity @ 240V | 60 A |
| Amp Capacity @ 208V | 60 A |
| Rated Speed | 1800 RPM |
2017 Atlas Copco QAS25 Generator
