Item Specifications
Category
Condition
Used
Item Number
#1430
Make
chicago-pneumatic
Model
cpg45
Year
2019
Industry
electrical
Equipment Type
generators
Location
Dickinson, TX
Serial
HOP1*****
Hours
2,857
Also Available In
TX
Item Description
This 2019 Chicago Pneumatic CPG45 generator supplies power for job sites, equipment, and backup applications. Its Isuzu engine allows operation without utility power. Selectable output settings accommodate different electrical requirements. Mileage and/or engine hours are approximate and subject to change. Please contact your sales representative for the most current readings.
Specifications
General
| Year | 2019 |
| Make | chicago-pneumatic |
| Model | cpg45 |
| Hours | 2,857 |
| Serial Number | HOP1***** |
| Condition | Used |
| Rated frequency | 60 Hz |
| Rated prime power (PRP) 3-phase | 36 / 45 kW / kVA |
| Rated standby power (ESP) 3-phase | 40 / 50 kW / kVA |
| 3-phase power factor | 0.8 |
| 3-phase voltage switch position | 480Y / 277 V |
| 1-phase voltage switch position | 240 / 120 V |
| Excitation system | AREP |
| Automatic voltage regulator | Leroy Somer R438 (+/-0.5%) |
| Insulation | Class H |
Engine & Powertrain
| Fuel tank capacity | 75 gal (284 l) |
| Fuel consumption at full load (PRP) | 2.76 gal/h (10.5 l/h) |
| Fuel autonomy 75% load | 31.4 h |
| Engine | Isuzu 4LE2X, MSZXL02.2PXB, Tier 4 Final |
| Engine speed | 1800 rpm |
| Alternator | Leroy Somer 42.3 S5 |
Working Range
| Max sound pressure level (LPA) @23' @75% load | 67 dB(A) |
Dimensions
| Length (skid) | 75 in |
| Width (skid) | 34 in |
| Height (skid) | 55 in |
| Weight - skid wet | 2500 lbs |
| Weight - w/trailer wet | 2785 lbs |

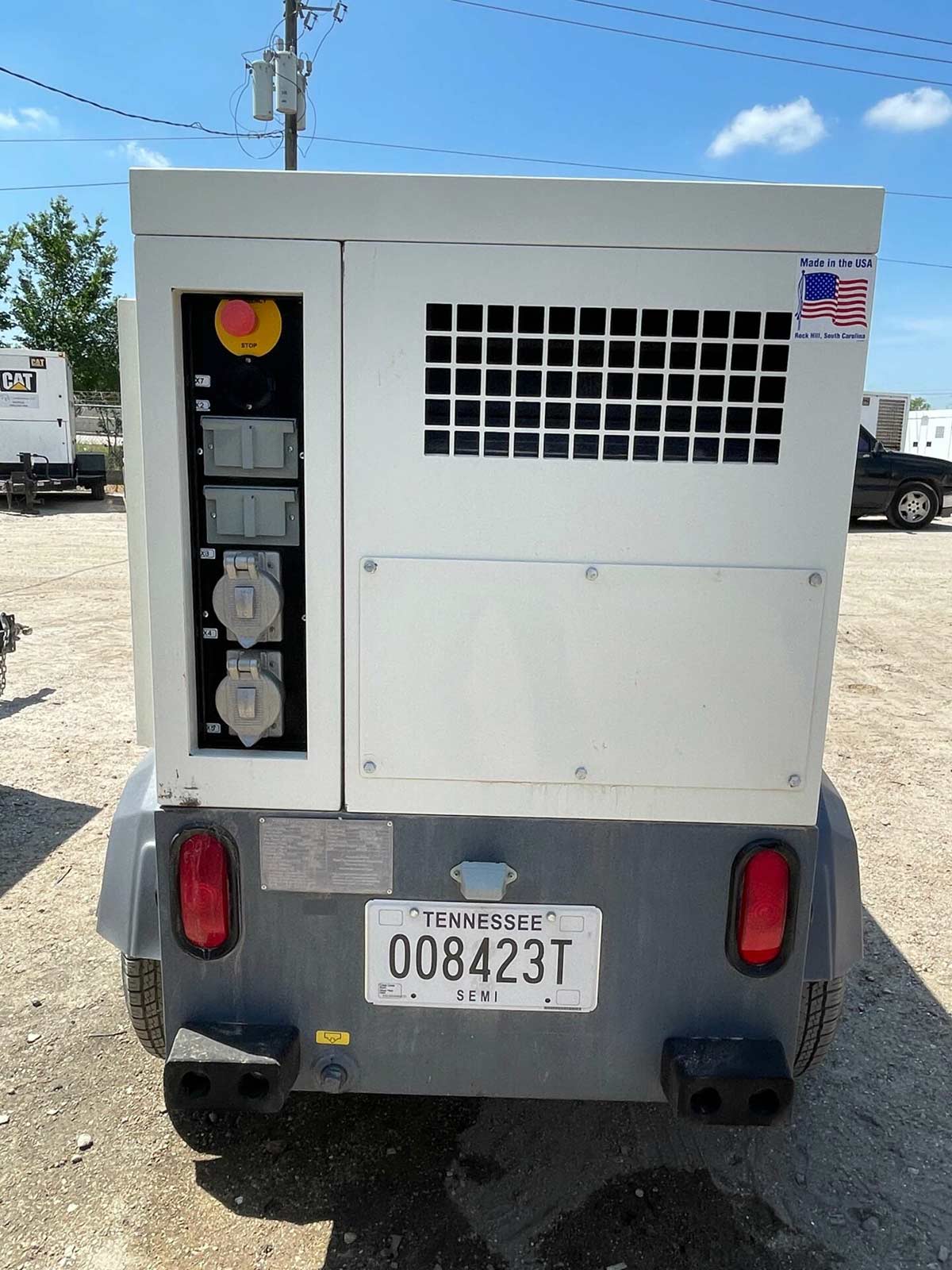

2019 Chicago Pneumatic CPG45 Generator
