Item Specifications
Category
Condition
Used
Item Number
#1422
Make
multiquip
Model
dca125ssju4i
Year
2012
Industry
electrical
Equipment Type
generators
Location
Dickinson, TX
Serial
75*****
Hours
11,532
Also Available In
TX
Item Description
This 2012 Multiquip DCA125SSJU4I generator supplies power for construction sites, industrial equipment, and backup applications. Its John Deere diesel engine allows operation without utility power. Selectable output settings accommodate different electrical requirements. Mileage and/or engine hours are approximate and subject to change. Please contact your sales representative for the most current readings.
Specifications
General
| Year | 2012 |
| Make | multiquip |
| Model | dca125ssju4i |
| Hours | 11,532 |
| Serial Number | 75***** |
| Condition | Used |
| Armature Connection | Star with Neutral |
| Armature Connection (alternate) | Zig Zag |
| Phase (Star with Neutral) | 3 |
| Phase (Zig Zag) | Single |
| Standby Output (Star with Neutral) | 110KW (137.5 KVA) |
| Standby Output (Zig Zag) | 79 KW |
| Prime Output (Star with Neutral) | 100 KW (125 KVA) |
| Prime Output (Zig Zag) | 72 KW |
| 3Ø Voltage (L-L/L-N) (Voltage Change-Over Bd. at 3Ø 240/139) (Star with Neutral) | 208Y/120, 220Y/127, 240Y/139 |
| 3Ø Voltage (L-L/L-N) (Voltage Change-Over Bd. at 3Ø 240/139) (Zig Zag) | N/A |
| 3Ø Voltage (L-L/L-N) (Voltage Change-Over Bd. at 3Ø 480/277) (Star with Neutral) | 416Y/240, 440Y/254, 480Y/277 |
| 3Ø Voltage (L-L/L-N) (Voltage Change-Over Bd. at 3Ø 480/277) (Zig Zag) | N/A |
| 1Ø Voltage (L-L/L-N) (Voltage Change-Over Bd. at 1Ø 240/120) (Star with Neutral) | N/A |
| 1Ø Voltage (L-L/L-N) (Voltage Change-Over Bd. at 1Ø 240/120) (Zig Zag) | 240/120 |
| Power Factor (Star with Neutral) | 0.8 |
| Power Factor (Zig Zag) | 1.0 |
| Frequency | 60 Hz |
| No. of Poles | 4 |
| Excitation | Brushless with AVR |
| Frequency Regulation: Steady State | ±0.25% of mean value for constant loads from no load to full load. |
| Insulation | Class F |
| Make / Model | John Deere / 4045HFG93 |
| Starting System | Electric |
| Bore x Stroke | 4.17 x 5.00 in. (106 x 127 mm) |
| BMEP | 268 psi (1850 kPa) |
| Compression Ratio | 16.5:1 |
| Maximum Inlet Restriction (Hg) | 8.9 in (225 mm) |
| Heat Rejection to Coolant (per minute) | 4269 Btu (4.5 MJ) |
| Maximum Coolant Friction Head | 14.9 psi (103 kPa) |
| Maximum Coolant Static Head | 78.7 feet (24.0 meters) |
| Ambient Temperature Rating | 104°F (40°C) |
| Combustion Air | 268 cfm (7.6 m3/min) |
| Maximum Air Cleaner Restriction | 25 in. H2O (6.25 kPa) |
| Gas Temperature | 871°F (466°C ) |
| 1Ø 120 Volt | 277.8 Amps (4 wire) 300A x 2 (Zigzag |
| 1Ø 240 Volt | 138.9 Amps (4 wire) 300A (Zigzag) |
| 3Ø 240 Volt | 300 Amps |
| 3Ø 480 Volt | 150 Amps |
| Main Line Circuit Breaker Rating | 300 Amps |
| Over Current Relay Trip Set Point (480V Mode Only) | 152 Amps |
Engine & Powertrain
| Generator Design | Revolving field, self-ventilated Drip-proof, single bearing |
| Generator RPM | 1800 |
| Emissions | EPA Interim Tier 4 Certified |
| Engine Design | 4-cycle, water cooled, direct injection, turbocharged. Charged Air Cooled and EGR. |
| Displacement | 275 in3 (4500 cc) |
| No. cylinders | 4 |
| Gross Engine Power Output | 166 hp (124 kW) |
| Engine Speed | 1800 rpm |
| Battery | 12V 75Ah x 1 |
| Recommended Fuel | ASTM-D975-No.1 & No.2-D* |
| Maximum Fuel Flow (per hour) | 15.9 gallons (60.0 liters) |
| Fuel Tank Capacity | 168 gallons (640 liters) |
| Fuel Consumption at full load (gph) | 7.3 |
| Fuel Consumption at full load (lph) | 27.5 |
| Fuel Consumption at 3/4 load (gph) | 5.6 |
| Fuel Consumption at 3/4 load (lph) | 21.2 |
| Fuel Consumption at 1/2 load (gph) | 4.0 |
| Fuel Consumption at 1/2 load (lph) | 15.1 |
| Fuel Consumption at 1/4 load (gph) | 2.5 |
| Fuel Consumption at 1/4 load (lph) | 9.6 |
| Alternator Cooling Air | 1352 cfm (38.3 m3/min) |
| Radiator Cooling Air | 5353 cfm (151.6 m3/min) |
Working Range
| Voltage Regulation (No load to full load) | ±0.5% |
| Frequency Regulation: No Load to Full Load | Isochronous under varying loads from no load to 100% rated load |
| Sound Level dB(A) Full load at 23 feet | 70 |
| Piston Speed | 1500 ft/min (7.62 m/s) |
| Overspeed Limit | 2070 rpm |
| Oil Capacity | 5.42 gallons (20.5 liters) |
| Fan Load | 5.9 hp (4.4 kW) |
| Coolant Capacity (with radiator) | 6.55 gallons (24.8 liters) |
| Coolant Flow Rate (per minute) | 58 gallons (218 liters) |
| Gas Flow (full load) | 593 cfm (16.8 m3/min) |
| Maximum Back Pressure | 52 in. H2O (13 kPa) |
| Max. Lifting Point Capacity | 14,050 lb. (6,370 kg) |
Dimensions
| Dry Weight | 5,137 lbs. (2,330 kg) |
| Wet Weight | 6,460 lbs. (2,930 kg) |

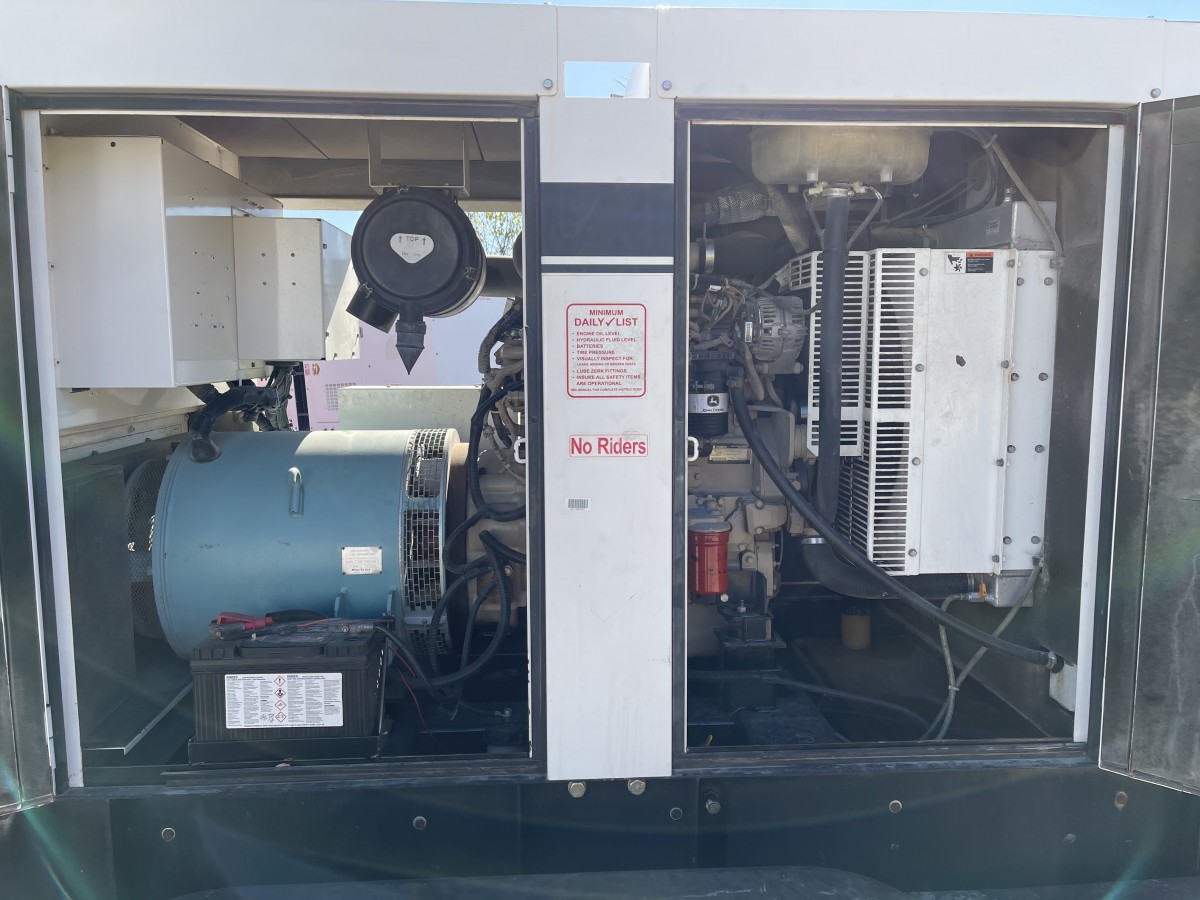

2012 Multiquip DCA125SSJU4I Generator
