Item Specifications
Category
Condition
Used
Item Number
#1419
Make
multiquip
Model
dca220ssju4f
Year
2016
Industry
electrical
Equipment Type
generators
Location
Dickinson, TX
Serial
80*****
Hours
2,328
Also Available In
TX
Item Description

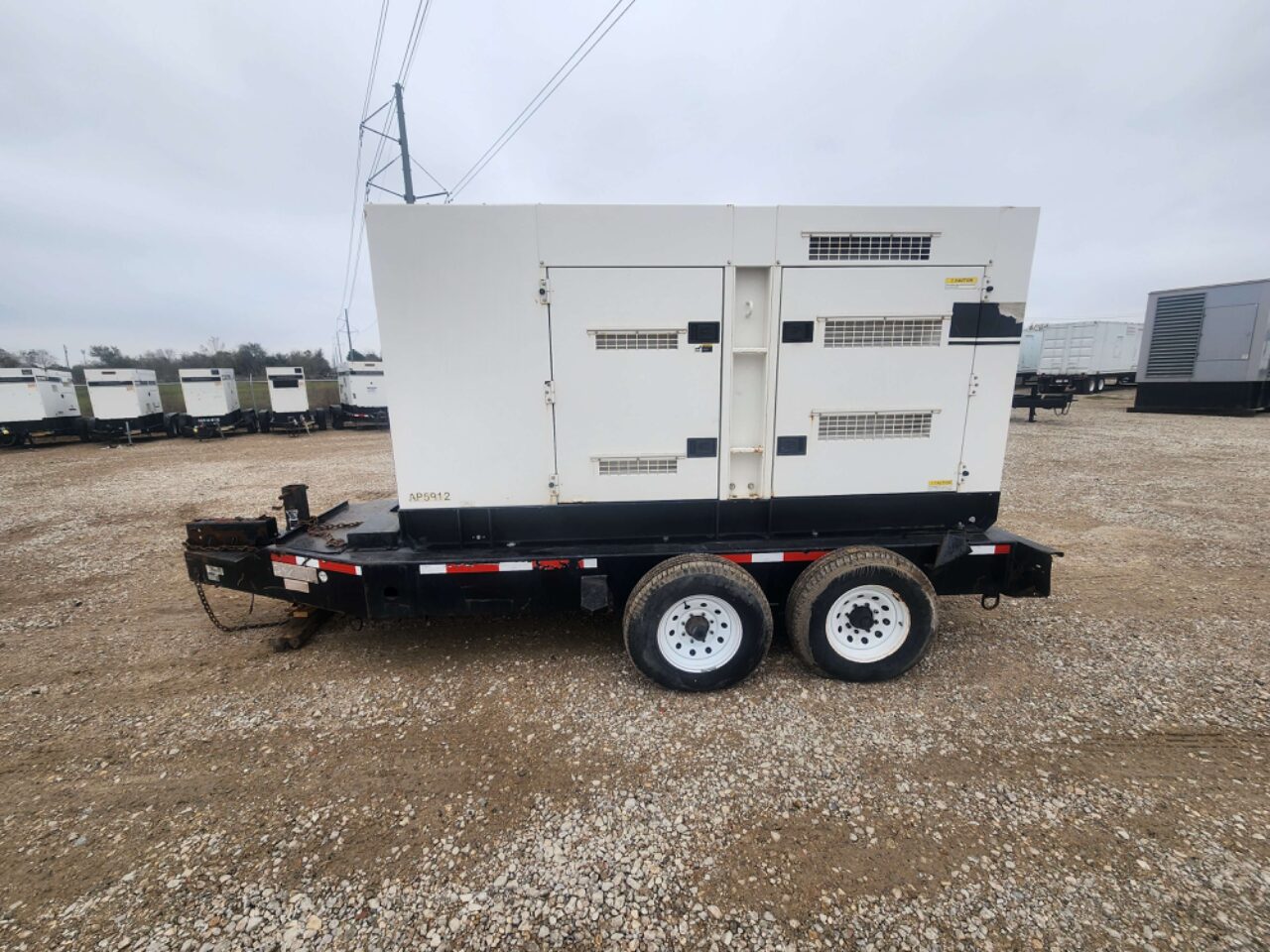

This 2016 Multiquip DCA220SSJU4F generator supplies power for construction sites, industrial equipment, and backup applications. Its John Deere diesel engine allows operation without utility power. Selectable voltage settings accommodate different electrical requirements. Mileage and/or engine hours are approximate and subject to change. Please contact your sales representative for the most current readings.
Specifications
General
| Year | 2016 |
| Make | multiquip |
| Model | dca220ssju4f |
| Hours | 2,328 |
| Serial Number | 80***** |
| Condition | Used |
| Armature Connection | Star with Neutral |
| Phase | 3 |
| Standby Output | 194 KW (242 KVA) |
| Prime Output | 176 KW (220 KVA) |
| 3Ø Voltage (L-L/L-N) (Voltage Change-Over Bus Bars at 3Ø 240/139) | 208Y/120, 220Y/127, 240Y/139 |
| 3Ø Voltage (L-L/L-N) (Voltage Change-Over Bus Bars at 3Ø 480/277) | 416Y/240, 440Y/254, 480Y/277 |
| 1Ø Voltage (L-L/L-N) (Voltage Change-Over Bus Bars at 1Ø 240/120) | N/A |
| Power Factor | 0.8 |
| Frequency | 60 Hz |
| No. of Poles | 4 |
| Excitation | Brushless with AVR |
| Frequency Regulation: Steady State | ±0.25% of mean value for constant loads from no load to full load |
| Insulation | Class F |
| Make / Model | John Deere / 6068HFG09 |
| Starting System | Electric |
| Bore x Stroke | 4.17 x 4.99 in. (106 x 127 mm) |
| BMEP | 316 psi (2180 kPa) |
| Compression Ratio | 16.7 : 1 |
| Maximum Inlet Restriction (Hg) | 8.9 in (225 mm) |
| Heat Rejection to Coolant (per minute) | 8,652 Btu (9.13 MJ) |
| Maximum Coolant Friction Head | 7.3 psi (50 kPa) |
| Maximum Coolant Static Head | 78.7 ft. (24.1 m) |
| Ambient Temperature Rating | 104°F (40°C) |
| Combustion Air | 537 cfm (15.2 m3/min) |
| Maximum Air Cleaner Restriction | 25 in. H2O (6.25 kPa) |
| Gas Temperature | 831°F (444°C ) |
| 1Ø 120 Volt | 488.9 Amps (4 wire) |
| 1Ø 240 Volt | 244.4 Amps (4 wire) |
| 3Ø 240 Volt | 529 Amps |
| 3Ø 480 Volt | 264 Amps |
| Main Line Circuit Breaker Rating | 600 Amps |
| Over Current Relay Trip Set Point (480V Mode Only) | 256 Amps |
Engine & Powertrain
| Generator Design | Revolving field, self-ventilated Drip-proof, single bearing |
| Generator RPM | 1800 |
| Emissions | EPA Tier 4 Final Certified |
| Engine Design | 4-cycle, water cooled, direct injection, turbocharged, charged air cooled, EGR, DOC, DPF and SCR. |
| Displacement | 415 in3 (6.8 liters) |
| No. cylinders | 6 |
| Gross Engine Power Output | 322 hp (241 kW) |
| Engine Speed | 1800 rpm |
| Battery | 12V 150Ah x 1 |
| Recommended Fuel | ASTM-D975-No.1 & No.2-D* |
| Maximum Fuel Flow (per hour) | 44.3 gallons (168 liters) |
| Fuel Tank Capacity | 69 gallons (260 liters) |
| Fuel Consumption at full load (gph) | 12.5 |
| Fuel Consumption at full load (lph) | 47.1 |
| Fuel Consumption at 3/4 load (gph) | 9.7 |
| Fuel Consumption at 3/4 load (lph) | 36.4 |
| Fuel Consumption at 1/2 load (gph) | 6.9 |
| Fuel Consumption at 1/2 load (lph) | 26.1 |
| Fuel Consumption at 1/4 load (gph) | 4.4 |
| Fuel Consumption at 1/4 load (lph) | 16.7 |
| Heat Rejection from Engine (per minute) | 882.8 Btu (0.93 MJ) |
| Alternator Cooling Air | 1459 cfm (41.3 m3/min) |
| Radiator Cooling Air | 9450 cfm (267.5 m3/min) |
Working Range
| Voltage Regulation (No load to full load) | ±0.5% |
| Frequency Regulation: No Load to Full Load | Isochronous under varying loads from no load to 100% rated load |
| Sound Level dB(A) Full load at 23 feet | 74 |
| Piston Speed | 1500 ft/min (7.62 m/s) |
| Overspeed Limit | 2070 rpm |
| Oil Capacity | 8.18 gallons (31 liters) |
| DEF Tank Capacity | 14.5 gallons (55 liters) |
| Fan Load | 19.4 hp (14.5 kW) |
| Coolant Capacity (with radiator) | 10.3 gallons (39 liters) |
| Coolant Flow Rate (per minute) | 111 gallons (420 liters) |
| Gas Flow (full load) | 1,123 cfm (31.8 m3/min) |
| Maximum Back Pressure | 70 in. H2O (23.96 kPa) |
| Max. Lifting Point Capacity | 14,050 lbs. (6,373 kg) |
Dimensions
| Dry Weight | 7,695 lbs. (3,490 kg) |
| Wet Weight | 8,489 lbs. (3,850 kg) |
2016 Multiquip DCA220SSJU4F Generator
