Item Specifications
Category
Condition
Used
Item Number
#1341
Make
jlg
Model
2646es
Year
2016
Industry
aerial
Equipment Type
scissor lifts electric
Location
Corpus Christi, TX
Serial
M2000*****
Also Available In
TX
Item Description

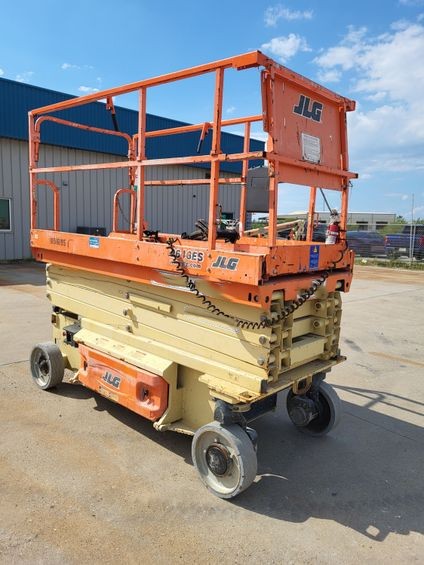

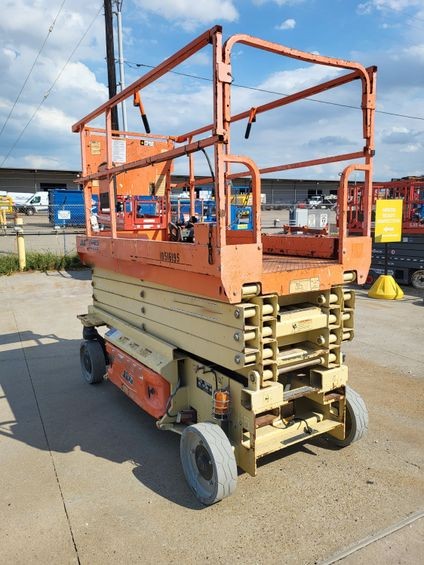

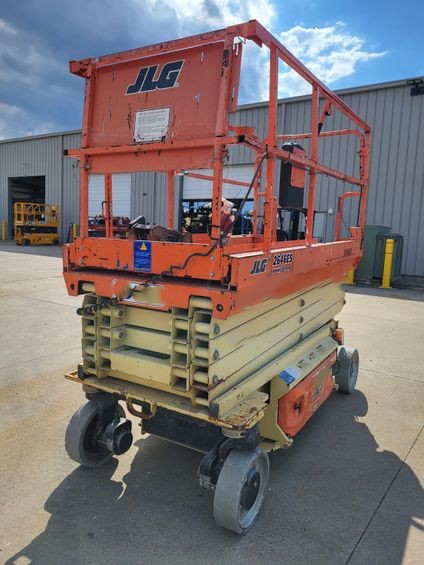

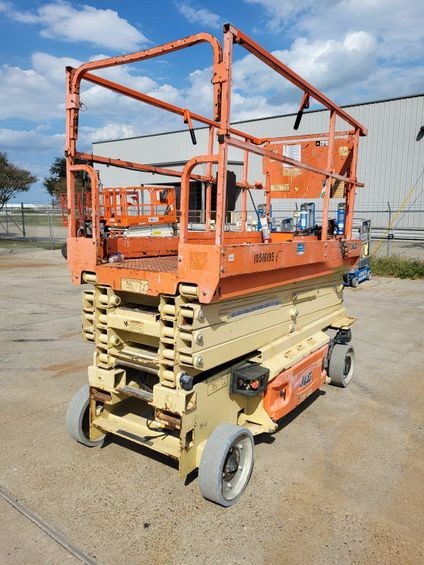

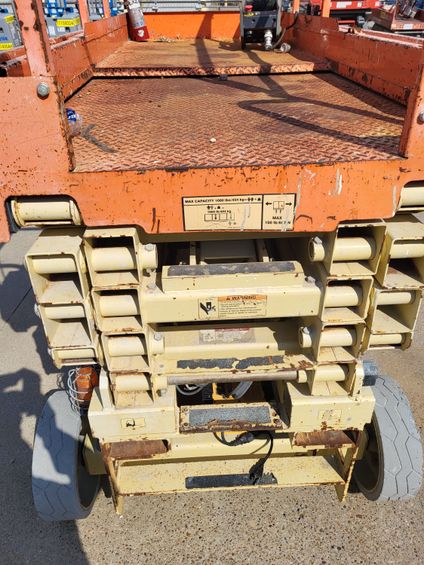

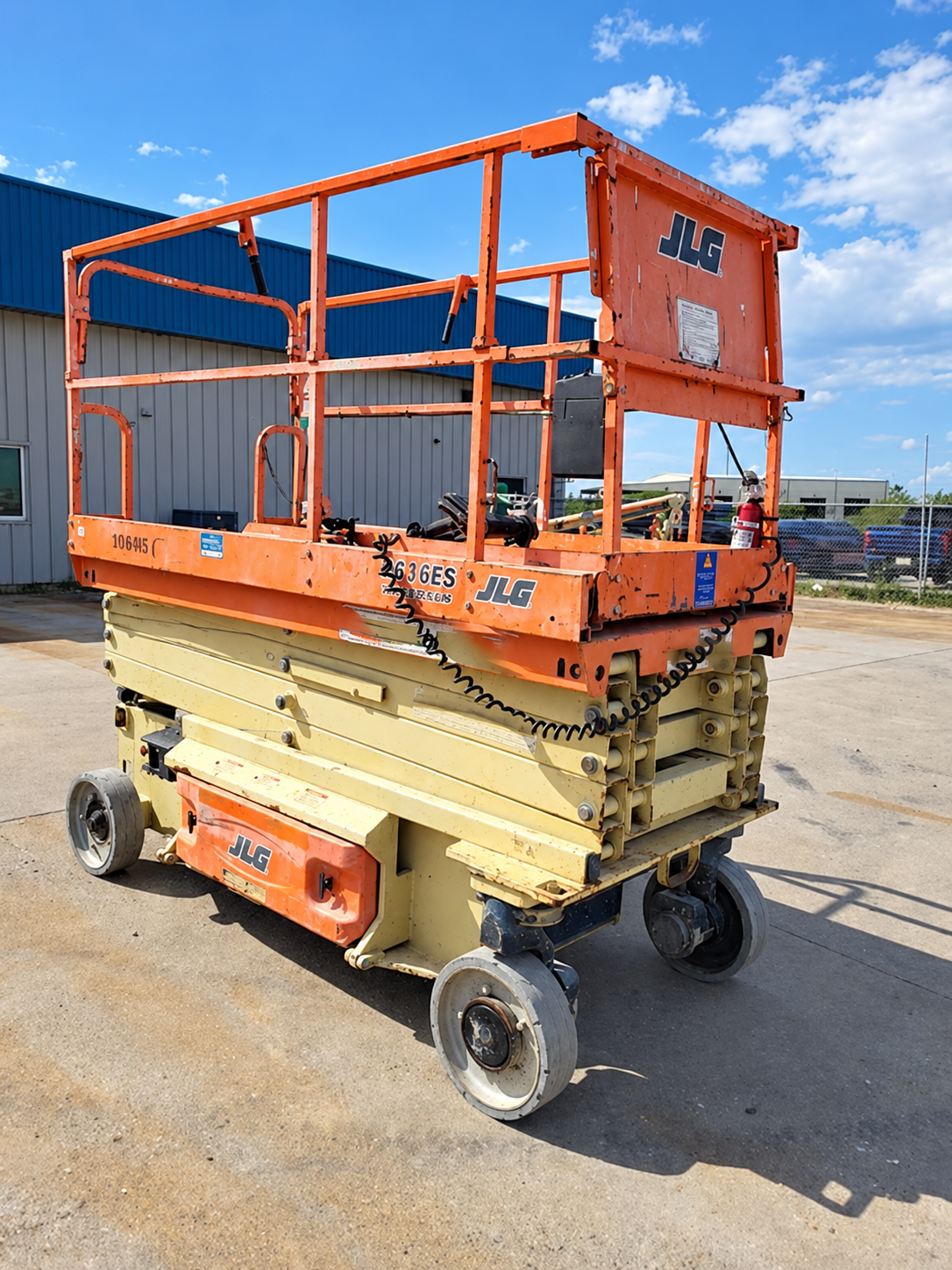

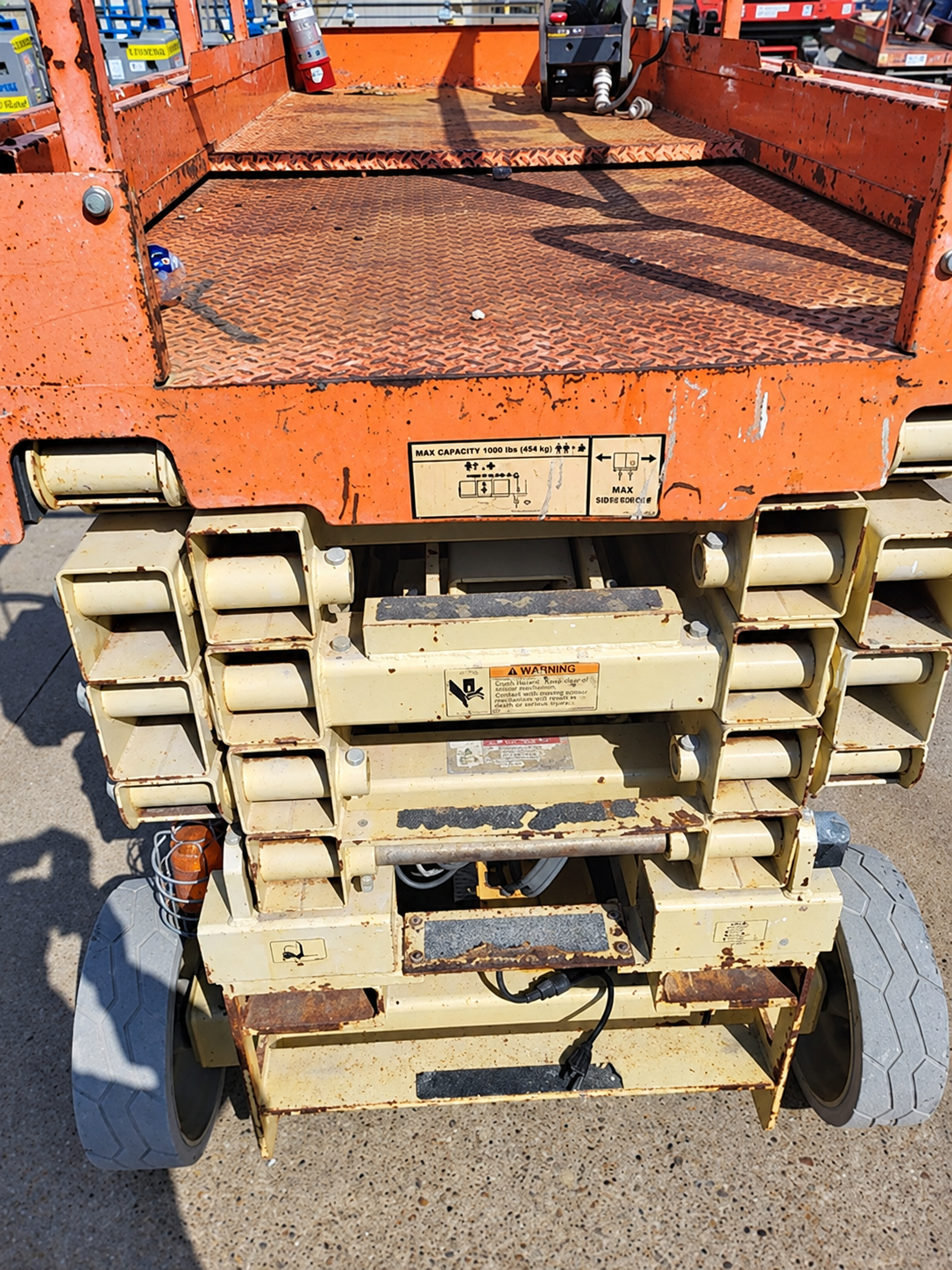

This 2016 JLG 2646ES electric scissor lift provides vertical access for overhead work. Its roll-out deck extends the platform work area, while electric drive supports operation inside buildings. Mileage and/or engine hours are approximate and subject to change. Please contact your sales representative for the most current readings.
Specifications
General
| Year | 2016 |
| Make | jlg |
| Model | 2646es |
| Hours | 286.9 |
| Serial Number | M2000***** |
| Condition | Used |
| Power Source | 24V Electric |
| Batteries | 4x6V, 220 amp-hr |
| Charger | 20 Amp Automatic |
Working Range
| Platform Capacity (2646ES) | 1,000 lb / 454 kg |
| Lift/Lower Time (2646ES) | 41/50 seconds |
| Drive Speed, Lowered (2646ES/3246ES) | 2.50 mph / 4.00 km/h |
| Gradeability | 25% |
| Hydraulic Reservoir Capacity (2646ES/3246ES) | 1.7 gal (6.4 L) |
| Platform Size (2646ES/3246ES) | 44 x 98.5 in / 1.12 x 2.5 m |
Undercarriage & Attachments
| Tire Size/Type (2032ES/2632ES/2646ES/3246ES) | 16 x 5 in Non-Marking Solid |
Dimensions
| Platform Height - Elevated (2646ES) | 26 ft (7.92 m) |
| Weight (2646ES/3246ES) | 4,635 lb / 2,103 kg |
| Ground Bearing Pressure (2646ES/3246ES) | 90 psi / 6.32 kg/cm2 |
| Turning Radius (Inside) | Zero |
| Turning Radius (Outside, 2646ES/3246ES) | 95.1 in / 2.41 m |
| Platform Height - Lowered (2646ES) | 49.5 in / 1.26 m |
| Overall Height, Rails Lowered (2646ES/3246ES) | 6 ft 5.5 in / 1.97 m |
| Overall Width (2646ES/3246ES) | 46 in / 1.17 m |
| Overall Length (2646ES/3246ES) | 8 ft 2.5 in / 2.5 m |
| Wheelbase (2646ES/3246ES) | 6 ft 10 in / 2.09 m |
| Ground Clearance (2646ES/3246ES) | 5 in / 12.7 cm |

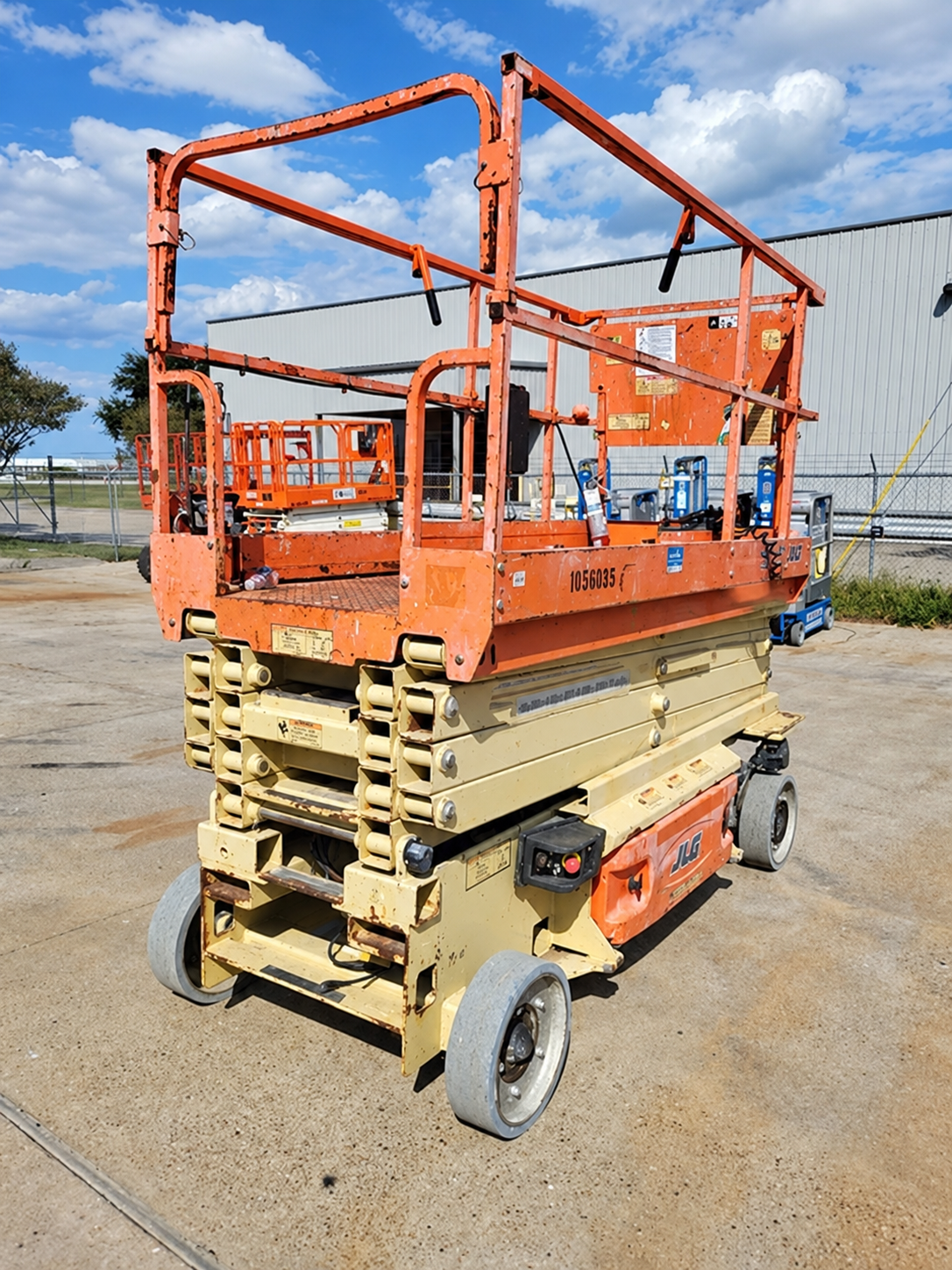

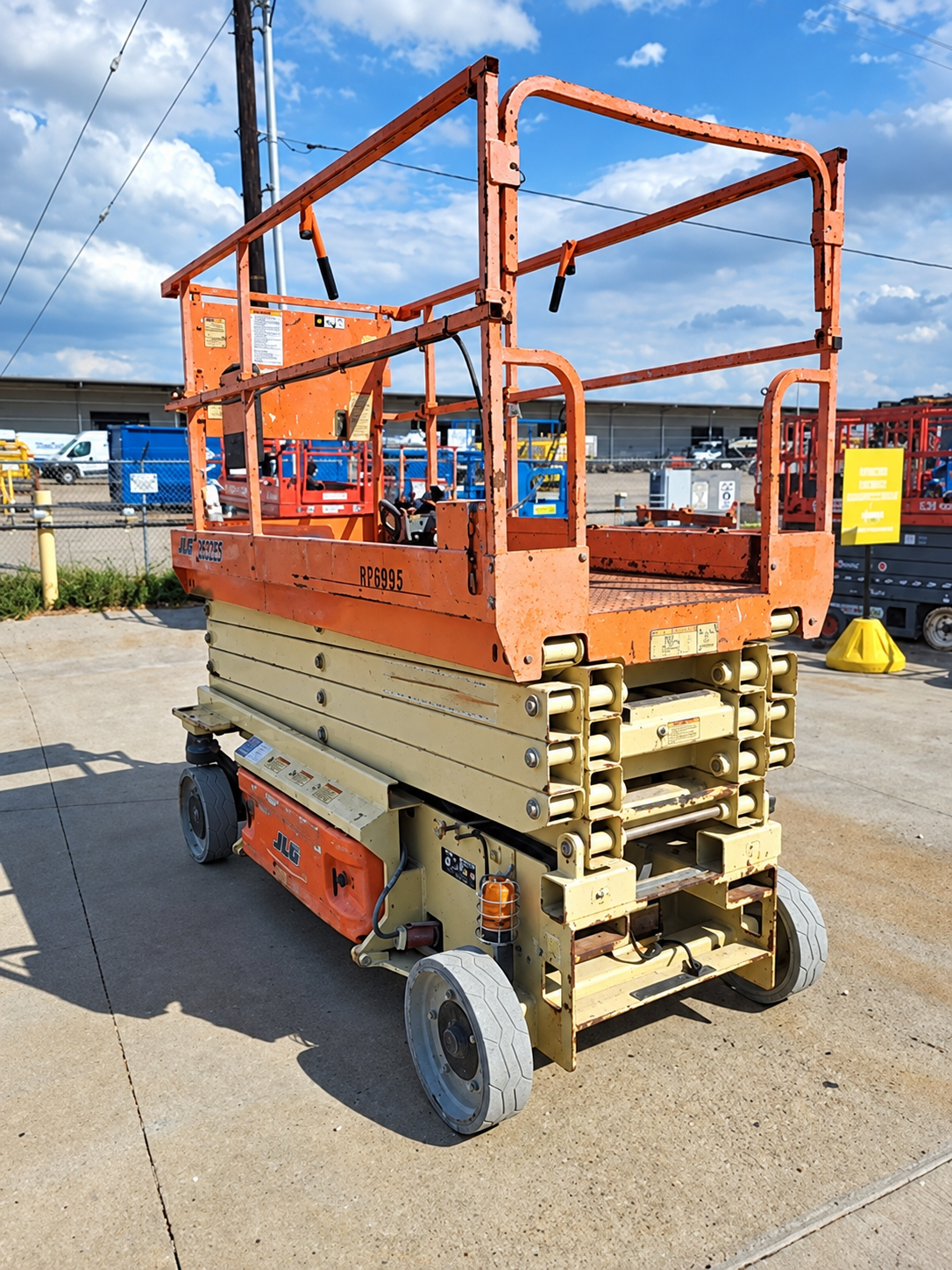

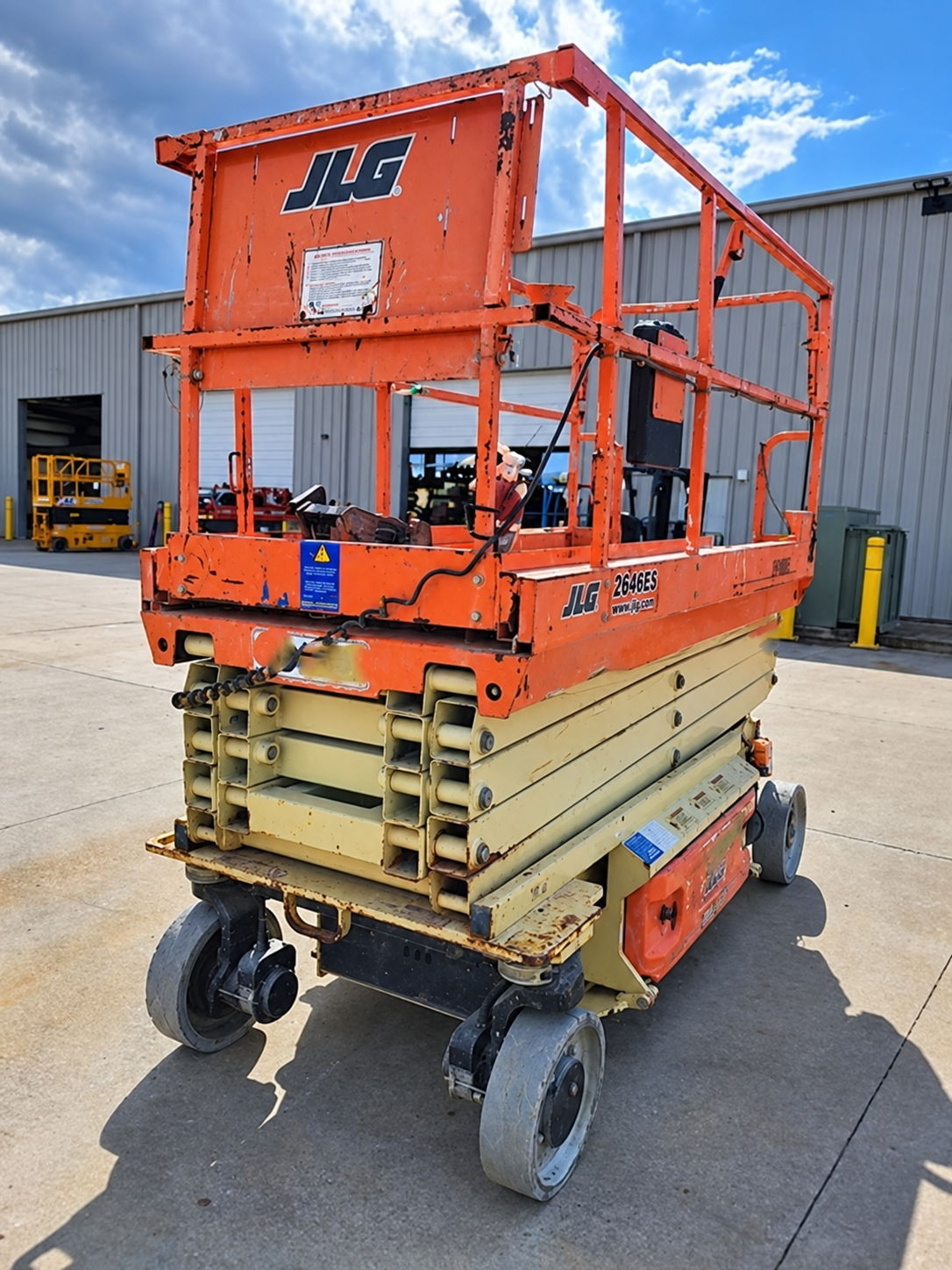

2016 JLG 2646ES Electric Scissor Lift
