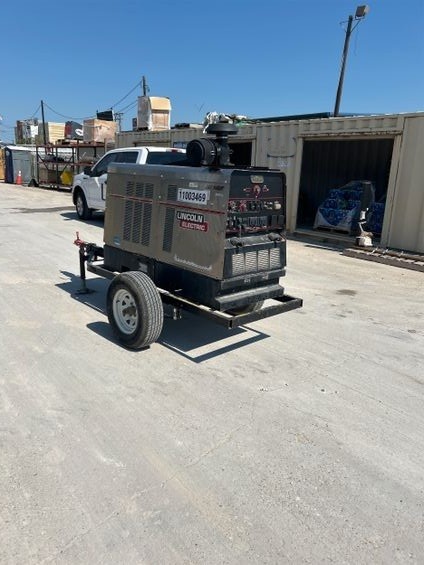

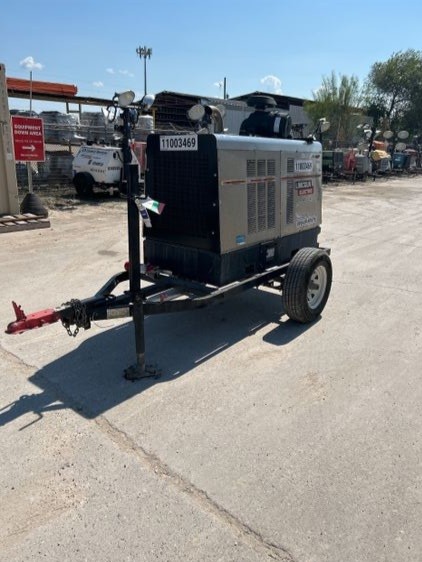

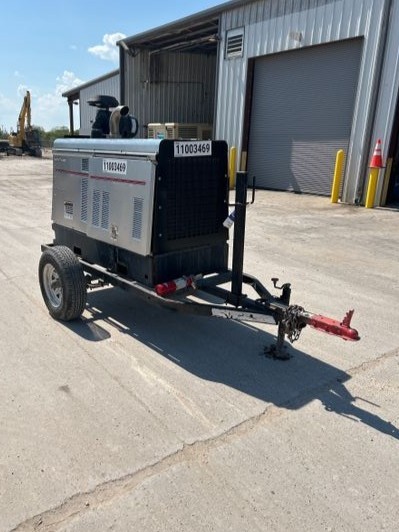

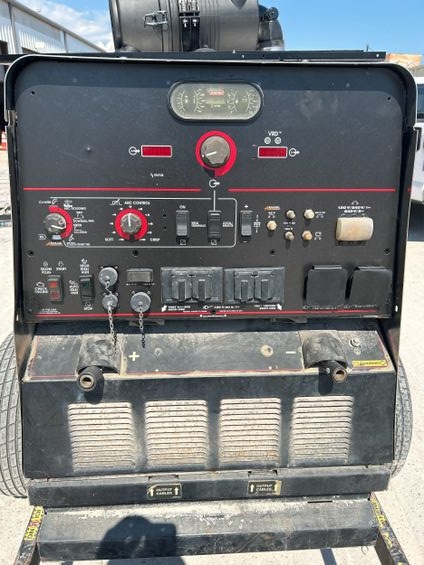

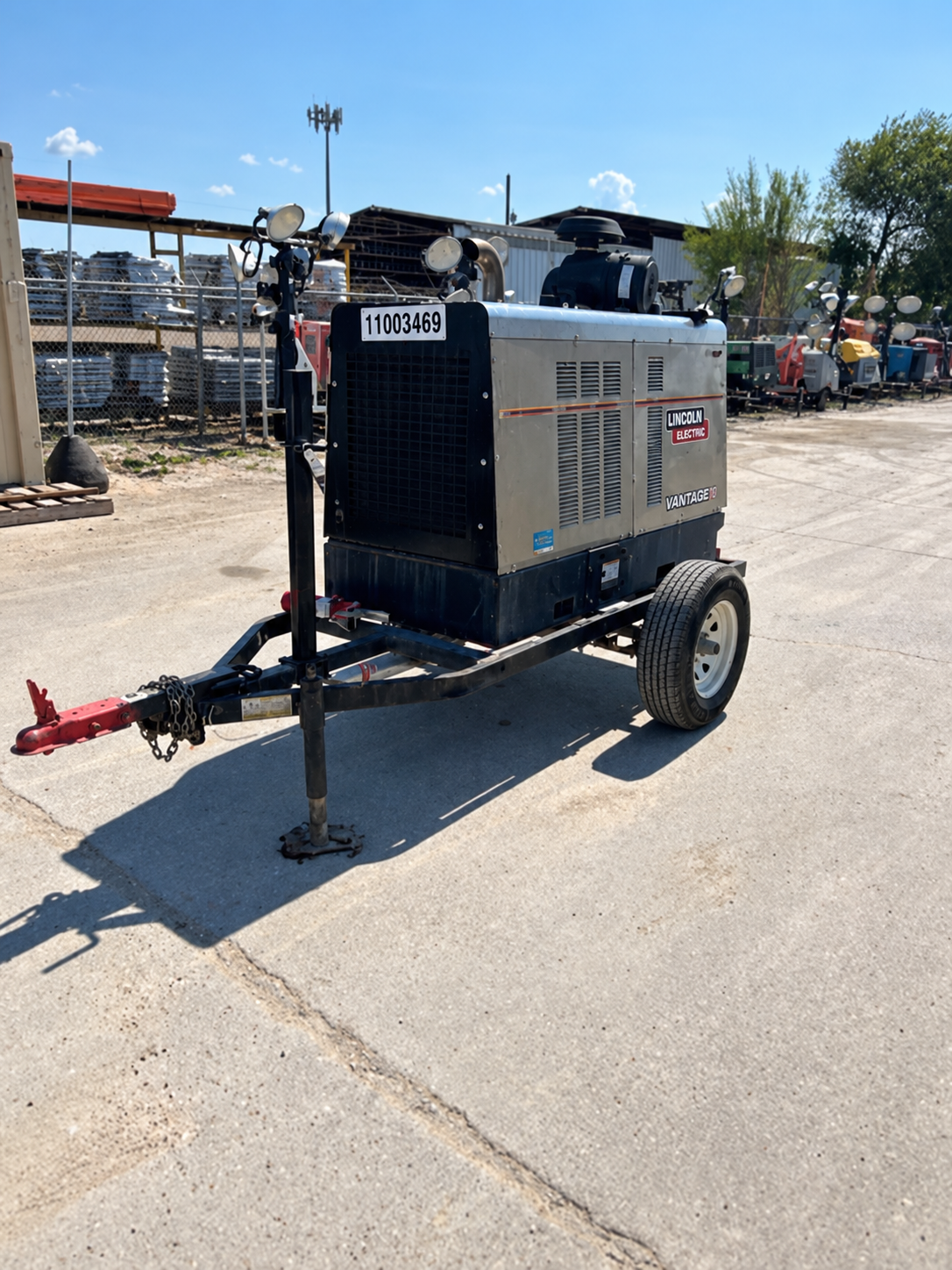

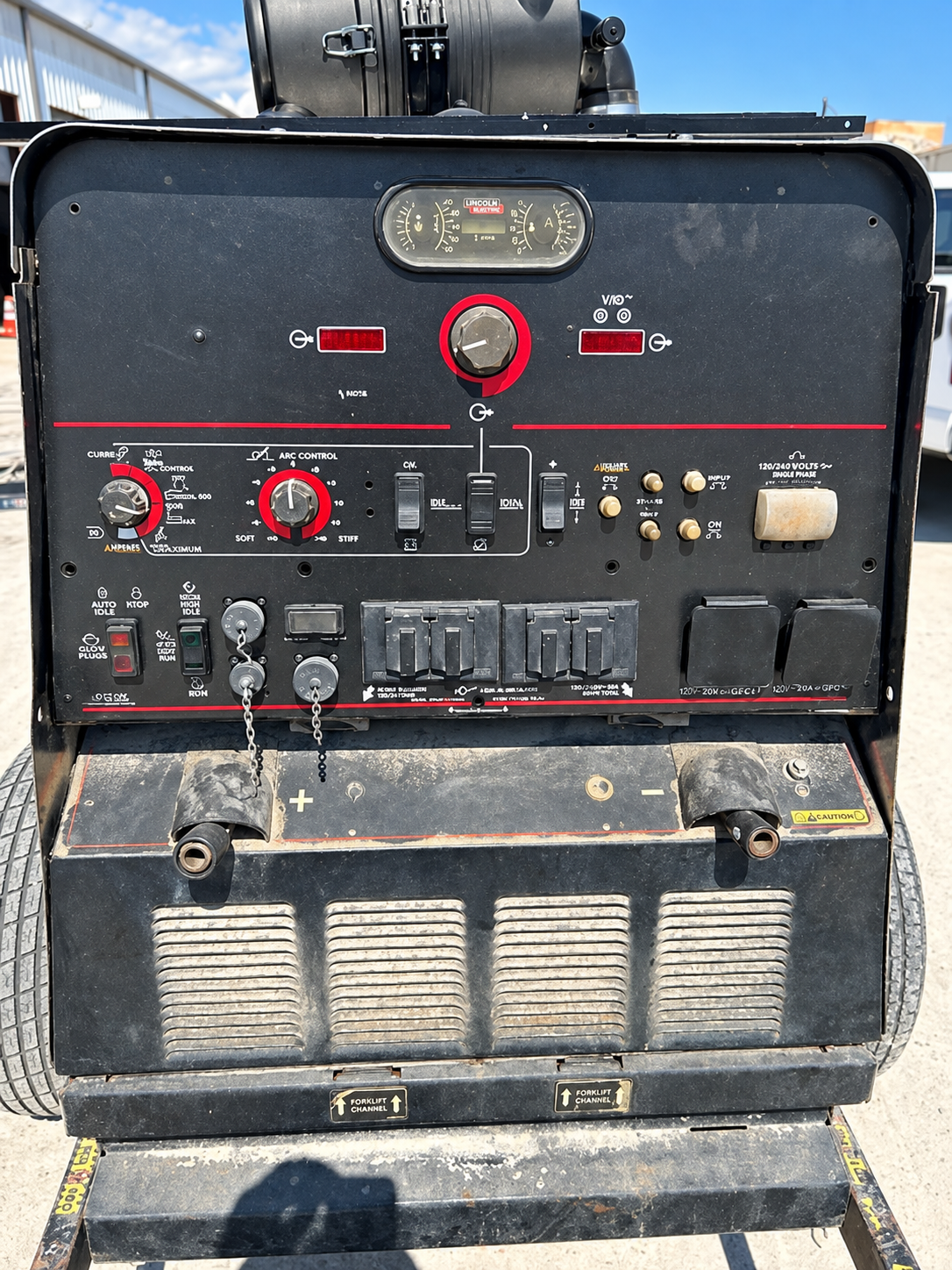

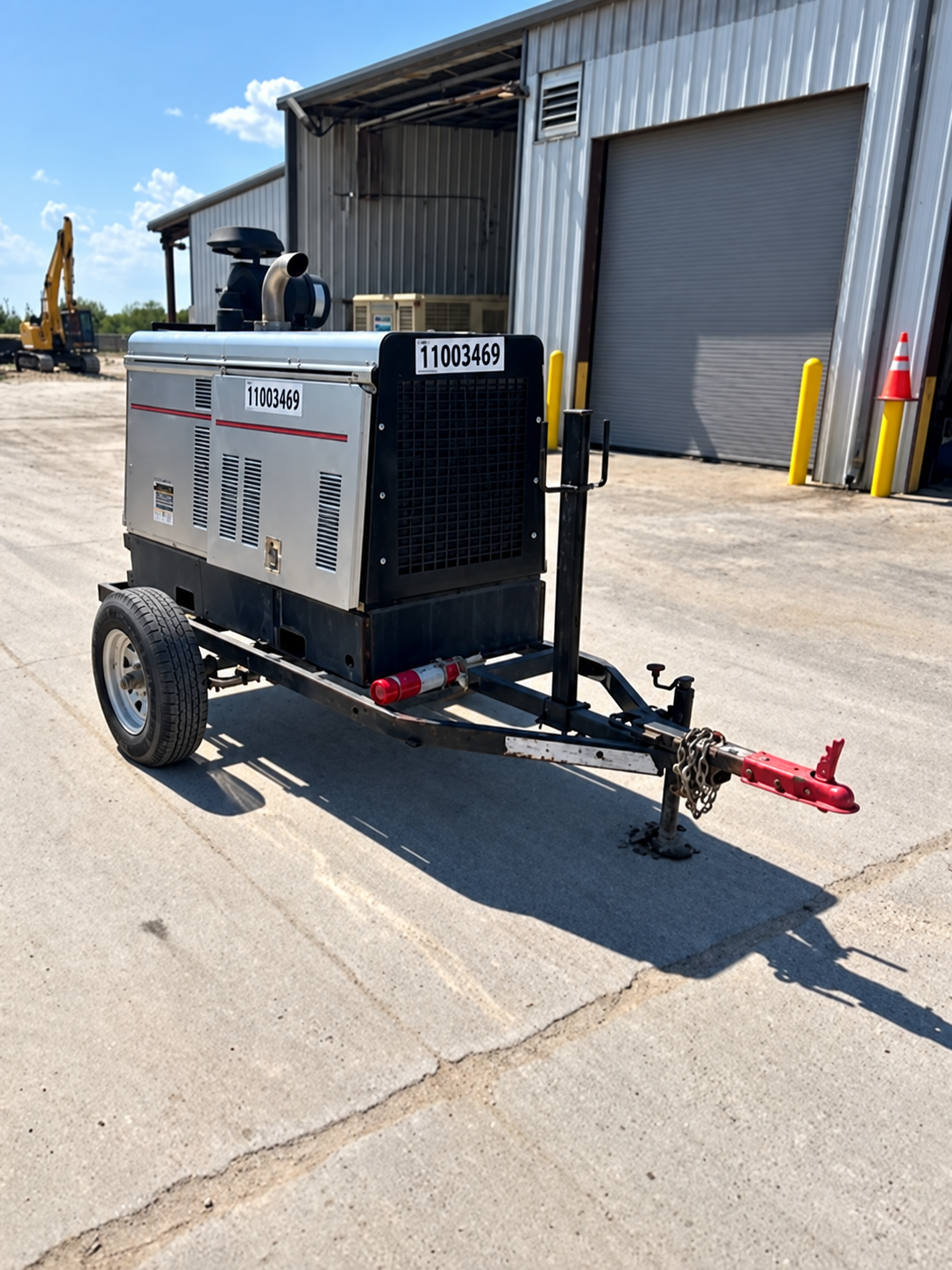

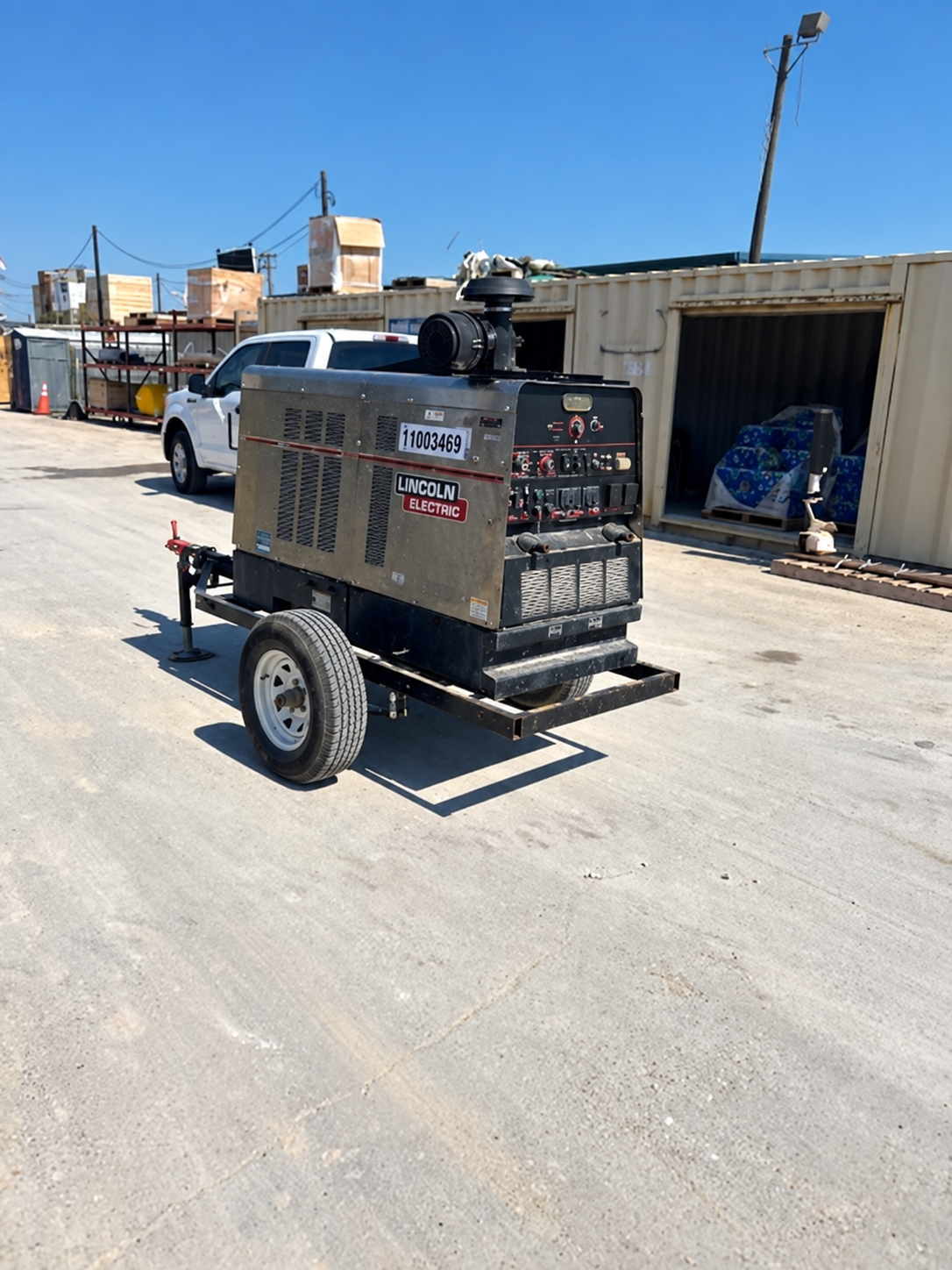

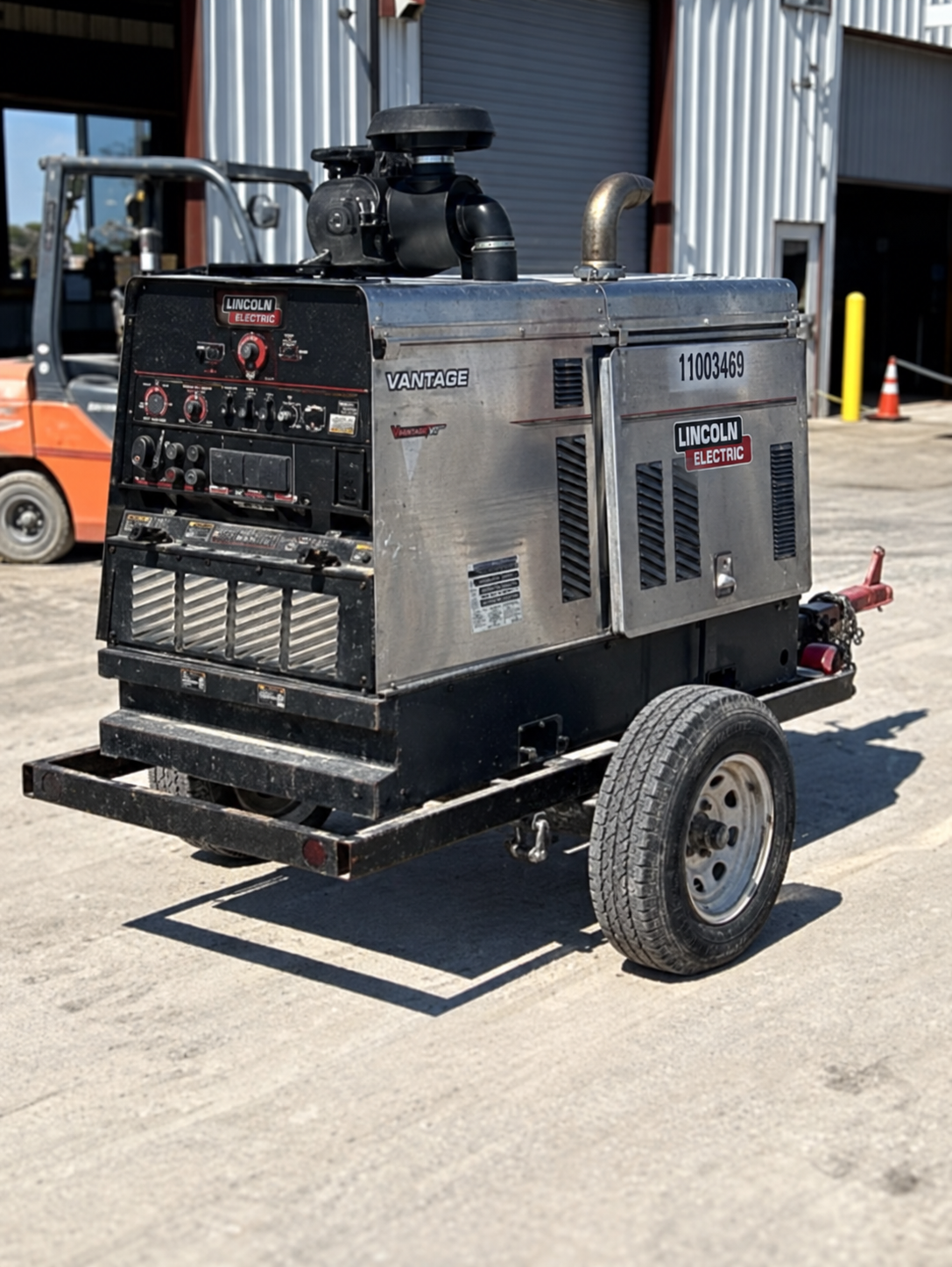

Equipment Details Year: 2019 Manufacturer: Lincoln Electric Model: Vantage 549 Equipment Type: Engine-Driven Welder/Generator Serial Number: U0190600242 Hours: 3,412 Showing Location: Corpus Christi, Texas Fuel Type: Diesel Mounting Configuration: Trailer Mounted Fleet Status: Active Rental Fleet Welding Output IEC-Rated Output: Approximately 525 amps at 41 VDC, 100% Duty Cycle Maximum Output: 575 amps at 38 VDC, 60% Duty Cycle CC Stick Range: Approximately 30–575 amps Downhill-Pipe Range: Approximately 40–350 amps Touch Start TIG® Range: Approximately 20–350 amps CV Wire Range: Approximately 10–45 volts Arc-Gouging Range: Approximately 60–575 amps Maximum Carbon-Gouging Electrode: Up to approximately ⅜ in Maximum Open-Circuit Voltage: Approximately 70 VDC Welding Processes Stick welding Downhill pipe welding MIG welding Flux-cored welding Touch Start TIG® welding Arc gouging Wire-feeder operation Advanced processes with compatible Lincoln Electric equipment and ArcLink® communication Auxiliary Generator Power Single-Phase Output: Approximately 11 kW Continuous Single-Phase Voltage: 120/240V AC Three-Phase Output: Approximately 19 kW Continuous Three-Phase Voltage: 240V AC Frequency: 60 Hz Suitable for operating grinders, lights, pumps, plasma cutters, and compatible inverter welders Available auxiliary power is reduced when welding under load Exact receptacle and distribution configuration should be confirmed by inspection Engine Specifications Manufacturer literature for the Vantage 549 identifies the standard factory engine as follows: Manufacturer: Deutz Model: TD2.9L4 Emissions Compliance: EPA Tier 4 Final Configuration: 4-Cylinder, Turbocharged, Liquid-Cooled Diesel Displacement: Approximately 2.9 L / 178 cu in Rated Power: Approximately 49.4 hp Operating Speed: 1,800 RPM High Idle Low-Idle Speed: Approximately 1,525 RPM Fuel Capacity: Approximately 25 gal Oil Capacity: Approximately 2.25 gal Cooling-System Capacity: Approximately 2.5 gal Engine verification note: The submitted unit information identifies a Cummins Tier 4 Final diesel engine. Lincoln Electric’s published Vantage 549 specifications identify a Deutz TD2.9L4 engine. The installed engine manufacturer and model should therefore be confirmed directly from the engine and machine data plates before the listing is finalized. Dimensions and Weight Specifications below apply to the welder/generator only and exclude the trailer: Length: Approximately 69 in Width: Approximately 32.9 in, including access door Height: Approximately 42 in Height to Top of Air Intake: Approximately 58.1 in Dry Machine Weight: Approximately 1,662 lb, excluding fuel Complete Trailer-Mounted Weight: To Be Verified Trailer Dimensions and Axle Rating: To Be Verified Construction and Controls Corrosion-resistant stainless-steel exterior panels Heavy-duty aluminum radiator Digital welding meters Weld-mode selector Fine output and voltage adjustment Remote-control connection ArcLink® communication capability Automatic engine-idle system Engine-hour meter Fuel, oil-pressure, and coolant-temperature monitoring Automatic low-oil-pressure and high-temperature shutdown protection Lockable engine-service access Trailer Equipment Single-axle or tandem-axle configuration to be verified Hitch type and size to be verified Safety chains Trailer lighting Fenders Tongue jack Tire size and condition subject to inspection Trailer VIN, GVWR, brake equipment, registration status, and roadworthiness to be verified Condition and Fleet Notes Hours showing: 3,412 Unit is located in Corpus Christi, Texas. Unit is part of an active rental fleet. Hours may continue to increase while the unit remains available for rent. Confirm the installed engine, welding leads, electrode holder, work clamp, remote control, wire feeder, receptacles, trailer equipment, and other included accessories. Welding output, generator output, engine operation, emissions system, trailer condition, and safety systems should be operationally tested before purchase. Cosmetic and operating condition remain subject to physical inspection. Pricing, mileage and/or engine hours are approximate and subject to change. Equipment specifications, battery condition, configuration, included components, operating condition, and availability are subject to verification. Please contact your sales representative for the most current information.
